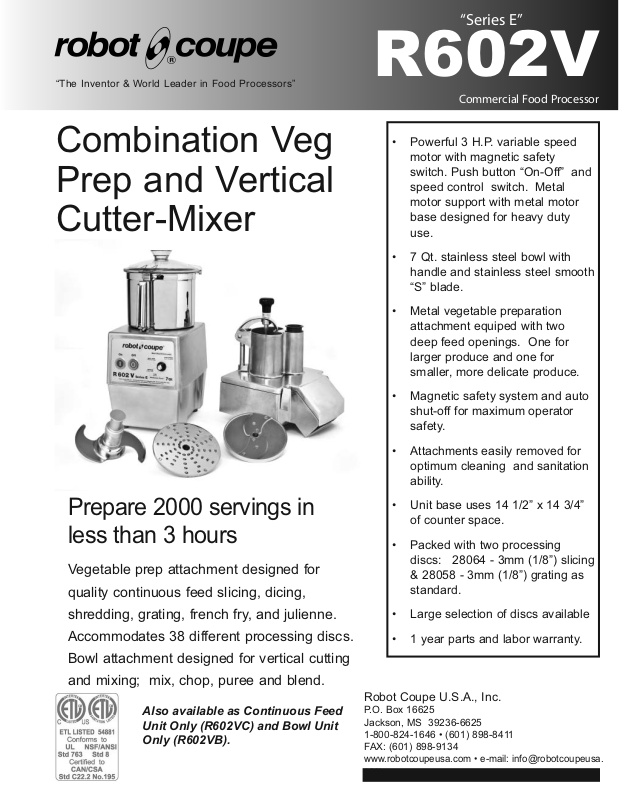

Robot Coupe R602V Specifications
“The Inventor & World Leader in Food Processors”
“Series E”
R602V
Commercial Food Processor
Combination Veg
Prep and Vertical
Cutter-Mixer
• Powerful 3 H.P. variable speed
motor with magnetic safety
switch. Push button “On-Off” and
speed control switch. Metal
motor support with metal motor
base designed for heavy duty
use.
• 7 Qt. stainless steel bowl with
handle and stainless steel smooth
“S” blade.
• Metal vegetable preparation
attachment equiped with two
deep feed openings. One for
larger produce and one for
smaller, more delicate produce.
• Magnetic safety system and auto
shut-off for maximum operator
safety.
Prepare 2000 servings in
less than 3 hours
Vegetable prep attachment designed for
quality continuous feed slicing, dicing,
shredding, grating, french fry, and julienne.
Accommodates 38 different processing discs.
Bowl attachment designed for vertical cutting
and mixing; mix, chop, puree and blend.
Also available as Continuous Feed
Unit Only (R602VC) and Bowl Unit
Only (R602VB).
• Attachments easily removed for
optimum cleaning and sanitation
ability.
• Unit base uses 14 1/2” x 14 3/4”
of counter space.
• Packed with two processing
discs: 28064 - 3mm (1/8”) slicing
& 28058 - 3mm (1/8”) grating as
standard.
• Large selection of discs available
• 1 year parts and labor warranty.
Robot Coupe U.S.A., Inc.
P.O. Box 16625
Jackson, MS 39236-6625
1-800-824-1646 • (601) 898-8411
FAX: (601) 898-9134
www.robotcoupeusa.com • e-mail: info@robotcoupeusa.
com
“The Inventor & World Leader in Food Processors”
“Series E”
R602V
Commercial Food Processor
Specifications
STANDARD MODEL: includes motor base unit with 7 Qt.
stainless steel bowl with handle and continuous feed
attachment kit, one 1/8” (3mm) slicing disc and one 1/8”
(3mm) medium grating disc.
ELECTRICAL REQUIREMENTS: 120V, 60Hz, 15 Amps, single
phase. NEMA # 5-15P
SWITCHING: Control panel with push-type “on”/ “off “
buttons and computerized variable speed selection
switch.
* For Series D & E machines only
Slicing Discs
28062 1/32” (1mm)
28063 5/64” (2mm)
28064 1/8” (3mm)
28004 5/32” (4mm)
28128* 3/16” (5mm)
28129* 5/16” (8mm)
28130* 3/8” (10mm)
28131* 9/16” (14mm)
28132* 25/32” (20mm)
28133* 1” (25mm)
Ripple Cut Slicers
27068 5/64” (2mm)
27069 1/8” (3mm)
27070 3/16” (5mm)
MOTOR: 3 HP, 370 - 3450 RPM
WEIGHT: 92 lbs. net, 99 lbs. approximate shipping weight.
OPTIONAL EQUIPMENT: 36 additional processing discs
and single or multiple disc rack or wall-mounted disc rack.
STANDARDS: ETL electrical & sanitation, cETL (Canada)
PROCESSING DISCS
Grating Discs
28056 1/16” (1.5mm)
28057 5/64” (2mm)
28058 1/8” (3mm)
28136 5/32” (4mm)
28163 3/16” (5mm)
28164 9/32” (7mm)
28165 11/32” (9mm)
28055 Fine Pulping
28061 Hard Cheese Grate
French Fry Kits**
28134* 5/16” (8mm)
28135* 3/8” (10mm)
Romaine Lettuce Kit
28133/104031 2”
Julienne Discs
28051 5/64” x 5/64” (2mm x 2mm)
27072 5/64” x 5/32” (2mm x 4mm)
27066 5/64” x 1/4” (2mm x 6mm)
27067 5/64” x 5/16” (2mm x 8mm)
28101 5/64” x 5/16” (3mm x 3mm)
28052 5/32” x 5/32” (4mm x 4mm)
28053 1/4” x 1/4” (6mm x 6mm)
28054 5/16” x 5/16” (8mm x 8mm)
Dicing Kits
28110 3/16” x 3/16” (5mm x 5mm)
28111 5/16” x 5/16” (8mm x 8mm)
28112 3/8” x 3/8” (10mm x 10mm)
28113 9/16” x 9/16” (14mm x 14mm)
28114 25/32” x 25/32” (20mm x 20mm)
28115 1” x 1” (25mm x 25mm)
Robot Coupe U.S.A., Inc.
P.O. Box 16625
Jackson, MS 39236-6625
1-800-824-1646
(601) 898-8411
FAX: (601) 898-9134
www.robotcoupeusa.com
e-mail: info@robotcoupeusa.com
Continuous
Feed
Unit
Distributed by:
Robot Coupe reserves the right to change specifications. Call the factory for latest specifications and recommendations.
© 2003 Robot Coupe U.S.A., Inc. LItho in U.S.A. WKK 06/03
Bowl
Unit
