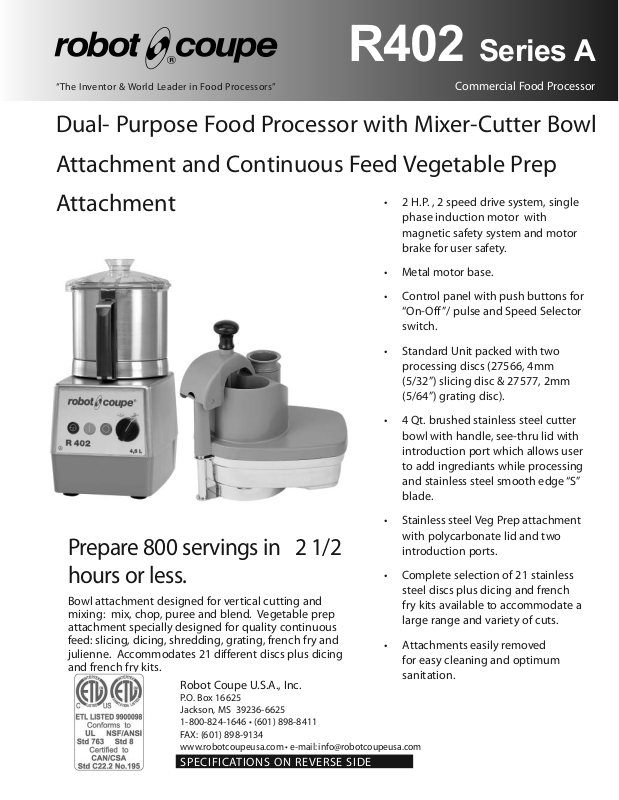

Robot Coupe R402 A, R402 Specifications
R402 Series A
“The Inventor & World Leader in Food Processors”
Commercial Food Processor
Dual- Purpose Food Processor with Mixer-Cutter Bowl
Attachment and Continuous Feed Vegetable Prep
Attachment
• 2 H.P. , 2 speed drive system, single
phase induction motor with
magnetic safety system and motor
brake for user safety.
• Metal motor base.
• Control panel with push buttons for
“On-Off”/ pulse and Speed Selector
switch.
• Standard Unit packed with two
processing discs (27566, 4mm
(5/32”) slicing disc & 27577, 2mm
(5/64”) grating disc).
Prepare 800 servings in 2 1/2
hours or less.
Bowl attachment designed for vertical cutting and
mixing: mix, chop, puree and blend. Vegetable prep
attachment specially designed for quality continuous
feed: slicing, dicing, shredding, grating, french fry and
julienne. Accommodates 21 different discs plus dicing
and french fry kits.
Robot Coupe U.S.A., Inc.
P.O. Box 16625
Jackson, MS 39236-6625
1-800-824-1646 • (601) 898-8411
FAX: (601) 898-9134
www.robotcoupeusa.com • e-mail: info@robotcoupeusa.com
SPECIFICATIONS ON REVERSE SIDE
• 4 Qt. brushed stainless steel cutter
bowl with handle, see-thru lid with
introduction port which allows user
to add ingrediants while processing
and stainless steel smooth edge “S”
blade.
• Stainless steel Veg Prep attachment
with polycarbonate lid and two
introduction ports.
• Complete selection of 21 stainless
steel discs plus dicing and french
fry kits available to accommodate a
large range and variety of cuts.
• Attachments easily removed
for easy cleaning and optimum
sanitation.
R402 Series A
“The Inventor & World Leader in Food Processors”
Specifications
STANDARD MODEL: Includes motor base unit with
continuous feed attachment, one 27566 - 5/32” (4mm)
slicing disc and one 27577 5/64” (2mm) medium grating
disc, 4 Qt. brushed stainless steel cutter bowl with stainless
steel smooth “S” blade.
ELECTRICAL REQUIREMENTS: 120V, 60Hz, 12 Amps, single
phase. Contact your local electrician for local code
requirements. NEMA 5-15 Plug.
SWITCHING: Control panel with push-type on/off /pulse
buttons and speed control switch.
MOTOR: Induction, 2 HP, 500/1600 RPM, fan-cooled.
WEIGHT: 39 lbs. net, 42 lbs. approximate shipping weight.
Commercial Food Processor
Slicing Discs
27051 - 1/32" (1mm)
27555 - 5/64" (2mm)
27086 - 1/8" (3mm)
27566 - 5/32" (4mm)
27087 - 3/16" (5mm)
27786 - 1/4" (6mm)
Ripple Cut Slicers
27621 - 5/64" (2mm)
Graters
27588 - 1/16" (1.5mm)
27577 -5/64" (2mm)
27511 - 1/8" (3mm)
27046 - 1/4" (6mm)
27632 - 11/32" (9mm)
27078 - Hard Cheese Grate
OPTIONAL EQUIPMENT: 19 additional processing discs plus 3
dicing kits and 2 french fry kits, and single or multiple disc rack
or wall-mounted disc rack.
Pulping
27079 - Fine pulping disc
27764 - Pulping disc
Julienne
27599 - 5/64" (2x2mm)
27080 - 5/64" x 5/32" (2x4mm)
27081 - 5/64"x1/4" (2x6mm)
27047 - 5/32" (4x4mm)
27610 - 1/4" (6x6mm)
27048 - 5/16" (8x8mm)
Dicing Kits
27113 - 5/16” (8 x 8mm)
27114 - 3/8” (10 x 10mm)
27298 - 15/32” (12 x 12mm)
French Fry Kits
27116 - 5/16” (8 x 8mm)
27117 - 3/8” (10 x 10mm)
Robot Coupe U.S.A., Inc.
P.O. Box 16625
Jackson, MS 39236-6625
1-800-824-1646
(601) 898-8411
FAX: (601) 898-9134
www.robotcoupeusa.com
e-mail: info@robotcoupeusa.com
STANDARDS: ETL electrical & sanitation, cETL (Canada)
Bowl
Unit
Continuous
Feed
Unit
Distributed by:
Robot Coupe reserves the right to change specifications. Call the factory for latest specifications and recommendations.
© 2010 Robot Coupe U.S.A., Inc. LItho in U.S.A. WKK 04/2010
