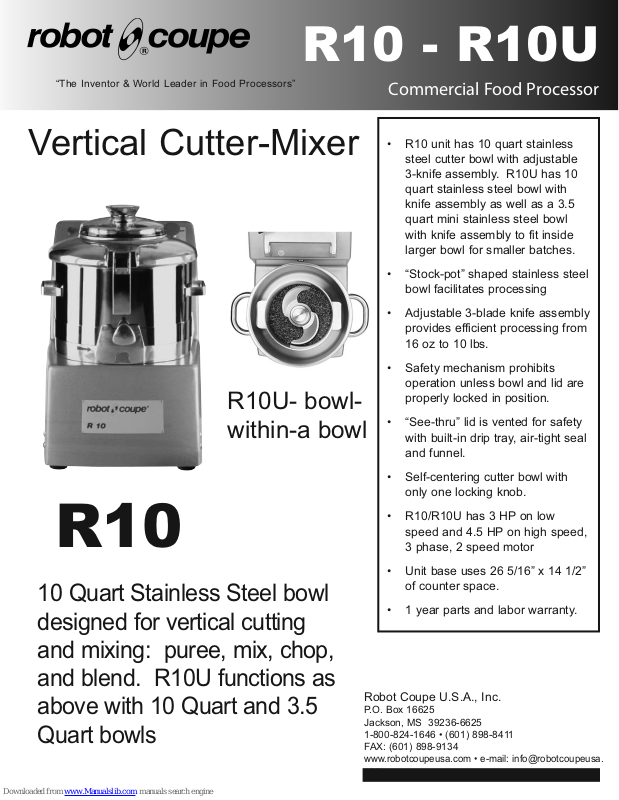

Robot Coupe R10U Specifications

R10 - R10U

“The Inventor & World Leader in Food Processors”

Vertical Cutter-Mixer

R10U- bowl-

Commercial Food Processor

• R10 unit has 10 quart stainless
steel cutter bowl with adjustable
3-knife assembly. R10U has 10
quart stainless steel bowl with
knife assembly as well as a 3.5
quart mini stainless steel bowl
with knife assembly to fit inside
larger bowl for smaller batches.

• “Stock-pot” shaped stainless steel
bowl facilitates processing

• Adjustable 3-blade knife assembly
provides efficient processing from
16 oz to 10 lbs.

• Safety mechanism prohibits
operation unless bowl and lid are
properly locked in position.

within-a bowl

R10

10 Quart Stainless Steel bowl
designed for vertical cutting
and mixing: puree, mix, chop,
and blend. R10U functions as
above with 10 Quart and 3.5
Quart bowls

• “See-thru” lid is vented for safety
with built-in drip tray, air-tight seal
and funnel.

• Self-centering cutter bowl with
only one locking knob.

• R10/R10U has 3 HP on low
speed and 4.5 HP on high speed,
3 phase, 2 speed motor

• Unit base uses 26 5/16” x 14 1/2”
of counter space.

• 1 year parts and labor warranty.

Robot Coupe U.S.A., Inc.

P.O. Box 16625
Jackson, MS 39236-6625
1-800-824-1646 • [phone]
FAX: [phone]
www.robotcoupeusa.com • e-mail: info@robotcoupeusa.
com

R10 - R10U

“The Inventor & World Leader in Food Processors”

Commercial Food Processor

Specifications

STANDARD MODEL:

R10 - Motor Unit with 10 qt. stainless steel cutter bowl and
adjustable 3-blade knife assembly, two speed.

R10U - Motor Unit with 10 qt. stainless steel cutter bowl with
adjustable 3-blade knife assembly and 3.5 stainless steel mini
bowl assembly with knife assembly, two speed.

ELECTRICAL REQUIREMENTS: 208-240V, 60 HZ, 9-12.5 Amps,
Three phase, 4.5 HP, 2 speed, 1725/3450 rpm. Includes built­in overload protection. Minimum branch circuit protection
recommended; 20 Amps. Nema #L15-20P.

SWITCHING: Magnetic safety switch, two speed control, push­button “ON-OFF”, pulse control and power indicator lights.

MOTOR: 4.5 HP, Three phase, 2 speed 1725/3450 RPM,

WEIGHT: R10 - 150 lbs. approximate shipping weight.
R10U - 157 lbs. approximate shipping weight.

Robot Coupe U.S.A., Inc.

P.O. Box 16625
Jackson, MS 39236-6625
1-800-824-1646
[phone]
FAX: [phone]
www.robotcoupeusa.com
e-mail: [e-mail]

STANDARDS: ETL electrical & sanitation

Distributed by:

Robot Coupe reserves the right to change specifications. Call the factory for latest specifications and recommendations.
© 2003 Robot Coupe U.S.A., Inc. LItho in U.S.A. WKK 06/03
