Roborock Robot Vacuum Cleaner S5 Max User Manual
Read this user manual carefully before using this product and store it properly for future reference.
Руководство пользователя робота-пылесоса
Roborock серии S5 Max
Внимательное прочитайте это руководство пользователя перед использованием устройства
и сохраните его в надежном месте.
Roborock Robot Vacuum Cleaner S5 Max User Manual
Read this user manual carefully before using this product and store it properly for future reference.
1
Руководство пользователя робота-пылесоса
Roborock серии S5 Max
Внимательное прочитайте это руководство пользователя перед использованием
устройства и сохраните его в надежном месте.
37
Safety Information 1
•
Table of Faults 5
•
Welcome 6
•
Product Introduction 7
•
Installation 12
•
Instructions for Use 18
•
Routine Maintenance 21
•
Basic Parameters 26
•
Troubleshooting 27
•
FAQs 29
•
EU Declaration of Conformity 30
•
WEEE Information 34
•
Warranty Information 35
•
Safety Information
Restrictions
• This product is designed for indoor floor cleaning only, do not use it outdoors
(such as on an open-ended terrace), on any surface other than the ground (such
as a sofa), or in any commercial or industrial environment.
• Do not use this product on elevated surfaces without barriers such as the floor of
a loft, an open-ended terrace, or on top of furniture.
• Do not use the product when the ambient temperature is higher than 104°F
(40°C), lower than 39°F (4°C), or if there are liquids or tacky substances on the
floor.
• Before using the product, move wires off the ground or place them to the side to
prevent them being pulled on by the cleaner.
• To prevent blocking the product and to avoid damage to valuables, remove
lighweight items (such as plastic bags) and fragile objects (such as vases) from the
floor before cleaning.
• Children should be supervised to ensure that they do not play with the appliance.
• This product is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction concerning use of the
product by a person responsible for their safety (CB).
• This product can be used by children aged from 8 years and above and persons
1
Safety Information
with reduced physical, sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction concerning use of
the product in a safe way and understand the hazards involved. Children shall not
play with the product. Cleaning and user maintenance shall not be made by
children without supervision (EU).
• Keep the main brush cleaning tools out of reach of children.
• Do not place any object (including children and pets) on the product, whether it is
in operation or not.
• Keep hair, loose clothing, fingers, and all parts of the body away from openings
and moving parts.
• Do not use the product on burning objects (such as cigarette butts).
• Do not use the product on high pile carpets (product effectiveness may also be
reduced on dark carpets).
• Do not use the product to clean hard or sharp objects (such as decoration wastes,
glass and nails).
• Do not carry the product using the laser scanner cap, main unit cover, or collision
buffer.
• The product must be switched off and the plug must be removed from
socket-outlet before cleaning or maintaining the product.
2
Safety Information
• Do not use wet cloth or liquids for cleaning the product.
• Do not use the mopping module on carpets.
• Use the product according to the manual. Any loss or damage caused from
improper use will be borne by the user.
• This product contains batteries that are only replaceable by skilled persons.
Battery and Charging
WARNING
• Do not charge non-rechargeable batteries.
• For the purposes of recharging the battery, only use the detachable supply unit
roborock CDZ11RR or CDZ12RR provided with this product.
• Do not dismantle, repair or modify the battery or charging dock.
• Keep the charging dock away from heat (such as heating vents).
• The battery must be removed from the appliance before it is scrapped.
• The product must be disconnected from the supply mains when removing the
battery.
• The battery must be disposed of safely. Do not discard waste batteries. Leave
them with a professional recycling organization.
• Do not wipe or clean the charger prongs with wet cloth or wet hands.
3
Safety Information
• If the power cord is damaged, stop using it immediately. It must be replaced by
the manufacturer, its service agent, or similarly qualified persons to avoid a
hazard.
• Make sure the product is powered off before shipment.
• Use of the original packaging is advised.
• If to be left unused for a long period of time, fully charge the product and switch it
off before storing it in a cool, dry place.
• Charge it at least every three months to avoid over discharging the battery.
• To satisfy RF exposure requirements, a separation distance of 20 cm or more
should be maintained between this device and persons during device operation.
• To ensure compliance, operations at closer than this distance is not
recommended.
• The antenna used for this transmitter must not be co-located in conjunction with
any other antenna or transmitter.
4
Table of Faults
Table of Faults
Item
Main Unit
Charging dock Main unit does not charge.
Power cable Charging dock has no power.
Fault
Functions do not work.
Does not power on.
Main brush, side brush, fan or main wheel issue.
5
Welcome
Thank you for choosing a Roborock Robot Vacuum Cleaner.
Treat yourself to crisp, just-mopped floors every day with S5 Max. Engineered for a seamless
automated mopping, it has a super-sized water tank, precision water control, virtual no-mop zones,
and more. Combined with precision laser mapping, advanced navigation, and intense vacuum
suction, it makes spotless floors easier than ever. All you need to do is set it and get on with living.
Roborock is committed to putting advanced technologies to work for you, so that you can waste
less time on chores and do more of the things you love.
6
Product introduction
Robot
On/Off
• Press to start cleaning
• Press and hold to power on or off
Power indicator
• White: Battery level 20%
• Red: Battery level < 20%
• Flashing: Charging or starting up
• Flashing red: Error
Dock/Spot Clean
• Press to return to the dock
• Press and hold to spot clean
Note:
Press any button to pause cleaning, returning to
dock, or spot cleaning.
Cover latch
7
Product introduction

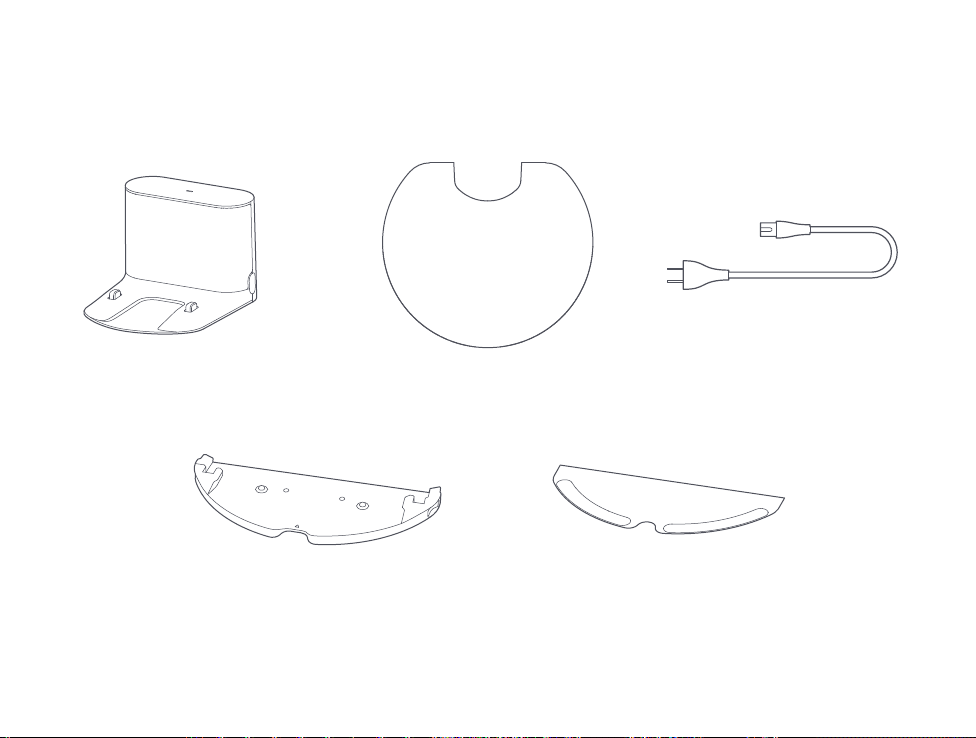

Parts list
Charging dock Power cable
Mop cloth mount Mop cloth
Moisture-proof mat
8
Product introduction
Dustbin Robot
Dustbin cover
Dustbin latch
Air filter
WiFi indicator light
• Off: WiFi disabled
• Slow flashing: Waiting for
connection
• Fast flashing: Connecting
• Steady: WiFi connected
System reset
Air vent
Water tank latch
Speaker
9
Product introduction
Machine and sensors
Recharge
sensor
Bumper
Laser
distance
sensor
Wall sensor
Cliff sensor
Omnidirectional wheel
Charging
contact
Side brush
Main wheels
Main brush
cover latch
Main brush
10
Product introduction
Mopping module
Charging dock
Signal transmitting area
Water tank stopper
Water filter
Water tank
Water tank latch
Mop cloth attachment slot
Mop cloth
bracket
Mop cloth
bracket clip
Mop cloth
Attaching area
Charging dock power indicator
Charging points
Power socket
Charging points
11
Installation
Using the robot
1. Place the charging dock against the wall on a flat surface
and plug it into the mains power.
More than 0.5m (1.6ft)
More than 0.5m (1.6ft)
More than 1.5m (5ft)
Note:
• The charging dock should have more than 0.5m (1.6ft) of clearance on each
side, and more than 1.5m (5ft) in the front.
• If the power cable is vertical to the ground, it may be caught by the
machine, causing the charging dock to be disconnected.
• The charging dock indicator is on when the charging dock is electrified, and
off when the robot is charging.
2. Secure the charging dock with the adhesive tape.
Wipe the floor of the area where the charging dock will be
placed with a dry cloth, then stick the enclosed
double-sided tape to the floor. Place the dock onto the
double-sided tape to secure it in place.
Double-sided tape
Note
• Use of the double-sided tape to secure the charging dock is optional.
• When necessary, remove the double-sided adhesive tape slowly to reduce
residue glue.
12
Installation
Using the robot
3. Secure the moisture-proof mat.
After securing the charging dock, wipe the area where the
moisture-proof mat will be placed with a dry cloth as
shown. Stick the double-sided tape first to the
moisture-proof mat then in position on the floor.
Note:
Always place the moisture-proof mat on a wooden floor
4. Power on and charge.
Press and hold the button to turn on the robot. When
the power indicator lights up, place the robot onto the
charging dock to begin charging. The robot uses a
high-performance lithium-ion rechargeable battery. To
maintain peak battery performance, always keep the
robot charged.
The color of the power
indicator indicates the
battery level.
• White: 20%
• Red: < 20%
Note:
The robot will not turn on when the battery is low. Place the robot directly
onto the charging dock to begin charging.
13
Installation
Connect to the app
This product works with Xiaomi Home app . Control your device, and interact it and other smart home devices with Xiaomi
Home app.
5. Quick Setup
Download Xiaomi Home app
Scan the QR code to download and install the app. You will be directed to the connection setup page if the app is installed
already. Or search "Xiaomi Home" in the app Store to download and install it.
Note: For specific connection instructions, visit the Roborock website and download guidelines for iOS and Android devices.
Add Device
Open Xiaomi Home app, tap "+" on the upper right, and then follow prompts to add your device.
The app is referred to as Xiaomi Home app in Europe (except for Russia). The name of the app displayed on your device should be taken as the default.
*
Note: The version of the app might have been updated, please follow the instructions based on the current app version. WIFI connection only supports
networks in the 2.4 GHz band, not the 5 GHz band.
Reset WIFI
If you experience any WIFI problems, reset the WIFI to
defaults. Open the top cover to expose the WIFI indicator
then press and hold the button and the button until
you hear the "Reset WIFI" voice prompt. Reset is complete
when the WIFI indicator flashes slowly. The product will then
wait for a connection.
Note: If a mobile phone has never been connected to the product, or if there is a
problem with the connection, reset the WIFI before attempting connection.
14
WiFi indicator light
• Off: WiFi disabled
• Slow flashing: Waiting for
connection
• Fast flashing: Connecting
• Steady: WiFi connected
Installation
Using the robot
6. Mopping
Note:
It is recommended that all floors are vacuumed at least three times before the
first mopping session to reduce excessive dirt buildup on the mop.
1
Remove the water tank
Press down the water tank latch and slide the tank
backwards to remove it.
2
Fill the water tank
Open the water tank, fill it with water, and close it tightly.
Note:
• To prevent corrosion or damage, do not use cleaning fluid or disinfectant
in the water tank.
• Do not use hot water, which may cause the tank to deform.
3
Install the water tank
Slide the water tank into the robot until you hear it lock
with a click.
4
Install the mop cloth
If mopping immediately, dampen the mop cloth and
squeeze it dry then attach it to the mop cloth bracket.
Note:
Use a barrier tape or no-mop zones to separate prevent mopping on
carpeted floors.
15
Installation
Using the robot
5
Attach the mop cloth bracket
Slide the mop cloth bracket under the water tank
following the alignment marks, until you hear a click.
Note:
Cleaning the mop cloth after 60-minutes of mopping is recommended
to ensure water flow and cleaning quality.
7. Adjust water flow rate
Use the mobile app to adjust the water flow as required.
Low
WaterLevel
Medium
Water Level
8. Start cleaning
When the battery is fully charged, the power indicator will
remain lit. Press the button or use the app to start cleanup.
High
Water Level
9. Remove the mop cloth bracket
To remove the mop cloth bracket, press the two clips
inwards and pull the bracket backwards.
Note:
• When the charging dock is placed on a wooden floor, always use it with
the moisture-proof mat to prevent moisture damage.
• Removing and washing the mop cloth bracket, and emptying the water
tank frequently is recommended to prevent odors or mildew.
• Remove the mop cloth bracket if not mopping.
10. Separating the water tank from the mop cloth bracket
As shown in the figure, press the two side clips inwards
and slide the mop cloth bracket backwards to separate it
from the water tank.
16
Installation
On/Off
Press and hold the button to turn on the robot. The
power indicator will turn on and the robot will enter Standby
mode. If the robot is in Sleep mode, press and hold the
button to turn it off and end the current cleanup.
Note:
The robot cannot be turned off when it is charging.
Start cleanup
Press the button to start cleaning. Once started, the
robot will plan its cleaning route based on its scan of the
area. It cleans along the edges of a zone first and then
moves in a Z-shaped cleaning route to cover the internal
area efficiently and thoroughly.
Zone 1: Clean Zone 2: Clean
Zone 4: Pending Zone 3: Cleaning
Note:
• Cleaning cannot start if the battery level is too low. Allow the robot to charge
before restarting cleanup.
• Tidy away any cables on the ground (including the power cable of the charging
dock) before cleaning to avoid losing power or damaging either the robot or
the connected device.
• If a cleanup finishes within 10 minutes, cleaning repeats by default
• If the battery runs low before cleanup is complete, the robot will carry out a
top-up charge before resuming cleanup from where it left off.
Pause
When the robot is cleaning, press any button to pause it.
Then press the button to continue cleaning or the
button to return it to the charging dock and stop the
cleaning cycle.
Note:
Placing a paused robot on the charging dock manually will end the current
cleanup.
Sleep
If the robot is paused for over 10-minutes, it will go to sleep,
and its power indicator will flash slowly. Press any button to
wake it back up.
Note:
• The robot will not go to sleep when it is on the charging dock.
• The robot will automatically shut down if left in sleep mode for more than 12 hours.
17
Instructions for use
Charging
Auto: After cleaning, the robot will automatically return to
the charging dock to recharge.
Manual: In Pause mode, press the button to send the
robot back to the charging dock.
The power indicator will flash slowly as the robot charges.
Note:
If the cleaning cycle was started away from the charging dock and the
robot could not return to the dock after cleaning, it will instead return to
its starting point. Place the robot directly on the dock to recharge it.
Error
If an error occurs while the robot is cleaning, the power
indicator will flash red quickly, and you will hear a voice alert.
See "Troubleshooting" for resolution options.
Note:
• The robot will go to sleep automatically if left in an Error state for over 10-minutes.
• Placing the robot on the charging dock in an error state will stop the current cleanup.
Reset WiFi
If your phone cannot connect to the robot because you have
changed your router configuration, forgotten your password,
or any other reason, open the top cover to see the WiFi
indicator light then press and hold the button and the
button until you hear the “Resetting WiFi” voice alert. When
the WiFi indicator light flashes slowly, reset is complete.
Note:
If the robot is left connecting to the network for over an hour, its WiFi will
be disabled. Reset WiFi before attempting reconnection.
Spot Cleaning
In the Standby or Pause mode, press and hold the
button to start spot cleaning. This mode is used to clean a
1.5m x 1.5m square area centered on the robot. After
cleanup, the robot will return to the center of the square.
1.5m
1.5m
Note:
Pressing any button will cancel the current spot cleaning cycle.
18
Instructions for use

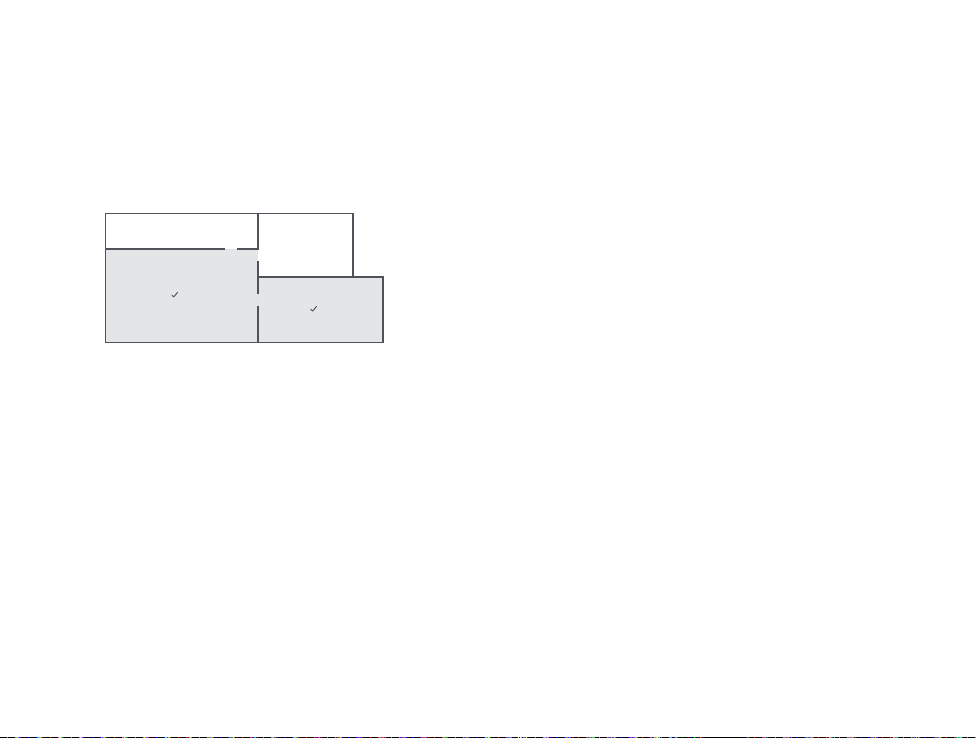

Selective Room Cleaning
Select specific rooms for cleaning in the app. In this mode,
the robot will only clean the selected rooms.
C
A
Note:
• A full map must be created and Map Saving mode switched on before this
function can be used.
• After cleaning starts, the robot may move beyond the defined areas. Make sure
there are no obstacles preventing the robot’s access to the target rooms.
D
B
Scheduled Cleaning
Use the app to set start times and suction levels for
scheduled cleanups. The robot will return to the charging
dock after each cleanup.
Zone Cleaning
Use the app to draw a specific zone for the robot
to clean.
Note:
While cleaning the designated zone, the robot may move outside zone borders.
Make sure that there are no cables or obstacles placed close to the cleanup zone.
Pin n Go
Use the app to set a destination for the robot to go to.
Cleaning mode
Use the app to choose from Quiet, Balanced, Strong, or MAX
modes. Balanced mode is the default.
Do Not Disturb (DND) mode
In DND mode, no cleanups will start, no voice alerts will play,
and the power indicator will dim. DND mode set from 22:00
to 08:00 by default and can be disabled or modified in the
app.
19
Loading...
