Roborock E4 Robot Vacuum Cleaner User Manual

Read this user manual carefully before using this produc t and store it properly for future reference.

Руководство пользователя робота-пылесосаRoborock E4

Внимательное прочитайте это руководство пользовате ля перед исполь зованием устройств а и сохраните его в надежном месте.

Roborock E4 Robot Vacuum Cleaner User Manual

Read this user manual carefully before using this produc t and store it properly for future reference.

Руководство пользователя робота-пылесосаRoborock E4

Safety Information

•

Product introduction

•

Installation

•

Instructions for use

•

Routine Maintenance

•

Basic Parameters

•

Troubleshooting

•

FAQs

•

EU Declaration of Conformity

•

WEEE Information

•

Warranty Information

•

Safety Information

Restrictions

• This product is designed for indoor floor cleaning only, do not use it outdoors (such as on an open-ended terrace), on any surface other than the ground (such as a sofa), or in any commercial or industrial environment.

• Do not use this product on elevated surfaces without barriers such as the floor of a loft, an open-ended terrace, or on top of furniture.

• Do not use the product when the ambient temperature is higher than 104°F (40°C), lower than 39°F (4°C), or if there are liquids or tacky substances on the floor.

• Before using the product, move wires off the ground or place them to the side to prevent them being pulled on by the cleaner.

• To prevent blocking the product and to avoid damage to valuables, remove

light-weight items (such as plastic bags) and fragile objects (such as vases) from

the floor before cleaning.

• Children should be supervised to ensure that they do not play with the appliance.

• This product is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge,unless they have been given supervision or instruction concerning use of the product by a person responsible for their safety (CB).

• This product can be used by children aged from 8 years and above and persons

Safety Information

with reduced physical,sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the

product in a safe way and understand the hazards involved. Children shall not play with the product. Cleaning and user maintenance shall not be made by children without supervision (EU).

• Keep the main brush cleaning tools out of reach of children.

• Do not place any object (including children and pets) on the product, whether it is in operation or not.

• Keep hair, loose clothing, fingers, and all parts of the body away from openings and moving parts.

• Do not use the product on burning objects (such as cigarette butts).

• Do not use the product on high pile carpets (product effectiveness may also be reduced on dark carpets).

• Do not use the product to clean hard or sharp objects (such as decoration wastes, glass and nails).

• Do not carry the product using the laser scanner cap, main unit cover, or collision buffer.

• The product must be switched off and the plug must be removed from socket-outlet before cleaning or maintaining the product.

• Do not use wet cloth or liquids for cleaning the product.

• Do not use the mopping module on carpets.

Safety Information

• Use the product according to the manual. Any loss or damage caused from improper use will be borne by the user.

• This product contains batteries that are only replaceable by skilled persons.

Battery and Charging WARNING

• Do not charge non-rechargeable batteries.

• For the purposes of recharging the battery, only use the detachable supply unit roborock CDZ14RR or CDZ15RR provided with this product.

• Do not dismantle, repair or modify the battery or charging dock.

• Keep the charging dock away from heat (such as heating vents).

• Do not wipe or clean the charger prongs with wet cloth or wet hands.

• If the power cord is damaged, stop using it immediately. It must be replaced by the manufacturer, its service agent, or similarly qualified persons to avoid a hazard.

• Make sure the product is powered off before shipment.

• Use of the original packaging is advised.

• If to be left unused for a long period of time, fully charge the product and switch it off before storing it in a cool, dry place.

Safety Information

• Charge it at least every three months to avoid over discharging the battery.

• To satisfy RF exposure requirements, a separation distance of 20 cm or more should be maintained between this device and persons during device operation.

• To ensure compliance, operations at closer than this distance is not recommended. The antenna used for this transmitter must not be co-located in conjunction with any other antenna or transmitter.

Roborock robot vacuum cleaner troubleshooting

Name

Robot

Charging dock The robot does not receive power

Power cable The charging dock cannot be supplied with power

Troubleshooting

Problem listed in the User Manual

The product cannot be powered on

The main brush, side brush, fan, or main wheels do not work

Product introduction

Robot

Clean/Power

• Press to start cleaning

• Press and hold to power on or oﬀ

Power Indicator

• White: Battery level ≥ 20%

• Red: Battery level ＜ 20%

• Flashing slowly: Charging or starting up

• Flashing red: Error

Dock/Spot Cleaning

• Press to return to the dock

• Press and hold to spot clean

Note: Press any button to pause cleaning, returning to dock, or spot cleaning.

Reset WiFi

• Press and hold both the button and the button

for 3 seconds.

Product introduction

Parts List

Charging Dock

Power Cable Adjustable water tank Mop cloth

Moisture-proof mat

Product introduction

Robot

Dustbin Latch

Filter

WiFi Indicator Light

• Oﬀ: WiFi disabled

• Slow ﬂashing: Waiting for

connection

• Fast ﬂashing: Connecting

• Steady: WiFi connected

Air Vent

Speaker

Product introduction

Robot and Sensors

Obstacle Sensor

Dock Locator

Bumper

Charging Dock

Dock Location Beacon

Charging Contacts

Power Indicator

Power Cable Connection Charging Contacts

Cliﬀ Sensor

Omni-Directional Wheel Charging Contacts

Motion Tracking Sensor Side Brush

Main Wheel Main Brush Main Brush Cover Latch

Installation

Using the robot

1. Place the Charging Dock against the wall on a ﬂat surface and plug it into mains power.

Dock Location Beacon

More than 0.5m (1.6ft)

Notes:

• Ensure that a distance of at least 0.5m on both sides and 1.5m in front is retained around the Charging Dock.

• The Power Cable, when vertical to the ﬂoor, may get caught by the robot, disconnecting the Charging Dock.

• The Power Indicator is on when the Charging Dock is connected to mains power, and oﬀ when the robot is charging.

• For a better app user experience, place the Charging Dock in an area with a strong WiFi signal.

• To avoid problems returning to the dock, do not place the Charging Dock in direct sunlight or block the Dock Location Beacon

• Do not place the Charging Dock in passageways or doorways. This may prevent access due to the safe zone around the dock.

More than 1.5m (4.9ft)

Using the robot

2. Secure the moisture-proof mat. After securing the charging dock, wipe the area where the moisture-proof mat will be placed with a dry cloth as shown. Stick the double-sided tape ﬁrst to the moisture-proof mat then in position on the ﬂoor.

Note: Always use the moisture-proof when placing the charging dock on a wooden

ﬂoor.

Installation

3.Power on and charge. Press and hold the button to power on. When the Power Indicator is on, place the robot on the Charging Dock to charge. This robot is equipped with a high-performance lithium-ion rechargeable battery pack. To maintain battery performance, keep the battery charged.

Power Indicator color indicates battery level.

• White: Battery level ≥ 20%

Note: The robot cannot be powered on when the battery is low. Place the robot on

the Charging Dock to recharge.

• Red: Battery < 20%

Installation

4.Connect to the mobile app. (recommended) This robot uses the Xiaomi Home app. Through the MIUI system, it can be connected to other compatible smart home products.

① Download app

Search for "Xiaomi Home" in the App Store or Google Play or scan the QR code below, then download and install the app.

② Reset WiFi a.Open the top cover of the robot to reveal the WiFi indicator light. b.Press and hold the button and the button until you hear the "Reset WiFi" voice alert. When the WiFi Indicator Light ﬂashes slowly, the robot has entered network conﬁguration mode.

Note: If you cannot connect your phone to the robot, reset the WiFi, and add your

robot as a new device.

WiFi Indicator Light

•Oﬀ: WiFi disabled

•Slow ﬂashing: Waiting for

connection

•Fast ﬂashing: Connecting

•Steady: WiFi connected

③ Add device Open the Xiaomi Home app and tap the "+" in the top right corner. Add the robot by following the in-app prompts. After adding, the robot can be found on the home page.

Note:

• Due to ongoing Xiaomi Home development, the actual process may diﬀer slightly from the above description. Always follow the instructions given in the app.

• Only 2.4GHz WiFi is supported.

Installation

Using the robot

5. Mopping

Note:

• It is recommended that all ﬂoors are vacuumed at least three times before the ﬁrst mopping session to reduce excessive dirt buildup on the mop.

• Use barrier tape to prevent mopping carpeted areas, or remove carpets prior to mopping.

• To prevent corrosion or damage, do not use cleaning ﬂuid or disinfectant in the water tank.

• Cleaning the mop cloth every 60 minutes is recommended to ensure the water ﬂow rate and cleaning eﬀect.

① Adjust ﬂow rate Toggle the switch to adjust the ﬂow rate according to your needs.

Low

High

② Fill the water tank Open the water tank, ﬁll it with water, and close it tightly

③ Install the mop cloth Dampen the mop cloth and squeeze it until it stops dripping. Insert it into the mounting slot in the water tank.

④ Install the module Slide the mop module in line with the alignment marks on the rear of the machine until you hear a "click".

Installation

Using the robot

6. Start cleaning. When the battery is fully charged, the Power Indicator will remain lit. Press the button or use the app to start a cleanup.

7.Remove the mopping module. After the machine completes cleaning and returns to the charging dock, press the two side latches inwards and pull to remove the mop module.

Note:

• When the charging dock is placed on a wooden ﬂoor, always use it with the

moisture-proof mat to prevent moisture damage.

• Remove the mopping module after mopping, empty residual water and clean

the mop cloth to prevent mildew or unpleasant odors.

• Remove the mopping module if not mopping.

Instructions for use

On/oﬀ

Press and hold the button to power on the robot. The Power Indicator will turn on, and the robot will enter standby mode. If the robot is idle, press and hold the button to power it oﬀ and end the current cleaning cycle.

Note: The robot cannot be turned oﬀ when it is charging.

Clean

Press the button to start cleaning. Press any button to pause the current cleaning cycle.

Note:

• Cleaning cannot start if the battery level is too low. Allow the robot to charge before restarting cleanup.

• Tidy away any cables on the ground (including the Charging Dock Power Cable) before cleaning to avoid losing power or damaging either the robot or the cables.

• If a cleanup ﬁnishes within 10 minutes, cleaning repeats by default.

• If the battery runs low before cleanup is complete, the robot will return to

the dock for a top-up charge before resuming cleanup from where it left oﬀ.

Charging

Auto mode: After cleaning, the robot will automatically return to the Charging Dock. Manual: If Paused, press the button to send the robot back to the Charging Dock. The Power Indicator breathes when the robot is charging.

Note: If the robot cannot ﬁnd the Charging Dock, it will return to the most recent

starting location. Place the robot on the Charging Dock manually to recharge.

Pause

When the robot is cleaning, press any button to pause it. Press the button to continue cleaning or the button to stop cleaning and send it back to the Charging Dock.

Notes:

• Manually docking the robot in Pause mode will stop the current cleaning cycle.

• If continuing to clean after moving the robot, place it close to its original

position before starting.

Cleaning method

Once started, the robot will clean in a Z pattern. Once all areas have been covered, it will clean along the wall to eﬀectively cover the entire ﬂoor. It will then automatically return to the Charging Dock.

Instructions for use

Spot cleaning

In Standby or Pause mode, press and hold the button to start Spot Cleaning. The robot will clean a 1.2m (3.9ft) in diameter circle spiraling out from its starting point. After cleaning, the robot will return to the start point.

Note: Starting Spot Cleaning in pause mode will stop the current cleaning cycle.

Errors

If a runtime error occurs, the Power Indicator will ﬂash red quickly, and a voice prompt will sound. Refer to “Troubleshooting” for details.

Notes:

• The robot will automatically enter Sleep mode after 10 minutes of inactivity in an Error state.

• Docking the robot in an Error state will stop the current cleaning cycle.

Sleep

If inactive for more than 10 minutes, the robot will automatically enter Sleep mode. The Power Indicator will ﬂash every few seconds.Press any button to wake the robot.

Scheduled Cleaning

Use the mobile app to set scheduled cleanups. The robot will automatically clean at the speciﬁed times and return to the Charging Dock after each clean.

Reset WiFi

If a mobile phone cannot connect to the robot due to router conﬁguration changes, forgotten password, or any other reason, reset the WiFi. Open the top cover to reveal the WiFi Indicator, then press and hold the and buttons until the "Resetting WiFi" voice alert sounds. The reset is complete when the WiFi indicator ﬂashes slowly.

Note: WiFi will be automatically disabled if the time taken to connect exceeds one

hour. If you need to reconnect, reset the WiFi, and try again.

Suction Power

Use the Mi Home app to choose from Quiet, Balanced, Strong, or MAX modes. The Balanced mode is the default.

Do Not Disturb (DND) mode

When DND mode is activated, an active cleaning cycle will ﬁnish, no voice alerts will sound, and the Power Indicator Light will dim. DND mode is enabled by default from 22:00 to 08:00. You can use the mobile app to disable Do Not Disturb mode or change its eﬀective time.

Routine Maintenance

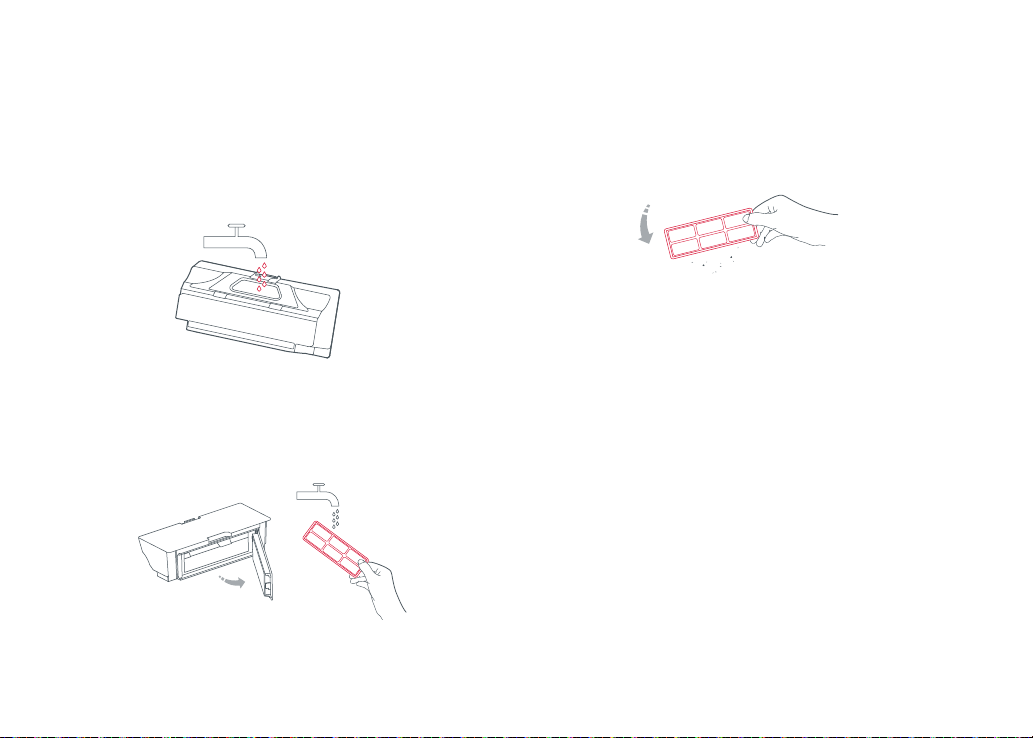

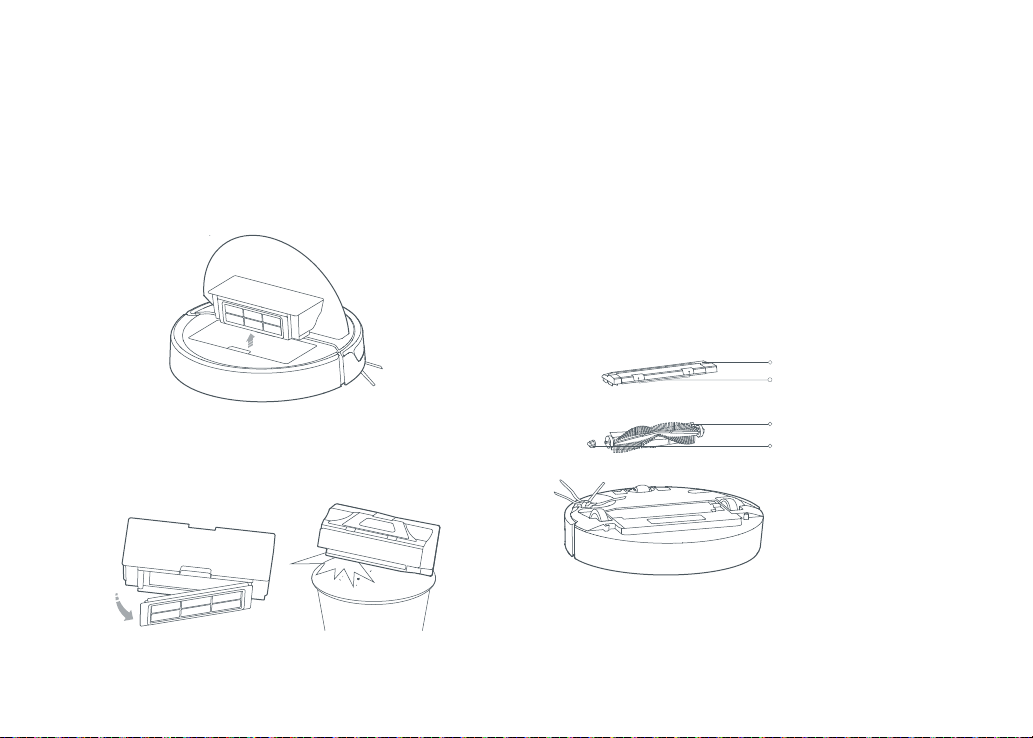

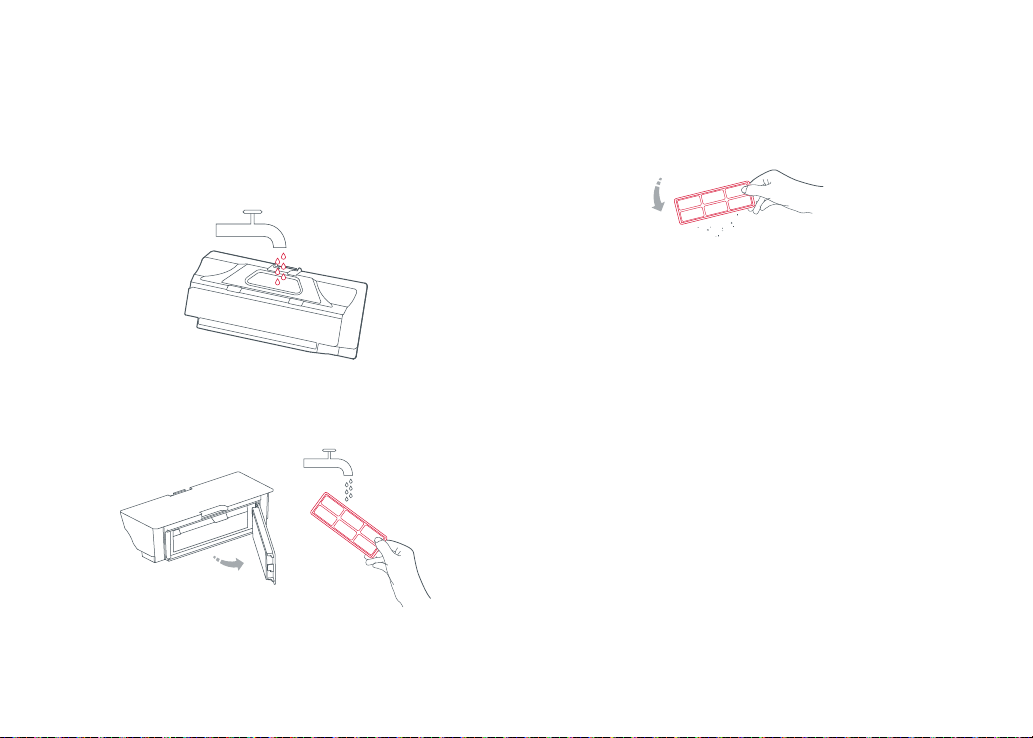

Dustbin and Filter

* Clean weekly

1.Open the top cover of the robot, press the Dustbin Latch, then lift and remove the Dustbin.

2.Remove the Filter and empty the Dustbin.

Main Brush

* Clean weekly

1.Flip the robot over and press the Main Brush Cover Latch to remove the Main Brush Cover.

2.Remove the Main Brush and clean its bearings.

3.Remove any entangled hair.

4.Reinstall the Main Brush and replace the Main Brush Cover.

Note: Replacing the Main Brush every 6-12 months is recommended for proper

cleaning.

Main Brush Cover Main Brush Cover Latch Main Brush

Main Brush Bearing
