Roberts Radio 997 User Manual
3 Band Mains Battery Portable Radio
ROBERTS
Enjoy Listening
Please read this manual before use
Contents
Contents ..............................................................................1
Controls ........................................................................... 2-3
Battery operation .................................................................4
Mains operation ...................................................................5
Operating your radio - FM ...................................................6
Operating your radio - Medium and Long wave ..................7
Favourite station markers ....................................................8
Headphone socket ..............................................................9
General ..............................................................................10
Specifi cations ....................................................................11
Circuit features ..................................................................11

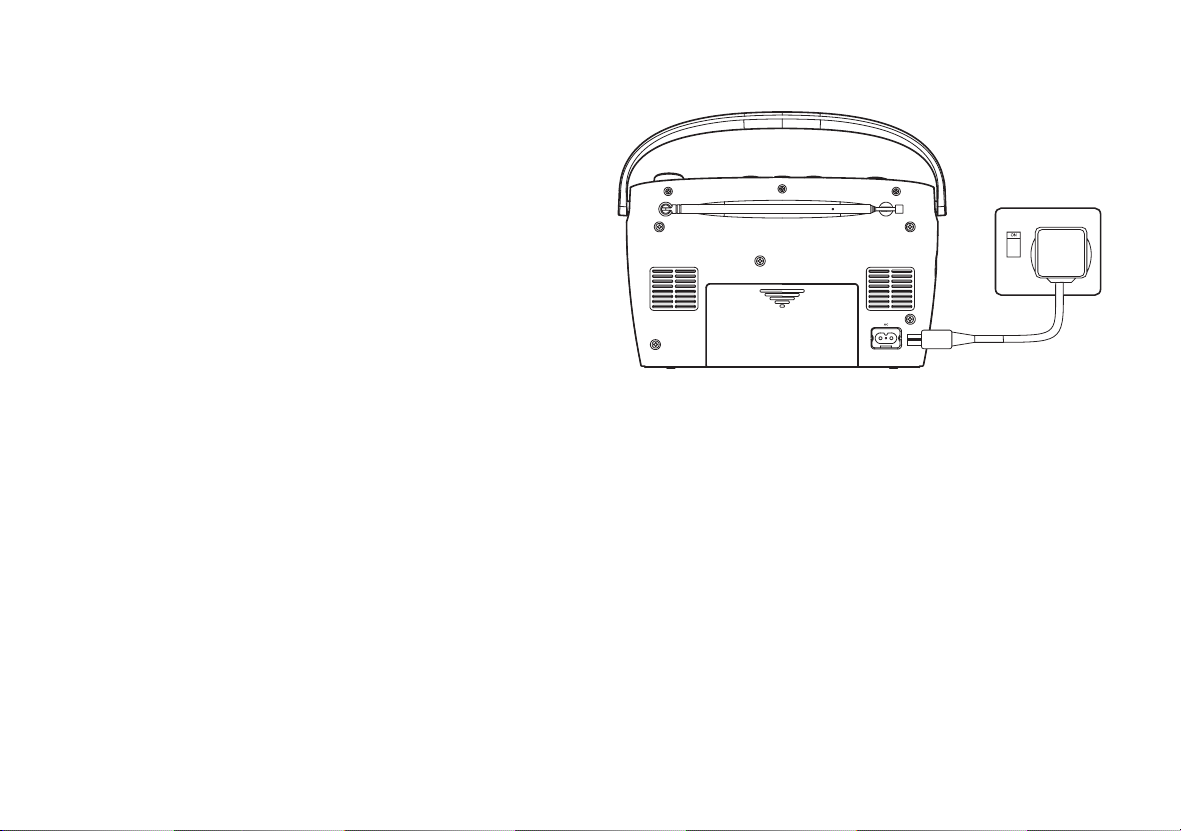

Mains supply .....................................................................12
Notes .................................................................................13
Guarantee .........................................................................14
1
Controls
(Top)
12
35
46
8910
7
1. On/Off button
2. Power On indicator
3. FM waveband button
4. MW waveband button
5. LW waveband button
If you need any further advice, please call our Technical Helpline on :-
020 8758 0338 (Mon-Fri)
6. Tuning control
7. Favourite station indicators
8. Dial scale pointer
9. Tone control
10. Volume control
2
Controls
(Rear)
11
11. Telescopic aerial
12. Mains input socket
13. Battery compartment
(Left)
14
13 12
14. Headphone socket
3
Battery operation
1. Remove the battery cover on the back of the unit by sliding the cover
in the direction of the arrow.
2. Insert four LR14 (C size) batteries into the spaces in the compartment.
Take care to ensure all batteries are inserted with the correct polarity as
shown next to the battery compartment. Replace the battery cover.
3. Reduced power, distortion and a ‘stuttering’ sound are all signs that
the batteries may need replacing.
4. If the radio is not to be used for any extended period of time it is
recommended that the batteries are removed from the radio.
We would recommend for economy that the Classic 997 is used on
the mains whenever possible with battery operation for occasional or
standby use only.
IMPORTANT: The batteries should not be exposed to excessive heat
such as sunshine, fi re or the like. After use, disposable batteries should
if possible be taken to a suitable recycling centre. On no account
should batteries be disposed of by incineration.
If you need any further advice, please call our Technical Helpline on :-
020 8758 0338 (Mon-Fri)
1
4
