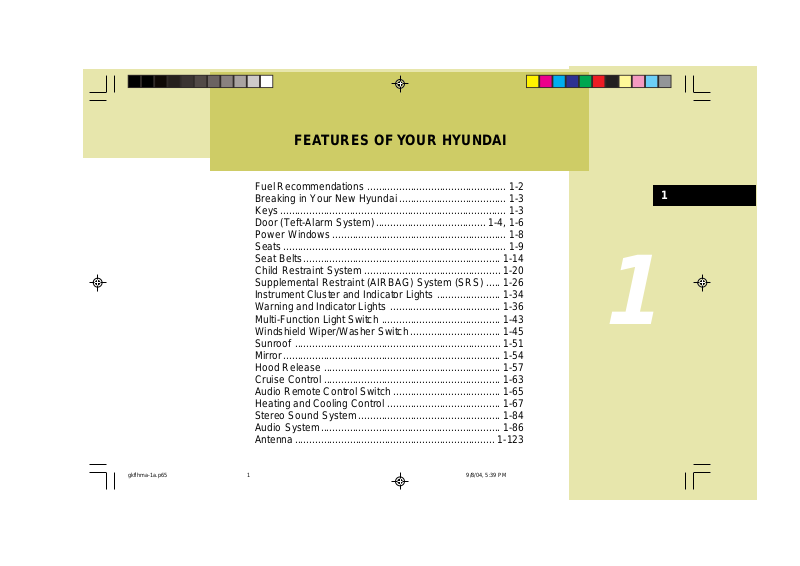

FEATURES OF YOUR HYUNDAI
Fuel Recommendations ................................................ 1-2
Breaking in Your New Hyundai..................................... 1-3
Keys.............................................................................. 1-3
Door (Teft-Alarm System)...................................... 1-4, 1-6
Power Windows ............................................................ 1-8
Seats............................................................................. 1-9
Mirror........................................................................... 1-54
Heating and Cooling Control ....................................... 1-67
Audio System.............................................................. 1-86
Antenna..................................................................... 1-123
1
1
gkflhma-1a.p65 9/8/04, 5:39 PM1
FEATURES OF YOUR HYUNDAI
1
FUEL RECOMMENDATIONS
2
B010A01JM-AAT
Use Unleaded Gasoline
UNLEADED
FUEL ONLY
B010A02GK
Unleaded gasoline with a Pump Octane Rating of 87 (Research Octane Number 91) or higher must be used in your Hyundai.
!
o Do not "TOP-OFF" after the first nozzle o The fuel cap must be tightened until cap
CAUTION:
shut off when refueling. clicks, otherwise " " light may illumi-
nate.
B010B01A-AAT
What About Gasohol?
Gasohol (a mixture of 90% unleaded gasoline and 10% ethanol or grain alcohol) may be used in your Hyundai. However, if your engine devel­ops driveability problems, the use of 100% unleaded gasoline is recommended. Fuels with unspecified quantities of alcohol, or alcohols other than ethanol, should not be used.
B010C01A-AAT
Use of MTBE
Hyundai recommends that fuels containing MTBE (Methyl Tertiary Butyl Ether) over 15.0% vol. (Oxygen Content 2.7% weight) should not be used in your Hyundai. Fuel containing MTBE over 15.0% vol. (Oxygen Content 2.7% weight) may reduce vehicle per­formance and produce vapor lock or hard starting.
B010D01A-AAT
Do Not Use Methanol
Fuels containing methanol (wood alcohol) should not be used in your Hyundai. This type of fuel can reduce vehicle performance and damage components of the fuel system.
!
Your Hyundai's New Vehicle Limited War­ranty may not cover damage to the fuel system and any performance problems that are caused by the use of fuels containing methanol or fuels containing MTBE (Methyl Tertiary Butyl Ether) over 15.0% vol. (Oxy­gen Content 2.7% weight.)
CAUTION:
gkflhma-1a.p65 9/8/04, 5:39 PM2
B010E01A-AAT
Gasolines for Cleaner Air
To help contribute to cleaner air, Hyundai rec­ommends that you use gasolines treated with detergent additives, which help prevent deposit formation in the engine. These gasolines will help the engine run cleaner and enhance per­formance of the Emission Control System.
B010F01A-AAT
Operation in Foreign Countries
If you are going to drive your Hyundai in another country, be sure to:
o Observe all regulations regarding registra-
tion and insurance.
o Determine that acceptable fuel is available.
BREAKING IN YOUR NEW HYUNDAI
B020A01S-AAT
During the First 1,200 Miles (2,000 Km)
No formal "break-in" procedure is required with your new Hyundai. However, you can contrib­ute to the economical operation and durability of your Hyundai by observing the following recom­mendations during the first 1,200 miles (2,000 km).
o Don't drive faster than 55 MPH (88 km/h). o While driving, keep your engine speed (rpm,
or revolutions per minute) between 2,000 rpm and 4,000 rpm.
o Use moderate acceleration. Don't start
quickly or depress the accelerator pedal fully.
o For the first 200 miles (300 km), try to avoid
hard stops.
o Don't lug the engine (in other words, don't
drive so slowly in too high a gear that the engine "bucks"-shift to a lower gear).
o Whether going fast or slow, vary your speed
from time to time.
o Don't let the engine idle longer than 3 minutes
at one time.
o Don't tow a trailer during the first 1,200 miles
(2,000 km) of operation.
FEATURES OF YOUR HYUNDAI
KEYS
B030A01A-AAT
B030A01E
For greater convenience, the same key oper­ates all the locks in your Hyundai. However, because the doors can be locked without a key, carrying a spare key is recommended in case you accidentally lock one key inside the car.
1
3
gkflhma-1a.p65 9/8/04, 5:39 PM3
FEATURES OF YOUR HYUNDAI
1
4
DOOR
B030B01S-AAT
Record Your Key Number
B030B01E
A code number is stamped on the key number plate that came with the keys to your Hyundai. This key number plate should be kept in a safe place, not in the vehicle. The key number should also be recorded in a place where it can be found in an emergency.
If you need additional keys, or if you should lose your keys, your authorized Hyundai dealer can make new keys if you can supply the key number.
B030C01Y-AAT
ILLUMINATED IGNITION SWITCH (If installed)
B030C01E-1
Whenever a door is opened, the ignition switch will be illuminated for your convenience, pro­vided the ignition switch is not in the "ON" position. The light will go off approximately 10 seconds after closing the door or when the ignition switch is turned on.
B040A02Y-AAT
DOOR LOCKS
!
o Unlocked doors can be dangerous. Be-
o Before opening the door, always look for o In case of accident, the door is unlocked
WARNING:
fore you drive away (especially if there are children in the car), be sure that all the doors are securely closed and locked so that the doors cannot be inadvertently opened from the inside. This helps en­sure that the doors will not be opened accidentally. Also, when combined with the proper use of seat belts, locking the doors helps keep occupants from being ejected from the car in case of an acci­dent.
and avoid oncoming traffic. automatically (If installed).
gkflhma-1a.p65 9/8/04, 5:39 PM4
FEATURES OF YOUR HYUNDAI
1
5
B040B01JM-AAT
Locking and unlocking front doors with a key
UNLOCK
LOCK
HGK2008
o The door can be locked or unlocked with a
key.
o Lock the door by turning the key toward the
front of the vehicle and unlock it by turning the key toward the rear.
NOTE:
The driver's door can be unlocked by turn­ing the key once toward the rear. If you wish to unlock all doors, turn the key again toward the rear within 4 seconds. The passenger's side will lock or unlock all doors with just one rotation.
B040C01S-AAT
Locking From the Outside
HGK2009
The doors can be locked without a key. To lock the doors first push the inside lock switch to the "LOCK" position so that the red mark on the switch is not visible, then close the door.
NOTE:
o When locking the door this way, be care-
ful not to lock the door with the ignition key left in the vehicle.
o To reduce the chance of theft, always
remove the ignition key, close all win­dows, and lock all doors when leaving your vehicle unattended.
B040D01S-AAT
Locking From the Inside
UNLOCK
LOCK
HGK2010
To lock the doors from the inside, simply close the door and push the lock switch to the "LOCK" position. When this is done, neither the outside nor the inside door handle can be used.
NOTE:
When the door is locked, the red mark on the switch is not visible.
gkflhma-1a.p65 9/8/04, 5:39 PM5
FEATURES OF YOUR HYUNDAI
1
6
THEFT-ALARM SYSTEM
B040G01GK-GAT
Central Door Lock
HGK2009
The central door locking is operated by pushing the driver's door lock switch toward the front or rear of the vehicle. If the passenger door is open when the switch is pushed, the door will remain locked when closed.
NOTE:
o When pushing the switch toward the
rear, all doors will unlock. When pushing the switch toward the front, all doors will lock.
o When the door is unlocked, the red mark
on the switch is visible.
o The central door locking is operated by
turning the key (driver's door only) to­ward the front or rear of the vehicle.
B070A01A-AAT
(If Installed)
This system is designed to provide protection from unauthorized entry into the car. This sys­tem is operated in three stages: the first is the "Armed" stage, the second is the "Alarm" stage, and the third is the "Disarmed" stage. If trig­gered, the system provides an audible alarm with blinking of the turn signal light.
B070B02GK-AAT
Armed Stage
Park the car and stop the engine. Arm the system as described below.
1) Remove the ignition key from the ignition switch.
2) Make sure that the engine hood and tail gate are closed and latched.
3) Lock the doors using the transmitter of the keyless entry system.
After completion of the steps above, the turn signal light will blink once to indicate that the system is armed.
NOTE:
1) If any door, tail gate or engine hood remains open, the system will not be armed.
2) If this happens, rearm the system as described above.
3) Once the system is armed, only the tail gate may be unlocked using the key without disarming the system.
!
Do not arm the system until all passengers have left the car. If the system is armed while a passenger(s) remains in the car, the alarm may be activated when the remaining passenger(s) leaves the car.
CAUTION:
gkflhma-1a.p65 9/8/04, 5:39 PM6
FEATURES OF YOUR HYUNDAI
1
7
B070C01GK-AAT
Alarm Stage
The alarm will be activated if any of the following occur while the car is parked and the system is armed.
1) A front door is unlocked and opened without using the transmitter.
2) The tail gate is opened without using the key.
3) The engine hood is opened.
The siren will sound and the turn signal lamp will blink continuously for 30 seconds. (This hap­pens 3 times). To turn off the system, unlock the door with the transmitter.
!
Avoid trying to start the engine while the system is armed.
CAUTION:
B070D04GK-AAT
Disarmed Stage
LOCK
UNLOCK
HGK102
The system will be disarmed when either of the following steps are taken:
1) The driver's or passenger's door is un­locked by depressing the "UNLOCK" button on the transmitter.
2) In the middle of alarming or after alarming, it keeps for 30 seconds when the key is turned to the "ON" position.
After completing one of steps above, the turn signal light will blink twice to indicate that the system is disarmed.
NOTE:
If any door, tail gate or engine hood is not opened within 30 seconds, the system will be rearmed.
B070F01A-GAT
KEYLESS ENTRY SYSTEM (If installed) NOTE:
This device complies with Part 15 of the FCC rules. Operation is subject to the fol­lowing two conditions: (1) This device may not cause harmful in­terference, and (2) this device must accept any interference received, including inter­ference that may cause undesired opera­tion.
!
Changes or modifications not expressly approved by the party responsible for com­pliance could void the user's authority to operate the equipment.
CAUTION:
Locking doors
1. Close all doors.
2. Push the "LOCK" button on the transmitter.
3. At the same time all doors lock, the turn signal lights will blink once to indicate that the system is armed.
Unlocking doors
1. Push the "UNLOCK" button on the transmitter.
2. At the same time all doors unlock, the turn signal lights will blink twice to indicate that the system is disarmed.
gkflhma-1a.p65 9/8/04, 5:39 PM7
FEATURES OF YOUR HYUNDAI
1
8
POWER WINDOW
B070E02GK-GAT
Replacing the battery
When the transmitter's battery begins to get weak, it may take several pushes on the button to lock or unlock the doors, and the LED will not light. Replace the battery as soon as possible.
Battery type : CR2032 Replacement instructions:
Screwdriver
HGK122
1. Carefully separate the case with a blade screwdriver as shown in the illustration.
Battery
HGK121
2. Remove the old battery from the case and note the polarity. Make sure the polarity of the new battery is the same(+side facing down), then insert it in the transmitter.
NOTE:
Install a new battery within 30 seconds after removing the old one. If installing a new battery takes more than 30 seconds, take the following steps.
1) Turn the ignition key to the "ACC" posi­tion.
2) Make sure that the turn signal lamps blink once by pushing the "LOCK" or "UNLOCK" button on the transmitter.
B050A01GK-AAT
(1)
HGK2015
The power windows operate only when the ignition key is in the "ON" position. The main switches are located on the driver's arm rest and control the front windows on the respective sides of the vehicle. The windows may be opened by depressing the front portion of the switch. To stop at the desired opening, release the switch. The window may be closed by pulling the front portion of the switch. In order to prevent operation of the passenger front window by the passenger, a window lock switch (1) is provided on the arm rest of the driver's door. To disable the passenger's power window, push the win­dow lock switch. To revert to normal operation, push in on the window lock switch again.
gkflhma-1a.p65 9/8/04, 5:39 PM8
SEATS
FEATURES OF YOUR HYUNDAI
1
9
HGK2016
!
(1 )Be careful that someone's head, hands
(2 ) Never try to operate the main switch on
(3 )Do not leave children alone in the car.
WARNING:
and body are not trapped by a closing window.
the driver's door and the individual door window switch in opposing directions at the same time. If this is done, the window will stop and cannot be opened or closed.
Always remove the ignition key for their safety.
Auto-Down Window (Driver's Side) (If Installed)
B050A02GK
The Auto-Down window is moved to its fully open position by pushing the switch. To stop at the desired position push in on the switch again.
B080A01A-AAT
ADJUSTABLE FRONT SEATS
!
Never attempt to adjust the seat while the vehicle is moving. This could result in loss of control or an accident which may cause death, serious injury or property damage.
WARNING:
gkflhma-1a.p65 9/8/04, 5:39 PM9
FEATURES OF YOUR HYUNDAI
1
10
B080B02A-AAT
Adjusting Seat Forward and Rearward
HGK2027
To move the seat toward the front or rear, pull the lock release lever upward. This will release the seat on its track so you can move it forward or rearward to the desired position. When you find the position you want, release the lever and slide the seat forward or rearward on its track until it locks into the desired position and cannot be moved further.
!
To ensure the seat is locked securely, at­tempt to move the seat forward or rearward without using the lock release lever.
WARNING:
B080C01A-AAT
Adjusting Seatback Angle
HGK2028
To recline the seatback, lean forward to take your weight off it, then pull up on the recliner control lever at the outside edge of the seat. Now lean back until the desired seatback angle is achieved. To lock the seatback into position, release the recliner control lever.
!
To minimize risk of severe injury in the event of a collision or a sudden stop, both the driver's and passenger's seatbacks should always be in an upright position while the vehicle is in motion. The protec­tion provided by the seat belts and airbags in a frontal collision may be reduced signifi­cantly when the seatbacks are reclined. There is greater risk that the driver and passenger will slide under the seatbelt which may result in serious injury if a crash occurs when the seatbacks are reclined. The seat belt and airbags cannot provide proper protection to an occupant if the seatback is reclined.
WARNING:
gkflhma-1a.p65 9/8/04, 5:39 PM10
