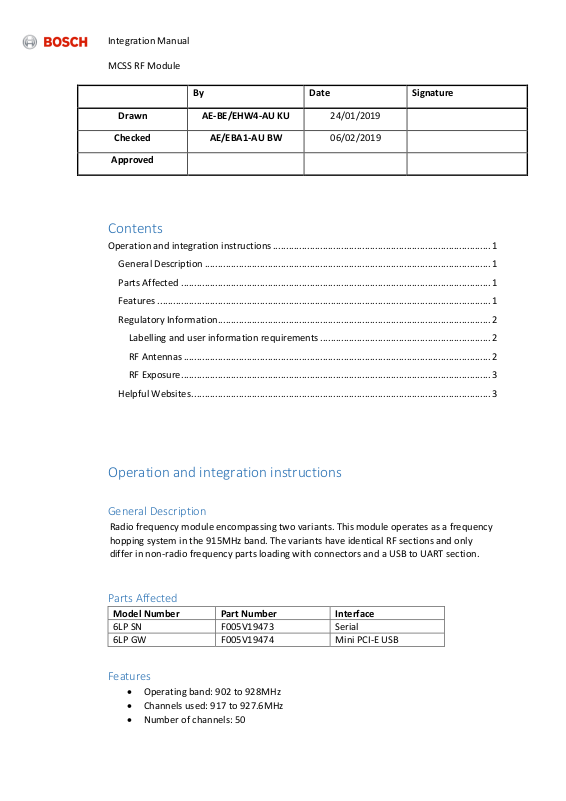

Robert Bosch 6LPRF Integration Manual

Integration Manual

MCSS RF Module

By

Date

Signature

Drawn

AE-BE/EHW4-AU KU

24/01/2019

Checked

AE/EBA1-AU BW

06/02/2019

Approved

Contents

Operation and integration instructions ................................................................................... 1

General Description ............................................................................................................. 1

Parts Affected ...................................................................................................................... 1

Features ............................................................................................................................... 1

Regulatory Information ........................................................................................................ 2

Labelling and user information requirements ................................................................. 2

RF Antennas ..................................................................................................................... 2

RF Exposure ...................................................................................................................... 3

Helpful Websites .................................................................................................................. 3

Operation and integration instructions

General Description

Radio frequency module encompassing two variants. This module operates as a frequency
hopping system in the 915MHz band. The variants have identical RF sections and only
differ in non-radio frequency parts loading with connectors and a USB to UART section.

Parts Affected

Model Number

Part Number

Interface

6LP SN

F005V19473

Serial

6LP GW

F005V19474

Mini PCI-E USB

Features

 Operating band: 902 to 928MHz
 Channels used: 917 to 927.6MHz
 Number of channels: 50

Integration Manual

MCSS RF Module

 Nominal power (radiated or conducted): 24.5dBm conducted
 Modulation(s): 2GFSK 50KHz deviation
 Nominal bandwidth: 100KHz
 Frequency hopping transmitter
 OEM installation only

Regulatory Information

The finished product is required to comply with all applicable FCC equipment
authorisations, regulations, requirements and equipment. We will provide guidance to the
host manufacturer for compliance with the FCC part 15B requirements.

The OEM integrator is responsible for ensuring that the end-user has no manual
instructions to remove or install module.

The module is limited to installation in mobile or fixed application.

Labelling and user information requirements

The end device must be labelled with the FCC ID. If the FCC identification number
of the module is not visible when the module is installed inside another device,
then the outside of the device into which the module is installed must also display
a label referring to the enclosed module.

This exterior label can use wording such as the following:

Any similar wording that expresses the same meaning may be used.

The user’s manual must include the following text:

RF Antennas

The transmitter can only be used with the following antennas:

 Pulse W5012 2dBi half wave dipole connected by a 200mm Amphenol u.fl

to RP-SMA cable 336314-14-0200

Contains Transmitter Module FCC ID: LXP-6LPRF
or

Contains FCC ID: LXP-6LPRF

Warning: Any changes or modifications not expressively approved by (company
name) could void the user's authority to operate this equipment

THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION

IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT
CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST

ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY
CAUSE UNDESIRED OPERATION.
