Roadstar DVD-2506X Service Manual

R

R

DVD-2506X

DVD-2506X

Superslim PAL/NTSC Home DivX player, DVD / MPEG4 / SVCD / Audio CD / MP3 / WMA
and Picture CD (JPEG) compatible, down-mixed two channel Stereo Audio Output,
S-Video + SCART Output, Audio Digital & Progressive Scan output.

PAL/NTSC DivX Spieler,
kompatibel mit DVD/MPEG4/
SVCD/Audio CD/MP3/WMA
und Picture CD (JPEG),
S-Video-Ausgang + Euro-A/V,
digitaler Audio Ausgang und
Progressive Scan Ausgang.

Lecteur DivX PAL/NTSC
compatible DVD/MPEG4/
SVCD/Audio CD/MP3/WMA
et Picture CD (JPEG), sortie
S-Video + Péritel, sortie Audio
digital et Progressive Scan.

Lettore DivX PAL/NTSC
compatibile DVD/MPEG4/
SVCD/Audio CD/MP3/WMA e
Picture CD (JPEG), uscita S­Video + SCART, uscita Audio
digitale e Progressive Scan.

Lector DivX PAL/NTSC
compatible DVD/MPEG4/
SVCD/Audio CD/MP3/WMA y
Picture CD (JPEG), salida S­Video + SCART, salida Audio
digital y Progressive Scan.

DEUTSCH FRANÇAIS ITALIANO

ESPA

ÑOL

FEATURES

ED.2/05-08-05

Roadstar International Sales, CH-6828 Balerna, Switzerland Tel. [phone] Fax [phone] E-mail: [e-mail] Internet: www.roadstar.com

is a registered Trademark of Roadstar-Switzerland Design and specifications are subject to change without notice.

VIDEO

Playback sources (disc)

• DIVX / DIVX6.0 / MPEG4

• DVD / DVD+R / DVD+RW

• DVD-R / DVD-RW

• SVCD / VCD

• MP3 / WMA

• Audio CD / CD-R / CD-RW

• Kodak Picture CD / JPEG

Features

• Upgradable firmware
(via CD-R)

• DivX 6.0 Compatible

• NTSC and PAL video
signals playback

• Down Mixed audio output

• 8 languages

On Screen Display

• Slow motion / Fast forward

• Support up to 8 audio lang.

• Support up to 32 subtitles
languages

• Program function

• Repeat / random play mode

• Selectable screen ratio
(4:3 and 16:9)

• Multi-angle function

• Zooming function

• Parental control

• MP3 disc playback
with detailed OSD infos

• Progressive scan output
(480p and 720p supported)

Input / Output

• 2 channel Audio output (RCA)

• S-Video output

• SCART connector

• Composite video output

• Component video output
(Pb, Pr, Y)

• Coaxial & Optical digital
audio output

Ean code: 76 21800 02532 6

General

• Full function remote control

• Scart cable

• Dimensions (WxHxD):
430 x 52 x 270 mm

• Weight: 2.9 kg

• Colour: Mirror / Silver

• Container load:
40’ 3’296 pcs
20’ 1’580 pcs

• Shipping carton: 4 pcs

• Shipping cart. size (WxHxD):
390 x 342 x 530 mm

• Gift Box size (WxHxD):
520 x 335 x 93 mm

• Country of origin: P.R.C.

PAL/NTSC SYSTEMS

SCART CONNECTOR

S-VIDEO OUTPUT

FULL FUNCTION

REMOTE CONTROL

4:3 - 16:9

COMPATIBLE

2 CHANNEL DOWN

MIXED OUTPUT

8

LANGUAGES

ON SCREEN

DISPLAY

ENGLISH
GERMAN

FRENCH

ITALIAN

SPANISH

PORTUGESE

SWEDISH

DANISH

PROGRESSIVE
SCAN OUTPUT

UPGRADEABLE

FIRMWARE

ESS chipset solution

DVIX 6.0

COMPATIBLE

CONTENTS :

1.INFORMATIONS……………………………………………………………………………….3
Vibratto-II DVD Processor (ESS 66x8)

2. OPERATING INSTRUCTIONS……………………………………………………………..14

3. PRODUCT SPECIFICATIONS……………………………………………………………...24

4. TROUBLESHOOTING……………………………………………………………………….25

5. MAINTENANCE INSTRUCTIONS……………………………………………………..…..26

6. ELECTRICAL PART LIST…………………………………………………………………..35

7. DISASSEMBLY AND REASSEMBLY……………………………………………………..43

8. CIRCUIT DIAGRAMS………………………………………………………………………..44

9. WIRING DIAGRAM…………………………………………………………………………..49

2

1. INFORMATIONS
Vibratto-II DVD Processor (ESS 66x8)

Vibratto-II DVD Processor

FEATURES:

 Single-chip DVD processoe incorporating all front-end and back-end functions
 Unified memory architecture
 Proven focusing, sledding, tracking, and CLV/CAV spindke servo control
 Proven ESS, EFM,?EFM+ demodulation, and EDC circuit
 Built-in ADCs and DACs for servo control signals
 Direct interface to ES6603 servo AFE chip
 Integrated NTSC/PAL encode with pixel-adaptive de-interlacer and five 10-bit 54MHz video DACs
 DVD-video, DVD-VR, VCD1.1 and 2.0, and SVCD
 DivX and MPEG-4 Advanced Simple profile at full screen(D1)
 Full DVD-audio support including MLP and LPCM decode, CPPM decryption, and watermark

detection

 Media playback with CD-ROM, CD-R/RW, DVD-R/RW, and DVD+R/RW
 Up to 7.1 channel audio outputs
 Direct interface of 16 bit DRAM up to 128Mb capacity
 Direct interface for up to 4 banks of 8-bit EPROM or FLASH EPROM for up to 4MB per bank
 Macrovision 7.1 for NTSC/PAL (480p/576p) progressie scan video
 Simultaneous composite,S-video and YUV output
 CCIR656/601 yuv 4:2:2 output
 OSD controller supports 256 colors in 8 degrees of transparency
 Subpicture Unit(SPU) decoder supports karaoke iyric,subtitles,and EIA-608 compliant Line 21

Captioning.

 SmartBrght™ for clear and bright movie presentation.
 SmartColor™ for vivid flesh-tone image display.
 SmartLogo™ for custom JPEG wallpaper.
 JPEG digital photo CD support (Kodak Picture CD™ and Fujifilm FujiColor CD™.
 ESS Music Slideshor™.
 Bass management.
 Dolby Digital(AC-3),Dolby ProLogic™,and ProLogicll.
 DTS™surround(ES6698D only).
 S/PDIF digital audio input and output.
 MPEG AAC and Multichannel.
 SRS TruSurround
 Professional karaoke with full scoring scheme.

3

Functional Description:

The internal block digram for ESS 6698

4

Pinout Diagram

5

ES6698 PIN DEXCRIPTION

Names Pin Numbers I/P Definitions

VD33

1.10.19.35.44.53.6

2.79.96.126.185.

P I/O power supply.

VID_XI 2 I Crystal input.
VID_XO 3 O Crystal output.
VID_XO 3 O Crystal output.
CLK 4 I System clock.
DMA[11:0] 5:8 11:17 20 O DRAM address bus.

9.18.34.43.52.61.7

VX33

95.119.127.186.20

8.
G Ground for I/O power supply.

8
DCAS# 21 O DRAM column address strobe (active-low).
DCS[1:0]# 22.23 O DRAM chip select (active-low).
DRAS[2:0]# 24.25.28 O DRAM row address strobe (active-low).
VSS 26.70.86.137.197 G Ground for core power supply.
VDD 27.71.87.138.198 P Core power supply.
DSCK_EN O DRAM clock enable output .
DOE#

29

O DRAM output enable(active-low).
DWE# 30 O DRAM write enable(active-low).
DB[15:0] 31:33,36:42,45:50 I/O DRAM data bus.
DSCK 51 O Output clock to DRAM.
DQM 54 O Data input/output mask.

LA[21:0]

55:60,63:69,72:77

80:82

O RISC port address bus .

LCS[3:0]# 83:85 88 O RISC port chip select (active-low).
LWRLL# 89 O RISC port low-byte write enable(active-low).
LOE# 90 O RISC port output enable (active-low).
LD[7:0] 91:94,97:100 I/O RISC port data bus; (5V tolerant input).
RSD 101 I Audio receive serial data; (5V tolerant input ).
RBCK 102 I Audio receive bit clock; (5V tolerant input ).
RWS 103 I Audio receive frame sync; (5V tolerant input ).
VD33_PL 104 P Power for PLL blocks.
VS33_PL 105 G Ground for PLL blocks.
VREF I Internal voltage reference to video DAC.
YUV1
COMP I Compensation input .
YUV3
RSET I DAC current adjustment resistor input .
YUV4
FDAC

106

107

108

109

O YUV pixel 1 output data .

O YUV pixel 3 output data .

O YUV pixel 4 output data.

Video DAC output. Refer to description and matrix for

O

UDAC pin 115.

6

YUV7 O YUV pixel 7 output data .
VDAC

110

YUV6

Video DAC output . Refer to description and matrix for

O

UDAC pin 115.

O YUV pixel 6 output data.

Names Pin Numbers I/P Definitions
VD33_DA 111 P Power for I/O power supply for VDAC.
VS33-DA 112 G Ground for I/O power supply for VDAC.
YDAC

113
YUV5
CDAC

114
YUV2

Video DAC output. Refer to description and matrix for

O

UDAC pin 115.

O YUV pixel 5 output data.

Video DAC output. Refer to description and matrix for

O

UDAC pin 115.

O YUV pixel 2 output data .

Video DAC output.

Pin 109 110 113 114 115

Valu

e

0

1

2

3

4

5

UDAC O

6

7 N/A

8

9 CVBS

10 CVBS

11 N/A

12

13

FDAC VDAC YDAC CDAC UDAC

CVBS/Chrom

a

CVBS/Chrom

a

CVBS/Chrom

a

CVBS/Chrom

a

CVBS/Chrom

a

CVBS/Chrom

a

CVBS/Chrom

a

CVBS/Chrom

a

CVBS/Chrom

a

CVBS/Chrom

a

CVBS

1

CVBS

1

Y C N/A

Y C

N/A Y C N/A

CVBS

1

CVBS

1

CVBS

1

N/A N/A

N/A N/A N/A

Y Pb Pr

N/A Y Pb Pr

SYNC

Chrom

a

CVBS

1

CVBS

1

SYNC

G B R

Y Pb Pr

G B R

G R B

G R B

N/A Y Pr Pb

CVBS

1

Y Pr Pb

14 Chroma Y G R B
F: VCBS/chroma signal for simultaneous mode.
Y: Luma component for YUV and Y/C processing.

CVBS2

CVBS2

7

C: Chrominance signal for Y/C processing.
U: Chrominance component signal for YUV mode.
V: Chrominance component signal for YUV mode.

TWS 116 O Audio transmit frame sync output.

8

Names Pin Numbers I/P Definitions

System and DSCK output clock frequency selection is
made at the rising edge of RESET#. The matrix below
lists the available clock frequencies and their respective
PLL bit settings. Strapped to VCC or ground via 4.7-KΩ

resistor; read only during reset.

SEL_PLL2 SEL_PLL1 SEL_PLL0 Clock

0 0 0 CLK*4.5

SEL_PLL2 I

0 0 1 CLK*5.0
0 1 0 Bypass
0 1 1 CLK*4.0
1 0 0 CLK*4.25
1 0 1 CLK*4.75
1 1 0 CLK*5.5
1 1 1 CLK*6.0

Type(MHz)

TSD0 O Audio transmit serial data port 0.
SEL_PLL0

117

I Refer to the description and matrix for SEL_Pll2 pin 116.
TSD1 O Audio transmit serial data port 1.
SEL_PLL1

118

Refer to the description and matrix for SEL_PLL2 pin

I

116.
TSD[2:3] 120.121 O Audio transmit serial data ports 2 and 3.
MCLK 122 I/O Audio master clock for audio DAC.
TBCK 123 O Audio transmit bit clock.
SPD_DOBM O S/PDIF output .
SEL_PLL3

124

Clock source select. Strapped to VCC or ground via 4.7K

read only during reset .

Ω

I

SEL_PLL3 Clock Source

0 Crystal oscillator
1 CLK input

SPDIF_IN 125 I S/PDIF input; (5V tolerant input).
WBLCLK

128 O

DVD-RAM wobble detector circuit clock source to

preamp.
WBL 129 O DVD-RAM wobble output.
LG 130 O DVD-RAM land/groove flag.
IP2 131 I DVD-RAM header position index 2.
IP1 132 I DVD-RAM header position index 1.
FLAG[3:0] 133:136 O To monitor servo status .
TEXI 139 I High-speed tracking error input .
TESTAD 140 I Test AD input .
SBAD 141 I Sub-beam addition input signal .
FEI 142 I Focus input error signal.
AVSS_AD 143 G Analog ground for ADC block .

9

CEI 144 I Center error input signal .
TEI 145 I Tracking error input signal .
RFRP 146 I RF ripple/envelope input signal.
AVDD3_AD 147 P Analog power supply for ADC block.
VREF21 148 O 2.1V reference voltage.
VREF09 149 O 0.9Vreference voltage.
VREF15 150 O 1.5V reference voltage.

Names Pin Numbers I/P Definitions

IREF

151 I

Servo data PLL interface reference current generator

connect a resistor between this pin and ground to set

reference current .
AVDD3_DS 152 P Analog power supply for data slicer .block.
IPIN 153 I Inverting input of data slicer .
RFIN

RFIP

154 I

155 I

Analog RF signal input after passing through

equalizer(minus)

Analog RF signal input after passing through

equalizer(plus).
DSSLV 156 O Data slicer level output.
AVSS_DS 157 G Analog ground for data slicer block.
AVSS_PL 158 G Analog ground for data PLL block.
PDOFTR1 159 O Servo data PLL phase detector filter pin number 1.
FDO

160 O

Servo data PLL output node of frequency detector

charge pump.
FTROPI 161 I Servo data PLL input node of loop filter OP circuit .
AVDD3_OL 162 P Analog power supply for data PLL block .
PLLFTR1 163 I Servo data PLL loop filter pin number1.
PLLFTR2 164 I Servo data PLL loop filter pin number2.
VREF0 165 O Servo data PLL reference voltage output.
AWRC 166 I/O Auto wide range control VCO signal from/to AWRC DAC.
AVSS_DA 167 G Analog ground for DAC part.
RFRPCTR 168 I/O Central level of RFRP.
TRAY 169 O Output voltage level for tray buffer IC.
AVDD3_DA 170 P Analog power supply for DAC part .
SPINDLE 171 O Output voltage level for spindle buffer IC.
FOCUS 172 O Output voltage level for focus buffer IC.
SLEGP 173 O Output voltage level for Sledge buffer IC(plus).
SLEGN 174 O Output voltage level for Sledge buffer IC(minus).
TRACK 175 O Output voltage level for tracking buffer IC.
TESTDA 176 O Test DA output .
FGIN 177 I Spindle hall sensor input .
PHOI 178 I Sledge photo interrupt signal input.
SCSJ 179 O Chip selection signal to RF chip (serial data enable).
SDATA 180 I/O Data signal from/to RF chip.
SCLK 181 O Serial clock source to RF chip.
DFCT 182 I Defect flag input signal.

10

LDC 183 O Laser diode on/off control output.
SPDON 184 O Spindle power driver on/off control output.
GPIO[9:4]

187:192 I/O

General-purpose input/output used for servo control;

(5V tolerant input.)
EAUX[3:0] 193:196 I/O Extended auxiliary ports;(5V tolerant input).
I²CDATA

AUX0
I²C_CLK

AUX1

199

200

I/O
I/O Auxiliary port (open collector);(5V tolerant input).
I/O
I/O Auxiliary port (open collector);(5V tolerant input).

I²C data I/O;(5V tolerant input).

I²C clock I/O;(5V tolerant input).

IOW# O I/O Write strobe(LCS1)(active-low).
HSYNC# I/O Horizontal sync (active low);(5V tolerant input).
AUX2

201

I/O

Auxiliary port ;(5V tolerant input).

Names Pin Numbers I/P Definitions
IOR# O I/O Read strobe (LCS1)(active –low).
VSYNC# I/O Vertical sync (active-low);(5V tolerant input ).
AUX3
C2PO I Error correction flag from CD;(5V tolerant input).
AUX4

202

203

I/O Auxiliary port;(5V tolerant input).

I/O Auxiliary port;(5V tolerant input).
AUX[5:6] 204:205 I/O Auxiliary ports ;(5V tolerant input).
IR I Infrared remote control input;(5V tolerant input).
AUX7

206

I/O Auxiliary port;(5V tolerant input ).
RESET# 207 I Reset input (active –low );(5V tolerant input).

101 I Audio receive serial data input[RSD];(5V tolerant input).
102 I Audio receive bit clock input [RBCK]:(5V tolerant input ).
103 I Audio receive frame sync input[RWS];(5V tolerant input).
116 O Audio transmit frame sync output[TWS].

Audio Port
Interface

117.118.120.121 O Audio transmit serial data outputs [TSD[3:0]].
122 I/O Audio DAC master clock[MCLK].
123 O Audio transmit bit clock output[TBCK].
124 O Sony/Philips Digital Interface audio output [SPD_DOBM].

125 I

Sony/Philips Digital Interface audio Input [SPDIF_IN];(5V tolerant input).

Auxiliary Port
Interface

Clock Inetface
and Reset

Interface

193:196 I/O Extended auxiliary ports [EAUX[3:0]];(5V tolerant input).

199.200 I/O Open collectors [AUX[1:0]],(5V tolerant input).
201:206 I/O Primary auxiliary port I/Os [AUX[7:2]];(5V tolerant input).

2 I 27-MHz crystal clock input [VID_XI].
3 O 27-MHz crystal clock output[VID_XO].

4 I System clock [CLK].
29 O DRAM clock enable output [DSCK_EN].
51 O Output clock [DSCK] to video memory (DRAM).

116:118 I Clock frequency select PLL outputs [SEL_PLL[2:0]].

207 I Reset input (active-low)[RESET#];(5V tolerant input).

106:110.113:115 O Pixel data outputs [YUV[7:0]]. Display

201 I/O Horizontal sync[HSYNC#];(%V tolerant input).

11

202 I/O Vertical sync [VSYNC#];(5V tolerant input ).

EPROM/Flas
h ROM and
RISC Port
Intetface

55:60.63:69.72:77.

80:82

83:85 O

89 O

90 O

91:94.97:100 I/O

RISC port address bus [LA[21:0]]to EPROM or Flash

O

memory.
RISC port chip select outputs [LCS[2:0]#]to EPROM or
Flash memory.
RISC port low-byte write enable output[LWRLL#]to
EPROM or Flash memory.
RISC port output enable[LOE#]to EPROM and Flash
memory.
RISC port data bus [LD[7:0]]to EPROM or Flash memory
(5V tolerant input ).

106 I Video DAC reference voltage input[VREF]. Filter and
Reference
voltang

107 I Compensation input[COMP].
Interface
Front Panel
Display

206 I Infrared remote control input [IR];(5V tolerant input).
Interface

Names Pin Numbers I/P Definitions
General-Purp
ose
I²C Bus

Interface

187:192 I/O

199 I/O
200 I/O

1.10.19.35.44.53.6

2.79.96.126.185

9.18.34.43.52.61.7

8.95.119.127.186.

General –purpose I/O[GPIO[9:4]];(5V tolerant input).

I²C data I/O[12C_DATA];(5V tolerant input).
I²C clock I/O[12C_CLK];(5V tolerant input).
I/O power supply [VD33].

P

I/O ground [VS33].

G

208

26.70.86.137.197 G Ground for core power [VSS].

27.71.87.138.198 P Core power supply [VDD].
104 P Power supply for PLL block .[VD33_PL].

Power and
Ground

105 G Ground for PLL block [VS33_PL].

111 P Power supply for video DAC[VD33_DA].
112 G Ground for video DAC[VS33_DA].
143 G Analog ground for ADC[AVSS_AD].
147 P Analog power supply for ADC[AVDD3_AD].
152 P Analog power supply for data slicer [AVDD3_DS].
157 G Analog ground for data slicer[AVSS_DS].
158 G Analog ground for data PLL [AVSS_PL].
162 P Analog power supply for data PLL[AVDD3_PL].
167 G Analog ground for DAC[AVSS_DA].
170 P Analog power supply for DAC[AVDD3_DA].

Serial Port
Interface 203 I

C2PO error correction flag from CD[C2PO];(5V tolerant
input).

12

Servo Data
Slicer
Interface

153 I

154

Inverting input of data slicer [IPIN].

Analog RF signal input after passing through

I

equalizer(minus) [RFIN].

Analog RF signal input after passing through

155 I

equalizer(plus) [RFIP].

156 O

Data slicer level output[DSSLV].

13

2.OPERATING INSTRUCTIONS

.

A

A

A

V

1. GENERAL SETUP

Pressing the SETUP button on remote control during STOP or PLAY mode to SETUP MENU.

sing Cursor to select GENERAL SETUP. Press ENTER to enter GENERAL SETUP page.

SETUP MENU - MAIN PAGE

GENERAL SETUP

SPEAKER SETUP
AUDIO SETUP
PREFERENCE

EXIT SETUP

a.TV DISPLAY

-- GENERAL PAGE --

TV DISPLAY NORMAL P/S

PIC MODE NORMAL L/B
ANGLE MARK WIDE
OSD LANG
CAPTIONS
SCR SAVER
MA IN P A G E

b. PIC MODE (PICTURE MODE)

( FOR PROGRESSIVE-SCAN M ODEL )

-- GENERAL PAGE --

TV DISPLAY

PIC MODE AUTO

ANGLE MARK HI-RES
OSD LANG NON-FLICKER
CAPTIONS
SCR SAVER
MA IN P A G E

-- GENERAL PAGE --

TV DISPLAY
PIC MODE

NGLE MARK
OSD LANG
CAPTIONS
SCR SAVER
MA IN P A G E

Using cursor to move to desired setting and
press ENTER to confirm.
NORMAL/PS – 4 x 3 Pan Scan
Full screen of picture on TV. Normally, left and
right edges cannot be shown.
NORMAL/LB – 4 x 3 Letter Box
Orginal ratio of aspect.
WIDE – 16 : 9 Widescreen

-- GENERAL PAGE --

TV DISPLAY

PIC MODE

NGLE MARK FILM
OSD LANG
CAPTIONS SMART
SCR SAVER SUPER SMART
MA IN P A G E

UTO

IDE O

14

c.ANGLE MARK

-- GENERAL PAGE --

TV DISPLY
PIC MODE

ANGLE MAR K O N

OSD LANG OFF
CAPTIONS
SCR SAVER
MA IN P A G E

This feature is functioned only for the disc,
which has ANGLE function:

When the ANGLE MARK is set ON, the screen displays the mark.
When the ANGLE MARK is set OFF, the mark is not displayed.

d. OSD LANG (ON SCREEN DISPLAY LANGUAGE)

-- GENERAL PAGE --

TV DISPLAY
PIC MODE
ANGLE M ARK

OSD LANG ENGLISH

CA P T ION S IT A L IA N
SCR SAVER
MA IN P A G E

e. CAPTIONS

-- GENERAL PAGE --

TV DISPLAY
PIC MODE
ANGLE M ARK
OSD LANG

CAPTIONS ON

SCR SAVER OFF
MA IN P A G E

f. SCR SAVER

-- GENERAL PAGE --

When the unit is stopped, no operation, no function button is

TV DISPLAY
PIC MODE
ANGLE M ARK
OSD LANG
CAPTIONS ON

SCR SAVER OFF

MA IN P A G E

pressed in 1 minute,screen saver appears for the purpose to
protect the TV screen if SCR SAVER is set ON.

15

2.SPEAKER SETUP

SETUP MENU - MAIN PAGE

GENERAL SETUP

SPEAKER SETUP

AUDIO SETUP
PREFERENCE

EXIT SETUP

a. DOWNMIX

-- SPEAKER SETUP PAGE --

DOWNMIX LT/RT



CENTER STEREO



REAR OFF

 OFF : Turn off the Downmix mode. 5.1 channels can be preformed only if

SUBWOOFER
CNTR DELAY



REAR DELAY
TEST TONE

LT/RT : Left and Right output mode

STEREO : Stereo output mode

Downmix is set OFF and the rest of other setup can be activated.

MA IN P A G E

b. CENTER c. REAR

-- SPEAKER SETUP PAGE --

DOWNMIX

CENTER ON

REAR OFF
SUBWOOFER
CNTR DELAY
REAR DELAY
TEST TONE

-- SPEAKER SETUP PAGE --

DOWNMIX
CENTER

REAR ON

SUBWOOFER OFF
CNTR DELAY
REAR DELAY
TEST TONE

MA IN P A GE

MAIN PAGE

d. SUBWOOFER

-- SPEAKER SETUP PAGE --

DOWNM IX
CENTER
REAR

SUBWOOFER ON

CNTR DELAY OFF
REAR DELAY
TEST TONE

M A IN P A G E

16

e. CNTR DELAY f. REAR DELAY

Adjust the audio delay from center Adjust the audio delay from center

channel from 0 to 5MS. channel rom 0 to 15MS.

-- SPEAKER SETUP PAGE --

DOWNM IX
CENTER
REAR
SUB W O OFE R 5MS

CNTR DELAY

REA R DE LA Y 3MS
TEST TONE

M A IN P A G E OF F

1MS

-- SPEAKER SETUP PAGE --

DOWNM IX
CENTER
REAR
SUB W O OFE R 15MS
CNTR DELAY

REAR DELAY 9MS

TEST TONE

M A IN P A G E OF F

3MS

g. TEST TONE

-- SPEAKER SETUP PAGE --

DOWNMIX
CENTER
REAR
SUBWOOFER
CNTR DELAY
REAR DELAY ON

TEST TONE OFF

MA IN P A GE

ON : open the 5.1 channel test function.
OFF : turn off the 5.1 channel test function.

17

3.AUDIO SETUP

SETUP MENU - MAIN PAGE

GENERAL SETUP
SPEAKER SETUP

AUDIO SETUP

PREFERENCE

EXIT SETUP

a. SPDIF OUTPUT

OFF: Audio signal is out from AUDIO OUT (RCA)

-- AUD IO SE T UP P AGE --

jacks.

SPDIF OUTPUT OFF

SPDIF/RAW: The player is connected to a Dolby Digital

OP MODE SPDIF/RAW

amplifier through DIGITAL OUT Coaxial or

DUAL MONO SPDIF/PCM
COMPRESSION

Optical jack.

PRO LOGIC

SPDIF/PCM: The player is connected to a 2-channel digital

LPCM OUTPUT

mode or stereo amplifier through Coaxial or

M A IN PA G E

Optical jack.

b. OP MODE

-- AUDIO SETUP --

SPDIF OUTPUT

OP MODE LINE OUT

DUAL MONO RF REMOD
COMPRESSION
PRO LOGIC
LPCM OUTPUT

MA IN P A G E

LINE OUT : Line out mode with digital dialog normalization,

compress input linear signal.

RF REMOD : RF remodulation mode with heavy compression

and digital dialog normalization.

c. DUAL MONO

-- AUDIO S ET U P --

SPDIF OUTPUT
OP MODE

DUAL MON O STEREO

COMPR ESSION L-MONO
PRO LOGIC R-MONO
LPCM OUTPUT MIX-MONO

MAIN PAGE

Output mode of the L/R signals. Mix-mono can be functioned
only if the DVD is playing in 5.1 channel.

d. COMPRESSION

-- AUDIO SETUP --

SP D IF O U T PU T - - FU L L
OP MOD E - -
DU A L MON O - - 6/8

COMPRESSION - -

PR O L O G IC - - 4/8
LP C M OU T P U T - -

- - 2/8

M A IN P A GE - - O F F

To adjust linear compression rate to obtain the different
compression results of the signals only if the OP MODE is
set to LINE OUT.

18

e. PRO LOGIC(optional)

-- AUDIO SETUP --

To select Dolby Prologic Surround mode.

SPDIF OUTPUT
OP MODE
DUAL MONO
COMPRESSION

PRO LOGIC OFF

LPCM OUTPUT ON

MA IN P A G E

AUTO

f. LPCM OUTPUT

-- AUDIO SETUP --

SPDIF OUTPUT
OP MODE
DUAL MONO
COMPRESSION
PRO LOGIC

LPCM OUTPUT LPCM 48K

LPCM 96K

MA IN P A G E

To select LPCM output at 48K or 96K.

19

4. PREFERENCE

V

V

A

V

V

A

SETUP MENU - MAIN PAGE

GENERAL SETUP
SPEAKER SETUP
AUDIO SETUP

PREFERENCE

EXIT SETUP

a. TV TYPE b. VIDEO OUTPUT

-- PREFERENCE PAGE --

-- PREFERENCE PAGE --

TV TYPE MULTI

IDEO OUTPUT NTSC
AUDIO PAL
SUBTITLE
DISC MENU
LOCALE
PARENTAL

TV TYPE S-VIDEO

IDE O O U T PU T YPbPr

UDIO RGB
SUBTITLE
DISC MENU
LOCALE
PARENTAL

c. AUDIO d. SUBTITLE

-- PREFEREN CE PAGE --

-- PREFERENCE PAGE --

TV TYPE
VIDEO OUTPUT ENGLISH

AUDIO FRENCH

SUBTITLE SPANISH
DISC MENU CHINESE
LOCALE JAPANESE
PARENTAL ITALIAN

TV TYPE ENGLISH
VIDEO OUTPUT FRENCH
AUDIO SPANIS H

SUBTITLE CHINESE

DISC MENU JAPANESE
LOCALE ITALIAN
PARENTAL OFF

e. DISC MEUN f. LOCALE

-- PREFERENCE PAGE --

-- PREFERENCE PAGE --

TV TYPE

IDE O OU T PU T EN GLISH
AUDIO FRENCH
SUBTITLE SPANISH

DISC MENU ITAL IA N

LOCALE CHINESE
PARENTAL JAPANESE

TV TYPE CHINA

IDEO OUTPUT FRANCE

UDIO
SUBTITLE JAPAN
DISC MENU TAIWAN

LOCALE GBR

PARENTAL USA

HONG KONG

20

g. PARENTAL

V

V

V

A

-- PREFERENCE PAGE --

TV TYPE 1 G

IDE O OU T PU T 2
AUDIO 3 PG
SUBTITLE 4 PG 13
DISC MENU 5
LOCALE 6 PG-R

PARENTAL 7 NC-17

PASSWORD 8 ADULT

To select an age control grade according to the grade of
the disc and your desired. The disc cannot be played for
the rate higher than the grade set.
Go to the PASSWORD VERIFY PAGE to input password
after selection of Parental grade.

h. PASSWORD i. DEFLAUTS

-- PREFERENCE PAGE --

-- PREFERENCE PAGE --

TV TYPE

IDE O OU T PU T
AUDIO
SUBTITLE
DISC MENU
LOCALE
PARENTAL

PASSWORD CHANGE

IDE O O U T PU T

UDIO
SUBTITLE
DISC MENU
LOCALE
PARENTAL
PASSWORD

DEFLAUTS RESET

The default setting of password is 3308 To reset the settings to factory setting

j. SMART NAVI

-- PREFERENCE PAGE --

AUDIO
SUBTITLE
DISC MENU
LOCALE
PARENTAL
PASSWORD
DEFLAUTS NO MENU

SMART NAVI WITH MENU

To select the display with MENU for playing MP3 and
PHOTO CD (JPEG).

21

5. JPEG, MP3 & MPEG4 Format

(Playback of MP3, WMA, CD-R and CD-RW may depend on recording condition)

ROOT JPEG 1

SMART NAVI

ROOT MP3 1

JPEG 2
JPEG 3
JPEG 4
JPEG 5
JPEG 6
JPEG 7
JPEG 8

SMART NAVI

MP3 2
MP3 3
MP3 4
MP3 5
MP3 6
MP3 7
MP3 8

Press to select the „ROOT“ on the left columns & the „FILE“ on the right side, press
ENTER“/“PLAY“ to view the JPEG PHOTOS or to play MP3 files. Then press “STOP” to go back to the menu
of SMART NAVI”.

FUNCTION KEYS

Zoom Press the “ZOOM” Button, then the screen will show “ZOOM ON”,

and press Icons to “zoom in” or “zoom out”.

Rotate Press to rotate the picture

Next/ Press to the next or previous pictures/songs.
Previous

Forward/ Press the icons to playing fast forward ans fast backward.
Backward

Menu Press “Menu” to preview the photos.

Mute Press “MUTE” button to turn the audio off. Press it again to resume.

Pause Press to pause playin & press again to resume.

22

MPEG4 FORMAT

ROOT MP4 1

SMART NAVI

MP4 3
MP4 3
MP4 4
MP4 5
MP4 6
MP4 7
MP4 8

FUNCTION KEYS

Forward/ Press the icons to playing fast forward and fast backward.
Backward Continuously pressing and back to normal.

Next/ Press to the next or previous chapter or files.
Previous

Mute Press “MUTE” button to turn the audio off. Press it again to resume.

Pause Press ___ to pause playing & press again to resume.

Slow Press “SLOW” and playback of slow motion. Please “Play” to resume it.

Step Keeping press “STEP” repeatedly button to playing frames by frames.

GoTo Search the chapter and time you want. Functions please refer to “Function Buttons” on instruction

book.

Subtitle

In order to use the function of Subtitle (For the MPEG4 file with subtitle function):

Insert disc and choose the file in “?” icon, then press ‘ANGLE’ button in remote control,
the screen will shown subtitle is being selected. Then get back to the appropriate .avi file
and press ‘ENTER’ to playback, then the subtitle function is activate.

23

3.PRODUCT SPECIFICATIONS

A. Playback System
DVD Video

Video CD (1.1, 2.0, 3.0)
SVCD
CD and CDDA
CD-R/RW
PICTURE CD

B. Television Signal System
NTSC/PAL
C. Video Performance

Video Out 1V
S-Video Out Y: 1VPP into 75ohm

D/A Converter 27MHz/10 bit

D. Audio Performance

Frequency Response DVD: fs48//96KHz, 4Hz-22/44KHz

Output Level Analog: 2V

D/A Converter 96KHz/24bit
S/N Ratio With LPF 95dB

E. Connections

Coxial digital out X1

into 75ohm

PP

C: 0.286V

into 75ohm

PP

Video CD: fs 44.1KHz, 4Hz-20KHz
Audio CD: fs44.1KHZ, 4Hz-20KHz

(1KHZ)

RMS

Digital: 1.15V

PP

Without LPF 90dB

Digital out X1
Audio Analog out (5.1ch) X1
S-Video out X1

F. Power Supply

Power Source AC 90-250V 50/60Hz
Power Consumption <25 Watt

24

4.TROUBLESHOOTING

Symptom Check and Action

No Power

Do not play

No Picture

Picture noise /
distorted

Picture not full
screen

Cannot SKIP or
SEARCH

No sound or
Sound output not
complete

1. Check the power cord has been properly connected to the wall outlet

2. Check the main power has been switched on

1. No disc, load a disc

2. Disc has been loaded upside down. Place the disc with the label side up

Disc’s region code is not matching to the unit

3.

Disc is not correct type to be played

4.

Disc is damaged or dirty, clean the disc or try another disc

5.

Moisture may be condensed inside the unit. Remove the disc and leave the unit

6.

power on for one or two hours

1. Check the TV set has been power on, and setting at the correct AV mode

2. Check the system connection is secure

3. Check if the connection cables are damaged

4. Clean the disc

1. Disc is dirty or damaged. Clean the disc or try another disc

2. Reset the color system of the DVD unit or the TV set

3. Try to direct the DVD unit to the TV set instead of via the components like VCR.

1. Select the screen format. Enter SETUP MENU  (TV DISPLAY)

2. Select the screen format from DVD disc menu

1. Some disc are programmed that do not allow users to SKIP or SEARCH forward
at some sections, especially at the beginning WARNING section

2. Single Chapter disc cannot apply SKIP function

1. Check the TV and amplifier has been power on and correctly setting

2. Check the TV and amplifier system connections are secure

3. Press AUDIO button select other audio tracks output of disc

4. Check if the MUTE function of the DVD, TV or amplifier has be activated

5. There will be no sound output during REVERSE PLAY / PAUSE / STEP / SLOW /
SEARCH

25

5.MAINTENACF INSTRUCTIONS

INDEX

a. No power

Please see Fiugure 1

b. No LED display

Pleasse see Fiugure2

c. No video output

Pleasse see Fiugure3

d. cannot read disc

Pleasse see Fiugure4

e. Remote control no function

Pleasse see Fiugure6

f. No 2ch output

Pleasse see Fiugure7

g. Disc door cannot open

Pleasse see Fiugure8

26

(i) Figure 1

t

N

START

Power on

The unit cannot switch

on

Does the connecti on

between power board and

the power cord/rear switch

is correc

?

o

Change/reinset the

cables or wires

Yes

Does the fuse on power

board is burned?

Yes

Change

fuse

Change power board

Change MPEG board

END

27

(ii)Figure2

START

Power on

No

Yes

No LED display

Does the output level
board”con6”correct
+5v:+4.5v--+5.4v

Change MPEG board

Change front penal

END

Change

Power board

28

(iii)Figure 3

START

Power on

Scart no output?

Change

MPEG board

Change

scart board

Change

MPEG board

END

29

(iv)Figure 4

START

Power on

Insert VCD DVD CD-R/RW DVD-R/RW

DVD+R/RW PHOTO CD

VFD Display "NO DISC" or the unit DEAD

Change the 24PIN cable

(from loader to mpeg board )

Change loader

Change MPEG board

END

30

(vi) Figure 6

N

START

Power on

Remote control does

not work

Does the remote control

have batteries?

Yes

Does other remote control

work?

Change MPEG board

Change front panel

END

o

Yes

Insert new batteries

Change

remote control

32

(vii)Fiure7

No

Yes

No

Yes

No

Yes

33

Does the disc support 2ch
output

Does the unit audio
setting is at 2ch?

Does the power board

“correct” +12v(+9～15v)

-12v(-9v～-15v

Change MPEG board

START

Power on

2ch no output

Use other
disc to check

Reset the unit
at setup menu

Change the
power board

END

(viii)Figure 8

START

Power on

The disc door cannot open

Change

5PIN cable

(from loader to MPEG board)

Change
loader

Change

MPEG board

END

34

6.ELECTRICAL PART LIST

A. MPEG board

ltem Name of Components Specification Qty Location

1 Pcb 板 ESS-66X8PCBREV:1.5 1

2 IC 8MFLASH 29F800BA-70PFTN 1 U2

3 IC ES6698 U1

4 IC SDRAM 4MX16—7T U5

5 IC 24C02 U3

6 IC 74HCO4 U13

7 IC V6300 1 U8

8 IC RC4558 1 U15

9 IC AMS1117/LM1117 3 Q4 Q3 QQ4

10 JACK TJC3-7(7PINX2.54mm) 1 J4

14 JACK 4Pin.AV4—8.4—13P 1 J13

15 Crystal 27M-30ppmHC-49S 1 Y1

16 Transistor PMBT3904,NPN type 3 Q9 QQ6 QQ8

17 Transistor 2SC3326 2 Q19 Q22

18 Transistor 8550 1 Q2

19 Transistor 2SB1132 2 QQ1 QQ2

20 Chip Bead FB0805-0.2A-26@100MHZ 9 LL1LL2LL4LL5LL6FB1FB2 .

FB4 LL3

21 Chip Bead FB1206-0.2A-26@100MHZ 2 L15L16

22 Chip lnductor LG0805-0.2A-1.8UH±10% 5 L1L2L3L4L5
23 Chip lnductor LG0805-0.2A-2.2UH±10% 9 L50L51L52L53L54L55L57L60

L6

24 Chip diode 4.3V 1/2W 1 D14

25 Chip diode IN6263 10 D1D2D3D4D5D6D7D8D9D10

26 Chip diode IN4148 7 D15D16D17DD1DD2DD3D13

27 Chip Resistor R0603-0Ω±5% 34 RL3R5R14R17R19R20R5R43R

37R101R61R157RR10RR11RR1

9RR41RR58RR72RR75RR87RR

39R98R25RR81RR84R25R89R9

5CC29RR58RR24R179R180RR

79RR71RR1

28 Chip Resistor R0603-10Ω±5% 2 RR45RR46
29 Chip Resistor R0603-33Ω±5% 23 R23R24R26R28R29R30R31R44

R48R60R63R65R66R68RR27R

R28RR29R163R164R120R121R

156R158R159

30 Chip Resistor R0603-47Ω±5% 1 R33
31 Chip Resistor R0603-68Ω±5% 1 R113
32 Chip Resistor R0603-75Ω±5% 5 R6R11R12R15R16

33 Chip Resistor

34 Chip Resistor

35 Chip Resistor

36 Chip Resistor

37 Chip Resistor

38 Chip Resistor

39 Chip Resistor

40 Chip Resistor

41 Chip Resistor

42 Chip Resistor

43 Chip Resistor

44 Chip Resistor

45 Chip Resistor

46 Chip Resistor

47 Chip Resistor

48 Chip Resistor

49 Chip Resistor

50 Chip Resistor

51 Chip Resistor

52 Chip Resistor

53 Chip Resistor

54 Chip capacitor

55 Chip capacitor

56 Chip capacitor

57 Chip capacitor

58 Chip capacitor

59 Chip capacitor

60 Chip capacitor

61 Chip capacitor

62 Chip capacitor

63 Chip capacitor

64 Chip capacitor

65 Chip capacitor

66 Chip capacitor

67 Chip capacitor

68 Chip capacitor

69 Chip capacitor

70 Chip capacitor

R0603-150Ω±5% 2 R76,RR104
R0603-330Ω±5% 2 R102,R125
R0603-360Ω±5% 1 R13
R0603-470Ω±5% 1 R95

R0603-1K2 ±5% 1 RR16

R0603-2K2 ±5% 1 R85

R0603-100k±5% 5

R0603-10M±5% 1 R91

R0805 -3R3±5% 1 RR83
0603 排阻,10Ωx4
0603 排阻,4K7x4

C0603-22P±5% NPO 4

C0603-33P±5% NPO 3 CC35,CC36,CC37
C0603-47P±5% NPO 1 CC25

C0603-100P±5% NPO 8

C0603-160P±5% NPO 1 CC65
C0603-330P±20% X7R 10
C0603-470P±20% X7R 5 CC41,CC43,CC86,CC30,CC33
C0603-680P±20% X7R 4 CC51,CC52,CC53,CC56
C0603-820P±20% X7R 1 CC48

C0603-1000P±20% X7R 6 CC1,CC2,CC3,CC4,CC64,CC71
C0603-1500P±20% X7R 2
C0603-4700P±20% X7R 3 CC6,CC11,CC61
C0603-6800P±20% X7R 2 CC17,CC28

C0603-0.01U±20% X7R 2 CC45,CC67
C0603-0.015U±20% X7R 2 CC31,CC32
C0603-0.033U±20% X7R 1 CC66
C0603-0.047U±20% X7R 2 CC21,CC54

R0603-91Ω±5% 1 R105

R0603-1K±5% 9

R0603 -2K±5% 2 R140,R152

R0603-3K3±5% 4 RR3,RR4,RR5,RR6
R0603-3K9±5% 2 R139,R151
R0603-4K7±5% 7 R7,R8,R9,R10,R27,R73,RR76
R0603-5K1±5% 1 RR18
R0603-6K8±5% 4 R83,RR21,RR22,RR25

R0603-1M±5% 2 R96,RR73

R0805 -0Ω±5% 3

R21,R22,R47,R89,R90
RR93,RR94,RR88,R58

R42,RR102,R93,
R136,R148

L56,L59，L58

3 RN1,RN2,RN3
1 RN4

C13,C14,
C67,C81

C34,C46,C100,C101,C102,CC57,C69,
C83

C1,C2,C3,C4,C5,C6，C9,C10,C11,C12

C70，C90

71 Chip capacitor

72 Chip capacitor

73 Chip capacitor

74

75

76

77

78

79

80

81

82

83

84

85

86

87

88

89

Electrolytic capacitor

Electrolytic capacitor 10U/25V±20% φ4x5mm 7

Electrolytic capacitor

Electrolytic capacitor

Electrolytic capacitor

Electrolytic capacitor

Electrolytic capacitor
Electrolytic capacitor

jack

jack

Optical jack

jack
jack

jack

jack

FPC 插座(24Pin 间距 0.5mm 下接觸

C0603-0.1U±20% X7R 69

C0603-0.22U±20% X7R 1 CC63

C0603-1U±20% X7R 6

4.7U/25V±20% φ5*11mm

10U/25V±20% φ5*11mm

100U/16V ±20% φ5*11mm

105℃

10U/25V±20% φ5*11mm

105℃

100U/16V ±20% φ5*11mm

220U/16V±20% φ6*12mm

470U/25V±20% φ8*15mm

带锁）

PH2.0 立式插座, 5pin x 2.0mm

光纖發射端子-TOTX179

PH2.0 立式插座, 6pin x 2.0mm

10

AV1-8.4-1S

色差输出插座带 4 个插孔

4PIN,AV4---8.4---13P

2CH 输出带 2 个插座孔

2PIN,AV2---8.4---13P

B9,B10,B11,B12,B15,B18,B23,B24,B

25

B26,B27,B28,B29,B30,B31,B32,B33,

B36

B37,B38,B39,B40,B41,B42,B44,B45,

B46

B47, B48,B49,B50,C7,C8,C42,CC46,

C48,CC55,CC58,C72,B57,B56,C75,C

86,

CC90,CC5,CC13,CC14,CC15,CC22,C

C24,

CC26,CC27,CC34,CC38,CC39,CC40,

CC42

CC44,CC47,CC49,CC50,CC60,CC62,

CC75,
CC77,CC81,CC94,B8,C24

CC10,CC12,CC20,CC83
CC88,CC92

1 CC8

B60,C16,C17,
C65,C79,C88,C25

B19,B34,B1

5

C71,C76

2

B22,B20(注:要求是耐温 105

2

B13,B43(注:要求是耐温 105

B2,B3,B4,CC68,CC69

CC80,CC85,CC87,CC89,CC91

5 B5,B7,C38,CC78,B14
2 C36,CC84

1

JJ1(注:要求耐高温 265 度)

1 JJ5
1 J8
1 J12
1 J9

1

J13 图号：7900 0001 10

1

J10(插 1,2,9 脚上白下红)

0

C的)

0

C的)

B. Power board

ltem Name of Components Specification Qty Location

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

Chrbon Film Resistor RT13--1/2W-0.68Ω-±5% 1 R12
Chrbon Film Resistor RT13-1/2W-470Ω-±5% 1 R9
Chrbon Film Resistor RT 13- -1W /1Ω-±5% 1 R5
Chrbon Film Resistor RT13--2W/47KΩ±5% 1 R1
Chrbon Film Resistor RT14--1/4W-22Ω-±5% 2 R4, R6

PCB

IC ICE2A0565 DIP8 封装

IC

IC TL431,TO-92 封裝

Chip diode

Chip diode

Chip diode
Chip diode
Chip diode

Insurance tabe

Transformer BC-52B3 1 T1

fiter LB-1215-A 1 L1

插件磁芯电感

The color wreath

elatricityfeels

20

21

22

23

24

25

26

27

28

29

30

31

32

33

Chrbon Film Resistor
Chrbon Film Resistor RT14-1/2W-1.2KΩ-±5% 1 R8
Chrbon Film Resistor RT14-1/4W-1.2KΩ-±5% 1 R11
Chrbon Film Resistor
Chrbon Film Resistor

Chrbon Film Resistor RT14--1/4W-270K±5% 2 R2,R3
Metals electrolytic resistor
Metals electrolytic resistor

Ceramic capacitor CC1-50V/0.01uF----20%+80% 1 C17
Ceramic capacitor CC1-50V-2200pF--20%+80% 1 C10
Ceramic capacitor CC1-50V-0.1uF--20%+80% 3 C16,C20,C23

Peauefal rules

electricCapacitor

High pressure

DVD-POWER-002.VER1.0 94V0

(152*106*1.6mm)

PC817, 光電耦合器
DIP4 封裝

SR360,DO-201AD 封裝,

快恢復二極管

HER107,DO-41 封裝
快復二極管

1N4007,DO-40 封裝

9.1V-5mA-1/2W-B2-(DO-35 封裝)
12V-5mA-1/2W-DO-35 封裝

φ4x11mm-250VAC/630mA
慢熔型

DR8x10 电感 10uH
(线径 0.6mm 黑色套管）

AL0305- 10uH-±10%

RT14---1/4W-1KΩ±5%

RT14--1/4W-2K2-±5% 1 R14

RT14--1/4W-3K3Ω±5%

RT14----1/4W-1KΩ±1%
RT14-----1/4W-1.1KΩ±1%

CT7-400VAC-102M-±20% 3 C3,C4,C8

CC81-1KV-10nF-±20% 1 C6

DVD-POWER-002 VER1.0

1

1 U1

1 U2

1

Q1 可用 HER431 代替

1

D9 肖特基二極管,

5

D5，D6，D7，D8,D10

4 D1,D2,D3,D4
1 ZD4
1 ZD5

1

FUSE 帶管腳

1 L2

1 L3

1 R7

1 R15

2 R20,R23
1 R22

porcelain slice

34

35

金屬化聚丙烯膜電容

Electrolytic Capacitor

CBB230-275VAC-0.1U±20%-M 1 C1

CD11G-33uF/400V--20%+80%

φ16x22mm

1 C5

36

37

38

39

40

41

42

43

44

45

46

47

48

High pressure
porcelain slice
High pressure
porcelain slice
High pressure
porcelain slice

Electrolytic Capacitor

Electrolytic Capacitor

Electrolytic Capacitor

Electrolytic Capacitor

Electric outlet
Electric outlet

Electric outlet
Jump the line

Jump the line
Connect a slice

CD288-100uF/16V--20%+80%
Ф8*12mm

CD288-100uF/25V--20%+80%

CD288-1000uF/16V--20%+80%
Ф10*20mm

CD11-1uF/50V--±20%

φ5 x11mm

CD11--47uF/50V-20%+80%

ф6*12mm

CD11--220uF/35V-20%+80%

ф8*12mm

CD11-470uF/16V--20%+80%

Ф8*12mm
VH-3(7.92mm 間距,2 針）
TJC3-5A(2.54mm 間距
立式插座 5 針）
TJC3-7A(2.54mm 間距

立式插座 7 針）

已成型φ0.6--(7+9+7)mm
已成型φ0.6--(7+8+7)mm
标准规格

C2

1

C15

1

C18

1

1 C9

2 C7,C14

C12

1

C19

1

1 CON2

1 CON4

1

CON3 (靠 CON3 丝印端插)

3 D16 JMP2 CON1
2 JMP1,RT
2 M1,M2

7.DISASSEMBLY AND REASSEMBLY

43

8.CIRCUIT DIAGRAMS

A. Index

44

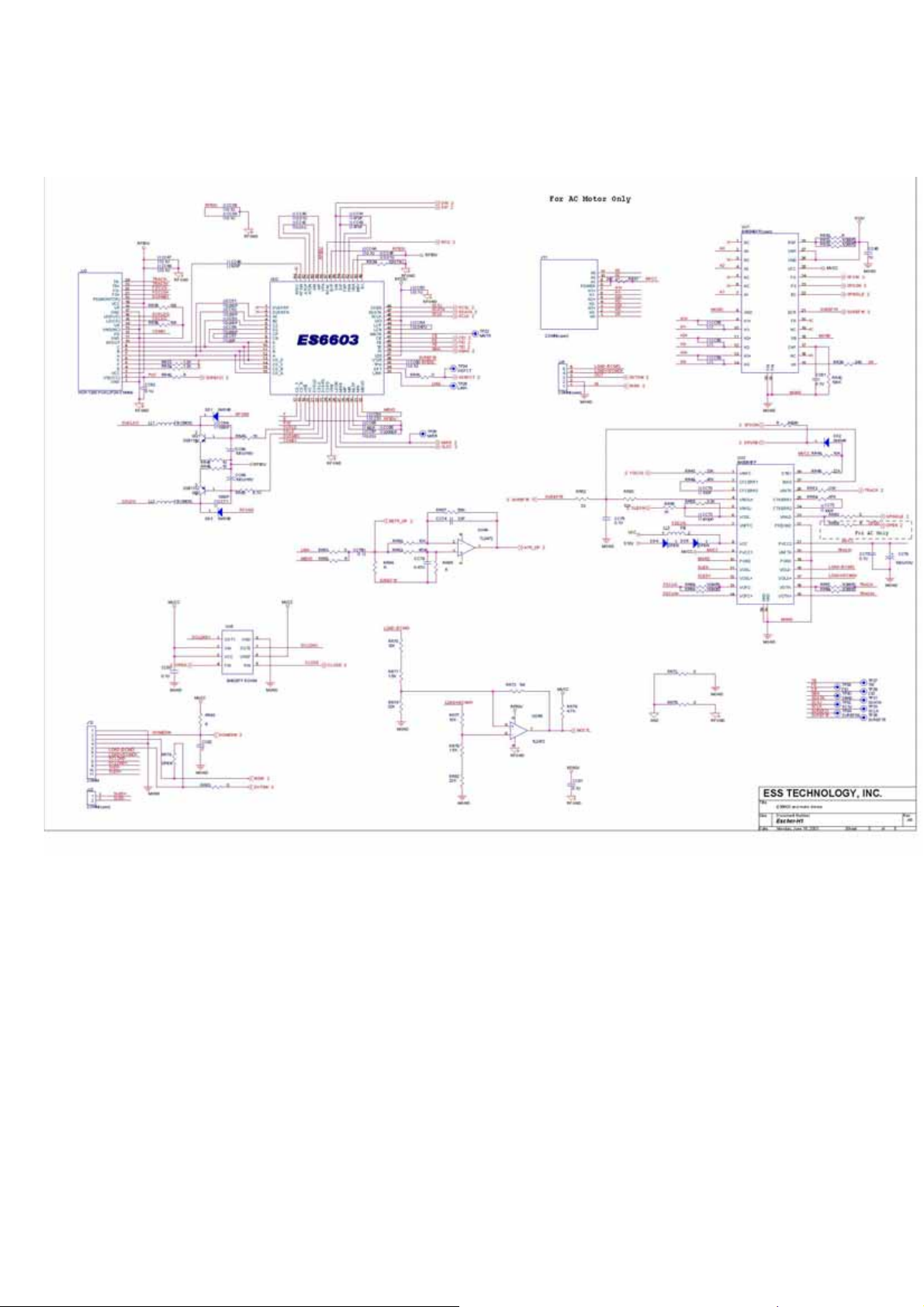

B. Vibratto-II ES66x8

45

C. Motor Drives

46

D. Audio and Power

47

E. Audio Filter and output

48

8.WIRING DIAGRAM

Ear

Phone

220V

CON4

Power supply

LEDdisplay

Front Panel

Scart

Loader

24pin

6pin

5pin

49

video Aud

Scart signal output

Power supply

24pin Contrl signal

6pin 5pin

MPEG
