RME Fireface UC User manual

Download

User's Guide

24 Bit / 192 kHz 9

SyncAlign

Fireface UC

Portable USB Audio at its best!

ZLM® SyncCheck®

TotalMix

™

SteadyClock

™

USB 2.0 Digital I/O System

8 + 8 + 2 Channels Analog / ADAT / SPDIF Interface

24 Bit / 192 kHz Digital Audio

36 x 18 Matrix Router

MIDI I/O

Stand-Alone Operation

MIDI Remote Control

Stand-Alone MIDI Controlled Operation

General

1 Introduction ...............................................................6

2 Package Contents.....................................................6

3 System Requirements ..............................................6

4 Brief Description and Characteristics.....................6

5 First Usage - Quick Start

5.1 Connectors and Front Panel...................................7

5.2 Quick Start ..............................................................9

6 Accessories...............................................................9

7 Warranty...................................................................10

8 Appendix..................................................................10

Installation and Operation - Windows

9 Hardware Installation..............................................14

10 Driver and Firmware

10.1 Driver Installation .................................................14

10.2 Driver Update.......................................................15

10.3 Deinstalling the Drivers........................................15

10.4 Firmware Update..................................................15

11 Configuring the Fireface UC

11.1 Settings Dialog – General....................................16

11.2 Settings Dialog – Pitch.........................................18

11.3 Settings Dialog – Gain..........................................19

11.4 Settings Dialog – LTC ..........................................20

11.5 Clock Modes - Synchronization............................20

12 Operation and Usage

12.1 Playback...............................................................22

12.2 DVD Playback (AC-3 / DTS)................................23

12.3 Notes on WDM.....................................................24

12.4 Channel Count under WDM.................................25

12.5 Multi-client Operation ...........................................25

12.6 Digital Recording..................................................26

12.7 Analog Recording.................................................26

13 Operation under ASIO 2.2

13.1 General ................................................................27

13.2 Channel Count under ASIO .................................28

13.3 Known Problems..................................................28

14 Using more than one Fireface................................29

15 DIGICheck................................................................30

16 Hotline – Troubleshooting......................................31

Installation and Operation - Mac OS X

17 Hardware Installation..............................................34

18 Driver

18.1 Driver Installation .................................................34

18.2 Driver Update.......................................................35

18.3 Firmware Update..................................................35

User's Guide Fireface UC © RME

19 Configuring the Fireface

19.1 Settings Dialog – General....................................36

19.2 Clock Modes - Synchronization...........................38

20 Mac OS X FAQ

20.1 Round about Driver Installation ...........................40

20.2 MIDI doesn't work ................................................40

20.3 Repairing Disk Permissions.................................40

20.4 Supported Sample Rates.....................................40

20.5 Channel Count under Core Audio .......................41

20.6 Various Information..............................................41

21 Using more than one Fireface ...............................42

22 DIGICheck Mac........................................................42

23 Hotline – Troubleshooting .....................................43

Stand-Alone Operation, Connections and TotalMix

24 Stand-alone Operation

24.1 Front Panel Operation .........................................46

24.2 8-channel AD/DA-Converter................................47

24.3 2-channel Mic Preamp.........................................47

24.4 Monitor Mixer .......................................................47

24.5 Digital Format Converter......................................47

24.6 Analog/digital Routing Matrix...............................47

25 Analog Inputs

25.1 Line Rear .............................................................48

25.2 Microphone / Line Front.......................................48

25.3 Instrument / Line Front.........................................48

26 Analog Outputs

26.1 Line......................................................................50

26.2 Phones (7/8)........................................................50

27 Digital Connections

27.1 ADAT ...................................................................51

27.2 SPDIF ..................................................................51

27.3 MIDI .....................................................................52

28 Word Clock

28.1 Word Clock Input and Output ..............................53

28.2 Technical Description and Background...............54

28.3 Cables and Termination.......................................55

28.4 General Operation ...............................................55

29 TotalMix: Routing and Monitoring

29.1 Overview..............................................................56

29.2 The User Interface...............................................58

29.3 Elements of a Channel ........................................59

29.4 Tour de TotalMix..................................................59

29.5 Submix View ........................................................61

29.6 Mute and Solo......................................................61

29.7 Quick Access Panel.............................................62

29.8 Presets.................................................................62

29.9 Monitor Panel.......................................................64

29.10 Preferences..........................................................64

29.11 Editing the Names ...............................................65

29.12 Hotkeys................................................................66

29.13 Menu Options.......................................................67

29.14 Level Meter..........................................................68

User's Guide Fireface UC © RME

30 TotalMix: The Matrix

30.1 Overview..............................................................69

30.2 Elements of the Matrix View ................................69

30.3 Usage...................................................................69

30.4 Advantages of the Matrix.....................................70

31 TotalMix Super-Features

31.1 ASIO Direct Monitoring (Windows only) ..............70

31.2 Selection and Group based Operation ................71

31.3 Copy Routings to other Channels........................71

31.4 Delete Routings....................................................71

31.5 Recording a Subgroup (Loopback)......................72

31.6 Using external Effects Devices............................73

31.7 MS Processing.....................................................74

32 TotalMix MIDI Remote Control

32.1 Overview..............................................................75

32.2 Mapping ...............................................................75

32.3 Setup....................................................................76

32.4 Operation .............................................................76

32.5 Simple MIDI Control.............................................77

32.6 Loopback Detection.............................................78

32.7 Stand-Alone MIDI Control....................................79

Technical Reference

33 Tech Info ..................................................................82

34 Technical Specifications

34.1 Analog..................................................................83

34.2 MIDI......................................................................84

34.3 Digital...................................................................84

34.4 Digital Inputs ........................................................84

34.5 Digital Outputs......................................................85

34.6 General ................................................................85

35 Technical Background

35.1 Lock and SyncCheck...........................................86

35.2 Latency and Monitoring........................................87

35.3 USB Audio............................................................88

35.4 DS – Double Speed .............................................89

35.5 QS – Quad Speed................................................89

35.6 AES/EBU – SPDIF...............................................90

35.7 Noise Level in DS / QS Mode ..............................91

35.8 SteadyClock.........................................................91

36 Diagrams

36.1 Block Diagram Fireface UC .................................92

36.2 Connector Pinouts................................................93

User's Guide Fireface UC © RME

User's Guide

Fireface UC

General

User's Guide Fireface UC © RME

1. Introduction

Thank you for choosing the Fireface UC. This unique audio system is capable of transferring analog and digital audio data directly to a computer from practically any source. The latest Plug and Play technology guarantees a simple installation, even for the inexperienced user. The numerous unique features and well thought-out configuration dialog puts the Fireface UC at the very top of the range of computer-based audio interfaces.

The package contains drivers for Windows XP, XP 64, Vista, Vista 64, Windows 7 /64 and Mac OS X Intel.

Our high-performance philosophy guarantees maximum system performance by executing as many functions as possible not in the driver (i.e. the CPU), but directly within the audio hardware.

2. Package Contents

Please check that your Fireface UC package contains each of the following:

• Fireface UC

• Cable USB 2.0, 1.8 m (6 ft)

• MIDI breakout cable

• Power supply

• Manual

• RME Driver CD

• 1 optical cable (TOSLINK), 2 m (6.6 ft)

3. System Requirements

• Windows XP SP or up, Intel Mac OS X (10.5 or up)

• 1 USB 2.0 port

• Computer with at least Pentium Core 2 Duo CPU

4. Brief Description and Characteristics

• Enhanced Mixed Mode: Analog, ADAT and SPDIF I/O simultaneously usable

• Buffer sizes/latencies from 48 up to 8192 samples selectable

• All settings can be changed in real-time

• 4 channels 96 kHz/24 bit Record/Playback via ADAT optical (S/MUX)

• Clock modes slave and master

• Automatic and intelligent master/slave clock control

• Unsurpassed Bitclock PLL (audio synchronization) in ADAT mode

• SteadyClock: Jitter-immune, super-stable digital clock

• DDS technology for free setting of the sample rate

• TotalMix for latency-free submixes and perfect ASIO Direct Monitoring

• TotalMix: 648 channel mixer with 42 bit internal resolution

• SyncAlign guarantees sample aligned and never swapping channels

• SyncCheck tests and reports the synchronization status of input signals

• Word clock input and output

• 2 x MIDI I/O, 32 channels high-speed MIDI

• 1 x Hi-power headphone output

• DIGICheck DSP: Level meter in hardware, peak- and RMS calculation

User's Guide Fireface UC © RME

5. First Usage - Quickstart

5.1 Connectors and Front Panel

The front of the Fireface UC features instrument, microphone and line inputs, a stereo line/headphone output, a rotary encoder with 7 segment display, and several status and MIDI LEDs.

The Neutrik combo jacks of the Mic/Line inputs can be used via XLR and 1/4" TRS plugs. Both inputs display overload (CLIP), signal presence (SIG) and phantom power (48V) via green, red and yellow LEDs.

Inputs 3/4, INST/LINE, accept both a balanced line signal as well as an unbalanced instrument signal via 1/4" TRS plug.

The rotary encoder serves to set the input and output levels directly at the unit. This is not only useful in stand-alone operation, but for example also when setting up the monitor volume. Pushing the knob changes the encoder from CHANNEL to LEVEL mode and back. Pushing the knob for more than a second activates either the single channel or stereo setup mode.

The State LEDs (WC, SPDIF, ADAT) indicate a valid input signal separately for each digital input. Additionally, RME's exclusive SyncCheck indicates if one of these inputs is locked, but not synchronous to the others, in which case the LED will flash. See also chapter 11.5/19.2, Clock Modes - Synchronization.

The red HOST LED lights up when the Fireface UC has been switched on. It operates as error LED, in case the FireWire connection hasn't been initialised yet, or has been interrupted (error, cable not connected etc.).

The yellow MIDI LEDs indicate MIDI data received or sent, separately for both inputs and outputs.

Phones is a low impedance line output of highest quality. It provides a sufficient and undistorted volume even when used with headphones.

User's Guide Fireface UC © RME

The rear panel of the Fireface UC features four analog inputs, six analog outputs, the power socket, and all digital inputs and outputs.

SPDIF I/O coaxial (RCA): AES/EBU compatible. The Fireface UC accepts the commonly used digital audio formats, SPDIF as well as AES/EBU.

ADAT I/O (TOSLINK): The unit automatically detects SPDIF or ADAT input signals. The optical output can operate as ADAT or SPDIF output, depending on the current setting in the Settings dialog.

Word Clock I/O (BNC): A push switch activates internal termination (75 Ohms). When termination is activated the yellow LED beside the switch lights up.

MIDI I/O: Provides two MIDI inputs and outputs via the included breakout cable. USB 2.0: USB socket for connection to the computer. POWER (switch): Turns the Fireface UC on and off. Socket for power connection. The

included hi-performance switch mode power supply makes the Fireface operate in the range of 100V to 240V AC. It is shortcircuit-proof, has an integrated line-filter, is fully regulated against voltage fluctuations, and suppresses mains interference.

User's Guide Fireface UC © RME

5.2 Quick Start

After the driver installation (chapter 10 / 18) connect the TRS jacks or the XLR jacks with the analog signal source. The input sensitivity of the rear inputs can be changed in the Settings dialog (Gain/Level), assuring the highest signal to noise ratio will be achieved. Try to achieve an optimum input level by adjusting the source itself. Raise the source’s output level until the peak level meters in TotalMix reach about –3 dB.

The analog line inputs of the Fireface UC can be used with +4 dBu and -10 dBV signals. The electronic input stage can handle balanced (XLR, TRS jacks) and unbalanced (TS jacks) input signals correctly.

The front's inputs signal level can be optimized using the Fireface's rotary encoder. A Signal LED and a Clip LED help to find the correct level adjustment.

The Fireface's digital outputs provide SPDIF (AES/EBU compatible) and ADAT optical signals at the corresponding ports.

On the analog playback side (the DA side), a coarse adjustment of the analog output level at the rear jacks is available in the Settings dialog (Gain/Level/Line Out).

The output signal of channels 7/8 is available on the front. Their output level can be set using the rotary encoder. This output is a very low impedance type, which can also be used to connect headphones.

The Fireface UC remembers all settings, and loads these automatically when switched on. With this, the Fireface UC can be used stand-alone after setting it up accordingly, replacing lots of dedicated devices (see chapter 24).

6. Accessories

RME offers several optional components for the Fireface UC:

Part Number Description

Optical cable for SPDIF and ADAT operation: OK0050 Optical cable, TOSLINK, 0.5 m (1.6 ft)

OK0100 Optical cable, TOSLINK, 1 m (3.3 ft) OK0200 Optical cable, TOSLINK, 2 m (6.6 ft) OK0300 Optical cable, TOSLINK, 3 m (9.9 ft) OK0500 Optical cable, TOSLINK, 5 m (16.4 ft) OK1000 Optical cable, TOSLINK, 10 m (33 ft)

NTCARDBUS Power supply for Fireface UC. Robust and light-weight switching power sup-

ply, 100 V-240 V AC, 12 V 2 A DC.

User's Guide Fireface UC © RME

7. Warranty

Each individual Fireface UC undergoes comprehensive quality control and a complete test at IMM before shipping. The usage of high grade components allows us to offer a full two year warranty. We accept a copy of the sales receipt as valid warranty legitimation.

If you suspect that your product is faulty, please contact your local retailer. The warranty does not cover damage caused by improper installation or maltreatment - replacement or repair in such cases can only be carried out at the owner’s expense.

Audio AG does not accept claims for damages of any kind, especially consequential damage. Liability is limited to the value of the Fireface UC. The general terms of business drawn up by Audio AG apply at all times.

8. Appendix

RME news, driver updates and further product information are available on our website: http://www.rme-audio.com Distributor: Audio AG, Am Pfanderling 60, D-85778 Haimhausen, Tel.: (49) 08133 / 91810 Manufacturer:

IMM Elektronik GmbH, Leipziger Strasse 32, D-09648 Mittweida

Trademarks All trademarks, registered or otherwise, are the property of their respective owners. RME,

DIGICheck and Hammerfall are registered trademarks of RME Intelligent Audio Solutions. SyncCheck, ZLM, DIGI96, SyncAlign, TMS, TotalMix, SteadyClock and Fireface are trademarks of RME Intelligent Audio Solutions. Alesis and ADAT are registered trademarks of Alesis Corp. ADAT optical is a trademark of Alesis Corp. Microsoft, Windows XP and Windows Vista are registered trademarks or trademarks of Microsoft Corp. Steinberg, Cubase and VST are registered trademarks of Steinberg Media Technologies GmbH. ASIO is a trademark of Steinberg Media Technologies GmbH.

Although the contents of this User’s Guide have been thoroughly checked for errors, RME can not guarantee that it is correct throughout. RME does not accept responsibility for any misleading or incorrect information within this guide. Lending or copying any part of the guide or the RME Driver CD, or any commercial exploitation of these media without express written permission from RME Intelligent Audio Solutions is prohibited. RME reserves the right to change specifications at any time without notice.

User's Guide Fireface UC © RME

CE / FCC Compliance

This device has been tested and found to comply with the limits of the European Council Directive on the approximation of the laws of the member states relating to electromagnetic compatibility according to RL2004/108/EG, and European Low Voltage Directive RL2006/95/EG.

FCC

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

RoHS

This product has been soldered lead-free and fulfils the requirements of the RoHS directive.

ISO 9001

This product has been manufactured under ISO 9001 quality management. The manufacturer, IMM Elektronik GmbH, is also certified for ISO 14001 (Environment) and ISO 13485 (medical devices).

Note on Disposal

According to the guide line RL2002/96/EG (WEEE – Directive on Waste Electrical and Electronic Equipment), valid for all european countries, this product has to be recycled at the end of its lifetime.

In case a disposal of electronic waste is not possible, the recycling can also be done by IMM Elektronik GmbH, the manufacturer of the Fireface UC.

For this the device has to be sent free to the door to: IMM Elektronik GmbH

Leipziger Straße 32 D-09648 Mittweida Germany

Shipments not prepaid will be rejected and returned on the original sender's costs.

User's Guide Fireface UC © RME

User's Guide

Fireface UC

Installation and Operation - Windows

User's Guide Fireface UC © RME

9. Hardware Installation

• Connect the power supply to the Fireface and then to any suitable power outlet. Power-on the Fireface with the rear power switch.

• Check the correct firmware version by a double click on the rotary encoder button. The display PC means Windows, the display AP means Mac. The double click automatically switches between both versions. Note: a change of state is only possible when the unit is not connected to the computer.

• Connect computer and Fireface using the supplied USB cable.

• Windows detects the new hardware as Fireface UC Win (serial number) and asks for

drivers.

10. Driver and Firmware

10.1 Driver Installation

After the Fireface has been recognized, (see 9. Hardware Installation) the hardware assistant finds a Fireface UC Win (serial number). Please note the Win. If Mac is displayed the unit has to be disconnected from the computer and its firmware has to be changed to Win (see above) prior to installing the drivers.

Insert the RME Driver CD into your CD-ROM drive, and follow further instructions which appear on your computer screen. The driver files are located in the directory \Fireface UC Win on the RME Driver CD.

Windows now installs the driver of the Fireface UC and registers it as a new audio device in the system. After a reboot, the symbols of mixer and Settings dialog will appear in the task bar. The red Host error LED extinguishes.

In case the warning messages 'Digital signature not found', 'Do not install driver', 'not certified driver' or similar come up: simply ignore them and continue with the installation.

In case the Hardware Wizard does not show up automatically after connecting the Fireface, do not attempt to install the drivers manually! An installation of drivers for non-recognized hardware will cause a blue screen when booting Windows!

Possible reasons why a Fireface is not found automatically:

• The USB port is not active in the system (check the Device Manager)

• The USB cable is not, or not correctly inserted into the socket

• No power. After switching the Fireface on, at least the 7 segment display has to be lit.

User's Guide Fireface UC © RME

10.2 Driver Update

When facing problems with the automatic driver update, the user-driven way of driver installation will work.

Under >Control Panel /System /Device Manager /Sound, Video and Game Controllers /RME Fireface UC/Properties /Driver< you'll find the 'Update Driver' button.

XP: Select 'Install from a list or specific location (advanced)', click 'Next', select 'Don't search I will choose the driver to install', click 'Next', then 'Have Disk'. Now point to the

driver update's directory.

Vista: Select 'Browse my computer for driver software', then 'Let me pick from a list of device drivers from my computer', then 'Have Disk'. Now point to the driver update's direc-

tory. This method also allows for the installation of older drivers than the currently installed ones.

10.3 Deinstalling the Drivers

A deinstallation of the driver files is not necessary – and not supported by Windows anyway. Thanks to full Plug & Play support, the driver files will not be loaded after the hardware has been removed. If desired these files can then be deleted manually.

Unfortunately Windows Plug & Play methods do not cover the additional autorun entries of TotalMix, the Settings dialog, and the registration of the ASIO driver. These entries can be removed from the registry by a software deinstallation request. This request can be found (like all deinstallation entries) in Control Panel, Software. Click on the entry 'RME Fireface UC'.

10.4 Firmware Update

The Flash Update Tool updates the firmware of the Fireface UC to the latest version. It requires an already installed driver.

Start the program fut_usb.exe. The Flash Update Tool displays the current revision of the Fireface UC's firmware, and whether it needs an update or not. If so, then simply press the 'Update' button. A progress bar will indicate when the flash process is finished (Verify Ok).

If more than one unit is installed, further units can be flashed by changing to the next tab and repeating the process.

After the update the Fireface UC needs to be reset. This is done by powering down the Fireface for a short time. Attention: the Fireface should not be switched off for less than 5 seconds, because Windows completely unloads the driver, which takes some time to finish.

A reboot of the computer is not necessary. When the update fails (status: failure), the unit's Safety-BIOS will be used from the next boot on,

the unit stays fully functional. The flash process should then be tried again. In case the automatic activation of the Safety-BIOS fails it can also be activated manually: Push

the rotary encoder button while switching on the unit. This method is also useful to temporarily deactivate a newer firmware. With pressed button the older version of the firmware will be loaded (at the time of writing this manual version 82).

User's Guide Fireface UC © RME

11. Configuring the Fireface

11.1 Settings dialog - General

Configuration of the Fireface UC is done via its own settings dialog. The panel 'Settings' can be opened:

• by clicking on the fire symbol in the Task Bar's notification area

The mixer of the Fireface UC (TotalMix) can be opened:

• by clicking on the mixer icon in the Task Bar's notification area

The hardware of the Fireface UC offers a number of helpful, well thought-of practical functions and options which affect how the card operates - it can be configured to suit many different requirements. The following is available in the 'Settings' dialog:

• Latency

• Configuration of digital I/Os

• Current sample rate

• Synchronization behaviour

• State of input and output

• Level of analog I/Os

Any changes made in the Settings dialog are applied immediately confirmation (e.g. by clicking on OK or exiting the dialog) is not required. However, settings should not be changed during playback or record if it can be avoided, as this can cause unwanted noises. Also, please note that even in 'Stop' mode, several programs keep the recording and playback devices open, which means that any new settings might not be applied immediately.

The status displays at the bottom of the dialog box give precise information about the current status of the system, and the status of all digital signals.

Input Status indicates for each input (Word, optical, SPDIF coax.) whether there is a valid signal (Lock, No Lock), or if there is a valid and synchronous signal (Sync). The Clock Mode display shows the clock reference (Current…).

The string Errors does not refer to buffer errors, but USB transmission errors. More information can be found in chapter 35.3.

User's Guide Fireface UC © RME

Buffer Size

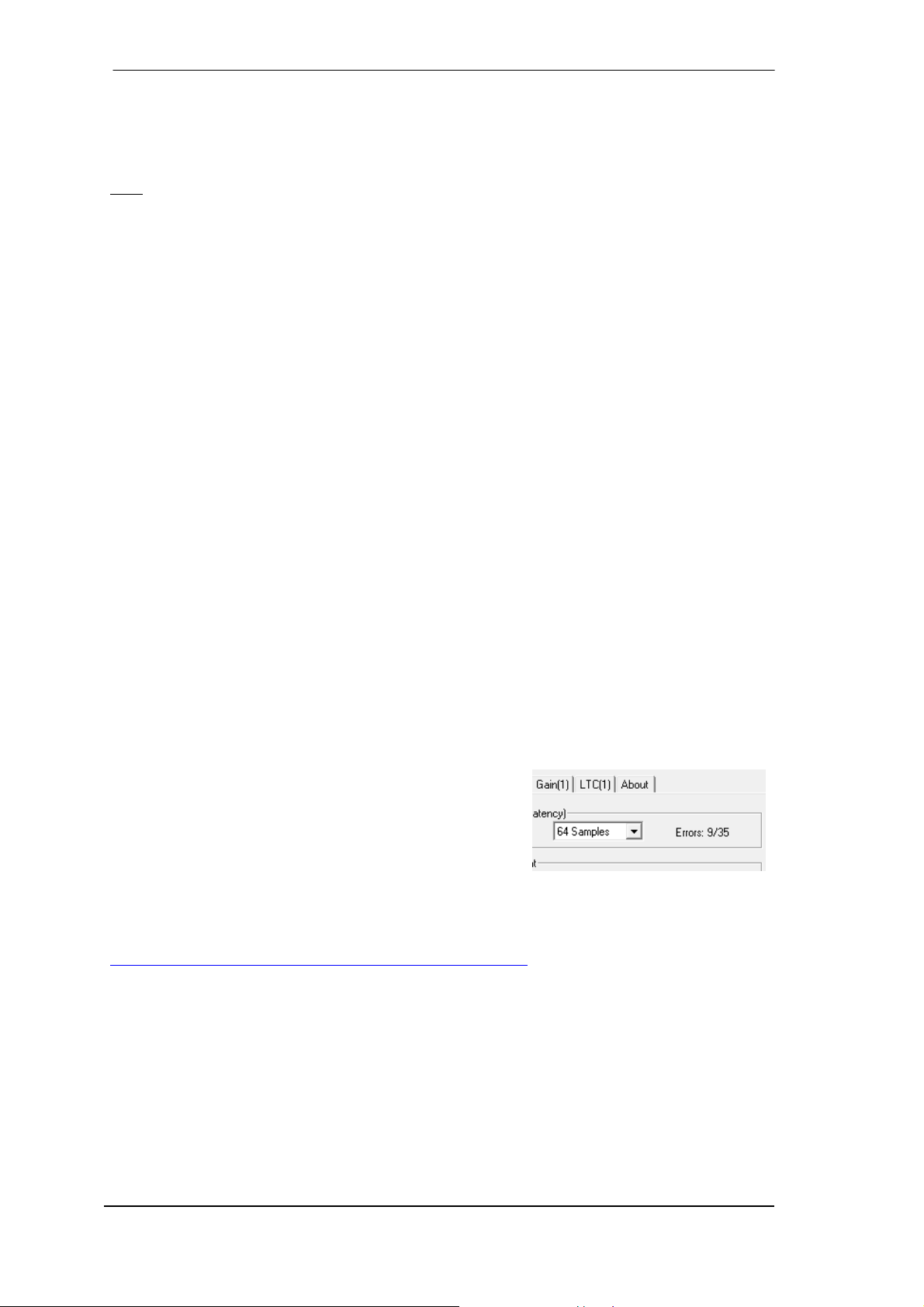

The setting Buffer Size determines the latency between incoming and outgoing ASIO and WDM data, as well as affecting system stability (see chapter 13/14).

The string Errors does not refer to buffer errors, but USB transmission errors. The display will be reset on any start of a playback/record. More information can be found in chapter 35.3.

Output Format Word

The word clock output signal usually equals the current sample rate. Selecting Single Speed causes the output signal to always stay within the range of 32 kHz to 48 kHz. So at 96 kHz and 192 kHz sample rate, the output word clock is 48 kHz.

Optical

The optical TOSLINK output can operate as ADAT or SPDIF output. The Channel Status is fixed to Consumer state.

: The optical input detects the incoming format automatically.

Note

SPDIF coax.

The coaxial SPDIF output can have the Channel Status Consumer or Professional. For further details please refer to chapter 27.2.

Clock Mode Sample Rate

Sets the currently used sample rate. Offers a central and comfortable way of configuring the sample rate of all WDM devices to the same value, as since Vista this is no longer supported to be done by the audio program. However, an ASIO program can still set the sample rate by itself.

At ongoing record/playback the selection is greyed out, so no change is possible.

Clock Source

The unit can be configured to use its own clock (Internal = Master), or one of the input signals (Word, Optical, SPDIF coax., LTC = Slave). If the selected source isn't available, the unit will change to the next available one (AutoSync). If none is available then the internal clock is used. The current clock source is displayed to the right.

Pitch

More information on Pitch is available in chapter 11.2.

Input Status

Indicates for each input (Word, optical, SPDIF coax.) whether there is a valid signal (Lock, No Lock), or if there is a valid and synchronous signal (Sync). The second row shows the sample frequency measured by the hardware. In Clock Mode the clock reference is shown (Current…). See also chapter 35.1.

User's Guide Fireface UC © RME

11.2 Settings Dialog - Pitch

Usually soundcards and audio interfaces generate their internal clock (master mode) by a quartz. Therefore the internal clock can be set to 44.1 kHz or 48 kHz, but not to a value in between. SteadyClock, RME's sensational Low Jitter Clock System, is based on a Direct Digital Synthesizer (DDS). This superior circuitry can generate nearly any frequency with highest precision.

DDS has been implemented into the Fireface with regard to the needs of professional video applications, as well as to maximum flexibility. The section Pitch includes both a list of typical video frequencies (so called pull up/pull down at 0.1% and 4%) and a fader to freely change the basic sample rate in steps of 1 Hz (!) over a range of +/- 5%.

The Pitch function requires the Fireface to be in clock mode Master! The frequency setting will only be applied to this one specific Fireface!

Changing the sample rate during record/playback often results in a loss of audio, or brings up warning messages of the audio software. Therefore the desired sample rate should be set at least coarsely before starting the software.

Coarse

Coarse modification in steps of 50 Hz is done by clicking with the mouse to the left and right of the fader knob.

Fine

Fine modification in steps of 1 Hz is done by using the left/right cursor keys.

Reset

Ctrl key plus left mouse click.

Application examples

Pitch allows for a simultaneous change of speed and tune during record and playback. From alignment to other sources up to creative effects – everything is possible.

Pitch enables you to intentionally de-tune the complete DAW. This way, the DAW can match instruments which have a wrong or unchangeable tuning.

Pitch allows for the change of the sample rate of all WDM devices at the same time. Since Vista this is no longer possible via the audio program, thus requires a manual reconfiguration of all WDM devices. Changing the sample rate from the Settings dialog solves this problem. As the change within the system requires some time, record/playback should not be started immediately, but not before 5 seconds after a change.

User's Guide Fireface UC © RME

11.3 Settings Dialog – Gain

Level Line In

Defines the reference level of the rear analog inputs 5-8.

Line Out

Defines the reference level of the rear analog outputs 1-6.

Phones

Defines the reference level of the analog outputs 7/8.

Microphone Inputs Link 1+2

Ganging of faders 1 and 2. Simplifies the setup in case both channels shall have the same setting/values

+48V

Phantom power (48V) can be selected for each microphone input separately.

Channel 1 and 2 of the Fireface UC have digitally controlled microphone preamps of the highest quality. The digital control offers a gain setting in steps of 1 dB within a range of 10 dB to 65 dB. The configuration is done either directly at the unit via the rotary encoder, or via the Settings dialog's tab Gain. The current gain is displayed in dB beside the fader.

In the lower range the fader jumps from 10 dB to 0 dB. This useful additional setting provides line signal compatibility at up to +10 dBu.

Instrument / Line Inputs Link 3+4

Ganging of faders 3 and 4. Simplifies the setup in case both channels shall have the same setting/values

Pad

Pad decrease the input sensitivity by 12 dB.

Inst

Activate the option Instrument to use inputs 3 and 4 with instruments. The input impedance is raised to 470 kOhm, the input sensitivity increases by 10 dB.

The inputs 3 and 4 have a digitally controlled preamp. It allows for an additional gain between 0 and 18 dB, in steps of 0.5 dB. The configuration is done either directly at the unit via the rotary encoder, or via the Settings dialog's tab Gain. The current gain is displayed in dB beside the fader. Further information is found in chapter 25.3.

User's Guide Fireface UC © RME

11.4 Settings Dialog - LTC

The Fireface UC can extract position information as MTC as well APP (ASIO Positioning Protocol) from Timecode (LTC, SMPTE) received at the analog input 4.

A detected Timecode is shown as time information in the LTC In field. The analog input signal needs a specific level: slowly reduce the level until the display stumbles or completely fails. Then increase the level by 10 dB.

The field Input State will show further details of the Timecode. Basically Timecode can also be used as clock source. However, the calculation of the position

information is less precise then. Recommended is a clocking of the Fireface UC with a clock signal (for example Word) directly from the device that sends the Timecode.

11.5 Clock Modes - Synchronization

In the digital world, all devices must be either Master (clock source) or Slave (clock receiver).. Whenever several devices are linked within a system, there must always be a single master clock. The Fireface UC utilizes a very user-friendly, intelligent clock control, called AutoSync.

In AutoSync mode, the system constantly scans all digital inputs for a valid signal. If any valid signal is found, the Fireface switches from the internal quartz (Clock Mode – Current Internal) to a clock extracted from the input signal (Clock Mode – Current ADAT etc). The difference to a usual slave mode is that whenever the clock reference fails, the system will automatically use its internal clock and operate in Master mode.

AutoSync guarantees that record and record-while-play will always work correctly. In certain cases however, e.g. when the inputs and outputs of a DAT machine are connected directly to the Fireface UC, AutoSync may cause feedback in the digital carrier, so synchronization breaks down. To remedy this, switch the Fireface’s clock mode to Master (Clock Source – Internal).

A digital system can only have one master! If the Fireface’s clock mode is set to 'Internal', all other devices must be set to ‘Slave’.

The Fireface UC's ADAT and SPDIF inputs operate simultaneously. Because there is no input selector, the Fireface UC has to be told which one of the signals is the sync reference (a digital device can only be clocked from a single source). The Clock Source selection is used to define a preferred input for the automatic clock system. This input will stay active as long as a valid signal is found.

To cope with some situations which may arise in studio practice, defining a sync reference is essential. One example: An ADAT recorder is connected to the ADAT input (ADAT immediately becomes the AutoSync source) and a CD player is connected to the SPDIF input. Try recording a few samples from the CD and you will be disappointed - few CD players can be synchronized. The samples will inevitably be corrupted, because the signal from the CD player is read with the (wrong) clock from the ADAT i.e. out of sync. In this case, the Clock Source should be set temporarily to SPDIF.

User's Guide Fireface UC © RME

If several digital devices are to be used simultaneously in a system, they not only have to operate with the same sample frequency but also be synchronous with each other. Therefore a Master has to be defined within the digital system, sending the same clock signal to all the other devices.

RME’s exclusive SyncCheck technology (first implemented in the Hammerfall) enables an easy to use check and display of the current clock status. Input Status indicates whether there is a valid signal (Lock, No Lock) for each input (Word Clock, ADAT, SPDIF and LTC), or if there is a valid and synchronous signal (Sync). In the field Clock Mode the clock reference is shown (Cur- rent…). See chapter 35.1.

In practice, SyncCheck provides the user with an easy way of checking whether all digital devices connected to the system are properly configured. With SyncCheck, finally anyone can master this common source of error, previously one of the most complex issues in the digital studio world.

Note on SPDIF and Word

: Thanks to its lightning fast SteadyClock PLL the Fireface UC is not only capable of handling standard frequencies, but also any sample rate between 28 and 200 kHz. For varispeed operation the word clock input is the preferred source.

User's Guide Fireface UC © RME

12. Operation and Usage

12.1 Playback

In the audio application being used, Fireface must be selected as output device. This can often be found in the Options, Preferences or Settings menus as Playback Device, Audio Devices, Audio etc.

We recommend switching all system sounds off (via >Control Panel /Sounds<). Also Fireface should not be the Preferred Device for playback, as this could cause loss of synchronization and unwanted noises. If you feel you cannot do without system sounds, you should consider using the on-board sound device or buying a cheap Blaster clone and select this as Preferred Device in >Control Panel /Multimedia /Audio< or >Control Panel /Sounds /Playback<.

The screenshot shows a typical configuration dialog. After selecting a device, audio data is sent to an analog or digital (ADAT / SPDIF) port, depending on which has been selected as playback device.

Increasing the number and/or size of audio buffers may prevent the audio signal from breaking up, but also increases latency i.e. output is delayed. For synchronized playback of audio and MIDI (or similar), be sure to activate the checkbox ‘Get position from audio driver’.

Note on Windows Vista Since Vista the audio application can no longer control the sample rate under WDM. Instead the user has to work himself through numerous settings (up to 32 with a MADI card!), and to set the sample rate to the same value per stereo device.

Therefore the driver of the Fireface UC includes a workaround: the sample rate can be set globally for all WDM devices within the Settings dialog, see chapter 11.1.

User's Guide Fireface UC © RME

12.2 DVD-Playback (AC-3/DTS)

AC-3 / DTS

When using popular DVD software players like WinDVD and PowerDVD, their audio data stream can be sent to any AC-3/DTS capable receiver using the Fireface's SPDIF outputs. For this to work, the WDM SPDIF device of the Fireface UC has to be selected in >Control Panel/ Sounds and Multimedia/ Audio< or >Control Panel/ Sound/Playback<. Also check 'use preferred device only'.

The DVD software's audio properties now show the options 'SPDIF Out' or similar. When selecting it, the software will transfer the non-decoded digital multichannel data stream to the Fireface.

This 'SPDIF' signal sounds like chopped noise at highest level. Therefore the Fireface automatically sets the non-audio bit within the digital data stream, to prevent most SPDIF receivers from accepting the signal, and to prevent any attached equipment from being damaged.

Multichannel

PowerDVD and WinDVD can also operate as software decoder, sending a DVD's multichannel data stream directly to the analog outputs of the Fireface. All modes are supported, from 2 to 8 channels, at 16 bit resolution and up to 192 kHz sample rate. For this to work select

XP: the WDM playback device ’Loudspeaker’ of the Fireface UC in >Control Panel/ Sounds and Multimedia/ Audio<, and 'Use only default devices' has to be checked. Additionally the loud- speaker setup, found under >Volume/ Speaker Settings/ Advanced< has to be changed from Stereo to 5.1 Surround.

Vista: the Fireface UC’s WDM playback device ’Loudspeaker’ in >Control Panel/ Sound/ Play- back < as ‘Standard’. Additionally the loudspeaker setup, found under >Configuration<, has to

be changed from Stereo to 5.1 Surround. PowerDVD's and WinDVD's audio properties now list several multichannel modes. If one of

these is selected, the software sends the decoded analog multichannel data to the Fireface. The typical channel assignment for surround playback is: 1 - Left

2 - Right 3 - Center 4 - LFE (Low Frequency Effects) 5 - SL (Surround Left) 6 - SR (Surround Right)

: Selecting the Fireface to be used as system playback device is against our recommen-

Note 1 dations, as professional interfaces should not be disturbed by system events. Make sure to reassign the selection after usage, or to disable any system sounds (tab Sounds, scheme 'No audio').

Note 2

: The DVD player will be synced backwards from the Fireface. This means when using

AutoSync and/or word clock, the playback speed and pitch follows the incoming clock signal.

User's Guide Fireface UC © RME

12.3 Notes on WDM

The driver offers one WDM streaming device per stereo pair, like ADAT 1+2 (Fireface UC). WDM Streaming is Microsoft's current driver and audio system, directly embedded into the operating system. WDM Streaming is hardly usable for professional music purposes, as all data is processed by the so called Kernel Mixer, causing a latency of at least 30 ms. Additionally, WDM can perform sample rate conversions unnoticed, cause offsets between record and playback data, block channels unintentionally and much more.

Several programs do not offer any direct device selection. Instead they use the playback device selected in Windows under

XP: <Control Panel/ Sounds and Multimedia/ Audio> Vista: <Control Panel/ Sound/ Playback> The program Sonar from Cakewalk is unique in many ways. Sonar uses the so called WDM

Kernel Streaming, bypassing the WDM mixer, thus achieves a similar performance as ASIO

and our MME driver (see below). Because of the driver's multichannel streaming ability (option Interleaved, see chapter 12.5),

Sonar not only finds the stereo device mentioned above, but also the 8-channel interleaved devices, and adds the channel number at the end:

Fireface Analog (1+2) is the first stereo device Fireface Analog (3+4) is the next stereo device Fireface Analog (1+2) 3/4 are the channels 3/4 of the first 8-channel interleaved device.

It is not recommended to use these special interleaved devices. Also it is not possible to use one stereo channel twice (the basic and the interleaved device).

Multi-Channel using WDM

The WDM Streaming device Loudspeaker (Analog 1+2) of the RME driver can operate as usual stereo device, or as up to 8-channel device.

An 8-channel playback using the Windows Media Player requires the speaker setup 7.1 Sur- round. Configure as follows:

XP: >Control Panel /Sounds and Multimedia /Audio /Volume /Speaker Settings /Advanced < Vista: >Control Panel /Sound /Playback /Loudspeaker /Configure <

User's Guide Fireface UC © RME

12.4 Channel Count under WDM

The Fireface’s ADAT optical interface offers sample rates of up to 192 kHz using a standard ADAT recorder. For this to work single-channel data is spread to two or four ADAT channels using the Sample Multiplexing technique. This reduces the number of available ADAT channels from 8 to 4 or 2 per ADAT port.

It is nearly impossible to change the number of WDM devices without a reboot of the computer. Therefore whenever the Fireface UC changes into Double Speed (88.2/96 kHz) or Quad Speed mode (176.4/192 kHz) all devices stay present, but become partly inactive.

WDM Stereo devices Double Speed Quad Speed

Fireface UC Analog (1+2) Fireface UC Analog (1+2) Fireface UC Analog (1+2) Fireface UC Analog (3+4) Fireface UC Analog (3+4) Fireface UC Analog (3+4) Fireface UC Analog (5+6) Fireface UC Analog (5+6) Fireface UC Analog (5+6) Fireface UC Analog (7+8) Fireface UC Analog (7+8) Fireface UC Analog (7+8) Fireface UC SPDIF Fireface UC SPDIF Fireface UC SPDIF Fireface UC AS (1+2) Fireface UC AS (1+2) Fireface UC AS (1+2) Fireface UC ADAT (3+4) Fireface UC ADAT (3+4) Fireface UC ADAT (3+4) Fireface UC ADAT (5+6) Fireface UC ADAT (5+6) Fireface UC ADAT (5+6) Fireface UC ADAT (7+8) Fireface UC ADAT (7+8) Fireface UC ADAT (7+8)

12.5 Multi-client Operation

RME audio interfaces support multi-client operation. This means several programs can be used at the same time. Also ASIO and WDM can be used simultaneously. The use of multi-client operation requires to follow two simple rules:

• Multi-client operation requires identical sample rates!

I.e. it is not possible to use one software with 44.1 kHz and the other with 48 kHz.

• Different software can not use the same playback channels at the same time.

If for example Cubase uses channels 1/2, this playback pair can't be used in WaveLab, no matter if ASIO or WDM. However, this is no limitation at all, because TotalMix allows for any output routing, and therefore a playback of multiple software on the same hardware outputs. Note that identical inputs can be used at the same time, as the driver simply sends the data to all applications simultaneously.

ASIO-Multiclient

RME audio interfaces support ASIO multi-client operation. It is possible to use more than one ASIO software at the same time. Again the sample rate has to be identical, and each software has to use its own playback channels. Again the inputs can be used simultaneously.

RME's sophisticated tool DIGICheck is an exception to this rule. It operates like an ASIO host, using a special technique to access playback channels already occupied. Therefore DIGICheck is able to analyse and display playback data from any software, no matter which format the software uses.

User's Guide Fireface UC © RME

12.6 Digital Recording

Unlike analog soundcards which produce empty wave files (or noise) when no input signal is present, digital interfaces always need a valid input signal to start recording.

Taking this into account, RME added two important features to the Fireface UC: a comprehensive I/O signal status display showing sample frequency, lock and sync status in the Settings dialog, and status LEDs for each input.

The sample frequency shown in the Settings dialog (see chapter 11.1, screenshot Settings) is useful as a quick display of the current configuration (the board itself and all connected external equipment). If no sample frequency is recognized, it will read ‘No Lock’.

This way, configuring any suitable audio application for digital recording is simple. After selecting the required input, Fireface UC displays the current sample frequency. This parameter can then be changed in the application’s audio attributes (or similar) dialog.

It often makes sense to monitor the input signal or send it directly to the output. This can be done at zero latency using TotalMix (see chapter 29).

An automated control of real-time monitoring can be achieved by Steinberg’s ASIO protocol with RME’s ASIO 2.2 drivers and all ASIO 2.0 compatible programs. When 'ASIO Direct Monitoring' has been switched on, the input signal is routed in real-time to the output whenever a recording is started (punch-in).

12.7 Analog Recording

For recordings via the analog inputs the corresponding record device has to be chosen (Fireface UC Analog (x+x)).

The input sensitivity of the rear inputs can be changed via the Settings dialog (Gain/Level) in three steps so that the recording is done with optimized levels. A further improvement is possible by slowly raising the source’s output level until the peak level meters in TotalMix reach about –3 dB.

The input sensitivity of the frontside analog inputs can also be adjusted directly at the Fireface via the rotary encoder knob. A Signal LED and a Clip LED help to find the correct level adjustment.

More information is found in chapter 25.2 and 25.3.

User's Guide Fireface UC © RME

13. Operation under ASIO

13.1 General

Start the ASIO software and select ASIO Fireface UC as the audio I/O device. Fireface UC supports

ASIO Direct Monitoring (ADM). Please note that currently Nuendo, Cubase and Logic either do not support ADM completely or error-free. The most often reported problem is the wrong behaviour of panorama in a stereo channel.

When the sample frequency is set to 88.2 or 96 kHz, the number of ASIO ADAT channels is reduced to 4. At a sample rate of 176.4 or 192 kHz (Quad Speed Mode) the ADAT I/O is no longer available. Nevertheless it will send out a synchronized ADAT signal at a quarter of the sample rate. The ASIO driver corrects the number of channels when changing from Single to Double or Quad Speed. The channel situation is explained in chapter 13.2.

Please note that when changing the sample rate range between Single, Double and Quad Speed the number of channels presented from the ASIO driver will change too. This may require a reset of the I/O list in the audio software.

In case of a drift between audio and MIDI, or in case of a fixed deviation (MIDI notes placed close before or behind the correct position), the settings in Cubase/Nuendo have to be changed. At the time of print the option 'Use System Timestamp' should be activated. The Fireface UC supports both MME MIDI and DirectMusic MIDI. It depends on the used application which one will work better.

User's Guide Fireface UC © RME

13.2 Channel Count under ASIO

At a sample rate of 88.2 or 96 kHz, the ADAT optical input and outputs operate in S/MUX mode, so the number of available channels per port is reduced from 8 to 4.

At a sample rate of 176.4 and 192 kHz, the ADAT optical input and outputs operate in S/MUX4 mode, so the number of available channels per port is limited to 2.

Single Speed Double Speed Quad Speed

Fireface UC Analog 1 to 8 Fireface UC Analog 1 to 8 Fireface UC Analog 1 to 8 Fireface UC SPDIF L / R Fireface UC SPDIF L / R Fireface UC SPDIF L / R Fireface UC AS 1 to 2 Fireface UC AS 1 to 2 Fireface UC AS 1 to 2 Fireface UC ADAT 3 to 4 Fireface UC ADAT 3 to 4 Fireface UC ADAT 3 to 4 Fireface UC ADAT 5 to 6 Fireface UC ADAT 5 to 6 Fireface UC ADAT 5 to 6 Fireface UC ADAT 7 to 8 Fireface UC ADAT 7 to 8 Fireface UC ADAT 7 to 8

13.3 Known Problems

If a computer does not provide sufficient CPU-power and/or sufficient USB-bus transfer rates, then drop outs, crackling and noise will appear. Such effects can be avoided by using a higher buffer setting/latency in the Settings dialog of the Fireface UC. Furthermore PlugIns should be deactivated temporarily to make sure they do not cause these problems.

More information can be found in chapter 35.3. Another common source of trouble is incorrect synchronization. ASIO does not support asyn-

chronous operation, which means that the input and output signals not only have to use the same sample frequency, but also have to be in sync. All devices connected to the Fireface UC must be properly configured for Full Duplex operation. As long as SyncCheck (in the Settings dialog) only displays Lock instead of Sync, the devices have not been set up properly!

The same applies when using more than one Fireface UC. They all have to be in sync. Else a periodically repeated noise will be heard.

User's Guide Fireface UC © RME

14. Using more than one Fireface

The current driver supports up to three Fireface UC. All units have to be in sync, i.e. have to receive valid sync information (either via word clock or by using AutoSync and feeding synchronized signals).

• If one of the Firefaces is set to clock mode Master, all others have to be set to clock mode

Slave, and have to be synced from the master, for example by feeding word clock. The clock modes of all units have to be set up correctly in the Fireface Settings dialog.

• If all units are fed with a synchronous clock, i.e. all units show Sync in their Settings dialog,

all channels can be used at once. This is especially easy to handle under ASIO, as the ASIO driver presents all units as one.

The driver takes care of the numbering of all Firefaces, so that it doesn't change. The unit with the lowest serial number is always 'Fireface (1)'. Please note:

• If the Fireface (1) is switched off, Fireface (2) logically turns to the first and only Fireface. If

Fireface (1) is switched on later, the numbering changes and the unit becomes Fireface (2) immediately.

• The driver has no control on the numbering of the WDM devices. Therefore it might happen

that the WDM devices (2) are mapped to unit (1), especially when switching on more Firefaces during a Windows session. A reboot with all Firefaces already operational should solve this problem.

Note

: TotalMix is part of the hardware of each Fireface. Up to three mixers are available, but these are separated and can't interchange data. Therefore a global mixer for all units is not possible.

When using more than one Fireface UC the USB bus might get overloaded. To prevent this connect all units to different USB busses. This should be possible without further hardware as many popular USB 2.0 interfaces come as twins, which can be checked in the Device Manager as follows:

• Connect the Fireface UC to a USB port

• Start the Device Manager, View set to ‘Devices by Connection’

• Expand ACPI x86-based PC, Microsoft ACPI compatible System, PCI bus

Here you usually find two entries of a USB2 Enhanced Host Controller. All USB devices are connected via a Root Hub, the Fireface UC will show up here too. By a simple reconnection to other ports this view lets you check to which one of the two controllers the Fireface is connected to. And with two units, if they use the same controller or not.

This information can also be used to makes sure that an external USB hard drive will not interfere with the Fireface UC, by ensuring its connection to a different bus (controller).

Especially with laptops it can be seen that all internal devices and all sockets are connected to the same controller, and that the second controller is not used at all. Then all units operate on the same bus and fight against each other for bandwidth..

User's Guide Fireface UC © RME

15. DIGICheck

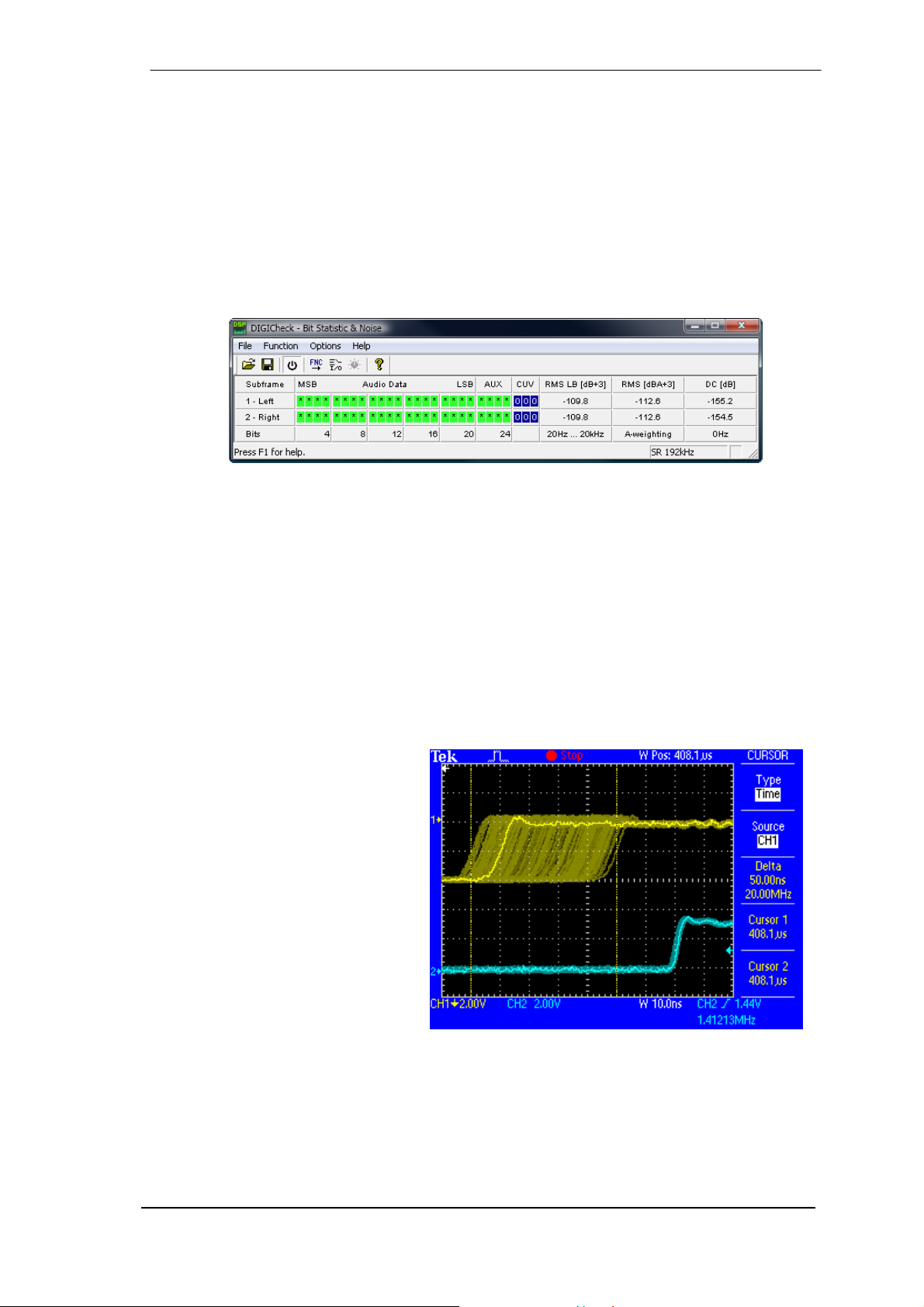

The DIGICheck software is a unique utility developed for testing, measuring and analysing digital audio streams. Although this Windows software is fairly self-explanatory, it still includes a comprehensive online help. DIGICheck 5.2 operates as multi-client ASIO host, therefore can be used in parallel to any software, with both inputs and outputs (!). The following is a short summary of the currently available functions:

• Level Meter. High precision 24-bit resolution, 2/10/28 channels. Application examples: Peak level measurement, RMS level measurement, over-detection, phase correlation measurement, dynamic range and signal-to-noise ratios, RMS to peak difference (loudness), long term peak measurement, input check. Oversampling mode for levels higher than 0 dBFS. Supports visualization according to the K-System.

• Hardware Level Meter for Input, Playback and Output. Reference Level Meter freely con- figurable, causing near zero CPU load, because calculated from the Fireface hardware.

• Vector Audio Scope. World wide unique Goniometer showing the typical afterglow of a oscilloscope-tube. Includes Correlation meter and level meter.

• Surround Audio Scope. Professional Surround Level Meter with extended correlation analysis.

• Spectral Analyser. World wide unique 10-, 20- or 30-band display in analog bandpass filter technology. 192 kHz-capable!

• Bit Statistics & Noise. Shows the true resolution of audio signals as well as errors and DC offset. Includes Signal to Noise measurement in dB and dBA, plus DC measurement.

• Totalyser. Spectral Analyser, Level Meter and Vector Audio Scope in a single window.

• Channel Status Display. Detailed analysis and display of SPDIF and AES/EBU Channel

Status data.

• Global Record. Long-term recording of all channels at lowest system load.

• Completely multi-client. Open as many measurement windows as you like, on any chan-

nels and inputs or outputs!

To install DIGICheck, go to the \DIGICheck directory on the RME Driver CD and run setup.exe. Follow the instructions prompted on the screen.

DIGICheck is constantly updated. The latest version is always available on our website www.rme-audio.com, section Downloads/Add-Ons.

User's Guide Fireface UC © RME

16. Hotline – Troubleshooting

16.1 General

The newest information can always be found on our website www.rme-audio.com, section FAQ, Latest Additions.

Important: Check that the correct (PC = Windows, AP = Mac) firmware is loaded by a doubleclick on the rotary encoder.

The input signal cannot be monitored in real-time

• ASIO Direct Monitoring has not been enabled within the DAW, and/or monitoring has been disabled globally (TotalMix Options).

The 8 ADAT channels don’t seem to work

• The optical output has been switched to 'SPDIF'. As can be seen in the block diagram, all channels and their assignments still exist, but the optical transmitter has been disconnected from ADAT. The ADAT playback devices are still usable by routing and mixing them in TotalMix to other outputs.

Playback works, but record doesn’t

• Check that there is a valid signal at the input. If so, the current sample frequency is displayed in the Settings dialog.

• Check whether the Fireface UC has been selected as recording device in the audio application.

• Check whether the sample frequency set in the audio application (‘Recording properties’ or similar) matches the input signal.

• Check that cables/devices have not been connected in a closed loop. If so, set the system’s clock mode to Master.

Crackle during record or playback

• Increase the number and size of buffers in the ‘Settings’ dialog or in the application.

• Try different cables (coaxial or optical) to rule out any defects here.

• Check that cables/devices have not been connected in a closed loop. If so, set the system’s

clock mode to ‘Master’.

• Check the Settings dialog for displayed Errors.

Driver installation and Settings dialog/TotalMix work, but a playback or record is not possible

• While recognition and control of the device are low bandwidth applications, playback/record

needs the full USB transmission performance. Therefore, defective USB cables with limited transmission bandwidth can cause such errors.

After the flash process the Fireface UC does not start correctly

• Pushing the rotary encoder while switching on the unit will load the Safety BIOS. The flash

process should then be repeated, maybe even on a different computer.

User's Guide Fireface UC © RME

User's Guide

Fireface UC

Mac OS X – Installation and Operation

User's Guide Fireface UC © RME

17. Hardware Installation

• Connect the power supply to the Fireface and then to any suitable power outlet. Power-on the Fireface with the rear power switch.

• Connect computer and Fireface using the supplied USB cable.

• Mac OS X detects the new hardware as Fireface UC Mac (serial number).

18. Driver

18.1 Driver Installation

After the Fireface has been connected, (see 19. Hardware Installation) install the drivers from the RME Driver CD. The driver files are located in the folder Fireface UC. Installation works automatically by a double-click on the file Fireface USB.pkg.

RME recommends downloading the latest driver version from the RME website. If done, the procedure is as follows:

A double-click onto driver_usb_mac.zip expands the archive file to Fireface USB.pkg. Installation works automatically by a double-click on this file.

During driver installation the programs Fireface USB Settings and Fireface USB Mixer (TotalMix) are copied to the Applications folder. It is recommended to link these two programs to the Dock so that they are always available.

A reboot of the computer is not required. Possible reasons why a Fireface UC is not found after driver installation:

• The USB port is not active in the system (check in System Profiler, USB)

• The USB cable is not or not correctly inserted into the socket

• No power. After switching the Fireface on, at least the 7 segment display has to be lit.

User's Guide Fireface UC © RME

18.2 Driver Update

In case of a driver update it's not necessary to remove the old driver first, it will be overwritten during the installation. In case of problems the driver files can be deleted manually by dragging them to the trash bin:

/Applications/Fireface USB Mixer /Applications/Fireface USB Settings /System/Library/Extensions/FirefaceUSB.kext /Users/username/Library/Preferences/Fireface USB folder /Users/username/Library/Preferences/de.rme-audio.FirefaceUSBMixer.plist /Users/username/Library/Preferences/de.rme-audio.Fireface_USB_Settings.plist

18.3 Firmware Update

The Flash Update Tool updates the firmware of the Fireface UC to the latest version. It requires an already installed driver.

Start the program Fireface USB Flash. The Flash Update Tool displays the current revision of the Fireface UC's firmware, and whether it needs an update or not. If so, simply press the 'Update' button. A progress bar will indicate when the flash process is finished (Verify Ok).

If more than one Fireface is installed, all units can be flashed by changing to the next tab and repeating the process.

After the update the unit needs to be reset. This is done by powering down the Fireface for a few seconds. A reboot of the computer is not necessary.

When the update fails (status: failure), the unit's second BIOS will be used from the next cold boot on (Secure BIOS Technology). Therefore the unit stays fully functional. The flash process should then be tried again on a different computer.

In case the automatic activation of the Safety-BIOS fails it can also be activated manually: Push the rotary encoder button while switching on the unit. This method is also useful to temporarily deactivate a newer firmware. With pressed button the older version of the firmware will be loaded (at the time of writing this manual version 82).

User's Guide Fireface UC © RME

19. Configuring the Fireface

19.1 Settings Dialog

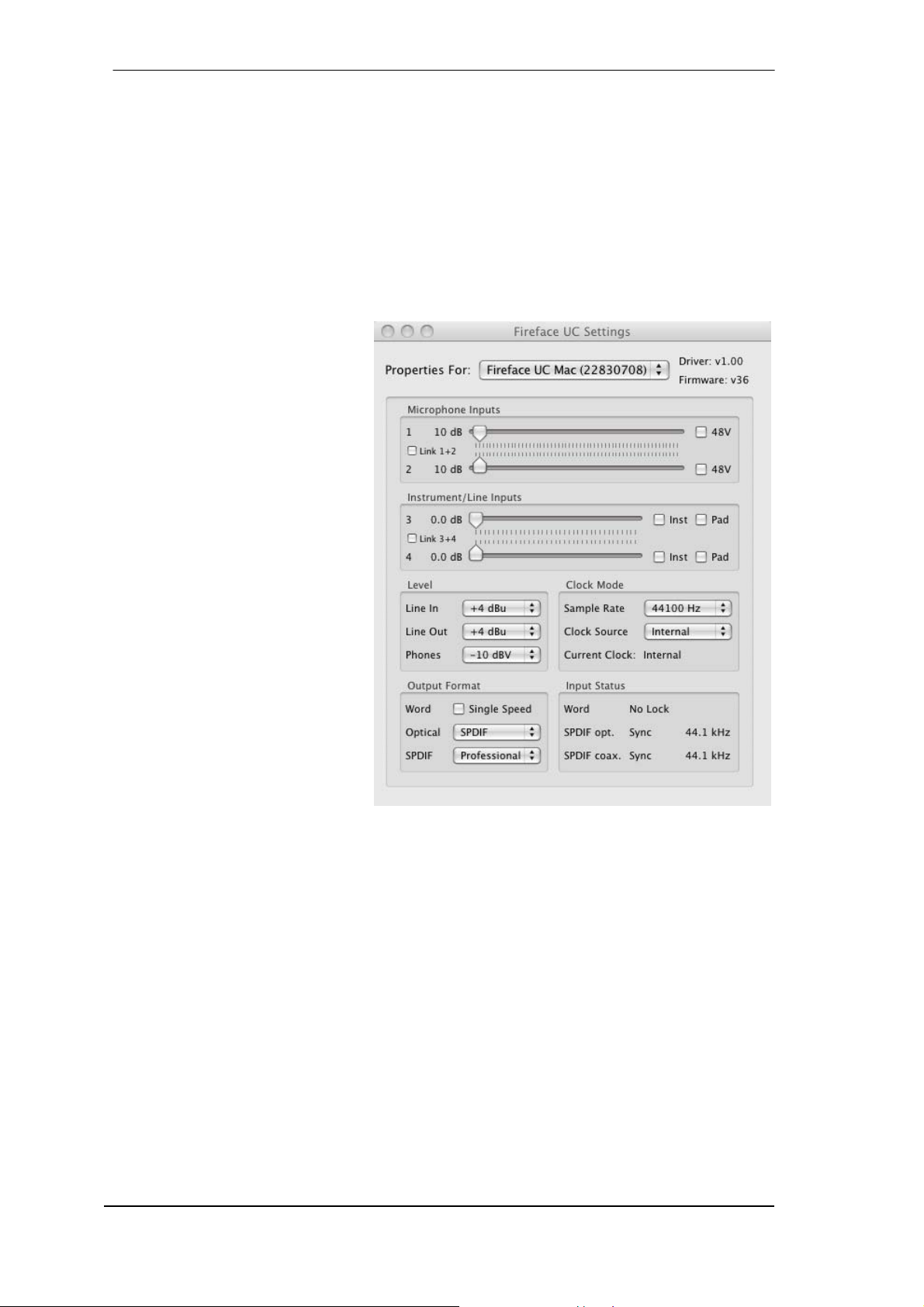

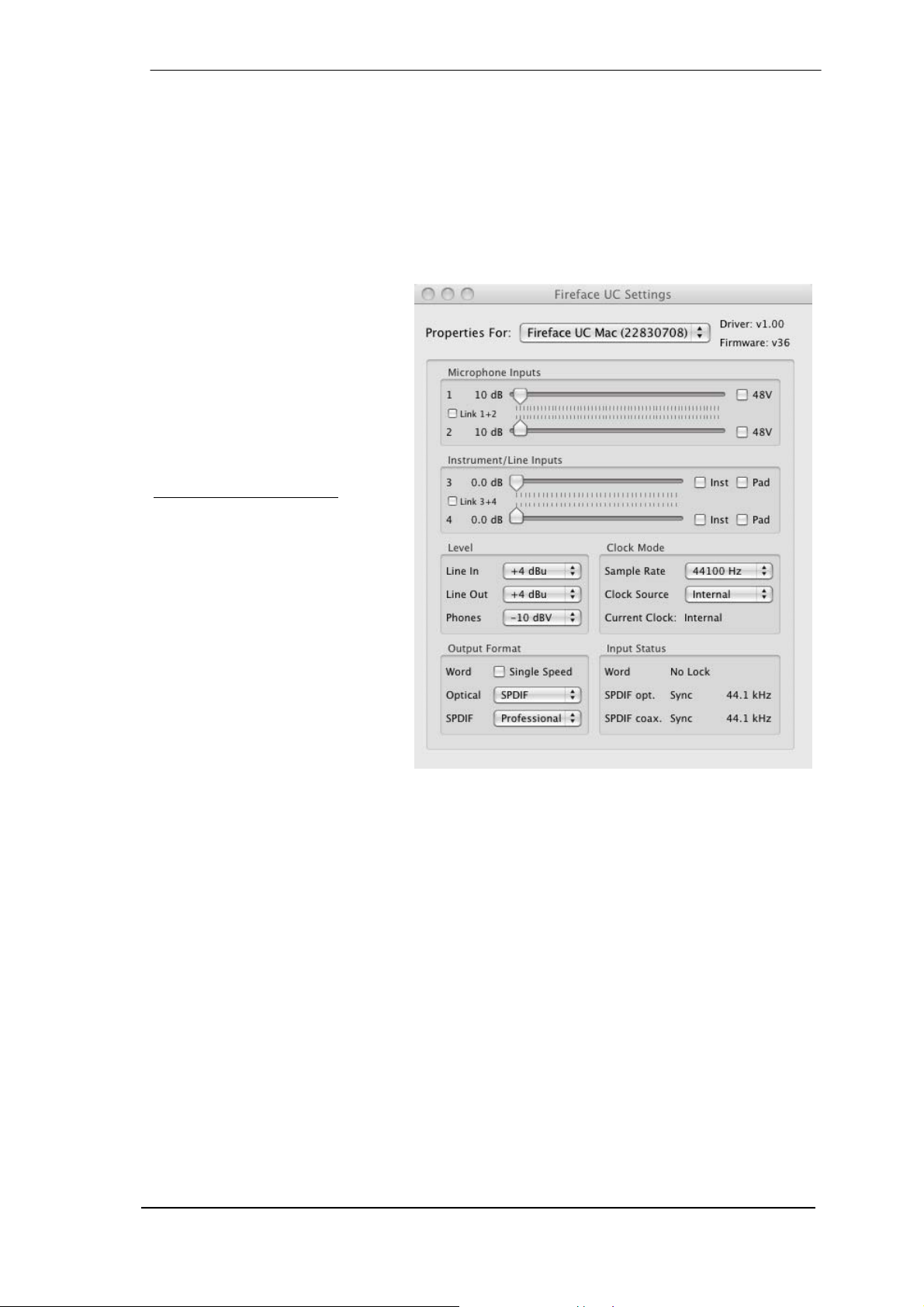

Configuring the Fireface UC is done via its own settings dialog. Start the program Fireface USB Settings. The mixer of the Fireface (TotalMix) can be configured by starting the program Fireface USB Mixer.

The Fireface’s hardware offers a number of helpful, well thought-of practical functions and options which affect how the card operates - it can be configured to suit many different requirements. The following is available in the 'Settings' dialog:

• Level of analog I/Os

• Configuration of digital I/Os

• Synchronization behaviour

• Current sample rate

• State of input and output

Any changes performed in the Settings dialog are applied immediately - confirmation (e.g. by exiting the dialog) is not required. However, settings should not be changed during playback or record if it can be avoided, as this can cause unwanted noises.

The status displays at the bottom of the dialog box give precise information about the current status of the system, and the status of all digital signals.

Input Status indicates for each input (Word, optical, SPDIF coax.) whether there is a valid signal (Lock, No Lock), or if there is a valid

and synchronous signal (Sync). The Clock Mode display shows the clock

reference (Current…).

User's Guide Fireface UC © RME

Microphone Inputs

In the lower range the fader jumps from 10 dB to 0 dB. This useful additional setting provides line signal compatibility at up to +10 dBu.

Phantom power (48V) can be selected for each microphone input separately. Link 1+2 gangs faders 1 and 2. This simplifies the setup in case both channels shall have the

same setting/values.

Instrument / Line Inputs

Activate the option Instrument to use inputs 3 and 4 with instruments. The input impedance is raised to 470 kOhm, the input sensitivity increases by 10 dB. Pad decrease the input sensitivity by 12 dB.

Link 3+4 gangs faders 3 and 4. This simplifies the setup in case both channels shall have the same setting/values. More information is found in chapter 25.3.

Level Line In

Defines the reference level of the rear analog inputs 5-8.

Line Out

Defines the reference level of the rear analog outputs 1-6.

Phones

Defines the reference level of the analog outputs 7/8.

Clock Mode Sample Rate

Used to set the current sample rate. This is the same setting as in the Audio MIDI Setup, just added here for your convenience.

At ongoing record/playback the selection is greyed out, so no change is possible.

Clock Source

The unit can be configured to use its own clock (Internal = Master), or one of the input signals (Word, Optical, SPDIF coax., = Slave). If the selected source isn't available, the unit will change to the next available one (AutoSync). If none is available then the internal clock is used. The current clock source is displayed to the right.

Input Status

User's Guide Fireface UC © RME

Output Format Word

Optical

The optical TOSLINK output can operate as ADAT or SPDIF output. The Channel Status is fixed to Consumer state.

: The optical input detects the incoming format automatically.

Note

SPDIF coax.

The coaxial SPDIF output can have the Channel Status Consumer or Professional. For further details please refer to chapter 27.2.

19.2 Clock Modes - Synchronization

A digital system can only have one master! If the Fireface’s clock mode is set to 'Internal', all other devices must be set to ‘Slave’.

User's Guide Fireface UC © RME

Note on SPDIF and Word

User's Guide Fireface UC © RME

20. Mac OS X FAQ

20.1 Round about Driver Installation

The driver with the file suffix zip provided by RME is a compressed archive. Zip is directly supported by OS X, a double click on the file is all one needs to do.

The driver consists of a package file (pkg). A double click will start the OS X installer. The actual audio driver appears as a kernel extension file. The installer copies it to >System/

Library/ Extensions<. Its name is FirefaceUSB.kext. It is visible in the Finder, allowing you to verify date and driver version. Yet, in fact this again is a folder containing subdirectories and files.

Nonetheless, this 'driver file' can be removed by simply dragging it to the trash bin. This can be helpful in case a driver installation fails.

20.2 MIDI doesn't work

In some cases the applications do not show the MIDI port. The reason for this is usually visible within the Audio MIDI Setup. It displays no RME MIDI device, or the device is greyed out and therefore inactive. Mostly, removing the greyed out device and searching for MIDI devices again will solve the problem.

The Fireface UC is class compliant. Therefore it comes without a driver. OS X recognizes it as MIDI device and will be using it with the driver included in the operating system.

20.3 Repairing Disk Permissions

Repairing permission can solve problems with the installation process - plus many others. To do this, launch Disk Utility located in Utilities. Select your system drive in the drive/volume list to the left. The First Aid tab to the right now allows you to check and repair disk permissions.

20.4 Supported Sample Rates

RME's Mac OS X driver supports all sampling frequencies provided by the hardware. This includes 32 kHz and 64 kHz, and even 128 kHz, 176.4 kHz and 192 kHz for the analog and SPDIF I/Os.

But not any software will support all the hardware's sample rates. The hardware's capabilities can easily be verified in the Audio MIDI Setup. Select Audio devices under Properties of: and choose the Fireface UC. A click on Format will list the supported sample frequencies.

User's Guide Fireface UC © RME

20.5 Channel Count under Core Audio

It is not possible to change the number of Core Audio devices without a reboot of the computer. Therefore whenever the Fireface UC changes into Double Speed (88.2/96 kHz) or Quad Speed mode (176.4/192 kHz) all devices stay present, but become partly inactive.

Single Speed Double Speed Quad Speed

Fireface UC Analog 1 to 8 Fireface UC Analog 1 to 8 Fireface UC Analog 1 to 8 Fireface UC SPDIF L / R Fireface UC SPDIF L / R Fireface UC SPDIF L / R Fireface UC ADAT 1 to 2 Fireface UC ADAT 1 to 2 Fireface UC ADAT 1 to 2 Fireface UC ADAT 3 to 4 Fireface UC ADAT 3 to 4 Fireface UC ADAT 3 to 4 Fireface UC ADAT 5 to 6 Fireface UC ADAT 5 to 6 Fireface UC ADAT 5 to 6 Fireface UC ADAT 7 to 8 Fireface UC ADAT 7 to 8 Fireface UC ADAT 7 to 8

20.6 Various Information

The driver of the Fireface UC requires at least Mac OS 10.5, as special USB functions are used that are not available in older versions of the operating system.

Via >System Preferences/ Audio-MIDI Setup< the hardware can be configured for the system wide usage. Programs that don't support card or channel selection will use the device selected as Standard-Input and Standard-Output. (Soundstudio, Mplayer, Amplitube etc.).

In the lower part of the window, the audio hardware's capabilities are shown and can be changed in some cases. On the record side no changes are possible. Programs that don't support channel selection will always use channels 1/2, the first stereo pair. To access other inputs, use the following workaround with TotalMix: route the desired input signal to output channels 1/2. Hold the Ctrl key down and click on the labels AN1 and AN2 in the third row. Their labels turn red, the internal loop mode is active. Result: the desired input signal is now available at input channel 1/2, without further delay/latency.

Use Speaker Setup to freely configure the playback to all available channels. Even multichan- nel playback (Surround, DVD Player) can be set up this way.

Multicard Operation

OS X supports more than one audio device. Since 10.4 (Tiger) Core Audio offers the function Aggregate Devices, which allows to combine several devices into one, so that a multi-device operation is possible with any software.

The Fireface driver adds a number to each unit, so they are fully accessible in any multicardcapable software.

User's Guide Fireface UC © RME

21. Using more than one Fireface

OS X erlaubt die Verwendung von mehr als einem Audiogerät und deren gleichzeitige Nutzung in einem Programm. Dies geschieht über die Funktion Aggregate Devices, mit dem sich mehrere Geräte zu einem zusammenfassen lassen.

• If one of the Firefaces is set to clock mode Master, all others have to be set to clock mode Slave, and have to be synced from the master, for example by feeding word clock. The clock modes of all units have to be set up correctly in the Fireface Settings dialog.

• If all units are fed with a synchronous clock, i.e. all units show Sync in their Settings dialog, all channels can be used at once.

When using more than one Fireface UC the USB bus might get overloaded. To prevent this connect all units to different USB busses.

Note

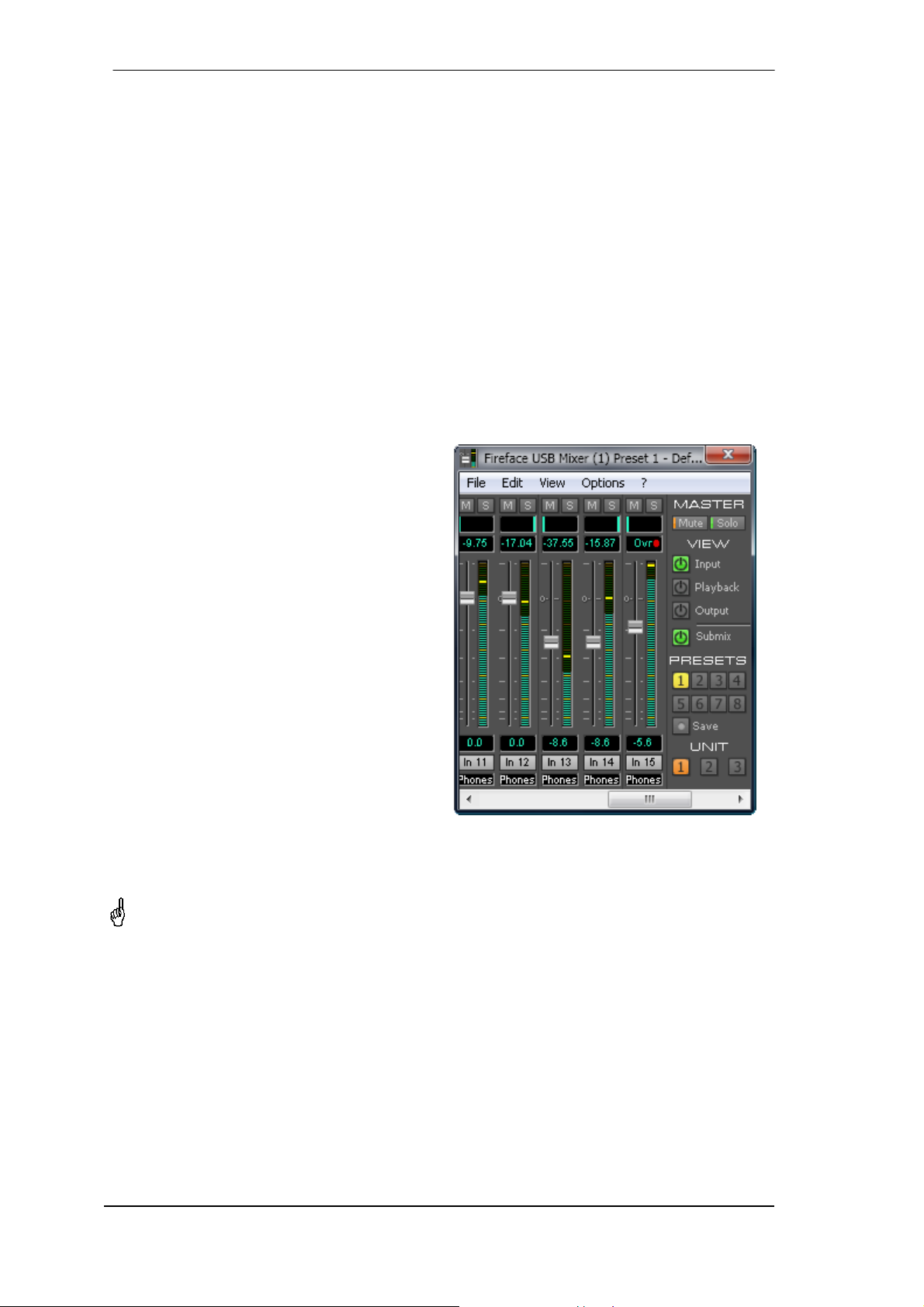

: TotalMix is part of the hardware of each Fireface. Up to three mixers are available, but these are separated and can't interchange data. Therefore a global mixer for all units is not possible.

22. DIGICheck Mac

The DIGICheck software is a unique utility developed for testing, measuring and analysing digital audio streams. Although this Windows software is fairly self-explanatory, it still includes a comprehensive online help. DIGICheck 0.5 operates in parallel to any software, showing all input data. The following is a short summary of the currently available functions:

• Level Meter. High precision 24-bit resolution, 2/10/28 channels. Application examples: Peak

level measurement, RMS level measurement, over-detection, phase correlation measurement, dynamic range and signal-to-noise ratios, RMS to peak difference (loudness), long term peak measurement, input check. Oversampling mode for levels higher than 0 dBFS. Supports visualization according to the K-System.

• Hardware Level Meter for Input, Playback and Output. Reference Level Meter freely con-

figurable, causing near zero CPU load, because calculated from the Fireface hardware.

• Vector Audio Scope. World wide unique Goniometer showing the typical afterglow of a

oscilloscope-tube. Includes Correlation meter and level meter.

• Surround Audio Scope. Professional Surround Level Meter with extended correlation

analysis.

• Spectral Analyser. World wide unique 10-, 20- or 30-band display in analog bandpass filter

technology. 192 kHz-capable!

• Totalyser. Spectral Analyser, Level Meter and Vector Audio Scope in a single window.

• Completely multi-client. Open as many measurement windows as you like, on any chan-

nels and inputs or outputs!

To install DIGICheck, go to the \DIGICheck directory on the RME Driver CD and run setup.exe. Follow the instructions prompted on the screen.

DIGICheck is constantly updated. The latest version is always available on our website www.rme-audio.com, section Downloads/Add-Ons.

User's Guide Fireface UC © RME

23. Hotline – Troubleshooting

The newest information can always be found on our website www.rme-audio.com, section FAQ, latest Additions.

Important: Check that the correct (PC = Windows, AP = Mac) firmware is loaded by a doubleclick on the rotary encoder.

The unit and drivers have been installed correctly, but playback does not work:

• Is Fireface UC listed in the System Profiler? (Vendor ID 2613).

• Has Fireface been selected as current playback device in the audio application?

The 8 ADAT channels don’t seem to work

Playback works, but record doesn’t:

• Check that there is a valid signal at the input. If so, the current sample frequency is displayed in the Settings dialog.

• Check whether the Fireface UC has been selected as recording device in the audio application.

• Check whether the sample frequency set in the audio application (‘Recording properties’ or similar) matches the input signal.

• Check that cables/devices have not been connected in a closed loop. If so, set the system’s clock mode to ‘Master’.

Crackle during record or playback:

• Increase the number and size of buffers in the application.

• Try different cables (coaxial or optical) to rule out any defects here.

• Check that cables/devices have not been connected in a closed loop. If so, set the system’s

clock mode to ‘Master’.

Possible causes for a Fireface not working

• The USB cable is not, or not correctly inserted into the socket

• No power. After switching the Fireface on, at least the red Host error LED has to be lit.

Driver installation and Settings dialog/TotalMix work, but a playback or record is not possible

• While recognition and control of the device are low bandwidth applications, playback/record

needs the full FireWire transmission performance. Therefore, defective FireWire cables with limited transmission bandwidth can cause such an error scheme.

After the flash process the Fireface UC does not start correctly

• Pushing the rotary encoder while switching on the unit will load the Safety BIOS. The flash

process should then be repeated, maybe even on a different computer.

User's Guide Fireface UC © RME

User's Guide

Fireface UC

Stand-Alone Operation, Connections and TotalMix

User's Guide Fireface UC © RME

24. Stand-alone Operation

The Fireface UC has an internal memory to permanently store all configuration data. The data is stored directly after any change, and are loaded at power-on. Saved settings are:

Settings dialog

Sample rate, clock mode Master/Slave, configuration of the channels and the digital I/Os.

TotalMix

The complete mixer state. This also improves the clock situation immediately after power-on, avoiding wrong clocking and

noise disturbances in a complex setup, caused by wrong synchronization. Usually the unit will be configured by the Windows or Mac driver, so for the time between power-on of the computer up to the loading of the driver its state might be wrong.

This total configuration feature in stand-alone operation - without any connected computer turns the Fireface into lots of dedicated devices, see examples in chapter 24. Furthermore TotalMix (and with this all application examples) can be MIDI controlled even in stand-alone operation, see chapter 32.7, Stand-Alone MIDI Control.

24.1 Front Panel Operation

The knob on the front, a so called rotary encoder, serves to set the input gains and output volumes directly at the unit. The encoder operates either in CHANNEL or in LEVEL mode. Pushing the knob changes between these modes. The currently active mode is indicated by a green LED.

In CHANNEL mode, selection of the desired channel is done by turning the knob. The following strings will be shown in the display:

i.1 bis i.4 Mic input 1 up to instrument/line input 4 L.1 bis L.6 Line output 1 up to line output 6 PH Phones (line output 7/8) SP SPDIF output A.1 bis A.8 ADAT output 1 up to 8

i.1 / i.2

The gain of the two microphone inputs 1/2 can be defined in the range of 10 dB up to 65 dB in steps of 1 dB. Additionally the setting 0 dB is available. The gain change is performed in analog domain in hardware.

i.3 / i.4

The gain of the two instrument/line inputs 3/4 can be defined in the range of 0 dB up to 18 dB in steps of 0.5 dB. The x.5 dB values are signalled by a dot to the right. The gain change is performed in analog domain in hardware.

L.1 bis L.6, PH, SP, A.1 bis A.8

The output levels of these outputs can be defined in the range +6 dB down to –58 dB in steps of 1 dB. Additionally the setting maximum attenuation (Mute) is available. The gain change is performed digitally by TotalMix.

Stereo Mode

Pushing the knob for more than a second activates the Link (Gang) mode. The display will show off or on. In stereo (on) mode, the display only presents the left channels of a stereo pair (L1, L3, L5...). The gain and volume setting is then valid for both channels.

User's Guide Fireface UC © RME

24.2 8-Channel AD/DA-Converter

When loading TotalMix' factory default 1 into the unit, the Fireface becomes a high quality 8channel AD/DA-converter, which also provides a monitoring of all 8 DA-channels via channels 7/8 (Preset 2: also monitoring all 8 inputs). A small modification allows for a monitoring of all I/Os via the SPDIF I/O.

24.3 2-Channel Mic Preamp

Use TotalMix to route the two microphone inputs directly to the analog outputs. This turns the Fireface UC into a 2-channel microphone preamp. The AD- and DA-conversion will cause a small delay of the signals of around 0.35 ms (at 192 kHz, see chapter 35.2). But this is not really relevant, as it is the same delay that would be caused by changing the microphone's position by about 12 centimeter (5 inches).

24.4 Monitor Mixer

TotalMix allows ANY configuration of all I/Os of the Fireface. For example, set up the device as monitor mixer for 8 analog signals, 8 digital via ADAT and 2 via SPDIF. Additionally, TotalMix lets you set up ANY submixes, so all existing outputs can be used for different and independent monitorings of the input signals. The perfect headphone monitor mixer!

24.5 Digital Format Converter

As TotalMix allows for any routing of the input signals, the Fireface UC can be used as ADAT to SPDIF converter, and SPDIF to ADAT converter.

24.6 Analog/digital Routing Matrix

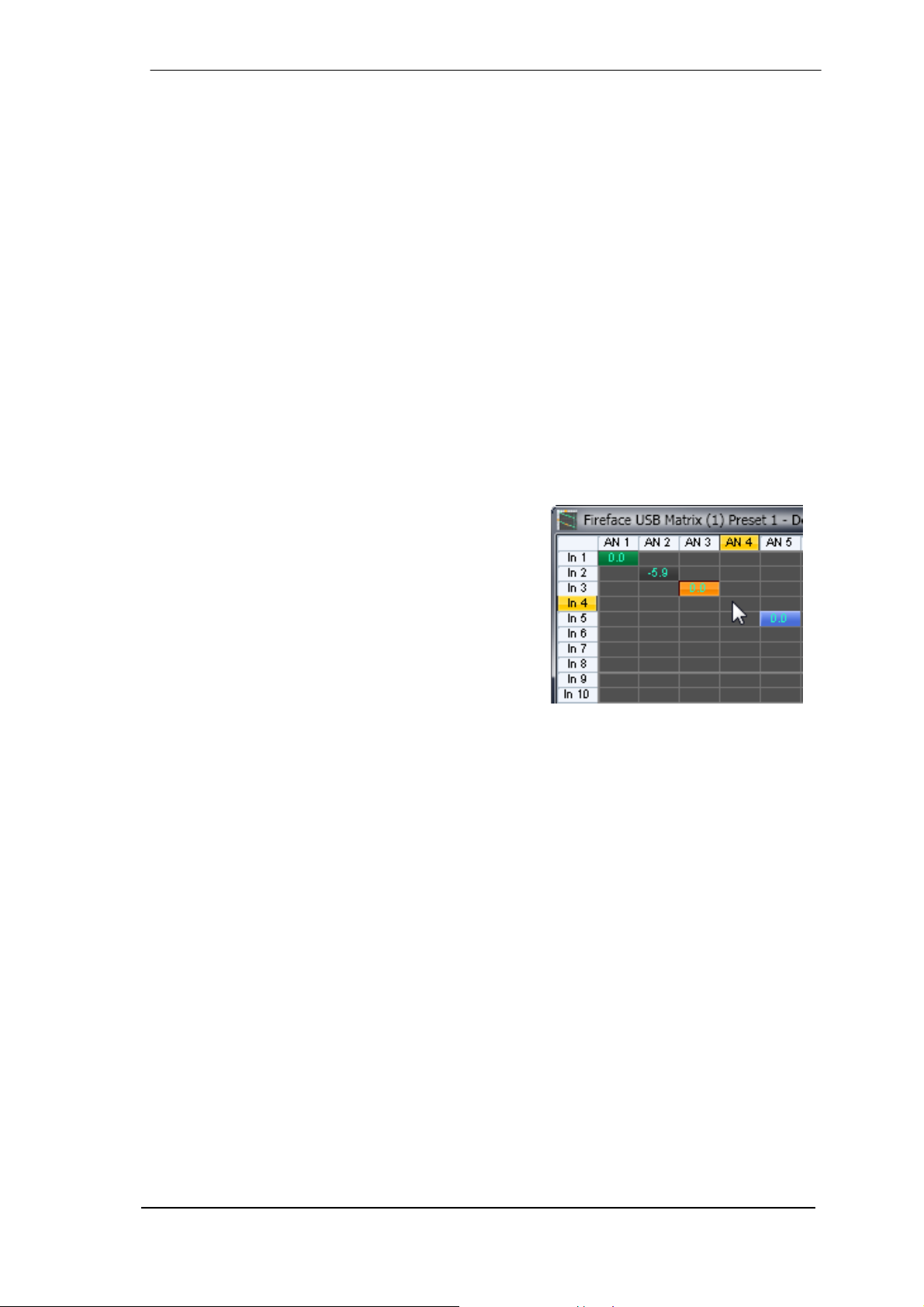

The Matrix in TotalMix enables you to route and link all inputs and outputs completely freely. All the above functionalities are even available simultaneously, can be mixed and combined in many ways. Simply said: the Fireface UC is a perfect analog/digital routing matrix!

User's Guide Fireface UC © RME

25. Analog Inputs

25.1 Line Rear

The Fireface has balanced line inputs as 1/4" TRS jacks on the back of the unit. The electronic input stage is built in a servo balanced design which handles unbalanced (mono jacks) and balanced (stereo jacks) correctly, automatically adjusting the level reference.

When using unbalanced cables with TRS jacks: be sure to connect the 'ring' contact of the TRS jack to ground. Otherwise noise may occur, caused by the unconnected negative input of the balanced input.

One of the main issues when working with an AD-converter is to maintain the full dynamic range within the best operating level. Therefore the Fireface UC internally uses hi-quality electronic switches, which allow for a perfect adaptation of all rear inputs to the three most often used studio levels.

The 'standardized' studio levels do not result in a (often desired) full scale level, but take some additional digital headroom into consideration. The amount of headroom is different in different standards, and again differently implemented by different manufacturers. Because of this we decided to define the levels of the Fireface in the most compatible way.

Reference 0 dBFS @ Headroom

Lo Gain +19 dBu 15 dB +4 dBu +13 dBu 9 dB

-10 dBV +2 dBV 12 dB

With +4 dBu selected, the according headroom meets the latest EBU recommendations for Broadcast usage. At -10 dBV a headroom of 12 dB is common practice, each mixing desk operating at -10 dBV is able to send and receive much higher levels. Lo Gain is best suited for professional users who prefer to work balanced and at highest levels. Lo Gain provides 15 dB headroom at +4 dBu nominal level.

The above levels are also found in our ADI-8 series of AD/DA converters, the Multiface, and even in our Mic-Preamps QuadMic and OctaMic. Therefore all RME devices are fully compatible to each other.

25.2 Microphone / Line Front

The balanced microphone inputs of the Fireface UC offer an adjustable gain of 10 dB up to 65 dB. The soft switching, hi-current Phantom power (48 Volt) provides a professional handling of condensor mics. The usage of a hi-end integrated circuit (PGA 2500) guarantees outstanding sound quality, stunning low THD, and maximum Signal to Noise ratio in any gain setting.

The two combo jacks also allow for the usage of mono and stereo TRS jacks. These jacks usually carry line level signals. To adress this correctly, the input gain can be lowered to 0 dB. The inputs are still operating servo-balanced, but can now handle levels up to +10 dBu.

Overall the inputs 1/2 can work with levels from –55 dBu up to +10 dBu. Two LEDs display a present signal (from –65 dBFS on) and warn against overload (-2 dBFS).

User's Guide Fireface UC © RME

25.3 Instrument / Line Front

The instrument inputs 3/4 of the Fireface UC are exceptionally flexible. Several gain and impedance options make them the ideal receivers for both line and instrument signals.

Line

Inputs 3/4 have balanced line inputs as 1/4" TRS jacks. The electronic input stage is built in a servo balanced design which handles unbalanced (mono jacks) and balanced (stereo jacks) correctly, automatically adjusting the level reference.

Inputs 3/4 operate in perfect harmony with the rear inputs 5 to 8, as they use the same level references:

Reference 5-8 0 dBFS @ Setting 3/4 Input Gain 3/4

Lo Gain +19 dBu Pad +6 dB +4 dBu +13 dBu No Pad 0 dB

-10 dBV +2 dBV Inst 0 dB

- +8 dBu Inst + Pad 0 dB

Instrument

The main difference between a line- and instrument input is the input's impedance. Via the option Inst 3 and Inst 4 in the Settings dialog, the input impedance changes from 10 kOhm to 470 kOhm. At the same time the input sensitivity rises by 10 dB. Using active instruments this setting can already cause overload. Therefore the option Pad is still available, reducing the sensitivity by 12 dB.

The instrument input operates servo-balanced, thus handles balanced signals correctly as well.

Input Gain

Via Input Gain in the Settings dialog, or using the rotary encoder on the front, an additional gain can be applied to the input signals of channels 3/4. The gain range is 0 dB up to 18 dB, in steps of 0.5 dB. This option not only allows for the use of sources with low level output signals, but for example also to adjust the balance between channel 3 and 4 precisely, already before the recording takes place.

Overall the inputs 3/4 can work with levels from –16 dBu up to +25 dBu. Two LEDs display a present signal (from –65 dBFS on) and warn against overload (-2 dBFS).

User's Guide Fireface UC © RME

26. Analog Outputs

26.1 Line

The eight short circuit protected, low impedance line outputs are available as 1/4" TRS jacks on the back of the unit. The electronic output stage is built in a servo balanced design which handles unbalanced (mono jacks) and balanced (stereo jacks) correctly.

To maintain an optimum level for devices connected to the analog outputs, the Fireface UC internally uses hi-quality electronic switches, which allow for a perfect adaptation of all outputs to the three most often used studio levels.

As with the analog inputs, the analog output levels are defined to maintain a problem-free operation with most other devices. The headroom of the Fireface UC lies between 9 and 15 dB, according to the chosen reference level:

Reference 0 dBFS @ Headroom

Hi Gain +19 dBu 15 dB +4 dBu +13 dBu 9 dB

-10 dBV +2 dBV 12 dB

The above levels are also found in our ADI-8 series of AD/DA converters, the Multiface, and even in our Mic-Preamps QuadMic and OctaMic. Therefore all RME devices are fully compatible to each other.

26.2 Phones (7/8)

Channels 7/8 of the Fireface are available on the front via one 1/4" unbalanced TRS jack (stereo output). These channels use the same converters as the other line outputs, therefore offer the same technical specifications.

These outputs are special low impedance types, ready to be used with headphones. But they can also be used as high-quality (yet unbalanced) line outputs. To optimize this stereo output for monitoring purposes, outputs 7/8 have their own 3-stage hardware-based reference level circuitry, providing perfect pre-adjustment for the connected monitor speakers. The main volume control is then performed via TotalMix, either at the computer or directly at the unit (rotary encoder, PH).

In case the output should operate as line output, an adapter TRS plug to RCA phono plugs, or TRS plug to TS plugs is required.

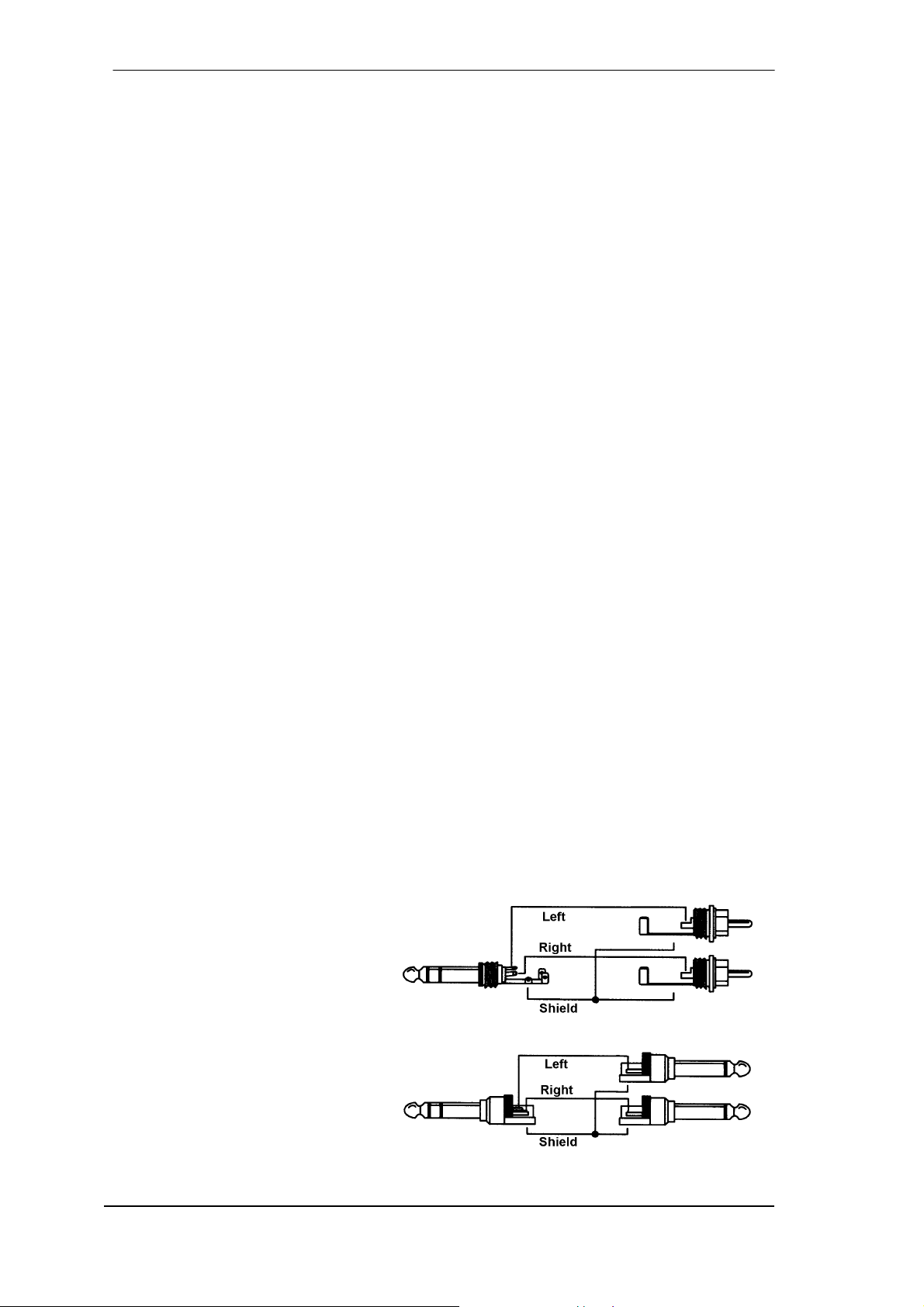

The pin assignment follows international standards. The left channel is connected to the tip, the right channel to the ring of the TRS jack/plug.

User's Guide Fireface UC © RME

27. Digital Connections

27.1 ADAT

The ADAT optical input of the Fireface UC is fully compatible with all ADAT optical outputs. RME's unsurpassed Bitclock PLL prevents clicks and drop outs even in extreme varipitch operation, and guarantees a fast and low jitter lock to the digital input signal. A usual TOSLINK cable is sufficient for connection. More information on Double Speed (S/MUX) can be found in chapter 35.4.

ADAT In

Interface for a device sending an ADAT signal to the Fireface UC. Carries the channels 1 to 8. When receiving a Double Speed signal, this input carries the channels 1 to 4, at Quad Speed the inputs 1 and 2.

ADAT Out

Interface for a device receiving an ADAT signal from the Fireface UC. Transmits channels 1 to

8. When sending a Double Speed signal, this port carries channels 1 to 4, at Quad Speed the

channels 1 and 2.

27.2 SPDIF

The Fireface UC has two SPDIF inputs and outputs. Coaxial and optical can be used simultaneously, with different audio signals. Note that the source have to be synchronous, as the unit does not have a dedicated sample rate converter.

The optical input automatically switches to SPDIF operation when such a signal is detected. The audio information is then shown in TotalMix on the first two ADAT channels, In 11 and In

12.

To send out SPDIF from the optical output, select the option Optical – SPDIF in the Settings dialog. The output signal in TotalMix has to be present on the first ADAT channels, AS 1+2.

The Fireface UC’s inputs accepts SPDIF as well as AES/EBU. To receive signals in AES/EBU format,

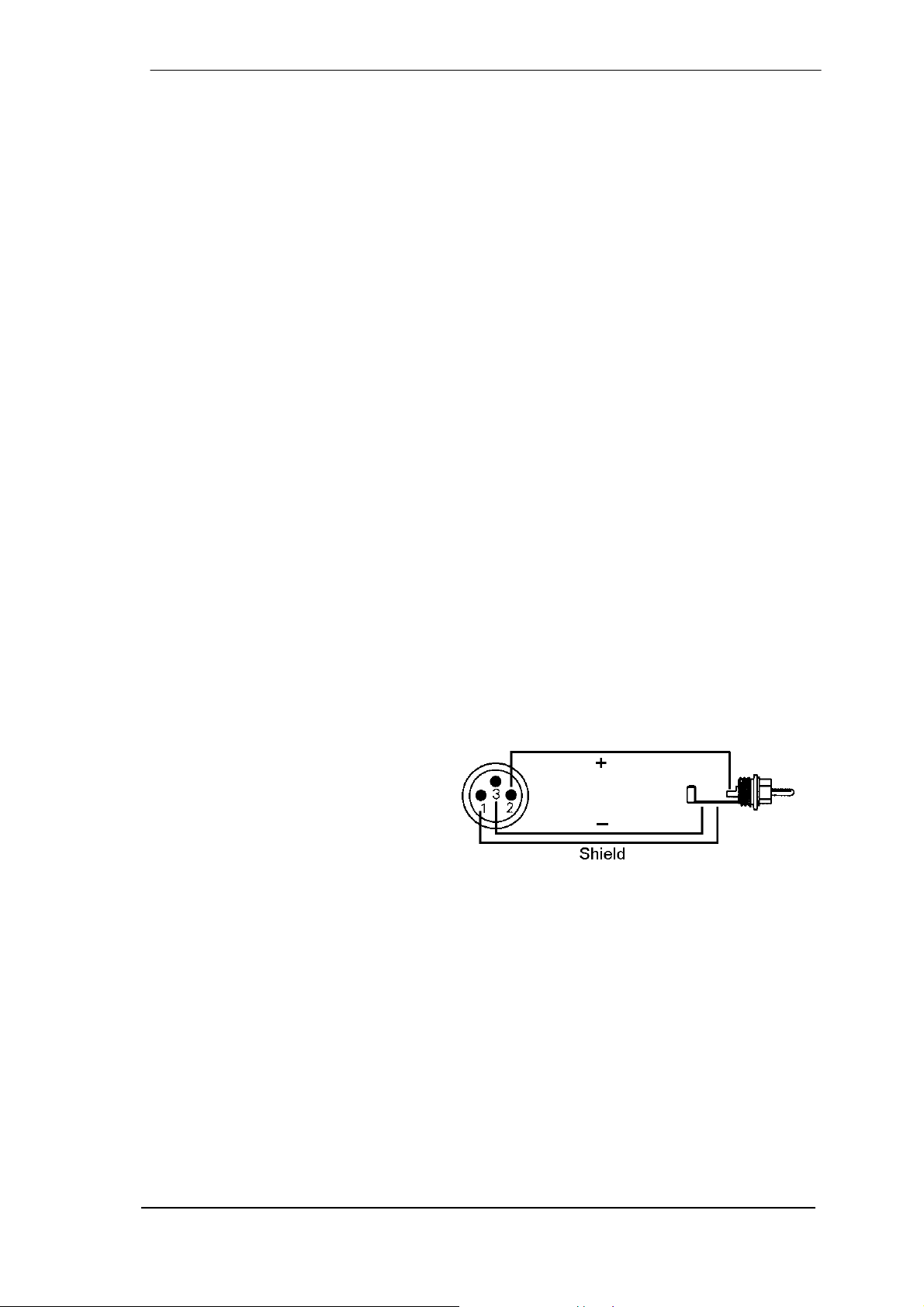

an adapter cable is required. Pins 2 and 3 of a female XLR plug are connected individually to the two pins of a phono plug. The cable shielding is connected to pin 1 of the XLR and the ground contact of the phono plug.

User's Guide Fireface UC © RME

Special Characteristics of the SPDIF Output Apart from the audio data itself, digital signals in SPDIF or AES/EBU format have a header containing channel status information. False channel status is a common cause of malfunction. The Fireface UC ignores the received header and creates a totally new one for the output signal.

The Fireface UC’s new output header is optimized for largest compatibility with other digital devices:

• 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz depending on the current sample rate

• Audio use, Non-Audio

• No Copyright, Copy Permitted

• Format Consumer or Professional

• Category General, Generation not indicated

• 2-channel, No Emphasis or 50/15 µs

• Aux bits Audio Use

Professional AES/EBU equipment can be connected to the Fireface UC thanks to its ‘Professional’ format option and a doubled output voltage. Output cables should have the same pinout as those used for input (see above), but with a male XLR plug instead of a female one.

Note that most consumer HiFi equipment (with optical or phono SPDIF inputs) will only accept signals in ‘Consumer’ format!

Therefore in SPDIF mode the optical output is set fixed to Consumer.

27.3 MIDI

Fireface UC offers two MIDI I/O via four 5-pin DIN jacks. The MIDI ports are added to the system by the driver. Using MIDI capable software, these ports can be accessed under the name Fireface UC Midi. Using more than one Fireface, the operating system adds a consecutive number to the port name, like Fireface UC MIDI (2) etc.

The MIDI ports support multi-client operation. A MIDI input signal can be received from several programs at the same time. Even the MIDI output can be used by multiple programs simultaneously. However, due to the limited bandwidth of MIDI, this kind of application will often show various problems.

Note

: The MIDI input LED displays any kind of MIDI activity, including MIDI Clock, MTC and

Active Sensing. The latter is sent by most keyboards every 0.3 seconds.

User's Guide Fireface UC © RME

28. Word Clock

28.1 Word Clock Input and Output

SteadyClock guarantees an excellent performance in all clock modes. Based on the highly efficient jitter suppression, the Fireface refreshes and cleans up any clock signal, and provides it as reference clock at the BNC output (see section 35.8).

Input

The Fireface's word clock input is active when Word has been selected as Clock Source in the Settings dialog and a valid word clock signal is present. The signal at the BNC input can be Single, Double or Quad Speed, the Fireface UC automatically adapts to it. As soon as a valid signal is detected, the WC LED is lit, and the Settings dialog shows either Lock or Sync (see chapter 35.1).

Thanks to RME's Signal Adaptation Circuit, the word clock input still works correctly even with heavily mis-shaped, dc-prone, too small or overshoot-prone signals. Thanks to automatic signal centering, 300 mV (0.3V) input level are sufficient in principle. An additional hysteresis reduces sensitivity to 1.0 V, so that over- and undershoots and high frequency disturbances don't cause a wrong trigger.

The Fireface's word clock input is shipped as high impedance type (not terminated). A push switch allows to activate internal termination (75 Ohms). The switch is found on the back beside the word clock input socket. Use a small pencil or similar and carefully push the blue switch so that it snaps into its lock position. The yellow LED will be lit when termination is active. Another push will release it again and deactivate the termination.

Output

The word clock output of the Fireface is constantly active, providing the current sample frequency as word clock signal. As a result, in Master mode the provided word clock is defined by the currently used software. In Slave mode the provided frequency is identical to the one present at the currently chosen clock input. When the current clock signal fails, the Fireface UC switches to Master mode and adjusts itself to the next, best matching frequency (44.1 kHz, 48 kHz etc.).

Selecting Single Speed in the Settings dialog causes the output signal to always stay within the range of 32 kHz to 48 kHz. So at 96 kHz and 192 kHz sample rate, the output word clock is 48 kHz.

The received word clock signal can be distributed to other devices by using the word clock output. With this the usual T-adapter can be avoided, and the Fireface UC operates as Signal Re- fresher. This kind of operation is highly recommended, because

• input and output are phase-locked and in phase (0°) to each other

• SteadyClock removes nearly all jitter from the input signal

• the exceptional input (1 Vpp sensitivity instead of the usual 2.5 Vpp, dc cut, Signal Adapta-

tion Circuit) plus SteadyClock guarantee a secure function even with highly critical word clock signals

Thanks to a low impedance, but short circuit proof output, the Fireface delivers 4 Vpp to 75 Ohms. For wrong termination with 2 x 75 Ohms (37.5 Ohms), there are still 3.3 Vpp at the output.

User's Guide Fireface UC © RME

28.2 Technical Description and Usage

In the analog domain one can connect any device to another device, a synchronization is not necessary. Digital audio is different. It uses a clock, the sample frequency. The signal can only be processed and transmitted when all participating devices share the same clock. If not, the signal will suffer from wrong samples, distortion, crackle sounds and drop outs.

AES/EBU, SPDIF and ADAT are self-clocking, an additional word clock connection in principle isn't necessary. But when using more than one device simultaneously problems are likely to happen. For example any self-clocking will not work in a loop cabling, when there is no 'master' (main clock) inside the loop. Additionally the clock of all participating devices has to be synchronous. This is often impossible with devices limited to playback, for example CD players, as these have no SPDIF input, thus can't use the self clocking technique as clock reference.

In a digital studio synchronisation is maintained by connecting all devices to a central sync source. For example the mixing desk works as master and sends a reference signal, the word clock, to all other devices. Of course this will only work as long as all other devices are equipped with a word clock or sync input, thus being able to work as slave (some professional CD players indeed have a word clock input). Then all devices get the same clock and will work in every possible combination with each other.

Remember that a digital system can only have one master!

But word clock is not only the 'great problem solver', it also has some disadvantages. The word clock is based on a fraction of the really needed clock. For example SPDIF: 44.1 kHz word clock (a simple square wave signal) has to be multiplied by 256 inside the device using a special PLL (to about 11.2 MHz). This signal then replaces the one from the quartz crystal. Big disadvantage: because of the high multiplication factor the reconstructed clock will have great deviations called jitter. The jitter of a word clock is typically 15 times higher as when using a quartz based clock.

The end of these problems should have been the so called Superclock, which uses 256 times the word clock frequency. This equals the internal quartz frequency, so no PLL for multiplying is needed and the clock can be used directly. But reality was different, the Superclock proved to be much more critical than word clock. A square wave signal of 11 MHz distributed to several devices - this simply means to fight with high frequency technology. Reflections, cable quality, capacitive loads - at 44.1 kHz these factors may be ignored, at 11 MHz they are the end of the clock network. Additionally it was found that a PLL not only generates jitter, but also rejects disturbances. The slow PLL works like a filter for induced and modulated frequencies above several kHz. As the Superclock is used without any filtering such a kind of jitter and noise suppression is missing. In the end Superclock did not become a commonly accepted standard.

The actual end of these problems is offered by the SteadyClock technology of the Fireface UC. Combining the advantages of modern and fastest digital technology with analog filter techniques, re-gaining a low jitter clock signal of 22 MHz from a slow word clock of 44.1 kHz is no problem anymore. Additionally, jitter on the input signal is highly rejected, so that even in real world usage the re-gained clock signal is of highest quality.

User's Guide Fireface UC © RME

28.3 Cabling and Termination

Word clock signals are usually distributed in the form of a network, split with BNC T-adapters and terminated with resistors. We recommend using off-the-shelf BNC cables to connect all devices, as this type of cable is used for most computer networks. You will find all the necessary components (T-adapters, terminators, cables) in most electronics and/or computer stores. The latter usually carries 50 Ohms components. The 75 Ohms components used for word clock are part of video techology (RG59).

Ideally, the word clock signal is a 5 Volt square wave with the frequency of the sample rate, of which the harmonics go up to far above 500 kHz. To avoid voltage loss and reflections, both the cable itself and the terminating resistor at the end of the chain should have an impedance of 75 Ohm. If the voltage is too low, synchronization will fail. High frequency reflection effects can cause both jitter and sync failure.

Unfortunately there are still many devices on the market, even newer digital mixing consoles, which are supplied with a word clock output that can only be called unsatisfactory. If the output breaks down to 3 Volts when terminating with 75 Ohms, you have to take into account that a device, of which the input only works from 2.8 Volts and above, does not function correctly already after 3 meter cable length. So it is not astonishing that because of the higher voltage, word clock networks are in some cases more stable and reliable if cables are not terminated at all.

Ideally all outputs of word clock delivering devices are designed as low impedance types, but all word clock inputs as high impedance types, in order to not weaken the signal on the chain. But there are also negative examples, when the 75 Ohms are built into the device and cannot be switched off. In this case the network load is often 2 x 75 Ohms, and the user is forced to buy a special word clock distributor. Note that such a device is generally recommended for bigger studios.

The Fireface's word clock input can be high-impedance or terminated internally, ensuring maximum flexibility. If termination is necessary (e.g. because the Fireface is the last device in the chain), push the switch at the back beside the BNC socket (see chapter 28.1).

In case the Fireface UC resides within a chain of devices receiving word clock, plug a T-adapter into its BNC input jack, and the cable supplying the word clock signal to one end of the adapter. Connect the free end to the next device in the chain via a further BNC cable. The last device in the chain should be terminated using another T-adapter and a 75 Ohm resistor (available as short BNC plug). Of course devices with internal termination do not need T-adaptor and terminator plug.

Due to the outstanding SteadyClock technology of the Fireface UC, we recommend not to pass the input signal via T-adapter, but to use the Fireface's word clock output instead. Thanks to SteadyClock, the input signal will both be freed from jitter and - in case of loss or drop out – be reset to a valid frequency.

28.4 Operation

The green Lock LED on the front (STATE) will light up as soon as a word clock signal is detected. To change to word clock as clock source, activate clock mode AutoSync and switch Pref. Sync Ref to Word Clock within the Settings dialog. The status display AutoSync Ref changes to Word as soon as a valid signal is present at the BNC jack. This message has the same meaning as the green Lock LED, but appears on the monitor, i.e. the user can check immediately whether a valid word clock signal is present and is currently being used.

The Input State also displays the frequency of the current word clock signal, measured by the hardware.

User's Guide Fireface UC © RME

29. TotalMix: Routing and Monitoring

29.1 Overview

The Fireface UC includes a powerful digital real-time mixer, the Fireface mixer, based on RME’s unique, sample-rate independent TotalMix technology. It allows for practically unlimited mixing and routing operations, with all inputs and playback channels simultaneously, to any hardware outputs.

Here are some typical applications for TotalMix:

• Setting up delay-free submixes (headphone mixes). The Fireface allows for up to 9 (!) fully

independent stereo submixes. On an analog mixing desk, this would equal 18 (!) Aux sends.

• Unlimited routing of inputs and outputs (free utilisation, patchbay functionality).

• Distributing signals to several outputs at a time. TotalMix offers state-of-the-art splitter and

distributor functions.

• Simultaneous playback of different programs using only one stereo output. The ASIO multi-

client driver allows to use several programs at the same time, but only on different playback channels. TotalMix provides the means to mix and monitor these on a single stereo output.

• Mixing of the input signal to the playback signal (complete ASIO Direct Monitoring). RME not

only is the pioneer of ADM, but also offers the most complete implementation of the ADM functions.

• Integration of external devices. Use TotalMix to insert external effects devices, be it in the

playback or in the record path. Depending on the current application, the functionality equals insert or effects send and effects return, for example as used during real-time monitoring when adding some reverb to the vocals.

Every single input channel, playback channel and hardware output features a Peak and RMS level meter, calculated in hardware. These level displays are very useful to determine the presence and routing destinations of the audio signals.

For a better understanding of the TotalMix mixer you should know the following:

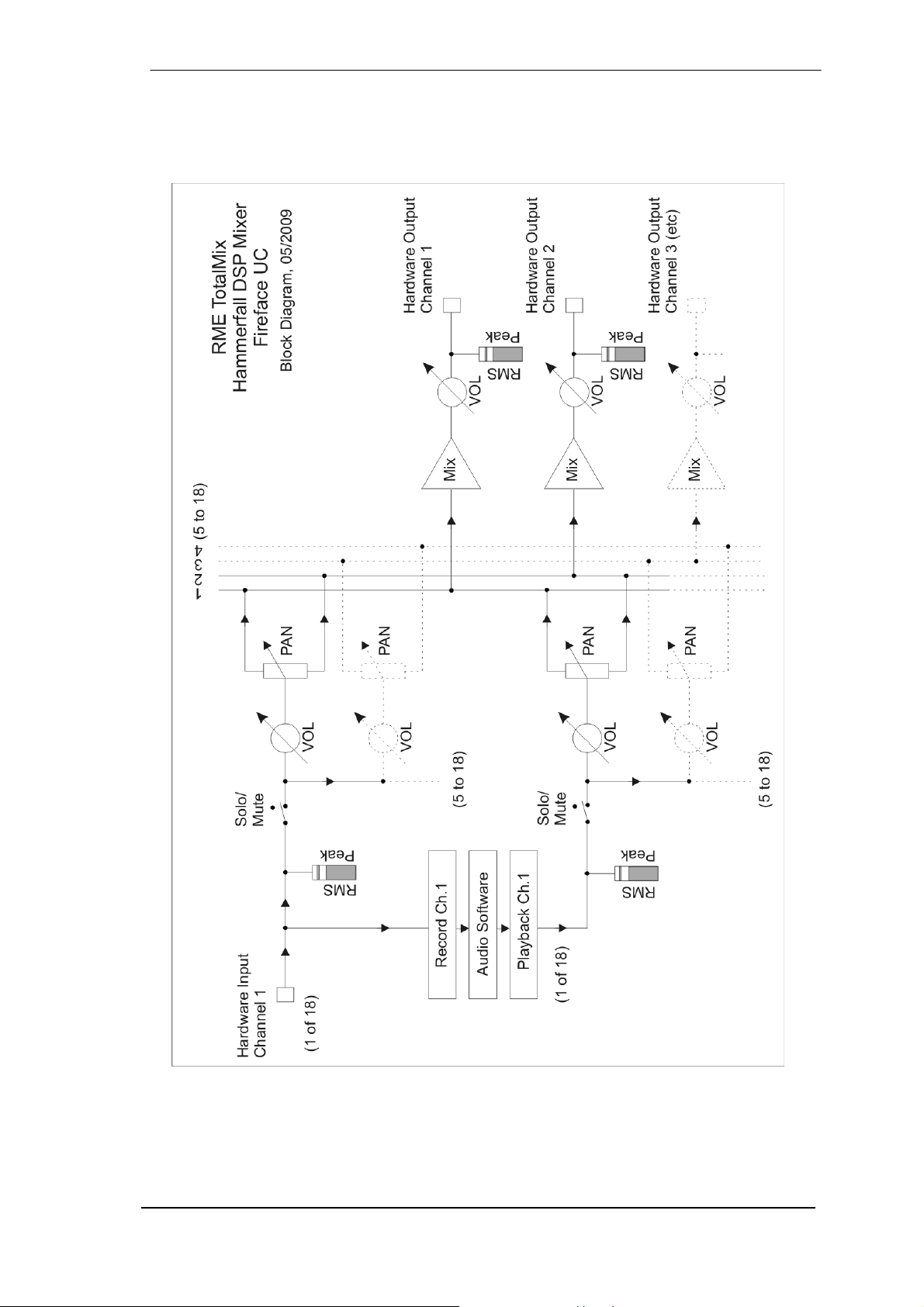

• As shown in the block diagram (next page), t he record signal usually stays un-altered. To-

talMix does not reside within the record path, and does not change the record level or the audio data to be recorded (exception: loopback mode).

• The hardware input signal can be passed on as often as desired, even with different levels.

This is a big difference to conventional mixing desks, where the channel fader always controls the level for all routing destinations simultaneously.

• The level meter of inputs and playback channels are connected pre-fader, to be able to

visually monitor where a signal is currently present. The level meters of the hardware’s outputs are connected post-fader, thus displaying the actual output level.

User's Guide Fireface UC © RME

29.2 The User Interface

The visual design of the TotalMix mixer is a result of its capability to route hardware inputs and software playback channels to any hardware output. The Fireface UC provides 18 input channels, 18 software playback channels, and 18 hardware output channels:

36 channels don't fit on the screen side by side, neither does such an arrangement provide a useful overview. The input channel should be placed above the corresponding output channel. Therefore, the channels have been arranged as known from an Inline desk, so that the row Software Playback equals the Tape Return of a real mixing desk:

• Top row: Hardware inputs. The level shown is that of the input signal, i. e. fader independ-

ent. Via fader and routing field, any input channel can be routed and mixed to any hardware output (bottom row).

• Middle row: Playback channels (playback tracks of the audio software). Via fader and routing

field, any playback channel can be routed and mixed to any hardware output (third row).

• Bottom row (third row): Hardware outputs. Here, the total level of the output can be adjusted.

This may be the level of connected loudspeakers, or the necessity to reduce the level of an overloaded submix.

The following chapters explain step by step all functions of the user interface.

User's Guide Fireface UC © RME

29.3 Elements of a Channel

A single channel consists of various elements: Input channels and playback channels each have a mute and solo button. Below there is the pan pot, realized as indicator bar (L/R) in order to save space. In the field below, the present level is displayed in RMS or Peak, being updated

about every half a second. Overs (overload) are indicated here by an additional red dot.

Next is the fader with a level meter. The meter shows both peak values (zero attack, 1 sample is enough for a full scale display) by means of a yellow line, and mathematically correct RMS values by means of a green bar. The RMS display has a relatively slow time constant, so that it shows the average loudness quite well.

Below the fader, the current gain and panorama values are shown. The grey area shows the channel name. Selecting one or more channels is done by clicking on

the grey label which turns orange then. A click in the third row with pressed Ctrl-key activates internal loopback mode, the label turns red. A right mouse click opens a dialog to type in a new name.

The black area (routing field) shows the current routing target. A mouse click opens the routing window to select a routing target. The list shows all currently activated routings by checkmarks in front of the routing targets.

29.4 Tour de TotalMix

This chapter is a practical guide and introduction on how to use TotalMix and on how TotalMix works.

Starting up TotalMix the last settings are recalled automatically. When executing the application for the first time, a default file is loaded, sending all playback tracks 1:1 to the corresponding hardware outputs with 0 dB gain, and activating phones monitoring.

Hold down Ctrl and click on preset button 1 to make sure that factory preset 1 is loaded. The faders in the top row are set to maximum attenuation (called m.a. in the following), so there is no monitoring of the input channels. The Submix View is active, therefore for improved overview all outputs except Phones are greyed out. Additionally all faders are set to the routing target Phones. All faders of the middle row are set to 0 dB, so no matter on which channels a playback happens, the audio will be audible via the Phones output. Just try it!

We will now create a submix on analog outputs 1/2. Please start a multitrack playback. In the third row, click on the channels of hardware output AN1 or AN2. The Submix View changes from Phones to AN1/AN2. Both the fader settings and the output levels of all other channels are still visible, but greyed out for improved orientation.

As soon as AN1/AN2 became active, all faders of the second row jumped to their bottom position – except those of playback channel 1/2. This is correct, because as mentioned above the factory preset includes a 1:1 routing. Click on AN3/AN4 and the faders above are the only active ones, same for AN5/AN6 and so on.

User's Guide Fireface UC © RME

Back to AN1/AN2. Now you can change all the faders of all inputs and playback channels just as you like, thus making any input and playback signals audible via the outputs AN1/AN2. The panorama can be changed too. Click into the area above the fader and drag the green bar in order to set the panorama between left and right. The level meters of the third row display the level changes in real-time.

Overall it is very easy to set up a submix for any output: select output channel, set fader and pans of inputs and playbacks – ready!

For advanced users sometimes it makes sense to work without Submix View. Example: you want to see and set up some channels of different submixes simultaneously, without the need to change between them all the time. Switch off the Submix View by a click on the green button. Now the black routing fields below the faders no longer show the same entry (AN1+2), but completely different ones. The fader and pan position is the one of the individually shown routing destination.

In playback channel 1 (middle row), labelled Out 1, click onto the routing field below the label. A list pops up, showing a checkmark in front of 'AN 1+2' and 'Phones'. So currently playback channel 1 is sent to these two routing destinations. Click onto 'AN 5+6'. The list disappears, the routing field no longer shows 'AN1+2', but 'AN 5+6'. Now move the fader with the mouse. As soon as the fader value is unequal m.a., the present state is being stored and routing is activated. Move the fader button to around 0 dB. The present gain value is displayed below the fader in green letters.

In the lower row, on channel 5, you can see the level of what you are hearing from output 5. The level meter of the hardware output shows the outgoing level. Click into the area above the fader and drag the mouse in order to set the panorama, in this case the routing between channels 5 and 6. The present pan value is also being displayed below the fader.

Please carry out the same steps for Out 2 now, in order to route it to output 6 as well.

In short: While editing the Submix AN5/AN6 you have direct access to other submixes on other channels, because their routing fields are set to different destinations. And you get a direct view of how their faders and panoramas are set up.

This kind of visual presentation is a mighty one, but for many users it is hard to understand, and it requires a deep understanding of complex routing visualizations. Therefore we usually recommend to work with Submix View.

Often signals are stereo, i. e. a pair of two channels. It is therefore helpful to be able to make the routing settings for two channels at once. Hold down the Ctrl-key and click into the routing field of Out 3. The routing list pops up with a checkmark at 'AN 3+4'. Select 'AN 5+6'. Now, Out 4 has already been set to 'AN 5+6' as well.

When you want to set the fader to exactly 0 dB, this can be difficult, depending on the mouse configuration. Move the fader close to the 0 position and now press the Shift-key. This activates the fine mode, which stretches the mouse movements by a factor of 8. In this mode, a gain setting accurate to 0.1 dB is no problem at all.

User's Guide Fireface UC © RME

Please set Out 4 to a gain of around -20 dB and the pan close to center. Now click onto the routing field. You'll now see two checkmarks, one at 'AN 3+4', the other one at 'AN 5+6'. Click onto 'SPDIF'. The window disappears, fader and pan jump to their initial values, the signal can now be routed to the SPDIF output. You can continue like this until all entries have got a checkmark, i. e. you can send the signal to all outputs simultaneously.

You will certainly have noticed that the signal at the outputs 5/6 did not change while you were routing channel 4 to other outputs and setting different gain values for those. With all analog and most digital mixing desks, the fader setting would affect the level for every routed bus - not so for TotalMix. TotalMix allows for setting all fader values individually. Therefore the faders and the panpots jump to the appropriate setting as soon as another routing is chosen.

Sometimes you will want the routings not to be independent. Let's say you have sent a signal to several submixes, and now want to change the signal's volume a bit on all these submixes. Dragging the faders by use of the right mouse button activates Post Send mode and causes all routings of the current input or playback channel to be changed in a relative way. Please note that the fader settings of all routings are memorized. So when pulling the fader to the bottom (maximum attenuation), the individual settings are back when you right click the mouse and pull the fader up. The individual settings get lost in m.a. position as soon as the fader is clicked with the left mouse button. As long as no single level is at m.a. position, the left mouse button can be used to change the current routing's gain.

The checkmarks are un-checked by moving the fader to m.a. This setting deactivates the routing...why route if there is no level? Click onto 'AN 5+6' in the routing window, pull the fader down, open the routing window again - the checkmark is gone.

The number of ADAT channels is reduced automatically when entering Double Speed mode (96 kHz). The display is adjusted accordingly, and all fader settings remain stored. Changing into Quad Speed mode (192 kHz) six ADAT channels vanish. TotalMix then displays a total of only 12 channels.

29.5 Submix View

Such a wide range of possibilities make it difficult to maintain the overview. Because as shown practically all hardware outputs can be used for different submixes, (up to 9 completely independent stereo submixes, 4 4-channel submixes etc.). And when opening the routing windows you might see an army of checkmarks, but you don't get an overview, i.e. how the signals come together and where. This problem is solved by Submix View mode. In this mode, all routing fields jump to the routing pair just being selected. You can then see immediately, which channels, which fader and pan settings make a submix (for example 'AN 5+6'). At the same time the Submix View simplifies setting up the mixer, as all channels can be set simultaneously to the same routing destination with just one click.

Changing to a different destination (output channel) is done in any routing field, or by a click on the desired output pair in the bottom row.

29.6 Mute and Solo

Mute operates pre-fader, thus mutes all currently active routings of the channel. As soon as any Mute button is pressed, the Mute Master button lights up in the Quick Access area. With this all selected mutes can be switched off and on again. You can comfortably set up a mute-group or activate and deactivate several Mutes simultaneously.

The same holds true for the Solo and the Solo Master buttons. As with conventional mixing desks, Solo operates only for the output defined as Monitor Main, as a solo-in-place, post fader. As soon as one Solo button is pressed, the Solo Master button lights up in the Quick Access area. With this all selected Solos are switched off and on again. You can comfortably set up a solo-group or activate and deactivate several Solos simultaneously.

User's Guide Fireface UC © RME

29.7 The Quick Access Panel

This section includes additional options, further improving the handling of TotalMix. The Master buttons for Mute and Solo have already been described, they allow for group-based working with these functions.

In the View section the single mixer rows can be made visible or invisible. If the inputs are not needed for a pristine playback mix, the whole upper vanishes after a click on the Input button. If the hardware outputs are of no interest either, the window can thus be reduced to the playback channels to save space. All combinations are possible and allowed.

As described earlier, Submix sets all routing windows to the same selection. Deactivating Submix automatically recalls the previous view. The mixer can be made smaller horizontally and vertically. This way TotalMix can be made substantially smaller and space-saving on the desktop/screen, if you have to monitor or set up only a few channels or level meters.

The Presets are one of the mightiest and most useful features of TotalMix. Behind the eight buttons, eight files are hidden (see next chapter). These contain the complete mixer state. All faders and other settings follow the changing of preset(s) in real-time, just by a single mouse click. The Save button allows for storing the present settings in any preset. You can change back and forth between a signal distribution, complete input monitoring, a stereo and mono mix, and various submixes without any problem.

If any parameter is being altered after loading a preset (e. g. moving a fader), the preset display flashes in order to announce that something has been changed, still showing which state the present mix is based on.

If no preset button is lit, another preset had been loaded via the File menu, Open file. Mixer settings can of course be saved the usual way, and can also have long file names.

Instead of single presets a complete bank of (8) presets can be loaded at once. Advantage: The names defined for the preset buttons will be stored and loaded automatically.

Up to three Firefaces can be used simultaneously. The Unit buttons switch between the devices. Holding down Ctrl while clicking on button Unit 2 or Unit 3 will open another TotalMix window.

29.8 Presets

TotalMix includes eight factory presets, stored within the program. The user presets can be changed at any time, because TotalMix stores and reads the changed presets from the files

preset11.umx to preset81.umx, located in Windows' hidden directory Documents and Set- tings, <Username>, Local Settings, Application Data, RME TotalMix. On the Mac the location is

in the folder User, <Username>, Library / Preferences / Fireface. The first number indicates the current preset, the second number the current unit.

This method offers two major advantages:

• Presets modified by the user will not be overwritten when reinstalling or updating the driver

• The factory presets remain unchanged, and can be reloaded any time.

User's Guide Fireface UC © RME

Mouse: The original factory presets can be reloaded by holding down the Ctrl-key and clicking on any preset button. Alternatively the files described above can be renamed, moved to a different directory, or being deleted.

Keyboard: Using Ctrl and any number between 1 and 8 (not on the numeric keypad!) will load the corresponding factory default preset. The key Alt will load the user presets instead.

When loading a preset file, for example 'Main Monitor AN 1_2 plus headphone mix 3_4.umx', the file name will be displayed in the title bar of the TotalMix window. Also when loading a preset by the preset buttons the name of the preset is displayed in the title bar. This way it is always clear what the current TotalMix state is based on.

The eight factory presets offer a pretty good base to modify them to your personal needs. In all factory presets Submix View is active by default.

Preset 1

Description: All channels routed 1:1, monitoring of all playback channels via Phones. Details: All inputs maximum attenuation. All playback channels 0 dB, routed to the same output.

All outputs 0 dB, Phones –6 dB. Submix of all inputs and playbacks to channel 7/8 (Phones). Level display RMS +3 dB. View Submix active.

: This preset is Default, offering the standard functionality of a I/O-system.

Note

Preset 2

Description: All channels routed 1:1, input and playback monitoring via Phones. As Preset 1, plus submix of all inputs (0 dB) to channels 7/8 (Phones).

Preset 3

Description: All channels routed 1:1, input and playback monitoring via Phones and outputs. As Preset 2, but all inputs set to 0 dB (1:1 monitoring).

Preset 4

Description: All channels routed 1:1, input and playback monitoring via Phones and outputs. As Preset 3, but all inputs muted.

Preset 5

Description: Playback monitoring to Phones. As Preset 1, but all outputs except channels 9/10 (Phones) set to maximum attenuation.

Preset 6

Description: All channels routed 1:1, monitoring of all playback channels via Phones and SPDIF. As Preset 1, plus submix of all playbacks to SPDIF.

Preset 7

Description: Monitoring of all playback channels via Phones and of all input and playback channels via SPDIF. As Preset 2, plus submix of all inputs to SPDIF.

Preset 8

Description: Panic. As Preset 4, but playback channels muted too (no output signal).

Preset Banks

Instead of a single preset, all eight presets can be stored and loaded at once. This is done via Menu File, Save All Presets as and Open All Presets (file suffix .fpr). After the loading the presets can be activated by the preset buttons. In case the presets have been renamed (see chapter 29.11), these names will be stored and loaded too.

User's Guide Fireface UC © RME

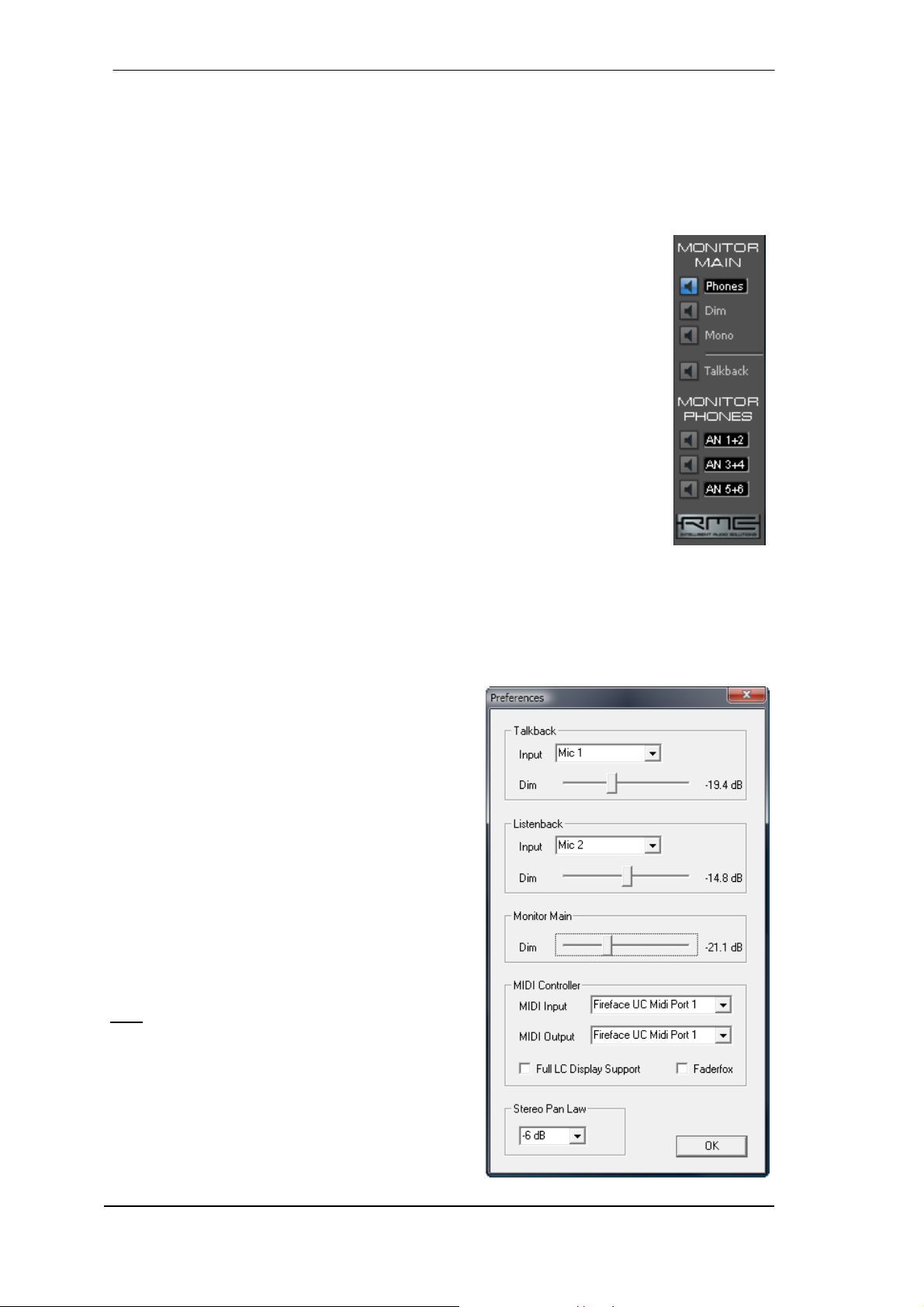

29.9 The Monitor Panel

The Monitor panel provides several options usually found on analog mixing desks. It offers quick access to monitoring functions which are needed all the time in typical studio work.

Monitor Main

Use the drop down menu to select the hardware outputs where your main monitors are connected to.

Dim

A click on this button will lower the volume of the Monitor Main output by an amount set up in the Preferences dialog (see below). This is the same as moving the third row faders down a bit, but much more convenient, as the old setting is back by a simple mouse click.

Mono

Sets the stereo output defined above to monaural playback. Useful to check for mono compatibility and phase problems.

Talkback

A click on this button will dim all signals on the Monitor Phones outputs by an amount set up in the Preferences dialog. At the same time the control room's microphone signal (source defined in Preferences) is sent to the three destinations Monitor Phones. The microphone level is adjusted with the chan- nel's input fader.

Monitor Phones 1/2/3

Use the drop down menu to select the hardware outputs where the submixes are sent to. These submixes are usually phones mixdowns for the musicians. A click on the button allows for the monitoring of the specific submix via the Monitor Main output. So when setting up or modifying the submix for the musician this process can be monitored easily and any time from the operator.

29.10 Preferences

The dialog box Preferences is available via the menu Options or directly via F3.

Talkback

Input: Select the input channel of the Talkback signal (microphone in control room). Dim: Amount of attenuation of the signals routed to the Monitor Phones in dB.

Listenback

Input: Select the input channel of the Listenback signal (microphone in recording room). Dim: Amount of attenuation of the signals routed to the Monitor Main in dB.

: The Mute button of the Talkback and

Note Listenback channel is still active. Therefore it is not necessary to select <NONE>, in case one of both shall be deactivated.

MIDI Controller, Full LC Display Support

See chapter 32.4 for details.

User's Guide Fireface UC © RME

Main Monitor

Dim: Amount of attenuation of the Monitor Main output in dB. Activated by the Dim button in the Monitor panel.

Stereo Pan Law

The Pan Law can be set to -6 dB, -4.5 dB, -3 dB and 0 dB. The value chosen defines the level attenuation in pan center position. This setting is useful because the ASIO host often supports different pan laws too. Selecting the same value here and in the ASIO host, ASIO Direct Monitoring works perfectly, as both ASIO host and TotalMix use the same pan law. Of course, when not using ADM it can be changed to a setting different from the factory preset of –6 dB as well. You will most probably find that -3 dB gives a much more stable loudness when moving an object between left and right.

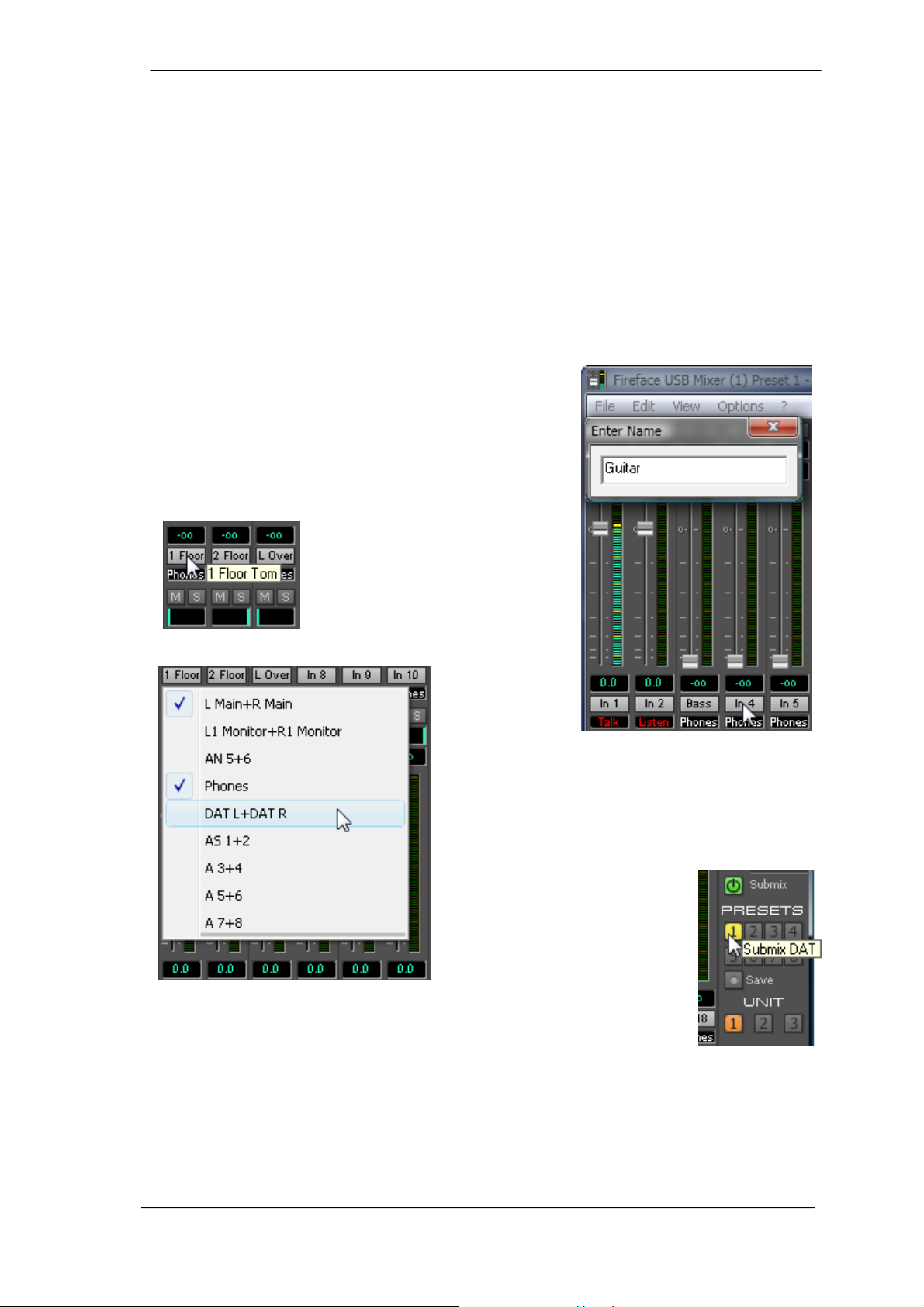

29.11 Editing the Names

The channel names shown in the grey label area can be edited. A right mouse click on the grey name field brings up the dialog box Enter Name. Any name can be entered in this dialog. Enter/Return closes the dialog box, the grey label now shows the first letters of the new name. ESC cancels the process and closes the dialog box.

Moving the mouse above the label brings up a tool tip with the complete name.

The hardware outputs (third row) can be edited in the same way. In this case, the names in the routing drop down menus will change automatically. Additionally the names in the drop down menus of the Monitor section will change as well.

The preset buttons can get meaningful names in the same way. Move the mouse above a preset button, a right mouse click will bring up the dialog box.

Note that the name shows up as tool tip only as soon as the mouse stays above the preset button.

The preset button names are not stored in the preset files, but globally in the registry, so won't change when loading any file or saving any state as preset. Loading a preset bank will update the names too (see chapter 29.8).

User's Guide Fireface UC © RME

29.12 Hotkeys

In many situations TotalMix can be controlled quickly and comfortably by the keyboard, making the mixer setup considerably easier and faster. The Shift-key for the fine mode for faders and pan pots has already been mentioned. The Ctrl-key can do far more than changing the routing pairwise:

• Clicking anywhere into the fader area with the Ctrl-key pressed, sets the fader to 0 dB.

• Clicking anywhere into the pan area with the Ctrl-key pressed, sets the panorama to <C>

meaning Center.

• Clicking a preset button while holding down Ctrl, the original factory preset will be loaded.

• Using Ctrl and any number between 1 and 8 (not on the numeric keypad!) will load the cor-

responding factory default preset. Alt plus number loads the user preset.

• Using multiple Firefaces, clicking the button Unit 2 while holding down Ctrl opens a second

TotalMix window for the second Fireface UC, instead of replacing the window contents.

The faders can also be moved pairwise, corresponding to the stereo-routing settings. This is achieved by pressing the Alt-key and is especially comfortable when setting the SPDIF and Phones output level. Even the panoramas can be operated with Alt, from stereo through mono to inversed channels, and also the Mute and Solo buttons (ganged or inversed switching!).

At the same time, TotalMix also supports combinations of these keys. If you press Ctrl and Alt at the same time, clicking with the mouse makes the faders jump to 0 dB pairwise, and they can be set pairwise by Shift-Alt in fine mode.

Also very useful: the faders have two mouse areas. The first area is the fader button, which can be grabbed at any place without changing the current position. This avoids unwanted changes when clicking onto it. The second area is the whole fader setting area. Clicking into this area makes the fader jump to the mouse at once. If for instance you want to set several faders to m.a., it is sufficient to click onto the lower end of the fader path. Which happens pairwise with the Alt-key pressed.

Using the hotkeys I, O and P the complete row of Input, Playback and Output channels each can be toggled between visible and invisible. Hotkey S switches Submix view on/off. Those four hotkeys have the same functionality as the buttons in the View section of the Quick Access Panel. The Level Meter Setup dialog can be opened via F2 (as in DIGICheck). The dialog box Preferences is opened via F3.

Hotkey M toggles Mute Master on/off (and with this performs a global mute on/off). Hotkey X toggles the Matrix view on/off (see chapter 30), hotkey T the mixer view. Hotkey L links all faders as stereo pairs.

Further hotkeys are available to control the configuration of the Level Meters (see chapter

29.14):

Key 4 or 6: Display range 40 or 60 dB Key E or R: Numerical display showing Peak or RMS Key 0 or 3: RMS display absolute or relative to 0 dBFS

29.13 Menu Options

Always on Top: When active (checked) the TotalMix window will always be on top of the Win-

dows desktop.

: This function may result in problems with windows containing help text, as the TotalMix

Note window will even be on top of those windows, so the help text isn't readable.

Deactivate Screensaver: When active (checked) any activated Windows screensaver will be disabled temporarily.

Ignore Position: When active, the windows size and position stored in a file or preset will not be used. The routing will be activated, but the window will not change.

Ignore I/O Labels: When active the channel names saved in a preset or file will not be loaded, instead the current ones will be retained.

ASIO Direct Monitoring (Windows only): When de-activated any ADM commands will be ignored by TotalMix. In other words, ASIO Direct Monitoring is globally de-activated.

Link Faders: Selecting this option all faders will be treated as stereo pairs and moved pairwise. Hotkey L.

MS Processing: Macro for a quick configuration of routing and phase for Mid/Side encoding and decoding. See chapter 31.7.

Level Meter Setup: Configuration of the Level Meters. Hotkey F2. See chapter 29.14. Level Meter Text Color: Color adjustment for the Gain and Level meter text displays. Preferences: Opens a dialog box to configure several functions, like Pan Law, Dim, Talkback

Dim, Listenback Dim. See chapter 29.10. Enable MIDI Control: Turns MIDI control on. The channels which are currently under MIDI

control are indicated by a colour change of the info field below the faders, black turns to yellow. Deactivate MIDI in Background: Disables the MIDI control as soon as another application is in

the focus, or in case TotalMix has been minimized.

29.14 Level Meter

The Fireface UC calculates all the display values Peak, Over and RMS in hardware, in order to be capable of using them independent of the software in use, and to cause no CPU load.

Tip: This feature, the Hardware Level Meter, is used by DIGICheck (see chapter 15/22) to display Peak/RMS level meters of all channels without CPU load.

The level meters integrated in TotalMix - considering their size - cannot be compared with DIGICheck. Nevertheless they already include many useful functions.

Peak and RMS is displayed for every channel. 'Level Meter Setup' (menu Options or F2) and direct keyboard hotkeys offer various options:

• Display range 40 or 60 dB (hotkey 4 or 6)

• Release time of the Peak display (Fast/Medium/Slow)

• Numerical display selectable either Peak or RMS (Hotkey E or R)

• Number of consecutive samples for Overload display (1 to 15)

• RMS display absolute or relative to 0 dBFS (Hotkey 3 or 0)

The latter is a point often overlooked, but nonetheless important. A RMS measurement shows 3 dB less for sine signals. While this is mathematically correct, it is not very reasonable for a level meter. Therefore the RMS readout is usually corrected by 3 dB, so that a full scale sine signal shows 0 dBFS on both Peak and RMS meters. This setting also yields directly readable signal-to-noise values. Otherwise the value shown with noise is 3 dB better than it actually is (because the reference is not 0 dB, but -3 dB).

The value displayed in the text field is independent of the setting 60/40 dB, it represents the full 24 bit range of the RMS measurement. An example: An RME ADI-8 QS connected to the Fireface's ADAT port will yield a display of around -114 dBFS on all eight channel's input level meters.

This level display of TotalMix also provides means for a constant monitoring of the signal quality. Thus it can be a valuable tool for sound optimization and error removal in the studio.

Measuring SNR (Signal to Noise) is best done with RME’s free software DIGICheck. The function Bit Statistic includes three different RMS meters for exactly this purpose (RMS unweighted, A-weighted and DC).

30. TotalMix: The Matrix

30.1 Overview

The mixer window of TotalMix looks and operates similar to mixing desks, as it is based on a conventional stereo design. The matrix display presents a different method of assigning and routing channels, based on a single channel or monaural design. The matrix view of the Fireface UC has the look and works like a conventional patchbay, adding functionality way beyond comparable hardware and software solutions. While most patchbays will allow you to connect inputs to outputs with just the original level (1:1, or 0 dB, as known from mechanical patchbays), TotalMix allows you to use a freely definable gain value per crosspoint.

Matrix and TotalMix are different ways of displaying the same processes. Because of this both views are always fully synchronized. Each change in one view is immediately reflected in the other view as well.

30.2 Elements of the Matrix View

The visual design of the TotalMix Matrix is mainly determined by the architecture of the Fireface UC:

• Horizontal labels: All hardware outputs

• Vertical labels: All hardware inputs. Below are all

playback channels (software playback channels)

• Green 0.0 dB field: Standard 1:1 routing

• Black gain field: Shows the current gain value as dB

• Orange gain field: This routing is muted

• Blue field: Phase 180° (inverted)

To maintain overview when the window size has been reduced, the left and upper labels are floating. They won't leave the visible area when scrolling.

30.3 Operation

Using the Matrix is a breeze. It is very easy to indentify the current crosspoint, because the outer labels light up in orange according to the mouse position.

If input 1 is to be routed to output 1, use the mouse and click one time on crosspoint In 1 / AN 1. The green 0.0 dB field pops in, another click removes it. To change the gain (equals the use of a different fader position, see simultaneous display of the mixer view), hold Ctrl down and drag the mouse up or down, starting from the gain field. The value within the field changes accordingly. The corresponding fader in the mixer view is moving simultaneously, in case the currently modified routing is visible.

Note the difference between the left side, representing the inputs and software playback channels, and the upper side, representing the hardware outputs.

A gain field marked orange indicates activated mute status. Mute can only be changed in the mixer view.

A blue field indicates phase inversion. This state is displayed in the Matrix only, and can only be changed within the Matrix view. Hold down the Shift-key while clicking on an already activated field. Mute overwrites the phase display, blue becomes orange. If mute is deactivated the phase inversion is indicated again.

30.4 Advantages of the Matrix

The Matrix not always replaces the mixer view, but it significantly enhances the routing capabilities and - more important - is a brilliant way to get a fast overview of all active routings. It shows you in a glance what's going on. And since the Matrix operates monaural, it is very easy to set up specific routings with specific gains.

Example 1: You want TotalMix to route all software outputs to all corresponding hardware outputs, and have a submix of all inputs and software outputs on the Phones output (equals factory preset 2). Setting up such a submix is easy. But how to check at a later time, that all settings are still exactly the way you wanted them to be, not sending audio to a different output?

The most effective method to check a routing in mixer view is the Submix View, stepping through all existing software outputs, and having a very concentrated look at the faders and displayed levels of each routing. That doesn't sound comfortably nor error-free, right? Here is where the Matrix shines. In the Matrix view, you simply see a line from upper left to lower right, all fields marked as unity gain. Plus two rows vertically all at the same level setting. You just need 2 seconds to be sure no unwanted routing is active anywhere, and that all levels match precisely!

Example 2: The Matrix allows you to set up routings which would be nearly impossible to achieve by fiddling around with level and pan. Let's say you want to send input 1 to output 1 at 0 dB, to output 2 at -3 dB, to output 3 at -6 dB and to output 4 at -9 dB. Each time you set up the right channel (2/4), the change in pan destroys the gain setting of the left channel (1/2). A real hassle! In Matrix view, you simply click on the corresponding routing point, set the level via Ctrlmouse, and move on. You can see in TotalMix view how pan changes to achieve this special gain and routing when performing the second (fourth...) setting.

31. TotalMix Super-Features

31.1 ASIO Direct Monitoring (Windows only)

Start Samplitude, Sequoia, Cubase or Nuendo and TotalMix. Activate ADM (ASIO Direct Monitoring), and move a fader in the ASIO host. Now watch the corresponding fader in TotalMix magically move too. TotalMix reflects all ADM gain and pan changes in realtime. Please note that faders only move when the currently activated routing (currently visible routing) corresponds to the one in the ASIO host. Also note that the Matrix will show any change, as it shows all possible routings in one view.

With this TotalMix has become a wonderful debugging tool for ADM. Just move the host's fader and pan, and see what kind of ADM commands TotalMix receives.

The hardware output row faders are included in all gain calculations, in every possible way. Example: you have lowered the output level of a submix, or just a specific channel, by some dB. The audio signal passed through via ADM will be attenuated by the value set in the third row.

31.2 Selection and Group-based Operation

Click on the white name label of channel 1 and 2 in TotalMix. Be sure to have channel 3's fader set to a different position and click on its label too. All three labels have changed to the colour orange, which means they are selected. Now moving any of these faders will make the other faders move too. This is called 'building a group of faders', or ganging faders, maintaining their relative position.

Building groups or ganging can be done in any row, but is limited to operate horizontally within one row. If you usually don't need this, you can at least gang the analog outputs. The advantage over holding the Alt-key is that Alt sets both channels to the same level (can be handy too), while grouping via selection will retain any offset (if you need one channel to be louder all the time etc.).

Note

: The relative positions are memorized until the faders are pulled down so that they reach upper or lower maximum position and the group is changed (select another channel or deselect one of the group).

31.3 Copy Routings to other Channels

TotalMix allows to copy complete routing schemes of inputs and outputs. Example 1: You have input 1 (guitar) routed within several submixes/hardware outputs (=

headphones). Now you'll get another input with keyboards that should appear in the same way on all headphones. Select input 1, open the menu Edit. It shows 'Copy In 1'. Now select the desired new input, for example In 8. The menu now shows 'Paste In 1 to In 8'. Click on it - done. If you are familiar with this functionality just use Ctrl-C and Ctrl-V. Else the self updating menu will always let you know what actually will happen.

Tip: Have the Matrix window open as second window when doing this. It will show the new routings immediately, so copying is easier to understand and to follow.

Example 2: You have built a comprehensive submix on outputs 4/5, but now need the exact same signal also on the outputs 6/7. Click on Out 4, Ctrl-C, click on Out 6, Ctrl-V, same with 5/7

- you're done! The Matrix shows you the difference between both examples. Example 1 means copying lines

(horizontally), while example 2 means copying rows (vertically). Example 3: Let's say the guitarist finished his recording, and you now need the same signal

again on all headphones, but this time it comes from the recording software (playback row). No problem, you can even copy between rows 1 and 2 (copying between row 3 and 1/2 isn't possible).

But how to select while a group is active? De-selecting the group first? Not necessary! TotalMix always updates the copy and paste process with the last selection. This way you don't have to de-activate any group-selections when desiring to perform a copy and paste action.

31.4 Delete Routings

The fastest way to delete complex routings: select a channel in the mixer view, click on the menu entry Edit and select Delete. Or simply hit the Del-key. Attention: there is no undo in To- talMix, so be careful with this function!

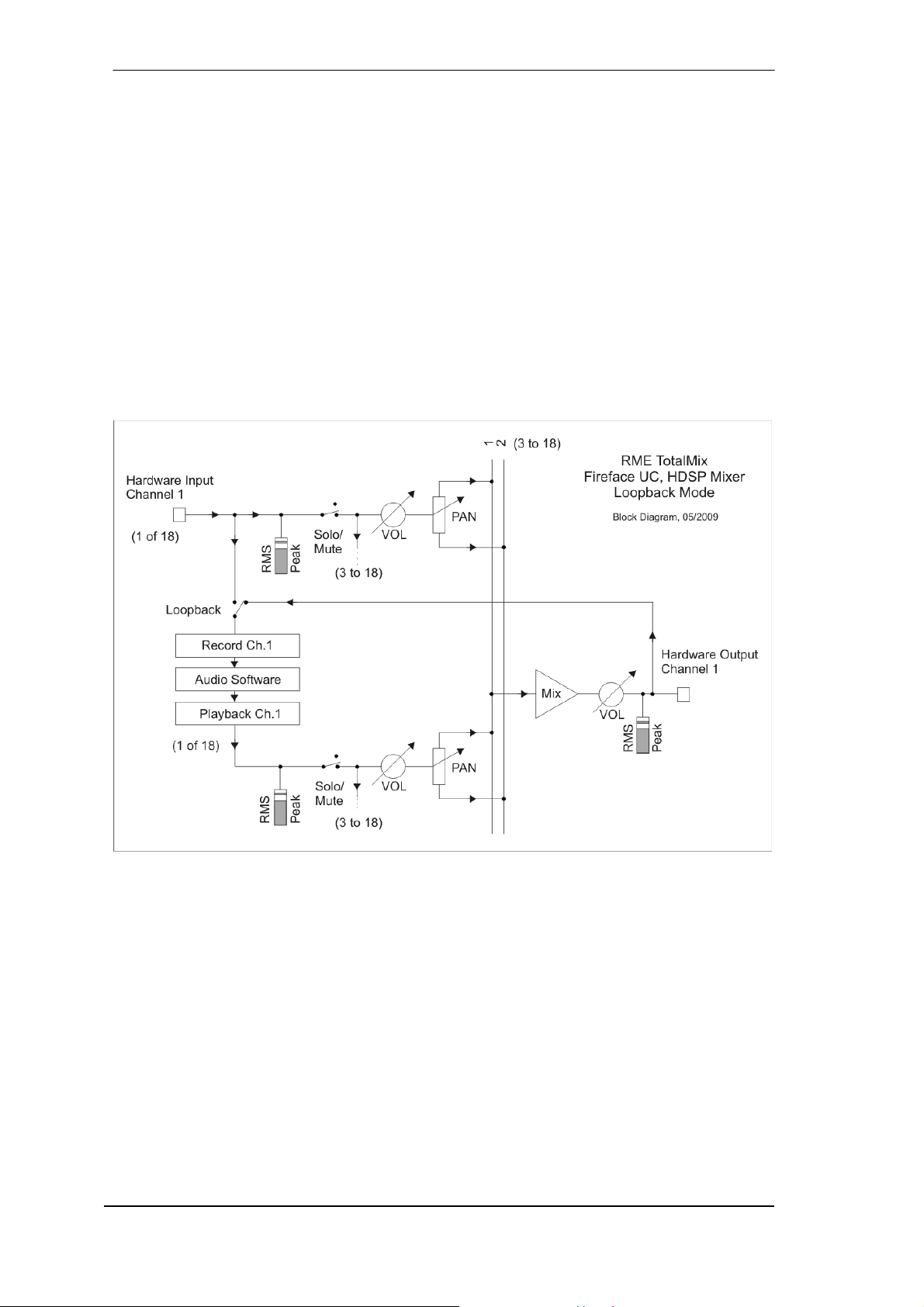

31.5 Recording a Subgroup (Loopback)

TotalMix supports a routing of the subgroup outputs (=hardware outputs, bottom row) to the recording software. Instead of the signal at the hardware input, the signal at the hardware output is sent to the record software. This way, complete submixes can be recorded without an external loopback cable. Also the playback from a software can be recorded by another software.

To activate this function, click on the white label in the third row while holding down the Ctrl-key. The label's colour changes to red. In case the channel has already been part of a group, the colour will change from yellow to orange, signalling that the group functionality is still active for this channel.

In loopback mode, the signal at the hardware input of the corresponding channel is no longer sent to the recording software, but still passed through to TotalMix. Therefore TotalMix can be used to route this input signal to any hardware output. Using the subgroup recording, the input can still be recorded on a different channel.

As each of the 18 hardware outputs can be routed to the record software, and none of these hardware inputs get lost, TotalMix offers an overall flexibility and performance not rivalled by any other solution.

Additionally the risk of feedbacks, a basic problem of loopback methods, is highly reduced, because the feedback can not happen within the mixer, but only when the audio software is switched into monitoring mode. The block diagram shows how the software's input signal is played back, and fed back from the hardware output to the software input. A software monitoring on the subgroup record channels is allowed only as long as the monitoring is routed in both software and TotalMix to a different channel than the active subgroup recording one.

Recording a Software's playback

In real world application, recording a software's output with another software will show the following problem: The record software tries to open the same playback channel as the playback software (already active), or the playback one has already opened the input channel which should be used by the record software.

This problem can easily be solved. First make sure that all rules for proper multi-client operation are met (not using the same record/playback channels in both programs). Then route the playback signal via TotalMix to a hardware output in the range of the record software, and activate it via Ctrl-mouse for recording.

Mixing several input signals into one record channel

In some cases it is useful to record several sources into only one track. For example when using two microphones recording instruments and loudspeakers. TotalMix' Loopback mode saves an external mixing desk. Simply route/mix the input signals to the same output (third row), then re-define this output into a record channel via Ctrl-mouse – that's it. This way any number of input channels from different sources can be recorded into one single track.

31.6 Using external Effects Devices

With TotalMix a usage of external hardware - like effects devices - is easy and flexible. Example 1: The singer (microphone input channel 1) shall have some reverb on his head-

phones (outputs 7/8). A direct routing In 1 to Out 7/8 for monitoring had been set up already. The external reverb is connected to a free output, for example channel 4. In active mode Submix View click on channel 4 in the bottom row. Drag the fader of input 1 to about 0 dB and the panorama fully to the right. Adjust the input level at the reverb unit to an optimal setting. Next the output of the reverb unit is connected to a free stereo input, for example 5/6. Use the TotalMix level meters to adjust a matching output level at the reverb unit. Now click on channels 7/8 in the bottom row, and move the fader of inputs 5/6 until the reverb effect gets a bit too loud in the headphones. Now click on channel 4 in the bottom row again and drag input fader 1 down a bit until the mix of original signal and reverb is perfect for the singer.

The described procedure is completely identical to the one when using an analog mixing desk. There the signal of the singer is sent to an output (usually labelled Aux), from there to a reverb unit, sent back from the reverb unit as stereo wet signal (no original sound), back in through a stereo input (e.g. Effect return) and mixed to the monitoring signal. The only difference: The Aux sends on mixing desks are post-fader. Changing the level of the original signal causes a change of the effects level (here the reverb) too, so that both always have the same ratio.

Tip: Such functionality is available in TotalMix via the right mouse button! Dragging the faders by use of the right mouse button causes all routings of the current input or playback channel to be changed in a relative way. This completely equals the function Aux post fader.

Example 2: Inserting an effects device can be done as above, even within the record path. Other than in the example above the reverb unit also sends the original signal, and there is no routing of input 1 directly to outputs 7/8. To insert an effects device like a Compressor/Limiter directly into the record path, the input signal of channel 1 is sent by TotalMix to any output, to the Compressor, back from the Compressor to any input. This input is now selected within the record software.

Unfortunately, very often it is not possible within the record software to assign a different input channel to an existing track 'on the fly'. The loopback mode solves this problem elegantly. The routing scheme stays the same, with the input channel 1 sent to any output via TotalMix, to the Compressor, from the Compressor back to any input. Now this input signal is routed directly to output 1, and output 1 is then switched into loopback mode via Ctrl-mouse.

As explained in chapter 31.5, the hardware input of channel 1 now no longer feeds the record software, but is still connected to TotalMix (and thus to the Compressor). The record software receives the signal of submix channel 1 instead – the Compressor's return path.

31.7 MS Processing

The mid/side principle is a special positioning technique for microphones, which results in a mid signal on one channel and a side signal on the other channel. These information can be transformed back into a stereo signal quite easily. The process sends the monaural mid channel to left and right, the side channel too, but phase inverted (180°) to the right channel. For a better understanding: the mid channel represents the function L+R, while the side channel represents L-R.

During record the monitoring needs to be done in 'conventional' stereo. As TotalMix can invert the phase, it also offers the functionality of a M/S-decoder. The menu Options includes a macro to simplify the setup. First select the two input channels, in the picture to the right Analog In 3 and

4, having the current routing destination Analog Out 1+2. Now the string MS Processing In 3+4 to AN 1+2 On is

shown in Options.

After a mouse click TotalMix sets gains and pans correctly. Of course these settings can also be performed manually. Repeat the last step to remove all routings (menu Options ...Off).

The M/S-Processing automatically operates as M/S encoder or decoder, depending on the source signal format. When processing a usual stereo signal, all monaural information will be shifted into the left channel, all stereo information into the right channel. Thus the stereo signal is M/S encoded. This yields some interesting insights into the mono/stereo contents of modern music productions. Additionally some very interesting methods of manipulating the stereo base and generating stereo effects come up, as it is then very easy to process the side channel with Low Cut, Expander, Compressor or Delay. The most basic application is already available directly in TotalMix: Changing the level of the side channel allows to manipulate the stereo width from mono to stereo up to extended, stepless and in real-time.

32. MIDI Remote Control

32.1 Overview

TotalMix can be remote controlled via MIDI. It is compatible to the widely spread Mackie Control protocol, so TotalMix can be controlled with all hardware controllers supporting this standard. Examples are the Mackie Control, Tascam US-2400 or Behringer BCF 2000.

Additionally, the stereo output faders (lowest row) which are set up as Monitor Main outputs in the Monitor panel can also be controlled by the standard Control Change Volume via MIDI channel 1. With this, the main volume of the Fireface is controllable from nearly any MIDI equipped hardware device.

32.2 Mapping

TotalMix supports the following Mackie Control surface elements*: Element: Meaning in TotalMix: Channel faders 1 – 8 volume

Master fader Main Monitor channel's faders SEL(1-8) + DYNAMICS reset fader to Unity Gain V-Pots 1 – 8 pan pressing V-Pot knobs pan = center

CHANNEL LEFT or REWIND move one channel left CHANNEL RIGHT or FAST FORWARD move one channel right BANK LEFT or ARROW LEFT move eight channels left BANK RIGHT or ARROW RIGHT move eight channels right ARROW UP or Assignable1/PAGE+ move one row up ARROW DOWN or Assignable2/PAGE- move one row down

EQ Master Mute PLUGINS/INSERT Master Solo STOP Dim Main Monitor PLAY Talkback PAN Mono Main Monitor

MUTE Ch. 1 – 8 Mute SOLO Ch. 1 – 8 Solo SELECT Ch. 1 – 8 Select REC Ch. 1 – 8 in Submix mode only: select output bus

F1 - F8 load preset 1 - 8 F9 select Main Monitor F10 - F12 Monitor Phones 1 - 3

*Tested with Behringer BCF2000 Firmware v1.07 in Mackie Control emulation for Steinberg mode and with Mackie Control under Mac OS X.

32.3 Setup

• Open the Preferences dialog (menu Options or F3). Select the MIDI Input and MIDI Output port where your controller is connected to.

• When no feedback is needed (when using only standard MIDI commands instead of Mackie Control protocol) select NONE as MIDI Output.

• Check Enable MIDI Control in the Options menu.

32.4 Operation

The channels being under MIDI control are indicated by a colour change of the info field below the faders, black turns to yellow.

The 8-fader block can be moved horizontally and vertically, in steps of one or eight channels. Faders can be selected to gang them. In Submix View mode, the current routing destination (output bus) can be selected via REC Ch.

1 – 8. This equals the selection of a different output channel in the lowest row by a mouse click when in Submix View. In MIDI operation it is not necessary to jump to the lowest row to perform this selection. This way even the routing can be easily changed via MIDI.

Full LC Display Support: This option in Preferences (F3) activates complete Mackie Control LCD support with eight channel names and eight volume/pan values.

Attention: this feature puts a heavy load on the MIDI port when ganging more than 2 faders! In such a case, or when using the Behringer BCF2000, turn off this option.

When Full LC Display Support is turned off, only a brief information about the first fader of the block (channel and row) is sent. This brief information is also available on the LED display of the Behringer BCF2000.

Tip for Mac OS X users: LC Xview (www.opuslocus.com emulating the hardware displays of a Logic/Mackie Control, for use with controllers that can emulate a Logic/Mackie Control but do not have a display. Examples include the Behringer BCF2000 and Edirol PCR-series.

Deactivate MIDI in Background (menu Options) disables the MIDI control as soon as another application is in the focus, or in case TotalMix has been minimized. This way the hardware controller will control the main DAW application only, except when TotalMix is in the foreground. Often the DAW application can be set to become inactive in background too, so that MIDI control is switched between TotalMix and the application automatically when switching between both applications.

TotalMix also supports the 9th fader of the Mackie Control. This fader (labelled Master) will control the stereo output faders (lowest row) which are set up as Monitor Main outputs in the Moni- tor panel. Always and only.

) provides an on-screen display

32.5 Simple MIDI Control

The stereo output faders (lowest row) which are set up as Monitor Main outputs in the Monitor panel can also be controlled by the standard Control Change Volume via MIDI channel 1. With this, the main volume of the Fireface is controllable from nearly any MIDI equipped hardware device.

Even if you don't want to control all faders and pans, some buttons are highly desired to be available in 'hardware'. These are mainly the Talkback and the Dim button, and the new monitoring options (listen to Phones submixes). Fortunately a Mackie Control compatible controller is not required to control these buttons, as they are steered by simple Note On/Off commands on MIDI channel 1.

The notes are (hex / decimal / keys):

Monitor Main: 3E / 62 / D 3 Dim: 5D / 93 / A 5 Mono: 2A / 42 / #F 1 Talkback: 5E / 94 / #A 5

Monitor Phones 1: 3F / 63 / #D 3 Monitor Phones 2: 40 / 64 / E 3 Monitor Phones 3: 41 / 65 / F 3

Preset 1: 36 / 54 / #F 2 Preset 2: 37 / 55 / G 2 Preset 3: 38 / 56 / #G 2 Preset 4: 39 / 57 / A 2 Preset 5: 3A / 58 / #A 2 Preset 6: 3B / 59 / B 2 Preset 7: 3C / 60 / C 3 Preset 8: 3D / 61 / #C 3

An example of a small MIDI controller covering such MIDI functionality (and even some more) is the Behringer BCN44. This little box has 4 pots and 8 buttons for all the above functions – for less than 60 Euros.

Furthermore all faders of all three rows can be controlled via simple Control Change commands.

The format for the Control Change commands is: Bx yy zz x = MIDI channel

yy = control number zz = value

The first row in TotalMix is addressed by MIDI channels 0 up to 3, the middle row by channels 4 up to 7 and the bottom row by channels 8 up to 11.

16 Controller numbers are used: 102 up to 117 (= hex 66 to 75). With these 16 Controllers (= faders) and 4 MIDI channels each per row, up to 64 faders can be

controlled per row (as required by the HDSPe MADI).

Examples for sending MIDI strings*:

- Set input 1 to 0 dB: B0 66 40

- Set input 17 to maximum attenuation: B1 66 0

- Set playback 1 to maximum: B4 66 7F

- Set Output 16 to 0 dB: B8 75 40

*Note

: Sending MIDI strings might require the use of programmer's logic for the MIDI channel,

starting with 0 for channel 1 and ending with 15 for channel 16.

32.6 Loopback Detection

The Mackie Control protocol requires feedback of the received commands, back to the hardware controller. So usually TotalMix will be set up with both a MIDI input and MIDI output. Unfortunately any small error in wiring and setup will cause a MIDI feedback loop here, which then completely blocks the computer (the CPU).

To prevent the computer from freezing, TotalMix sends a special MIDI note every 0.5 seconds to its MIDI output. As soon as it detects this special note at the input, the MIDI functionality is disabled. After fixing the loopback, check Enable MIDI Control under Options to reactivate the TotalMix MIDI.

32.7 Stand-Alone MIDI Control

When not connected to a computer, the Fireface UC can be controlled directly via MIDI. To unlock the special stand-alone MIDI control mode first activate MIDI control in TotalMix (En- able MIDI control). Turning this mode off is done with MIDI control deactivated.

Note

: When not needed the stand-alone MIDI operation should not be active, as the unit will

react on MIDI notes after power-on, and will also send MIDI notes. Control is performed via the Mackie Control protocol. In stand-alone mode not all functions

known from TotalMix are available, because some of them aren't hardware, but software routines. Functions like Talkback, DIM, Mono, Solo, relative ganging of the faders, Monitor Main and Monitor Phones are realized by complex software c ode, therefore not available in standalone MIDI control operation.

Still many functions, and especially the most important functions to control the Fireface UC, are implemented in hardware, thus available also in stand-alone mode:

• All faders and pans of the first and third row

• Mute of the input signal per channel

• Ganging via 'Select'

• Choice of the routing destination, i.e. the current submix

• Sending of LED and display data to the MIDI controller

The second row (software playback) is skipped in stand-alone operation. The Fireface UC sends display data as brief information, enabling an easy navigation through lines and rows. Other data like PAN and miscellaneous status LEDs are supported as well.

In stand-alone mode the unit always operates in View Submix mode. Only this way the routing destination can be changed, and several mixdowns/submixes can be set up quickly and easily.

Note

: After power-on the Fireface UC does not update the connected MIDI controller. Therefore

the controller’s faders will not be set to the values stored within the unit.

Mackie Control Protocol

The stand-alone operation supports the following Mackie Control surface elements*:

*Tested with Behringer BCF2000 Firmware v1.07 in Mackie Control emulation for Steinberg mode.

Element: Meaning in Fireface: Channel faders 1 – 8 volume

SEL(1-8) + DYNAMICS reset fader to Unity Gain V-Pots 1 – 8 pan pressing V-Pot knobs pan = center

EQ Master Mute MUTE Ch. 1 – 8 Mute SELECT Ch. 1 – 8 Select REC Ch. 1 – 8 select output bus (current submix)

User's Guide

Fireface UC

Technical Reference

33. TECH INFO

Not all information to and around our products fit in a manual. Therefore RME offers a lot more and detailed information in the Tech Infos. The very latest Tech Infos can be found on our website, section News & Infos, or the directory \rmeaudio.web\techinfo on the RME Driver CD. These are some of the currently available Tech Infos:

FireWire Audio by RME – Technical Background FireWire 800 Hardware – Compatibility Problems FireWire 800 under Windows XP SP2

Driver updates Fireface UC – Lists all changes of the driver updates. SteadyClock: RME's new clock technology in theory and operation DIGICheck: Analysis, tests and measurements with RME audio hardware

A description of DIGICheck, including technical background information. HDSP System: TotalMix - Hardware and Technology

Background information on the digital mixer of the Hammerfall DSP/Fireface Synchronization II (DIGI96 series)

Digital audio synchronization - technical background and pitfalls. Installation problems - Problem descriptions and solutions. ADI-8 Inside

Technical information about the RME ADI-8 (24-bit AD/DA converter). HDSP System: Notebook Basics - Notebook Hardware

HDSP System: Notebook Basics - The Audio Notebook in Practice HDSP System: Notebook Basics - Background Knowledge and Tuning HDSP System: Notebook Tests - Compatibility and Performance Many background information on laptops. Tests of notebooks.

34. Technical Specifications

34.1 Analog

AD, Line In 5-8, rear

• Resolution AD: 24 bit

• Signal to Noise ratio (SNR): 110 dB RMS unweighted, 113 dBA

• Frequency response @ 44.1 kHz, -0.1 dB: 5 Hz – 20.6 kHz

• Frequency response @ 96 kHz, -0.5 dB: 5 Hz – 45.3 kHz

• Frequency response @ 192 kHz, -1 dB: 5 Hz - 90 kHz

• THD: < -100 dB, < 0.001 %

• THD+N: < -98 dB, < 0.0012 %

• Channel separation: > 110 dB

• Maximum input level: +19 dBu

• Input: 6.3 mm TRS jack, electronically balanced

• Input impedance: 10 kOhm

• Input sensitivity switchable to Lo Gain, +4 dBu, -10 dBV

• Input level for 0 dBFS @ Lo Gain: +19 dBu

• Input level for 0 dBFS @ +4 dBu: +13 dBu

• Input level for 0 dBFS @ -10 dBV: +2 dBV

Line In 3-4, front

• as AD, but:

• Signal to Noise ratio (SNR): 105 dB RMS unweighted, 109 dBA

• Gain range via rotary encoder: 0 up to +18 dB

• Maximum input level, Gain 0 dB: +19 dBu

• Maximum input level, Gain 18 dB, Inst: -16 dBu

• CLIP LED: -2 dBFS

• SIG LED: -65 dBFS

Microphone 1-2, front

• as AD, but:

• Input: XLR, electronically balanced

• Input impedance: 2.7 kOhm

• Low Roll Off –0.5 dB: 18 Hz, -1 dB: 12 Hz

• Gain range: 0 dB, +10 up to +65 dB

• Maximum input level, Gain 0 dB: +10 dBu

• Maximum input level, Gain 65 dB: -55 dBu

• CLIP LED: -2 dBFS

• SIG LED: -65 dBFS

DA, Line Out 1-6, rear

• Resolution: 24 bit

• Dynamic range (DR): 110 dB, 113 dBA @ 44.1 kHz (unmuted)

• Frequency response @ 44.1 kHz, -0.1 dB: 1 Hz – 20.4 kHz

• Frequency response @ 96 kHz, -0.5 dB: 1 Hz – 44.8 kHz

• Frequency response @ 192 kHz, -1 dB: 1 Hz - 80 kHz

• THD: -100 dB, < 0.001 %

•

THD+N: -96 dB, < 0.0015 %

• Channel separation: > 110 dB

• Maximum output level: +19 dBu

• Output: 6.3 mm TRS jack, servo-balanced

• Output impedance: 75 Ohm

• Output level switchable Hi Gain, +4 dBu, -10 dBV

• Output level at 0 dBFS @ Hi Gain: +19 dBu

• Output level at 0 dBFS @ +4 dBu: +13 dBu

• Output level at 0 dBFS @ -10 dBV: +2 dBV

DA – Phones, 7/8, front

• as DA, but:

• Output: 6.3 mm TRS jack, unbalanced

• Output impedance: 30 Ohm

34.2 MIDI

• 2 x MIDI I/O breakout cable with 4 x 5-pin DIN jacks

• Galvanically isolated by optocoupled input

• Hi-speed mode: Jitter and response time typically below 1 ms

• Separate 128 byte FIFOs for input and output

34.3 Digital

• Clocks: Internal, ADAT In, SPDIF In, word clock in. Optional LTC/Video in

• Low Jitter Design: < 1 ns in PLL mode, all inputs

• Internal clock: 800 ps Jitter, Random Spread Spectrum

• Jitter suppression of external clocks: > 30 dB (2.4 kHz)

• Effective clock jitter influence on AD and DA conversion: near zero

• PLL ensures zero dropout, even at more than 100 ns jitter

• Digital Bitclock PLL for trouble-free varispeed ADAT operation

• Supported sample rates: 28 kHz up to 200 kHz

34.4 Digital Inputs

AES/EBU - SPDIF

• 1 x RCA and 1 x optical, according to IEC 60958

• High-sensitivity input stage (< 0.3 Vpp)

• Accepts Consumer and Professional format, copy protection will be ignored

• Lock Range: 27 kHz – 200 kHz

• Jitter when synced to input signal: < 1 ns

• Jitter suppression: > 30 dB (2.4 kHz)

ADAT Optical

• 1 x TOSLINK

• Standard: 8 channels 24 bit, up to 48 kHz

• Double Speed (S/MUX): 4 channels 24 bit 96 kHz

• Quad Speed (S/MUX4) : 2 channels 24 bit 192 kHz

• Bitclock PLL ensures perfect synchronisation even in varispeed operation

• Lock Range: 31.5 kHz – 50 kHz

• Jitter when synced to input signal: < 1 ns

• Jitter suppression: > 30 dB (2.4 kHz)

Word Clock

• BNC, not terminated (10 kOhm)

• Switch for internal termination 75 Ohm

• Automatic Double/Quad Speed detection and internal conversion to Single Speed

• SteadyClock guarantees super low jitter synchronization even in varispeed operation

• Not affected by DC-offsets within the network

• Signal Adaptation Circuit: signal refresh through auto-center and hysteresis

• Overvoltage protection

• Level range: 1.0 Vpp – 5.6 Vpp

• Lock Range: 27 kHz – 200 kHz

• Jitter when synced to input signal: < 1 ns

• Jitter suppression: > 30 dB (2.4 kHz)

34.5 Digital Outputs

AES/EBU - SPDIF

• 1 x RCA and 1 x optical, according to IEC 60958

• Output level Professional 2.6 Vpp, Consumer 1.2 Vpp

• Format Professional according to AES3-1992 Amendment 4

• Format Consumer (SPDIF) according to IEC 60958

• Single Wire mode, sample rate 28 kHz up to 200 kHz

ADAT

• 1 x TOSLINK

• Standard: 8 channels 24 bit, up to 48 kHz

• Double Speed (S/MUX): 4 channels 24 bit 96 kHz

• Quad Speed (S/MUX4) : 2 channels 24 bit 192 kHz

Word Clock

• BNC

• Max. output voltage: 5 Vpp

• Output voltage @ 75 Ohm termination: 4.0 Vpp

• Output impedance: 10 Ohm

• Frequency range: 27 kHz – 200 kHz

34.6 General

• Power supply: external power supply

• Typical power consumption: 13 Watts

• Current at 12 Volt operating voltage: 910 mA (11 Watts)

• Dimensions including rack ears (WxHxD): 265 x 44 x 165 mm (10.5" x 1.73" x 6.5")

• Dimensions without rack ears/handles (WxHxD): 218 x 44 x 155 mm (8.6" x 1.73" x 6.1")

• Weight: 1.5 kg ( 3.3 lbs)

• Temperature range: +5° up to +50° Celsius (41° F up to 122°F)

• Relative humidity: < 75%, non condensing

• Included power supply: Internal switching PSU, 100 - 240 V AC, 2 A, 24 Watts

35. Technical Background

35.1 Lock and SyncCheck

Digital signals consist of a carrier and the data. If a digital signal is applied to an input, the receiver has to synchronize to the carrier clock in order to read the data correctly. To achieve this, the receiver uses a PLL (Phase Locked Loop). As soon as the receiver meets the exact frequency of the incoming signal, it is locked. This Lock state remains even with small changes of the frequency, because the PLL tracks the receiver's frequency.

If an ADAT or SPDIF signal is applied to the Fireface UC, the corresponding input LED starts flashing. The unit indicates LOCK, i. e. a valid input signal (in case the signal is also in sync, the LED is constantly lit, see below).

Unfortunately, LOCK does not necessarily mean that the received signal is correct with respect to the clock which processes the read out of the embedded data. Example [1]: The Fireface is set to 44.1 kHz internally (clock mode Master), and a mixing desk with ADAT output is connected to input ADAT. The corresponding LED will show LOCK immediately, but usually the mixing desk's sample rate is generated internally (also Master), and thus slightly higher or lower than the Fireface's internal sample rate. Result: When reading out the data, there will frequently be read errors that cause clicks and drop outs.

Also when using multiple inputs, a simple LOCK is not sufficient. The above described problem can be solved elegantly by setting the Fireface from Master to AutoSync (its internal clock will then be the clock delivered by the mixing desk). But in case another, un-synchronous device is connected, there will again be a slight difference in the sample rate, and therefore clicks and drop outs.

In order to display those problems optically at the device, the Fireface includes SyncCheck checks all clocks used for synchronicity. If they are not synchronous to each other (i. e. absolutely identical), the SYNC LED of the asynchronous input flashes. In case they are completely synchronous, all LEDs are constantly lit. In example 1 it would have been obvious that the LED ADAT kept on flashing after connecting the mixing desk.

In practice, SyncCheck allows for a quick overview of the correct configuration of all digital devices. So one of the most difficult and error-prone topics of the digital studio world finally becomes easy to handle.

The same information is presented in the Fireface's Settings dialog. In the status display Input State the state of all clocks is decoded and shown as simple text (No Lock, Lock, Sync).

. It

35.2 Latency and Monitoring

The term Zero Latency Monitoring has been introduced by RME in 1998 for the DIGI96 series of audio cards. It stands for the ability to pass-through the computer's input signal at the interface directly to the output. Since then, the idea behind has become one of the most important features of modern hard disk recording. In the year 2000, RME published two ground-breaking Tech Infos on the topics Low Latency Background, which are still up-to-date: Monitoring, ZLM and ASIO, and Buffer and Latency Jitter, both found on the RME Driver CD and the RME website.

How much Zero is Zero?

From a technical view there is no zero. Even the analog pass-through is subject to phase errors, equalling a delay between input and output. However, delays below certain values can subjectively be claimed to be a zero-latency. This applies to analog routing and mixing, and in our opinion also to RME's Zero Latency Monitoring. The term describes the digital path of the audio data from the input of the interface to its output. The digital receiver of the Fireface UC can't operate un-buffered, and together with TotalMix and the output via the transmitter, it causes a typical delay of 3 samples. At 44.1 kHz this equals about 68 µs (0.000068 s), at 192 kHz only 15 µs. The delay is valid for ADAT and SPDIF in the same way.

Oversampling

While the delays of digital interfaces can be disregarded altogether, the analog inputs and outputs do cause a significant delay. Modern converter chips operate with 64 or 128 times oversampling plus digital filtering, in order to move the error-prone analog filters away from the audible frequency range as far as possible. This typically generates a delay of one millisecond. A playback and re-record of the same signal via DA and AD (loopback) then causes an offset of the newly recorded track of about 2 ms. The exact delays of the Fireface UC are:

Sample frequency kHz 44.1 48 88.2 96 176.4 192

AD (43.2 x 1/fs) ms 0.98 0.9 0.49 0.45 AD (38.2 x 1/fs) ms 0.22 0.2 DA (28 x 1/fs) ms *

Buffer Size (Latency) Windows: This option found in the Settings dialog defines the size of the buffers for the audio data used in ASIO and WDM (see chapter 13).

Mac OS X: The buffer size is defined within the application. Only some do not offer any setting. For example iTunes is fixed to 512 samples.

General: A setting of 64 samples at 44.1 kHz causes a latency of 1.5 ms, for record and playback each. But when performing a digital loopback test no latency/offset can be detected. The reason is that the software naturally knows the size of the buffers, therefore is able to position the newly recorded data at a place equalling a latency-free system.

AD/DA Offset under ASIO and OS X: ASIO (Windows) and Core Audio (Mac OS X) allow for the signalling of an offset value to correct buffer independent delays, like AD- and DA-conversion or the Safety Buffer described below. An analog loopback test will then show no offset, because the application shifts the recorded data accordingly. Because in real world operation analog record and playback is unavoidable, the drivers include an offset value matching the Fireface's converter delays.

0.63 0.58 0.32 0.29 0.16 0.15

Therefore, in a digital loopback test a negative offset of about 3 ms occurs. This is no real problem, because this way of working is more than rare, and usually the offset can be compensated manually within the application. Additionally, keep in mind that even when using the digital I/Os usually at some place an AD- and DA-conversion is involved (no sound without...).

Note

: Cubase and Nuendo display the latency values signalled from the driver separately for record and playback. While with our former cards these values equalled exactly the buffer size (for example 3 ms at 128 samples), the Fireface displays an additional millisecond – the time needed for the AD/DA-conversion. Playback even shows another millisecond added – see Safety Buffer.

Safety Buffer

An additional small Safety Buffer on the playback side only has proven to be very efficient and useful. The Fireface UC uses a fixed additional buffer of 32 samples, which is added to the current buffer size. The main advantage is the ability to use lowest latency at highest CPU loads. Furthermore, the fixed buffer does not add to the latency jitter (see Tech Info), the subjective timing is extraordinary.

Core Audio's Safety Offset

Under OS X, every audio interface has to use a so called Safety Offset, otherwise Core Audio won't operate click-free. The Fireface UC uses a safety offset of 28 samples. This offset is signalled to the system, and the software can calculate and display the total latency of buffer size plus AD/DA offset plus Safety Offset for the current sample rate.

35.3 USB Audio

USB audio is in several ways different from PCI based audio interfaces. A Fireface UC can achieve a performance similar to a PCI or PCI Express card when used with

an optimal PC. Low CPU load and click-free operation even at 48 samples buffer size are indeed possible on current computers. However, using older computers a simple stereo playback will already cause a CPU load of more than 30%.

A computer blocked for a short time – no matter if ASIO or WDM – will loose one or more data packets. Such problems can only be solved by increasing the buffer size (and with this the latency).

The Fireface UC features a unique data checking, detecting errors during transmission via USB and displaying them in the Settings dialog. Additionally the Fireface provides a special mechanism to continue recording and playback in spite of drop-outs, and to correct the sample position in real-time.

Detailed information on this topic can be found in the Tech Info USB Audio by RME – Technical Background on our website:

http://www.rme-audio.com/english/techinfo/usbudio_rme.htm

35.4 DS - Double Speed

When activating the Double Speed mode the Fireface UC operates at double sample rate. The internal clock 44.1 kHz turns to 88.2 kHz, 48 kHz to 96 kHz. The internal resolution is still 24 bit.

Sample rates above 48 kHz were not always taken for granted, and are still not widely used because of the CD format (44.1 kHz) dominating everything. Before 1998 there were no receiver/transmitter circuits available that could receive or transmit more than 48 kHz. Therefore a work-around was used: instead of two channels, one AES line only carries one channel, whose odd and even samples are being distributed to the former left and right channels. By this, you get the double amount of data, i. e. also double sample rate. Of course in order to transmit a stereo signal two AES/EBU ports are necessary then.

This transmission mode is called Double Wire in the professional studio world, and is also known as S/MUX (Sample Multiplexing) in connection with the ADAT format.

Not before February 1998, Crystal shipped the first 'single wire' receiver/transmitters that could also work with double sample rate. It was then possible to transmit two channels of 96 kHz data via one AES/EBU port.

But Double Wire is still far from being dead. On one hand, there are still many devices which can't handle more than 48 kHz, e. g. digital tape recorders. But also other common interfaces like ADAT or TDIF are still using this technique.

Because the ADAT interface does not allow for sampling frequencies above 48 kHz (a limitation of the interface hardware), the Fireface UC automatically uses Sample Multiplexing in DS mode. One channel's data is distributed to two channels according to the following table:

Analog In 1 2 3 4 5 6 7 8 DS Signal Port

1/2

ADAT

3/4

ADAT

5/6

ADAT

7/8

ADAT

- - -

As the transmission of double rate signals is done at standard sample rate (Single Speed), the ADAT output still delivers 44.1 kHz or 48 kHz.

35.5 QS – Quad Speed

Due to the small number of available devices that use sample rates up to 192 kHz, but even more due to a missing real world application (CD...), Quad Speed has had no broad success so far. An implementation of the ADAT format as double S/MUX results in only two channels per optical output. There are few devices using this method.

In Quad Speed mode the Fireface UC automatically uses Sample Multiplexing. One channel's data is distributed to four channels according to the following table:

Analog In 1 2 3 4 5 6 7 8 DS Signal Port

1/2/3/4

ADAT

As the transmission of quad rate signals is done at standard sample rate (Single Speed), the ADAT output still delivers 44.1 kHz or 48 kHz.

The SPDIF (AES) output of the Fireface UC provides 192 kHz as Single Wire only.

5/6/7/8

ADAT

- - - - - -

35.6 AES/EBU - SPDIF

The most important electrical properties of 'AES' and 'SPDIF' can be seen in the table below. AES/EBU is the professional balanced connection using XLR plugs. The standard is being set by the Audio Engineering Society based on the AES3-1992. For the 'home user', SONY and Philips have omitted the balanced connection and use either Phono plugs or optical cables (TOSLINK). The format called S/P-DIF (SONY/Philips Digital Interface) is described by IEC

60958.

Type AES3-1992 IEC 60958

Connection XLR RCA / Optical Mode Balanced Un-balanced Impedance 110 Ohm 75 Ohm Level 0.2 V up to 5 Vss 0.2 V up to 0.5 Vss Clock accuracy not specified

Jitter < 0.025 UI (4.4 ns @ 44.1 kHz) not specified

Besides the electrical differences, both formats also have a slightly different setup. The two formats are compatible in principle, because the audio information is stored in the same place in the data stream. However, there are blocks of additional information, which are different for both standards. In the table, the meaning of the first byte (#0) is shown for both formats. The first bit already determines whether the following bits should be read as Professional or Consumer information.

Byte Mode Bit 0 1 2 3 4 5 6 7

0 Pro P/C Audio? Emphasis Locked Sample Freq. 0 Con P/C Audio? Copy Emphasis Mode

It becomes obvious that the meaning of the following bits differs quite substantially between the two formats. If a device like a common DAT recorder only has an SPDIF input, it usually understands only this format. In most cases, it will switch off when being fed Professional-coded data. The table shows that a Professional-coded signal would lead to malfunctions for copy prohibition and emphasis, if being read as Consumer-coded data.

Nowadays many devices with SPDIF input can handle Professional subcode. Devices with AES3 input almost always accept Consumer SPDIF (passive cable adapter necessary).

I: ± 50ppm II: 0,1% III: Variable Pitch

35.7 Noise Level in DS / QS Mode

The outstanding signal to noise ratio of the Fireface's AD-converters can be verified even without expensive test equipment, by using record level meters of various software. But when activating the DS and QS mode, the displayed noise level will rise from -109 dB to -104 dB at 96 kHz, and –82 dB at 192 kHz. This is not a failure. The software measures the noise of the whole frequency range, at 96 kHz from 0 Hz to 48 kHz (RMS unweighted), at 192 kHz from 0 Hz to 96 kHz.

When limiting the measurement range from 20 Hz to 20 kHz (so called audio bandpass) the value would be -110 dB again. This can be verified with RME's DIGICheck. The function Bit Statistic & Noise measures the noise floor by Limited Bandwidth, ignoring DC and ultrasound.

The reason for this behaviour is the noise shaping technology of the analog to digital converters. They move all noise and distortion to the in-audible higher frequency range, above 24 kHz. That’s how they achieve their outstanding performance and sonic clarity. Therefore the noise is slightly increased in the ultrasound area. High-frequent noise has a high energy. Add the doubled (quadrupled) bandwidth, and a wideband measurement will show a significant drop in SNR, while the human ear will notice absolutely no change in the audible noise floor.

35.8 SteadyClock

The SteadyClock technology of the Fireface UC guarantees an excellent performance in all clock modes. Thanks to a highly efficient jitter suppression, the AD- and DA-conversion always operates on highest sonic level, being completely independent from the quality of the incoming clock signal.

SteadyClock has been originally developed to gain a stable and clean clock from the heavily jittery MADI data signal (the embedded MADI clock suffers from about 80 ns jitter). Using the Fireface's input signals SPDIF and ADAT, you'll most probably never experience such high jitter values. But SteadyClock is not only ready for them, it would handle them just on the fly.

Common interface jitter values in real world applications are below 10 ns, a very good value is less than 2 ns.

The screenshot shows an extremely jittery SPDIF signal of about 50 ns jitter (top graph, yellow). SteadyClock turns this signal into a clock with less than 2 ns jitter (lower graph, blue). The signal processed by SteadyClock is of course not only used internally, but also used to clock the digital outputs. Therefore the refreshed and jitter-cleaned signal can be used as reference clock without hesitation.

36. Diagrams

36.1 Block Diagram Fireface UC

36.2 Connector Pinouts

TRS jacks of analog input / output

The stereo ¼" TRS jacks of the analog inputs and outputs are wired according to international standards:

Tip = + (hot) Ring = – (cold) Sleeve = GND

The servo balanced input and output circuitry allows to use monaural TS jacks (unbalanced) with no loss in level. This is the same as when using a TRS-jack with ring connected to ground.

XLR jacks of analog inputs The XLR jacks are wired according to international standards: 1 = GND (shield)

2 = + (hot) 3 = - (cold)

TRS Phones jack

The analog monitor output on the front is accessible through a stereo ¼" TRS jack. This allows a direct connection of headphones. In case the output should operate as Line output, an adapter TRS plug to RCA phono plugs, or TRS plug to TS plugs is required.

The pin assignment follows international standards. The left channel is connected to the tip, the right channel to the ring of the TRS jack/plug.

RME Fireface UC User manual

Specifications and Main Features

Frequently Asked Questions

User Manual
