RKC DP-700 Instruction Manual

Download

RKC INSTRUMENT INC.

Instruction Manual

Handheld Digital

Thermomete

-70

IMR01X01-E2

 Microsoft, Windows, Excel are the registered trademark of Microsoft Corporation.  Company names and product names used in this manual are the trademarks or registered trademarks of

the respective companies.

Thank you for purchasing this RKC instrument. In order to achieve maximum performance and ensure proper operation of your new instrument, carefully read all the instructions in this manual. Please place this manual in a convenient location for easy reference.

SYMBOLS

WARNING

CAUTION

: This mark indicates precautions that must be taken if there is danger o

electric shock, fire, etc., which could result in loss of life or injury.

: This mark indicates that if these precautions and operating procedures

are not taken, damage to the instrument may result.

: This mark indicates that all precautions should be taken for safe usage.

: This mark indicates important information on installation, handling and operating procedures.

: This mark indicates supplemental information on installation, handling and operating procedures.

: This mark indicates where additional information may be located.

WARNING

 Never use this product for medical equipment.

 This product must be used in accordance with the specifications

to prevent fire or damage to instrument and equipment.

 This product is not intended for use in locations subject to

flammable or explosive gases.

 If any abnormality such as smoke, smell of burning or noise was

found, do not use the product. If so, fire may occur.

 RKC is not responsible if this product is repaired, modified or

disassembled by other than factory-approved personnel. Malfunction can occur and warranty is void under these conditions.

IMR01X01-E2

i-1

CAUTION

 All precautions described in this manual should be taken to avoid damage to the

instrument or equipment.

 Prevent metal fragments or lead wire scraps from falling inside instrument case to

avoid electric shock, fire or malfunction.

 Do not drop nor apply strong impact to the product. If so, failure may result.  Do not use the product while the battery cover is being removed. If so, failure may

result.

 Load a battery so that its polarity will meet the indication on the product. If not, the

battery electrolyte may leak or heat be generated to result in injury or failure.

 If the product is not used for a long period of time, remove the battery from the

mainframe. If not, the battery electrolyte may leak to result in failure.

 Battery service life may change depending on battery performance, operating

condition and measuring environment.

 Use this product within the following ambient temperature and ambient humidity.

- Allowable ambient temperature: −20 to +50 °C

- Allowable ambient humidity: −5 to 95 %RH

(Absolute humidity: MAX.W.C 29 g/m3 dry air at 101.3 kPa)

 Do not use or store the product in places such as listed below:

- Rapid changes in ambient temperature which may cause condensation.

- Corrosive or inflammable gases.

- Direct vibration or shock to the mainframe.

- Direct water, oil, chemicals, vapor or steam splashes. *

- Excessive dust, salt or iron particles. *

- Excessive induction noise, static electricity, magnetic fields or noise.

- Direct air flow from an air conditioner.

- Exposure to direct sunlight.

- Excessive heat accumulation.

* DP-700A: Equal to IP67, DP-700B: Equal to IP54

 Turn off the power supply before cleaning the instrument.  Do not use a volatile solvent such as paint thinner to clean the instrument.

Deformation or discoloration will occur. Use a soft, dry cloth to remove stains from the instrument.

 To avoid damage to instrument display, do not rub with an abrasive material or

push front panel with a hard object.

NOTICE

 This manual assumes that the reader has a fundamental knowledge of the principles of

electricity, process control, computer technology and communications.

 The figures, diagrams and numeric values used in this manual are only for purpose of

illustration.

 RKC is not responsible for any damage or injury that is caused as a result of using this

instrument, instrument failure or indirect damage.

 Periodic maintenance is required for safe and proper operation of this instrument. Some

components have a limited service life, or characteristics that change over time.

 Every effort has been made to ensure accuracy of all information contained herein. RKC

makes no warranty expressed or implied, with respect to the accuracy of the information. The information in this manual is subject to change without prior notice.

 No portion of this document may be reprinted, modified, copied, transmitted, digitized,

stored, processed or retrieved through any mechanical, electronic, optical or other means without prior written approval from RKC.

i-2

IMR01X01-E2

1. OUTLINE..............................................................................1

1.1 Checking the Product ......................................................................................1

1.2 Parts Description .............................................................................................2

1.3 LCD Displays...................................................................................................3

1.4 Function Menu Configuration...........................................................................4

2. PREPARATION BEFORE USE............................................ 5

2.1 Loading Battery...............................................................................................5

2.2 Setting Date and Time ....................................................................................6

Page

2.3 Connecting the Temperature Sensor..............................................................7

3. BASIC OPERATION............................................................. 8

3.1 Turn Power On ................................................................................................8

3.2 Measuring Temperatures.................................................................................9

4. JUDGING MEASURED TEMPERATURES [SIMPLIFIED

JUDGING FUNCTION] ....................................................... 10

4.1 Registering Tag Names (Measured Objects).................................................11

4.2 Setting the Judgment Range of High/Low Limit Temperatures......................14

4.3 Judging Measured Temperatures..................................................................15

5. RECORDING MEASURED TEMPERATURES

[LOGGING FUNCTION] ..................................................... 17

5.1 Manual Recording .........................................................................................18

5.2 Automatic Recording .....................................................................................19

5.3 Retrieving Recorded Data .............................................................................21

5.3.1 Retrieving only recorded data with specified tag name (Tag Filter) ................... 21

5.3.2 Retrieving recorded data with specified log registered No. (Log Jump)............. 22

5.4 Deleting Recorded Data ................................................................................23

5.4.1 Deleting only one recorded data item (Delete?)................................................. 23

5.4.2 Deleting all recorded data items (All Clear?)...................................................... 24

5.5 Defragmenting Recorded Data ...................................................................... 25

6. PEAK HOLD/BOTTOM HOLD ........................................... 26

IMR01X01-E2 i-3

7. REGISTERING USER NAMES [ONLY FOR DP-700B]..... 28

8. INITIAL SETTING ............................................................... 32

 To select the display language (English/Japanese) .......................................32

 To select the date format ...............................................................................32

 To select the sensor type ............................................................................... 33

 To select the display unit (°C/°F)....................................................................33

 To select the decimal point position ...............................................................34

 To correct the temperature display value (PV Bias) .......................................34

Page

 To lessen the fluctuation of a display value caused by noise (Digital Filter)...35

 Saving battery consumption (Auto Power OFF).............................................35

 Locking/Unlocking setting operation (Operation Lock) ................................... 36

9. MANAGING DATA BY PC [ONLY FOR DP-700B]............ 37

9.1 Connecting PC to DP-700B...........................................................................37

9.2 Storing Data...................................................................................................38

9.3 Disconnecting DP-700B from PC ..................................................................41

10. APPENDIX ........................................................................ 42

10.1 Replace the Battery .....................................................................................42

10.2 Cleaning ......................................................................................................44

10.3 Troubleshooting...........................................................................................44

10.3.1 Error displays ...................................................................................................44

10.3.2 Problem and solution .......................................................................................46

10.4 Specifications ..............................................................................................47

i-4

IMR01X01-E2

1. OUTLINE

This Chapter describes features, package contents and model code, etc. The handheld digital thermometer DP-700 has the following features:

 Wide temperature measurement is possible

Thermocouple K: −200 to +1372 °C (−328 to +2501 °F), −199.9 to +999.9 °C (°F) Thermocouple J: −200 to +1200 °C ( Thermocouple T: −50 to +400 °C ( RTD (Pt100): −200 to +850 °C (

−328 to +2192 °F), −199.9 to +999.9 °C (°F)

−58 to +752 °F), −50.0 to +400.0 °C (−58.0 to +752.0 °F)

−328 to +1562 °F), −199.9 to +850.0 °C (−199.9 to +999.9 °F)

 Names of measured objects can be registered.

Names of measured objects can be registered using 11 characters maximum. (DP-700A: maximum 5 tags DP-700B: maximum 99 tags)

 Simplified Judging Function

Judgment can be immediately made for each measured object. (Temperatures to judge the high/low limits need to be set.)

 Logging Function (Manual logging mode, Automatic logging mode)

Measured object, measured temperature, date, and user name can be manually or automatically recorded in the memory. (DP-700A: maximum 99 logs DP-700B: maximum 9999 logs)

 Peak and Bottom Hold Function

The maximum and minimum measured-temperatures can always be stored.

 Can be operated for 400 hours continuously using one Type LR6 (based on

IEC and JIS) alkaline battery.

 Data can be controlled using personal computers (Only for the DP-700B)

Measured data can be stored in the file in the CSV format using the USB port of each personal computer.

1.1 Checking the Product

Before using this product, check each of the following:

 Model code  Check that there are no scratch or breakage in external appearance.  Check that all of the items delivered are complete. (See below)

 Model code

DP-700 /

(1) (2)

(1) Type

A: Economy type (No USB, Logging: 99 logs, Backed up by RAM)

B: High performance type (With USB, Logging: 9999 logs, Backed up by EEPROM)

(2) Display language

J: Japanese E: English

Accessories:

 Instruction Manual (IMR01X01-E2)·····1  LR6 (IEC and JIS) Alkaline battery ··············1  Strap ···················································1  USB cable (Only for DP-700B) ···················1

If any of the products are missing, damaged, or if your manual is incomplete, please contact RKC sales office or the agent.

IMR01X01-E2 1

1. OUTLINE

1.2 Parts Description

DP-700

LCD display

Operation keys

REC

/POWER

Sensor connection jack

LCD display

Displays various information on measured temperature, measured date, set details of each function and error number.

Operation keys

MENU/POWER key:

• Used to turn on/off the power. Pressing

this key for more than 2 seconds can turn off the power.

• Can call up or select the function menu

screen while the power is turned on.

• Can display the list of characters in the

message column while characters are being entered.

SET key:

• Establishes operation during execution.

ESC key:

• Suspends operation during execution. If

suspended, returns to the displayed state or screen just before being suspended.

USB connecter

(Only for DP-700B)

Hooks for carrying the sensor

Battery cover

UP key ( )/DOWN key ( ):

• Can select measured objects or user names already registered while the measurement screen is being displayed.

• Can select the list of characters while characters are being entered.

Left shift

key (<)/Right shift key (>):

• Can select display details in the message

column while the measurement screen is being displayed.

• Can move to the preceding or next function menu screen while the function menu (Fn0 to Fn9) screen is being displayed.

• Can move the cursor character by character while characters are being entered.

key:

REC

• When in manual logging mode (manual recording), records the measured temperature and date at the time when this key is pressed.

• When in automatic logging mode (automatic recording), used as a recording START/STOP key.

IMR01X01-E2

1.3 LCD Displays

The following details are displayed on the LCD screen.

(7)

(8)

(9)

(1) (Number display)

• If measured object or user name is displayed, displays the corresponding registered number.

• When recorded data items are displayed, displays “Display memory number/Total memory number of recorded data items of those data items.

(2) (Log execution display)

• When in manual logging mode (manual recording), displayed only when the REC key is pressed.

• When in automatic logging mode (automatic recording), continues lighting during recording and continues flashing during recording stop.

(3) (Burnout display)

Displayed when the sensor is broken, shorted or imperfectly connected.

(4) (

Remaining battery service life display

Displays the remaining battery service life (reference only).

Service life remains long.

Service life is going to shorten.

Service life is going to expire. (Battery replacement is required.)

Service life has expired. (Immediate battery replacement is required.)

(1) (2) (3) (4)

)

1. OUTLINE

(5)

(6)

このエリアは使用しません。

(5) Measured temperature display

Displays the measured temperature. In addition, displays information on error number, etc. if an error occurs.

(6) °C or °F (Temperature unit display)

(7) (

Simplified judgment display

)

Symbols to judged the measured temperature. To judge the measured temperature using these symbols, it is necessary to set the judgment points of its high and low limits.

Measured temperature exceeds judgment point of high limit

temperature. Measured temperature is within

judgment points. Measured temperature is below

judgment point of low limit

temperature.

(8) Message column

Displays function menu screen name, measured

, measured object 3, user name

date

Set the measured date, if necessary. (See P. 6)

Not displayed if no user name is registered.

Number of registered characters: 11 maximum

2, 3

etc.

(9) ,

Displays message selection.

IMR01X01-E2 3

1. OUTLINE

1.4 Function Menu Configuration

The DP-700 is provided with a function menu used to select and then set any function necessary for measured-temperature judgment and recording (logging). There for, set the desired function as needed by the customer. For details, refer to the relevant pages.

Measurement screen

Power ON

When user name is registered.

SET key

key

Dick

User No.

key

> key, key or key

01/01 00:00

This symbol is always displayed.

ESC key

Memory

Menu used to check and retrieve recorded measured-temperatures.

Menu used to set dominical year/month/ day/time and to check information on versions.

: Press the MENU/POWER key or > key : Press the < key

MENU/POWER key

Fn0 to Fn8 are menus which are not necessary to be used when only temperatures are measured such as by a thermometer.

(P. 17)

TAG Setup

Menu used to register measured-object names, and to set judging conditions of measured temperatures.

(P. 6)

Menu used to set items relating to initicalizeing setting.

If unnecessary to be changed, use their factory set values.

Initial setting items (factory set value): P. 32

Display language: English PV bias: 0.0 °C Date format: month/day Digital filter: OFF Sensor type: TC-K Auto power OFF: 3 min. Display unit: °C Operation lock: 0000 (Unlock) Decimal point position: 0.1 (One dicimal place)

ESC key or < key

(P. 10)

Logging

Menu used to set time intervals of automatically recording measuredtemperatures.

SetupUtility

(P. 19)

Tag No.

key

FRY1

Function Memu

Peak/Bottom

Menu used to check maximum/minimum measured-temperatures.

UserName

Menu used to registe user names.

key

(P. 26)

(P. 28)(P. 32)

4 IMR01X01-E2

2. PREPARATION BEFORE USE

This chapter describes preparations necessary for operating this instrument for the first time.

2.1 Loading Battery

 Procedures

1. Loosen the battery cover.

Turn the cover with a coin.

2. Remove the battery cover.

3. Load a battery without mistaking its polarity.

4. Then, firmly tighten the battery cover.

Alkaline battery (LR6)

Insufficient tightening cannot assure the effect of water resistance (DP-700A: Equal to IP67, DP-700B: Equal to IP54).

After the battery is loaded, the instrument is ready to be reset-started. The function menu “Utility (Fn0)” for setting the dominical year is displayed on the LCD screen. If no

dominical year is set, no calendar function can be used. Always set the year if the calendar function is used.

Year

Year setting screen

Pressing the ESC key twice can display the measurement screen.

For the battery life or replace method, see 10.1 Replace the Battery (P. 42).

IMR01X01-E2 5

2. PREPARATION BEFORE USE

2.2 Setting Date and Time

Set the date and time displayed on the measurement screen. This setting is made on the function menu “Utility (Fn0).” The setting procedure is described using an example where the instrument is reset-started (from start on the Fn0 screen).

Battery setting

Reset start

utomati-

cally

Year

Date

Time

ROM version

Return to Year

Press the ESC key twice

Returns to Measurement screen

: Press the SET

key

 Setting year

1. Press the < or > key to move the flashing digit.

2. Press the or key to set the “year.”

3. Press the SET key to store the new set value.

Flashing

Data range: 0000 (Only for Reset start) 2003 to 9999

Year

Factory set value: 0000

 Setting month and day

1. Press the or key to set the “day (month).”

2. Press the < key to move the blinking cursor to “month (day).”

3. Press the or key to set the “month (day).”

4. Press the SET key to store the new set value.

(“Month/Day” display)

(“Day/Month” display)

Data range:

Month: 01 to 12 Day: 01 to 31

Factory set value:

01/01 mm/dd

01/01 dd/mm

01/01 (Month/Day)

Day (Cursor blinking)

Month

* To display “Day/Month”, see the date format screen in “Setup (Fn9)” of the Function

menu (P. 32).

Month (Cursor blinking)Day

 Setting time

1. Press the or key to set the “minute.”

2. Press the < key to move the blinking cursor to “time.”

3. Press the or key to set the “time.”

4. Press the SET key to store the new set value.

Data range: Hour: 00 to 23 Minute: 00 to 59

01/01 00:00

Factory set value: 00:00

Cursor blinking

IMR01X01-E2

2. PREPARATION BEFORE USE

2.3 Connecting the Temperature Sensor

Connect the temperature sensor (sold separately) to the DP-700 mainframe.

Firmly connect the sensor cable to the mainframe so as not to cause imperfect contact.

DP-700

REC

/POWER

 Temperature sensor and Accessories (sold separately)

Temperature sensor

 JB-702 (rounded end type)

Measuring temperature range:

−40 to +250 °C (−40 to +482 °F)

Protective tube size: φ 3.2, φ 4.8 Protective tube length: 100 mm, 200 mm,

300 mm Leadwire length: 1000 mm (1 m)

 JB-701 (needle type)

Measuring temperature range:

−40 to +250 °C (−40 to +482 °F)

Protective tube size: φ 2.1 Protective tube length: 100 mm Leadwire length: 1000 mm (1 m)

 A-DP700

Connecting adapter for JB-15 or JB-16

In addition to the above, various types of sensors are available. Contact our sales office or your nearest RKC sales agent, if required.

IMR01X01-E2 7

3. BASIC OPERATION

This chapter describes the basic operation of the instrument for temperature measurement.

3.1 Turn Power On

Press the MENU/POWER key. The power is turned on to display the measurement screen.

DP-700

Measured temperature

REC

/POWER

Simplified

udgment

display

Date and Time *

11/11 09:00

* If the data and time are not set in the

function menu [Utility (Fn0)], the factory set value is displayed. [Factory set value: 01/01 00:00]

When the power is turned on for the first time after preparations before operation are finished, “Simplified judgment display” is as the above screen example.

For the simplified judgment display, see 4. JUDGING MEASURED TEMPERATURES [SIMPLIFIED JUDGING FUNCTION] (P. 10).

The power is turned off if no key operation is performed for more than the Auto power OFF time (factory set value: 3 min.) with the power turned on.

For the Auto power OFF setting, see  Saving battery consumption (P. 35).

What screen is displayed when the power is turned off and then is turned on again?

If the user name is registered to the user number selected, the type of screen displayed first differs.

For the type of screen displayed, see 1.4 Function Menu Configuration (P. 4).

8 IMR01X01-E2

3. BASIC OPERATION

3.2 Measuring Temperatures

To measure temperatures, insert the sensor into or contact it with the measured object. When measuring temperatures, handle the sensor as instructed in the following.

 In order to prevent injuries, never direct the sensor tip toward a

person.

 In order to prevent burning or frostbite, do not touch the sensor

during or just after its use in the high or low temperature environment.

CAUTION

WARNING

 Use the sensor within its temperature measuring range.

 Firmly insert the sensor cable into the sensor connector of the mainframe.

 If the sensor gets stained, wipe it with a clean cloth.

Example of display screen during measurement:

When a measured object is at a surface temperature of 90.0 °C

It is possible to record the measured temperature and date in the memory.

For the data recording (logging) method, see 5. RECORDING MEASURED TEMPERATURES [LOGGING FUNCTION] (P. 17).

11/11 09:05

Measured temperature

Measured date

IMR01X01-E2

4. JUDGING MEASURED TEMPERATURES [SIMPLIFIED JUDGING FUNCTION]

This chapter describes settings and procedures to judge measured temperatures using the simplified judging function.

Before using the simplified judging function, register tag names (measured object names) and also set judgment criteria (judgment points of high and low temperatures). The registration and setting are made on the function menu “TAG Setup (Fn2).”

What is the simplified judging function?

This function is for judging whether or not measured temperatures are within the judgment criteria preset (judgment points of high and low temperatures) and then check judgment results according to simplified judgment symbols.

Screen Configurations of TAG Setup (Fn2) Menu:

Measurement

screen

SET key

The selected tag name

(Example: TAG01)

TAG01

Cursor blinking

Press the MENU/POWER key twice

ESC key

setting screen

(P. 11) (P. 14)

MENU/POWER key

(P. 4)

TAG Setup

ESC key

SET key

Tag name screen

Tag No.

key

TAG01

Tag name *

Maximum number of registration DP-700A: 5 tags DP-700B: 99 tags

Judgment point o

high limit temp.

setting screen

SET key

Hi Limit

(P. 14)

SET key

* Each tag name before factory

shipment can be used as it is. When using the tag name before factory shipment, display Tag No. in the message column on the measurement screen.

ESC key

Judgment point o

low limit temp. setting screen

Low Limit

Character entry (P. 11)

10 IMR01X01-E2

4. JUDGING MEASURED TEMPERATURES [SIMPLIFIED JUDGING FUNCTION]

4.1 Registering Tag Names (Measured Objects)

Any measured object mane (maximum number of character: 11 characters) can be registered for each number. The tag name thus registered can be displayed on the measurement screen.

 Character entry screen

Example: When the tag name screen of Tag No. 1 is selected.

Tag name setting screen

TAG01

Cursor blinking

Press the ESC key three times

Returns to Measurement screen

SET key ESC key

MENU/ POWER key

Character selecting screen

STUVWXYZ

MENU/ POWER key

Delete check screen

Delete?

(P. 13)

Insert check screen

MENU/ POWER key

Insert?

(P. 13)

MENU/ POWER key

A list of characters including the currently selected character (cursor blinking) is displayed in the message column.

Select the list of characters by the or

key and then select the desired

character by the

< or > key.

SET key: To execute selection ESC key: To suspended operation

Screen used to check whether or not the currently selected character (curso blinking) is deleted.

SET key: To execute deletion ESC key: To suspend operation

Screen used to check whether to inser space for entering a character in the

osition displayed with the currently

selected character (cursor blinking).

SET key: To execute insertion ESC key: To suspend operation

Characters list

Numerals 0123456789

Alphabets A B CD E FG H I

JKLMNOPQR STUVWXYZ abcdefghi jklmnopqr stuvwxyz

IMR01X01-E2

Symbols @ ! #$ % & ’ `

+-.;=^_ ()[]{}

o spaces (no characters)

can be used.

Select the list of characters by the or key.

4. JUDGING MEASURED TEMPERATURES [SIMPLIFIED JUDGING FUNCTION]

 Procedures

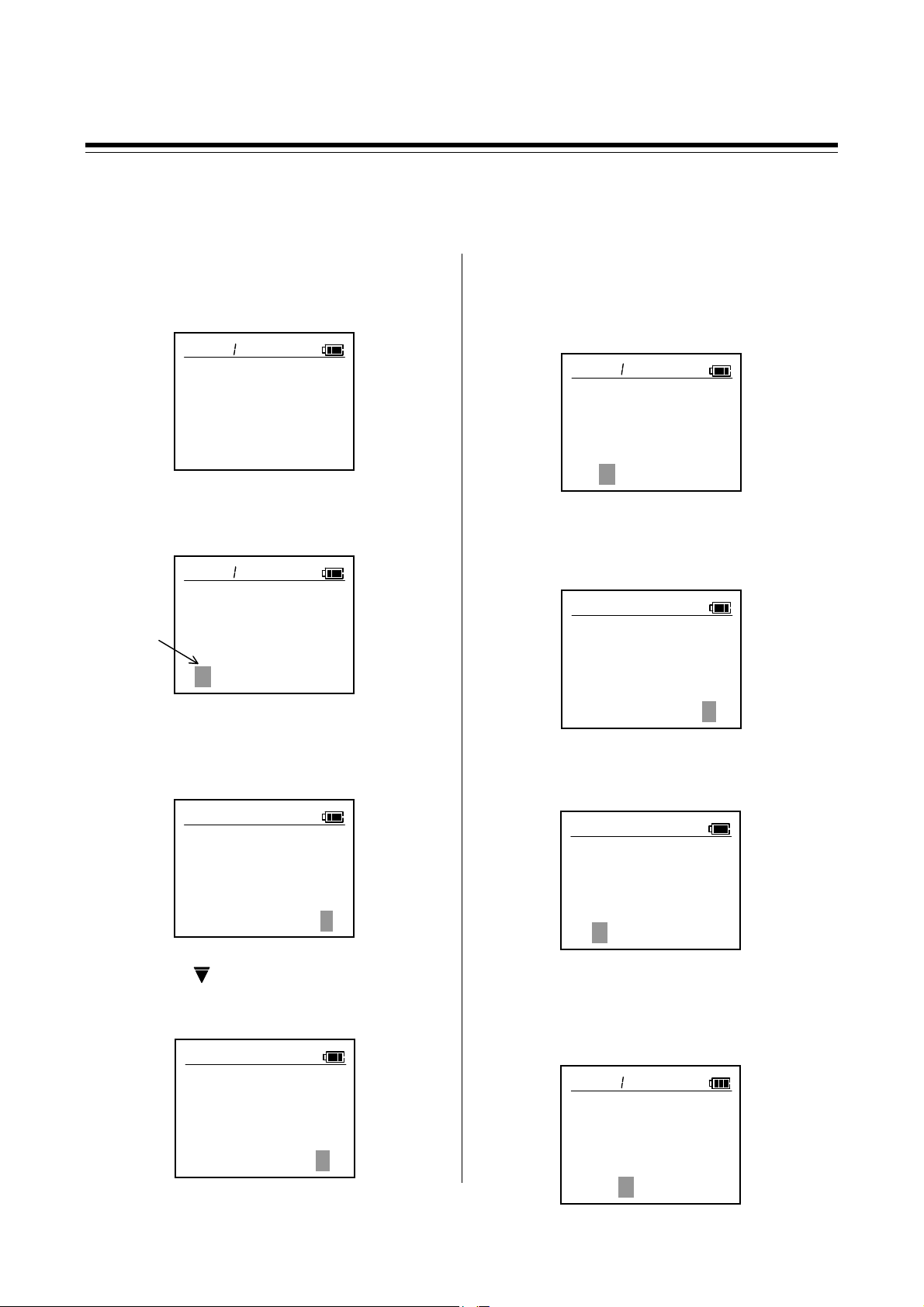

Example: Change the tag name of Tag No. 2 from “TAG02” to “PAN02”

1. Press the SET key at TAG Setup (Fn2)

screen to display the tag name screen.

TAG01

2. Press the key.

The display goes to the tag name screen of Tag No. 2.

TAG02

3. Press the SET key.

The cursor is displayed in the position displayed with the tag name “T.”

Blinking

TAG02

4. Press the MENU/POWER key.

The list of characters is displayed in the message column.

STUVWXYZ

5. Press the key. The list of characters including “P” is displayed.

JKLMNOPQR

6. Press the > key to move the cursor to the position displayed with “P.”

JKLMNOPQR

7. Press the SET key to store the new set value. The screen returns to the tag name screen of Tag No.2 and the cursor moves to “A.”

PAG02

8. Press the > key to move the cursor to the position displayed with “G.”

PAG02

IMR01X01-E2

4. JUDGING MEASURED TEMPERATURES [SIMPLIFIED JUDGING FUNCTION]

9. Press the MENU/POWER key. The list of characters is displayed in the message column.

BCDEFGHI

10. Press the key. The list of characters including “N” is displayed.

JKLMNOPQR

11. Press the < key to move the cursor to the position displayed with “N.”

JKLMNOPQR

12. Press the SET key to store the new set value. The screen returns to the tag name screen of Tag No.2 and the cursor moves to “0.”

PAN02

The setting is finished.

When setting the judgment criteria (judgment points of high and low temperatures) succeedingly, press the SET key. (P. 14)

To return to the measurement screen, press the ESC key three times.

How to change the character without displaying the list of characters?

1. Move the cursor to the position displayed with the character to be revised by using the

< or > key.

2. Display the character to be revised by using the or key.

How to delete one character?

1. Move the cursor to the position displayed with the character to be deleted using the < or > key.

2. Press the MENU/POWER key twice to display the screen for checking the deletion.

3. Press the SET key to delete the character where the cursor blinked.

How to insert space for entering a character in any position?

1. Move the cursor to the position where a character needs to be entered using the < or > key.

2. Press the MENU/POWER key three times to display the screen for checking the entry.

3. Press the SET key to insert space for

entering the character before the character position where the cursor blinks.

IMR01X01-E2

4. JUDGING MEASURED TEMPERATURES [SIMPLIFIED JUDGING FUNCTION]

4.2 Setting the Judgment Range of High/Low Limit Temperatures

Set the judgment points of high and low temperatures for judging measured temperatures. This setting is made for each tag name. This judgment is conducted from the time when measurement is started.

 Procedures

Example: When setting a high temperature of 90.0 °C and a low temperature of 50.0 °C

for Tag No.2 (tag name: PAN02)

1. Press the SET key at the tag name screen of Tag No.2 to display the judgment point of high limit temperature setting screen.

Hi Limit

Flashing

2. Press the < key to flash the tens digits.

3. Press the key to change the number to

Hi Limit

Setting range: Same as input range

Factory set value:

0.0 °C [32.0°F]

4. Press the SET key to store the new value. The display goes to the next screen (Judgment point of low limit temperature).

5. Press the < key to flash the tens digits.

Low Limit

Flashing

Setting range: Same as input range

Factory set value:

0.0 °C [32.0°F]

6. Press the key to change the number to

Low Limit

7. Press the SET key to store the new set value. The display returns to the tag name screen of Tag No.2.

The setting is finished.

To return to the measurement screen after the setting is finished, press the ESC key three times.

14 IMR01X01-E2

4. JUDGING MEASURED TEMPERATURES [SIMPLIFIED JUDGING FUNCTION]

4.3 Judging Measured Temperatures

The judgment criteria of a measured temperature is described by referring to the following example.

• Measured object: Hot water

• Tag number: 2 (tag name: PAN02)

• Judgment criteria: Judgment point of high limit temperature 90.0 °C

Judgment point of low limit temperature 50.0 °C

 Procedures

1. Turn on the power. The measurement screen appears on the LCD.

2. Press the > key. Tag name is displayed in the message column.

First check whether or not a displayed screen is for the tag name of Tag No.2. If not, press the or key to select the tag name of Tag No.2.

11/11 10:00

Measurement screen

The tag name displayed when the > key is pressed is that with the tag number selected last, which continues to be displayed until the power is turned off.

TAG01

Example: Tag name screen of Tag No.1

PAN02

IMR01X01-E2

For example, if the tag name of Tag No.5 is selected last, the tag name of Tag No.5 is displayed in the message column when selected to the tag name from the measured date.

When the power is turned off with the tag name of Tag No.5 displayed

Power ON

11/11 10:00

Measured date

TAG05

Tag name

Continued on the next page.

4. JUDGING MEASURED TEMPERATURES [SIMPLIFIED JUDGING FUNCTION]

3. Temperatures in a measured object are measured.

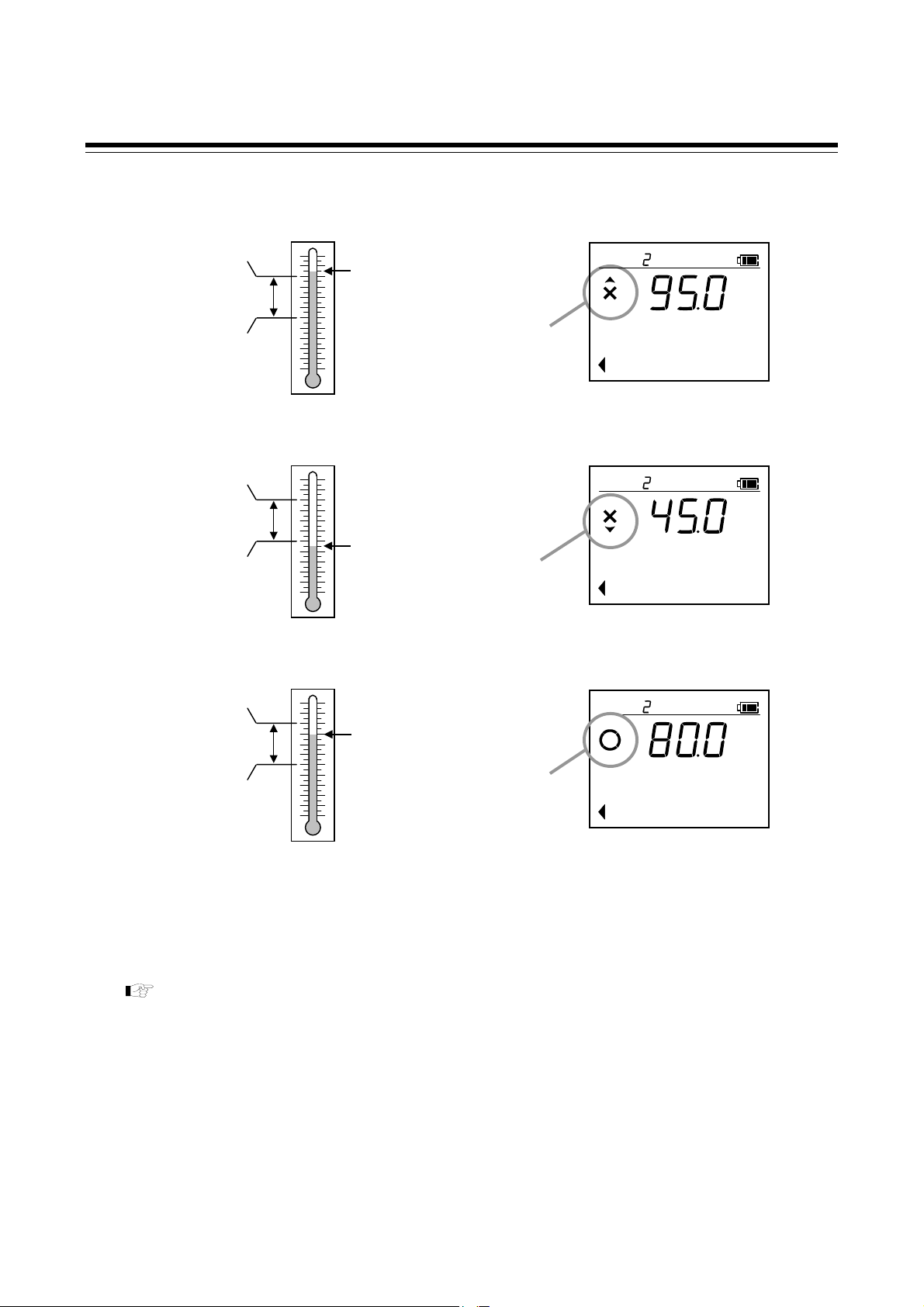

• When exceeding the judgment point (90.0 °C) of high limit temperature

High limit temp.

Low limit temp.

Judgment range

Measured temp. (95.0 °C)

Judgment symbol

PAN02

Tag name screen

• When falling below the judgment point (50.0 °C) of low limit temperature

High limit temp.

Judgment range

Low limit temp.

Measured temp. (45.0 °C)

Judgment symbol

PAN02

Tag name screen

• When within the judgment points (50.0 to 90.0 °C)

High limit temp.

Low limit temp.

Judgment range

Measured temp. (80.0 °C)

Judgment symbol

PAN02

Tag name screen

Thus, the judgment of measured temperatures has been finished.

When needing to record measured temperatures * in the memory, see 5. RECORDING MEASURED TEMPERATURES [LOGGING FUNCTION] (P. 17).

* No result of judgment can be recorded in the memory.

IMR01X01-E2

5. RECORDING MEASURED TEMPERATURES [LOGGING FUNCTION]

This chapter describes the procedure for recording measured data in the memory using the logging function.

Both manual recording and automatic recording are available for recording measured data in the memory. The measured data is recorded on the function menu “Memory (Fn1)” display screen manually or automatically. The data is recorded in the memory in the order of arrival.

Screen Configurations of Memory (Fn1) Menu:

Measurement

screen

ESC key

key

MENU/ POWER key

Tag Filter screen

TagFilter

MENU/ POWER key

Press the MENU/POWER key

ESC key

Memory

SET key

TAG01

key

Recorded tag name

ESC key

Log Jump screen

MENU/ POWER key

(P. 21)

Defrag check screen

Defrag?

SET key

(P. 25)

fter defragmentation is finished, returns to the display memory screen.

(P. 4)

> ke

Message column

transfer

Log Jump

(P. 22)

MENU/ POWER key

If the SET key is pressed after “Yes” is selected, returns to the display memory screen after defragmentation is finished.

Maximum number of recording data: DP-700A: 99 logs DP-700B: 9999 logs The maximum number of recorded data

items may not be recorded depending on the occupied state in the memory.

Data hold: For the DP-700A, the recorded data may be lost if the battery service life has expired or the battery is replaced.

Display memory screen

key

11/11 10:00

Recorded date

SET key (Only for the shaded screen)

Delete check screen

MENU/ POWER key

Delete?

(P. 23)

All Clear check screen

MENU/ POWER key

All Clear?

SET

key

(P. 24)

IMR01X01-E2 17

5. RECORDING MEASURED TEMPERATURES [LOGGING FUNCTION]

5.1 Manual Recording

Measured data * just when the REC key is pressed is recorded in the memory. Only when the REC key is pressed, is displayed.

* Recordable measured data:

Measured temperature, Measured date (excluding “Year”), Measured tag No. (tag name), Measured user No.

 Recording

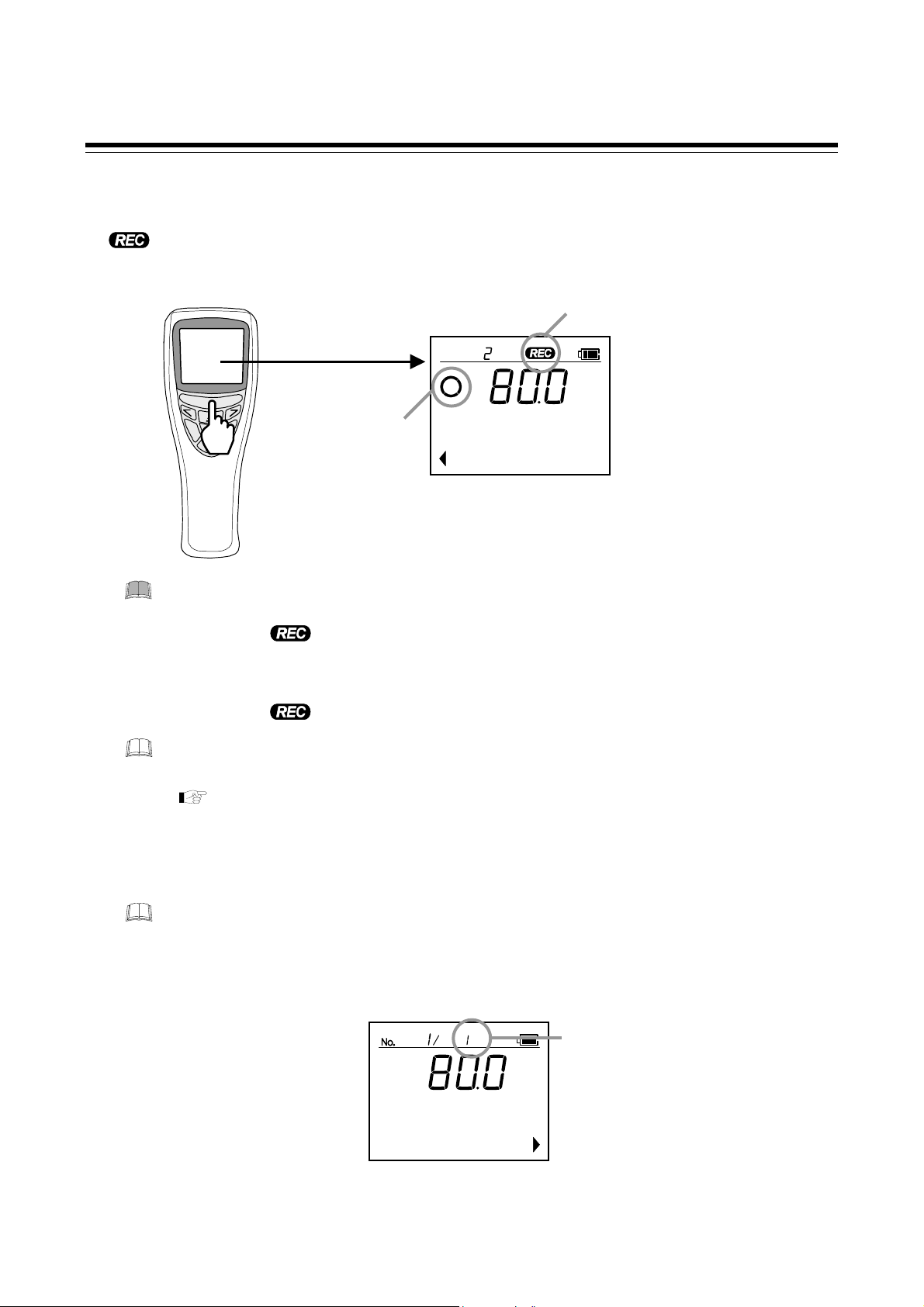

Press the REC key while measured. The measurement result displayed on the screen is recorded in the memory.

Example: When measured temperatures are recorded on the tag name screen of Tag No.2

DP-700

REC

No judgment result is recorded.

 Checking of recording

PAN02

Display on the measurement screen when the REC key is pressed.

Only when the REC key is pressed, is displayed.

Press the MENU/POWER key while displaying the measurement screen to display the Memory (Fn1) screen.

Pressing the SET key displays the recorded measured-data memory screen to be able to check the recorded measured-data.

Example: When the memory screen in the above example is displayed

Display memory No.: Indicates in what memory number measured data is recorded.

Total number of recorded memory data

PAN02

If two or more recorded data items need to be checked in order, press the or key.

It is possible to change the display (tag name or recorded date) in the message column. If necessary, press the < or > key.

IMR01X01-E2

5. RECORDING MEASURED TEMPERATURES [LOGGING FUNCTION]

5.2 Automatic Recording

Measured data * is recorded in the memory at time intervals preset. For automatic measured-data recording, the time interval needs to be set. Set it according to the following procedure.

* Recordable measured data:

Measured temperature, Measured date (excluding “Year”), Measured tag No. (tag name), Measured user No.

 Setting interval time

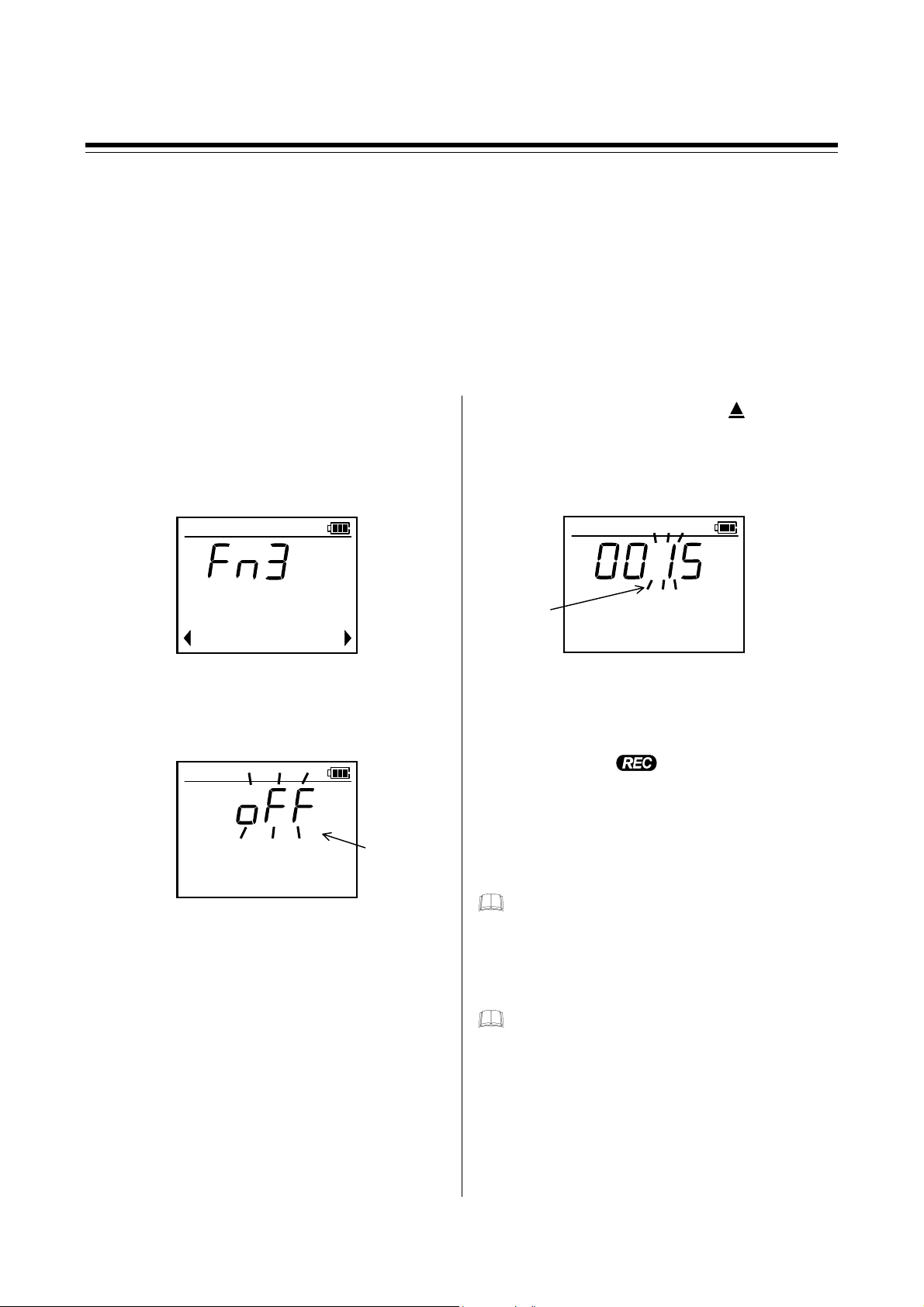

1. Press the MENU/POWER key three times at the measurement screen to display the function menu “Logging (Fn3)” screen.

Logging

2. Press the SET key. The display goes to the interval time setting screen.

Sec

Intervals

Flashing

Interval time:

Setting range:

OFF (Manual logging) 1 to 3600 seconds (Automatic logging)

Factory set value:

OFF (Manual logging)

3. Set the interval time by the key and

the shift key (< , >). (Example: Interval time 15 seconds)

Flashing

Sec

Intervals

4. Press the SET key to store the new set value. The display returns to the Logging (Fn3) screen. If the interval time is set, flashes (recording stop).

The setting finished.

To return to the measurement screen after the setting is finished, press the ESC key.

How to cancel the interval time setting?

Press the ESC key. The display returns to the Logging (Fn3) screen.

IMR01X01-E2

5. RECORDING MEASURED TEMPERATURES [LOGGING FUNCTION]

 Recording

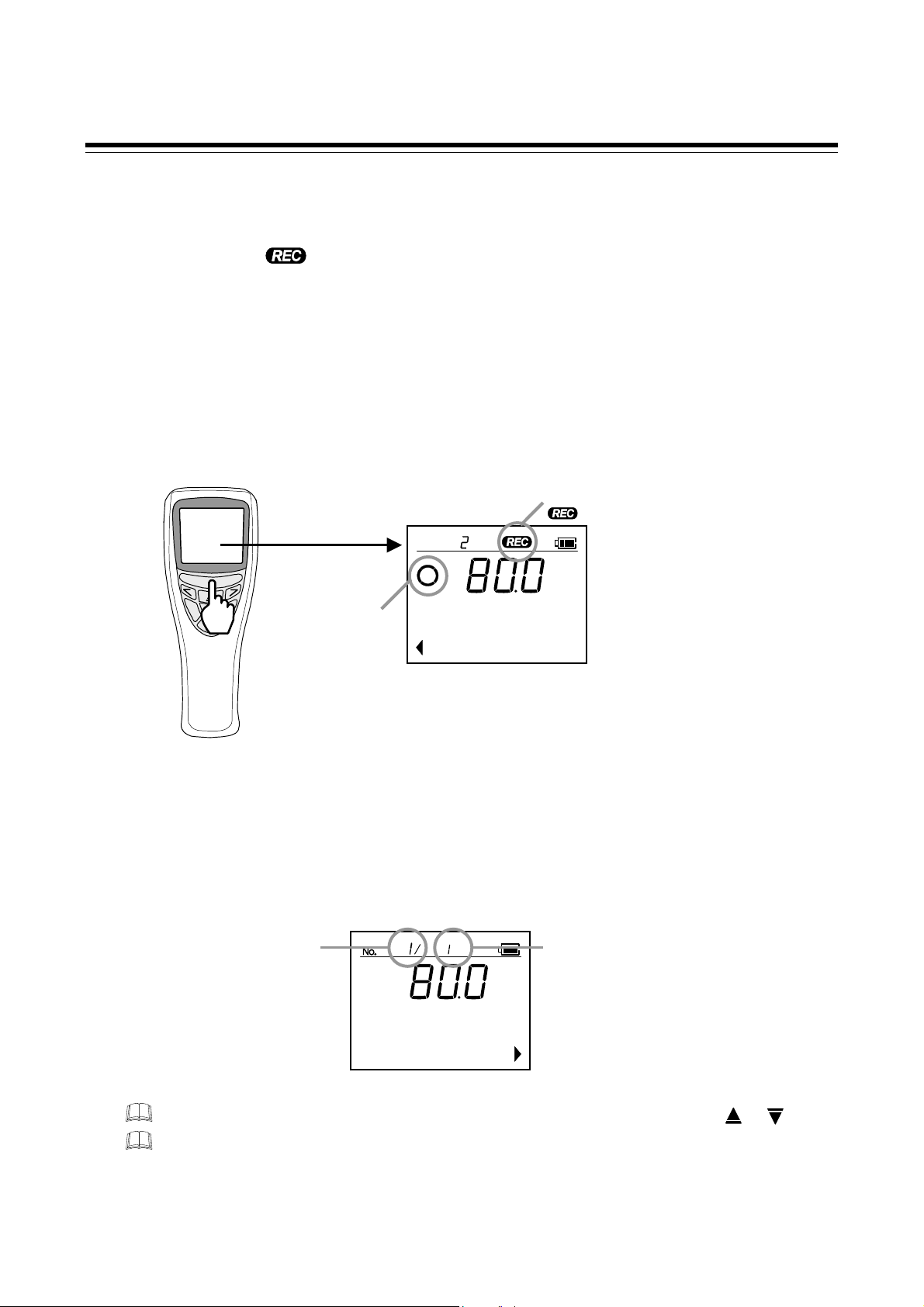

Press the REC key at the measurement screen. Recording starts at time intervals preset. keeps lighting while being recorded.

Example: When automatic measured-temperature recording is started while the tag

name screen of Tag No.2 is displayed.

DP-700

Lighting (during recording)

REC

No judgment result is

recorded.

PAN02

Display on the measurement screen when the REC key is pressed.

If the power is turned off by pressing the MENU/POWER key or even if the

power is turned off by the activation of the Auto power OFF function, during recording ( being lit) data recording continues at time intervals preset.

 Recording stop

Press the REC key. flashes to stop data recording.

How to return to manual recording? First, stop data recording and then turn the time interval to “OFF.”

For the interval time setting,  Setting interval time (P. 19).

 Checking of recording

To the checking of recording, see 5.1 Manual Recording (P. 18).

It is also possible to check recorded measured-data by opening the display memory screen while automatic recording is being made. As the measured data being checked is displayed on the display memory screen, no measured data being recorded is displayed. In this case, the total number of recorded memories is counted every time the data is recorded.

PAN02

Display memory screen

Total number of recorded memory data

20 IMR01X01-E2

5. RECORDING MEASURED TEMPERATURES [LOGGING FUNCTION]

5.3 Retrieving Recorded Data

Measured data is recorded in the memory in the order of arrival. The following two types of retrieval are available for checking any tag name and recorded measured-data recorded in the memory. Use either one of them depending on your application.

Tag filter: Only measured data with any tag name is retrieved and then displayed. Log jump: Recorded measured-data is displayed by specifying the display memory number.

5.3.1 Retrieving only recorded data with specified tag name (Tag Filter)

As measured data is recorded in the order of arrival, there may be a case where no data is recorded for each tag name. It is possible to retrieve and then display only the measured data with the specified tag name bay setting this tag filter.

 Procedures

1. Press the MENU/POWER and SET keys

in this order while displaying the measurement screen to display the display memory screen.

2. Press the or key while displaying

TAG01

the display memory screen to display the log name to be retrieved.

TAG03

Log name to be retrieved

3. Press the MENU/POWER key to display

the Tag Filter screen.

TagFilter

Flashing

4. Press the key to change the item to

“ON.”

5. Press the SET key to store the new set

TagFilter

value. Returns to the display memory screen with the log name to be retrieved.

6. Pressing the or key displays only

TAG03

the display memory screen with the log name retrieved. To return to the measurement screen, press the SET key twice.

How to release the log filter?

Change the log filter setting to “OFF” by pressing the key and then press the SET key.

Flashing

IMR01X01-E2

5. RECORDING MEASURED TEMPERATURES [LOGGING FUNCTION]

5.3.2 Retrieving recorded data with specified log registered No. (Log Jump)

It is possible for the DP-700A to record up to 99 logs and for the DP-700B, up to 9999 logs, respectively, For this reason, it is more difficult to select the display memory screen of data to be checked as the number of recording data items increases. It is possible to retrieve and then display any data with specified display memory number by setting this Log Jump.

 Procedures

1. Press the MENU/POWER key and SET

key in this order while displaying the measurement screen to display the display memory screen.

2. Press the MENU/POWER key twice to

TAG01

display the Log Jump screen.

Log Jump

Current display memory No.

Flashing

3. Press the key, key, or the shift key

(< , >) to display the log name to be retrieved.

Flashing

Log Jump

Display memory No. to be retrieved

4. Press the SET key.

Displays the screen with the display memory number specified. To return to the measurement screen, press the SET key twice.

TAG05

How to cancel the log jump?

Press the ESC key. The display returns to the Logging (Fn3) screen.

IMR01X01-E2

5. RECORDING MEASURED TEMPERATURES [LOGGING FUNCTION]

5.4 Deleting Recorded Data

The following two types of procedure are available for deleting measured data recorded in the memory.

Deleted?: Deletes only one recorded data item. All data deleted?: Deleted all recorded data items.

5.4.1 Deleting only one recorded data item (Delete?)

Can delete only one recorded data item selected. If the procedure for this deletion is executed, the display memory number and the total number of recorded data items decrease by one.

TAG01

 Procedures

1. Press the MENU/POWER key and SET key in this order while displaying the measurement screen to display the display memory screen.

2. Press the or key while displaying the display memory screen to display the

screen to be deleted.

TAG01

Delete

To delete

Display memory No. to be deleted

TAG01

TAG05

3. Press the MENU/POWER key three times to display the delete check screen.

Delete?

Haw to cancel “Delete?”

Press the ESC key. The display returns to the display memory screen.

4. Pressing the SET key executes the procedure for this deletion. The display returns to the display memory screen. To return to the measurement screen, press the SET key twice.

IMR01X01-E2 23

5. RECORDING MEASURED TEMPERATURES [LOGGING FUNCTION]

5.4.2 Deleting all recorded data items (All Clear?)

Can delete all recorded data items recorded.

 Procedures

1. Press the MENU/POWER and SET keys in this order while displaying the measurement screen to display the display memory screen.

TAG01

2. Press the MENU/POWER key four times to display the All Clear check screen.

ll Clear?

Flashing

3. Press the key to change the item to “YES.”

Flashing

ll Clear?

How to cancel “YES”?

Press the ESC key. The display returns to the display memory screen.

To return to the measurement screen, press the ESC key three times.

4. Pressing the SET key executes the procedure for this deletion (All Clear).

The following progress check screen is displayed during the execution of this deletion.

Do not press the key until this screen automatically disappears.

Returns to the measurement screen after the procedure for this deletion is finished.

No deletion is suspended even it the ESC key is pressed while the procedure for this deletion is in progress.

Returns to the measurement screen

ll Clear!

This deletion is finished.

Deletion progress ratio (%)

24 IMR01X01-E2

5. RECORDING MEASURED TEMPERATURES [LOGGING FUNCTION]

5.5 Defragmenting Recorded Data

If measured data recording and deleting operation are repeated, the recording memory capacity may become insufficient. However, it becomes possible to efficiently secure the recordable area by rearranging recorded data in the memory and defragmenting the memory area.

 Procedures

1. Press the MENU/POWER and SET keys

in this order while displaying the measurement screen to display the display memory screen.

TAG01

2. Press the MENU/POWER key five times to display the defrag check screen.

Defrag?

Total number of recorded memory data

Memory usage ratio (%)

How to cancel the procedure for this defragmentation?

Press the ESC key. The display returns to the display memory screen. To return to the measurement screen, press the ESC key twice.

3. Pressing the SET key executes the procedure for this defragmentation.

The following progress check screen is displayed while defragmentation is being executed. Time required for this defragmentation differs depending of the memory area being used.

Do not press the key until this screen automatically disappears.

Returns to the display memory screen after the procedure for this defragmentation is finished.

Returns to the display memory screen

Defrag!

This defragmentation is finished.

Defragmentation progress ratio (%)

To return to the measurement screen, press the ESC key twice.

The defragmentation is possible even during automatic recording. In addition, automatic recording continues after the defragmentation is finished.

IMR01X01-E2 25

6. PEAK HOLD/BOTTOM HOLD

The peak hold/bottom hold function is used to store (hold) the maximum (peak) and minimum (bottom) measured temperature. Each of these values is updated when the measured temperature becomes more (or less) than the value now being held.

However, if the following operation is performed, the value now being held is reset and as a result the measured temperature just when reset becomes the peak hold or bottom hold value.

• When replaced the battery.

• When changed sensor type, display unit or decimal point position

• When reset (peak/bottom) by the key operation

Power ON

Measurement

Memory (Fn1)

TAG Setup

(Fn2)

Logging (Fn3)

Peak/Bottom

(Fn4)

User Name

(Fn8)

Setup (Fn9)

Utility (Fn0)

Returns to

Memory (Fn1)

screen

Returns to Measurement screen

: Press the

MENU/POWER key or

uto-

matically

ESC key

> key

 To display the peak hold value/bottom hold value

1. Press the SET key at Peak/Bottom (Fn4) screen. The display goes to Peak hold value screen.

2. Press the SET key. The display goes to Bottom hold value screen.

3. Press the SET key. The display returns to Peak hold value screen.

Peak/Bottom (Fn4)

SET

Peak hold value

Bottom hold value

SET

Peak/Bottom

Peak val.

SET

Bottom val.

Measured temperature (PV)

Temperature display value

(Peak hold value)

Temperature display

value

(Bottom hold value)

Power ON

Bottom hold

value

display

updating

Peak hold

value

display

updating

Peak reset

(See P. 27)

Peak/bottom hold action description

ESCESC

Time

26 IMR01X01-E2

Power ON

Measurement

Memory (Fn1)

TAG Setup

(Fn2)

Logging (Fn3)

Peak/Bottom

(Fn4)

User Name

(Fn8)

Setup (Fn9)

Utility (Fn0)

Returns to

Memory (Fn1)

screen

Returns to Measurement screen

: Press the

MENU/POWER key or

uto-

matically

ESC key

> key

6. PEAK HOLD/BOTTOM HOLD

 To reset the peak hold value

1. Press the MENU/POWER key at Peak hold value screen.

2. “Peak rst?” is displayed in the message column.

To execute reset: Press the SET key. To cancel reset: Press the ESC key.

3. The display returns to Peak hold value screen.

Peak hold value

MENU/

POWER

Peak reset

Peak val.

Peak hold value

ESC

(To cancel reset)

Peak rst?

SET

(To execute reset)

Peak val.

Peak hold value becomes measured temperature just when reset.

 To reset the bottom hold value

1. Press the MENU/POWER key at Bottom hold value screen.

2. “Bottom rst?” is displayed in the message column.

To execute reset: Press the SET key. To cancel reset: Press the ESC key.

3. The display returns to Bottom

Bottom hold value

MENU/

POWER

hold value screen.

Bottom reset

Bottom val.

Bottom hold value

ESC (To cancel reset)

Bottom rst？

SET

To execute reset)

(

Bottom val.

Bottom hold value becomes measured temperature just when reset.

IMR01X01-E2

7. REGISTERING USER NAMES [ONLY FOR DP-700B]

This chapter describes the procedure for registering user name. Any user name can be registered (11 characters max.) for each user number. In addition, it is possible to set the user by selecting the user number. The user thus set is retained until the power is turned off. The registered user name is displayed when the power is turned on.

Screen configurations of User Name (Fn8) menu:

Measurement

screen

Press the MENU/POWER key five times.

ESC key

UserName

(P. 4)

ESC key

SET key

User name screen

User numbe

Key

The user can be set by selecting the user number.

* Nothing is registered at the

time of factory shipment and therefore this space is vacant.

SET key

Number of maximum registration:

99 names

User name *

User name setting screen with

selected user number

(Example: User No. 1)

SET key (To execute setting)

Cursor blinking

(P. 29)

MENU/POWER key

ESC key (To suspend operation)

Character entry (P. 29)

28 IMR01X01-E2

7. REGISTERING USER NAMES [ONLY FOR DP-700B]

 Character entry screen

Example: When the user name screen of user No. 1 is selected.

User name setting screen

Cursor blinking

Press the ESC key three times

SET key ESC key

Returns to Measurement screen

SET key ESC key

MENU/ POWER key

Character selecting screen

0123456789

MENU/ POWER key

Delete check screen

Delete?

(P. 31)

Insert check screen

MENU/ POWER key

Insert?

(P. 31)

MENU/ POWER key

A list of characters including the currently selected character (cursor blinking) is displayed in the message column.

Select the list of characters by the or

key and then select the desired

character by the

SET key: To execute selection ESC key: To suspended operation

Screen used to check whether or not the currently selected character (curso blinking) is deleted.

SET key: To execute deletion ESC key: To suspend operation

Screen used to check whether to inser space for entering a character in the

selected character (cursor blinking).

SET key: To execute insertion ESC key: To suspend operation

< or > key.

osition displayed with the currently

Characters list

Numerals 0123456789 Alphabets A B CD E FG H I

IMR01X01-E2

JKLMNOPQR STUVWXYZ abcdefghi jklmnopqr stuvwxyz

Symbols @ ! #$ % &’ `

+-.;=^_ ()[]{}

o spaces (no characters)

can be used.

Select the list of characters by the or key.

7. REGISTERING USER NAMES [ONLY FOR DP-700B]

 Procedures

Example: Registers the user name "RKC" to user No. 1.

1. Press the SET key at User Name menu

5. Press the SET key to store “R.”

(Fn8) screen. The display goes to user name screen of user No. 1.

2. Press the SET key.

The cursor is displayed

6. Press the MENU/POWER key.

Blinking

3. Press the MENU/POWER key.

The list of characters is displayed in the

7. Press the

message column.

0123456789

4. Press the key twice.

8. Press the SET key to store “K.”

The list of characters including “R” is displayed.

JKLMNOPQR

The screen returns to the user name screen of user No. 1 and the cursor moves to the right.

The list of characters is displayed in the message column.

JKLMNOPQR

< key to move the cursor to the

position displayed with “K.”

JKLMNOPQR

The screen returns to the user name screen of user No. 1 and the cursor moves to the right.

IMR01X01-E2

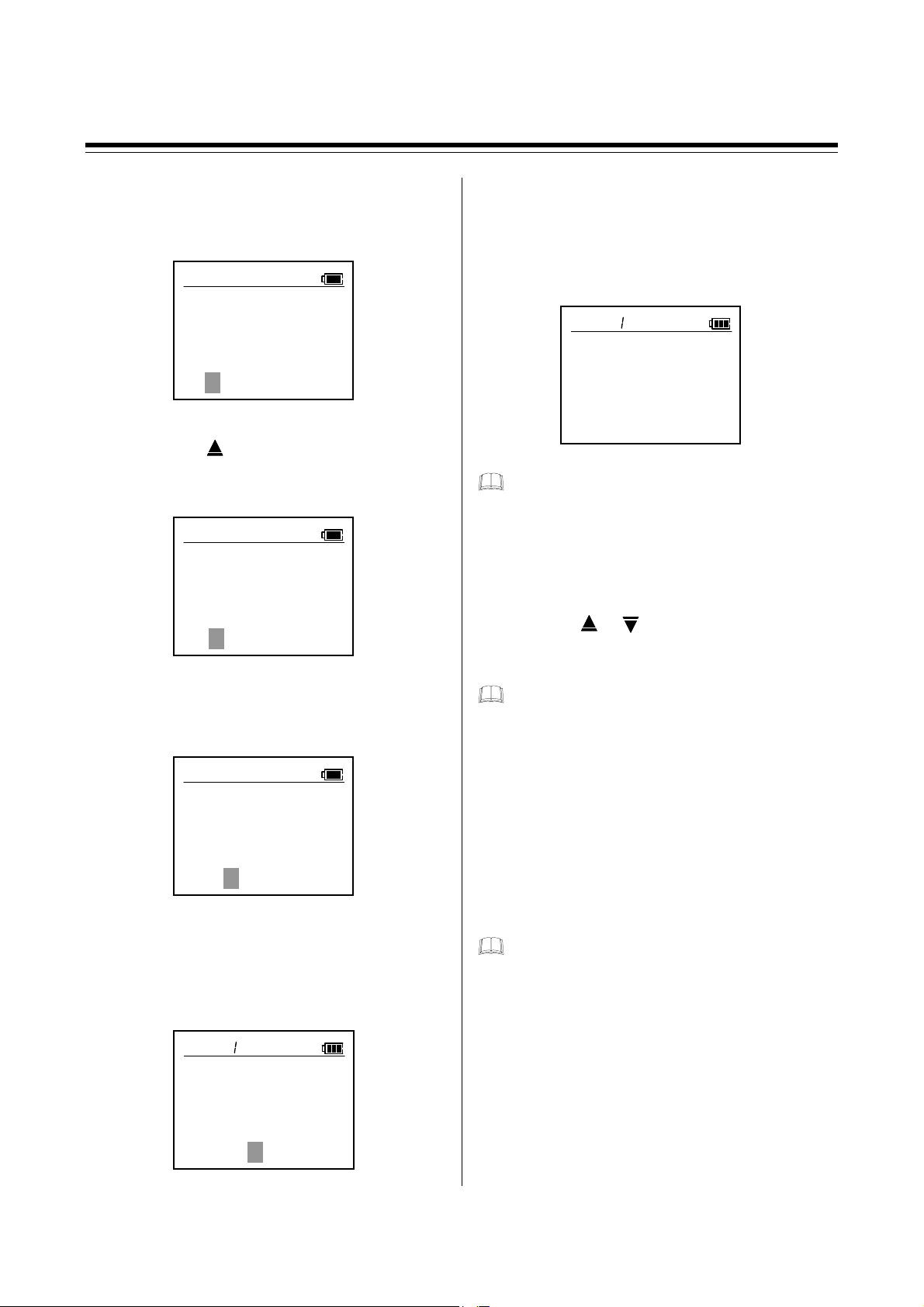

9. Press the MENU/POWER key. The list of characters is displayed in the message column.

JKLMNOPQR

10. Press the key. The list of characters including “C” is displayed.

BCDEFGHI

11. Press the > key to move the cursor to the

position displayed with “C.”

BCDEFGHI

12. Press the SET key to store “C.”

The screen returns to the user name screen of user No. 1 and the cursor moves to the right.

RKC

7. REGISTERING USER NAMES [ONLY FOR DP-700B]

13. Press the SET key to store the “RKC.” The cursor disappears. The name setting is finished. To return to the measurement screen, press the ESC key twice.

RKC

How to change the character without displaying the list of characters?

1. Move the cursor to the position displayed

with the character to be revised by using the < or > key.

2. Display the character to be revised by

using the or key.

How to delete one character?

1. Move the cursor to the position displayed

with the character to be deleted using the

< or > key.

2. Press the MENU/POWER key twice to

display the screen for checking the deletion.

3. Press the SET key to delete the character

where the cursor blinked.

How to insert space for entering a character in any position?

1. Move the cursor to the position where a

character needs to be entered using the < or > key.

2. Press the MENU/POWER key three times

to display the screen for checking the entry.

Press the SET key to insert space for entering the character before the character position where the cursor blinks.

IMR01X01-E2

8. INITIAL SETTING

This chapter introduces each function which can be set according to the customer applications.

For items that are not necessary to be changed, use the same setting values as the factory set values.

Power ON

Measurement

uto-

matically

Press the MENU/POWER key or

> key six

times

Setup (Fn9)

Display

language

Date format

Sensor type

Display unit

Decimal point

position

 To select the display language (English/Japanese)

Select the language (English/Japanese) which needs to be displayed on the screen.

1. Press the or key to select the “English or Japanese.”

Data range: English or Japanese Factory set value: English

English Japanese

2. Press the SET key to store the new set value.

To return to the measurement screen, press the ESC key twice.

 To select the date format

PV Bias

Digital filter

Auto power

OFF

Operation lock

: Press the

SET key

Select the date format.

1. Press the or key to select the “Date format.”

Data range: month/day or day/month Factory set value: month/day

month/day day/month

2. Press the SET key to store the new set value.

To return to the measurement screen, press the ESC key twice.

32 IMR01X01-E2

Power ON

Measurement

uto-

matically

Press the MENU/POWER key or

> key six

times

Setup (Fn9)

Display

language

Date format

Sensor type

Display unit

Decimal point

position

PV Bias

Digital filter

Auto power

OFF

Operation lock

: Press the

SET key

8. INITIAL SETTING

 To select the sensor type

Select the sensor type used for measurement.

1. Press the or key to select the “Sensor type.”

Data range: TC-K: Thermocouple K TC-J: Thermocouple J Pt100: RTD Pt100 TC-T: Thermocouple T Factory set value: TC-K (Thermocouple K)

TC-K TC-J Pt100

TC-T

2. Press the SET key to store the new set value.

To return to the measurement screen, press the ESC key twice.

 To select the display unit (°C/°F)

Select the display unit of measured temperature.

1. Press the or key to select the “Display unit.”

Data range: °C or °F Factory set value: °C

IMR01X01-E2

Unit

2. Press the SET key to store the new set value.

To return to the measurement screen, press the ESC key twice.

8. INITIAL SETTING

Power ON

Measurement

uto-

matically

Press the MENU/POWER key or

> key six

times

Setup (Fn9)

Display

language

Date format

Sensor type

Display unit

Decimal point

position

PV Bias

Digital filter

Auto power

OFF

Operation lock

: Press the

SET key

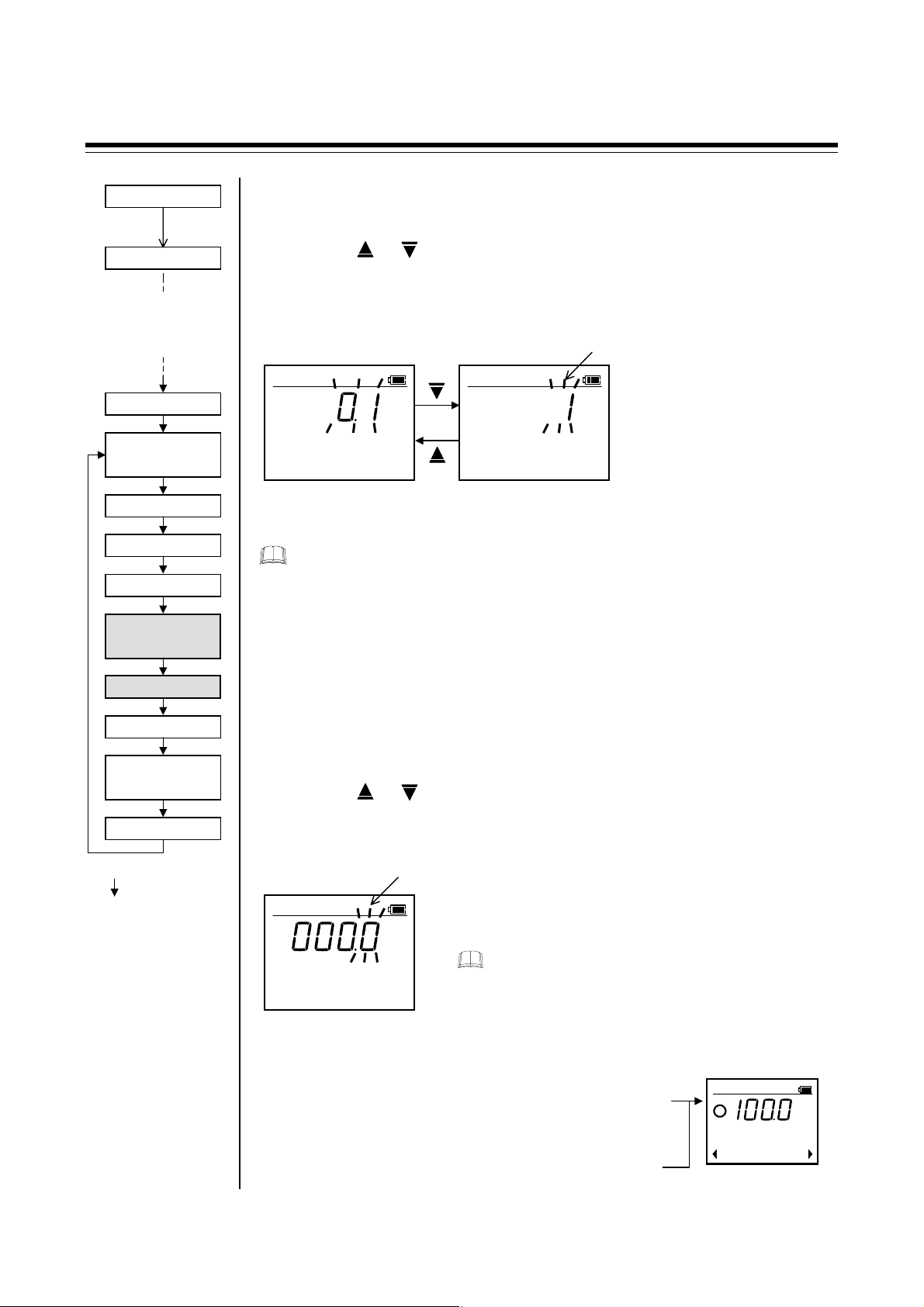

 To select the decimal point position

Select the decimal point position of input range.

1. Press the or key to select the “Decimal point position.”

Data range: 0.1: One decimal place 1: No decimal place Factory set value: 0.1 (One decimal place)

Flashing

2. Press the SET key to store the new set value.

To return to the measurement screen, press the ESC key twice.

 To correct the temperature display value (PV Bias)

Set the bias (correction value) added to the measured temperature for sensor correction. The PV bias is used to compensate the individual variations of the sensors or correct the difference between the measured temperatures of other instruments.

1. Press the < or > key to move the flashing digit.

2. Press the or key to set the “Correction value.”

Data range: −99.9 to +99.9 °C (°F) Factory set value: 0.0

Flashing

PV Bias

To return to the measurement screen,

ress the ESC key twice.

3. Press the SET key to store the new set value.

Example:

If PV bias correction value of 1.0 °C is added to the measured temperature.

When the measured temperature is

99.0 °C, temperature display will become 100.0 °C (=99.0 °C + 1.0 °C).

Measured temperature

99.0 °C

PV bias

1.0 °C

Measurement screen

11/11 09:10

IMR01X01-E2

Power ON

Measurement

uto-

matically

Press the MENU/POWER key or

> key six

times

Setup (Fn9)

Display

language

Date format

Sensor type

Display unit

Decimal point

position

PV Bias

Digital filter

Auto power

OFF

Operation lock

: Press the

SET key

8. INITIAL SETTING

 To lessen the fluctuation of a display value caused by noise

(Digital Filter)

Set the time of the first-order lag filter eliminate noise against the measured input. The digital filter is used to lessen the fluctuation of a display value caused by noise.

1. Press the < or > key to move the flashing digit.

2. Press the or key to set the “filter time.”

Data range: OFF (Unused), 1 to 100 seconds Factory set value: OFF

Flashing

D Filter

3. Press the SET key to store the new set value.

To return to the measurement screen, press the ESC key twice.

 Saving battery consumption (Auto Power OFF)

Set the time until the power is automatically turned off after no key operation is performed.

1. Press the

< or > key to move the flashing digit.

2. Press the or key to set the “ Auto power OFF time.”

Data range: OFF (Unused)、1 to 60 minutes Factory set value: 3

Flashing

Min

Auto Off

3. Press the SET key to store the new set value.

To return to the measurement screen, press the ESC key twice.

IMR01X01-E2

8. INITIAL SETTING

Power ON

Measurement

uto-

matically

Press the MENU/POWER key or

> key six

times

Setup (Fn9)

Display

language

Date format

Sensor type

Display unit

Decimal point

position

PV Bias

Digital filter

Auto power

OFF

Operation lock

: Press the

SET key

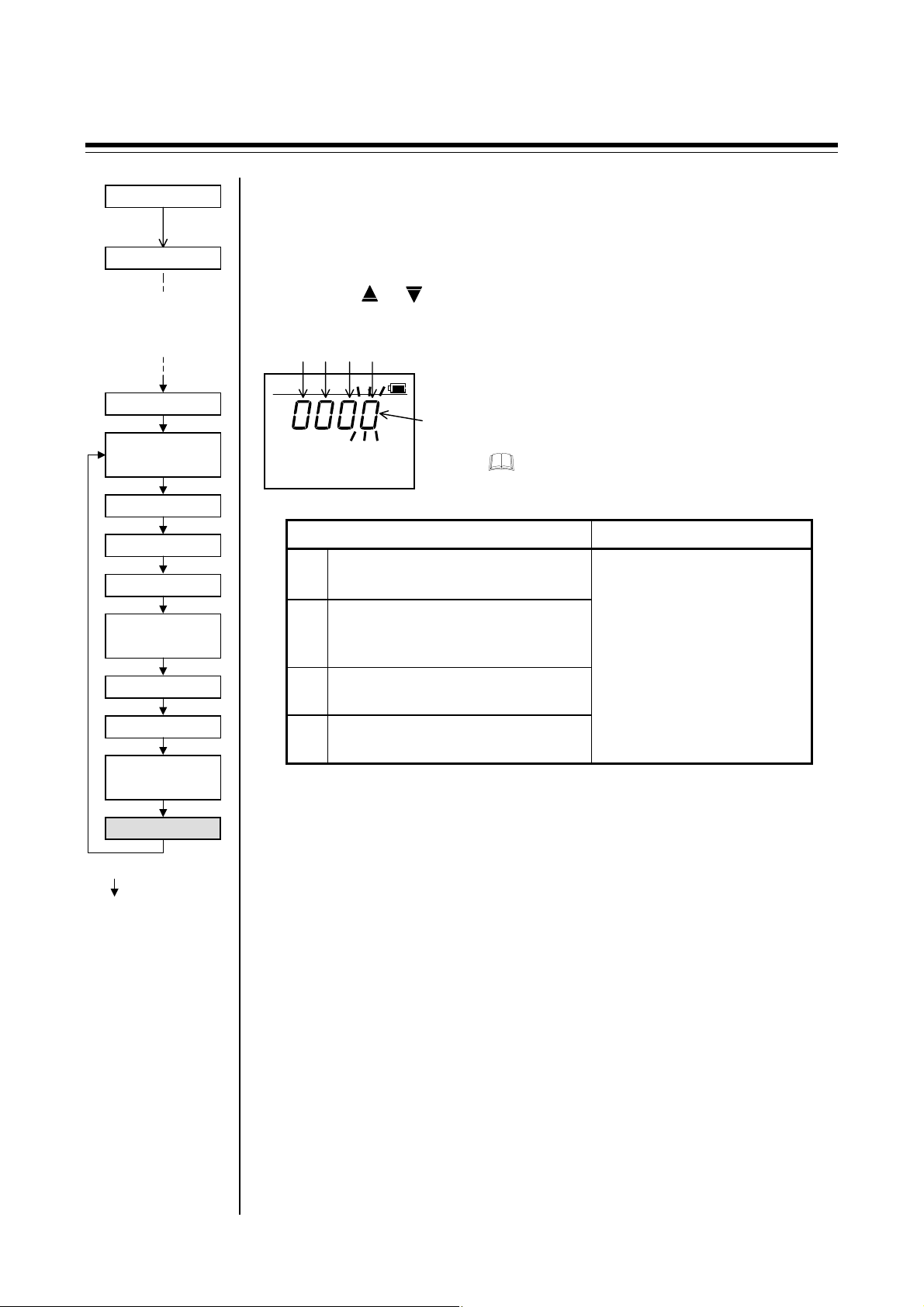

 Locking/Unlocking setting operation (Operation Lock)

Select setting disabled (locked)/setting enabled (Unlocked) for each item. Misoperation during usage can be prevented.

1. Press the < or > key to move the flashing digit.

2. Press the or key to set the “Disabled (locked)/setting enabled

(Unlocked).”

(4) (3) (2) (1)

Lock

Flashing

Factory set value: 0000 (Unlocked)

To return to the measurement screen,

ress the ESC key twice.

Setting items Data range

(1) Calendar timer (date and time)

setting

Setting items of Logging (Fn3),

(2)

0: Setting enabled

(Unlocked).

1: Disabled (locked)

User Name (Fn8) and Setup (Fn9) menus.

Setting items of TAG Setup

(3)

menu (Fn2)

Deletion of record data (1 or all

(4)

records data)

3. Press the SET key to store the new set value.

IMR01X01-E2

9. MANAGING DATA BY PC [ONLY FOR DP-700B]

For the DP-700B, it is possible to manage recorded (logging) temperature data, tag and initial set data stored in the memory by a personal computer with the DP-700B connected to the USB port of the computer. This chapter describes procedures for connecting the DP-700B to a personal computer and also for managing stored data.

Personal Computer: DOS/V PC and PC98-NX Series loaded with USB port (USB 2.0/1.1) OS: Windows XP Home Edition/Professional, Windows Me,

Windows 2000 Professional

9.1 Connecting PC to DP-700B

As the DP-700B is operated by the OS standard driver, it can be used only by connecting it to a PC.

1. The DP-700B is connected to the USB port of a PC using the USB cable attached. The DP-700B can be connected with the power turned on or off. *

2. The message “ ***USB*** ” is displayed on the bottom of the DP-700B screen to disable key operation. In addition, data logging stops when being logged.

If the DP-700B is used for the first time, the OS standard driver is automatically installed. When this OS corresponds to Windows XP or Windows 2000, start the windows system with the DP-700B unconnected to log on as a user having the authority of computer manager. First start the system, and then connect the PC to the DP-700B.

DP-700B

(Right view)

* The DP-700B is compatible with the USB bus power. The power is supplied from the USB port

on the PC side via the USB cable when connected with USB. It is possible to manage data by connecting USB even with the DP-700B power turned off..

Remove the USB connector cap.

Connect to the USB port

Mini B type

USB cable

Connect to the USB port

A type

USB cable length: 1 m

3. Open “My computer” of Windows to newly add the “Removable disk” icon.

IMR01X01-E2 37

9. MANAGING DATA BY PC [ONLY FOR DP-700B]

9.2 Storing Data

Open “My computer” of Windows to double click the “Removable disk” icon. Thus, three CSV files in the DP-700B memory area displayed.

LOG_.CSV: Recorded (logging) temperature data TAG_.CSV: Tag setting data SETUP_.CSV: Initial setting data

The LOG_.CSV, TAG_.CSV and SETUP_.CSV files are created when the DP-700B is connected to USB. As a file name of each file created, characters of identifying each entity (DP-700B)

 LOG_.CSV (Recorded temperature data)

are entered in . Thus, two or more DP-700B files are identified.

If no temperature data is stored within the DP-700B memory, the LOG_.CSV file is not displayed.

Recorded (logging) temperature data. Read only file. It can be opened and referred to by table calculation software such as Excel. In addition, it can be copied it stored at a location other than the DP-700B using a new name.

CAUTION

Deleting the LOG_.CSV file also clears all recorded temperature data within the DP-700B memory. Take care not to delete necessary recorded temperature data.

If no temperature data is stored within the DP-700B memory, the LOG_.CSV file

Contents of file: Memory No., Date, Time, Temperature, Tag No., User No.

is not displayed.

< When opened by Excel >

IMR01X01-E2

9. MANAGING DATA BY PC [ONLY FOR DP-700B]

 TAG_.CSV (Tag setting data)

DP-700B tag setting data. Writable/readable file. If it is opened by table calculation software such as Excel and then is edited and overwrite-stored, the setting can be reflected to the DP-700B.

Writes is inhibited if setting items in the TAG Setup menu (Fn2) is set to “Not be set

Contents of file:

(locked).” See  Locking/Unlocking setting operation (P. 36).

Name Data range Factory set value

Tag No. 1 to 99

Tag Name 11 characters

See List of usable characters (P. 41)

Judgment point of

Same as temperature input range

high temperature

Judgment point of

Same as temperature input range

low temperature

< When opened by Excel >



TAG01 to 99

0.0 °C or 32.0 °F

IMR01X01-E2

9. MANAGING DATA BY PC [ONLY FOR DP-700B]

 SETUP_.CSV (Initial setting data)

DP-700B initializing setting data. Writable/readable file. If it is opened by table calculation software such as Excel and then is edited and overwrite-stored, the setting can be reflected to the DP-700B.

Writes is inhibited if setting items in the Logging (Fn3), User Name (Fn8) and Setup (Fn9) menus are set to “Not be set (locked).”

Contents of file:

See  Locking/Unlocking setting operation (P. 36).

Name Command Data range Factory set value

User name

Display language

Date format

Sensor type

Display unit

Decimal point position

PV bias Digital filter Auto power OFF Interval time

< When opened by Excel >

User=

Language=

Date_format=

Input=

Unit=

TempDP=

TBias= TFilter= AutoOFF= Interval=

11 characters

Blank (No name) See List of usable characters (P. 41) 0: Japanese

1 1: English 0: Month/Day

0 1: Day/Month 0: Thermocouple K

0 1: Thermocouple J 2: RTD (Pt100) 3: Thermocouple T

0: °C

0 1: °F

0: No decimal place

1 1: One decimal place

−99.9 to +99.9 °C (°F)

0.0 0 to 100 seconds (0: OFF) 0 0 to 60 minutes (0: OFF) 3 0 to 3600 seconds (0: OFF) 0

Command

User No., User name

Setting data

IMR01X01-E2

 List of usable characters

Numeral 0123456789 Alphabets

ABCDEFGHI JKLMNOPQR STUVWXYZ abcdefghi jklmnopqr stuvwxyz

Symbols

@!#$%&’` +-.;=^_ ()[]{}

Spaces cannot be used.

 Storing data in hard disk of PC

9. MANAGING DATA BY PC [ONLY FOR DP-700B]

Copy data to the hard disk of the PC using Windows Explorer.

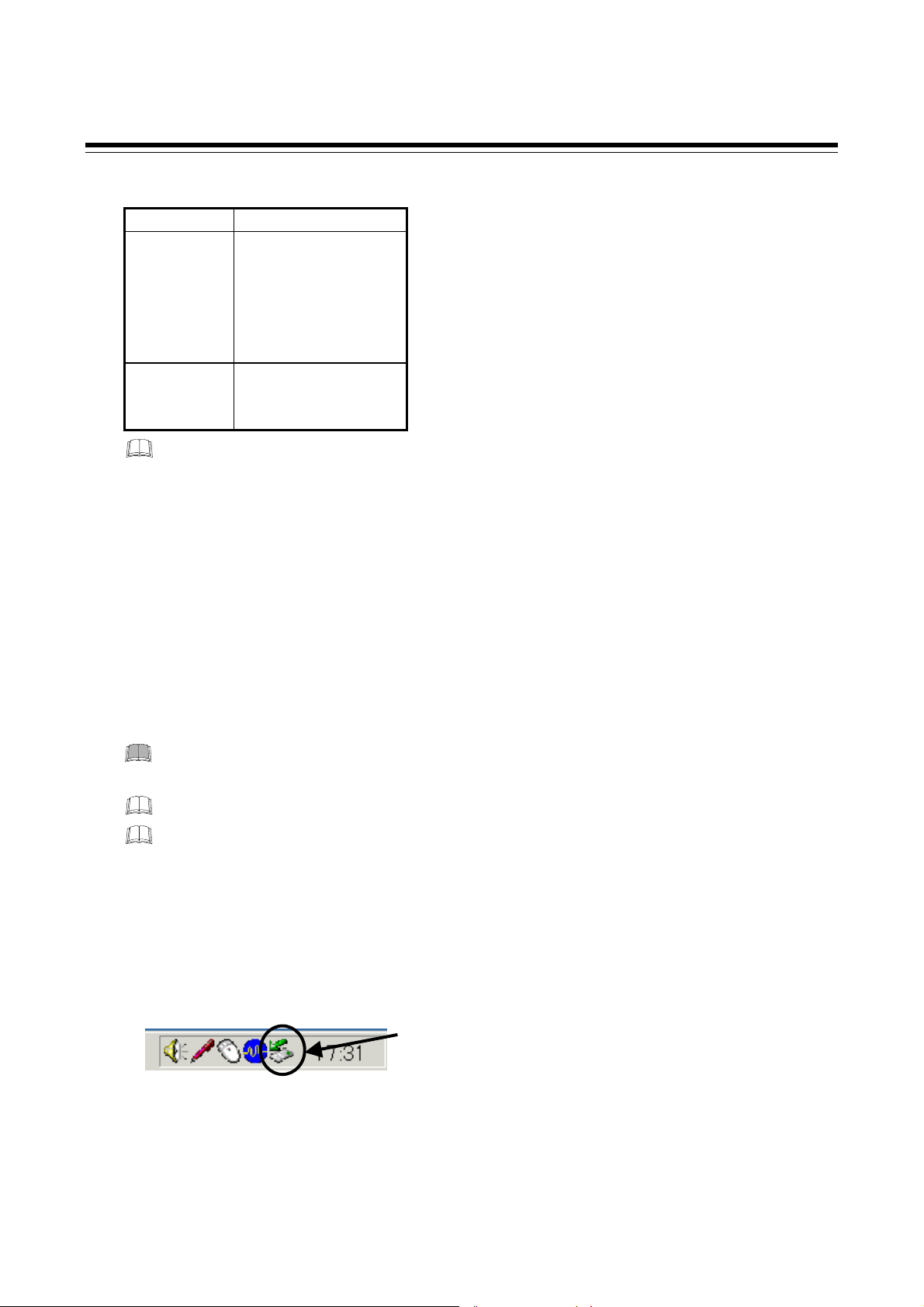

9.3 Disconnecting DP-700B from PC

Disconnect the DP-700B from the PC after the PC power is turned off or according to the following steps

Do not disconnect the DP-700B from the PC when the file is opened or while the

1. Check that the file is not opened or it is being stored. Close when the file is opened.

2. Click the “Hardware removal” icon in the system tray of the task bar and then select the

4. If the message “Removal OK” is displayed, click the “OK” button.

5. Disconnect the DP-700B from the PC.

file is being stored. Malfunction may result.

The DP-700B can be disconnected with the power turned on or off.

The disconnecting procedure is described in “Windows 2000.” Icons and windows displayed differ depending on OS used. For details, refer to the manual for “Windows.”

drive from the pop-up menu.

Click

IMR01X01-E2

10. APPENDIX

10.1 Replace the Battery

If (Battery service life is going to expire) is displayed, immediately replace the battery.

Replace battery: Type LR6 (based on IEC and JIS) alkaline battery, One battery Battery life: Can be operated for 400 hours continuously (Around the ambient

temperature 23 °C). However, the battery service life varies depending on the operating condition and environment. Therefore, the above service

If the battery is replaced, the instrument is reset-started. Therefore, there are some data items to be initialized. In addition, for the DP-700A all recorded data items are deleted. The state of each data when the battery is replaced (when reset-started) is shown in the following.

 Monitor items

Name DP-700A DP-700B

Peek hold Reset

Bottom hold Reset

Recorded (logging) data All recorded data clear Hold

 Setting items

Name DP-700A DP-700B

Tag Filter Initialize (OFF) Tag Name Hold

Judgment point of high

temperature

Judgment point of low

temperature Interval time Hold User No. selection User name Display language Hold Date format Hold Sensor type Hold Display unit Hold Decimal point position Hold PV bias Hold Digital filter Hold Auto power OFF Hold Operation lock Calendar timer setting: Can be set (Unlock)

Year Initialize (0) Date Initialize (01/01) Time Initialize (00:00)

life period is only for reference.

(Peak hold value becomes measured temperature just when reset.)

(Bottom hold value becomes measured temperature just when reset.)

−

Other setting items: Hold

Hold

Initialize (User No. 1)

Hold

42 IMR01X01-E2

−

 Procedures

1. Press the MENU/POWER key for more than two seconds to turn off the DP-700 power.

2. Loosen the battery cover.

Turn the cover with a coin.

Battery cover

3. Remove the battery cover.

10. APPENDIX

4. Remove the old battery. Load a new battery without mistaking its polarity.

Old battery

New battery Alkaline battery (LR6)

5. Then, firmly tighten the battery cover.

Insufficient tightening cannot assure the effect of water resistance (DP-700A: Equal to IP67, DP-700B: Equal to IP54).

After the battery is loaded, the instrument is ready to be reset-started. The function menu “Utility (Fn0)” for setting the dominical year is displayed on the LCD screen. If no

dominical year is set, no calendar function can be used. Always set the year if the calendar function is used.

Year setting screen

Pressing the ESC key twice can display the measurement screen.

Year

IMR01X01-E2

10. APPENDIX

10.2 Cleaning

Turn off the power supply before cleaning the instrument.

Moisten a soft cloth with a diluted neutral detergent, completely wring the cloth, then wipe the instrument with cloth. Do not use a volatile solvent such as paint thinner to clean the instrument. Deformation or discoloration will occur.

The DP-700A can be washed in flowing water as it has water and dust resistant characteristics equal to IP67. However, the DP-700B (Water/dust resistance equal to IP54) cannot be washed in flowing water.

10.3 Troubleshooting

This section describes probable causes and treatment procedures if any abnormality occurs in the instrument. For any inquiries, please contact RKC sales office or the agent, to confirm the specifications of the product.

Prior to replacing the sensor, always turn off the power.

10.3.1 Error displays

Displays and description of errors are described in the following table:

Display Description Solution

Service life is going to expire.

Service life has expired.

Burnout

The sensor is broken, shorted or imperfectly connected.

[Flashing]

Overscale

Measured temperature is above the 5 % of measuring range high limit value or display range limit high (9999).

Replace the new battery. See 10.1 Replace the Battery (P. 42).

Check sensor and sensor connection.

Check input type, input range, sensor and sensor connection.

[Flashing]

Underscale

Measured temperature is below the

5 % of measuring range low limit value or display range limit low (−1999).

Continued on the next page.

IMR01X01-E2

Continued from the previous page.

Display Description Solution

10. APPENDIX

(Err 1)

(Err 2)

(Err 4)

(Err 64)

Adjusted data error

• Adjusted data range is abnormal.

First remove the battery, and then load it again after a lapse of a few seconds.

If not normally operated with the battery re-loaded, please

EEPROM error

• Response signal from EEPROM is

abnormal.

contact RKC sales office or the agent.

• Data write failure

A/D conversion error

• Response signal from A/D

converter is abnormal.

• A/D conversion count value is out of the specified range.

Stack overflow

• Stack point overflows

Watchdog timer error

• The part of an internal task stops the action.

(Err 128)

If two or more self-diagnostic errors occur (Err 1, Err 2, Err 4, Err 64 and Err 128), the value obtained by adding the error number to the Err display is displayed.

IMR01X01-E2

10. APPENDIX

10.3.2 Problem and solution

Problem, probable cause and solution of trouble described in the following table:

Problem Probable cause Solution

No power is turned on. (No display appears)

No battery is loaded. Load a battery.

See 2.1 Loading Battery (P. 5).

The battery with less service

life is used.

Replace the new battery. See 10.1 Replace the Battery (P. 42).

Measured temperature display is abnormal

The battery with less service life is used.

Replace the new battery. See 10.1 Replace the Battery (P. 42).

Noise source is present near

the instrument

Separate the noise source from the instrument.

Set the digital filter.

See  To lessen the

fluctuation of a display value caused by noise (P. 35).

Proper sensor is not used Use the specified sensor.

Sensor insertion depth is

insufficient

Check whether sensor is inserted loosely. If yes, fully insert the sensor.

Sensor insertion position is

not appropriate

Measured temperature

PV bias is set Set the PV bias to “OFF.” display value differs from the actual value

The display does not change

CPU overrun First remove the battery, and No key operation is accepted

Insert the sensor at the specified location.

See  To correct the

temperature display value (P. 34). However, this is

limited only to when the PV bias setting can be changed.

then load it again after a lapse of a few seconds.

If not normally operated with the battery re-loaded, please contact RKC sales office or the agent.

IMR01X01-E2

10.4 Specifications

 Input

Input type: Universal input

Thermocouple: K, J, T (JIS-C1602-1995) RTD: Pt100 (JIS-C1604-1997)

Measuring range: Thermocouple K: −200 to +1372 °C (Resolution: 1 °C)

−328 to +2501 °F (Resolution: 1 °F)

−199.9 to +999.9 °C (Resolution: 0.1 °C)

−199.9 to +999.9 °F (Resolution: 0.1 °F)

Thermocouple J: −200 to +1200 °C (Resolution: 1 °C)

−328 to +2192 °F (Resolution: 1 °F)

−199.9 to +999.9 °C (Resolution: 0.1 °C)

−199.9 to +999.9 °F (Resolution: 0.1 °F)

Thermocouple T: −50 to +400 °C (−58 to +752 °F)

−50.0 to +400.0 °C (−58.0 to +752.0 °F)

RTD Pt100: −200 to +850 °C (Resolution: 1 °C)

−328 to +1562 °F (Resolution: 1 °F)

−199.9 to +850.0 °C (Resolution: 0.1 °C)

−199.9 to +999.9 °F (Resolution: 0.1 °F)

Sampling cycle: 0.5 seconds PV bias: −99.9 to +99.9 °C (°F) Digital filter: First order lag digital filter:

Time constant: 0 to 100 seconds (0: OFF) Moving average: 4 times (fixed)

 Performance

10. APPENDIX

Display accuracy (At the ambient temperature 23 °C ± 2 °C):

± (0.1 % of display value + 1 digit) or ± 0.3 °C (0.6 °F)

Less than the value whichever is greater

Cold-junction temperature compensation error:

±0.5 °C (Within 5 to 40 °C) ±1.0 °C (Within −20 to +5 °C and 40 to 50 °C)

Ambient temperature influence:

±0.01% /°C of span (Within 5 to 40 °C) ±0.02% /°C of span (Within −20 to +5 °C and 40 to 50 °C)

 Display

Reflective FSTN LCD

Measured temperature: 4-digit Display memory No.: 4-digit Total number of recorded data: 4-digit Message: 68 × 8 dots (11 characters) Recorded (logging) execution: Lit during execution, flashing during stop for automatic recording. Burnout: Lit when the sensor is disconnected, shorted or imperfectly

contacted.

Remaining battery service life: The remaining battery service life is indicated in three steps. Temperature unit: 12 × 8 dots (°C/°F)

IMR01X01-E2

10. APPENDIX

 Data recording (logging)

Recording method: Manual logging mode: Can be manually recorded in the memory.

Automatic logging mode: Can be automatically recorded (in a set interval) in the memory.

Interval time: 0 (Manual log mode), 1 to 3600 seconds Recording items: Measured temperature, Tag name, Date, Time Recording capacity: DP-700A: Maximum 99 logs

DP-700B: Maximum 9999 logs

Memory backup: DP-700A: Backed up by SRAM

The recorded data may be lost if the battery service life has expired or the battery is replaced. DP-700B: Backed up by non-volatile memory (EEPROM) Number of writing: Approx. 100,000 times Data retaining period: Approx. 10 years Depending on storage and operating conditions

 Simplified Judging Function

The judgment points of high and low temperatures are set. When within the judgment points, “” is displayed while when out of the judgment point, “×” is displayed. is displayed, if out of the high judgment point, while , if out of the low judgment point.

 Tag number function

Number of maximum registration:

DP-700A: 5 tags DP-700B: 99 tags

Registration items: Tag name, judgment points of high and low temperatures Tag name: 11 characters (Numeral, Alphabets, Symbols) Memory backup: Backed up by non-volatile memory (EEPROM)

Number of writing: Approx. 100,000 times Data retaining period: Approx. 10 years

 User name function (Only for DP-700B)

Number of maximum registration:

99 names

Number of character: 11 characters (Numerals, Alphabets, Symbols) Memory backup: Same as Memory backup of Data recording (logging)

 USB function (Only for DP-700B)

Interface: Based on USB (Universal Serial Bus) Ver2.0 Communication speed (Theory value):

Full Speed compliant (12 Mbps)

Connector type: USB series Mini-B Connection: The DP-700B is connected to the USB port of a PC using the USB

cable attached.

Power supply: Bus power (The power is supplied from the USB port on the PC side.) Device class: Mass Storage Class (Bulk-Only Transport) Compatible OS: Windows XP Home Edition/Professional, Windows Me,

Windows 2000 Professional

IMR01X01-E2

10. APPENDIX

 Other functions

Peak and bottom hold, Calendar timer, Operation lock, Self-diagnostic

 Power

Battery: Type LR6 (based on IEC and JIS) alkaline battery, One battery Battery life: Approx. 400 hours (Continuous operating time, Around the ambient

temperature 23 °C). However, the battery service life varies depending on the operating condition and environment. Therefore, the above service life period is only for reference.

Power consumption: 10 mW (Mean value while operated)

 Standards

Waterproof and dustproof: DP-700A: IP67

DP-700B: IP54

CE marking: EMC: EN61326, EN55011 C-Tick: AS/NZS2064 (Equivalent to EN55011)

 General specifications

Memory backup: Backed up by non-volatile memory (EEPROM) Number of writing: Approx. 100,000 times Data retaining period: Approx. 10 years Depending on storage and operating conditions

Backup data: Interval time, Display language,

Sensor type, Display unit,

Decimal point position, PV bias, Digital filter, Auto power OFF, Operation lock, Date format

Allowable ambient temperature:

−20 to +50 °C However, in an environment of less than 0 °C, the LCD response speed remarkably decreases.

Allowable ambient humidity: 5 to 95 % RH

Absolute humidity: MAX.W.C 29 g/m

dry air at 101.3 kPa

Dimensions: 57 (W) ×152 (H) ×46 (D) mm Weight: Approx. 150 g (Including battery)

IMR01X01-E2

MEMO

50 IMR01X01-E2

The first edition: DEC. 2003 [IMQ00] The second edition: JUN. 2004 [IMQ00]

RKC INSTRUMENT INC.

HEADQUARTERS: 16-6, KUGAHARA 5-CHOME, OHTA-KU TOKYO 146-8515 JAPAN

PHONE: 03-3751-9799 (+81 3 3751 9799)

E-mail: info@rkcinst.co.jp

FAX: 03-3751-8585 (+81 3 3751 8585)

IMR01X01-E2 JUN. 2004

RKC DP-700 Instruction Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

WARNING

CAUTION

CONTENTS

1. OUTLINE

1.1 Checking the Product

1.2 Parts Description

1.3 LCD Displays

1.4 Function Menu Configuration

2. PREPARATION BEFORE USE

2.1 Loading Battery

2.2 Setting Date and Time

2.3 Connecting the Temperature Sensor

3. BASIC OPERATION

3.1 Turn Power On

3.2 Measuring Temperatures

4. JUDGING MEASURED TEMPERATURES [SIMPLIFIED JUDGING FUNCTION]

4.1 Registering Tag Names (Measured Objects)

4.2 Setting the Judgment Range of High/Low Limit Temperatures

4.3 Judging Measured Temperatures

5. RECORDING MEASURED TEMPERATURES [LOGGING FUNCTION]

5.1 Manual Recording

5.2 Automatic Recording

5.3 Retrieving Recorded Data

5.3.1 Retrieving only recorded data with specified tag name (Tag Filter)

5.3.2 Retrieving recorded data with specified log registered No. (Log Jump)

5.4 Deleting Recorded Data

5.4.1 Deleting only one recorded data item (Delete?)

5.4.2 Deleting all recorded data items (All Clear?)

5.5 Defragmenting Recorded Data

6. PEAK HOLD/BOTTOM HOLD

7. REGISTERING USER NAMES [ONLY FOR DP-700B]

8. INITIAL SETTING

9. MANAGING DATA BY PC [ONLY FOR DP-700B]

9.1 Connecting PC to DP-700B

9.2 Storing Data

9.3 Disconnecting DP-700B from PC

10. APPENDIX

10.1 Replace the Battery

10.2 Cleaning

10.3 Troubleshooting

10.3.1 Error displays

10.3.2 Problem and solution

10.4 Specifications
