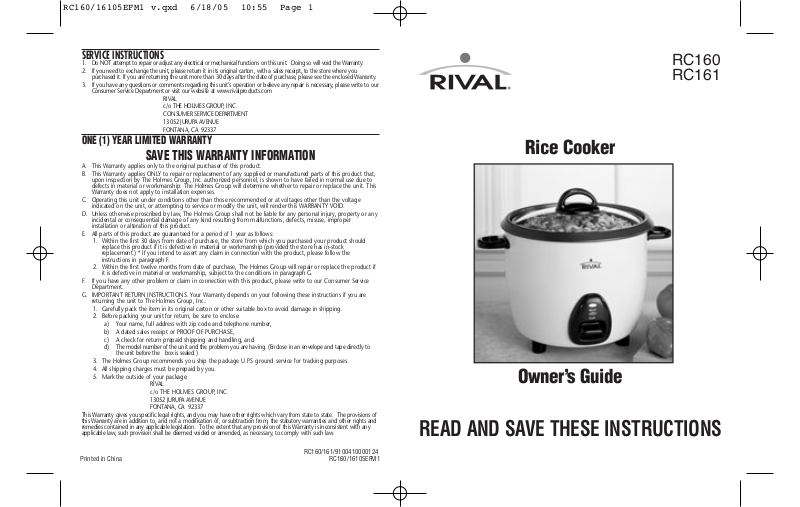

Rival RC161 User Manual

RC160/161/9100410000124

RC160/16105EFM1Printed in China

RC160
RC161

Rice Cooker

Owner’s Guide

READ AND SAVE THESE INSTRUCTIONS

SERVICE INSTRUCTIONS

1. Do NOT attempt to repair or adjust any electrical or mechanical functions on this unit. Doing so will void the Warranty.

2. If you need to exchange the unit, please return it in its original carton, with a sales receipt, to the store where you
purchased it. If you are returning the unit more than 30 days after the date of purchase, please see the enclosed Warranty.

3. If you have any questions or comments regarding this unit’s operation or believe any repair is necessary, please write to our
Consumer Service Department or visit our website at www.rivalproducts.com

RIVAL
c/o THE HOLMES GROUP, INC.
CONSUMER SERVICE DEPARTMENT
13052 JURUPA AVENUE
FONTANA, CA 92337

ONE (1) YEAR LIMITED WARRANTY

SAVE THIS WARRANTY INFORMATION

A. This Warranty applies only to the original purchaser of this product.
B. This Warranty applies ONLY to repair or replacement of any supplied or manufactured parts of this product that,

upon inspection by The Holmes Group, Inc. authorized personnel, is shown to have failed in normal use due to
defects in material or workmanship. The Holmes Group will determine whether to repair or replace the unit. This
Warranty does not apply to installation expenses.

C. Operating this unit under conditions other than those recommended or at voltages other than the voltage

indicated on the unit, or attempting to service or modify the unit, will render this WARRANTY VOID.

D. Unless otherwise proscribed by law, The Holmes Group shall not be liable for any personal injury, property or any

incidental or consequential damage of any kind resulting from malfunctions, defects, misuse, improper
installation or alteration of this product.

E. All parts of this product are guaranteed for a period of 1 year as follows:

1. Within the first 30 days from date of purchase, the store from which you purchased your product should
replace this product if it is defective in material or workmanship (provided the store has in-stock
replacement.) * If you intend to assert any claim in connection with the product, please follow the
instructions in paragraph F.

2. Within the first twelve months from date of purchase, The Holmes Group will repair or replace the product if
it is defective in material or workmanship, subject to the conditions in paragraph G.

F. If you have any other problem or claim in connection with this product, please write to our Consumer Service

Department.

G. IMPORTANT RETURN INSTRUCTIONS. Your Warranty depends on your following these instructions if you are

returning the unit to The Holmes Group, Inc.:

1. Carefully pack the item in its original carton or other suitable box to avoid damage in shipping.

2. Before packing your unit for return, be sure to enclose:

a) Your name, full address with zip code and telephone number,
b) A dated sales receipt or PROOF OF PURCHASE,
c) A check for return prepaid shipping and handling, and
d) The model number of the unit and the problem you are having. (Enclose in an envelope and tape directly to

the unit before the box is sealed.)

3. The Holmes Group recommends you ship the package U.P.S ground service for tracking purposes.

4. All shipping charges must be prepaid by you.

5. Mark the outside of your package:

RIVAL
c/o THE HOLMES GROUP, INC.
13052 JURUPA AVENUE
FONTANA, CA 92337

This Warranty gives you specific legal rights, and you may have other rights which vary from state to state. The provisions of
this Warranty are in addition to, and not a modification of, or subtraction from, the statutory warranties and other rights and
remedies contained in any applicable legislation. To the extent that any provision of this Warranty is inconsistent with any
applicable law, such provision shall be deemed voided or amended, as necessary, to comply with such law.

RC160/16105EFM1 v.qxd 6/18/05 10:55 Page 1

POLARIZED PLUG

This appliance has a polarized plug (one blade is wider than

the other). To reduce the risk of electric shock, this plug

is intended to fit into a polarized outlet only one way.
If the plug does not fit fully into the outlet, reverse the

plug. If it still does not fit, contact a qualified electrician.
Do not attempt to modify the plug in any way. If the plug fits loosely into
the AC outlet or if the AC outlet feels warm do not use that outlet.

SAVE THESE INSTRUCTIONS

This appliance is for HOUSEHOLD USE ONLY. No user-serviceable parts
inside. Do not attempt to service this product. A short power supply cord
is provided to reduce the risk resulting from becoming entangled in or
tripping over a longer cord. An extension cord may be used if care is
exercised in its use. If an extension cord is used the marked electrical rating
of the extension cord should be at least as great as the electrical rating of
the RICE COOKER. The cord should be arranged so that it will not drape
over the countertop or table top where it can be pulled on by children or
tripped over unintentionally. Do not immerse base in water or other liquids.
No liability can be accepted for any damage caused by non-compliance with
these instructions or any other improper use or mishandling.

-E2-

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always
be followed, including the following:

1. READ ALL INSTRUCTIONS BEFORE USING.

2. Do not touch hot surfaces. Use pot holders when removing cover or
handling hot containers. Use handles or knobs.

3. To protect against electrical shock, do not immerse cord, plug or
heating unit in water or other liquid.

4. Close supervision is necessary when any appliance is used by or near
children.

5. Unplug from outlet when not in use and before cleaning. Allow to cool
before putting on or taking off parts, and before cleaning.

6. Do not operate any appliance with a damaged cord or plug or after the
appliance malfunctions, or has been damaged in any manner. Return
appliance to Rival Customer Service (see warranty) for examination,
repair or adjustment.

7. The use of accessory attachments not recommended by Rival may cause
injuries.

8. Do not use outdoors.

9. Do not let cord hang over the edge of the table or counter, or touch
heated surfaces.

10. Do not place on or near a hot gas or electric burner, or in a heated
oven.

11. Extreme caution must be used when moving any appliance containing
hot liquids.

12. To disconnect, remove plug from wall outlet.

13. Do not use this appliance for anything other than intended use.

14. To reduce the risk of electrical shock, cook only in removable container.
Do not pour liquid into outer pan.

-E3-

Congratulations on the purchase of your new RICE COOKER! You are
now the proud owner of an extremely versatile appliance.

You can expect perfect rice every time as well as prepare great soups and
stews, steam vegetables and even bake a cake!

Be sure to visit the Rival web site at www.rivalproducts.com for more
about your RICE COOKER and the many different ways you can use it!

RC160/16105EFM1 v.qxd 6/18/05 10:55 Page 3

ADDITIONAL IMPORTANT SAFEGUARDS

• CAUTION: This appliance generates heat and escaping steam during

use. Proper precautions must be taken to prevent risk of burns, fires
or other damage to persons or property.

• All users of this appliance must read and understand this OWNER’S
MANUAL before operating or cleaning this appliance.

• The cord of this appliance should be plugged into a 120 volt AC
electrical outlet only.

• When using this appliance, provide adequate air space above and on
all sides for air circulation. Do not allow this appliance to touch
curtains, wall coverings, clothing, dishtowels or other flammable
materials during use.

• Do not leave appliance unattended during use.

• This appliance generates steam. Do not operate uncovered.

• If this appliance begins to malfunction during use, immediately
unplug the cord. Do not use or attempt to repair the malfunctioning
appliance. Do not use the INNER POT or LID if cracked or chipped.

• This appliance is for household use only.

• Unplug the rice cooker when not in use.

• Use the rice cooker on a hard, flat surface. Do not place near heat, an
open flame or on a soft surface (such as carpeting). Avoid placing it
where it may tip over during use. Dropping the rice cooker may
cause it to malfunction.

•Avoid electrical shock by unplugging before washing or adding water.

•To avoid burns, stay clear of the steam vent during cooking. Also,
wait for the rice cooker to cool down completely before touching or
cleaning the LID, INNER POT or heating plate.

• Never use the INNER POT on a gas or electric cooktop or an open
flame.

•Do not leave the rice ladle or MEASURING CUP in the INNER POT
while unit is on and in use.

• Please use measuring cup that was provided in the rice cooker. A
standard measuring cup SHOULD NOT BE USED.

KNOW YOUR RICE COOKER

PREPARING YOUR RICE COOKER FOR USE

Clean the LID, INNER POT, RICE LADLE and MEASURING CUP, following
the user maintenance instructions.

DO NOT IMMERSE THE HEATING UNIT OF YOUR RICE COOKER IN
WATER OR OTHER LIQUID.

-E4-

-E5-

KNOB

LID

STEAMING BASKET

INNER POT

HANDLES

KEEP WARM LIGHT

COOK LIGHT

POWER SWITCH

RC160/16105EFM1 v.qxd 6/18/05 10:55 Page 5

Measuring your rice is of extreme importance. Please do not discard the
"rice cooker" measuring cup that is provided with this unit. This “rice
cooker” measuring cup is the standard unit of measurement for this
product. When this manual instructs you to add 7 cups of rice and add
the corresponding amount of water to the "7" marking on the INNER
BOWL, the instructions are referring to the “rice cooker” measuring cup
that is included, not a standard U.S. measuring cup.

1.

Measure the amount of rice you would like to cook. A

3/4

cup (180
ml) measuring cup is included with your rice cooker. The "rice
cooker" measuring cup makes approximately 2

1/4

cups of cooked

rice.
NOTE: The rice cooker is capable of cooking up to 7 full "rice cooker"

measuring cups of uncooked rice. Many varieties of rice can be used,
including basmati, wild rice, black rice, Arborio, risotto, saffron rice,
short and long grain. Do not use instant rice with this rice cooker.
Whole grains such as barley can also be prepared with the rice
cooker. Follow package directions.

2.

Wash the measured rice in a separate bowl until the water is clear.

3.

Place rice in the INNER POT and add the corresponding amount of
water. For example, if you are making 7 cups of uncooked rice, add
water to the "7" mark on the inner bowl.

NOTE:Brown rice will take longer to cook than white rice.

4.

Set the INNER POT into the rice cooker. Make sure that the INNER
POT is in direct contact with the heating plate by turning it slightly
from left to right until it properly fits onto the heating plate.

NOTE: If the outside of the INNER POT is wet when placed in the
rice cooker, this may cause a crackling noise until the unit heats up.
Also, this may damage the inner working of the appliance, so always
wipe the outside of the pot completely before use.

5.

Cover with the LID.
WARNING: Do not operate this appliance uncovered – steam is

HOW TO USE YOUR RICE COOKER

•

Rinse rice – Bran gives an unpleasant smell to cooked rice. Be sure to
rinse rice thoroughly. Rinsing with water effectively removes bran
quickly and thoroughly. NOTE: Some rice suppliers suggest not rinsing
rice because vitamins may be lost.

•

After use, wash the INNER POT and LID in warm, soapy water.

•

Rinse thoroughly and dry.

•

DO NOT keep the rice cooker in operation:

When there is only a small amount of rice left in the POT.
When rice ladle is inside the rice cooker.
To warm up cold rice.

* DO NOT let water in the INNER POT boil dry.

generated during use that could cause burns or other serious injuries.

6.

Plug the cord into a 120-volt AC electrical outlet. Switch the rice
cooker ON by pushing the button down. Make sure the COOK
indicator light is illuminated. Steaming will begin shortly.

7.

The switch will pop up and the KEEP WARM indicator light will come
on when all the water in the rice cooker has evaporated.

NOTE: You may need to add more water and set the rice cooker to
COOK more than once depending on your own personal tastes.

8.

After cooking,the KEEP WARM indicator light will illuminate. It is
important to let the rice stand for 10-15 minutes of steaming without
removing the LID. Carefully open the LID, taking care to avoid
escaping steam. Use the rice ladle, or other long handled utensil, to
mix the rice well to allow steam to escape. CAUTION: Steam will
escape. Do not touch the INNER POT or heating unit until they have
cooled.

9.

Allow the appliance to cool completely before cleaning.

10.

Disconnect the plug from the wall outlet when not in use.

HOW TO USE YOUR RICE COOKER (CONTINUED)

COOKING HINTS

-E6-

-E7-

RC160/16105EFM1 v.qxd 6/18/05 10:55 Page 7

The steaming times in this chart are a guide and should be adjusted
to suit the different quantities or thickness of food and to suit your
own taste.

*Altitude affects the temperature at which water boils and thus the
cooking time. It’s especially true at high altitudes where longer cooking
times are necessary. We have outlined a general guide to follow. Test for
desired consistency when cooking times indicated have been reached. As
you cook with this appliance, adapt times and measurements to your
own personal tastes.

1.

Clean and prepare your food or vegetables.

2.

Place the INNER POT in the rice cooker. The length of steaming time
is subject to your own personal tastes: depending if you prefer al
denté (crunchy) or more well done steamed vegetables.

3.

Measure appropriate amount of water and add to INNER POT.
NOTE: You are able to steam rice and vegetables/food at the same

time with the STEAMING BASKET resting on the INNER POT.

4.

Place the STEAMING BASKET on the rim of the inner pot.

5.

Add vegetables or food and put the LID onto the appliance. Switch
to COOK position for the appropriate time as shown in the chart.

6.

Please unplug this appliance after use.

HOW TO USE YOUR STEAMING BASKET

-E8-

-E9-

STEAMING TIME

Asparagus 8 - 10 min
Bean Sprouts 3 - 4 min

Beans: Green, wax, french cut 8 - 10 min
Broccoli 11 -13 min
Brussels Sprouts 11 -13 min
Cabbage, Shredded 6 - 8 min
Cabbage, Wedges 14 - 16 min
Carrots 8 - 10 min
Cauliflower 11 -13 min
Celery 8 - 12 min
Collard Greens, Spinach 6 - 11 min
Mushrooms (fresh, sliced) 3 - 4 min
Pea Pods 4 - 6 min
Squash (Acorn, butternut) 13 - 16 min
Zucchini 10 - 12 min

VEGETABLE COOKING TIME

HINTS FOR STEAMING

1. The ingredients must be of superior excellence.

2. Select lean cuts of meat that will result in tender food and require
less cooking time.

RC160/16105EFM1 v.qxd 6/18/05 10:55 Page 9
