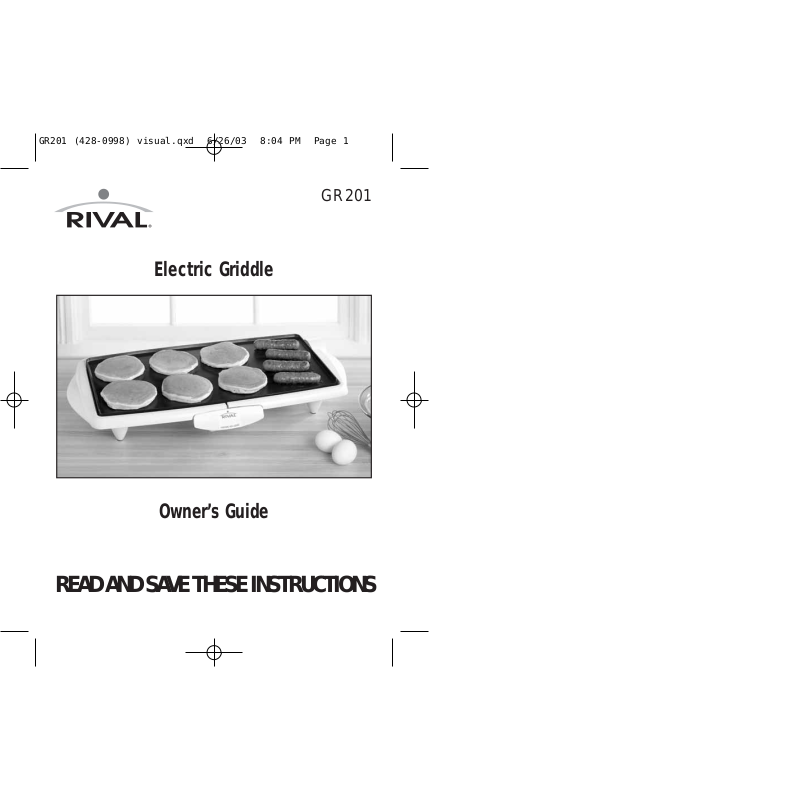

Electric Griddle
Owner’s Guide
GR201
READ AND SAVE THESE INSTRUCTIONS
IMPORTANT SAFEGUARDS
When using electrical appliances, basic safety precautions should always be
followed, including the following:
1. Read all instructions before using.
2. Do not touch hot surfaces. Use HANDLES or KNOBS.
3. To protect against electrical shock, do not immerse TEMPERATURE
CONTROL PROBE or CORD in water or other liquid.
4. This appliance is not for use by children.
5. Close supervision is necessary when any appliance is used near
children. This appliance should not be used by children.
6. Unplug from outlet when not in use and before cleaning. Allow
to cool before putting on or taking off parts, and before cleaning
the appliance.
7. Do not operate any appliance with a damaged CORD or PLUG
or after the appliance malfunctions or has been damaged in any
manner. Return appliance to Rival®(see warranty) for examination,
repair, or adjustment.
8. The use of accessory attachments not recommended by Rival
®
may
cause injuries.
9. Do not use outdoors.
10. Do not let CORD hang over edge of table or counter, or touch heated
surfaces.
11. Do not place on or near a hot gas or electric burner, or in a heated
oven.
12. Extreme caution must be used when moving an appliance containing
hot oil or other hot liquids.
13. Always attach TEMPERATURE CONTROL PROBE to appliance first, then
plug CORD into the wall outlet. To disconnect, turn TEMPERATURE
CONTROL to OFF, then remove plug from wall outlet.
This appliance is for HOUSEHOLD USE ONLY. No user-serviceable parts
inside. Power Unit never needs lubrication. Do not attempt to service this
product. A short power supply cord is provided to reduce the hazards
resulting from entanglement or tripping over a longer cord.
Do not use appliance for other than intended use.
Use only Rival®model TK-1 TEMPERATURE CONTROL PROBE.
AN EXTENSION CORD MAY BE USED WITH CARE; HOWEVER, THE
MARKED ELECTRICAL RATING SHOULD BE A T LEAST AS GREA T AS THE
ELECTRICAL RATING OF THE GRIDDLE. The extension cord should not
be allowed to drape over the counter or tabletop where it can be pulled on
by children or tripped over.
ELECTRIC POWER: If electric circuit is overloaded with other appliances,
Griddle may not operate properly . Griddle must be operated on a separate
circuit from other operating appliances.
Do not attempt to modify the plug in any way. If the plug fits loosely
into the AC outlet or if the AC outlet feels warm do not use that outlet.
GREASE CHANNEL
SAVE THESE INSTRUCTIONS
POLARIZED PLUG
This appliance has a polarized plug (one blade is wider than
the other). To reduce the risk of electric shock, this plug
is intended to fit into a polarized outlet only one way.
If the plug does not fit fully into the outlet, reverse the
plug. If it still does not fit, contact a qualified electrician.
KNOW YOUR ELECTRIC GRIDDLE
NON-STICK COOKING SURFACE
-2-
REMOVABLE
GREASE TRAY
TEMPERATURE
CONTROL PROBE
-3-
HOW TO USE YOUR ELECTRIC GRIDDLE
1. Before use, wash the Griddle and GREASE TRAY, in warm soapy water,
and dry completely.
CAUTION: Do not immerse TEMPERATURE CONTROL PROBE in water or
other liquid.
2. Insert GREASE TRAY into GUIDES under the Griddle. Turn TEMPERATURE
CONTROL PROBE to OFF and attach securely to the Griddle.
3. Condition the NON-STICK COOKING SURFACE with vegetable
shortening, wiping off any excess with a paper towel. Plug Griddle into
120 volt outlet. Preheat the Griddle by aligning the selected
temperature setting on the TEMPERATURE CONTROL PROBE knob
with the indicator light. Griddle is preheated when the light on the
knob goes off. The light will cycle during use, indicating the selected
temperature is being maintained.
4. When cooking is complete, turn TEMPERATURE CONTROL PROBE to
OFF, unplug and allow unit to cool before cleaning.
NOTE: It may be necessary to scrape grease into the GREASE CHANNEL.
Always use wooden or nylon utensils to avoid scratching the NON-STICK
COOKING SURFACE.
CAUTION: Grease may be hot!
NOTE: When cooking consecutive batches of bacon or other high fat
foods, it may be necessary to empty the GREASE TRAY to avoid grease
overflowing onto the countertop.
CAUTION: Some countertops are more sensitive to heat, use care not to
place Griddle on surfaces where heat may cause damage.
CAUTION: Griddle surfaces are hot during use. Allow to cool completely
before handling or cleaning.
COOKING TIME AND TEMPERATURE
FOOD TEMP.* TIME DIRECTIONS
EGGS, fried 300° F 3 to 5 min. DO NOT PREHEAT. Turn often.
BACON 350° F 8 to 14 min. DO NOT PREHEAT. Turn often.
SAUSAGE 350° F 20 to 30 min. Turn halfway into cooking time.
FRENCH TOAST 350° F 6 to 10 min. Turn halfway into cooking time.
HAMBURGER 350° F 3 to 14 min. Turn halfway into cooking time.
HAM SLICES 350° F 14 to 18 min. Turn halfway into cooking time.
SANDWICHES 350° F 6 to 10 min. Butter outside and brown both sides.
PORK CHOPS 350° F 20 to 30 min. Brown both sides, reduce temp. to
250° F. Turn halfway into cooking time.
POTATOES 350° F 10 to 12 min. Turn halfway into cooking time.
STEAKS
Rare 400° F 4 to 6 min. Turn halfway into cooking time.
Medium 400° F 7 to 12 min. Turn halfway into cooking time.
Well Done 400° F 13 to 18 min. Turn halfway into cooking time.
PANCAKES 350° F 2 to 6 min. Pour batter onto griddle. When bubbles
appear on top, turn.
• Unless otherwise noted, preheat griddle
-5-4-
1. Unplug and allow to cool before cleaning.
2. Remove TEMPERATURE CONTROL PROBE (DO NOT IMMERSE IN
WATER). Wipe with damp cloth and dry thoroughly.
3. Remove GREASE TRAY and discard contents. With TEMPERATURE
CONTROL PROBE removed, the Griddle is completely immersible. The
Griddle (with TEMPERATURE CONTROL PROBE removed) and GREASE
TRAY may be washed in the dishwasher. Or you may wash the Griddle
and GREASE TRAY with hot soapy water. Rinse, and dry thoroughly.
CAUTION: TEMPERATURE CONTROL PROBE and PROBE GUARD must
always be completely dry before use.
CARE OF YOUR ELECTRIC GRIDDLE
•Use only nylon, plastic, or wooden utensils with care to avoid scratching
the NON-STICK COOKING SURFACE. Never cut food on the Griddle.
• Remove stubborn stains with plastic scouring pad and mild dishwashing
liquid.
CAUTION: DO NOT USE STEEL WOOL.
ANY SERVICE REQUIRING DISASSEMBLY OTHER THAN THE ABOVE
CLEANING MUST BE PERFORMED BY AN AUTHORIZED RIVAL®SERVICE
CENTER.
NOTESHOW TO CLEAN YOUR ELECTRIC GRIDDLE
-6- -7-
LIMITED ONE-YEAR WARRANTY
Rival®warrants this product to be free from defects in materials or workmanship for one (1) year from date of
original purchase. If you have a claim under this warranty please follow these procedures:
1) Within the first 45 days from date of original purchase, defective product should be returned to original place
of purchase for replacement (with proof-of-purchase).
2) Within the first 12 months from date of purchase Rival will repair or replace (at no charge) the defective
product if it is delivered freight prepaid during that period to an authorized service station. To obtain warranty
service visit:
www.rivalproducts.com
Or, you may write to Rival c/o The Holmes Group, attention: Consumer Returns, 32 B Spur Drive, El Paso, TX
79906. Proof of purchase is required when requesting warranty service - SAVE YOUR SALES RECEIPT. This
warranty is extended only to the original purchaser and does not apply to commercial use, unreasonable use, or
to damage to the product (not resulting from defect or malfunction) while in the possession of the consumer.
Rival disclaims all responsibility for consequential, incidental, or commercial losses caused by the use of
this product. Some states do not allow this exclusion or limitation of incidental or consequential losses, so the
foregoing disclaimer may not apply to you. This warranty gives you specific legal rights, and you may also have
other legal rights which vary from state to state.
©2003, Rival
A Division of The Holmes Group
Printed in China GR201/428-0998
