Rigol Technologies VS5000, VS5000D User Manual

User’s Guide RIGOL

Publication number VS5000-080331 March 2008

VS5000 Series Digital Oscilloscope

VS5000D, VS5000

RIGOL

z Copyright © 1998-2008 RIGOL Technologies, Inc. All Rights Reserved. z RIGOL products are protected by patent laws in and outside of the P.R. China. z Information in this publication replaces all previously corresponding material. z RIGOL Technologies, Inc. reserves the right to modify or change part of or all

the specifications and pricing policies at company’s sole decision.

NOTE: RIGOL is registered trademark of RIGOL TECHNOLOGIES, INC.

User’s Guide for VS5000 Series

I

RIGOL

Safety Notices

Review the following safety precautions carefully before operate the instrument to avoid any personal injuries or damages to the instrument and any products connected to it.

To avoid potential hazards, use the instrument as specified by this user’s guide only.

The instrument should be serviced by qualified personnel only.

To Avoid Fire or Personal Injury.

Use Proper Power Cord.

Use only the power cord designed for the instrument and authorized in your country only.

Connect and Disconnect Accessories Properly.

Do not connect or disconnect probes or test leads while they are connected to a voltage source.

Connect the Probe Properly.

Do not connect the ground terminals to a high voltage.

Observe All Terminal Ratings.

To avoid fire or shock hazard, observe all ratings and marks on the instrument. Follow the user’s guide for further ratings information before making connections to the instrument.

Do not Operate without Covers.

Do not operate the oscilloscope with covers or panels removed.

Use Proper Fuse.

Use the fuse of the type, voltage and current ratings as specified for the instrument.

Avoid Circuit or Wire Exposure.

Do not touch exposed connections and components when power is on.

II

User’s Guide for VS5000 Series

RIGOL

Do not Operate with Suspected Failures.

If suspected damage or malfunctions occur with the instrument, have it inspected by qualified service personnel before further operations.

Provide Proper Ventilation.

Refer to the manual’s installation instructions for proper ventilation of the instrument.

Use only UL/cUL or cCSAus certified probes with the oscilloscope.

Do not Operate in Wet/Damp Conditions. Do not Operate in an Explosive Atmosphere. Keep Product Surfaces Clean and Dry.

The disturbance test of all the models meet the limit values of A in the standard of EN 61326: 1997+A1+A2+A3, but can’t meet the limit values of B.

Measurement Category

The VS5000 series Digital Oscilloscope is intended to be used for measurements in

Measurement Category I.

Measurement Category Definitions

Measurement Category I is for measurements performed on circuits not directly

connected to MAINS. Examples are measurements on circuits not derived from MAINS,

and specially protected (internal) MAINS derived circuits. In the latter case, transient

stresses are variable; for that reason, the transient withstand capability of the equipment

is made known to the user.

User’s Guide for VS5000 Series

III

RIGOL

V

WARNING

IEC Measurement Category I. The HI and LO input terminals may be connected to circuit terminal in IEC Category I installations for voltages up to 300 VAC. To avoid the danger of electric shock, do not connect the inputs to circuit’s voltages above 300 VAC. Transient overvoltage is also present on circuits that are isolated from mains. The VS5000 series Digital Oscilloscopes is designed to safely withstand occasional transient overvoltage up to 500 Vpk. Do not use this equipment to measure circuits where transient overvoltage could exceed this level.

Safety Terms and Symbols

Terms in this manual. These terms may appear in this guide:

!

Terms on the Product: These terms may appear on the product:

DANGER indicates an injury hazard may be immediately accessible.

WARNING indicates an injury hazard may be not immediately accessible.

CAUTION indicates that a potential damage to the instrument or other property

might occur.

Symbols on the Product: These symbols may appear on the Instrument:

Hazardous Voltage

WARNING: Warning statements identify conditions or practices that could result in injury or loss of life.

CAUTION: Caution statements identify conditions or practices that could result in damage to this product or other property.

!

Refer to Instructions

Protective Earth Terminal

Grounding Terminal of Chassis

Test Grounding Terminal

I

User’s Guide for VS5000 Series

V

RIGOL

VS5000 Oscilloscopes at a Glance

RIGOL VS5000 Series Digital Oscilloscopes offer good waveform view and

measurements in a compact, lightweight package. VS5000 series are ideal for production test, field service, research and design and all of the applications involving analog circuits test and troubleshooting, as well as education and training.

Product features: z Dual Channel, Bandwidth:

200MHz (VS5202, VS5202D) 100MHz (VS5102, VS5102D) 60MHz (VS5062, VS5062D) 40MHz (VS5042, VS5042D) 25MHz (VS5022, VS5022D)

z A true Mixed Signal Oscilloscope with 16 channels Logic Analyzer (for some

models)

z 400 MSa/s maximum real-time sample rate and 25 GSa/s maximum equivalent

sample rate

z Memory depth: 1M points (Single Channel), 512k points (Dual Channels), 512k

points (Logic Analyzer)

z Adjustable waveform intensity, more effective waveform view z One-touch automatic setup for ease of use (AUTO) z 20 Automatic measurements z Automatic cursor tracking measurements z Waveform recorder, record and replay dynamic waveforms z User selectable fast offset calibration z Built-in FFT function, Frequency Counter z Digital filters, includes LPF, HPF, BPF, BRF z Add, Subtract and Multiply Mathematic Functions z Advanced trigger types include: Edge, Video, Pulse width, Slope, Alternative,

Pattern and Duration

z Adjustable trigger sensitivity

User’s Guide for VS5000 Series

RIGOL

V

Content

Safety Notices ........................................................................................... II

VS5000 Oscilloscopes at a Glance ............................................................... V

Chapter 1 Quick Start .......................................................................... 1-1

The Front Panel and User’s Interface ........................................................ 1-2

To Inspect the Instrument ....................................................................... 1-5

To Perform a Functional Check ................................................................ 1-6

To Compensate Probes ........................................................................... 1-8

To Use Digital Leads (for VS5***D only) .................................................. 1-9

To Display a Signal Automatically ............................................................ 1-11

To Understand the Vertical Window ........................................................ 1-12

To Understand the Horizontal System ...................................................... 1-14

To Trigger the Oscilloscope .................................................................... 1-16

Chapter 2 Operating Your Oscilloscope ............................................... 2-1

To Set the Vertical system ....................................................................... 2-2

To Set the Horizontal System .................................................................. 2-23

To Set the Trigger System ...................................................................... 2-29

To Set the Sampling System ................................................................... 2-43

To Save/Load and Print Setup ................................................................. 2-47

To Set the Measurement Function ........................................................... 2-53

To Set the Utility Function ...................................................................... 2-66

To Use Run Control Buttons .................................................................... 2-72

Chapter 3 Application Examples .......................................................... 3-1

Example 1: Taking Simple Measurements ................................................. 3-1

Example 2: View a Signal Delay Caused by a Circuit .................................. 3-3

Example 3: Capture a Single-Shot Signal .................................................. 3-4

Example 4: To Reduce the Random Noise on a Signal ............................... 3-5

Example 5: Making Cursor Measurements ................................................. 3-7

Example 6: The Application of the X-Y Operation ...................................... 3-9

Example 7: Triggering on a Video Signal .................................................. 3-11

Example 8: FFT Cursor Measurement ...................................................... 3-13

Example 9: Pass/Fail Test ....................................................................... 3-14

Example 10: Triggering on a Digital Signal ............................................... 3-15

I

User’s Guide for VS5000 Series

RIGOL

V

Chapter 4 Prompt Messages & Troubleshooting ................................. 4-1

Prompt Messages .................................................................................... 4-1

Troubleshooting ...................................................................................... 4-4

Chapter 5 Specifications ...................................................................... 5-1

Chapter 6 Appendix ............................................................................. 6-1

Appendix A: Accessories .......................................................................... 6-1

Appendix B: Warranty .............................................................................. 6-1

Appendix C: Maintenance ......................................................................... 6-2

Appendix D: Contact RIGOL ..................................................................... 6-3

Index ..........................................................................................................1

User’s Guide for VS5000 Series

II

Chapter 1 Quick Start

This chapter covers the following topics:

z The front panel and user interface of VS5000 Series

z To inspect the instrument

z To perform a functional check

z To compensate probes

z To use digital leads (for VS5xxxD only)

z To display a signal automatically

z To set up the vertical system

z To set up the horizontal system

RIGOL

z To trigger the oscilloscope

User’s Guide for VS5000 Series

1-1

RIGOL

The Front Panel and User Interface

The first thing to do with a new oscilloscope is to become acquainted with its front panel. This chapter will help to be familiar with the layout of the connectors, graphical representations, interfaces, and how to use them. Read the chapter carefully before further operations.

Figure 1-1

VS5000 Series Oscilloscope

VS5000 series oscilloscopes provide an easy-to-use user interface. In the main menu, access the function options from the menu and the drop-down menu to operate VS5000 series oscilloscope. There’re shortcuts for some common functions.

1-2

User’s Guide for VS5000 Series

RIGOL

Run Control Buttons Main menu

Automatic Measurement Shortcut

Delay Setting

Trigger Setting

CH1 Setting

CH2 Setting Digital Signal Control Waveform

Brightness Setting

Figure 1-2

VS5000 Operation Interface

User’s Guide for VS5000 Series

1-3

RIGOL

Trigger level

Channel 1

Channel 2

Digital

Channels

Trigger point, Time reference

Figure 1-3

Display Interface (Analog and Digital channels)

1-4

User’s Guide for VS5000 Series

RIGOL

To Inspect the Instrument

After receiving a new VS5000 series oscilloscope, please inspect the instrument as following steps:

1. Inspect the shipping container for damage.

Keep the damaged shipping container or cushioning material until the contents of the shipment have been checked for completeness and the instrument has been checked mechanically and electrically.

2. Check the accessories.

Accessories supplied with the instrument are listed in "Accessories" in this guide. If the contents are incomplete or damaged notify the RIGOL Sales Representative.

3. Inspect the instrument.

In case there is any mechanical damage or defect, or the instrument does not operate properly or fails performance tests, notify the RIGOL Sales Representative.

If the shipping container is damaged, or the cushioning materials show signs of stress, notify the carrier as well as the RIGOL sales office. Keep the shipping materials for the carrier’s inspection.

RIGOL offices will arrange for repair or replacement at option of RIGOL without

waiting for claim settlement.

User’s Guide for VS5000 Series

1-5

RIGOL

To Perform a Functional Check

Perform this quick functional check to verify that the instrument is operating correctly.

1. Prepare for using the instrument.

Use the power cords designed for the oscilloscope only. Connect to a power source that delivers 100 to 240 VAC, 45Hz to 440Hz. Power up the system, initiate the program. Click the Storage button, select Load Default in the menu box.

Status indicators

Channel 1, 2 and Ext Trigger

Probe compensator

Figure 1-4

Instruction of the Front Panel

2. Input a signal to a channel of the oscilloscope

VS5000 Series are equipped with dual channels plus external trigger, and 16 channels logic analyzer (only for VS5***D models).

Please defer to the following steps to connect to signal:

1） Set the attenuation switch on the probe to 10X (Figure 1-6) and connect the

probe to CH1 on the oscilloscope. Align the slot in the probe connector with the key on the CH1 BNC connector. Push to connect, and twist to the right to lock the probe in place. Attach the probe tip and ground lead to the Probe compensator connector.

1-6

User’s Guide for VS5000 Series

RIGOL

Probe compensator

Figure 1-5

Probe Compensation

2） Set the probe attenuation of the oscilloscope to X10. (Default probe attenuation

is X1). Method of set the probe attenuation: Right click the button into the Channel menu. In the Probe menu, select the

probe attenuation. Now select the 1:10 option.

Probe attenuation

Figure 1-6 Figure1-7 To Set the Probe To Set the Probe Attenuation

3） Click the

button. Within a few seconds, a square wave will display

(approximately 1 kHz 3 V peak- to- peak).

4） Click the

button to turn Channel 1 off, click the button to turn Channel 2

on. Repeat steps 2 and 3.

User’s Guide for VS5000 Series

1-7

RIGOL

To Compensate Probes

Perform this adjustment to match the characteristics of the probe and the channel input. This should be performed whenever attaching a probe to any input channel the first time.

1. From the Probe menu, select attenuation to 1:10. Set the switch to X10 on the probe and connect it to CH 1 of the oscilloscope. When using the probe hook-tip, insert the tip onto the probe firmly to ensure a proper connection. Attach the probe tip to the Probe Compensator and the reference lead to the ground connector, select CH 1, and then press the

2. Check the shape of the displayed waveform.

Over compensated Correctly Compensated Under Compensated

button.

Figure 1-8

Instruction Waveform of Probe Compensation

3. If necessary, use a non-metallic tool to adjust the trimmer capacitor of the probe for the flattest square wave being displayed on the oscilloscope.

4. Repeat if necessary.

WARNNING: To avoid electric shock while using the probe, be sure the

!

perfection of the insulated cable, and do not touch the metallic portions of the probe head while it is connected with a voltage source.

1-8

User’s Guide for VS5000 Series

RIGOL

To Use Digital Leads (for VS5***D only)

1. Switch off power supply of the Device under Test if necessary to avoid short circuit. Since no voltage is applied to the leads at this step, the oscilloscope may remain on.

2. Connect one end of the flex cable FC1868 to the Logic Analyzer Input; connect

the other end to Logic Head LH1116. It is unnecessary to switch off power supply of the oscilloscope while connecting the cable.

Figure 1-9

Connect the Flex Cable

CAUTION：Use only FC1868, LH1116, TC1100 and LC1150 made by

!

RIGOL for specified mixed signal oscilloscopes.

User’s Guide for VS5000 Series

1-9

RIGOL

3. Connect a test clip to one lead wire; make sure it is connected well.

Test clip

Figure 1-10

Connect the Test Clip

4. Test the device with the clip.

Figure 1-11

Testing Instruction

5. Remember to connect Ground Channel to the ground terminal of the DUT.

GND

Figure 1-12

Ground Connection

1-10

User’s Guide for VS5000 Series

RIGOL

To Display a Signal Automatically

The VS5000 series oscilloscope has an automated function to display the input signal in best fit. This feature requires a 50 Hz or higher and a duty cycle greater than 1% input signal.

Press the HORIZINTAL and TRIGGER controls to display the input signal. Adjust the controls manually to get the best results if necessary.

Connect a signal to the Channel 1 (CH1) input:

1． Connect a signal to the oscilloscope as described above.

button, the oscilloscope automatically sets up VERTICAL,

2． Click the

button.

The oscilloscope may change the current settings to display the signal, i.e. the vertical and horizontal scale, the trigger coupling, type, position, slope, level, and mode.

User’s Guide for VS5000 Series

1-11

RIGOL

To Understand the Vertical Window

Figure 1-13 shows the V parameters.

1． Use the Analog function in the Vertical menu to adjust the functions of the

analog channels. A voltage value is displayed for a short time indicating how far the ground reference is located from the center of the screen. Use the left

mouse button to dragging the CH1 symbol, and/or use the Scale and Offset

options to set the scale and offset precisely.

ertical menu, which leads to the setting of the vertical

Figure 1-13 Vertical Menu

Measurement hints

If the channel is DC coupled, measuring the DC component of the signal by simply noting its distance from the ground symbol. If the channel is AC coupled, the DC component of the signal is blocked, allowing to use greater sensitivity to display the AC component of the signal.

Vertical offset back to 0 shortcut

Double click the channel sign, as a shortcut, to set the vertical display position back to 0.

1-12

User’s Guide for VS5000 Series

RIGOL

2． Change the vertical setup and notice that each change affects the status bar

differently.

Left-click the vertical status and use the number keyboard to input the exact

Scale value (volt/div); and/or adjust the Scale quickly with the

Click A

nalog, Digital, Math and Reference in the Vertical menu, to set analog

channels, digital channels, math and waveform reference functions.

button.

User’s Guide for VS5000 Series

1-13

RIGOL

To Understand the Horizontal System

Figure 1-14 shows the H parameters.

1． Using the Horizontal function in the Horizontal menu to set the waveform

horizontal options. In the Horizontal window, set the waveform display format (Y-T, X-Y and Roll) and horizontal Scale and Offset.

orizontal menu, which leads the setting of the horizontal

Figure 1-14 Horizontal Menu

Click the

button, changes the sweep speed in a 1-2-5 step sequence and the

value is displayed in the status bar. The time base ranges of the VS5000 series are listed as follows. The horizontal scan speed is from 5ns/div

[1]

to 50s/div.

Delayed Scan Shortcut key

Click the button to enter Delayed Scan mode.

[1] NOTE: The speed of horizontal scan varies in different models.

2． Click the Offset function in the Horizontal window to adjust the horizontal

offset.

Horizontal offset back to 0 shortcut key

Click the middle circular button “ shortcut key

” to set the horizontal offset to 0 as a

1-14

User’s Guide for VS5000 Series

RIGOL

3． In the Format window of the Horizontal functions window, select the display

mode to Y-T, X-Y or Roll.

Horizontal position control

Trig-Offset: In this setting, the trigger position will be changed horizontally

when the offset value changed.

User’s Guide for VS5000 Series

1-15

RIGOL

To Trigger the Oscilloscope

Figure 1-15 shows the Trigger Control, use the functions in the Trigger window of

the H

orizontal menu. The following exercise guides through the buttons and

settings.

Figure 1-15 Trigger Control

1． To set the trigger function in the T

rigger menu.

Drag the Trigger level to adjust the trigger level; or input the trigger level directly on the top right corner (Status window right side of the

2． Click the

button, turn the Trigger window on (Figure 1-16), to set the

button).

trigger options.

Figure 1-16 Trigger Window

Trigger level back to 0 shortcut key

Double click the trigger level sign to set the trigger level to 0 as a shortcut key.

1-16

User’s Guide for VS5000 Series

RIGOL

3． Double click the trigger point, to set the horizontal delayed time to 0 as a

shortcut key.

4． Click the

button to start an acquisition regardless of an adequate trigger

signal, usually used in “Normal” or ”Single” trigger mode. If the acquisition is already stopped, click this button to start the acquisition again.

Key point:

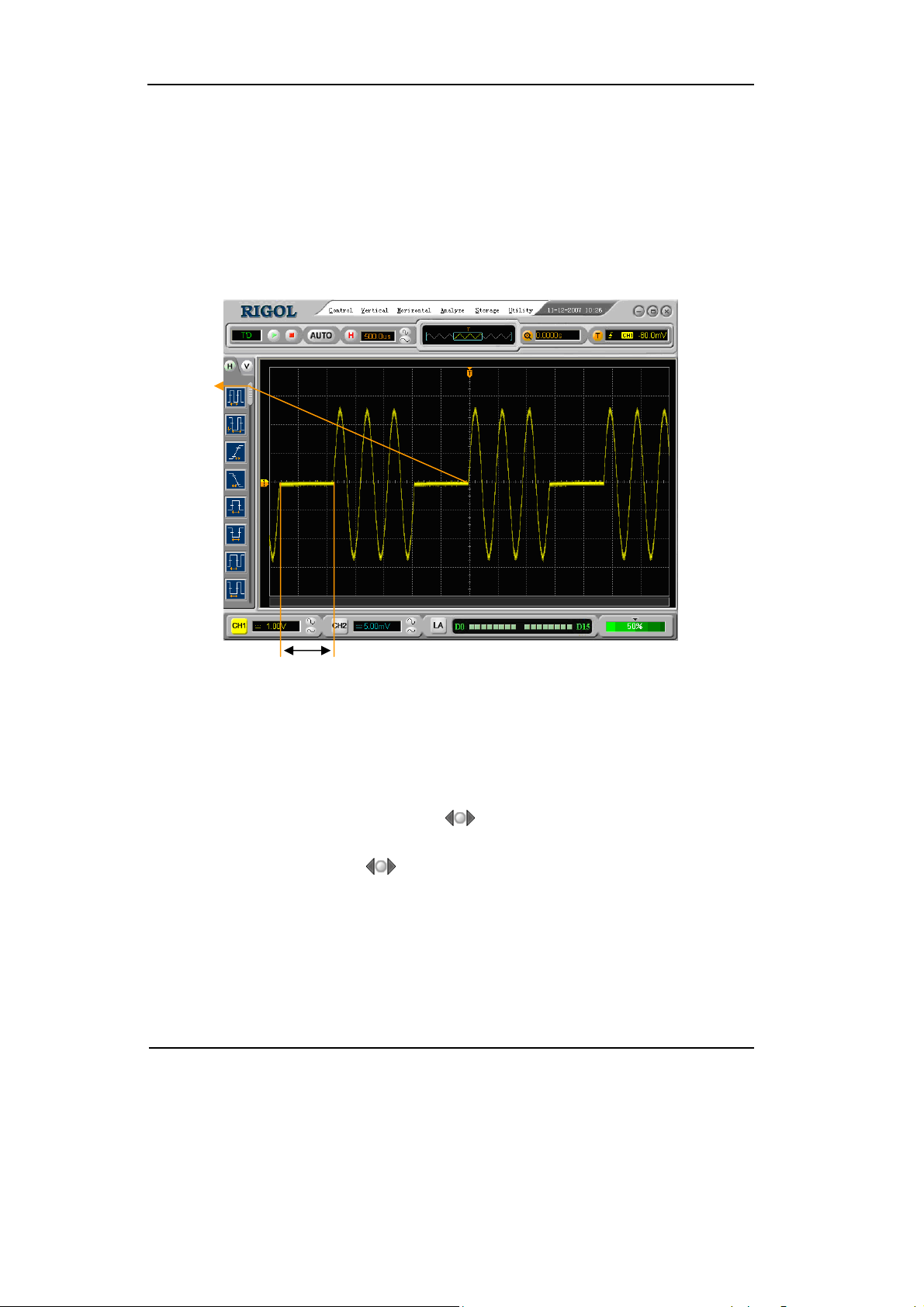

Holdoff: A time interval before the oscilloscope response to next trigger signal. During this holdoff period, the trigger system becomes “blind” to trigger signals. This function helps to view complex signals such as an AM waveform.

In order to set the holdoff time, set the Holdoff Time option in the Trigger

menu.

User’s Guide for VS5000 Series

1-17

RIGOL

Chapter 2 Operating Your Oscilloscope

The VERTICAL, HORIZONTAL, and TRIGGER control systems and know how to determine the system setup from the status bar of a VS5000 Series oscilloscope were introduced in the previous chapter.

This chapter will go through all groups of buttons, knobs, and menus, expanding the knowledge of operations by hints in this guide.

It is recommended to perform all of the following exercises to get the most of the powerful measurement capabilities of the oscilloscope.

z Understand the vertical system (

, ,

[1]

, Vertical )

z Understand the horizontal system ( Horizontal )

z Understand the trigger system ( Trigger )

z To set up the sampling system ( Acquire )

z To set up the display system ( Display )

z To save and recall ( Storage )

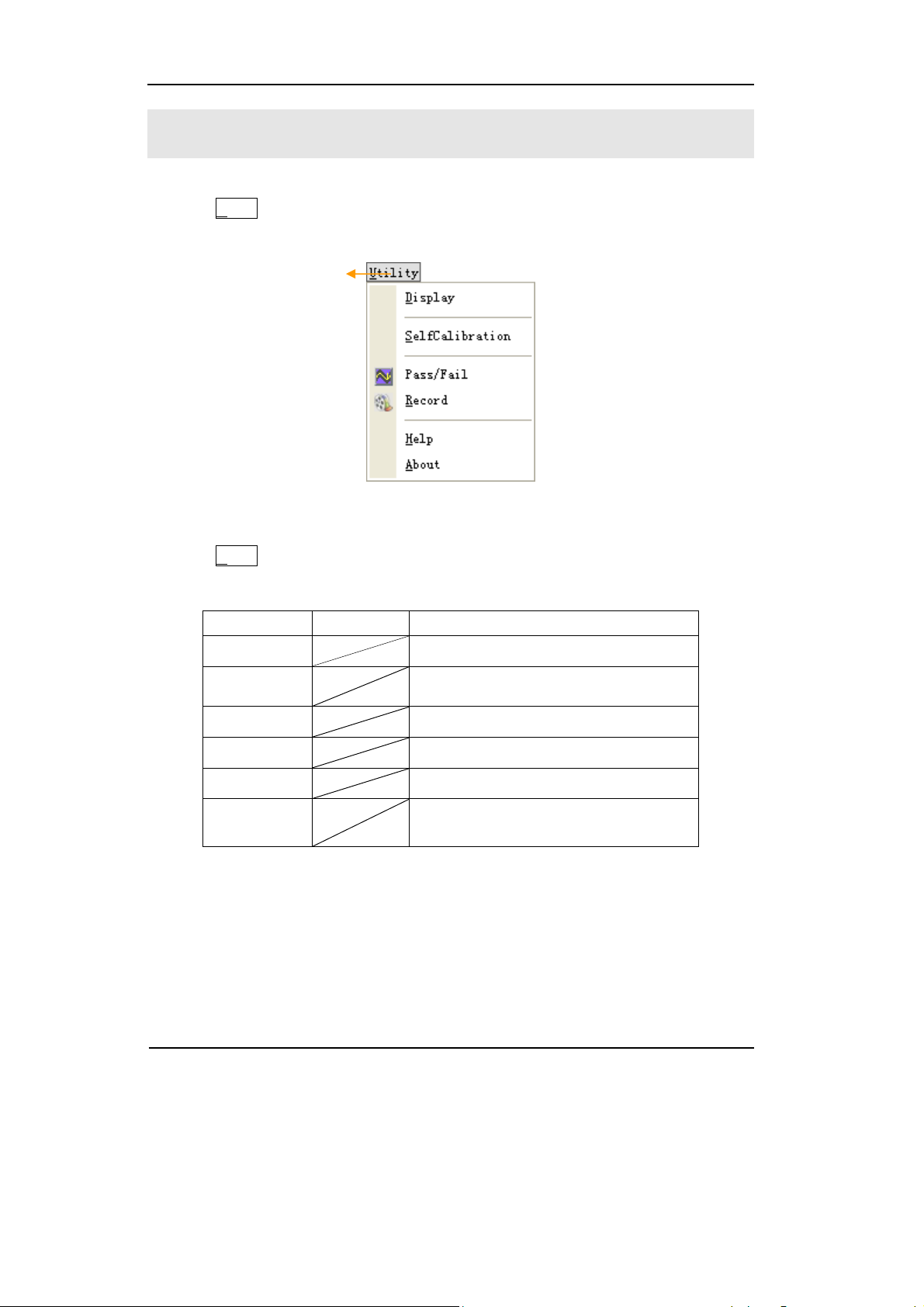

z To set up utility ( Utility )

z To measure the waveform ( Analyzer )

z To use the run control buttons ( , and )

[1] NOTE: This function is for VS5***D model only.

User’s Guide for VS5000 Series

2-1

RIGOL

To Set the Vertical system

Analog Channel Settings

Each channel of VS5000 has an operation menu.

Right click the

Turn the function On/Off:

or the button; the “Channel” window will appear.

Figure 2-1

Channel Window

In front of the function option there is a

function is turned OFF,

CAUTION: 1. To aviod damaging the input part of the oscilloscope, when

!

2. For the probe provided for the oscilloscope, do not use 50 ohm settings directly.

2-2

means it is turned ON.

use 50 ohm settings, make sure that the input voltage do not exceed the limit voltage (5Vrms, corresponding to the 1:1 probe)

User’s Guide for VS5000 Series

or choice box, means this

Rigol Technologies VS5000, VS5000D User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
