Rigol DG5352, DG5351, DG5252, DG5251, DG5102 User Manual

RIGOL

User’s Guide

DG5000 Series

Function/Arbitrary Waveform Generator

Feb. 2014

RIGOL Technologies, Inc.

www. .com

[e-mail]1.800.561.8187

www. .com

[e-mail]1.800.561.8187

RIGOL

User’s Guide for DG5000

I

Guaranty and Declaration

Copyright

© 2010 RIGOL Technologies, Inc. All Rights Rese rved.

Trademark Information

RIGOL is a registered trademark of RIGOL Technologies, Inc.

Publication Number

UGB07109-1110

Notices

 RIGOL products are protected by patent law in and outside of P.R.C.
 RIGOL reserves the right to modify or change parts of or all the specifications

and pricing policies at company’s sole decision.

 Information in this publication replaces all previ ously corresponding material.
 RIGOL shall not be liable for losses caused by either incidental or cons equential

in connection with the furnishing, use or performance of this manual as well as
any information contained.

 Any part of this document is forbidden to copy or photocopy or rearrange without

prior written approval of RIGOL.

Product Certification

RIGOL guarantees this product conforms to the national and industrial standards in
China as well as t he ISO9 001:20 08 s tan dar d and th e ISO 1400 1:200 4 sta nda rd. Other
international standard conformance certification is in progress.

Contact Us

If you have any problem or requirement when using our products or this man ual,
please contact RIGOL.
E-mail: [e-mail]
Websites: www.rigol.com

www. .com

[e-mail]1.800.561.8187

RIGOL

User’s Guide for DG5000

II

Safety Requirement

General Safety Summary

Please review the f ollowing safety precautions ca refully before putti ng the instrument
into operation so as to avoid any personal injuries or damages to the instrument and
any product connected to it. To prevent potential hazards, please use the instrument
only specified by this manual.

Use Proper Power Cord.

Only the power cord designed for the instrument and authorized for use within the
local country could be used.

Ground The Instrument.

The instrument is grounded through the Protective Earth lead of the power cord. To
avoid electric shock, it is essential to connect the earth terminal of power cord to the
Protective Earth terminal before any inputs or outputs.

Connect the Probe Correctly.

If a probe is used, do not connect the ground lead to high vol t age since it has the
isobaric electric potential as ground.

Observe All Terminal Ratings.

To avoid fire or shock hazard, observe all ratings and markers on the instrument and
check your manual for more information about ratings before connecting.

Use Proper Overvoltage Protection.

Make sure that no overv oltage (such as that caused by a thunde rstorm) can reach the
product, or else the operator might expose to danger of electrical shock.

Do Not Operate Without Covers.

Do not operate the instrument with covers or panels removed.

Do Not Insert Anything into the Holes of Fan.

Do not insert anything into the holes of the fan to avoid damaging the instrument.

www. .com

[e-mail]1.800.561.8187

RIGOL

User’s Guide for DG5000

III

Use Proper Fuse.

Please use the specified fuses.

Avoid Circuit or Wire Exposure.

Do not touch exposed junctions and components when the unit is powered.

Do Not Operate With Suspected Failures.

If you suspect damage occurs to the instrument, have i t inspected by qualified service
personnel before further operations. Any maintenance, adjustment or replacement
especially to circuits or accessories must be performed by RIGOL authorized
personnel.

Keep Well Ventilation.

Inadequate ventilation may cause increasing of temper ature or damages to the device.
So please keep well ventilated and inspect the intake and fan regularly.

Do Not Operate in Wet Conditions.

In order to avoid short circuiting to the interior of the device or elect ric shock, please
do not operate in a humid environment.

Do Not Operate in an Explosive Atmosphere.

In order to a void damages to the device or personal i njuries, it is i mportant to oper ate
the device away from an explosive atmosphere.

Keep Product Surfaces Clean and Dry.

To avoid the infl uence of dust a nd/or moisture in air, please keep the surface of device
clean and dry.

Electrostatic Prevention.

Operate in an electrostatic discharge protective area environment to avoid damages
induced by static discha rges. Alwa ys groun d both th e internal an d external con ductors
of the cable to release static before connecting.

Proper Use of Battery.

If a battery is supplied, it must not be ex posed to high temperature or in c ontact wi th
fire. Keep it out of the reach of children. Improper change of bat t e ry (note: lithium
battery) may cause explosion. Use RIGOL specified battery only.

www. .com

[e-mail]1.800.561.8187

RIGOL

User’s Guide for DG5000

IV

Handling Safety.

Please handle with care during transportation to avoid damages to buttons, knob
interfaces and other parts on the panels.

www. .com

[e-mail]1.800.561.8187

RIGOL

User’s Guide for DG5000

V

Safety Terms and Symbols

Terms Used in this Manual. These terms may appear in this manual:

WARNING

Warning statements indicate the conditions or practices that could result
in injury or loss of life.

CAUTION

Caution statements indicate the conditions or practices that could result
in damage to this product or other property.

Terms Used on the Product. These terms may appear on the Product:

DANGER indicates an injury or hazard may immediately happen.
WARNING indicates an injury or hazard may be a ccessi ble pote nt ially.
CAUTION

indicates potential damage to the instrument or other property might

occur.

Symbols Used on the Product. These symbols may appear on the product:

Hazardous

Voltage

Safety

Warning

Protective

Earth
Terminal

Chassis

Ground

Test

Ground

www. .com

[e-mail]1.800.561.8187

RIGOL

User’s Guide for DG5000

VI

Allgemeine Sicherheits Informationen

Überprüfen Sie diefolgenden Sicherheitshinweise
sorgfältigumPersonenschädenoderSchäden am Gerätundan damit verbundenen
weiteren Gerätenzu vermeiden. Zur Vermei dung vonGefahren, nu tzen Sie bi tte das
Gerät nur so, wiein diesem Handbuchangegeben.

Um Feuer oder Verletzungen zu vermeiden, verwenden Sie ein
ordnungsgemäßes Netzkabel.

Verwenden Sie für dieses Gerät nur das für ihr Land zugelasse ne und genehmigte
Netzkabel.

Erden des Gerätes.

Das Gerät ist durch den Schutzleiter im Netzkabel geerdet. Um Gefahren durch
elektrischen Schlag zu vermeiden, ist es unerlässlich, die Erdung durchzuführen. Erst
dann dürfen weitere Ein- oder Aus gä nge verbun de n werden.

Anschluss einesTastkopfes.

Die Erdungsklemmen der Sonden sindauf dem gleichen Spannungspegel des
Instruments geerdet. Schlie ßenSie die Erdungsklemmen an keine hohe Spannung an.

Beachten Sie alle Anschlüsse.

Zur Vermeidung von Feuer oder Stromschlag, beachten Sie all e Bemerkungen und
Markierungen auf dem Instrument. Befolgen Sie die Bedienungsanleitung für weitere
Informationen, bevor Sie weitere Anschlüsse an das Instrument legen.

Verwenden Sie einen geeigneten Überspannungsschutz.

Stellen Sie sicher, daß keinerlei Übersp annung (wie z.B. durch Gewitter verursacht)
das Gerät erreichen kann. Andernfallsbestehtfür den Anwender die
GefahreinesStromschlages.

Nicht ohne Abdeckung einschalten.

Betreiben Sie das Gerät nicht mit entfernten Gehäuse-Abdeckungen.

Betreiben Sie das Gerät nicht geöffnet.

Der Betrieb mit offenen oder entfernten Gehäuseteilen ist nicht zulässig. Nichts in
entsprechende Öffnungen stecken (Lüfter z.B.)

Passende Sicherung verwenden.

Setzen Sie nur die spezifikationsgemäßen Sicherungen ein.

Vermeiden Sie ungeschützte Verbindungen.

Berühren Sie keine unisolierten V erbindungen oder Baugruppen, während das Gerät in
Betrieb ist.

www. .com

[e-mail]1.800.561.8187

RIGOL

User’s Guide for DG5000

VII

Betreiben S ie d as Ge r ät nicht im Feh le r f a ll .

Wenn Sie am Gerät einen Defekt vermuten, sorgen Sie dafür, bevor Sie das Gerät
wieder betreiben, dass eine Untersuchung durch qualifiziertes Kundendienstpersonal
durchgeführt wird.Jedwede Wartung, Einstellarbeiten oder Austausch von Teilen am
Gerät, sowie am Zubehör dürfen nur v on RIGOL autorisi ertem P erson al du rchgefüh rt
werden.

Belüftung sicherstellen.

Unzureichende Belüftung kann zu Temperaturanstiegen und somit zu thermischen
Schäden am Gerät führen. Ste llen Sie deswegen die Belüftung si cher und kontrollieren
regelmäßig Lüfter und Belüftungsöffnungen.

Nicht in feuchter Umgebung betreiben.

Zur Vermeidun g von Kurzschluß im Geräteinnere n und Stromschlag betreiben Sie das
Gerät bitte niemals in feuchter Umgebung.

Nicht in explosiver Atmosphäre betreiben.

Zur Vermeidung von Personen- und Sachs chä den ist e s unumgä nglich, das Gerät
ausschließlich fernab jedweder explosiven Atmosphäre zu betreiben.

Geräteoberflächen sauber und trocken halten.

Um den Einfluß von Staub und Feuchtigkeit aus der Luft auszuschließen, halten Sie
bitte die Geräteoberflächen sauber und trocken.

Schutz gegen elektrostatische Entladung (ESD).

Sorgen Sie für eine elektrostatisch geschützte Umgebung, um somit Schäden und
Funktionsstörungen durch ESD zu vermeiden. Erden Sie vor dem Anschluß immer
Innen- und Außenleiter der Verbindungsleitung, um statische Aufladun g zu entladen.

Die richtige Verwendung desAkku.

Wenneine Batterieverwendet wird, vermeiden Sie hohe Temperaturen bzw. Feuer
ausgesetzt werden.Bewahren Sie es außerhalbder Reichweitevon Kindern
auf.UnsachgemäßeÄnderung derBatterie(An mer kung:Lithium-Batterie)kann zu einer
Explosion führen. VerwendenSie nur von RIGOLangegebenenAkkus.

Sicherer Transport.

Transportieren Sie das Gerät sorgfältig (Verpackung!), um Schäden an
Bedienelementen, Anschlüssen und anderen Teilen zu vermeiden.

www. .com

[e-mail]1.800.561.8187

RIGOL

User’s Guide for DG5000

VIII

Sicherheits Begriffe und Symbole

Begriffe in diesem Guide. Diese Begriffe können in diesem Handbuch
auftauchen:

WARNING

Die Kennzeichnung WARNING beschreibt Gefahrenquellen die leibliche
Schäden oder den Tod von Personen zur Folge haben können.

CAUTION

Die Kennzeichnung Caution (Vorsicht) beschreibt Gefahrenquellen die
Schäden am Gerät hervorrufen können.

Begriffe auf dem Produkt. Diese Bedingungen können auf dem Produkt
erscheinen:

DANGER

weist auf eine Verletzu ng ode r Gefäh r dun g hin, die sofort

geschehen kann.

WARNING

weist auf eine Verletzun g oder Gefährdung hin, die möglicherweise

nicht sofort geschehen.

CAUTION

bedeutet, dass eine mögliche Beschädigung des Instruments oder

anderer Gegenstände auftreten kann.

Symbole auf dem Produkt. Diese Symbole können auf dem Produkt
erscheinen:

GefährlicheS
pannung

Sicherheits­Hinweis

Schutz-erde Gehäusemasse Erde

www. .com

[e-mail]1.800.561.8187

RIGOL

User’s Guide for DG5000

IX

General Care and Cleaning

General Care

Do not leave or store the instrument exposed to direct sunlight for long periods of
time.

Cleaning

Clean the instrument regularly according to its operating conditions. To clean the
exterior surface, perform the following steps:

1. Disconnect the instrument from all power sources.

2. Clean the loose dust o n the outside of the instrument with a l int- free cloth (with

a mild deterge n t or water). When clean the LCD, take care to avoid scarifying it.

CAUTION

To avoid damages to the instrument, do not expose them to liquids which

have causticity.

WARNING

To avoid injury resulting from short circuit, make sure the instrument is
completely dry before reconnecting into a power sour ce.

www. .com

[e-mail]1.800.561.8187

RIGOL

User’s Guide for DG5000

X

Environmental Consideratio ns

The following symbol indicates that this product complies with the requirements in
WEEE Directive 2002/96/EC.

Product End-of-Life Handling

The equipment may contain substances that could be harmful to the environment or
human health. In order to avoid release of su ch subs tances into the envir onme nt and
harmful to human health, we encourage you to recycle this product in an appropriate
system that will e nsure that most of the mat erials are reused or recycled appropriately.
Please contact your local authorities for disposal or recycling information.

www. .com

[e-mail]1.800.561.8187

RIGOL

User’s Guide for DG5000

XI

DG5000 Series Overview

DG5000 is a multifunctional generat or that combines many functions in one, including
Function Gene rat or, Arbitrary W ave form Gene rator, IQ Base band S ource/IQ IF Source,
Frequency Hopping Source (optional) and Pattern G enerator (optional). It provides
single and dual-channel models. The dual-channel model, with two channels having
complete equivalent functions and precisely adjustable phase deviation between the
two channels, is a real dual-channel signal generator.

DG5000, adopting the Direct Digital Synthesize r (DDS) technology , can provide stable,
precise, pure and lo w distortion signal. The user-friendly interface design and panel
layout bring users exceptional experience. Besides, the remote control of the
generator can be easily done through different standard configuration interfaces,
which provides more solutions for users.

Main Features:

 4.3 inches, 16M true color TFT LCD.
 350 MHz, 250 MHz, 100 MHz or 70 MHz maximum sine output f requency, 1 GSa/s

sample rate, 14 bits resolution.

 Single/dual-channel models. The dual-channel model supports frequency and

phase coupling.

 The 16+2 channels digital output module (optional) together with the analog

channel can rebuild the more mixed signals in daily practice.

 Support an external power amplifier (optional) that can be configured online.
 Support fre qu e ncy hopping output (optional) with hopping interval up to 80ns

and arbitrary editing of frequency hopping patterns.
 14 standard waveform functions:
Sine, Square, Ramp, Pulse, Noise, Sinc, Exponential Rise, Exponential Fall, ECG,

Gauss, Haversine, Lorentz, Dual Tones and DC.

 Rise/Fall Time of the Pulse could be adjusted separately.
 Enable to edit ar bit ra ry w a v ef orm up to 512 kpts and output arbitrary waveforms

up to 128 Mpts.

 Support AM, FM , P M , A SK, FSK, PSK and PWM modulations.
 Support user-defined IQ vector signal modulation and IQ baseband/IF source

output.

 Suppor t Frequency Sweep and Burst output.
 Abundant I/O: waveform output, synchronous signal output, modulation input,

www. .com

[e-mail]1.800.561.8187

RIGOL

User’s Guide for DG5000

XII

10 MHz clock input/output, trigger input/output.

 Enable to store and recall waveform data and instrument state, and support

versatile file types. Standard configuration with 1 GBytes flash memory.

 Plenty of standard interfaces: double USB Hosts, USB Device, LAN, and GPIB

(IEEE-488.2).

 Seamlessly interconnected with RIGOL USB-TMC digital oscilloscopes for loading

and reappearing waveforms.

 Support USB flash device storage for FAT fil es.
 Support PictBridge printer.
 Provide security lock hole.
 Support remot e control through 10/100M Ethernet web.
 Conform to LXI-C instrument standards (Version 1.2).
 Provide Chinese and English built-in help and input methods.
 Provide powerful waveform editing PC software.

www. .com

[e-mail]1.800.561.8187

RIGOL

User’s Guide for DG5000

XIII

Document Overview

Chapter 1 Quick Start

This chapter introduces the front/rear panel, user interface and main functions, as
well as announcements during first use of the instrument.

Chapter 2 Basic Waveform Output

This chapter introduces how to output basic waveforms, e.g. Sine, Square etc.

Chapter 3 Arbitrary Waveform Output

This chapter introduces how to output built-in or user-defin ed wav eforms.

Chapter 4 Common Modulation Output

This chapter introduces how to output common modulated waveforms, e.g. AM, FSK,
PWM etc.

Chapter 5 IQ Modulation Output

This chapter introduces how to implement IQ modulated waveform output .

Chapter 6 Frequency Sweep Output

This chapter introduces how to generate a frequency Sweep.

Chapter 7 Burst Output
This chapter introduces how to generate a Burst waveform.

Chapter 8 FH Output

This chapter introduces how to implement frequency hopping output.

Chapter 9 Store and Recall

This chapter introduces ho w to store an d recall the w avef orm data and the instrument
state settings.

Chapter 10 Advanced Operations

This chapter introduces the advanced o pe r at ions of the instrument, including system
parameters setting, waveform saving and printing, functions expansion and the
remote control interfaces configuration.

Chapter 11 Remote Control

This chapter introduces how to control the instrument through remote mode.

Chapter 12 Troubleshooting

This chapter lists commonly encountered failures that may appear during the use of
the generator and their solutions.

www. .com

[e-mail]1.800.561.8187

RIGOL

User’s Guide for DG5000

XIV

Chapter 13 Specifications
This chapter lists the performances and general specif ic ations of the instrument.

Chapter 14 Appendix

This chapter provides the information about the options and accessories, as well as
other points for attention.

Format Conventions in this Manual

1. Buttons:

The function key at the front panel is denoted by the format of “Text Box + Button
Name (Bold)” in the manual, for example, Sine.

2. Menu Softkey:

The menu softkey is denoted by the format of “Cha racter Shading + Menu Wo r d
(Bold)” in the manual , f or exam ple, Freq.

3. Operation Steps:

The next step of the operation is denoted by an arrow “” in the manual. For
example, Sine  Freq represents pressing the function key Sine at the front
panel and then pressing the menu softkey Freq.

Content Conventions in this Manual

Illustrations in this manual are based on the dual-channel mo del, but all the functions
and performance of the single-channel model has been contained.

DG5000 series cover the following models:

Model Channels Max. Frequency Sample Rate

DG5352 2 350 MHz 1 GSa/s
DG5351 1 350 MHz 1 GSa/s
DG5252 2 250 MHz 1 GSa/s
DG5251 1 250 MHz 1 GSa/s
DG5102 2 100 MHz 1 GSa/s
DG5101 1 100 MHz 1 GSa/s
DG5072 2 70MHz 1 GSa/s
DG5071 1 70MHz 1 GSa/s

www. .com

[e-mail]1.800.561.8187

RIGOL

User’s Guide for DG5000

XV

Contents

Guaranty and Declaration .......................................................................... I

Safety Requirement .................................................................................. II

General Safety Summary ............................................................................ II

Safety Terms and Symbols .......................................................................... V

Allgemeine Sicherheits Informationen .......................................................... VI

Sicherheits Begriffe und Symbole ............................................................. VIII

General Care and Cleaning ......................................................................... IX

Environmental Considerations ...................................................................... X

DG5000 Series Overview.......................................................................... XI

Document Overview .............................................................................. XIII

Chapter 1 Quick Start ............................................................................. 1-1

General Inspection .................................................................................. 1-2

Handle Adjustment .................................................................................. 1-3

Appeara nce and Dim e nsions ..................................................................... 1-4

Front Panel ............................................................................................. 1-5

Rear Panel ............................................................................................ 1-11

Power on the Ge nerator ......................................................................... 1-14

User Interface ....................................................................................... 1-15

Parameter Mode ............................................................................. 1-15

Graph Mode ................................................................................... 1-15

To Rack Mount the Instrument ................................................................ 1-17

Kit Parts List ................................................................................... 1-17

Installation To ol .............................................................................. 1-18

Space Requirements for Installation .................................................. 1-18

Installation Procedures .................................................................... 1-19

To Use the Security Lock ........................................................................ 1-22

To Use the Built-In Help ......................................................................... 1-23

Chapter 2 Basic Waveform Output ......................................................... 2-1

To Output Sine Waveform ........................................................................ 2-2

To Output Square Waveform ..................................................................... 2-5

To Output Ramp Waveform ...................................................................... 2-6

To Output Pulse Waveform ....................................................................... 2-7

To Output Noise Waveform ..................................................................... 2-10

www. .com

[e-mail]1.800.561.8187

RIGOL

User’s Guide for DG5000

XVI

Align Phase ........................................................................................... 2-11

Chapter 3 Arbitrary Waveform Output ................................................... 3-1

To Enable Arbitrary Waveform .................................................................. 3-2

Output Mode .......................................................................................... 3-4

Normal Mode ................................................................................... 3-4

Play Mode ........................................................................................ 3-5

To Select Arbitrary Waveform ................................................................... 3-6

Built-In Waveform ............................................................................. 3-6

Stored Waveform ............................................................................. 3-11

Volatile Waveform ............................................................................ 3-11

To Create New Arbitrary Waveform .......................................................... 3-12

Edit Points ...................................................................................... 3-15

Edit Block ....................................................................................... 3-17

To Edit Arbitrary Waveform ..................................................................... 3-19

Chapter 4 Common Modulation Output .................................................. 4-1

Amplitude Modulation (AM) ...................................................................... 4-2

To Select AM Modulation ................................................................... 4-2

To Select Carrier Waveform Shape ...................................................... 4-2

To Set Carrier Frequency ................................................................... 4-2

To Select Modulating Waveform Source ............................................... 4-3

To Set Modulating Waveform Frequency.............................................. 4-3

To Set Modulation Depth ................................................................... 4-4

Frequency Modulation (FM) ...................................................................... 4-5

To Select FM Modulation .................................................................... 4-5

To Select Carrier Waveform Shape ...................................................... 4-5

To Set Carrier Frequency ................................................................... 4-5

To Select Modulating Waveform Source ............................................... 4-6

To Set Modulating Waveform Frequency.............................................. 4-6

To Set Frequency Deviation ............................................................... 4-7

Phase Modulation (PM) ............................................................................ 4-8

To Select PM Modulation.................................................................... 4-8

To Select Carrier Waveform Shape ...................................................... 4-8

To Set Carrier Frequency ................................................................... 4-8

To Select Modulating Waveform Source ............................................... 4-9

To Set Modulating Waveform Frequency.............................................. 4-9

To Set Phase Deviation ..................................................................... 4-10

Amplitude Shift Keying (ASK) .................................................................. 4-11

www. .com

[e-mail]1.800.561.8187

RIGOL

User’s Guide for DG5000

XVII

To Select ASK Modulation ................................................................ 4-11

To Select Carrier Waveform Shape .................................................... 4-11

To Set Carrier Amplitude .................................................................. 4-11

To Select Modulating Waveform Source ............................................. 4-12

To Set ASK Rate .............................................................................. 4-12

To Set Modulating Amplitude ............................................................ 4-13

To Set Modulating Polarity ............................................................... 4-13

Frequency Shift Keying (FSK) ................................................................. 4-14

To Select FSK Modulation ................................................................. 4-14

To Select Carrier Waveform Shape .................................................... 4-14

To Set Carrier Frequency ................................................................. 4-14

To Select Modulating Waveform Source ............................................. 4-15

To Set FSK Rate .............................................................................. 4-15

To Set Hop Frequency ..................................................................... 4-16

To Set Modulating Polarity ............................................................... 4-16

Phase Shift Keying (PSK) ........................................................................ 4-17

To Select PSK Modulation ................................................................. 4-17

To Select Carrier Waveform Shape .................................................... 4-17

To Set Carrier Phase ........................................................................ 4-17

To Select Modulating Waveform Source ............................................. 4-17

To Set PSK Rate .............................................................................. 4-18

To Set Modulating Phase.................................................................. 4-18

To Set Modulating Polarity ............................................................... 4-19

Pulse Width Modulation (PWM) ............................................................... 4-20

To Select PWM Modulation ............................................................... 4-20

To Select Pulse Waveform ................................................................ 4-20

To Set Pulse Width/Duty Cycle ......................................................... 4-20

To Select Modulating Waveform Source ............................................. 4-21

To Set Modulating Waveform Frequency ............................................ 4-22

To Set Pulse Width/Duty Cycle Deviation ........................................... 4-22

Chapter 5 IQ Modulation Output ............................................................ 5-1

IQ Modulation Overview ........................................................................... 5-2

To Select IQ Modulation ........................................................................... 5-3

To Select Carrier Waveform Shape ............................................................ 5-3

To Select Modulating Waveform Source ..................................................... 5-3

To Select Code Pattern ............................................................................. 5-5

Pre-defined PN Sequence Code Pattern ............................................... 5-5

www. .com

[e-mail]1.800.561.8187

RIGOL

User’s Guide for DG5000

XVIII

Pre-defined Fixed 4 bits Code Pattern ................................................. 5-5

User-defined Code Pattern ................................................................. 5-6

To Set Code Rate .................................................................................... 5-8

IQ Mapping ............................................................................................ 5-9

Chapter 6 Frequency Sweep Output ....................................................... 6-1

To Enable Frequency Sweep .................................................................... 6-2

Start Frequ ency and End Frequency .......................................................... 6-2

Center Frequency and Frequency Span ..................................................... 6-3

Sweep Type ............................................................................................ 6-4

Linear Sweep ................................................................................... 6-4

Log Sweep ....................................................................................... 6-5

Step Sweep ...................................................................................... 6-6

Sweep Time ........................................................................................... 6-7

Return Time ........................................................................................... 6-7

Mark Frequency ...................................................................................... 6-7

Start Hold ............................................................................................... 6-8

End Hold ................................................................................................ 6-8

Sweep Trigger Source .............................................................................. 6-9

Sweep Trigger Output ............................................................................. 6-10

Chapter 7 Burst Output .......................................................................... 7-1

To Enable Burst Mode .............................................................................. 7-1

Burst Type .............................................................................................. 7-1

N Cycle Burst ................................................................................... 7-1

Inf inite Burst .................................................................................... 7-3

Gated Burst...................................................................................... 7-4

Burst Phase ............................................................................................ 7-5

Burst Period ............................................................................................ 7-5

Gated Polarity ......................................................................................... 7-5

Burst Delay............................................................................................. 7-6

Burst Trigger Source ................................................................................ 7-6

Burst Trigger Output ................................................................................ 7-7

Chapter 8 FH Output (Option) ................................................................ 8-1

FH Over view ........................................................................................... 8-2

To Enable FH Function ............................................................................. 8-3

To Select Carrier Waveform ...................................................................... 8-4

FH Switch ............................................................................................... 8-4

www. .com

[e-mail]1.800.561.8187

RIGOL

User’s Guide for DG5000

XIX

FH Interval ............................................................................................. 8-4

Start Point .............................................................................................. 8-4

Display Type ........................................................................................... 8-5

To Load Map ........................................................................................... 8-6

To Edit Map ............................................................................................ 8-7

FH List ............................................................................................. 8-7

FH Seq uence .................................................................................... 8-9

To Save FH Map .............................................................................. 8-10

Chapter 9 Store and Recall ..................................................................... 9-1

Storage System Overview ......................................................................... 9-2

To Select File Type ................................................................................... 9-3

To Select Browser Type ............................................................................ 9-4

To Save a File ......................................................................................... 9-4

To Recall a File ........................................................................................ 9-7

To Copy a File ......................................................................................... 9-7

To Paste a File ......................................................................................... 9-8

To Delete a File or Folder ......................................................................... 9-8

To Create a New Folder ............................................................................ 9-9

Format the Local Disk .............................................................................. 9-9

Seamlessly Interconnection .................................................................... 9-10

Chapter 10 Advanced Operation .......................................................... 10-1

Advanc ed Operation Overv iew ................................................................ 10-2

Channel Setting ..................................................................................... 10-3

Sync Setti ng ................................................................................... 10-3

Sync Polarity .................................................................................. 10-5

Output Polarity ............................................................................... 10-5

Resistance Setting ........................................................................... 10-6

Range Setting ................................................................................. 10-6

Attenuation Setting ......................................................................... 10-7

Enable Freq Hop Function ................................................................ 10-7

Channel Coupling .................................................................................. 10-8

Channel Copy....................................................................................... 10-10

System Setting ..................................................................................... 10-11

Number Format ............................................................................. 10-11

Language ...................................................................................... 10-12

Power On Setting ........................................................................... 10-12

Restore Default .............................................................................. 10-12

www. .com

[e-mail]1.800.561.8187

RIGOL

User’s Guide for DG5000

XX

Display Setting .............................................................................. 10-17

Beep Setting ................................................................................. 10-18

Screen Saver Setting ...................................................................... 10-18

Clock Source Setting ...................................................................... 10-19

User-defined Shortcut .................................................................... 10-21

System Informat i on ....................................................................... 10-21

Print ................................................................................................... 10-22

Test Calibration .................................................................................... 10-23

To Use the Power Amplifier (Option) ...................................................... 10-24

To Use the Digital Module (Option) ........................................................ 10-28

Protocol Setting ............................................................................. 10-31

To Set the Code Pattern ................................................................. 10-34

User Data Editing .......................................................................... 10-35

To Set the Output Data Length ....................................................... 10-36

Channel Setting ............................................................................. 10-37

Trigger Setting .............................................................................. 10-39

To Configure the Remote Interface ........................................................ 10-40

To Set GPI B Address ...................................................................... 10-40

LAN Setting ................................................................................... 10-40

To Set USB Device Type ................................................................. 10-45

Chapter 11 Remote Control .................................................................. 11-1

Remote Control Via USB ......................................................................... 11-2

Remote Control Via LAN .......................................................................... 11-4

Remote Control Via GPIB ........................................................................ 11-7

Chapter 12 Troubleshooting ................................................................. 12-1

Chapter 13 Specifications ..................................................................... 13-1

Chapter 14 Appendix ............................................................................ 14-1

Appendix A: Option and Accessories ........................................................ 14-1

Appendix B: Specifications of Power Amplifier ........................................... 14-2

Appendix C: Specifications of Digital Module ............................................. 14-4

Appendix D: Warr anty ............................................................................ 14-6

Index ......................................................................................................... 1

www. .com

[e-mail]1.800.561.8187

Chapter 1 Quick Start RIGOL

User’s Guide for DG5000

1-1

Chapter 1 Quick Start

This chapter introduces the front/rear panel, user interface and main functions, as
well as announcements during first use of the instrument.

Subjects in this chapter:

 General Inspection
 Handle Adjustment
 Appeara nce and Dimensions
 Front Panel
 Rear Panel
 Power on the Ge nerator
 User Interface
 To Rack Mount the Instrument
 To Use the Security Lock
 To Use the Built-In Help

www. .com

[e-mail]1.800.561.8187

RIGOL Chapter 1 Quick Start

User’s Guide for DG5000

1-2

General Inspection

1. Inspect the shipping container for damage.

If there are damages in the container or foam, keep them until the whole
machine and the accessories passing the electrical and mechani cal tests.

If your instrument has damaged du ring shipping, please contact y our shippe r and
carrier for compensation. RIGOL will provide no free repair or replacemen t .

2. Inspect the instrument.

In case of any mechanical damage or defect, or if the instrument does not
operat e properl y or pass the electrical and mech anical tests, contact your local
sales representative of RIGOL.

3. Check the Accessories

If the contents are incomplete or damaged, please contact your local sales
representative of RIGOL.

www. .com

[e-mail]1.800.561.8187

Chapter 1 Quick Start RIGOL

User’s Guide for DG5000

1-3

Handle Adjustment

To adjust the handle position of the instrument, please grip the handle by sides and
pull it outward. Then, rotate the handle to the desired position. The operating method
is shown below.

Adjusting the handle

Viewing Positions Carrying Position

www. .com

[e-mail]1.800.561.8187

RIGOL Chapter 1 Quick Start

User’s Guide for DG5000

1-4

Appearance and Dimensions

Front Elevation Unit: mm

Side Elevation Unit: mm

www. .com

[e-mail]1.800.561.8187

Chapter 1 Quick Start RIGOL

User’s Guide for DG5000

1-5

Front Panel

The manual illustrates the front pa nel of the instru ment taking the dual-channel model
for exa mple.

13.Menu Softkey

12.Page Up/Down

21.Direction Keys

22.Numeric Keyboard

24.CH1 Output Control

25.CH2 Output Control

27.CH2 Output

26.CH1 Output

23.Channel Toggle

1.Power Key

2.USB Host

3.LCD

4.Display Switch

14.Modulation

15.Sweep

16.Burst

20.Knob

17.Store/Recall

18.Utility

19.Help

5.Sine

6.Square

7.Ramp

8.Pulse

9.Noise

10.Arb

11.User-defined Key

Figure 1-1 Dual-Channel Model Front Panel Overview

Figure 1-2 Single-Channel Model Front Panel Overview

www. .com

[e-mail]1.800.561.8187

RIGOL Chapter 1 Quick Start

User’s Guide for DG5000

1-6

1. Power Key

The power soft key is used to turn the generator on or off.

2. USB Host

Support FAT fi le format USB flash device, RIGOL TMC digital oscilloscope (DS)
and power amplifi e r (PA).
 USB flash device: Read the waveform or state files from the USB flash device,

or store the current instrument state and edited waveform data into the USB
flash device.

 TMC DS: Seamlessly interconnect with the RIGOL DS that fits the TMC

standard, read and store the waveform data sampled by the DS and display it
nondestructively.

 PA (optional): Support the RIGOL power amplifier, for example, PA1011.

Enable to be configured online and amplify the signal power before output.

3. LCD

480 × 272 TFT color LCD is used to display the current function menu and
parameters setting, system state and prompt messages.

4. Display Switch

For dual-channel model: Switch between Parameter/Graph display mode.
For single-channel model: not available.

5. Sine

Generate a Sine waveform with frequency from 1 μHz to 350 MHz.

 When the function is enabled, the backlight of the button turns on.
 Enable to change Frequency/Period, Amplitude/High Level, Offset/Low Level

and Start Phase of the Sine wavefo rm.

6. Square

Generate a Square waveform wi t h frequency from 1 μHz to 120 MHz and variable
duty cycle.

 When the function is enabled, the backlight of the button turns on.
 Enable to change Frequency/Period, A mpl it u de/Hi gh Lev el , Of f se t /Lo w Le v el ,

Duty Cycle and Start Phase of the Squa re waveform.

www. .com

[e-mail]1.800.561.8187

Chapter 1 Quick Start RIGOL

User’s Guide for DG5000

1-7

7. Ramp

Generate a Ramp waveform with frequency from 1 μHz to 5 MHz and var iable
symmetry.

 When the function is enabled, the backlight of the button turns on.
 Enable to change Frequen cy /P e rio d, A mpli tu de /Hi gh Le ve l, O f fs et /L ow Lev el ,

Symmetry and Start Phase of the Ramp waveform.

8. Pulse

Generate a Pulse waveform with frequency from 1 μHz to 50 MHz and variable
pulse width and edge time.

 When the function is enabled, the backlight of the button turns on.
 Enable to change Freque n cy/P eriod, Ampli tu de /Hi gh Le ve l, O f fs et /L ow Lev e l ,

Pulse Width/Duty Cycle, Leading Edge Time, Trailing Edge Time and Delay of
the Pulse waveform.

9. Noise

Generate a Gauss Noise with bandwidth up to 250 MHz.

 When the function is enabled, the backlight of the button turns on.
 Enable to change Amplitude/ High Level and Offset/Low Level of the Noise

waveform.

10. Arb

Generate an arbitrary waveform wi th fr eq u e nc y from 1 μHz to 50 MHz.

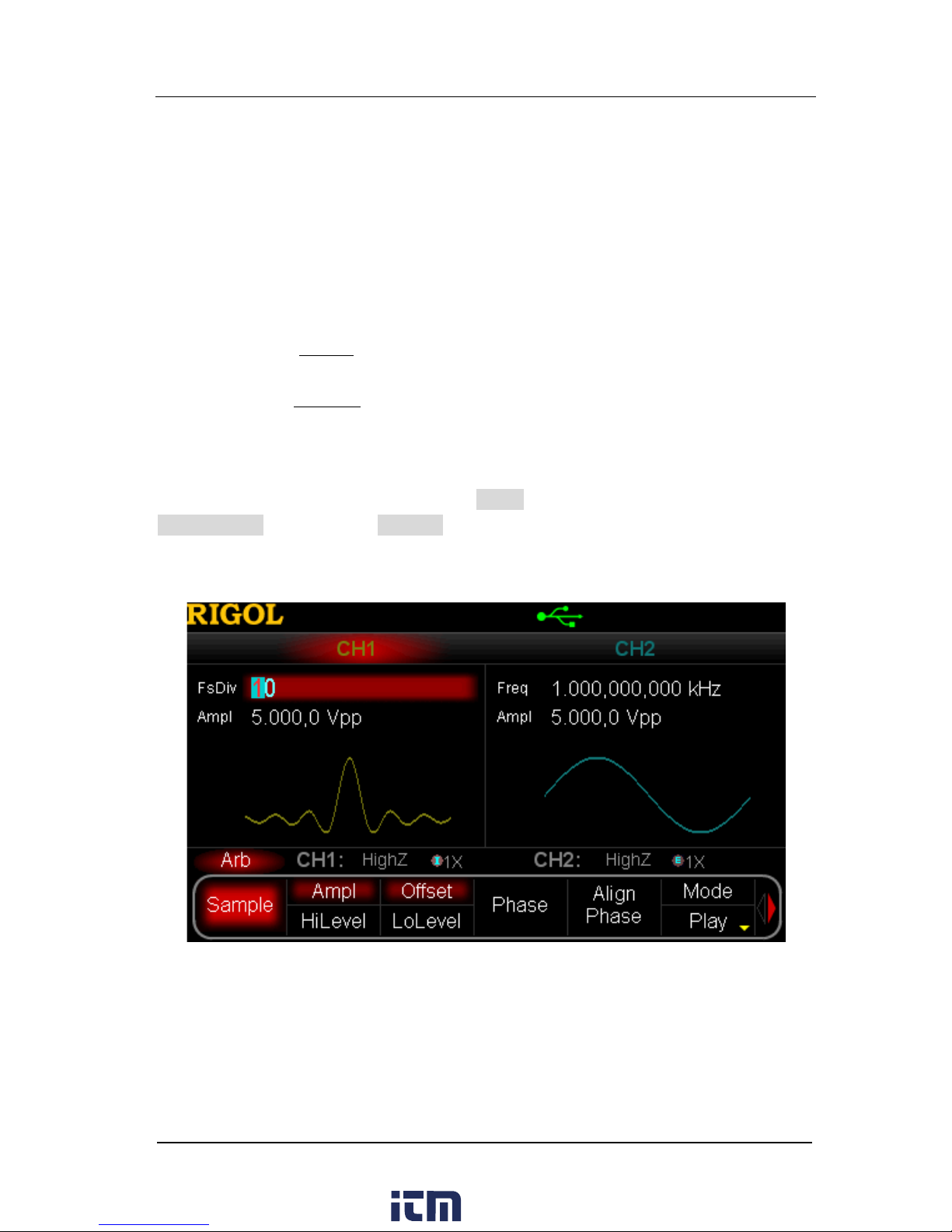

 Provide two output modes: “Normal” and “Play”.
 Generate 10 built-in waveforms: DC, Sinc, E xponent ial Rise, Exponential F all,

ECG, Gauss, Haversine, Lorentz, Pulse and Dual-Tone; generate arbitrary
waveforms from USB flash device; generate arbitrary waveforms edited
online (512 kpts) or through PC software and then downloaded to the
instrument by the us ers; support wavetable points up to 128 Mpts.

 When the function is enabled, the backlight of the button turns on.
 Enable to change Frequency/Period, Amplitude/High Level, Offset/Low Level

and Start Phase of the arbi tr a ry waveform.

11. User-defined Key

For some frequently used menus with “deep” location, users can define them as
shortcuts (under the function key Utility). And then, i n any operat ion interface,
press the User-defined Key to quickly open and set your desired menu or
function.

www. .com

[e-mail]1.800.561.8187

RIGOL Chapter 1 Quick Start

User’s Guide for DG5000

1-8

12. Page Up/Down

Open the previous or next page of the current function menu.

13. Menu Softkey

Press any softke y to a c ti vate the corresponding menu.

14. Modulation

Generate modulated waveforms. Provide versatile common modulations and user

defined IQ modulation.

 Common Modulations: Support internal and external modulations, gener ate

AM, FM, PM, ASK, FSK, PSK and PWM modulated signal.

 User Defined IQ Modulation: Support internal and external modulation,

generate IQ modulated signal.

15. Sweep

Generate the frequency sweeping signal of Sine, Square, Ramp and Arbitrary
Waveforms (except DC).

 Support three sweep typ es: L i n e ar, Log and Step.
 Set Start Hold, End Hold and Return Time.
 Provide the “Mark” function.
 When the function is enabled, the backlight of the button turns on.

16. Burst

Generate burst waveforms of Sine, Square, Ramp, Pulse and Arbitrary waveform
(except DC).

 Support three burst types: N Cycle, Infinite and Gated.
 Noise can also be used to generate Gated burst.
 When the function is enabled, the backlight of the button turns on.
 In remote mode, press this button to switch to local mode.

17. Store/Recall

Store/recall the instrument state or user-defined arbitrary waveform data.

 Support file management system to execute normal file operations.
 Provide 1 GBytes built-in non-volatile memory (C Disk) and two external USB

flash devices (D Disk and E Disk). In addition, files stored in a USB flash
device can be copied to C Disk for long-term preservation.

 When the function is enabled, the backlight of the button turns on.

www. .com

[e-mail]1.800.561.8187

Chapter 1 Quick Start RIGOL

User’s Guide for DG5000

1-9

18. Utility

Provide some advanced operations, including system parameters setting,
waveform saving and printing, functions expanding and the remote control
interfaces configuration.
When the function is enabled, the backlight of the button turns on.

19. Help

To get context help information about any front-panel key or menu softkey , press
this key until it is illuminated and then press the desired key.

20. Knob

Be used to increase (clockwise) or decrease (anticlockwise) the current
highlighted nu mber. Also can be u sed t o select file location or switch the character
of the soft keyboard when entering file name.

21. Direction Keys

Be used to switch the digits of the number, the data page and the file locations.

22. Numeric Keyboard

Consists of numbers (0~9), decimal point (.) and operators (+/-). Notice that, if a
negative required, please input an operator “-” before the numbers. In addition,
the decimal point “.” also can be used to switch units quickly.

23. Channel Toggle

For dual-channel model: switch and toggle a channel.
For single-channel model: not available.

24. CH1 Output Control

For dual-channel model: control the output of CH1. When the output function
enables, the backlight of the button goes on.
For single-channel model: trigger “Sweep” and “Burst” manually.

25. CH2 Out put Control

For dual-channel model: control the output of CH2. When the output function
enables, the backlight of the button turns on.
For single-channel model: control the output of the main channel. When the
output function enables, the backlight of the button turns on.

www. .com

[e-mail]1.800.561.8187

RIGOL Chapter 1 Quick Start

User’s Guide for DG5000

1-10

26. CH1 Output

This BNC connector is used as an output terminal.
For dual-channel model: enable or disable waveform signals generated from
[Output] connector corresponding to CH1. The nominal output im pedance is 50 Ω.
For single-channel model: outp ut a TTL-compatible pulse synchronized with the
main output. The nominal source impedance is 50 Ω.

27. CH2 Output

This BNC connector is used as an output terminal. The nominal output i mpedance
is 50 Ω.
For dual-channel model: enable or disable waveform signals generated from
[Output] co nnector corresponding to CH2.
For single-channel model: output signals of the main channel.

CAUTION

Overvoltage protection of the output channel will take effect once any of
the following conditions is met.
 Amplitude setting in the generator is greater than 2 Vpp; the input

voltage is greater than ±12.1 V (±0.1 V) and frequency is lower than
10 kHz.

 Amplitude setting in t he generator is lower than or equal to 2 Vpp; the

input voltage is greater than ±4.8 V (±0.1 V) and frequency is lower

than 10 kHz.
The message “OverLoad protect, The output is off!” will appear on the
screen when overvoltage protection takes effect.

www. .com

[e-mail]1.800.561.8187

Chapter 1 Quick Start RIGOL

User’s Guide for DG5000

1-11

Rear Panel

The manual illustrates the rear panel of the instrument taking the dual-channel model
for exa mple.

1.Digital Output

2.CH1 Mod/I Signal In

3.CH2 Mod/I Signal In

4.CH1 Q Signal In

5.CH2 Q Signal In

6.CH1 Sync Out

7.CH2 Sync Out

8.CH1 ExtTrig In

9.CH2 ExtTrig In

10.10MHz In

11.10MHz Out

12.LAN

13.USB Device

14.GPIB

15.USB Host

16.Lock Hole

17.Power Switch

18.Power Socket

Figure 1-3 Dual-Channel Model Rear Panel Overview

Figure 1-4 Single-Channel Model Rear Pane l O v erview

www. .com

[e-mail]1.800.561.8187

RIGOL Chapter 1 Quick Start

User’s Guide for DG5000

1-12

1. DIGITAL OUTPUT

Connect the generato r with the “logic signal output module” DG-POD-A (optional).
Then, configure specific sequence digital signal in the generator and output the
signal through the digital module.

2. CH1 Mod/I Sig n al In (Mod in/I1)

This SMB conne ctor accept s an external Anal og modulation signal or In-Phase (I)
baseband signal to be used in CH1’s modulation. The n ominal in put im pedanc e is
10 kΩ.

3. CH2 Mod/I Sig n al In (Mod in/I2)

This SMB conne ctor accept s an external Anal og modulation signal or In-Phase (I)
baseband signal to be used in CH2’s modulation. The n ominal in put im pedanc e is
10 kΩ.

4. CH1 Q Signal In (Q1)

This SMB con nector accepts an external Analog/ Quadrature Phase (Q)
modulation signal to be used in CH1’s modulation. The nominal input impedance
is 10 kΩ.

5. CH2 Q Signal In (Q2)

This SMB connector accepts an external Analog/ Quadrature Phase (Q)
modulation signal to be used in CH2’s modulation. The nominal input impedance
is 10 kΩ.

6. CH1 Sync Out (Sync1)

This SMB connector outputs a TTL -compatible pulse synchronized with the output
of CH1. The nominal source imped ance is 50 Ω.

7. CH2 Sync Out (Sync2)

This SMB connector outputs a TTL -compatible pulse synchronized with the o utput
of CH2. The nominal source imped ance is 50 Ω.

8. CH1 ExtTrig In (ExtTrig1)

This SMB connector accepts an external TTL-compatible pulse as the tri gger input
of CH1. Besides, it can also be used as the trigger o ut i n Sweep and Burst mode.

www. .com

[e-mail]1.800.561.8187

Chapter 1 Quick Start RIGOL

User’s Guide for DG5000

1-13

9. CH2 ExtTrig In (ExtTrig2)

This SMB connector accepts an external TTL-compatible pulse as the tri gger input
of CH2. Besides, it can also be used as the trigger o ut in Sweep and Burst mode.

10. (11.)10MHz In/10MHz Out

These tw o connectors are used to synchronize generators. The connect or [10MHz
In] accepts an external 10 MH z clock signal, and the connector [10MHz Out] can
output a 10 MHz clock signal generated by the crystal inside the generator.

12. LAN

Through this interface, the generator can be connected to your local network for
remote control. An integrated testing system may be built, as the generator
conforms to the LXI-C class standard of LAN-based instrument control.

13. USB Device

Through this interface , the generator can be connected to a PictBridge printer to
print its screen, or be connected to a PC and controlled via PC software.

14. GPIB

Meet IEEE-488.2 specification.

15. USB Host

Reference to “USB Host” page 1-6.

16. Lock Hole

Use the security lock (please buy it yourself) to lock the generator in fixed
location.

17. Power Switch

Connect or cut off the power supply.

18. Power Socket

The generator can accept two types of AC power supply.
AC Power Supply: 45-440 Hz, 100-127 V, or 45-60 Hz, 100-240 V.
Power Fuse: 250 V, T3A.
Power Consumption: less than 125 W.

www. .com

[e-mail]1.800.561.8187

RIGOL Chapter 1 Quick Start

User’s Guide for DG5000

1-14

Power on the Generator

Connect the generator to the AC supply by using the supplied power cord, and then
perform the following steps.

1. Turn on the power of the instrument

Turn on the power switch at the rear panel of the instrument.

WARNING

To avoid electric shock, make sure the instrument has been properly
grounded.

2. Start-up the instrument

Press down the power key at the front panel. The instrument starts and executes
self-test and then enters the user interface.

www. .com

[e-mail]1.800.561.8187

Chapter 1 Quick Start RIGOL

User’s Guide for DG5000

1-15

User Interface

The user interface is usually shown in two modes whi ch are “Parameter” and “Graphic”.
The illustration given here will take the “Graphic” mode of the Dual-Channel Model for
example.

Parameter Mode

Figure 1-5 User Interface (Parameter Mode)

Graph Mode

In parameter mode, toggle the “Display Switch” at the upper right of the screen
to switch to the Graphic Mode.

Figure 1-6 User Interface (Graphic Mode)

www. .com

[e-mail]1.800.561.8187

RIGOL Chapter 1 Quick Start

User’s Guide for DG5000

1-16

1. Status Bar

Indicate system status. For example, an icon

denotes that a USB flash

device has been detected.

2. Current Function

Show the current a ctive function. For example, “Sine” denotes that sine wave has
been selected at present.

3. Channel Label Bar

Be divided into two parts which marks the display areas of CH1 and CH2
respectively. The currently selected channel label will be highlighted.

4. Frequency Display

Display the current waveform frequency in each channel. Press corresponding
softkey Freq an d use the numeric keyb oard or knob to modify this parameter. The
parameter that can be modified currently will be highlighted.

5. Amplitude Display

Display the current waveform amplitude in each channel. Press corresponding
softkey Ampl and use the numeric keyboard or knob to modify this parameter.
The value that can be modif ied currently will be highlighted.

6. Waveform Display

Display the currently selected waveform shape in each channel. The waveform of
the currently selected channel will be highlighted.

7. Output Configuration

Display the current output configuration in each channel, including “Output
resistance” and “Attenuation setting”.

8. Menu Softkey

Press any softkey to activate the corresponding function.

www. .com

[e-mail]1.800.561.8187

Chapter 1 Quick Start RIGOL

User’s Guide for DG5000

1-17

To Rack Mount the Instrument

This generator can be mounted in a standard 19-in ch rack cabinet. Please disassemble
the cushioning material and handle befo re the installation.

Kit Parts List

No. Name Qty. Part Number Description

1-1 Front Panel 1 RM-DG-5-01
1-2 Support Board 1 RM-DG-5-02
1-3 Left Plate 1 RM-DG-5-03
1-4 Right Plate 1 RM-DG-5-04
1-5 Fixed Figure 2 RM-DG-5-05
2-1 M4 Screw 19 RM-SCREW-01 M4*6 Phil-Slot Pan Head Machine

Screw Nail

2-2 M6 Screw 4 RM-SCREW-02 M6*16 Phil-Slot Pan Head

Machine Screw Nail

2-3 M6 Nut 4 RM-SCREW-03 M6*5 Squa re Ma chine Female

Screw Contain Lock Blade

2-1 2-2 2-3

www. .com

[e-mail]1.800.561.8187

RIGOL Chapter 1 Quick Start

User’s Guide for DG5000

1-18

Installation Tool

PH2 Phillips Screwdriver (recommended).

Space Requirements for Installation

The following requirements must be fulfilled by the machine cabinet in which the
instrument is mounted.

 Dimension of the machine cabinet must be standard 19-inch.
 At least 3U (133.5 mm) spac e s hou ld be provided by the machine cabinet.
 The depth inside the machine cabinet should not be less than 530 mm.

The dimension of the instrument after being mounted is shown below.

www. .com

[e-mail]1.800.561.8187

Chapter 1 Quick Start RIGOL

User’s Guide for DG5000

1-19

Installation Proce dure s

Only authorized operators can execute the installation operation. The instrument will
be damaged or installed in rack incorrectly if the installation is not proper.

1. Remove the handle: please grip the handle by sides, pull it outward and then
upward.

2. Install the right and left plates: align the detents of right and left plates with the
openings on the support board and insert them into the support board
respectively, then fix them with eight M4 screws.

www. .com

[e-mail]1.800.561.8187

RIGOL Chapter 1 Quick Start

User’s Guide for DG5000

1-20

3. Place the instrument: align the protection pads of the instrument with the
corresponding holes and then place it on the Support Board.

4. Fixed the instrument: Fasten the instrument tightly on the Support Board with
two Fixed Figures and fixed it with four M4 screws.

5. Install the Front Panel: aiming the instrument front panel at the opening of the

Front Panel of the machine rack and fix them with four M4 screws.

www. .com

[e-mail]1.800.561.8187

Chapter 1 Quick Start RIGOL

User’s Guide for DG5000

1-21

6. Load into the machine cabinet: mount the rack fixed with instrument into a
standar d 19-inch machine cabinet with four M6 screws and square nuts.

7. Post-installation notice: The rack occupies a height of 3U. The holes pointed out
by the arrows are the installation holes. Note that they are aligned while
installing.

www. .com

[e-mail]1.800.561.8187

RIGOL Chapter 1 Quick Start

User’s Guide for DG5000

1-22

To Use the Security Lock

Use a security lock to lock your generator in a desired l ocation. As shown in the picture
below, align the lock with the lock hole on t he generator and insert the lock. Turn the
key clockwise to lock the instrument and then pull the key out.

www. .com

[e-mail]1.800.561.8187

Chapter 1 Quick Start RIGOL

User’s Guide for DG5000

1-23

To Use the Built-In Help

To get context help information about any front-panel key or menu softkey, press
Help to illuminate the k ey and then press the desired key to get corresponding help.
Pressing Help twice will get the following common help.

1. View the last displayed message.

2. View error queue of the remote commands.

3. Get the help information of a key.

4. Generate a basic waveform.

5. Generate an arbitrary waveform.

6. Generate a modulated waveform.

7. Generate a frequency Sweep.

8. Generate a Burst waveform.

9. IQ (In-Phase/Quadrature) modulation.

10. Frequency hopping output.

11. Storage management.

12. Synchronize multiple Generators.

13. Seamlessly connected with the RIGOL DS.

14. Get technical support from RIGOL.

www. .com

[e-mail]1.800.561.8187

www. .com

[e-mail]1.800.561.8187

Chapter 2 Basic Waveform Output RIGOL

User’s Guide for DG5000

2-1

Chapter 2 Basic Waveform Output

This chapter introduces how to output basic wavef orms such as Sine, Squa re, etc. The
generator can output basic wa v ef o rms f r om t he si ngle cha nnel or two channels at the
same time.

Subjects in this chapter:

 To Output Sine Waveform
 To Output Square Waveform
 To Output Ramp Waveform
 To Output Pulse Waveform
 To Output Noise Waveform
 Align Phase

www. .com

[e-mail]1.800.561.8187

RIGOL Chapter 2 Basic Waveform Output

User’s Guide for DG5000

2-2

To Output Sine Waveform

To output a sine waveform from CH1 with 20 kHz frequency, 2.5 Vpp amplitude, 500
mVDC offset and 10 ° start phase.

1. Select Channel

Press CH1|CH2 to select CH1. “CH1” in Channel Label Bar will be highlighted
indicating that CH1 has been selected.

2. Select Sine Waveform

Press Sine to select Sine waveform. The key will be illuminated and the
corresponding menus display at the bottom of the screen.

3. Set the Frequency/Period

Press Freq/Period to highlight “Freq”, and then use the numeric keyboard to
input “20” and select the unit “kHz” in the pop-up menu.

 Sine waveform frequency range: 1 μHz to 350 MHz.
 Press the softkey again to switch to “Period”.
 Selectable frequency units: MHz, kHz, Hz, mHz, μHz.
 Selectable period units: sec, msec, μsec, nsec.
 You can also use the knob to modify this parameter.

4. Set the Amplitude

Press Ampl/HiLevel to highlight “Ampl”, and then use the numeric keyboard to
input “2.5” and select the unit “Vpp” in the pop-up menu.
 The amplitude range is limited by the “Resistance” and “Freq/Period”

settings. Please refer to the “Output Characteristic” described in
“Specifications”.

 Amplitude and offset, HiLevel and LoLevel, always exist in pairs. Press the

softkey aga i n to sw itch to “HiLevel”.

 Selectable amplitude units: Vpp, mVpp, Vrms, mVrms, dBm (non-high

impedance).

 Selectable high level units: V, mV.
 You can also use the knob to modify this parameter.

5. Set the DC Voltage Offset

Press Offset/LoLevel to highlight “Offset”, and then use the numeric keyboard

www. .com

[e-mail]1.800.561.8187

Chapter 2 Basic Waveform Output RIGOL

User’s Guide for DG5000

2-3

to input “500” and select the unit “mVDC” in the pop-up menu.
 The offset range is limited by the “Resistance” and “Ampl/HoLevel”

setting. Please refer to the “Output Characteristic” described in
“Specifications”.

 Amplitude and offset, HiLevel and LoLevel, always exist in pairs. Press the

softkey again to switch to “LoLevel”. Not e that the low lev el should be at least
5 mV (50Ω) lower than the high level.

 Selectable offset units: V

DC

, mVDC.

 Selectable low level units: V, mV.
 You can also use the knob to modify this parameter.

6. Set the Start Phase

Press Start Phase to high light the softkey, and then use the numeric keyboard to
input “10” and select the unit “º” in the pop-up menu.

 Start Phase range: 0 º to 360 º.
 You can also use the knob to modify this parameter.

7. Channel Setting

Besides the above steps, you can also configure the output parameters related t o
the channel through “Channel Setting” menu in Utility. As shown in the
following figure, the main output param et er s ( Resistance and Attenuation) of
the channel are shown at the bottom of the screen.

8. Enable the Output

Press Output of CH1 to highlight the key, which indicates the waveform output
from th e [Output] connector of CH1 has been enabled. If an overload message
appears on the screen, please cut off the connection between the [Output]
connec tor and the external dev ices, and then pre ss Output again to re-enable
the output.

www. .com

[e-mail]1.800.561.8187

RIGOL Chapter 2 Basic Waveform Output

User’s Guide for DG5000

2-4

Units Switching

You can quickly

switch the output unit of the current parameters from the front

panel. For example, to transform 2 Vpp t o a v alue w hose unit is Vrms, press the
key · in the numeric keyboard and then select the unit “Vrms” in the pop-up
menu. If for a Sine waveform, the transformed value is 707.1 mVrms. You will
find DG5000 is also an excellent “calculator”.

www. .com

[e-mail]1.800.561.8187

Chapter 2 Basic Waveform Output RIGOL

User’s Guide for DG5000

2-5

To Output Square Waveform

To output a square waveform from CH1 with 20 kHz frequency, 2.5 Vpp amplitude,
500 mVDC offset, 30% duty cycle and 10 ° start phase. Refer to “To Output Sine
Waveform” to configure the parameters and output. This section will only talk about
“Duty Cycle”.

What’s Duty Cycle?

Duty Cycle is defined as the percentage that the high level takes up in the whole
period.

T

t

Duty Cyc=t/T*100%

Set the Duty Cycle

1. Press Square to select square waveform. The key will be illuminated and the

corresponding menus display at the bottom of the screen.

2. Press Duty Cycle to highlight the softkey, and then use the numeric keyboard to
input “30” and select the unit “%” in the pop-up menu.
 The duty cycle range is limited by the “Freq/Period” setting.

For frequency lower than or equal to 10 MHz: 20％ to 80％
For frequency greater than 10 MHz and lower than or equal to 40 MHz: 40％
to 60％
For freque ncy greater than 40 MHz: 50％

 You can also use the knob to modify this parameter.

www. .com

[e-mail]1.800.561.8187

RIGOL Chapter 2 Basic Waveform Output

User’s Guide for DG5000

2-6

To Output Ramp Waveform

To output a ra mp wa v efor m fr om CH1 wit h 20 kHz frequency, 2.5 Vpp a m plit u de, 500
mV

DC offset, 80% symmetry and 10 ° start phase. Refer to “To Output Sine

Waveform” to configure the parameters and output. This section will only tal k about
“Symmetry”.

What’s symmetry?

Symmetr y is defined as the percentage that the rising period takes up in the whole
period.

T

t

Symmetry

=t/T*100%

Set the Symmetry

1. Press Ramp to select ramp waveform. The key will be illuminated and the

corresponding menus display at the bottom of the screen.

3. Press Symmetry to highlight the softkey, and then use the numeric keyboard to
input “80” and select the unit “%” in the pop-up menu.

 Symmetry range: 0％ to 100％.
 You can also use the knob to modify this parameter.

www. .com

[e-mail]1.800.561.8187

Chapter 2 Basic Waveform Output RIGOL

User’s Guide for DG5000

2-7

To Output Pulse Waveform

To output a pulse w av ef orm f rom CH1 with 20 kHz frequency, 2.5 Vpp am pl itu de , 500
mVDC offset, 10 μs pulse width (20% duty cycle), 50 ns leading a nd t raili ng edge time
and 8 μs delay. Refer to “To Output Sine Waveform” to configure the parameters
and output. This section will only talk about “Pulse Width/Duty Cycle”, “Leading”,
“Trailing”, “Delay” and “Recover Del ay”.

Pulse Width

10％

50％

90％

t

Rise

t

Fall

Pulse Width/Duty Cycle

Pulse Width/Duty Cycle is defined as the time from the 50% t hresh old of a risi ng edge
amplitude to the 50% threshold of the next falling edge amplitude.

Press Pulse  Width/Duty to highlight “Pulse Width”, and then use the numeric
keyboard to inpu t “10” and select the unit “μs” in the p op-up menu.
 Pulse Width is li mited b y the “Minimum Pulse Width” and the “Pulse Period”.

Minimum Pulse Width = 4 ns
Pulse Width ≥ Minimum Pulse Width
Pulse Width ≤ Pulse Period - Minimum Pulse Width × 2

 Pulse Width and Duty Cycle are correlative. Once a parameter is changed, the

other one will be automatically changed. Press the softkey again to switch to
“Duty Cycle” (having been automatically set to 20% in this example, refer to “Set
the Duty Cycle” for manual setting). Pulse Duty Cycle is limited by the
“Minimum Pulse Width” and the “Pulse Period”.
Pulse Duty Cycle ≥ 100 × Minimum Pulse Width ÷ Pulse Period
Pulse Duty Cycle ≤ 100 × (1 - 2 × Minimum Pulse Width ÷ Pulse Period)

 Selectable Pulse Width units: sec, msec, μsec, nsec.
 You can also use the knob to modify this parameter.

www. .com

[e-mail]1.800.561.8187

RIGOL Chapter 2 Basic Waveform Output

User’s Guide for DG5000

2-8

Leading/Trailing Edge Time

The Leading (rising) edge time is defined as the duration of the pulse a mplitude rising
from 10% to 90% thr eshold, while the Trailing (falling) edge time is defined as the
duration of the pulse amplitude moving down fro m 90% to 10% threshold.

Press Pulse  Leading (or Trailing ) to highlight the softkey, and then use the
numeric keyboard to input “50” and select the unit “ns” in the pop-up menu.

 Edge Time range: 2.5 ns to 1 ms.
 Selectable Leading/Trailing Edge Time units: sec, msec, μsec, nsec.
 You can also use the knob to modify this parameter.

Delay

Delay is defined as the delaye d time of the output of a channel relative to the output
of the other channel.

Delay

CH1 Output

CH2 Output

Note: The delay function is only for dual-channel models.

Press Pulse  Delay to highlight the softkey, and then use the numeri c ke yboar d to
input “8” and select the unit “μs” in the pop-up menu.

 Delay Time range: 0 s to pulse period
 Selectable Delay Time units: sec, msec, μsec, nsec.
 You can also use the knob to modify this parameter.

www. .com

[e-mail]1.800.561.8187

Chapter 2 Basic Waveform Output RIGOL

User’s Guide for DG5000

2-9

Recover Delay

The recover delay function is only for dual-channel models. Press Pulse, th e n use

to open the 2/2 menu page and press Restore, the generator will align the

delay between the two channels. Assume that CH1 and CH2 output pulse waveforms
with the same parameters. Use the oscilloscope to sample the waveforms of the two
channels and display them stably. Then, toggle the output switch of the generator.
The two waveforms display e d on the oscillosco pe have a certain delay. At this point,
press Restore on the generator and the waveforms will be displayed on the
oscilloscope without any delay.

Before Restore

After Restore

Note: For dual-channel models, the corresponding Restore is grayed out and
disabled if any of the two channels is in modulation mode.

CH1

CH2

CH1

CH2

www. .com

[e-mail]1.800.561.8187

RIGOL Chapter 2 Basic Waveform Output

User’s Guide for DG5000

2-10

To Output Noise Waveform

To output noise waveform from CH1 with 2.5 Vpp amplitude and 500 mV

DC offset.

Refer to “To Output Sine Waveform” to configure the parameters and output.

www. .com

[e-mail]1.800.561.8187

Chapter 2 Basic Waveform Output RIGOL

User’s Guide for DG5000

2-11

Align Phase

The align phase function is only for dual-channel models. Aligning phase is available
for the oper ation of tw o channels. Pressin g down this softkey will re-configure the two
channels, and enable the generator to output with specified frequency and start
phase.

For two signals whose frequencies are the sa me or in multiple, this oper ation will align
their phase. For example, assume a sine waveform (1 kHz, 5 Vpp, 0 °) is outputted
from CH1, while another (1 kHz, 5 Vpp, 180°) from CH2. Use an oscilloscope to
sample and display the two signals, and then toggle the channel output switch of the
generator, you will see that the wavefor m shown on the oscilloscope do not always
have a phase deviation of 180°.

Now, p ress Align Pha se on the generator. The waveforms shown on the oscilloscope
will have a phase deviation of 180° without any adjustment of the oscilloscope.

Before Align Phase

After Align Phase

CH1
CH2

CH1
CH2

www. .com

[e-mail]1.800.561.8187

RIGOL Chapter 2 Basic Waveform Output

User’s Guide for DG5000

2-12

NOTE: For dual-chan nel models, the Align Phase menu is grayed and disabled when
any one of the two channels is in modulation mode.

www. .com

[e-mail]1.800.561.8187

Chapter 3 Arbitrary Waveform Output RIGOL

User’s Guide for DG5000

3-1

Chapter 3 Arbitrary Waveform Output

This chapter introduces how to output built-in or user-defined arbitrary waveforms.
The generator enable to output arbitrary waveforms from the single channel or two
channels at the same time.

Subjects in this chapter:

 To Enable Arbitrary Waveform
 Output Mode
 To Select Arbitrary Waveform
 To Create New Arbitrary Waveform
 To Edit Arbitrary Waveform

www. .com

[e-mail]1.800.561.8187

RIGOL Chapter 3 Arbitrary Waveform Output

User’s Guide for DG5000

3-2

To Enable Arbitrary Waveform

Press Arb to open the operation menu of arbitrary waveform.

1. Freq/Period (Sample)

Set the output “Frequency/Period” of the arbitrary waveform in “Normal” mode.
Set the sample rate when the generator sample data from external memory in
“Play” mode.

2. Ampl/HiLevel

Set the output “Amplitude/High Level” of the arbitrary waveform.

3. Offset/LoLevel

Set the output “Offset/Low Level” of the arbitr ary wave form.

4. Phase

Set the “Initial Phase” of the arbitrary waveform.

5. Align Phase

Refer to “Align Phase”.

6. Mode

Select the output mode of the arbitra ry waveform to “Normal” or “Play”.

7. Select Wform

Select arbitrary waveform stored in internal or external memories.

8. Create New

Users can define waveform with up to 512k points.

Note: DG5000 can output waveform with up to 128M points. F or the w av eform of
which the number of point s is more than 512k points, users can use the mat ching
PC software of DG5000 to edit and download waveform to DG5000 for output.

9. Edit Wform

Edit the stored arbitrary waveform.

www. .com

[e-mail]1.800.561.8187

Chapter 3 Arbitrary Waveform Output RIGOL

User’s Guide for DG5000

3-3

Refer to “To Output Sine Waveform” to configure the parameters and output. This
chapter will focus on “Mode”, “Sample”, “Select Waveform”, “Cr eate New ” and “Edit
Waveform”.

www. .com

[e-mail]1.800.561.8187

RIGOL Chapter 3 Arbitrary Waveform Output

User’s Guide for DG5000

3-4

Output Mode

Press Arb  Mode to set arbitrary waveform output mode to “Normal” or “Play”.

The generator adopts DDS to generate wa veform data in “Normal” mode. In this case,
you can ch ang e th e ph as e ste p of the sampling by changing the Frequency (Period).
However, the sample rate is fixed. To change the sample rate, you should use the
“Play” mode.

Normal Mode

In this mode, the generator can output internal waveforms which are defined on line
by users or downloaded from PC after edited on PC software. Waveforms stored in a
USB flash device can also be read and outputted. The output frequency r anges from 1
μHz to 50 MHz, and the sample rate is fixed at 1G Sa/s, while the number of points is
16Mpts.

As shown in the figure below, press Mode and select “Normal”, and then press
Freq/Period to change the frequency.

Figure 3-1 Arbitrary waveform output mode (Normal)

www. .com

[e-mail]1.800.561.8187

Chapter 3 Arbitrary Waveform Output RIGOL

User’s Guide for DG5000

3-5

Play Mode

The generator will enable the “Play” mode once the points of the arbitrary waveform
to be output is greater than 16 Mpts and be able to output waveform with up to 128
Mpts. In this mode, you can adjust the sample rate fs through setting the frequency
division coefficient N. The function relationship between fs and N is as foll o wing:

When N≤2,

N

s

2

1G Sa/s

f =

When N>2,

82)-(N

1G Sa/s

f

s

×

=

The range of N is from 0 to 268435456 (228).

As shown in the figure below, press Mode to select “Play”. As can be seen,

Freq/Period will change to Sample which denotes the frequency division coefficient
N. Use the numeri c keyb oa rd or knob to modify the para meter.

Figure 3-2 Arbitrary waveform output mode (Play)

www. .com

[e-mail]1.800.561.8187

RIGOL Chapter 3 Arbitrary Waveform Output

User’s Guide for DG5000

3-6

To Select Arbitrary Waveform

Press Arb, use to open the 2/2 menu page, and th en press Select Wform to
select “Builtin”, “Stored Wforms” or “Volatile Wform” for arbitrary waveform output.

Built-In Waveform

10 kinds of built-in arbi trar y wav efor ms ar e pro vid ed b y DG5000, including DC, Sinc,
Exponential Rise, Exponential Fall, ECG, Gauss, Haversine, Lorentz, Pulse and Dual
Tones.

DC

DG5000 can output DC signal with amplitude ranging from -10 V to 10 V. T he figur e
below shows a DC waveform.

Sinc

The figure below shows a Sinc waveform.

www. .com

[e-mail]1.800.561.8187

Chapter 3 Arbitrary Waveform Output RIGOL

User’s Guide for DG5000

3-7

Exponential Rise

The figure below shows an Exponential Rise waveform.

Exponential Fall

The figure below shows an Exponential Fall waveform.

ECG

The figure below shows an ECG waveform.

www. .com

[e-mail]1.800.561.8187

RIGOL Chapter 3 Arbitrary Waveform Output

User’s Guide for DG5000

3-8

Gauss

The figure below shows a Gauss waveform.

Haversine

The figure below shows a Haversine waveform.

Lorentz

The figure below shows a Lorentz waveform.

www. .com

[e-mail]1.800.561.8187

Chapter 3 Arbitrary Waveform Output RIGOL

User’s Guide for DG5000

3-9

Pulse

The figure below shows a simulated Pulse waveform.

The Pulse mentioned here can be configured by setting the parameters “Pulse
Width/Duty Cycle”, “Leading” and “Trailing”.
 Pulse Width/Duty Cy cle: The minimum Pulse Width is related to the current edge

time, ranging from 4 ns to “Pulse Period - 12 ns”, while Duty Cycle ranges from
0% to 100%.

 Leading: ranges from 2.5 ns to 1.9531 ks, and relates to the pulse period, pulse

width and the trailing edge.

 Trailing: ranges fro m 2.5 ns to 1.9531 ks, an d relates to th e pulse per iod, pulse

width and the leading edge.

www. .com

[e-mail]1.800.561.8187

RIGOL Chapter 3 Arbitrary Waveform Output

User’s Guide for DG5000

3-10

Dual Tones

The Dual Tones signal can be used to measure the inter-modulation distortion
characteristic of non-linear devices (such as mixer or amplifier). Inter-Modulation
Distortion (IMD) will be generated when a non-linear device with multiple input
frequencies disturbs the adjacent channels or causes unexpected output at other
frequencies. DG5000 enables to generate such Dual Tones that the Inter-Modulation
Distortion from it can be measured by a Spectrum Analyzer. When measuring the
Inter-Modulation Distortion generated by the device under test (DUT), this signal can
be used as the measurement source.

The f igures below are the oscillograms of Dual Tones generated by DG5000 in the
time domain and the frequency domain respectively.

www. .com

[e-mail]1.800.561.8187

Chapter 3 Arbitrary Waveform Output RIGOL

User’s Guide for DG5000

3-11

Stored Waveform

Select arbitrary wav ef orms store d in internal non-volatile memory (C Disk) or external
memories (D Di s k or E Disk).

Press this softkey to enter the Store/Recall Interface and the Store/Recall key on
the front panel is illuminated. Please select and read the desired arbitrary waveform
file. For more details, please refer to “

Store and Recall”. Waveform data in volatile
memory will be changed after the f ile i s read. To return arbitrary waveform setting
interface, press the Arb.

Volatile Waveform

Select arbitrary waveform currently stored in the vol atile memory. Note that this menu
would be unavailable if there is no waveform dat a in volatile memory currently. To fill
up the volatile memory, you can create a waveform through “Create New” or select a
waveform from “Built-In” or “Stored Wforms”.

www. .com

[e-mail]1.800.561.8187

RIGOL Chapter 3 Arbitrary Waveform Output

User’s Guide for DG5000

3-12

To Create New Arbitrary Waveform

Press Arb, use to open the 2/2 menu page, and then press Create New to
open the arbit r ary waveform create interface.

1. Cycle Period

Press this softkey and use the numeric k eyboard or knob to set the cycle period of
the new waveform. The se tting r ange is from 20 ns to 1 Ms. Note that the time of
the last point that can be defined should be less than the cycle period.

2. High VLimit

Press this softk ey and use the numeric key board or k nob to set the hi gher level of
the new waveform. The upper limit of this lev el is +5 V (50 Ω), and the lower limit
is the minimum which is greater than current setting of the “Low VLimit”.

3. Low VLimit

Press this softkey and use the numeric keyboard or knob to set the lower level of
the new waveform. The lower limit of this level i s -5 V (50 Ω), and the upper limit
is the maximum which is lower than current setting of the “High VLimit”.

4. Init #Points

When creating a new waveform, the waveform editor will automatically create a
waveform with two points. By default, point 1 is located at 0 seconds and point 2
at half of the spe cified cycle period. In a ddition, the voltages of the two points are
equal to the specified “Low VLimit”.
Press this softkey and use the numeric keyboard or the knob to se t the initial
points of the new w avefo rm. The initia l points of the arbit rary wav eform can be up
to 524 488 (512 kpts) points. If in need, you can “Insert Point” or “Delete

Point” waveform points later.

5. Interp

Press this softkey to enable or disable the interpolation between the defined
waveform points.
 Off: Disable the interpolation. The waveform editor will hold a constant

voltage level between two points and create a step waveform.

 Linear: The waveform editor will automatically connect the two defined

points with a straight line.

www. .com

[e-mail]1.800.561.8187

Chapter 3 Arbitrary Waveform Output RIGOL

User’s Guide for DG5000

3-13

 Sinc: The waveform editor will automatically connect the two points with a

smooth curve . Notice that, the interpolation point voltage may be without t he
arbitrary waveform level limit and an une xpected c urv e will be a cqui red if the
defined point voltage is the same as High VLimit or Low VLimit. Thus, try
not to define the point voltage as the High VLimit or Low VLimit values.

6. Edit Points

Define a waveform by specifying the time and voltage of each waveform point.
Press this softkey to enter the “Edit Points” interface.
 PointID: Set the ID of the point to be edited. The default is 1. You can use

the numeric keyboard or knob to modify this parameter.

 Time: Set the ti me of the current point. This setting is limited by the time of

the previous and the next points. Note that the time of point 1 is fixed at 0 s.

 Voltage: Set the voltage of the current point in mV or V. The range of the

voltage value is li mited by the “High VLimit” and “Low VLimit” specified in
the initialization. Note that the wav eform editor will automatically connect the
last point to the voltage level of the first point to create a continuous
waveform.

 Insert Point: Insert a wavef orm point at t he middle position of the currently

edited point and the next edited point.

 Delete Point: Delete the current point from the waveform and connect the

remaining points using the current interpolation method. Note that point 1
cannot be deleted.

7. Edit Block

Define a waveform by editing the time and voltage of the start and end points
and automatically setting the points between them through linear interpolation.
Press Interp to select “Linear”, and then press this softkey to enter the “Edit
Block” interface.
 X1: Set the start point (Time) of the block. Note that this value should be

equal to or less than the “Init Points” and X2.

 Y1: Set the voltage of the start point in mV or V.
 X2: Set the end point (Time) of the block. Note tha t this value should be less

than or equal to the “Init Points” And be grea t er than or equal to X1.

 Y2: Set the voltage of the end point in mV or V.
 Execute: Edit the points within the start and end points according to the

current setting.

 Delete: Delete the points that can be edited between X1 and X2 and

www. .com

[e-mail]1.800.561.8187

RIGOL Chapter 3 Arbitrary Waveform Output

User’s Guide for DG5000

3-14

connect the start and end points using the current interpolation method.
Note that point 1 cannot be deleted.

8. Save

The currently created waveform is stored in the volatile memory. When creating a
new waveform, the previous waveform in volatile memory will be overwritten.
Press this softkey to enter the file storage interface (refer to “Store and Recall”).
Users can store t he edited waveform into internal memory (C Disk) or external
memories (D Disk or E Disk) of the instrument.

Tips

Users can store the waveform edited by PC software into the lo cal memory of
the instrument through the following two methods:



Use SCPI commands (more information, see “

Programming Guid e”

of this
generator).
For waveform with greater than 16 kpts:
:TRACe:DAC VOLATILE16,<flag>,<len>,<binary_block_data>
For waveform with less than 16 kpts:
:TRACe:DAC VOLATILE,<binary_blo ck_data>



Use the file management system to transfer files from USB flash device

(recognized as D Disk or E Disk in the generator) to internal memory (C
Disk) of the instrument.

www. .com

[e-mail]1.800.561.8187

Chapter 3 Arbitrary Waveform Output RIGOL

User’s Guide for DG5000

3-15

Edit Points

The following example introduces how to create an arbitrary waveform which meets
with the following conditions by using “Edit Points”.

Operating Procedures:

1. Press Arb, use to open the 2/2 menu page, and then press Create New

 Cycle Pe riod, use the numeric key board to input “12” and select the u nit “μs”
in the pop-up menu.

2. Press High VLimit, use the n umeric k e yboa rd t o in put “4” and select the unit “V”
in the pop-up menu.

3. Press Low VLimit, use the nu meric keyb oard t o input “-2” and select the unit “V”
in the pop-up menu.

4. Press Init #Points, use the numeric keyboard to input “4” and then press OK.
Note that a level line of -2 V appears.

5. Press Interp to select “Linear”.

6. Press Edit Points to enter the “Edit Point” interface.

1) Press PointID to define the first point (default time is 0). Press Voltage and

Parameter Value

Cycle Period 12 μs

High VLimit 4 V

Low VLimit -2 V

Interpolation Linear

Point 1 0 s, 0 V
Point 2 4 μs, 4 V
Point 3 8 μs, 0 V
Point 4 10 μs, -2 V

www. .com

[e-mail]1.800.561.8187

RIGOL Chapter 3 Arbitrary Waveform Output

User’s Guide for DG5000

3-16

use the numeric keyboard to input “0” and select the unit “V” in the pop-up
menu.

2) Press PointID again and use the numeric ke yboar d or knob t o sele ct point 2.
Then press Time and Voltage respectively to define point 2 as 4 μs and 4 V.

3) Def ine point 3 and point 4 according step 2).

4) After all the points are edited, press OK to return to the upper level menu,
then press Save to enter the file storage interface (refer to “Store and

Recall”) and save the ed it ed waveform.

7. Vi ew the edi ted waveform.

V

μs

4
2
0

-2

4 8 12

2

1

3

4

1

Note: As can be seen from the above figure, the waveform editor will always connect
from the fi r s t point to the voltage level of the last point to create a continuous
waveform.

www. .com

[e-mail]1.800.561.8187

Chapter 3 Arbitrary Waveform Output RIGOL

User’s Guide for DG5000

3-17

Edit Block

The following example introduces how to create an arbitrary waveform which meets
the following conditions with the following conditions met by using “Edit Block”.

Parameter Value

Cycle Period 12 μs

High VLimit 4 V

Low VLimit -2 V

Interpolation Linear

Start 2, 4 V

End 4, -2 V

Operating Procedures:

1. Press Arb, use to open the 2/2 men u p a ge, and then press Crea te New

 Cycle Period, use t he numeric k eyboa rd to in put “12” and select the unit “μs”
in the pop-up menu.

2. Press High VLimit, use t he n ume ric ke yboa rd t o in put “4” and select the unit “V”
in the pop-up menu.

3. Press Low VLimit, use the nu meric keyb oard t o input “-2” and select the unit “V”
in the pop-up menu.

4. Press Init #Points, use the numeric keyboard to input “4” and then press OK.
Note that a level line of -2 V appear s.

5. Press Interp to select “Linear”.

6. Press Edit Block to enter the “Edit Block” interface.

1) Press X1 and use the numeric keyboard to input “2”. Then press Y1 and use

the numeric keyboard t o input “4” and select the u nit “V” in the pop-up menu.
Use the same method to set X2 and Y2.

2) Press Excute to apply the se tting defined in step 1). The waveform edito r will

www. .com

[e-mail]1.800.561.8187

RIGOL Chapter 3 Arbitrary Waveform Output

User’s Guide for DG5000

3-18

automatically use straight lines to connect the start point (p oint 2, the lev el is
4 V) with the stop point (point 4, the leve l is -2 V) an d automatically generate
point 1 and point 3 to create a continuous waveform.

3) After all the points are edited, press Return to return to the upper level menu,
then pres s Save to enter the file storage interface (refer to “Store and

Recall”) and save the edited waveform.

7. Vi ew the edi ted waveform.

V

μs

4
2
0

-2

4 8 12

2

1

3

4

Note: As can b e seen from the abo v e figure, after the start point (point 2) and stop
point (point 4) are inserted numerical values in the current interpolation method, the
waveform edit or will automatically generate point 1 and point 3 to create a con tinuous
waveform.

www. .com

[e-mail]1.800.561.8187

Chapter 3 Arbitrary Waveform Output RIGOL

User’s Guide for DG5000

3-19

To Edit Arbitrary Waveform

Arbitrary wa vef orms st ore d bot h in volat ile memory and non-volatile memories can be
recalled and re-edited.

Press Arb and use to open the 2/2 menu page, then press Edit Wform to
open waveform editing menu. Note that, only “Select Wform” is new in this menu
compared to Create New, which will be introduced in this section. For other menu
functions and operations, please refer to “

To Edit Arbitrary Waveform”.

Press Edit Wform  Select Wform to select the waveform to be edited.

1. To Edit Built-In waveforms

Select a waveform from the built-in waveforms to edit. You can store the edited
waveform without overwriting the selected built-in waveform.

2. To Edit Stored Waveforms

Select a waveform from internal non-volatile memory (C Disk) or exter n al
memories (D Disk or E disk) to edit. You can overwrite the old waveform or save it
as a new file.

3. To Edit Wavefor m in V o la tile Memory

Select waveform stored in current volatile memory to edit. The previous data in
the volatile memory would be overwritten by t he new wavef orm data. Yo u can
also save i t into the non-volatile memory.

www. .com

[e-mail]1.800.561.8187

www. .com

[e-mail]1.800.561.8187

Chapter 4 Common Modulation Output RIGOL

User’s Guide for DG5000

4-1

Chapter 4 Common Modulation Output

DG5000 can output versatile modulated waveforms with modulation types of analog
modulation (AM, FM, PM), digital modulation (ASK, FSK, PSK) and pulse modulation
(PWM). The generator provides a variety of internal modulating waveform sources
and also accepts external modulating signa l from [M od In] or [ExtTrig] connector at
the rear panel. The modulated waveforms can be output from the single channel or
the two channels at the same time.

Subjects in this chapter:

 Amplitude Modulation (AM)
 Frequency Modulation (FM)
 Phase Modulation (PM)
 Amplitude Shift Keying (ASK)
 Frequency Shift Keying (FSK)
 Phase Shift Keying (PSK)
 Pulse Width Modulation (PWM)

www. .com

[e-mail]1.800.561.8187

RIGOL Chapter 4 Common Modulation Output

User’s Guide for DG5000

4-2

Amplitude Modulation (AM)

An AM (Amplitude Modulation) modulated waveform consists of car rier waveform and
modulating waveform. The amplitude of the carrier waveform varies with the
instantaneous voltage of the modulating waveform.

To Select AM Modulation

Press Mod  Type  AM to enable AM function.
 When Mod is enabled, Sweep or Burst will be disabled automatically (if

enabled currently).

 After AM is enabled, the instrument will generate AM wavefor m with the current

specified carrier and modulating waveform.

To Select Car r ier Waveform Shape

AM carrier waveform shape could be Sine, Square, Ramp or Arbitrary waveform. The
default is Sine.
 Press the front panel key Sine, Square, Ramp or (Arb Select Wform) to

select a desired carrier waveform shape.

 Pulse (basic waveform), Noise and DC could not be used as carrier waveform.

To Set Carrier Frequency

After the carrier waveform shape is selected, you can press Freq/Period to highlight
“Freq”, and then use the numeric keyboard or knob to input desired f reque nc y value.
The available carrier frequency varies with different carrier waveforms.

 Sine: 1 μHz to 350 MHz
 Square: 1 μHz to 120 MHz
 Ramp: 1 μHz to 5 MHz
 Arbitrary wav e fo rm : 1 μHz to 50 MHz

www. .com

[e-mail]1.800.561.8187

Chapter 4 Common Modulation Output RIGOL

User’s Guide for DG5000

4-3

To Select Modulating Waveform Source

Press Mod  Source to select “Int” or “Ext” modulating waveform source.

1. Internal Sourc e

When internal mo dulation source is selected, press Shape to select Sine, Squa re,
Triangle, UpRamp , DnRam p, Noise o r Arb as m o dulating w a vef orm . The def ault is
Sine.

 Square: Duty Cycle is 50％.
 Triangle: Symmetry is 50％.
 UpRamp: Sym metry is 100％.
 DnRamp: Symmetry is 0％.
 Arb: When the current arbitrary waveform is selected as the modulating

waveform, the gen erator automatically limits the arbitrary waveform length

as 2 kpts through sampling.
Notice that, Noise could be used as modulating waveform but not carrier
waveform.

2. External Source

When external mod ula tion s ou rce is selected, the Shape menu will be grayed out
and disabled. The generator accepts the external modulating signal from the [Mod
In] connector at the rear panel. The AM modulation amplitude is controlled by the
±6 V signal level of the connector.

-6 V

0 V

+6 V

To Set Modulating Waveform Frequency

When internal modulation source is sele cted, press AM_Freq to set the modulating
waveform frequency.

 Input the desired frequency value using the numeric k eyboard or knob.
 The modulating waveform frequency ranges from 2 mHz to 50 kHz, and the

www. .com

[e-mail]1.800.561.8187

RIGOL Chapter 4 Common Modulation Output

User’s Guide for DG5000

4-4

default value is 100 Hz.
Notice that, this menu will be grayed out and disabled when external modulation
source is selected.

To Set Modulation Depth

Modulation depth expressed as a percentage indicates the amplitude vibration degree.
The AM modulation depth ranges from 0% to 120%. Press AM Depth to set AM
modulation depth.
 When the modulation depth is 0%, the output amplitude is the half of the

specified value.
 When the modulation depth is 100%, the output amplitude is equal to the

specified value.
 When the modulation depth is higher than 100%, the output of the instrument

will not exceed 10 Vpp (The load is 50 Ω).

When external source is selected, AM modulation amplitude is also controlled by the
±6 V signal level of the [Mod In] connector at the rear panel. For example, if the
modulation depth is 100%, the output amplitude is the maximum when the
modulating signal level is +6 V and the minimum when the level is -6 V.

www. .com

[e-mail]1.800.561.8187

Chapter 4 Common Modulation Output RIGOL

User’s Guide for DG5000

4-5

Frequency Modulation (FM)

A FM (Frequency Modulation) modulated waveform consists of carrier waveform and
modulating waveform. The frequency of the carrier waveform varies with the
instantaneous voltage of the modulating waveform.

To Select FM Modulation

Press Mod  Type  FM to enable FM function.
 When Mod is enabled, Sweep or Burst will be disabled automatically (if

currently enabled).

 After FM is enabled, the instrument will generate FM waveform with the currently

specified carrier and modulating waveform.

To Select Car r ier Waveform Shape

FM carrier waveform shape could be Sine, Square, Ramp or Arbitrary waveform. The
default is Sine.
 Press the front panel key Sine, Square, Ramp or (Arb  Select Wform) to

select a desired carrier waveform shape.

 Pulse (basic waveform), Noise and DC could not be used as carrier waveform.

To Set Carrier Frequency

After the carrier waveform shape is selected, press Freq/Period to highlight “Freq”,
and then use the numeric keyboard or knob to input desired frequency value. The
available carrier frequency varies with different carrier waveforms.

 Sine: 1 μHz to 350 MHz
 Square: 1 μHz to 120 MHz
 Ramp: 1 μHz to 5 MHz
 Arbitrary wav e fo rm : 1 μHz to 50 MHz

www. .com

[e-mail]1.800.561.8187

RIGOL Chapter 4 Common Modulation Output

User’s Guide for DG5000

4-6

To Select Modulating Waveform Source

Press Mod  Source to select “Int” or “Ext” modulating waveform source.

1. Internal Sourc e

When internal modulation source is selected, press Shape to select Sine, Squa re,
Triangle, UpRamp , DnRam p, Noise o r Arb as m o dulating w av ef orm. The def ault is
Sine.

 Square: Duty Cycle is 50％.
 Triangle: Symmetry is 50％.
 UpRamp: Symmetry is 100％.
 DnRamp: Symmetry is 0％.
 Arb: When the current arbitrary waveform is selected as the modulating

waveform, the generator automatically limits the arbitrary waveform length

as 2 kpts through sampl ing.
Notice that, Noise could be used as modulating waveform but not carrier
waveform.

2. External Source

When external modula tion s ou rce is selected, the Shape menu will be grayed out
and disabled. The generator accepts the external modulating signal from the [Mod
In] connector at the rear panel. The frequency deviation is controlled by the ±6 V
signal level of the connector.

-6 V

0 V

+6 V

To Set Modulating Waveform Frequency

When internal modulation source is selected, press FM_Freq to set the modulating
waveform frequency.

 Input the desired frequency value using the numeric k eyboard or knob.
 The modulating waveform frequency ranges from 2 mHz to 50 kHz, and the

default value is 100 Hz.
Notice that, this menu will be grayed out and disabled when external modulation
source is selected.

www. .com

[e-mail]1.800.561.8187

Chapter 4 Common Modulation Output RIGOL

User’s Guide for DG5000

4-7

To Set Frequen cy Deviation

Press Deviation to set the frequency deviation of the modulating waveform
frequency relative to the carri er waveform frequency.
 The frequency deviation must be less than or equal to the carrier waveform

frequency.

 The sum of frequency dev iation an d carrier frequen cy must be less t han or equal

to the sum of upper limit of current carrier freque nc y and 1 kHz.

When external source is selected, frequency deviation is controlled by the ±6 V signal
level of the [Mod In] connector at the rear panel. For example, if the frequency
deviation is set as 1 kHz, +6 V signal level corresponds to a 1 KHz increase in
frequency. Lower external sig nal level generates less deviation, and negative signal
level will reduce the frequency below the carrier waveform frequency.

www. .com

[e-mail]1.800.561.8187

RIGOL Chapter 4 Common Modulation Output

User’s Guide for DG5000

4-8

Phase Modulation (PM)

A PM (Phase Modulation) modulated waveform consists of carrier waveform and
modulating waveform. The phase of the carrier waveform varies with the
instantaneous voltage of the modulating waveform.

To Select PM Modulation

Press Mod  Type  PM to enable PM function.
 When Mod is enabled, Sweep or Burst will be automatically disabled (if

currently enabled).
 After PM is enabled, the in strument will generate PM waveform with the currently

specified carrier and modulating waveform.

To Select Car r ier Waveform Shape

PM carrier waveform shape could be Sine, Square, Ramp or Arb itr ary w avef or m. The
default is Sine.
 Press the front panel key Sine, Square, Ramp or (Arb  Select Wform) to

select desired carrier waveform shape.
 Pulse (basic waveform), Noise and DC could not be used as carrier waveform.

To Set Carrier Frequency

After the carrier waveform shape is selected, press Freq/Period to highlight “Freq”,
and then use the numeric keyboard or knob to input desired frequency value. The
available carrier frequency varies with different carrier waveforms.

 Sine: 1 μHz to 350 MHz
 Square: 1 μHz to 120 MHz
 Ramp: 1 μHz to 5 MHz
 Arbitrary wav e fo rm : 1 μHz to 50 MHz

www. .com

[e-mail]1.800.561.8187

Chapter 4 Common Modulation Output RIGOL

User’s Guide for DG5000

4-9

To Select Modulating Waveform Source

Press Mod  Source to select “Int” or “Ext” modulating waveform source.

1. Internal Sourc e

When internal modulation source is selected, press Shape to select Sine, Square,
Triangle, UpRamp , DnRam p, Noise o r Arb as m o dulating w a vef orm . The def ault is
Sine.

 Square: Duty Cycle is 50％.
 Triangle: Symmetry is 50％.
 UpRamp: Symmetry is 100％.
 DnRamp: Symmetry is 0％.
 Arb: When the current arbitrary waveform is selected as the modulating

waveform, the generator automatically limits the arbitrary waveform length

as 2 kpts through sampling.
Notice that, Noise could be used as modulating waveform but not carrier
waveform.

2. External Source

When external modul ation s ource is selected, the Shape menu will be grayed out
and disabled. The generator accepts the external modulating signal from the [Mod
In] connector at the rear panel. The phase deviation is controlled by the ±6 V
signal level of the connector.

-6 V

0 V

+6 V

To Set Modulating Waveform Frequency

When internal modulation source is selected, press PM_Freq to set the modulating
waveform frequency.

 Input the desired frequency value using the numeric k eyboard or knob.
 The modulating waveform frequency ranges from 2 mHz to 50 kHz, and the

www. .com

[e-mail]1.800.561.8187

RIGOL Chapter 4 Common Modulation Output

User’s Guide for DG5000

4-10

default value is 100 Hz.
Notice that, this menu will be grayed out and disabled when external modulation
source is selected.

To Set Phase Deviation

Press Deviation to set the deviation of the modulating waveform phase r elative to
the carrier waveform phase.

 Input the desired phase using the nume ric keyboar d or knob.
 The phase deviation ranges from 0º to 360º.

When external source is selected, phase deviation is controlled by the ±6 V signal
level of the [Mod In] connector at the rear panel. Fo r exa mple , if the phase deviation
is set as 180º, +6 V signal level corresponds to a 180º phase change. Lower external
signal level generates less deviation.

www. .com

[e-mail]1.800.561.8187

Chapter 4 Common Modulation Output RIGOL

User’s Guide for DG5000

4-11

Amplitude Shift Keying (ASK)

When using ASK (Amplitude Shift Keying) modulation, you can configure the
generator to make its output amplitude “shift” between two preset amplitude values
(“carrier amplitude” and “modulating amplitude”). The “shift” rate (ASK Rate) is
determined by the signal level insi de the instrument or from the [E xtTrig] conn ector at
the rear panel.

To Select ASK Modulation

Press Mod  Type  ASK to enable ASK function.
 When Mod is enabled, Sweep or Burst will be disabled automatically (if

enabled currently).

 After ASK is enabled, the instrument will generate ASK waveform with the

currently specified carrier and modulating waveform.

To Select Car r ier Waveform Shape

ASK carrier wave form shape coul d be Si ne, Squ are, Ram p or arbitrary waveform. The
default is Sine.
 Press the front panel key Sine, Square, Ramp or (Arb  Select Wform) to

select desired carrier waveform shape.

 Pulse (basic waveform), Noise and DC could not be used as carrier waveform.

To Set Carrier Amplitude

After selecti ng c arrier w a v eform sha pe, p ress Ampl/HiLevel to highlight “Ampl”, and
then use the numeric keyboard or knob to input desired amplitude. The available
amplitude range is limited by Resistant and Freq/Period. Please refer to the
“Output Characteristic” described in “

Specifications”.

www. .com

[e-mail]1.800.561.8187

RIGOL Chapter 4 Common Modulation Output

User’s Guide for DG5000

4-12

To Select Modulating Waveform Source

Press Mod  Source to select “Int” or “Ext” modulating waveform source.

1. Internal Sourc e

When internal source is selected, the modulating waveform is set as a Square with
50% duty cycle, and the “shift” rate of the output amplitude between “carrier
amplitude” and “modulation amplitude” is determined by “ASK Rate”.

2. External Source

When external source is selected, the generat or accepts the external modulating
signal from the [ExtTrig] connector (as shown in the picture bellow) at the rear
panel.

Notice that, the [Ex tTrig] connector used to control ASK modulation externally is

different from the [ModIn] connector used to control AM/FM/PM modulation

externally. In ASK modulation, [ExtTrig] has an adjustable edge polarity.

To Set ASK Rate

When internal source is selected, press ASK Rate to set the “shift” rate at which the
output amplitude shifts between “carrier amplitude” and “modulation amplitude”.

 Input t he desired frequency value using numeric keyboard or knob.
 The available frequency ra nges from 2 mHz to 1 MHz, and the default value is 100

Hz.
Notice that, this menu will be grayed out and disabled when external source is
selected.

www. .com

[e-mail]1.800.561.8187

Chapter 4 Common Modulation Output RIGOL

User’s Guide for DG5000

4-13

To Set Modulating Amplitude

Press ModAmp to set the modulating amplitude.

 Input the desired amplitude value using numeric keyboard or knob.
 The available a mplitude (High Z) ranges from 0 V to 10 V, and the default v alu e is

2 V.

To Set Modulating Polarity

Press Polarity to select the “Positive” or “Negative” of the modulating waveform to
control the output amplitude.

When internal modulation is selected, if the polarity is “positive”, logic high of the
modulating waveform amplitude corresponds to output of the greater of the two
amplitudes (modulating amplitude an d carrier amplitude), while logic low corresponds
to output of the smaller amplitude; if the polarity is “negative”, the situation is the
opposite.

When external modulation is selected, if the polarity is “positive”, lo gic high of the
input corresp onds to output of the greater of the two amplitudes (modulating
amplitude and carrier amplitude), while lo gic low correspon ds t o output of the smaller
amplitude; if the polarity is “negative”, the situation is the opposite.

www. .com

[e-mail]1.800.561.8187

RIGOL Chapter 4 Common Modulation Output

User’s Guide for DG5000

4-14

Frequency Shift Keying (FSK)

When FSK (Frequency Shift Keying) modulation is selected, you can conf igure the
generator to make its output frequency “shift” between two preset frequencies
(“carrier frequency” and “hop frequency”). The “shift” frequency (FSK Rate) is
determined by the signal level insi de the instrument or from the [ExtTrig] connector at
the rear panel.

To Select FSK Modulation

Press Mod  Type  FSK to enable FSK fu nction.
 When Mod is enabled, Sweep or Burst will be automatically disabled (if

enabled currently).
 After FSK is enabled, the instrument will generate FSK waveform with the

currently specified carrier and modulating waveform.

To Select Carrier Waveform Shape

FSK carrier waveform shape could be Sine, Square, Ramp or arbitra ry waveform, and
the default is Sine.
 Press the front panel key Sine, Square, Ramp or (Arb  Select Wform) to

select desired carrier waveform shape.
 Pulse (basic waveform), Noise and DC could not be used as carrier waveform.

To Set Carrier Frequency

After the carrier waveform shape is selected, you can press Freq/Period to highlight
“Freq”, and then use the numeric keyboard or knob to input desired frequency value.
The available carrier frequency varies with different carrier waveforms.

 Sine: 1 μHz to 250 MHz
 Square: 1 μHz to 120 MHz
 Ramp: 1 μHz to 5 MHz
 Arbitrary wav e fo rm : 1 μHz to 50 MHz

www. .com

[e-mail]1.800.561.8187

Chapter 4 Common Modulation Output RIGOL

User’s Guide for DG5000

4-15

To Select Modulating Waveform Source

Press Mod  Source to select “Int” or “Ext” modulating waveform source.

1. Internal Sourc e

When internal source is selected, the modulatin g wa veform is set as a Square with
50% duty cyc le, and the “shift” frequency at which the output frequency shifts
between “carrier frequency” and “modulation frequency” is determined by “FSK
Rate”.

2. External Source

When external source is selected, the generator accepts the external modulating
signal from the [ExtTrig] connector (as shown in the picture bellow) at the rear
panel.

Notice that, the [ExtTrig] connector used to control FSK modulation externally is
different from the [ModIn] connector used to control AM/FM/PM modulation
externally. In FSK modulation, [ExtTrig] has an adjustable edge polarity.

To Set FSK Rate

When interna l source is selected, press FSK Rate to set the “shift” frequency at which
the output frequency shifts between “carrier frequency” and “hop frequency”.

 Input the desired rate value using numeric keyboard or knob.
 The available rate ranges from 2 mHz to 1 MHz, and the default value is 100 Hz.

Notice that, this menu will be grayed out and disabled when “external” source is
selected.

www. .com

[e-mail]1.800.561.8187

RIGOL Chapter 4 Common Modulation Output

User’s Guide for DG5000

4-16

To Set Hop Frequency

The maximum alternating frequency (“hop” frequency) depends on the current
selected carrier waveform. Press HopFreq to highlight it, input the desire frequency
value using numeric keyboard or knob.

 Sine: 1 μHz to 250 MHz
 Square: 1 μHz to 120 MHz
 Ramp: 1 μHz to 5 MHz
 Arbitrary wav e fo rm : 1 μHz to 50 MHz

To Set Modulating Polarity

Press Polarity to select the “Positive” or “Negative” of the modulating waveform to
control the output frequency.

When internal modulation is selected, if the polarity is “positive”, logic low of the
modulating waveform amplitude corresponds to carrier frequency output and logic
high corresponds to hop frequency output; if the polarity is “negative”, the situation is
the opposite.

When external modulation is selected, if the polarity is “positive”, logic low of the input
corresponds to carrier frequency output and logic high corresponds to hop frequency
output; if the polarity is “negative”, the situation is the opposite.

www. .com

[e-mail]1.800.561.8187

Chapter 4 Common Modulation Output RIGOL

User’s Guide for DG5000

4-17

Phase Shift Keying (PSK)

When PSK (Phase Shift keying) modulation is selected, you can configure the
generator to make its output phase “shift” between two preset phase values (“carrier
phase” and “modulating phase”). The “shift” frequency (PSK Rate) is determined by
the signal level inside the instrument or fr om the rea r panel [ExtTrig] connector at the
rear panel.

To Select PSK Modulation

Press Mod  Type  PSK to enable PSK function.
 When Mod is enabled, Sweep or Burst will be automatically disabled (if

enabled currently).

 After PSK is enabled, the instrument will generate PSK waveform with the

currently specified carrier and modulating waveform.

To Select Car r ier Waveform Shape

PSK carrier waveform shape could be Sine, Square, Ramp or arbitrary waveform, and
the default is Sine.
 Press the front panel key Sine, Square, Ramp or (Arb  Select Wform) to

select desired carrier waveform shape.

 Pulse (basic waveform), Noise and DC could not be as carrier waveform.

To Set Carrier Phase

After carrier waveform shape is selected, press Start Phase to highlight it, use
numeric keyboard or knob to input the desired phase. The available phase ranges
from 0 º to 360 º, the default value is 0 º.

To Select Modulating Waveform Source

Press Mod  Source to select “Int” or “Ext” modulating waveform source.

www. .com

[e-mail]1.800.561.8187

RIGOL Chapter 4 Common Modulation Output

User’s Guide for DG5000

4-18

1. Internal Sourc e

When internal source is selected, the modulatin g wav eform is set as a Square w ith
50% duty cycle, and the “shift” frequency at which the output phase shifts
between “carrier phas e ” and “modulating phase” is determined by “PSK Rate”.

2. External Source

When external source is selected, the generator accepts the external modulating
signal from the [ExtTrig] connector (see the following figure) at the rear panel.

Notice that, the [ExtTrig] connector used to control PSK modulation externally is

different from the [ModIn] connector used to control AM/FM/PM modulation

externally. In PSK modulation, [ExtTrig] has an adjustable edge polarity.

To Set PSK Rate

When internal source is selected, press PSK Rate to set the “shift” frequency at
which the output frequency shifts between “carrier phase” and “modulating phase”.

 Input the desired rate value using numeric keyboard or knob.
 The available rate ranges from 2 mHz to 1 MHz, and the default value is 100 Hz.

Notice that, this menu will be grayed out and disabled when external source is
selected.

To Set Modulating Phase

Press Phase to set the modulating phase.

 Input the desired phase value using numeric keyboard or knob.
 The available phase ranges from 0 º to 360 º, and the default value is 180 º.

www. .com

[e-mail]1.800.561.8187

Chapter 4 Common Modulation Output RIGOL

User’s Guide for DG5000

4-19

To Set Modulating Polarity

Press Polarity to select the “Positive” or “Negative” of the modulating waveform to
control the output phase.

When internal modulation is selected, if the polarity is “positive”, logic low of the
modulating waveform amplitude corresponds to carrier phase output and logic high
corresponds to modulating phase output; if the polarity is “negative”, th e situation is
the opposite.

When external modulation is selected, if the polarity is “positive”, logic low of the input
corresponds to carrier phase output and logic high corresponds to modulating phase
output; if the polarity is “negative”, the situation is the opposite.

www. .com

[e-mail]1.800.561.8187

RIGOL Chapter 4 Common Modulation Output

User’s Guide for DG5000

4-20

Pulse Width Modulation (PWM)

A PWM (Pulse Width Modulation) modulated waveform consists of carrier waveform
and modulating waveform. The pulse width of the carrier waveform varies with the
instantaneous voltage of the modulating waveform.

To Select PWM Modulation

PWM can only be used to modulate Pulse. To select PWM modulation type, press the
Pulse at the front panel first and then press Mod to enable PWM function.
 If the Pulse function key has not been selected, PWM in Type menu is

unavailable.
 When Mod is enabled but the modulation type is not PWM, pressing Pulse will

select PWM automatically.
 When Mod is enabled, Sweep or Burst will be automatically disabled (if

enabled currently).
 After PWM is enabled, the instrument will generate PWM waveform with the

currently specified carrier and modulating waveform.

To Select Pulse Waveform

As mentioned before, PWM can only be used to modulate Pulse. To select Pulse
waveform, press the Pulse at the front panel. Notice that, the pulse in Arb  Select

Wform  Builtin could not be used as carrier wav e form.

To Set Pulse Width/Duty Cycle

After the carr ier waveform shape is selected, press Width/Duty to highlight “Pulse
Width” or “Duty Cycle” and input the desired value using numeric keyboard or knob.
Pulse Width and Duty Cycle are correlative. For details, please refer to “

Pulse

Width/Dut y Cycle” on page 2-7.

www. .com

[e-mail]1.800.561.8187

Chapter 4 Common Modulation Output RIGOL

User’s Guide for DG5000

4-21

To Select Modulating Waveform Source

Press Mod  Source to select “Int” or “Ext” modulating waveform source.

1. Internal Sourc e

When internal modulation source is selected, press Shape to select Sine, Square,
Triangle, UpRamp , DnRam p, Noise o r Arb as m o dulating w a vef orm . The def ault is
Sine.

 Square: Duty Cycle is 50％.
 Triangle: Symmetry is 50％.
 UpRamp: Symmetry is 100％.
 DnRamp: Symmetry is 0％.
 Arb: When the current arbitrary waveform is selected as the modulating

waveform, the gen erator automatically limits the arbitrary waveform length

as 2 kpts through sampling.
Notice that, Noise could be used as modulating waveform but not carrier
waveform.

2. External Source

When external modul ation s ou rce is selected, the Shape menu will be grayed out
and disabled. The generator accepts the external modulating signal from the [Mod
In] connector at the rear panel (as shown in the picture bellow). The “Width
Deviation” (or “Duty Cy cle Deviation”) is controlled by the ±6 V signal level of the
connector.

-6 V

0 V

+6 V

www. .com

[e-mail]1.800.561.8187

RIGOL Chapter 4 Common Modulation Output

User’s Guide for DG5000

4-22

To Set Modulating Waveform Frequency

When interna l modulation source is selected, press PWM Freq to set the frequency of
the modulating waveform.

 Input the desire frequency value using numeric keyboard or knob.
 The available frequency ranges from 2 mHz to 50 kHz, and the default value is

100Hz.
Notice that, this menu will be grayed out and disabled when external source is
selected.

To Set Pulse Width/Duty Cycle Deviation

Press WidthDeV (or “DutyDev”), input the desired value using numeric keyboard or
knob.
 Width Deviation represents the variation in width (in seconds) in the modulated

waveform from the width of the original pulse waveform.

Pulse width range: 0 s to 500 ks.

Width deviation cannot exceed the current pulse width.

Width deviation is limited by the minimum pulse width and current edge time

setting.

 Duty Cycle Deviation represents the variation in duty cycle (in %) of the

modulated wavefor m from the duty cycle of the original pulse waveform.

Duty cycle deviation range: 0% to 50%.

Duty cycle deviation cannot exceed the current duty cycle deviation.

Duty cycle deviation is limited by the minimum duty cycle and curr ent edg e time

setting.

When external source is selected, width deviation (or duty cycle deviation) is
controlled by the ±6 V signal level of the [Mod In] connector at the rear panel. For
example, if the width deviation is set as 10s, +6 V signa l level corr esponds t o 10 s
width change.

www. .com

[e-mail]1.800.561.8187
