RIDGID Pipe Reamers User Manual
Ridge Tool Company/Elyria, Ohio, U.S.A.
12

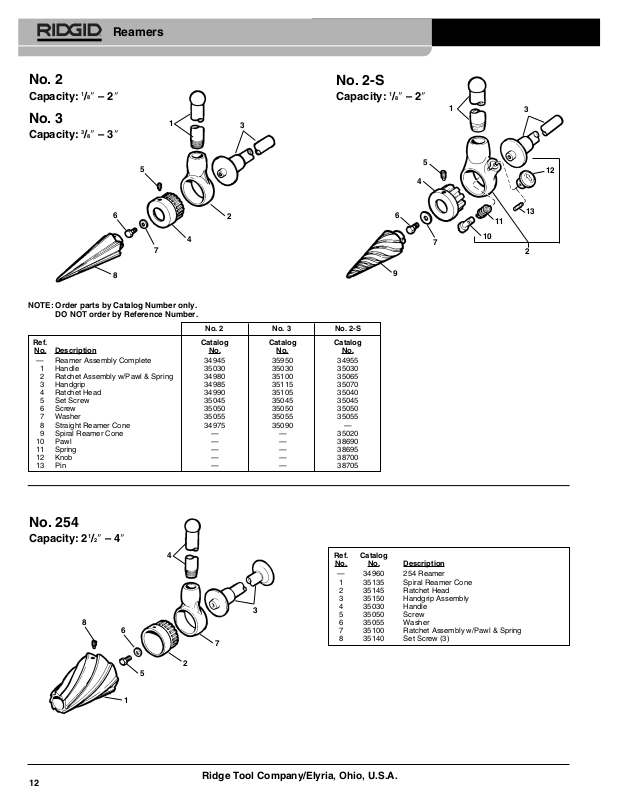

Reamers
Ref. Catalog Catalog Catalog
No.
Description No. No. No.
— Reamer Assembly Complete 34945 35950 34955
1 Handle 35030 35030 35030
2 Ratchet Assembly w/Pawl & Spring 34980 35100 35065
3 Handgrip 34985 35115 35070
4 Ratchet Head 34990 35105 35040
5 Set Screw 35045 35045 35045
6 Screw 35050 35050 35050
7 Washer 35055 35055 35055
8 Straight Reamer Cone 34975 35090 —
9 Spiral Reamer Cone — — 35020
10 Pawl — — 38690
11 Spring — — 38695
12 Knob — — 38700
13 Pin — — 38705
NOTE: Order parts by Catalog Number only.
DO NOT order by Reference Number.
No. 2
Capacity:1/8″ – 2″
No. 3
Capacity:3/8″ – 3″
No. 2-S
Capacity:1/8″ – 2″
No. 254
Capacity: 21/2″ – 4″
No. 2 No. 3 No. 2-S
Ref. Catalog
No.
No. Description
— 34960 254 Reamer
1 35135 Spiral Reamer Cone
2 35145 Ratchet Head
3 35150 Handgrip Assembly
4 35030 Handle
5 35050 Screw
6 35055 Washer
7 35100 Ratchet Assembly w/Pawl & Spring
8 35140 Set Screw (3)
1
2
3
4
5
9
6
7
8
6
3
12
1
13
5
4
2
11
10
7
1
5
4
6
2
7
3
8
Ridge Tool Company/Elyria, Ohio, U.S.A.
13
Reamer Units
00-R 111-R
00-R 12-R 12-R IMC
Exposed Ratchet Type
No. 00-R
Capacity:1/8″ through 1″
No. 111-R
Capacity:1/8″ through 11/4″
No. 12-R
Capacity:1/8″ through 2″
Ref. Catalog Catalog Catalog
No.
Description No. No. No.
1 Die Head w/Cover
1
/8″ 38710 38890 —
Plate & Screws
1
/4″ 38730 38900 —
3
/8″ 38740 38905 —
1
/2″ 38755 38910 94060
3
/4″ 38765 38915 94065
1″ 38775 38920 94070
11/4″ — 38925 94075
11/2″ — 38930 94080
2″ — 38945 94085
2 Cover Plate Screw (4)1/8″-1/4″ 38720 38720 —
3
/8″-11/4″ 38750 38750 38750
11/2″-2″ — 38940 38940
3 Cover Plate
1
/8″ 38715 38715 —
1
/4″ 38735 38735 —
3
/8″ 38745 38745 —
1
/2″ 38760 38760 38760
3
/4″ 38770 38770 38770
1″ 38780 38780 38780
11/4″ — 38880 38880
11/2″ — 38935 38935
2″ — 38950 38950
4 Spring Ring *38725* *38895* —
* Used on early models
1
2
3
*4
6
5
4
3
2
1
NOTE: Order parts by Catalog Number only.
DO NOT order by Reference Number.
Ref. Catalog Catalog Catalog
No.
Description No. No. No.
— Ratchet and Handle Assembly 38540 38550 38555
1 Ratchet Assembly 38565 38575 38580
2 Handle 38590 38585 38585
3 Pin 38705 38705 38705
4 Knob 38700 38700 38700
5 Spring 38695 38695 38695
6 Pawl 38690 38690 38690
12-R Type 2 Ratchet and Handle
Ref. Catalog
No.
No. Description
—
38555
Ratchet & Handle Assembly
1
38585
Handle
2
12238
Ratchet Assembly
3
16033 Pawl
4
16028 Compression Spring
5
16023 Sleeve
6
16018 Spring Wave Washer
7
16403 Retaining Ring
8
16038 Knob
9
95085 Pawl Pin
1
9
4
5
6
8
7
3
2
Die Head Assembly
