RIDGID 614 Operator's Manual
Dry Cut Saw
OPERATOR’S
MANUAL
• Français – 11
• Castellano – pág. 23
614
WARNING!
Read this Operator’s Manual
carefully before using this
tool. Failure to understand
and follow the contents of this
manual may result in electrical shock, fire and/or serious
personal injury.
614 Dry Cut Saw
Ridge Tool Company
ii
Table of Contents
Recording Form for Machine Serial Number..............................................................................................................1
General Safety Information
Work Area Safety........................................................................................................................................................2
Electrical Safety..........................................................................................................................................................2
Personal Safety...........................................................................................................................................................2
Tool Use and Care......................................................................................................................................................3
Service........................................................................................................................................................................3
Specific Safety Information
Dry Cutter Safety ........................................................................................................................................................3
Description, Specifications and Standard Equipment
Description..................................................................................................................................................................4
Specifications..............................................................................................................................................................4
Standard Equipment...................................................................................................................................................4
Inspect Dry Cut Saw......................................................................................................................................................4
Saw and Work Area Set-Up..........................................................................................................................................5
Operating Dry Cut Saw
Clamping The Workpiece............................................................................................................................................5
Cutting With Dry Cut Saw...........................................................................................................................................6
Removing The Workpiece...........................................................................................................................................7
Tips For Using Dry Cut Saw.........................................................................................................................................7
Maintenance Instructions
Changing Saw Blade ..................................................................................................................................................7
Replacing Brushes......................................................................................................................................................8
Saw Storage ...............................................................................................................................................................8
Service and Repair........................................................................................................................................................9

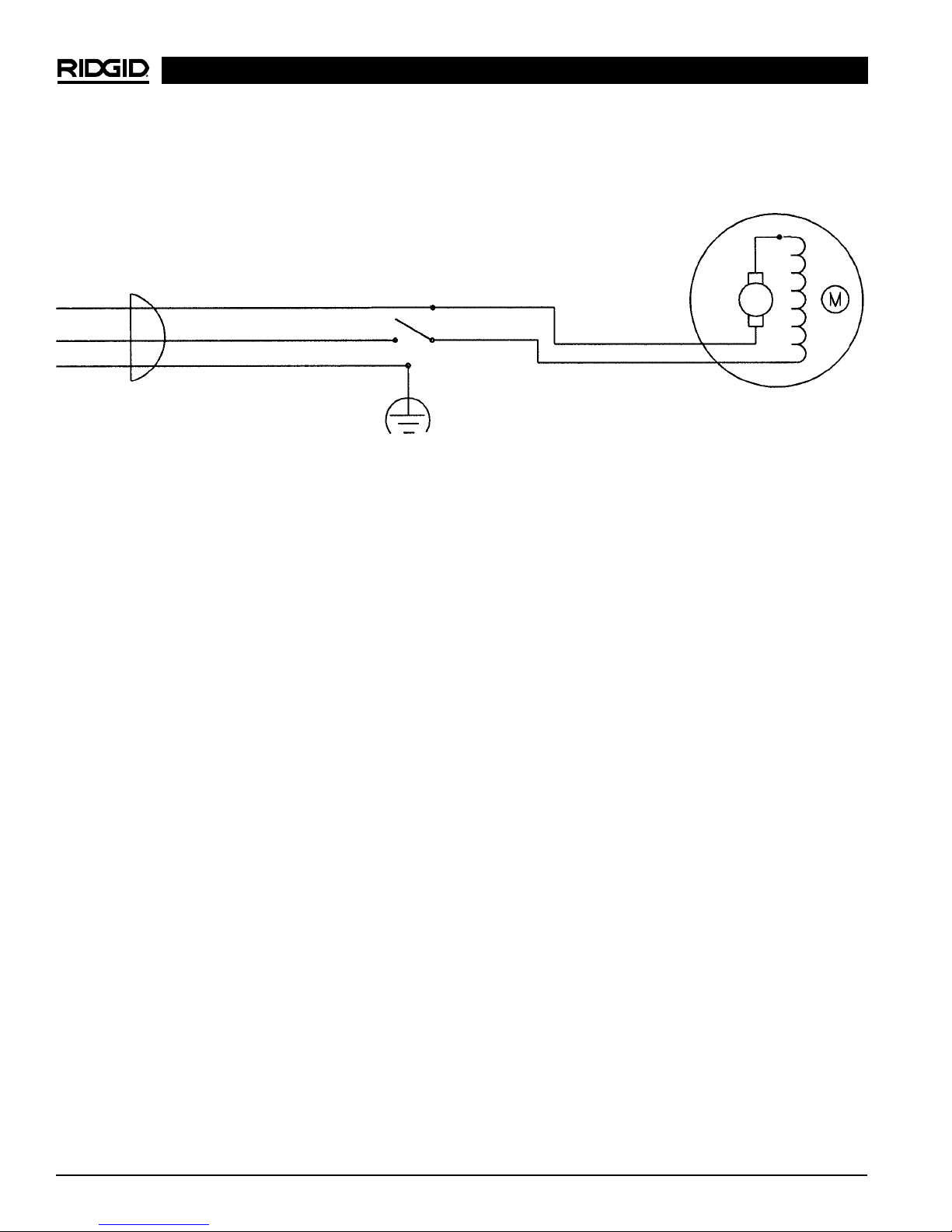

Wiring Diagram............................................................................................................................................................10
Lifetime Warranty ........................................................................................................................................Back Cover
614
Dry Cut Saw
614 Dry Cut Saw
Record Serial Number below and retain product serial number which is located on nameplate.
Serial
No.
614 Dry Cut Saw
• When operating a power tool outside, use an outdoor extension cord marked “W-A” or “W”. These
cords are rated for outdoor use and reduce the risk of
electrical shock.
• Use only three-wire extension cords which have
three-prong grounding plugs and three-pole receptacles which accept the machines plug. Use of
other extension cords will not ground the tool and
increase the risk of electrical shock.
• Use proper extension cords. (See chart.) Insufficient conductor size will cause excessive voltage
drop and loss of power.
Personal Safety
• Stay alert, watch what you are doing and use
common sense when operating a power tool. Do
not use tool while tired or under the influence of
drugs, alcohol, or medications. A moment of inat-
tention while operating power tools may result in serious personal injury.
• Dress properly. Do not wear loose clothing or
jewelry. Contain long hair. Keep your hair, clothing,
and gloves away from moving parts. Loose clothes,
jewelry, or long hair can be caught in moving parts.
• Avoid accidental starting. Be sure switch is OFF
before plugging in. Plugging in tools that have the
switch ON invites accidents.
• Remove adjusting keys before turning the tool
ON. A wrench or a key that is left attached to a rotating part of the tool may result in personal injury.
• Do not overreach. Keep proper footing and bal-
ance at all times. Proper footing and balance enables
better control of the tool in unexpected situations.
• Use safety equipment. Always wear eye protec-
tion. Dust mask, non-skid safety shoes, hard hat, or
hearing protection must be used for appropriate conditions.
Some dust created by power sanding,
sawing, grinding, drilling and other construction activities
contains chemicals known to the State of California to
Ridge Tool Company
2
General Safety Information
WARNING! Read and understand all instructions. Failure
to follow all instructions listed below may
result in electric shock, fire, and/or serious
personal injury.
SAVE THESE INSTRUCTIONS!
Work Area Safety
• Keep your work area clean and well lit. Cluttered
benches and dark areas invite accidents.
• Do not operate tools in explosive atmospheres,
such as in the presence of flammable liquids,
gases, or dust. Tools create sparks which may ignite
the dust or fumes.
• Keep bystanders, children, and visitors away while
operating a tool. Distractions can cause you to lose
control.
• Keep floors dry and free of slippery materials
such as oil. Slippery floors invite accidents.
Electrical Safety
• Grounded tools must be plugged into an outlet
properly installed and grounded in accordance
with all codes and ordinances. Never remove the
grounding prong or modify the plug in any way. Do
not use any adapter plugs. Check with a qualified electrician if you are in doubt as to whether the
outlet is properly grounded. If the tools should elec-
trically malfunction or break down, grounding provides a low resistance path to carry electricity away
from the user.
• Avoid body contact with grounded surfaces. There
is an increased risk of electrical shock if your body is
grounded.
• Do not expose electrical tools to rain or wet con-
ditions. Water entering a tool will increase the risk of
electrical shock.
• Do not abuse cord. Never use the cord to pull the
plug from an outlet. Keep cord away from heat,
oil, sharp edges or moving parts. Replace dam-
aged cords immediately. Damaged cords increase the
risk of electrical shock.
Grounding prong
Cover of
grounded
outlet box
Grounding prong
Minimum Wire Gauge for Extension Cord
Nameplate
Amps
Total Length (in feet)
0 – 25 26 – 50 51 – 100
0 – 6 18 AWG 16 AWG 16 AWG
6 – 10 18 AWG 16 AWG 14 AWG
10 – 12 16 AWG 16 AWG 14 AWG
12 – 16 14 AWG 12 AWG
NOT RECOMMENDED
WARNING
