Ricoh Type 2018 User Manual

Printer/Scanner Unit
Type 2018
Operating Instructions
Printer Reference 2
Setting Up the Printer Driver and Canceling a Print Job
Troubleshooting
Appendix
Read this manual carefully before you use this machine and keep it handy for future reference. For safe and correct use, be sure to read the Safety
Information in the "Copy Reference" before using the machine.

Introduction

This manual contains detailed instructions and notes on the operation and use of this machine. For your safety and benefit, read this manual carefully before using the machine. Keep this manual in a handy place for quick reference.

Important

Contents of this manual are subject to change without prior notice. In no event will the company be liable for direct, indirect, special, incidental, or consequential damages as a result of handling or operating the machine.
Do not copy or print any item for which reproduction is prohibited by law. Copying or printing the following items is generally prohibited by local law: bank notes, revenue stamps, bonds, stock certificates, bank drafts, checks, passports, driver's licenses. The preceding list is meant as a guide only and is not inclusive. We assume no responsibility for its
completeness or accuracy. If you have any questions concerning the legality of copying or printing cer­tain items, consult with your legal advisor.

Caution:

Use of controls or adjustments or performance of procedures other than those specified in this manual might result in hazardous radiation exposure.
Two kinds of size notation are employed in this manual. With this machine refer to the metric version.

Trademarks

®
Microsoft
, Windows® and Windows NT® are registered trademarks of Microsoft Corporation in the
United States and/or other countries. Adobe®, PostScript®, Acrobat® are registered trademarks of Adobe Systems Incorporated. PCL® is a registered trademark of Hewlett-Packard Company. AppleTalk, Apple, Macintosh and Mac are registered trademarks of Apple Computer, Incorporated. IPS-PRINT™ Printer Language Emulation Copyright
©
2000, Oak Technology, Inc., All Rights Reserved.
UNIX is a registered trademark in the United States and other countries, licensed exclusively through X/Open Company Limited.
The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Ricoh Company, Ltd. is under license.
NetWare is a registered trademark of Novell, Inc. Other product names used herein are for identification purposes only and might be trademarks of their
respective companies. We disclaim any and all rights in those marks.
The proper names of the Windows operating systems are as follows:
®
The product name of Windows
The product name of Windows
95 is Microsoft®Windows® 95
®
98 is Microsoft®Windows® 98
The product name of Windows® Me is Microsoft®Windows®Millennium Edition (Windows Me)
The product names of Windows® 2000 are as follows: Microsoft® Windows® 2000 Advanced Server Microsoft Microsoft
The product names of Windows Microsoft Microsoft
The product names of Windows Server Microsoft Microsoft
®
Windows® 2000 Server
®
Windows® 2000 Professional
®
Windows® XP Professional
®
Windows® XP Home Edition
®
Windows ServerTM 2003 Standard Edition
®
Windows ServerTM 2003 Enterprise Edition
®
XP are as follows:
TM
2003 are as follows:
Microsoft® Windows ServerTM 2003 Web Edition
The product names of Windows® NT are as follows: Microsoft Microsoft® Windows NT® Workstation 4.0 Microsoft
®
Windows NT® Server 4.0
®
Windows NT® Workstation operating system Version 4.0

Notes:

Some illustrations in this manual might be slightly different from the machine. Certain options might not be available in some countries. For details, please contact your local dealer.

Manuals for This Machine

The following manuals describe the operational procedures of this machine. For particular functions, see the relevant parts of the manual.
Note
Manuals provided are specific to machine type.
Adobe Acrobat Reader is necessary to view the manuals as a PDF file.
Three CD-ROMs are provided:
• CD-ROM 1“Operating Instructions for Printer/Scanner”
• CD-ROM 2“Scanner Driver & Document Management Utilities”
• CD-ROM 3“Operating Instructions for General Settings and Facsimile”
❖❖❖❖ General Settings Guide (PDF file - CD-ROM3)
Provides an overview of the machine and describes System Settings (paper trays, Key Operator Tools, etc.), and troubleshooting. Refer to this manual for Address Book procedures such as registering fax numbers, e-mail addresses, and user codes.
❖❖❖❖ Network Guide (PDF file - CD-ROM1)
Describes procedures for configuring the machine and computers in a net­work environment.
❖❖❖❖ Copy Reference
Describes operations, functions, and troubleshooting for the machine’s copier function.
❖❖❖❖ Facsimile Reference <Basic Features>
Describes operations, functions, and troubleshooting for the machine’s fac­simile function.
❖❖❖❖ Facsimile Reference <Advanced Features> (PDF file - CD-ROM3)
Describes advanced functions and settings for key operators.
❖❖❖❖ Printer Reference 1
Describes system settings and operations for the machine’s printer function.
❖❖❖❖ Printer Reference 2 (PDF file - CD-ROM1) (this manual)
Describes operations, functions, and troubleshooting for the machine’s print­er function.
❖❖❖❖ Scanner Reference (PDF file - CD-ROM1)
Describes operations, functions, and troubleshooting for the machine’s scan­ner function.
i
❖❖❖❖ Manuals for DeskTopBinder Lite
DeskTopBinder Lite is a utility included on the CD-ROM labeled “Scanner Driver & Document Management Utilities”.
DeskTopBinder Lite Setup Guide (PDF file - CD-ROM2)
Describes installation of, and the operating environment for DeskTop­Binder Lite in detail. This guide can be displayed from the [Setup] dialog box when DeskTopBinder Lite is installed.
DeskTopBinder Lite Introduction Guide (PDF file - CD-ROM2)
Describes operations of DeskTopBinder Lite and provides an overview of its functions. This guide is added to the [Start] menu when DeskTopBinder Lite is installed.
Auto Document Link Guide (PDF file - CD-ROM2)
Describes operations and functions of Auto Document Link installed with DeskTopBinder Lite. This guide is added to the [Start] menu when Desk­TopBinder Lite is installed.
❖❖❖❖ Manuals for ScanRouter V2 Lite
ScanRouter V2 Lite is a utility included on the CD-ROM labeled “Scanner Driver & Document Management Utilities”.
ScanRouter V2 Lite Setup Guide (PDF file - CD-ROM2)
Describes installation of, settings, and the operating environment for Scan­Router V2 Lite in detail. This guide can be displayed from the [Setup] dia­log box when ScanRouter V2 Lite is installed.
ScanRouter V2 Lite Management Guide (PDF file - CD-ROM2)
Describes delivery server management and operations, and provides an overview of ScanRouter V2 Lite functions. This guide is added to the [Start] menu when ScanRouter V2 Lite is installed.
❖❖❖❖ Other manuals
PostScript 3 Supplement (PDF file - CD-ROM1)
UNIX Supplement (available from an authorized dealer, or as a PDF file on
our Web site)
ii

TABLE OF CONTENTS

Manuals for This Machine......................................................................................i
How to Read This Manual .....................................................................................1
1. Setting Up the Printer Driver and Canceling a Print Job
Accessing Printer Properties................................................................................3
Windows 95/98/Me - Accessing Printer Properties .................................................... 3
Windows 2000/XP and Windows Server 2003 - Accessing Printer Properties ..........4
Windows NT 4.0 - Accessing Printer Properties ........................................................ 5
Macintosh - Setting Up for Printing ............................................................................ 7
Canceling a Print Job ............................................................................................8
Windows - Canceling a Print Job ............................................................................... 8
Macintosh - Canceling a Print Job ............................................................................. 9
2. Troubleshooting
Error & Status Messages on the Display...........................................................11
The Machine Does Not Print ...............................................................................15
Other Printing Problems .....................................................................................19
3. Printer Features
Printer Features Menu.........................................................................................23
Adjusting Printer Features..................................................................................25
Printer Features Parameters...............................................................................26
Paper Input............................................................................................................... 26
List/Test Print ........................................................................................................... 26
Maintenance............................................................................................................. 29
System .....................................................................................................................31
Host Interface ........................................................................................................... 33
PCL Menu ................................................................................................................ 34
PS Menu .................................................................................................................. 35
4. Appendix
Collate and Rotating Collate ...............................................................................37
User Defined Pages .............................................................................................38
System Settings (Parallel Connection)..............................................................39
Specifications.......................................................................................................40
Options ..................................................................................................................... 41
INDEX......................................................................................................... 44
iii
iv

How to Read This Manual

R
R

Symbols

In this manual, the following symbols are used:
WARNING:
This symbol indicates a potentially hazardous situation which, if instructions are not followed, could result in death or serious injury.
CAUTION:
This symbol indicates a potentially hazardous situation which, if instructions are not followed, may result in minor or moderate injury, or damage to proper­ty.
* The statements above are notes for your safety.
Important
If this instruction is not followed, paper might misfeed, originals might be dam­aged, or data might be lost. Be sure to read this.
Preparation
This symbol indicates prior knowledge or preparation is required before opera­tion.
Note
This symbol indicates precautions for operation, or actions to take after mal-op­eration.
Limitation
This symbol indicates numerical limits, functions that cannot be used together, or conditions in which a particular function cannot be used.
Reference
This symbol indicates a reference.
[]
Keys and buttons that appear on the computer's display.
[]
Keys that appear on the machine's display.
{}
Keys built into the machine's control panel.
{}
Keys on the computer's keyboard.
1

Names of Major Options

Major options of this machine are referred to as follows in this manual:
IEEE 1394 Interface Board Type B IEEE 1394 interface board
IEEE 802.11b Interface Unit Type D IEEE 802.11b interface unit
IEEE 1284 Interface Board Type A IEEE 1284 interface board
PostScript3 Unit Type 2018 PostScript 3 unit
BlueTooth Unit Type 2238 Bluetooth interface unit
The following software products are referred to using a general name:
DeskTopBinder Lite and DeskTopBinder Professional
ScanRouter V2 Lite, ScanRouter EX Professional
*
prise
the ScanRouter delivery software
*
Optional
*
DeskTopBinder
*
and ScanRouter EX Enter-
2

1. Setting Up the Printer Driver and Canceling a Print Job

Accessing Printer Properties

Windows 95/98/Me ­Accessing Printer Properties
Changing default settings
On the [Start] menu, point to [Set-
AAAA
tings], and then click [Printers].
The [Printers] window appears.
Click the icon of the machine
BBBB
whose default you want to change.
On the [File] menu, click [Proper-
CCCC
ties].
The printer properties dialog box appears.
Make the settings you require,
DDDD
and then click [OK].
Note
With some applications, printer
driver settings are not used, and the application's own settings are applied.
Making settings from an application
To make settings for a specific appli­cation, open the printer properties di­alog box from that application. The following example describes how to make settings for the WordPad appli­cation that comes with Windows 95/98/Me.
Note
Actual procedures for opening the
printer properties dialog box may vary depending on the applica­tion. For more information, see the operating instructions that come with the application you are using.
Any setting you make in the fol-
lowing procedure is valid for the current application only:
On the [File] menu, click [Print].
AAAA
The [Print] dialog box appears.
In the [Name] list, select the ma-
BBBB
chine you want to use, and then click [Properties].
The printer properties dialog box appears.
Make the settings you require,
CCCC
and then click [OK].
Click [OK] to start printing.
DDDD
3
1
Setting Up the Printer Driver and Canceling a Print Job
Windows 2000/XP and Windows Server 2003 ­Accessing Printer Properties
Changing default settings - Printer properties
Limitation
Changing machine settings re-
quires Manage Printers permis­sion. Members of Administrators and Power Users groups have Manage Printers permission by de­fault. When you set up options, log on using an account that has Man­age Printers permission.
On the [Start] menu, point to [Set-
AAAA
tings], and then click [Printers].
The [Printers] window appears.
Note
In Windows XP Professional
and Windows Server 2003, open the [Printers and Faxes] window on the [Start] menu.
In Windows XP Home Edition,
open the [Printers and Faxes] window by clicking [Control Pan- el] from the [Start] button on the taskbar, click [Printers and Other
Hardware], and then click [Print­ers and Faxes].
Click the icon of the machine
BBBB
whose default you want to change.
On the [File] menu, click [Proper-
CCCC
ties].
The printer properties dialog box appears.
Make the settings you require,
DDDD
and then click [OK].
Note
Normally you do not have to
change the “Form to Tray As- signment settings on the [De- vice Settings] tab in the PostScript 3 printer driver.
Settings you make here are used
as default for all applications.
Changing default settings - Printing preferences properties
Limitation
Changing machine settings re-
quires Manage Printers permis­sion. Members of the Administrators and Power Users groups have Manage Printers per­mission by default. When you set up options, log on using an ac­count that has Manage Printers permission.
On the [Start] menu, point to [Set-
AAAA
tings], and then click [Printers].
The [Printers] window appears.
Note
In Windows XP Professional
and Windows Server 2003, open the [Printers and Faxes] window on the [Start] menu.
In Windows XP Home Edition,
open the [Printers and Faxes] window by clicking [Control Pan- el] from the [Start] button on the taskbar, click [Printers and Other
Hardware], and then click [Print­ers and Faxes].
Click the icon of the machine
BBBB
whose default you want to change.
4
Accessing Printer Properties
On the [File] menu, click [Printing
CCCC
Preferences...].
The [Printing Preferences] dialog box appears.
Make the settings you require,
DDDD
and then click [OK].
Note
Settings you make here are used
as default for all applications.
Making settings from an application
To make settings for a specific appli­cation, open the [Print] dialog box from that application. The following example describes how to make set­tings for the WordPad application that comes with Windows 2000/XP and Windows Server 2003.
Note
Actual procedures for opening the
[Print] dialog box vary depending on the application. For more infor­mation, see the operating instruc­tions that come with the application you are using.
Any setting you make in the fol-
lowing procedure is valid for the current application only.
On the [File] menu, click [Print...].
AAAA
The [Print] dialog box appears.
Click [Print] to start printing.
DDDD
Under Windows XP and Windows Server 2003, click [OK], and then click [Print] to start printing.

Windows NT 4.0 - Accessing Printer Properties

Changing default settings - Printer properties
Limitation
Changing machine settings re-
quires Full Control access permis­sion. Members of Administrators, Server Operators, Print Operators, and Power Users groups have Full Control permission by default. When you set up options, log on using an account that has Full Con­trol permission.
On the [Start] menu, point to [Set-
AAAA
tings], and then click [Printers].
The [Printers] window appears.
Click the icon of the machine
BBBB
whose default you want to change.
On the [File] menu, click [Proper-
CCCC
ties].
The printer properties dialog box appears.
1
In the [Select Printer] list, select the
BBBB
machine you want to use, and then click the tab for which you want to change print settings.
Note
In Windows XP and Windows
Server 2003, click [Preference] to open the Printing Preferences dialog box.
Make the settings you require.
CCCC
Make the settings you require,
DDDD
and then click [OK].
Note
Normally you do not have to
change the “Form to Tray As- signment settings on the [De- vice Settings] tab in the PostScript 3 printer driver.
Settings you make here are used
as default for all applications.
5
Setting Up the Printer Driver and Canceling a Print Job
1
Changing the default settings - Default document properties
Limitation
Changing machine settings requires
Full Control access permission. Members of the Administrators, Server Operators, Print Operators, and Power Users groups have Full Control permission by default. When you set up options, log on us­ing an account that has Full Control permission.
On the [Start] menu, point to [Set-
AAAA
tings], and then click [Printers].
The [Printers] window appears.
Click the icon of the machine
BBBB
whose default you want to change.
On the [File] menu, click [Document
CCCC
Defaults].
Making settings from an application
To make settings for a specific appli­cation, open the printer properties di­alog box from that application. The following example describes how to make settings for the WordPad appli­cation that come with Windows NT
4.0.
Note
Actual procedures for opening the
printer properties dialog box vary depending on the application. For more information, see the operat­ing instructions that come with the application you are using.
Any setting you make in the fol-
lowing procedure is valid for the current application only.
On the [File] menu, click [Print].
AAAA
The [Print] dialog box appears.
The [Default] dialog box appears.
Make the settings you require,
DDDD
and then click [OK].
Note
Settings you make here are used
as default for all applications.
In the [Name] list, select the ma-
BBBB
chine you want to use, and then click [Properties].
The printer properties dialog box appears.
Make the settings you require,
CCCC
and then click [OK].
Click [OK] to start printing.
DDDD
6
Accessing Printer Properties

Macintosh - Setting Up for Printing

Making paper settings from an application
Open the file you want to print.
AAAA
On the [File] menu, click [Page Set-
BBBB
up].
The [AdobePS Page Setup] dialog box appears.
Make sure the machine you want
CCCC
to use is shown in the [Printer:] box.
Note
In Mac OS X, this is called [For-
mat for:].
If the machine is not shown in
the [Printer:] box, use the pop-up menu to display a list of availa­ble machines.
Setting up for printing from an application
Open the file you want to print.
AAAA
On the [File] menu, click [Print].
BBBB
The [Printer Features] dialog box ap- pears.
Make sure the machine is selected
CCCC
in the [Printer:] box.
Make the settings you require,
DDDD
and then click [Print] to start print­ing.
1
Reference
The actual appearance of Page Setup depends on the applica­tion you are using. See the oper­ating instructions that come with the Macintosh for more in­formation.
In the [Paper:] box, select the pa-
DDDD
per size.
Note
In Mac OS X, this is called [Paper
Size].
Make the settings you require,
EEEE
and then click [OK].
7
1
Setting Up the Printer Driver and Canceling a Print Job

Canceling a Print Job

Windows - Canceling a Print Job

Double-click the printer icon on
AAAA
the Windows taskbar.
Press [Current].
FFFF
A window appears, showing all print jobs currently queued for printing. Check the current status of the job you want to cancel.
Select the name of the job you
BBBB
want to cancel.
On the [Document] menu, click
CCCC
[Cancel Printing].
Note
In Windows 2000/XP, Windows
Server 2003, and Windows NT, click [cancel] on the [Document] menu.
In Windows 95/98/Me/2000/
XP, Windows Server 2003, or NT 4.0, you can also open the print job queue window by double-clicking the machine icon in the [Printers] machine window (the [Printers and Faxes] window under Windows XP and Windows Server 2003).
Press the {{{{Printer}}}} key.
DDDD
Press [JobReset].
EEEE
[Current]: cancels the print job
currently being processed.
[Resume]: resumes printing jobs.
A confirmation message appears.
Press [Yes] to cancel the print job.
GGGG
Note
Press [No] to return to the previ-
ous display.
Important
If the machine is shared by mul-
tiple computers, be careful not to accidentally cancel someone else's print job.
Note
You cannot stop printing data
that has already been proc­essed. For this reason, printing may continue for a few pages after you press [JobReset].
A print job containing a large
volume of data may take con­siderable time to stop.
8

Macintosh - Canceling a Print Job

Canceling a Print Job
Press [Yes] to cancel the print job.
GGGG
Mac OS
Double-click the printer icon on
AAAA
the desktop.
A window appears, showing all print jobs currently queued for printing. Check the current status of the job you want to cancel.
Select the name of the job you
BBBB
want to cancel.
Click the pause icon, and then
CCCC
click the trash icon.
Press the {{{{Printer}}}} key.
DDDD
Press [JobReset].
EEEE
1
Note
Press [No] to return to the previ-
ous display.
Important
If the machine is shared by mul-
tiple computers, be careful not to accidentally cancel someone else's print job.
Note
You cannot stop printing data
that has already been proc­essed. For this reason, printing may continue for a few pages after you press [JobReset].
A print job containing a large
volume of data may take con­siderable time to stop.
Press [Current].
FFFF
[Current]: cancels the print job
currently being processed.
[Resume]: resumes printing jobs.
A confirmation message appears.
Mac OS X
Start [Print Center].
AAAA
The [Printer List] window appears.
Double-Click the machine in use.
BBBB
The printer dialog appears.
Click the print job you want to
CCCC
delete.
Click [Delete].
DDDD
Press the {{{{Printer}}}} key.
EEEE
9
1
Setting Up the Printer Driver and Canceling a Print Job
Press [JobReset].
FFFF
Press [Current].
GGGG
[Current]: cancels the print job
currently being processed.
[Resume]: resumes printing jobs.
A confirmation message appears.
Press [Yes] to cancel the print job.
HHHH
Note
Press [No] to return to the previ-
ous display.
Important
If the machine is shared by mul-
tiple computers, be careful not to accidentally cancel someone else's print job.
Note
You cannot stop printing data
that has already been proc­essed. For this reason, printing may continue for a few pages after you press [JobReset].
A print job containing a large
volume of data may take con­siderable time to stop.
10

2. Troubleshooting

Error & Status Messages on the Display

This section describes the principal messages that appear on the display. If a message not described here appears, act according to the message.
Reference
Before turning the main power off, see Turning On the Power, Copy Refer- ence.
❖❖❖❖ Status messages
Message Status
Hex Dump Mode In Hex Dump mode, the machine prints received data in hexa-
decimal format. After printing, turn off the machine and then back on again. Hex Dump mode is used for advanced trouble­shooting.
Offline The machine is offline. To start printing, switch the machine
online by pressing {{{{Online}}}} on the control panel.
Please wait. Wait a while.
Printing... The machine is printing. Wait a while.
Ready This is the default ready message. The machine is ready for
use. No action is required.
Resetting job... The machine is resetting the print job. Wait until “Ready” ap-
pears on the display.
Setting change The machine settings are being changed. Wait a while.
Waiting... The machine is waiting for the next data to print. Wait a while.
11
Troubleshooting
❖❖❖❖ Alert messages
Messages/Second messages Causes Solutions
2
Add toner
Out of toner. Follow
instructions inside and
replace toner
Change Tray # to the follow­ing settings:
xxx yyy
Connect failed: IEEE802.11b Turn power off, check card
Collate cancelled. The collate print function has
Collate: Page max The maximum number of pag-
Toner is running out. It is time to supply toner.
The settings of the selected pa­per tray are different from those specified for printing.
# indicates the tray number.
xxx indicates the tray number.
yyy indicates the paper size.
The IEEE 802.11b card may have come off, or an error may have occurred in the IEEE
802.11b card.
been canceled.
es has been exceeded for colla­tion.
Press [JobReset] to change the paper tray settings, or press [FormFeed] to print regardless.
For details about the paper tray settings, see General Set- tings Guide.
Turn off the main power switch, and check the card is installed correctly. If the mes­sage appears again, contact your sales or service repre­sentative.
Turn off the main power switch, and back on again. If the message appears again, contact your sales or service representative.
Turn off the main power switch, and back on again. Re­duce the number of pages to be printed. Or, increase mem­ory capacity.
When installing a memory module in the machine, con­tact your sales or service rep­resentative.
12
Cover open
Cover is open as shown. Close it.
Duplex cancelled. Duplex printing has been can-
The cover indicated on the dis­play is open.
celed.
Close the cover.
Check the paper used is suita­ble for duplex printing. Or, in­crease memory capacity. When installing a memory module in the machine, con­tact your sales or service rep­resentative.
Error & Status Messages on the Display
Messages/Second messages Causes Solutions
Duplex mode is in off posi­tion for Tray #
Ethernet Board Error An error has occurred in the
Exceeded max. print size.
Press FormFeed/JobReset
I/O buffer overflow. The maximum size of the I/O
Load paper in Tray # There is no paper in the select-
NV-RAM Error An error has occurred in the
The selected paper tray has not been configured for du­plex printing.
# indicates the tray number.
Ethernet interface.
The page images to be printed exceed the maximum print ar­ea.
buffer has been exceeded.
ed paper tray.
# indicates the tray number.
printer.
Press [JobReset] to change the paper tray settings or do sin­gle-sided printing.
For details about the tray set­tings, see General Settings Guide.
Turn off the main power switch, and back on again. If the message appears again, contact your sales or service representative.
Press [JobReset] to change the paper tray settings, or press [FormFeed] to print regardless.
Increase the size of the I/O buffer through the Host Inter­face menu.
Load the tray with paper.
Turn off the main power switch, and back on again. If the message appears again, call your sales or service repre­sentative.
2
Output Tray changed. The output tray has been
changed because of the paper size limitation of the selected tray.
Paper in duplex unit. Open cover and remove the paper.
Paper size/type mismatch
Change settings to:
xxx yyy
Parallel I/F Error An error has occurred in the
Printer Font Error An error has occurred in the
There is a misfeed in the du­plex unit.
There is no paper tray that matches the paper settings se­lected under Auto Tray Select.
xxx indicates the tray number.
yyy indicates the paper size and the paper type.
parallel interface board.
font file.
Select the correct output tray.
Open the cover of the duplex unit, and remove the misfed paper.
Press [JobReset] to change the paper tray settings, or press [FormFeed] to print regardless.
For details about the paper tray settings, see General Set- tings Guide.
Contact your sales or service representative.
Turn off the main power switch, and back on again. If the message appears again, call your sales or service repre­sentative.
13
Troubleshooting
Messages/Second messages Causes Solutions
2
Print overrun. The image data has been
thinned out due to image com­pression.
Problem:IEEE1394 board An error may have occurred in
the IEEE 1394 board.
Problem:IEEE802.11b card An error may have occurred in
the IEEE 802.11b card.
Problem:IEEE802.11b board An error may have occurred in
the IEEE 802.11b board.
Paper Tray is in use. The specified paper tray is in
use by another function, such as the copier function.
Reset paper tray correctly. The selected paper tray does
not exist or is not set correctly.
DToner is almost empty
Add toner
Tray # Error An error has occurred with the
The toner has almost run out. Replace the toner cartridge
paper tray.
# indicates the tray number.
Increase memory capacity. When installing a memory module in the machine, con­tact your sales or service rep­resentative.
Turn off the main power switch, and back on again. If the message appears again, contact your sales or service representative.
Wait until the other function has finished using the speci­fied paper tray.
Set the paper tray correctly.
soon to prevent poor print quality.
Press [JobReset] to change the paper tray settings, or press [FormFeed] to select another paper tray and print using that.
Unauthorized user access. Print job canceled due to user
restrictions.
USB Error An error has occurred in the
USB interface.
Check the User Code permis­sion status.
Turn off the main power switch, and back on again. If the message appears again, contact your sales or service representative.
14

The Machine Does Not Print

The Machine Does Not Print
Possible Cause Solutions
Is the power on? Check the cable is securely plugged into the power outlet and the
machine.
Turn on the main power switch.
Is the machine online? If not, press {{{{ffffOnline}}}} on the control panel.
Does the Printer key stay red?
Is there a warning status or error message on the dis­play?
Can you print a configura­tion page?
Is the interface cable con­nected securely to the ma­chine and computer?
Are you using the correct interface cable?
Was the interface cable connected after the ma­chine was turned on?
Is the signal status satisfac­tory when using wireless LAN in infrastructure mode ?
If so, check the error message on the display and take required ac­tion.
If so, check the error message or warning status on the display and take the required action.
If you cannot print a configuration page, there maybe a machine malfunction. Contact your sales or service representative.
See p.26 Printing the configuration page for printing a configu­ration page.
Connect the interface cable securely. If it has a fastener, fasten that securely as well.
See Connecting the Machine, Printer Reference 1.
The type of interface cable you should use depends on the compu­ter. Be sure to use the correct one. If the cable is damaged or worn, replace it.
See Connecting the Machine, Printer Reference 1.
Connect the interface cable before turning on the machine.
To check signal status, press the {{{{User Tools/Counter}}}} key, and then select [System Settings] using {{{{UUUU}}}} or {{{{TTTT}}}}. On the [Interface Settings], select [IEEE802.11b], and then select [Wireless LAN Signal] using {{{{UUUU}}}}or {{{{TTTT}}}}. If signal quality is poor, remove objects that might cause interference.
2
When using wireless LAN, is the SSID correctly set?
When using wireless LAN, is the access point correctly set?
Note
You can check signal status only when using wireless LAN in
infrastructure mode.
Check using the machine's control panel that the SSID is correctly set.
See Interface Settings/IEEE 802.11b (Option), Network Guide.
Check access point settings when in infrastructure mode. Depend­ing on the access point, client access may be limited by MAC ad­dress.
Also, check there are no problems in transmission between access point and wired clients, and between access point and wireless cli­ents.
15
Troubleshooting
Possible Cause Solutions
2
When using wireless LAN, is the LED on the wireless LAN card lit or blinking?
Is the wireless LAN being used in ad hoc mode?
Did you change the option settings on the machine?
Confirm the orange LED is lit, and the green LED is lit or blinks during transmission.
Turn the main power off and back on. See Turning On the Pow­er, Copy Reference.
Otherwise, configure [IEEE 802.11b] in [Interface Settings] in [System
Settings]. See Setting Up the Machine on a Network, Network Guide.
When using the RPCS printer driver on Windows 2000 and con­necting with IEEE 1394, an error may occur if you change the op­tion settings on the machine. In this case, follow the procedure below:
A
Unplug the IEEE 1394 interface cables connected to the compu­ter.
B
Run the utility tool for the IEEE 1394 interface board, which is stored in the following path on the CD-ROM Printer Drivers and Utilities”.
\UTILITY\1394\
Reference
For more information about using the utility tool for IEEE 1394, see the README file in the same directory on the CD­ROM.
C
Restart the computer.
D
Connect the computer to the machine using the IEEE 1394 in­terface cables.
16
Problem Solutions
The Machine Does Not Print
Is the Data In indicator blinking or lit after starting the print job?
If not, data is not being sent to the machine.
❖❖❖❖ When the machine is connected to the computer using
the interface cable
Check the machine port settings are correct. For parallel port connection, port LPT1 or LPT2 should be set.
Windows 95/98/Me
A
Click the [Start] button, point to [Settings], and then click [Printers].
B
Click the icon of the machine. On the [File] menu, click [Properties].
C
Click the [Details] tab.
D
In the [Print to the following port:] list, confirm the correct port is selected.
Windows 2000
A
Click the [Start] button, point to [Settings], and then click [Printers].
B
Click the icon of the machine. On the [File] menu, click [Properties].
C
Click the [Ports] tab.
D
In the [Print to the following port(s)] list, confirm the correct port is selected.
Windows XP Professional and Windows Server 2003
A
Click the [Start] button, and then click [Printers and Fax- es].
B
Click the icon of the machine. On the [File] menu, click [Properties].
C
Click the [Ports] tab.
D
In the [
Print to the following port(s)
port is selected.
Windows XP Home Edition
A
Click the [Start] button, click [Control Panel], click [Print- ers and Other Hardware], and then click [Printers and Faxes].
B
Click the icon of the machine. On the [File] menu, click [Properties].
C
Click the [Ports] tab.
D
In the [Print to the following port(s)] list, confirm the correct port is selected.
Windows NT 4.0
A
Click the [Start] button, point to [Settings], and then click [Printers].
B
Click the icon of the machine. On the [File] menu, click [Properties].
C
Click the [Ports] tab.
D
In the [Print to the following port(s)] list, confirm the correct port is selected.
] list, confirm the correct
2
17
Troubleshooting
Problem Solutions
2
Is the Data In indicator blinking or lit after starting the print job?
❖❖❖❖ Network connection
Contact your network administrator.
18

Other Printing Problems

Problem Causes and Solutions
Other Printing Problems
The print on the entire page is fad­ed.
If [Toner Saving] is selected on the [Print Quality] tab in the printer driver, the entire page will be faded when printed.
Note
In PostScript 3, click [Advanced...] on the [Paper/Quality] tab, and then se-
lect [Toner Saving 1] or [Toner Saving 2] in [Print Mode] in the [Advanced] di- alog box.
See the printer driver Help.
Smudged print. Settings for thick paper have not been made when printing on thick paper.
PCL 6/5e and PostScript 3
Select [Thick] in the [Type:] list on the [Paper] tab.
RPCS
Select [Thick] in the [Paper type:] list on the [Print Settings] tab.
When printing graphics, the out­put and the screen are different.
Page layout is not as expected.
If the printer driver is configured to use the graphics command, the graph­ics command from the machine is used to print.
If you want to print accurately, set the printer driver to print without using the graphics command.
See the printer driver Help.
Print areas differ depending on machine used. Information that fits on a single page on one machine may not fit on a single page of another ma­chine.
Adjust the [Printable area:] setting in the [Printer Configuration...] dialog box on the [Print Settings] tab in the RPCS™ printer driver.
See the printer driver Help.
2
Duplex printing is not possible.
Duplex printing cannot be done with paper set in the bypass tray. When using duplex printing, make settings to use paper from a tray other than the bypass tray.
Duplex printing cannot be done with thick paper, OHP transparencies, or labels specified as the paper type. Specify another paper type.
Duplex printing cannot be done using a tray for which [Duplex] is not selected as the paper type in [Tray Paper Settings] in [System Settings]. Se­lect [Duplex] as the paper type in [Tray Paper Settings]. See General Settings Guide.
19
Troubleshooting
Problem Causes and Solutions
2
When using Win­dows 95/98/Me, Windows 2000/XP, or Win­dows NT 4.0, ei­ther combined printing or book­let print does not come out as ex­pected.
When using Win­dows 95/98/Me, Windows 2000/XP, or Win­dows NT 4.0, Auto Reduce/En­large print does not come out as expected.
A print instruc­tion was issued from the compu­ter, but printing did not start.
Make sure the application's paper size and orientation settings match those of the printer driver.
If a different paper size and orientation are set, select the same size and ori­entation.
User code management may have been set. Ask the administrator about valid user codes. To print, the user code must be entered from the printer driver.
The print job is not canceled even when the machine is switched to of­fline status.
Photo images are coarse.
Images are cut off, or excess is print­ed.
Even when the machine is offline, printing is performed when [Job accept-
ance priority] is selected for [Signal Control] in [Parallel Interface] in [Interface Settings] in [System Settings]. Select [Printer priority] for [Signal Control].
See User Tools (System Settings)”, General Settings Guide.
Some applications reduce print resolution.
You may be using paper smaller than the size selected in the application. Use the same size paper as that selected in the application. If you cannot load paper of the correct size, use the reduction function to reduce the im­age, and then print.
See the printer driver Help.
20
Problem Causes and Solutions
Other Printing Problems
It takes a long time to complete a print job.
Photographs and other data intensive pages take a long time for the ma­chine to process, so simply wait when printing such data.
Changing the following settings with the printer driver may help speed up printing:
PCL 6/5e Select the lowest value for [Resolution] on the [Print Quality] tab in the printer properties dialog box.
Note
Under Windows 2000/XP, select the lowest value for [Resolution] on
the [Print Quality] tab in the [Printing Preferences] dialog box.
Under Windows NT 4.0, select the lowest value for [Resolution] on
the [Print Quality] tab in the [Document Defaults...] dialog box.
PostScript 3 Select the lowest value for [Resolution] on the [Print Quality] tab in the printer properties dialog box. Select [PostScript (optimize for speed)]for [PostScript output format:] on the
[PostScript] tab in the printer properties dialog box.
Note
Under Windows 2000/XP, click [Advanced...] on the [Paper/Quality]
tab in the [Printing Preferences] dialog box, and then select [PostScript
output options : optimize for speed] for [PostScript Options] in the [Ad- vanced...] dialog box.
Under Windows NT 4.0, click [Advanced...] in the [Document Defaults]
dialog box, and then select [PostScript output options : optimize for speed] for [PostScript Options] in the [Advanced...] dialog box.
RPCS Click [Change User Settings...] on the [Print Quality] tab in the printer prop­erties dialog box, and then select the lowest value for [ the [Image Adjustments] tab in the [Change User Settings...] dialog box. Select [Fast] in the [Document type] list on the [Print Quality] tab in the printer properties dialog box.
Resolution:
] on
2
Note
Under Windows 2000/XP, click [Change User Settings...] on the [Print
Quality] tab in the [Printing Preferences] dialog box, and th en select the
lowest value for [Resolution:] on the [Image Adjustments] tab in the [Change User Settings...] dialog box. Select [Fast] in the [Document type] area on the [Print Quality] tab in the [Printing Preferences] dialog box.
Under Windows NT 4.0, click [Change User Settings...] on the [Print
Quality] tab in the [Document Defaults] dialog box, and then select the
lowest value for [Resolution:] on the [Image Adjustments] tab in the [Change User Settings...] dialog box. Select [Fast] in the [Document type]
area on the [Print Quality] tab in the [Document Defaults] dialog box.
See the printer driver Help.
The data is so large or complex that it takes time to process. If the Data In indicator is blinking, data is being processed. Simply wait until printing resumes.
21
Troubleshooting
Problem Causes and Solutions
2
It takes too much time to resume printing.
Paper is not fed from the selected tray.
Optional compo­nents connected to the machine are not recognized when using Win­dows 95/98/Me, Windows 2000/XP, and Windows NT 4.0.
Images are print­ed in the wrong orientation.
The printed image is different from the image on the computer's dis­play.
The data is so large or complex that it takes time to process. If the Data In indicator is blinking, data is being processed. Simply wait until printing resumes.
The machine was in Energy Saver mode. To resume from Energy Saver mode, it has to warm up, and this takes time. See General Settings Guide.
When you are using a Windows operating system, printer driver settings override those set using the control panel. Set the desired input tray using the printer driver.
See the printer driver Help.
You have to configure the option setup in printer properties when bidirec­tional transmission is not enabled.
See the printer driver Help.
The feed orientation you selected and the feed orientation selected in the printer driver's option setup might not be the same. Set the machine's feed orientation and the printer driver's feed orientation accordingly.
See the printer driver Help.
With certain functions, such as enlargement and reduction, image layout might be different to that on the computer display.
You might have selected to replace True Type fonts with machine fonts in the printing process.
To print an image similar to that of the computer display, make settings to print True Type fonts as an image.
See the printer driver Help.
No transmission when using 1394 interface connec­tion
Check using the following procedure:
Confirm the IEEE 1394 interface cable is connected securely.
A
Restart the computer.
B
If the error occurs even after executing the above operation, proceed to the following steps.
Unplug the IEEE 1394 interface cable connected to the computer.
C
Run the utility tool for the IEEE 1394 interface board, which is stored in
D
the following path on the CD-ROM Printer Drivers and Utilities”:
\UTILITY\1394\
Reference
For more information about using the utility tool for IEEE 1394, see the README file in the same directory on the CD-ROM.
Restart the computer.
E
Note
If the problem cannot be solved, contact your sales or service representative.
22

3. Printer Features

Reference
For more information about copier features and system settings, see Copy Ref­erence and General Settings Guide.
Printer Features Menu
There are seven menu items in the Printer Features menu:
Paper Input
List/Test Print
Maintenance
System
Host Interface
PCL Menu
PS Menu (optional)
You can select the functions in the following table:
Menu Default
Paper Input
See p.26 Paper Input”.
List/Test Print
See p.26 “List/Test Print”.
Maintenance
See p.29 “Maintenance”.
Bypass Paper Size
Multiple Lists
Config. Page
Error Log
Menu List
PCL Config./Font Page
PS Config./Font Page
Hex Dump
Menu Protect
*1
23
Printer Features
Menu Default
3
System
See p.31 “System”.
Host Interface
See p.33 Host Interface”.
PCL Menu
See p.34 PCL Menu”.
Print Error Report
Auto Continue
Memory Overflow
Memory Usage
Duplex
Copies
Edge Smoothing
Toner Saving
Printer Language
Sub Paper Size
Page Size
Letterhead Setting
Edge-Edge Print
Default Printer Lang.
I/O Buffer
I/O Timeout
Orientation
Form Lines
*2
*1
Font Source
Font Number
Point Size
Font Pitch
Symbol Set
Courier Font
Ext. A4 Width
Append CR to LF
Resolution
PS Menu (optional)
See p.35 PS Menu”.
*1
Appears when the PostScript 3 unit (optional) is installed.
*2
Appears on Type 3 machine only. Check your machine type.
Data Format
Resolution
24

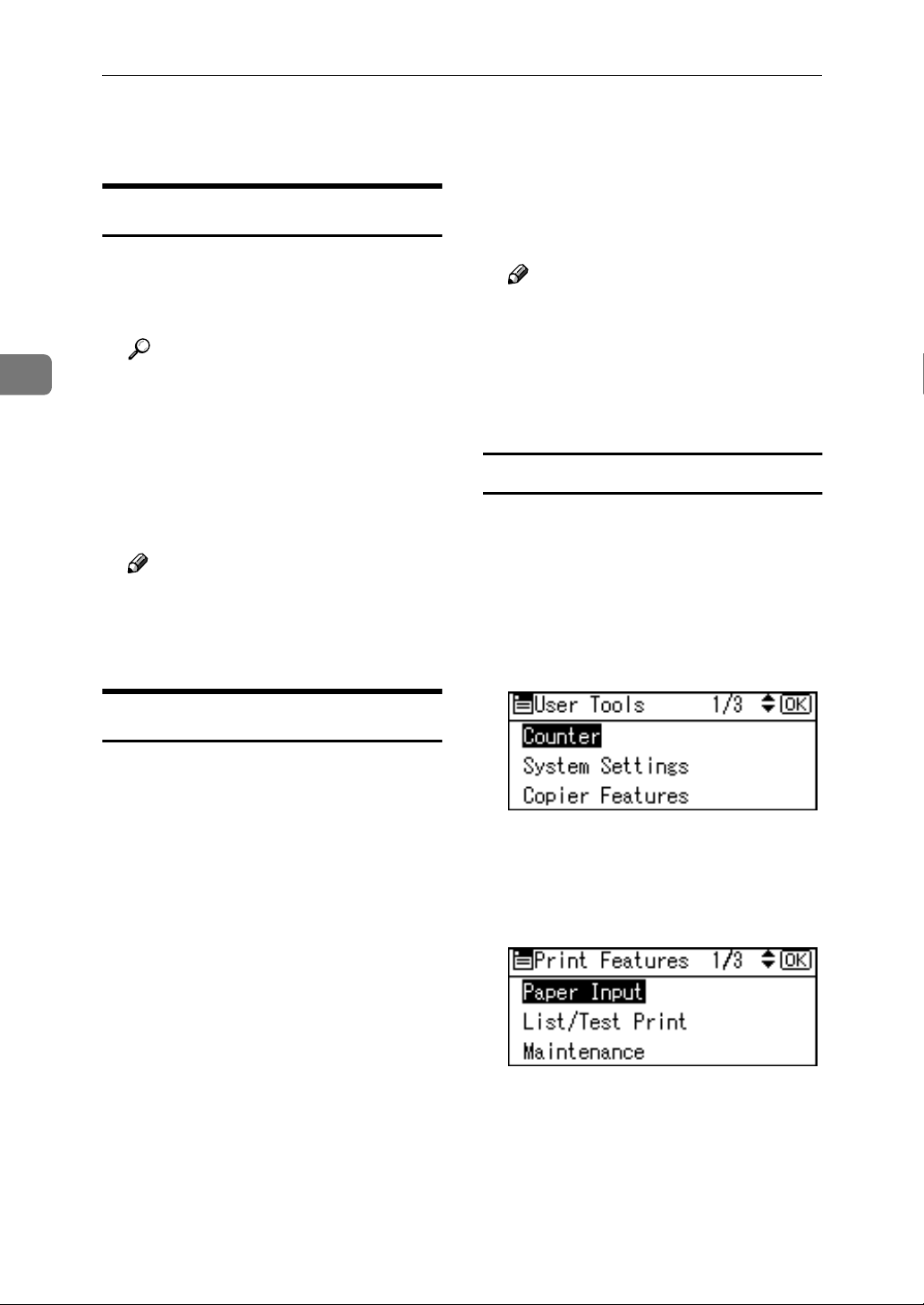

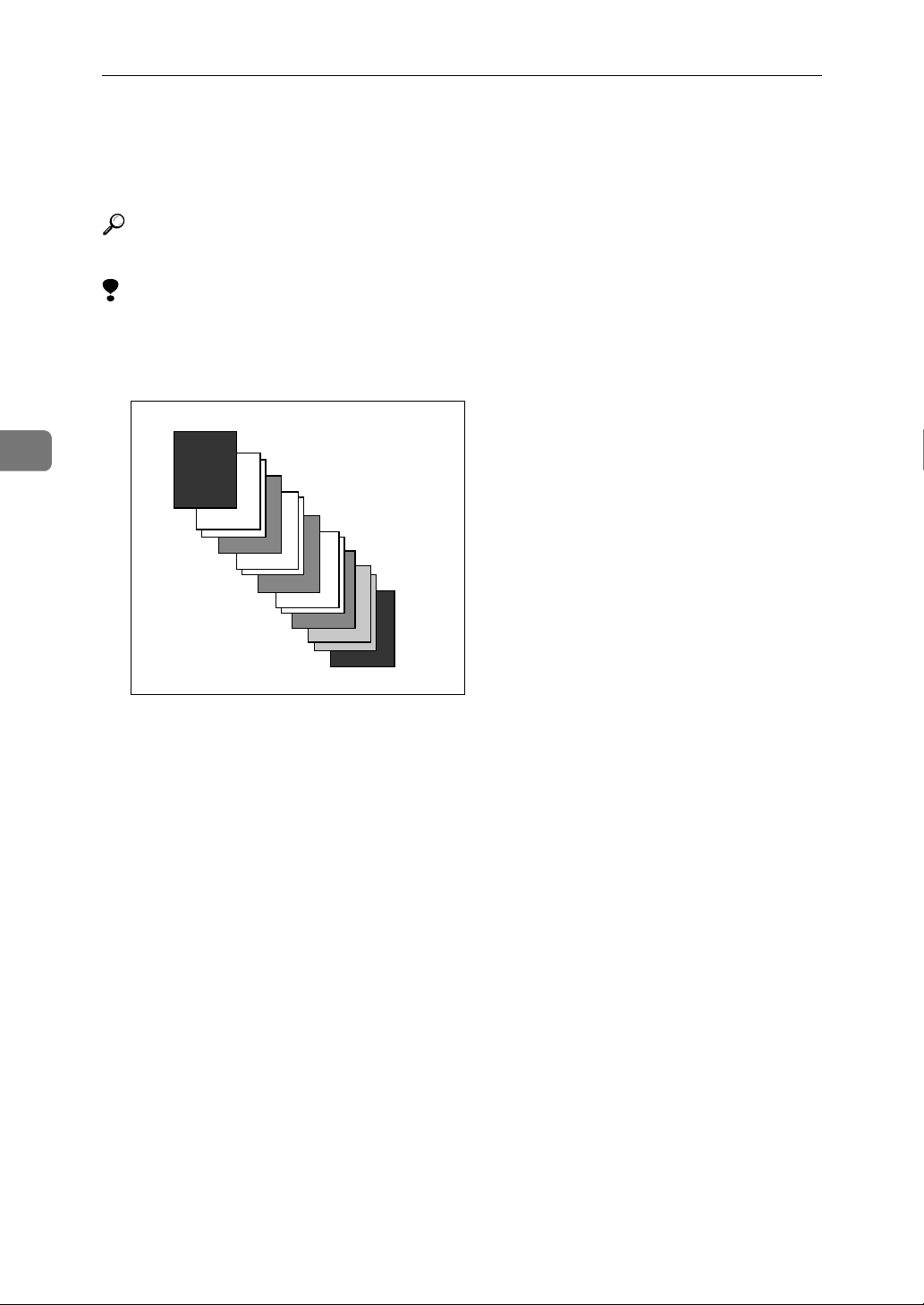

Adjusting Printer Features

Adjusting Printer Features
Printer Features allows basic adjustment of operations when using the machine as a printer.
Although factory default settings are suitable for most printing jobs, Printer Fea­tures gives you access to a number of settings that control basic printer opera­tions. Printer Features settings you make are retained even when you turn off the machine.
For more information about copier features and system settings, see Copy Refer- ence and General Settings Guide.
Press the {{{{User Tools/Counter}}}} key.
AAAA
Select [Printer Features] using {{{{UUUU}}}} or {{{{TTTT}}}}, and then press the {{{{OK}}}} key.
BBBB
3
Select the desired item using {{{{UUUU}}}} or {{{{TTTT}}}}, press the {{{{OK}}}} key, and then
CCCC
change its settings.
Note
[OK]: Press to make new settings and go back to previous menus.
[Cancel]: Press to return to a previous menu without changing any setting.
After changing the Printer Features settings, press the {{{{User Tools/Counter}}}}
DDDD
key.
Note
Changes made to functions remain in effect even if the machine is turned
off.
25
3
Printer Features

Printer Features Parameters

❖❖❖❖ PS Config./Font Page

Paper Input

❖❖❖❖ Bypass Paper Size
The size of the paper set in the by­pass tray.
Reference
For more information about pa­per sizes that can be set in the bypass tray, see General Settings Guide.
For information about setting paper in the bypass tray, see Printer Reference 1.
Note
Default:
Metric version: A4
Inch version: 11 × 8/
You can print the current configu­ration of installed PostScript fonts.
Note
This menu can be selected only
when the optional PostScript 3 unit (optional) is installed.
❖❖❖❖ Hex Dump
You can print the Hex Dump.
Printing the configuration page
Press the {{{{User Tools/Counter}}}} key.
AAAA
The User Tools main menu ap­pears.
Select [Printer Features] using {{{{UUUU}}}}
BBBB
or {{{{TTTT}}}}, and then press the {{{{OK}}}} key.

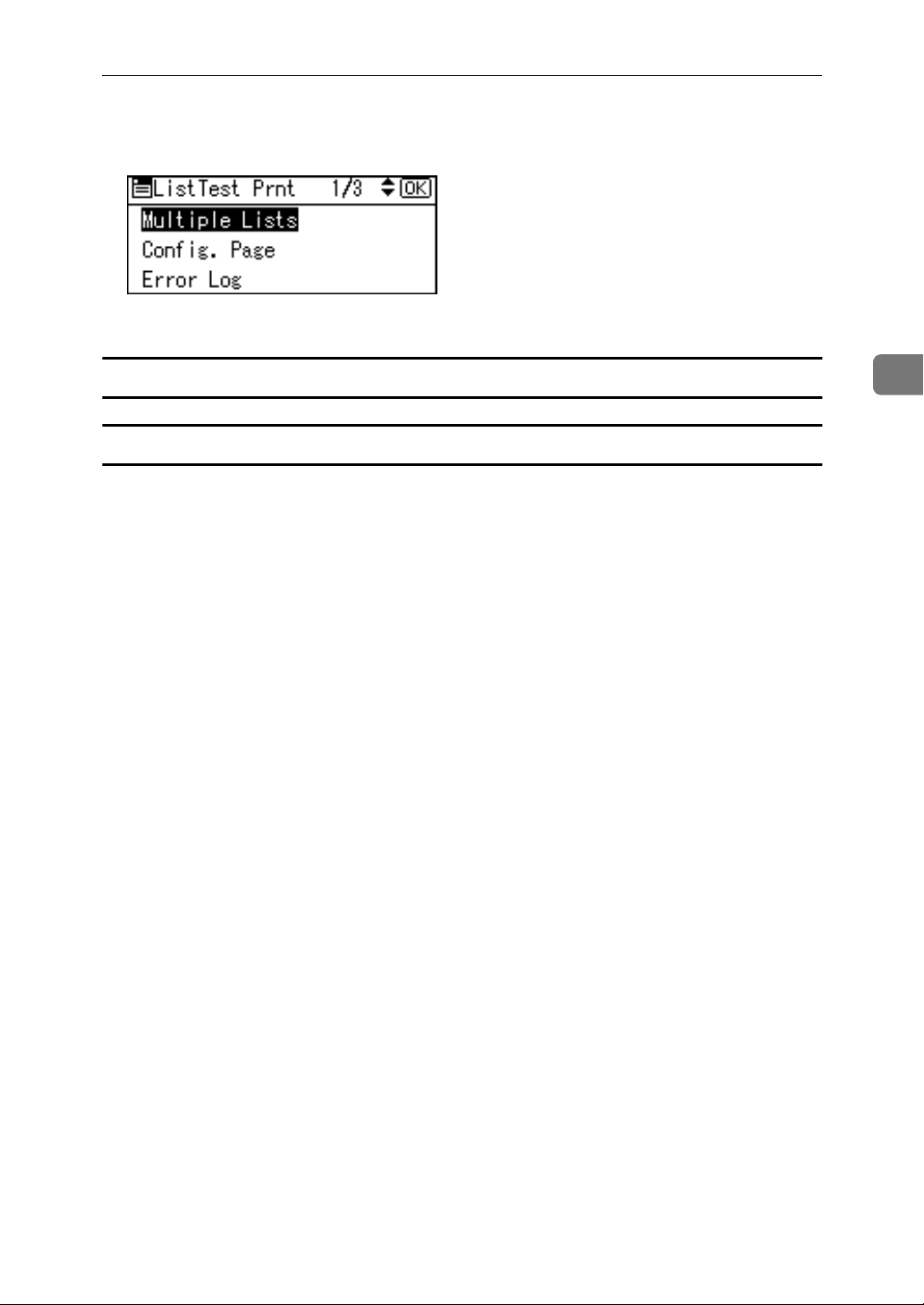

List/Test Print

❖❖❖❖ Multiple Lists
You can print the configuration page and the error log.
❖❖❖❖ Config. Page
You can print the machine's cur­rent configuration values.
❖❖❖❖ Error Log
You can print the error log.
❖❖❖❖ Menu List
You can print a Menu List showing the machine's function menus.
❖❖❖❖ PCL Config./Font Page
You can print the current configu­ration of installed PCL fonts.
The Printer Features menu ap­pears.
Select [List/Test Print] using {{{{UUUU}}}} or
CCCC
{{{{TTTT}}}}, and then press the {{{{OK}}}} key.
26
Select [Config. Page] using {{{{UUUU}}}} or
DDDD
{{{{TTTT}}}}, and then press the {{{{OK}}}} key.
The configuration page is printed.
Printer Features Parameters
Interpreting the configuration page
System Reference
❖❖❖❖ Unit Number
Displays the serial number assigned to the board by its manufacturer.
❖❖❖❖ Total Memory
Displays the total amount of memory (SDRAM) installed on the printer.
❖❖❖❖ Firmware Version
Printer Displays the version number of the printer firmware.
System Displays the version number of the system firmware.
Engine Displays the version number of the printer engine.
NIB Displays the version number of the Network interface.
❖❖❖❖ Controller Option
This item(s) appears when the controller option(s) is installed.
3
❖❖❖❖ Printer Language
Displays the version number of the printer driver language.
❖❖❖❖ Options
Displays the optional trays installed.
27
Printer Features
Paper Input
Displays the settings made under the Paper Input menu.
Reference
p.26 Paper Input
System
Displays the settings made under the System menu.
3
Reference
p.31 System
PCL Menu
Displays the settings made under PCL Menu.
Reference
p.34 PCL Menu
PS Menu
Displays the settings made under PS Menu.
Reference
p.35 PS Menu
Host Interface
Displays the settings made under the Host Interface menu.
When DHCP is active on the network, the actual IP address, subnet mask and gateway address appear in parentheses on the configuration page.
Reference
p.33 Host Interface
Interface Information
Displays the interface information.
28

Maintenance

❖❖❖❖ Menu Protect
This procedure lets you protect menu settings from accidental change. It makes it impossible to change menu settings with normal procedures unless you perform the required key operations. In a net­work environment, only adminis­trators can make changes to menu settings.
Level 1 You can protect “Maintenance”,
”System”, “Host Interface” and “PCL Menu”.
• Level 2 You can protect ”Paper Input”, “Maintenance” , ”System”, “Host Interface” and “PCL Menu”.
Printer Features Parameters
Select [Maintenance] using {{{{UUUU}}}} or
CCCC
{{{{TTTT}}}}, and then press the {{{{OK}}}} key.
Press [Menu Protect].
DDDD
Enter an access code using the
EEEE
number keys, and then press the
{{{{OK}}}} key.
3
Off
Note
Default: Off
You can also protect menu set-
tings using a Web browser.

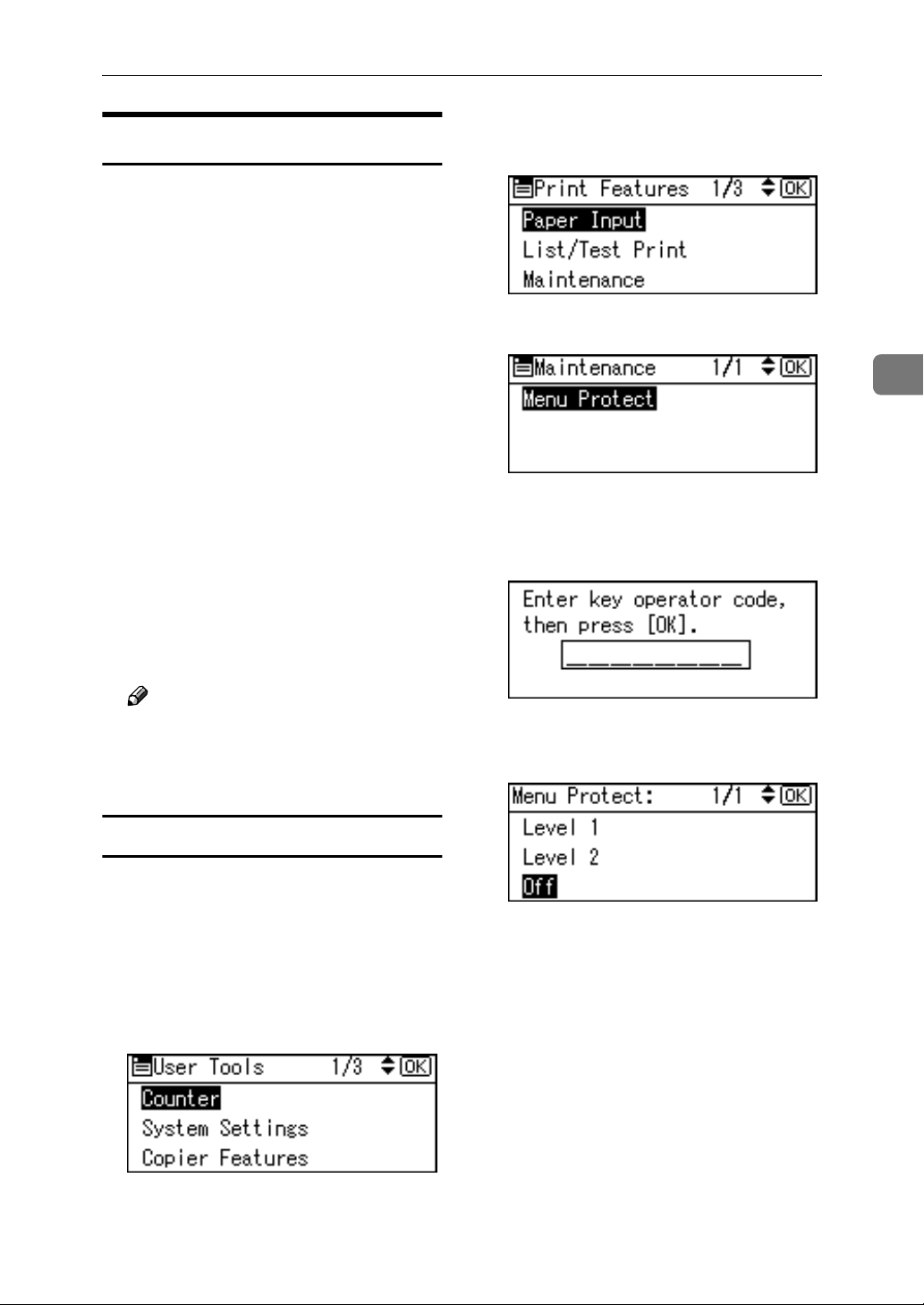

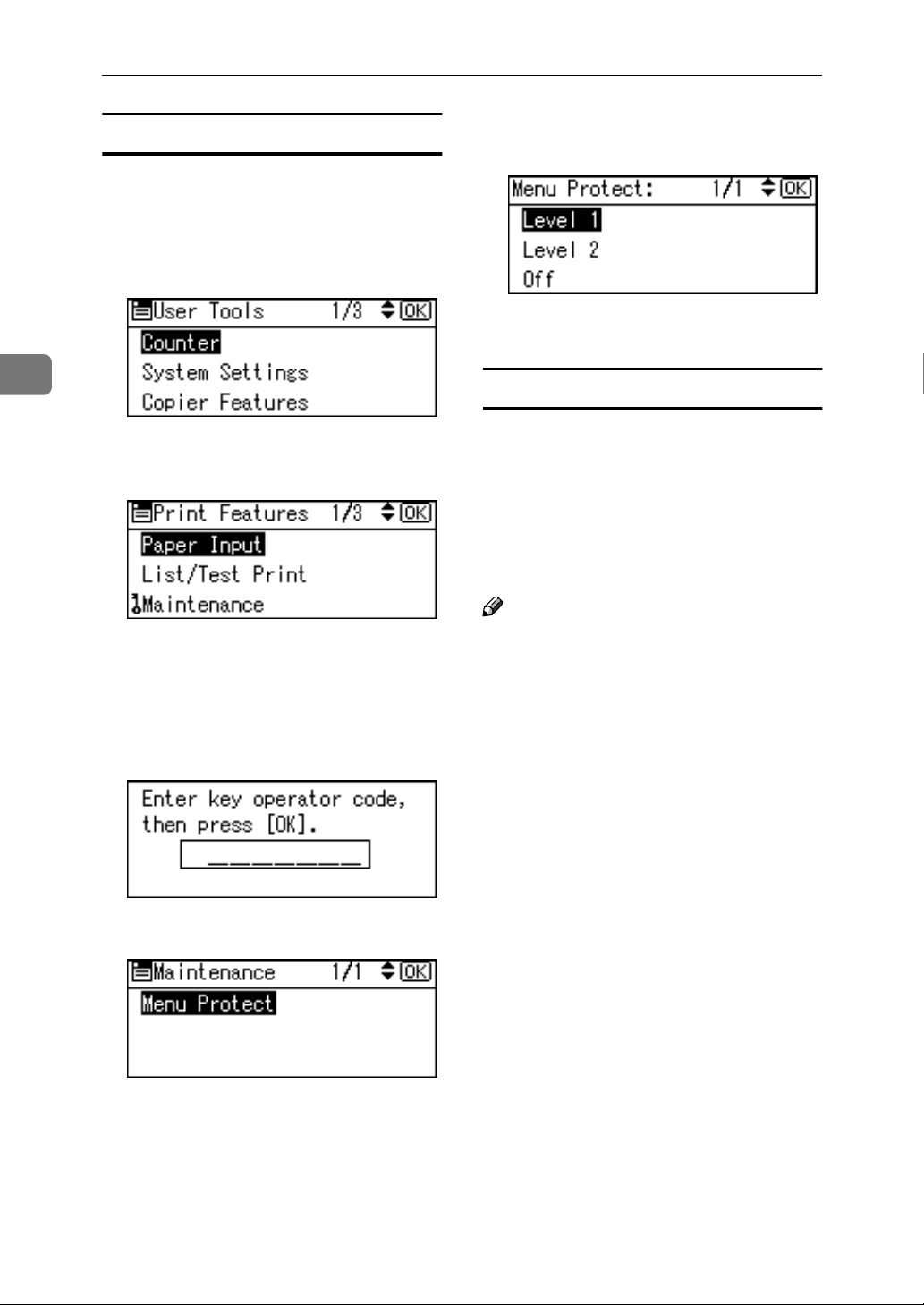

Setting Menu Protect
Press the {{{{User Tools/Counter}}}} key.
AAAA
The User Tools main menu ap­pears.
Select [Printer Features] using {{{{UUUU}}}}
BBBB
or {{{{TTTT}}}}, and then press the {{{{OK}}}} key.
Select a menu protect level, and
FFFF
then press the {{{{OK}}}} key.
Press the {{{{User Tools/Counter}}}} key.
GGGG
The Printer Features menu ap­pears.
29
Printer Features
Canceling Menu Protect
Press the {{{{User Tools/Counter}}}} key.
AAAA
Select [Printer Features] using {{{{UUUU}}}}
BBBB
or {{{{TTTT}}}}, and then press the {{{{OK}}}} key.
Select [Off], and then press the
FFFF
{{{{OK}}}} key.
Press the {{{{User Tools/Counter}}}} key.
GGGG
3
Select [Maintenance] using {{{{UUUU}}}} or
CCCC
{{{{TTTT}}}}, and then press the {{{{OK}}}} key.
A screen for entering the access codes appears.
Enter an access code using the
DDDD
number keys, and then press the
{{{{OK}}}} key.
Temporarily canceling Menu Protect
When you select protected items in Printer Features, a screen for entering the access codes appears. When this happens, enter the correct access codes using the number keys, and then press the {{{{OK}}}} key. Menu Pro­tect is then temporarily canceled.
Note
If you enter the correct access
codes, Menu Protect remains can­celed while the Printer Features menu is displayed.
30
Press [Menu Protect].
EEEE

System

Printer Features Parameters
Frame Priority This setting uses frame memory for high speed printing.
❖❖❖❖ Print Error Report
Select this to have an error report printed when a printer or memory error occurs.
On
Off
Note
Default: Off
❖❖❖❖ Auto Continue
You can select this to enable Auto Continue. When it is On, printing continues after a system error oc­curs.
Off
0 minutes
1 minute
5 minutes
10 minutes
15 minutes
Note
Default: Off
❖❖❖❖ Memory Overflow
Select this to have a memory over­flow error report printed.
Note
Default: Frame Priority
❖❖❖❖ Duplex
You can select to have print on both sides of each page.
Off
Long Edge Bind
Short Edge Bind
Note
Default: Off
❖❖❖❖ Copies
You can specify the number of print sets. This setting is disabled if the number of pages to print has been specified with the printer driver or another command.
1 to 999 by 1
Note
Default: 1
❖❖❖❖ Edge Smoothing
Set this to enable Edge Smoothing.
On
Off
3
Not Print
Error Report
Note
Default: Not Print
❖❖❖❖ Memory Usage
You can select the amount of mem­ory used in Font Priority or Frame Priority, according to paper size or resolution.
Font Priority This setting uses memory for registering fonts.
Note
Default: On
If Toner Saving is set to On,
Edge Smoothing is ignored even if it is set to On.
❖❖❖❖ Toner Saving
Set this to enable Toner Saving.
On
Off
Note
Default: Off
31
Printer Features
❖❖❖❖ Printer Language
Normally, the machine should be set to Auto. If the printer language cannot be detected in Auto, the language specified by Default Printer Lang. is selected.
Auto
PCL
PS
1
4
/8 × 91/
37/8 × 71/
2
2
C5 Env.
C6 Env.
DL Env.
Custom Size
Note
Default:
3
Default: Auto
[Printer Language] appears if the
❖❖❖❖ Sub Paper Size
You can enable the Auto Substitute Paper Size (A4LT) feature.
Auto
Off
Default: Off
❖❖❖❖ Page Size
You can select the default paper size.
11 × 17
8
8
5
71/
8×13
8
8
A3
B4 JIS
A4
B5 JIS
A5
8K
16K
32
Note
optional PostScript 3 unit is in­stalled.
Note
1
× 14
/
2
1
× 11
/
2
1
/2 × 81/
4
1
/
2
1
/
4
×10
×13
×13
2
1
/
2
Metric version: A4
Inch version: 8
1
× 11
/
2
❖❖❖❖ Letterhead Setting
You can select letterhead printing. If selected, the last sheet of a du­plex print job is printed on both sides - if the job has an odd number of pages. When printing, original images are always rotated by 180 degrees. Therefore, output might not be as expected when printing onto let­terhead or preprinted paper re­quiring orientation. Using this function, you can specify image ro­tation.
Off
Auto Detect
On (Always)
Note
Default: Off
When set to Off, original images
are rotated by 180 degrees.
When set to Auto Detect, speci-
fying the paper type with the printer driver allows the ma­chine to detect letterhead or preprinted paper automatically, and print without rotation.
When set to On (Always), the
machine does not rotate.
This function reduces printing
speed.
❖❖❖❖ Edge-Edge Print
Select this to maximize the printa­ble area by minimizing the white space along the edges, to approxi­mately 0.04 inches (1 mm).
Off
On
Note
Default: Off
❖❖❖❖ Default Printer Lang.
You can set the default printer lan­guage if the machine cannot find the printer language automatical­ly.
PCL
PS
Note
Default: PCL
[Default Printer Lang.] appears if
the optional PostScript 3 unit is installed.
Printer Features Parameters

Host Interface

❖❖❖❖ I/O Buffer
You can set the size of the I/O Buffer. Normally it is not neces­sary to change this setting.
128 KB
256 KB
512 KB
3
Note
Default: 128 KB
❖❖❖❖ I/O Timeout
You can set how many seconds the machine should wait before end­ing a print job. If data from another port usually arrives in the middle of a print job, you should increase this timeout period.
10 seconds
15 seconds
20 seconds
25 seconds
60 seconds
Note
Default: 15 seconds
33
3
Printer Features

PCL Menu

❖❖❖❖ Orientation
You can set the page orientation.
Portrait
Landscape
Note
Default: Portrait
❖❖❖❖ Form Lines
You can set the number of lines per page.
5 to 128 by 1
Note
Default:
Metric version: 64
❖❖❖❖ Point Size
You can set the point size you want to use for the selected font.
4.00 to 999.75 by 0.25
Note
Default: 12.00
This setting is effective only
with variable-space fonts.
❖❖❖❖ Font Pitch
You can set the number of charac­ters per inch for the selected font.
0.44 to 99.99 by 0.01
Note
Default: 10.00
This setting is effective only
with fixed-space fonts.
Inch version: 60
❖❖❖❖ Font Source
You can set the storage location of the default font.
Resident
RAM
Slot DIMM
Note
Default: Resident
[RAM] can be selected only when
fonts have been downloaded to the machine.
[Slot DIMM] can be selected only
when the optional slot DIMM is installed.
❖❖❖❖ Font Number
You can set the ID of the default font you want to use.
0 to 50 by 1
Note
Default: 0
❖❖❖❖ Symbol Set
You can specify the set of print characters for the selected font. The available options are as fol­lows: Roman-8, ISO L1, ISO L2, ISO L5, PC-8, PC-8 D/N, PC-850, PC-852, PC8-TK, Win L1, Win L2, Win L5, Desktop, PS Text, VN Intl, VN US, MS Publ, Math-8, PS Math, VN Math, Pifont, Legal, ISO 4, ISO 6, ISO 11, ISO 15, ISO 17, ISO 21, ISO 60, ISO 69, Win 3.0
Note
Default: Roman-8
❖❖❖❖ Courier Font
You can select a courier font type.
Regular
Dark
Note
Default: Regular
34
❖❖❖❖ Ext. A4 Width
You can extend the printing area width (when printing on A4 sheet with PCL).
Off
On
Note
Default: Off
When the setting is On, the
width will be 8/ inches.
❖❖❖❖ Append CR to LF
By connecting to a host operating system such as UNIX and setting this to on, a carriage return follows each line feed: CR=CR, LF=CR-LF, FF=CR-FF.
Off
On
Note
Default: Off
❖❖❖❖ Resolution
You can set the print resolution in dots per inch.
300 dpi
600 dpi
Note
Default: 600 dpi
Printer Features Parameters

PS Menu

❖❖❖❖ Data Format
You can select a data format.
Binary
TBCP
Limitation
This setting is not effective
when operating the machine with a parallel, USB, or EtherTalk connection.
When operating the machine
with a parallel or USB connec­tion, if binary data is sent from the printer driver, the print job is canceled.
When operating the machine
with an Ethernet connection, the print job is canceled under the following conditions;
The printer driver data for­mat is TBCP, and the data format selected on the dis­play panel is Binary.
The printer driver data for­mat is binary, and the data format selected on the dis­play panel is TBCP.
Note
Default: Binary
3
❖❖❖❖ Resolution
You can set the print resolution in dots per inch.
300 dpi
600 dpi
Note
Default: 600 dpi
35
3
Printer Features
36

4. Appendix

Collate and Rotating Collate

If you select the collate function on the printer driver, the machine will store print data in memory and automatically collate the printouts.
The collate function can be turned on or off from the printer driver. The machine automatically rotates the printouts under the following conditions:
When using A4, 8
Paper with the same size and different orientations (e.g., A4K in Tray 1 and
A4L in Tray 2)
Auto Tray Select is specified for tray setting
Limitation
You cannot use the bypass tray with this function.
❖❖❖❖ Collate
Outputs can be assembled as sets in sequential order.
1
×11 or B5 JIS paper
/
2
3
2
1
3
2
1
3
2
1
3
2
1
CP160-a
❖❖❖❖ Rotating Collate
Every other output set is rotated by 90°K.
1
3
2
1
2
3
2
3
1
3
2
1
CP161-a
Note
Rotating Collate can only be set using the RPCS
TM
printer driver.
37
4
Appendix

User Defined Pages

Using this function, you can specify the page numbers for each input tray.
Reference
For printing methods, see the printer driver Help.
Limitation
This function is available with the PCL printer driver only.
If [User Defined Pages] in [Paper Selection:] is selected on the [Paper] tab, [Layout:]
cannot be selected.
GCPY500E
38

System Settings (Parallel Connection)

System Settings (Parallel Connection)
Interface Settings/Parallel Interface
❖❖❖❖ Parallel Timing
Specifies the timing for the parallel interface. Normally, you do not need to change this setting.
ACK inside
ACK outside
STB down
Note
Default: ACK outside
❖❖❖❖ Parallel Comm. Speed
Specifies the communication speed of the parallel interface. If the speed is too high, data may not be transferred smoothly. If this happens, change the setting to
Standard”.
High Speed
Standard
❖❖❖❖ Bidirectional Comm.
Specifies, for instance, how a print­er connected to the parallel inter­face responds to a status request. If you experience problems using an­other manufacturers printer, set this to Off.
Limitation
If set to Off, asynchronous com-
munication will not work.
On
Off
Note
Default: On
❖❖❖❖ Signal Control
Specifies how to handle any errors that occur when printing from a computer or sending faxes. Nor­mally, you do not need to change this setting.
4
Note
Default: High Speed
❖❖❖❖ Selection Signal Status
Specifies the signal level of the par­allel interface.
High
Low
Note
Default: High
❖❖❖❖ Input Prime
Specifies whether the prime signal is active or inactive when an input prime signal is sent. Normally, you do not need to change this setting.
Effective
Invalid
Note
Default: Invalid
Job Acceptance Priority
Printer Priority
Note
Default: Job Acceptance Priority
39
Appendix

Specifications

This section contains the machine's electrical and hardware specifications, in­cluding information about its options.
Component Specifications
Resolution PCL 6 : 600 dpi
PCL 5e: 300 dpi, 600 dpi
RPCS : 300 dpi, 600 dpi
PostScript 3 : 300 dpi, 600 dpi
Printing speed 16 ppm/20 ppm
(A4K, 8/" × 11"K plain paper)
4
Note
Printing speeds depend on the machine. Check which type of
machine you have. See General Settings Guide.
Interface Standard:
USB 2.0 interface
Ethernet interface (100BASE-TX/10BASE-T)
Option:
IEEE 1394 interface
IEEE 802.11b wireless LAN interface
IEEE 1284 parallel interface
Bluetooth interface
*1
Network protocol TCP/IP, IPX/SPX, NetBEUI
Printer language Standard: PCL 6, PCL 5e, RPCS
Option: PostScript 3
Fonts PCL 6/5e :
Agfa Monotype Font Manager 35 Intellifonts, 10 TrueType fonts, and 1 Bitmap font Font Manager available.
PostScript 3 :
136 fonts (Type 2:24, Type 14:112)
Memory 192MB
, AppleTalk
40
Operating systems sup­ported by this machine
Required network cable 100BASE-TX/10BASE-T shielded twisted-pair (STP, Catego-
*1
To use NetBEUI, use the SmartDeviceMonitor port.
Windows 95/98/Me
Windows 2000
Windows XP
Windows Server 2003
Windows NT 4.0
Mac OS 8.6 to 9.2
Mac OS X
ry/Type5) cable.
Specifications

Options

Limitation
Only one optional interface can be installed in the machine at a time. There-
fore, the optional IEEE 1394 interface board, the optional IEEE 802.11b inter­face unit (wireless LAN board), the optional IEEE 1284 interface board and the optional Bluetooth interface unit cannot be installed concurrently.
IEEE 1394 Interface Board Type B
❖❖❖❖ Transmission spec.:
IEEE 1394
❖❖❖❖ Interface:
IEEE std 1394-1995 compliant IEEE std 1394a-2000 compliant
❖❖❖❖ Device class:
SCSI print (Windows 2000, Windows XP, Windows Server 2003) IP over 1394 (Windows Me, Windows XP, Windows Server 2003)
❖❖❖❖ Protocol:
SBP-2 (SCSI print) TCP/IP (IP over 1394)
❖❖❖❖ Interface connector:
IEEE 1394 (6 pin × 2)
❖❖❖❖ Required cable:
1394 interface cable (6 pin x 4 pin, 6 pin x 6 pin)
Important
You cannot plug devices together to create loops.
Do not use cable that is more than 4.5 meters in length.
❖❖❖❖ Data transfer speed:
Maximum 400 Mbps
4
❖❖❖❖ Connectable number of devices on a bus:
Maximum 63
❖❖❖❖ Allowed cable hops on a bus:
Maximum 16
❖❖❖❖ Power supply:
Non external power supply Cable Power repeated (IEEE 1394a-2000 compliant)
41
4
Appendix
IEEE 802.11b Interface Unit Type D
❖❖❖❖ Transmission spec.:
Based on IEEE 802.11b (wireless LAN)
❖❖❖❖ Protocol:
TCP/IP, NetBEUI, IPX/SPX, AppleTalk
Note
SmartDeviceMonitor and Web browser are supported.
❖❖❖❖ Data transfer speed:
Auto select from below speed 1Mbps, 2Mbps, 5.5Mbps, 11Mbps
❖❖❖❖ Frequency range:
Inch version: 2400-2497 MHz (1-11 channels)
Metric version: 2400-2497 MHz (1-13 channels)
❖❖❖❖ Transmittable distance:
1Mbps 400 m 2Mbps 270 m
5.5Mbps 200 m
11Mbps 140 m
*1
These figures are a guideline for outdoor use. In general, the transmittable dis­tance indoors is 10-100 m, depending on environment.
*1
*1
*1
*1
❖❖❖❖ Transmission mode:
802.11 ad hoc, ad hoc, and infrastructure mode
IEEE 1284 Interface Board Type A
❖❖❖❖ Transmission spec.:
IEEE 1284
❖❖❖❖ Required cable
Standard IEEE 1284 compliant Micro Centronics 36 pin cable
PostScript3 Unit Type 2018
Reference
PostScript3 Unit Type 2018 Operating Instructions Supplement
42
Specifications
BlueTooth Unit Type 2238
This Bluetooth interface unit supports BIP if the optional PostScript 3 unit is in­stalled.
Reference
See the manual that comes with optional Bluetooth interface unit.
4
43

INDEX

B
BlueTooth Unit Type 2238
C
Canceling a job
,
,
9
8
,
Macintosh Windows
Configuration page Control panel
printer features, adjusting
D
Data In indicator Display
error messages
, 17, 21,
,
11
E
Error messages
,
11
F
,
Fonts
40
H
26
,
22
43
,
23
N
Network Cable Network protocol
,
40
,
40
O
Operating system Options
,
41
,
40
P
Paper Input PCL menu PostScript3 Unit Type 2018 Printer driver
Printer properties, Windows 2000/XP
Printer properties, Windows 95/98/Me Printer properties, Windows NT 4.0 setting up, Macintosh
Printer Features
adjusting menu parameters
Printer Language Printing speed
,
26
,
34
and Windows Server 2003
,
,
25
,
23
,
26
,
40
,
40
,
42
,
4
,
3
,
5
7
Host Interface
,
33
I
IEEE 1284 Interface Board Type A IEEE 1394 Interface Board Type B IEEE 802.11b Interface Unit Type D Interface
,
40
L
List/Test Print
,
26
M
Macintosh
,
29
9
,
7
canceling a job setting up, printer driver
,
,
40
Maintenance Memory
,
,
,
42
41
42
R
Resolution
,
S
Specifications System
,
31
T
Troubleshooting
error messages machine does not print other printing problems status messages
40
,
40
,
11
,
,
11
11
,
,
15
19
44
W
Windows
,
canceling a job
Windows 2000/XP and Windows Server 2003
printer properties, printer driver
Windows 95/98/Me
printer properties, printer driver
Windows NT 4.0
printer properties, printer driver
8
,
,
,
4
3
5
45
46
GB GB B263-8518
Copyright © 2005
Printer/Scanner Unit Type 2018 Operating Instructions Printer Reference 2
GB GB B263-8518
Loading...
