Ricoh JP1230, JP1030 Part List
C231/C237
PARTS CATALOG
RICOH GROUP COMPANIES
PN: RCPCC231
®
®
PARTS CATALOG
C231/C237
RICOH GROUP COMPANIES
C231/C237
PARTS CATALOG
PN: RCPCC231
It is the reader's responsibility when discussing the information contained within this
document to maintain a level of confidentiality that is in the best interest of Ricoh
Corporation and its member companies.
NO PART OF THIS DOCUMENT MAY BE REPRODUCED IN ANY
FASHION AND DISTRIBUTED WITHOUT THE PRIOR
PERMISSION OF RICOH CORPORATION.
All product names, domain names or product illustrations, including desktop images,
used in this document are trademarks, registered trademarks or the property of their
respective companies.
They are used throughout this book in an informational or editorial fashion only and for
the benefit of such companies. No such use, or the use of any trade name, or web
site is intended to convey endorsement or other affiliation with Ricoh products.
2000 RICOH Corporation. All rights reserved.
LEGEND
PRODUCT CODE COMPANY
GESTETNER RICOH SAVIN
C231 5306L JP1030 3150NP
C237 5308L JP1230 3150eDNP
C532 TAPE MARKER
DOCUMENTATION HISTORY
REV. NO. DATE COMMENT
* 9/98 Original Printing
1 8/2000 C237 Addition
C231/C237 PARTS CATALOG
TABLE OF CONTENTS
C231 PARTS LOCATION AND LIST
LOCATION OF UNIT............................................................ 2
1.Exterior 1 (C231).............................................................. 6
2.Exterior 2 (C231).............................................................. 8
3.ADF Unit 1........................................................................ 10
4.ADF Unit 2........................................................................ 12
5.Scanner Section 1 (C231)................................................ 14
6.Scanner Section 2 (C231)................................................ 16
7.Paper Table Section (C231)............................................. 18
8.Paper Feed Section (C231).............................................. 20
9.Paper Registration (C231)................................................ 22
10.Plotter Unit 1 (C231)........................................................ 24
11.Plotter Unit 2 (C231)........................................................ 26
12.Press Roller Section (C231)............................................ 28
13.Drum Unit 1 (C231) ......................................................... 30
14.Drum Unit 2 (C231) ......................................................... 32
15.Drum Unit 3 (C231) ......................................................... 34
16.Vacuum Fan Unit (C231)................................................. 36
17.Delivery Table (C231)...................................................... 38
18.Master Eject Unit (C231)................................................. 40
19.Drive Section (C231) ....................................................... 42
20.Electrical Section 1 (C231).............................................. 44
21.Electrical Section 2 (C231).............................................. 46
22.Frame Section 1 (C231).................................................. 48
23.Frame Section 2 (C231).................................................. 50
24.MPU Board (C231).......................................................... 52
25.Decal And Document (C231)........................................... 56
26.Accessories And Special Tools (C231) ........................... 58
C231PARTS INDEX
PARTS INDEX...................................................................... 2
TAPE MARKER C532 PARTS LOCATION AND LIST
1.Exterior............................................................................. 2
2.Decal ................................................................................ 4
TAPE MARKER C532 PARTS INDEX
PARTS INDEX...................................................................... 2
C237 PARTS LOCATION AND LIST
Location of Unit....................................................................... 2
1.Exterior 1 (C237) ............................................................... 6
2.Exterior 2 (C237) ............................................................... 8
3.ADF Unit 1 (C237) ............................................................. 10
4.ADF Unit 2 (C237) ............................................................. 12
5.Scanner Section 1 (C237) ................................................. 14
6.Scanner Section 2 (C237) ................................................. 16
7.Paper Table Section (C237) .............................................. 18
8.Paper Feed Section (C237)............................................... 20
9.Paper Registration (C237)................................................. 22
10.Plotter Unit 1 (C237)......................................................... 24
11.Plotter Unit 2 (C237)......................................................... 26
12.Press Roller Section (C237) ............................................. 28
13.Drum Unit 1 (C237)........................................................... 30
14.Drum Unit 2 (C237)........................................................... 32
15.Drum Unit 3 (C237)........................................................... 34
16.Vacuum Fan Unit (C237).................................................. 36
17.Delivery Table (C237)......................................................... 38
18.Master Eject Unit (C237)..................................................... 40
19.Drive Section (C237)........................................................... 42
20.Electrical Section (C237) .................................................... 44
21.Electrical Section (C237) .................................................... 46
22.Frame Section 1 (C237)...................................................... 48
23.Frame Section 2 (C237)...................................................... 50
24.MPU Board (C237) ............................................................. 52
25.Decal And Document (C237).............................................. 60
26.Accessories And Special Tools (C237)............................... 62
C237 PARTS INDEX
PARTS INDEX......................................................................... 65
C231
PARTS LOCATION AND LIST
This section instructs you as to the numbers and names of parts on this machine
Location of Unit
1.Exterior 1 (C231)
4.ADF Unit 2
See Page 7
2.Exterior 2 (C231)
See Page 9
5.Scanner Section 1 (C231)
3.ADF Unit 1
See Page 11
6.Scanner Section 2 (C231)
See Page 13
C231 2 Parts Location and List
See Page 15
See Page 17
Location of Unit
7.Paper Table Section (C231)
See Page 19
10.Plotter Unit 1 (C231)
8.Paper Feed Section (C231)
See Page 21
11.Plotter Unit 2 (C231)
9.Paper Registration (C231)
See Page 23
12.Press Roller Section (C231)
See Page 25
C231 3 Parts Location and List
See Page 27
See Page 29
Location of Unit
13.Drum Unit 1 (C231)
See Page 31
16.Vacuum Fan Unit (C231)
14.Drum Unit 2 (C231)
See Page 33
17.Delivery Table (C231)
15.Drum Unit 3 (C231)
See Page 35
18.Master Eject Unit (C231)
See Page 37
C231 4 Parts Location and List
See Page 39
See Page 41
Location of Unit
19.Drive Section (C231)
See Page 43
22.Frame Section 1 (C231)
20.Electrial Section 1 (C231)
See Page 45
23.Frame Section 2 (C231)
21.Electrial Section 2 (C231)
See Page 47
See Page 49
C231 5 Parts Location and List
See Page 51
1.Exterior 1 (C231)
18
17
C231 6 Parts Location and List
1.Exterior 1 (C231)
Index
No.
1 C231 1254 Lower Cover - Operation Panel 1
1 C231 1272 Lower Cover - Operation Panel (Chinese) 1
2 C231 1303 Decal - Scanner Open 1
3 C231 1340 Left Scanner Cover 1
4 C231 1390 Upper Hinge 1
5 C231 1256 Front Door Assy (LG) 1
5 C231 1265 Front Door Ass’y (A4) 1
5 C231 1268 Front Door Ass’y - B4 1
5 C231 1274 Front Door Ass’y 1
5 C231 1281 Front Door Ass’y (Chinese) 1
6 C226 2740 Emblem 1
7 C231 1385 Safety Switch Bracket Ass’y 1
8 C231 1391 Lower Hinge 1
9 C231 1251 Front Cover (NA) 1
9 C231 1261 Front Cover (EU) 1
9 C231 1271 Front Cover (Chinese) 1
10 C231 1350 Connector Cap 1
11 C231 1258 Rear Upper Cover 1
12 C231 1362 Rear Cover 1
13 C231 1202 Right Cover Ass’y 1
14 C231 1209 Magnet Catch Bracket Ass’y 1
15 C231 1200 Front Cover Ass’y (RIC-LG) 1
15 C231 1212 Front Cover Ass’y (RIC-A4) 1
15 C231 1213 Front Cover Ass’y (RIC-B4) 1
15 C231 1214 Front Cover Ass’y (RIC-B4)(Chinese) 1
15 C231 1217 Front Cover Ass’y (NRG) 1
15 C231 1216 Front Cover Ass’y (GES/SVN LG) 1
15 C231 1218 Front Cover Ass’y (GES B4) 1
15 C231 1219 Front Cover Ass’y (GES 5000)(Chinese) 1
15 C231 1221 Front Cover Ass’y (GES 5001)(Chinese) 1
16 C231 1324 Model Name Plate - 5306 1
16 C231 1321 Model Name Plate - 5306L 1
16 C231 1327 Model Name Plate - 5306B 1
16 C231 1325 Model Name Plate - 1224 1
16 C231 1323 Model Name Plate - 1224L 1
Part No.
Description
Q’ty Per
Assembly
Index
No.
16 C231 1326 Model Name Plate - CP306 1
16 C231 1322 Model Name Plate - CP306L 1
16 C231 1328 Model Name Plate - 3150DNP 1
16 C231 1331 Model Name Plate - 5001 1
16 C231 1330 Model Name Plate - 5000 1
17 C231 1387 Magnet Film 1
18 A153 6409 Decal - Keytop Cover (GES) 1
18 C225 2866 Decal - Keytop Cover (REX) 1
18 C225 2867 Decal - Keytop Cover (NSA) 1
101 0451 4006B Tapping Screw - 4x6
102 0451 4008H Tapping Screw - 4x8
103 0450 4008B Tapping Screw - 4x8
Part No.
Description
Q’ty Per
Assembly
C231 7 Parts Location and List
2.Exterior 2 (C231)
106
106
106
C231 8 Parts Location and List
2.Exterior 2 (C231)
Index
No.
1 C231 1451 Operation Panel Ass’y (NA) 1
1 C231 1452 Operation Panel Ass’y (EU) 1
1 C231 1453 Operation Panel Ass’y (Chinese) 1
1 C231 1454 Operation Panel Ass’y - Zoom (Chinese) 1
2 C231 1490 Cover - Behind 1
3 C231 1491 Key Sheet - Behind (NA) 1
3 C231 1496 Key Sheet - Behind (EU) 1
3 C231 1501 Key Sheet - Behind (Chinese) 1
3 C231 1506 Key Sheet - Behind - Zoom (Chinese) 1
4 C226 3302 Both Adhesive Tape 1
5 C231 1492 Key Sheet - Center (NA) 1
5 C231 1497 Key Sheet - Center (EU) 1
5 C231 1502 Key Sheet - Center (Chinese) 1
6 C231 1493 Key Sheet - Autocycle (NA) 1
6 C231 1498 Key Sheet - Autocycle (EU) 1
6 C231 1503 Key Sheet - Autocycle (Chinese) 1
7 C231 1494 Key Sheet - Start (NA) 1
7 C231 1499 Key Sheet - Start (EU) 1
7 C231 1504 Key Sheet - Start (Chinese) 1
8 C231 1495 Key Sheet - Stop (NA) 1
8 C231 1500 Key Sheet - Stop (EU) 1
8 C231 1505 Key Sheet - Stop (Chinese) 1
9 H521 1104 Shading Sheet 1
10 C226 3341 Operation Panel Harness 1
11 H521 1105 Platen Cover Ass’y 1
12 C226 3301 Original Scale 1
13 H521 1124 Scale - Side 1
14 C226 3336 Connector Cover 1
15 H521 1103 Cover - Original Tray 1
16 H521 1110 Exposure Glass 1
17 C226 3335 ADF Cover 1
18 C226 3305 Decal - Front Original Set 1
19 H521 1356 Sheet 1
20 H521 1324 Original Guide Cover 1
21 H521 1357 Decal - Original Level 1
Part No.
Description
Q’ty Per
Assembly
Index
No.
22 H521 1323 Rear Guide - Original 1
23 H521 1322 Front Guide - Original 1
24 H521 1325 Original Guide Gear 1
25 H521 1320 Original Table 1
26 H521 1359 Decal - Original Table 1
27 H521 1160 Stopper Pressure Plate 1
28 C226 3306 Decal - Rear Original Set 1
29 C231 5125 Operation Panel Board 1
30 C226 3308 Platen Cover Spacer 3
101 0951 3006B Philips Screw With Flat Washer - M3x6
102 0353 0060Z Screw - M3X6
103 0353 0080Z Philips Trass Head Screw - M3x8
104 0353 0100Z Bind Screw - M3x10
105 0701 0030Z Flat Washer - M3
106 0450 3008B Tapping Screw - M3x8
Part No.
Description
Q’ty Per
Assembly
C231 9 Parts Location and List
3.ADF Unit 1
C231 10 Parts Location and List
3.ADF Unit 1
Index
No.
1 H521 1257 Upper Cover - ADF 1
2 H521 1342 Guide Mylar - Rear 1
3 H521 1334 Guide Mylar - Front 1
4 H521 1304 Spring R1 3
5 H521 1303 Spring Plate - R0 2
6 H521 1354 Collar R1 6
7 H521 1307 Guide Roller Shaft 3
8 H521 1301 Pressure Roller - R1 3
9 H521 1318 Cover - Front 1
10 H521 1306 Guide Roller Shaft 2
11 H521 1348 Collar R0 2
12 H521 1337 Guide Roller R0 1
13 H006 2316 Spacer - Pick-up Clutch 2
14 H521 1314 Spring Clutch - M6 1
15 H081 3407 Snap Ring - M2.5 2
16 H521 1294 Shaft - Pickup 1
17 H521 1292 Shaft - Feed Roller 1
18 H521 1286 Gear - Feed Roller 1
19 H521 1316 Spring Clutch - M9 1
20 H521 1367 Feed Roller 1
21 H521 1268 Bracket - Pickup 1
22 H521 1328 Cover - Rear - ADF 1
23 H521 1366 ADF Pickup Roller 1
24 H521 1288 Collar - Pickup 1
25 H521 1287 Gear - Pickup Roller 1
26 H081 1046 Idler Gear - ADF Pick-up Roller 1
27 H521 5332 Grounding Wire - 70 1
28 H521 1330 Cover - Rear/lower - ADF 1
29 H521 1259 Guide Plate R2 1
30 H521 5331 Grounding Wire - 125 1
31 H521 1305 Spring Plate R2 2
32 H521 1319 Exit Roller Collar 1
33 H521 1302 Guide Roller R2 1
34 H521 1368 Sheet - Interlock SW. 1
35 H521 1214 Base - ADF 1
Part No.
Description
Q’ty Per
Assembly
Index
No.
36 H521 1310 Pin Shaft 2
37 H521 1278 Exposure Glass - ADF Option 1
38 H521 1338 Cover - Front - Lower 1
39 H521 1364 Guide Sheet 1
40 H521 1317 Pressure Spring 1
41 H521 1210 ADF Roller Unit 1
101 0802 5230 Tapping Screw - M3x10
102 0720 0040E Retaining Ring - M4
103 0323 0060B Philips Sunk Screw - M3x6
104 0805 3386 Bushing - 8mm
105 0313 0030B Philips Pan Head Screw - M3x3
106 0951 3006B Philips Screw With Flat Washer - M3x6
107 0313 0060B Philips Pan Head Screw - M3x6
Part No.
Description
Q’ty Per
Assembly
C231 11 Parts Location and List
4.ADF Unit 2

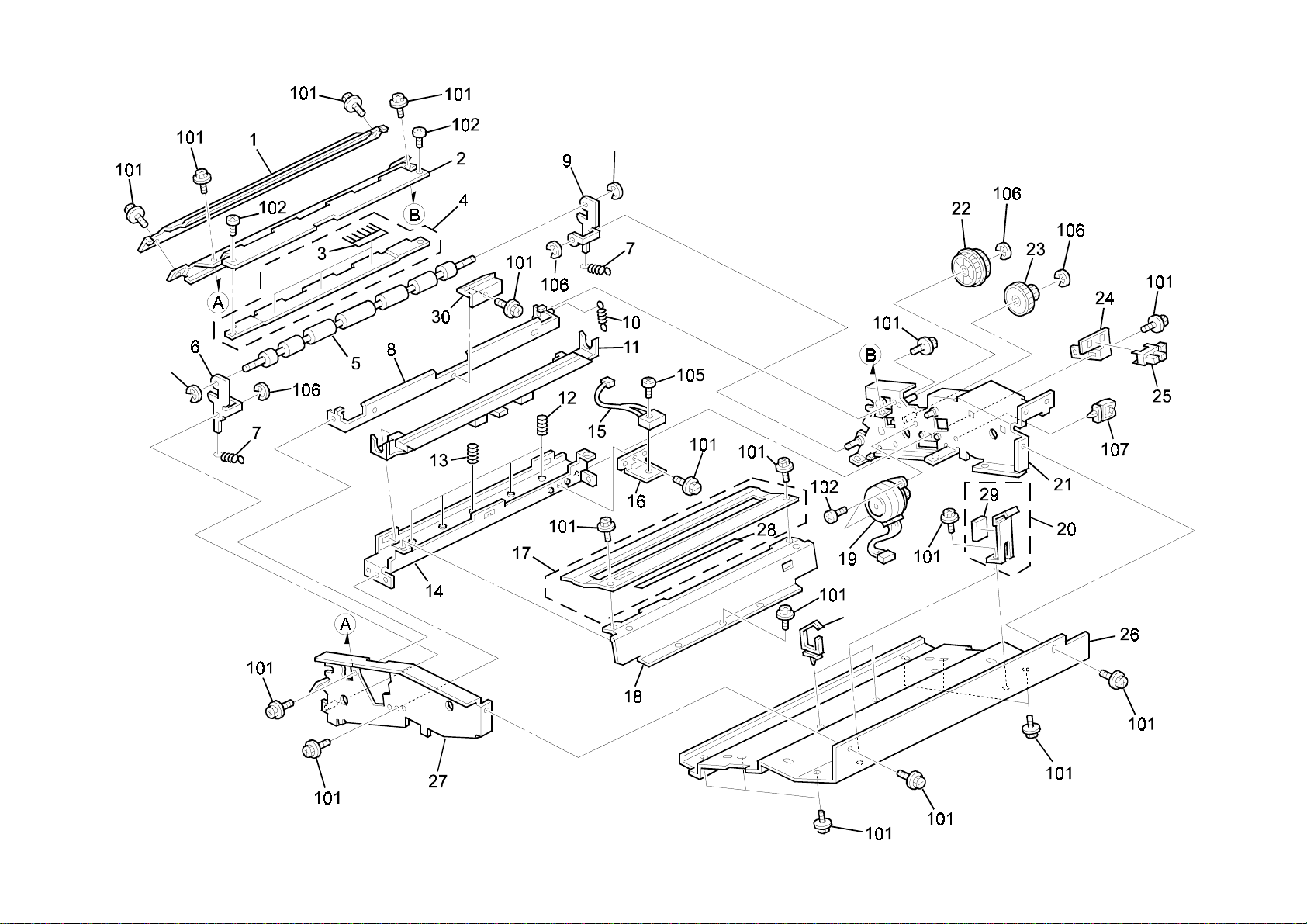

C231 12 Parts Location and List
4.ADF Unit 2
Index
No.
1 H521 1261 Front Side Plate 1
2 H521 1308 Lock Spring 2
3 H521 1336 Lock Spring 1
4 H521 1281 R2 Drive Gear 1
5 H521 1311 Bushing 8
6 H521 1297 Lock Lever 2
7 H521 1282 Joint Gear 1
8 H521 1283 Front Drive Gear - Reverse 1
9 H521 1284 Front Drive Gear - Feed 1
10 H521 1290 Bushing 1
11 H521 1293 Joint Shaft 1
12 H521 1372 Reverse Roller 1
13 H521 1374 Bracket - Reverse 1
14 H081 3407 Snap Ring - M2.5 1
15 H521 1295 Shaft - Separation Roller 1
16 H521 1276 Shaft - Separation Unit 1
17 H521 1296 Bushing 2
18 H521 1285 Middle Drive Gear - Reverse 1
19 H521 1250 R0 Roller 1
20 H521 1251 R1 Roller 1
21 H521 1258 Separation Guide 1
22 H521 1350 Pad - Pick-up 1
23 H521 1280 Pulley R1 2
24 H521 1340 Pulley R2 1
25 H521 1300 Spring Plate 1
26 H081 1065 Timing Belt - Idler 2 1
27 H521 1335 Bushing - 8x10mm 1
28 H521 1264 Rear Side Plate 1
29 H515 5018 Cover Switch - Fusing Exit 1
30 H521 1279 Joint Gear 1
31 H521 1309 Timing Belt 1
33 H521 1267 Motor Bracket 1
34 H521 5010 Scanner Motor - ADF 1
35 H521 1358 Motor Cushion 1
36 H521 5336 Harness - ADF - L 1
Part No.
Description
Q’ty Per
Assembly
Index
No.
37 H521 5011 Document Sensor - S1/S3 2
38 H521 5012 Document Sensor - S2 1
39 H521 1254 Lower Guide Plate 1
40 H521 1331 Antistatic Brush 1
41 H521 1341 Plessure Spring 2
42 H521 1252 R2 Roller 1
43 H521 1299 Lock Shaft 1
44 H521 1312 Pressure Shaft Holder 2
45 C575 3420 Standard White Sheet 1
46 H521 1289 Pressure Plate 1
47 H521 1321 Release Lever 1
48 H521 1360 Spring 1
49 H521 1365 Antistatic Brush 1
101 0802 5205 Tapping Screw - M3x6
102 0720 0040E Retaining Ring - M4
103 0720 0060E Retaining Ring - M6
104 0720 0070E Retaining Ring - M7
105 0802 5206 Tapping Screw - M3x8
106 1105 0283 Clamp
107 0313 0030B Philips Pan Head Screw - M3x3
108 1105 0153 Clamp
109 1105 0260 Wire Saddle
Part No.
Description
Q’ty Per
Assembly
C231 13 Parts Location and List
5.Scanner Section 1 (C231)
105
10
105
106
105
C231 14 Parts Location and List
Loading...
