PARTS CATALOG
INTRODUCTION
This chapter instructs you the numbers and names of parts on this machine.
INDEX to PARTS CATALOG
1.INTERCHANGE UNIT 1 (G531).......................................................... 2
2.INTERCHANGE UNIT 2 (G531).......................................................... 4
PARTS INDEX ........................................................................................ 7
September 30’99
Page 3
1.INTERCHANGE UNIT 1 (G531)
2
Page 4
1.INTERCHANGE UNIT 1 (G531)
Index
No.
1 G020 1351 Cap - Finisher 2
2 AG07 0014 Magnet Catch 1
3 B300 4582 Cover Gate 1
4 B300 4584 Spring Plate Guide Plate 2
5 B300 4571 Gate Pawl Lower 1
6 AA06 6314 Gate Pawl Lower Spring 1
7 B300 4574 Shaft Guide Plate 1
8 B300 4572 Arm Gate Pawl Lower Rear 1
9 B300 4569 Lever Gate Pawl Upper 1
10 5447 2681 Snap Ring 1
11 AA06 0794 Link Spring 1
12 B300 4568 Gate Pawl Upper 1
13 AA14 5818 Tension Roller Shaft 1
14 B300 4566 Roller Tension 2
15 AA08 0156 Bushing - M4 1
16 5205 4527 Spring - Exit 1
17 B300 4562 Guide Plate 1
18 B300 4573 Arm Gate Pawl Lower Front 1
19 AA14 3506 Knob Screw 2
20 G531 4598 Small Gate Cover 1
21 G531 4597 Large Gate Cover 1
22 G531 4599 Decal - Interchange Cover 1
Part No.
Description
Q’ty Per
Assembly
Index
No.
101 0450 3008B Tapping Screw - M3x8
102 0805 0089 Retaining Ring - M4
103 0451 3008B Tapping Screw - M3x8
Part No.
Description
Q’ty Per
Assembly
3
Page 5

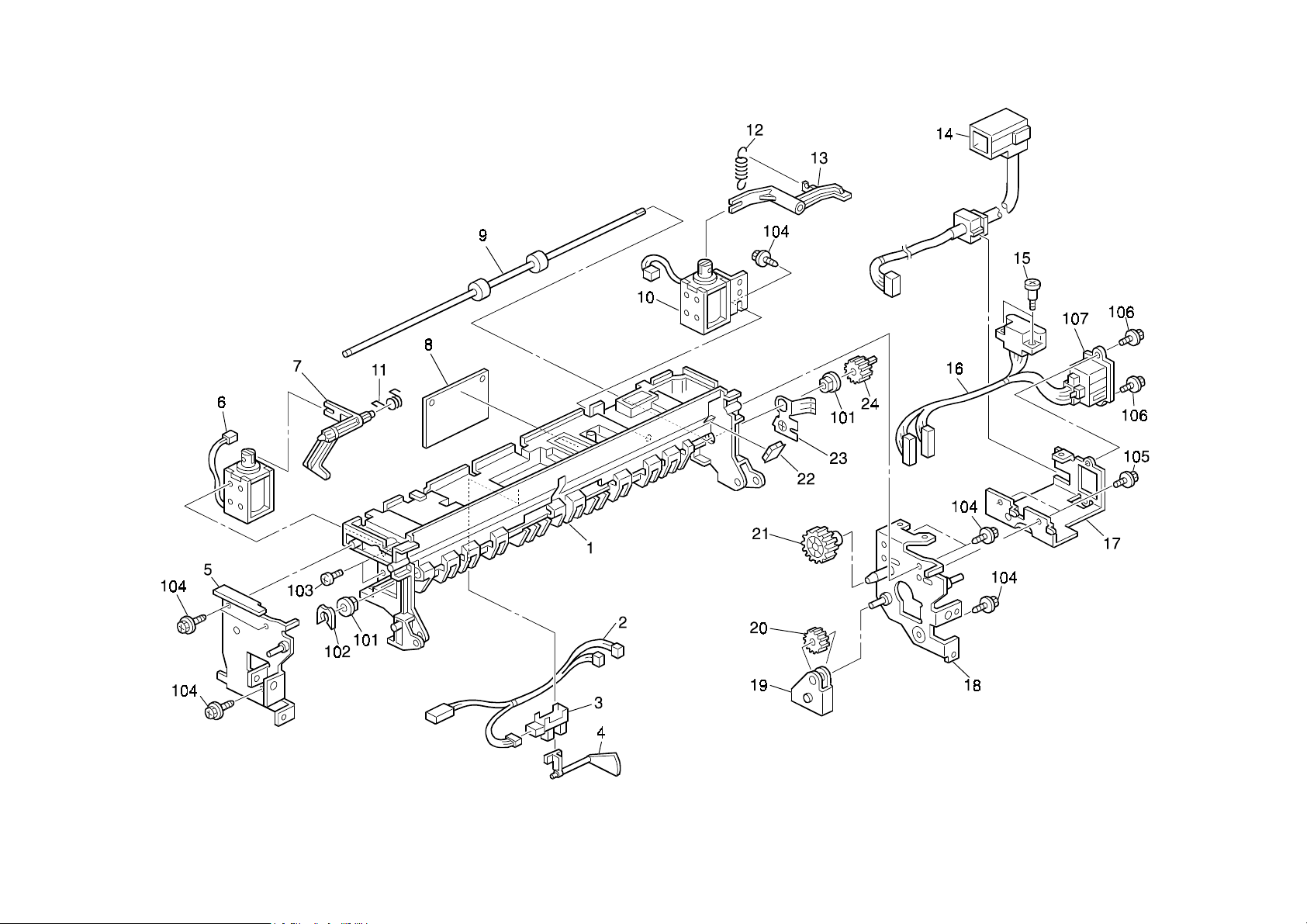

2.INTERCHANGE UNIT 2 (G531)
4
Page 6
2.INTERCHANGE UNIT 2 (G531)
Index
No.
1 B300 4501 Frame Gate 1
2 G531 5291 Gate Solenoid Harness 1
3 AW02 0086 Photointerruptor 1
4 B300 4516 Feeler Photointerruptor 1
5 G531 4539 Front Side Plate 1
6 B300 4511 DC Solenoid Gate Pael Lower 1
7 B300 4512 Link Gate Pawl Lower 1
8 G531 5181 PCB - Bank Control 1
9 B300 4542 Transport Roller 1
10 B300 4506 DC Solenoid Gate Pawl Upper 1
11 AA06 6330 Spring- Lowergate Pawl 1
12 AA06 0794 Link Spring 1
13 B300 4508 Line Gate Pawl Upper 1
14 G531 5292 Gate Harness 1
15 A079 3626 Stepped Screw - Swing Cleaning 1
16 G531 5295 4-Bin Harness 1
17 G531 4593 Connector Bracket 1
18 B300 4525 Side Plate Rear 1
19 B300 4521 Gear Swivel Gate Ass’y 1
20 AB01 1408 Idler Gear - Small 1
21 AB01 1407 Idler Gear - Large 1
22 AA16 1143 Link Cushion 1
23 B300 4533 Spring Plate Gear Swivel 1
24 AB01 1405 Transport Roller Gear 1
Part No.
Description
Q’ty Per
Assembly
Index
No.
101 0805 3480 Bushing - 6mm
102 0805 0089 Retaining Ring - M4
103 0353 0050B Philips Truss Head Screw - M3x5
104 0450 3008B Tapping Screw - M3x8
105 0451 3006B Tapping Screw - M3x6
106 0451 3008H Tapping Screw - 3x8
107 1102 8081 Interface Connector - Interchange
Part No.
Description
Q’ty Per
Assembly
5
Page 7
PARTS INDEX
Page 8
Part No.
Description
Page and
Index No.
Part No.
Description
Page and
Index No
G531 4539 Front Side Plate 5- 5
G531 4593 Connector Bracket 5- 17
G531 4597 Large Gate Cover 3- 21
G531 4598 Small Gate Cover 3- 20
G531 4599 Decal - Interchange Cover 3- 22
G531 5181 PCB - Bank Control 5- 8
G531 5291 Gate Solenoid Harness 5- 2
G531 5292 Gate Harness 5- 14
G531 5295 4-Bin Harness 5- 16
AA06 0794 Link Spring 5- 12
AA06 0794 Link Spring 3- 11
AA06 6314 Gate Pawl Lower Spring 3- 6
AA06 6330 Spring- Lowergate Pawl 5- 11
AA08 0156 Bushing - M4 3- 15
AA14 3506 Knob Screw 3- 19
AA14 5818 Tension Roller Shaft 3- 13
AA16 1143 Link Cushion 5- 22
AB01 1405 Transport Roller Gear 5- 24
AB01 1407 Idler Gear - Large 5- 21
AB01 1408 Idler Gear - Small 5- 20
AG07 0014 Magnet Catch 3- 2
AW02 0086 Photointerruptor 5- 3
B300 4501 Frame Gate 5- 1
B300 4506 DC Solenoid Gate Pawl Upper 5- 10
B300 4508 Line Gate Pawl Upper 5- 13
B300 4511 DC Solenoid Gate Pael Lower 5- 6
B300 4512 Link Gate Pawl Lower 5- 7
B300 4516 Feeler Photointerruptor 5- 4
B300 4521 Gear Swivel Gate Ass’y 5- 19
B300 4525 Side Plate Rear 5- 18
B300 4533 Spring Plate Gear Swivel 5- 23
B300 4542 Transport Roller 5- 9
B300 4562 Guide Plate 3- 17
B300 4566 Roller Tension 3- 14
B300 4568 Gate Pawl Upper 3- 12
B300 4569 Lever Gate Pawl Upper 3- 9
B300 4571 Gate Pawl Lower 3- 5
B300 4572 Arm Gate Pawl Lower Rear 3- 8
B300 4573 Arm Gate Pawl Lower Front 3- 18
B300 4574 Shaft Guide Plate 3- 7
B300 4582 Cover Gate 3- 3
B300 4584 Spring Plate Guide Plate 3- 4
G020 1351 Cap - Finisher 3- 1
G531 4539 Front Side Plate 5- 5
8
Page 9
Part No.
Description
Page and
Index No.
Part No.
Description
Page and
Index No
G531 4593 Connector Bracket 5- 17
G531 4597 Large Gate Cover 3- 21
G531 4598 Small Gate Cover 3- 20
G531 4599 Decal - Interchange Cover 3- 22
G531 5181 PCB - Bank Control 5- 8
G531 5291 Gate Solenoid Harness 5- 2
G531 5292 Gate Harness 5- 14
G531 5295 4-Bin Harness 5- 16
A079 3626 Stepped Screw - Swing Cleaning 5- 15
9
Page 10
Part No.
Description
Page and
Index No.
Part No.
Description
Page and
Index No
5205 4527 Spring - Exit 3- 16
5447 2681 Snap Ring 3- 10
0353 0050B Philips Truss Head Screw - M3x5 5-103
0450 3008B Tapping Screw - M3x8 3-101
0450 3008B Tapping Screw - M3x8 5-104
0451 3006B Tapping Screw - M3x6 5-105
0451 3008B Tapping Screw - M3x8 3-103
0451 3008H Tapping Screw - 3x8 5-106
0805 0089 Retaining Ring - M4 3-102
0805 0089 Retaining Ring - M4 5-102
0805 3480 Bushing - 6mm 5-101
1102 8081 Interface Connector - Interchange 5-107
10
