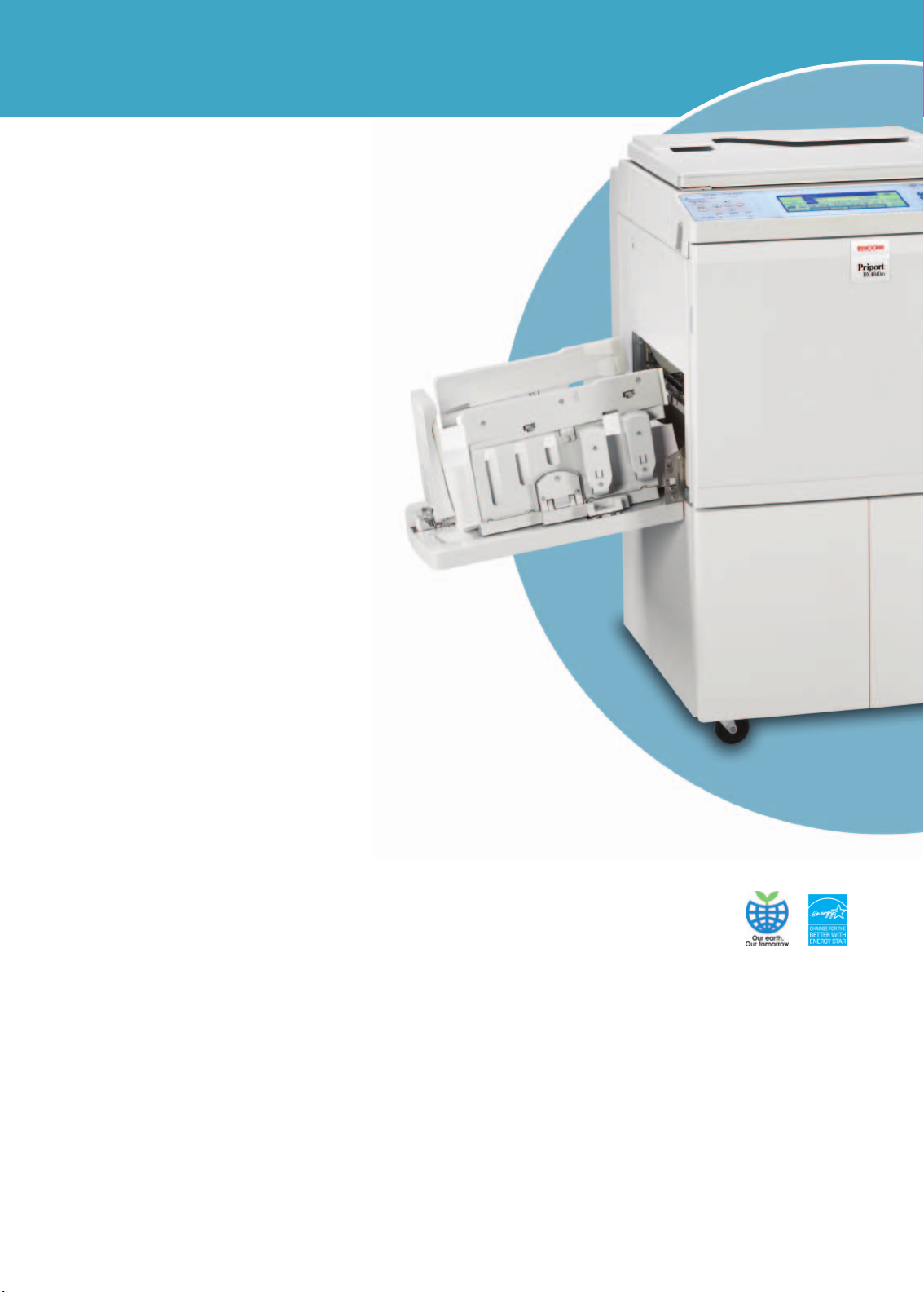

Ricoh Priport DX 4640PD
Digital Duplicator
High-volume duplex productivity
fast
efficient
Ricoh Priport DX 4640PD
High-volume duplication with duplexing.
®
extremely low.
PrintCopyScanDuplex
Fast, Flawless Performance
The Ricoh Priport DX 4640PD incorporates an innovative design and specialized paper feeding mechanism to deliver reliable duplex printing in a single pass. It also handles a wide range of paper sizes for one-sided documents, so users can expect superior productivity for a variety of print jobs.
• Complete large jobs quickly with output speeds up to 120 two-sided
8.5" x 11" pages-per-minute (ppm), or 240 images-per-minute (ipm). At this rate, users can produce over 14,000 impressions-per-hour.
• Improve productivity more than 40% by printing two-sided documents, eliminating wait-time for drying ink, and the need to feed sheets into the system twice.
• Optimize productivity for one-sided documents with output speeds up to 135 ppm.
• Maximize efficiency with multifunctional capabilities. The Ricoh Priport DX 4640PD serves as a high-volume network printer as well as a digital copier. Users can duplicate documents from the platen or scan them with the automatic reversing document feeder.
• Store frequently duplicated documents on the hard drive for instant reprints.
• Get started on important jobs immediately with a first-print time as low as 12 seconds.
The Ricoh Priport DX 4640PD uses an innovative drum design and duplex tray to duplicate two-sided documents with speed and cost efficiency.
Consistent, Crisp Image Quality
The Ricoh Priport DX 4640PD delivers high-quality output for every document it duplicates.
• Produce bold solids, halftones and photos—while eliminating print­through—with well-defined masters and evenly percolated ink.
• Improve reliability with automatic print pressure control, which adjusts system settings according to slight fluctuations in print speed, temperature and humidity.
• Ensure registration from page-to-page, and fine-tune results with an adjustable margin of 0.25 mm.
• Minimize off-set with a paper delivery tray that uses unique buffer fins to align finished sheets with precision.
Measurable Cost Savings
The Ricoh Priport DX 4640PD is geared for cost­conscious users who need to increase output volumes and keep operating costs as low as possible.
• Drop cost-per-page for large print and copy volumes to just fractions of a cent—then cut that cost even further with duplex output.
• Reduce cost-per-page even more with a durable, long-lasting master that can easily handle up to 4,000 one-sided images or 8,000 duplex images.
Easy, Intuitive Operation
The Ricoh Priport DX 4640PD delivers output speed and image quality that rival the capabilities of a small printing press, yet it is as easy to use as a conventional copier.
• Speed through job setup quickly with the large, easy-to-navigate LCD touch-screen panel.
The Ricoh Priport DX 4640PD with “direct-to-plate” technology allows quick reproduction of duplex documents.
Detailed fleet reports from the @Remote service make it easy to track costs and measur
e performance.
ProductiveEfficientFast
• Eliminate errors in printing and master-making with a single button that initiates both activities. Process status is clearly displayed. Prepare the Ricoh Priport DX 4640
• Getting the system ready is as easy as turning the system on, and finishing is as simple as turning it off. No labor intensive clean up is required such as with an offset press.
• Loading supplies is easy, even for new users. Disposing of used masters is quick, clean and easy. The user never is required to touch the inked up masters. Just push a lever to dispose of the old master in a secur
Intelligent Remote Management
The Ricoh Priport DX 4640PD comes equipped with several ways to streamline administration.
• @Remote™Intelligent Remote Management System is a device management service for networked pr that automatically collects meter data from the Ricoh Priport DX 4640 and billing. In addition, the customer can have access to detailed fleet utilization reporting that helps IT departments keep track of output and total costs.
• Monitor system status or adjust setting remotely over the network with SmartDeviceMonitor over the Web with Web Image Monitor
PD which enables remote meter reading
PD for operation in less than 15 seconds.
e receptacle.
oducts
™
, or
™
software.
Solid Durability
The Ricoh Priport DX 4640PD delivers the reliable performance necessary to ensure smooth, uninterrupted production and strong, long-term investment protection.
• Keep service calls to a minimum with a high duty cycle, up to 600,000 prints per month.
• Expect longer system life with a design that features minimal moving
e a fuser.
parts and “cold pr
• Enjoy automatic detection and resolution of paper jams, misfeeds or double-feeds with the Double Feed Detector and Paper Feed Retry featur
ocess” print technology that does not r
equir
Quality Output for Multiple Markets
For many kinds of users, the Ricoh Priport DX 4640 complete high-volume print jobs quickly and cost effectively.
• Hospitals, clinics and other healthcare providers can print two-sided patient forms, including those that r Schools, colleges, and university CRDs can pr
• paperwork, permission documents and other two-sided forms without expensive outsourcing.
• Large churches and other faith-based organizations can print two­sided program inserts, bulletins, newsletters and fundraising materials.
• Print-for-pay facilities can create profitable new revenue streams for customers that need large volumes of duplex documents.
• In-plant and CRD sites can cost efficiently produce business forms and notices in-house r utilization of other pr
PD offers a smart, affordable way to
equire NCR paper.
oduce enr
educing the need for outsour
oduction equipment such as large digital copiers.
cing, allowing the pr
ollment
oper
es.
Your Environmental Partner
Ricoh continues its long-standing commitment to developing office solutions with environmentally friendly and superior energy- and supply-saving features, without compromising productivity, including:
• Quick Start-Up (QSU) T
• Power-Saving Sleep Mode
• Minimal Ozone Emissions
echnology
PrintCopyScanDuplex
High-quality, Cost-saving Performance
Control panel
Large, bright LCD panel is designed for intuitive, copier-like operation.
Print speed selector
Controls print speed with six settings from 60 to 135 sheets-per-minute.
ADRF (automatic reversing document feeder)
Handles multi-page originals with ease, up to 11" x 17".
QWERTY soft keyboard
Allows users to key in job programs and other customized job applications.
Master-making unit
Strategically located for easy installation of the master roll.
Paper feed side plates
Locking plates guide paper into the system and help prevent misfeeds.
Paper delivery tray
Neatly stacks completed output.
Master eject unit handle
Allows users to pull out the master eject unit quickly and easily
.
Accessories
LS3000R TC-IIR
Paper feed tray
Accepts a wide range of sizes and weights.
Drum unit
Master automatically wraps around this unit.
Duplex tray
Enables fast, precise duplication documents.
of two-sided
Print large jobs with virtually nonstop productivity using the LS3000R Large Capacity System, which holds up to 3,000 sheets.
Save time and cut costs on multicolor jobs by printing two colors in a single pass with the TC-IIR Digital Production Printer.
Ricoh Priport DX 4640PD
System Specifications
General Specifications
ocessing
Master pr Printing process Press Roller System Original type Sheets, Book Original size Maximum 11.8" x 17.0" Pixel density Scanning: 600 dpi X 400 dpi
Image mode – Letter mode
Image density 4 levels: Lighter, Normal, Dark,
oduction ratio
Repr
Zoom 50–200 % (in 1 % step) Directional magnification 50–200 % (in 1 % step, in
Auto magnification Available
selection
Printing area 10.8" x 16.6"
(One-sided print) Leading edge margin Less than 6 mm Print paper size Maximum: 12.8" x 17.6"
(One-sided print) Minimum: 2.8" x 5.8" Print paper weight 13 lb. Bond – 110 lb. Index
(One-sided print) First print time Portrait: 12 sec.
(One-sided print) Image position Vertical: ± 0.39"
(One-sided print) Horizontal: ± 0.39"
Printing speed 60–135 sheets / minute for
(One-sided print) 8.5" x 11" and below (6 levels)
Paper feed table capacity 1,000 sheets (20 lb. paper) Paper delivery table capacity 1,000 sheets (20 lb. paper) Master feed capacity More than 200 masters / roll Ejected master capacity DLT: More than 100 masters Color drum change Available Conserving master Available Auto color detection A Auto density control Available Auto shut-of Security mode A User code Up to 200 codes Class Available Program mode Available (10 programs) Skip feed (One-sided only) Available User tool Available Margin erase A Auto background Available
corr Image r Original storage Available Multiple copy mode Combine printing: 2 in 1, 4 in 1
Overlay (One-sided print) Available Stamping (One-sided print) Available Quality start Available
ection
otation
f
Digital/Printer contr
Master-making: 400 dpi X 400 dpi
– Letter / Photo auto separation
Contrast: str
– Photo mode Dots patter (4 levels) Contrast: high, standard, low
– Tint mode
– Pencil mode
Very dark 6 Reduction and 5 Enlargement: 50%, 65%, 74%, 77%, 85%, 93% 100%, 121%, 129%, 155%, 200%
1 mm step)
Minimum movable unit: 0.01"
60–120 sheets / minute for 11" x 17" (5 levels)
vailable
vailable
A
vailable (Higher / Normal)
vailable
vailable
A
Repeat printing: 2 in 1, 4 in 1, 8 in 1, 16 in 1 and custom
oller built-in
ong, standard, soft
n: standard, rough
Power sour Dimensions (W x D x H)
Net W
Printing area (Duplex) 10.8" x 8" Print paper size (Duplex) Only 8.5" x 11" Print paper weight (Duplex) 17 lb. to 28 lb. Bond First print time (Duplex) ADF 8.5" x 11" portrait duplex print:
Image position (Duplex) Vertical: ±0.1"
Printing speed (Duplex) 120–240 images / minute (5 levels)
General Features of Printer Controller
CPU TX4955–300MHz RAM 128 MB (Resident 64 MB + 64 MB
Note: Additional 64 MB Memory is pre-installed.
Hard Disk Drive Option PDL RPCS
Print Resolution 400 dpi x 400 dpi Fonts RPCS: Arial
Host Interface Ethernet (Ethernet
Note: Only one of above option can be installed.
Network Protocol TCP/IP, IPX/SPX, NetBEUI, AppleTalk MIB support PrinterMIB Network/Operating Windows95/98/Me/NT4.0/
Note: Mac OS only works for PS3
Contr
Extension HDD Type 1 40 GB (6 GB for document storage) Memory Unit T
PostScript 3 Board Type 2 IEEE 802.11b I/F Unit Type 1 Pr Data transfer speed Auto select from below speed
Fr Transmittable distance 1Mbps 400 m
Transmission mode 802.11 ad-hoc, ad-hoc, and
IEEE 1284 Parallel Board Standard IEEE 1284 compliant
ce
Platen cover: ARDF: 55.90" x 28.34" x 44.48"
eight Without table Machine with Platen cover: Machine with ADF: 278.88 lb.
Systems 2000/XP/Server2003
oller Options
(128 MB/256 MB)
otocol
equency range
Type 1 Micro Centronics 36 pin cable
ype C
, 60Hz
120V
with table
55.90" x 28.34" x 40.15"
261.24 lb.
46 seconds (One-sided original)
8.5" x 11" portrait duplex print: 50 seconds (Duplex original)
Horizontal: Minimum movable unit: 0.01"
(60–120 sheets / minute (5 levels))
additional memory)
Adobe®PostScript®3™(Option)
PS3: 136 Adobe®PostScript®fonts (Option)
100BaseTX/10BaseT) USB 2.0 IEEE802.11b (Wireless LAN) Interface (Option) Parallel Port IEEE1284 (Option)
Mac OS 8.6 – 9.X, Mac OS X (10.1 – 10.4)
SDRAM
Module type ROM DIMM
TCP/IP
1Mbps, 2Mbps, 5.5Mbps, 11Mbps 2412–2462 MHz (1–11 channels)
2Mbps 270 m
5.5Mbps 200 m 11Mbps 140 m
infrastructur
± 0.39"
, NetBEUI, IPX/SPX, AppleT
e mode
alk
Auto Document Feeder
oduct name
Pr Simplex Standard sized papers:
Duplex DL Original weight 14 to 28 lb. Simplex Standar
Duplex 14 to 28 lb. Original table capacity 50 sheets (20 lb. paper) Power source From mainframe Dimensions (W x D x H) W 21.65" x D 18.50" x H 5.11" Net Weight 22.04 lb.
TC-IIR (Twin color printing system)
oduct name
Pr Configuration Master processing No master making unit Printing process Twin color press roller printing
Printing area 11.4" x 16.0" Print paper size Maximum 12.8" x 17.3"
Print paper weight 12.5 lb. Bond – 110 lb. Index Image position
1st drum Vertical; ±15 mm
2nd drum Vertical; ± 5 mm
Minimum movable unit 0.125 mm
(2nd drum)
Printing speed 90–120 sheets / minute
Skip feed Available Friction control Available Paper type selection A Auto switch off Available Paper feed table capacity 1,000 sheets (20 lb. paper) Paper delivery table capacity 1,000 sheets (20 lb. paper) Paper counter Standard Color drum change Available Power sour Power consumption 120cpm printing: 550W Dimensions (W x D x H) W: 61.22" x D: 24.80" x
Weight 194 lb.
LCS (Large capacity system)
Product name LS3000R Configuration Consists of two parts:
Paper feed tray stack 3,000 sheets (20 lb.)
Paper delivery tray stack 3,000 sheets (20 lb.)
Delivery paper size Max: 11.69" x 17"
Delivery paper weight 12.5 lb. Bond – 110 lb. Index
A
Standard color inks Red, Green, Blue, Grey, Orange,
CM (Custom) color inks A
ce
capacity
capacity
vailable Ink Colors
ype 4640
ARDF T
T, LT, LG
DL Non-standar V Horizontal: 5.1" – 34"
Non-standar 14 to 28 lb.
TC-IIR Floor Standing (with optional cabinet)
system
Minimum 2.8" x 9.8"
Horizontal; ± 10 mm
Horizontal; ± 10 mm
(90,105,120 cpm)
110 – 120V
H: 21.85"
W
Large Capacity Input Tray (LCIT) Large Capacity Output T LCIT can be used independently
Min: 5" x 7.16"
Maroon, Yellow, Teal, Brown, Navy green, Violet, Gold, Reflex blue
d sized papers:
ertical: 4.2" – 11.7"
, LT, LG,
T
d sized papers: 14 to 34 lb.
d sized papers:
vailable
, 60Hz
ith 2 drums 227.07 lb.
, Purple, Burgundy
vailable
ray (LCOT)
, Hunter
www.ricoh-usa.com
Ricoh Americas Corporation, Five Dedrick Place, West Caldwell, NJ 07006 Ricoh®and the Ricoh Logo are registered trademarks of Ricoh Company, Ltd. Windows®and Windows®95/98/Me/NT4.0/2000/XP/Server2003 are registered trademarks of Microsoft Corporation. Macintosh®, Mac®OS and AppleTalk®are registered trademarks of Apple Computer, Inc. Adobe®and PostScript®are registered trademarks of Adobe Systems, Inc. RPCS™ is a trademark of Ricoh Company, Ltd. All other trademarks are the property of their respective owners. Print speed may be affected by network, application or PC performance. Specifications and external appearances are subject to change without notice. Products are shown with optional features.
Printed in U.S.A. on recycled paper because Ricoh cares.
R2485
