REVO Pico RS User Manual [fr]

Owner&s Guide

v1.0

English

Français

Deutsch

Italiano

Contents

Welcome to Pico RS 3

Pico Overview 3

Warranty + Warranty Registration 3

Before Getting Started 3

Wi-Fi Internet Connection 3

Registering Your Radio 3

Controls and Connections 4

Remote Control 4

Powering Pico 4

Remote Control Operation 4

Getting Started 5

Pico’s Control Method 5

Pico’s Menus Explained 5

Internet Radio Mode 6

Connecting To Broadband Network 6

Using Internet Radio Features 7

Choosing A Station 7

Choosing A Podcast 7

My Favourites 8

My Added Stations 8

Help 8

Internet Radio Portal 8

Access Additional Features 8

Registering Your Radio 8

Music Player Mode 9

Windows PC Set-UP 9

Apple Mac Set-Up 10

DAB Mode 11

DAB Mode Menu Options 12

FM Mode 13

MPort Mode 13

System Setup 14

Info 14

Troubleshooting 15

Copyright and
Acknowledgements

Copyright © 2011 Revo Technologies Ltd.
All rights reserved.

Revo Technologies Ltd
The Inox Building
Caldwellside
Lanark
Scotland
United Kingdom
ML11 7SR

Tel . [phone]
Int. Tel. [phone]
Fax. [phone]
Int. Fax. [phone]
Email. [e-mail]
Website: www.revo.co.uk

The information in this guide is believed to
be correct at the time of publication.
However, our policy is one of continuous
development and so the information is
subject to change without notice.

Revo, Pico and M-Port are trademarks or
registered trademarks of Revo Technologies
Limited.

iPod® is a registered trademark of Apple
Computer, Inc.

Safety Warnings

Do not operate this radio near water.
Avoid small objects and liquids from getting
into this product.
Do not remove screws or casing parts.
Use only the power supply unit supplied.

EEC: This product has been designed and
type-tested to comply with EU requirements
and carries a CE mark.

Technical Support

Should you encounter any difficulties with
the operation of your Pico RS, or should you
suspect that it may be faulty in some way,
please call our technical support
department on the number below:

01555 66 61 61

Alternatively, email support@ revo. co. uk or
visit the troubleshooting section of our
website at: www.revo.co.uk/support

Preface

2

English

3

Pico RadioStation Overview

Pico RS is the ultimate ‘one box’ portable
digital radio, providing an unprecedented
choice of over 13,000 stations from around
the globe. Whether your preferred station is
broadcasting from your own country on DAB
or DAB+ digital radio, or on the other side
of the world via internet radio.

Pico is capable of receiving new DAB+
digital radio broadcasts without the need for
any software upgrades or modification, and
all in a splashproof design with the
convenience of internal battery power.

Pico also provides coverage of traditional
FM radio and the added benefit of doubling
as an iPod ® speaker system.

Throw-in high-quality audio performance and
the ability to stream music from your PC or
Mac, and Pico RS becomes the ultimate go­anywathere digital radio.

Warranty

Revo Technologies Ltd warrants to the
purchaser that this product will be free
from parts and manufacturing defects in
the course of normal use for a period of
one year from the date of purchase.

This warranty does not apply in cases of
accidental damage, where the case has
been removed, wear and tear, negligence,
modification or inappropriate use.

Should you encounter problems with this
product, please contact your supplier or
alternatively see page 2 of this guide for
technical support contact details.

Warranty Registration

It is a warranty condition that you register
your purchase by either completing the
warranty card enclosed with your radio or
alternatively registering online at

www.revo.co.uk/register

Network Connection

In order to use the internet radio functions
of your Pico RS you will require either a
wireless (Wi-Fi) or wired LAN broadband
internet connection.

For setup instructions please see page 6.

NB. If your wireless network is configured
to use Wired Equivalent Privacy (WEP), or
Wi-Fi Protected Access (WPA or WPA2)
data encryption, you need to know the WEP
or WPA code (Web Key) in order to allow
Pico to connect to your wireless network.

Thank you for buying our Pico RS digital radio, we feel sure that it will provide
you with years of enjoyment and reliable service.

This guide has been designed to quickly get you up-and-running and listening
to your radio, offer guidance on the more complex features of this product
and provide information on safety, warranty and registration.

Welcome to Pico RS

Before Getting Started

English

IMPORTANT

To ensure that your Pico RS is running the
latest software release (and therefore has
access to the latest software

I

features), we advise you to perform a
software update. Please see page 14 of this
operating guide for full details.

Registering Your Radio and
Accessing Additional Services

Some of Pico RS’s more advanced internet
radio features can only be accessed by
visiting the Frontier Internet Radio Portal
(www.wifiradio-frontier.com).

These features include the ability to create a
“Favourites” list and add unlisted radio
stations and podcasts. See page 8 for
instructions on how to register your radio.

Pico RadioStation and DAB+

At the time of writing, Pico RS is one of the
first digital radio products that are capable
of receiving broadcasts on the new DAB+
digital radio platform - without the need for
modification or additional software.

Meaning that Pico is ready for future
developments. This facility is in addition to
Pico’s reception of standard DAB signals.

4

English

Controls and Connectors

Remote Control

Your Pico ra dio is p ow er ed fr om th e ma ins us ing th e po we r ad aptor su pplied, or fr om i ts
own internal rechargeable battery pack.

To po wer from the m ain s, inse rt the po wer a dapt or plu g int o the DC powe r sock et on the
rear of Pico. When Pico is connected to mains power, its internal battery pack will
commence charging. On a full charge, Pico’s internal battery pack has a 12 hour life.

Only use the power adaptor supplied. Replacements are available from www.revo.co.uk

1. LCD Screen

2. Power

3. Menu

4. Presets

5. Back

6. M-Port

7. Remote Control Sensor

8. Mode

9. Scroll Wheel

10. Info

11. Volume Up

12. Volume Down

1. Mode

2. Back

3. Menu

4. Info

5. Media Player

6. 12 Presets

7. Down

8. Volume Down

9. Volume Up

10. Select

11. Standby

12. Up

Media Player

Pause

Skip Back Skip Forward

Play

1. Telescopic Antenna

2. Stereo RCA

3. USB Update Port

4. 3.5 Headphone Connecter

5. DC Power Socket

1.

2.

3.

4.

5.

2.

1.

3.

4.

5.

6.

10.

9.

7.

11.

12.

8.

1.

2.

3.

4.

5.

6.

8.

7.

9.

10.

11.

12.

Powering Pico RS

5

Getting Started

Pico RS is a sophisticated digital radio
device, with several modes of operation and
many advanced features.

In order for you to get the most out of
Pico’s functions, it is important that you
learn how to use the cursor based control
system, and also understand how Pico’s
menus work.

Pico’s Control Method

Pico’s control method is based around a
central scroll wheel (with push to select
function).

SCROLL WHEEL:
Rotate clockwise and anti-clockwise to scroll
through menu options.

PUSH TO SELECT:
Press the scroll wheel to select the current
menu option. In FM mode, pressing the
scroll wheel will initiate an FM scan.

BACK:
Press to return to the previously selected
menu entry. Repeatedly pressing will return
you to the top level of the Mode menu (for
the mode you are in).

MENU:

Press to enter (or return to) the Mode
menu for the mode of operation you are
currently in. Pressing for a second time will
return you to the ‘playing’ screen.

MODE:

Sequentially cycles through each of the
modes of operation.

Using these keys, you will be able to
perform most functions and navigate
through Picos various menus.

Pico’s Menus Explained

Pico has three types of menu as follows:

Main Menu

This is Pico’s principle (top level) menu, and
allows you to enter different operating
modes, setup the radio, and view
information such as software version and
your radio’s ID number.

Mode Menus

The Mode menus are so called because
they show the functions available within the
context of each of the operating modes
(DAB mode, FM mode etc.).

Pressing the MENU button at any time will
take you to the Mode menu of the operating
mode your radio is currently in. Each Mode
menu includes a listing for Main Menu –
selecting this option will return you to the
top level Main Menu (as described above).

Main Menu

The Main menu provides access to the
following modes and sub-menus:

To se lect an opti on from t he menu , simp ly
use the scroll wheel to move through the
menu options, then press to select.

English

DAB
FM

Info System

Setup

6

English

Connecting to your broadband
network

In order to access Pico RS’s internet radio
features, first you must connect Pico to
your broadband connection.

Firstly, select ‘Internet Radio’ by pressing
the MODE key until ‘Internet Radio Mode’
appears on the display, or alternatively
select from Pico’s main menu.

Pico will now ask you to select a ‘Wlan
region’. To do so,

simply rotate the scroll
wheel to cycle through the list of available
options, then push to make your selection.

Pico will ask you to choose the network
you’d like to use. If there is more than one
available, all will be listed.

If the Wi-Fi network you have chosen
doesn’t require a password, Pico will
automatically connect.

If your chosen network has security
enabled, you will be asked to input the
relevant key or password. Remember, the
password will be case-sensitive.

Use the scroll wheel to move through the
banks of characters and push the wheel to
select your chosen character. When the
password has been entered, move the
flashing cursor to the symbol at the end
of the line and push to enter the code. Pico
will now connect to the network.

Pico will remember the security key or
password, you will not be required to enter
it again, even after Pico has been used on
another network in a different location.

Pico can also remember keys and
passwords for multiple Wi-Fi networks.

If at some time you would like to connect to
another Wi-Fi network, you can do so by
selecting ‘Wizard’ from the ‘Internet Setup’
option on the main menu, and entering the
required key/password.

Advanced users can edit their Wi-Fi settings
by accessing the ‘System Setup’ option from
the Main menu.

Internet Radio Mode

>Most of Europe
USA

[Rescan]
[Wired]

>My Home Network

>Connected

Key:
0123456789< C

Please wait
Connecting...

>Internet setup
Time setup

Choosing A Station

To se lect a stat ion se lect ‘Inte rnet Ra dio’ by
pressing the MODE key until ‘Internet Radio
Mode’ appears on the display, or
alternatively select from Pico’s main menu.

Using the scroll wheel, scroll to the
‘Stations’ option and press to select.

You now ha ve th e op tion of s el ecting a
station by location (country), genre,

alphabetical search, most popular
stations or new stations. Using the scroll

wheel, scroll through the options and press
to choose your search criteria.

Choosing location will give you an
alphabetical list of continents/regions and
then a list of countries. Use the scroll
wheel to scroll through the list and push to
select your chosen country. You will then be
given the option of choosing a genre, to
further refine your search.

After selecting your search criteria, you will
be presented with a list of stations that
meet your requirements. Simply select a
station from the list to begin listening.

Choosing A Podcast

Podcasts (also referred to as ‘Listen Again’)
are selected in the same way as a regular
station.

Select ‘Podcast’ from the ‘Internet Radio’
menu, you can search for a station by
location, genre or a combination of both.

The main difference is that when you have
selected a station, you will then be
presented with a list of ‘shows’ or Podcasts
available from that station.

Select your choice using the scroll wheel
before pushing to select your choice.

Using Internet Radio Features

The internet radio mode allows you to choose from a number of services, including listening
to live radio or Podcasts. There are five options on the internet radio menu as follows:

My Favourites: Used to navigate to your favourite stations. This list is compiled using

your PC/Mac via the internet radio portal. See page 8 for details.

Stations: Find stations by location, genre, most popular, new station or by

alphabetical search.

Podcast: Find Podcasts or ‘Listen-Again’ services by location, genre or search.

My Added Stations: Shows stations which you have personally added to Pico RS’s
list through the vTuner internet radio portal. See page 8 for details.

Help: Find your Access Code here, see page 8.

7

English

Internet Radio

Mode

My Favourites
>Stations

Location
>Genre

Location
>Genre

Finland
>France

BBC Radio 1
>BBC 1Xtra

BBC Radio 1
Playing

>Podcast
My Added Stations

>Podcast
My Added Stations

>BBC 6 Music
BBC Radio 7

8

My Favourites

It is possible to compile a list (or lists) of
your favourite stations, allowing quick and
easy access to a number of varied stations.
To do this you must f irst registe r your r adi o
and then choose your favourites by visiting
the Frontier Internet Radio Portal - see
‘Internet Radio Portal’ section below for
details.

When in ‘Internet Radio Mode’, choose
‘Station List’ from the options, then select
‘My Favourites’.

If you have set up a ‘My Favourites’ list via
the Frontier Portal, your list will appear on
Pico’s screen.

My Added Stations

If you have added any of your own stations
to Pico’s already huge station list (via the
Frontier Portal - see section below), they
will be listed here. The ‘My Added Stations’
option can be found under ‘Station List’ in
‘Internet Radio Mode’.

Help

The ‘Help’ option is where you can find the
Access Code that you require to register
your radio on the Frontier Portal (see below
for full instructions). A helpful FAQ audio
track can also be found under this heading.

English

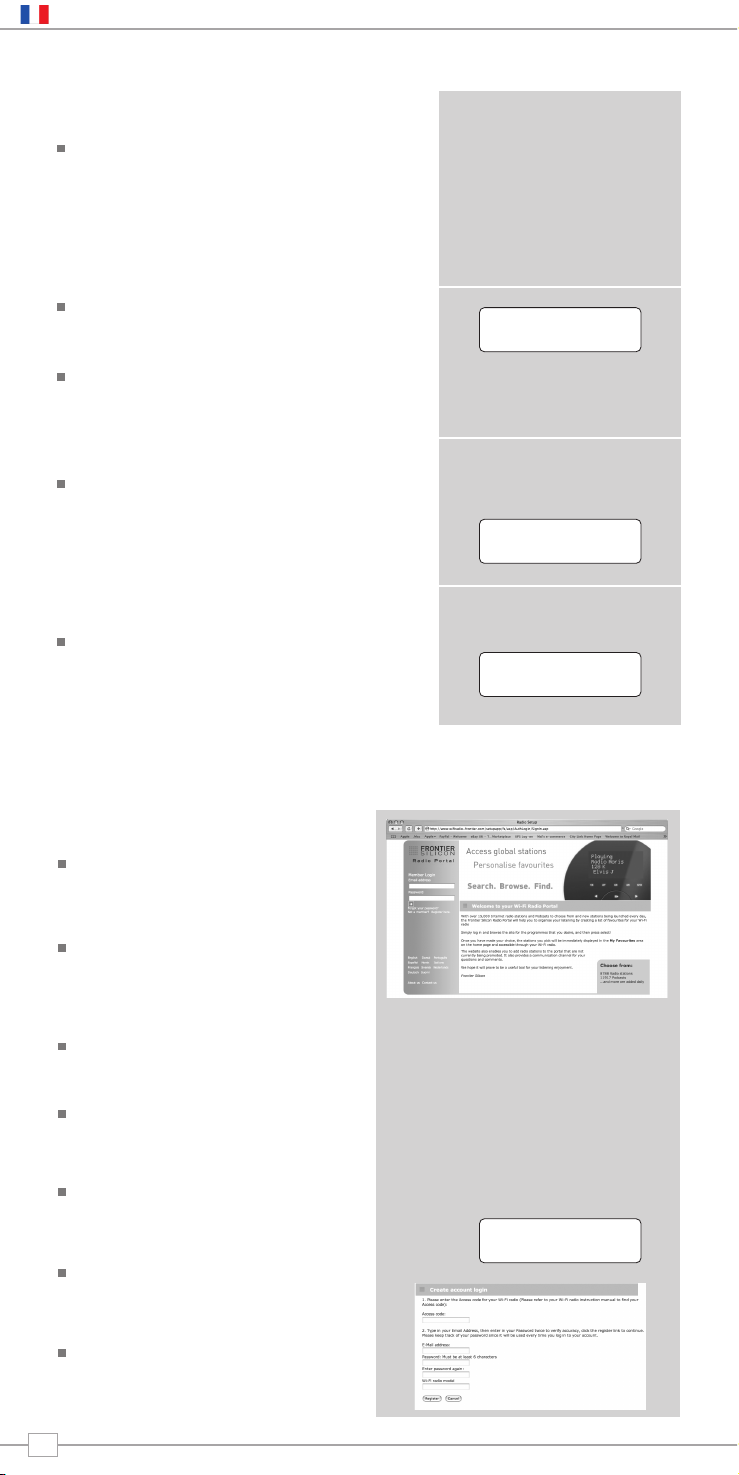

Internet Radio Portal

Access Additional Features

Some of Pico RS’s more advanced internet
radio features can only be accessed by
visiting the Frontier Internet Radio Portal.

In order to access these features you must
first register your radio.

Registering Your Radio

Firstly, open your web browser on your PC
or Mac and go to the Frontier Portal at

http://www.wifiradio-frontier.com

Click on the Register link, (located on the
left hand panel) to begin the registration
process.

You will no w be a sk ed fo r an Access Code.

To fi nd you r Access Code enter ‘Internet
Radio Mode’, select ‘Station List’ from the
options, then select ‘Help’. From the ‘Help’
menu now select “Get Access Code”.

Now fill-in the rest of the from to complete
the registration process. You will now be
able to login and take advantage of the
various additional features and services
offered by the Frontier Internet Radio
Portal.

>My Favourite

Stations

>Station List
Main Menu

>Get Access Code
FAQ

>Get Access Code
ABCD 1 E F

9

English

Music Player Mode

Music Player Operation

Pico RS’s media player functionality allows
you to play audio files
(AIFF, AU, MP3, RM, WAV and WMA) and
playlists (M3U) stored on a networked PC
or Apple Mac. The media player functions
have been tested and certified to operate
with Windows 2000, Windows XP,
Windows Vista and Mac OSX 10.2 –

10.4.9.

Windows PC Set-Up

There are two Music Player modes
available. Each of them requires different
settings, and either one can be used to
playback music from a media server.

Shared Folders (CIFS)

In order to set up the device to playback

music stored on shared network drives,
user name, password and domain settings
must be configured to work with the PC
share settings. This is only required if the
user has set a password on his/her shared
folders.

PC: Domain/Workgroup configuration

The Domain configuration item can be found
on a Windows XP machine as follows:

1. From the start menu, select Control
Panel > System then select the Computer
Name tab.

2. The Domain or Workgroup that this
Computer is a member of is displayed in
this tab.

3. If the PC is not a member of any Domain
or Workgroup then one must be joined. To
do this click on the change button on the
computer name tab and enter the name of
the domain (default on Windows XP is
MSHOME).

4. A reboot of the PC may be prompted if
the Domain or Workgroup has been
changed.

PC: Setting up a new user account (Windows XP)

Pico RS may require you to set-up a user
account on each PC that you wish to
browse. By default most PCs have at least
one user account associated with it. The
user name and password (optional) needs
to be the same on each PC as the Internet
Radio only stores one user name and one
password. For windows XP this can be set
up as follows:

1. From the start menu, select Control
Panel -> User accounts

2. From this screen left click the ‘Add ...’,
and enter the new user name and the
Domain/Workgroup setting noted above.
Select the type of user (limited) and then
select ‘create account’.

3. Select the user just created, select
‘Create Password ...’ and enter a password
for this user.

4. Note the User Name and Password.

Note for Windows VISTA : Users have to
turn on the Guest account via manage user
accounts in the control panel in VISTA, then
add access to either ‘Everyone’ or ‘Guest’ on
the shared drive. They could create a new
account for the internet radio, with a
password, if they are concerned about
security. The Guest account has no
password by default, so the Wi-Fi radio will
connect to it from its factory default
settings.

PC: Configuring A Shared Drive

From the Start menu select My Computer
and navigate to the directory you wish to
share. Right click on the directory and
select Sharing and Security. Configure the
shared drive as read only, and ensure that
the User Name created above has read
access to the share.

Wi-Fi Radio: Storing The
Username And Password

Before the radio can stream music from a
PC, you need to ensure you have shared
folder available on the PC, and set up the
radio so that it knows the username and
password (if one has been set) for the
shared folder on the PC. This can be set
up using the PC settings menu.

Shared Media (UPnP)

Media sharing uses Windows Media Player
(WMP) 11 and above as media server. This
mode does not require any setting in the
radio, but the PC needs to be configured to
allow the radio access to the media. You will
only have to do it once, following the next
steps.

1. The PC must be connected to network
(wired or wireless) that will be used to
share media with the radio.

2. Ensure that the radio is powered on and
connected to the same network as the PC.

3. In WMP, add to the media library the
audio files and folders you want to share
with your internet radio (in Library > Add to
library).

4. In the WMP main window, click on
Library, then Media sharing.

The Internet radio is presented as an
“Unknown Device”. Make sure that the device
has access to the shared media by selecting
it and clicking <Allow>. Then click <OK>.

The PC is now ready to stream the music to
the radio.

10

Music Player Mode

Apple Mac Set-Up

Set-Up for OSX 10.2.1 --> 10.4.9

Setup Windows File Sharing on
the MAC:

From the ‘Dock’, click ‘System Preferences’.
From the ‘System Preferences’ window
(under the ‘Internet & Network’ section)
click ‘Sharing’.

From the ‘Sharing’ window, do the following:

Under the ‘Services’ section, enable
‘Personal File Sharing’ and ‘Windows
Sharing’. Also, click ‘Start’ for each of these
services. Under Windows file sharing you
will also need to 'enable' the account you
wish to share from (This needs your
administrator password).

Under the ‘Firewall’ section, keep firewall off.

Under the ‘Internet’ section, keep ‘Internet
Sharing’ off.

Setup an Account:

From the ‘System Preferences’ window,
under the ‘System’ section, click ‘Accounts’.
Select an account and remember its ‘Short
Name’ and password. This information will
be used by Pico RadioStation when
connecting to your Mac.

Directory Setup:

From the ‘Dock’, click ‘Finder’. From the
‘Finder’ window, click ‘Applications >
Utilities’. Holding Ctrl click on ‘Directory
Access’ then select ‘Get Info’ and ensure
that read / write enabled. Next double click
on ‘Directory Access’ and enable the
following:

AppleTalk LDAPv3

SLP SMB/CIFS

Also, for the ‘SMB/CIFS’ item, click
‘Configure’ and select an appropriate
workgroup.

To al low your Pic o RS yo u need to add yo ur
login details, by following the path Main
Menu -> System Setup -> Internet Setup ->
PC Settings. You should input your short
username and administrator password
here. Ensure that your Mac is successfully
connected to the wireless network. Note,
you may need to wait for few minutes for
the changes to take effect.
You should now be a bl e to a cc es s th e au di o
files on your Mac by selecting Browse ->
Shared Folders on Pico, then selecting the
workgroup chosen in the step above. On
selecting your Mac scroll through the
available folders until you find the one which
contains your music files.

Apple Mac Set-Up

Set-Up for OSX Leopard 10.5.1-->

Setup Windows File Sharing on
the MAC:

From the ‘Dock’, click ‘System Preferences’.
From the ‘System Preferences’ window
(under the ‘Internet & Network’ section)
click ‘Sharing’.

From the ‘Sharing’ window, do the following:

Under the ‘Services’ section, enable ‘File
Sharing’ click ‘Start’ for this service. Then
under the shared folders click the "+" and
select the folder which contains your music
files. Then Select the music folder from the
shared folders area, in the users area make
sure "Everyone" is set to read and write.
Finally click on "Options" and make sure
"Share files and folders using AFP" is
checked and "Share files and folders using
SMB" (This will require your admin
password to activate) lastly make sure your
account is also checked as active.

Ensure that your Mac is successfully
connected to the wireless network. Note,
you may need to wait for few minutes for
the changes to take effect.
You should now be a bl e to a cc es s th e au di o
files on your Mac by selecting ‘Browse >
Shared Folders’ on Pico, then selecting your
Mac from the list of devices. On selecting
your Mac, you should see your folder that
you selected above.

3

33

3

English

11

Choosing a Station

Extend the telescopic antenna found on
the rear of Pico RS.

Now select ‘DAB Mode’ by pressing the

MODE key until ‘DAB Mode’ appears on
the display, or alternatively select from
Pico’s main menu.

If this is the first time Pico RS has been
used in DAB Mode, it will scan for DAB
stations in your area and store them in
memory. Pico will also set its clock at this
point.

When the station scan has been
completed, stations will be displayed in
numeric then alphabetic order. The first
station in the list will be selected.

If no DAB signal is found, it may be
necessary for you to relocate your radio,
or to check whether DAB coverage is
available in your area.

Select your station choice by scrolling
through the station list and pushing the
scroll wheel to make your selection.

DAB Mode

To Change the Display Mode

Pico has nine different display modes.

Simply press the INFO button to cycle
through each mode. These display modes
are explained in the table opposite:

BBC Radio 1
calls cost max

BBC Radio 1
Pop Music

BBC Radio 1
BBC National DAB

BBC Radio 1
12B 225.64MHz

BBC Radio 1
128kbps Stereo

BBC Radio 6Music
11:48:03

BBC Radio 6Music
18/12/2007

BBC Radio 1
Sig strength 96

Normal display
with scrolling text

Display option Example

Type of broad cast

Broadcaster

Date

Station name and
frequency

Data rate and
stereo/mono

Signal strength

Signal level,
indicator on bar
shows minimum
acceptable level

Time

DAB Mode

Scanning... 10

•••••

>ArrwRock

BBCAsian

BBC 6Music

Service not ava

BBC 6Music

Playing

MODE

English

tlkSPORT

English

12

Pico RS has a number of additional functions that are accessed through the DAB Mode

menu, as follows:

The following table describes the options
available under the ‘Station Order’ menu:

Station Order

Press the MENU key in DAB Mode then
press select Station order.

To specify the o rder in which st at ions
are displayed

Select the Station order option.

Use the scroll wheel to move through the
available options, then push the wheel to
make your selection.

Alphanumeric Lists stations in alphabetical

order.

Ensemble Lists stations by multiplex.

Valid Lists only active station s.

Station order Description

Manual Tune

Choose the Manual Tune option from the
DAB Mode menu.

The Manual Tune selection screen allows
you to select a particular frequency to
tune to. The list of frequencies displayed is
dependant on the currently-set frequency
band and contains all of the frequencies
within that band. It starts with the short
name of the frequency, for example 12B,
and is followed by the actual frequency in
MHz.

If there is a station corresponding to this
station number and frequency, the display
will show the name, frequency, and a
tuning meter will show the signal strength.

DRC - Dynamic Range Control

Pico RS includes a dynamic range control
that automatically boosts the volume of
quieter sounds for listening in noisy
environments.

The DRC control is found in the DAB
Mode menu under ‘DRC’. There are three
pre-defined settings as follows:

Local and Full Scan

As time passes, new stations will become
available in your area. To find them and
add them to your station list it is
necessary to perform either a ‘Local’ or
‘Full’ scan. Both operations can be
accessed via the DAB Mode menu.

A Local Scan performs a shorter scan of
only the ‘local’ ensemble range.

A Full Scan will take longer, but will cover
the complete DAB ensemble range.

Favourite Station Presets

Pico allows you to store 12 favourite
station presets, either via the

PRESET

button on Pico itself, or via the

optional Pico remote control.

To sa ve the stati on you ar e curre ntly
listening to as a preset, simply press the
PRESET button then use the scroll wheel to
find an unused location. Now press the
scroll wheel to store.

To li sten to a stor ed stat ion pre ss the
PRESET button then use the scroll wheel to
locate your desired preset, then press to
select.

DAB Mode Menu Options

DRC Low Dynamic Range Control is

set to half

DRC High The recommended setting

for noisy environments

DRC Off Dynamic Range Control is

switched off

DRC Description

English

13

FM Operation

Extend the telescopic antenna found on the
rear of Pico.

Enter FM Mode by pressing the MODE
key and switching between DAB Mode
and FM Mode. Alternatively, FM Mode
can be accessed via the Main Menu.

If this is the first time Pico has been in FM
mode, it will start at the beginning of the FM
frequency range. Otherwise, the last FM
station you were listening to will be selected.

To sc an thr ough t he FM frequ ency r ang e
turn the scroll wheel.

To ‘S EEK’ the nex t act ive sta tion, press t he
scroll wheel.

Favourite Station Presets

Pico allows you to store 12 favourite station
presets, either via the PRESET button on Pico
itself, or on the optional Pico remote control.

To sa ve the stati on you ar e curre ntly
listening to as a preset, simply press the
PRESET button then use the scroll wheel to
find an unused location. Now press the
scroll wheel to store.

To li sten to a stor ed stat ion pre ss the PRESET
button then use the scroll wheel to locate your
desired preset, then press to select.

FM Mode

Using MPort

Revo’s MPort connector allows for quick
and easy connection of an iPod®, similar
MP3 player or sound source.

Using the connection lead supplied, Pico is
transformed into a high quality digital
audio speaker system.

Connect one end of the supplied audio
lead to the headphone (or auxiliary out)
socket of your source device, then
connect the other end to the MPort
on the front of Pico.

Now press the MODE key and cycle
through the options until ‘MPort Mode’ is
displayed.

Pico’s LCD screen will now display the
word ‘MPort’ on its screen.

You should adjust th e ou tput vo lume le vel
on both the source device and on Pico
itself to gain optimal volume levels and
sound performance.

MPort Mode

M-Port

MPort Mode

MODE

FM Mode

87.50Mhz FM

> Preset 1 unset
> Preset 2 unset

> Preset 1 set
> Preset 2 unset

14

English

System Setup

Info

Software Version and Radio ID

You may be a sk ed fo r on e or b ot h of
these pieces of information when dealing
with a technical support issue.

Both can be found under the ‘Info’
heading, located in the ‘Main Menu’.

Internet Setup

Advanced users can find and edit their
Wi-Fi settings in this section, these
include MAC address, DHCP status, PC
Settings, SSID, IP Settings etc.

Factory Reset

In the unlikely event that Pico RS should
‘crash’, ‘freeze’ or start behaving in a
strange way, it is possible to perform a
full software reset. This operation will
completely reset Pico’s memory, clearing
all WEP/WPA codes and user settings.
This will effectively return Pico to its
default factory settings.

Software Update

It is possible to remotely update Pico RS’s
software via your Wi-Fi internet
connection, to ensure that you have all
the latest features, or to fix known bugs in
the software. To check whether there are
any updates available, simply go to the
‘System Setup’ option on the ‘Main Menu’
and select ‘Software Update’. Pico will
search to see if a software update is
necessary, then report back. If an update
is available and necessary, Pico will start
the download process and install its new
software automatically.

SW version

ir.dabp-mmi.rvo.ve

Radio ID

0013EOA11D25

15

English

Wi-Fi Internet Radio

If you are experiencing any problems with
your Pico RS please read the following
‘troubleshooting’ guide. Alternatively you
can visit the support section of the Revo
website (www.revo.co.uk) or call our
technical support staff on 01555 666161.

If you have trouble connecting Pico RS to
your wireless network, these steps may help
to resolve the problem:

1. Confirm that a Wi-Fi connected PC can
access the Internet (i.e. can browse the
web) using the same network.

2. Check that a DHCP server is available, or
that you have configured a static IP address
on the radio.

3. Check that your network’s firewall is not
blocking any outgoing ports.

As a minimum, Pico RS needs access to
UDP and TCP ports 80, 554, 1755, 5000
and 7070.

4. Check your access point does not
restrict connections to particular MAC
addresses. You can view the radio’s MAC
address under the ‘Internet Setup’ section,
accessed via the ‘System Setup’ option on
Pico’s main menu.

5. If you have an encrypted network, check
that you have entered the correct key or
pass phrase into the radio. Remember that
text-format keys are case sensitive. If, when
attempting to connect to an encrypted
network, your radio displays: ‘Wireless
error’ followed by a 5-digit number, then
please ensure that you enter the correct
pass phrase for the network. If the problem
persists, then you may need to consult your
network configuration.

If Pico RS can connect to the network
successfully, but is unable to play particular
stations, it may be due to one of the
following causes:

1. The station is not broadcasting at this
time of the day (remember it may be
located in a different time zone).

2. The station has reached the maximum
allowed number of simultaneous listeners.

3. The station is not broadcasting anymore.

4. The link on the radio is out of date.

5. The Internet connection between the
server (often located in a different country)
and you is slow.

DAB Digital Radio

Q. I hear a ‘burbling’ noise on some

stations.

A. If the signal strength is too low, a break-

up in reception can occur. This sound is
the result. Make sure that Pico’s antenna
is fully extended and in an upright
position. If no DAB signal is found, it may
be necessary for you to relocate your
radio.

Q. I get a ‘No stations available’ message?

A. Make sure that your antenna is fully

extended and vertical and check whether
DAB coverage is available in your area.

Troubleshooting

Owner&s Guide

v1.0

Français

Table des matières

Bienvenue à Pico RS 3

Aperçu de Pico 3

Garantie + enregistrement de la garantie

3

Avant de commencer 3

Connexion Internet Wi-Fi 3

Inscrire votre radio 3

Commandes et connexions 4

Télécommande 4

Allumer/alimenter Pico 4

Utilisation de la télécommande 4

Pour commencer 5

Méthode de commande de Pico 5

Explication des menus de Pico 5

Mode Radio Internet 6

Se connecter au réseau à large bande 6

Utiliser les fonctions radio 7

Choisir une station 7

Choisir un Podcast 7

Mes préférés 8

Mes stations ajoutées 8

Aide 8

Portail radio Internet 8

Accès aux fonctions supplémentaires 8

Inscrire votre radio 8

Mode lecteur 9

Installation sur PC 9

Installation sur MAC 10

Mode DAB 11

Options du menu du mode DAB 12

Mode FM 13

Mode MPort 13

Installation du système 14

Info 14

Dépannage 15

Droits d’auteur et
remerciements

Copyright © 2011 Revo Technologies Ltd.
Tou s droi ts rés er vés

Revo Technologies Ltd
The Inox Building
Caldwellside
Lanark
Scotland
United Kingdom
ML11 7SR

Tel . [phone]
Int. Tel. [phone]
Fax. [phone]
Int. Fax. [phone]
Email. [e-mail]
Website: www.revo.co.uk

Les informations contenues dans ce guide
sont réputées exactes au moment de leur
publication. Cependant, nous observons une
politique de développement continu et ces
informations sont donc sujettes à
changement sans avertissement préalable.

Revo, Pico et M-Port sont des marques
déposées ou enregistrées de Revo
Tec hnolo gies Li mited .

iPod® est une marque enregistrée de Apple
Computer, Inc.

Règles de sécurité

Ne faites pas fonctionner cette radio près
de l’eau.
Evitez que de petits objets et des liquides
entrent dans ce produit.
N’ôtez pas de vis ou des parties du boîtier.
Utilisez uniquement le bloc d’alimentation qui
est fourni.

EEC : Ce produit a été conçu et testé de
manière à être conforme aux exigences EU
et porte la marque CE.

Support technique

En cas de difficultés pour faire fonctionner
votre radio, ou si vous soupçonnez quelque
défaut, veuillez appeler notre département de
support technique au numéro ci-dessous:

0044 1555 66 61 61

Vous pouvez aussi nous écrire un email à:
ou visiter la section dépannage sur notre
site Web : www.revo.co.uk/support

Préface

Français

2

Vue d’ensemble de Pico RS

Pico RS est la radio digitale ‘tout en un’
ultime, qui fournit un choix sans précédent
de plus de 13 000 stations du monde
entier. Que votre station préférée émette de
votre pays en radio digitale DAB ou DAB+,
ou de l'autre côté du monde via la radio
Internet.

Pico peut capter de nouvelles émissions
DAB+ digitales, sans besoin de mise à jour
ni modification de logiciel, le tout dans un
design résistant aux éclaboussures avec
une batterie interne.

Pico fournit également une couverture radio
FM traditionnelle ainsi que la fonction
supplémentaire de haut-parleur pour iPod®.

Ajoutez à cela une performance audio de
première classe et la capacité de dériver de
la musique depuis votre PC ou Mac, et Pico
Radiostation devient la radio portable de
choix pour la génération digitale.

Garantie

Revo Technologies Ltd garantit à l’acheteur
que ce produit ne présentera de défauts de
fabrication ou sur ses pièces lors de son
utilisation normale durant une période de un
an à partir de la date d’achat.

Cette garantie ne s’applique pas en cas de
dommages accidentels, dus à l’usure ou la
négligence, à des modifications ou à
l’utilisation inappropriée ou si le boîtier a été
ôté.

Si ce produit présente un problème, veuillez
s’il vous plaît contacter votre revendeur ou
voir les coordonnées du support technique
à la page 2 de ce guide.

Enregistrement de la garantie

Une condition de la garantie est d’inscrire

votre achat soit en remplissant la carte de

garantie inclue avec votre radio, soit en

l’inscrivant en ligne sur

www.revo.co.uk/register.

Connexion au réseau

Afin d’utiliser les fonctions radio Internet de
votre Pico RS, vous aurez besoin d'une
connexion Internet sans fil Wi-Fi ou réseau
LAN à large bande.

Veuillez voir la page 6 pour les instructions
au sujet de l’installation.

NB. Si votre réseau sans fil est configuré
pour utiliser l’encodage Wired Equivalent
Privacy (WEP) ou le Wi-Fi Protected Access
(WPA ou WPA2), vous devez connaître le
code WEP ou WPA (code Web) afin de
permettre à Pico de se connecter à votre
réseau sans fil.

Merci d’avoir acheté notre rdio digitale Pico RS, nous sommes certains que
vous en retirerez des années de plaisir et de service fiable.

Ce guide a été conçu pour que vous soyez rapidement prêt à utiliser et
écouter votre radio, pour vous offrir des conseils sur les fonctions plus
complexes de ce produit et vous fournir des informations sur la sécurité, la
garantie et l'enregistrement.

Bienvenue à Pico RS

Avant de commencer

IMPORTANT

Afin de vous assurer que votre Pico RS utilise le
logiciel le plus récent (et a donc accès aux
dernières fonctions du logiciel),

I

nous vous conseillons de réaliser une mise à
jour du logiciel. Veuillez voir la page 14 de
ce guide pour connaître les détails.

Enregistrement de votre radio et
accès aux services supplémentaires

Certaines fonctions avancées de Pico RS ne
sont accessibles qu'en visitant le portail
Frontier Internet Radio
(www.wifiradio-frontier.com).

Ces fonctions incluent la capacité de créer
une liste de ‘favoris’ et d’ajouter des stations
radios et podcasts. Voyez la page 8 afin de
lire les instructions au sujet de
l’enregistrement de votre radio.

Pico RadioStation et DAB+

Lors de l’élaboration du manuel, Pico RS est
une des premières radio digitales à pouvoir
recevoir des émissions sur sa nouvelle
plateforme radio digitale DAB+, et ceci sans
modification ni ajout de logiciel.

Cela signifie que Pico est prêt pour de
futurs développements. Cette fonction est
supplémentaire à la réception qu’a Pico des
signaux DAB standard.

Français

3

Commandes et connexions

Télécommande

Pico fonctionne sur le secteur au moyen de l’adaptateur de courant fourni, ou grâce à sa
batterie rechargeable interne, ou à partir de sa
propre batterie rechargeable interne.

Pour utiliser le secteur, insérez la fiche de l’adaptateur dans la prise DC située à l’arrière de
Pico. Lorsque Pico est connecté au secteur, sa batterie commence à se charger. Chargée
au maximum, la batterie de Pico a 12 heures de vie.

Utilisez uniquement l’adaptateur du bloc-secteur fourni. Des pièces de rechanges sont
disponibles à www.revo.co.uk

1. Écran LCD

2. On/Off

3. Menu

4. Presets

5. Retour

6. M-Port

7. Senseur télécommande

8. Mode

9. Roulette

10. Info

11. Augmenter le volume

12. Diminuer le volume

1. Mode

2. Retour

3. Menu

4. Info

5. Lecteur

6. 12 Presets

7. Défiler Vers le bas

8. Diminuer le volume

9. Augmenter le volume

10. Sélectionner

11. Standby

12. Défiler vers le haut

Lecteur

Pause

Saut arrière Saut avant

Jouer

1. Antenne téléscopique

2. Stereo RCA

3. Port USB mise à jour

4.

3.5 Prise écouteurs 3,5 mm

5. Prise DC

1.

2.

3.

4.

5.

2.

1.

3.

4.

5.

6.

10.

9.

7.

11.

12.

8.

1.

2.

3.

4.

5.

6.

8.

7.

9.

10.

11.

12.

Alimenter Pico RS

Français

4
