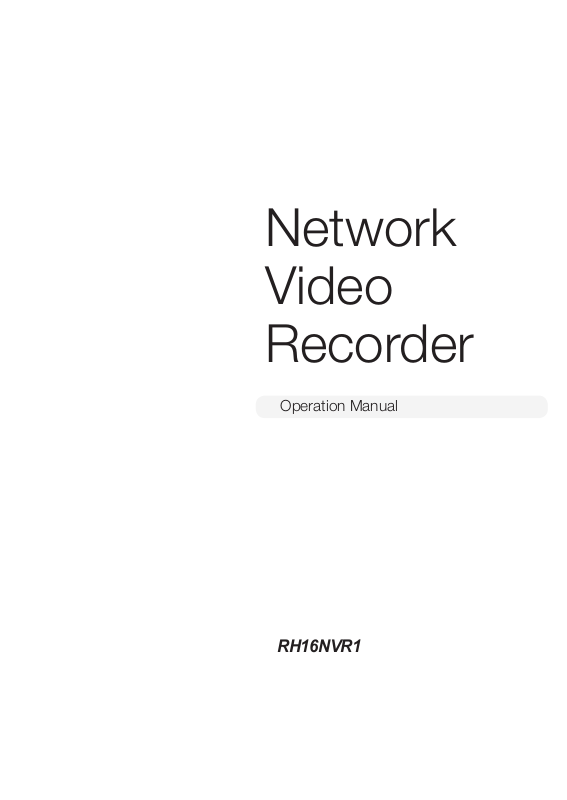

Revo NVR User Manual

Network Video Recorder

Operation Manual

RH16NVR1

Before reading this manual

This operation manual contains basic instructions on installing and using Network Video Recorder. Users who are using this product for the ﬁrst time, as well as users with experience using comparable products,

must read this operation manual carefully before use and heed to the warnings and precautions contained herein while using the product. Safety warnings and precautions contained in this operation manual are intended to promote proper use of the product and thereby prevent accidents and property damage and must be followed at all times.

Once you have read this operation manual, keep it at an easily accessible location for future reference.

• The manufacturer will not be held responsible for any product damage resulting from the use of unauthorized parts and accessories or from the user's failure to comply with the instructions contained in this operation manual.

• It is recommended that ﬁrst-time users of Network Video Recorder and individuals who are not familiar with its use seek technical assistance from their retailer regarding product installation and use.

• If you need to disassemble the product for functionality expansion or repair purposes, you must contact your retailer and seek professional assistance.

• Both retailers and users should be aware that this product has been certiﬁed as being electromagnetically compatible for commercial use. If you have sold or purchased this product unintentionally, please replace with a consumer version.

Safety Precautions

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning ﬂash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product’s enclosure that may be of sufﬁcient magnitude to constitute a risk of electric shock.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

DO NOT REMOVE COVER (OR BACK).

NO USER-SERVICEABLE PARTS INSIDE.

Important Safeguards

Before reading this manual

1. Read Instructions

All the safety and operating instructions should be read before the appliance is operated.

2. Retain Instructions

The safety and operating instructions should be retained for future reference.

3. Cleaning

Unplug this equipment from the wall outlet before cleaning it. Do not use liquid aerosol cleaners. Use a damp soft cloth for cleaning.

4. Attachments

Never add any attachments and/or equipment without the approval of the manufacturer as such additions may result in the risk of ﬁre, electric shock or other personal injury.

5. Water and/or Moisture

Do not use this equipment near water or in contact with water.

6. Ventilation

Place this equipment only in an upright position. This equipment has an open-frame Switching Mode Power Supply (SMPS), which can cause a ﬁre or electric shock if anything is inserted through the ventilation holes on the side of the equipment.

7. Accessories

Do not place this equipment on an unstable cart, stand or table. The equipment may fall, causing serious injury to a child or adult, and serious damage to the equipment. Wall or shelf mounting should follow the manufacturer's instructions, and should use a mounting kit approved by the manufacturer.

This equipment and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the equipment and cart combination to overturn.

8. Power Sources

This equipment should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power, please consult your equipment dealer or local power company.

9. Power Cords

Operator or installer must remove power and TNT connections before handling the equipment.

10. Lightning

For added protection for this equipment during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the equipment due to lightning and power-line surges.

11. Overloading

Do not overload wall outlets and extension cords as this can result in the risk of ﬁre or electric shock.

12. Objects and Liquids

Never push objects of any kind through openings of this equipment as they may touch dangerous voltage points or short out parts that could result in a ﬁre or electric shock. Never spill liquid of any kind on the equipment.

13. Servicing

Do not attempt to service this equipment yourself. Refer all servicing to qualiﬁed service personnel.

14. Damage requiring Service

Unplug this equipment from the wall outlet and refer servicing to qualiﬁed service personnel under the following conditions:

A. When the power-supply cord or the plug has been damaged. B. If liquid is spilled, or objects have fallen into the equipment. C. If the equipment has been exposed to rain or water. D. If the equipment does not operate normally by following the operating

instructions, adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualiﬁed technician to

restore the equipment to its normal operation. E. If the equipment has been dropped, or the cabinet damaged. F. When the equipment exhibits a distinct change in performance ─ this

indicates a need for service.

15. Replacement Parts

When replacement parts are required, be sure the service technician has used replacement parts speciﬁed by the manufacturer or that have the same characteristics as the original part. Unauthorized substitutions may result in ﬁre, electric shock or other hazards.

16. Safety Check

Upon completion of any service or repairs to this equipment, ask the service technician to perform safety checks to determine that the equipment is in proper operating condition.

17. Field Installation

This installation should be made by a qualiﬁed service person and should conform to all local codes.

18. Correct Batteries

Warning: Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions.

19. Tmra

A manufacturer’s maximum recommended ambient temperature (Tmra) for the equipment must be speciﬁed so that the customer and installer may determine a suitable maximum operating environment for the equipment.

20. Elevated Operating Ambient Temperature

If installed in a closed or multi-unit rack assembly, the operating ambient temperature of the rack environment may be greater than room ambient. Therefore, consideration should be given to installing the equipment in an environment compatible with the manufacturer’s maximum rated ambient temperature (Tmra).

21. Reduced Air Flow

Installation of the equipment in the rack should be such that the amount of airﬂow required for safe operation of the equipment is not compromised.

22. Mechanical Loading

Mounting of the equipment in the rack should be such that a hazardous condition is not caused by uneven mechanical loading.

23. Circuit Overloading

Consideration should be given to connection of the equipment to supply circuit and the effect that overloading of circuits might have on over current protection and supply wiring. Appropriate consideration of equipment nameplate ratings should be used when addressing this concern.

24. Reliable Earthing (Grounding)

Reliable grounding of rack mounted equipment should be maintained. Particular attention should be given to supply connections other than direct connections to the branch circuit (e.g., use of power strips).

Before reading this manual

In-Text

Symbol Type Description

Caution Important information concerning a speciﬁc function.

Note Useful information concerning a speciﬁc function.

User’s Caution Statement

Caution: Any changes or modiﬁcations to the equipment not expressly approved by the party responsible for compliance could void your authority to operate the equipment.

FCC Compliance Statement

THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS FOR A CLASS A DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES. THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST HARMFUL INTERFERENCE WHEN THE EQUIPMENT IS OPERATED IN A COMMERCIAL ENVIRONMENT. THIS EQUIPMENT GENERATES, USES, AND CAN RADIATE RADIO FREQUENCY ENERGY AND IF NOT INSTALLED AND USED IN ACCORDANCE WITH THE INSTRUCTION MANUAL, MAY CAUSE HARMFUL INTERFERENCE TO RADIO COMMUNICATIONS. OPERATION OF THIS EQUIPMENT IN A RESIDENTIAL AREA IS LIKELY TO CAUSE HARMFUL INTERFERENCE, IN WHICH CASE USERS WILL BE REQUIRED TO CORRECT THE INTERFERENCE AT THEIR OWN EXPENSE.

WARNING: CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE PARTY RESPONSIBLE FOR COMPLIANCE COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT.

THIS CLASS OF DIGITAL APPARATUS MEETS ALL REQUIREMENTS OF THE CANADIAN INTERFERENCE CAUSING EQUIPMENT REGULATIONS.

WEEE (Waste Electrical & Electronic Equipment)

Correct Disposal of This Product (Applicable in the European Union and other European countries with separate collection systems)

This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government ofﬁce, for details of where and how they can take this item for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.

Before reading this manual

© 2013 REVO REVO reserves all rights concerning this operation manual. Use or duplication of this operation manual in part or whole without the prior consent of REVO is strictly prohibited. Contents of this operation manual are subject to change without prior notice.

The information in this manual is believed to be accurate as of the date of publication. We are not responsible for any problems resulting from the use thereof. The information contained herein is subject to change without notice. Revisions or new editions to this publication may be issued to incorporate such changes.

The software included in this product contains some Open Sources. You may obtain the complete corresponding source code from us. See the Open Source Guide on the software CD (OpenSourceGuide\OpenSourceGuide.pdf) or as a printed document included along with the User's Manual.

Part 1 – Introduction .................................9

Product Features ...............................................9

Accessories ..................................................10

Overview ....................................................11

Front Panel ...........................................................11

Rear Panel ...........................................................12

Rear Panel Connections .................................................13

Remote Control .......................................................16

Part 2 - Getting Started ..............................19

Setup Wizard .................................................19

Camera Registration ............................................22

Camera Scan Button ...................................................22

Camera View Buttons ...................................................23

Camera List Area ......................................................23

Video Display Area .....................................................23

Apply/Cancel Buttons ...................................................24

Camera Registration Mode .......................................25

Live Mode ....................................................26

Live Monitoring Menu ...................................................26

Zoom ...............................................................30

PTZ Control ..........................................................30

Event Monitoring ......................................................32

Covert Camera ........................................................32

Context Menu Access ..................................................32

Edit Group ...........................................................32

Video Recording ...............................................32

Panic Recording .......................................................32

Audio Recording ...............................................33

Video Recording Playback .......................................33

All Channel Playback ...................................................33

Table of Contents

Remote Control Buttons during Playback ....................................33

Context Menu ........................................................33

Part 3 - Conﬁguration ...............................34

Menu Use ....................................................34

Text Input via Virtual Keyboard ............................................34

Batch Assignment .....................................................34

Mouse ..............................................................35

System Setup .................................................35

General .............................................................35

Date/Time ...........................................................36

User ................................................................37

Storage .............................................................39

Monitoring ...........................................................39

Record Setup .................................................41

General .............................................................41

Schedule ............................................................42

Pre-Event ............................................................43

Event Setup ..................................................43

Video-Analytics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Alarm-In .............................................................46

Video Loss ...........................................................47

Audio Detection .......................................................47

Text-In ..............................................................48

Network Setup ................................................49

General .............................................................49

IP Address ...........................................................49

EZLink ..............................................................50

Device Setup .................................................51

Alarm-Out ...........................................................51

Display Setup .................................................51

OSD ................................................................51

Main Monitor .........................................................52

Notification Setup ..............................................52

Schedule ............................................................52

Callback ............................................................52

Mail ................................................................53

Table of Contents

SNS ................................................................54

Push ...............................................................54

Camera Setup ................................................54

General .............................................................54

Advanced Setup .......................................................55

Stream ..............................................................59

Audio ...............................................................60

Upgrade .............................................................60

Part 4 - Search .....................................61

Time-Lapse Search ............................................61

Search Menu .........................................................62

Time-Lapse Search Menu ...............................................63

Context Menu ........................................................66

Print ................................................................66

Event Log Search ..............................................67

Overlapped Recording Search ....................................68

Part 5 - REVO Remote ..............................69

Web Monitoring Mode ..........................................70

Web Search Mode .............................................72

Part 6 - Appendix ...................................75

System Log Types .............................................75

Error Code Types ..............................................76

Troubleshooting ...............................................78

Specifications .................................................79

Index .......................................................81

Part 1 – Introduction

Product Features

This is a video recorder that supports surveillance, video recording, and video playback using a network of cameras.

This NVR (Network Video Recorder) unit offers the following features:

• Real-time 16-channel network surveillance

• Network camera zero conﬁguration

• Conﬁguration-free network camera access

• Supports up to Full HD 240ips video recording

• HDMI out (1) and VGA out (1) ports

• Fast and easy search feature (Time-Lapse, Event log, Motion, Text-In)

• Simultaneously survey, record, play back, and transmit data in real-time

• Graphic User Interface(GUI) and multilingual

• Multiple recording modes (Schedule, Event, Pre-Event, and Panic)

• PoE-enabled Camera Connection

• Two USB 2.0 ports (for connecting peripherals, upgrading software, and saving recording data)

• 2 internal SATA2 HDD bays

• Two-way audio communication

• Network camera audio recording and 1-channel audio playback

• 4 alarm ins and 1 alarm out

• IR remote control-enabled

• Self-diagnosis and automated system event alerts (industry standard S.M.A.R.T. protocol for HDD status alerts)

Network Camera (1-8)

Gigabit PoE Switch

Sensor (1-4)

Audio Out HDMI Monitor VGA Monitor

Network Video Recorder

IR Remote Control

Mouse

Network Connection

Flash Memory

Alarm Out

USB HDD

Alarm

Part 1 – Introduction

Accessories

Upon unpackaging the product, check the contents inside to ensure that all the following accessories are included.

Network Video Recorder Power Cable / DC Adapter(12V, 48V) Quick Guide

Operation Manual and REVO

Remote Pro Program CD

Rack-mount Kit

Optical USB Mouse IR Remote Control

Assembly Screws for Adding Hard

Disk Drives

SATA2 cables

Overview

Front Panel

Part 1 – Introduction

USB Ports

• Remote control sensor is located on the left of the (HDD) LED. Ensure that the sensor remains unobstructed at all times. If obstructed, the sensor might not be able to receive remote control signals.

• Placing a Wi-Fi, Bluetooth, or any other wireless communication device near the NVR may interfere with remote control signal transmission.

• Access various windows and menus using a USB mouse as you would on a personal computer.

• For easier system conﬁguration, a USB mouse is recommended.

LEDs

1 USB Ports

• Storage Device Connection

Connect an external USB hard drive or a USB ﬂash memory device to one of the USB ports for use with the Backup feature. The external storage device should be placed as close to the NVR as possible. It is recommended that you use a connection cable that is no longer than 180cm in length. Use the connection cable included with your external storage device to connect the device to one of NVR's USB ports. For more information Backup, refer to the Backup on page 64.

• Peripheral Device Connection

Use the USB ports to connect peripherals such as a USB mouse or a USB printer to the NVR. You can also use a USB-to-serial converter and connect multiple text-in devices to the NVR at the same time. Connect the printer to one of NVR's USB ports. For more information on printing video stills, refer to the Print on page

66.

For USB ﬂash memory devices, the NVR supports the FAT32 ﬁle format only.

2 LEDs

•

HDD LED: Flashes when data is being written on the HDD or a video search is in progress.

• P Power LED: Lights up while the main unit is in operation.

•

Alarm LED: Lights up in red when an alarm event occurs.

Part 1 – Introduction

Connections on the Front Panel

Flash Memory

Mouse

USB HDD

IR Remote Control

Rear Panel

Factory Reset Button

HDMI Out Port

Video In / Ext. Port

Power In Port (12V)

Audio Ports

Video In / PoE Ports

Alarm Connection Ports

Power In Port (48V)

VGA Out Port

Network Port

RS232 Port

Part 1 – Introduction

Rear Panel Connections

Monitor Connection

Connect to the VGA OUT or HDMI port.

Audio Connection

Connect the speakers with a built-in ampliﬁer to the AUDIO OUT port. Use the AUDIO OUT port to listen to audio from network cameras.

• This NVR does not feature a built-in audio ampliﬁer unit and therefore requires the user to purchase a speaker system with a built-in ampliﬁer separately.

• Check your local laws and regulations on making audio recordings.

• AUDIO IN(Audio input) port is not supported.

Video Connection

• Video In/PoE Port

• Video In/Ext. Port

This port does not support PoE. It's possible to establish a network with network cameras and external hubs using Cat5, Cat5e, and Cat6 cables.

• This port only supports in 8/16 channel.

• Green LED on the right will turn on if connected to a 1000 BASE-T network. Orange LED on the left will then ﬂash once a link has been established.

Network Connection

This NVR is capable of connecting to networks via an ethernet connector. Connect an RJ-45 cable (Cat5, Cat5e, or Cat6) to the NVR's network port. It's possible to operate and upgrade the NVR remotely over a network. Fore more information on ethernet connection setup, refer to Network Setup on page

49.

Green LED on the right will begin to ﬂash if connected a 1000 BASE-T network. Orange LED on the left will then ﬂash once a link has been established.

Connect network cameras to the NVR using RJ-45 cable (Cat5, Cat5e, or Cat6). In addition to cameras, you can connect external hubs to form a network. The NVR recognizes network cameras automatically.

• For the external hub, we recommend using an Ext. port to enable functions such as camera alignment.

• Green LED on the right will turn on when PoE comes on line. Orange LED on the left will then ﬂash once a link has been established.

RS232 Connection

Connect an external device such as a POS unit to this port.

Part 1 – Introduction

Alarm Connection

Connect alarm connectors to these ports.

Press down on the button and insert the cable into the opening. Release the button and then pull on the cable slightly to ensure it is held securely in place. To disconnect the cable, press down on the button again and pull the cable out.

• Alarm In 1 through 4

This NVR is capable of responding to event signals from external alarm in devices. Connect mechanical or electrical switches to ALARM IN 1 through 4 and the GND (ground) connector. In order to be recognized by the NVR, the signal from an alarm in device must be less than 0.3V and maintained for at least 0.5 seconds. The alarm in voltage range is 0V to 5V. For more information on alarm in setup, refer to the

Alarm-In on page 46.

• GND (Ground)

Connect alarm in or out's ground cable to the GND connector.

All connectors marked "GND" are common connectors.

• NO (Relay Alarm Outputs)

This NVR is capable of activating/deactivating buzzers, lights, and other external devices. Connect a mechanical or electrical switch to NO and COM connectors. Electrical speciﬁcations are 2A sync at 125VAC and 1A sync at 30VDC. For more information on alarm out setup, refer to the Alarm-Out on page

51.

• Connector Arrangement

ALARM IN

1 through 4

Alarm In 1 through 4

GND Ground

ALARM OUT COM Relay Common

ALARM OUT NO

Normally Open Relay Alarm Out (connected to COM port)

Power Cable Connection

This NVR does not feature a separate power on/off button and will turn on the moment power is supplied. Connect the connector(12V) of adapter to the NVR and then connect the AC power cable of adapter to the power outlet.

This NVR is built in PSE(Power Source Equipment) to connect the PoE-enabled network camera. Connect the connector(48V) of adapter to the NVR and then connect the AC power cable of adapter to the power outlet.

• Organize the power cable so that it will not cause people to trip over or become damaged from chairs, cabinets, desks, and other objects in the vicinity. Do not run the power cable underneath a rug or carpet.

• The power cable is grounded. Do not modify the power plug even if your power outlet does not have a ground contact.

• Do not connect multiple devices to a single power outlet.

Part 1 – Introduction

Factory Reset

Located next to the Audio Out port on the rear of the NVR is a switch that, once activated, will reset the NVR to all its initial factory settings.

A factory reset will clear all NVR settings conﬁgured by the user.

You will need a straightened paper clip to access the factory reset button.

Connections on the Rear Panel

Restart the NVR (turn off and then on).

Once the front panel LEDs start to ﬂash, insert

a straightened paper clip into the factory reset switch hole and press the switch.

Press and hold until you hear 2 beeps from the

NVR's internal buzzer.

All NVR settings will be returned to their factory

values once you remove the paper clip.

Speaker

HDMI Monitor

VGA Monitor

REVO Remote Pro Remote Monitoring

Camera

Gigabit PoE Switch

Network

Keyboard

DirectIP™ Switch

Alarm

Sensor

Power (48V)

Power (12V)

POS

Part 1 – Introduction

Remote Control

1 2

ID Button

PANIC Button

Camera Buttons

STATUS Button

LAYOUT Button

PTZ Control Buttons

THUMBNAIL Button

4 5

7 8 9 0

(

) b a

d e f

CALENDAR Button

KEYLOCK Button

SETUP Button

FREEZE Button

LOG Button

Enter Button

Arrow Buttons

ALARM Button

SEQUENCE Button

ZOOM Button

PTZ Button

(

VIEW Button

)

SAVE Button

MENU Button

Playback Buttons

BOOKMARK Button

CLIP COPY Button

MUTE Button

Part 1 – Introduction

1 ID Button

Used to assign remote control ID values. No additional remote control assignment is

necessary if the system's ID is 0. If the system's ID is a number between 1 and 9, however, you will need to press the ID button and then press the system ID number (1 through 9) on the remote control. The

(remote control) icon will appear on the bottom left corner of the NVR screen (status indication area) to indicate successful system-toremote control pairing. If using multiple systems, it's possible to control all the units with a single remote control as long as all the system IDs are 0. For more information on system IDs, refer to the System Setup on page 35.

2 PANIC Button

Pressing this button commences recording irrespective of the current schedule.

Press the button again to deactivate Panic Recording mode.

3 Camera Buttons

Pressing the Camera button while in Live or Playback mode displays images from the selected camera in full screen.

4 STATUS Button

Displays event and recording device statuses.

5 LAYOUT Button

2x2 > 3x3 > 4x4

6 PTZ Control Buttons

Used in PTZ mode to zoom in/out on the screen and to shift focus between a nearby point and a far away point.

7 REGISTER MODE Button

Used in Live mode to access Camera Registration mode.

8 THUMBNAIL Button

Used in Playback mode to access Thumbnail Search mode. Thumbnail Search mode displays thumbnails of video recordings and allows you to search recordings based on date and time parameters. (Will be supported.)

9 CALENDAR Button

Used in Playback mode to display the Calendar Search screen.

0 KEYLOCK Button

Locks out all remote control keys. To unlock, press the button again.

! SETUP Button

Displays NVR and IP Camera Setup window and allows you to search the log.

@ FREEZE Button

Used to pause Live screen.

# LOG Button

Displays system log window and allows you to search the log.

$ Enter Button

Used to make menu option selections and register data entries. In addition, pressing the Enter button while in Live or Playback mode initiates Cameo mode.

% Arrow Buttons

Used to navigate through menus and interact with GUIs. In a Setup menu, use the Up/Down Arrow buttons to increase or decrease numerical values. In Live or Playback mode, use the Left/Right Arrow buttons to view the previous or next screen.

^ ALARM Button

Pressing this button while the alarm has been activated resets all NVR outputs, including the built-in buzzer. Displays the event log on the screen when the alarm is off in Live mode.

& SEQUENCE Button

Pressing the SEQUENCE button while in Live mode initiates Live Sequential mode (displays channels in sequence).

* ZOOM Button

Used to zoom in on a speciﬁc part of the screen. Once zoomed in, use the arrow buttons to pan around.

Part 1 – Introduction

( PTZ Button

Initiates PTZ mode and allows you to control the selected PTZ camera.

) VIEW Button

Pressing the VIEW button while in PTZ mode displays the preset list.

a SAVE Button

Press the SAVE button while in PTZ mode to save the current position as a preset.

b MENU Button

Pressing the MENU button while in Live mode displays the Live menu. Alternatively, pressing the button while in Search mode displays the Search menu. Press the button once more to close the menu. Use the arrow buttons to select menus and options.

c Playback Buttons

Scans backward through the video at a fast rate. (Press to cycle through

, , and

the speed)

Plays the video in normal speed and displays

r on the screen. Pressing the "qbutton

during playback pauses the video and displays

on the screen.

Scans forward through the video at a fast rate. (Press to cycle through

, , and

the speed)

Stops the video and restores Live mode.

Skips to the previous screen (while in paused

state).

Skips to the next screen (while in paused

state).

d BOOKMARK Button

Adds a bookmark to the current playback position.

e CLIP COPY Button

Used to perform Backup.

f MUTE Button

Temporarily disables audio.

Part 2 - Getting Started

Setup Wizard

Setup Wizard lets you conﬁgure basic settings required for operating the system.

Setup Wizard only appears during initial booting. To use Wizard after initial booting, go to Live menu and select Wizard.

Select a system language.

Quick Wizard

Specify the current date and time and then click

Next.

• The new date and time settings will only be applied after clicking Next.

• For more information on date and time settings, refer to the Date/Time section under System Setup on page 35.

Start the Quick Setup Wizard.

Select Cancel from any of the Wizard screen to cancel the setup process and return to the main setup menu.

Choose the desired Recording Method and click

Next.

Part 2 - Getting Started

Choose the desired Recording Quality and click

Next.

• Higher recording quality uses up more disk space.

• Recording resolution is determined based on the selected recording quality.

– High Video Quality Priority Proﬁle: Very

high – Standard Recording Proﬁle: High – Longer Recording Time Priority Proﬁle:

Standard

Click Finish to exit Quick Wizard.

Network Wizard

Start the Network Setup Wizard.

– Recording resolutions used under each recording

method and record video quality setting are as follows:

High Video Quality Priority Proﬁle

Motion Event Record

Continuous & Motion Event Record

Continuous Very high High Low

Very high High Standard

High (Continuous) / Very high (Motion)

Standard Recording Proﬁle

Standard (Continuous) / High (Motion)

Longer Recording Time Priority Proﬁle

Low (Continuous) / Standard (Motion)

Specify whether the system is connected to the

Internet and click Next.

If you have chosen No, wait for the test to ﬁnish and then click Finish to exit Network Wizard.

Select Network Conﬁguration and then click

Next. Select either Auto Conﬁguration or Manual Conﬁguration and then click Test to test the system's current network conﬁguration.

• This test must be performed before proceeding to the next step.

• If the NVR is on a network connected to a network that has a DHCP server, selecting Auto Conﬁguration retrieves LAN settings such as IP and DNS addresses automatically. Selecting Manual Conﬁguration, on the other hand, lets you specify the settings manually.

• UPnP support device not found. If this error message is displayed, check to see if the IP router (or NAT) supports UPnP and if UPnP has been enabled. For more information about the router's UPnP function, refer to the router's operation manual.

• The device name you register on the DVRNS server will be a unique name used to identify the NVR. Once registered, the name can be used to access the NVR directly from clients such as the REVO Remote Pro. Check the name's availability to complete the registration process. The Finish button will then become activated.

• You will be prompted with an error message if you do not enter a name for the NVR or enter a name already registered on the DVRNS server.

• Depending on the network environment, EZLink services may not be active and therefore prevent the NVR from connecting to the network. In this case, you will need to manually conﬁgure the ports. For more information on port conﬁguration, refer to refer to Network Setup on page 49.

Click Finish to exit Network Wizard.

Part 2 - Getting Started

Enter in the Device Name ﬁeld the NVR name to

be registered on the DVRNS server and then click Check to check its availability.

Part 2 - Getting Started

Camera Registration

Once Network Setup Wizard is complete, the system will automatically enter Camera Registration mode and scan for cameras connected to the NVR.

Camera Scan Button

Camera View Menus

Camera List Area

Video Display Area

Apply/Cancel Buttons

• Go To Camera: Moves the focus automatically to the camera using MAC address of camera in the camera list.

• Auto Detection: Activated in Live mode. Automatically notiﬁes the user of unregistered camera connections.

Camera View Buttons

• ALIGNMENT Button: Realigns camera screens displayed on the video display area in the order of Video In port connections.

• RESET and the camera list.

Button: Refreshes the video display area

Selecting RESET clears all scanned devices from the list.

Camera Scan Button

You can scan and search and register cameras that were not detected automatically.

Pressing the Scan button displays the following submenu.

• Rescan: Scans for cameras that were not scanned automatically.

Camera List Area

Part 2 - Getting Started

Screen display

Screen

No display

Registered

Initial registration

other NVRs

(Registration X)

Initial registration

other NVRs

(Registration X)

1 Screen Position/Registration Status: Identiﬁes

the camera's position in the video display area. A white background indicates a camera that is available for registration. A dark blue background indicates an already registered camera. Other registered cameras are shown in black background.

2 Model: Indicates the camera's model.

3 MAC: Displays the last 6 digits of the camera's

MAC address.

4 Title: Indicates the camera's name. Changing a

camera's name in the video display area updates the camera list as well.

Following options can be accessed by right-clicking on a camera list entry:

• Add/Remove Camera: Adds or removes the selected camera. The Add Camera option is inactive if the camera has already been added to the screen.

Video Display Area

Left-click on the video display area to toggle between split screen and single screen modes.

Drag the camera screens around to rearrange them.

Camera Screen

1 Camera Title

Indicates the camera's title. Left-click on the title to edit the camera's title.

2 MAC Address

Camera's model and MAC address are shown if the camera has not been registered to the NVR.

3 Screen Position/Registration Info

Flashes in orange if the camera has not been registered to the NVR.

• Information is not indicated on the bottom of the screen for cameras already registered to the NVR, and the Screen Position/Registration Info icon is shown with a black background.

• Screen Position/Registration Info icon for cameras registered to another NVR is shown with a steady orange background on top of a grey screen.

Part 2 - Getting Started

Camera Menu

Right-click on the video display area to bring up the camera menu.

• Remove Camera: Removes the registered camera.

• Authentication: Enter the necessary camera login info.

• Color Control: Adjusts the camera's color settings.

• Information: Displays the camera's basic information.

• Title: Edits the camera's title.

You can drag & drop to add or remove cameras.

Camera Registration Mode

While in Live mode, right-click and select Camera Registration.

If Auto Detection has been enabled, a message will appear while in Live mode when a new camera is detected.

Apply/Cancel Buttons

While in Camera Registration mode, select Apply to register all changes.

Select Cancel to exit Camera Registration mode without applying the changes.

It is not possible to register a camera that has already been registered to a different NVR.

Select OK to enter Camera Registration mode.

Auto Detection should be disabled if no more camera connections are expected.

Login

Conﬁguring the NVR's settings and accessing its searching and other functions require an authorized user login.

While in Live mode, right-click on the mouse and

select Login and either press the SETUP button on the remote control.

Select a user, enter the password, and then select

OK.

• There is no default password for the admin account. Select admin and then OK without entering a password to log in.

• Leaving the admin account unassigned with a password poses a security risk. Please assign a password at your earliest convenience. A warning message will continue to be displayed until a password is assigned.

• Click on the ﬁeld using the mouse. This will bring up a virtual keyboard you can use to assign a password. For more information on using the virtual keyboard, refer to the Text Input via Virtual Keyboard on page 34.

button next to the password

Part 2 - Getting Started

To log out, right-click on the mouse and select

Logout.

Part 2 - Getting Started

Live Mode

Live Monitoring Menu

Press the MENU button on the remote control while in Live mode to bring up the Live menu on the right edge of the screen. Press MENU button once more to hide the menu. Use the Arrow buttons on the remote control to select the menu options.

Layout

Select Camera

Alarm

Status Indication

Placing the mouse pointer near the right edge portion of the screen also displays the Live menu.

Display

Sequence

Status

Previous Group,

Next Group

Freeze

Wizard

Search Mode

Panic Recording

Setup

4 5 6 7 8

9 0

! @

Part 2 - Getting Started

1 Layout

Used to change the screen layout to single screen, 2x2, 3x3, or 4x4.

2 Display

• OSD (On Screen Display): Enables/disables the OSD feature.

• Aspect Ratio: Select whether to enable the original aspect ratio of video transmitted from the camera.

3 Previous/Next Group

Loads the previous/next screen group.

4 Search Mode

• Time-Lapse Search: Select Search Mode > Time-Lapse Search to search for and play back saved data directly from the record table.

• Event Log Search: Select Search Mode > Event Log Search to search for event logs and play back associated event recordings.

5 Select Camera

Displays the selected camera in a single screen format.

6 Sequence

Initiates Sequence in the same manner as pressing the SEQUENCE button while in Live mode. To exit, select Sequence once more or press the SEQUENCE button on the remote control. The

icon is displayed on the bottom left part of the

screen while Sequence is in progress.

Full Sequence

Sequence

Cameo Sequence

In Cameo Sequence mode, only the bottom right screen in a split screen setup changes sequence. In order to use the Cameo Sequence feature, Cameo Sequence (Display Setup - Main Monitor > Sequence) must ﬁrst be enabled.

e.g.) Cameo Sequence in 2x2 split screen mode

• If using the Full Sequence setting, page numbers appear on the system status area on the bottom left part of the screen, next to the Sequence icon.

• Pages are skipped under the following circumstances:

– If all cameras included in the page are

deactivated. – If there are no video signals. – If the page contains "covert" cameras. – If the user does not have permission to view

feeds from the cameras.

7 Freeze

Freezes the screen. Select Freeze again to unfreeze.

8 Panic Recording

Activates/deactivates Panic Recording.

9 Alarm

Pressing this button while the alarm has been activated resets all NVR outputs, including the builtin buzzer.

Displays all channels in sequence while in Live mode (single and split screen settings). In order to use the Full Sequence feature, Full Sequence (Display Setup

- Main Monitor > Sequence) must ﬁrst be enabled.

e.g.) Full Sequence in 2x2 split screen mode

Part 2 - Getting Started

0 Status

Event

This screen displays an overview of all events. When an event occurs, the corresponding channel

ﬂashes for 5 seconds.

Event Types

Alarm-In Check Alarm-In

Motion Video Loss

Audio Detection Trip Zone

Tampering Text-In

Storage

Indicates each disk's status.

• Disk Bad

Not Formatted

A disk that has never been used before.

• Disk performing normally.

Good

• If the HDD is partially damaged, indicates the bad sector percentage.

• If the HDD's bad sector ratio is

Error

higher than as designated by the user.

• Generates a system event.

• Temperature

• Panic Record: Displays event status based on current Panic Record status.

• Check Recording: Displays event status based on System Monitoring settings. For more information, refer to the Monitoring on page 39.

• Disk Almost Full/Disk Full: If the storage device is not in Recycle status, event status is displayed when the amount of disk space speciﬁed under System Monitoring is reached and when the disk becomes 100% full. For more information, refer to the Monitoring on page 39.

• Fan Error: Event is indicated when the cooling fan cannot reach a certain RPM or fails for longer than 50 seconds.

• Disk Conﬁg Change: It will be highlighted when the NVR reboots after the hard disk drive has been replaced.

N/A

Good

Unable to detect the disk's temperature.

Operating within normal temperature range.

• Disk temperature higher than as

Bad

designated by the user.

• Generates a system event.

• S.M.A.R.T.

N/A

Good

A disk that does not support S.M.A.R.T.

A disk with normal S.M.A.R.T. status.

A disk with abnormal S.M.A.R.T.

Bad

status. Possibility of damage within 24 hours.

• Conﬁgure Disk Bad and Disk Temperature settings under Setup > System > Monitoring.

• Check each disk's data storage time information under Recording Data.

Network

This page provides a complete overview of the network status in real-time.

Part 2 - Getting Started

Information shown include camera connection status, LAN port link status, power consumption, number of connected clients, and network connection info.

Camera Connection

Network Switch

LAN Port Link

indicates the camera is connected. indicates the camera is not connected.

indicates a network switch is connected to the LAN port and shows how many

cameras are connected.

indicates a camera or a network switch is connected. indicates neither is

connected.

If receiving power from the NVR, the actual amount of power consumed by each camera is indicated under each camera icon. Total power consumption is shown at

Power Consumption

the top of the screen in the following format:

[ Total PoE Power Consumption: 22.0W (Max 50.0W) ]

Ports 1 through 8 support PoE. (VIDEO IN Ext.) and (NETWORK CLIENT) ports do not support PoE.

Number of Connected Clients

Indicates whether there are clients connected to the NVR via an external network and how many clients are connected.

indicates at least one client is connected. indicates no client is connected.

Indicates network connection statuses (connected, connecting, disconnected, and

Network Connection

connection error) using following lines:

Info

Part 2 - Getting Started

! Wizard

Launches the Setup Wizard.

@ Setup

Used to access the Setup menu.

# Status Indication

Displays system status icons.

Status Indication

Indicates remote control receptivity.

Indicates external network connectivity.

Indicates a zoomed in state.

Indicates Freeze is in use.

Indicates Sequence is in use.

1/4 Indicates the current screen's group.

Indicates an event occurrence.

Indicates HDD use. The icon to the left is shown if using the overwrite setting. Otherwise, remaining HDD space is shown as a percentage value.

Zoom

Press the ZOOM button on the remote control and select a channel you wish to zoom in on. A zoom frame will appear on the selected channel. Use the arrow buttons to position the frame. Press the Play/ Pause button to cycle through various zoom factors. When Zoom is activated, located on the bottom left corner of the system.

icon is on the status bar

PTZ Control

While in Live mode, right-click and select PTZ from the context menu or press the PTZ button on the remote control to display the PTZ camera selection window.

Select the camera you wish to control. The icon will begin to ﬂash on the selected camera's OSD window.

Use the Arrow buttons to pan and tilt the camera up, down, left, and right.

You can also change the direction by dragging on the mouse.

Also, it's possible to use the mouse wheel to zoom in/ out.

• Logging in with an account that has PTZ Control Authority is necessary in order to control PTZ cameras.

• A message will prompt if there is no PTZ camera displayed on the Live screen.

• Zoom in/out and shift focus using the PTZ Control (ZOOM, FOCUS) buttons on the remote control.

• To exit PTZ mode, press the PTZ button again.

• In Full Screen mode, activating Zoom automatically selects the current channel.

• To restore the channel to normal size, press the Zoom button again.

Part 2 - Getting Started

Setting Up a PTZ Preset

While in PTZ mode, select the VIEW button on the remote control to display the Set Preset window and assign the current position as a preset.

While in PTZ mode, select the SAVE button on the remote control to display the Move to Preset window. Select a preset to move the current PTZ camera to the selected preset's position.

Advanced Settings

In PTZ mode, selecting a camera and then clicking Menu button loads the Advanced PTZ screen as shown below. This menu lists Speed, Auto Pan, and other advanced PTZ camera control options available for the camera. Options that are not available for the selected PTZ camera remain inactive.

You can use the mouse to control PTZ cameras. Left-click on the mouse and drag to move the camera in the desired direction and use the mouse wheel to zoom in/out.

While in PTZ mode, place the mouse pointer close to the bottom edge of the screen to display the PTZ Tools window.

PTZ Camera Pan and Tilt

Zoom In/Out

Focus Near / Far

IRIS Open / Close

One Push

Set / Move to Preset

Advanced PTZ

• The exact PTZ protocol supported by the camera must be speciﬁed in order to use the NVR's PTZ controls.

• Drag and drop to reposition the PTZ Tools window.

• Select the

icon to hide the PTZ Tools window.

Part 2 - Getting Started

Event Monitoring

When an event occurs, the NVR automatically displays the channel linked to the event and shows the icon on the system status area on the bottom left portion of the screen. To use the Event Monitoring feature, navigate to Display Setup > OSD and enable Event Monitoring. Event Monitoring remains in effect throughout the entire Linked Recording Time. After that, the NVR will return to the previous screen if a new event does not take place. Pressing the Layout or a Camera button before the end of the Linked

Recording Time reverts the system to Live mode.

Covert Camera

Use this feature to assign Covert Camera View permissions.

Navigate to Camera Setup > General and designate cameras as Covert 1 or Covert 2.

• Covert 1: Hides images from the camera in Live mode but does indicate the camera's title and status via icons.

• Covert 2: The camera is indicated as being inactive. Images from the camera are not shown. Camera title and status icons are not shown.

Users that have a cover Covert Camera View are able to view both images from and status icons for all Covert 1 and Covert 2 cameras.

• Information: Select a network channel to display information about the selected channel's device.

• Edit Group: Rearrange the split screen layout.

• Camera Registration: Activate Camera Registration mode.

• Login/Logout: Log into the account or log out of the account.

Edit Group

Edit Group lets you customize split screen pages in both Live and Search modes.

While displaying a split screen page, select the

Edit Group option from the context menu. A yellow border is drawn around the page. Use the arrow buttons on the remote control or the mouse to select a different page.

Press a Camera button or select a camera after

pressing the Menu button. Selected camera is then loaded on to the selected page. Repeat to assign other channels to the page.

Press the remote control's button to exit Edit

Group. Alternatively, press the Menu button and then select Exit Group Edit to exit.

Edit Group will terminate automatically after 15 seconds of inactivity.

Context Menu Access

While in Live mode, press the remote control's button and then the Menu button to display the Context Menu window. Alternatively, right-click on the mouse to access the Context menu.

• PTZ: Access PTZ controls.

• Zoom: Zoom in.

• Audio: Enable/disable audio. (This function supports only in single screen.)

• Color Control: Select a channel to display its Color Control window. Adjust the selected camera's brightness, contrast, saturation, and hue settings.

Video Recording

Video recording will only take place if all the connections are made correctly as per information contained in Part 2 of this operation manual.

For more information on video recording settings, refer to the Record Setup on page 41.

Panic Recording

Select Live or Search menu's Panic Recording icon or press the Panic Recording button on the remote control to commence panic recording on all registered cameras.

Part 2 - Getting Started

To stop Panic Recording, select the Panic Recording

icon or press the Panic Recording button again. If the Panic Recording Duration option under Record Setup > General has been conﬁgured, Panic Recording will automatically terminate after the speciﬁed duration of time has elapsed. For more information, refer to the Record Setup on page

41.

• Panic Recording takes place irrespective of any recording schedule set up by the user.

• Panic Recording video proﬁle from Record Setup – General applies to all Panic Recording videos.

Panic Recording will not take place if recording mode is not set to Recycle and the HDD has reached 100% of its capacity.

Audio Recording

If the Record Audio option under Record Setup > General has been enabled, the camera will record

audio along with video. For more information, refer to the Audio on page 60, Record Setup on page

41.

Check your local laws and regulations on making audio recordings.

All Channel Playback

Press the Menu button while in Live mode.

Select the Search Mode icon and then select

Time-Lapse Search or Event Log Search.

The selected search mode will be initiated.

For more information on data search, refer to the

Search on page 61.

Remote Control Buttons during Playback

Camera Button: Displays the selected recording

in full screen.

Zoom Button: Allows you to zoom in on a

speciﬁc area of the recording.

Layout Button: Cycle through 2x2, 3x3, and 4x4

modes.

Video Recording Playback

You can play back video recordings by using mouse or remote control.

• Login with an account that has search permission is needed to playback video recordings.

• The initial video playback point in Search mode is the recording's last playback point or the end of the recording data.

• Audio playback of the selected recording is available in full screen mode only.

• Covert protection on cameras also applies to video recording playback.

Context Menu

While in Search mode, press the remote control's

button and then the Menu button to display the Context Menu window. Alternatively, right-click on the mouse to access the Context Menu.

• Zoom: Zoom in.

• Audio: Enable/disable audio. (This function supports only in single screen.)

• Edit Group: Rearrange the split screen layout.

Part 3 - Conﬁguration

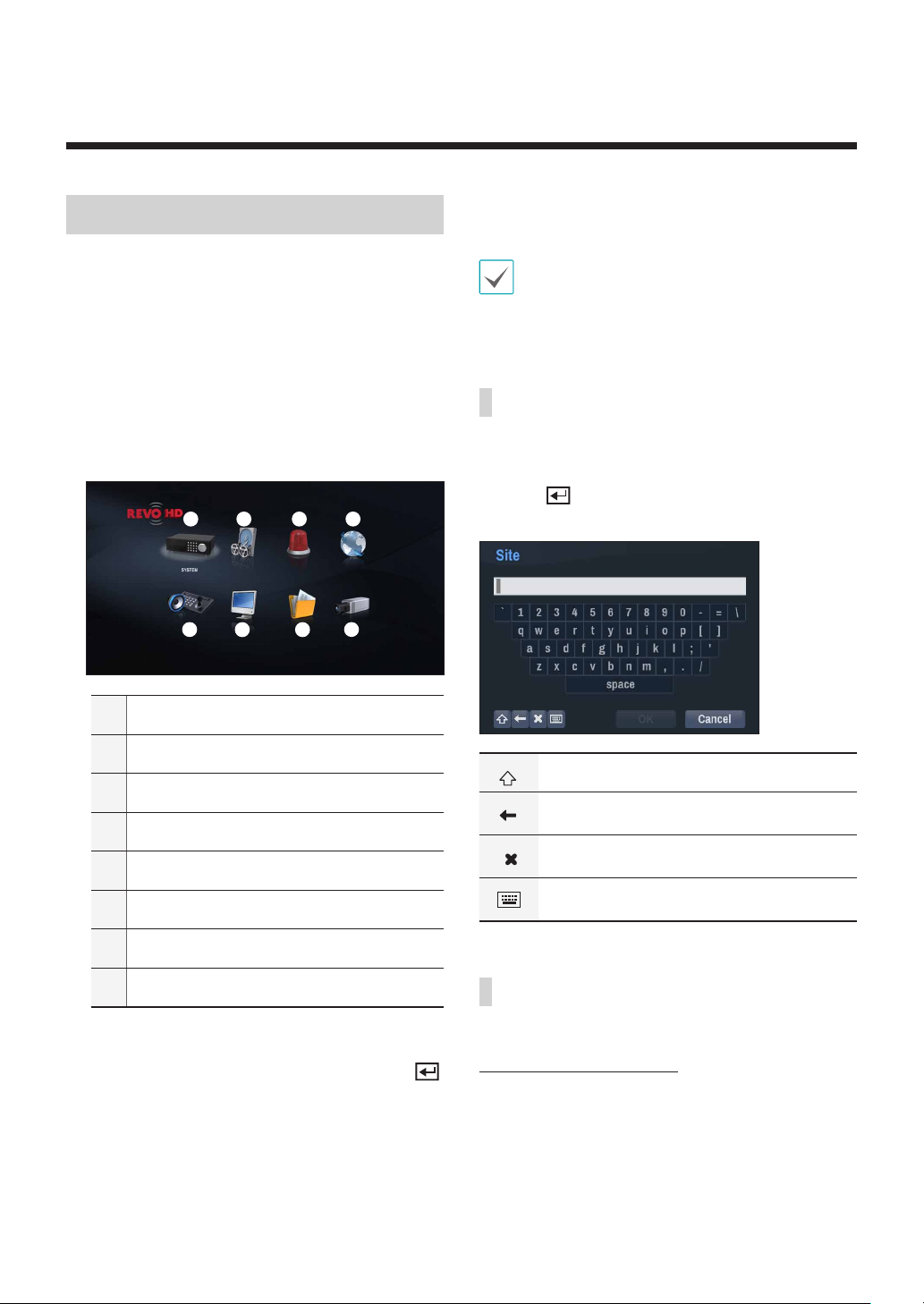

Menu Use

Change the setting and then select Apply or OK

to save the change.

Information contained in this section (Menu Use) applies to all other instructions found throughout Part 3 - Conﬁguration.

While in Live mode, press the remote control's

SETUP button or select Live menu > Setup using the mouse.

System Setup

Record Setup

Event Setup

Network Setup

Device Setup

Display Setup

5 6 7 8

To apply default settings, select the Default button located on the left bottom corner of the setup window.

Text Input via Virtual Keyboard

Use the remote control's arrow buttons to select a virtual keyboard key and then press the remote control's mouse.

button or click on the key using the

Toggle case.

Deletes the character to the left of the cursor.

Deletes the character to the right of the cursor.

Converts keyboard.

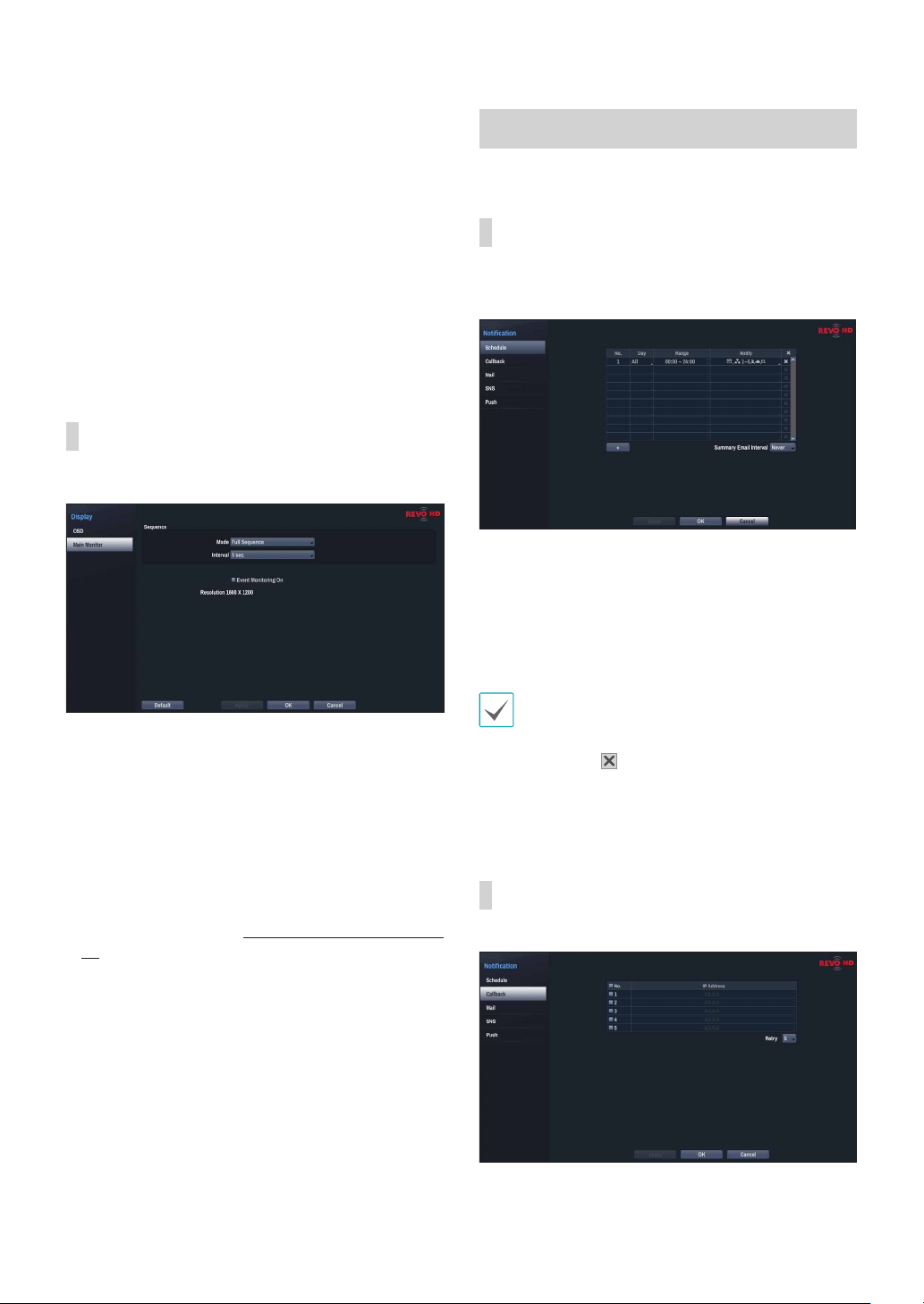

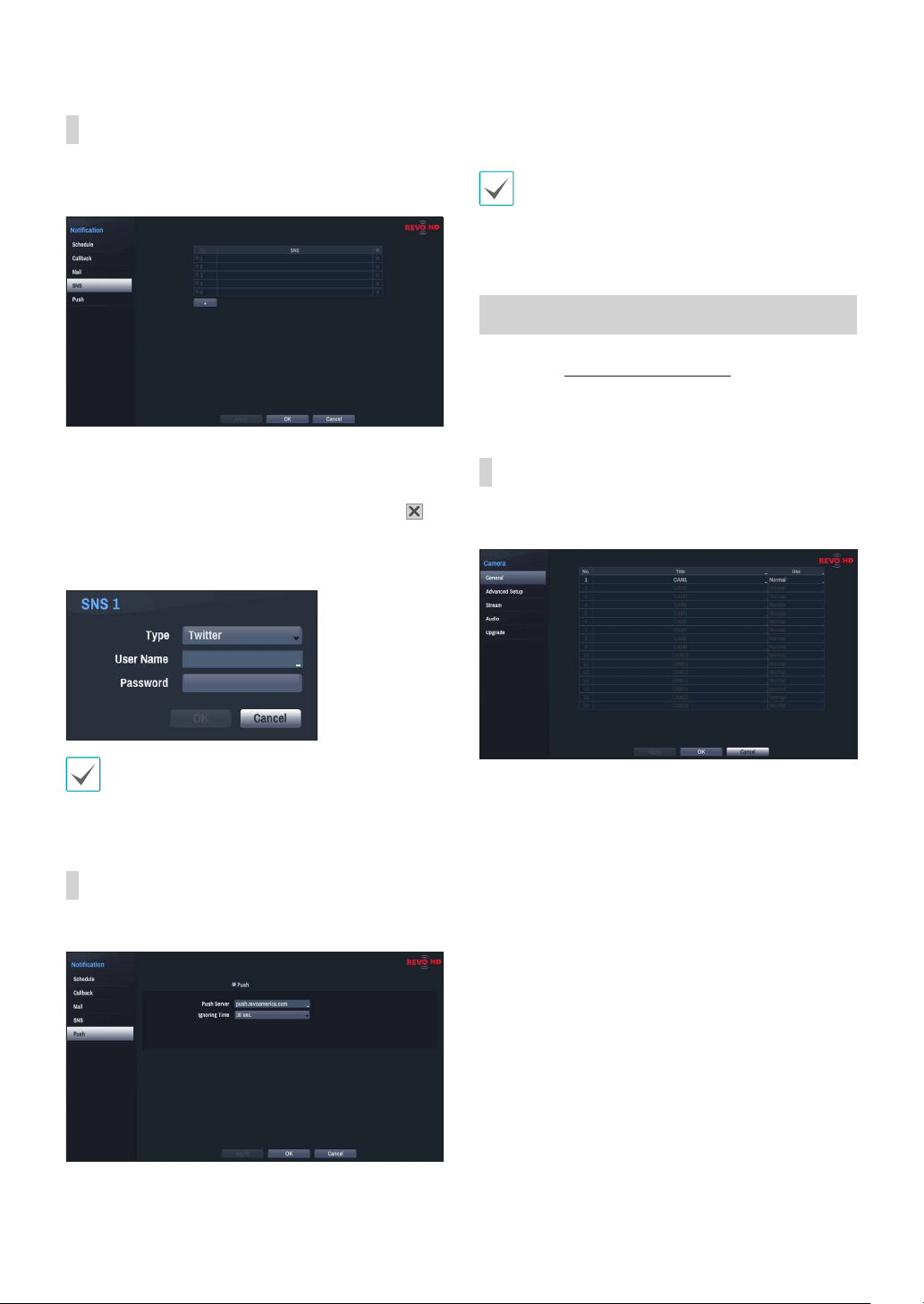

Notiﬁcation Setup

Camera Setup

Use the remote control's arrow buttons to select

an option and then press the remote control's button or left-click on the option using the mouse.

Batch Assignment

Certain table-format menus such as the shown in the Camera Setup on page 54 allow you to change the title value. In this case, changing the title value simultaneously changes all other entry values on the same row.

Part 3 - Conﬁguration

Mouse

Using a mouse makes it easier to conﬁgure the settings. A mouse lets you make selections faster and use its wheel to scroll through long menus. You can also use the mouse wheel to increase/decrease numerical values.

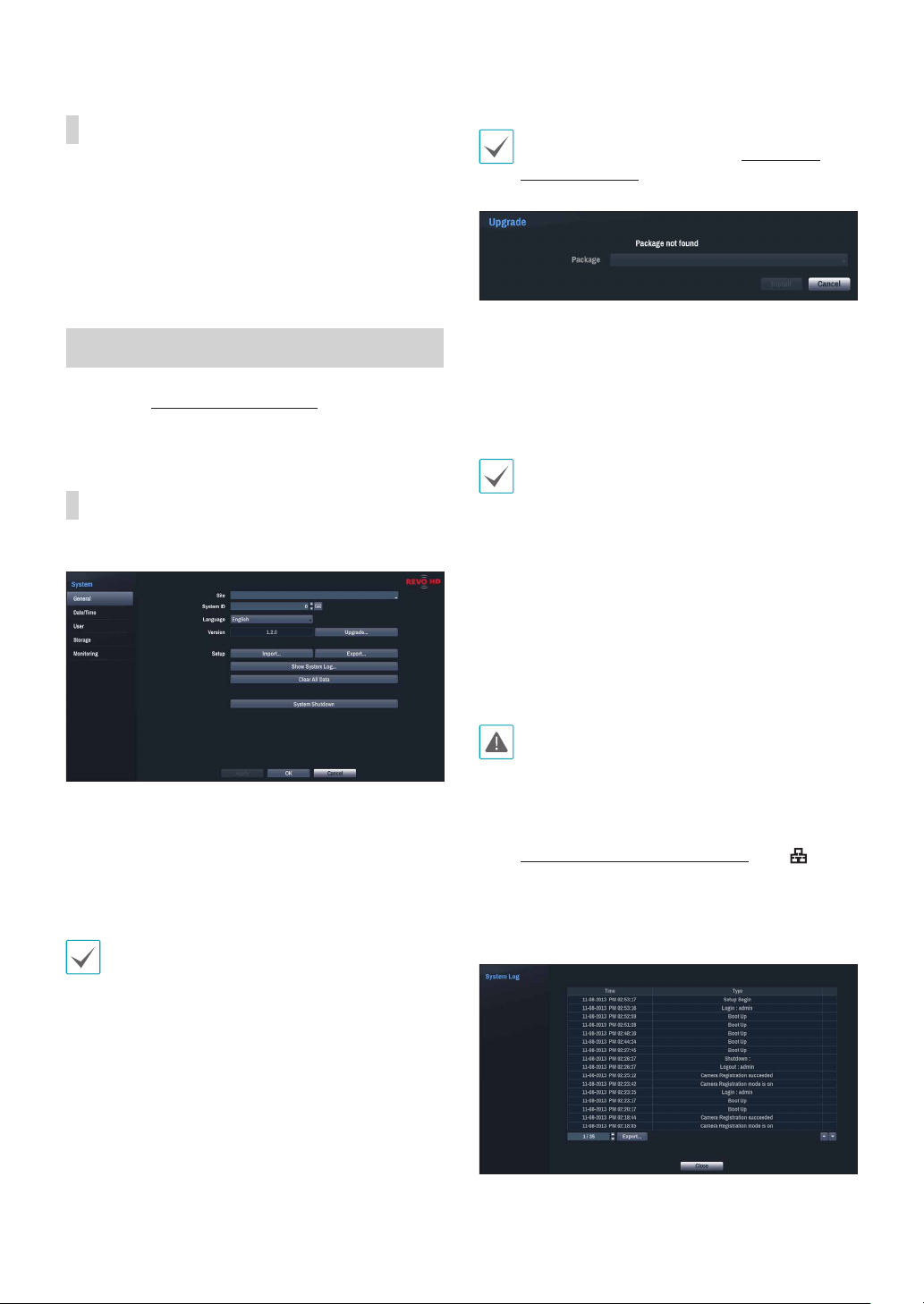

System Setup

Refer to the Menu Use on page 34 for basic information on using the Setup menus.

General

This Setup menu contains general system options.

If an upgrade attempt fails, an upgrade failure message will be displayed. Refer to Error Code Types on page 76 for more details.

• Setup: Exports current NVR settings or imports existing settings.

• Import: Decide whether to import network settings as well. If you do not wish to change the current network settings, do not select Include Network Setup.

Selecting Setup Import does not change the settings below.

• Time-related settings (Date/Time, Time Zone, and Use Daylight Saving Time)

• Camera-related Advanced Settings settings

• Camera-related Stream settings (Only if the resolution is different from the camera in exporting)

• Export: Exports the current system settings to a storage device connected to the system's USB port. You can designate a File Name for the export ﬁle.

• Site: Used to enter a description about the system's installation site (no description by default). You can edit the information using the virtual keyboard.

• System ID: Used to identify the NVR apart from other NVRs. System ID is also used to control the NVR with the remote control.

The default System ID is 0 and can be changed to a value between 0 and 99.

• Language: Choose a language.

• Version: Indicates the software version.

• Upgrade: Select to upgrade the system. Selecting Upgrade displays the USB search window. You will then be able to select an upgrade package and upgrade the system. Once the upgrade is complete, the NVR will reboot automatically.

For USB ﬂash memory devices, the NVR supports the FAT32 ﬁle format only.

• Show System Log: Displays a searchable list of 5,000 most recent system log entries. For more information on types of system log entries, refer to the System Log Types on page 75. The icon appears next to log entries originating from a remote source. To export the system log, select the Export at the bottom of the screen and then designate a ﬁle name.

Part 3 - Conﬁguration

In order to display the system_log.txt ﬁle, you must use the correct character encoding settings and use a ﬁxed-width font.

• Clear All Data: Erases all recording data. Selecting Clear All Data displays a conﬁrmation window. Select Clear to proceed.

• Before you perform Clear All Data, make sure you are not accidentally deleting important data. Erased data cannot be recovered.

• Clear All Data does not affect the system log. Instead, the Clear All Data event will be added to the log.

• System Shutdown: Shuts down the system. When prompted, select System Shutdown.

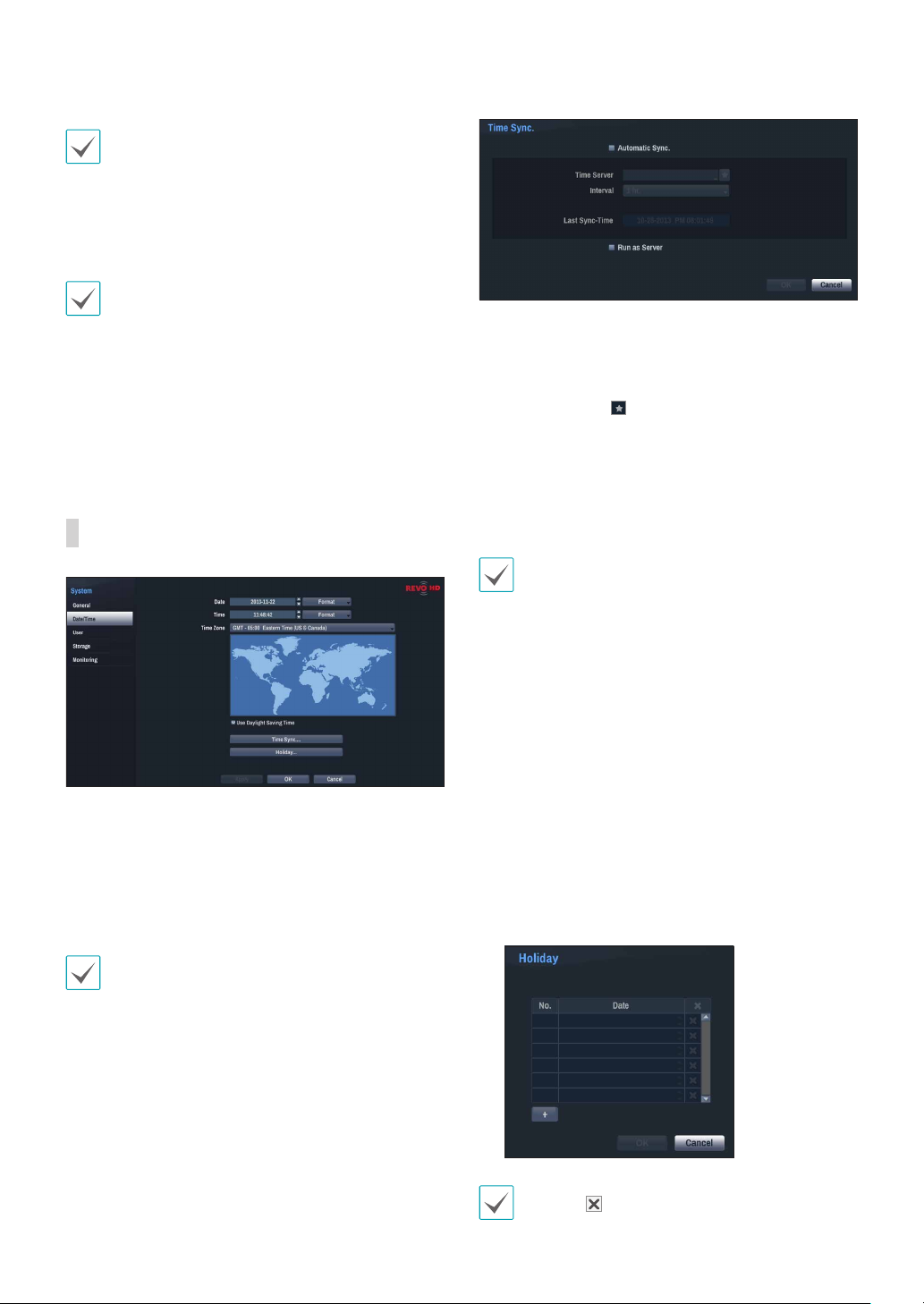

Date/Time

Select Automatic Sync.

Enter the Time Server's IP address or domain

name or select the list of registered time servers.

Specify the server synchronization Interval.

Select OK to apply and exit.

• If you have conﬁgured the DNS Server setting under Network - IP Address, you can enter the time server's domain name instead of its IP address.

• Selecting Run as Server sets the current NVR as a time server for other NVRs within the system.

and then choose a server from

• Date: Used to change the system's date setting.

• Time: Used to change the system's time setting.

• Date Format/Time Format: Used to change the system's date and time formats.

• Time Zone: Used to designate the system's time zone.

Refer to the map displayed on the screen and change the time zone using the mouse or the arrow buttons.

• Use Daylight Saving Time: Enables DST correction.

• Time Sync.: Select a time server for the system to synchronize with.

• Holiday: Designate holidays. On speciﬁed holidays, recording takes place according to the holiday recording schedule speciﬁed under Record Schedule.

Select the + button at the bottom of the window.

Select a date.

Select OK to apply and exit.

Select the icon to delete the existing holiday date.

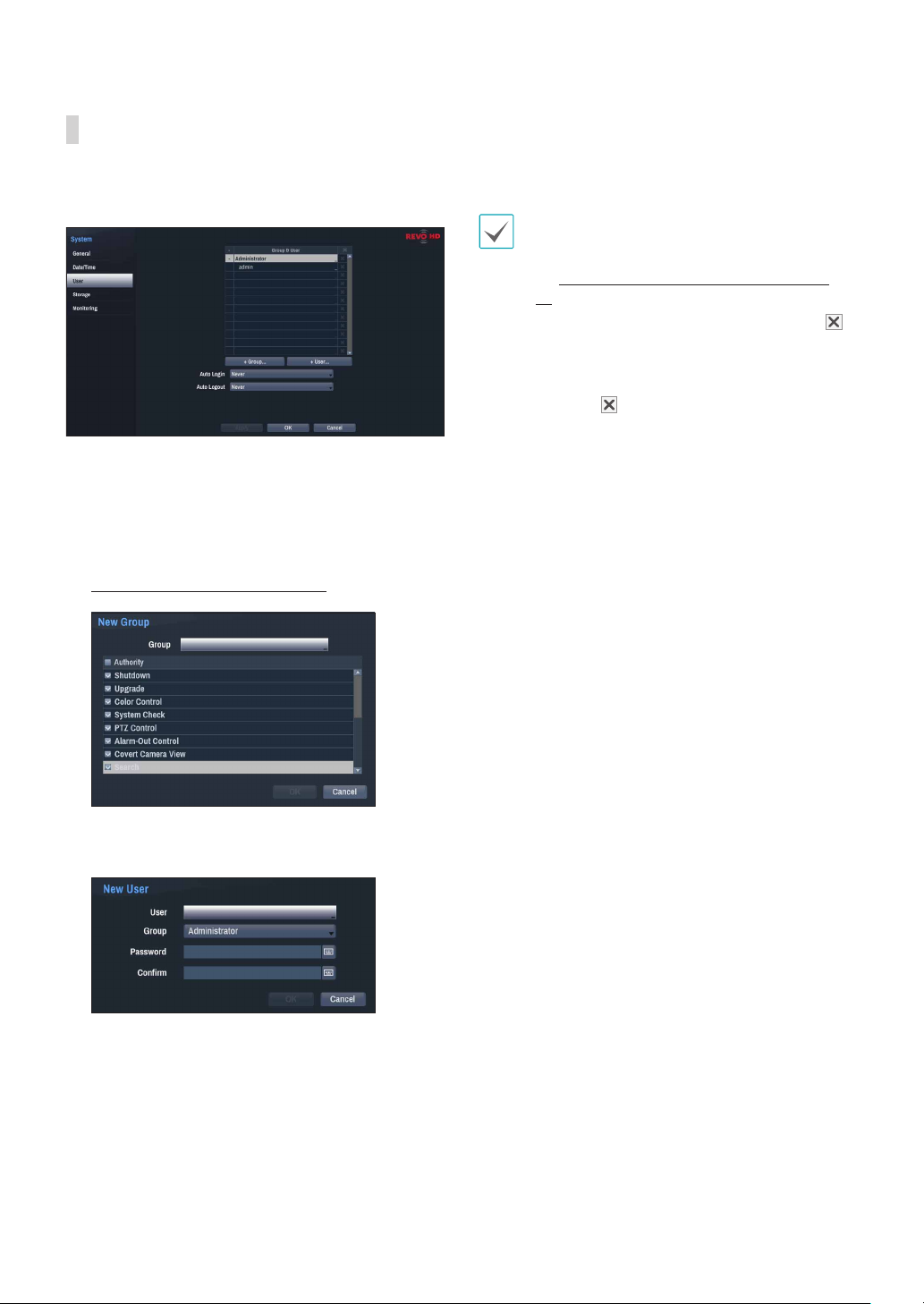

User

Use this option to register users and assign permissions.

Select + Group and enter a group name. A group

name can be up to 15 characters in length.

Specify the group's permission settings. For more

information on permission settings, refer to the Group Permissions on page 38.

Part 3 - Conﬁguration

Conﬁgure Auto Login and Auto Logout settings.

Select Apply or OK to exit.

• Group names, user names, and passwords can be entered using the virtual keyboard. For more information on using the virtual keyboard, refer to the Text Input via Virtual Keyboard on page

34.

• To delete a registered user or group, select the icon on the right of the corresponding user/group. Group Administrator and User admin cannot be deleted.

• Select the top of the screen to delete all groups and users except Group Administrator and User admin simultaneously.

• A password entry is required to edit existing groups and users.

• Group Administrator's permissions cannot be changed.

• With the User admin account, only the password can be changed.

• When the system starts up, it will automatically log into the account designated under Auto Login.

• The system will automatically log out of the account if the duration of inactivity speciﬁed under Auto Logout.

icon next to Group & User on the

Select + User and then enter a user name.

Select a group for the user and then enter a

password. The password can be up to 16 characters in length and may include letters, symbols, and numbers.

Select OK.

Part 3 - Conﬁguration

Group Permissions

System Shutdown May shutdown the system from the system menu.

Upgrade May upgrade the system from the system menu (System Setup).

Color Control

May adjust each camera's brightness, contrast, saturation, and hue settings.

System Check May view System Check results.

PTZ Control May control PTZ cameras.

May reset in the event of an alarm-out.

Alarm-Out Control

Alarm-outs can be reset by pressing the Alarm button on the device or selecting the Alarm-Out Control button on the remote program.

Covert Camera View May access covert cameras in Live and Search modes.

Search Backup May perform Backup.

System Time

May change the system's date and time settings.

Change

Data Clear May clear data stored in the system.

PTZ Setup May conﬁgure PTZ settings.

Alarm-Out Setup May conﬁgure alarm-out settings.

Setup

Covert Camera

May conﬁgure convert camera settings.

Setup

Record Setup May conﬁgure recording settings.

Setup Import May import previously saved NVR settings.

Setup Export May export current NVR settings.

Part 3 - Conﬁguration

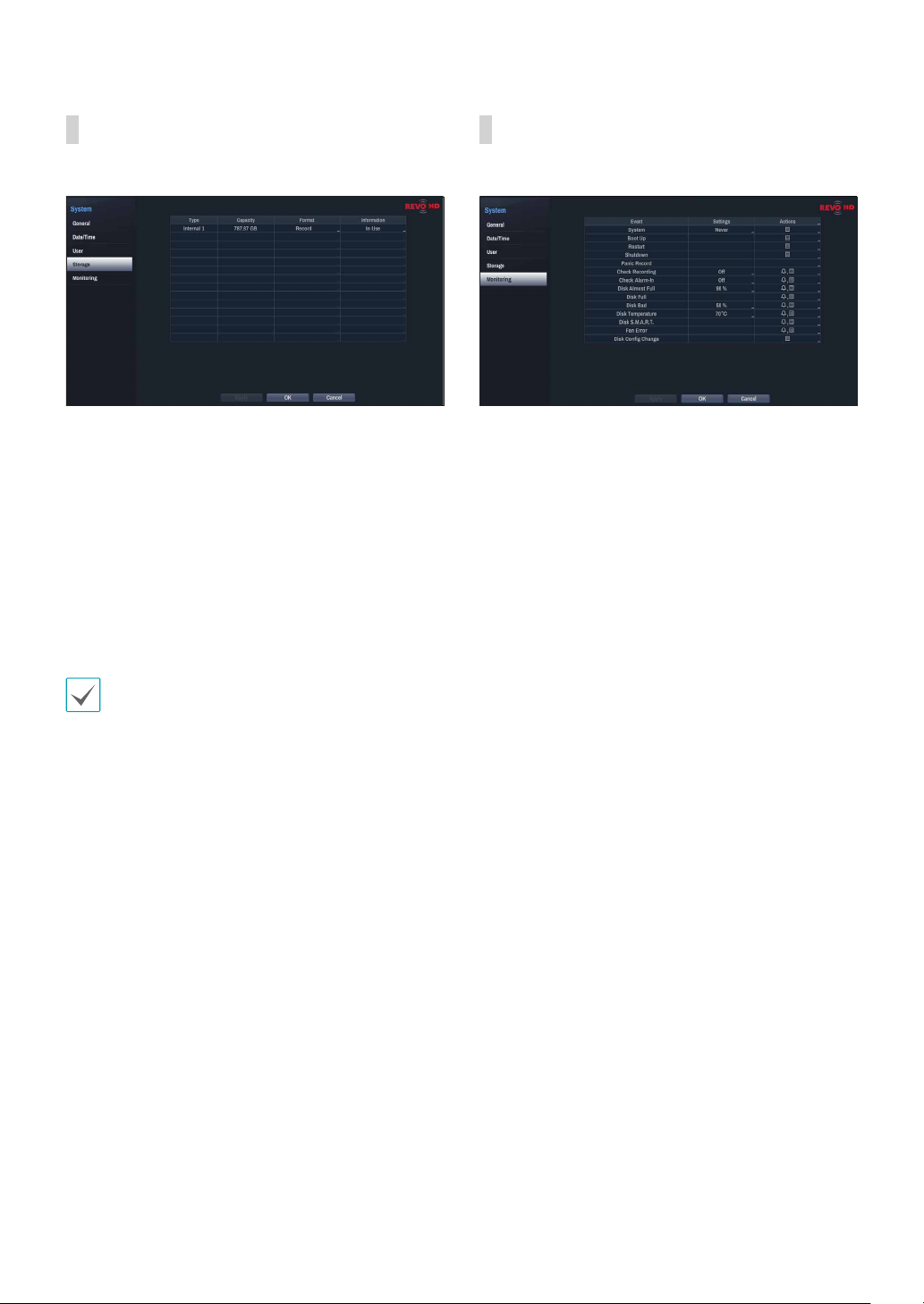

Storage

Use this option to conﬁgure storage settings.

• Type: Indicates the type of the installed disk.

• Capacity: Indicates the disk's capacity.

• Format: If the disk has been formatted, indicates either Record or Not Using. If you have connected an unformatted storage device, the Use As value will be indicated as Not Formatted.

• Information: Indicates if the disk is being used for recording purposes. Disks that were used in different systems will show up as Other. Select Information to check the saved data's time information or select Delete to erase the data.

Monitoring

Use this option to conﬁgure Monitoring settings.

• Settings: Conﬁgure when and what the system should monitor for.

• Actions: Conﬁgure alarm-out (channel, beep) and notiﬁcation (email, LAN1 through 5, SNS, push, alert window) settings.

• Select Format to prepare the disk as a storage for data recording.

• Disks formatted with Use As set to Not Using will not be used for data recording.

• This NVR supports SATA2 HDDs.

Part 3 - Conﬁguration

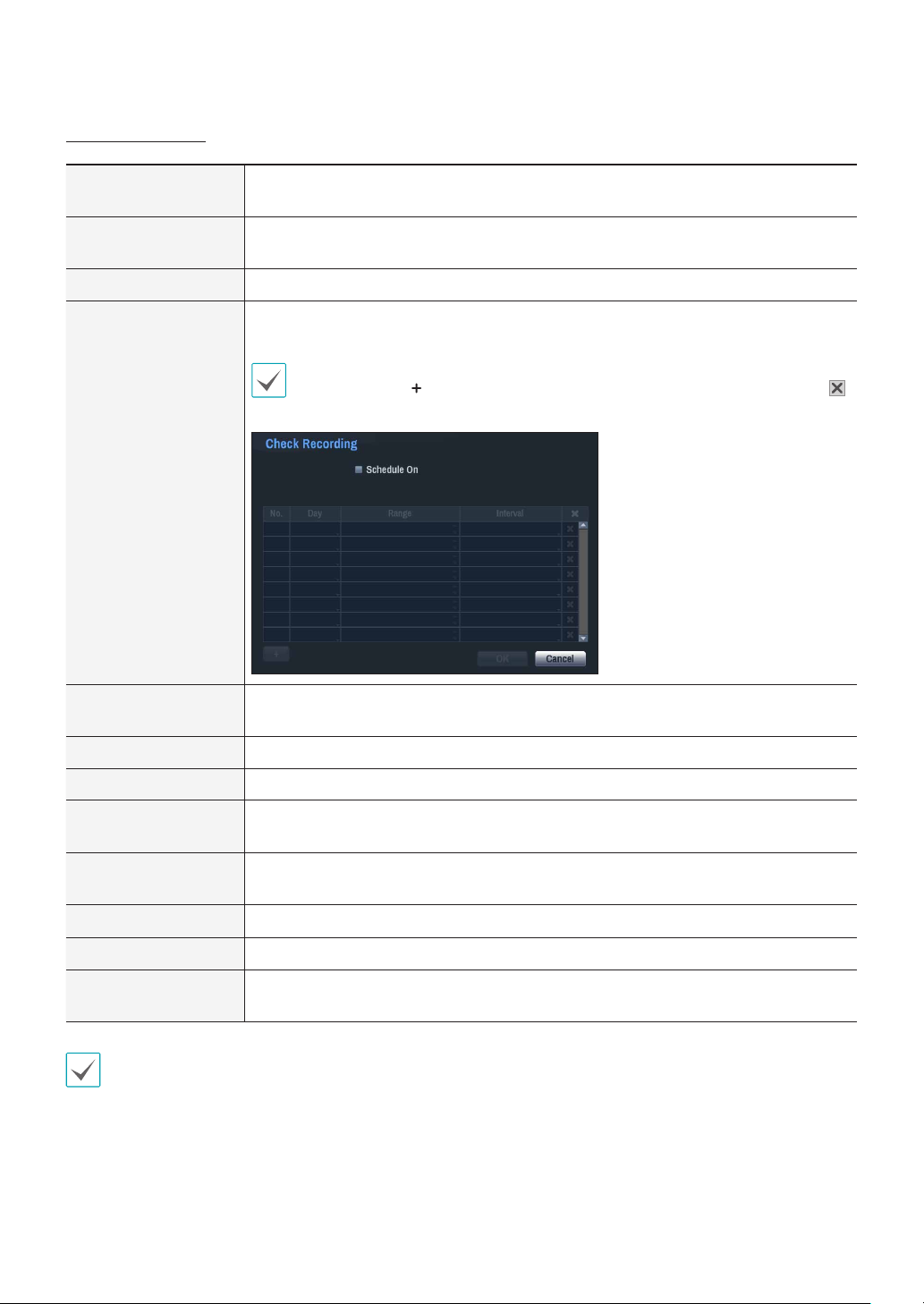

Monitoring Options

System

Bootup, Restart,

Deﬁne monitoring times. If self-diagnosis is not performed on a regular basis, the system will assume an error.

Deﬁne bootup, restart and shutdown actions.

Shutdown

Panic Record Deﬁne panic recording actions.

The system will assume an error if the system has been scheduled to record normally but recording does not take place during scheduled intervals.

Select Schedule On and then conﬁgure the days of the week, times, and monitoring interval. Select the button on the bottom left of the screen to add a schedule. Select to delete the schedule.

Check Recording

Check Alarm-In

The system will assume an error if the alarm-in status does not change during the speciﬁed monitoring interval while alarm-in is active.

Disk Almost Full Generates an event if the disk reaches the speciﬁed capacity (80% to 99%).

Disk Full Generates an event when all disks reach their maximum capacity.

Disk Bad

Disk Temperature

Disk S.M.A.R.T.

Generates an event when the speciﬁed percentage of the disk becomes damaged. Set to between 10% and 90% in 10% intervals.

Specify the threshold temperature. Once any disk reaches this threshold, the system will issue an alert.

Monitors disks that support S.M.A.R.T. and notiﬁes the user if a disk error is detected.

Fan Error Notiﬁes the user when the fan inside the system malfunctions.

Disk Conﬁg Change

• For system events, only an e-mail notiﬁcation of actions can be selected.

• In order to use the Notify(Callback) feature, the NVR must be registered to the remote program on the receiving PC's end.

It will be highlighted when the NVR reboots after the hard disk drive has been replaced.

Part 3 - Conﬁguration

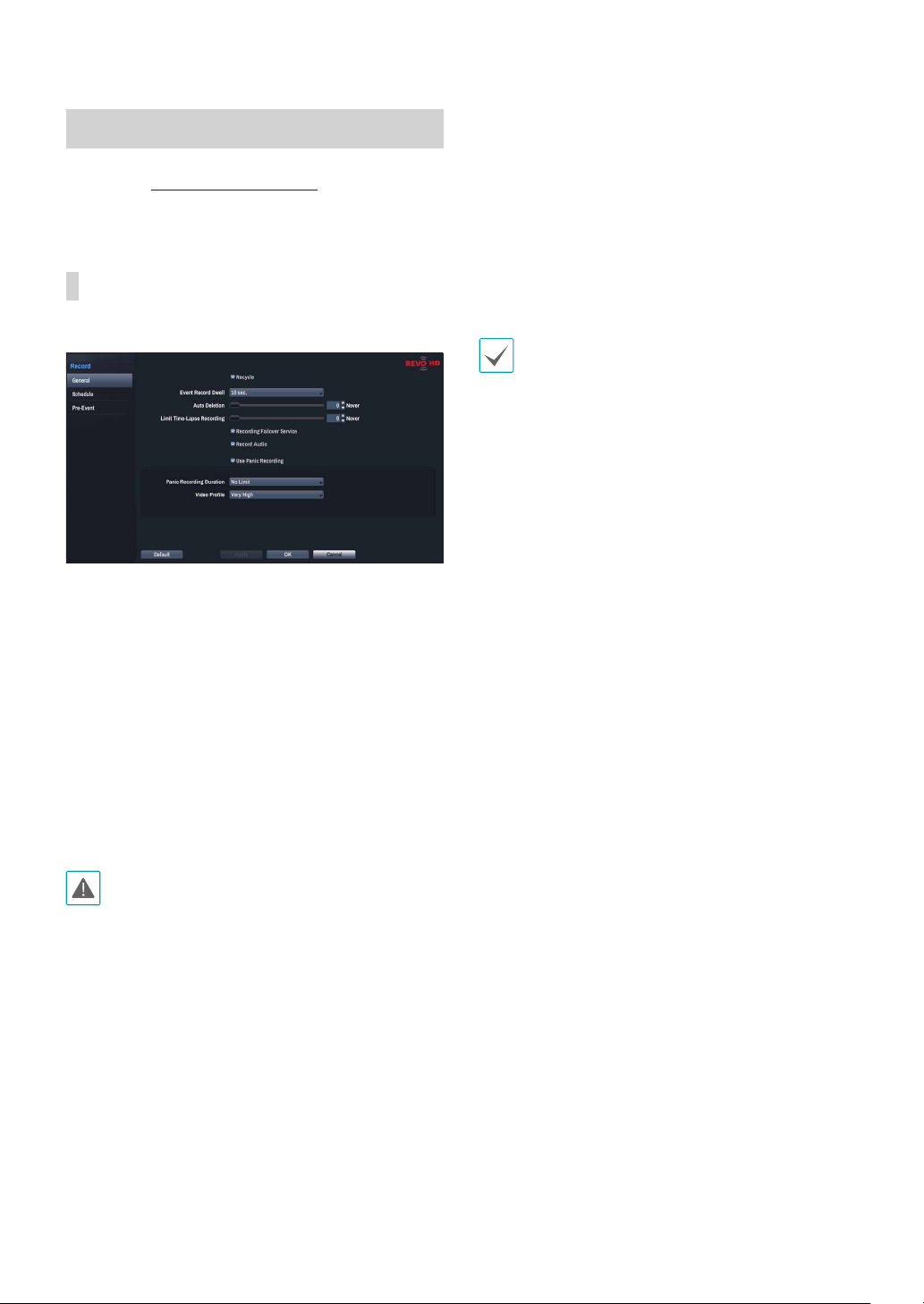

Record Setup

Refer to the Menu Use on page 34 for basic information on using the Setup menus.

General

Conﬁgure general recording settings.

• Recycle: When the recording disks become full, the system overwrites existing data with new data, starting with the oldest ﬁrst. If Recycle is disabled, recording will simply stop when the recording disks reach their maximum capacity.

• Event Record Dwell: If linked recording is designated as an event-triggered action, recording takes place for the duration speciﬁed under this setting. Select between 5 secs and 15 mins.

• Auto Deletion: Conﬁgure this option to delete recording data automatically after the speciﬁed number of days has elapsed. Select between 1 day and 999 days.

To disable Auto Deletion, select Never. If enabled, recording data will be stored on the NVR for the speciﬁed number of days and then deleted automatically. Expired recording data are deleted automatically at midnight and will be deleted even if the system reboots or the Auto Deletion setting has been changed.

• Limit Time-Lapse Recording: You can store event recording data for longer. The limit can be set as between 1 day and 99 days. If you do not wish to use Limit Time-Lapse Recording, select Never. This function is activated when data has been stored for longer than as conﬁgured because the recording disk has sufﬁcient capacity and saves new data by overwriting Time Lapse Recording data that are older than as speciﬁed under Recycle mode.

• If the recording stored on the disk is shorter than the duration speciﬁed under Limit Time-Lapse

Recording, the older of Event Recording or Time Recording data is deleted ﬁrst.

• The system's recording time may change depending on recording quality, resolution, motion, and other conﬁgurations made by the user. The duration speciﬁed under Limit Time- Lapse Recording may not be guaranteed in certain situations.

• Recording Failover Service: If the network goes down, this feature will transfer temporary data stored in the camera's buffer to the NVR when the network goes online again.

• Record Audio: The camera will record audio along with video.

• Use Panic Recording: Enable/disable Panic Recording.

• Panic Recording Duration: Disable Panic Recording automatically. Select between 5 mins and 1 hr. If you do not wish to disable the feature automatically, select No Limit.

• Video Proﬁle: Select a recording proﬁle value for Panic Recording.

Part 3 - Conﬁguration

Schedule

Disabling Schedule On suspends schedule recording regardless of the schedule and displays the on the upper left corner of each camera screen. Pressing the Panic Record button displays the icon and commences panic recording.

Set Record Schedule mode as Simple Mode or Advanced Mode. Advanced Mode allows you to conﬁgure a unique recording schedule for each event.

Select the

icon to delete a schedule.

• Changing the recording schedule mode suspends all active event-linked actions.

• Select the + button on the bottom left of the screen to add a schedule. Select Day to specify the Day setting or select All. Select Scope to specify the time frame.

icon

Simple Mode Options

• Mode: Select No Record, Time, Event, or Time & Event.

Unless the Panic Record button is

Record

pressed, no recording will take place during the scheduled time frames on the scheduled days.

icon appears on the upper

icon

Time

The left corner of the screen. The appears at scheduled times to indicate recording is in progress.

The

(red) icon appears on the

upper left corner of the screen. The

icon appears when the speciﬁed event occurs to indicate recording is in progress.

Event

Conﬁguring Pre-Event disables events. Therefore, the and icons appear when recording is not in progress. The (red) and

icons appear when an event

occurs and triggers recording.

The

icon appears on the upper

(yellow)

left corner of the screen and recording commences as per the video proﬁle

Time &

Event

selected for time under Setup. When an event occurs, the icon changes into

(yellow) icon and recording commences as per the video proﬁle selected for events under Setup.

• Channel: Select which cameras to apply the schedule to.

• Settings: Select to conﬁgure default recording proﬁle values for Time Lapse and Event Recording modes.

Part 3 - Conﬁguration

Advanced Mode Options

Select to conﬁgure event types and video proﬁles.

• Type: Event-speciﬁc and time recording icons are as follows:

Time Lapse

(Time)

Alarm-In Trip Zone

Motion

Detection

Audio Detection

Tampering

Pre-Event

When an event occurs, enabling this option includes the speciﬁed duration prior to the event in the eventtriggered recording.

• No.: Select which cameras to apply Pre-Event to.

• Video Proﬁle: Select a video proﬁle for the recording.

• Dwell: Specify the duration of pre-event recording data.

• If no event mode schedule exists in the schedule, a warning message prompting you to add an event mode schedule will be displayed.

• The warning message will appear even in Time & Event mode.

Video Loss Text-In

• Video Proﬁle: Conﬁgure the proﬁle to use for recording.

• Dwell: Specify how long to record for after a corresponding event occurs.

• Upper-tier schedule's settings apply to unconﬁgured channels.

• If multiple events take place on a speciﬁc channel and different Video Proﬁle and Dwell settings apply, highest settings apply to all event-linked recordings.

Event Setup

Refer to the Menu Use on page 34 for basic information on using the Setup menus.

Video-Analytics

Video-Analytics methods are Motion, Trip Zone, and Tampering.

Part 3 - Conﬁguration

Motion

• No.: Select which cameras to apply Motion Detection to.

• Sensitivity: Set daytime and nighttime sensitivity settings between 1 (Low) and 5 (High).

• Zone: Deﬁne the motion detection block.

- Select: Conﬁrm the block selection in the selection window.

- Clear: Clear the block selection in the selection window.

- Reverse: Clear the blocks selected within the selection window and select all unselected blocks within the selection window.

- Select All: Select all blocks.

- Clear All: Clear all block selections.

- Reverse All: Clear all selected blocks within the screen and select all unselected blocks within the screen.

- OK: Save the changes and exit the menu.

- Cancel: Exit the menu without saving the changes.

• Min. Blocks: Motion needs to be detected in more than the speciﬁed number of blocks in order to trigger a Motion Detection event. You may select a value between 1 and the number of blocks selected under Zone for daytime and nighttime, each.

Use the remote control's arrow buttons to move the block selection window up, down, left, and right. The selection window consists of 8 blocks per row. Select/ deselect individual blocks using the Camera buttons. You can use the mouse to drag the zone and then select, clear, or reverse the selection.

From the zone selection screen, press the

button on the remote control or right-click on the mouse to open up the Zone Setup menu.

• Actions: Specify which actions to take when motion is detected.

- Record: Specify which cameras to begin linked recording on when an event occurs. If the schedule is set to Event or Time & Event mode, the selected cameras will begin linked recording when an event occurs.

- Alarm-Out: Designate event-triggered alarm-out channels and beeps.

- Notify: Conﬁgure to be notiﬁed of events by Mail, LAN1 through 5, SNS, Push, and/or Alert Window.

- PTZ: Moves the PTZ camera to a speciﬁc preset position when an event occurs.

In order to use the Callback feature, the NVR must be registered on the remote program.

Part 3 - Conﬁguration

• Motion Ignoring Time: The system does not produce event log entries or issues remote notiﬁcations regarding motion detected during the speciﬁed time following the initial motion detection. Set a value between 1 sec and 5 secs or choose Never.

Motion Ignoring Time does not affect motion detection recording.

• Daytime Setup: Specify when daytime starts and ends. Adjust the time frame in 15-minute increments. Times outside the speciﬁed range will be assumed as nighttime by the system.

Trip Zone

• No.: Select which cameras to apply Trip Zone to.

• Sensitivity: Set daytime and nighttime sensitivity settings between 1 (Low) and 5 (High).

• Zone: Deﬁne the motion detection block.

You can use the mouse to drag the zone and then select, clear, or reverse the selection.

From the zone selection screen, press the

button on the remote control or right-click on the mouse to open up the Zone Setup menu.

- Select: Conﬁrm the block selection in the selection window.

- Clear: Clear the block selection in the selection window.

- Reverse: Clear the blocks selected within the selection window and select all unselected blocks within the selection window.

- Select All: Select all blocks.

- Clear All: Clear all block selections.

- Reverse All: Clear all selected blocks within the screen and select all unselected blocks within the screen.

- Trip Direction: Deﬁne in which direction the motion has to occur in order for it to be considered an event. Select In for movements from outside the selection area in or Out for movements from inside the selection area out.

- OK: Save the changes and exit the menu.

- Cancel: Exit the menu without saving the changes.

• Actions: Specify which actions to take when Trip Zone is detected.

- Alarm-Out: Designate event-triggered alarm-out channels and beeps.

- Notify: Conﬁgure to be notiﬁed of events by Mail, LAN1 through 5, SNS, Push, and/or Alert Window.

Part 3 - Conﬁguration

- PTZ: Moves the PTZ camera to a speciﬁc preset position when an event occurs.

In order to use the Callback feature, the NVR must be registered on the remote program.

• Trip Zone Ignoring Time: The system does not produce event log entries or issues remote notiﬁcations regarding Trip Zone events detected during the speciﬁed time following the initial Trip Zone event. Set a value between 1 sec and 5 secs or choose Never.

Trip Zone Ignoring Time does not affect Trip Zone recording.

• Daytime Setup: Specify when daytime starts and ends. Adjust the time frame in 15-minute increments. Times outside the speciﬁed range will be assumed as nighttime by the system.

Tampering

Mail, LAN1 through 5, SNS, Push, and/or Alert Window.

- PTZ: Moves the PTZ camera to a speciﬁc preset position when an event occurs.

In order to use the Callback feature, the NVR must be registered on the remote program.

• Use Ignoring Time: Select Time Setup to specify the tampering detection ignore time. Tampering detection will be disabled during the speciﬁed time frame.

Alarm-In

• No.: Select which cameras to apply Tampering to.

• Sensitivity: Set to between 1 (Low) and 5 (High).

• Activation Time: Specify how long tampering detection needs to last in order for it to be considered an event. Tampering detections that do not last for the speciﬁed duration of time will not be considered as events.

• Actions: Specify which actions to take when Tampering is detected.

- Alarm-Out: Designate event-triggered alarm-out channels and beeps.

- Notify: Conﬁgure to be notiﬁed of events by

• No.: Enable / disable alarm-ins.

This option includes both local and network camera alarm-ins. 1 through 16 are network camera alarmins, whereas 17 through 20 are local alarm-ins.

• Title: Use the virtual keyboard to enter titles.

• Type: Change the alarm-in type.

• Actions: Specify which actions to take when Alarm- In is detected.

- Alarm-Out: Designate event-triggered alarm-out channels and beeps.

- Notify: Conﬁgure to be notiﬁed of events by Mail, LAN1 through 5, SNS, Push, and/or Alert Window.

- PTZ: Moves the PTZ camera to a speciﬁc preset position when an event occurs.

Part 3 - Conﬁguration

• In order to use the Callback feature, the NVR must be registered on the remote program.

• Select Panic Record to specify which alarm-in channels to use. Panic Record commences when the corresponding alarm-in occurs and terminates when the alarm-in is deactivated.

Video Loss

• Actions: Specify which actions to take when a Video Loss event occurs.

- Alarm-Out: Designate event-triggered alarm-out channels and beeps.

- Notify: Conﬁgure to be notiﬁed of events by Mail, LAN1 through 5, SNS, Push, and/or Alert Window.

- PTZ: Moves the PTZ camera to a speciﬁc preset position when an event occurs.

In order to use the Callback feature, the NVR must be registered on the remote program.

Audio Detection

• No.: Select which cameras to apply Audio Detection to.

• Sensitivity: Set to between 1 (Low) and 5 (High).

• Activation Time: Specify how long audio detection has to last in order for it to be considered an event. Audio detections that do not last for the speciﬁed duration of time will not be considered as events.

• Actions: Specify which actions to take when audio detection events occur.

- Alarm-Out: Designate event-triggered alarm-out channels and beeps.

- Notify: Conﬁgure to be notiﬁed of events by Mail, LAN1 through 5, SNS, Push, and/or Alert Window.

- PTZ: Moves the PTZ camera to a speciﬁc preset position when an event occurs.

In order to use the Callback feature, the NVR must be registered on the remote program.

• Ignoring Interval: The system does not produce event log entries or issues remote notiﬁcations regarding audio detected during the speciﬁed time following the initial audio detection. Set a value between 1 sec and 5 secs or choose Never.

• Use Ignoring Time: Select Time Setup to specify the audio detection ignore time. Audio detection will be disabled during the speciﬁed time frame.

Part 3 - Conﬁguration

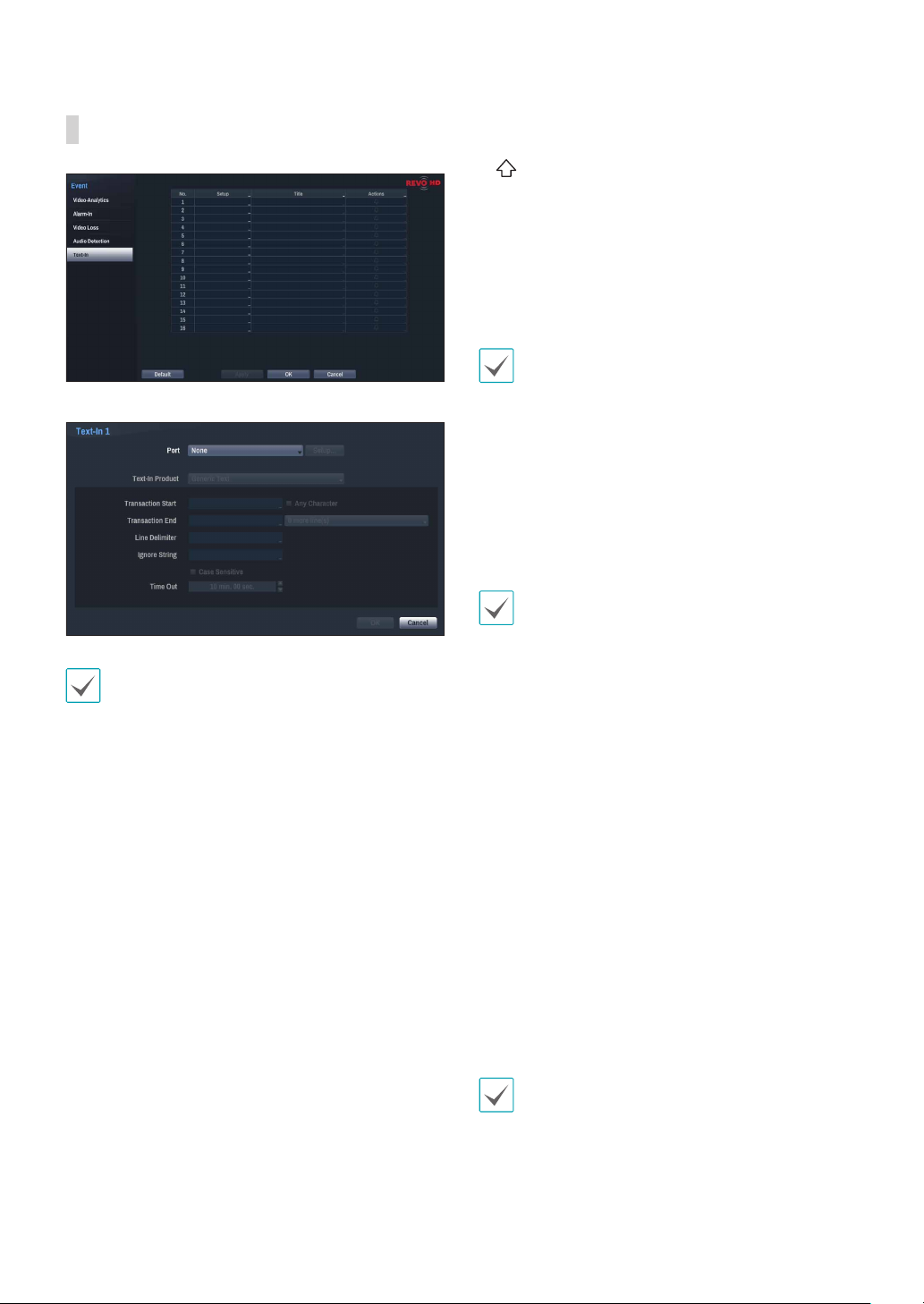

Text-In

• Setup: Conﬁgure text-in devices.

• It's possible to batch conﬁgure all text-in devices with the exception for port settings.

• An inﬂux of large amounts of text-in data from multiple channels can hinder system performance.

• Text-In Product: The setup window is updated so that the portion below the port setting matches the corresponding text-in device. Displayed screenshot illustrates Generic Text settings.

• Transaction Start: Once Transaction Start has been designated, the system will recognize the speciﬁed string as the beginning of a transaction. You can choose the Any Character setting. Under this setting, any character will trigger the system into recognizing the start of a new transaction.

• Transaction End: Once Transaction End has been designated, the system will recognize the speciﬁed string as the end of a transaction. Select 0 more line(s) next to Transaction End and specify a value between 1 and 10. The system will recognize the speciﬁed Transaction End string plus the number of lines as being the end of a transaction.

• Line Delimiter: Designate a string to mark the end of a line. You can enter control strings by selecting

and then entering ^, followed by a letter. For example, Carriage Return is ^M and Line Feed (new line) is ^J.

• Ignore String: Specify a string to ignore from transaction records.

• Case Sensitive: Ignores case in strings designated under Transaction Start, Transaction End, Line

Delimiter, and Ignore String.

Case Sensitive does not apply to control strings.

• Time Out: Once Time Out has been enabled, the system will assume the end of a transaction if no new string is entered within the speciﬁed duration of time. Select between 5 secs and 15 mins.

Selecting RS232, RS485, USB-Serial 1 through 8, or LAN 1 through 16 as the port activates the Port Setup button. Select Setup and conﬁgure the Baud Rate, Data Bit, Stop Bit, and Parity settings.

• If any one of LAN1 through 16 has been selected as the port, select the Port Setup button and conﬁgure the network port setting.

• If using a USB-serial port, the Text-In feature may malfunction if the USB cable is removed while the system is in operation.

• Title: Designate a name for the text-in device.

• Actions: Specify which actions to take when text-in is detected.

- Alarm-Out: Designate event-triggered alarm-out channels and beeps.

- Notify: Conﬁgure to be notiﬁed of events by Mail, LAN1 through 5, SNS, Push, and/or Alert Window.

- PTZ: Moves the PTZ camera to a speciﬁc preset position when an event occurs.

In order to use the Callback feature, the NVR must be registered on the remote program.

Part 3 - Conﬁguration

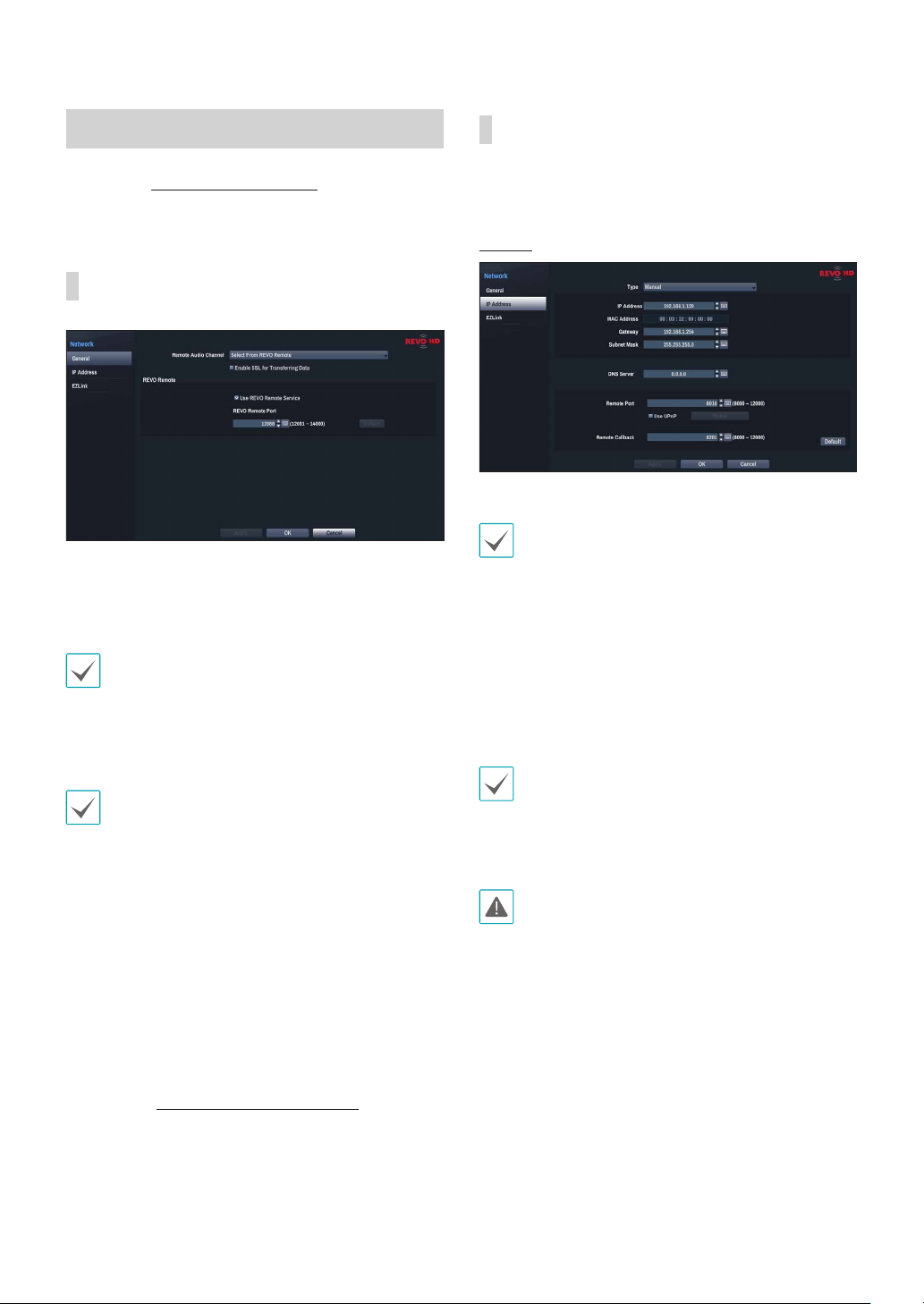

Network Setup

Refer to the Menu Use on page 34 for basic information on using the Setup menus.

General

• Remote Audio Channel: Transmits the selected channel's audio to the remote program. Select Select from REVO Remote to stream audio of the channel selected on the remote program.

Audio skipping and sync issues can occur under poor network conditions.

• Enable SSL for Transferring Data: Applies SSL (Secure Sockets Layer) protection on remote viewing and recording data transmissions.

• If using the SSL feature, it will not be possible to connect to the NVR from a remote program or a network keyboard that does not support SSL.

• Changing the SSL setting temporarily severs all remote connections to the NVR in order to apply the change.

• This product contains content developed by OpenSSL Project for use in Open SSL Toolkit (http://www.openssl.org/).

• REVO Remote: If you wish to use REVO Remote, select REVO Remote - Use REVO Remote Service. Select REVO Remote - REVO Remote Port and choose a port number between 12001 and 14000. For more information on REVO Remote, refer to the REVO Remote on page 69.

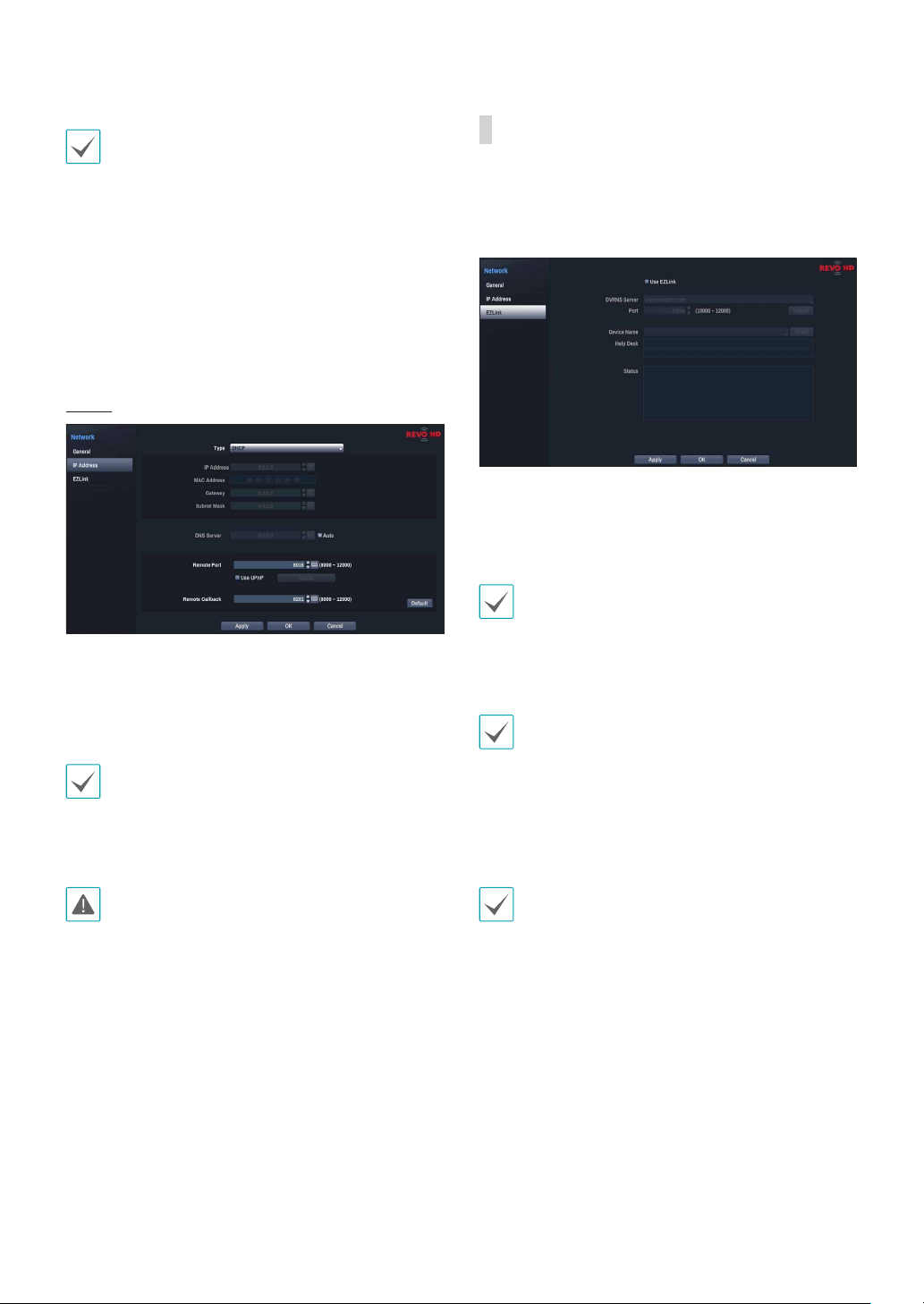

IP Address

Designate the IP address type as Manual or DHCP.

Manual

• Set Type to Manual.

Manual lets you conﬁgure related settings manually. Conﬁgure IP Address, Gateway, and Subnet Mask settings manually using the remote control's arrow buttons.

• DNS Server: Enter the DNS server's IP address.

• Remote Port: The port used by the remote program to connect to the NVR. Choose a value between 8000 and 12000.

• Remote Callback: Set the port number using for remote callback.

• If using a ﬁrewall, select Change Port to change the port number to one that is permitted by the ﬁrewall.

• Changing the port temporarily severs the NVR's remote connection.

Remote point IP and port settings on the remote program must also be changed in order for it to connect to the NVR.

• To use the UPnP (Universal Plug and Play) feature, select Use UPnP. If using an IP router (or NAT), UPnP service allows the device to automatically forward the port to the NVR.

Part 3 - Conﬁguration

• This port is used to access a port that has a private IP address.

• In order to use the UPnP service, the IP router (or NAT) must support UPnP port forwarding and have the relevant options enabled.

• Port number cannot be changed with Use UPnP selected.

• Status: Indicates the number of the port forwarded by the IP router (or NAT) to the NVR via UPnP service.

DHCP

Select DHCP and then Save to retrieve IP address and other network settings automatically from the DHCP server. Once the network settings have been retrieved, the NVR's current IP address is displayed in the IP Address ﬁeld.

• It may not be possible to retrieve the IP address if there is no DHCP server. If this is the case, contact your network administrator.

• With DHCP, the NVR's IP address might change with each startup.

EZLink

If using a dynamic IP address, EZLink service makes it easy to connect to the NVR from a remote program without having to conﬁgure dynamic IP or router settings.

• Use EZLink: Check if you wish to use EZLink service.

• DVRNS Server: Enter the DVRNS server's IP address or domain name.

If you have conﬁgured the DNS Server setting under Network - IP Address, you can enter the DVRNS server's domain name instead of its IP address in the DVRNS Server ﬁeld.

• Port: Specify the DVRNS server's port number.

If using an IP router (or NAT), port conﬁguration and other network functions will depend on the usage method of the IP router (or NAT).

• Device Name: After entering the NVR name you wish to register on the DVRNS server, check and register the entered name. This is a unique NVR name that will be registered on the DVRNS server.

There is a limit to the number of users allowed to connect remotely at the same time. Contact the service center for more information.

• You will not be able to save EZLink settings unless you click on the Check button next to the NVR Name ﬁeld and check the entered name's availability.

• You will be prompted with an error message if you do not enter NVR name or enter a name already registered to the DVRNS Server.

• If the device name contains the #, \, and/or % symbol, it might not be able to connect to the NVR from the REVO Remote program.

Part 3 - Conﬁguration

• Status: Used to check the status of the device being registered to the DVRNS server.

Select Save after making changes to register the NVR's name to the DVRNS server.

If EZLink has been conﬁgured correctly, the DVRNS server's help desk information will be displayed in the Help Desk ﬁeld the next time you access the EZLink Setup screen.

Device Setup

Refer to the Menu Use on page 34 for basic information on using the Setup menus.

Alarm-Out

Display Setup

Refer to the Menu Use on page 34 for basic information on using the Setup menus.

OSD

Show OSD (On Screen Display) information on the bottom of the screen.

Status

Select the + icon at the bottom left corner of the screen to add a schedule.

You can apply different schedules for different Days of the week.

Select

• Dwell Time: Select a value between 5 secs and 15

• Title: Designate a name for the alarm-out.

• Range: Change the schedule time frame.

• Mode: Select Event, On, or Off.

to delete the schedule.

mins as the alarm-out duration.

Event

On Alarm-out is always on.

Off

Generates an alarm-out when an event occurs.

Alarm-out is always off.

• Date and Time: Displays the date and time.

• Remote Control: Displays remote control receptivity.

• Free Space: Displays whether or not the NVR is in the recycle mode, and displays the available storage space when not in the recycle mode.

• User Name: Displays the current user logged in.

• Background Panel: Displays background panel at the bottom of the screen in black.

Camera

• No.: Displays the camera number on the upper left corner of the camera screen.

• Title: Displays the camera name on the upper left corner of the camera screen.

• Record: Displays recording and schedule icons.

• Audio: Displays the generating audio.

• PTZ: Displays the

icon on channels

icon on PTZ cameras.

• Channels: Conﬁgure alarm-out port and beep settings.

Part 3 - Conﬁguration

• Text-In: Displays strings received from text-in devices. Select Display Dwell and specify how long to display the text-in string. Text-in strings are shown on the single screen only.

• Zoom: Displays a zoomed in state.

• Network: Displays the icon when the unit is connected to a network via Ethernet.

• Freeze & Sequence: Displays freeze and sequence icons.

• Screen Group: Displays the current screen's group.

Main Monitor

Conﬁgure monitor-related settings.

Notiﬁcation Setup

Schedule

Select the + icon at the lower left corner of the screen to add a notiﬁcation schedule.

• Day: Add different schedules for different days of the week.

• Range: Change the event notiﬁcation time frame.

• Notify: Select which notiﬁcations to generate when an event occurs. Select Mail, LAN 1 through 5, SNS, Push, and/or Alert Window.

• Mode: Select Full Sequence or Cameo Sequence.

• Interval: Select between 3 secs and 2 mins. For more information on Sequence, refer to the Sequence on page 27.

• Event Monitoring On: With Event Monitoring enabled, video feed from the camera conﬁgured to start recording when an event occurs is shown on the screen. For more information on Event Monitoring, refer to the Event Monitoring on page

32.

• Resolution: Select 1920 x 1200, 1920 x 1080, 1680 x 1050, 1600 x 1200.

• In order to use the Notiﬁcation (Callback) feature, the NVR must be registered on the remote program.

• Select the

• Summary Email Interval: Transmit event summary emails to a remote destination at speciﬁed intervals.

icon to delete the existing schedule.

Callback

Conﬁgure Callback settings.

Enter the IP address of the receiving server and set Retry to between 1 and 10 in case of connection failure.

Part 3 - Conﬁguration

Mail

Conﬁgure Mail settings.

Select the + icon at the bottom left corner of the screen to add a mail account.

Select Recipient and then enter the mail address and server information.

The recipient's mail address must be in the correct email format and contain the @ symbol.

Select the icon to attach event recordings to outgoing mails.

Select the

Select MP4 Clip to attach event recordings to outgoing mails.

icon to delete the account.

The event recordings generated by a camera can be attached only. Select the MP4 Clip option at the bottom to attach .mp4 video clips.

SMTP Setup

Select SMTP Setup at the bottom right corner of the screen to conﬁgure an SMTP server.

Select the SMTP server Type.

Enter the SMTP Server's IP address or domain

name and then conﬁgure the Port and Sender settings.

Default SMTP server port number is 25. Select Test to send out a test mail using the current settings. Select Use SSL/TLS to use an SMTP server that requires SSL connections.

• If you have conﬁgured the DNS Server setting under Network - IP Address, you can enter the STMP server's domain name instead of its IP address in the SMTP Server ﬁeld.

• Address entered under Sender must be in the correct email format and include the @ symbol.

If user authentication is required by the SMTP server, select Use and then enter the User and Password information.

Select OK to apply and exit.

This product contains content developed by OpenSSL Project for use in Open SSL Toolkit (http:// www.openssl.org/).

Part 3 - Conﬁguration

SNS

This option enables the NVR to send out SNS messages.

The SNS (Social Network Service) feature sends out event-related messages to designated Twitter accounts. Select the + icon at the bottom left corner of the screen to add an SNS account. Select the icon on the right side of the list to remove the SNS account.

Enter the User Name and Password information.

The Push feature sends out event-related messages to mobile phone.

Enable to receive the event occured in NVR on the mobile phone(Android, iOS). The NVR must be registered and set in mobile phone.

Camera Setup

Refer to the Menu Use on page 34 for basic information on using the Setup menus.

General

Enable/disable and rename cameras.

Messages may not be transmitted successfully due to limitations in Twitter's services.

Push

Conﬁgure Push settings.

Select Push to use Push feature.

• Title: Edit the camera's name.

• Use: Set the camera as Normal, Covert 1, or Covert 2.

Live images and video recordings from cameras that have been set as Covert 1 or Covert 2 will not be available to users who do not have covert camera access. Setting a camera as Covert 1 hides its images but does display OSD information about the camera. Setting a camera as Covert 2 hides its images as well as ODS information about the camera as if it has been deactivated completely.

Part 3 - Conﬁguration

Advanced Setup

Conﬁgure security and other advanced camera settings.

• Video: Adjust the camera image sensor settings such as white balance and exposure.

• Privacy Masking: Conﬁgure privacy masking for the camera.

• PTZ: If using an RS485-compliant camera, conﬁgure it for use in PTZ Mode.

Types of conﬁguration options shown vary depending on the PTZ functions supported by the camera.

2 3 4

6 7 8 9

Numbers shown below Preset, Scan, Pattern, and Tour indicate the numbers of conﬁgured functions.

1 Preset

– PTZ Product: Choose to select the model of

installed PTZ device. – ID: Choose to assign an ID to each PTZ device. – Choose to set up Baud Rate, Data Bit, Stop

Bit and Parity of the connected device.

Refer to the PTZ device manufacturer’s instructions for the proper settings.

• Use the buttons below to choose a preset position.

- Directional Buttons ( Used to tilt and pan the camera.

- Zoom (

- Focus (

): Zoom in and out.

): Adjust camera focus to far

or near.

- Speed: Specify the camera's panning and tilting speed.

Part 3 - Conﬁguration

• Set: Choose a preset number and then enter a name. This saves the current preset under the speciﬁed preset number and name.

• Go to: Select a preset from the list and then click Go to to move the camera to the selected preset position.

• Edit: Used to change the selected preset's name.

• Remove: Used to remove the selected preset.

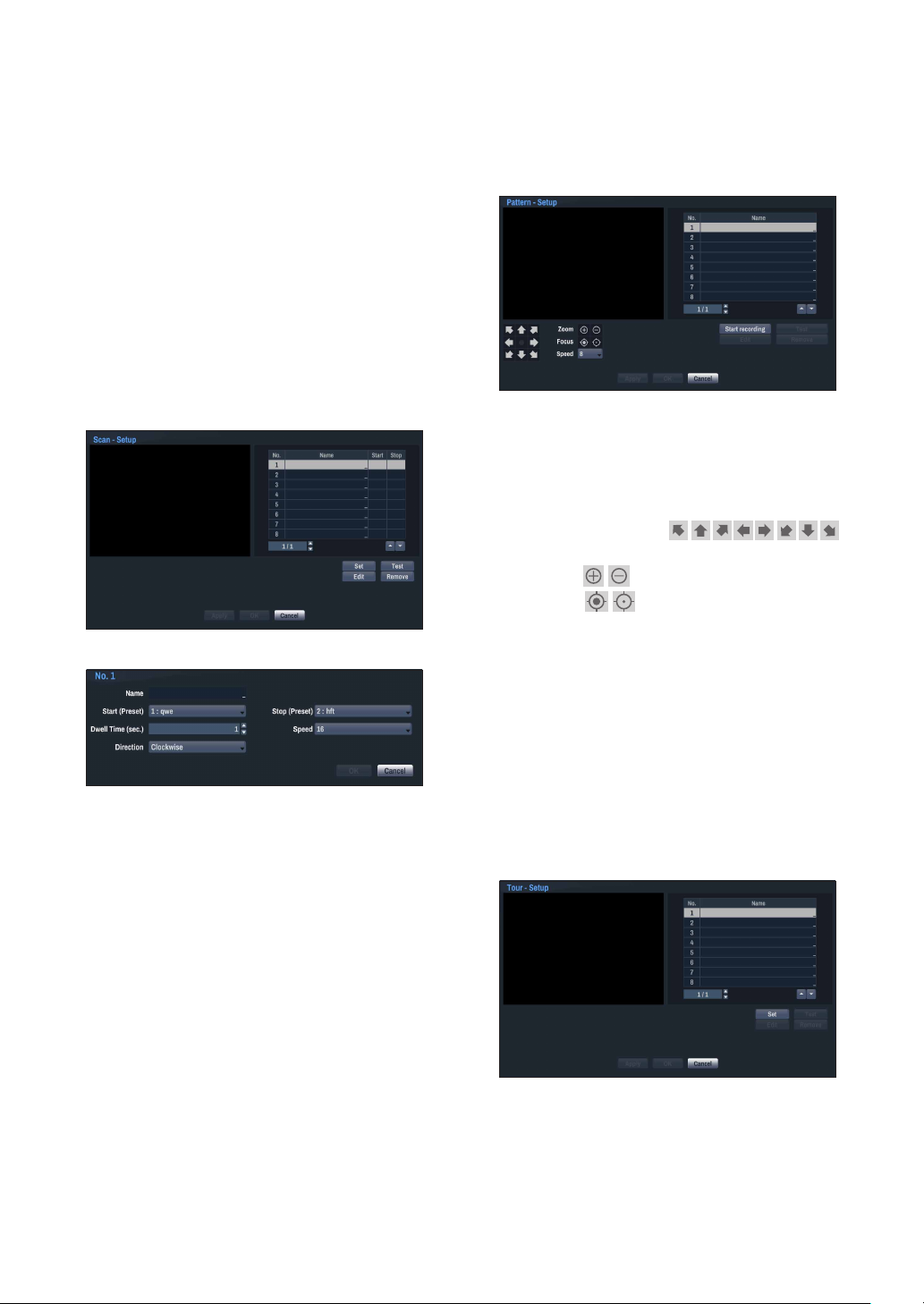

2 Scan Used to set up a proﬁle for moving the camera

between two points. At least two presets must be available in order to use the scan feature.

• Set: Used to set up a scan proﬁle.

- Name: Enter a name for the scan proﬁle.

- Start/Stop: Specify which presets to use as start and stop points.

- Dwell Time (sec.): Specify how long the camera will dwell at start and stop positions.

- Speed/Direction: Specify scanning speed and direction.

• Test: Select a scan proﬁle and then click Test to test it.

• Edit: Used to edit the selected scan proﬁle.

• Remove: Used to remove the selected scan proﬁle.

3 Pattern Used to set up a pattern proﬁle for the camera to

follow along.

• Start recording: Select a pattern number, enter a name for the pattern, and then click OK to save the pattern. Move the camera using directional, zoom, and focus buttons and then click Stop recording to save the pattern proﬁle. You can record up to two minutes of movement.

- Directional Buttons (

Used to tilt and pan the camera.

- Zoom (

- Focus (

): Zoom in and out.

): Adjust camera focus to far

or near.

- Speed: Specify the camera's panning and tilting speed.

• Test: Select a pattern proﬁle and then click Test to test it.

• Edit: Used to edit the selected pattern proﬁle.

• Remove: Used to remove the selected pattern proﬁle.

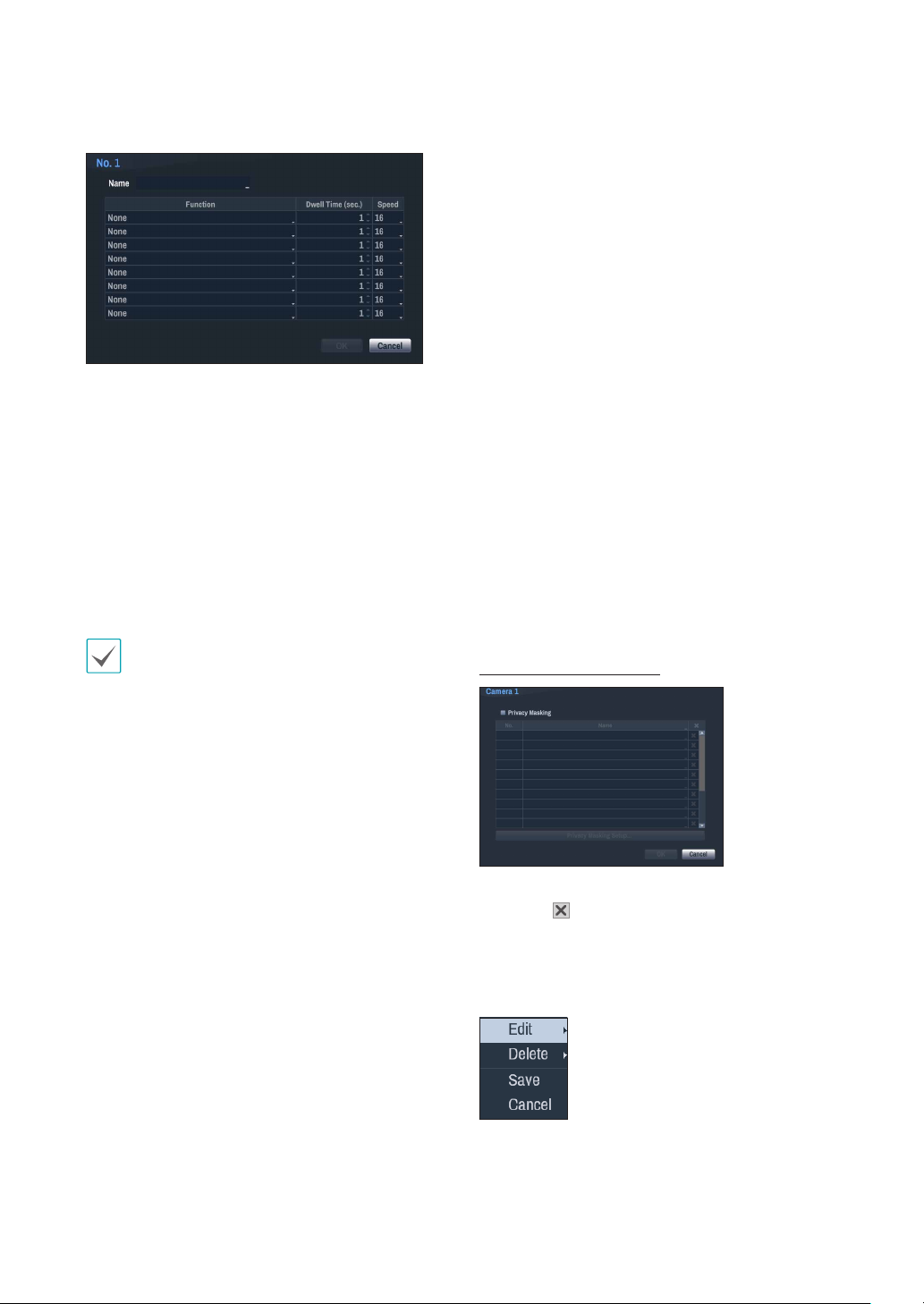

4 Tour Used to set up a tour proﬁle of multiple functions in

a designated sequence.

Part 3 - Conﬁguration

• Set: Used to set up a tour proﬁle.

- Name: Enter a name for the tour proﬁle.

- No.: Indicates the order of the function in the tour sequence.

- Dwell Time (sec.): Specify how long to perform the selected function for.

- Speed: Specify the preset speed.

• Test: Select a tour proﬁle and then click Test to test it.

• Edit: Used to edit the selected tour proﬁle.

• Remove: Used to remove the selected tour proﬁle.

Select Apply after setting up a preset, scan, pattern, or tour proﬁle to see images from the concerned camera on the left side of the screen. Selecting Apply or OK displays a popup screen that indicates whether the proﬁle has been set up successfully.

8 Auto Flip: Automatically ﬂips the image when

the camera tilts past 90° to prevent the objects from appearing upside down.

• Digital: Flips the image left to right or top to bottom.

• Mechanical: Automatically pans or tilts the camera.

• Off: Disables Auto Flip.

9 Tilt-Range: Specify the camera's tilting range.

0 Restore: Specify whether to restore the

camera to its last position or function. Enabling this option restores the camera to its last position or function after being restarted.

• SSL: Set the camera's security level as

Unavailable, Standard, High, or Very High. Standard, High and Very High settings apply SSL

(Secure Sockets Layer) protection to the camera.

• Power: Control the camera's power. This option is available when connecting to Video In/PoE port or using a PoE Switch (optional). Select Reset in the camera’s power settings to restart the camera.

Privacy Masking Options

5 Home Position: Specify the camera's home

position.

• Default: Uses the factory-default position as the camera's home position.

• Custom: Uses the user-deﬁned position as the home position.

• Select Set to change the home position.

6 Auto Run: Specify which action to take if

the camera has not been controlled for the speciﬁed duration of time.

7 Auto Pan: Specify the camera's panning

direction. When Auto Pan is selected from a remote program, the camera pans in the direction selected here.

Select Name to rename the privacy masking area. Select the

icon to delete the existing privacy masking area. Select Privacy Masking Setup to display additional privacy masking area options. You can drag on the area with the mouse to resize it or add up to 16 different areas.

• Edit: Rename the selected privacy masking area.

• Delete: Delete the selected privacy masking area.

Part 3 - Conﬁguration

• Save: Save the changes and exit the privacy masking area options screen.

• Cancel: Exit the privacy masking area options screen without saving the changes.

Image Sensor Options

• Video Style: Select TV Color or PC Color.

• Backlight Compensation: Enable/disable Backlight Compensation. If enabled, objects are exposed brighter in backlit situations.

• Sharpness: Adjust the sharpness level. Adjust the contours to make the images look sharper. Increasing the value raises the sharpness level, but using too high a value can result in unwanted noise.

• Noise Filter: Select the noise ﬁlter level. Noise ﬁlter can reduce the noise in images taken under lowlighting conditions. Increasing the value reduces the noise, but using too high a value can result in blurry images.

• 3DNR : Enable/disable 3DNR (3D Noise Removal). 3DNR reduces background noise in images taken under low-lighting conditions. 3DNR does not produce blurry images like Noise Filter but can result in ghosting.

• IR Mode: IR Mode blocks out the infrared spectrum. You can ensure clear images at all times by blocking out the infrared spectrum in high-lighting conditions and allowing the infrared spectrum to pass through in low-lighting conditions.

– Daytime Mode/Nighttime Mode: Enable/

disable IR Mode.

– Auto: Allow the system to enable/disable IR

Mode automatically.

• Black & White Mode: Display the images in greyscale for greater clarity in low-lighting conditions.

– On/Off: Enable/disable Black & White Mode. – Auto: Allow the system to enable/disable Black &

White Mode automatically.

• Smart IR: Adjust the IR LED's brightness level. Select On to allow the system to adjust the brightness level automatically. Deselect On to select a brightness level manually between 0% (darkest) and 100% (brightest).

• Setup Mode: Select desired setup mode between

Normal and Number-Identiﬁcation. In NumberIdentiﬁcation mode, when a certain area of images

is too bright due to backlight under low lighting conditions and it causes the other area to be too dark, this function provides the other area of images brightly and clearly by blocking the backlight in the certain area. Dark parking lot entrances and gas station entrances at night, for example (Local Exposure compensates for the bright light coming from incoming vehicle headlights and makes it possible to see the license plates). When setting to the Number-Identiﬁcation mode, some option settings will be adjusted automatically, and you cannot change them as long as the Setup Mode is not changed.

• Mirror: Select Horizontal or Vertical to ﬂip the image horizontally and/or vertically.

Select Apply after setting up a camera to see images from the concerned camera on the left side of the screen. Selecting Apply or OK displays a popup screen that indicates whether the camera has been set up successfully or not.

White Balance Options

Part 3 - Conﬁguration

• Preset: Use preconﬁgured white balance settings.

- Auto: Allow the system to adjust the white balance automatically. The system will assess the lighting conditions and adjust the white balance automatically.

- Incandescent - Fluorescent Cold: Select a lighting type to apply the appropriate white balance.

• Manual: Adjust the white balance manually. Adjust Red and Blue gain values. Greater the value, greater the intensity of the corresponding color.

Exposure Options

• Slow Shutter: Activate Slow Shutter. The electronic shutter's speed will decrease to the speciﬁed level under low-lighting conditions to allow more light in and therefore produce brighter images.

• Focus Mode: Used to change the focus movement format as Auto/Manual/Semi-Automatic. It may not be supported depending on the device.

• Shutter Speed Control: Adjust Shutter Speed. This option is available only when Anti-Flicker and Slow Shutter are both set to Off.

- Auto: The system will assess the lighting conditions and adjust the shutter speed automatically.

- Manual: Use the slider to select the desired shutter speed. Select the most suitable minimum and maximum shutter speeds for the lighting conditions in the area where the camera is located. (1/30 to 1/8000)

• AE Target Gain: Specify exposure compensation's target gain. Exposure is compensated automatically based on the speciﬁed target gain. Higher the gain, brighter the images.

• Local Exposure: Activate Local Exposure. Use Local Exposure on images that appear too dark due to backlighting conditions and on images containing over-exposed sections. Greater the value, clearer the image. e.g.) Dark parking lot entrances and gas station entrances at night (Local Exposure compensates for the bright light coming from incoming vehicle headlights and makes it possible to see the license plates).

• Anti-Flicker: If the lights in the area where the camera is located use alternating current, specify the frequency of the lights to minimize ﬂickering. Matching the frequencies can eliminate ﬂickering completely. (NTSC: 60Hz, PAL: 50Hz).

Stream

Conﬁgure the camera's live and recording resolution, compression method, picture quality, transfer speed, and ips speed settings.

• Camera Channel: It's possible to conﬁgure a unique video proﬁle for each camera.

• Copy to Camera: Apply the video proﬁle settings of the camera selected under Camera Channel to a different camera.

Part 3 - Conﬁguration

• Live/Remote Video Proﬁle: Check the current Live video picture quality and edit remote video proﬁle settings.

- Use Dynamic Remote Stream: Automatically transmits the Live 1 (Single Screen), Live 2 (2x2), or Remote (greater than 2x2) stream, depending on the remote program's live screen layout.

• Record Video Proﬁle: Set up 4 recording quality proﬁles.

• Video Proﬁle: Select Live 1 or Live 2. Live 1 and Live 2 allows the user to change Bitrate and Quality settings only and conﬁgures the remaining settings automatically.

- Compression Method: Supports H.264.

- Resolution: Select a resolution supported by the camera. Maximum available resolution is chosen automatically based on the selected video proﬁle.

- Quality: Select Very High, High, Standard, or Low. You can assign different Quality settings to different cameras.

- Bitrate: Select CBR or VBR. Transmitted data size is ﬁxed with CBR but varies depending on the amount of movements in the images with VBR.

- ips: Select a value. Maximum ips is determined automatically based on the selected video proﬁle.

Audio

• Audio Codec: Select an audio codec. (G.711 u-Law or G.726)

• Audio In: Select an audio input source (microphone or line-in) and then adjust the volume.

• Audio Out: Adjust the volume.

Cameras do not feature built-in audio ampliﬁer units and therefore require the user to purchase a speaker system with a built-in ampliﬁer separately.

Upgrade

Select Firmware Upgrade to display the USB search window.

Select the corresponding upgrade package from the storage device connected to the NVR's USB port.

After selecting an upgrade package, select Apply to upgrade the camera.

Conﬁgure audio recording settings for all cameras simultaneously.

• If an upgrade attempt fails, an upgrade failure message will be displayed. Refer to Error Code Types on page 76 for more details.

• The camera will reboot after the upgrade and then reconnect automatically.

• Current software version is not checked when upgrading a network camera.

Part 4 - Search

Time-Lapse Search

While in Live mode, select the Search Mode icon and select Time-Laspe Search or Event Log Search.

Select MENU button on the remote control while in Search mode to display a menu from which you can select

Control Area.

Press MENU button once more to move the Control Area.

In 2 seconds after moving the Control Area, the Control Area becomes selected and the corresponding

menu disappears.

After selecting the desired Control Area, use the Arrow buttons on the remote control to select the menus

and options. Search menu can also be displayed by placing the mouse cursor on the upper portion of the screen.

The Control Area consists of Menu, Screen, Record Table Search, and Playback.

1 Menu: Activates side Search menu. Use the arrow buttons to select an option. 2 Screen: Activates the middle screen section. Use the arrow buttons to select a camera. 3 Record Table Search: Activates the bottom record table. Use the arrow buttons to select a record table. 4 Playback: Activates the Playback mode. Use the arrow and enter buttons to operate the playback mode.

Part 4 - Search

Search Menu

1 Layout

Used to change the screen layout to single screen, 2x2, 3x3, or 4x4.

2 Display

• OSD On/Off: Enables/disables the OSD feature.

• Original Ratio On/Off: Setting On displays video on the camera screen in its original ratio.

3 Previous/Next Group

Loads the previous/next screen group.

4 Search Mode

Search by changing Time-Lapse Search and Event Log Search.

5 Live Mode

Activates Live mode.

6 Move

Search video recordings based on date and time. Specify the date and time and then select Go to jump to the corresponding video recording. Select a on the right side to move to the saved bookmark position.

7 Select Camera

Select a camera channel and display it as a single screen.

(bookmark) button

8 Zoom

Zoom in.

9 Panic Recording

Use the Panic Record feature.

0 Alarm

Pressing this button while the alarm has been activated resets all NVR alarm outputs, including the built-in buzzer.

! Database

• Record: Search recording data contained in the main recording device.

• Other: Search data recorded while disks used in other systems were connected.

@ Print

Print the current image.

Time-Lapse Search Menu

Part 4 - Search

1 Record Table

Display the current channel's recording information.

click  / click



Recording date and time are shown on the top of the search window. The grey indicator line on Record Table indicates the current playback position. Use the arrow buttons on the remote control to move the current playback position in units of individual sectors. Alternatively, use the mouse to jump to the desired playback position.

• Farther back the data is on the record table, the more recent it is.

• If the system's clock is changed to a previous date and time, it is possible for multiple recordings with the identical time stamp to exist. Overlapped segments are highlighted in yellow.

Selecting or on the bottom left portion of the Time-Lapse search window changes the size of

567 8

3 4

search window and displays all or minimum channels. Using the scroll, the information of other channels

which is not shown can be checked in the minimum size of Time-Lapse search window.

Select 1-minute segments and select

(zoom-in) to compose recording data in

(zoom-out) to compose recording data in 3-minute segments. Selecting zoom-out displays more time in one screen than zoom-in screen.

If recording from points in time prior or after the time frame displayed on the screen is available, scrolls appear on both ends of the date and time information line. Scroll using the arrow buttons on the remote control or by dragging with the mouse to check recording data.

Display the latest update recording information when selecting

(Refresh).

Recording Data Bar Colors

Blue Time Lapse Recording

Purple

Yellow

Red

Green

Event Recording

Pre-Event Recording

Panic Recording

Faulty recording due to a temporary disruption in device connection.

Part 4 - Search

2 Playback Controls

Play and scan through video recordings. Playback controls have the same functions as their remote control counterparts.

• Jog Shuttle

Adjust the playback method and speed. Jog shuttle's vertical indicator indicates the current

playback direction and speed. Vertical indicator placement to the right of the center means the video is being played back in the forward direction. Placement to the left means the opposite. Farther away the vertical indicator from the center, faster the playback speed. Click and drag the vertical indicator to adjust the playback speed. Releasing the mouse button returns the vertical indicator to the center and stops video playback.

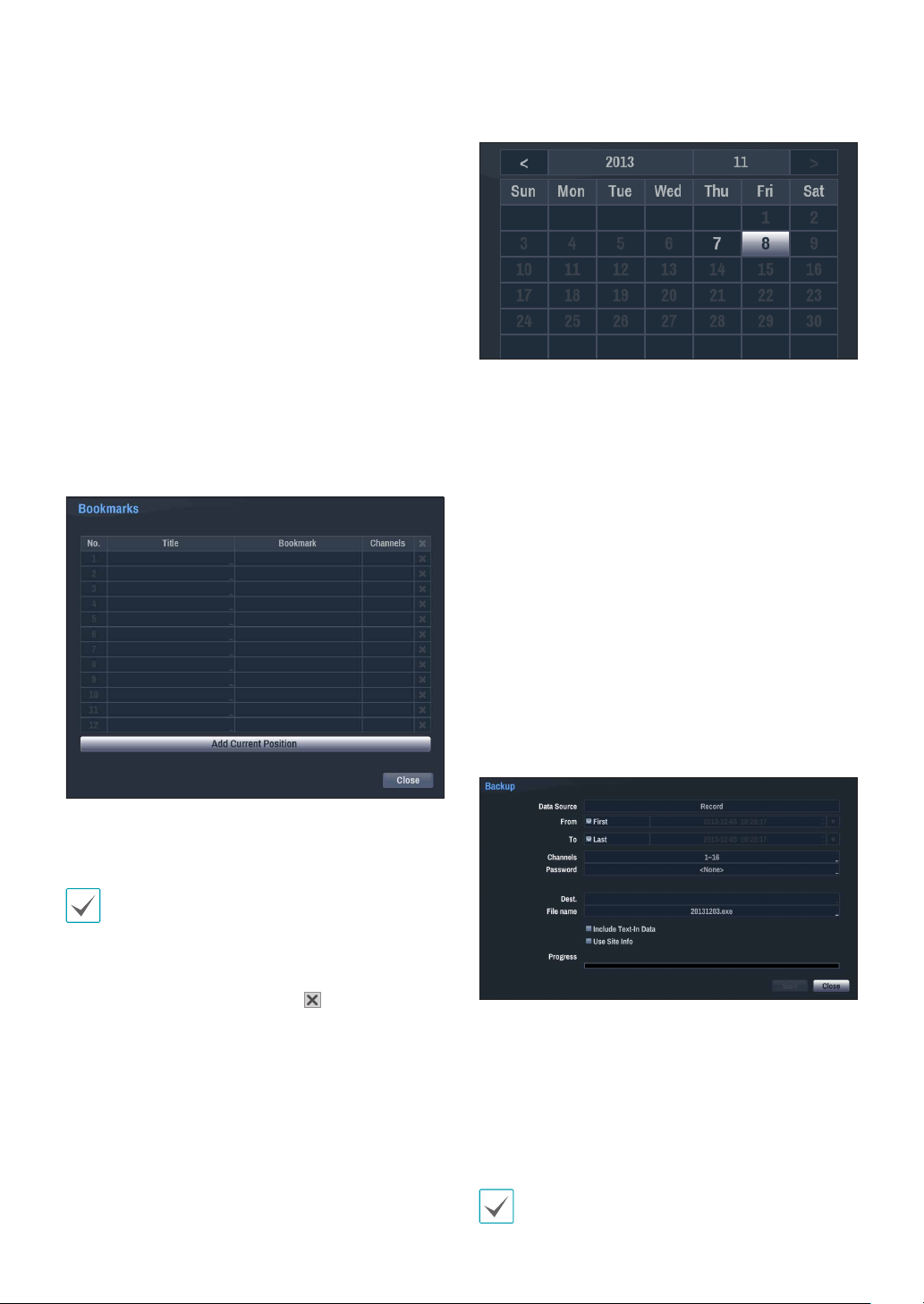

3 Bookmark

4 Calendar Search

Use the calendar to search for video recordings by speciﬁc dates.

Dates containing video recordings are highlighted in light grey. Selecting a date containing video recording data loads the earliest recording from that date (paused state). Selected date is highlighted in black of grey background.

5 Backup

• A-B Backup

Designate a start point and an end point and copy the data in between. The Backup Setup window will appear. Select A and B points are automatically applied as From and To values.

• Backup

Open up the Backup setup window. Specify the

From and To settings. Pressing the remote control’s Backup button while in Live or Playback mode will

also open the Backup setup window.

Select Add Current Position to add a bookmark to the current playback position. Select Title and enter the name of the registered bookmark.

The maximum number of bookmarks that can be saved is 12.

Select a bookmark from the Bookmarks window to move to the registered playback position.

Select Bookmark list and then the

icon to delete

the corresponding bookmark.

• Channels: Specify which channel to save the recording to.

• Password: Enable password protection for the saved video clip and assign a password.

• Dest.: Select which storage media to use.

• File name: Designate a name for the ﬁle. The name may be up to 63 characters in length.

Special characters such as \, /, :, ;, *, ?, !, “, <, >, and | are not permitted.

Part 4 - Search

• Include Text-In Data: Enabling this option will save the video clip along with any available text-in data.

• Use Site Info: Adds location info to the Backup ﬁle's name.

Special characters contained in the location info (such as \, /, :, ;, *, ?, !, “, <, >, and |) will be replaced with _ when the information is added to the ﬁle name.

Selecting Start displays a calculation on the size of the data to be copied. Check the calculation and then select Continue to proceed. While Backup is in progress, you can select Cancel to cancel the process or select Close to allow the window to run in the background. Selecting Close does not cancel Backup. Once the process is complete, you will be prompted with a conﬁrmation window.

• One-Touch Backup conﬁgures the storage range automatically based on the storage drive's capacity. If there is insufﬁcient space available on the selected storage device, you will only be able to Backup an amount of data equaling the remaining space available on the storage device.

• The maximum size limit on Backup ﬁles is 30GB. Saving a segment that is more than 2GB in size produces multiple ﬁles that are up to 2GB in size, each. The maximum size limit for One-Touch Backup ﬁles is 2GB.

• Backup ﬁles can be played back on Windows systems. For more information, refer to the REVO Remote Pro operation manual.

• For USB ﬂash memory devices, the NVR supports the FAT32 ﬁle format only.

Do not disconnect the USB cable or power off the USB device while USB Backup is in progress. Doing so can cause the NVR to malfunction or critically damage the external USB device's ﬁle system. You may be prompted with an error message when trying to back up on the device. If so, you will need to restart the NVR. If the USB hard disk's ﬁle system has been damaged, restarting the NVR will not solve the problem and the aforementioned error message will continue to be displayed each time you attempt a backup. If this is the case, you will need to format the HDD or use a recovery program to repair the damage to the drive's ﬁle system.

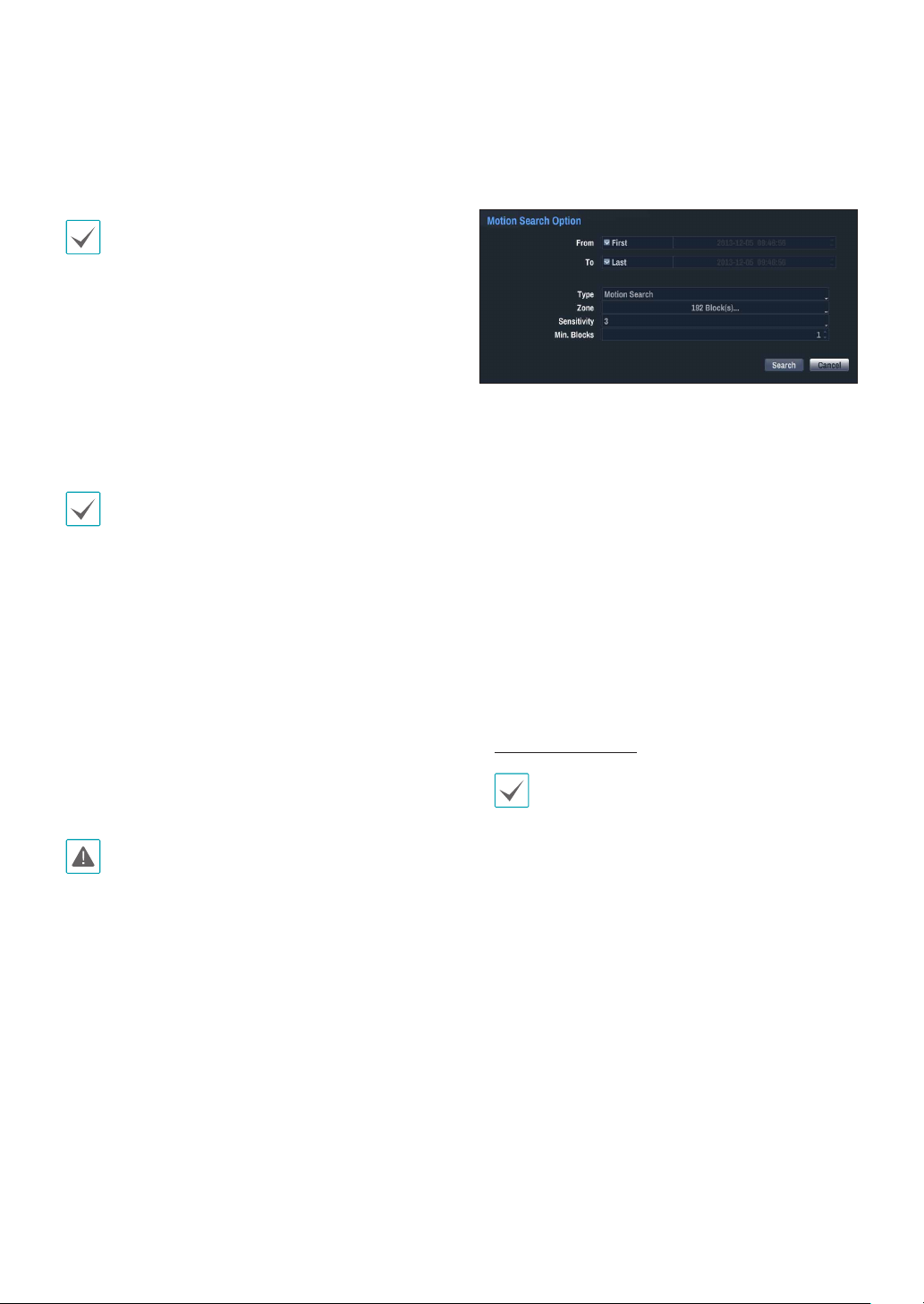

6 Motion Search (This function supports only in single screen.) Motion Search cannot be performed while using a split

screen layout. Select Single Screen mode.

• Select First under From and Last under To to search the recording from start to ﬁnish. Alternatively, you can uncheck the First and Last options and specify the search time frame manually.

• Type: Motion Search looks for motion in the selected area by comparing individual frames against their preceding frames. This means slow and gradual movements, no matter how long they persist, will not be recognized. In contrast, Museum Search looks for changes in the speciﬁed area by using the From frame as a reference. Museum Search, therefore, recognizes even minute deviations from the original From frame.

• The Zone setting can be conﬁgured in the identical manner as the Zone setting under System Setup Motion Detection. For more information, refer to the

Motion on page 44.

Museum Search may not function properly if the

edge of the object is included in the Zone. For more accurate search results, set the inside of the object's edge as the detection zone.

• Sensitivity: Set to between 1 (Low) and 5 (High).

• Min. Blocks: The Min. Blocks option is available with Motion Search only.

Once all the options have been conﬁgured, select Search. Select search results entry to display the video recording on the left. To play the recording, exit the setup window by selecting Close.

Part 4 - Search

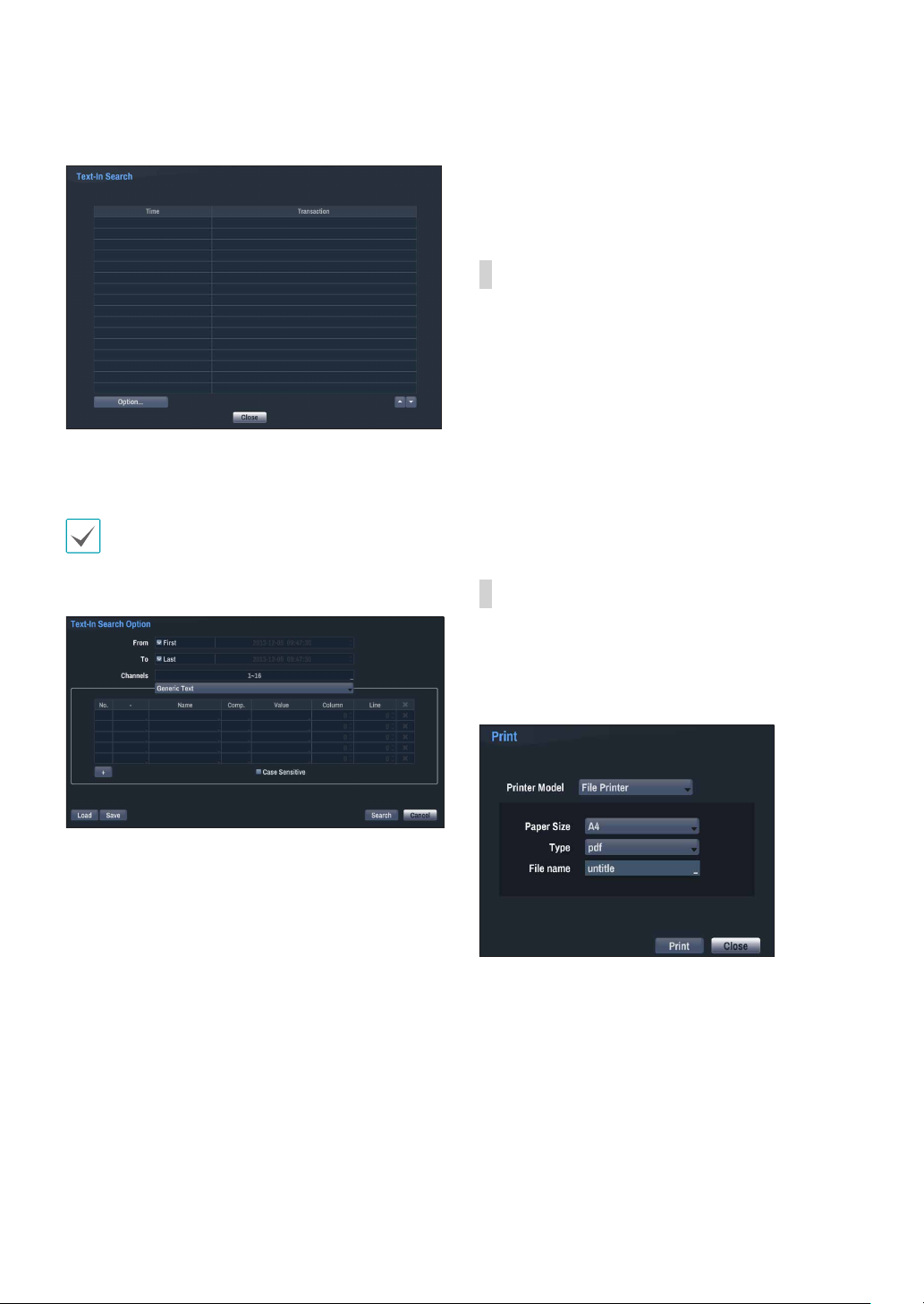

7 Text-In Search

Perform Text-In Search.

Select a Transaction to display the video recording that corresponds to the selected time and date (paused state).

Text-in information is superimposed on the screen at normal playback speed. The information is not shown under any other playback speed.

Select Option... to conﬁgure Text-In Search options.

8 Slow Play Option

Search the playback screen at low speeds. Select the desired playback speed (x1/2, x1/3, x1/4, x1/6, x1/8) and then select Play.

Context Menu

Select the Menu button or right-click on the Camera screen to access the context menu.

• Zoom: Zoom in.

• Audio: Enable/disable audio. Audio playback of the selected camera is available in full screen mode only.

• Show/Hide Text-In: Show/hide text-in information contained in the recording.

• Edit Group: Rearrange the split screen layout.

Print

Print the current image. While in Search Mode, select Pause to pause

playback. Select Print from the Search menu to open up the Print Setup window.

• Select First under From and Last under To to search the recording from start to ﬁnish. Alternatively, you can uncheck the First and Last options and specify the search time frame manually.

• Channels: Select a channel.

• Select Text-In Device to select a device type.

• + Button: Add a search variable.

• Case Sensitive: Conﬁgure case sensitivity.

• Load: Retrieve stored search option settings.

• Save: Save the current search option settings.

Once all the options have been conﬁgured, select

Search to begin the search and return to the Text-In Search setup window.

• Printer Model

- File Printer: Saves the current frame to the USB storage device as a .pdf ﬁle that can be printed on the printer connected to a computer.

• Paper Size: Select the desired paper size.

• File name: Designate a name for the ﬁle.

Part 4 - Search

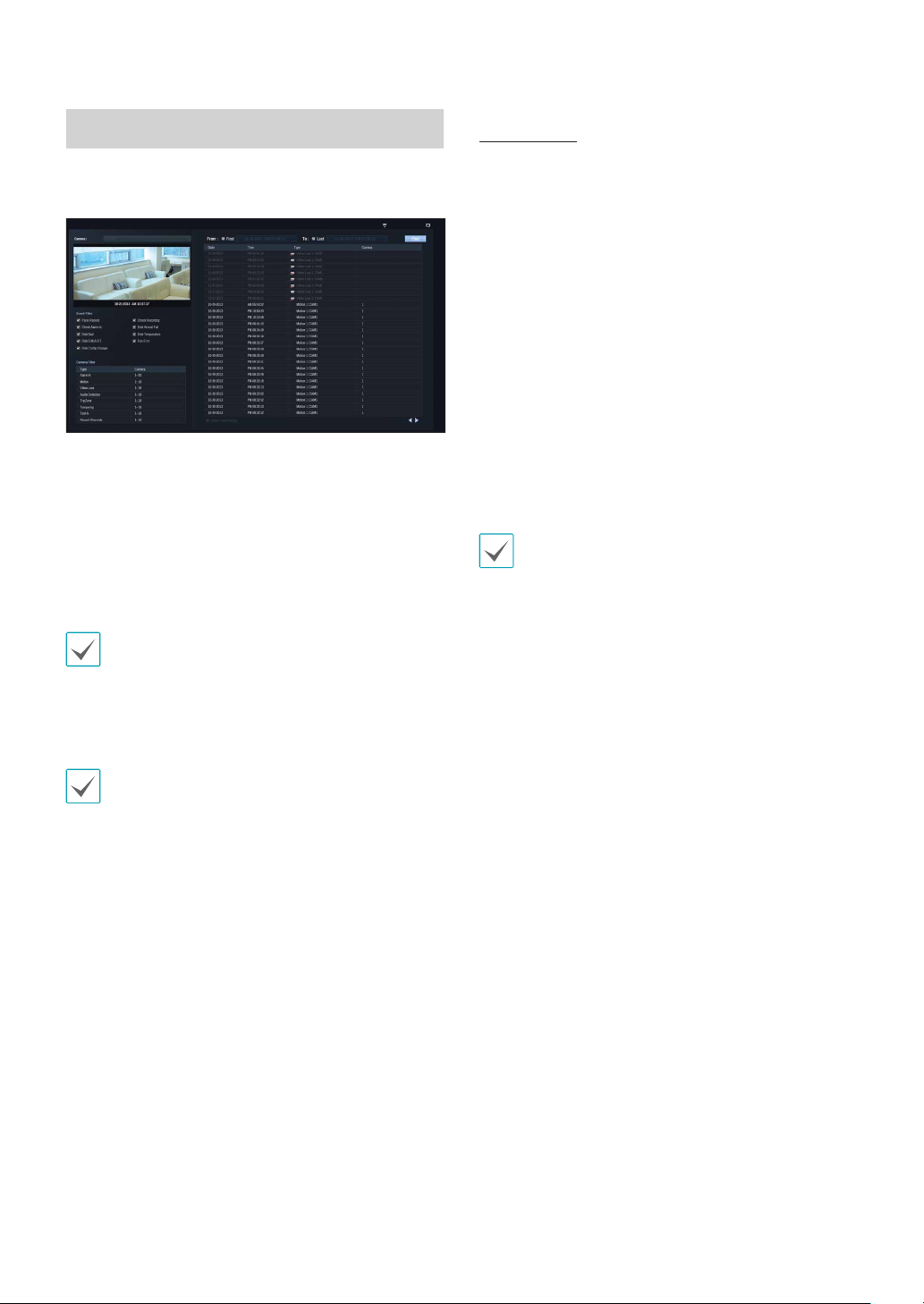

Event Log Search

Select Search Mode > Event Log Search to bring up the Event Log Search window.

• Select an event to display the recording made on the selected time and date (paused state). Select the Play button in the middle of the screen to start playing back the recording. Use the drop-down menu above to load recordings from other cameras.

• You can uncheck the First and Last options at the top of the Event Log Search window and specify the search time frame manually.

Select First for From and Last for To to select the entire recording from start to end.

Camera Filter

• Alarm-In: Select which channels to search alarm-in events in.

• Motion: Select which channels to search motion detection events in.

• Video Loss: Select which channels to search video loss events in.

• Audio Detection: Select which channels to search audio detection events in.

• Trip Zone: Select which channels to search trip zone events in.

• Tampering: Select which channels to search tampering events in.

• Text-In: Select which channels to search text-in events in.

• Record Channel: Select which record channels to search events in.

Selected record channels are searched for events with at least one linked recording. If no camera is selected, only the events with no linked recording camera are searched.

• If designating From or To settings manually, you will be able to enable/disable the Check Time Overlap option.

If the system's clock has been changed and the designated From or To point exists at more than one location, you will have to choose one. Only the events that took place between the selected From and To points will be searched. If Check Time Overlap has not been selected, events from the entire From and To range will be searched.

• Use event ﬁlters to include/exclude speciﬁc system events such as Panic Record, Check Recording,

Check Alarm-In, Disk Almost Full, Disk Bad, Disk Temperature, Disk S.M.A.R.T., Fan Error

and Disk Conﬁg Change from the search.

Part 4 - Search

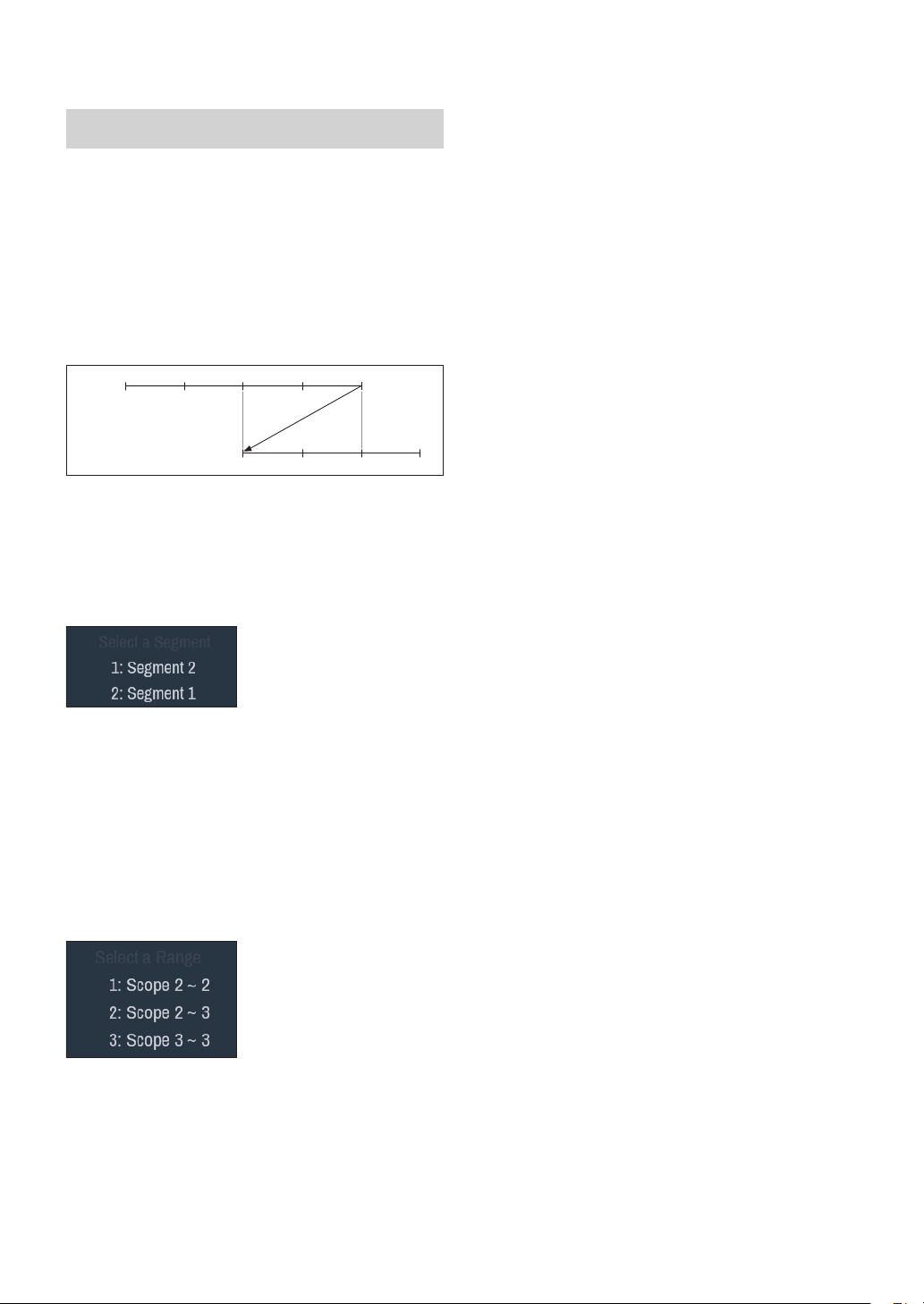

Overlapped Recording Search

If the system's clock is changed to a point in the past, overlapping recordings may be produced. Overlapped recordings have to be searched in segments.

For example, making a recording from 1 o'clock to 5 o'clock, changing the system's clock at 5 o'clock to 3 o'clock, and then continuing to record until 6 o'clock produces two recordings that overlap between 3 o'clock and 5 o'clock. This results in two segments for the period between 3 and 5.

1:00 2:00 3:00 4:00 5:00

Segment 1

Segment 2

3:00 4:00 5:00 6:00

When searching overlapped video recordings, you can choose a speciﬁc point in time or a time frame. If you use the Go to the Date/Time option and select a point within the overlapped time period (4 o'clock, for example), you must specify 4 o'clock in which of the two existing segments.

If you use the Event Log Search or Motion Detection option and select a time frame within the overlapped time period (4 o'clock to 5 o'clock, for example), you must choose between the two redundant sets of From and To values. Selectable search ranges are as follows:

• 4 o'clock in segment 1 to 5 o'clock in segment 1

• 4 o'clock in segment 1 to 5 o'clock in segment 2

• 4 o'clock in segment 2 to 5 o'clock in segment 2

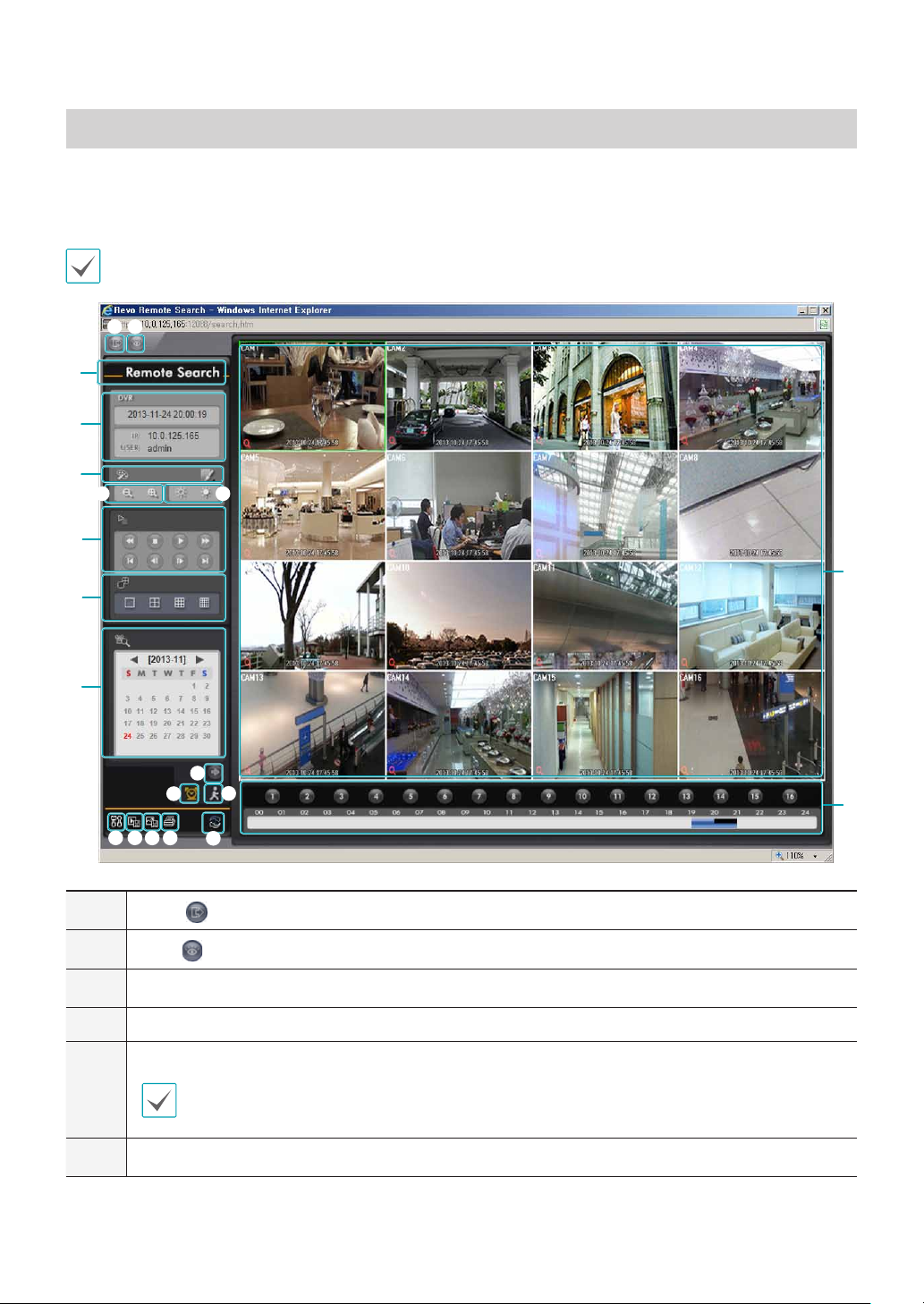

REVO Remote

Part 5 - REVO Remote

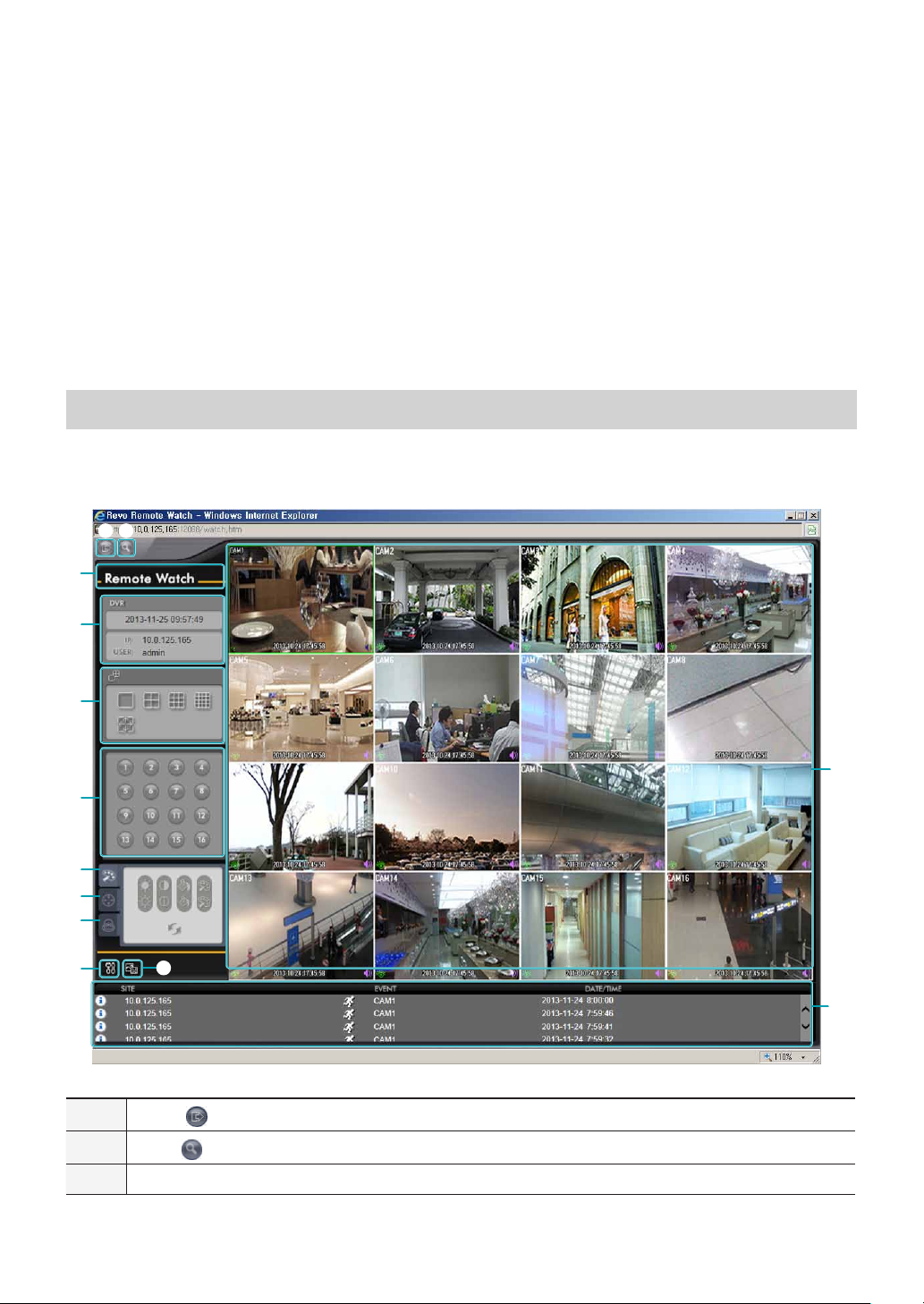

REVO Remote is a program that allows you to view and search video from remote locations over the Internet and can be accessed on a regular web browser such as Internet Explorer.

System requirements for running REVO Remote are as follows:

• OS: Microsoft Windows

• CPU: Intel Pentium IV 2.4GHz or above (Core 2 Duo E4600 recommended)

• RAM: 1GB or more

• VGA: 128MB or more (1280x1024, 24bpp or above)

• Internet Explorer: Ver. 7.0 or above (32-Bit)

• REVO Remote only works with Microsoft Internet Explorer and will NOT work with other browsers.

• REVO Remote does not work in Microsoft

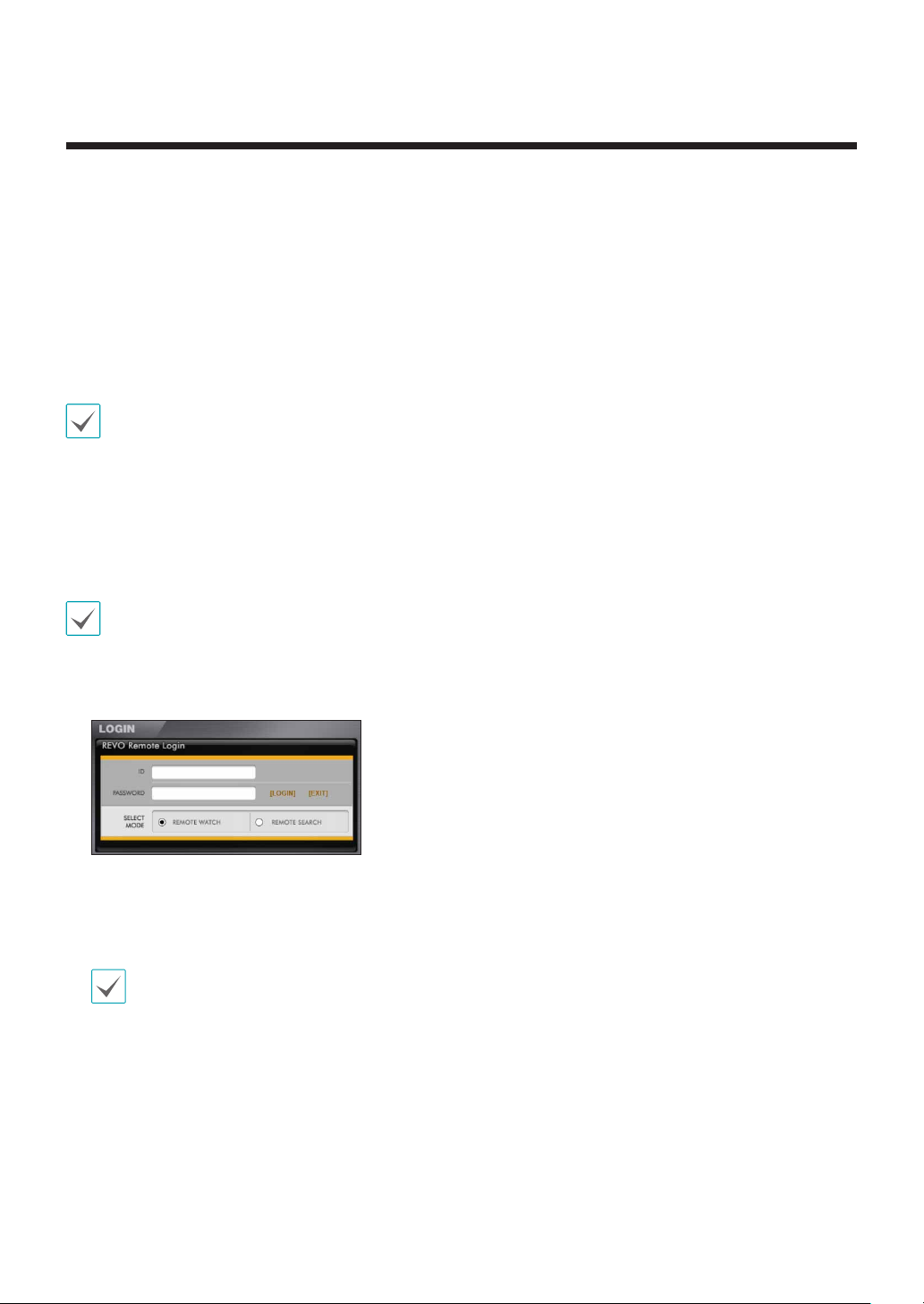

Launch Internet Explorer and then enter the following information in the address bar.

– http://IP Address:Port Number (NVR system's IP address and REVO Remote port number conﬁgured under

Network > General (Default Value: 12088))

– http://www.revodvr.com/NVR name (The NVR name registered on the DVRNS server)

Windows® XP (Service Pack 3), Microsoft® Windows® Vista (Service Pack 1), Microsoft®

7 (Home Premium, Professional, Ultimate) or Microsoft® Windows® 8 (Pro, Enterprise)

Windows® 8 metro UI.

Contact your network administrator for the IP address of the NVR you wish to connect to and the REVO Remote port number.

When prompted with the REVO Remote login window, select REMOTE WATCH or REMOTE SEARCH as

the desired mode. Enter the ID and password and click LOGIN to sign in using the selected mode.

If connecting by entering http://www.revodvr.com, enter the NVR's IP address in the Device Address ﬁeld. Selecting the Use DVRNS option on the login window allows you to enter the NVR name registered to the DVRNS server instead of its IP address. You will be prompted to enter the DVRNS server's address and port number under Setup.

• Do not close the login window while REVO Remote is running. Switching over to Web monitoring or Web Search mode can cause a script error, requiring you to restart the REVO Remote program.

• If running REVO Remote, the bottom section of the screen may get cut off if the address bar or the status bar is shown. In this case, change Internet Options so that the address bar or the status bar is hidden. (Tools →

Internet Options → Security → Custom level... → Allow websites to open windows without address or status bars (Enable))

• To use REVO Remote on Microsoft Windows Vista or above, launch Internet Explorer by right-clicking on the icon and selecting the Run as administrator option. Otherwise, certain REVO Remote functions might not be available.

Part 5 - REVO Remote

• Launching a new version of REVO Remote for the ﬁrst time can cause Internet Explorer to load information from the previous version. In this case, navigate to Tools → Internet Options → General, delete temporary Internet ﬁles, and then restart REVO Remote.

• On Microsoft Windows Vista or above, lowered image transmission rate can prevent the screen from being displayed or updated. In this case, we recommend that you disable the computer's auto tuning function. Open the command prompt as an administrator. (Start → Accessories → Command Prompt → Right-Click and then select Run as administrator) Type in "netsh int tcp set global autotuninglevel=disable" and then press Enter. Restart the computer to apply the change. To enable auto tuning again, launch the command prompt as an administrator and then type in "netsh int tcp set global autotuninglevel=normal". Restart the computer to apply the change.

Web Monitoring Mode

Remote Watch is a remote web monitoring program that allows you to monitor images from remote locales in realtime.

1 2

8 9

Press

to log out REVO Remote.

Click

to switch over to Web Search mode.

Place the mouse pointer on the Remote Watch logo to check REVO Remote's version.

Part 5 - REVO Remote

Displays the current time and login information of REVO Remote.

Select the desired mode. Changing the mode places the selected camera in the ﬁrst cell of the layout that will be changed.

Select the camera you wish to monitor.

Used to adjust live video quality.

Used to control a PTZ camera at a remote location.

Controls remote alarm out devices.

Click

to conﬁgure rendering mode and OSD settings. Select rendering mode to adjust the video

output rate or select which OSD elements to display on the screen from the OSD list.

Click

to save the current video screen as an image ﬁle.

Event status window at the bottom of the screen displays a list of events detected at remote locales.

Select a camera from the screen and right-click to bring up the pop-up menu.

• Change Camera Title: Used to change the camera's name.

Renaming the camera in Web Live mode does not affect the camera's name on the remote system. If no name is entered for the camera, the name used at the remote locale is shown on the screen.

• Enable Audio: Enables audio transmission with remote locales. Select to display buttons.

Enables transmission of audio to the remote locale via microphone.

Enables playback of audio from the remote locale on speakers.

Enables two-way audio communication with the remote locale.

Disables audio transmission.

If the remote locale connected to supports audio transmission, icon appears on the corresponding camera screen.

• Aspect Ratio: Changes the aspect ratio of the video displayed on the screen.

- Fit to Screen: Fit the video to the size of the camera screen.

- Fit to Aspect Ratio: Resizes camera screen to original aspect ratio of the video.

- Half Size (x0.5) - 4 Times Bigger (x4): Displays the camera videos in the selected size based on the original size of the video. For example, original size (x1) displays the video in its original size. Half size (x0.5) through 4 times larger (x4) options are only available if there is enough space on the camera screen to accommodate the selected size.

• Anti-Aliasing Screen: Removes stair step effect (blocks) that is caused when zooming a video to improve overall quality of video output.

Part 5 - REVO Remote

Web Search Mode

Remote Search is a remote web search program that allows you to search for recordings from remote locales in real-time.

While in Web Search mode, connection to remote locales will terminate automatically after 30 minutes of inactivity.

1 2

6 7

)

to log out REVO Remote.

to switch over to Web monitoring mode.

$ %

^ &

Press

Click

Place the mouse pointer on the Remote Search logo to check REVO Remote's version.

Displays time information of the video recording from the remote NVR.

Apply image ﬁlters (Sharpen, Blur, Equalizer, Interpolation, and Revert) to the images.

Image calibration is applied only during the paused state.

Zoom in or out on the video.

(

Part 5 - REVO Remote

Adjust image brightness.

Use the playback controls to play back video.

Go to First

Play by Frame (backwards)

Rewind

Play/Pause

Fast Forward

Play by Frame (forwards)

Go to Last

Select the desired mode.

Use the calendar to search for video recordings by speciﬁc dates. Dates containing video recordings are highlighted in black. Selecting a date containing video recording

data loads the earliest recording from that date(paused state). Selected date is highlighted in red.

Click

to designate recent recordings you wish to search and then jump to a speciﬁc point in the

recording.

Select

to enable time lapse search mode and search/play back video recordings in chronological order. In Time Lapse Search mode, search is conducted by selecting days on the calendar. The time table at the bottom displays recording data information for the selected date. Select a point in time to display video from that moment. If multiple recordings are available for the selected point in time, you can select the desired segment.

Select

to enable event search mode and search for events matching user-designated parameters.

(

Click

to conﬁgure rendering mode and OSD settings. Select rendering mode to adjust the video

output rate or select which OSD elements to display on the screen from the OSD list.

Click

to save the video recording as an executable ﬁle.

to save the current video screen as an image ﬁle.

to print the current video screen using a printer connected to the computer.

to reload recent video recordings from remote locales.

Indicates the selected camera's recording data on a time bar. If the camera's system clock has been changed to a point in the past and more than one recording exists at the same point in time as a result, you will be able to choose which segment to search from the segment menu on the upper right portion of the time table.

Part 5 - REVO Remote

Select a camera from the screen and right-click to bring up the pop-up menu.

• Change Camera Title: Used to change the camera's name.

Renaming the camera in Web Search mode does not affect the camera's name on the remote system. If no name is entered for the camera, the

)

name used at the remote locale is shown on the screen.

• Enable Audio: If audio was recorded with the video, enabling this option plays audio upon playback (limited to single-screen playback).

• Aspect Ratio: Changes the aspect ratio of the video displayed on the screen.

• Anti-Aliasing Screen: Removes stair step effect (blocks) that is caused when zooming a video to improve overall quality of video output.

Part 6 - Appendix

System Log Types

Boot Up Panic On

System Shutdown Panic Off

Restart Clear All Data

Upgrade Success Clear Disk

Upgrade Error Format Disk

Power Failure Disk Full

Time Changed Auto Deletion

Time Zone Change Search Begin

Time Sync. Search End

Time Sync. Failed Backup Begin

Disk Bad Backup End

Logout Backup Failure

Setup Begin Backup User

Setup End Backup Begin

Remote Setup Change Backup Finished

Remote Setup Failure Backup Duration of Video

Setup Import Backup Camera

Setup Import Failure Callback Failed

Setup Export Factory Reset

Setup Export Failure Camera Upgrade Begin

Setup Export Canceled Camera Upgrade End

SNS Failure Camera Upgrade Failure

Schedule On Camera Upgrade User

Schedule Off Camera Upgrade Camera

Part 6 - Appendix

Error Code Types

Upgrade Error Codes

No. Type No. Type

0 Unknown Error 301 Remote Network Error

1 Incorrect File Version 302 No Remote Upgrade Permission

2 Incorrect OS Version 303 Remote Upgrade File Save Failure

3 Incorrect Software Version 304 Remote Upgrade Cancelled by User

4 Incorrect Kernel Version 400 USB Storage Device Mount Failure

100 Storage Device Mount Failure 401 USB Storage Device File Read Failure

101 File Not Found 402 USB Storage Device File Copy Failure

102 File Decompression Failure 403 USB Device Not Connected

103 LILO Execution Failure 404 USB Storage Device in Use

104 Reboot Failure 405 Unsupported File System

105 Improper File 500 Backup in Progress: Upgrade Not Available

300 Remote Connection Failure

Backup Error Codes

No. Type No. Type

0 Unknown Error 12 Disk Error

1 Device Error 13 Backup Player Execution File Not Found

2 Device Connection Failure 14 Backup Player Execution File Access Failure

3 CD Media Not Found 15 Backup Player Execution File Save Failure

4 Incorrect Media 16 Image Generation Failure

5 File Name Taken 17 Burn Failure

6 Insufﬁcient Space 18 Burn Time Overrun

7 Temporary File Generation Failure 19 Device Connection Failure

8 Disk Access Failure 20 Device in Use

9 Disk Format Failure 21 Unsupported File System

10 Database Changed 22 Data Validation Failure

11 Save Failure 23 No Saved Data within Range

Part 6 - Appendix

Network Error Codes

No. Type No. Type

0 Cause of Failure Unknown 20 Connection Cancelled by User

1 Normal Logout 21 No Response from Network Device Host

2 All Channels in Use - Connection Denied 22 High Network Noise Level

3 Incorrect Product Version Info 23 Transmission Queue Full

4 Incorrect User Name or Password 24 Incorrect OEM Info

5 Forced Disconnection by Admin 25 No Search Permission

6 Timeout 26 Port in Use

7 Network Device Terminated 27 SSL Connection Failure

8 Unable to Connect: No Available Port 28 Network Timeout

9 Server Not in Operation: Unable to Connect 29 Network Device Host Timeout

11 Network Unavailable 30

RTP via TCP Not Supported by Network Device Host

12 Different Network Zone: Unable to Access 31 Socket Error

13 Connection Timeout 100 Unknown CODEC

14 Forced Disconnection by Network Device 101 .jpeg CODEC (not supported)

15 Network Device Host Terminated 103 .mpeg4 CODEC (not supported)

16 Unable to Route to Network Device Host 400 Unsupported Resolution

17 Connection Severed -1 Normal Access

Part 6 - Appendix

Troubleshooting

Problem Solution

The main unit won't turn on.

Unable to display Live video.

PoE-enabled camera will not turn on.

NVR stopped working in the middle of a recording.

icon is shown, but video is

not being recorded.

The NVR keeps on rebooting during a system upgrade without completing the upgrade.

• Check the power cable connection status.

• Check the power outlet.

• Check the camera's video cable connection status.

• Check the monitor's video cable connection status.

• Check the camera's power setting.

• Check the camera lens settings.

• Verify that the camera is actually PoE-enabled.

• Check the network cable, replace it, and try again.

• Check the PoE adapter is not defective and power adapter is properly connected.

• Hard disk may be full. Delete video recordings to free up space.

• Set the NVR to Recycle mode. For more information, refer to the General on page 41.

If the Pre-Event option has been enabled, events will not be generated and

(yellow) and icons are shown. The (red) and icons appear when an event occurs and triggers recording. For more information, refer to the Schedule on page 42.

Check the upgrade ﬁle's version. To downgrade to a previous version, you must ﬁrst press the factory reset button and reset all NVR settings to their factory defaults. A factory reset will clear all NVR settings conﬁgured by the user. For more information on factory reset, refer to the Factory Reset section on page 90.

Speciﬁcations

These product speciﬁcations may change without prior notice.

General

Exterior Dimensions (W x H x D)

Weight (Main Unit) 2.3kg (with 2HDDs)

Weight (Packaging) 4.5kg (with 2HDDs)

Packaging Dimensions (W x H x D)

Working Temperature 5°C – 40°C

Operating Humidity 0% – 90%

Power

Power Consumption

Certiﬁcations FCC, CE

300mm x 61mm x 231mm

460mm x 113mm x 360mm

DC12V, 2.0A (NVR) DC48V, 1.4A (PSE)

Max. 25W (NVR) Max. 65W (PSE)

Part 6 - Appendix

Video

Video In 16 Network Camera (Video In Port : 9)

Monitor Out

Video Resolution 1920 x 1200, 1920 x 1080, 1680 x 1050, 1600 x 1200

Recording Speed (IPS) 240ips @ Full HD

Playback Speed (IPS) 120ips @ Full HD

Alarm In 4 TTL, NC/NO programmable, 2.4V (NC) or 0.3V (NO) threshold, 5VDC

Alarm Out 1 relay output, 2A@125VAC, 1A@30VDC (NO)

Internal Buzzer 80dB at 10cm

Network Connection 10Mbps/100Mbps/1Gbps Ethernet

Audio In Network Audio In

Audio Out 1 line Audio Out, RCA

Text In POS Interface, ATM Interface

HDMI: 1 HDMI VGA: 1 DB15

I/O

Part 6 - Appendix

Connectors

Video In Ethernet: 9 ports

Camera Power Out Ethernet: 8 ports

Monitor Out

HDMI: 1 HDMI VGA: 1 DB15

Audio Out 1 RCA connector

Alarm Terminal block

Ethernet Port 1 RJ-45

RS232 Serial Port Terminal block, text insertion (POS/ATM)

IR Remote Control Port Remote Control

USB Ports 2 x USB 2.0 (5V, less than 0.5A)

Storage

Internal Storage 2 SATA2 bays

Backup Device USB Storage Device (USB HDD, USB Memory, etc.)
