Revo iBlik Instruction Manual

NorwayItalianoDeutschFrançaisEnglish

mode d’emploi

Operating Guide

Bedienungsanleitung

Mode d emploi

Bruksanvisning

w w w . r e v o . c o . u k

English

Revo Australia
PO Box 6287
Newington NSW 1811
Australia
Website: www.revo.net.au

Should you encounter any difficulties with
the operation of your radio, or should you
suspect that it may be faulty in some way,
please call our Revo Warranty on the number
below:

1800 509 394 (Australia)
0800 450 259 (New Zealand)

Alternatively, visit the troubleshooting section of
our website at: www.revo.net.au

Warranty 20

Revo Helpline

Should you encounter any difficulties with the
operation of your radio, or should you suspect that it
may be faulty in some way, please call our Revo
Warranty on the number below:

1800 509 394 (Australia)
0800 450 259 (New Zealand)

The Gold Technical Support Line: 1902 215 259
(Charges will apply at $2.95 per minute)

Alternatively, visit the troubleshooting section of our
website at: www.revo.net.au

This product has been designed and
type-tested to comply with Australia requirements
and carries a CE mark.

iBLIK RadioStation

Contents

Welcome to iBLIK RadioStation 3

iBLIK Overview 3

Warranty + Warranty Registration 3

Before Getting Started 3

Wi-Fi Internet Connection 3

Registering Your Radio 3

Controls and Connections 4

Remote Control Operation 4

Powering iBLIK 4

Getting Started 5

iBLIK’s Control Method 5

iBLIK’s Menus Explained 5

Setting The Time and Date 6

Internet Radio Mode 7

Connecting To Wi-Fi network 7

Using Internet Radio Features 8

Choosing A Station 8

Choosing A Podcast 8

My Favourites 9

My Added Stations 9

Help 9

Internet Radio Portal 9

Access Additional Features 9

Registering Your Radio 9

Music Player Mode 10

Windows PC Set-UP 10

Apple Mac Set-Up 11

DAB Mode 12

DAB Mode Menu Options 13

FM Mode 14

MPort Mode 14

iPod Mode 15

Alarms Mode 16

Sleep Mode 17

System Setup 17

Info 17

Troubleshooting 18

User Licence 19

Preface

Copyright and
Acknowledgements

Copyright © 2008 Revo Technologies Ltd.
All rights reserved.

Revo Technologies Ltd
The Inox Building
Caldwellside
Lanark
Scotland, United Kingdom
ML11 7SR

Tel. [phone]
Int. Tel. [phone]
Fax. [phone]
Int. Fax. [phone]
Email. [e-mail]
Website: www.revo.co.uk

The information in this guide is believed to
be correct at the time of publication.
However, our policy is one of continuous
development and so the information is
subject to change without notice.

Revo, iBLIK and M-Port are trademarks or
registered trademarks of Revo Technologies
Limited.

iPod® is a registered trademark of Apple
Computer, Inc.

“Made for iPod” means that an electronic accessory has been designed to connect specifically
to iPod and has been certified by the developer to meet Apple performance standards.

2

Safety Warnings

Do not operate this radio near water.
Avoid small objects and liquids from getting
into this product.
Do not remove screws or casing parts.
Use only the power supply unit supplied.

EEC: This product has been designed and
type-tested to comply with EU requirements
and carries a CE mark.

Technical Support

Should you encounter any difficulties with
the operation of your Revo radio, or should
you suspect that it may be faulty in some
way, please call our technical support
department on the number below:

01555 66 61 61

Alternatively, email or
visit the troubleshooting section of our
website at: www.revo.co.uk/support

Welcome to iBLIK RadioStation

Revo Australia warrants to the purchaser that this
product will be free from parts and manufacturing
defects in the course of normal use for a period of
one year from the date of purchase.

This warranty does not apply in cases of accidental
damage, where the case has been removed, wear
and tear, negligence, modification or inappropriate
use.

Warranty Registration

It is suggested that you register your purchase
by registering online at www.revo.net.au

a wireless (Wi-Fi) broadband internet connection.

iBLIK RadioStation

Thank you for buying our iBLIK RadioStation hybrid digital radio, we feel sure
that it will provide you with years of enjoyment and reliable service.

This guide has been designed to quickly get you up-and-running and listening
to internet radio, offer guidance on the more complex features of this
product and provide information on safety, warranty and registration.

English

iBLIK RadioStation Overview

iBLIK RadioStation is the ultimate ‘one box’
digital radio, providing an unprecedented
choice of over 11,000 stations from around
the globe.

Whether your preferred station is
broadcasting from your own country on DAB
or DAB+ digital radio, or on the other side
of the world via the internet radio platform,
iBLIK RadioStation is ready to deliver.

iBLIKRadioStation also includes an iPod dock
for music playback and charging, as well as
coverage of traditional FM radio, and
comprehensive electronic alarm clock
functionality.

Throw-in class-leading audio performance
and the ability to stream music from your
PC or Mac, and iBLIK RadioStation becomes
the radio of choice for the digital
generation.

Warranty

Revo Technologies Ltd warrants to the
purchaser that this product will be free
from parts and manufacturing defects in
the course of normal use for a period of
one year from the date of purchase.

This warranty does not apply in cases of
accidental damage, where the case has
been removed, wear and tear, negligence,
modification or inappropriate use.

Should you encounter problems with this
product, please contact your supplier or
alternatively see page 2 of this guide for
technical support contact details.

Warranty Registration

It is a warranty condition that you register
your purchase by either completing the
warranty card enclosed with your radio or
alternatively registering online at

www.revo.co.uk/register

Before Getting Started

IMPORTANT

To ensure that your iBLIK RadioStation is
running the latest software release (and
therefore has access to the latest software

I

features), we advise you to perform a
software update. Please see page 17 of this
operating guide for full details.

Network Connection

In order to use the internet radio functions
of your iBLIK RadioStation, you will require
either a wireless (Wi-Fi) or wired LAN
broadband internet connection.

For setup instructions please see page 7.

Registering Your Radio and
Accessing Additional Services

Some of iBLIK RadioStation’s more advanced
internet radio features can only be accessed
by visiting the Frontier Internet Radio Portal
(www.wifiradio-frontier.com).

iBLIK RadioStation and DAB+

iBLIK RadioStation is capable of receiving
broadcasts on the new DAB+ digital radio
platform - without the need for modification
or additional software. Meaning that iBLIK

NB. If your wireless network is configured
to use Wired Equivalent Privacy (WEP), or
Wi-Fi Protected Access (WPA or WPA2)
data encryption, you need to know the WEP
or WPA code (Web Key) in order to allow
iBLIK to connect to your wireless network.

These features include the ability to create a
“Favourites” list and add unlisted radio
stations and podcasts. See page 9 for
instructions on how to register your radio.

is ready for future developments. This facility
is in addition to iBLIK’s reception of
standard DAB signals.

3

English

iBLIK RadioStation

Controls and Connectors

13.14.

1.

2.

3.

4.

5.

12.

11.

10.

9.

8.

6.

1. M-Port

2. Telescopic Antenna

3. DC Power Socket

4. 3.5mm Headphone Socket

5. Audio Outputs

6. Wired LAN Connector

1.

7.

1. Power On / Off

2. Volume Up

3. Scroll Back

4. Volume Down

5. Alarm

6. Presets 1-10

7. Snooze / Sleep

8. Scroll Down

9. Info

10. Select

11. Scroll Forward

12. Mode

13. Scroll Up

14. Menu

Media Player Controls

Play

Remote Control

14.

15.

1. Scroll Back

2. Select

3. Menu

4. Scroll Down

5. Media Player Controls

6. Presets 1-10

7. Alarm / Clock

8. Snooze / Sleep

9. Info

10. Volume Down

11. Scroll Forward

12. Volume Up

13. Power On / Off

14. Mode

15. Scroll Up

1.

2.

3.

4.

5.

6.

2. 4. 5. 6.

Skip Back Skip Forward

Pause

13.

12.

11.

10.

9.

8.

7.

LINE OUTRL

3.

5. Media Player Controls

Pause

Skip Back Skip Forward

Play

Powering iBLIK RadioStation

Your iBLIK RadioStation can be powered from the mains using the power adaptor supplied.

To power from the mains, insert the power adaptor plug into the DC power socket on the
rear of iBLIK RadioStation. Pressing the button will switch iBLIK RadioStation on.

Only use the power adaptor supplied. Replacements can be purchased from our website

www.revo.co.uk

4

, or alternatively call us on 01555 66 61 61.

Getting Started

iBLIK RadioStation

English

iBLIK RadioStation is a sophisticated digital
radio device, with several modes of
operation and many advanced features.

In order for you to get the most out of
iBLIK’s functions, it is important that you
learn how to use the cursor based control
system, and also understand how iBLIK’s
menus work.

iBLIK RadioStation’s Control
Method

iBLIK RadioStation’s control method is based
around seven main keys as identified below.

Scroll Up:

Press to scroll through menu options

Scroll Back:
Press to return to the previously selected
menu entry. Repeatedly pressing will return
you to the top level of the Mode menu (for
the mode you are in).

Scroll Forward:
When in text entry screens, this key can be
used to navigate through the characters.
It can also be used to move through to the
next menu level.

Scroll Down:
Press to scroll through menu options

SELECT – Press to select the current menu
entry. In FM mode, pressing SELECT will
initiate an FM scan.

Menu:

Press to enter (or return to) the Mode
menu for the mode of operation you are
currently in. Pressing for a second time will
return you to the ‘playing’ screen.

Mode:

Sequentially cycles through each of the
modes of operation.

Using these keys, you will be able to
perform most functions and navigate
through iBLIK RadioStation’s various menus

iBLIK RadioStation’s Menus
Explained

iBLIK RadioStation has three types of menu
as follows:

Main Menu

This is iBLIK RadioStation’s principle (top
level) menu, and allows you to enter
different operating modes, setup the radio,
and view information such as software
version and your radio’s ID number.

Mode Menus

The Mode menus are so called because
they show the functions available within the
context of each of the operating modes
(internet radio mode, DAB mode, iPod
mode, FM mode etc. etc.).

Pressing the MENU button at any time will
take you to the Mode menu of the operating
mode your radio is currently in. Each Mode
menu includes a listing for Main Menu –
selecting this option will return you to the
top level Main Menu (as described above).

Main Menu

The Main menu provides access to the
following modes and sub-menus:

Internet Radio
Music Player
DAB
FM
Mport
iPod
Sleep
Alarms
System Setup
Info

On powering-up iBLIK RadioStation for the
first time, you will be presented with this
menu. To select an option from the menu,
simply use the or keys to move
through the menu options, and press
SELECT or to make a selection or move
to the next menu level.

5

English

iBLIK RadioStation

Setting the Time and Date

The time and date can be set in one of two ways, either manually from the Time Setup
menu, or automatically by selecting Auto update from the Time Setup Menu as follows:

Manually

Time

To set the time manually, first press the

MENU key.

Using the and cursor keys, scroll to
“System setup” and press the SELECT or

key.

Using the and cursor keys, scroll to
“Time setup” and press the SELECT or

key.

Choosing “Set clock” will allow you to
manually set the time.

Use the and cursor keys to set the
hours then press the SELECT or key.

Use the and cursor keys to set the
minutes then press the SELECT or key.

Date

To set the date manually, first press the
MENU key.

Using the and cursor keys, scroll to
“System setup” and press the SELECT or

key.

Using the and cursor keys, scroll to
“Time setup” and press the SELECT or

key.

Choosing “Set date” will allow you to
manually set the date.

Use the and cursor keys to set the
day then press the SELECT or key.

Use the and cursor keys to set the
month then press the SELECT or key.

Use the and cursor keys to set the
year then press the SELECT or key.

Auto update from DAB

If you have selected “Set from DAB”, the
radio will automatically set the date and
time the next time you listen to a DAB
station. The local time and date will be set
and there is no need to adjust the clock
for Daylight Saving.

Auto update from NET

If you have selected “Set from NET”, the
radio will automatically set the date and
time the next time you listen to an
internet radio station. The time will be set
to GMT, depending on your location you
may now need to adjust the Timezone.

The Timezone is set from within the “Time
setup” menu. Using the and cursor
keys, scroll to “Set timezone” and press
the SELECT or key.

Using the and cursor keys, choose
the GMT offset required for your location.
Press the SELECT or key to confirm
your selection.

During daylight saving months, you can
Set DST to On. This option is found in the
“Time setup Menu”.

Using the and cursor keys, scroll to
“DST” and press the SELECT or key.

Using the and cursor keys, choose
“ON” or “OFF”, then press the SELECT or

key to confirm your choice.

Please note, once you have set the GMT offset
and DST, your selection will be reapplied after a
power cut meaning the correct time will be set
automatically

.

Automatically

To set the time and date automatically,
first press the MENU key.

Using the and cursor keys, scroll to
“System setup” and press the SELECT or

key.

Using the and cursor keys, scroll to
“Time setup” and press the SELECT or

key.

Using the and cursor keys, scroll to
“Auto update” and press the select or
key. There are now two types of Auto
update available to select, “update from
NET” and “update from DAB.
Using the and cursor keys, select the
type of Auto update you wish to use.
Pressing SELECT or will confirm your
selection.

6

Internet Radio Mode

iBLIK RadioStation

Connecting to your broadband network

In order to access iBLIK RadioStation’s
internet radio features, first you must
connect to your Wi-Fi broadband
connection.

English

Firstly, select ‘Internet Radio’ from iBLIK’s
main menu, or press the MODE key until
‘Internet Radio Mode’ appears on the
display.

iBLIK RadioStation’s will now ask you to
select a ‘Wlan region’. To do so, use the
and cursor keys to scroll through the
selections. Press the SELECT or key to
make your selection.

iBLIK RadioStation’s will ask you to choose
the network you’d like to use. If there is
more than one available, all will be listed.
If you are using a wired LAN connection
choose ‘Wired’ option from the network list.
To make your selection use the and
cursor keys to scroll through the options.
Press the SELECT or key to make your
choice.

If the Wi-Fi network you have chosen
doesn’t require a password, iBLIK
RadioStation’s will automatically connect.

If your chosen network has security
enabled, you will be asked to input the
relevant key or password. Remember, the
password will be case-sensitive.

Use the and cursor keys to scroll
through the banks of characters. Use the

and keys to move the flashing cursor

along the row of characters, and press
SELECT when your chosen character is
flashing. When the password has been
entered, move the flashing cursor to the

symbol at the end of the line and press

SELECT. iBLIK RadioStation’s will now
connect to the network.

Internet Radio

Music Player

>Most of Europe
USA

[Rescan]
[Wired]

>My Home Network

>Connected

Key:
0123456789< C

Please wait
Connecting...

iBLIK RadioStation’s will remember the
security key or password, you will not be
required to enter it again, even after iBLIK
has been disconnected from main power.

iBLIK can also remember keys and
passwords for multiple Wi-Fi networks.

If at some time you would like to connect to
another Wi-Fi network, you can do so by
selecting ‘Wizard’ from the ‘Internet Setup’
option on the main menu, and entering the
required key/password.

Advanced users can edit their Wi-Fi settings
by accessing the ‘System Setup’ option from
the Main menu.

>Internet setup
Time setup

7

English

iBLIK RadioStation

Using Internet Radio Features

The internet radio mode allows you to choose from a number of services, including listening
to live radio or Podcasts. There are five options on the internet radio menu as follows:

My Favourites: Used to navigate to your favourite stations. This list is compiled using

your PC/Mac via the internet radio portal. See page 9 for details.

Stations: Find stations by location, genre, most popular, new station or by

alphabetical search.

Podcast: Find Podcasts or ‘Listen-Again’ services by location, genre or search.

My Added Stations: Shows stations which you have personally added to iBLIK

RadioStation’s list through the vTuner internet radio portal.
See page 9 for details.

Help: Find your Access Code here, see page 9.

Choosing A Station

To select a station, enter ‘Internet Radio
Mode’ from the Main Menu or by pressing
the MODE key until ‘Internet Radio Mode’ is
displayed on iBLIK’s LCD display.

Using the and cursor keys, scroll to
the ‘Stations’ option and press SELECT or
the key.

You now have the option of selecting a
station by location (country), genre,

alphabetical search, most popular
stations or new stations. Using the and

cursor keys, scroll through the list and

press SELECT or the key to choose your
search criteria.

Internet Radio

Mode

My Favourites
>Stations

Location
>Genre

Choosing location will give you an
alphabetical list of continents/regions and
then a list of countries. Use the and
cursor keys, scroll through the list and
press SELECT or the key to choose your
country. You will then be given the option of
choosing a genre, to further refine your
search.

After selecting your search criteria, you will
be presented with a list of stations that
meet your requirements. Simply select a
station from the list to begin listening.

Choosing A Podcast

Podcasts (also referred to as ‘Listen Again’)
are selected in the same way as a regular
station.

Select ‘Podcast’ from the ‘Internet Radio’
menu, you can search for a station by
location, genre or a combination of both.

The main difference is that when you have
selected a station, you will then be
presented with a list of ‘shows’ or Podcasts
available from that station.

Select your choice by using the and
cursor keys, scroll through the list and
press SELECT or the key to make your
selection.

8

Location
>Genre

Finland
>France

BBC Radio 1
>BBc 1Xtra

BBC Radio 1
Playing

>Podcast
My Added Stations

>Podcast
My Added Stations

>BBC 6 Music
BBC Radio 7

My Favourites

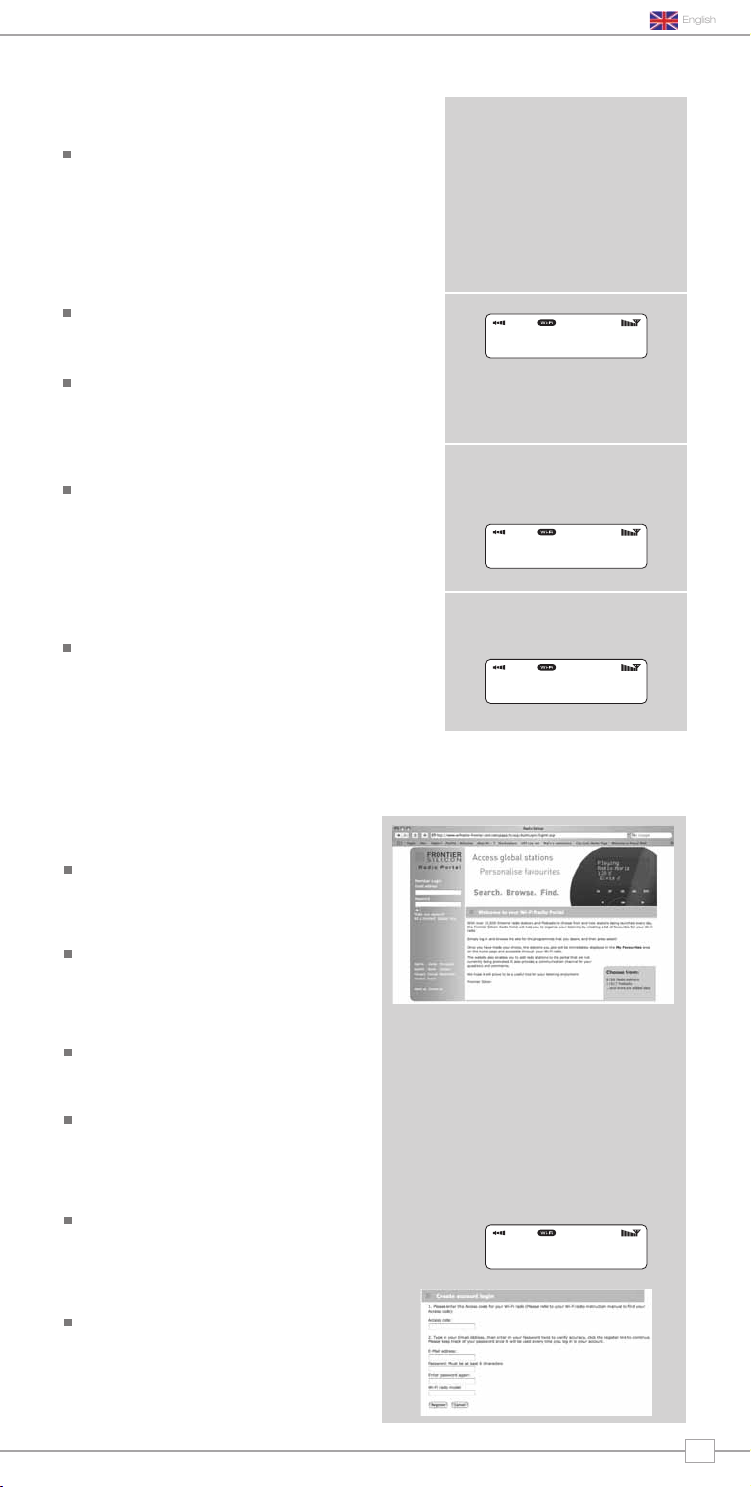

iBLIK RadioStation

It is possible to compile a list (or lists) of

your favourite stations, allowing quick and

easy access to a number of varied stations.

To do this you must first register your radio

and then choose your favourites by visiting

the Frontier Internet Radio Portal - see

‘Internet Radio Portal’ section below for

details.

When in ‘Internet Radio Mode’, choose

‘Station List’ from the options, then select

‘My Favourites’.

If you have set up a ‘My Favourites’ list via

the Frontier Portal, your list will appear on

iBLIK’s screen.

My Added Stations

If you have added any of your own stations

to iBLIK’s already huge station list (via the

Frontier Portal - see section below), they

will be listed here. The ‘My Added Stations’

option can be found under ‘Station List’ in

‘Internet Radio Mode’.

>My Favourite

Stations

>Station List
Main Menu

English

Help

The ‘Help’ option is where you can find the

Access Code that you require to register

your radio on the Frontier Portal (see below

for full instructions). A helpful FAQ audio

track can also be found under this heading.

>Get Access Code
FAQ

Internet Radio Portal

Access Additional Features

Some of iBLIK RadioStation’s more

advanced internet radio features can only

be accessed by visiting the Frontier

Internet Radio Portal.

In order to access these features you must

first register your radio.

Registering Your Radio

Firstly, open your web browser on your PC

or Mac and go to the Frontier Portal at

http://www.wifiradio-frontier.com

Click on the Register link, (located on the

left hand panel) to begin the registration

process.

You will now be asked for an Access Code.

To find your Access Code enter ‘Internet

Radio Mode’, select ‘Station List’ from the

options, then select ‘Help’. From the ‘Help’

menu now select “Get Access Code”.

>Get Access Code
ABCD1EF

Now fill-in the rest of the from to complete

the registration process. You will now be

able to login and take advantage of the

various additional features and services

offered by the Frontier Internet Radio

Portal.

9

English

iBLIK RadioStation

Music Player Mode

Music Player Operation

iBLIK RadioStation’s media player

functionality allows you to play audio files
(ACC, AIFF, AU, MP3, RM, WAV and WMA)
and playlists (M3U) stored on a networked
PC or Apple Mac. The media player
functions have been tested and certified to
operate with Windows 2000, Windows XP,
Windows Vista and Mac OSX 10.2 –

10.4.9 (currently Mac OSX ‘Leopard’ is not
supported).

Windows PC Set-Up

There are two Music Player modes
available. Each of them requires different
settings, and either one can be used to
playback music from a media server.

Shared Folders (CIFS)

In order to set up the device to playback

music stored on shared network drives,
user name, password and domain settings
must be configured to work with the PC
share settings. This is only required if the
user has set a password on his/her shared
folders.

PC: Domain/Workgroup configuration

The Domain configuration item can be found
on a Windows XP machine as follows:

1. From the start menu, select Control
Panel > System then select the Computer
Name tab.

2. The Domain or Workgroup that this
Computer is a member of is displayed in
this tab.

3. Select the user just created, select
‘Create Password ...’ and enter a password
for this user.

4. Note the User Name and Password.

Note for Windows VISTA : Users have to
turn on the Guest account via manage user
accounts in the control panel in VISTA, then
add access to either ‘Everyone’ or ‘Guest’ on
the shared drive. They could create a new
account for the internet radio, with a
password, if they are concerned about
security. The Guest account has no
password by default, so the Wi-Fi radio will
connect to it from its factory default
settings.

PC: Configuring A Shared Drive

From the Start menu select My Computer
and navigate to the directory you wish to
share. Right click on the directory and
select Sharing and Security. Configure the
shared drive as read only, and ensure that
the User Name created above has read
access to the share.

Wi-Fi Radio: Storing The
Username And Password

Before the radio can stream music from a
PC, you need to ensure you have shared
folder available on the PC, and set up the
radio so that it knows the username and
password (if one has been set) for the
shared folder on the PC. This can be set up
using the PC settings menu.

Shared Media (UPnP)

3. If the PC is not a member of any Domain
or Workgroup then one must be joined. To
do this click on the change button on the
computer name tab and enter the name of
the domain (default on Windows XP is
MSHOME).

4. A reboot of the PC may be prompted if
the Domain or Workgroup has been
changed.

PC: Setting up a new user account (Windows XP)

iBLIK RadioStation may require you to set-up
a user account on each PC that you wish to
browse. By default most PCs have at least
one user account associated with it. The
user name and password (optional) needs
to be the same on each PC as the Internet
Radio only stores one user name and one
password. For windows XP this can be set
up as follows:

1. From the start menu, select Control
Panel -> User accounts

2. From this screen left click the ‘Add ...’,
and enter the new user name and the
Domain/Workgroup setting noted above.
Select the type of user (limited) and then
select ‘create account’.

10

Media sharing uses Windows Media Player
(WMP) 11 and above as media server. This
mode does not require any setting in the
radio, but the PC needs to be configured to
allow the radio access to the media. You will
only have to do it once, following the next
steps.

1. The PC must be connected to network
(wired or wireless) that will be used to
share media with the radio.

2. Ensure that the radio is powered on and
connected to the same network as the PC.

3. In WMP, add to the media library the
audio files and folders you want to share
with your internet radio (in Library > Add to
library).

4. In the WMP main window, click on
Library, then Media sharing.

The Internet radio is presented as an
“Unknown Device”. Make sure that the
device has access to the shared media by
selecting it and clicking <Allow>. Then click
<OK>.

The PC is now ready to stream the music to
the radio.

Music Player Mode

iBLIK RadioStation

English

Apple Mac Set-Up

Set-Up for OSX 10.2.1 --> 10.4.9

Setup Windows File Sharing on
the MAC:

From the ‘Dock’, click ‘System Preferences’.
From the ‘System Preferences’ window
(under the ‘Internet & Network’ section)
click ‘Sharing’.

From the ‘Sharing’ window, do the following:

Under the ‘Services’ section, enable
‘Personal File Sharing’ and ‘Windows
Sharing’. Also, click ‘Start’ for each of these
services. Under Windows file sharing you
will also need to 'enable' the account you
wish to share from (This needs your
administrator password).

Under the ‘Firewall’ section, keep firewall off.

Under the ‘Internet’ section, keep ‘Internet
Sharing’ off.

Setup an Account:

From the ‘System Preferences’ window,
under the ‘System’ section, click ‘Accounts’.
Select an account and remember its ‘Short
Name’ and password. This information will
be used by iBLIK RadioStation when
connecting to your Mac.

Directory Setup:

From the ‘Dock’, click ‘Finder’. From the
‘Finder’ window, click ‘Applications >
Utilities’. Holding Ctrl click on ‘Directory
Access’ then select ‘Get Info’ and ensure
that read / write enabled. Next double click
on ‘Directory Access’ and enable the
following:

✓

AppleTalk LDAPv3

✓✓

SLP SMB/CIFS

Also, for the ‘SMB/CIFS’ item, click
‘Configure’ and select an appropriate
workgroup.

To allow your iBLIK RadioStation you need to
add your login details, by following the path
Main Menu -> System Setup -> Internet
Setup -> PC Settings. You should input your
short username and administrator
password here. Ensure that your Mac is
successfully connected to the wireless
network. Note, you may need to wait for few
minutes for the changes to take effect.
You should now be able to access the audio
files on your Mac by selecting Browse ->
Shared Folders on iBLIK, then selecting the
workgroup chosen in the step above. On
selecting your Mac scroll through the
available folders until you find the one which
contains your music files.

✓

Apple Mac Set-Up

Set-Up for OSX Leopard 10.5.1-->

Setup Windows File Sharing on
the MAC:

From the ‘Dock’, click ‘System Preferences’.
From the ‘System Preferences’ window
(under the ‘Internet & Network’ section)
click ‘Sharing’.

From the ‘Sharing’ window, do the following:

Under the ‘Services’ section, enable ‘File
Sharing’ click ‘Start’ for this service. Then
under the shared folders click the "+" and
select the folder which contains your music
files. Then Select the music folder from the
shared folders area, in the users area make
sure "Everyone" is set to read and write.
Finally click on "Options" and make sure
"Share files and folders using AFP" is
checked and "Share files and folders using
SMB" (This will require your admin
password to activate) lastly make sure your
account is also checked as active.

Ensure that your Mac is successfully
connected to the wireless network. Note,
you may need to wait for few minutes for
the changes to take effect.

You should now be able to access the audio
files on your Mac by selecting ‘Browse >
Shared Folders’ on iBLIK, then selecting
your Mac from the list of devices. On
selecting your Mac, you should see your
folder that you selected above.

11

English

BBC Radio 1
calls cost max

BBC Radio 1
Pop Music

BBC Radio 1
BBC National DAB

BBC Radio 1
12B 225.64MHz

BBC Radio 1
128kbps Stereo

BBC Radio 6Music
11:48:03

BBC Radio 6Music
18/12/2007

BBC Radio 1
Sig strength 96

www.digitalradioplus.com.au

iBLIK RadioStation

DAB Mode

Choosing a Station

Extend the telescopic antenna found on
the rear of iBLIK RadioStation.

Enter ‘DAB Mode’ from the Main Menu or
by pressing the MODE key until ‘DAB
Mode’ is displayed on iBLIK’s LCD display.

If this is the first time iBLIK RadioStation
has been used in DAB Mode, it will scan
for DAB stations in your area and store
them in memory.

When the station scan has been
completed, stations will be displayed in
numeric then alphabetic order. The first
station in the list will be selected.

If no DAB signal is found, it may be
necessary for you to relocate your radio.
Or visit

www.ukdigitalradio.com/coverage

to check that DAB coverage is available in
your area.

Select your station choice by using the
and cursor keys, scroll through the
station list and press SELECT or the
key to make your selection.

To Change the Display Mode

iBLIK has nine different display modes.

Simply press the INFO button to cycle
through each mode. These display modes
are explained in the table opposite:

MODE

Display option Example

DAB Mode

Scanning... 10

•••••

>ArrwRock

BBCAsian

BBC 6Music

Service not ava

BBC 6Music

Playing

Normal display
with scrolling text

Signal level,
indicator on bar
shows minimum

tlkSPORT

acceptable level

12

Type of broadcast

Broadcaster

Station name and
frequency

Signal strength

Data rate and
stereo/mono

Time

Date

DAB Mode Menu Options

iBLIK RadioStation

iBLIK RadioStation has a number of additional functions that are accessed through the

DAB Mode menu, as follows:

English

Station Order

Press the MENU key in DAB Mode then
press select Station order.

To specify the order in which stations
are displayed

Select the Station order option.

Use the and cursor keys to scroll
through the options, and press SELECT or
the key to make your selection.

Manual Tune

Choose the Manual Tune option from the
DAB Mode menu.

The Manual Tune selection screen allows
you to select a particular frequency to
tune to. The list of frequencies displayed is
dependant on the currently-set frequency
band and contains all of the frequencies
within that band. It starts with the short
name of the frequency, for example 12B,
and is followed by the actual frequency in
MHz.

If there is a station corresponding to this
station number and frequency, the display
will show the name, frequency, and a
tuning meter will show the signal strength.

DRC - Dynamic Range Control

iBLIK RadioStation includes a dynamic
range control that automatically boosts
the volume of quieter sounds for listening
in noisy environments.

The DRC control is found in the DAB
Mode menu under ‘DRC’. There are three
pre-defined settings as follows:

DRC Description

DRC Low Dynamic Range Control is

DRC High The recommended setting

DRC Off Dynamic Range Control is

set to half

for noisy environments

switched off

The following table describes the options
available under the ‘Station Order’ menu:

Station order Description

Alphanumeric Lists stations in alphabetical

Ensemble Lists stations by multiplex.

Valid Lists only active stations.

order.

Local and Full Scan

As time passes, new stations will become
available in your area. To find them and
add them to your station list it is
necessary to perform either a ‘Local’ or
‘Full’ scan. Both operations can be
accessed via the DAB Mode menu.

A Local Scan performs a shorter scan of
only the ‘local’ ensemble range.

A Full Scan will take longer, but will cover
the complete DAB ensemble range.

Favourite Station Presets

iBLIK RadioStation allows you to store 10
favourite station presets, either via the 10
preset keys on iBLIK itself, or on the iBLIK
remote control.

To save the station you are currently
listening to as a preset, simply press and
hold a preset key (from 1 - 10) for 2
seconds. iBLIK will confirm that the key
has been programmed by displaying
‘Preset Stored’ on iBLIK’s LCD screen.

Please note, if you store a preset on a key
that was already holding a favourite
station, the previous station will
automatically be erased.

13

English

87.50Mhz FM

87.50Mhz FM

BBC Radio 1
Preset Stored

FM Mode

M-Port

MPort Mode

iBLIK RadioStation

FM Mode

Extend the telescopic antenna found on
the rear of iBLIK RadioStation.

Enter ‘FM Mode’ from the Main Menu or
by pressing the MODE key until ‘FM
Mode’ is displayed on iBLIK’s LCD display.

If this is the first time iBLIK has been in
FM mode, it will start at the beginning of
the FM frequency range. Otherwise, the
last FM station you were listening to will
be selected.

To scan through the FM frequency range
press the and buttons.

To ‘SEEK’ the next active station, press the

SELECT button.

Favourite Station Presets

iBLIK RadioStation allows you to store 10
favourite station presets, either via the 10
preset keys on iBLIK itself, or on the iBLIK
remote control.

To save the station you are currently
listening to as a preset, simply press and
hold a preset key (from 1 - 10) for 2
seconds. iBLIK will confirm that the key
has been programmed by displaying
‘Preset Stored’ on iBLIK’s LCD screen.

Please note, if you store a preset on a key
that was already holding a favourite
station, the previous station will
automatically be erased.

MODE

MPort Mode

Using MPort

Revo’s MPort connector allows for quick
and easy connection of an iPod®, similar
MP3 player or sound source.

Using the connection lead supplied, iBLIK
is transformed into a high quality digital
audio speaker system.

Connect one end of the supplied audio
lead to the headphone (or auxiliary out)
socket of your source device, then
connect the other end to the MPort
on the side of iBLIK.

Now press the MODE key and cycle
through the options until ‘MPort Mode’ is
displayed.

iBLIK’s LCD screen will now display the
word ‘MPort’ on its screen.

You should adjust the output volume level
on both the source device and on iBLIK
itself to gain optimal volume levels and
sound performance.

14

iPod Mode

iPod Mode

Connected

iBLIK RadioStation

Selecting and Fitting the Dock Adaptor

Before using your iPod with iBLIK RadioStation, please select the adapter that is

compatible with your model of iPod, as detailed in the table below:

English

Dock
Adapter
number

iPod
4th generation
(colour display)

iPod nano
1st generation

3

20GB, 30GB

6

40GB, 60GB

7
8

1GB, 2GB, 4GB

9
10
11

The table above lists the seven iPod Dock
Adaptors that are supplied with iBLIK
RadioStation.

Each Dock Adaptor is numbered (see
diagram on right).

Select the correct adapter number and
clip it into the recess on the top face of
iBLIK, ensuring that the number side is
facing the rear.

iBLIK is compatible with all iPod models
that connect to the iPod Universal Dock.

A compatible Dock Adaptor is supplied
with most iPod models, if you do not have
one, you should contact Apple.

iPod
5th generation
(video)

30GB
60GB, 80GB

iPod nano
2nd generation
(aluminium)

iPod mini

4GB, 6GB

2GB,4GB,8GB

Dock Adaptor Number

iPod
classic

80GB
160GB

Connecting an iPod

Enter ‘iPod Mode’ from the Main Menu
or by pressing the MODE key until
‘iPod Mode’ is displayed on iBLIK’s
LCD display.

Controlling Your iPod

Once connected, you can control the iPod
in three different ways as follows:

1) By using the controls on the iPod itself,
as normal.

2) By using the keys on the iBLIK’s keypad
as follows:

3) By using the iBLIK RadioStation remote
control. These keys behave in the same
way as the controls on the iBLIK keypad.

MODE

Cursor Keys

Select Key

Play

Pause

Skip Back (hold to search back)

Skip Forward (hold to search forward)

15

English

iBLIK RadioStation

Alarms Mode

iBLIK RadioStation must have its clock and date set to use the alarm functionality.

Full instructions can be found on page 6 of this operating guide.

Setting An Alarm

iBLIK allows you to store up to four
different alarm programmes in memory.

To set an alarm, press the ALARM
button.

iBLIK will now ask you to choose which of
the four alarm memories you’d like to use.
Use the and keys too choose an
alarm and press SELECT.

You can now switch this alarm on or off

To set the wake-up time, press SELECT
and use the and keys to set the wake
up hour, then press SELECT or the key
to move onto the minute setting. When your
wake-up time has been set, press SELECT.

You can now choose the alarm type. To
choose alarm type, use the and cursor
until ‘Days’ is displayed, then press SELECT
or the key. There are four options: Daily,
Once, Weekdays or Weekends. Make your
selection using and then confirm by
pressing SELECT or the key.

You can now decide whether you would
like to be woken up by Internet Radio,
DAB, FM, iPod or Buzzer. To choose the
wake-up mode press the key to view the
‘Mode’ option and press SELECT.

You can now decide whether you would like
to be woken-up by the last played station, or
by a specific preset (if none are set, iBLIK
will wake you up using the default Buzzer).

You will now have the option to set the
wake-up volume for your alarm. Use the

and keys to adjust the volume and

press SELECT to set.

Finally, you should select ‘Save’ from the
menu to complete your alarm programme.

When iBLIK has an active alarm in its
memory, the alarm icon will appear on the
top line of iBLIK’s display at all times.

ALARM

Alarm1: Off
Alarm2: Off

Set Alarm Time
07:15

>Days: Daily
Mode: DAB Mode

>Daily
Once

>Internet Radio
DAB Mode

>Mode: DAB Mode
Last Listened

Alarm Volume

•••••••••••

Alarm Volume

•••••••••••

To halt an alarm, press any button on
iBLIK’s keypad. Alternatively, tap the
SNOOZE button to mute the alarm for a
period of 5 minutes. When iBLIK is in
Snooze mode, the Snooze icon will be
displayed on the LCD screen, together
with the current time and remaining
Snooze time.

To cancel a preset alarm, go back into the
ALARM programming mode and change
‘ON’ to ‘OFF. The details of the alarm will
continue to be retained in memory, and
the alarm programme can be switched
back on again at a later date.

16

07:15
>off

07:20:01

5:00

Sleep Mode

iBLIK RadioStation

Setting A Sleep Period

It is possible to programme iBLIK
RadioStation to turn off after a pre­defined period of time. To do so, select
the ‘Sleep’ option from the Main Menu.

Now, using the and keys, you can
select a sleep time period of 15, 30,
45, 60, 75 or 90 minutes.

iBLIK will now automatically put itself into
standby mode after the time has
elapsed.

System Setup

Set sleep time

Sleep time off

Set sleep time

Sleep time off

English

Internet Setup

Advanced users can find and edit their
Wi-Fi settings in this section, these
include MAC address, DHCP status, PC
Settings, SSID, IP Settings etc.

Time Setup

The time can be set in one of two ways,
either manually via the System Setup
option on the Main Menu, or alternatively
simply press the MODE key until iBLIK
RadioStation enters DAB Mode. In DAB
mode, iBLIK will automatically set the
correct time and date from the DAB
transmitter. iBLIK will remember its time
setting even when in standby mode, and
will only lose the time/date when power is
removed.

Under the ‘Time Setup’ menu, you can
also switch between 12 an 24 hour clock
formats.

Lastly, the ‘Auto Update’ option in the
‘Time Setup’ menu allows you to select
whether or not the time should be
synchronised with the DAB broadcaster
clock or from the internet. If ‘No Update’
is selected, then the clock remains as
manually set.

Factory Reset

In the unlikely event that iBLIK
RadioStation should ‘crash’, ‘freeze’ or
start behaving in a strange way, it is
possible to perform a full software reset.
This operation will completely reset iBLIK’s
memory, clearing all WEP/WPA codes
and user settings. This will effectively
return iBLIK to its default factory settings.

Software Update

It is possible to remotely update iBLIK
RadioStation’s software via your Wi-Fi
internet connection, to ensure that you
have all the latest features, or to fix
known bugs in the software. To check
whether there are any updates available,
simply go to the ‘System Setup’ option on
the ‘Main Menu’ and select ‘Software
Update’. iBLIK will search to see if a
software update is necessary, then report
back. If an update is available and
necessary, iBLIK will start the download
process and install its new software
automatically.

Info

Software Version and Radio ID

You may be asked for one or both of
these pieces of information when dealing
with a technical support issue.

Both can be found under the ‘Info’
heading, located in the ‘Main Menu’.

SW version

ir.dabp-mmi.rvo.ve

Radio ID

0013EOA11D25

17

English

www.digitalradioplus.com.au

www.revo.net.au.

iBLIK RadioStation

Troubleshooting

Wi-Fi Internet Radio

If you are experiencing any problems with
your iBLIK RadioStation please read the
following ‘troubleshooting’ guide.
Alternatively you can visit the support
section of the Revo website
(www.revo.co.uk) or call our technical
support staff on 01555 66 61 61.

If you have trouble connecting iBLIK
RadioStation to your wireless network, these
steps may help to resolve the problem:

1. Confirm that a Wi-Fi connected PC can
access the Internet (i.e. can browse the
web) using the same network.

2. Check that a DHCP server is available, or
that you have configured a static IP address
on the radio.

3. Check that your network’s firewall is not
blocking any outgoing ports.

As a minimum, iBLIK RadioStation needs
access to UDP and TCP ports 80, 554,
1755, 5000 and 7070.

4. Check your access point does not
restrict connections to particular MAC
addresses. You can view the radio’s MAC
address under the ‘Internet Setup’ section,
accessed via the ‘System Setup’ option on
iBLIK’s main menu.

5. If you have an encrypted network, check
that you have entered the correct key or
pass phrase into the radio. Remember that
text-format keys are case sensitive. If, when
attempting to connect to an encrypted
network, your radio displays: ‘Wireless
error’ followed by a 5-digit number, then
please ensure that you enter the correct
pass phrase for the network. If the problem
persists, then you may need to consult your
network configuration.

If iBLIK RadioStation can connect to the
network successfully, but is unable to play
particular stations, it may be due to one of
the following causes:

1. The station is not broadcasting at this
time of the day (remember it may be
located in a different time zone).

2. The station has reached the maximum
allowed number of simultaneous listeners.

3. The station is not broadcasting anymore.

4. The link on the radio is out of date.

5. The Internet connection between the
server (often located in a different country)
and you is slow.

DAB Digital Radio

Q. I hear a ‘burbling’ noise on some

stations.

A. If the signal strength is too low, a break-

up in reception can occur. This sound is
the result. Make sure that iBLIK’s
antenna is fully extended and in an
upright position. If the problem persists,
move iBLIK to another location or check
that you are in an area where reception
of this station is possible.
Visit: www.ukdigitalradio.com/coverage
to check DAB coverage in your area.

Q. I get a ‘No stations available’ message?

A. Make sure that your antenna is fully

extended and vertical. Check the signal
strength and move iBLIK to another
location if necessary.

Q. iBLIK’s clock isn’t set.

A. iBLIK needs to be able to pick-up a DAB

signal or have its clock set manually. See
page 6 for full instructions on how to set
the time and date.

18

User Licence

iBLIK RadioStation

By using this product, the user agrees to the following End User Licence conditions:

1) Refrain from modifying, translating, reverse engineering, decompiling, disassembling or
using other means to discover the Source Code or otherwise replicate the functionality of
Client Code, except to the extent that this restriction is expressly prohibited by applicable law.

2) This agreement disclaims on behalf of Real Networks Inc. all warranties and conditions
other than those set forth in this End User Licence, express and implied, including implied
warranties or conditions of merchantability and fitness for a particular purpose; and
effectively exclude all liability for indirect, special, incidental and consequential damages,
such as lost profits.

3) This product is protected by certain intellectual property rights of Microsoft. Use or
distribution of such technology outside of this product is prohibited without a licence from
Microsoft.

the

English

19

Warranty

iBLIK RadioStation

Please keep your receipt as proof of purchase. This product is warranted for any defect in materials or
workmanship for one year after the original date of purchase. This product is for normal domestic and
office use only. This warranty does not cover damage from misuse or neglect, accidental damage, vermin
infestation, excessive voltages such as lightning or power surges or any alternation that affects the
performance or reliability of the product.

In the unlikely event that your product fails to work normally, please contact the

Revo Helpline 1800 509 394 (Australia) or 0800 450 259 (New Zealand)

and have your receipt of purchase on hand.

This guarantee is subject to the following provisions:

It is only valid within boundaries of the country of purchase;

The product must be correctly assembled and operated in accordance with the instructions contained in
the manual;

This product must be used solely for domestic purposes;

The guarantee does not cover accidental damage;

The guarantee will be rendered invalid if the product is resold or has been damaged by inexpert repair;

The manufacturer disclaims any liability for incidental or consequential damaged.

This guarantee is in addition to, and does not diminish, your statutory or legal rights.

PO BOX 6287
Silverwater NSW 1811

www.revo.net.au

Revo Helpline: 1800 509 394 Australia
Revo Helpline: 0800 450 259 New Zealand

20
