Revo Blik DAB+ Operating Instruction

D A B + D I G I T A L R A D I O

w w w . r e v o . c o . u k

Operating Guide

Guide de fonctionnent

Gebrauchsanleitung

Guida Operativa

ItalianoDeutschFrançaisEnglish

Revo Technologies Ltd The Inox Building Caldwellside Lanark Scotland United Kingdom ML11 7SR

Tel. 01555 666 161 Fax. 01555 66 33 44 Email. enquiries@revo.co.uk Website: www.revo.co.uk

The information in this guide is believed to be correct at the time of publication. However, our policy is one of continuous development and so the information is subject to change without notice.

Revo®, Blik™ and M-Port™ are trademarks or registered trademarks of Revo Technologies Limited.

iPod® is a registered trademark of Apple Computer, Inc.

Safety Warnings

Do not operate this radio near water. Avoid small objects and liquids from getting into this product. Do not remove screws or casing parts. Use only the power supply unit supplied.

EEC: This product has been designed and type-tested to comply with EU requirements and carries a CE mark.

Technical Support

Should you encounter any difficulties with the operation of your radio, or should you suspect that it may be faulty in some way, please call our technical support department on the number below:

01555 666 161

Alternatively, email support@revo.co.uk or visit the troubleshooting section of our website at: www.revo.co.uk/support

Preface

English

Welcome to Revo 4

Benefits of DAB radio 4

BLIK overview and key features 4

Warranty 4

Warranty registration 4

Controls and Connections 5

Powering BLIK 5

Getting Started 6

BLIK’s Control Method 6

BLIK’s Menus Explained 7

DAB Operation 8

Choosing a station 8

Change display mode 9

Menu Options 10

To change station order 10

Manual Tuning 11

Set DRC 11

DRC - Dynamic Range Control 11

Local and Full Scan 11

Favourite Station Presets 11

Alarm 12

Setting an alarm 12+13

Sleep mode 14

FM Operation 15

M-Port™ 16

Trouble-Shooting 17

Technical Specification 18

English

Contents

Benefits of Digital Radio

Clear, interference free digital sound Many more stations, much more choice No frequencies, select by station name No re-tuning Text information via LCD screen

BLIK Overview

BLIK DAB+ is capable of receiving both standard DAB and new DAB+ digital radio broadcasts, without the need for any software upgrades or modifications.

Additionally, BLIK DAB+ includes FM radio reception and sophisticated alarm clock functionality.

BLIK DAB+ can also be used as a high quality speaker system for your iPod™ (or other MP3 player of external sound source).

Simply connect your device to BLIK’s M-Port™ using the audio lead supplied.

Warranty

Revo Technologies Ltd warrants to the purchaser that this product will be free from parts and manufacturing defects in the course of normal use for a period of one year from the date of purchase.

This warranty does not apply in cases of accidental damage, where the case has been removed, wear and tear, negligence, modification or inappropriate use.

Should you encounter problems with this product, please contact your supplier or alternatively see page 2 of this guide for technical support contact details.

Warranty Registration

It is a warranty condition that you register your purchase by either completing the warranty card enclosed with your radio or alternatively registering online at

www.revo.co.uk/register

Thank you for buying our BLIK DAB+ Digital Radio, we feel sure that it will provide you with years of enjoyment and reliable service.

This guide has been designed to quickly get you up-and-running and listening to DAB and DAB+ digital radio, offer guidance on the more complex features of this product and provide information on safety, warranty and registration.

Welcome to Revo DAB

English

Controls and Connectors

Powering BLIK

Your BLIK DAB+ radio is powered from the mains using the power adaptor supplied.

Insert the power adaptor plug into the DC power socket on the rear of BLIK. Pressing the button will switch BLIK on.

Only use the power adaptor supplied. Replacements are available, please call 01555 66 61 61 for further details.

1. Power

2. Volume Up

3. Scroll Back

4. Volume Down

5. Alarm

6. Presets 1-10

7. Snooze/Sleep

8. Scroll Down

9. Info/Scan

10. Select

11. Scroll Forward

12. Mode

13. Scroll Up

14. Menu

1. Scroll Left

2. Menu

3. Scan

4. Menu

5. Snooze

6. Presets

7. Alarm 0n/Off

8. Snooze/Sleep

9. Info/Scan

10. Volume Up

11. Scroll Right

12. Volume Up

13. Mode

14. Select

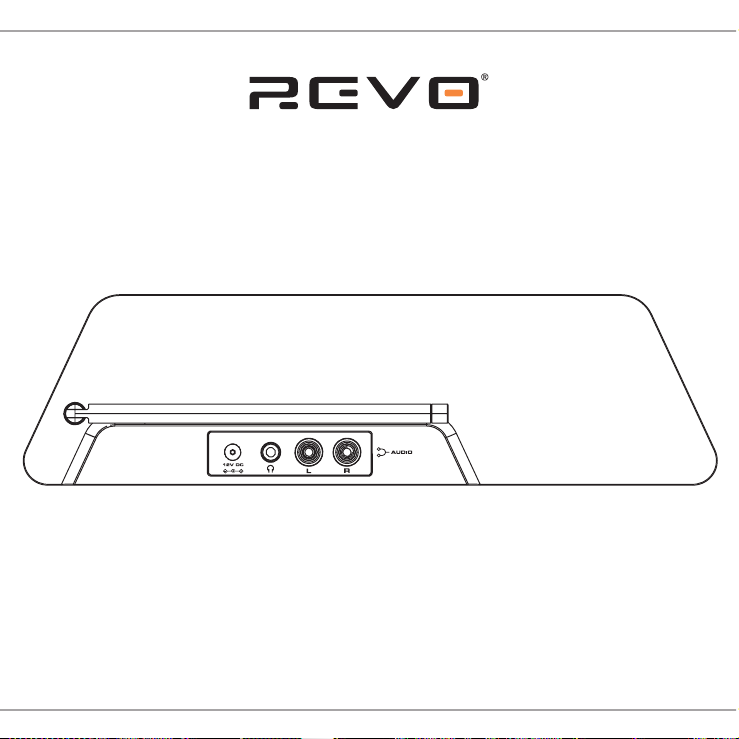

1. M-Port

2. Telescopic Antenna

3. DC Power Socket

4. 3.5mm Headphone Socket

5. Audio Right

6. Audio Left

10.

12.

13.

11.

14.

2. 4. 5. 6.

13.

14.

10.

11.

12.

English

BLIK DAB+ is a sophisticated digital radio device, with several modes of operation and many advanced features.

In order for you to get the most out of BLIK’s functions, it is important that you learn how to use the cursor based control system, and also understand how BLIK’s menus work.

BLIK DAB+’s Control Method

BLIK DAB+’s control method is based around seven main keys as identified below.

Diagram of the four cursor keys and the select, menu and mode button

Label each of the keys as follows:

Scroll Up:

Press to scroll through menu options

Scroll Back: Press to return to the previously selected menu entry. Repeatedly pressing will return you to the top level of the Mode menu (for the mode you are in).

Scroll Forward: When in text entry screens, this key can be used to navigate through the characters.

It can also be used to move through to the next menu level.

Scroll Down:

Press to scroll through menu options

SELECT – Press to select the current menu entry. In FM mode, pressing SELECT will initiate an FM scan.

Menu:

Press to enter (or return to) the Mode menu for the mode of operation you are currently in. Pressing for a second time will return you to the ‘playing’ screen.

Mode:

Sequentially cycles through each of the modes of operation.

Using these keys, you will be able to perform most functions and navigate through BLIK DAB+’s various menus

Getting Started

BLIK DAB+’s Menus Explained

BLIK DAB+ has three types of menu as follows:

Main Menu

This is BLIK’s principle (top level) menu, and allows you to enter different operating modes, setup the radio, and view information such as software version and your radio’s ID number.

Mode Menus

The Mode menus are so called because they show the functions available within the context of each of the operating modes (internet radio mode, DAB mode, FM mode etc. etc.).

Pressing the MENU button at any time will take you to the Mode menu of the operating mode your radio is currently in. Each Mode menu includes a listing for Main Menu – selecting this option will return you to the top level Main Menu (as described above).

Main Menu

The Main menu provides access to the following modes and sub-menus:

On powering-up BLIK DAB+ for the first time, you will be presented with this menu. To select an option from the menu, simply use the or keys to move through the menu options, and press SELECT or to make a selection or move to the next menu level.

DAB FM Mport

Info Sleep Alarms

System Setup

English

Choosing a Station

Firstly ensure that you have extended the telescopic antenna on the rear of BLIK.

Enter ‘DAB Mode’ from the Main Menu or by pressing the MODE key until ‘DAB Mode’ is displayed on BLIK’s LCD display.

If this is the first time you have used BLIK it will scan for DAB stations in your area and store them in memory. BLIK will also set its clock and date at this point.

Pressing and holding the INFO/SCAN button for a period of two seconds will manually instruct BLIK to perform a station scan.

When the station scan has been completed, stations will be displayed in numeric then alphabetic order. The first station in the list will be selected.

If no DAB signal is found, it may be necessary for you to relocate your radio. Or visit

www.ukdigitalradio.com/coverage

to check that DAB coverage is available in your area.

Select your station choice by using the and cursor keys, scroll through the station list and press SELECT or the key to make your selection.

DAB Mode

MODE

DAB Mode

Scanning... 10

•••••

>ArrwRock BBCAsian

BBC 6Music Service not ava

BBC 6Music Playing

English

To Change the Display Mode

BLIK DAB+ has nine different display modes.

Simply press the INFO/SCAN button to cycle through each mode. These display modes are explained in the table opposite:

BBC Radio 1 calls cost max

BBC Radio 1 Pop Music

BBC Radio 1 BBC National DAB

BBC Radio 1 12B 225.64MHz

BBC Radio 1 128kbps Stereo

BBC Radio 6Music 11:48:03

BBC Radio 6Music 18/12/2007

BBC Radio 1 Sig strength 96

Normal display with scrolling text

Display option Example

Type of broadcast

Broadcaster

Date

Station name and frequency

Data rate and broadcast type

Signal strength

Signal level, indicator on bar shows minimum acceptable level

Time

tlkSPORT

English

BLIK DAB+ has a number of additional functions that are accessed through the DAB Mode menu, as follows:

The following table describes the options available under the ‘Station Order’ menu:

Station Order

Press the MENU key in DAB Mode then select ‘Station order’.

To specify the order in which stations are displayed

Select the Station order option.

Use the and cursor keys to scroll through the options, and press SELECT or the key to make your selection.

Alphanumeric Lists stations in alphabetical

order.

Ensemble Lists stations by multiplex.

Valid Lists only active stations.

Station order Description

DAB Mode Menu Options

English

Manual Tune

Choose the ‘Manual tune’ option from the DAB Mode menu.

The ‘Manual tune’ selection screen allows you to select a particular frequency to tune to. The list of frequencies displayed is dependant on the currently-set frequency band and contains all of the frequencies within that band. It starts with the short name of the frequency, for example 12B, and is followed by the actual frequency in MHz.

If there is a station corresponding to this station number and frequency, the display will show the name, frequency, and a tuning meter will show the signal strength.

DRC - Dynamic Range Control

BLIK includes a dynamic range control that automatically boosts the volume of quieter sounds for listening in noisy environments.

The DRC control is found in the DAB Mode menu under ‘DRC’. There are three predefined settings as follows:

Local and Full Scan

As time passes, new stations will become available in your area. To find them and add them to your station list it is necessary to perform either a ‘Local’ or ‘Full’ scan. Both operations can be accessed via the DAB Mode menu.

A Local Scan performs a shorter scan of only the ‘local’ ensemble range.

A Full Scan will take longer, but will cover the complete DAB ensemble range.

Favourite Station Presets

BLIK DAB+ allows you to store 10 favourite station presets, either via the 10 preset keys on BLIK itself, or on the BLIK remote control.

To save the station you are currently listening to as a preset, simply press and hold a preset key (from 1 - 10) for 2 seconds. BLIK will confirm that the key has been programmed by displaying ‘Preset Stored’ on BLIK’s LCD screen.

Please note, if you store a preset on a key that was already holding a favourite station, the previous station will automatically be erased.

DRC Low Dynamic Range Control is

set to half

DRC High The recommended setting

for noisy environments

DRC Off Dynamic Range Control is

switched off

DRC Description

English

BLIK must have its clock and date set to use the alarm functionality.

To automatically set the time and date, tune to a DAB service and BLIK will extract the correct time and date from the DAB broadcast stream. Alternatively, the time and date can be manually set via the ‘Time Setup’ option, this can be found under the ‘System Setup’ menu, which is located in the ‘Main Menu.”

Setting An Alarm

BLIK allows you to store up to four different alarm programmes in memory.

To set an alarm, press the ALARM button.

BLIK will now ask you to choose which of the four alarm memories you’d like to use. Use the and keys too choose an alarm and press SELECT.

To set the wake-up time, press SELECT and use the and keys to set the wake up hour, then press SELECT or the button to move onto the minute setting. When your wake-up time has been set, press SELECT.

You can now decide whether you would like to be woken up by Internet Radio, DAB, FM or Buzzer. To choose the wakeup mode press the key to view the ‘Mode’ option and press SELECT.

Alarms Mode

ALARM

Alarm1: Off Alarm2: Off

Set Alarm Time 07:15

>Internet Radio DAB Mode

English

You can now decide whether you would like to be woken-up by the last played station, or by a specific preset (if none are set, BLIK will wake you up using the default Buzzer).

You will now have the option to set the wake-up volume for your alarm. Use the

and keys to adjust the volume and

press SELECT to set.

Finally, you should select ‘Save’ from the menu to complete your alarm programme.

When BLIK has an active alarm in its memory, the alarm icon will appear on the top line of BLIK’s display at all times.

To halt an alarm, press any button on BLIK’s keypad. Alternatively, tap the SNOOZE button to mute the alarm for a period of 5 minutes. When BLIK is in Snooze mode, the Snooze icon will be displayed on the LCD screen, together with the current time and remaining Snooze time.

To cancel a preset alarm, go back into the ALARM programming mode and change ‘ON’ to ‘OFF. The details of the alarm will continue to be retained in memory, and the alarm programme can be switched back on again at a later date.

>Mode: DAB Mode Last Listened

Alarm Volume

•••••••••••

Alarm Volume

•••••••••••

07:20:01

5:00

07:15 >off

English

Sleep Mode

Setting A Sleep Period

It is possible to programme BLIK to turn off after a pre-defined period of time. To do so, select the ‘Sleep’ option from the Main Menu.

Now, using the and keys, you can select a sleep time period of 15, 30, 45, 60, 75 or 90 minutes.

BLIK will now automatically put itself into standby mode after the time has elapsed.

Set sleep time Sleep time off

English

FM Operation

Extend the telescopic antenna found on the rear of BLIK.

Enter ‘FM Mode’ from the Main Menu or by pressing the MODE key until ‘FM Mode’ is displayed on BLIK’s LCD display.

If this is the first time BLIK has been in FM mode, it will start at the beginning of the FM frequency range. Otherwise, the last FM station you were listening to will be selected.

To scan through the FM frequency range press the and buttons.

To ‘SEEK’ the next active station, press the

SELECT button.

Favourite Station Presets

BLIK allows you to store 10 favourite station presets, either via the 10 preset keys on BLIK itself, or on the BLIK remote control.

Please note, if you store a preset on a key that was already holding a favourite station, the previous station will automatically be erased.

FM Mode

87.50Mhz FM

BBC Radio 1 Preset Stored

FM Mode

MODE

English

Using MPort

Revo’s MPort connector allows for quick and easy connection of an iPod®, similar MP3 player or sound source.

Using the connection lead supplied, BLIK is transformed into a high quality digital audio speaker system.

Connect one end of the supplied audio lead to the headphone (or auxiliary out) socket of your source device, then connect the other end to the MPort on the side of BLIK.

Now press the MODE key and cycle through the options until ‘MPort Mode’ is displayed.

BLIK’s LCD screen will now display the word ‘MPort’ on its screen.

You should adjust the output volume level on both the source device and on BLIK itself to gain optimal volume levels and sound performance.

MPort Mode

M-Port

MPort Mode

English

Trouble-Shooting

DAB Digital Radio

Q. I hear a ‘burbling’ noise on some

stations.

A. If the signal strength is too low, a break-

up in reception can occur. This sound is

the result. Make sure that BLIK’s

antenna is fully extended and in an

upright position. If the problem persists,

move BLIK to another location or check

that you are in an area where reception

of this station is possible.

Visit: www.ukdigitalradio.com/coverage

to check DAB coverage in your area.

Q. I get a ‘No stations available’ message?

A. Make sure that your antenna is fully

extended and vertical. Check the signal strength and move BLIK to another location if necessary.

Q. BLIK’s clock isn’t set.

A. BLIK needs to be able to pick-up a DAB

signal or have its clock set manually. If BLIK can find a DAB station, it can then set its clock.

Software Reset

In the unlikely event that BLIK freezes, crashes, or does not respond to key presses, it is possible to perform a software reset to restore the original factory settings. Simply press and hold the MENU button for a period of 4 seconds and follow on-screen prompts.

Technical Specification

General: Mono DAB and FM radio with full Band III reception.

Speaker: 2.25” full-range neodymium

Audio Power Output: 6W

Frequency Ranges: DAB Band III (174 - 240 MHz)

DAB+ coverage FM (87.5 - 108 MHz)

Antenna: Integral telescopic aerial

Input Connectors: DC power adaptor socket (230V adapter supplied)

3.5mm line-in for auxiliary devices (M-Port)

Output Connector: 3.5mm headphone socket

Stereo RCA connectors

LCD Display: High resolution 3 line ‘negative’ LCD screen,

(2 lines text, 1 line icons, 16 character width)

Alarm Clock: Alarm clock functionality with4 alarm memory,

‘snooze’ and ‘sleep’ functions

Presets: 10 x DAB and 10 x FM presets

Remote Control: Infra-red remote control

Mains Power Supply: 9V 1000mA

Approvals: CE marked and RoHS compliant.

Dimensions: 69mm (H) x 255mm (W) x 120mm (D)

English

D A B + D I G I T A L R A D I O

Guide de fonctionnement

Français

Droits d’auteur et Remerciements

Revo Technologies Ltd The Inox Building Caldwellside Lanark Scotland United Kingdom ML11 7SR

Tel. 01555 666 161 Fax. 01555 66 33 44 Email. enquiries@revo.co.uk Site Web: www.revo.co.uk

Les informations contenues dans ce guide sont réputées exactes au moment de leur publication. Cependant, nous observons une politique de développement continu et ces informations sont donc sujettes à changement sans avertissement préalable

Revo®, Blik™ et M-Port™ sont des marques déposées ou enregistrées de Revo Technologies Limited.

iPod® est une marque enregistrée d’Apple Computer, Inc.

Avertissements

Ne faites pas fonctionner cette radio près de l’eau. Évitez que de petits objets et des liquides entrent dans ce produit. N’ôtez pas les vis ou des parties du boîtier. Utilisez uniquement le bloc d’alimentation qui est fourni.

CEE: Ce produit a été conçu et testé de manière à être conforme aux exigences EU et porte la marque CE.

Support Technique

En cas de difficultés pour faire fonctionner votre radio, ou si vous soupçonnez quelque défaut, veuillez s'il vous plaît appeler notre département de support technique au numéro ci-dessous:

0044 1555 666 161

Vous pouvez aussi nous écrire un email à: support@revo.co.uk ou visiter la section dépannage sur notre site Web: www.revo.co.uk/support

Préface

Français

Bienvenue à Revo 4

Les avantages de la radio DAB 4

Aperçu de BLIK et fonctions principales

Garantie 4

Enregistrement de la garantie 4

Contrôles et connexions 5

Mise en marche de BLIK 5

Avant de commencer 6

Les commandes de BLIK 6

Les menus de BLIK 7

Fonctionnement DAB 8

Choisir une station 8

Changer le mode d’affichage 9

Options du menu 10

Changer l’ordre des stations 10

Syntonisation manuelle 11

Régler le DRC 11

DRC - Dynamic Range Control 11

Balayage local et complet 11

Présélection des stations préférées 11

Réveil 12

Programmer le réveil 12+13

Mode de veille 14

Fonctionnement FM 15

M-Port™ 16

Dépannage 17

Spécifications techniques 18

Table des matières

Français

Avantages de la radio digitale

Son digital clair, sans interférences Beaucoup plus de stations et de choix Pas de fréquences, sélection des stations par nom Pas de re-syntonisation

Information sous forme de texte sur écran LCD

Aperçu de BLIK

BLIK DAB+ peut reçevoir les émissions DAB standard ainsi que les nouvelles émissions digitales DAB+, sans devoir mettre vos logiciels à jour et sans modifications.

BLIK fournit également une couverture radio FM traditionnelle et une fonction de réveil sophistiquée.

BLIK DAB+ peut aussi être utilisé en tant qu’enceinte de haute qualité pour votre iPod™ (ou autre MP3 de source externe).

Connectez simplement votre matériel au M-Port™ de Blik grâce au câble fourni.

Garantie

Revo Technologies Ltd garantit à l’acheteur que ce produit ne présentera pas de défauts de fabrication ou sur ses pièces lors de son utilisation normale durant une période d’un an à partir de la date d’achat.

Cette garantie ne s’applique pas en cas de dommages accidentels, dus à l’usure ou la négligence, à des modifications ou à l’utilisation inappropriée ou si le boîtier a été ôté.

Si ce produit présente un problème, veuillez s’il vous plaît contacter votre revendeur ou voir les coordonnées du support technique à la page 2 de ce guide.

Enregistrement de la garantie

Une condition de la garantie est

d’enregistrer votre achat soit en remplissant

la carte de garantie inclue avec votre radio,

soit en l’inscrivant en ligne sur

www.revo.co.uk/register

Merci d’avoir acheté notre radio digitale BLIK DAB+, nous sommes certains que vous en retirerez des années de plaisir et de service fiable.

Ce guide a été conçu pour que vous soyez rapidement prêt à utiliser et écouter la radio digitale DAB et DAB+, pour vous offrir des conseils sur les fonctions plus complexes de ce produit et vous fournir des informations sur la sécurité, la garantie et l’enregistrement.

Bienvenue à Revo DAB

Français

Contrôles et connexions

Alimentation de BLIK

Votre radio BLIK DAB+ fonctionne sur le secteur au moyen de l’adaptateur de courant fourni.

À cet effet, insérez la fiche de l’adaptateur dans la prise DC située à l’arrière de BLIK. Pousser sur allumera BLIK.

Utilisez uniquement l’adaptateur du bloc-secteur fourni pour nos appareils. Des pièces de rechange sont disponibles: veuillez nous appeler au 01555 66 61 61 pour plus de détails.

1. On/Off

2. Augmenter le son

3. Retour

4. Diminuer le son

5. Réveil

6. Présets 1-10

7. Veille/attente

8. Defiler vers le bas

9. Info/Balayage

10. Choisir

11. Défiler vers l’avant

12. Mode

13. Défiler vers le haut

14. Menu

1. Défiler vers la gauche

2. Menu

3. Balayage

4. Menu

5. Veille

6. Présets

7. Réveil 0n/Off

8. Veille / attente

9. Info/Balayage

10.

Augmenter le volume

11. Défiler vers la droite

12.

Augmenter le volume

13. Mode

14. Choisir

1. M-Port

2. Antenne téléscopique

3. Prise DC

4. Prise pour écouteurs de 3.5mm

5. Audio droite

6. Audio gauche

10.

12.

13.

11.

14.

2. 4. 5. 6.

13.

14.

10.

11.

12.

Français

+ 51 hidden pages

Revo Blik DAB+ Operating Instruction

Specifications and Main Features

Frequently Asked Questions

User Manual
