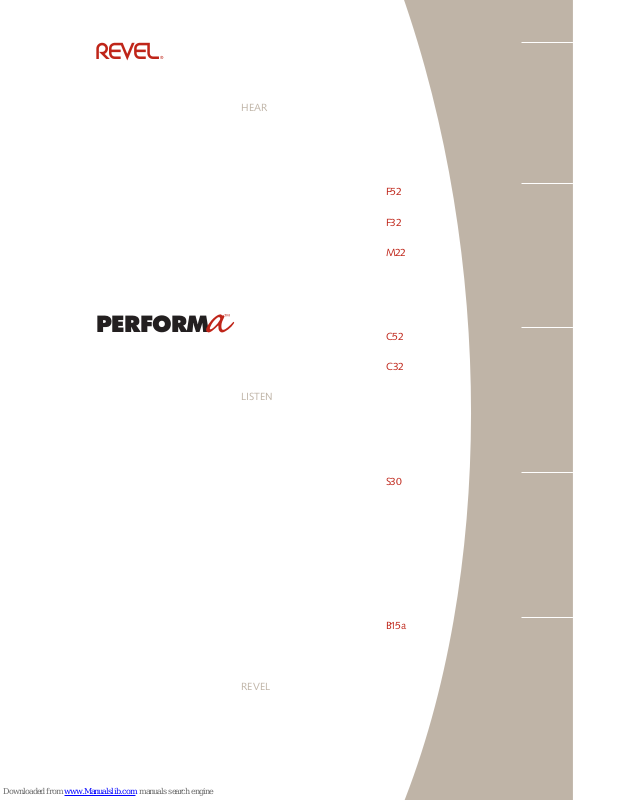

PERFORM
a
™
H
EAR
LISTEN
REVEL
F52
F32
M22
C52
C32
S30
B15 a
®
Owning Revel®loudspeakers
is a pleasurable experience for both
the ears and eyes. Learning about
the finer details of their design and
construction will deepen your
appreciation of their lasting value.
®
The Revel Performa Series represents the culmination of Revel’s
tremendous acoustical research and technological resources. Revel’s
world-class team of engineers, designers, and acoustical researchers was
challenged to create premium loudspeakers that combine superior audio
performance with handsome aesthetics. The resulting Performa Series
loudspeakers feature proprietary drivers housed in beautiful cabinetry
that attains stunning sonic performance and placement flexibility while
complementing the décor in most homes.
THE LISTENING LAB
The Performa Series offers truly superior sound quality and incom-
parable technical pedigree, thanks in part to Revel’s sophisticated labora-
tory listening technique that — for the first time — provides an accurate
correlation between loudspeaker measurements and sonic performance.
Though laborator
y measurements are critical, human hearing is the ulti-
mate evaluation tool. Revel’s Multichannel Listening Lab (MLL) repre-
sents the industry’s most sophisticated loudspeaker listening facility,
allowing loudspeakers to be compared as single speakers, stereo pairs, or
multiple speaker groups. Revel’s tests are based on extensive real world
listening in more than five different environments that simulate a wide
range of residential settings and room sizes. The MLL facility features a
remarkable, exclusive computer-controlled speaker switching stage that
eliminates the problems associated with speaker placement and aural
memory variables. Loudspeakers are placed on computer-controlled,
movable platfor
ms that can quickly be ar
ranged during testing. As a
3
result, the speaker repositioning process takes only a few seconds,
allowing listeners to quickly and accurately compare speakers to each
o
ther from the same room position and with minimal time in-between
m
odels. All tests are conducted “double-blind.” Once the loudspeakers
are installed on the MLL platforms, an acoustically transparent but visual-
ly opaque veil obscures loudspeaker identities from the listening panelists
to prevent human bias from tainting the results. Even the computer oper-
ator is not aware of the loudspeaker identities, as the computer randomly
determines the listening order prior to the test.
ANECHOIC CHAMBERS
While few loudspeaker companies have access to one, Revel has
three different anechoic (echo-free) chambers. Unlike most other compa-
nies, Revel does not depend on electronic anechoic “simulator” testing
methods that often fail to reveal critical performance flaws such as reso-
nances. Revel’s anechoic chambers are state-of-the-art in design, allow-
ing for accurate and useful loudspeaker measurements of complete
loudspeaker models and individual driver elements.
TRANSDUCERS, TESTING & QUALITY CONTROL
Most loudspeaker manufacturers out-source their transducers,
purchasing off-the-shelf tweeters, midranges, and woofers from vendors.
Revel loudspeakers feature proprietary transducer designs found in no
other company’
s pr
oducts. These transducers ar
e exclusively designed,
5
engineered, and manufactured for Revel loudspeakers.
R
evel engineers use Computer Aided Design (CAD) software to
design transducers that are optimized for each Revel model. A powerful
Finite Element Analysis (FEA) system provides a comprehensive computer
s
imulation of the entire driver assembly, allowing engineers to optimize
every aspect of a transducer assembly. FEA produces precise models of
the driver’s magnetic system, which is used to optimize the electro-mag-
netic circuits for each transducer according to the individual driver’s appli-
cation. Transducer components such as cones, domes, surrounds, and
centering mechanisms (the spider) also benefit from FEA scrutiny in the
design process.
An in-house Stereo Lithography Apparatus (SLA) is used during
development to help assure very tight tolerances and minimize develop-
ment times. The SLA utilizes a high-power laser to precisely solidify a liq-
uid polymer into the 3-dimensional shapes specified in CAD drawings.
This allows designs to be tur
ned in r
eal pr
ototypes very quickly so they
can be verified before going into production.
During development, Revel also uses the industr
y’
s most sophis
-
ticated driver distortion analyzer to pinpoint the precise source and loca-
tion of undesirable distor
tions within the driver assembly. In addition, a
high-resolution Laser Interferometer scans the entire radiating surface of
the driver for evidence of br
eakup, which occurs when the radiating sur
-
face flexes undesirably
. This incr
edible tool helps Revel drivers to achieve
more linear piston-like behavior, delivering minimal coloration and excep-
tionally low distortion.
The Laser Interferometer also contributes to the design of the
l
oudspeaker cabinet. To avoid undesirable coloration, the cabinet enclo-
sure must not cause unwanted resonances. Laser scanning the loud-
s
peaker enclosure allows for optimization of the cabinet design, including
proper placement of internal bracing to create an acoustically inert enclo-
sure conducive to the most neutral and honest sound reproduction.
Prior to installation in the loudspeaker enclosure, each loud-
speaker driver complement and associated crossover elements are sub-
jected to rigorous testing as a complete sub-assembly. Components are
tested in an anechoic chamber and then compared to production refer-
ence standards. But even with the tightest production tolerances, slight
deviations still might occur from one loudspeaker to the next. To prevent
this, a technician compares each loudspeaker to the reference standard,
making careful adjustments by hand as needed. All tuning adjustments
and specifications ar
e then recorded and retained for archive purposes,
referenced to the loudspeaker’s serial number.
This careful attention to detail allows Revel to achieve unparal-
leled consistency among all loudspeakers, alleviating the need for
matched pairs. Instead, all Revel loudspeakers are matched within a frac-
tion of a decibel to achieve superior soundstage imaging and accuracy.
Each pair of Performa loudspeakers sounds the same as the original refer-
ence pair as well as the loudspeakers that have won accolades from
reviewers around the world. Physically separated circuit boards for each
7
frequency range prevent degrading mutual interference caused by com-
p
onent-to-component interaction. The result is distinctly more transpar-
ent and distortion-free sound reproduction.
With the premiere of the Ultima Series, Revel earned a reputa-
t
ion for producing “the world’s finest loudspeakers.” Since then, Revel
loudspeakers have won accolades from discerning audiophiles and critical
reviewers alike. Collectively, the Performa Series offers an impressive
combination of advanced design, precision manufacturing, stunning
audio performance, and handsome aesthetics. Individually, each
Performa loudspeaker is a standout performer that delivers a perform-
ance as powerful as it is precise.
The following pages detail the unique design, engineering, and
capabilities of each Performa loudspeaker model.
F52
Shown in
Natural Cherry
finish
9
A five-driver, three-way
design, the Per
for
ma F52 includes
a trio of high performance 6
1
⁄2-inch
woofers that incorporate our
exclusive Or
ganic Ceramic
Composite cone technology, which
provides the ultimate combination
of rigidity and lightness. Featuring
butyl surrounds and high strength
magnetic motor structures, togeth-
er these woofers provide the deep
bass response commonly associat-
ed with a much larger single driver,
along with low distor
tion and wide
frequency response, allowing a
much nar
r
ower cabinet profile. The
5
1
⁄4-inch OCC cone midrange driver
is similarly equipped, and is housed
in its own sub-enclosure within the
F52’
s elegant cabinet, which is
constructed of thick and acoustical-
ly inert MDF and features substan-
tial internal bracing for added rigid-
ity.
The F52 tweeter assembly
features a proprietary 1-inch alu-
minum dome tweeter housed in an
integrated Constant Acoustic
Impedance waveguide, which pro-
vides both optimum acoustic load-
ing as well as optimized horizontal
and vertical dispersion. The result is
a virtually seamless transition from
the midrange to the treble fre-
quencies that also provides virtual
acoustic invisibility, where the
tweeter itself cannot be localized as
an individual driver.
As with other Performa
models, each F52 is individually
calibrated during production,
hand-tuned to within a fraction of
a decibel to the production refer-
ence standard, assuring unparal-
leled unit-to-unit consistency
.
Three physically separated high
or
der
, steep slope crossovers each
feature tight tolerance compo-
nents, and two pairs of inputs on
the rear panel allow for bi-wiring or
bi-amping, while a pr
ecision tweet
-
er adjustment allows fine tuning of
the high frequency balance in
exact .5 dB increments.
The Per
for
ma F52 is avail
-
able in your choice of elegant
wood veneer finishes – Natural
Cher
ry, Maple or Black Ash.
At left, the
F52 driver
complement:
61⁄2-inch
woofers
5
1
⁄4-inch
midrange
1-inch
tweeter
F
52
crossovers
woofer
midrange
tweeter
F52 shown in
Black Ash
finish
The F52
rear panel
tweeter level
control and
binding posts
(shown with
shorting
straps)
PERFORM
a
™
F52
F32
Shown in
Natural Cherry
Finish
11
At left, the
F32 driver
complement:
61⁄2-inch
woofers
5
1
⁄4-inch
midrange
1-inch
tweeter
F32
crossovers
woofer
midrange
tweeter
F32 shown
in Maple
finish
Rear panel
with tweeter
level control,
low-frequency
compensation
control and
binding posts
PERFORM
a
™
F32
The F32 combines large
floor-standing loudspeaker per-
formance in an elegant slim cabinet
design with a small “footprint” for
maximum placement versatility
and high visual appeal. It features
four magnetically-shielded pr
opri-
etary drivers that offer a host of
improvements in vital areas such as
dynamics, distortion, and dynamic
compr
ession along with impr
oved
low-frequency reproduction and
wider placement versatility
.
The F32 features two high-
performance 61⁄2-inch woofers that
provide the surface area of a much
larger single driver and produce
authoritative bass with tremendous
output capability. Exclusive Organic
Ceramic Compound cone material
assures piston-like diaphragm
operation, contributing to the ver
y
low distor
tion and fr
eedom fr
om
coloration.
Sophisticated Dual
N
eodymium magnetic motor sys-
tems optimize linearity over a wide
operating range, resulting in con-
sistent timbre and low distortion
over a wide dynamic range. These
remarkable drivers also feature 2-
inch high power-handling flat-wire
edge-wound voice coils for
unprecedented power handling
capability and low distortion.
Virtually identical to the
woofer except for size, the 51⁄4-inch
midrange driver is optimized for
the crucial midrange frequencies,
providing remarkably smooth tim-
bral response and wide dynamic
range with vanishingly low distor-
tion. The treble frequencies are
faithfully reproduced by a newly-
developed 1-inch pure titanium
dome tweeter that features tr
ue
pistonic behavior over its entire
operating range and incorporates
Fer
rofluid®cooling.
Nearly half the width of its
predecessor, the F32 cabinetry fea-
tures tapered sides that provide a
svelte appearance and impr
oved
placement flexibility, aided by a
Contour setting for various in-
room acoustical conditions as well
as a Boundary setting that allows
for near-wall and in-wall installa-
tions.
Each F32 is carefully cali-
brated to match the production
r
eference standard to within a frac-
tion of a decibel and is superbly
finished in a choice of
Natural
Cher
r
y
, Maple or Black Ash
wood
veneer.
M22
Shown in
Maple Finish
on optional
pedestals
13
PERFORM
a
™
M22
At left, the
M22 driver
complement:
61⁄2-inch
woofer
1-inch
tweeter
M2
2
crossovers
woofer
tweeter
M22 shown
in Natural
Cherry finish
Rear panel
with
placement
compensation
control,
tweeter level
control and
binding posts
Reviewed as “Class-A sound
quality from a small loudspeaker,”
the Performa M20 set the standard
for state-of-the-art compact moni-
tor performance. The new M22
continues to elevate the perform-
ance standard, featuring newly
developed driver technology shared
with the F32 floor-standing speaker
system, along with a new slim cabi-
net design that allows tremendous
placement versatility and high visual
appeal.
Featuring a high power han-
dling, magnetically-shielded 61⁄2-inch
cast-frame woofer incorporating
Revel’s exclusive Organic Ceramic
Composite Cone technology along
with a substantial 2-inch diameter
flat-wire edge-wound voice coil, the
M22 woofer also includes a pr
opri
-
etary Dual Neodymium magnetic
motor system for tremendous
dynamic range and fr
eedom from
compression. This remarkable driver
also featur
es sophisticated magnetic
flux focusing systems, comprising a
copper modulation contr
ol cap as
well as an aluminum flux stability
ring for unparalleled magnetic lin-
earity and incredibly low distortion.
Treble frequencies are ably
reproduced by our exclusive pure,
magnetically-shielded 1-inch titani-
um dome wide dispersion tweeter,
featuring an advanced co-polymer
surround and Ferrofluid cooling,
providing true pistonic behavior for
reproduction beyond the limits of
human hearing.
Internally, the M22 features
physically separated high-order
crossover boards that incorporate
precise fixed-resistor, high-frequen-
cy level trimming, as well as a
boundary compensation system
that allows for optimum timbral
response with either stand mount-
ing or shelf mounting. During pr
o
-
duction, each M22 is individually
calibrated to match the production
r
efer
ence standard to within a frac-
tion of a decibel, assuring outstand-
ing consistency and timbral
accuracy.
The elegant cabinetry fea-
tures gently tapered sides that visu-
ally suggest an even smaller
appearance and is finished in a
choice of Natural Cherry, Maple or
Black Ash fine wood veneers. A
beautifully designed optional black
pedestal elevates the M22 to an
ideal height and aesthetically
matches the optional C32 pedestal.
C52
Shown in
Maple Finish on
optional pedestal
15
At left, the
C52 driver
complement:
8-inch
woofers
51⁄4-inch
midrange
1-inch
tweeter
C52
crossovers
woofer
midrange
tweeter
C52 shown
in Natural
Cherry finish
C52
Rear panel
with
placement
compensation,
high
frequency
level controls
and binding
posts
PERFORM
a
™
C52
As the most important
reproducer in a multi-channel sur-
round sound system, the center
channel speaker must deliver
vocals and dialog with the utmost
clarity along with music and special
effects, and must also match the
tonality of the main left and right
front speakers.
The Performa C52 center
channel loudspeaker is the ideal
companion to our F52 and F32
models, delivering a combination
of tonal neutrality and outstanding
dynamic range, fully up to the task
of providing faithful reproduction
with today’s explosive movie
soundtracks and high resolution
multi-channel music sources, such
as DVD-Audio and SACD.
Featuring a pair of 8-inch
Or
ganic Ceramic Composite cone
high performance woofers, along
with a 5
1
⁄4-inch OCC cone
midrange driver, the F52 also fea-
tur
es our recently developed and
proprietary Constant Acoustic
Impedance tweeter waveguide
technology. The 1-inch aluminum
dome tweeter is housed in the spe-
cially-shaped CAI waveguide,
which provides optimum acoustic
impedance loading along with pre-
cise horizontal and vertical disper-
sion. Together, these components
contribute to the virtual acoustic
invisibility of the tweeter, which
cannot be localized as an individual
driver, providing a seamless
acoustic blend and a broad and
expansive soundstage.
The three high order, steep
slope crossovers are physically sep-
arated to prevent mutual interfer-
ence, and each C52 is individually
hand-tuned to within a fraction of
a decibel to match the production
reference standard. A rear panel
control allows acoustic optimiza-
tion for stand mounting, on-moni
-
tor
, and in-cabinet placement.
Another control provides high fre-
quency level adjustment in .5 dB
increments. The elegant cabinetry
is available in your choice of
Natural Cherry, Maple or Black Ash
natural wood veneers.
C32
Shown in
Black Ash
Finish on optional
pedestal
17
At left, the
C32 driver
complement:
51⁄4-inch
woofers
4-inch
midrange
1-inch
tweeter
C32
crossovers
woofer
midrange
tweeter
C32 shown in
Maple finish
Rear panel
with
placement
compensation,
high
fr
equency
level contr
ols
and binding
posts
PERFORM
a
™
C32
The C32 mates with the
F32 floor-standing loudspeaker
and the M22 monitor. Featuring
broad dispersion, low coloration
and consistent off-axis response,
the C32 is remarkably versatile,
with an adjustable boundary com-
pensation system that provides
optimum timbral accuracy with on-
monitor placement or stand
mounting, and even for built-in-
wall applications.
A three-way design, the
C32 features a pair of 5
1
⁄4-inch
woofers and a 4-inch midrange; all
magnetically-shielded and
equipped with newly developed
Organic Composite Ceramic cones
for impr
oved transpar
ency, timbral
accuracy, and freedom from distor-
tion. Featuring a sophisticated Dual
Neodymium magnet motor sys-
tem, these drivers also incorporate
large flat-wire edge-wound voice
coils for maximum dynamic range
and fr
eedom from dynamic com-
pression. A precision switched-
r
esistor high fr
equency level control
pr
ovides exact tr
eble level tuning
for optimal high frequency balance
from the 1-inch pure titanium
dome tweeter.
Precise multi-element high-
order crossovers are individually
divided on separate circuit boards
to prevent degradation due to
component interaction. As with all
Revel speaker systems, each C32 is
individually tuned to match the
pr
oduction reference standard to
within a fraction of a decibel,
assuring outstanding consistency
and optimal blend with other Revel
speakers. T
wo sets of binding posts
provide for bi-amping and bi-
wiring as well.
The elegant slim cabinet
featur
es sophisticated inter
nal
bracing that eliminates cabinet-
induced coloration, and is available
in a choice of three beautiful wood
veneer finishes: Natural Cherry,
Maple or Black Ash. An optional
black pedestal raises the C32 off
the floor and also pr
ovides optimal
tilt toward the listening area.
S30
Shown in
Black Finish
19
PERFORM
a
™
S30
The versatile four-driver S30
surround speaker offers un-
matched surround sound envelop-
ment for both motion picture
soundtracks and discrete multi-
channel music recordings, provid-
ing a choice of dispersion patterns
for optimum listening enjoyment.
For movie soundtracks, the S30
provides, in its dipole mode, a dif-
fuse sound field, enveloping the
audience in an expansive, ambient
surround environment, while mini-
mizing speaker localization even
with a large number of listeners.
For discrete music recordings, the
S30 features a monopole mode,
providing the pinpoint imaging
that discrete music surround mixes
demand. The dispersion mode can
be manually selected or activated
r
emotely (depending on system
configuration).
Featuring a high output
6
1
⁄2-inch woofer and a 1-inch metal
dome tweeter
, the S30 is also
equipped with two 4-inch full-
range drivers with dispersion char
-
acteristics optimized for consistent
sound throughout the listening
area. The handsome cabinetry fea-
tures angled baffles in a stylish
three-panel configuration and can
be wall or ceiling mounted using
the integrated mounting system
for maximum flexibility.
The S30’s timbre is carefully
tailored to blend seamlessly with all
of the Performa loudspeakers, with
extended and airy high frequency
r
esponse to beyond 20kHz.
The S30 is available in either
a black or white finish — to inte-
grate easily with dark or light col-
ored room décor.
The versatile S30 surr
ound
speaker can be integrated with
select A/V processors or control
systems to enable automatic dis-
persion switching, customized to
the user's pr
eferences for various
program sources.
At left, the
S30 driver
complement:
61⁄2" woofer
4" full-ranges
1" tweeter
S
30
crossovers
woofer
tweeter
One of two
4-inch
controlled
dispersion
drivers
Rear panel
with binding
posts and
monopole/
dipole remote
switch
connection
B15a
Shown in
Natural Cherry
Finish
21
PERFORM
a
™
B15a
Power. Authority. Control.
The Performa B15a subwoofer fea-
tures unique Revel advantages that
no other subwoofer provides, for
authoritative low frequency repro-
duction. Featuring a massive long-
excursion, 15-inch driver that is
equipped with an inverted metal
dome that delivers incredible
acoustic output at the very lowest
deep bass registers, the B15a’s
pr
odigious deep bass capabilities
will do justice to the most explosive
movie soundtracks, as well as the
newest generation of high resolu-
tion music formats, such as DVD-
Audio and Super Audio Compact
Disc (SACD). A built-in 1,000-watt
power amplifier featuring a
tremendous 40% r
eser
ve capacity
powers the 15-inch driver, deliver-
ing up to 1.4 kilowatts to handle
the most thunderous special effects
and the lowest musical octaves.
Revel’s extensive research
into r
oom acoustics has r
evealed
that even a theoretically ideal sub-
woofer would fail to provide accu-
rate deep bass r
esponse due to the
fact that the mer
e placement of
the subwoofer within the confines
of any listening room introduces
significant and degrading r
esponse
variations caused by room-induced
resonances.
Conventional subwoofer
crossover frequency and level con-
trols alone cannot compensate for
these inevitable and inescapable
timbre response irregularities.
Therefore, the Performa B15a sub-
woofer is equipped with a sophisti-
cated tuning system featuring a
three-band parametric equalizer
that allows room-induced reso-
nance peaks to be tamed. This
smooths the response dramatically
and delivers tuneful and musical
low bass reproduction without the
boomy and irritating “one-note”
bass response typical of conven-
tional subwoofers. Fully adjustable
high- and low-pass filters with
adjustable slopes are also pr
ovided
to allow the B15a to seamlessly
mate with virtually any combina-
tion of loudspeakers with adjust-
ment flexibility beyond what is
typically provided in surround
pr
ocessors.
The B15a also includes
adjustable spikes for different floor
types and is available in a choice of
elegant wood veneer finishes:
Natural Cher
r
y, Maple or Black Ash.
At left, the
B15a driver
B15a rear
panel
The B15a
shown in
Maple finish
Driver detail
without grille
PERFORM
a
SPECIFICATIONS
S
ensitivity
Sensitivity provides an indication of how much amplifier power is required for the loudspeaker to play at satisfactory volume levels. Conservatively rated specifications indicate moderate sensitivity and denote that Revel loudspeakers do not require huge amplifiers to achieve
realistic levels in all but the largest rooms. 4 pi anechoic represents testing done in a true
anechoic (echo or reflection-free) listening environment.
Impedance
Impedance indicates whether the speaker system pr
esents a “hard” or “easy” load on the
amplifier. Moderate minimum impedance values and phase angles signify that almost any
amplifier can easily drive Revel Performa loudspeakers.
Filters (crossover)
Steep filter slopes ensure good acoustical behavior in the crossover regions, with a minimum of acoustical interference, along with low distortion and wide dynamic range. Revel filters feature specially selected components. Woofer and tweeter filter boards are physically
independent. F52, F32 and C32 models include a provision for bi-amping or bi-wiring, while
all models include rear panel compensation controls.
Frequency responses
In-room r
esponse is a breakthrough measurement that, in a single curve, closely correlates
to sound quality and has been a goal of loudspeaker engineers for years. Research, and simple obser
vation, r
eveals that ubiquitous “on-axis” r
esponse curves often cannot distinguish
between two loudspeakers with radically different sound quality. This specification for Revel
loudspeakers is even more powerful when it is taken in context with the other measurements presented here.
A target response is the ideal response goal and is not flat at the frequency extremes and is
used when the ideal r
eference is not a “flat” line. A tar
get response must be tailored to the
loudspeaker’
s intended application and takes into account the acoustic impact of the loud-
speaker’s location, such as freestanding or placement near a wall.
First reflections response is a measure of the response a listener hears that is contributed by
the first reflections from the walls, floor, and ceiling. This superb specification indicates that
Revel loudspeakers will remain accurate even in the presence of strong reflections.
The listening window r
esponse (on-axis) measurement reduces the visual confusion of
inaudible local inter
ference, yet still retains full accuracy without using “spectral smoothing”
which r
esults in significant data loss.
Studies have shown that the –10 dB low fr
equency extension specification is the one that
best correlates to controlled listening tests. At low frequencies, most loudspeaker/room
combinations exhibit significant “room gain,” which is an increasing rise in level as frequencies decrease. In addition, the –10 dB specification reflects the steepness (i.e., order) of the
low-frequency roll-off, which is not significantly indicated in –3 dB specifications.
All Performa
loudspeakers,
except the S30,
are available in
Natural Cherry,
Maple or Black
Ash veneer finish, as shown
below.*The
S30 is available in black or
white finish
with matching
grilles
(not shown).
*Cabinet finish
representation
is subject to
the limitations
of the full-color
printing
pr
ocess. Actual
cabinet finish
-
es may vary.
2
3
PERFORMA F52
S
ensitivity:
8
7.5 dB SPL, with 2.83 V
rms
@
1 m
(4 pi anechoic)
Impedance: 6.5 Ω (nominal), 3.5 Ω (minimum @ 373 Hz)
Filters (crossover): 3-way, high-order, acoustic response @
200 Hz and 2.3 kHz
Frequency responses: In-room response;
±0.5 dB from 33 Hz to 18 kHz
In-room response relative to target
response;
±0.5 dB from 31 Hz to 20 kHz
First reflections response;
±0.5 dB from 33 Hz to 17 kHz
Listening window response;
±1.0 dB from 32 Hz to 18 kHz
Low frequency extension;
–10 dB @ 23 Hz
Bandwidth
-6 dB @ 25 Hz and 45 KHz
Dimensions: width: 91⁄2" (24.1 cm)
height: 43
1
5
⁄16" (111.6 cm)
depth: 17
1
⁄2" (44.5 cm)
(includes grille)
Spikes add 1
1
⁄2" (3.81 cm)
to height
Weight: 87.7 lb (39.8 kg) net (without packing)
Specifications are subject to change
without notice.
PERFORMA F3
2
S
ensitivity:
8
6 dB SPL, with 2.83 V
rms
@
1 m
(4 pi anechoic)
Impedance: 6.5 Ω (nominal), 3.7 Ω (minimum @ 260 Hz)
Filters (crossover): 3-way, high-order @ 190 Hz and 2.7 kHz
Frequency responses: In-room response;
±1.0 dB from 33 Hz to 16 kHz
In-room response relative to
target response;
±0.75 dB from 34 Hz to 20 kHz
First reflections response;
±1.0 dB from 33 Hz to 15 kHz
Listening window response;
±1.5 dB from 31 Hz to 16 kHz
Low frequency extension;
–10 dB @ 24 Hz
Bandwidth
-6 dB @ 26 Hz and 50 KHz
Dimensions: width: 83⁄4" (22.2 cm)
height: 41
1
⁄2" (105.4 cm)
depth: 15
1
⁄4" (38.7 cm)
(includes grille)
Spikes add 1
1
⁄2" (3.8 cm) to
height
Weight: 70 lb (31.7 kg) net (without packing)
Specifications are subject to change
without notice.
25
PERFORMA M2
2
S
ensitivity:
8
5 dB SPL, with 2.83 V
rms
@
1 m
(
4 pi anechoic)
Impedance: 6.4 Ω (nominal), 4.8 Ω (minimum @ 160 Hz)
Filters (crossover): 2-way, high-order, @ 2.2 kHz
Frequency responses: In-room response;
±1.0 dB from 52 Hz to 16 kHz
In-room response relative to
target response;
±0.75 dB from 46 Hz to 20 kHz
First reflections response;
±1.5 dB from 50 Hz to 15 kHz
Listening window response;
±1.5 dB from 45 Hz to 16 kHz
Low frequency extension;
–10 dB @ 36 Hz
Bandwidth;
-6 dB @ 41 Hz and 50 KHz
Dimensions: width: 85⁄8" (21.9 cm)
height: 14
1
⁄2" (36.8 cm)
depth: 11
7
⁄8" (30.2 cm)
(includes grille)
With optional pedestal
width: 93⁄8" (23.8 cm)
height: 39
1
5
⁄16" (101.4 cm)
depth: 11
7
⁄8" (30.2 cm)
(includes grille)
Weight: 24 lb (10.8 kg) net (each, without packing)
With optional pedestal
42 lb (18.9 kg) net (each, without packing)
Specifications are subject to change
without notice.
PERFORMA C52
Sensitivity: 90 dB SPL, with 2.83 V
rms
@ 1 m
(4 pi anechoic)
I
mpedance:
6
Ω (nominal), 3.1 Ω (minimum) @ 292 Hz
Filters (crossover): 3-way, high-order acoustic response @ 235
Hz and 2 kHz
Frequency responses: In-room response;
±0.5 dB from 65 Hz to 18 kHz
Target response;
±0.5 dB from 60 Hz to 20 kHz
First reflections response;
±0.5 dB from 70 Hz to 17 kHz
Listening window response;
± 1.0 dB from 65 Hz to 18 kHz
Low frequency extension;
–10 dB @ 36 Hz
Bandwidth;
-6 dB @ 49 Hz and 45 KHz
Dimensions: Without spikes*
width: 245⁄8" (62.6 cm)
height: 10
7
⁄8" (27.6 cm)
depth: 10
9
⁄16" (26.8 cm)
(includes grille)
With optional pedestal
width: 245⁄8"
(62.6 cm)
height: 23" (58.4 cm)
depth: 11
7
⁄16" (29.1 cm)
(includes grille)
W
eight:
40.75 lb (18.5 kg) net (without packing)
With pedestal
58.75 lb (29.9 kg) net (without packing)
Specifications ar
e subject to change
without notice.
*Refer to user guide for details on spikes
27
PERFORMA C32
Sensitivity: 86.5 dB SPL, with 2.83 V
rms
@ 1 m
(4 pi anechoic)
I
mpedance:
5
.8 Ω (nominal), 3.3 Ω (minimum) @ 80 Hz
Filters (crossover): 3-way, high-order @ 300 Hz and 2.7 kHz
Frequency responses: In-room response;
±1.0 dB from 70 Hz to 16 kHz
In-room response relative to
target response;
±0.75 dB from 90 Hz to 18 kHz
First reflections response;
±1.0 dB from 75 Hz to 15 kHz
Listening window response;
± 1.5 dB from 67 Hz to 15 kHz
Low frequency extension;
–10 dB @ 38 Hz
Bandwidth;
-6 dB @ 51 Hz and 44 KHz
Dimensions: Without spikes*
width: 21" (53.3 cm)
height: 8
1
⁄2" (21.6 cm)
depth: 9" (22.9 cm)
(includes grille)
With optional pedestal
width: 21"
(53.3 cm)
height: 20" (50.8 cm)
depth: 11
7
⁄16" (29.1 cm)
(includes grille)
W
eight:
30 lb (13.6 kg) net (without packing)
With pedestal
48 lb (21.8 kg) net (without packing)
Specifications ar
e subject to change
without notice.
*Refer to user guide for details on spikes
PERFORMA S30
Sensitivity: 90 dB SPL, with 2.83 V
rms
@ 1 m
(2 pi anechoic)
I
mpedance: Monopole mode;
6
Ω (nominal), 3 Ω (minimum) @ 3.6 kHz
Dipole mode;
6 Ω (nominal), 3 Ω (minimum) @ 355 Hz
Filters (crossover): Monopole mode;
2-way, high-order, in-phase @ 2.5 kHz
Dipole mode;
2-way, high-order @ 250 Hz
Frequency responses: In-room response;
±1.5 dB from 85 Hz to 16 kHz
In-room response relative to
target response;
±0.75 dB from 80 Hz to 20 kHz
First reflections response;
±1.75 dB from 84 Hz to 14 kHz
Listening window response;
±1.5 dB from 85 Hz to 18 kHz
Low frequency extension;
–10 dB @ 50 Hz
Bandwidth;
-6 dB @ 65 Hz and 42 KHz
Dimensions: width: 143⁄16"
(36 cm)
height: 12
1
⁄2"
(31.7 cm)
depth: 8
3
⁄8" (21.2 cm)
(includes grilles)
Weight: 36 lb (16 kg) per pair net (without packing)
18 lb (8 kg) individual net (without packing)
Specifications are subject to change
without notice.
Revel
I30 & I20
in-wall speakers also
available for surround speaker applications.
F
or more information, please visit
www.revelspeakers.com/iseries
29
PERFORMA B1
5a
SUBWOOFER
Low frequency extension:
–3 dB @ 18 Hz (up to full-rated power)
Frequency response: 20 Hz to fc±0.5 dB, –3 dB @ 18 Hz
True linear volume displacement: 275 in
3
Dimensions: width: 173⁄4" (45.1 cm)
height:
18
3
⁄4"
(47.6 cm)
depth: 18
5
⁄16" (46.5 cm)
(includes grille)
Spikes add 1
1
⁄2" (3.8 cm) to
height
W
eight:
110 lb (49.9 kg) net
(without packing,
includes amplifier)
AMPLIFIER
Output power:
At least 1,000 W
rms
1,400 W peak
Equalization: Type;
Three independent parametric equalizers
Frequency;
Continuously variable from 18 to 80 Hz
Bandwidth;
Continuously variable from 0.1 to 1 octave
Level;
Continuously variable from –14.5 to +6 dB
Low-pass filter: Type;
Low-pass with ON/OFF switch
Slope;
Selectable 24 or 48 dB per octave
Frequency;
Selectable @ 30, 40, 50, 60, 70 or 80 Hz
Phase;
Continuously variable from 0 to 180°
Level;
Continuously variable
High-pass filter: Type;
High-pass, always on
Slope;
Selectable 12 or 24 dB per octave
Fr
equency;
Selectable @ 30, 40, 50, 60, 70 or 80 Hz
Inputs: Left and right balanced (XLR) and
unbalanced (RCA) line level
Outputs: Left and right balanced (XLR) and
unbalanced (RCA) high-pass line level to
main amplifier
Left and right balanced (XLR) and
unbalanced (RCA) high-pass line level to
auxiliar
y components
Power: Switch: OFF or Auto-ON
Specifications ar
e subject to change
without notice.
OUR PARTNERS
We devote a great deal of time and
a
ttention to selecting the best peo-
p
le to represent our company and
products. The people we choose as
dealers, distributors, and represen-
tatives share our passion for music
and video. They are committed to
providing their customers with
sound, accurate advice about audio
and home theater components.
They are professionals who want to
make your high-end experience an
enjoyable one. More than ever,
getting expert advice on compo-
nent purchase and integration is
essential. Our specialist dealers will
ensure proper installation, setup,
and calibration of your system. As
much as any other pr
ofessional you
deal with, your music and theater
specialist ensures your satisfaction.
F52
F32
M22
C52
C32
S
3
0
B15 a
The Revel experience is special.
Beyond the enjoyment of one of
the world’s most highly prized
loudspeakers, it is about
the appreciation of fine detail
and high technology.
The Performa series offers the
performance and beauty of the
world’
s finest loudspeakers.
31
Revel®is a registered trademark of
Harman International Industries, Incorporated.
Ferrofluid®is a registered trademark of
Ferrotec (USA) Corporation.
Revel is not responsible for typographic errors.
Other company and product names may be trademarks of the
respective companies with which they are associated.
®
Revel®Performa loudspeakers are designed and
assembled in Northridge, California, USA
3 Oak Park Drive
Bedfor
d, MA 01730-1413
USA
Tel: 781.280.0300
Fax: 781.280.0490
www
.r
evelspeakers.com
©2005 Har
man Specialty Gr
oup
Part Number: 072-17002 Rev.3
®
Loading...
