Renkforce SD300 User Guide

Carry

Flash Copy Tester

Flash

Mini Duplicator

SD 300

Fast Copy and Problem Diagnosis !

V 1.0

User Guide

Content Index

I. Introduction

1. Features .............................................................................................................. 3

2. Outlook Introduction ............................................................................................ 4

3. Model Information ................................................................................................ 4

4. Function table ...................................................................................................... 5

II. Function Overview

1. Copy .................................................................................................................... 6

2. Compare ............................................................................................................. 8

3. Copy + Compare ................................................................................................. 9

4. Capacity check .................................................................................................... 9

5. Information ........................................................................................................... 10

6. Utility .................................................................................................................... 10

6.1 Do Format

6.2 Measure Speed

6.3 Media Check

6.4 Quick Erase

6.5 Full Erase

6.6 DoD Erase

6.7 System Update

6.8 Calc. CheckSum

7. System Setup Function ........................................................................................ 14

7.1 Start up menu

7.2 Copy Area

7.3 Button Sound

7.4 Target Tolerance

7.5 Asynchronous

7.6 Check Befor Copy

7.7 Power Off Time Between Copy+Compare

7.8 Language

7.9 Select Speed

7.10 Set to Default

III. FAQ ..................................................................................................................... 18

I. Introduction

1. Features

●1.5GB per minute transmission speed. Each Flash media channel is independent from each other.

●Real multi-task processing capability, no matter copy, compare, media check and format are all independently executed. Each Flash slot has an independent control

processing unit. So, during asynchronous copy , it can use button to check the status of each Flash media status and progress.

●Powerful quality check machine for copy, speed and media quality check.

●Not a PC system, no risk of virus infection. Instant power on and off.

●Simple one touch copy, real time information shown on the LCD screen.

●Support Synchronous and Asynchronous copy/ compare/ erase/ format/ media check /speed check.

●Real high speed bit by bit hardware comparison.

●What is the difference between our Flash duplicator and PC based duplicator:

►Multi-task processing capability, it can copy Flash media independently at the

same time during the copy or check process, on the other hand, even though PC has more powerful CPU, it is difficult to copy too many Flash devices simultaneously.

►No risk of virus infection. Flash duplicator is an embedded system; it only copies

whatever is on the source. When the system is turned off, nothing will be left in the system. No risk of virus infection

►No mistake of copying wrong files. It 100% duplicates from source to target

directly.

►Instant system on and off. No need to wait for system boot up or shut down.

Easy and fast.

●Different copy speed selection is available for different quality level Flash devices.

I. Introduction

2. Outlook Introduction

3. Model Information

Model SD300

Target 1:2

Operation Stand Alone

Support media SD Card

Display 2 *16 Monochrome LCD display

Control Button 4 push buttons ( , , )

LED LED (Green/Red) on each slot

Support Language English, Japanese

Temperature

Humidity

Power Supply +5V, 2A

Copy Mode System and Files, Whole midea

Check Function H3/H5 Media Check, Capacity Check, Measure Speed

System Dimension (mm) 137 (L) x 92 (W) x 25 (H)

Weight 157g

*The product spec will be subjected to change without further notice.

Working 5ºC~45ºC

Storage -20ºC~85ºC

Working 20%~80%

Storage 5%~95%

I. Introduction

4. Function table

Function Description

1. Copy Flash card copy

2. Compare This option makes bit-by-bit comparison between the source and all other copied flash cards.

3. Copy+Compare This option will make a copy first and then compare the copied Flash media with the source immediately after the copy has finished.

4. Capacity check Checks the Flash real capacity

5. Information

6. Utility

5.1 SD Card Info. This feature will show flash card's information; file format, content size, and capacity.

5.2 System Info This feature will show information of the duplicator system, including controller model number and software version.

6.1 Do Format To Execute flash FAT 16/32 format

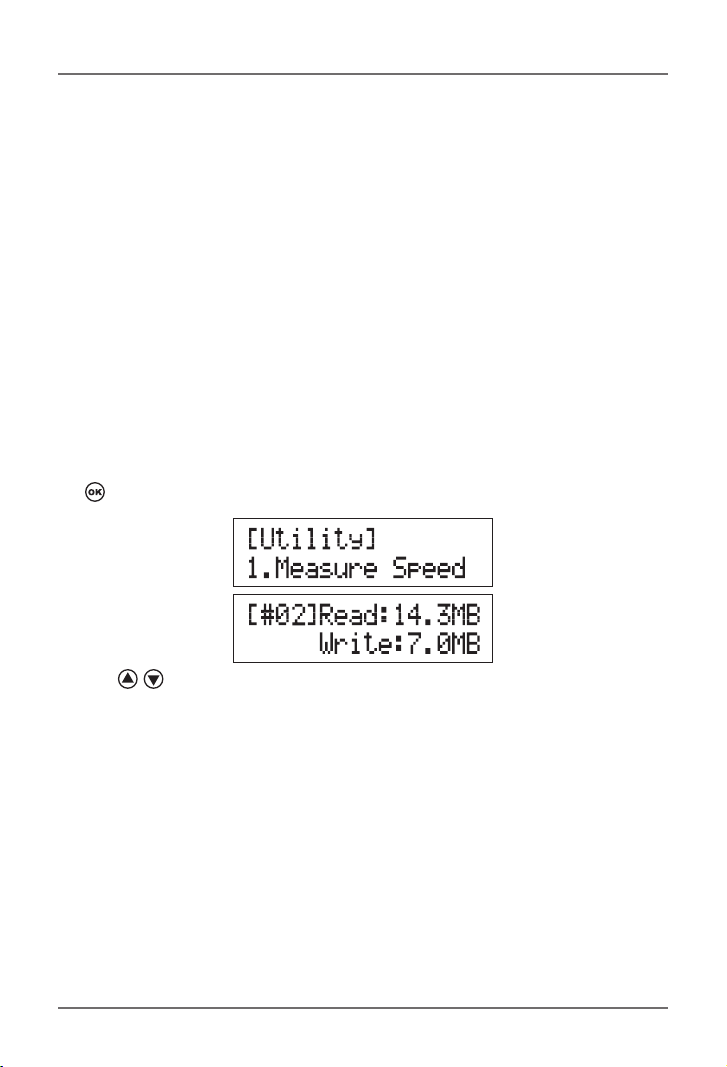

6.2 Measure Speed This function can measure the flash reading and writing speed. This function will damage the format and content.

6.3 Media check

6.4 Quick Erase To erase flash media flash content. It will keep the FAT format.

6.5 Full Erase To completely erase data of flash including format and content, but it needs more time.

6.6 DoD Erase Erase Flash three times complying with USA Department of Defense (DoD) standard.

6.7 System Update System firmware update via the Flash media. i.e. USB/SD/CF/MSD.

6.8 Calc. CheckSum Cacluate the CheckSum number of the Flash media in source port.

6.1.1 Auto Format

6.1.2 FAT16 Format Format media to be FAT16.

6.1.3 FAT32 Format Format media to be FAT32.

6.1.4 Set FAT 16 Cluster Set the size of FAT16 Cluster

6.1.5 Set FAT 32 Cluster Set the size of FAT32 Cluster

6.3.1 H3 Safe 100% To check the quality of flash by reading it. This safe check will not delete flash content and format.

6.3.2 H5 R/W 100% To check flash's quality by reading and writing the flash. This function will delete content and format.

6.3.3 H6 Safe RW 100% To check flash's quality by writing and reading its empty space. This function will not change flash's content and format.

6.3.4 Setup Range % To set the % of tolerance range of error when checking the flash.

6.3.5 Setup Range MB To set the checking range of flash from 1MB~9000MB.

6.3.6 Setup Error Limit To set the % of tolerance range of error when checking the flash.

II. Function Overview

7.1 Start-up Menu

7. Setup

To select which function is shown first when the system is turned on.

7.2 Copy Area

7.3 Button Sound Choose whether to hear a beep or not when a button is pressed.

7.4 Set Target Tolerance To set the tolerance % of the source and target capacity. The default setting is "No limit".

7.5 Asynchronous "Enable " to open Asynchronous function, "Disable" to close the function.

7.6 Check Before Copy Set if you would like to ckeck the Flash media befor copy.

7.7 Power Off Time Between Copy+Compare To set the power-off time between Copy and Compare when executing "Copy+Compare" function.

7.8 Language To set system language interface i.e. English, Japanese.

7.9 Select Speed To select the speed of data transmission. ("Fastest", "Faster", "Normal", "Slower", and "Slowest" )

7.10 Set to Default Back to original manufacturer setting.

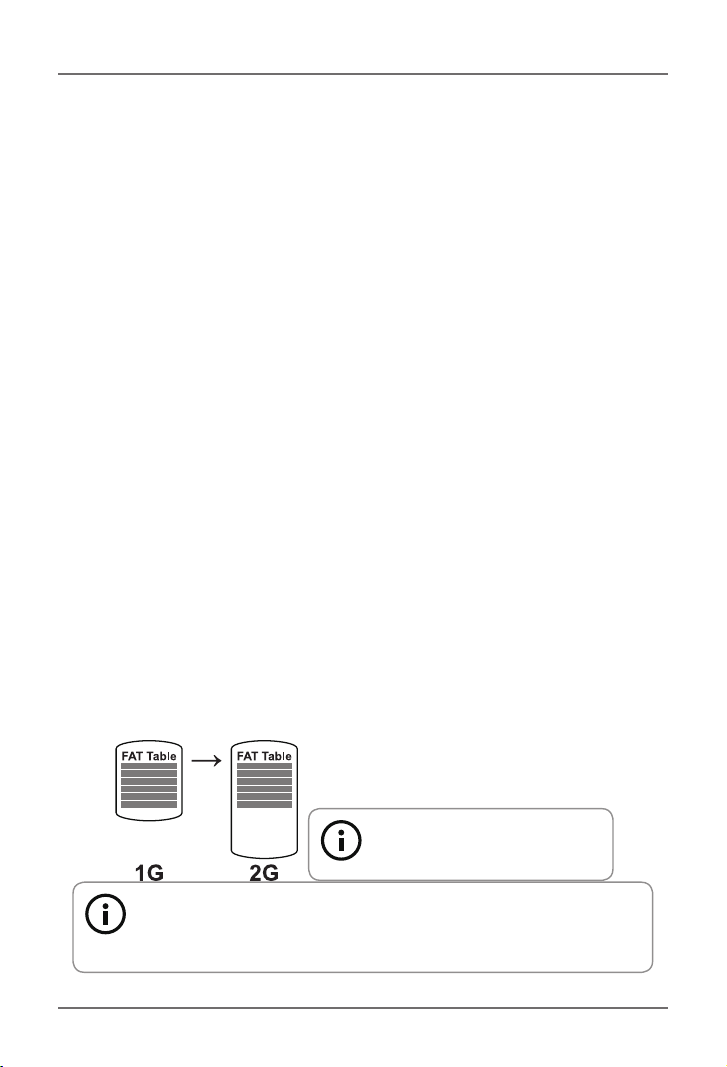

7.2.1 System and Files The system can automatically analyze the format of source and only copy the data area. ( Available for FAT16/32/NTFS/Linux (Ext2, Ext3, Ext4)

7.2.2 Whole Media The system will copy the whole content of flash including the empty space.

II. Function Overview

1. COPY

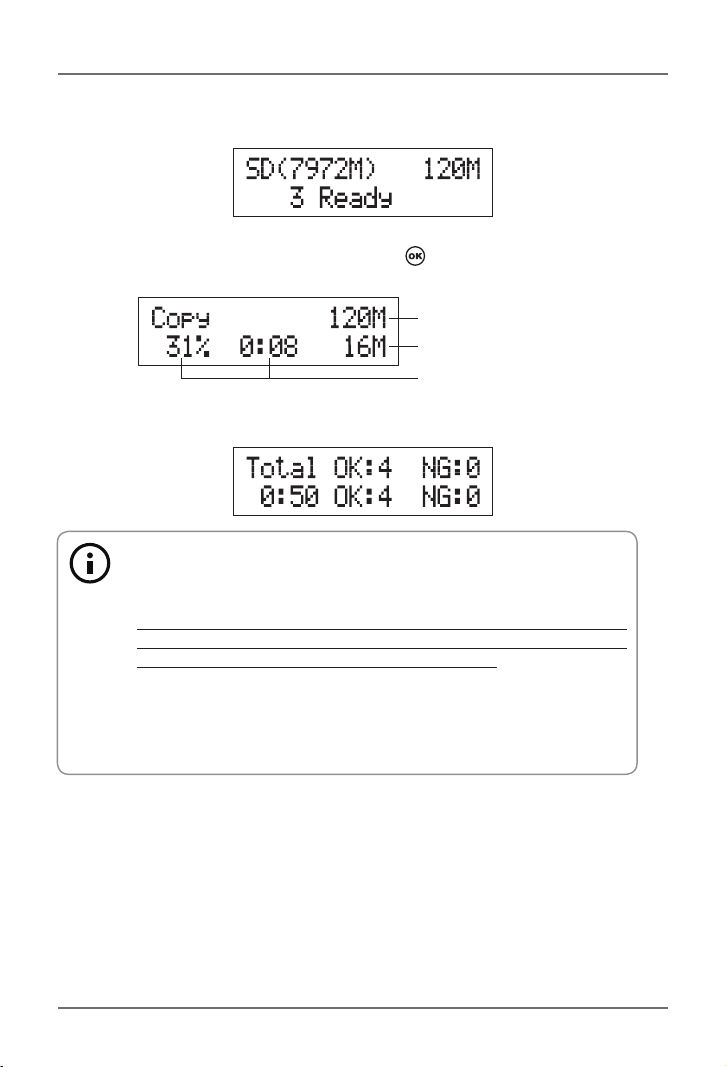

There are two kinds of copy mode for Asynchronous and Synchronous Copy. The system will check the content size of the source. If the source content size is less than system’s buffer memory, it will automatically start asynchronous copying. If the source content size is larger than the system’s buffer memory, it will copy by synchronous mode.

Note: Data in the target SD card will be damaged after the copy process have completed. User needs to backup their own data before duplicator process.

1.1 Synchronous Copy

Plug in the source Flash media. Select either copy / compare / copy+compare

function and then press .
