Renesas R0E5212BACFK00 User Manual

R0E5212BACFK00

Converter Board for 64-pin 0.5mm pitch LQFP

User’s Manual

* NQPACK, YQPACK, YQ-GUIDE and HQPACK are trademarks of Tokyo Eletech Corporation.

z Renesas Technology Corporation and Renesas Solutions Corporation put the maximum effort into making semiconductor products

better and more reliable, but there is always the possibility that trouble may occur with them. Trouble with semiconductors may lead to
personal injury, fire or property damage. Remember to give due consideration to safety when making your circuit designs, with
appropriate measures such as (i) placement of substitutive, auxiliary circuits, (ii) use of nonflammable material or (iii) prevention
against any malfunction or mishap.

z These materials are intended as a reference to assist our customers in the selection of the Renesas Technology product best suited

to the customer's application; they do not convey any license under any intellectual property rights, or any other rights, belonging to
Renesas Technology Corporation, Renesas Solutions Corporation or a third party.

z Renesas Technology Corporation and Renesas Solutions Corporation assume no responsibility for any damage, or infringement of

any third-party's rights, originating in the use of any product data, diagrams, charts, programs, algorithms, or circuit application
examples contained in these materials.

z All information contained in these materials, including product data, diagrams, charts, programs and algorithms represents information

on products at the time of publication of these materials, and are subject to change by Renesas Technology Corporation and
Renesas Solutions Corporation without notice due to product improvements or other reasons. It is therefore recommended that
customers contact Renesas Technology Corporation, Renesas Solutions Corporation or an authorized Renesas Technology product
distributor for the latest product information before purchasing a product listed herein. The information described here may contain
technical inaccuracies or typographical errors. Renesas Technology Corporation and Renesas Solutions Corporation assume no
responsibility for any damage, liability, or other loss rising from these inaccuracies or errors. Please also pay attention to information
published by Renesas Technology Corporation and Renesas Solutions Corporation by various means, including the Renesas home
page (http://www.renesas.com).

z When using any or all of the information contained in these materials, including product data, diagrams, charts, programs, and

algorithms, please be sure to evaluate all information as a total system before making a final decision on the applicability of the
information and products. Renesas Technology Corporation and Renesas Solutions Corporation assume no responsibility for any
damage, liability or other loss resulting from the information contained herein.

z Renesas Technology semiconductors are not designed or manufactured for use in a device or system that is used under

circumstances in which human life is potentially at stake. Please contact Renesas Technology Corporation, Renesas Solutions
Corporation or an authorized Renesas Technology product distributor when considering the use of a product contained herein for any
specific purposes, such as apparatus or systems for transportation, vehicular, medical, aerospace, nuclear, or undersea repeater use.

z The prior written approval of Renesas Technology Corporation and Renesas Solutions Corporation is necessary to reprint or

reproduce in whole or in part these materials.

z If these products or technologies are subject to the Japanese export control restrictions, they must be exported under a license from

the Japanese government and cannot be imported into a country other than the approved destination. Any diversion or reexport
contrary to the export control laws and regulations of Japan and/or the country of destination is prohibited.

z Please contact Renesas Technology Corporation or Renesas Solutions Corporation for further details on these materials or the

products contained therein.

z This product is a development supporting unit for use in your program development and evaluation stages. In mass-producing your

program you have finished developing, be sure to make a judgment on your own risk that it can be p ut to practical use by performing
integration test, evaluation, or some experiment else.

z In no event shall Renesas Solutions Corporation be liable for any consequence arising from the use of this product.
z Renesas Solutions Corporation strives to renovate or provide a workaround for product malfunction at some charge or without charge.

However, this does not necessarily mean that Renesas Solutions Corporation guarantees the renovation or the provision under any
circumstances.

z This product has been developed by assuming its use for program development and evaluation in laboratories. Therefore, it does not

fall under the application of Electrical Appliance and Material Safety Law and protection against electromagnetic interference when
used in Japan.

CAUTION

Renesas Tools Homepage http://www.renesas.com/tools

Keep safety first in your circuit designs!

Notes regarding these materials

Precautions to be taken when using this product

If the requirements shown in the "CAUTION" sentences are ignored,
the equipment may cause personal injury or damage to the products.

Rev.1.00
Jan. 16, 2007
REJ10J1365-0100

(1/4)

1. Outline

The R0E5212BACFK00 is a converter board for connecting
the emulation probe R0E521000EPB00 and the compact
emulator R0E521000CPE00 for R8C/Tiny Series to a foot
pattern for 64-pin 0.5mm pitch LQFP (PLQP0064KB-A,
previous code: 64P6Q-A) of R8C/2A and 2B Groups.

2. Package Components (See Figure 1)

Table 1 Package Components

Item Quantity
R0E5212BACFK00
(Slave chip mounting board R0E521DAEPBS0

1 pc.

and 150mm FFC cable included)
YQPACK064SD

(made by Tokyo Eletech Corporation)
NQPACK064SD-ND
(made by Tokyo Eletech Corporation)
YQ-GUIDE
(made by Tokyo Eletech Corporation)

1 pc.

1 pc.

4 pcs.

R0E5212BACFK00 User's Manual (This manual) 1 pc.

3. Specifications

2 Specifications

Table

Applicable package

PLQP0064KB-A

(64-pin 0.5mm pitch LQFP)

Between R0E5212BACFK00 and

YQPACK064SD:

100 times guaranteedInsertion/removal

iterations of

connector

Between R0E521000EPB00 or

R0E521000CPE00 and

R0E5212BACFK00:

50 times

guaranteed

4. Usage (See Figure 2)

The R0E5212BACFK00 can be used for debugging and
on-board evaluation in common by mounting the
NQPACK064SD-ND on the user system.

(1) For debugging

Mount the NQPACK064SD-ND on the foot pattern of the
user system. Mount the YQPACK064SD on the
NQPACK064SD-ND, and fix them with the YQ-GUIDE’s
(do not use the screws included with the YQPACK064SD).
After connecting the R0E521000EPB00 or
R0E521000CPE00 to the R0E5212BACFK00, connect the
R0E5212BACFK00 to the YQPACK064SD.

(2) For on-board evaluation

Mount an R8C/2A or 2B Group MCU and
HQPACK064SD (separately available) in that order on the
NQPACK064SD-ND on the user system. And fix them
using a screw included with the HQPACK064SD.

Before using the R0E5212BACFK00, be sure to read "7.
Precautions" on page 4 and the R0E521000EPB00 or
R0E521000CPE00 User’s Manual.

R0E5212BAC FK 00

YQ-GUIDE(×4)YQPACK064SD NQPACK064SD-ND

Figure 1 Package components of the R0E5212BACFK00

(1) Debugging

R0E521000EPB00

or

R0E521000CPE00

R0E5212BACFK00

(2) On-board evaluation

HQPACK064SD

(Not included)

YQ-GU IDE(×4) *

YQPACK064SD *

MCU with on-chip
flash memory etc.

NQPACK064SD-ND *

●: No.1 pin
*These products are included with the R0E5212BACFK00 package

64-pin 0.5mm pitch

(PLQP0064KB-A) foot pattern

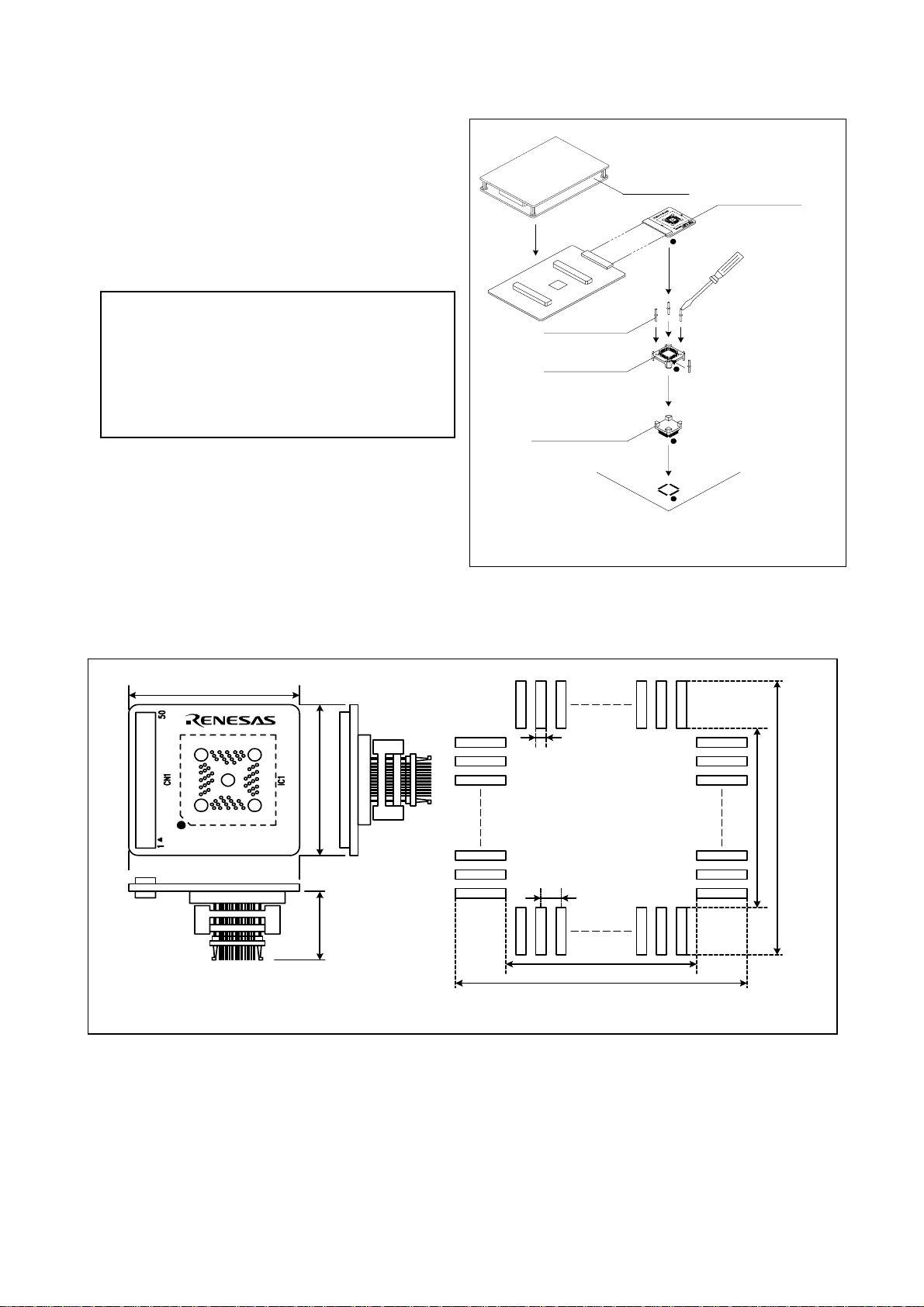

Figure 2 Usage of the R0E5212BACFK00
