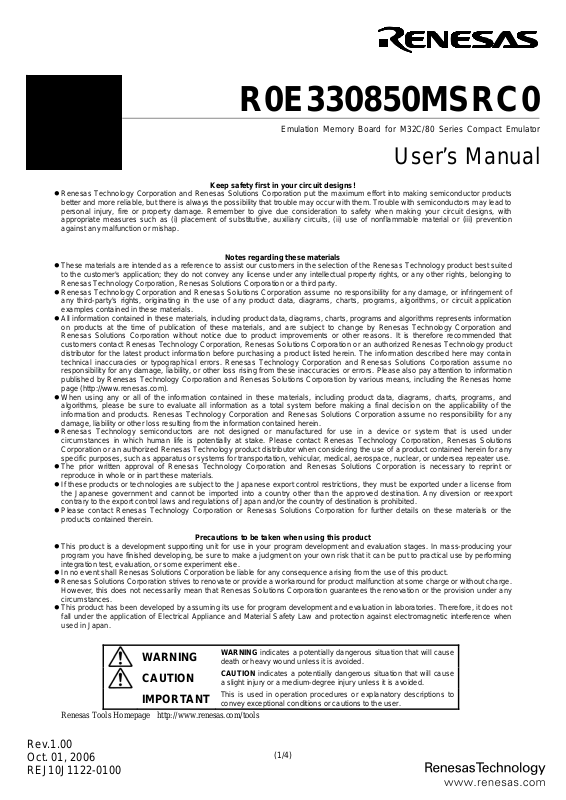

Renesas R0E330850MSRC0 User Manual

R0E330850MSRC0

r

Emulation Memory Board for M32C/80 Series Compact Emulato

User’s Manual

z Renesas Technology Corporation and Renesas Solutions Corporation put the maximum effort into making semiconductor products

better and more reliable, but there is always the possibility that trouble may occur with them. Trouble with semiconductors may lead to
personal injury, fire or property damage. Remember to give due consideration to safety when making your circuit designs, with
appropriate measures such as (i) placement of substitutive, auxiliary circuits, (ii) use of nonflammable material or (iii) prevention
against any malfunction or mishap.

z These materials are intended as a reference to assist our customers in the selection of the Renesas Technology product best suited

to the customer's application; they do not convey any license under any intellectual property rights, or any other rights, belonging to
Renesas Technology Corporation, Renesas Solutions Corporation or a third party.

z Renesas Technology Corporation and Renesas Solutions Corporation assume no responsibility for any damage, or infringement of

any third-party's rights, originating in the use of any product data, diagrams, charts, programs, algorithms, or circuit application
examples contained in these materials.

z All information contained in these materials, including product data, diagrams, charts, programs and algorithms represents information

on products at the time of publication of these materials, and are subject to change by Renesas Technology Corporation and
Renesas Solutions Corporation without notice due to product improvements or other reasons. It is therefore recommended that
customers contact Renesas Technology Corporation, Renesas Solutions Corporation or an authorized Renesas Technology product
distributor for the latest product information before purchasing a product listed herein. The information described here may contain
technical inaccuracies or typographical errors. Renesas Technology Corporation and Renesas Solutions Corporation assume no
responsibility for any damage, liability, or other loss rising from these inaccuracies or errors. Please also pay attention to information
published by Renesas Technology Corporation and Renesas Solutions Corporation by various means, including the Renesas home
page (http://www.renesas.com).

z When using any or all of the information contained in these materials, including product data, diagrams, charts, programs, and

algorithms, please be sure to evaluate all information as a total system before making a final decision on the applicability of the
information and products. Renesas Technology Corporation and Renesas Solutions Corporation assume no responsibility for any
damage, liability or other loss resulting from the information contained herein.

z Renesas Technology semiconductors are not designed or manufactured for use in a device or system that is used under

circumstances in which human life is potentially at stake. Please contact Renesas Technology Corporation, Renesas Solutions
Corporation or an authorized Renesas Technology product distributor when considering the use of a product contained herein for any
specific purposes, such as apparatus or systems for transportation, vehicular, medical, aerospace, nuclear, or undersea repeater use.

z The prior written approval of Renesas Technology Corporation and Renesas Solutions Corporation is necessary to reprint or

reproduce in whole or in part these materials.

z If these products or technologies are subject to the Japanese export control restrictions, they must be exported under a license from

the Japanese government and cannot be imported into a country other than the approved destination. Any diversion or reexport
contrary to the export control laws and regulations of Japan and/or the country of destination is prohibited.

z Please contact Renesas Technology Corporation or Renesas Solutions Corporation for further details on these materials or the

products contained therein.

z This product is a development supporting unit for use in your program development and evaluation stages. In mass-producing your

program you have finished developing, be sure to make a judgment on your own risk that it can be p ut to practical use by performing
integration test, evaluation, or some experiment else.

z In no event shall Renesas Solutions Corporation be liable for any consequence arising from the use of this product.
z Renesas Solutions Corporation strives to renovate or provide a workaround for product malfunction at some charge or without charge.

However, this does not necessarily mean that Renesas Solutions Corporation guarantees the renovation or the provision under any
circumstances.

z This product has been developed by assuming its use for program development and evaluation in laboratories. Therefore, it does not

fall under the application of Electrical Appliance and Material Safety Law and protection against electromagnetic interference when
used in Japan.

WARNING
CAUTION

Renesas Tools Homepage http://www.renesas.com/tools

IMPORTANT

Keep safety first in your circuit designs!

Notes regarding these materials

Precautions to be taken when using this product

WARNING indicates a potentially dangerous situation that will cause

death or heavy wound unless it is avoided.
CAUTION indicates a potentially dangerous situation that will cause

a slight injury or a medium-degree injury unless it is avoided.
This is used in operation procedures or explanatory descriptions to

convey exceptional conditions or cautions to the user.

Rev.1.00
Oct. 01, 2006
REJ10J1122-0100

(1/4)

1. Outline

The R0E330850MSRC0 is an emulation memory board for the M32C/80 Series compact emulator. The memory space can be
allocated to the emulation memory by using with the M32C/80 Series compact emulator M30850T3-CPE.

2. Package Components

Table 1 Package Components

Item Quantity
R0E330850MSRC0 emulation memory board 1
Spacers for fixing the emulation memory board 4
R0E330850MSRC0 User’s Manual (this document)
R0E330850MSRC0 User’s Manual (Japanese)

1
1

3. Connection Procedure

The procedure for connecting the R0E330850MSRC0 is shown in Figure 1.

(1) Unscrew the four screws securing the compact emulator.
(2) Pull out the M30850T2-EPBM from the compact emulator control

board (hereafter, upper board) vertically, otherwise the connectors
may be damaged.

Screws

M30850T2-EPBM

(3) Attach connector J1 of the R0E330850MSRC0 to connector J3 of

(4) Tighten the spacers (included) in an even, crisscross pattern to

Spacers

R0E330850MSRC0

(5) Attach connector J1 of the M30850T2-EPBM to connector J3 of the

(6) Tighten the four screws (which are unscrewed in the procedure 1) in

R0E330850MSRC0

(7) After replacing the board, perform the self-check to make sure that

Screws

M30850T2-EPBM

Figure 1 Connecting procedure of the emulation memory board

CAUTION

Cautions to Be Taken for This Product:

z Before you replace the emulation memory board, shut off the power, otherwise internal circuits may be damaged.
z Insert or pull out the connectors vertically, otherwise the connectors may be damaged.

the upper board, and J2 of the R0E330850MSRC0 to connector J4
of the upper board.

secure the R0E330850MSRC0 with such as box wrench.

R0E330850MSRC0, and J2 of the M30850T2-EPBM to connector
J4 of the R0E330850MSRC0.

an even, crisscross pattern to secure the M30850T2-EPBM with a
screwdriver.

the R0E330850MSRC0 has been installed properly.
