Renesas H8-38099 User Manual

Renesas Starter Kit

Quick Start

LCD module
connector

Application Board Interface

for H8/38099

LCD module

E8a header

Reset switch

Application Board Interface

E8a emulator

Analog adjust

User LEDs

User switches

D007574_11_S01_V01

1. Installation

Do not connect the E8a emulator hardware until the software support has been installed.

1. Insert the CD into your computer’s CD-ROM drive. The CD should automatically run the installation program. If
the installer does not start, browse to the CD root folder and double click on “setup.exe”.

2. The installer will ask you which language is to be used, please choose the appropriate one.

3. On the first screen of the installer proper, click <Next>.

4. The License Agreement will be shown, click <Yes>.

5. The next screen asks you to pick the world region – please select and click <Next>.

6. Select the Renesas Sta rter Kit you wish to install and click <Next>.

7. The destination folders are specified on the next screens. It is recommended to accept the default settings.
Click <Next> to continue.

8. Click <Next> on all screens until the installation process commences.

9. After the installation the machine’s site code will be shown, this is not important at this stage, click <Next> then
<Finish>.

10. Ensure ‘Launch AutoUpdate’ is selected and click <Finish>.

11. Configure Aut o-Update to finish the in stallation.

2. Connection

12. Now connect the E8a to ‘E8’ connector on the board using the ribbon cable, also connect the LCD module to
‘LCD’ connector on the board ensu ring that the pin 1 designation corresponds to the marking on the board.

13. Connect the E8a emulator to a spare USB port.

The “Found New Hardware” Wizard will appear. Please follow the steps below to install the drivers. Note that
administrator privileges are required for a Windows

14. Select ‘No, not this time’ if dialog appears and click <Next>.

15. Verify the “Recommended” option is selected and click <Next>.

16. If using Windows XP, skip to step 18; otherwise click <Next>.

17. Click <Next> to install the driver.

18. Click <Finish> to close the wizard.

Note: The Windows driver signing dialog may be displayed. Please accept the driver to continue.

TM

2000/XP machine.

3. High-performance Embedded Workshop Workspace

High-performance Embedded Workshop integrates various tools such as compiler, assembler, debugger and editor
into a common graphical user interface. To learn more on how to use High-performance Embedded Workshop, open
the High-performance Embedded Workshop manual installed on your computer (Start Menu > All Programs >
Renesas > High-performance Embedded W orkshop > Manual Navigator).

19. Launch High-performance Embedded Workshop from the Start Menu. (Start Menu > All Programs > Renesas >
High-performance Embedded Workshop > High-performance Embedded Workshop)

20. In the “Welcome” dialog box: Verify “Create New Workspace” is selected. Click <OK>.

21. In the “New Project Workspace” dialog box: Set the “CPU Family” to “H8S,H8/300”, and verify the “Tool chain”
is set to “Hitachi H8S, H8/300 Standard”. Select “RSKH838099” from the left hand pane.

22. Enter a name for the workspace. The project name will be automatically completed with the Workspace name.
You can change this name to “Tutorial” if required. Click <OK>.

23. On the “RSKH838099- Ste p 1” win dow: Select “Tutorial” and click <Next>.

24. On the “RSKH838099- Ste p 2” win dow: Click <Finish>.

25. On the Project Generator Information window: Click <OK>.

The project that is created has two configurations. The Release configuration can be used for the final release code
version. The Debug configuration allows modifications to the configuration for debuggi ng.

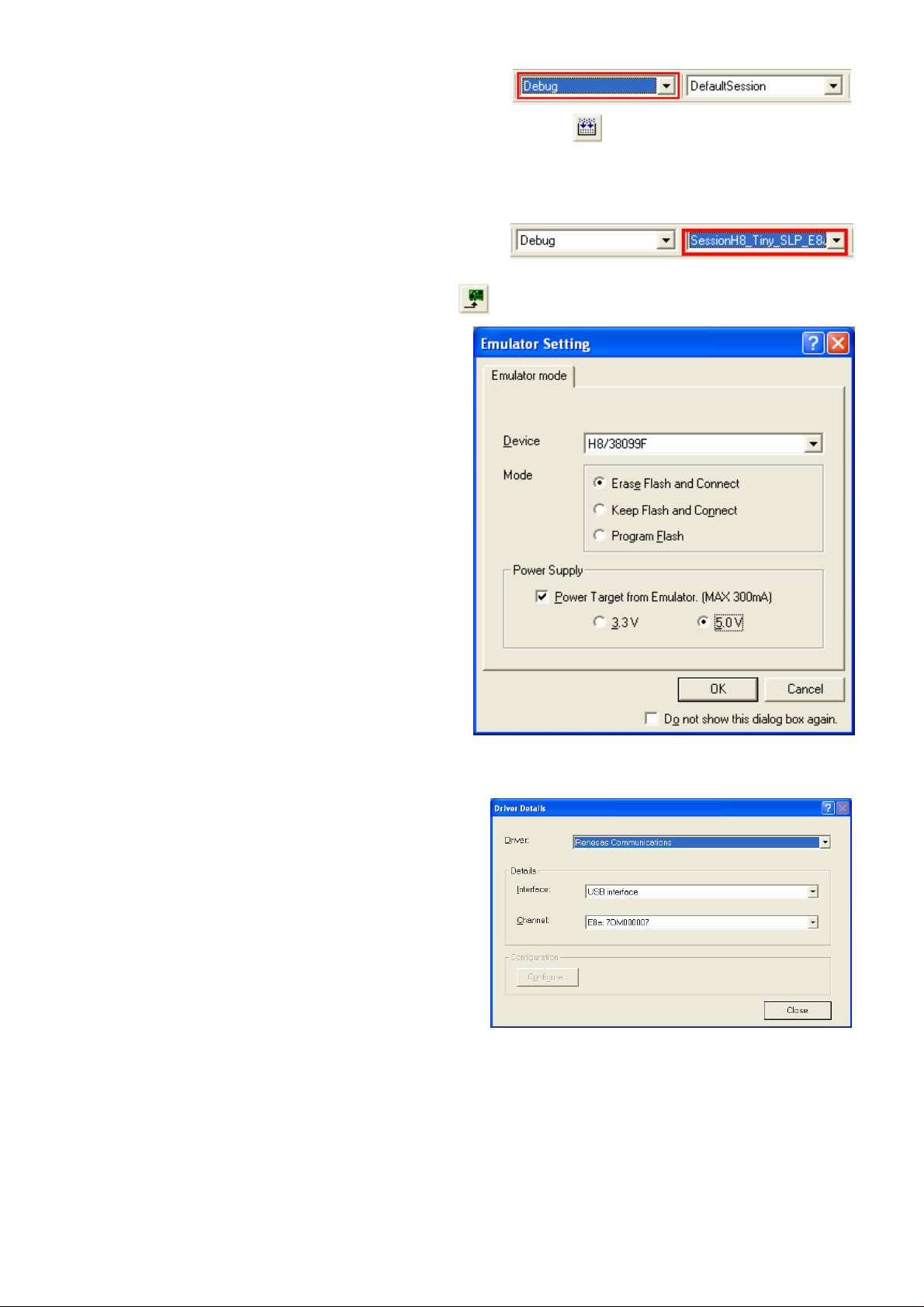

26. Select the Debug build configuration in the left hand drop
down list on the toolbar.

27. Click on the “Build” icon to compile, assemble and link the project.

4. Programming and Debug

28. Ensure the “SessionH8_Tiny_SLP_E8a_SYSTEM_300H”
session in the right hand drop down list on the toolbar is
selected.

29. Click the <Connect> button on the debug toolbar.

30. The “Emulator Setting” dialog will be shown. Select
the correct device type (e.g. H8/38099F for
RSKH838099).

31. Select “Erase Flash and Connect”.

32. If the E8a is to provide power to the CPU board,
select “Power Target from Emulator” and choose the
“5.0V” option.

Otherwise connect a 5V center positive supply.

33. Click <OK>.

34. The first time the E8a is used a warning message box “Please choose driver” will be shown. Click <Ok>.
Otherwise skip to step 38.

35. The “Driver Details” dialog will be shown. Select
“Renesas Communications”.

36. After a short delay while the hardware is interrogated,
select “USB Interface”. The channel number will vary.

37. Click <Close>.

38. Accept any dialog warning that an older version of E8a firmware is necessary to work with the application. Allow
download of firmware to complete, this may take several seconds.

39. Enter the clock speed (“10.00MHz” for the RSKH838099) then click <OK>.

40. Enter the ID Code (“0E8A” for the RSKH838099) then click <OK>.

The connection to the Renesas Starter Kit will be completed and will activate the debugger buttons on the
High-performance Embedded Workshop toolbar.

41. Right click on the download module listed in the left hand
pane and select “Download”.
The code will be downloaded to the microcontroller. This
may take several seconds.

42. Click the <Reset Go> button.
The code will run and you will see the LEDs flash on the board.

43. Click the <Stop> button.
The code will stop and the source code will be opened at the current program counter.

5. Next Step

After you have completed this quick start procedure, please review the tutorial code and sampl e code that came with
the kit. You can add projects to the current workspace by selecting (Project > Insert Project) from the main menu.
The tutorials will help you understand the device and development process using Renesas Development Tools.
The Hardware manual supplied with this kit is current at the time of publication. Please check for any updates to the
device manual from the Renesas website at: www.renesas.com/renesas_starter_kits

6. Renesas H8 Compiler

The version of the compiler provided with this Renesas Starter Kit is fully functional but time limited. You have 60
days to evaluate the full product before the compiler will limit the code linker to 64k bytes. Full licensed H8 compiler
versions are available from your Renesas supplier.

7. Support

Online technical support and information is available at: www.renesas.com/renesas_starter_kits

Technical Contact Details
America: [e-mail]
Europe: [e-mail]
Japan: [e-mail]

Note on Autoupdate: The Autoupdater is configured to automatically add itsel f to the Startup folder in the Windows
Start Menu and use the registry defaults for access to the web. After restarting the machine the Icon will appear in
the System Tray next to the clock. To change the settings or acces s Autoupdate simply right-click on the icon and
use the menu that appears.

© Renesas Solutions Corporation. 2007.
© Renesas Technology Europe Ltd. 2007.
© Renesas Technology Corporation. 2007.

D007574_11_S01_V01
