Remington BS1812A User Manual

18VOLT CORDLESS TRIMMER/EDGER

OWNER’S MANUAL

ENGLISH

MODELS: BS1812A

IMPORTANT: Read and understand this manual before assembling or operating this tool. Improper use of this tool can cause severe injury or death. Keep this manual for future reference.

STOP

PARA

ARRÉT

PARA

ARRÉT

DO NOT RETURN PRODUCT TO STORE.

CALL 1-800-626-2237 FOR TECHNICAL ASSISTANCE

For more information, visit www.desatech.com

This manual is your guide to safe and proper operation of the trimmer

SAVE THESE INSTRUCTIONS.

Keep your purchase receipt for warranty coverage.

NO DEVUELVA EL PRODUCTO A LA TIENDA

PARA AYUDA TÉCNICA LLAME AL 1-800-626-2237

Para más información, www.desatech.com

Este manual es su guía para la operación segura y correcta de la podora.

GUARDE ESTAS INSTRUCCIONES.

Guarde su recibo de compra para cobertura de la garantía.

NE RETOURNEZ PAS LE PRODUIT AU DÉTAILLANT

FAITES LE 1 800 626-2237 POUR OBTENIR

DE L’ASSISTANCE TECHNIQUE

Pour plus de détails, visitez le www.desatech.com.

Ce guide vous aidera à utiliser votres oufﬂ euse sur tige de façon appropriée et

en toute sécurité.

CONSERVER CES DIRECTIVES

Conservez votre reçu d’achat pour obtenir le service sous garantie.

www.desatech.com

CONTENTS

IMPORTANT SAFETY INFORMATION ................................................................4

Before Operating Trimmer ................................................................................................4

While Operating Trimmer ..................................................................................................4

Maintenance and Storage of Trimmer...............................................................................4

PRODUCT IDENTIFICATION ............................................................................... 5

RECHARGEABLE BATTERY ......... ..................................................................... 6

Protective Battery Terminal Cap ....................................................................................... 6

Charging Battery................................................................................................................7

TRIMMER/EDGER ASSEMBLY ........................................................................... 8

Cutting Guard/Edging Wheel ............................................................................................ 8

Adjustable Front Handle ....................................................................................................9

TRIMMER OPERATION ......................................................................................10

Converting to Edger/Trimmer ..........................................................................................10

ENGLISH

Starting Edger/Trimmer ...................................................................................................10

Trimming .........................................................................................................................11

Advance Trimmer Line .................................................................................................... 11

Replace Trimmer Line .....................................................................................................12

Edger ..............................................................................................................................13

TRIMMER MAINTENANCE ................................................................................14

Cleaning and Maintenance .............................................................................................14

Replacement Parts .........................................................................................................14

BATTERY DISPOSAL AND RECYCLING .......................................................... 14

TECHNICAL SERVICE ....................................................................................... 15

TROUBLE SHOOTING ....................................................................................... 15

WARRANTY INFORMATION .............................................................................. 16

PARTS CENTRALS ............................................................................................47

Thank you for purchasing this Remington 18Volt Cordless Trimmer/Edger. We are proud to offer this quality product to assist you in keeping your property neat and well-groomed.

This owner’s manual provides complete instructions for safely assembling, operating, and maintaining your Trimmer/Edger. Read and save these instructions. Refer to this manual each time before using your Trimmer/Edger.

For easy reference, record the information from the carton and Remington nameplate label located on the appliance.

This manual is your guide to safe and proper operation of the trimmer.

SAVE THESE INSTRUCTIONS.

If you have a question or problem, CALL TOLL FREE 1-800-626-2237 or visit www.desatech.com

www.desatech.com

IMPORTANT SAFETY INFORMATION

READ ALL INSTRUCTIONS BEFORE OPERATING TRIMMER.

SAFETY WARNINGS

WARNING

When using electric gardening appliances, basic safety precautions should always be followed to reduce the risk of ﬁ re, electric shock, and personal injury, including the following:

WARNING

This product contains chemicals known to the State of California to cause cancer or birth defects, or other reproductive harm.

BEFORE OPERATING TRIMMER/ EDGER

1. Avoid Dangerous Environments

• Do not operate trimmer/edger in rain or in damp or wet locations.

• Do not charge battery in rain or in damp or wet locations.

• Do not operate trimmer/edger while under the inﬂ uence of alcohol, medications, or drugs.

• Do not operate trimmer/edger when you are tired.

• Do not operate trimmer/edger if it is damaged or not securely and fully assembled.

2. Keep children away. Keep all bystanders a safe distance from work area.

3. Do not use trimmer/edger for any job except that for which it is intended.

4. Only well instructed adults should operate trimmer/edger. Never allow children to operate trimmer/edger.

5. Dress properly when operating trimmer/ edger.

• Do not wear loose clothing or jewelry

that can get caught in the moving parts of the trimmer/edger.

• Use of rubber gloves and substantial

footwear is recommended when working outdoors.

• Always wear protective hair covering

to contain long hair.

• Always wear a face or dust mask if

operation is dusty.

6. Always wear eye protection that meets accepted standards in your country.

7. Wear long pants and shoes when operating this tool.

WHILE OPERATING TRIMMER/EDGER

1. Stay alert. Watch what you are doing. Use common sense.

2. Avoid unintentional starting. Do not carry trimmer/edger with ﬁ nger on trigger switch. Be sure switch is OFF when placing battery in trimmer/edger.

4. Do not overreach. Keep proper footing and balance at all times when operating trimmer/edger.

5. Remove battery from trimmer.

• when not in use

• before servicing

6. Do not force trimmer/edger. It will do the job better and with less likelihood of a risk of injury at the rate for which it was designed.

7. Keep hands and feet away from cutting area.

MAINTENANCE AND STORAGE OF TRIMMER/EDGER

1. Maintain trimmer/edger with care.

•

Inspect trimmer/edger periodically, and if damaged contact DESA Power Tools.

• If trimmer/edger is not working properly, has been dropped, damaged, left outdoors, or dropped into water, contact DESA Power Tools.

• Keep handles dry, clean, and free from oil and grease.

• Keep guards in place and in working order.

2. Check damaged parts.

• If a part is damaged, carefully check the damaged part before using the trimmer/edger. Make sure the part will operate properly and perform its intended function.

• Check for alignment of moving parts, binding of moving parts, breakage of parts, mounting, and any other condition that may affect its operation.

• A guard or other part that is damaged should be properly repaired or replaced unless indicated elsewhere in this manual.

• Use only geniune Remington replacement parts and accessories. These are available from your local dealer. Use of any non-Remington parts or accessories could lead to injury to the user, damage to the unit, and void your warranty.

3. Store idle trimmer/edger indoors. When not in use, store trimmer/edger indoors in a dry location. Store trimmer/edger above the reach of children or in a locked area out of the reach of children.

SAVE THESE

INSTRUCTIONS.

www.desatech.com

PRODUCT IDENTIFICATION

A. Motor Housing B. Spool Housing C. Cutting Guard D. Edging Wheel E. Adjustable Front Handle F. Rear Handle G. Trigger Switch H. Trigger Lockout Button I Telescoping Shaft J. Battery K. Battery Release Buttons L. Line Advance Button M Battery Charger N. Charger Base

ENGLISH

Input No Load Speed Cutting Width Net Weight Line Diameter

SPECIFICATIONS

BS1812A

18VDC 9600 rpm 12 inches (45.7cm)

7.35 lbs. (3.33 Kg)

0.065 inch

www.desatech.com

RECHARGEABLE BATTERY

PROTECTIVE BATTERY TERMINAL CAP

WARNING

Do not store or carry battery so that metal objects can contact exposed battery terminals. For example, do not place battery in aprons, pockets, tool boxes, product kit boxes, drawers, etc. with loose nails, screws, keys, jewelry etc. without battery cap. The battery or conductor may overheat and case burns

A protective battery terminal cap is provided for use whenever the battery is out of the tool or charger. Remove cap before placing battery in charger or tool.

SAFETY WARNINGS

1. This manual contains important safety and opertaing instructions.

2. Before using battery charger, read all instructions and cautionary markings on battery charger, battery pack, and product using battery pack.

a. Two-wire cords can be used with 2-wire

or 3-wire extension cords. Only round jacketed extension cords should be used, and we recommend that they be listed by Underwriters Laboratories (U.L.). If the extension is to be used outside, the cord must be suitable for outdoor use. Any cord marked for outdoor use can also be used for indoor work. The letters “W” or “WA” on the cord jacket indicate that the cord is suitable for outdoor use.

b. An extension cord must have adequate wire

size (AWG or American Wire Gauge) for safety, and to prevent loss of power and overheating. The smaller the gauge number of the wire, the greater the capacity of the cable; that is, 16 gauge has more capacity than 18 gauge. When using more than one extension to make up the total length, be sure each extension contains at least the minimum wire size.

CHART FOR MINIMUM WIRE SIZE (AWG) OF EXTENSION CORDS NAMEPLATE RATING AMPS – 0 – 10.0

12. A small leakage of liquid from the battery pack cells may occur under extreme usage, charging, or temperature conditions. This does not indicate a failure. However, if the outer seal is broken and this leakage gets on your skin:

• Wash quickly with soap and water.

• Neutralize with a mild acid such as

lemon juice or vinegar.

• If the battery liquid gets in your eyes,

ﬂ ush them with clean water for a minimum of 10 minutes and seek immediate medical attention.

13. DO NOT open or mutilate the batteries. Released electolyte is corrosive and may cause damage to the eyes and skit. It may be toxic if swallowed.

MEDICAL NOTE: The liquid is a 25-35% solution of potassium hydroxide.

CAUTION:

To reduce the risk of injury, charge only Remington brand batteries. Other types of batteries may burst causing personal injury and damage.

3. Do not expose charger to rain or snow.

4. Use of an attachment not recommended or sold by Remington brand may result in a risk of ﬁ re, electric shock, or injury to persons.

5. To reduce risk of damage to electric plug and cord, pull by plug rather than cord when disconnecting charger.

6. An extension cord should not be used unless absolutely necessary. Use of improper extension cord could result in a risk of ﬁ re, electric shock or electrocution.

Cord

Length

25 feet 18 AWG

50 feet 18 AWG 100 feet 16 AWG 150 feet 14 AWG

7. Use only the supplied charger (P/N 121397-01)when charging. The use of any other charger could damage the battery or create a hazardous condition.

8. Use only one charger when charging.

9. Use only Remington RB18V1 or RBE18V1 battery packs with this product.

10. Do not attempt to open the charger. There are no customer serviceable parts inside. If damaged, call DESA Power Tools Technical Service.

11. DO NOT incinerate the battery pack even if they are severely damaged or completely worn out. The batteries can explode in a ﬁ re.

AWG Cord

Size

www.desatech.com

RECHARGEABLE BATTERY

CHARGING BATTERY

The battery pack is not fully charged at the factory. Before attempting to charge the battery pack, thoroughly read all Safety Instructions.

The charger is designed to use standard household 120 volt 60 Hz power

1. Plug cord from charger into charger base. (See Figure 1)

Figure 1 - Plug Charger into Base

2. Plug the charger into any standard 120 Volt 60 Hz electrical outlet. Important: Do not charge by means of an engine generator or DC power source. Use only 120V AC.

3. Slide the charger onto the battery pack as shown in Figure 2. The LED will light up, Let the battery pack charge until red LED turns off. After the initial charge, under normal usage, your battery pack should be fully charged in 3 to 9 hours.

Figure 2 - Sliding Charger onto Battery

4. Unplug charger. Remove the battery pack

5. Place the battery pack in the tool and be

Figure 3 - Remove Charger

IMPORTANT CHARGING NOTES

1. After normal usage, your battery pack

2. DO NOT charge the battery pack in an

3. While charging, the charger may hum

by sliding out (See Figure 3).

certain that it is inserted fully into the tool cavity until it “clicks” into place.

should be fully charged in 3 to 9 hours. If the battery pack is run-down completely, it may take up to 9 hours to become fully charged. Your battery pack was sent from the factory in an uncharged condition. For best performance charge battery until red LED turns off. Allow the battery to cool down 30 minutes before charging after using the trimmer/edger. NOTE: A hot battery placed in the charger will not charge.

air temperature below 40°F (4,5 °C) or above 105°F (40,5 °C). This is important and will prevent serious damage to the battery pack. Longest life and best performance can be obtained if battery pack is charged when air temperature is about 75°F (24°C).

and become warm to touch. This is a normal condition and does not indicate a problem.

4. If the battery pack does not charge properly

• Check current at receptacle by plugging

in a lamp or other appliance.

• Check to see if receptacle is connected

to a light switch which turns power off when you turn out the lights.

• Move charger and battery pack to a

surrounding air temperature of 40°F (4,5°C) to 105°F (40,5 °C)

• If the receptacle and temperature are OK, and you do not get proper charging contact DESA Power Tools.

5. The battery pack should be recharged when it fails to produce sufﬁ cient power on jobs which were easily done previously. DO NOT CONTINUE using product with its battery pack in a depleted condition.

6. To prolong battery life, avoid leaving the battery pack on charger for extended periods of time (over 30 days without use). Although overcharging is not a safety concern, it can signiﬁ cantly reduce overall battery life.

7. The battery pack will reach optimum performance after being cycled 5 times during normal usage. There is no need to run the batteries down completely before recharging. Normal usage is the best method of discharging and recharging the batteries.

ENGLISH

www.desatech.com

TRIMMER ASSEMBLY

ASSEMBLING TRIMMER/EDGER

WARNING:

Do not operate trimmer/edger without guard or handle in place.

ATTACHING CUTTING GUARD AND EDGING WHEEL

1. Remove ﬁ ve mounting screws taped to underside of cutting guard.

2. Place cutting guard over spool housing at a slight angle. Push guard back depressing tabs toward front of cutting guard. (See ﬁ gure 4). Drop back of cutting guard into place.

3. Slide cutting guard forward. (See ﬁ gure

4. Insert mounting screw into hole nearest tabs in cutting guard. Tighten screw ﬁ rmly. (See Figure 6)

5. Insert two mounting screws into holes at back of cutting guard. (See Figure 7)

6. Place edging wheel over remaining two screw holes at front of cutting guard. Attach edging wheel using two mounting screws. (See Figures 8 and 9)

FPO

Figure 8 - Placing edging wheel over screw holes

Figure 5 - Slide cutting guard forward

FPO

Figure 9 - Attaching edging wheel

Figure 6 - Insert mounting screw

Figure 4 - Placing cutting guard over cutting head

FPO

www.desatech.com

FPO

Figure 7 - Insert two mounting screws

TRIMMER ASSEMBLY

ATTACHING ADJUSTABLE FRONT HANDLE

1. Remove the knob and bolt from front handle (see Figure 10).

2. Place the handle on the trimmer/edger shaft between the rear handle and shaft collar. Snap handle onto shaft (see Figure

11).

3. Insert bolt back into the front handle (see Figure 12).

4. Loosely screw knob onto bolt (see Figure

13).

5. Adjust handle to the most comfortable position and tighten the knob ﬁ rmly. Do not overtighten the knob.

ENGLISH

FPO

Figure 10 - Removing knob and bolt from handle

Figure 12 - Inserting bolt into handle

FPO

Figure 11 - Placing handle onto shaft

FPO

Figure 13 - Screwing knob onto bolt

www.desatech.com

TRIMMER/EDGER OPERATION

OPERATING THE TRIMMER/EDGER

WARNING:

Read and understand this owner’s manual before operating trimmer/edger. Make certain you read and understand all Safety Warnings of this manual. Improper use of this trimmer/edger can result in severe injury or death from ﬁ re, electric shock, or body contact with moving parts.

WARNING:

The trimmer/edger can throw debris, causing injury to those nearby.

• Wear approved eye protection, long pants, and shoes while operating this tool

WARNING:

Keep away from cutting line and cutting head while trimmer/edger is running. Contact with cutting line can cause serious injury.

• Keep cutting head away from your hands and feet and bystanders when in use.

• Keep cutting guard in place and in proper working order.

• Wear long pants and shoes while operating this trimmer/edger.

• Stop trimmer/edger before servicing or examining

power head.

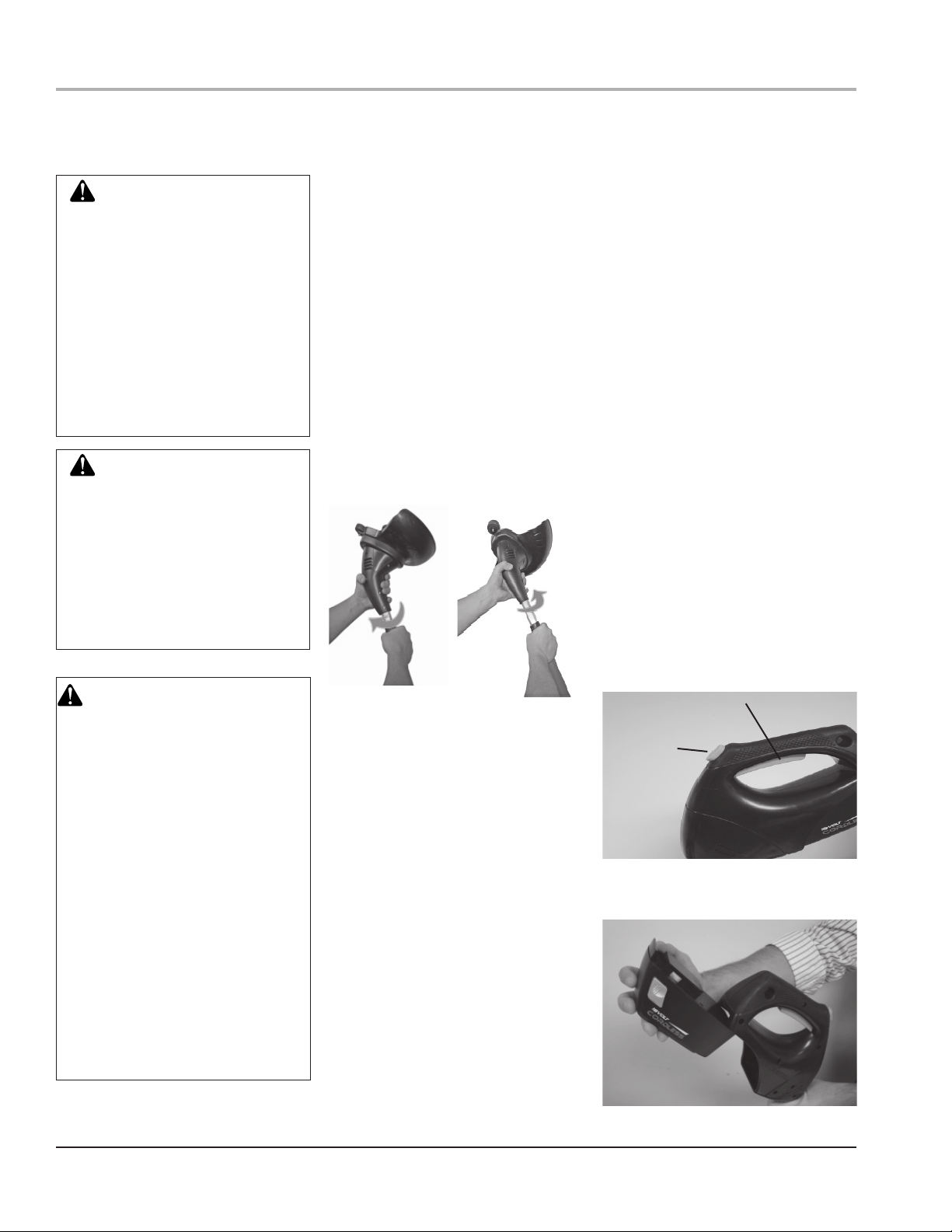

ADJUSTING SHAFT LENGTH

- CONVERTING TO EDGER/ TRIMMER

1. Grip shaft collar and rotate motor housing approximately halfway between trimming and edging position to release. (See Figure 14)

NOTE: To release motor housing from: a. Trimming position - rotate

counter-clockwise.

b. Edging position - rotate

clockwise.

2. Slide motor housing to desired location.

3. Rotate motor housing in direction of device desired, trimmer or edger, to secure. Shaft has internal limits to stop rotation. Make sure motor housing locks at one of these limits.

Trimming Edging

Figure 14 - Adjusting shaft length

STARTING THE TRIMMER/EDGER Basic Trimmer Operation

As a safety feature, this trimmer/edger requires the trigger lockout button to be drepressed prior to squeezing the trigger. (See Figure 15)

This tool is designed to trim grass and weeds with ease. Follow the steps below to start and stop the trimmer.

1. Place fully charged battery in trimmer. (See Figure 16)

2. Hold the front handle with one hand. (See Figure 17, page 11)

3. While grasping the rear handle, with the other hand, depress the trigger lockout button. (See ﬁ gure 18, page 11)

4. Squeeze trigger, the trimmer will start immediately. (See Figure 19, page 11)

5. While squeezing trigger, release trigger lockout button. Trimmer will remain on.

6. To stop the trimmer, release the trigger. The trimmer will coast to a stop.

Trigger

Switch Trigger Lock-out button

Figure 15 - Front and rear trigger switches

Figure 16 - Placing battery in trimmer

Figure 16 - Inserting Battery

www.desatech.com

TRIMMER/EDGER OPERATION

ENGLISH

Figure 17 - Positioning hand on front handle.

Figure 18 - Depress lockout button and squeeze trigger

Figure 19 - Release lockout button

TRIMMING

To reduce excessive line wear and improve trimming performance, follow the steps below to trim grass and weeds.

1. Remove any string, wire, or other materials that could become entangled in the trimmer/edger from the trimming area.

2. Hold trimmer/edger using both front and rear handles (See Figure 20).

3. Slowly sweep the trimmer/edger from side to side or front to back.

4. Do not force the trimmer/edger. Allow only the tip of the trimmer/edger line to cut the grass or weeds.

5. If grass or weeds are tall, cut them in several increments, starting from the top and working to the bottom.

Figure 21 - Advancing trimmer/edger line

Figure 20 - Holding trimmer/edger

ADVANCING TRIMMER LINE

WARNING:

Blade is sharp. To prevent serious injury, do not touch blade.

To advance new trimmer/edger line, tap the line advance button on the ground while the trimmer/edger is running (See Figure 21. The blade attached to the cutting guard will cut the line to the proper length.

Follow the precautions below to ensure top line performance.

• Do not hold the line advance button on the ground. This will allow trimmer/edger line to constantly feed off the spool.

• Tap the line advance button only once to advance line. If more line is needed, wait a few seconds and tap again.

• Be sure to advance the line as it wears down. If you wait too long to advance new line, the existing line will wear down too short and can retract into the spool. If this happens, remove the spool and reroute the line out of the spool. Reinstall the spool to the spool housing.

www.desatech.com

TRIMMER/EDGER OPERATION

Replacing Trimmer/Edger Line

WARNING:

To prevent serious personal injury, never use metal-reinforced line, wire, or rope, etc. These can break off and become a dangerous projectile.

CAUTION:

Use of line other than speciﬁ ed could cause personal injury or product failure.

For replacement line, use a nylon monoﬁ lament line of 0.065 inch in diameter. You can purchase replacement line at most lawn and garden stores.

REMOVING THE SPOOL

1. Press in the two locking tabs holding the spool cover to the spool housing (See Figure 21).

Remove the spool cover and spool from spool housing (See Figure

22). Note: If spool spring comes off of spool housing, replace spring into center of spool housing. Note: If installing replacement spool and line (P/N BRS65A), skip to step

8. Remove and discard any remaining line in the spool.

3. Clean grass and other debris from the spool and spool housing using a brush (See Figure 23).

4. Insert 1 inch of line through small hole at the base of spool (See Figure 24).

5. Evenly and tightly wind line around spool in the direction shown on bottom of spool. Continue winding until line is just below rim of spool. (See ﬁ gure 25). Do not over ﬁ ll. Overﬁ lling can cause jams.

6. Cut the line. Keep tension on line so line does not unwind.

7. Insert cut end through eyelet in spool housing. (See Figure 26)

8. Replace spring and spool into spool housing making sure line is not caught under spool. (See Figure 27, page 13)

9. Align tabs on spool cover with slots in spool housing. Replace spool cover onto spool housing and snap into place. (See Figure 28, page 13)

Direction of Line Feed

FPO

Figure 21 - Unlocking spool cover

Figure 24 -Inserting line through eyelet

Figure 22 - Removing spool cover and spool

Figure 25 -Winding Line Around Spool

Direction

of Line

Feed

Figure 23 - Cleaning spool

Figure 26 - Inserting line through housing

www.desatech.com

TRIMMER/EDGER OPERATION

USING EDGER

1. Make sure trimmer/edger line is advanced to full cutting length.

2. Roll the trimmer/edger using the edging wheel attached to the cutting guard (see Figure 29).

3. Start the trimmer/edger and trim along edging lines. Be sure to keep the cutting lines vertical.

Figure 27 - Replacing spool into spool housing

ENGLISH

Figure 28 - Replacing spool cover onto spool housing

Figure 29 - Edging

www.desatech.com

TRIMMER/EDGER MAINTENANCE

CLEANING AND MAINTENANCE

WARNING:

Remove battery before cleaning or servicing. Severe injury or death could occur from ﬁ re, electrical shock, or rotating string.

WARNING:

When cleaning trimmer/

edger:

• Do not submerse in any liquids

• Do not use products that contain Ammonia, Chlorine, or abrasives

• Do not use chlorinated cleaning solvents, Carbon Tetrachloride, Kerosene, or Gasoline.

Use a soft cloth dampened with a mild soap and water mixture to wipe trimmer/edger housing. Do not spray or pour water directly onto trimmer/edger.

Use a stiff bristled brush to clean air intake openings on housing (see Figure 30).

When not in use, store the trimmer/edger indoors in a dry location.

Use of non-Remington parts or accessories may cause personal injury or damage to the unit.

REPLACEMENT PARTS

1. Battery RB18V1

2. Extemded Run Battery RBE188V1

2. Battery Charger 121397-01

3. Replacement Spool BRS65A (Includes line)

Optional Accessory

1. 1-Hour Charger RC18V1

For original replacement parts and accessories, contact your nearest Authorized Dealer or Authorized Service Center for this product. If they can not supply the part or accessory, contact your nearest Parts Central listed on page 47.

Each Authorized Dealer, Authorized

Service Center, and Parts Central is independently owned and operated. You may also order parts from the "Online Outlet" at www. desatech.com.If they cannot supply the part contact our customer service department at 1-800-626-2237.

In Canada call 1-800-561-3372 for parts information.

WARNING:

BATTERY DISPOSAL AND RECYCLING

This product uses nickel-cadnium batteries. Local, state, or federal laws prohibit disposal of nickel-cadnium batteries in the ordinary trash.

To help protect the environment and conserve natural resources, please dispose of batteries properly. You may contact your local recycling center for information on where to drop off the batteries.

TECHNICAL SERVICE

You may have further questions about assembling, operating, or maintaining this trimmer/edger. If so, you can visit our Technical Service web site at www.desatech.com or contact our Technical Service Department at 1-800-2622237 (English only).

You may also write to: DESA Power Tools

ATTN: Technical Service Specialty Products P.O. Box 90004 Bowling Green, KY 42102-9004

When contacting DESA Power Tools have ready:

• Your Name

• Your Address

• Your Phone Number

• Model Number of Product

• Date of Purchase (include copy of receipt for written requests)

Figure 30 - Cleaning trimmer/edger housing

www.desatech.com

You may also order the parts from the "Online Outlet" at www.desatech.com

Always specify model and serial numbers when writing the factory.

We reserve the right to amend these speciﬁcations at any time without notice. The only warranty applicable is our standard written warranty. We make no other warranty, expressed or implied.

TROUBLESHOOTING

WARNING: Remove battery before servicing. Severe injury or death could occur from

ﬁ re, electrical shock or rotating line.

Note: For additional help, visit our technical service web site at www.desatech.com.

OBSERVED FAULT POSSIBLE CAUSE REMEDY

Trimmer/Edger does not start wen you squeeze the trigger.

Trimmer/Edger runs slowly or stalls easily.

Line does not feed when you tap the line advance button.

1. Battery not installed properly.

2. Battery not charged.

3. Trigger lockout button not

depressed prior to squeezing trigger.

1. Battery is nearly depleted. 1. Recharge battery completely.

1. All the line has been used on spool.

2. Line has retracted into spool.

3. Line is caught or tangled on spool and will not feed.

1. Verify proper installation of battery.

2. Insure battery is charged per requirements.

3. Follow directions outlined in basic trimmer operation.

1. Install new line on spool.

2. Remove spool and pull line out, then replace spool.

3. Remove spool, loosen and untangle line, then replace spool.

ENGLISH

Battery discharges quickly. 1. Battery not fully charged.

2. Battery worn and will not hold charge.

Battery not charging. 1. Charger not plugged in.

2. Battery not fully inserted into charger base.

3. Charger cord not properly connected to charger base.

4. Charger damaged.

SAVE THESE

INSTRUCTIONS

1. Recharge battery completely.

2. Replace battery.

1. Plug charger into 120V 60Hz AC source.

2. Insure battery is inserted correctly in charger base.

3. Insure charger cord is fully inserted into charger base.

4. Replace charger.

www.desatech.com

+ 33 hidden pages
