Quinta Pro 65
Boiler Type :
Quinta Pro 65
Issue Date :
July 2014

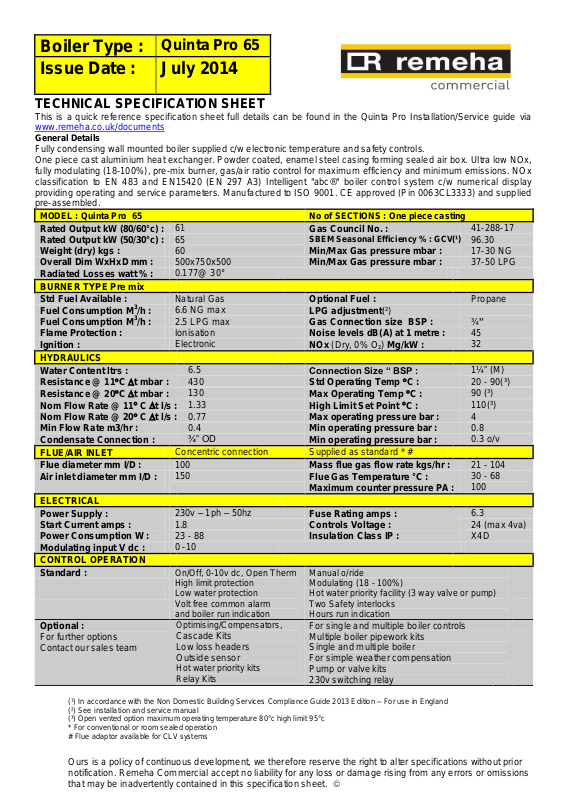

TECHNICAL SPECIFICATION SHEET
MODEL : Quinta Pro 65
No of SECTIONS : One piece casting
Rated Output kW (80/60°c) :
61
Gas Council No. :
41-288-17
Rated Output kW (50/30°c) :
65
SBEM Seasonal Efficiency % : GCV(¹)
96.30
Weight (dry) kgs :
60
Min/Max Gas pressure mbar :
17-30 NG
Overall Dim WxHxD mm :
500x750x500
Min/Max Gas pressure mbar :
37-50 LPG
Radiated Losses watt % :
0.177@ 30°
BURNER TYPE Pre mix
Std Fuel Available :
Natural Gas
Optional Fuel :
Propane
Fuel Consumption M3/h :
6.6 NG max
LPG adjustment(²)
Fuel Consumption M3/h :
2.5 LPG max
Gas Connection size BSP :
¾”
Flame Protection :
Ionisation
Noise levels dB(A) at 1 metre :
45
Ignition :
Electronic
NOx (Dry, 0% O₂) Mg/kW :
32
HYDRAULICS
Water Content ltrs :
6.5
Connection Size “ BSP :
1¼” (M)
Resistance @ 11C t mbar :
430
Std Operating Temp C :
20 - 90(³)
Resistance @ 20C t mbar :
130
Max Operating Temp C :
90 (³)
Nom Flow Rate @ 11 C t l/s :
1.33
High Limit Set Point C :
110(³)
Nom Flow Rate @ 20 C t l/s :
0.77
Max operating pressure bar :
4
Min Flow Rate m3/hr :
0.4
Min operating pressure bar :
0.8
Condensate Connection :
¾” OD
Min operating pressure bar :
0.3 o/v
FLUE/AIR INLET
Concentric connection
Supplied as standard * #
Flue diameter mm I/D :
100
Mass flue gas flow rate kgs/hr :
21 - 104
Air inlet diameter mm I/D :
150
Flue Gas Temperature °C :
Maximum counter pressure PA :
30 - 68
100
ELECTRICAL
Power Supply :
230v – 1ph – 50hz
Fuse Rating amps :
6.3
Start Current amps :
1.8
Controls Voltage :
24 (max 4va)
Power Consumption W :
23 - 88
Insulation Class IP :
X4D
Modulating input V dc :
CONTROL OPERATION
Standard :
On/Off, 0-10v dc, Open Therm
High limit protection
Manual o/ride
Modulating (18 - 100%)
Low water protection
Volt free common alarm
and boiler run indication
Hot water priority facility (3 way valve or pump)
Two Safety interlocks
Hours run indication
Optional :
For further options
Contact our sales team
Optimising/Compensators,
Cascade Kits
Low loss headers
Outside sensor
Hot water priority kits
Relay Kits
For single and multiple boiler controls
Multiple boiler pipework kits
Single and multiple boiler
For simple weather compensation
Pump or valve kits
230v switching relay
This is a quick reference specification sheet full details can be found in the Quinta Pro Installation/Service guide via
www.remeha.co.uk/documents
General Details
Fully condensing wall mounted boiler supplied c/w electronic temperature and safety controls.
One piece cast aluminium heat exchanger. Powder coated, enamel steel casing forming sealed air box. Ultra low NOx,
fully modulating (18-100%), pre-mix burner, gas/air ratio control for maximum efficiency and minimum emissions. NOx
classification to EN 483 and EN15420 (EN 297 A3) Intelligent "abc®" boiler control system c/w numerical display
providing operating and service parameters. Manufactured to ISO 9001. CE approved (Pin 0063CL3333) and supplied
pre-assembled.
(¹) In accordance with the Non Domestic Building Services Compliance Guide 2013 Edition – For use in England
(²) See installation and service manual
(³) Open vented option maximum operating temperature 80°c high limit 95°c
* For conventional or room sealed operation
# Flue adaptor available for CLV systems
Ours is a policy of continuous development, we therefore reserve the right to alter specifications without prior
notification. Remeha Commercial accept no liability for any loss or damage rising from any errors or omissions
that may be inadvertently contained in this specification sheet.
