Remeha Gas 360-8 Technical Specifications
Boiler Type
G360 - 8
Issue Date :
March 2012
MODEL : Gas 360
No of SECTIONS : 8
Rated Output kW :
36 - 63
Seasonal Efficiency % : GCV
82.2
Weight (dry) kgs :
257
Overall Dim WxHxD mm :
946 x 930 x 952
Radiated Losses % :
0.45
BURNER TYPE
Atmospheric
Fuel Available :
Natural Gas
Optional Fuel :
LPG
Fuel Consumption M3/h :
7.29 NG
Fuel Consumption Kg/h :
5.35 LPG
Flame Protection :
Ionisation
Gas Connection size BSP :
1"
Min Op Gas Press mbar :
20
Ignition :
Electronic
Noise levels dB(A) :
50/55
HYDRAULICS
Water Content ltrs :
32.6
Connection Size “ BSP :
1½"
Resistance @ 11°C ∆t mbar :
46.7
Std Operating Temp °C :
80
Resistance @ 20°C ∆t mbar :
14
Max Operating Temp °C :
90
Nom Flow Rate @ 11° C ∆t l/s :
High Limit Set Point °C :
Nom Flow Rate @ 20° C ∆t l/s :
0.75
Max Operating Pressure (bar):
6
FLUE
Diameter mm I/D :
180
Flue Gas Volume Cu M/h : (¹)
110
Flue Type :
Conventional
Flue Gas Flow kgs/hr : (¹)
138
Flue Gas Temperature °C : (²)
135
ELECTRICAL
Voltage :
230v – 1ph – 50hz
Start Current amps :
N/a
Run Current amps :
0.11
Fuse Rating amps :
6
CONTROL OPERATION
Standard :
Control Thermostat
High/Low Thermostat
High limit Thermostat
On/Off Switch
Temperature indication
Optional :
Hours Run Meters

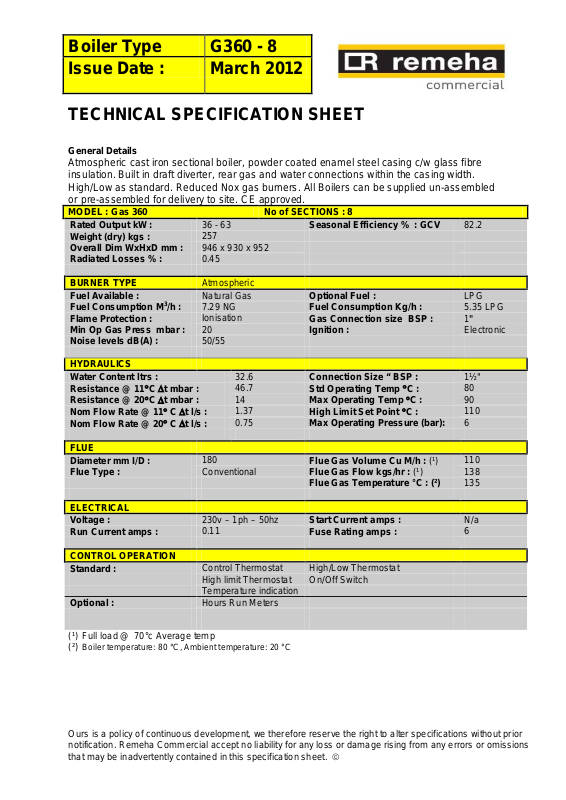

TECHNICAL SPECIFICATION SHEET
General Details
Atmospheric cast iron sectional boiler, powder coated enamel steel casing c/w glass fibre
insulation. Built in draft diverter, rear gas and water connections within the casing width.
High/Low as standard. Reduced Nox g as bur ner s . All Boilers can be supplied un-assembled
or pre-assembled for delivery to site. CE approved.
1.37
(¹) Full load @ 70°c Average temp
(²) Boiler temperature: 80 °C, Ambient temperature: 20 °C
110
Ours is a policy of continuous development, we therefore reserve the right to alter specifications without prior
notification. Remeha Commercial accept no liability for any loss or damage rising from any errors or omissions
that may be inadvertently contained in this specification sheet.
