Remeha Gas 360-12 Technical Specifications

Boiler Type :

G360 - 12

Issue Date :

March 2012

MODEL : Gas 360

No of SECTIONS : 12

Rated Output kW :

54 - 99

Seasonal Efficiency % : GCV

82.5

Weight (dry) kgs :

357

Overall Dim WxHxD mm :

1280 x 930 x 1007

Radiated Losses % :

0.45

BURNER TYPE

Atmospheric

Reduced NOx

Fuel Available :

Natural Gas

Optional Fuel :

Propane

Fuel Consumption M3/h :

11.41

Fuel Consumption Kg/h

8.37 LPG

Flame Protection :

Ionisation

Gas Connection size BSP :

1 "

Min Op Gas Press mbar

20

Ignition :

Electronic

Noise levels dB(A) :

50/55

HYDRAULICS

Water Content ltrs :

47

Connection Size “ BSP :

1½"

Resistance @ 11°C ∆t mbar :

179.3

Std Operating Temp °C :

80

Resistance @ 20°C ∆t mbar :

54

Max Operating Temp °C :

90

Nom Flow Rate @ 11° C ∆t l/s :

High Limit Set Point °C :

Nom Flow Rate @ 20° C ∆t l/s :

1.18

Max Operating Pressure (bar):

6

FLUE

Diameter mm I/D :

200

Flue Gas Volume Cu M/h : (¹)

171

Flue Type :

Conventional

Flue Gas Flow kgs/hr : (¹)

216

Flue Gas Temperature °C : (²)

135

ELECTRICAL

Voltage :

230v – 1ph – 50hz

Start Current amps :

n/a

Run Current amps :

0.11

Fuse Rating amps :

6

CONTROL OPERATION

Standard :

Control Thermostat

High / Low Thermostat

High limit Thermostat

On/Off switch

Temperature indication

Optional :

Hours run Meters

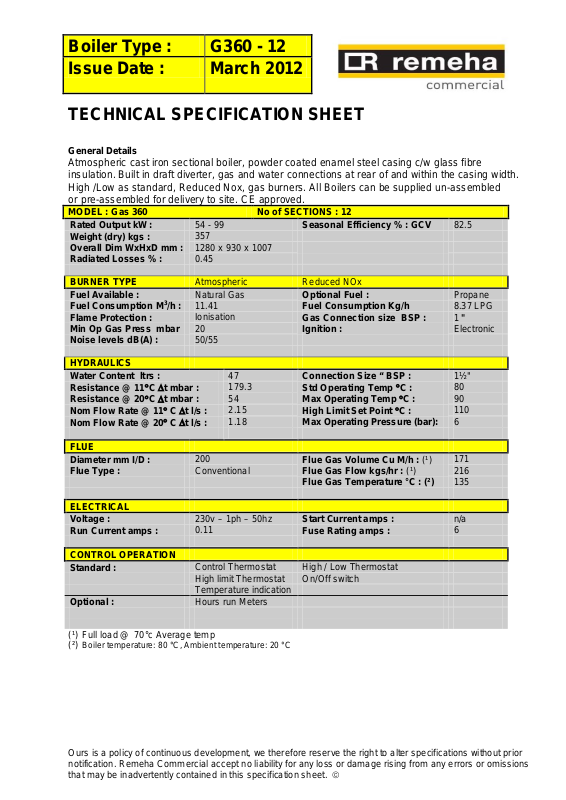

TECHNICAL SPECIFICATION SHEET

General Details

Atmospheric cast iron sectional boiler, powder coated enamel steel casing c/w glass fibre
insulation. Built in draft diverter, gas and water connec t ions at rear of and within the casing width.
High /Low as standard, Reduced Nox, gas burners. All Boilers can be supplied un-assembled
or pre-assembled for delivery to site. CE approved.

2.15

(¹) Full load @ 70°c Average temp

(²) Boiler temperature: 80 °C, Ambient temperature: 20 °C

110

Ours is a policy of continuous development, we therefore reserve the right to alter specifications without prior
notification. Remeha Commercial accept no liability for any loss or damage rising from any errors or omissions
that may be inadvertently contained in this specification sheet. 
