Remeha GAS 210 Pro120 Technical Specifications
Boiler Type :
Gas 210 Pro - 120
Issue Date :
July 2014
MODEL : Gas 210 ECO Pro 120
No. Sections 4
Rated Output kW (80/60°c) :
22 - 120
SBEM Seasonal Efficiency % : GCV(¹)
95.58
Rated Output kW (50/30°c) :
24 - 129
Min/Max Gas pressure mbar :
17-30 NG
Weight (dry) kgs :
135
Min/Max Gas pressure mbar :
37-50 LPG
Overall Dim WxHxD mm :
1190x1309x450
Radiated Losses %: (²)
0.21
BURNER TYPE Pre mix
Std Fuel Available :
Natural Gas
Optional Fuel : (service kit required)
Propane
Fuel Consumption M3/h :
13 NG max
LPG adjustment (³)
Fuel Consumption M3/h :
4.8 LPG max
Gas Connection size BSP :
1 ¼” (M)
Flame Protection :
Ionisation
Noise levels dB(A) at 1 metre :
<59
Ignition :
Electronic
NOx (Dry, 0% O₂) Mg/kW :
35
HYDRAULICS
Water Content ltrs :
16
Connection Size “ BSP :
1¼” (M)
Resistance @ 11C t mbar :
446
Std Operating Temp C :
20 - 90
Resistance @ 20C t mbar :
135
Max Operating Temp C :
90
Nom Flow Rate @ 11 C t l/s :
2.6
High Limit Set Point C :
110
Nom Flow Rate @ 20 C t l/s :
1.43
Max operating pressure bar :
6
Min Flow Rate l/s :
##
Min operating pressure bar :
0.8
Condensate Connection mm :
32 OD
FLUE/AIR INLET #
Flue diameter mm I/D :
150
Mass flue gas flow rate kgs/hr :
36 – 206.9
Air inlet diameter mm I/D :
150
Maximum counter pressure PA :
130
ELECTRICAL
Power Supply :
230v – 1ph – 50hz
Fuse Rating amps :
6.3
Power Consumption W :
4 - 193
Controls Voltage :
24 (max 4va)
Modulating input V dc :
Insulation Class IP :
20
CONTROL OPERATION
Standard :
On/Off, 0-10v dc
Open Therm
Manual o/ride
Modulating (20 - 100%)
Volt free common alarm
High limit protection
Safety interlock
Hours run indication
Boiler run indication
Low water protection
Optional :
Optimising / Compensators
For multiple an single boiler control
For further options
Contact our sales team
Second return
Flue damper
1 ¼ “ Bsp (M)
For multiple boiler installation
Pressure sensor
Outside sensor
Flue Sensor
System pressure sensor
For simple weather compensation
Fits to boiler flue test point

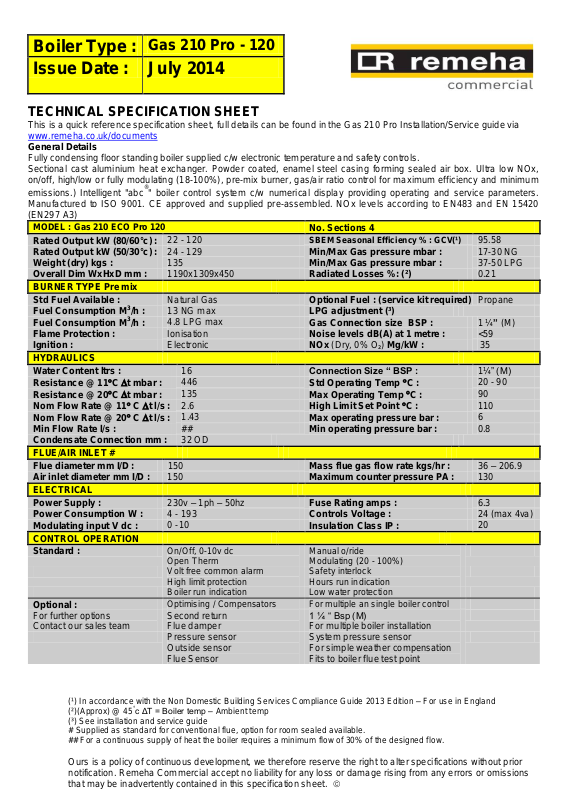

TECHNICAL SPECIFICATION SHEET
This is a quick reference specification sheet, full details can be found in the Gas 210 Pro Installation/Service guide via
www.remeha.co.uk/documents
General Details
Fully condensing floor standing boiler supplied c/w electronic temperature and safety controls.
Sectional cast aluminium heat exchanger. Powder coated, enamel steel casing forming sealed air box. Ultra low NOx,
on/off, high/low or fully modulating (18-100%), pre-mix burner, gas/air ratio control for maximum efficiency and minimum
emissions.) Intelligent "abc®" boiler control system c/w numerical display providing operating and service parameters.
Manufactured to ISO 9001. CE approved and supplied pre-assembled. NOx levels according to EN483 and EN 15420
(EN297 A3)
(¹) In accordance with the Non Domestic Building Services Compliance Guide 2013 Edition – For use in England
(²)(Approx) @ 45°c ΔT = Boiler temp – Ambient temp
(³) See installation and service guide
# Supplied as standard for conventional flue, option for room sealed available.
## For a continuous supply of heat the boiler requires a minimum flow of 30% of the designed flow.
Ours is a policy of continuous development, we therefore reserve the right to alter specifications without prior
notification. Remeha Commercial accept no liability for any loss or damage rising from any errors or omissions
that may be inadvertently contained in this specification sheet.
