Remcor DB100 Installation Manual
IMI CORNELIUS INC.
One Cornelius Place
Anoka. MN 55303-6234
Telephone(800) 238--3600
Facsimile (612) 422--3246

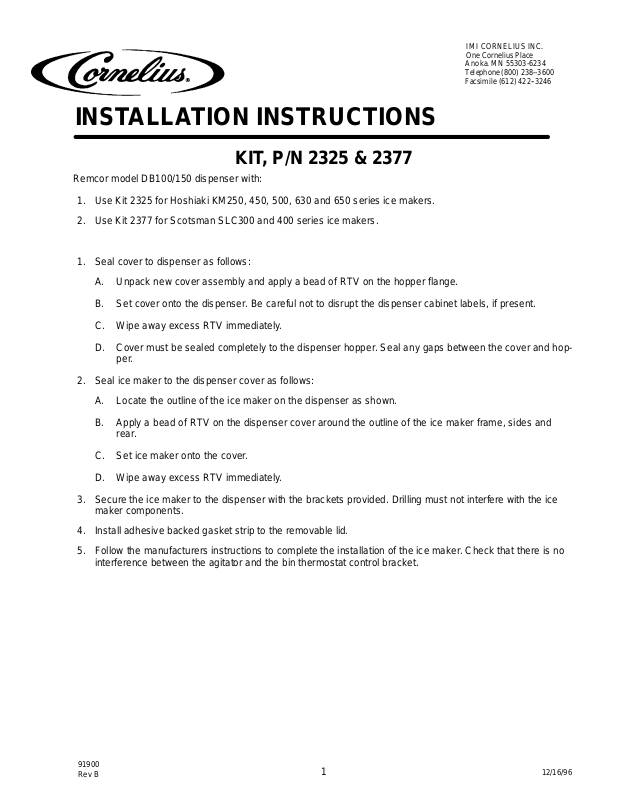

INSTALLATION INSTRUCTIONS
KIT, P/N 2325 & 2377
Remcor model DB100/150 dispenser with:
1. Use Kit 2325 for Hoshiaki KM250, 450, 500, 630 and 650 series ice makers.
2. Use Kit 2377 for Scotsman SLC300 and 400 series ice makers.
1. Seal cover to dispenser as follows:
A. Unpack new cover assembly and apply a bead of RTV on the hopper flange.
B. Set cover onto the dispenser. Be careful not to disrupt the dispenser cabinet labels, if present.
C. Wipe away excess RTV immediately.
D. Cover must be sealed completely to the dispenser hopper. Seal any gaps between the cover and hop-
per.
2. Seal ice maker to the dispenser cover as follows:
A. Locate the outline of the ice maker on the dispenser as shown.
B. Apply a bead of RTV on the dispenser cover around the outline of the ice maker frame, sides and
rear.
C. Set ice maker onto the cover.
D. Wipe away excess RTV immediately.
3. Secure the ice maker to the dispenser with the brackets provided. Drilling must not interfere with the ice
maker components.
4. Install adhesive backed gasket strip to the removable lid.
5. Follow the manufacturers instructions to complete the installation of the ice maker. Check that there is no
interference between the agitator and the bin thermostat control bracket.
91900
Rev B
1
12/16/96
APPLY RTV ALONG HOPPER
FLANGE ALL AROUND FOR
PROPER SEAL. COMPLETE
COVER MUST BE SEALED
TO HOPPER.
ICEMAKER TO BE FLUSH
WITH BACK EDGE OF COVER.
ADD INSULATION STRIP TO
FLANGE OF REMOVABLE LID.
APPLY RTV AROUND INSIDE
OF ICEMAKER OUTLINE ON
DISPENSER COVER TO FORM
A SEAL. (SIDES AND REAR)
USING BRACKET AS TEMPLATE, DRILL
(4) .136 DIA. HOLES TO SECURE ICEMAKER
AND DISPENSER. DRILLING IS
NOT TO INTERFERE WITH ICEMAKER
COMPONENTS. USE SCREWS PROVIDED.
(BOTH SIDES)
12/16/96
REMOVABLE FRONT LID
FOR MANUAL ICE FILLING.
2
91900
