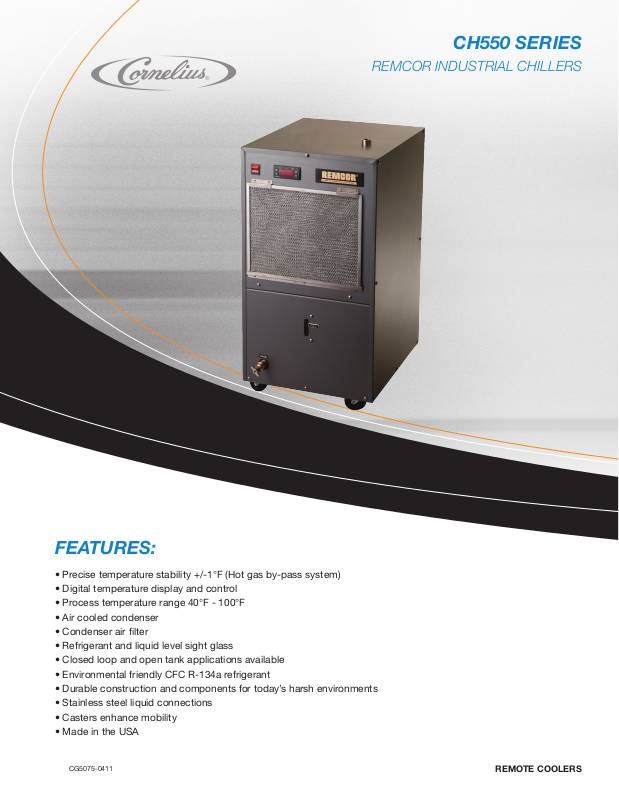

CH550 SERIES
REMCOR INDUSTRIAL CHILLERS
FEATURES:
• Precise temperature stability +/-1°F (Hot gas by-pass system)
• Digital temperature display and control
• Process temperature range 40°F - 100°F
• Air cooled condenser
• Condenser air lter
• Refrigerant and liquid level sight glass
• Closed loop and open tank applications available
• Environmental friendly CFC R-134a refrigerant
• Durable construction and components for today’s harsh environments
• Stainless steel liquid connections
• Casters enhance mobility
• Made in the USA
CG5075-0411
REMOTE COOLERS
H.
KE
A
T
N
I
R
I
A
D.
ELECTRICAL RATING
COMPRESSOR
HORSE POWER
CLOSED LOOP
PART NUMBER MODEL
W.
COOLING
CAPACITY*
PUMP CAPCITY
(STD)
07028 CH550A 6000 BTU/h 2 GPM @ 60 PSI 115/60/1, 14 Amps 1/2 HP
621010025 CH551A 6000 BTU/h 2 GPM @ 60 PSI 230/60/1, 7 Amps 1/2 HP
OPEN LOOP
PART NUMBER MODEL
COOLING
CAPACITY*
PUMP CAPCITY
(STD)
ELECTRICAL RATING
COMPRESSOR
HORSE POWER
621010030 CH550A 6000 BTU/h 2 GPM @ 10 PSI 115/60/1, 14 Amps 1/2 HP
621010031 CH551A 6000 BTU/h 2 GPM @ 10 PSI 230/60/1, 7 Amps 1/2 HP
* Cooling capacity rated at 68ºF leaving uid temperature and 80ºF ambient temperature.
TECHNICAL SPECIFICATIONS:
PROCESS TEMPERATURE
RANGE. . . . . . . . . . . . . . . . . . . . . . 40°F-100°F
AMBIENT TEMPERATURE
RANGE. . . . . . . . . . . . . . . . . . . . . . 40°F-105°F
COMPRESSOR . . . . . . . . . . . . . . . 1/2 HP
CONDENSER. . . . . . . . . . . . . . . . . Air Cooled
REFRIGERANT . . . . . . . . . . . . . . . R-134a
RESERVOIR CAPACITY
(CLOSED LOOP) . . . . . . . . . . . . . . 2 Gallons
© 2008 IMI CORNELIUS Contact IMI Cornelius Inc. for more information.
PUMP TYPE
(STD CLOSED LOOP) . . . . . . . . . . Rotary vane positive
displacement with
1/3 HP Motor
PUMP TYPE
(STD OPEN LOOP) . . . . . . . . . . . . Magnetic Drive 1/12 HP
INLET/ OUTLET
CONNECTIONS. . . . . . . . . . . . . . . 1/2" FPT
WEIGHT . . . . . . . . . . . . . . . . . . . . . 160 lbs
DIMENSIONS . . . . . . . . . . . . . . . . 28"H x 15"W x 17"D
IN THE U.S.A.
Ph: 800.551.4423
Fax: 866.394.5140
101 Broadway Street West
Osseo, MN 55369
www.cornelius.com
