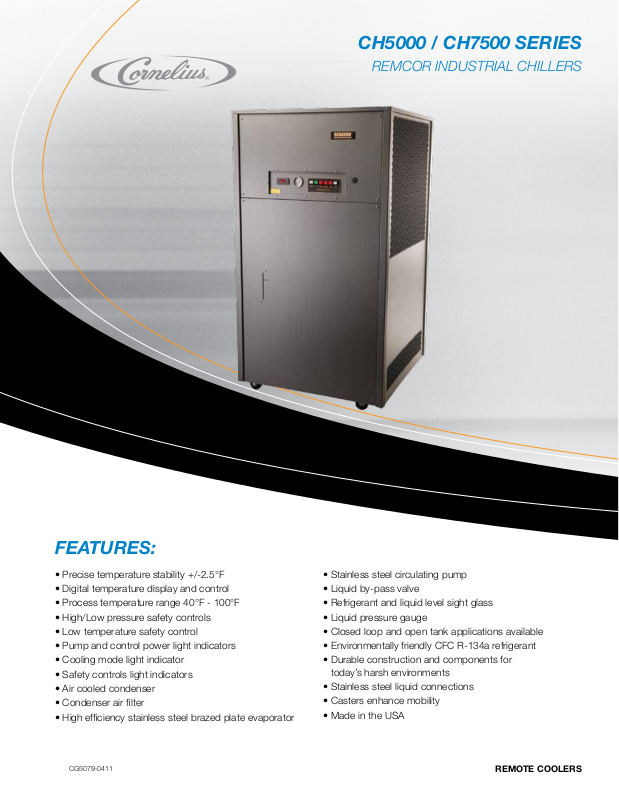

Remcor CH5002A User Manual
CH5000 / CH7500 SERiES
remcor IndustrIal chIllers
FEATURES:
• Precise temperature stability +/-2.5°F
• Digital temperature display and control
• Process temperature range 40°F - 100°F
• High/Low pressure safety controls
• Low temperature safety control
• Pump and control power light indicators
• Cooling mode light indicator
• Safety controls light indicators
• Air cooled condenser
• Condenser air filter
• High efficiency stainless steel brazed plate evaporator
CG5079-0411
• Stainless steel circulating pump
• Liquid by-pass valve
• Refrigerant and liquid level sight glass
• Liquid pressure gauge
• Closed loop and open tank applications available
• Environmentally friendly CFC R-134a refrigerant
• Durable construction and components for
today’s harsh environments
• Stainless steel liquid connections
• Casters enhance mobility
• Made in the USA
REMOTE COOLERS
H.
AIR INTAKE
closed looP
PaRT NuMbER MOdEL
W.
COOLiNg
CaPaCiTy*
ELECTRiCaL RaTiNg
D.
PuMP CaPaCiTy
(STd)
COMPRESSOR
HORSE POwER
621055839 CH5002A 60,000 BTU/h 230/60/3, 28 Amps 12 GPM @ 50 PSI 5 HP
621055841 CH5003A 60,000 BTU/h 460/60/3, 14 Amps 12 GPM @ 50 PSI 5 HP
CH7502A 90,000 BTU/h 230/60/3, 34 Amps 12 GPM @ 50 PSI 7.5 HP
CH7503A 90,000 BTU/h 460/60/3, 17 Amps 12 GPM @ 50 PSI 7.5 HP
oPen looP
PaRT NuMbER MOdEL
COOLiNg
CaPaCiTy*
ELECTRiCaL RaTiNg
PuMP CaPaCiTy
(STd)
COMPRESSOR
HORSE POwER
CH5002A 60,000 BTU/h 230/60/3, 28 Amps 12 GPM @ 50 PSI 5 HP
CH5003A 60,000 BTU/h 460/60/3, 14 Amps 12 GPM @ 50 PSI 5 HP
CH7503A 90,000 BTU/h 460/60/3, 34 Amps 12 GPM @ 50 PSI 7.5 HP
* Cooling capacity rated at 68ºF leaving fluid temperature and 80ºF ambient temperature.
TECHNiCAL SPECiFiCATiONS:
PROCESS TEMPERATURE
RANGE. . . . . . . . . . . . . . . . . . . . . . 40°F-100°F
AMBIENT TEMPERATURE
RANGE. . . . . . . . . . . . . . . . . . . . . . 40°F-105°F
CONDENSER. . . . . . . . . . . . . . . . . Air Cooled
REFRIGERANT . . . . . . . . . . . . . . . R-134A
RESERVOIR CAPACITY
(CLOSED LOOP) . . . . . . . . . . . . . . 40 Gallons
© 2008 IMI CORNELIUS Contact IMI Cornelius Inc. for more information.
PUMP TYPE (STD) . . . . . . . . . . . . Centrifugal stainless steel
with 2 HP Motor
INLET/ OUTLET
CONNECTIONS. . . . . . . . . . . . . . . 1" FPT
WEIGHT . . . . . . . . . . . . . . . . . . . . . 800 lbs
DIMENSIONS . . . . . . . . . . . . . . . . 65"H x 36"W x 36"D
IN THE U.S.A.
Ph: 800.551.4423
Fax: 866.394.5140
101 Broadway Street West
Osseo, MN 55369
www.cornelius.com
