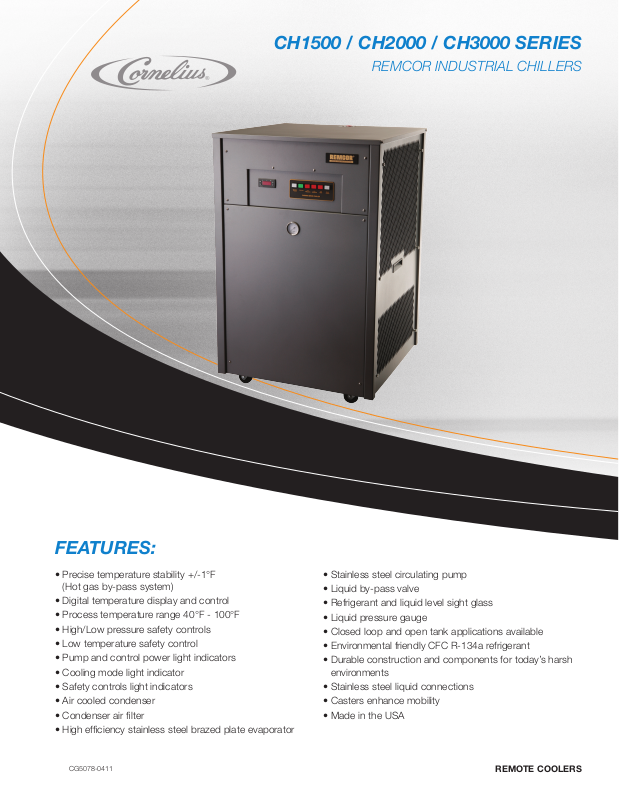

CH1500 / CH2000 / CH3000 SERIES
REMCOR INDUSTRIAL CHILLERS
FEATURES:
• Precise temperature stability +/-1°F
(Hot gas by-pass system)
• Digital temperature display and control
• Process temperature range 40°F - 100°F
• High/Low pressure safety controls
• Low temperature safety control
• Pump and control power light indicators
• Cooling mode light indicator
• Safety controls light indicators
• Air cooled condenser
• Condenser air filter
• High efficiency stainless steel brazed plate evaporator
CG5078-0411
• Stainless steel circulating pump
• Liquid by-pass valve
• Refrigerant and liquid level sight glass
• Liquid pressure gauge
• Closed loop and open tank applications available
• Environmental friendly CFC R-134a refrigerant
• Durable construction and components for today’s harsh
environments
• Stainless steel liquid connections
• Casters enhance mobility
• Made in the USA
REMOTE COOLERS
AIR INTAKE
H.
D.
PUMP CAPACITY
(STD)
COMPRESSOR
HORSE POWER
CLOSED LOOP
PART NUMBER MODEL
W.
COOLING
CAPACITY*
ELECTRICAL RATING
CH1500A 20,000 BTU/h 230/60/1, 16 Amps 10 GPM @ 35 PSI 1.5 HP
621055835 CH1502A 20,000 BTU/h 230/60/3, 10 Amps 10 GPM @ 35 PSI 1.5 HP
621058443 CH1503A 20,000 BTU/h 460/60/3, 5 Amps 10 GPM @ 35 PSI 1.5 HP
621055837 CH2002A 24,000 BTU/h, 230/60/3, 14 Amps 12 GPM @ 50 PSI 2 HP
621055840 CH2003A 24,000 BTU/h 460/60/3, 7 Amps 12 GPM @ 50 PSI 2 HP
621058455 CH3002A 34,000 BTU/h 230/60/3, 18 Amps 12 GPM @ 50 PSI 3 HP
621058484 CH3003A 34,000 BTU/h 460/60/3, 9 Amps 12 GPM @ 50 PSI 3 HP
OPEN LOOP
PART NUMBER MODEL
COOLING
CAPACITY*
ELECTRICAL RATING
PUMP CAPACITY
(STD)
COMPRESSOR
HORSE POWER
CH1500A 20,000 BTU/h 230/60/1, 16 Amps 10 GPM @ 35 PSI 1.5 HP
621055836 CH1502A 20,000 BTU/h 230/60/3, 10 Amps 10 GPM @ 35 PSI 1.5 HP
CH1503A 20,000 BTU/h 460/60/3, 5 Amps 10 GPM @ 35 PSI 1.5 HP
621055838 CH2002A 24,000 BTU/h, 230/60/3, 14 Amps 12 GPM @ 50 PSI 2 HP
CH2003A 24,000 BTU/h 460/60/3, 7 Amps 12 GPM @ 50 PSI 2 HP
CH3002A 34,000 BTU/h 230/60/3, 18 Amps 12 GPM @ 50 PSI 3 HP
CH3003A 34,000 BTU/h 460/60/3, 9 Amps 12 GPM @ 50 PSI 3 HP
* Cooling capacity rated at 68ºF leaving fluid temperature and 80ºF ambient temperature.
TECHNICAL SPECIFICATIONS:
PROCESS TEMPERATURE
RANGE. . . . . . . . . . . . . . . . . . . . . . 40°F-100°F
AMBIENT TEMPERATURE
RANGE. . . . . . . . . . . . . . . . . . . . . . 40°F-105°F
CONDENSER. . . . . . . . . . . . . . . . . Air Cooled
REFRIGERANT . . . . . . . . . . . . . . . R-134A
RESERVOIR CAPACITY
(CLOSED LOOP) . . . . . . . . . . . . . . 10 Gallons
© 2008 IMI CORNELIUS Contact IMI Cornelius Inc. for more information.
PUMP TYPE (CH1500) . . . . . . . . . Centrifugal stainless steel
with 1 HP Motor
PUMP TYPE (CH2000/CH3000) . . Centrifugal stainless steel
with 2 HP Motor
INLET/ OUTLET
CONNECTIONS. . . . . . . . . . . . . . . 3/4" FPT
WEIGTH . . . . . . . . . . . . . . . . . . . . . 450 lbs
DIMENSIONS . . . . . . . . . . . . . . . . 41"H x 28"W x 28"D
