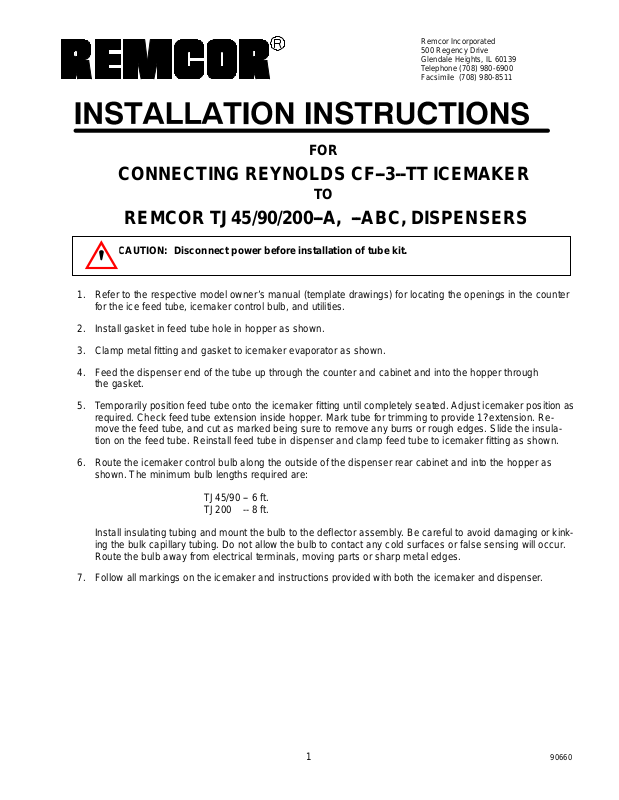

Remcor Incorporated
500 Regency Drive
Glendale Heights, IL 60139
Telephone (708) 980-6900
Facsimile (708) 980-8511
FOR
CONNECTING REYNOLDS CF--3--TT ICEMAKER
TO
REMCOR TJ45/90/200--A, --ABC, DISPENSERS
CAUTION: Disconnect power before installation of tube kit.
1. Refer to the respective model owner’s manual (template drawings) for locating the openings in the counter
for the ice feed tube, icemaker control bulb, and utilities.
2. Install gasket in feed tube hole in hopper as shown.
3. Clamp metal fitting and gasket to icemaker evaporator as shown.
4. Feed the dispenser end of the tube up through the counter and cabinet and into the hopper through
the gasket.
5. Temporarily position feed tube onto the icemaker fitting until completely seated. Adjust icemaker position as
required. Check feed tube extension inside hopper. Mark tube for trimming to provide 1? extension. Remove the feed tube, and cut as marked being sure to remove any burrs or rough edges. Slide the insulation on the feed tube. Reinstall feed tube in dispenser and clamp feed tube to icemaker fitting as shown.
6. Route the icemaker control bulb along the outside of the dispenser rear cabinet and into the hopper as
shown. The minimum bulb lengths required are:
TJ45/90 -- 6 ft.
TJ200 -- 8 ft.
Install insulating tubing and mount the bulb to the deflector assembly . Be careful to avoid damaging or kinking the bulk capillary tubing. Do not allow the bulb to contact any cold surfaces or false sensing will occur.
Route the bulb away from electrical terminals, moving parts or sharp metal edges.
7. Follow all markings on the icemaker and instructions provided with both the icemaker and dispenser.
906601
BULB BEHIND
CROSSBRACE
ICEMAKER BULB
ROUTE AS SHOWN
CLAMP
DISPENSER
ICEMAKER
CLAMP
INSULATION
ICE FEED TUBE
NOZZLE CLAMP
FEED TUBE CLAMP DETAIL
DISPENSER
ICEMAKER
FRONT
ICE
FEED
TUBE
FIGURE 1. INSTALLATION
90660 2
