Remcor 70438 Installation Manual
Remcor Incorporated
500 Regency Drive
Glendale Heights, IL 60139
Telephone (708) 980-6900
Facsimile (708) 980-8511

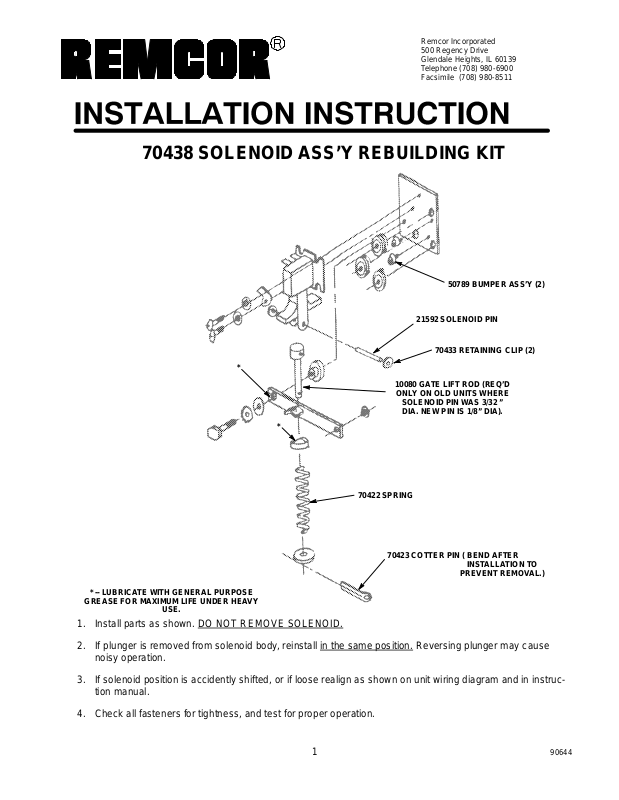

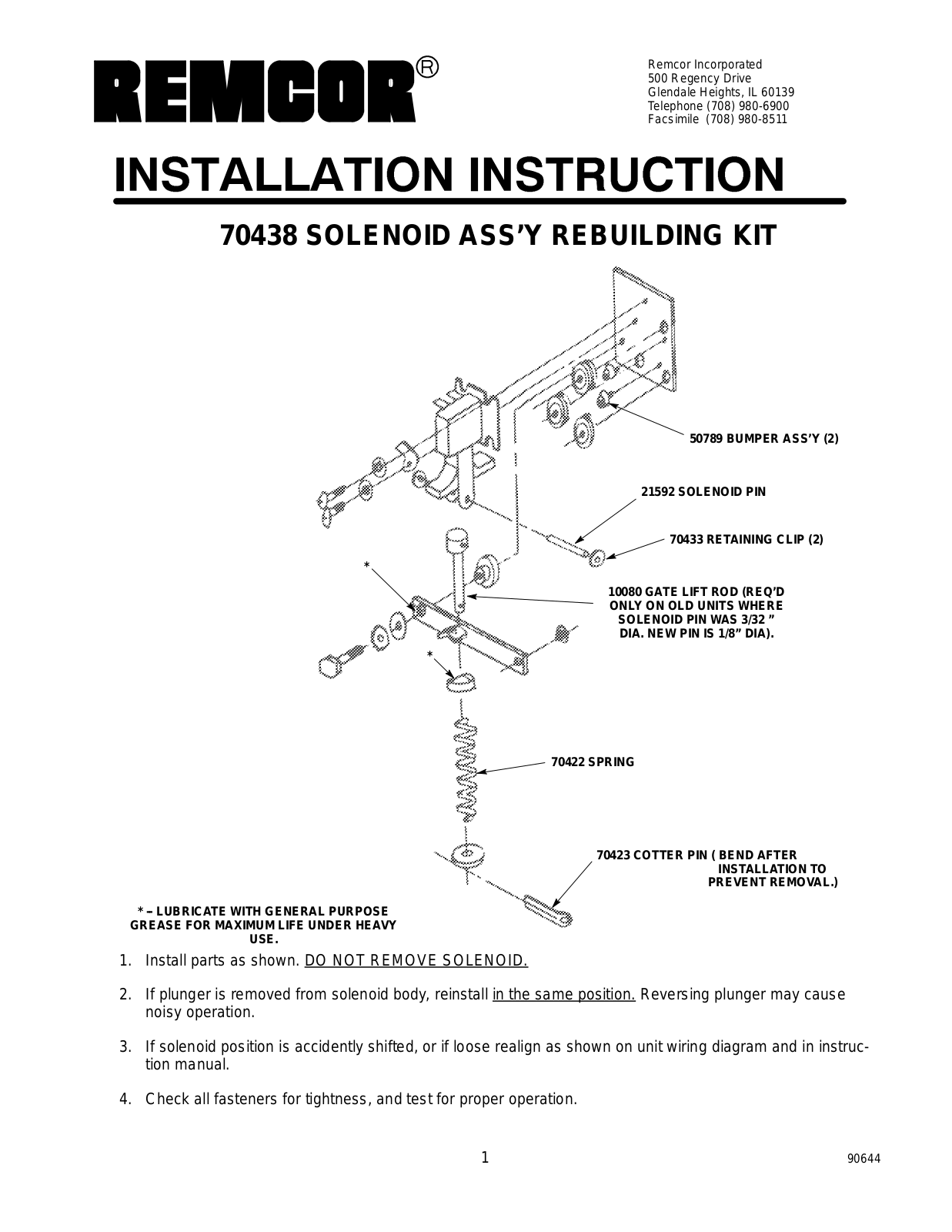

70438 SOLENOID ASS’Y REBUILDING KIT
50789 BUMPER ASS’Y (2)
21592 SOLENOID PIN
*
*
* -- LUBRICATE WITH GENERAL PURPOSE
GREASE FOR MAXIMUM LIFE UNDER HEAVY
USE.
1. Install parts as shown. DO NOT REMOVE SOLENOID.
70433 RETAINING CLIP (2)
10080 GATE LIFT ROD (REQ’D
ONL YONOLDUNITSWHERE
SOLENOID PIN WAS 3/32 ”
DIA. NEW PIN IS 1/8” DIA).
70422 SPRING
70423 COTTER PIN ( BEND AFTER
INSTALLATION TO
PREVENT REMOVAL.)
2. If plunger is removed from solenoid body , reinstall in the same position. Reversing plunger may cause
noisy operation.
3. If solenoid position is accidently shifted, or if loose realign as shown on unit wiring diagram and in instruction manual.
4. Check all fasteners for tightness, and test for proper operation.
