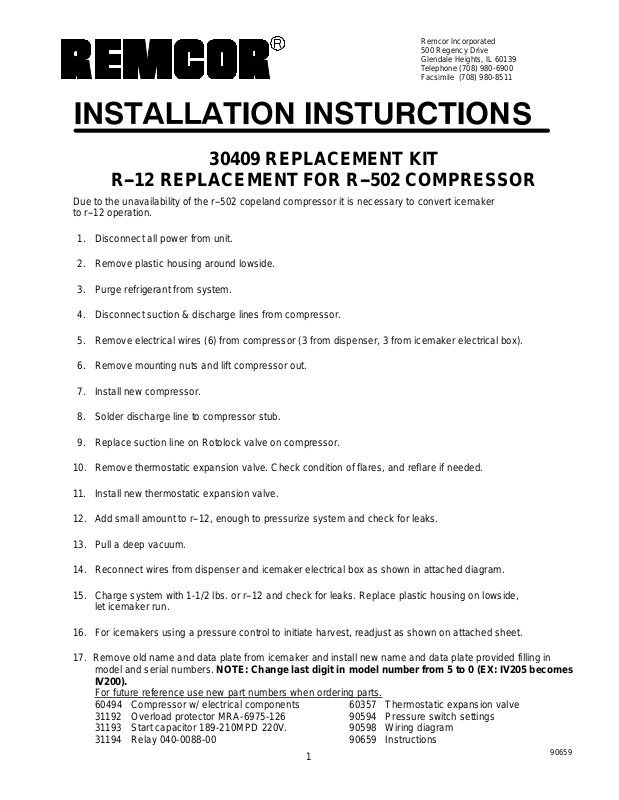

Remcor 30409 Installation Manual

Remcor Incorporated
500 Regency Drive
Glendale Heights, IL 60139
Telephone [phone]
Facsimile [phone]

30409 REPLACEMENT KIT

R--12 REPLACEMENT FOR R--502 COMPRESSOR

Due to the unavailability of the r--502 copeland compressor it is necessary to convert icemaker
to r--12 operation.

1. Disconnect all power from unit.

2. Remove plastic housing around lowside.

3. Purge refrigerant from system.

4. Disconnect suction & discharge lines from compressor.

5. Remove electrical wires (6) from compressor (3 from dispenser, 3 from icemaker electrical box).

6. Remove mounting nuts and lift compressor out.

7. Install new compressor.

8. Solder discharge line to compressor stub.

9. Replace suction line on Rotolock valve on compressor.

10. Remove thermostatic expansion valve. Check condition of flares, and reflare if needed.

11. Install new thermostatic expansion valve.

12. Add small amount to r--12, enough to pressurize system and check for leaks.

13. Pull a deep vacuum.

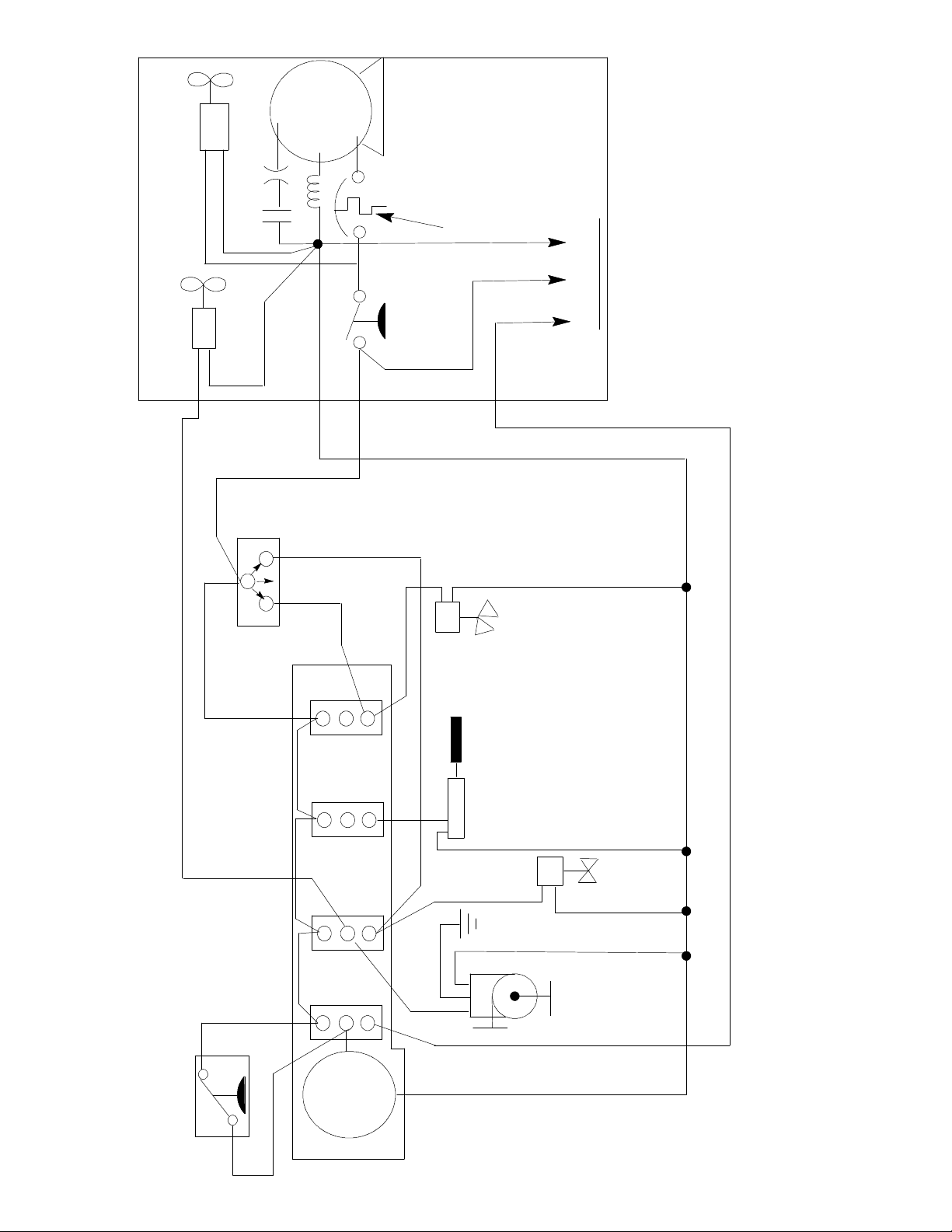

14. Reconnect wires from dispenser and icemaker electrical box as shown in attached diagram.

15. Charge system with 1-1/2 lbs. or r--12 and check for leaks. Replace plastic housing on lowside,
let icemaker run.

16. For icemakers using a pressure control to initiate harvest, readjust as shown on attached sheet.

17. Remove old name and data plate from icemaker and install new name and data plate provided filling in
model and serial numbers. NOTE: Change last digit in model number from 5 to 0 (EX: IV205 becomes

IV200).

For future reference use new part numbers when ordering parts.
60494 Compressor w/ electrical components 60357 Thermostatic expansion valve
31192 Overload protector MRA-6975-126 90594 Pressure switch settings
31193 Start capacitor 189-210MPD 220V. 90598 Wiring diagram
31194 Relay 040-0088-00 90659 Instructions

1

90659

NOTE: These instructions supersede all previously issued, and they may differ

from the control adjustment provided previously . In all cases, these
latest instructions will provide the same performance.

SET DIFFERENTIAL TO 5.
DO NOT READJUST.

ICE THICKNESS ADJUSTMENT
SEE “CUT-OUT” AS SHOWN FOR PROPER
MODEL AND REFRIGERANT. SUCTION PRES­SURE = “CUT-OUT” MINUS DIFFERENTIAL.

12?

10

40

20

30

0

IV220 (COPELAND COMP.) IV420, R12 SET
@ 15 (SUCTION PRESSURE = 10 PSIG)

30

20

10

5

50

LBS.

CUT IN IS

CUTOUT

MINUS

DIFFERENTIAL

CORRECT ICE THICKNESS IS 1/4 -- 5/16?
IF ICE IS TOO THICK (SUCTION PRESSURE TOO LOW), TURN THICKNESS ADJUSTMENT COUNTERCLOCKWISE.

IF ICE IS TOO THIN (SUCTION PRESSURE TOO HIGH), TURN THICKNESS ADJUSTMENT CLOCKWISE.

CAUTION: MAKE ADJUSTMENTS IN 1/8 TURN INCREMENTS, AND WAIT TWO CYCLES BEFORE CHECKING.

90659

FIGURE 1. ICE THICKNESS PRESSURE CONTROL ADJUSTMENT INSTRUCTIONS

2
