Reliable 3200TN Specifications

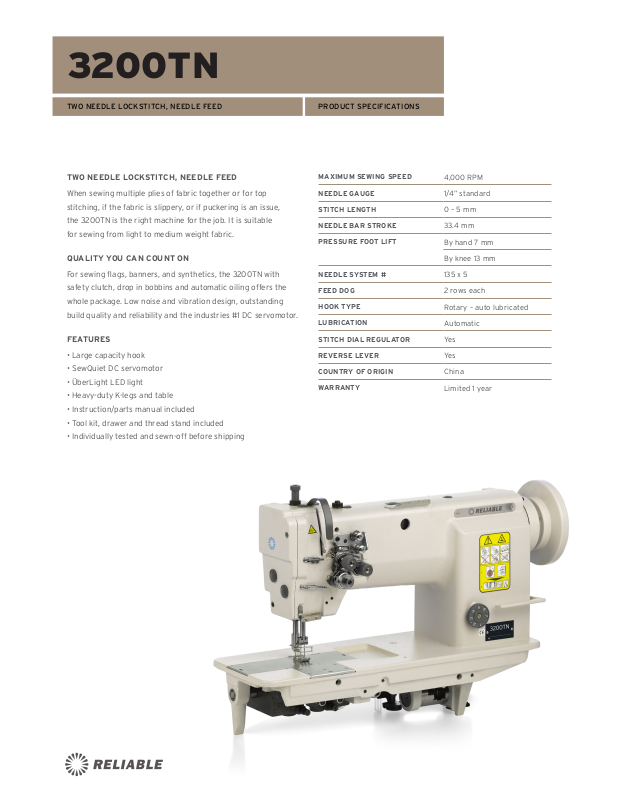

3200TN

TWO NEEDLE LOCKSTITCH, NEEDLE FEED PRODUCT SPECIFICATIONS

TWO NEEDLE LOCKSTITCH, NEEDLE FEED

When sewing multiple plies of fabric together or for top
stitching, if the fabric is slippery, or if puckering is an issue,
the 3200TN is the right machine for the job. It is suitable
for sewing from light to medium weight fabric.

QUALITY YOU CAN COUNT ON

For sewing flags, banners, and synthetics, the 3200TN with
safety clutch, drop in bobbins and automatic oiling offers the
whole package. Low noise and vibration design, outstanding
build quality and reliability and the industries #1 DC servomotor.

FEATURES

• Large capacity hook

• SewQuiet DC servomotor

• ÜberLight LED light

• Heavy-duty K-legs and table

• Instruction/parts manual included

• Tool kit, drawer and thread stand included

• Individually tested and sewn-off before shipping

MAXIMUM SEWING SPEED

NEEDLE GAUGE

STITCH LENGTH

NEEDLE BAR STROKE

PRESSURE FOOT LIFT

NEEDLE SYSTEM #

FEED DOG

HOOK TYPE

LUBRICATION

STITCH DIAL REGULATOR

REVERSE LEVER

COUNTRY OF ORIGIN

WARRANTY

4,000 RPM

1/4” standard

0 – 5 mm

33.4 mm

By hand 7 mm

By knee 13 mm

135 x 5

2 rows each

Rotary – auto lubricated

Automatic

Yes

Yes

China

Limited 1 year
