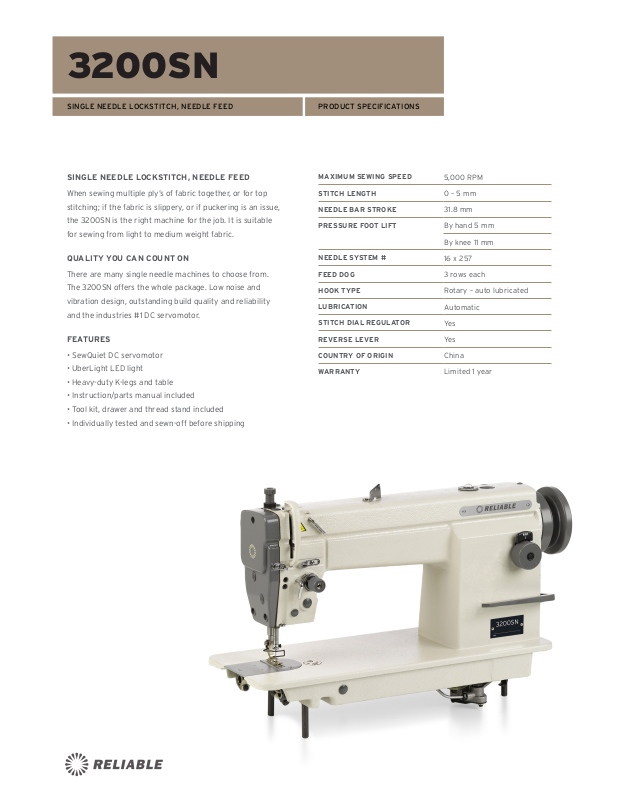

Reliable 3200SN Specifications

3200SN

SINGLE NEEDLE LOCKSTITCH, NEEDLE FEED PRODUCT SPECIFICATIONS

SINGLE NEEDLE LOCKSTITCH, NEEDLE FEED

When sewing multiple ply’s of fabric together, or for top

stitching; if the fabric is slippery, or if puckering is an issue,

the 3200SN is the right machine for the job. It is suitable

for sewing from light to medium weight fabric.

QUALITY YOU CAN COUNT ON

There are many single needle machines to choose from.

The 3200SN offers the whole package. Low noise and

vibration design, outstanding build quality and reliability

and the industries #1 DC servomotor.

FEATURES

• SewQuiet DC servomotor

• UberLight LED light

• Heavy-duty K-legs and table

• Instruction/parts manual included

• Tool kit, drawer and thread stand included

• Individually tested and sewn-off before shipping

MAXIMUM SEWING SPEED

STITCH LENGTH

NEEDLE BAR STROKE

PRESSURE FOOT LIFT

NEEDLE SYSTEM #

FEED DOG

HOOK TYPE

LUBRICATION

STITCH DIAL REGULATOR

REVERSE LEVER

COUNTRY OF ORIGIN

WARRANTY

5,000 RPM

0 – 5 mm

31.8 mm

By hand 5 mm

By knee 11 mm

16 x 257

3 rows each

Rotary – auto lubricated

Automatic

Yes

Yes

China

Limited 1 year
