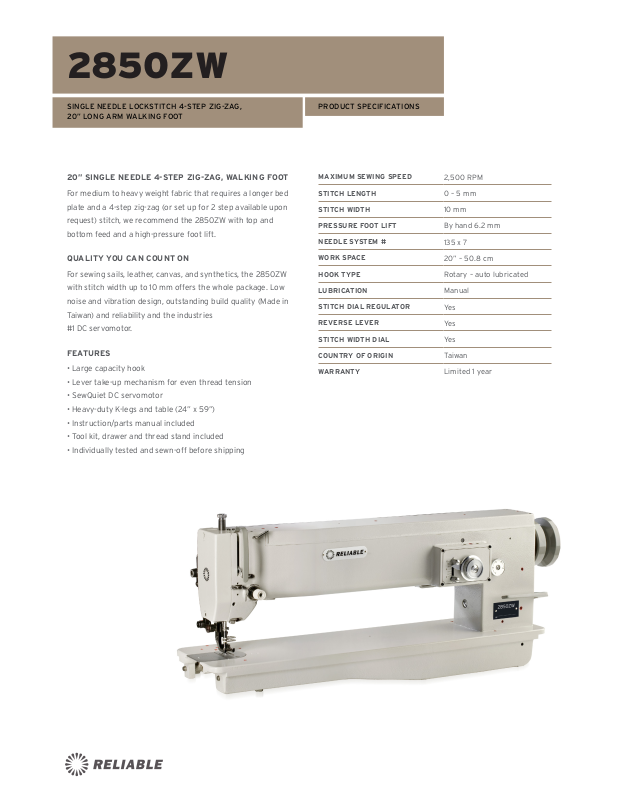

Reliable 2850ZW Specifications

2850ZW

SINGLE NEEDLE LOCKSTITCH 4-STEP ZIG-ZAG,
20” LONG ARM WALKING FOOT

20” SINGLE NEEDLE 4-STEP ZIG-ZAG, WALKING FOOT

For medium to heavy weight fabric that requires a longer bed

plate and a 4-step zig-zag (or set up for 2 step available upon

request) stitch, we recommend the 2850ZW with top and

bottom feed and a high-pressure foot lift.

QUALITY YOU CAN COUNT ON

For sewing sails, leather, canvas, and synthetics, the 2850ZW

with stitch width up to 10 mm offers the whole package. Low

noise and vibration design, outstanding build quality (Made in

Taiwan) and reliability and the industries

#1 DC servomotor.

FEATURES

• Large capacity hook

• Lever take-up mechanism for even thread tension

• SewQuiet DC servomotor

• Heavy-duty K-legs and table (24” x 59”)

• Instruction/parts manual included

• Tool kit, drawer and thread stand included

• Individually tested and sewn-off before shipping

PRODUCT SPECIFICATIONS

MAXIMUM SEWING SPEED

STITCH LENGTH

STITCH WIDTH

PRESSURE FOOT LIFT

NEEDLE SYSTEM #

WORK SPACE

HOOK TYPE

LUBRICATION

STITCH DIAL REGULATOR

REVERSE LEVER

STITCH WIDTH DIAL

COUNTRY OF ORIGIN

WARRANTY

2,500 RPM

0 – 5 mm

10 mm

By hand 6.2 mm

135 x 7

20” – 50.8 cm

Rotary – auto lubricated

Manual

Yes

Yes

Yes

Taiwan

Limited 1 year
