Regency P48-1 User Manual

Download
Page 1
WARNING: If the information in these instructions are not followed exactly, a fire or explosion may result causing property damage, personal injury or loss of life.
FOR YOUR SAFETY Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
Installation and service must be performed by a qualified installer, service agency or the gas supplier.
FOR YOUR SAFETY What to do if you smell gas:
Do not try to light any appliance Do not touch any electrical switch: do not use any phone in your building. Immediately call your gas supplier from a neighbour's phone. Follow the gas supplier's instructions. If you cannot reach your gas supplier, call the fire department.
www.regency-fire.com
P48-1 Gas Fireplace
Owners &
Installation Manual
MODELS: P48-NG1 Natural Gas P48-LP1 Propane
Tested by:
Homeowner: Please keep these instructions for future reference.
918-458
FPI FIREPLACE PRODUCTS INTERNATIONAL LTD. 6988 Venture St., Delta, BC Canada, V4G 1H4
Installer: Please complete the details on the back cover
and leave this manual with the homeowner.
09/28/05
Page 2
To the New Owner:
Congratulations! You are the owner of a state-of-the-art Gas Fireplace by REGENCY. The P48-1 has been designed to provide you with all the warmth and charm of a wood fireplace at the flick of a switch. The model P48-1 has been approved by Warnock Hersey for both safety and efficiency. As it also bears our own mark, it promises to provide you with economy , comfort and security for many trouble free years to follow. Please t ake a moment now to acquaint yourself with these instructions and the many features of your Regency Fireplace.
MANUFACTURED MOBILE HOME REQUIREMENTS
INFORMATION FOR MOBILE/MANUFACTURED HOMES AFTER FIRST SALE
This Regency product has been tested and listed by Warnock Hersey as a Direct Vent Wall Furnace to the following standards: VENTED GAS FIREPLACE HEATERS ANSI Z21.88b-2003/CSA 2.33b-2003 and GAS-FIRED APPLIANCES FOR USE AT HIGH ALTITUDES CAN/CGA 2.17-M91.
This Direct Vent System Appliance must be installed in accordance with the manufacturer's installation instructions and the Manufactured Home Construction and Safety Standard, Title 24 CFR, Part 3280, or the current Standard of Fire Safety Criteria for Manufactured Home Installations, Sites, and Communities ANSI/NFPA 501A, and with CAN/CSA Z240-MH Mobile Home Standard in Canada.
This appliance installation must comply with the manufacturer's installation instructions and local codes, if any. In the absence of local codes follow the current National Fuel Gas Code, ANSI Z223.1 and the current National Electrical Code ANSI/NFPA 70 in the U.S.A., and the current CAN/CGA B149 Gas Installation Code and the current Canadian Electrical Code CSA C22.1 in Canada.
This appliance comes equipped with a dedicated #8 Ground Lug for attachment of the ground wire to the steel chassis as applicable to local codes.
The appliance, when installed, must be electrically grounded in accordance with local codes or, in the absence of local codes, with the National Electrical Code, ANSI/NFPA 70, or the Canadian Electrical Code, CSA C22.1.
This appliance may only be installed in an aftermarket permanently located, manufactured (U.S.A only) or mobile home, where not prohibited by local codes.
This appliance can only be used with the type of gas indicated on the rating plate. This appliance is not convertible for use with other gases, unless a certified kit is used.
Ensure that structural members are not cut or weakened during installation.
2
Regency P48-1 Zero Clearance Direct Vent Gas Fireplace
Page 3
TABLE OF CONTENTS
Page Page
Safety Label
Safety Label............................................................... 4
Installation
Important Message .................................................... 5
Before You Start ........................................................ 5
General Safety Information ......................................... 5
Installation Checklist .................................................. 5
Manufactured Mobile Home
Additional Requirements ...................................... 6
Unit Specifications ..................................................... 6
Locating Your Stove ................................................... 6
Optional Duct System Kit .......................................... 6
Optional Heat Release Kit .......................................... 6
Hearth ..................................................................... 6
Clearances................................................................. 7
Mantels ..................................................................... 8
Mantel Leg Clearances............................................... 8
Framing and Finishing................................................ 9
Top Assembly & Nailing Strips..................................10
Venting Introduction ..................................................10
Exterior Vent Termination Locations..........................11
Venting Arrangements
Horizontal Terminations ......................................12
Simpson Dura-Vent Components List .................13
Horizontal Terminations ......................................14
Horizontal Venting ..............................................15
Vertical Venting ..................................................16
Vertical Terminations ..........................................18
Venting - Dura-Vent Horizontal Installations ..............20
Venting - Dura-Vent Vertical Termination...................21
Direct Vent System (Flex).........................................22
System Data.............................................................23
High Elevation ...........................................................23
Gas Line Installation..................................................23
Pilot Adjustment .......................................................23
Gas Pipe Pressure Test ............................................23
SIT Valve Description ................................................23
Brick Panel Installation..............................................24
Log Set Installation ...................................................25
Standard Flush Door .................................................28
Flush Louvers............................................................28
Flush Trim.................................................................28
Bay Door...................................................................29
Bay Trim ...................................................................29
Bay Louvers ..............................................................29
Finishing Trim ...........................................................30
Double Screen Door ..................................................30
Remote Control (optional)..........................................31
Remote Wall Switch (optional) ..................................31
Wall Thermostat (optional) ........................................31
Wiring Diagram .........................................................32
Optional Fan .............................................................33
Conversion to Propane ..............................................34
Operating Instructions
Operating Instructions ...............................................35
Lighting Procedure ....................................................35
Shutdown Procedure .................................................35
First Fire ...................................................................35
Aeration Adjustment..................................................35
Normal Operating Sounds of
Gas Appliances ..................................................36
Lighting Plate Instructions .........................................36
Maintenance
Maintenance Instructions ..........................................37
General Vent Maintenance........................................37
Log Replacement ......................................................37
Thermopile/Thermocouple .........................................37
Glass Gasket............................................................37
Gold-Plated Louvers ..................................................37
Door Glass................................................................38
Bay Glass Replacement ...........................................38
Installing Valve ..........................................................38
Removing Valve.........................................................39
Parts List
Replacement/Spare Parts List...................................40
Warranty
Warranty ...................................................................47
Regency P48-1 Zero Clearance Direct Vent Gas Fireplace 3
Page 4
SAFETY LABEL

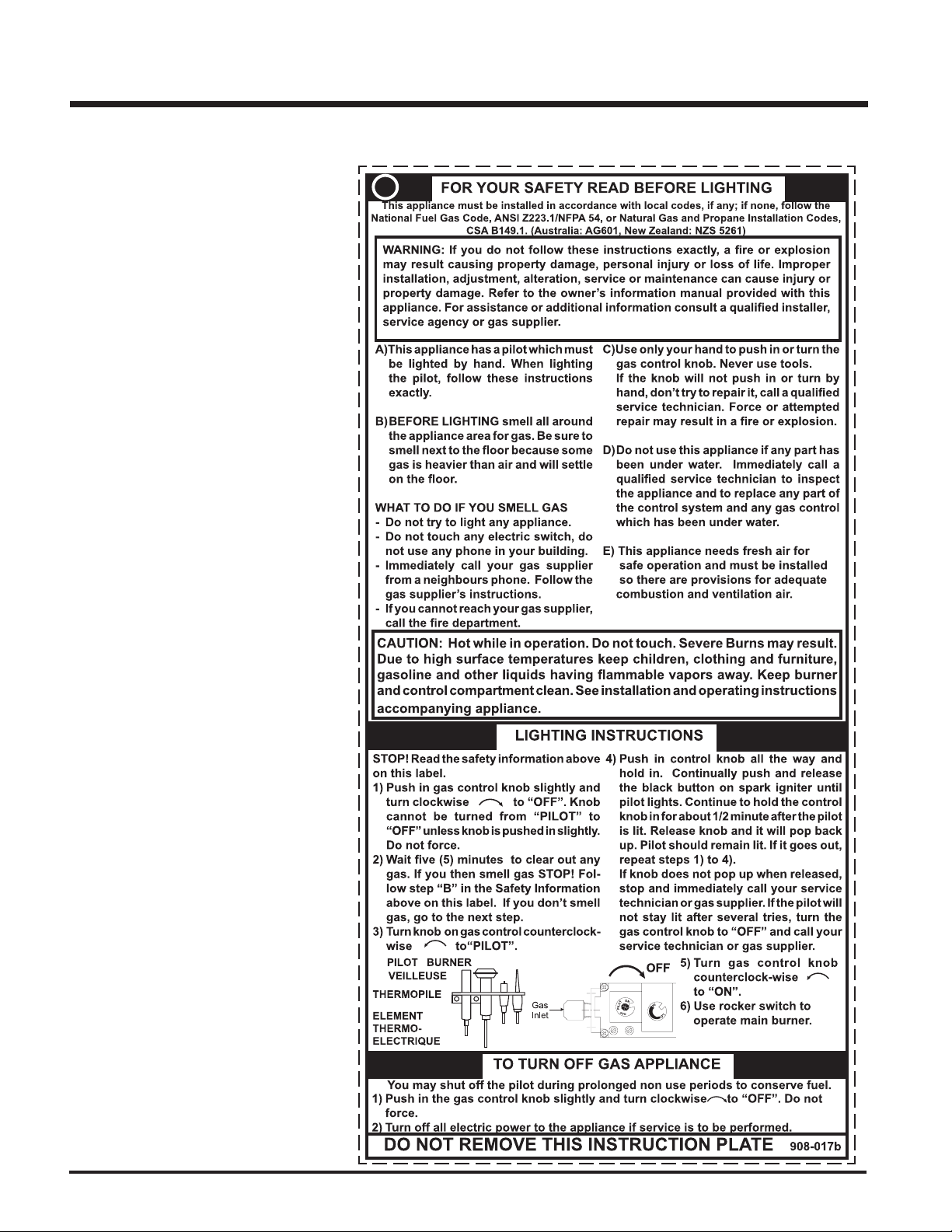

This is a copy of the label that accompanies each P48-NG1 and P48-LP1 Zero Clearance Direct Vent Gas Fireplace. We have printed a copy of the contents here for your review. The safety label is located on the front inside base of the unit, visible when the bottom louver is open.
NOTE: Regency units are constantly being im­proved. Check the label on the unit and if there is a difference, the label on the unit is the correct one.
For the State of Massachusetts, installation and repair must be done by a plumber or gasfitter licensed in the Commonwealth of Massachusetts.
For the State of Massachusetts, flexible connectors shall not exceed 36 inches in length.
For the State of Massachusetts, the appli­ances individual manual shut-off must be a t-handle type valve.
4
Copy of Safety Decal for P48-NG1 and P48-LP1
Regency P48-1 Zero Clearance Direct Vent Gas Fireplace
Page 5
INSTALLATION
IMPORTANT:
SAVE THESE
INSTRUCTIONS
The P48-NG1/P48-LP1 Direct Vent Fireplace must be installed in accordance with these in­structions. Carefully read all the instructions in this manual first. Consult the "authority having jurisdiction" to determine the need for a permit prior to starting the installation. It is the responsi­bility of the installer to ensure this fireplace is installed in compliance with manufacturers in­structions and all applicable codes.
BEFORE YOU START
Safe installation and operation of this appliance requires common sense, however, we are required by the Canadian Safety Standards and ANSI Standards to make you aware of the following:
INSTALLATION AND REPAIR SHOULD BE DONE BY AN AUTHOR­IZED SERVICE PERSON. THE AP­PLIANCE SHOULD BE INSPECTED BEFORE USE AND AT LEAST AN­NUALLY BY A PROFESSIONAL SERVICE PERSON. MORE FRE­QUENT CLEANING MAY BE RE­QUIRED DUE TO EXCESSIVE LINT FROM CARPETING, BEDDING MA­TERIAL, ETC. IT IS IMPERATIVE THAT CONTROL COMPART­MENTS, BURNERS AND CIRCULAT­ING AIR PASSAGEWAYS OF THE APPLIANCE BE KEPT CLEAN.
DUE TO HIGH TEMPERATURES, THE APPLIANCE SHOULD BE LO­CATED OUT OF TRAFFIC AND AWAY FROM FURNITURE AND DRAPERIES.
WARNING: FAILURE TO INSTALL THIS APPLIANCE CORRECTLY WILL VOID YOUR WARRANTY AND MAY CAUSE A SERIOUS HOUSE FIRE.
CHILDREN AND ADULTS SHOULD BE ALERTED TO THE HAZARDS OF HIGH SURFACE TEMPERA­TURES, ESPECIALLY THE FIRE­PLACE GLASS, AND SHOULD STAY AWAY TO AVOID BURNS OR CLOTHING IGNITION.
YOUNG CHILDREN SHOULD BE CAREFULLY SUPERVISED WHEN THEY ARE IN THE SAME ROOM AS THE APPLIANCE.
CLOTHING OR OTHER FLAMMA­BLE MATERIAL SHOULD NOT BE PLACED ON OR NEAR THE APPLI­ANCE.
GENERAL SAFETY
INFORMATION
1) The appliance installation must conform
with local codes or, in the absence of local codes, with the current Canadian or Nation­al Gas Codes, CAN1-B149 or ANSI Z223.1 Installation Codes.
2) The appliance when installed, must be elec­trically grounded in accordance with local codes, or in the absence of local codes with the current National Electrical Code, ANSI/ NFPA 70 or CSA C22.1 Canadian Electrical Code.
3) See general construction and assembly instructions. The appliance and vent should be enclosed.
4) This appliance must be connected to the specified vent and termination cap to the outside of the building envelope. Never vent to another room or inside a building. Make sure that the vent is fitted as per Venting instructions.
5) Inspect the venting system annually for blockage and any signs of deterioration.
6) Venting terminals shall not be recessed into a wall or siding.
7) Any safety glass removed for servicing must be replaced prior to operating the appliance.
8) To prevent injury, do not allow anyone who is unfamiliar with the operation to use the fireplace.
9) Wear gloves and safety glasses for pro­tection while doing required maintenance.
10)Be aware of electrical wiring locations in walls and ceilings when cutting holes for termination.
11)Under no circumstances should this appli­ance be modified. Parts that have to be removed for servicing should be replaced prior to operating this appliance.
12)Installation and any repairs to this appliance should be done by an authorized service person. A professional service person should be called to inspect this appliance
annually. Make it a practice to have all of your gas appliances checked annually.
13)Do not slam shut or strike the glass door.
14)Under no circumstances should any solid
fuels (wood, paper, cardboard, coal, etc.) be used in this appliance.
15)The appliance area must be kept clear and free of combustible materials, (gases and other flammable vapours and liquids).
Emissions from burning wood or gas could contain chemicals known to the State of California to cause cancer, birth defects or other reproductive harm.
INSTALLATION
CHECKLIST
1) Locate appliance
a) Room location, page 6 b) Clearances to Combustibles, page 7 c) Mantel Clearances, page 8 d) Framing & Finishing Requirements,
page 9
e) Venting Requirements, pages 10-18.
2) Assemble Top Facing Support and Side Nailing Strips, page 10.
NOTE: must be done before installing unit into fireplace.
3) Install venting, pages 20-21.
4) Make gas and electrical connections. Test
the pilot. Must be as per diagram. Page 23.
5) Test Gas Pressure. Page 23.
6) Install brick panels (optional), page 24.
7) Install Flush Door Front (Standard) and
optional Flush Gold Trim, page 28.
8) Install Optional Bay Front and optional Bay Gold Trim, page 29.
9) Install Louvers (Flush or Bay), pages 28-29.
10)Installation of Wall Switch, Remote Control, or Wall Thermostat, page 31.
11)Final check.
Before leaving this unit with the customer, the installer must ensure that the appliance is firing correctly and operation fully explained to customer.
Regency P48-1 Zero Clearance Direct Vent Gas Fireplace 5
Page 6
INSTALLATION
This includes:
1) Clocking the appliance to ensure the correct
firing rate (rate noted on label 51,000 (NG) Btu/h, 48,000 (LP) Btu/h) after burning ap­pliance for 15 minutes.
2) If required, adjusting the primary air to en­sure that the flame does not carbon. First allow the unit to burn for 15-20 min. to stabilize.
CAUTION: Any alteration to the product that causes sooting or carboning that results in damage is not the responsibil-
ity of the manufacturer.
MANUFACTURED
MOBILE HOME
ADDITIONAL
REQUIREMENTS
1) Ensure that structural members are not cut
or weakened during installation.
2) Ensure proper grounding using the #8 ground lug provided. See page 32.
UNIT SPECIFICATIONS
LOCATING YOUR
GAS STOVE
1) When selecting a location for your stove,
ensure that the clearances outlined on this page are met.
2) Provide adequate clearances for servic­ing.
3) The appliance must be installed on a flat, solid, continuous surface (e.g. wood, met­al, concrete). This may be the floor, or raised up on a platform to enhance its visual impact. If the appliance is going to be installed on carpeting, combustible linole­um tile or other combustible material other than wood flooring, the appliance must be installed on a metal or wood panel extend­ing the full width and depth of the appli­ance.
4) The P48-1 Direct Vent Gas Fireplace can be installed in a recessed position or framed out into the room as in A, B, C, D. See Diagram 1.
Diagram 1
A) Flat on Wall B) Flat on Wall Corner C) Recessed into
Wall/Alcove
D) Corner
OPTIONAL
DUCT SYSTEM
KIT #946-556
The HeatWave Air Duct Kit increases the effectiveness of your fireplace by dispersing warm air from the fireplace to remote locations in the same room or other rooms in your home.
Up to two kits may be installed on the fireplace. Please Note: Only 1 HeatWave kit may be operated at one time. This includes the internal blower option as well.
OPTIONAL
HEAT RELEASE
KIT #946-570
The Heat Release Kit expels warm air from the fireplace to the outside of the building, allowing the fireplace to be operated with less heat entering the room. The kit may be used on either the left or right side.
HEARTH
5) This appliance is Listed for bedroom instal-
lations when used with a Listed Millivolt Thermostat. Some areas may have further requirements, check local codes before installation.
6) The P48-1 Direct Vent Gas Fireplace is approved for alcove installations, which meet the clearances listed on this page.
7) We recommend that you plan your installa­tion on paper using exact measurements for clearances and floor protection before actually installing this appliance. Have an authorized inspector, dealer, or installer review your plans before installation.
Note: For vent terminations see page 11.
A hearth is not mandatory, but is recommended for aesthetics and for added safety.
6
Regency P48-1 Zero Clearance Direct Vent Gas Fireplace
Page 7
INSTALLATION
CLEARANCES
The clearances listed below are Minimum distances unless otherwise stated:
A major cause of chimney related fires is failure to maintain required clearances (air space) to combustible materials. It is of the greatest importance that this fireplace and vent system be installed only in accordance with these instructions.
Clearance to Combustibles from:
Back 0" (0mm) Side 0" (0mm) Floor 0" (0mm)
Minimum Clearance from Top of Front Facing:
Mantel min. 8" (203mm) Ceiling 39" (990mm) from top of front facing above louvers.
Side Wall:
6" (152mm)
Horizontal Vent Clearances:
Top 2-1/2" (64mm) Side 1-1/2" (38mm) Bottom 1-1/2" (38mm)
Vertical Vent Clearances:
1-1/4" (32mm)
Alcove Clearances:
Max. Depth 36" (914mm) Min. Width 60" (1524mm) Min. Height 80" (2032mm)
The top, back and sides of the fireplace are defined by
Caution Requirements
standoffs. The metal ends of the standoff may NOT be
recessed into combustible construction.
if these clearances (air space) to combustible materials
Fire hazard is an extreme risk
are not adhered to. It is of greatest importance that this
fireplace and vent system be installed only in
accordance with these instructions.
Heat Release Kit
Regency P48-1 Zero Clearance Direct Vent Gas Fireplace 7
WARNING
The HeatWave Duct Kit and the Heat Release Kit have different clear­ance and framin require­ments, check the Heat- Wave and Heat Release manual for details.
Page 8
INSTALLATION
MANTELS
Because of the extreme heat this fireplace emits, the mantel clearances are critical. Combustible mantel clearances from louver are
shown in the diagram below.
Note: A non-combustible mantel may be installed at a lower height if the framing is made of metal studs covered with a non-
combustible board.
This drawing is to scale at 1:6 (one inch = 6 inches)
Mantel can be installed anywhere in shaded area using the above scale for units with the Flush Front and with the optional Bay Front.
Note: Ensure the paint that is used on
the mantel and the facing is "heat resistant" or the paint may discol­our.
MANTEL LEG CLEARANCES
Combustible mantel leg clearances as per diagram:
8
Maximum 1-1/2" projection at 3" minimum clearance.
Regency P48-1 Zero Clearance Direct Vent Gas Fireplace
Page 9
FRAMING & FINISHING
1) Determine the total thickness of facing material (eg. drywall plus
ceramic tiles) to allow the finished surface to be flush with the front of the unit. Total facing thickness can vary from 1/2" (13mm) to 1-1/4" (32mm) thick.
2) Frame in the enclosure for the unit with framing material. The framed opening for the assembled kit is 47-1/2" high x 48-1/2" wide x 26-1/4" deep (1207mm H x 1232mm W x 667mm D). See Diagram 1.
INSTALLATION
Diagram 1

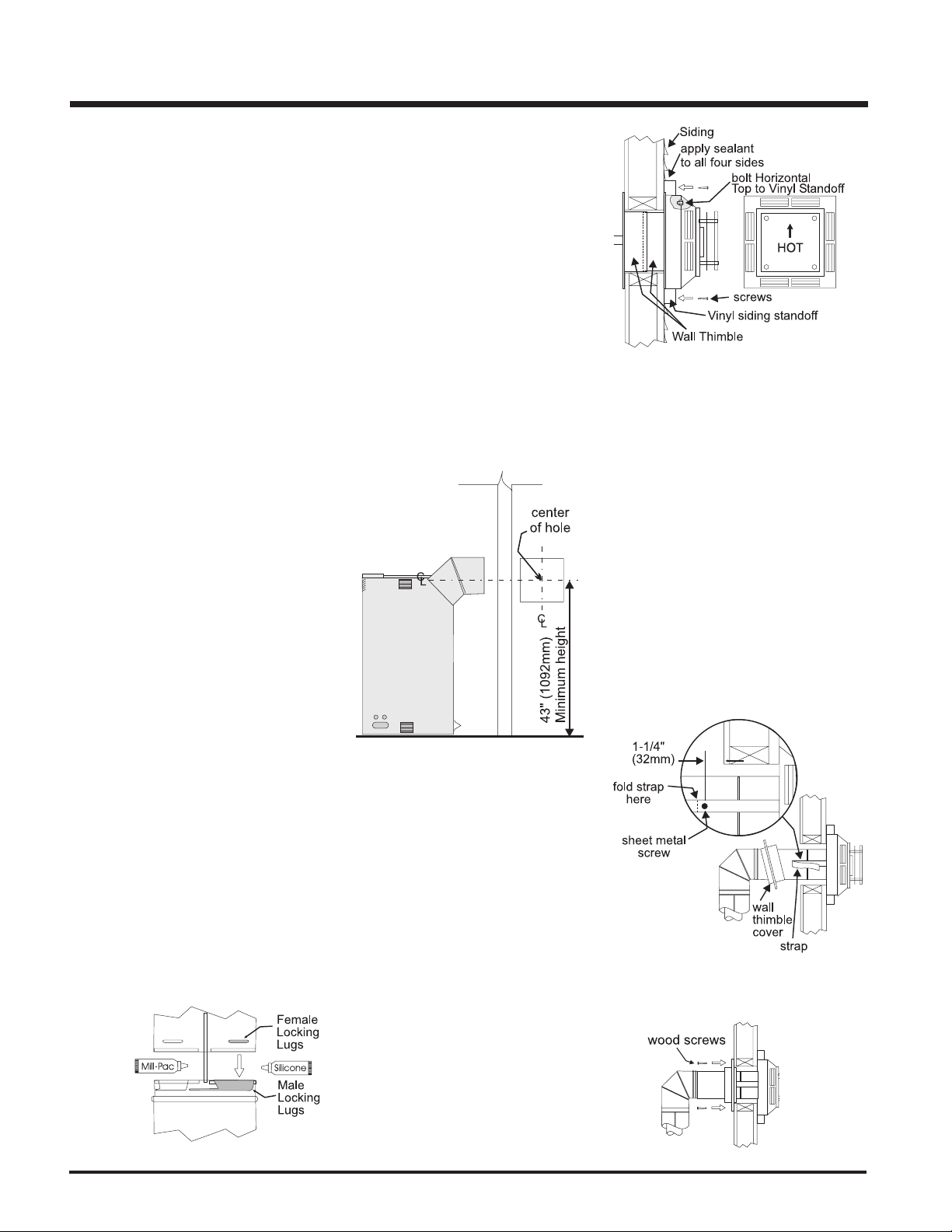

Note: 43" (1092mm) is the minimum height for flex termination
and Simpson Dura-Vent terminations.
3) For exterior walls, insulate the enclosure to the same degree as the
rest of the house, apply vapour barrier and drywall, as per local installation codes. (Do not insulate the fireplace itself.)
4) The unit does not have to be completely enclosed in a chase. The clearance on top of the unit from the top standoffs is 0" so combustible building materials can be laid directly on top of the standoffs. You must maintain clearances from the vent to combus­tible materials: See page 7. Combustible materials can be laid against the side and back standoffs and the stove base.
The HeatWave Duct Kit has different clearance and framing requirements, check the HeatWave manual for details.
IMPORTANT
When installing the unit with any vertical venting off the top of the unit as shown, the minimum framing depth changes accordingly.
Regency P48-1 Zero Clearance Direct Vent Gas Fireplace 9
Page 10
INSTALLATION
UNIT ASSEMBLY
PRIOR TO
INSTALLATION
The Top Facing Support, the Side Nailing Strips and the 2 Top Standoffs must be correctly positioned and attached to the top before unit is slipped into position.
Top Standoff Assembly
The top standoffs are shipped in a flat position and must be folded into shape and attached.
1) Remove the standoffs from the fireplace top.
2) Take each standoff and bend into the cor­rect shape. Bend up at the bend lines until the screw holes in the standoff and the pre­punched screw holes on the fireplace top line up.
3) Attach the standoff securely to the top with 2 screws per standoff (on opposite cor­ners).
Top Facing Support and
Side Nailing Strips
Determine the total thickness of facing material (e.g. drywall plus ceramic tiles) to allow the finished surface to be flush with the front of the unit. Total facing thickness can vary from 1/2" (13mm) to 1-1/4" (32mm) thick.
The Top Facing Support & Side Nailing Strips can be mounted in 3 different positions depend­ing on the thickness of the facing material.
Screw Facing Material Position Depth
A 1/2" / 13mm B 7/8" / 22mm C* 1-1/4" / 32mm
* For "C" screw position the top facing support is reversed.
1) Mount Top Facing Support using the 3 supplied screws into the three pre-punched screw holes on the top front of the unit. Use hole positions A, B, or C depending on your facing depth.
"C" Screw Position:
For a facing material depth of 1-1/4" (32mm), the top facing support must be reversed.
2) Use the same screw hole position for the Side Nailing Strips as was used for the Top Facing Support. Attach each side nailing strip using 3 screws.
VENTING
INTRODUCTION
The P48-1 uses the "balanced flue" tech­nology Co Axial system. The inner liner vents products of combustion to the outside while the outer liner draws outside combustion air into the combustion chamber thereby eliminating the need to use heated room air for combustion and losing warm room air up the chimney.
Note: These flue pipes must not be con-
nected to any other appliance.
The gas appliance and vent system must be vented directly to the outside of the building, and never be attached to a chimney serving a separate solid fuel or gas burning appliance. Each direct vent gas appliance must use it's own separate vent system. Common vent systems are prohibited.
10
Regency P48-1 Zero Clearance Direct Vent Gas Fireplace
Page 11
INSTALLATION
.
B
B
B
B
A
C
V
V
V
V
V
V
V
A
A
V
Fixed
Fixed
Openable
Closed
Closed
Openable
N
L
B
E
B
M
D
F
K
H
j
Vertical
Termination
V
Vent terminal
Area where terminal is not permited
A
Air supply outlet
24"
V
A
G
Inside
corner detail
V
24"
18"
Vertical
Termination
EXTERIOR VENT TERMINATION REQUIREMENTS
the centerline of the regulator.
any other appliance *(12"/30cm)
*(min. 84"/2.1m)
L= Clearance to a mechanical air supply inlet *(min. 72"/1.8m)
M= Clearance above paved sidewalk or a paved driveway located on public property
N= Clearance under veranda, porch, deck, or balcony *(min. 23"/58cm)
H = Not to be installed above a meter/regulator assembly within (3'/90cm) horizontally from
J= Clearance to service regulator vent outlet *(min 36"/90cm)
K= Clearance to non-mechanical air supply inlet to building or the combustion air inlet to
Regency P48-1 Zero Clearance Direct Vent Gas Fireplace 11
distance of 24"/60cm (min. 23"/58cm) (32"/81cm with vinyl siding)
A= Clearance above grade, veranda, porch, deck, or balcony *(min. 12"/30cm)
B= Clearance to window or door that may be opened *(12"/30cm)
C= Clearance to permanently closed window *(min. 12"/30cm)
D= Vertical clearance to ventilated soffit located above the terminal within a horizontal
E= Clearance to unventilated soffit (min. 23"/58cm) (32"/81cm with vinyl siding)
F= Clearance to outside corner: (13"/33cm)
G= Clearance to inside corner: (13"/33cm)
Note:
- A vent shall not terminate directly above a sidewalk or paved driveway which is located between two single family dwellings and serves both dwellings.
- Only permitted if veranda, porch, deck, or balcony is fully open on a minimum of two sides beneath the floor.
- If the vent termination is accessible, a certified guard shall be installed.
* As specified in CGA B149 Installation Code. Note: Local codes or regulations may require different clearances.
Page 12
INSTALLATION
VENTING
Regency Direct Vent System (Flex) Horizontal
Terminations Only

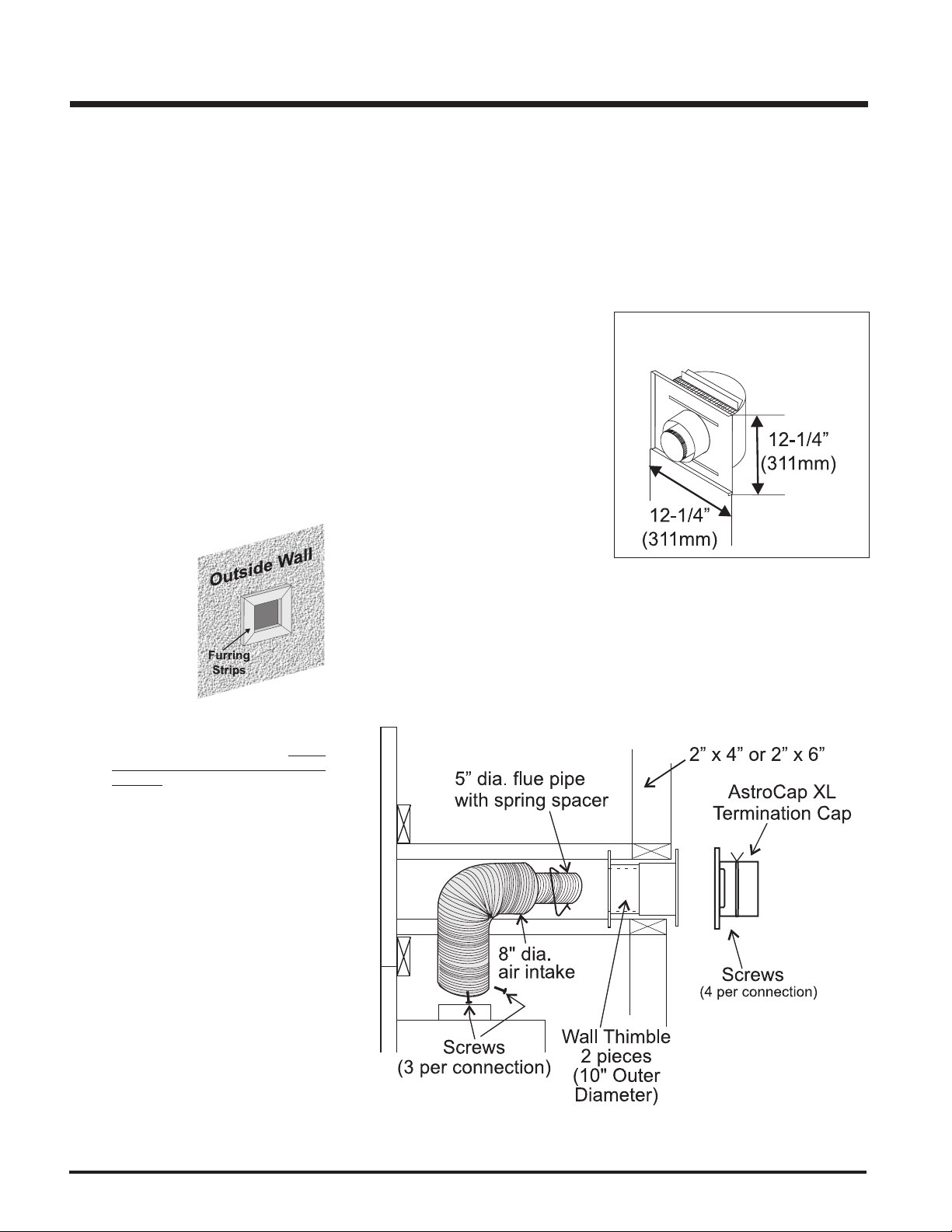

These venting systems, in combination with the P48-1 Direct Vent Gas Fireplace, have been tested and listed as a direct vent heater system by Warnock Hersey. The location of the termination cap must conform to the requirements in the Vent Terminal Locations diagram on page 11.
Regency Direct Vent (Flex) System Termina­tion Kit (Part# 946-615) includes all the parts needed to install the P48-1 with a maximum run of 4 feet.
1) 8" dia. flexible liner (4 ft. length)
2) 5" dia. flexible liner (4 ft. length)
3) spring spacers (4)
4) thimble (2)
5) AstroCap XL termination cap (1)
6) screws (12)
7) tube of Mill Pac (1)
8) plated screws (8)
9) screws #8 x 1-1/2" Drill Point, Stainless Steel (4)
10)vinyl siding standoff
If longer runs are needed, the Regency Direct Vent system (Flex) Part# 946-616 includes all the parts needed to install the P48-1 with a maximum 10' run.
1) 8" dia. flexible liner (10 ft. length)
2) 5" dia. flexible liner (10 ft. length)
3) spring spacers (7)
4) thimble (2)
5) AstroCap XL termination cap (1)
6) screws (12)
7) tube of Mill Pac (1)
8) plated screws (8)
9) screws #8 x 1-1/2" Drill Point, Stainless Steel (4)
10)vinyl siding standoff
Notes:
1) Liner sections should be continuous without any joints or seams.
2) Only Flex pipe purchased from Regency may be used for Flex installations.
3) If you are installing the P48-1 into a Regency Mantel Kit, use the minimum horizontal vent height (centre-line of 43"). Remember to include the mantel base in your calculations and to maintain the 2-1/2" clearance to the underside of the mantel top.
12
Regency P48-1 Zero Clearance Direct Vent Gas Fireplace
Page 13
INSTALLATION
SIMPSON DURA-VENT VENTING
Horizontal or Vertical Terminations
The Simpson Dura-Vent Direct Vent System offers a complete line of component parts for installation of both horizontal and vertical installations. Many items are offered in decorative black, as well as galvanized finish. We recommend using the galvanized finish for installation with the P48-
1.
The minimum components required for a basic horizontal termination are:
1 Horizontal Termination Cap
o
Elbow
145 1 Flue Adaptor 1 Wall Thimble 1 Length of pipe to suit wall thickness
(see chart)
Wall thickness is measured from the back standoffs to the inside mounting surface of termination cap. For siding other than vinyl furring strips may be used, instead of the vinyl siding standoff, to create a level surface to mount the vent terminal. The Terminal must not be recessed into siding. Measure the wall thickness including furring strips.
Wall Thickness Vent Length
Flat Wall Installation
(inches) Required (inches)
4" - 5-1/2" none 7" - 8-1/2" 6"
10" - 11-1/2" 9"
9" - 14-1/2" 12"
15" - 23-1/2" 11" - 14-5/8" Adj. Pipe
If a Vinyl Siding Standoff is required (it must be used with vinyl siding), measure to outside surface of wall without siding and add 2 inches.
Alternate
Horizontal Termination
Caps
SIMPSON DURA-VENT VENTING
Part # Description
1208B 6" Pipe Length-Black 1207B 9" Pipe Length-Black 1206 12" Pipe Length Galv. 1206B 12" Pipe Length-Black 1204 24" Pipe Length Galv. 1204B 24" Pipe Length-Black 1203 36" Pipe Length Galv. 1203B 36" Pipe Length-Black 1202 48" Pipe Length Galv. 1202B 48" Pipe Length-Black 1211B 11"-14 5/8" Adj./P/L-Black 1217B 17"- 24" Adj. Length Black
COMPONENTS LIST
Part # Description
1245 45O Elbow Galv. 1245B 45O Elbow-Black 1245G 45O Elbow-Swivel Galv. 1245BG 45O Elbow-Swivel-Black 1290 90O Elbow Galv. 1290B 90O Elbow-Black 1290G 90O Elbow-Swivel Galv. 1290BG 90O Elbow-Swivel-Black
1291 High Wind Term. Cap (Vertical Only) 1285 Horiz.Sq.HighWind Trm.Cap (Only) 1282 Snorkel-14" Rise Term.Cap
Part # Description
1281 Snorkel-36" Rise Term.Cap 1240 Wall Thimble-Suprt/Box 1241 Cathdrl/Clng-Sprt/Box 3951 Brass Trim for Wall Thimble/Ceiling Support 1263 Firestop Spacer 1243 Flashing 0/12-6/12 1243S Flashing 7/12-12/12 1253 Storm Collar 1250 Vinyl Siding Standoff 1288 Wall Strap 1247 Wall Thimble
Parts not supplied by Dura-Vent
770-994 Dura-Vent Flue Adaptor
Regency P48-1 Zero Clearance Direct Vent Gas Fireplace 13
Page 14
INSTALLATION
VENTING ARRANGEMENTS - HORIZONTAL TERMINATIONS
SIMPSON DURA-VENT DIRECT VENT GS SYSTEM and
REGENCY DIRECT VENT SYSTEM (FLEX)
(Propane & Natural Gas)
The diagram shows all allowable combinations of vertical runs with horizontal terminations, using one 45o and one 90o elbow (two 45o elbows equal one 90o elbow).
Note: Must use optional flue adapter (Part # 770-994) when using Simpson Dura-Vent pipe. (Refer to page 13.)
Simpson Dura-Vent 5" inner diameter 8" outer diameter
Regency Flex Vent 5" inner diameter 8" outer diameter
• Maintain clearances to combustibles as listed on pages 6 to 9.
• Horizontal vent must be supported every 3 feet.
• Firestops are required at each floor level and whenever passing through a wall.
14
Regency P48-1 Zero Clearance Direct Vent Gas Fireplace
A vent guard should be used when­ever the termination is lower than the specified minimum or as per local codes.
Note: Regency Direct Vent System
(Flex) is only approved for hor­izontal terminations.
Page 15
INSTALLATION

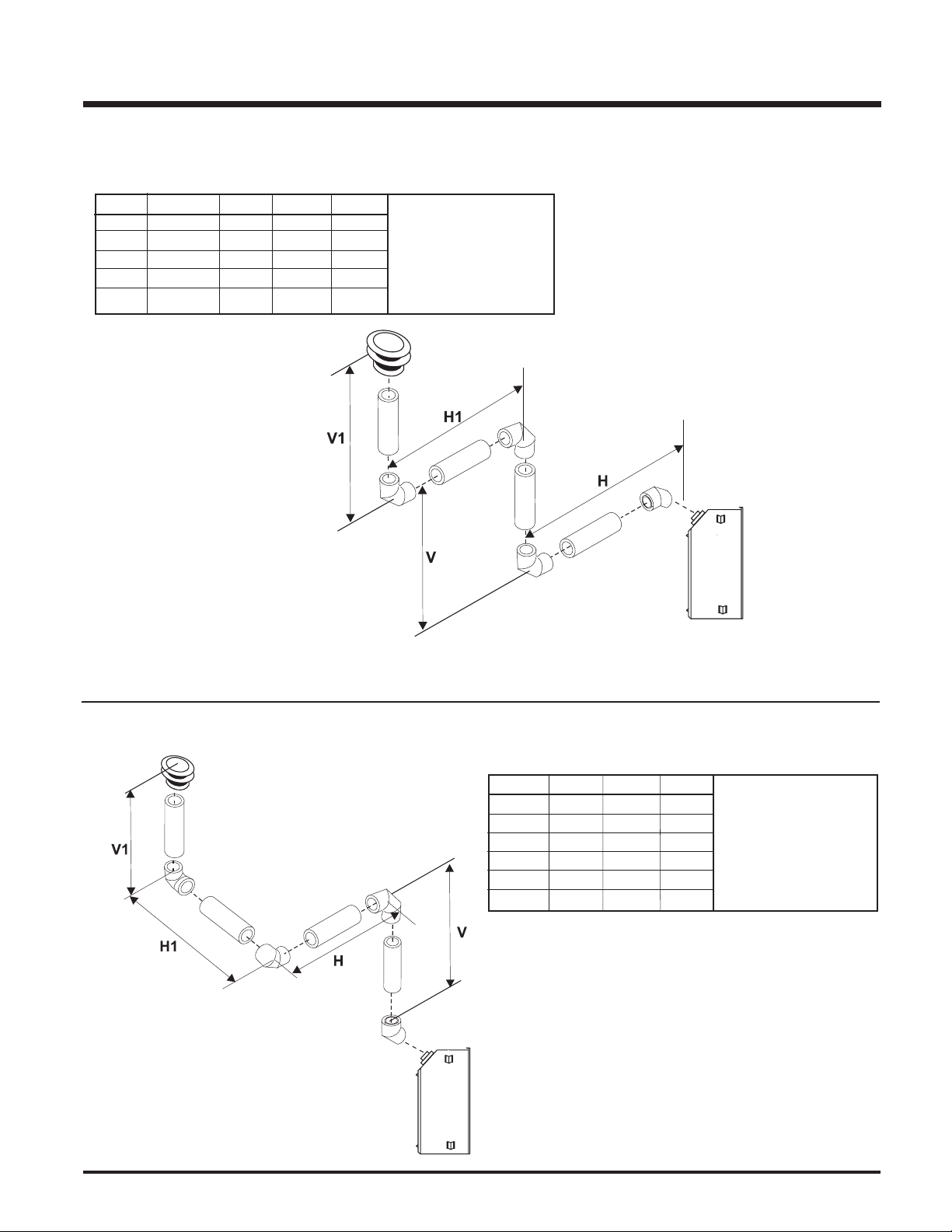

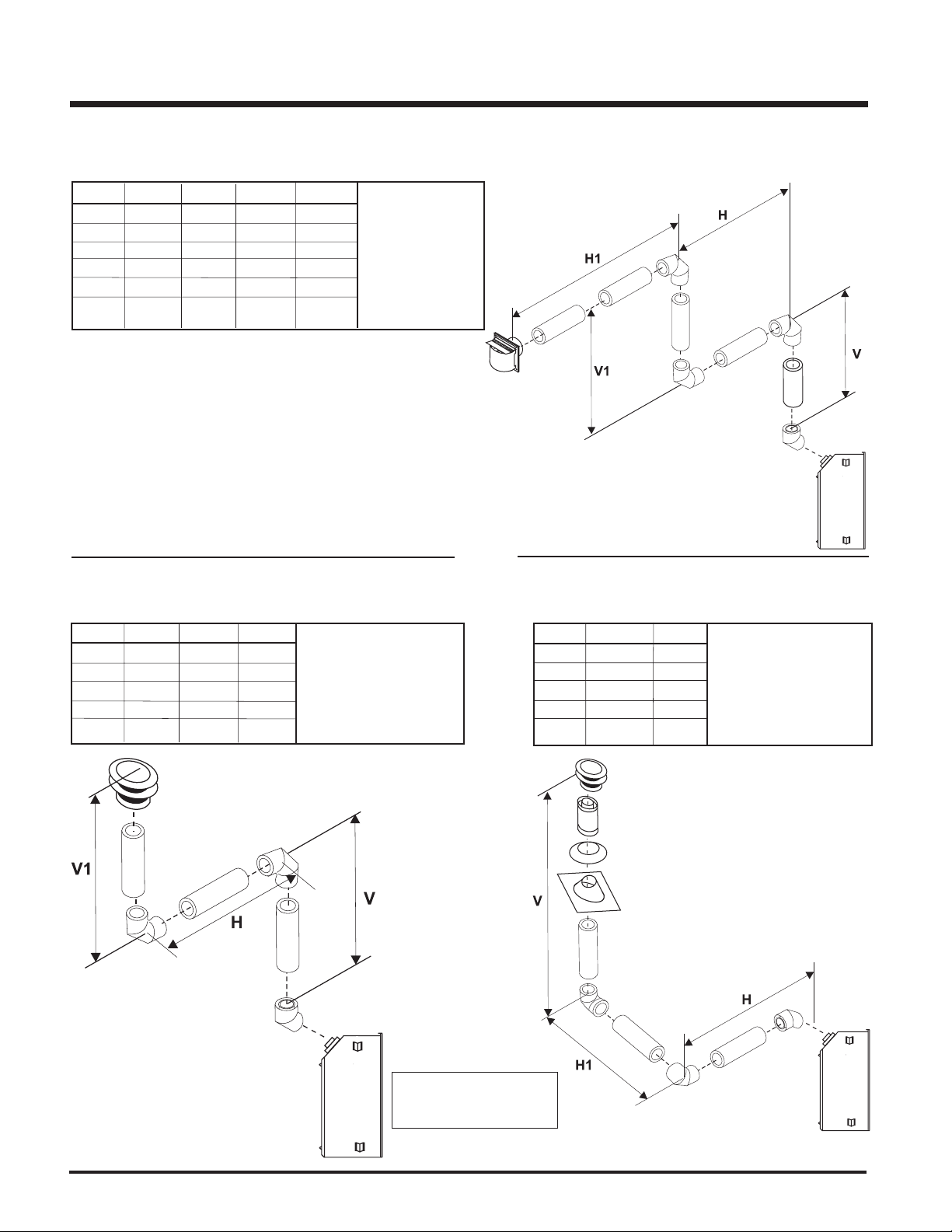

Horizontal Venting with Two (2) 90o Elbows
One 90o elbow = Two 45o elbows.
Option V H + H1
A) 1' Min. 3' Max. B) 2' Min. 4' Max. C) 3' Min. 5' Max. D) 4' Min. 6' Max. E) 5' Min. 7' Max. F) 6' Min. 8' Max.
With these options, maxi­mum total pipe length is 30 feet with minimum of 6 feet total vertical and maximum 8 feet total horizontal.
Please note minimum 1 foot between 90o elbows is required.
Horizontal Venting with Three (3) 90o Elbows
One 90o elbow = Two 45o elbows.
Option H V H + H1 + H2 A) 1 Max. 1' Min. 3' Max.
B) 2' Max. 3' Min. 5' Max. C) 3' Max. 5' Min. 6' Max. D) 4' Max. 7' Min. 7' Max. E) 5' Max. 9' Min. 8' Max. F) 6' Max. 11' Min. 9' Max.
With these options, max. total pipe length is 30 feet with min. of 11 feet total vertical and max. 9 feet total horizontal.
Please note min. 1 foot between 90 elbows is required.
o
One 90o elbow = Two 45o elbows.
Option H V H + H1
A) 1' Max. 1' Min. 3' Max. B) 2' Max. 2' Min. 5' Max. C) 3' Max. 4' Min. 6' Max. D) 4' Max. 6' Min. 7' Max. E) 5' Max. 8' Min. 8' Max.
Horizontal Venting with Two (2) 90o Elbows
With these options, max. total pipe length is 30 feet with min. of 8 feet total vertical and max. 8 feet total horizontal.
Please note min. 1 foot between 90o elbows is required.
Regency P48-1 Zero Clearance Direct Vent Gas Fireplace 15
Page 16
INSTALLATION
Horizontal Venting with Three (3) 90o Elbows
One 90o elbow = Two 45o elbows.
Option V H V + V1 H + H1
A) 2' Min. 1' Max. 3' Min. 4' Max. B) 3' Min. 2' Max. 4' Min. 5' Max. C) 4' Min. 3' Max. 6' Min. 6' Max. D) 5' Min. 4' Max. 8' Min. 7' Max. E) 6' Min. 5 Max. 10' Min. 8' Max. F) 7' Min. 6' Max. 12' Min. 9' Max.
Vertical Venting with Two (2) 90o Elbows
One 90o elbow = Two 45o elbows.
Option V H V + V1
A) 1' Min. 4' Max. 2' Min. B) 2' Min. 5' Max. 3' Min. C) 3' Min. 6' Max. 4' Min. D) 4' Min. 7' Max. 5' Min. E) 5' Min. 8' Max. 6' Min.
With these options, max. total pipe length is 30 feet with min. of 6 feet total vertical and max. 8 feet total horizontal.
Please note min. 1 foot between 90o elbows is re­quired.
With these options, max. total pipe length is 30 feet with min. of 12 feet total vertical and max. 9 feet total horizontal.
Please note min. 1 foot between 90 elbows is required.
o
Vertical Venting with Two (2) 90o Elbows
One 90o elbow = Two 45o elbows.
Option H + H1 V
A) 2' Max. 2' Min. B) 3' Max. 3' Min. C) 4' Max. 4' Min. D) 5' Max. 5' Min. E) 6' Max. 6' Min.
With these options, max. total pipe length is 30 feet with min. of 6 feet total vertical and max. 6 feet total horizontal.
Please note min. 1 foot between 90o elbows is re­quired.
16
For additional vertical vent­ing with 2 x 90o elbows, refer to page 18.
Regency P48-1 Zero Clearance Direct Vent Gas Fireplace
Page 17
Vertical Venting with Three (3) 90o Elbows
One 90o elbow = Two 45o elbows.
INSTALLATION
Option H V H + H1 V + V1
A ) 1' Max. 1' Min. 3' Max. 3' Min. B) 2' Max. 2' Min. 4' Max. 5' Min. C) 3' Max. 3' Min.' 5' Max. 7' Min. D) 4' Max. 4' Min. 6' Max. 9' Min. E) 5' Max. 5' Min. 7' Max. 11' Min.
With these options, max. total pipe length is 30 feet with min. of 11 feet total vertical and max. 7 feet total horizontal.
Please note min. 1 foot between 90o elbows is re­quired.
Vertical Venting with Three (3) 90o Elbows
One 90o elbow = Two 45o elbows.
Option V H + H1 V + V1
A) 2' Min. 3' Max. 4' Min. B) 3' Min. 4' Max. 6' Min. C) 4' Min. 5' Max. 7' Min. D) 5' Min. 6' Max. 8' Min. E) 6' Min. 7' Max. 9' Min. F) 7' Min. 8' Max. 10' Min.
With these options, max. to­tal pipe length is 30 feet with min. of 10 feet total vertical and max. 8 feet total horizon­tal.
Please note min. 1 foot between 90o elbows is re­quired.
Regency P48-1 Zero Clearance Direct Vent Gas Fireplace 17
Page 18
INSTALLATION

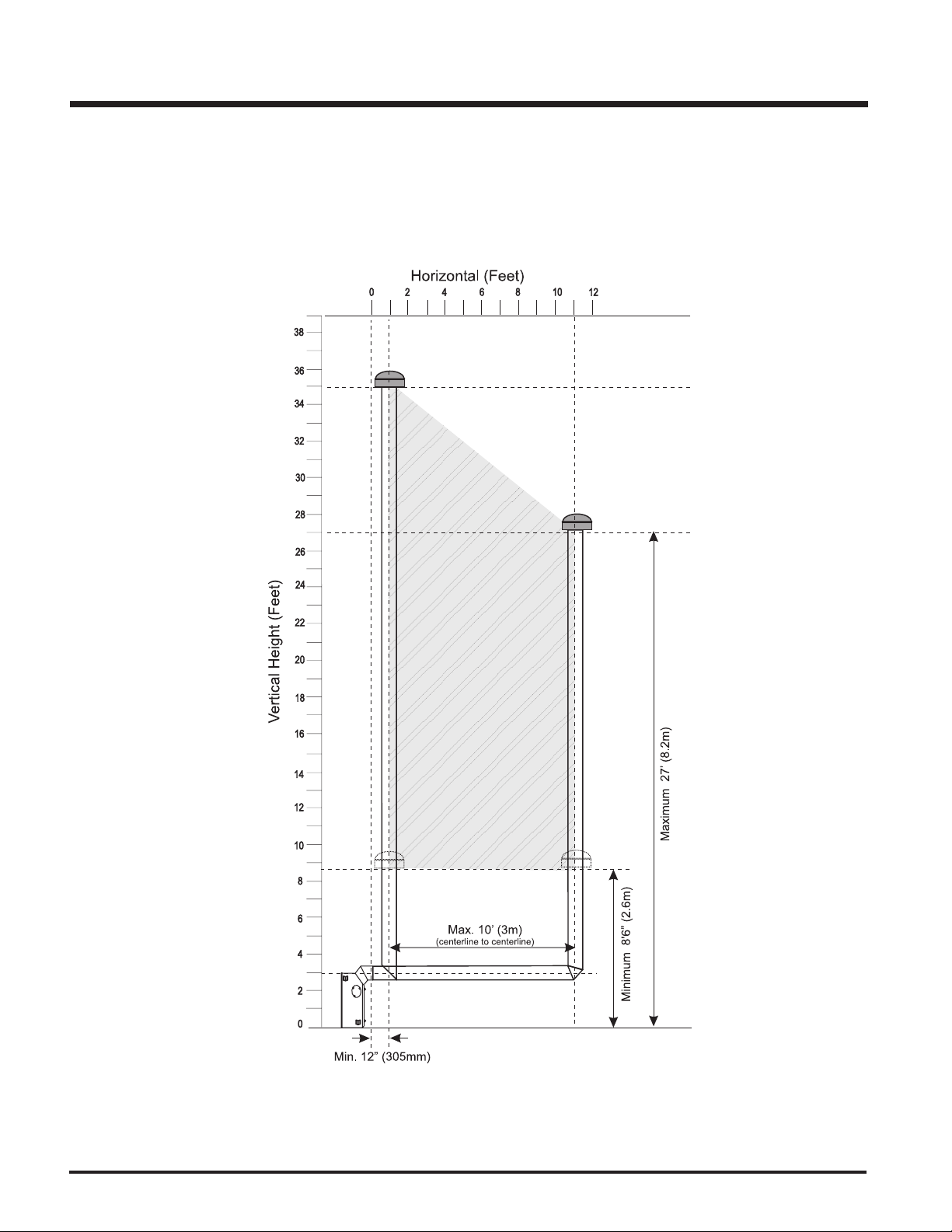

VENTING ARRANGEMENTS - VERTICAL TERMINATIONS
SIMPSON DURA-VENT DIRECT VENT GS SYSTEM
(Propane & Natural Gas)
The shaded area in the diagram shows all allowable combinations of straight vertical and offset to vertical terminations , using two 90o elbows, with Simpson Dura-Vent Direct Vent GS vent systems for Propane and Natural Gas.
• Vent must be supported at offsets.
• Firestops are required at each floor level and whenever passing through a wall.
• Maintain clearances to combustibles.
Note: Must use optional flue adapter when using Simpson Dura-Vent pipe (Part # 510-994).
18
Regency P48-1 Zero Clearance Direct Vent Gas Fireplace
Page 19

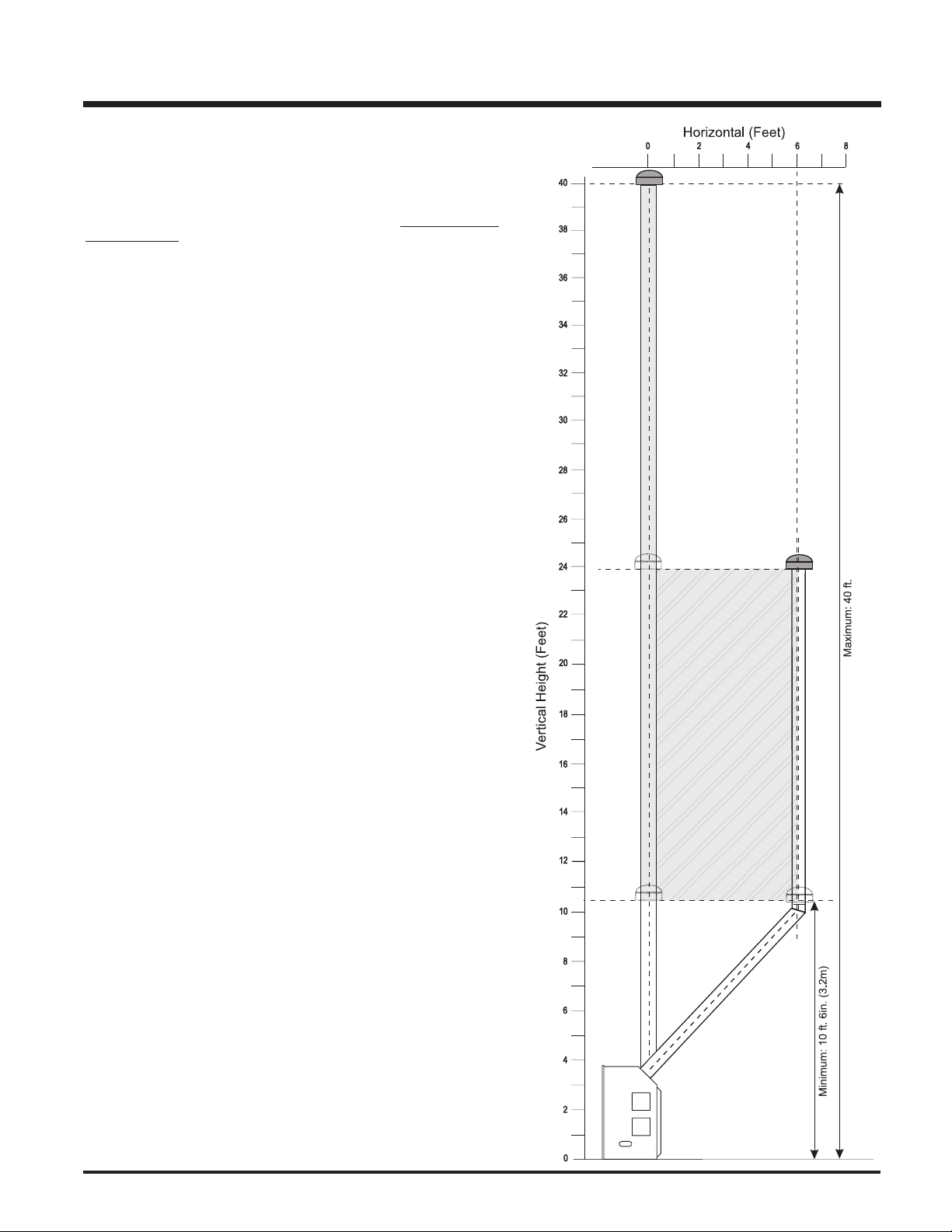

The P48-1 is approved for a maximum 40 ft. straight vertical, with Simpson Dura-Vent Direct Vent GS vent systems for Propane and Natural Gas, as per diagram.
The shaded area in the diagram shows all allowable combinations of straight vertical and offset to vertical terminations with Simpson Dura-Vent Direct Vent GS vent systems for Propane and Natural Gas. Maximum two 45 elbows allowed.
• Vent must be supported at offsets
• Firestops are required at each floor level and whenever passing through a wall.
• Maintain clearances to combustibles as listed on pages 6 to 9.
INSTALLATION
o
Regency P48-1 Zero Clearance Direct Vent Gas Fireplace 19
Page 20
INSTALLATION
HORIZONTAL
INSTALLATIONS

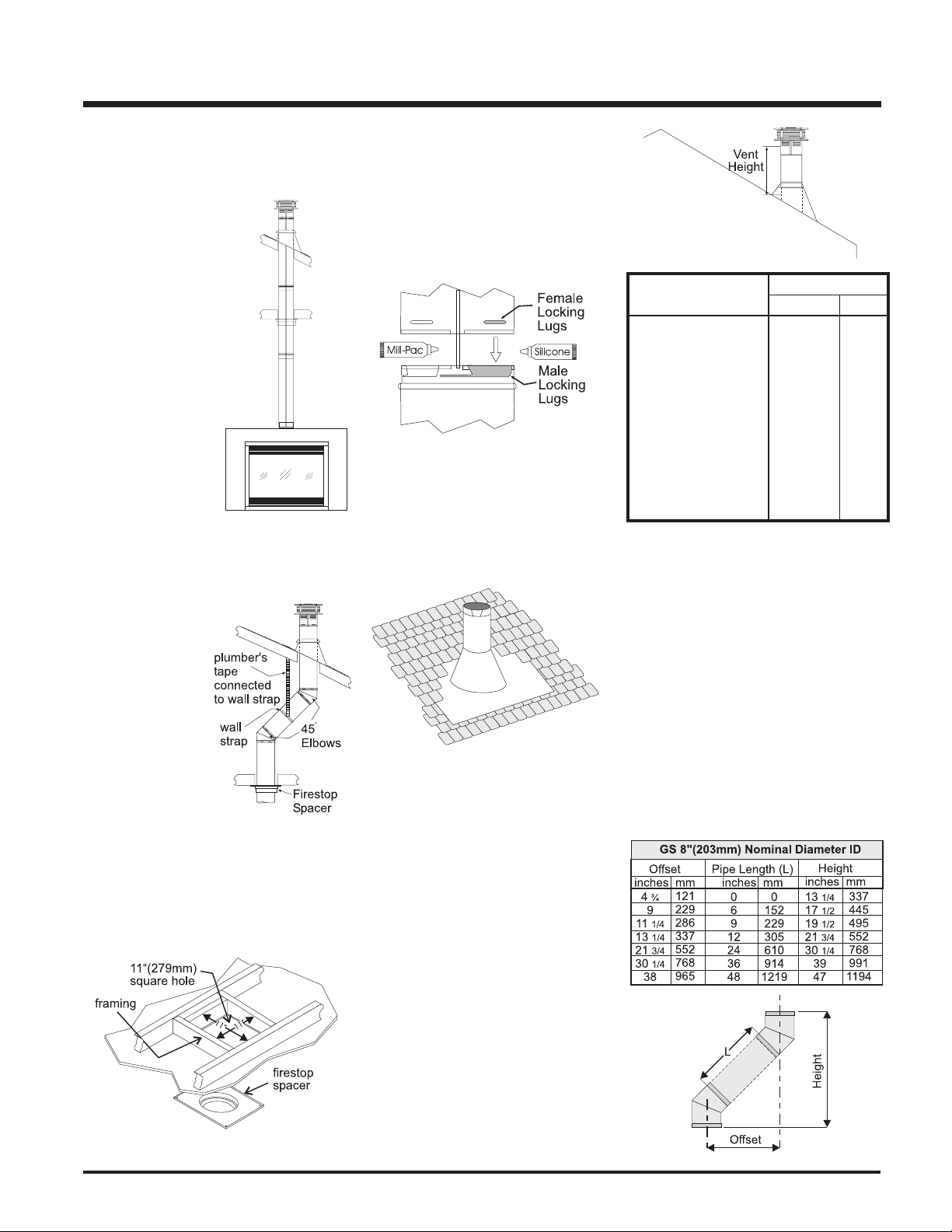

Install the vent system according to the manu­facturer's instructions included with the com­ponents.
1) Set the unit in its desired location. Check to determine if wall studs or roof rafters are in the way when the venting system is attached. If this is the case, you may want to adjust the location of the unit. Rough in the gas preferably on the right side of the unit and the electrical (junction block is on the left side) on the left.
2) Direct Vent pipe and fittings are designed with special twist-lock connections to con­nect the venting system to the appliance flue outlet. A twist-lock appliance adaptor is an available option that must be used in conjunction with the Simpson Dura-Vent Direct Vent GS system. Install the adaptor after the unit is set in its desired location otherwise the unit will not fit through the
36-5/8" (930mm) high frame opening.
3) Put a bead of silicone inside the outer section of the adapter and a bead of Stove Mate on the inner collar. Slip the adapter over the existing inner and outer flue collar and fasten to the outer collar only with the 3 supplied screws (drilling pilot holes will make this easier). Level the fireplace and fasten it to the framing using nails or screws through the nailing strips.
4) Assemble the desired combination of pipe and elbows to the appliance adaptor and twist-lock for a solid connection.
Note:
a) Twist-lock procedure: Four indenta-
tions, located on the female ends of pipes and fittings, are designed to slide straight onto the male ends of adjacent pipes and fittings, by orienting the four pipe indentations so they match and slide in to the four entry slots on the male ends. (Diagram 1) Push the pipe sections completely together, then twist-lock one section clockwise ap­proximately one-quarter turn, until the two sections are fully locked. The fe­male locking lugs will not be visible from the outside, on the Black Pipe or fittings.
Diagram 1
They may be located by examining the inside of the female ends.
Note: Apply sealant "Mill-Pac" to inner
pipe and high temp silicone seal­ant to outer pipe on every twist­lock joint.
b) Horizontal runs of vent must be sup-
ported every 3 feet (0.9meter). Wall straps are available for this purpose.
5) Mark the wall for a 11" x 11" (279mm x 279mm) square hole. The center of the square hole should line up with the center­line of the horizontal pipe. Cut and frame the 11 inch (279mm) square hole in the exterior wall where the vent will be terminated.
If the wall being penetrated is constructed of non-combustible material, i.e. masonry block or concrete, a 8" (203mm) diameter hole is acceptable.
Diagram 2
Note:
a) The horizontal run of vent must be level,
or have a 1/4 inch rise for every 1 foot of run towards the termination. Never allow the vent to run downward. This could cause high temperatures and may present the possibility of a fire.
b) The location of the horizontal vent ter-
mination on an exterior wall must meet all local and national building codes, and must not be blocked or obstructed. For External Vent Terminal Locations, see diagram on page 11.
6) The arrow on the vent cap should be
pointing up. Insure that the 1-1/4"(32mm)
clearances to combustible materials are maintained (Diagram 5). Install the termina­tion cap.
Diagram 5
The four wood screws provided should be replaced with appropriate fasteners for stucco, brick, concrete, or other types of sidings.
7) Before connecting the horizontal run of vent pipe to the vent termination, slide the Wall Thimble (Part # 1247) over the vent pipe.
8) Slide the appliance and vent assembly to­wards the wall carefully inserting the vent pipe into the vent cap assembly. It is impor­tant that the vent pipe extends into the vent cap sufficient distance so as to result in a minimum pipe overlap of 1-1/4 inches (32mm). Secure the connection between the vent pipe and the vent cap by attaching the two sheet metal strips extending from the vent cap assembly into the outer wall of the vent pipe. Use the two sheet metal screws provided to connect the strips to the pipe section. See Diagram 6.
Diagram 6
9) Install wall thimble in the center of the 11" (279mm) square and attach with wood screws (Diagram 7).
20
Note: If installing termination on a siding
covered wall, a vinyl siding stand­off or furring strips must be used to ensure that the termination is not recessed into the siding.
Regency P48-1 Zero Clearance Direct Vent Gas Fireplace
Diagram 7
Page 21
INSTALLATION
VERTICAL
TERMINATION
1) Maintain the 1-1/4"(32mm)
clearances (air spaces) to combustibles when pass­ing through ceilings, walls, roofs, enclosures, attic raft­er, or other nearby combusti­ble surfaces. Do not pack air spaces with insulation. Check pages 16-17 for the maximum vertical rise of the venting system and the maxi­mum horizontal offset limita­tions.
2) Set the gas appliance in its desired location. Drop a plumb bob down from the ceiling to the position of the appli­ance flue exit, and mark the location where the vent will penetrate the ceiling. Drill a small hole at his point. Next, drop a plumb bob from the roof to the hole previously drilled in the ceiling, and mark the spot where the vent will penetrate the roof. Determine if ceiling joists, roof rafters or other framing will obstruct the venting system. You may wish to relo­cate the appliance or to offset, as shown in Diagram 2 to avoid cutting load bearing mem­bers.
Diagram 2
Diagram 1
4) Assemble the desired lengths of pipe and elbows. Ensure that all pipes and elbow connections are in the fully twist-locked position and sealed.
Note: Apply sealant "Mill-Pac" to inner pipe and high temp silicone sealant to outer pipe on every twist-lock joint.
5) Cut a hole in the roof centered on the small
drilled hole placed in the roof in Step 2. The hole should be of sufficient size to meet the minimum requirements for clearance to combustibles of 1-1/4"(32mm). Slip the flashing under the shingles (shingles should overlap half the flashing) as per Diagram 4.
Diagram 4: The upper half of the flashing is installed under the roofing material and not
nailed down until the chimney is installed.
This allows for small adjustments.
Diagram 5
Roof Pitch Minimum Vent Height Feet Meters flat to 7/12 2 0.61 over 7/12 to 8/12 2 0.61 over 8/12 to 9/12 2 0.61 over 9/12 to 10/12 2.5 0.76 over 10/12 to 11/12 3.25 0.99 over 11/12 to 12/12 4 1.22 over 12/12 to 14/12 5 1.52 over 14/12 to 16/12 6 1.83 over 16/12 to 18/12 7 2.13 over 18/12 to 20/12 7.5 2.29 over 20/12 to 21/12 8 2.44
A poor draft, or down drafting can result from high wind conditions near big trees or adjoin­ing roof lines, in these cases, increasing the vent height may solve the problem.
7) Ensure vent is vertical and secure the base of the flashing to the roof with roofing rails, slide storm collar over the pipe section and seal with a mastic.
8) Install the vertical termination cap by twist­locking it.
Note: Any closets or storage spaces,
which the vent passes through must be enclosed.
Offset Chart
3) A Firestop spacer must be installed in the
floor or ceiling of every level. To install the Firestop spacer in a flat ceiling or wall, cut a 11 inch (279mm) square hole. Frame the hole as shown in Diagram 3 and install the firestop.
Diagram 3
Regency P48-1 Zero Clearance Direct Vent Gas Fireplace 21
6) Continue to assemble pipe lengths.
Note: If an offset is necessary in the attic
to avoid obstructions, it is impor­tant to support the vent pipe every 3 feet (0.9 meter), to avoid exces­sive stress on the elbows, and possible separation. Wall straps are available for this purpose (Diagram 2).
Galvanized pipe is desirable above the roof­line due to its higher corrosion resistance. Continue to add pipe sections through the flashing until the height of the vent cap meets the minimum height requirements specified in Diagram 5 or local codes. Note that for steep roof pitches, the vertical height must be in­creased.
Page 22
INSTALLATION
INSTALLATION
PROCEDURES
for Regency Direct Vent
System (Flex)
1) Locate the unit in the framing, rough in the
gas (preferably on the right side of the unit) and the electrical (Junction block is on the left side) on the left. Locate the centerline of the termination and mark wall according­ly. Cut a 11"(279mm) hole in the wall (inside dimension).
Note: A top clearance of 2-1/2"(64mm)
and side & bottom clearance of 1-1/2"(38mm) must be maintained except that only a 1" (25mm) clear­ance is needed at the termination end. We recommend framing a 11"(279mm) x 11"(279mm) (inside dimensions) hole to give struc­tural rigidity for mounting the ter­mination.
Note: To make the installation more aesthetically pleas­ing, we recom­mend framing out a square to mount the terminal to.
4) Separate the 2 halves of the wall thimble
and securely fasten the one with the tabs to the outside wall making sure that the tabs are on top and bottom. Fasten the other thimble half to the inside wall. The thimble halves slip inside each other and can be adjusted for 2 x 4 or 2 x 6 walls. The liners
must slip over the collars a minimum of 1-3/8".
5) Slip the assembled liner and termination assembly through the thimble making sure the termination cap faces up (there are markings on the cap that show which way is up). This will position the termination cap with proper down slope for draining water. Fasten the cap to the outer wall with the 4 supplied screws.
6) Pull the centre 5"(127mm) liner and outer 8"(203mm) liner out enough to slip over the flue collars of the fireplace. (You may wish to cut the liner shorter to make it more workable.) Do not bend liner more than 90
7) Apply Mill Pac over the fireplace inner collar and slip the 5"(127mm) liner down over it and attach with 3 supplied screws.
8) Do the same with the 8"(203mm) liner.
9) Apply a bead of silicone between the thim-
ble and termination and around the outer edge of the terminal at the wall in order to keep the water out.
IMPORTANT: Do not locate termination hood where excessive snow or ice build­up may occur. Be sure to check vent termination area after snow falls, and clear to prevent accidental blockage of venting system. When using snow blowers, make sure snow is not directed towards vent termination area.
ASTROCAP XL
DIMENSIONS
o
.
Note: If installing termination on a siding
covered wall, furring strips must be used to ensure that the termi­nation is not recessed into the siding.
2) Level the fireplace and fasten it to the
framing using nails or screws through the nailing strips.
3) Assemble the vent assembly by applying Mill Pac to the 5"(127mm) inner collar of the termination and slipping the 5"(127mm) liner over it at least 1-3/8" (35mm). Fasten with the 3 screws (drilling pilot holes will make this easier). Apply Mill Pac or high temper­ature silicone to the 8"(203mm) flex pipe and slip it over the 8" outer collar of the vent terminal at least 1-3/8"(35mm) and fasten with the 3 screws.
NOTE: Horizontal sections must be sup-
ported at intervals not exceeding 3 feet (0.9 meter). (Flame picture and performance will be affected by sags in the liner).
22
Regency P48-1 Zero Clearance Direct Vent Gas Fireplace
Page 23
INSTALLATION
P48-NG1 System Data
For 0 to 4500 feet altitude
Burner Inlet Orifice Sizes: #27 Max. Input Rating 51,000 Btu/h
Min. Input Rating 29,000 Btu/h Supply Pressure min.5.0" w.c.
Manifold Pressure
(High) 3.8"+/- 0.2"w.c.
Log Set: Ceramic fibre, 8 per set. Vent System: Simpson Dura-Vent Direct
Vent System, Regency Flex Kit
P48-LP1 System Data
Conversion Kit# 370-969 For 0 to 4500 feet altitude
Burner Inlet Orifice Sizes: #47 Max. Input Rating 48,000 Btu/h Min. Input Rating 26,000 Btu/h
Supply Pressure min.12.0" w.c.
Manifold Pressure
(High) 11"+/- 0.2" w.c.
Log Set: Ceramic fibre, 8 per set. Vent System: Simpson Dura-Vent Direct
Vent System, Regency Flex Kit
HIGH ELEVATION
This unit is approved in Canada for altitude 0 to 4500 ft. (CAN1 2.17-M91).
For USA installations follow local codes and/or the current National Fuel Gas Code, ANSI Z223.1.
When using copper or flex connectors use only approved fittings. Always provide a union so that gas lines can be easily disconnected for servicing. Flare nuts for copper lines and flex connectors are usually considered to meet this requirement.
Important: Always check for gas leaks with a soap and water solution or gas leak detector. Do not use open flame for leak testing.
PILOT ADJUSTMENT

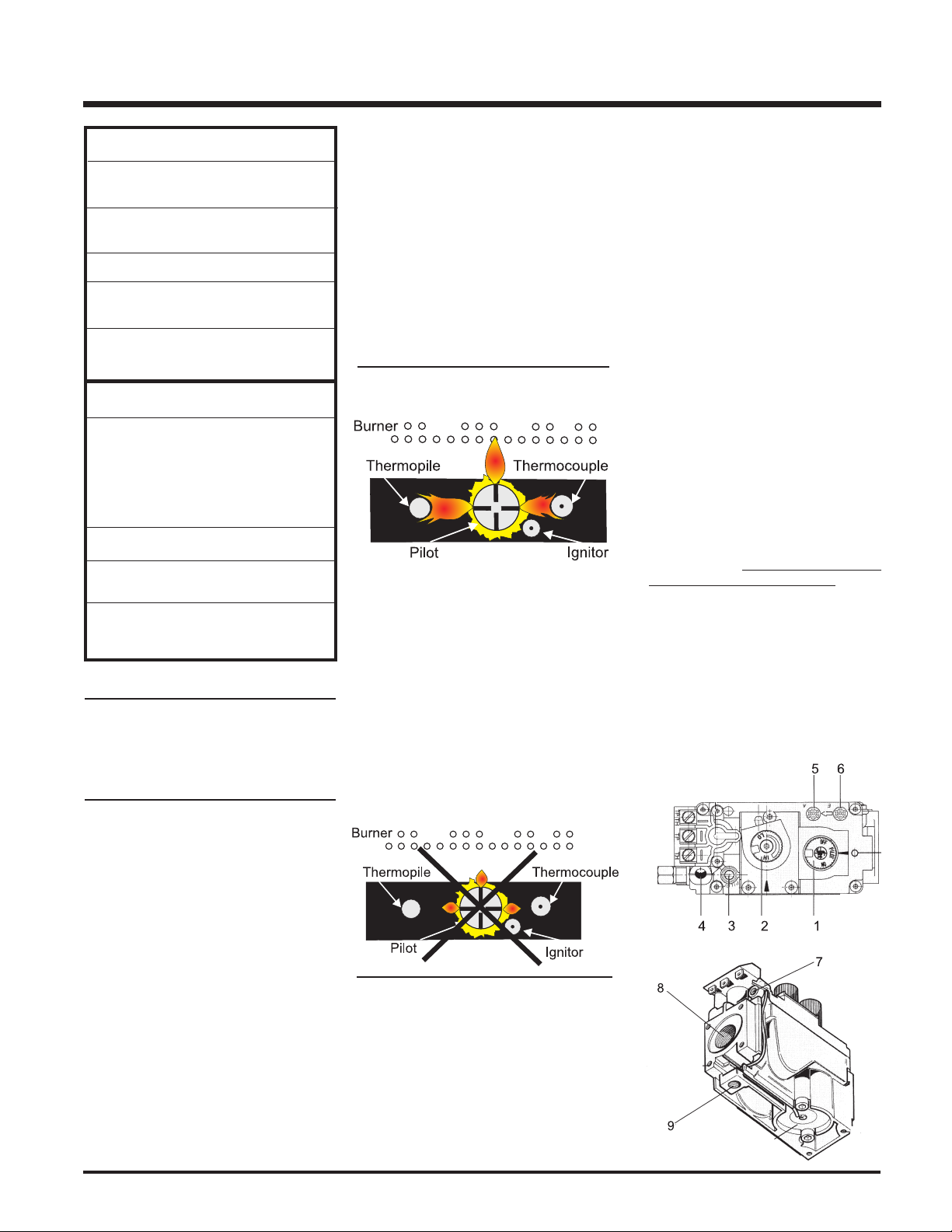

Periodically check the pilot flames. Cor­rect flame pattern has three strong blue flames: 1 flowing around the thermopile, 1 around the thermocouple and 1 flowing across the burner (it does not have to be touching the burner).
Note: If you have an incorrect flame pat-
tern, contact your Regency dealer for further instructions.
Incorrect flame pattern will have small, probably yellow flames, not coming into proper contact with the rear burner or thermopile or thermocouple.
The manifold pressure is controlled by a regu­lator built into the gas control, and should be checked at the pressure test point.
Note: To properly check gas pressure,
both inlet and manifold pressures should be checked using the valve pressure ports on the valve.
1) Make sure the valve is in the "OFF" position.
2) Loosen the "IN" and/or "OUT" pressure
tap(s), turning counterclockwise with a 1/8" wide flat screwdriver.
3) Attach manometer to "IN" and/or "OUT" pressure tap(s) using a 5/16" ID hose.
4) Light the pilot and turn the valve to "ON" position.
5) The pressure check should be carried out with the unit burning and the setting should be within the limits specified on the safety label.
6) When finished reading manometer, turn off the gas valve, disconnect the hose and tighten the screw (clockwise) with a 1/8" flat screwdriver. Note: Screw should be
snug, but do not over tighten.

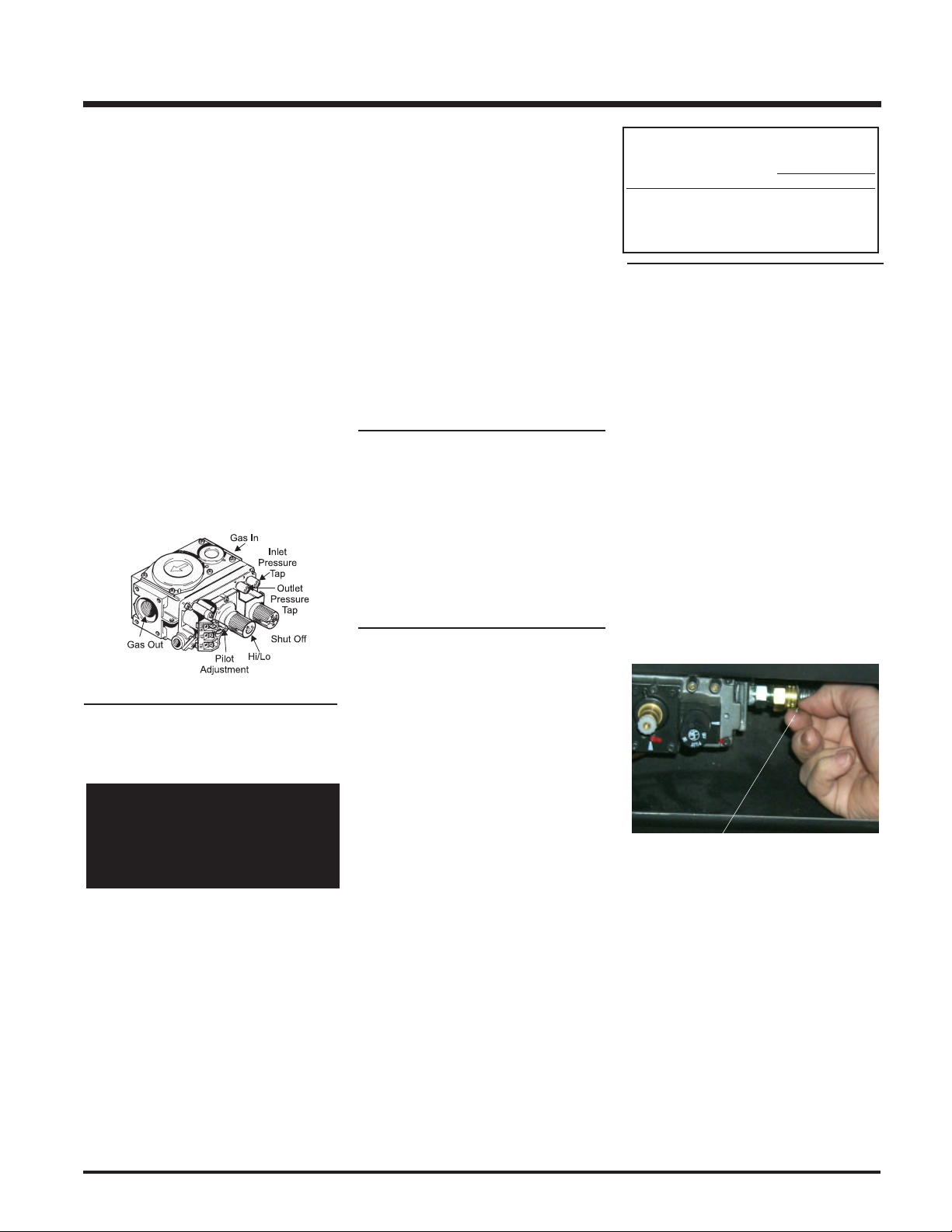

S.I.T. VALVE DESCRIPTION
1) Gas cock knob
2) Manual high/low adjustment
3) Pilot Adjustment
4) Thermocouple Connection - option
5) Outlet Pressure Tap
6) Inlet Pressure Tap
7) Pilot Outlet
8) Main Gas Outlet
9) Alternative TC Connection
Point
GAS LINE
INSTALLATION
The gas line can be brought through either the right, the left side or the bottom of the appliance. The gas valve is situated on the bottom of the unit.
The gas line connection may be made of rigid pipe, copper pipe or an approved flex connec­tor. (If you are using rigid pipe, ensure that the valve can be removed for servicing.) Since some municipalities have additional local codes it is always best to consult with your local authorities and the CAN/CGA B149 installation code.
Regency P48-1 Zero Clearance Direct Vent Gas Fireplace 23
GAS PIPE PRESSURE
TESTING
The appliance must be isolated from the gas supply piping system by closing its individual manual shut-off valve during any pressure testing of the gas supply piping system at test pressures equal to or less than 1/2 psig. (3.45 kPa). Disconnect piping from valve at pres­sures over 1/2 psig.
Page 24
INSTALLATION

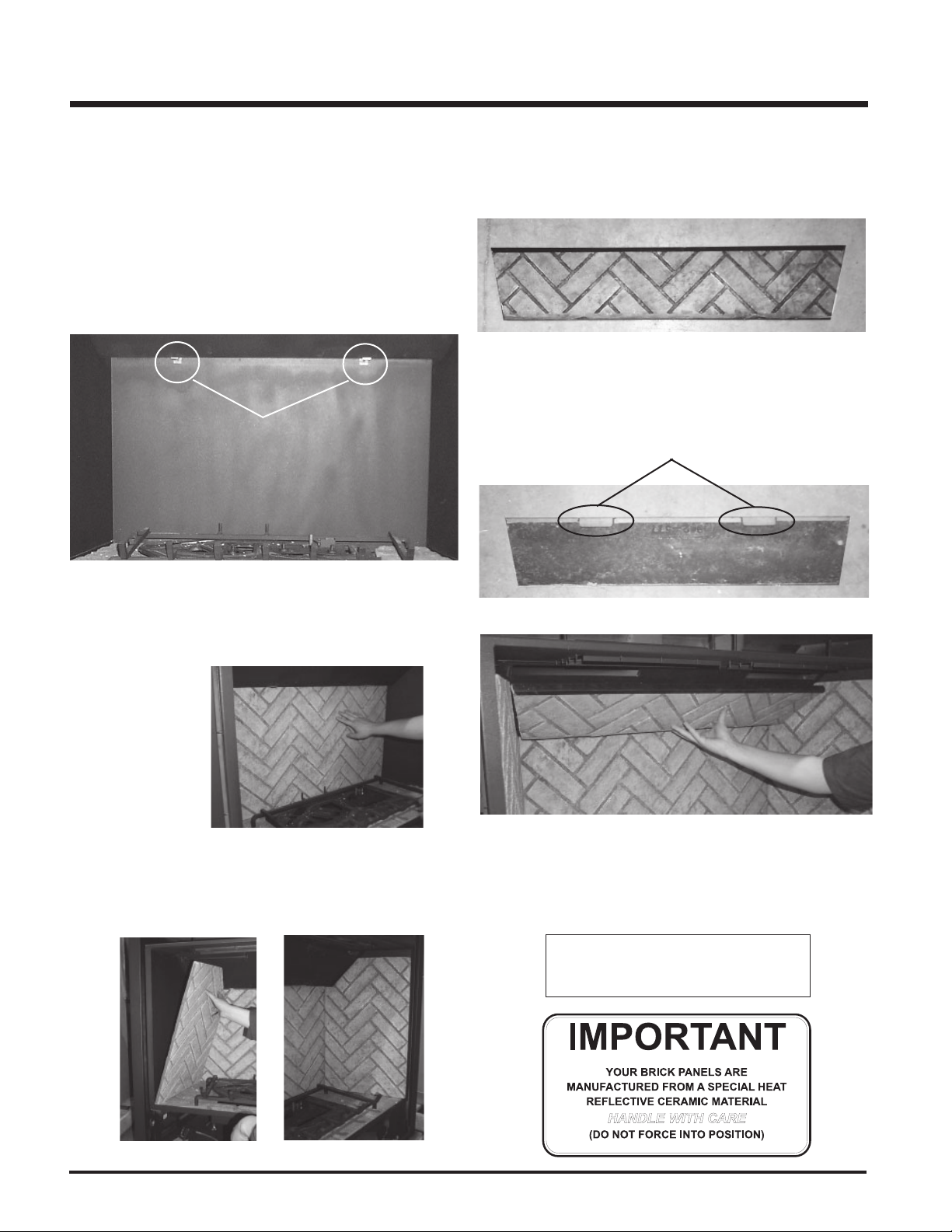

BRICK PANELS INSTALLATION
1) Unhook the 2 spring loaded hooks from the bottom of the flush door
and lift the Flush Front off the unit.
2) Unwrap the brick pattern panels from the protective wrapping.
Note: The logs must not be in the unit.
a) Loosen the two screws from the bottom of the
baffle plate. Install the bottom clips onto the baffle plate (refer to Diagram 1).
Bottom
Clips
Diagram 1
3) Insert the back brick panel first by carefully slipping it between the back wall of the firebox and the rear log bracket (refer to Diagram
2).
5) Place the top bracket onto the front edge of the top panel (refer to Diagram 5).
Top Bracket
Diagram 5
6) Slide the top panel and bracket assembly carefully onto the baffle plate ensuring the panel is centered. Make sure the tabs of the top bracket fit into the baffle openings (refer to Diagrams 6 & 7). The back of the top brick panel sits on top of the bottom clips.
Tabs
Diagram 6
Diagram 2
4) Put the side panels in next. Tilt them in towards the middle of the firebox and put the bottom front corner in first. Be very careful not to scratch them on the firebox hardware. Place them flat up against the wall, they should fit snugly against the top of the firebox (refer to Diagrams 3 & 4).
Diagrams 3 & 4
24
Diagram 7
NOTE: If the bottom brick panel must be removed: Remove the grate, then remove the Burner Tray. See instructions in manual.
IMPORTANT Dangerous operating conditions may occur if the panels are broken.
Regency P48-1 Zero Clearance Direct Vent Gas Fireplace
Page 25

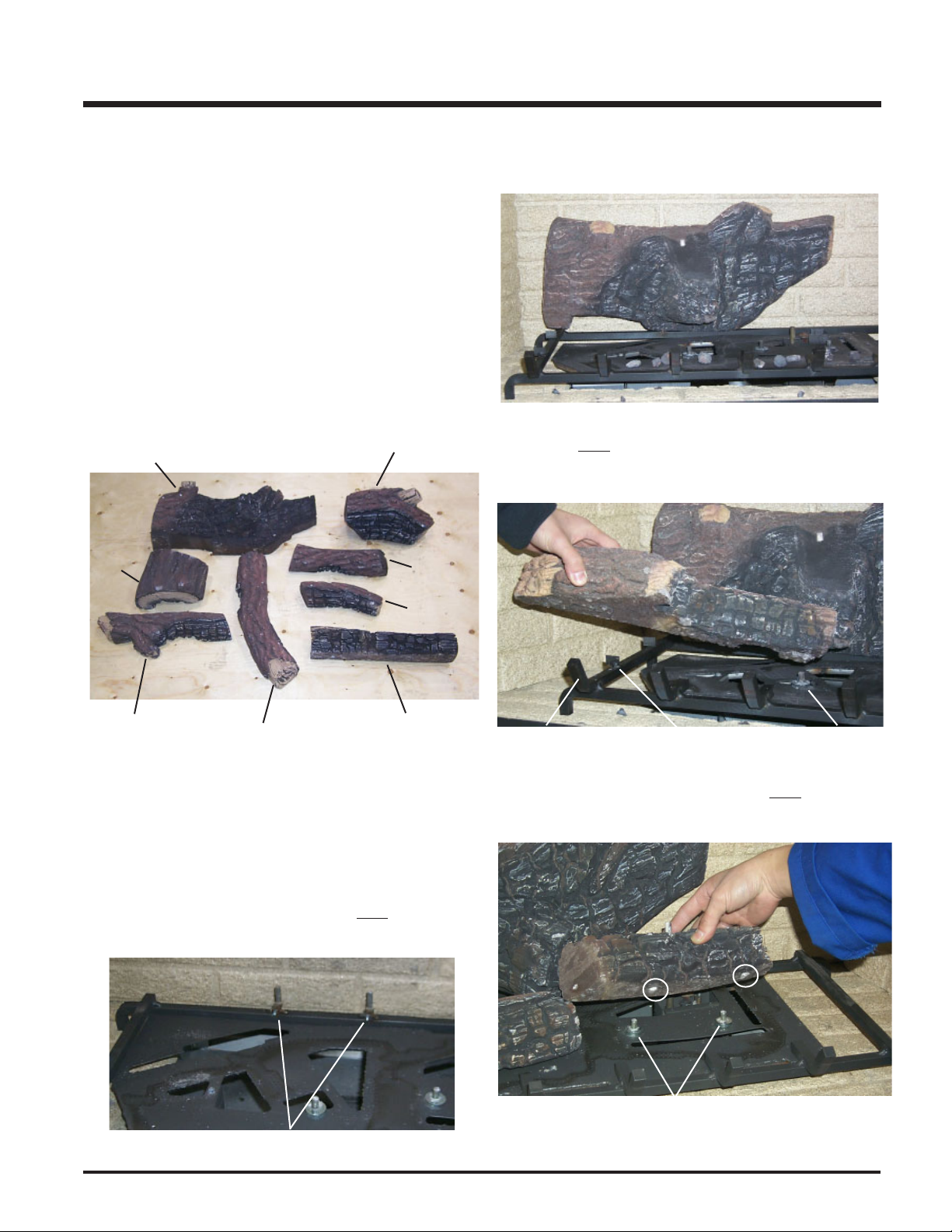

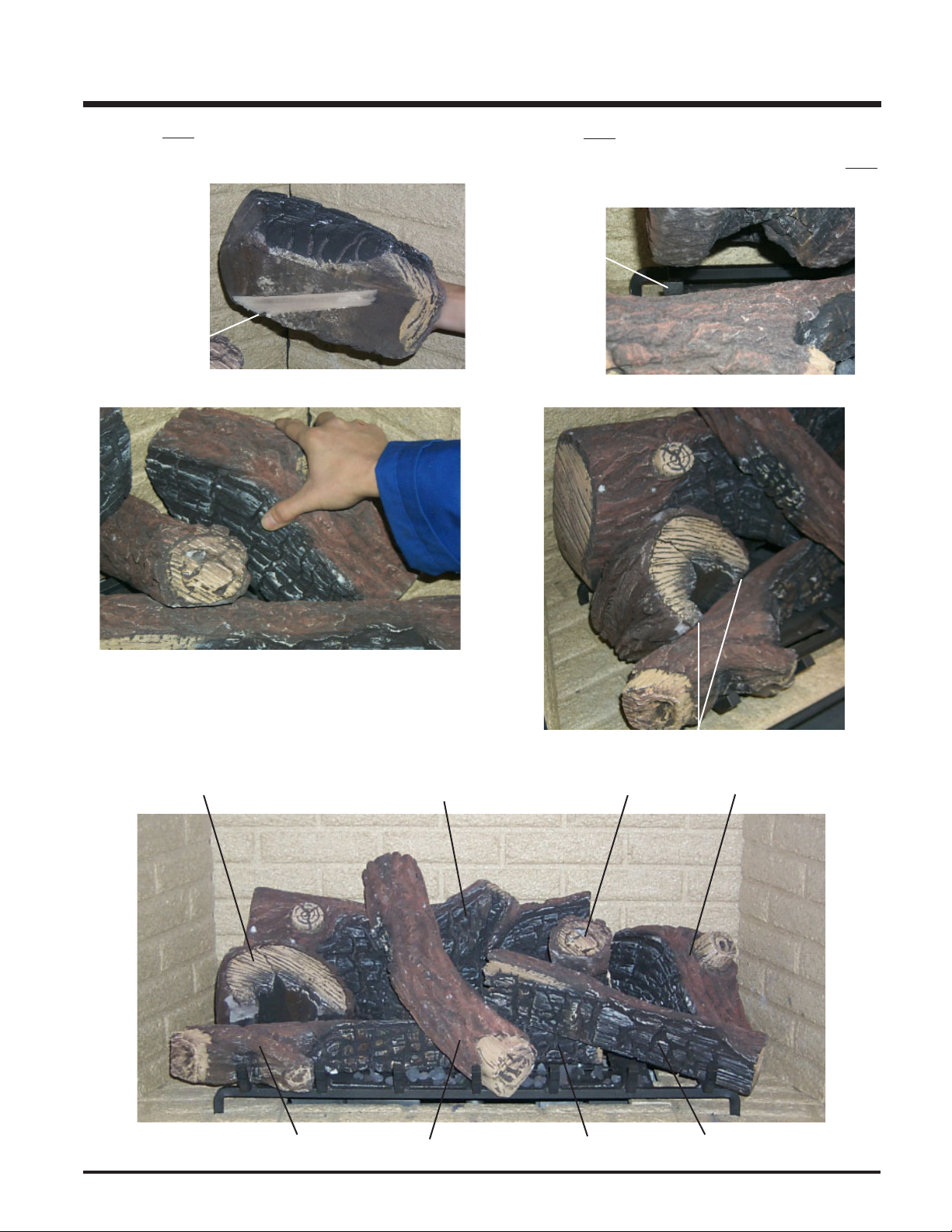

LOG SET INSTALLATION
Read the instructions below carefully and refer to the diagrams. If logs are broken do not use the unit until they are replaced. Broken logs can interfere with the pilot operation.
The gas log kit (Part # 370-930) contains the following pieces: a) 02-83 Center Cross Log 902-338
b) 02-84 Right Side Cross Log 902-339 c ) 02-85 Front Left Side Log 902-340 d) 02-86 Front Right Side Log 902-341 e) 02-87 Left Side End Log 902-342 f) 02-88 Rear Log 902-343 g) 02-89 Middle Right Side Log 902-344 h) 02-90 Right Side End Log 902-345 i) Embers (Lava) 902-154 h) Vermiculite 902-179
INSTALLATION
02-88
02-88
02-87
02-85
The "02" reference numbers (i.e. 02-83) are molded

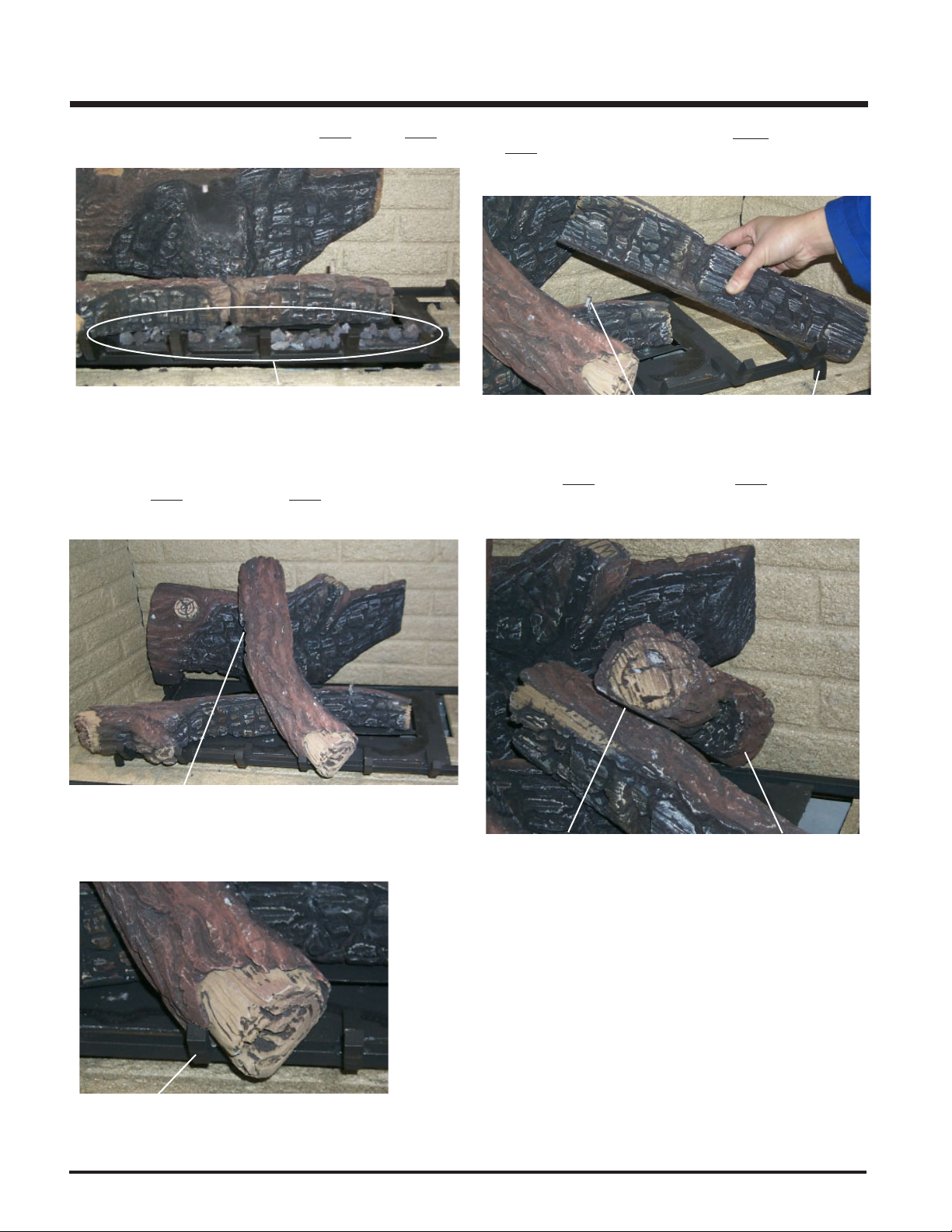

1) Carefully remove the logs from the box and unwrap them. The logs are fragile, handle with care - do not force into position.
2) Sprinkle the vermiculite all over the top of the base brick panel.
02-83
into the rear of each log.
02-90
02-89
02-86
02-84
4) Place Log 02-85 on the front left side of the burner. Position the right end of the log into the pin on the burner and rest the left end of the log between the 1st grate post and the front tab.
02-88
02-85
1st Grate Post
5) Line up the two holes on the underside of Log 02-86 with the 2 pins on the right side of the burner and position into place.
02-88
Tab
Pin
3) Line up the two holes on the underside of Log 02-88 with the 2 pins at the rear of the grate and position into place.
02-86
02-85
Pins
Pins
Regency P48-1 Zero Clearance Direct Vent Gas Fireplace 25
Page 26
INSTALLATION
6) Embers should be placed in front of Log 02-85 and Log 02-86.
02-85
Embers
CAUTION: DO NOT cover burner ports with embers.
7) Place Log 02-83 onto the pin in Log 02-88 and position the notch on the bottom of the log into the 4th grate post.
02-86
8) Line up the hole on the underside of Log 02-84 with the pin on Log 02-86 and position the notch on the bottom of the log into the last grate post.
02-88
02-84
02-86
02-83
Pin in Log
9) Place Log 02-89 against the notch in Log 02-84. Rest the notch at the end of the log against the grate.
Last Grate Post
02-85
Rest log onto the pin
in Log 02-88.
02-83
02-85
02-88
02-83
02-86
02-86
Notch
02-88
02-89
02-84
Rest notch at the end of
the log against the grate.
26
4th Grate Post
Position the notch on the bottom of
the log into the 4th grate post.
Regency P48-1 Zero Clearance Direct Vent Gas Fireplace
Page 27
INSTALLATION
10) Place Log 02-90 onto the right side of the grate. Position the cut-out on the underside of the log onto the grate bar.
02-90
Cut-out
on the underside of
the log.
02-90
02-89
11) Place Log 02-87 on the middle left side of the burner. Position the bottom rear of the log against the rear tab on the left side of the grate. Rest the front edge of the log in the notches on Log 02-85.
02-87
Tab
02-85
02-83
02-88
02-84
Position the cut-out onto the
grate bar.
02-87
02-88
02-87
02-89
02-85
Notches
02-90
02-85
Regency P48-1 Zero Clearance Direct Vent Gas Fireplace 27
02-83
02-86
02-84
Page 28
INSTALLATION
STANDARD
FLUSH DOOR

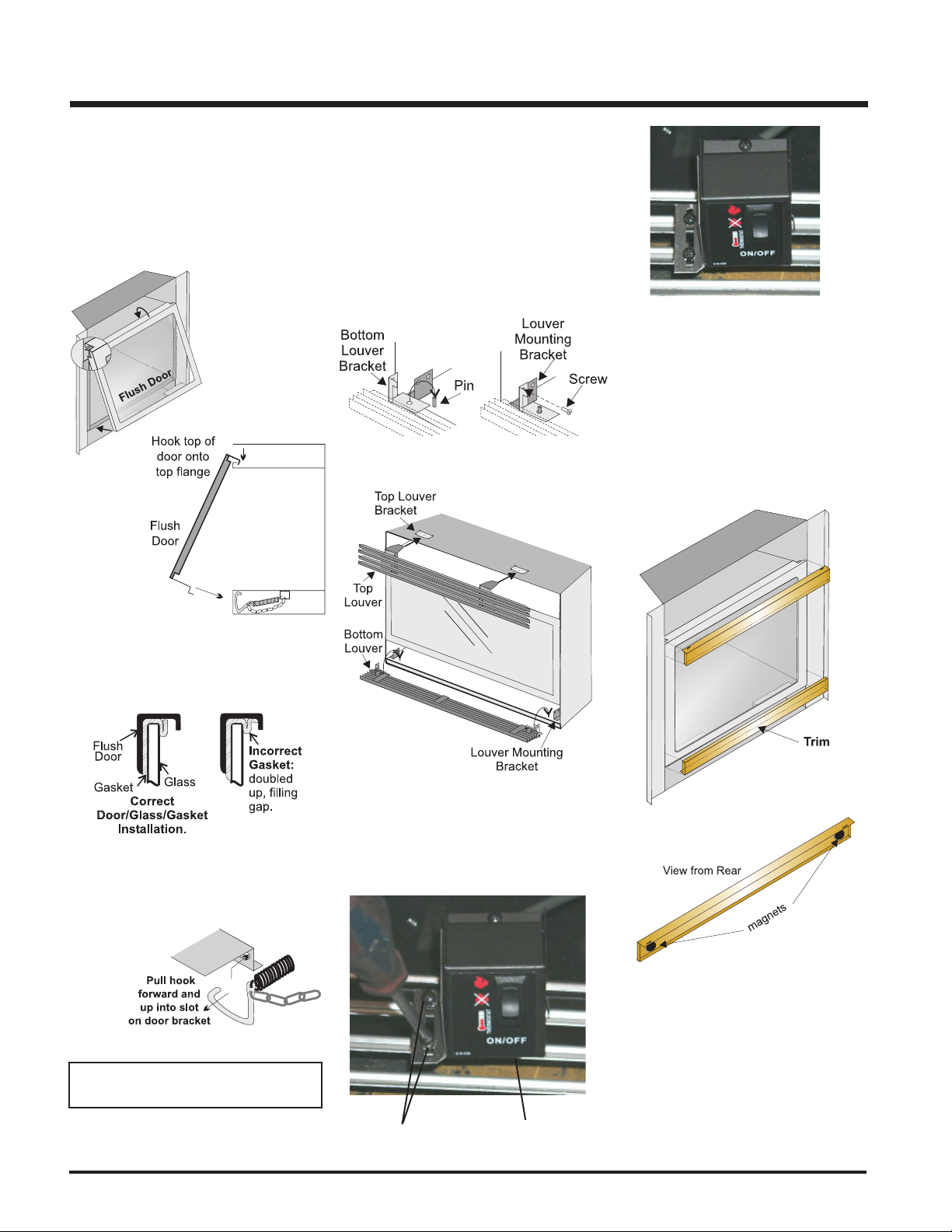

The standard flush door comes with a black
frame. To install the frame, simply hook the top door flange onto the top of the unit and swing the door towards the unit, diagram 1.
FLUSH LOUVERS
1) Install the top louver by sliding the two
bracket clips into the brackets located un­derneath the top of the firebox.
2) Install the bottom louver by folding the lou­ver down and then sliding the Bottom Lou­ver bracket down onto the 2 pins on the base of the unit (diagram 1). Secure with 1 screw as per diagram 2.
Diagram 1 Diagram 2
Burner ON/OFF control box attached to
bottom flush louver.
Optional Flush Trim
Attach the round magnets to the back of the top trim piece and to the bottom trim piece, then attach trim to the top and bottom of Flush door.
Diagram 1
Be careful that the glass gasket does not roll up; there must be a gap between the gasket and the door lip to ensure that the door sits securely on the unit. Diagram 2.
Diagram 2
Use the hook to pull the spring out until you can put the hook into the slot on the bottom door bracket. Repeat for 2nd and 3rd spring. See diagram 3.
Diagram 3
NOTE: Springs must always be OVER
not under the gas line.
Note: Top and bottom louvers are different.
3) Open the bottom louver. Pull the Burner ON/ OFF control box from inside the bottom of the fireplace. Using the 2 screws on the louver, secure the control box in place.
To remove the flush door, reverse the above steps.
28
Screws on
louver bracket
Burner ON/OFF
control box
Regency P48-1 Zero Clearance Direct Vent Gas Fireplace
Page 29
INSTALLATION

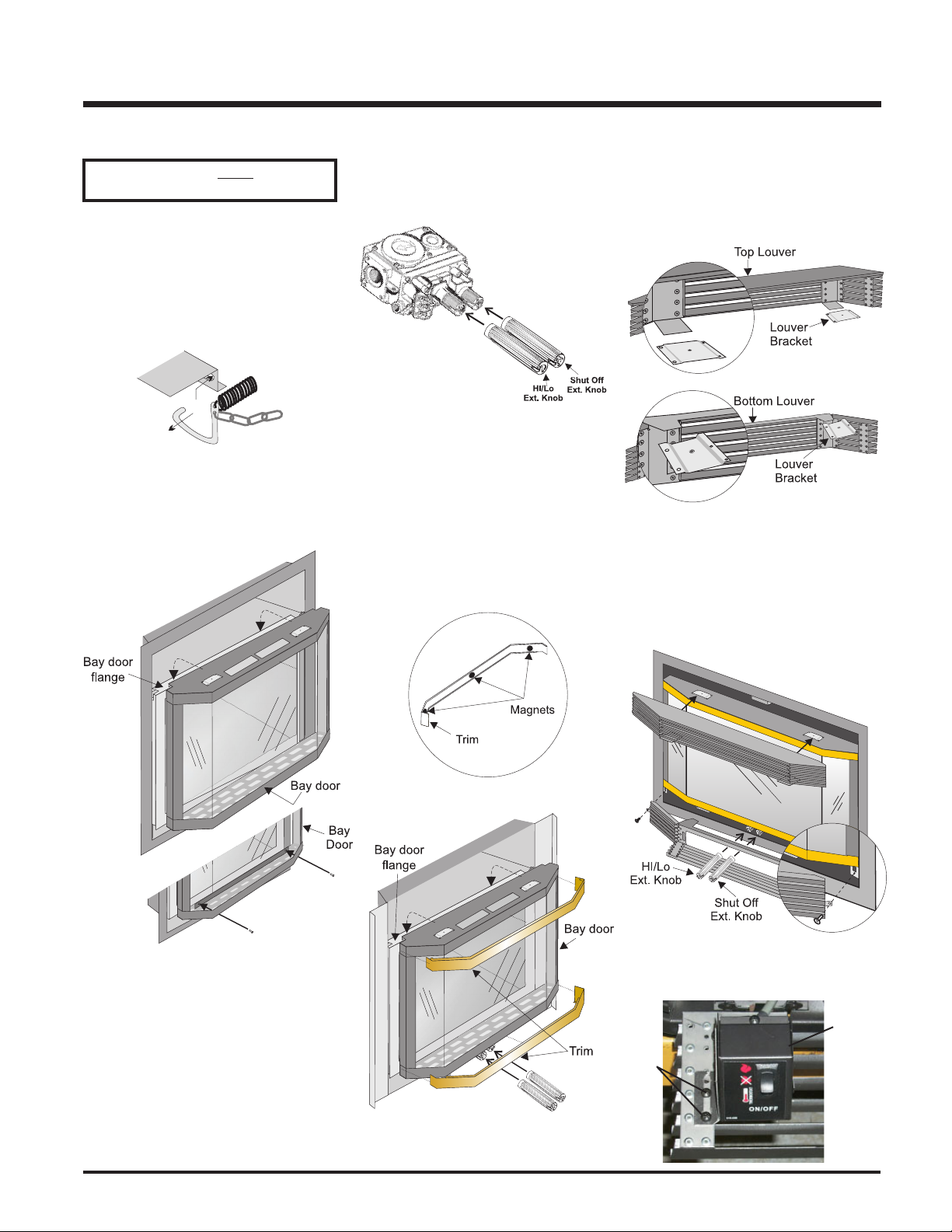

OPTIONAL BAY DOOR
The Bay louvers MUST be used
with the Bay glass option.
The optional Bay door is an overlay on the flush front. The standard flush door and glass
must remain on the unit.
1) Unhook the 2 spring loaded hooks from the bottom of the flush door.
2) Hook the top of the bay door over the flush door flange and swing the bottom against the bottom flange of the flush door.
4) Reconnect the 2 spring hooks securing the flush door.
5) Slide the valve extension knobs onto the valve knobs.
Note: If any maintenance etc. must be
done in the firebox, first remove the Bay louvers and door.
Optional Bay Trim
Attach the supplied magnets each to the back of the top and bottom trim pieces, and attach trim to the top and bottom of Bay door. See diagrams 3 and 4.
BAY LOUVERS
1) Install top louver by sliding the two bracket
clips into the brackets located on top of the bay door. See below. The fitted louver leaves a small gap between faceplate bottom and louver top.
Note: Top and bottom louvers and
brackets are different.
2) Install bottom louver by sliding the two
bracket clips into the brackets located un­derneath the bay door. Install bottom louver by sliding the two bracket clips into the brackets located underneath the bay door and secure with 1 screw on each end.
Diagram 3
3) Open the bottom louver. Pull the Burner ON/ OFF control box from inside the bottom of the fireplace. Using the 2 screws on the
3) Secure to the flush door bottom bracket with 2 screws provided.
Diagram 4
Regency P48-1 Zero Clearance Direct Vent Gas Fireplace 29
louver, secure the control box in place.
Screws
on louver
bracket
Burner
ON/OFF
control
box
Page 30
INSTALLATION

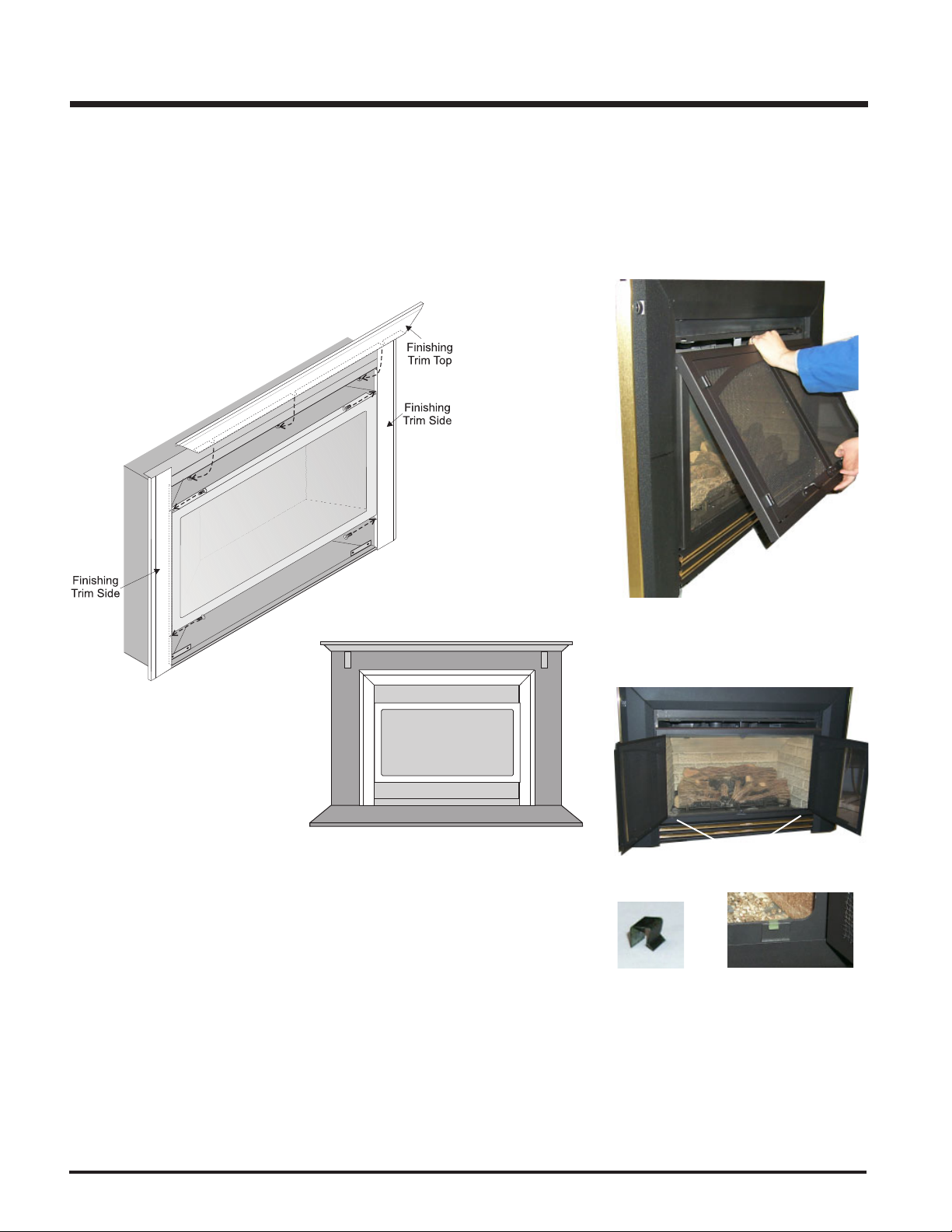

OPTIONAL FINISHING TRIM
NOTE: Remove both the Flush Louvers or Bay Louvers and the Flush Front or Bay Front prior
to installing the Finishing Trim.
1) Install the Finishing Trim sides as shown in the diagram, line up the holes in the side trim with the holes in the firebox side.
2) Secure with 2 screws per side.
3) Loosen the 3 screws in the top inside edge of the firebox.
4) Slide the Finishing Trim Top over the Side Trim pieces and fit the bottom bracket slots over the
screws. Tighten the 3 screws to secure.
DOUBLE SCREEN
DOOR
1) Pull out the top louver.
2) Center the screen door and hook over the
flush door.
3) Open the screen door(s) and secure the screen door to the flush door front with 2 clips on the bottom left and right side.
Clip locations
Clip installed on right side.
30
Regency P48-1 Zero Clearance Direct Vent Gas Fireplace
Page 31
INSTALLATION
OPTION 1:
REMOTE CONTROL
Can be used with Option 2 or 3
but not both.
Use the Regency Remote Control Kit approved for this unit. Use of other systems may void your warranty.
The remote control kit comes with a hand held transmitter, a receiver and a wall mounting plate.
1) Choose a convenient location on the wall to install the receiver and the receptacle box (protection from extreme heat is very im­portant). Run wires from the fireplace to that location. Use the Thermostat Wire Ta­ble.

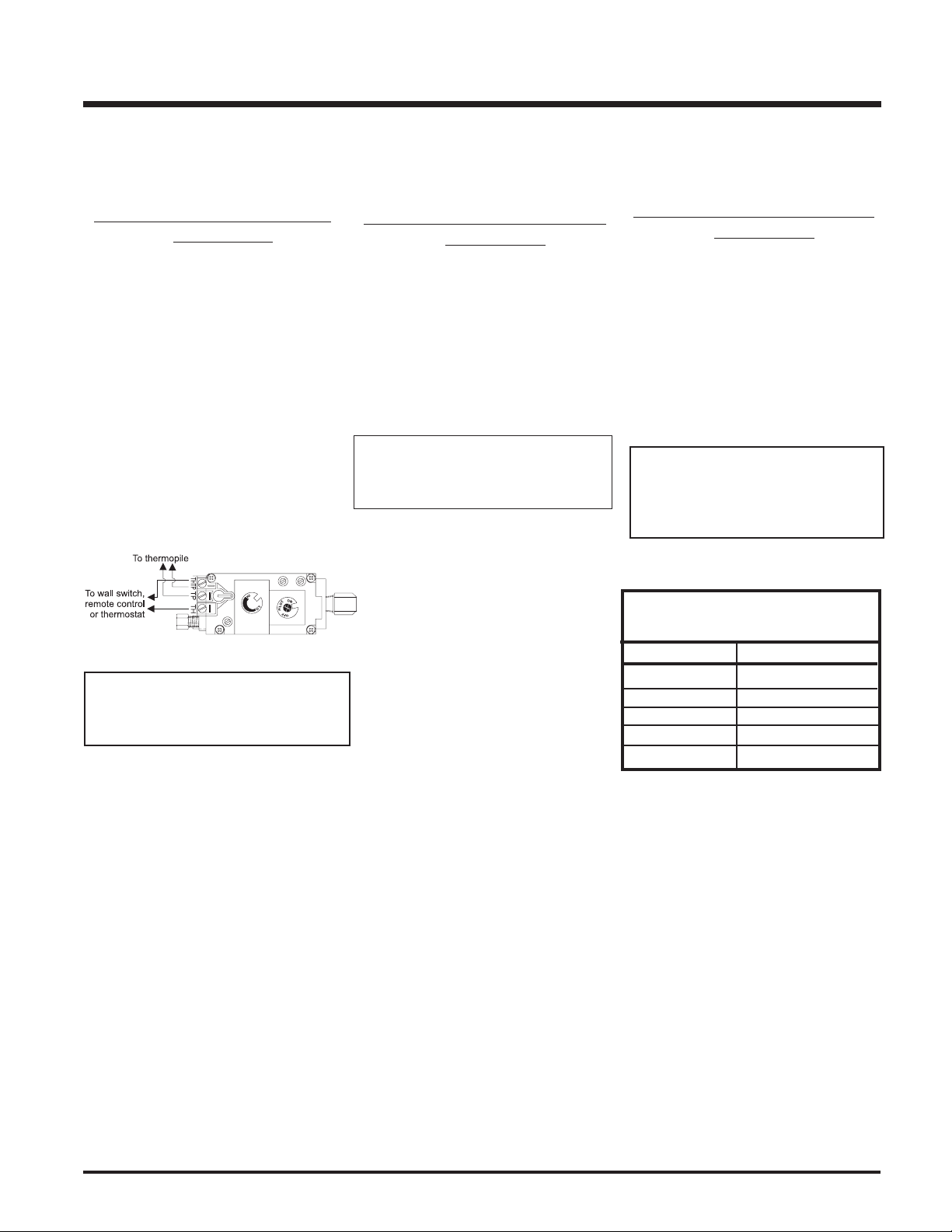

2) Connect the two wires to the gas valve. See diagram.
OPTION 2:
WALL SWITCH
Can be used with Option 1 or 3
but not both.
1) Run the supplied 15' of wire through the back gas inlet opening. Be careful not to damage wire.
Note: We recommend a maximum of 15'
of wire but if you wish to go with a longer run, use the Thermostat Wire Table.
2) Connect the wire to the supplied wall switch
and install into the receptacle box.
CAUTION
Do not connect millivolt
wall switch wire to a 120V wire.
OPTION 3:
WALL THERMOSTAT
Can be used with Option 1 or 2
but not both.
A wall thermostat may be installed if desired, connect the wires as per the wiring diagram on page 29. Use the table below to determine the maximum wire length.
Note: Preferable if the thermostat is in­stalled on an interior wall.
Regency offers an optional programmable ther­mostat but any 250-750 millivolt rated non­anticipator type thermostat that is CSA, ULC or UL approved may be used.
CAUTION
Do not connect millivolt
wall thermostat wires
to a 120V wire.
Thermostat Wire Table
CAUTION
Do not connect millivolt remote
control wires to a 120V wire.
3) Install 3 AAA alkaline batteries in transmitter
and 4 AA alkaline batteries in the receiver. Install the receiver and its cover in the wall. Switch the remote receiver to "remote" mode. The remote control is now ready for operation.
Recommended Maximum Lead Length
(Two-Wire) When Using Wall
Thermostat (CP-2 System)
Wire Size Max. Length
14 GA. 16 GA. 18 GA. 20 GA. 22 GA.
50 Ft. 32 Ft. 20 Ft. 12 Ft.
9 Ft.
Regency P48-1 Zero Clearance Direct Vent Gas Fireplace 31
Page 32
INSTALLATION
Ground
Green
Neutral
Live
Black Red Red
Fan Thermodisc
(normally open)
Ground
ON OFF
Rotary Speed
Control
120V AC 60 Hz
Fan
Lockwasher
Fan
ground wire
Nut
#8 Ground Lug
(for mobile home)
Star washer
Piezo Ignitor
To Thermocouple IN
Pilot
Assembly
H
I
L
O
O
F
F
O
N
P I
L
O
T
Gas Pilot
Thermopile
Thermocouple
Electrode
Remote Transmitter
(Optional)
ON OFF
Regency
Remote Receiver
or Thermostat
(Millivolt) (Optional)
Brown
Red
T-Stat
Black
White
"S.I.T" Valve
Burner
ON OFF
Thermostat
(To THTP)
(To TH)
White
Gas In

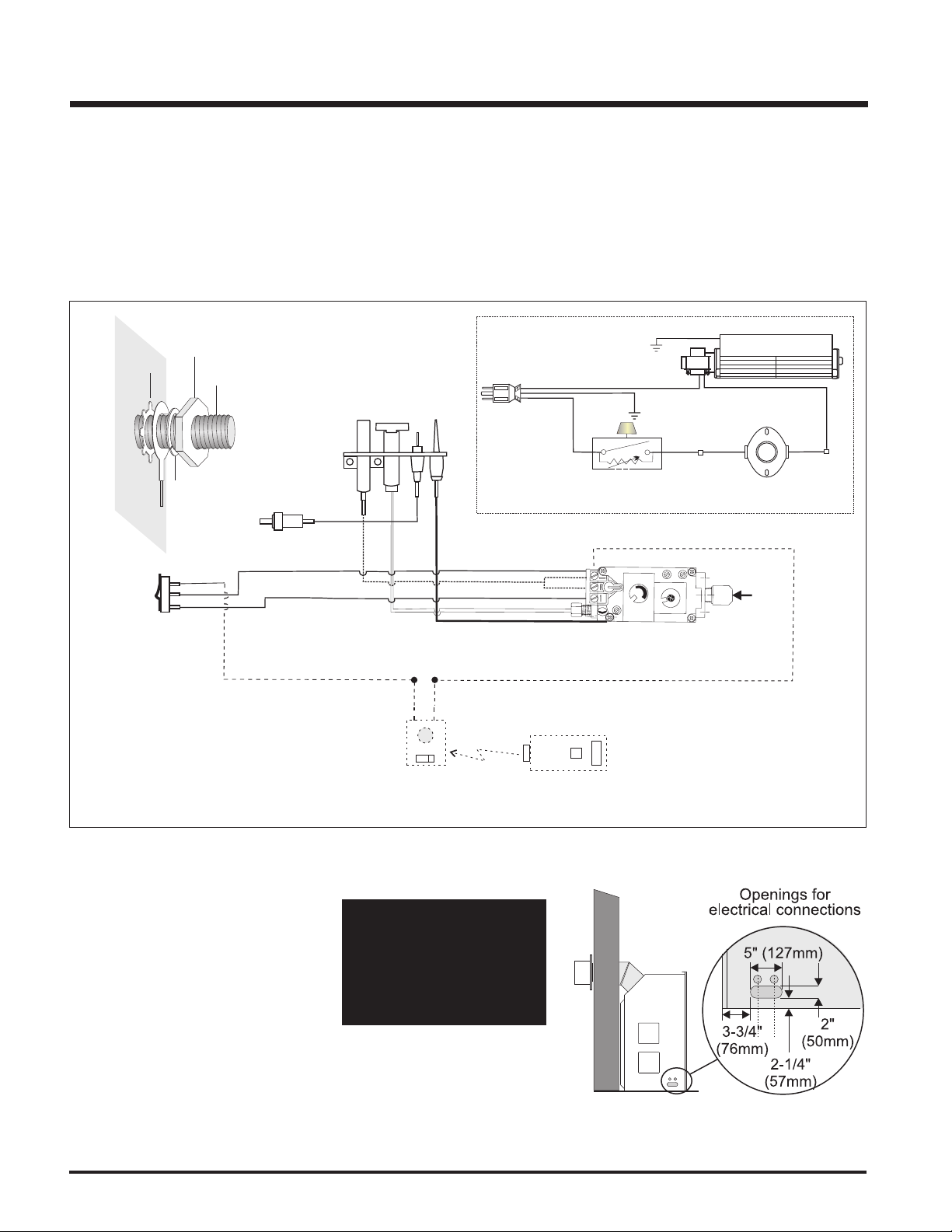

WIRING DIAGRAM
No electrical power supply is required for the gas control to operate. 120 Volt AC power is needed for the fan switch and blower. The fan can be hard wired if desired. A terminal block is provided on the left hand side of the unit. A three wire power cord can also be used and plugged into a suitable receptacle.
(Do not cut the ground terminal off under any circumstances.)
NOTE: Even if the fan is not purchased with the
unit, it is still a good idea to hardwire the terminal block in case the fan is installed at a later date.
** However DO NOT leave this connection live until the fan is installed.**
Caution: Ensure that the wires do not touch any hot surfaces and are away from sharp edges.
32
CAUTION: Label all wires prior to disconnection when servicing controls. Wiring errors can cause improper and dangerous operation.
Regency P48-1 Zero Clearance Direct Vent Gas Fireplace
Page 33

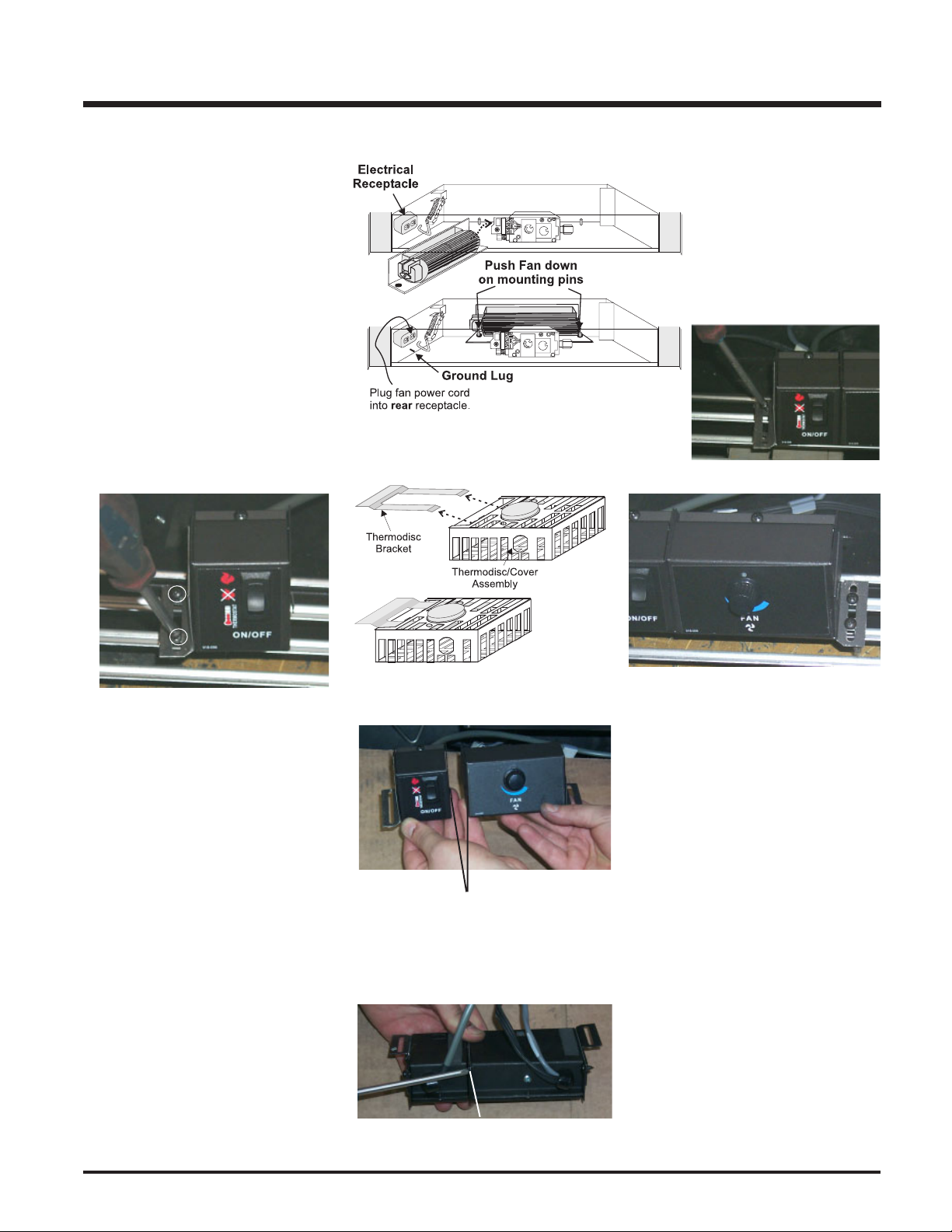

INSTALLING THE OPTIONAL FAN
120 Volt AC power is needed for the fan switch and blower. The fan can be hard wired if desired. The receptacle box should be installed on the left hand side of the unit by a qualified electrician. The neutral (wider) slot of the po­larized receptacle should be at the top.
Unit must be grounded at all times. Do not cut the ground terminal off under any circumstances.
1) Shut the power off.
2) Remove the standard flush door and the
optional bay door, if installed. Open the bottom louver door.
3) Remove the 2 screws holding the Burner ON/OFF switch and bracket to the bottom louver and lift the assembly out.
INSTALLATION
9) Attach the two control boxes to the bottom
louver and tighten the 2 screws on the left side and 2 screws on the right side.
Diagram 1
Secure left side with 2 screws.
4) Turn the fan base on its side (with the base facing towards you) and then slide the fan in towards the rear of the unit. Turn the fan upright and slip it over the two mounting studs. Take care not to damage the insula­tion on the fan base. Ensure that the fan
blades do not rub against the valve tubing. Diagram 1.
5) Connect fan ground cable to ground lug.
Refer to wiring diagram.
6) Slide the thermodisc/cover assembly into the bracket clip on the underside of the firebox. Check that no wire will touch the hot surfaces. Diagram 2.
7) Attach the Fan control box to the Burner ON/ OFF control box. Diagram 3.
Diagram 2
Diagram 3: Use the clip & hook on the side
of the control boxes to join them together.
8) Secure the two boxes together with one screw.
Secure the 2 boxes together
with one screw.
Secure right side with 2 screws.
10)Secure the fan wires and power cord by attaching one of the adhesive backed wire holder clips (Part #910-199) onto the stove base. Use the second clip to bundle up the wires approximately 4" from the control box. Ensure that there is no interference with the wires when the louver is closed and that no wire will touch the hot metal surfaces or sharp edges.
11)Plug the fan power cord into the rear end of the receptacle box to provide the maximum clearance from the louvers.
To Remove the Fan
1) Shut the power off.
2) Reverse the above instructions.
NOTE: The bearings are lubricated for life. Do not lubricate them. Make sure you vacuum the fan area on a regular basis.
IMPORTANT: These fans collect a lot of dust from within your home. Ensure you maintain these fan motors on a regular basis by vacuuming out the fan blades and hous­ing using a soft brush nozzle.
Regency P48-1 Zero Clearance Direct Vent Gas Fireplace 33
Page 34
INSTALLATION
CONVERSION KIT FROM NATURAL GAS TO PROPANE MODEL #370-969
FOR P48-1 USING SIT 820 NOVA GAS VALVE
THIS CONVERSION MUST BE DONE BY A QUALIFIED GAS FITTER
IF IN DOUBT DO NOT DO THIS CONVERSION !!
Conversion Kit Contains:
Qty. Part # D escription 1 910-018 SIT Conversion Kit-50%
Turndown LP 1 910-037 LP Injector (Pilot Orifice) 1 904-434 Burner Orifice #47 1 908-255 Decal "Converted to Propane" 1 908-529 5/32" Allen Key 1 918-032 Instruction Sheet

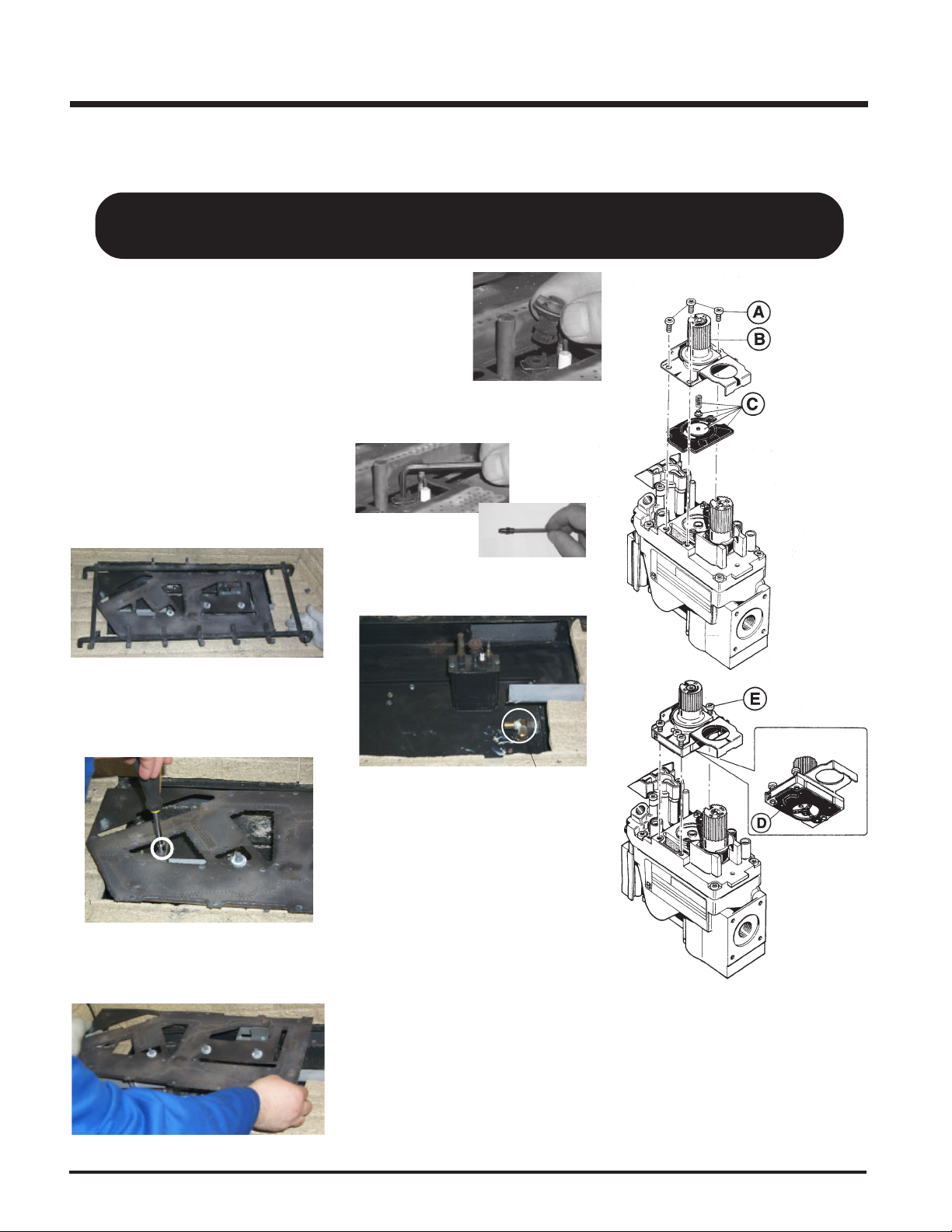

1) Remove the louvers and trim kit. Remove the
front door.
2) Remove the logs, embers.
3) Remove the grate by lifting straight up.
4) Remove the burner assembly by removing
the 1 Phillips head screw and then slide the burner assembly away from the orifice and lift out.
5) Pull off the pilot cap to expose the pilot orifice.
6) Unscrew the pilot orifice with the allen key and replace with the LP pilot orifice in the kit and replace pilot cap.
7) Remove burner orifice with a 1/2" wrench and discard. Use another wrench to hold on to the elbow behind the orifice.
Diagram 1: Remove the left screw and then slide the burner assembly away from the orifice and lift out.
34
Burner Orifice
8) Reinstall new burner orifice LP stamped #47 and tighten.
9) Remove and discard the 3 pressure regu­lator mounting screws (A), pressure regu­lator tower (B) and diaphragm (C).
10)Insure that the rubber gasket (D) is properly positioned and install the new HI/LO pres­sure regulator assembly to the valve using the new screws (E) supplied with the kit. Tighten screws securely.
11)Reverse steps 4) to 1).
12)Attach clear label "This unit has been con-
verted to Propane" near or on the serial # decal. Attach white label "This valve has been converted from NG to LPG using SIT conversion Kit Code 0.907.202" onto the valve.
13)Replace yellow "Natural Gas" label with red "Propane" label
Regency P48-1 Zero Clearance Direct Vent Gas Fireplace
14)Check for gas leaks.
15)Check inlet and outlet pressures.
16)Check operation of flame control.
17)Check for proper flame appearance and
glow on logs.
Page 35
OPERA TING INSTRUCTIONS
OPERATING
INSTRUCTIONS
1) Read and understand these instructions
before operating this appliance.
2) Check to see that all wiring is correct and enclosed to prevent possible shock.
3) Check to ensure there are no gas leaks.
4) Make sure the glass in the door frame is
properly positioned. Never operate the ap­pliance with the glass removed.
5) Verify that the venting and cap are unob­structed.
6) Ensure that the brick panels are installed.
7) Verify log placement. If the pilot cannot be
seen when lighting the unit, the logs have been incorrectly positioned.
8) The unit should never be turned off, and on again without a minimum of a 60 second wait.
3) Turn gas control knob counterclockwise so indicator points to the "PILOT" position. Depress the gas control knob fully. De­press the igniter button several times until the pilot lights. After approximately one minute, release the gas control knob. The pilot flame should continue to burn. If the pilot does not remain lit, repeat operation allowing a longer period before releasing gas control knob.
4) When the pilot stays lit, turn the gas knob further counterclockwise to the "ON" po­sition.
5) Use the wall switch, thermostat or remote control to turn on the unit.
6) Rotate the flame height regulator to adjust the flame height higher or lower.
SHUTDOWN
PROCEDURE
1) Use the wall switch, thermostat or remote
control to turn off the main burner.
2) Turn the main gas control clockwise to the "OFF" position to turn off the pilot.
3) Turn off all electric power to appliance if service is to be performed.
FIRST FIRE
During the first few fires, a white film may develop on the glass front as part of the curing process. The glass should be cleaned after the unit has cooled down or the film will bake on and become very difficult to remove. Use a non-abrasive cleaner and DO NOT ATTEMPT TO CLEAN THE GLASS WHILE IT IS HOT.
AERATION
ADJUSTMENT
The air shutter can be adjusted by moving the adjusting wire up or down. The wire is ac­cessed through the bottom louver opening. Open the air shutter for a blue flame or close for a more yellow flame. The burner aeration is factory set but may need adjusting due to either the local gas supply or altitude.
Minimum Air Shutter Opening: 3/16" Natural Gas Fully Open Propane
CAUTION: Carbon will be produced if air shutter is closed too much.
Note: Any damage due to carboning re-
sulting from improperly setting the aeration controls is NOT covered under warranty.
LIGHTING
PROCEDURE
IMPORTANT
To ignite or reignite the pilot,
you must first release the
tension springs below the door.
Only when the pilot holds, without pressure being applied to the control knob, reapply the tension springs to the door. The unit must not be operated with the tension springs unattached.
IMPORTANT Gas cock knob cannot be turned from "PILOT" to "OFF" unless it is partially depressed.
1) Turn burner OFF using "ON/OFF" switch.
2) Turn gas control knob so indicator points to
"OFF" position and allow 5 minutes for any gas in the combustion chamber to escape.
DO NOT BURN THE APPLIANCE WITHOUT THE GLASS FRONT IN PLACE.
The first fire in your stove is part of the paint curing process. To ensure that the paint is properly cured, it is recommended that you burn your fireplace for at least four (4) hours the first time before you use it with the fan on.
When first operated, the unit will release an odour caused by the curing of the paint, the burning off of any oils remaining from manu­facturing. Smoke detectors in the house may go off at this time. Open a few windows to ventilate the room for a couple of hours.
Note: When the glass is cold and the
appliance is lit, it may cause con­densation and fog the glass. This condensation is normal and will disappear in a few minutes as the glass heats up.
Adjustment Wire - Pull down to open or
push up to close aeration cap.
Closed - Tall yellow
Open - Short Blue
Note: Aeration Adjustment should only
be performed by an authorized Regency Installer at the time of installation or service.
Regency P48-1 Zero Clearance Direct Vent Gas Fireplace 35
Page 36
OPERA TING INSTRUCTIONS
NORMAL OPERATING
SOUNDS OF
GAS APPLIANCES
It is possible that you will hear some sounds from your gas appliance. This is perfectly normal due to the fact that there are various gauges and types of steel used within your appliance. Listed below are some examples. All are normal operating sounds and should not be considered as defects in your appliance.
Blower:
Regency gas appliances use high tech blow­ers to push heated air farther into the room. It is not unusual for the fan to make a "whirring" sound when ON. This sound will increase or decrease in volume depending on the speed setting of your fan speed control.
Burner Tray:
The burner tray is positioned directly under the burner tube and logs and is made of a different gauge material from the rest of the firebox and body. Therefore, the varying thicknesses of steel will expand and contract at slightly differ­ent rates which can cause "ticking" and "crack­ing" sounds. You should also be aware that as there are temperature changes within the unit these sounds will likely re-occur. Again, this is normal for steel fireboxes.
Copy of the Lighting Plate Instructions
Blower Thermodisc:
When this thermally activated switch turns ON it will create a small "clicking" sound. This is the switch contacts closing and is normal.
Pilot Flame:
While the pilot flame is on it can make a very slight "whisper" sound.
Gas Control Valve:
As the gas control valve turns ON and OFF, a dull clicking sound may be audible, this is normal operation of a gas regulator or valve.
Unit Body/Firebox:
Different types and thicknesses of steel will expand and contract at different rates resulting in some "cracking" and "ticking" sounds will be heard throughout the cycling process.
36
Regency P48-1 Zero Clearance Direct Vent Gas Fireplace
Page 37
MAINTENANCE
MAINTENANCE
INSTRUCTIONS
1) Always turn off the gas valve before
cleaning. For relighting, refer to lighting instructions. Keep the burner and control compartment clean by brushing and vacu­uming at least once a year. When cleaning the logs, use a soft clean paint brush as the logs are fragile and easily damaged.
2) Clean appliance and door with a damp cloth (never when unit is hot). Never use an abrasive cleaner. The glass should be cleaned with a gas fireplace glass cleaner.
The glass should be cleaned when it starts looking cloudy.
3) The heater is finished in a heat resistant paint and should only be refinished with heat resistant paint. Regency uses Stove­Bright Paint - Metallic Black #6309.
4) Make a periodic check of burner for proper position and condition. Visually check the flame of the burner periodically, making sure the flames are steady; not lifting or floating. If there is a problem, call a qualified service person.
5) The appliance and venting system must be inspected before use, and at least annual­ly, by a qualified field service person, to ensure that the flow of combustion and ventilation air is not obstructed.
Note: Never operate the appliance with-
out the glass properly secured in place.
2) Remove the Cap, and shine a flashlight
down the Vent. Remove any bird nests, or other foreign material.
3) Check for evidences of excessive con­densation, such as water droplets forming in the inner liner, and subsequently dripping out the joints, Continuous condensation can cause corrosion of caps, pipe, and fittings. It may be caused by having exces­sive lateral runs, too many elbows, and exterior portions of the system being ex­posed to cold weather.
4) Inspect joints, to verify that no pipe sections or fittings have been disturbed, and conse­quently loosened. Also check mechanical supports such as Wall Straps, or plumbers' tape for rigidity.
LOG REPLACEMENT
The unit should never be used with broken logs. Turn off the gas valve and allow the unit to cool before opening door and carefully remove the logs. (The pilot light generates enough heat to burn someone.) If for any reason a log should need replacement, you must use the proper replacement log. The position of these logs must be as shown in the diagrams under Log Installation.
Note: Improper positioning of logs may
create carbon build-up and will severely alter the unit's perform­ance which is not covered under warranty.
7) Drop the thermocouple or thermopile down
through the extrusion and pull it out of the unit.
8) Reinstall the new ones in reverse order.
GLASS GASKET
If the glass gasket requires replacement use a tadpole glass gasket (Part # 936-155).
GOLD-PLATED
LOUVERS
The 24 carat gold-plated finish on the louvers and trim requires little maintenance, and need only be cleaned with a damp cloth.
DO NOT use abrasive materials or chemical cleaners, as they may harm the finish and void the warranty.
Clean any fingerprints off before turning the unit on.
6) Do not use this appliance if any part has
been under water. Immediately call a qual­ified service technician to inspect the ap­pliance and to replace nay part of the control system and any gas control which has been under water.
7) In the event this appliance has been serv­iced check that the vent-air system has been properly resealed & reinstalled in accordance with the manufacturer's in­structions.
8) Verify operation after servicing.
General Vent Maintenance
Conduct an inspection of the venting system semiannually. Recommended areas to inspect as follows:
1) Check the Venting System for corrosion in areas that are exposed to the elements. These will appear as rust spots or streaks, and in extreme cases, holes. These com­ponents should be replaced immediately.
Regency P48-1 Zero Clearance Direct Vent Gas Fireplace 37
1) Open the Bottom Louvers or Grills. Remove
2) Open and remove door.
3) Remove log set and embers.
4) Remove grate and burner.
5) Disconnect thermocouple by loosening nut
6) Remove 2 screws from the pilot assembly
THERMOPILE/
THERMOCOUPLE
the Top Louver or Grill.
from the valve with a 9mm wrench. Discon­nect thermopile by loosening 2 screws marked TP on the valve.
and pull up far enough to be able to loosen the thermocouple or thermopile with a 7/16" wrench. NOTE: the pilot line is very fragile, use caution when pulling it up.
Page 38
MAINTENANCE
DOOR GLASS
Your Regency fireplace is supplied with high temperature 5mm-Ceramic glass. If your glass requires cleaning, we recommend using an approved glass cleaner available at all author­ized dealers. Do not use abrasive materials.
CAUTION & WARNINGS:
* Do not clean when the glass is hot. * The use of substitute glass will void all product warranties. * Care must be taken to avoid breakage of the glass. * Do not strike or abuse the glass. * Do not operate this fireplace without the glass front or with a cracked or broken glass front. * Wear gloves when removing damaged or broken glass. * Replacement of the glass panel(s) should be done by a licensed or qualified service per son.
GLASS REPLACEMENT
In the event that you break your glass by impact, purchase your replacement from an authorized Regency dealer only.
Bay Glass Replacement
1) Remove the door from the unit and place on
a soft surface to prevent scratching.
2) Remove the nuts holding the glass clips in place and remove.
3) Replace the glass. The glass must have gasketing around it.
INSTALLING VALVE
1) Attach the valve to the valve bracket with
the 4 (m5x8 metric) screws provided.
2) Reconnect the "gas out" flare fitting with an 11/16" wrench.
3) Reconnect the "gas out" flare nut with a 13/ 16" wrench.
4) Install piezo ignitor push button assembly and reconnect wire.
5) Reconnect the quick drop out thermocouple nut with a 9mm wrench.
6) Reconnect the pilot tube nut with a 7/16" wrench.
7) Scrape off the old gasket from the floor of the firebox and from the valve tray assem­bly.
8) Install a new gasket and reinstall the valve tray assembly.
Note: Failure to install a new gasket
may severely affect the appliance performance.
Replacement glass is shipped already installed into the door frame. Reinstall as per Glass Door Installation on page 28.
CAUTION: Wear gloves when re­moving damaged or broken glass.
WARNING: Do not operate the appliance with the glass panels removed, cracked or broken. Re­placement of the glass panels should be done by a licensed or qualified service person.
4) Reverse the previous steps, replace the
glass clips and fasten with the nuts but do not over tighten, as this can break the glass.
5) Replace door on the stove and check the seal.
9) Reinstall the 10 hold down screws.
10)Hook up the 2 TP and 2 TH wires to the
appropriate connections on the valve.
11)Reinstall the two bottom deflectors and brick panels.
12)Install burner and grate assembly.
13)Hook up the gas line and check for gas leaks
with a soap and water solution or a gas leak detector. (Do not use open flame for leak testing.)
14)Fire up the unit temporarily.
15)Check the manifold pressure.
16)Reinstall the logs and brick panels as need-
ed.
17)Close the door and replace the louvers.
18)Fire up the unit again and check for proper
flame appearance and glow on logs.
38
Regency P48-1 Zero Clearance Direct Vent Gas Fireplace
Page 39
MAINTENANCE

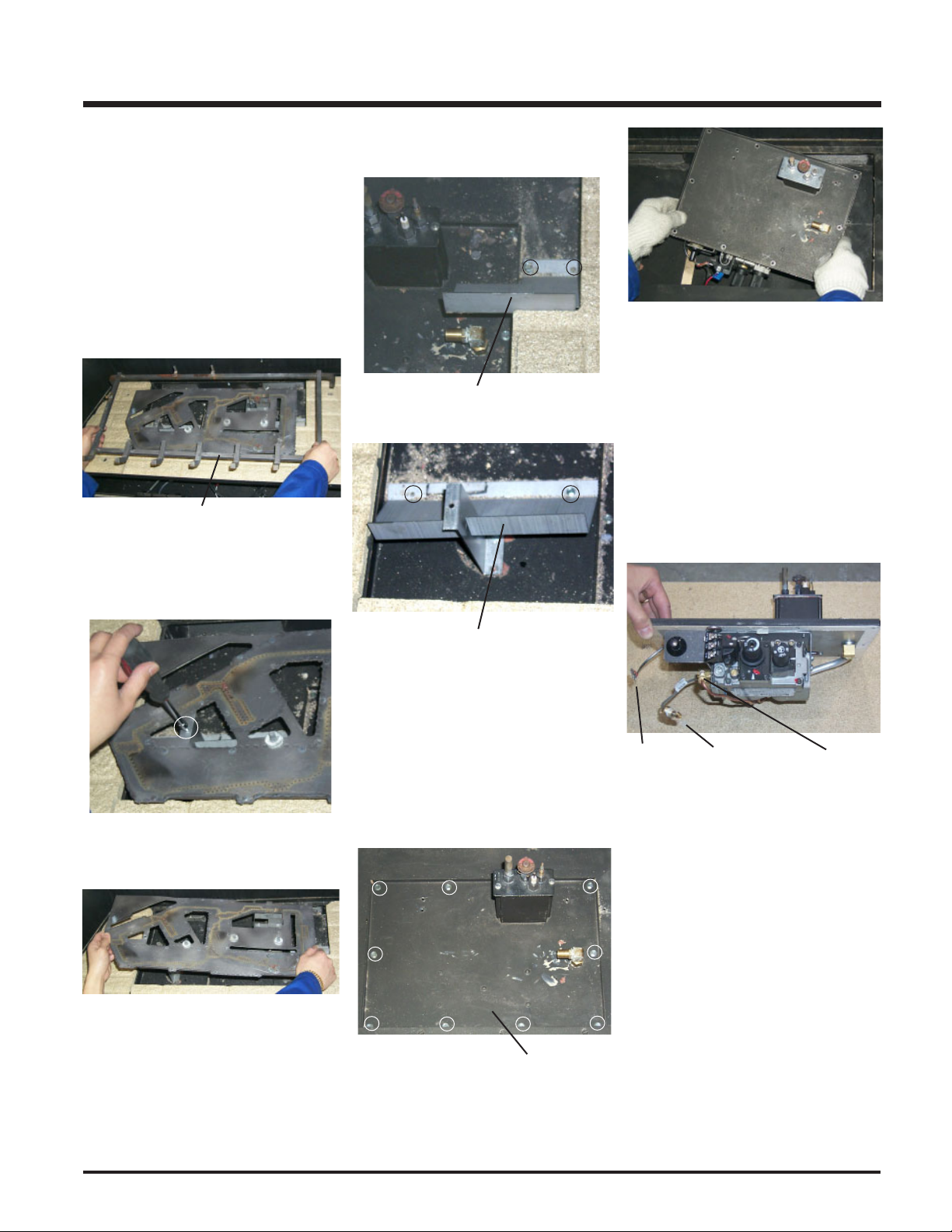

REMOVING VALVE
1) Shut off the gas supply.
2) Remove the louvers (and bay door if it has
been installed).
3) Open the flush door and remove the door.
4) Remove the logs and side brick panels, if
installed.
5) Remove the grate by lifting up and out.
Grate
6) Remove the burner by removing the screw on the left side and then slide the burner to the left and lift out.
7) Remove the right and left side deflectors by removing the 2 screws on each deflector.
Right Side
Deflector
Lift entire valve tray
assembly out.
11)Disconnect the 2 TP wires and the 2 TH wires from the valve.
12)Undo the pilot tube from the valve with a 7/ 16" wrench.
13)Undo the quick drop out thermocouple nut on the valve with a 9mm (metric) wrench.
14)Remove the Piezo igniter wire and push button assembly.
Remove the screw on the left
side of the burner.
Slide the burner to the left and lift out.
Left Side
Deflector
8) Remove the base brick panels.
9) Disconnect the inlet gas line.
10)Remove the 10 Phillips head screws secur-
ing the valve tray assembly in place and then lift the entire assembly out.
Valve Tray Assembly
Thermopile
Wire
15)Undo the "gas out" flare nut with a 13/16" wrench.
16)
Undo the "gas out" flare fitting with an 11/ 16" wrench.
17)Remove the 4 Phillips head screws from the sides of the valve bracket and remove valve.
Hint: If you are using black pipe, ensure
Thermocouple
Wire
that there is a union by the valve, otherwise removal will be almost impossible.
Pilot Nut
Regency P48-1 Zero Clearance Direct Vent Gas Fireplace 39
Page 40
PARTS LIST
P48-1 MAIN ASSEMBLY
Part # Description Part # Description
1) 948-259 Door Handle
3) 948-046 Chain
4) 948-115 Spring
6) 430-129 Receptacle Box Mount
7) 910-429 Box - Receptacle
8) 910-428 Duplex Receptacle
9) 910-430 Cover - Receptacle
10) 904-687 Clamp Connector
20) 370-037 Top Nailing Strip
21) 370-038 Side Nailing Strip
22) 370-015 Baffle Plate
23) 780-011 Standoff - Top
24) 780-013 Standoff - Side/Back
27) * Outer Flue Collar
28) * Inner Flue Collar Assy
29) * Flue Mounting Plate
30) * Gasket for Flue Collar
35) * Thermodisc Bracket
38) 910-241 Switch - Burner ON/OFF(3-way) 910-899 Wire Harness-Valve to Burner
432-917 Fan & Speed Control Assy (120 Volts) Optional
42) 910-331/P Fan Motor 432-966 Fan Switch Assy (120 Volts) Optional
43) 910-813 Power Cord (120 Volts)
46) 910-330 Fan Speed Control Switch
47) 904-586 Knob - Speed Control
48) 910-199 Wire Holder Clip
49) 910-142 Thermodisc - Fan (Auto ON/OFF) 910-845 Wire Harness - Plug In Fan
51) 902-331 Brick Panel - Base Center
52) 902-332 Brick Panel - Base Left
53) 902-333 Brick Panel - Base Right 370-928 Brick Panel Set - Standard
54) 902-334 Brick Panel - Back
55) 902-335 Brick Panel - Left
56) 902-336 Brick Panel - Right
57) 902-582 Brick Panel - Top 370-945 Herringbone Brick Panel Set
902-364 Herringbone Brick Panel - Back 902-365 Herringbone Brick Panel - Left 902-366 Herringbone Brick Panel - Right 902-583 Heringbone Brick Panel - Top
370-901 Brick Panel Set - Standard Brown 370-902 Brick Panel Set - Standard Red 370-903 Brick Panel Set - Herringbone Brown 370-904 Brick Panel Set - Herringbone Red
946-556 Optional Heat Wave Duct Kit
89) 946-004 Junction Box
90) 946-000 Round Duct Adaptor
91) 946-002 Round to Oval Adaptor
92) 946-001 Oval Duct Adaptor
93) 946-007 Angle Bracket
94) 946-517/P Fan Assembly - HeatWave Option
95) 946-006 Grill Plate - White
96) 946-005/01 Wall Adaptor Plate - White
97) 910-417 Knob - White
98) 910-366 Switch Cover Plate - White
99) 910-412 Fan Speed Controller
100) 910-367 Box - Plastic Switch Receptacle
101)690-022 Cover Plate - Outer Box Side
102)946-010 Flexible Air Duct 946-011 Insulation 6" dia. x 24"
50) 770-994 Optional Dura-Vent Adaptor
40
946-570 Heat Release Duct Kit (Optional)
105) 910-165 Fan (120 Volts)
106)946-000 Flexible Air Release Duct 370-969 Conversion Kit - NG to LP 918-458 Manual
*Not available as a replacement part.
Regency P48-1 Zero Clearance Direct Vent Gas Fireplace
Page 41

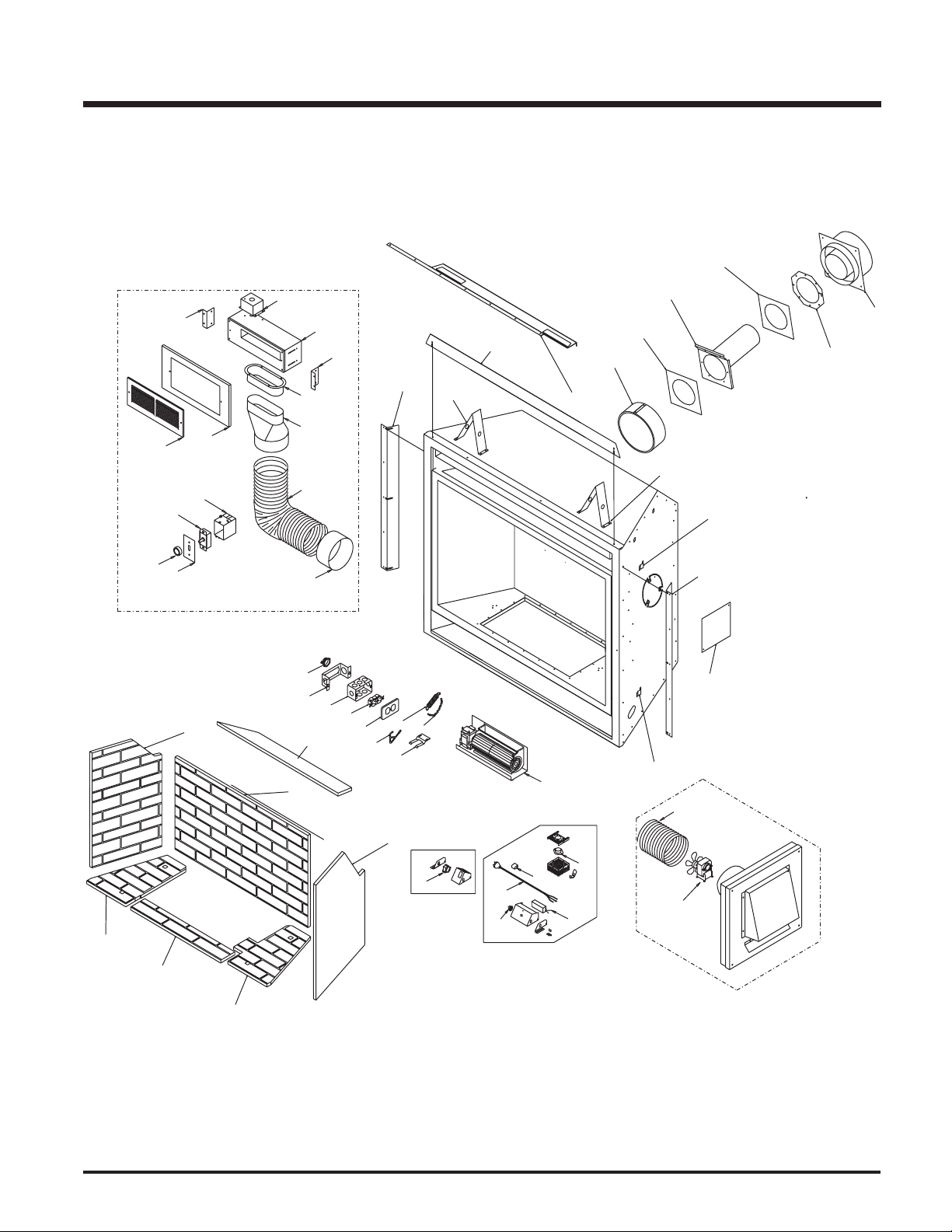

HEAT RELEASE DUCT KIT
42
48
49
46
24
105
106
101
20
21
21
24
27
30
28
30
29
50
23
23
22
97
98
100
99
95
96
93
89
92
90
102
91
93
94
47
38
43
35
4
3
1
8
7
9
10
6
HEAT WAVE DUCT KITHEAT WAVE DUCT KIT
DOORS & LOUVERS PLEASE REFER SEPARATE SECTION
51
52
53
54
56
55
57
PARTS LIST
Regency P48-1 Zero Clearance Direct Vent Gas Fireplace 41
Page 42
PARTS LIST

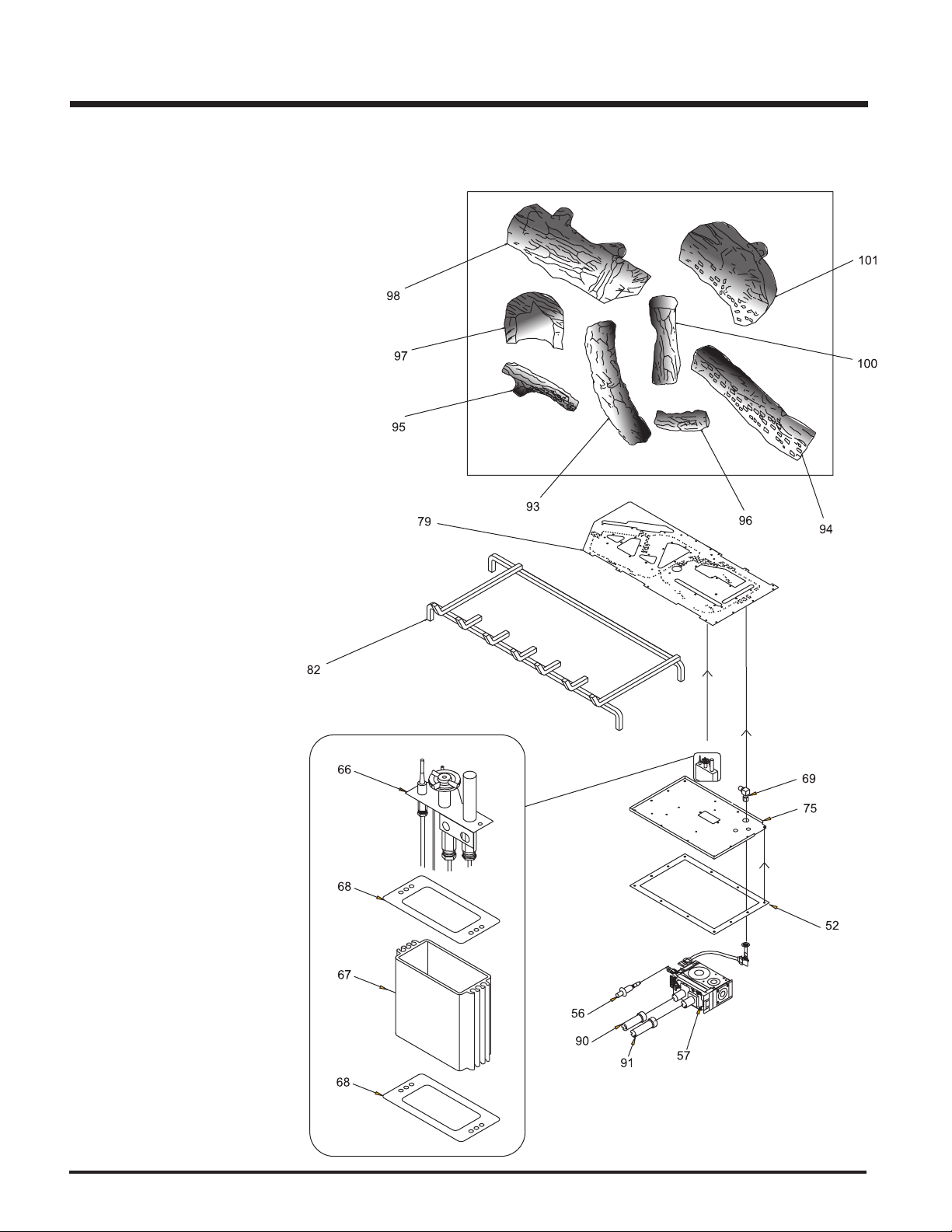

P48-1 BURNER & LOG ASSEMBLY
Part # Description
370-574/P Valve Assembly - Natural Gas 370-576/P Valve Assembly - Propane
52) * Gasket - Valve Access Plate
56) 910-190 Piezo Ig nito r & Nut
57) 910-378 Valve S.I.T. - Natural Gas 910-380 Valve S.I.T. - Propane
66) 910-038 Pilot Assy - S.I.T. - 3 Flame NG 910-039 Pilot Assy - S.I.T. - 3 Flame LP
67) * Pilot Holder
68) W840470 Pilot Assembly Gasket
69) 904-662 #27 Orifice - N.G. 904-434 #47 Orifice - Propane 936-170 Orifice Gasket
75) * Valve Access Plate
79) 370-535 Burner Assembly
82) 370-019 Burner/Grate Assembly
90) 910-421 Pilot ON/OFF Extension Knob (with Bay Front)
91) 910-422 HI/LOW Extension Knob (with Bay Front) 370-930 P48-1 Log Set
93) 902-338 Center Cross Log
94) 902-339 Right Side Cross Log
95) 902-340 Front Left Side Log
96) 902-341 Front Right Side Log
97) 902-342 Left Side End Log
98) 902-343 Rear Log
100) 902-344 Middle Right Side Log
101) 902-345 Right Side End Log
*Not available as a replacement part.
42
Regency P48-1 Zero Clearance Direct Vent Gas Fireplace
Page 43

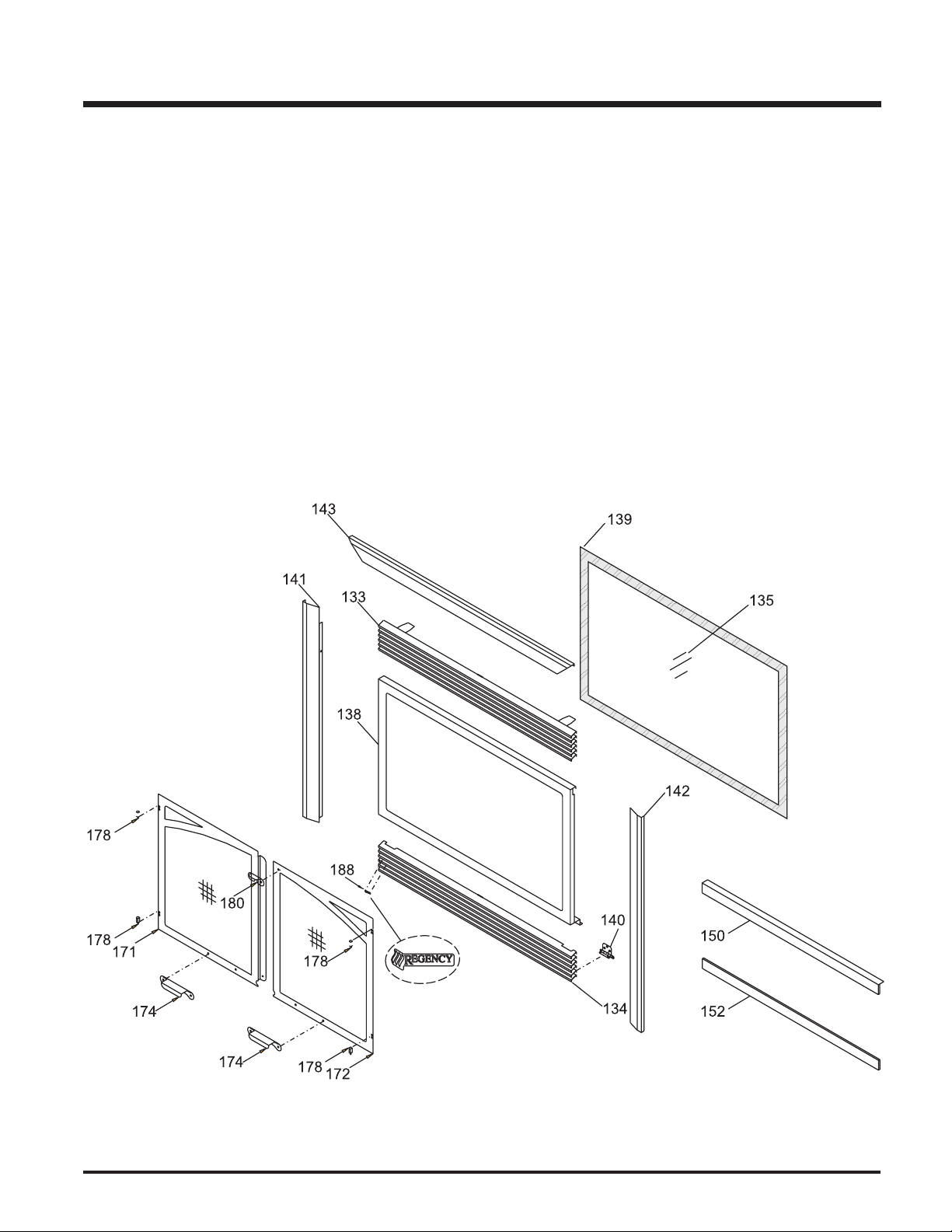

P48-1 FLUSH DOOR & LOUVERS
Part # Description Part # Description
PARTS LIST
370-925 Flush Louvers (Set) - Steel/Black 370-924 Flush Louvers (Set) - Black 370-926 Flush Louvers (Set) - Gold/Black
133) * Flush Louver Assembly - Top
134) * Flush Louver Assembly - Bottom 370-518/P Flush Door Assembly Complete
135) 940-335/P Glass (Flush)
138) * Flush Door Frame
139) 936-155 Glass Gasket (Tadpole)
140) 948-042 Spring Hinge 370-944 Finishing Trim - Black
370-946 Finishing Trim - Steel
141) * Trim Side Left
142) * Trim Side Right
143) * Trim Top
150) * Flush Glass Trim 370-920 Flush Glass Trim (Set) - Steel 370-922 Flush Glass Trim (Set) - Gold 904-196 Magnet
370-933 Double Screen Door (Complete)
171) * Door Frame Assembly - Left
172) * Door Frame Assembly - Right
174) 511-085 Handle
178) 948-257 Lift Hinge on Door
180) 512-546 Door Latch Assembly
188) 948-216 Regency Logo Plate
*Not available as a replacement part.
Regency P48-1 Zero Clearance Direct Vent Gas Fireplace 43
Page 44
PARTS LIST

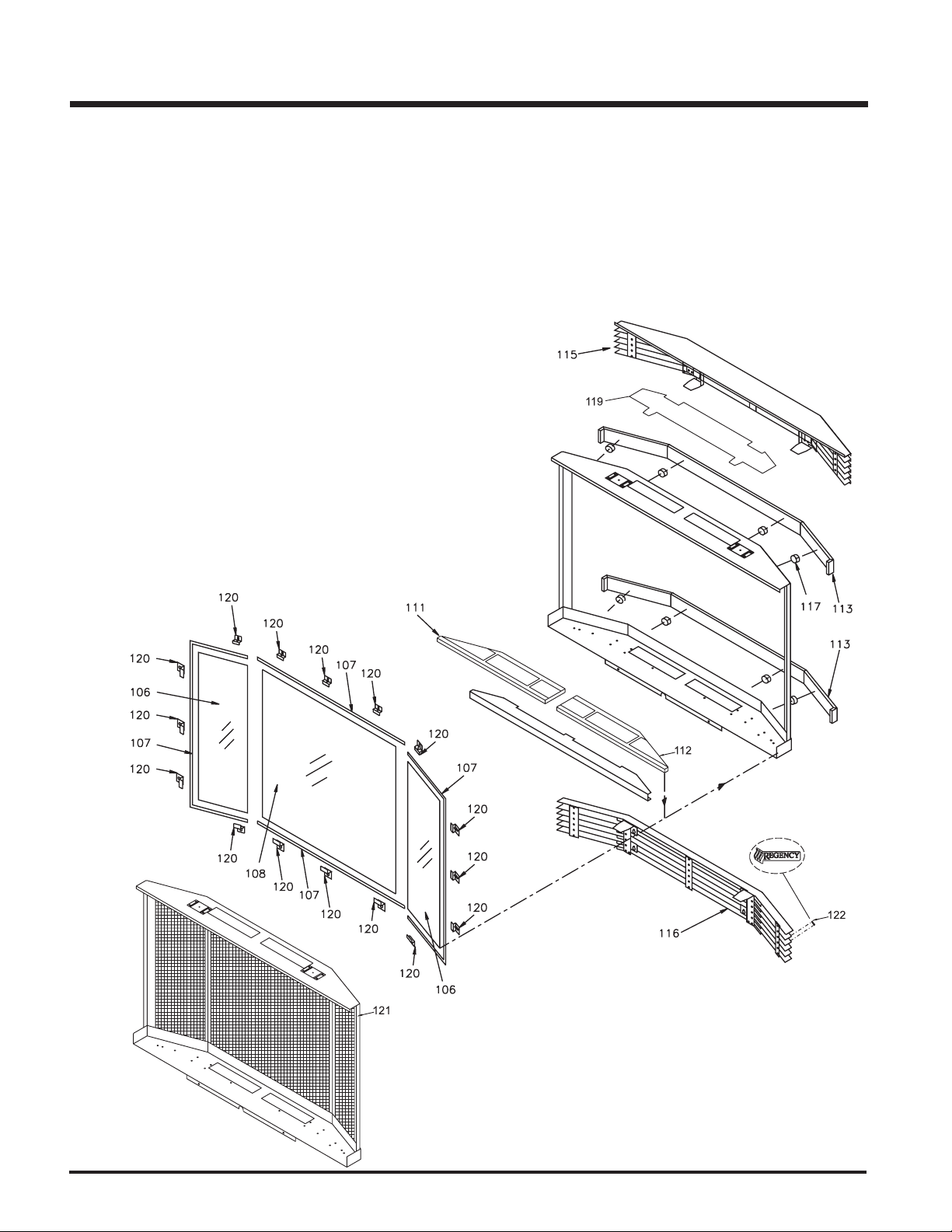

P48-1 BAY FRONT & LOUVERS
Part # Description
370-931 Bay Front Complete with Glass & Black Trim 370-932 Bay Front Screen & Black Trim
106) 940-337/P Side Glass
107) 936-243 Glass Gasket
108) 940-336/P Center Glass
111) 902-362 Brick Panel - Left Side Bay
112) 902-363 Brick Panel - Right Side Bay 370-905 Bay Brick Panel Set - Standard Brown 370-906 Bay Brick Panel Set - Standard Red
113) 370-086 Bay Door Trim (Each) -Black 370-936 Bay Door Trim (Set) - Gold 370-934 Bay Door Trim (Set) - Steel
370-938 Bay Louvers (Set) - Black 370-942 Bay Louvers (Set) - Gold/Black 370-940 Bay Louvers (Set) - Steel/Black
115) * Bay Louver Assembly - Top
116) * Bay Louver Assembly - Bottom
117) 904-196 Magnet (1" round)
119) 370-093 Bay Door Baffle
120) 400-189 Flush Glass Retainer Bracket
122) 948-216 Regency Logo Plate
*Not available as a replacement part.
44
Regency P48-1 Zero Clearance Direct Vent Gas Fireplace
Page 45
NOTES
_____________________________________________________________________________________ ____________________________________________________________ __________________________________________________________ ____________________________________________________________ _______________________________________________________ _____________________________________________________ __________________________________________________________ _________________________________________________________ _________________________________________________________ ______________________________________________________ ______________________________________________________ _______________________________________________________________ ___________________________________________________________ __________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ _____________________________________________________________ __________________________________________________________ __________________________________________________________ _____________________________________________________ ________________________________________________________ _________________________________________________________ _________________________________________________________
Regency P48-1 Zero Clearance Direct Vent Gas Fireplace 45
Page 46
NOTES
_____________________________________________________________________________________ ____________________________________________________________ __________________________________________________________ ____________________________________________________________ _______________________________________________________ _____________________________________________________ __________________________________________________________ _________________________________________________________ _________________________________________________________ ______________________________________________________ ______________________________________________________ _______________________________________________________________ ___________________________________________________________ __________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ _____________________________________________________________ __________________________________________________________ __________________________________________________________ _____________________________________________________ ________________________________________________________ _________________________________________________________ _________________________________________________________
46
Regency P48-1 Zero Clearance Direct Vent Gas Fireplace
Page 47
WARRANTY
Regency Fireplace Products are designed with reliability and simplicity in mind. In addition, our internal Quality Assurance Team carefully inspects each unit thoroughly before it leaves our facility. FPI Fireplace Products International Ltd. is pleased to extend this limited lifetime warranty to the purchaser of a Regency Product. This warranty is not transferable.
The Warranty: Limited Lifetime
The combustion chamber, heat exchanger, burner tubes/pans, logs, brick panels and gold plating (against defective manufacture only) are covered under the Limited Lifetime Warranty for five (5) years for parts and subsidized labour* and parts only thereafter.
Glass is covered for lifetime against thermal breakage only, parts and subsidized labour* for five (5) years and parts only thereafter from date of purchase. External casting, surrounds and grills are covered against cracks and warps resulting from manufacturer defects, parts and subsidized labour* for three (3) years from
the date of purchase and parts only thereafter. Special Finishes - One year on brushed nickel and antique copper full screens and doors. You can expect some changes in color as the product "ages" with constant
heating and cooling. FPI warranties the product for any manufacturing defects on the original product. However, the manufacturers warranty does not cover changing colors and marks, ie. finger prints, etc applied after the purchase of the product. Damage from the use of abrasive cleaners is not covered by warranty.
Electrical and mechanical components such as blowers, switches, wiring, thermodiscs, FPI remote controls, spill switches, thermopiles, thermocouples, pilot assembly components, and gas valves are covered for one year parts and subsidized labour* from the date of purchase. Blowers and valves replaced under warranty are considered repairs and continue as if new with appliance. ie. twelve (12) months from original purchase date of appliance with a minimum of three (3) months coverage from date of replacement.
FPI venting components are covered parts and subsidized labour* for three (3) years from date of purchase. Simpson Dura-Vent venting components (Direct Vent units) are covered by Simpson Dura-Vent Inc. warranty.
Conditions:
Any part or parts of this unit which in our judgement show evidence of such defects will be repaired or replaced at FPI's option, through an accredited distributor or agent provided that the defective part be returned to the distributor or agent
Porcelain/Enamel - Absolute perfection is either guaranteed nor commercially possible. Any chips must be reported and inspected by an authorized dealer within three days of installation. Reported damage after this time will be subject to rejection.
It is the general practice of FPI to charge for larger, higher priced replacement parts and issue credit once the replaced component has been returned to FPI and evaluated for manufacturer defect.
The authorized selling dealer is responsible for all in-field service work carried out on your Regency product. FPI will not be liable for results or costs of workmanship from unauthorized service persons or dealers.
At all times FPI reserves the right to inspect product in the field which is claimed to be defective. All claims must be submitted to FPI by authorized selling dealers. It is essential that all submitted claims provide all of the necessary information including customer
name, purchase date, serial #, type of unit, problem, and part or parts requested, without this information the warranty will be invalid.
Exclusions:
This limited Lifetime Warranty does not extend to or include paint, door or glass gasketing or trim. At no time will FPI be liable for any consequential damages which exceed the purchase price of the unit. FPI has no obligation to enhance or modify any unit once manufactured.
ie. as products evolve, field modifications or upgrades will not be performed. FPI will not be liable for travel costs for service work. Installation and environmental problems are not the responsibility of the manufacturer and therefore are not covered under the terms of this warranty policy. Embers, rockwool, gaskets, door handles and paint are not covered under the terms of this warranty policy. Any unit which shows signs of neglect or misuse is not covered under the terms of this warranty policy. The warranty will not extend to any part which has been tampered with or altered in any way, or in our judgment has been subject to misuse, improper installation, negligence
or accident, spillage or downdrafts caused by environmental or geographical conditions, inadequate ventilation, excessive offsets, negative air pressure caused by mechanical systems such as furnaces, fans, clothes dryer, etc.
Freight damage to stoves and replacement parts is not covered by warranty and is subject to a claim against the freight carrier by the dealer. FPI will not be liable for acts of God, or acts of terrorism, which cause malfunction of the appliance. Performance problems due to operator error will not be covered by this warranty policy. Products made or provided by other manufacturers and used in conjunction with the operation of this appliance without prior authorization from FPI, may nullify your
warranty on this product. Any alteration to the unit which causes sooting or carboning that results in damage to the interior / exterior facia is not the responsibility of FPI.
Transportation Prepaid, if requested.
original
* Subsidy according to job scale as predetermined by FPI.
Regency P48-1 Zero Clearance Direct Vent Gas Fireplace 47
Page 48
Regency fireplace products are designed
with reliability and simplicity in mind. In
addition, our internal Quality Assurance
T eam carefully inspect s each unit
thoroughly before it leaves our
door.
Fireplace Products International
Ltd. is pleased to extend this Lim-
ited Lifetime Warranty to the original
purchaser of a Regency Product.
See the inside back cover for details.
Register your Regency online at
http://www.regency-fire.com
Installer: Please complete the following information
Dealer Name & Address:______________________________________________
__________________________________________________________________ Installer: ___________________________________________________________ Phone #: ___________________________________________________________ Date Installed: ______________________________________________________ Serial No.: _________________________________________________________
Regency and Panorama are trademarks of FPI Fireplace Products International Ltd.
© Copyright 2005, FPI Fireplace Products International Ltd. All rights reserved.
Printed in Canada
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
