Regency P36D User Manual

P36D-1 Zero Clearance

Direct Vent Gas Fireplace

MODELS: P36D-NG1 Natural Gas P36D-LP1 Propane

Owners & Installation Manual

www.regency-ﬁ re.com

WARNING: If the information in these instructions are not followed exactly, a ﬁ re or explosion may result causing property damage, personal injury or loss of life.

FOR YOUR SAFETY Do not store or use gasoline or other ﬂ ammable vapors and liquids in the vicinity of this or any other appliance.

Installation and service must be performed by a qualiﬁ ed installer, service agency or the gas supplier.

Tested by:

918-522c

FPI FIREPLACE PRODUCTS INTERNATIONAL LTD. 6988 Venture St., Delta, BC Canada, V4G 1H4

Installer: Please complete the details on the back cover

and leave this manual with the homeowner.

Homeowner: Please keep these instructions for future reference.

FOR YOUR SAFETY What to do if you smell gas:

 Do not try to light any appliance  Do not touch any electrical switch: do not

use any phone in your building.

 Immediately call your gas supplier from a

neighbour's phone. Follow the gas supplier's instructions.  If you cannot reach your gas supplier, call

the ﬁ re department.

10/28/13

To the New Owner:

Congratulations!

Y ou are the owner of a state-of-the-art Gas Fireplace by REGENCY® FIREPLACE PRODUCTS The P36D-1 is a hand crafted appliance and has been designed to provide you with all the warmth and charm of a wood ﬁ replace at the ﬂ ick of a switch. The model P36D-1 has been approved by Warnock Hersey for both safety and efﬁ ciency. As it also bears our own mark, it promises to provide you with economy, comfort and security for many trouble free years to follow . Please take a moment now to acquaint yourself with these instructions and the many features of your REGENCY®Fireplace.

Regency® P36D-1 Zero Clearance Direct Vent Gas Fireplace

INFORMATION FOR MOBILE/MANUFACTURED HOMES AFTER FIRST SALE

This REGENCY® product has been tested and listed by Warnock Hersey to the following standards: VENTED GAS FIREPLACE HEA TERS ANSI Z21.88a-2007/ CSA 2.33a-2007 and GAS-FIRED APPLIANCES FOR USE AT HIGH ATLITUDES CAN/CGA 2.17-M91.

This Direct Vent System Appliance must be installed in accordance with the manufacturer's installation instructions and the Manufactured Home Construction and Safety Standard, Title 24 CFR, Part 3280, or the current Standard of Fire Safety Criteria for Manufactured Home Installations, Sites, and Communities ANSI/NFPA 501A, and with CAN/CSA Z240-MH Mobile Home Standard in Canada.

This appliance installation must comply with the manufacturer's installation instructions and local codes, if any. In the absence of local codes follow the current National Fuel Gas Code, ANSI Z223.1 and the current National Electrical Code ANSI/NFPA 70 in the U.S.A., and the current CAN/CGA B149 Gas Installation Code and the current Canadian Electrical Code CSA C22.1 in Canada.

This FPI Mobile/Manufactured Home Listed appliance comes factory equipped with a means to secure the unit.

This FPI Mobile/Manufactured Home listed appliance comes equipped with a dedicated #8 ground lug to which an 18 gauge copper wire from the steel chassis ground must be attached.

This appliance may only be installed in an aftermarket permanently located, manufactured (mobile) home, where not prohibited by local codes.

This appliance is only use with the type of gas indicated on the rating plate. This appliance is not convertible for use with other gases, unless a certiﬁ ed kit is used.

Regency® P36D-1 Zero Clearance Direct Vent Gas Fireplace

TABLE OF CONTENTS

SAFETY LABEL

Copy of Safety Decal for P36D-1 ..................................6

REQUIREMENTS

MA Code - CO Detector.................................................7

INSTALLATION

Unit Dimensions ............................................................8

Before You Start ............................................................9

Important Message .....................................................10

General Safety Information..........................................10

Installation Checklist ...................................................10

Locating Your

Gas Fireplace ..............................................................11

Manufactured Mobile Home Additional Requirements 11

Heatwave Duct System (Optional) .............................11

Heat Release kit (Optional) ........................................11

Clearances ..................................................................12

Regency® Clearances ..........................................13

Tripoli Arch Door Clearances ...............................13

Regency® Combustible Mantel Clearances ................14

Regency® Mantel Leg Clearances ...............................16

Framing And Finishing .................................................17

Tripoli Arch Door Framing Note ...................................18

Unit Assembly Prior To Installation ..............................19

Top Standoff Assembly ........................................19

Top Facing Support &

Side Nailing Strips ...............................................19

Venting Introduction .....................................................19

Exterior Vent Termination Locations ............................20

Venting.........................................................................21

Direct Vent System (Flex) ..................................21

4” x 6-5/8” Rigid Pipe Cross Reference Chart .............22

Rigid Pipe Venting Systems .................................24

Venting Arrangements Horizontal T ermination ............25

Venting Arrangements

Vertical Termination .....................................................26

Horizontal Venting with Two (2) 90

Elbows ................28

Horizontal Venting with Three (3) 90o Elbows .............28

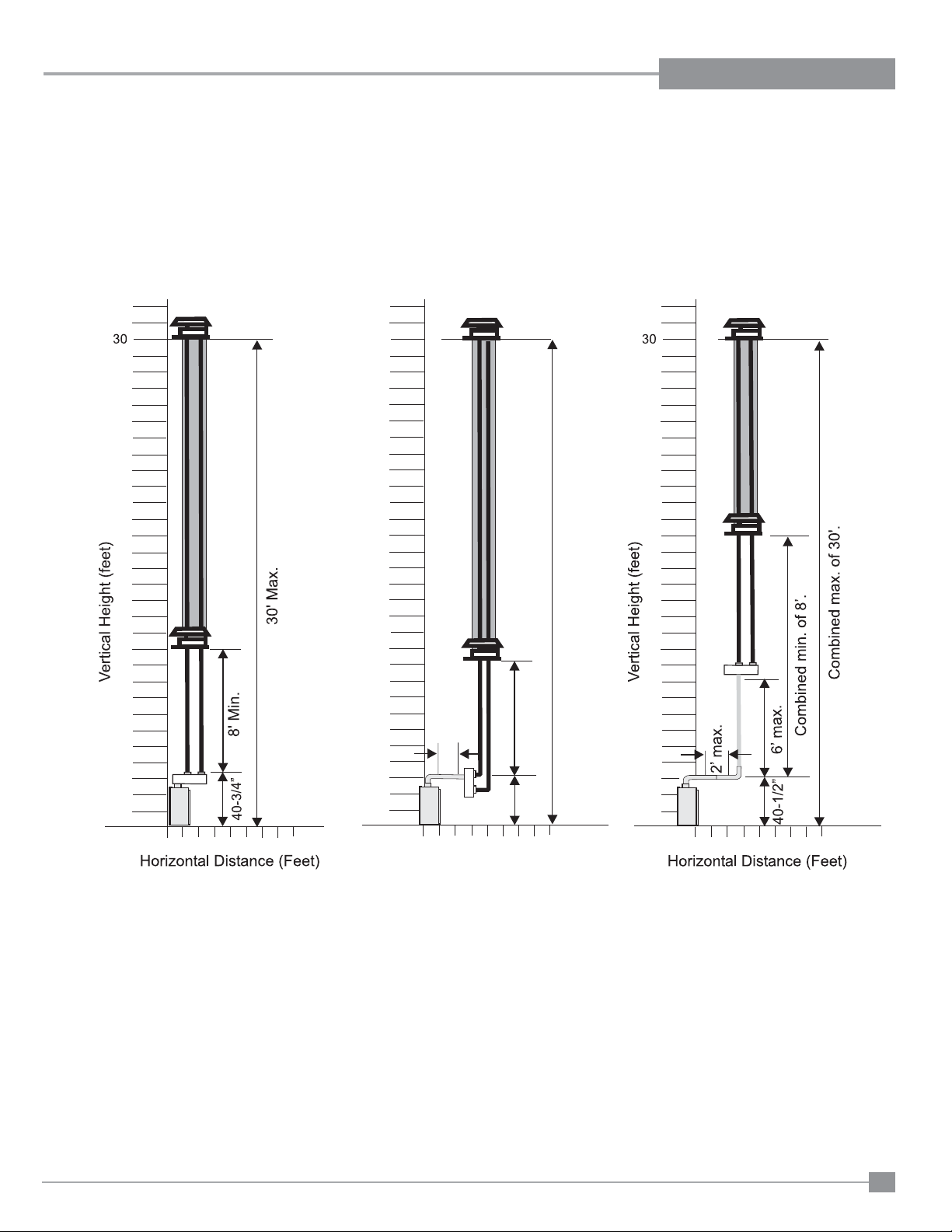

Vertical Venting with Two (2) 90o Elbows .....................29

Vertical Venting with Three (3) 90o Elbows ..................29

Vertical Termination

With Co-linear Flex System .........................................30

Venting Arrangement - Vertical Terminations ..............31

unit installation with Horizontal termination .................32

unit installation with Vertical Termination .....................33

Direct Vent System (Flex)

Installation Procedures ................................................34

P36D-NG1 System Data ............................................35

P36D-LP1 System Data .............................................35

High Elevation .............................................................35

Gas Line Installation ....................................................35

Pilot Adjustment ...........................................................35

Gas Pipe Pressure Testing ..........................................35

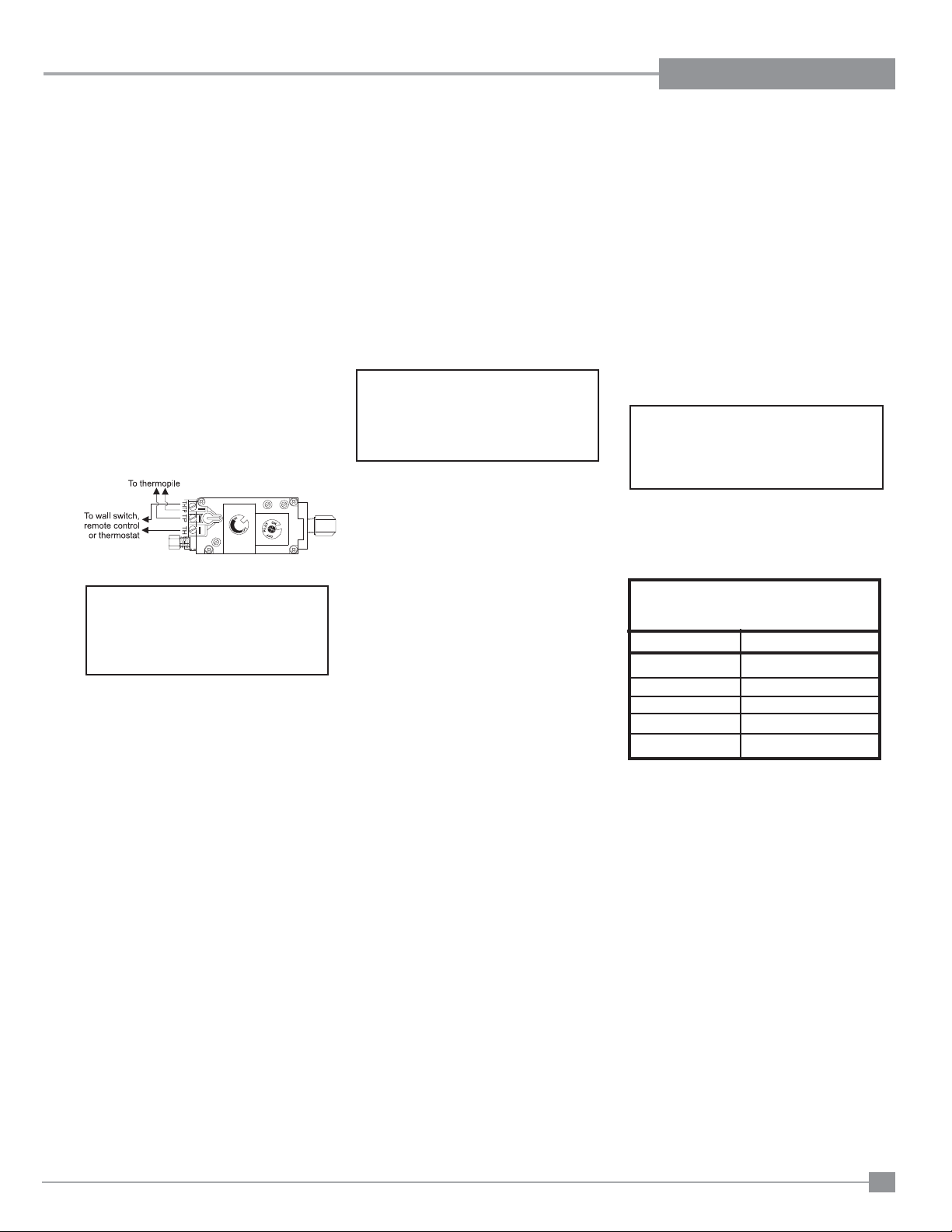

S.I.T. Valve Description ................................................35

Conversion from NG to LP ..........................................36

Optional Brick Panels ..................................................39

Log Set Installation ......................................................41

Standard Flush Door ...................................................44

Remote Control (Optional)...........................................45

Wall Switch (Optional) .................................................45

Wall Thermostat (Optional) .........................................45

Wiring Diagrams .........................................................46

Optional Fan Installation ..............................................48

Optional Fan Removal .................................................48

NOTE: All installation instructions apply to

Regency® Series unless otherwise speciﬁ ed.

Regency® P36D-1 Zero Clearance Direct Vent Gas Fireplace

OPERATING INSTRUCTIONS

Operating Instructions .................................................49

Shutdown Procedure ..................................................49

First Fire ......................................................................49

Lighting Procedure ......................................................49

Aeration Adjustment ....................................................49

Normal Operating Sounds Of Gas Appliances ............49

Copy of the Lighting Plate Instructions ........................50

MAINTENANCE

Maintenance Instructions.............................................50

General Vent Maintenance ..........................................51

Log Replacement ........................................................51

Thermopile/

Thermocouple..............................................................51

Glass Gasket ...............................................................51

Door Glass...................................................................51

Flush Glass Replacement ....................................51

Removing Valve ...........................................................52

Installing Valve .............................................................52

Flush Louvers ..............................................................53

Full Screen door Installation .....................................54

Tripoli screen door .......................................................56

TABLE OF CONTENTS

PARTS LIST

Main Assembly ............................................................59

Burner Assembly & Log Set.........................................60

Regency® Flush Front Assembly .................................61

WARRANTY

The Warranty: Limited Lifetime ...................................71

Regency® P36D-1 Zero Clearance Direct Vent Gas Fireplace

SAFETY LABEL

This is a copy of the label that accompanies each P36D-1 Zero Clearance Direct Vent Gas Fireplace. We have printed a copy of the contents here for your review. The safety label is located on the front inside base of the unit, visible when the bottom louver is open.

NOTE: FPI units are constantly being improved. Check the label on the unit and if there is a difference, the label on the unit is the correct one.

COPY OF SAFETY DECAL FOR P36D-1

MUST

306

Serial No./ No de serie

306

0" Clearance to combustibles from:

Top, sides, bottom and rear of unit

Mantel Clearances from Top:

Wall

(A) Min. 7" (177mm)

Side Wall Clearance from Side Facing

B) 6" with Flush or Bay Front B) 8" with Barcelona Trim

Alcove approved for Bay & Flush Louvers.

Alcove Clearances:

Max. Depth 36" (914mm) Min. Width 48" (1219mm), Min. Height 72" (1229mm)

Minimum Vent Clearances:

Horizontal Top 2-1/2" (64mm) Horizontal Side Horizontal Bottom 1-1/2" (38mm)

1-1/2" (38mm)

Made in Canada/

Fabrique au Canada

918-500a

Duplicate S/N

Listed:

VENTED GAS FIREPLACE HEATER / FOYER AU GAZ À ÉVACUATION

Certified for/Certifi e pour: Tested to: WN# 16462

MAY BE INSTALLED IN MANUFACTURED (MOBILE) HOMES AFTER FIRST SALE.

NATURAL GAS:

Model/Modele:

P36D-NG1

Minimum supply pressure Manifold pressure high Manifold pressure low Orifice size Minimum input Maximum input Altitude

PROPANE:

Model/Modele:

P36D-LP1

Minimum supply pressure Manifold pressure high Manifold pressure low Orifice size Minimum input Maximum input Altitude

This appliance must be installed in accordance with local codes, if any; if none, follow the National Fuel Gas Code, ANSI Z223.1, or Natural Gas and Propane Installation Code, CSA B149.1. This appliance must be installed in accordance with the Standard CAN/CSA Z240 MH, Mobile Housing, in Canada, or with the Manufactured Home Construction and Safety Standard, Title 24 CFR, Part 3280, in the United States, orwhen sucha standard isnot applicable,ANSI/NCSBCS A225.1/NFPA 501A,Manufactured HomeInstallationsStandardorANSI A119.2 ou NFPA501C Standardfor RecreationalVehicles This applianceis only foruse with the type ofgas indicated on therating plate and maybe installed in an aftermarket,permanently located, manufactured (mobile)home where not prohibitedby local codes. Seeowner's manual

Fan (Part# 432-917) Optional Bay Window(Part #510-930)Option: HeatWaveKit# 946-556

for details. Installer l'appareilselon lescodes ou règlementslocaux, ou,en l'absence detels règlements,selon les codesd'installation ANSIZ223.1, NationalFuelGasCodeouCSA-B149.1envigueur. Installer l'appareil selon la normeCAN/CSA-Z240, Série MM, Maison mobiles ou CAN/CSA-Z240 VC, Véhicules de camping, ou la norme 24 CFR Part 3280, Manufactured Home Construction and Safety Standard. Si ces normes nesont paspertinentes, utilisez lanorme ANSI/NCSBCSA225.1/NFPA501A, ManufacturedHome Installations Standard, ouANSI A119.2 ou NFPA 501CStandard forRecreationalVehicles. Cet appareil doit être utilize uniquement avec le type degaz indiquésur laplaque signalétique.Cet appareil peut être installé dans une maison préfabriquée oumobile (É.-U.seulement) installéeà demeuresi les règlements locaux lepermettent. Voirla noticede l'utilisateur pourplus derenseignements. Cet appareilne peutpas être utiliséavec d'autresgaz sauf siune troussedeconversioncertifiéeestfournie.

This ventedgas fireplaceheater is notfor usewith air filters. Ne pasutiliser defiltre à airavec cefoyer au gazà évacuation.

For usewith glassdoors certified withthe applianceonly

Electrical supply / Électrique 115VAC, 1.13 A, 60Hz.

VENTED GAS FIREPLACE HEATER -NOT FOR USE WITH SOLID FUELS.

Model P36D-NG1

Model P36D-LP1

CGA-2-17-M91, ANSI Z21.88a-2007 / CSA 2.33a-2007

5" WC(1.25 kPa)

3.8" WC(0.95 kPa)

1.1" WC(0.27 kPa) # 37 DMS 15,500 Btu/h (4.54 kW) 30,000 Btu/h (8.79 kW)

0-4500 ft/pi(0-1372 m)

12" WC(3.00 kPa) 11" WC(2.74 kPa)

2.9" WC(0.72 kPa) # 52 DMS 15,000 Btu/h (3.96 kW) 30,000 Btu/h (7.91 kW)

0-4500 ft/pi(0-1372 m)

CANADA and U.S.A.

APPAREIL FONCTIONNANT AU NATURAL GAZ CONCU POUR ETRE POELE:

Pression d'allimentation minimum Pression à la tubulure d' chappement lev e Pression à la tubulure d' chappement basse Grandeur de l'injecteur

Calorifique

D bit minimum selon

Calorifique

D bit maximum selon l'altitude

APPAREIL FONCTIONNANT AU GAZ PROPANE CONCU POUR ETRE POELE:

Pression d'allimentation minimum Pression à la tubulure d' chappement lev e Pression à la tubulure d' chappement basse Grandeur de l'injecteur

Calorifique

D bit minimum selon

Calorifique

D bit maximum selon l'altitude

Pour utilisationuniquement avecles portes enverre certifiéesavec l'appareil

NE PAS UTILISER AVEC DU COMBUSTIBLE SOLIDE.FOYER AU GAZ À ÉVACUATION -

ééé é

DO NOT REMOVE THIS LABEL / NE PAS ENLEVER CETTE ÉTIQUETTE

Minimum Clearances to Combustibles /

Modéle P36D-NG1

Modéle P36D-LP1

Degagement Minimum De Materiaux Combustibles

Ceiling

32"

Wall

The "Bay Louvers" be

used with the Bay Glass option

DOOR SEAL: Please

check that the door is

properly sealed

(See Instruction Manual for

detailed instructions)

FPI Fireplace Products International Ltd.Delta, BC, Canada

For the State of Massachusetts, installation and repair must be done by a plumber or gasﬁ tter licensed in the Commonwealth of Massachusetts.

For the State of Massachusetts, ﬂ exible connectors shall not exceed 36 inches in length.

For the State of Massachusetts, the appliances individual manual shut-off must be a t-handle type valve.

The State of Massachusetts requires the installation of a carbon monoxide alarm in accordance with NFPA 720 and a CO alarm with battery back up in the same room where the gas appliance is installed.

Regency® P36D-1 Zero Clearance Direct Vent Gas Fireplace

REQUIREMENTS

MA Code - CO Detector

(for the State of Massachusetts only)

5.08: Modifications to NFPA-54, Chapter 10

(2) Revise 10.8.3 by adding the following additional requirements:

(a) For all side wall horizontally vented gas fueled equipment installed in every dwelling, building or structure used in whole or in part for residential purposes, including those owned or operated by the Commonwealth and where the side wall exhaust vent termination is less than seven (7) feet above finished grade in the area of the venting, including but not limited to decks and porches, the following requirements shall be satisfied:

1. INSTALLATION OF CARBON MONOXIDE DETECTORS. At the time of installation of the side wall horizontal vented gas fueled equipment, the installing plumber or gasfitter shall observe that a hard wired carbon monoxide detector with an alarm and battery back-up is installed on the floor level where the gas equipment is to be installed. In addition, the installing plumber or gasfitter shall observe that a battery operated or hard wired carbon monoxide detector with an alarm is installed on each additional level of the dwelling, building or structure served by the side wall horizontal vented gas fueled equipment. It shall be the responsibility of the property owner to secure the services of qualified licensed professionals for the installation of hard wired carbon monoxide detectors

a. In the event that the side wall horizontally vented gas fueled equipment is installed in a crawl space or an attic, the hard wired carbon monoxide detector with alarm and battery back-up may be installed on the next adjacent floor level.

b. In the event that the requirements of this subdivision can not be met at the time of completion of installation, the owner shall have a period of thirty (30) days to comply with the above requirements; provided, however, that during said thirty (30) day period, a battery operated carbon monoxide detector with an alarm shall be installed.

2. APPROVED CARBON MONOXIDE DETECTORS. Each carbon monoxide detector as required in accordance with the above provisions shall comply with NFPA 720 and be ANSI/UL 2034 listed and IAS certified.

3. SIGNAGE. A metal or plastic identification plate shall be permanently mounted to the exterior of the building at a minimum height of eight (8) feet above grade directly in line with the exhaust vent terminal for the horizontally vented gas fueled heating appliance or equipment. The sign shall read, in print size no less than one-half (1/2) inch in size, "GAS VENT DIRECTLY BELOW. KEEP CLEAR OF ALL

OBSTRUCTIONS".

4. INSPECTION. The state or local gas inspector of the side wall horizontally vented gas fueled equipment shall not approve the installation unless, upon inspection, the inspector observes carbon monoxide detectors and signage installed in accordance with the provisions of 248 CMR

5.08(2)(a)1 through 4.

(b) EXEMPTIONS: The following equipment is exempt from 248 CMR 5.08(2)(a)1 through 4:

1. The equipment listed in Chapter 10 entitled "Equipment Not Required To Be Vented" in the most current edition of NFPA 54 as adopted by the Board; and

2. Product Approved side wall horizontally vented gas fueled equipment installed in a room or structure separate from the dwelling, building or structure used in whole or in part for residential purposes.

(c) MANUFACTURER REQUIREMENTS - GAS EQUIPMENT VENTING SYSTEM PROVIDED. When the manufacturer of Product Approved side wall horizontally vented gas equipment provides a venting system design or venting system components with the equipment, the instructions provided by the manufacturer for installation of the equipment and the venting system shall include:

1. Detailed instructions for the installation of the venting system design or the venting system components; and

2. A complete parts list for the venting system design or venting system.

(d) MANUFACTURER REQUIREMENTS - GAS EQUIPMENT VENTING SYSTEM NOT PROVIDED. When the manufacturer of a Product Approved side wall horizontally vented gas fueled equipment does not provide the parts for venting the flue gases, but identifies "special venting systems", the following requirements shall be satisfied by the manufacturer:

1. The referenced "special venting system" instructions shall be included with the appliance or equipment installation instructions; and

2. The "special venting systems" shall be Product Approved by the Board, and the instructions for that system shall include a parts list and detailed installation instructions.

(e) A copy of all installation instructions for all Product Approved side wall horizontally vented gas fueled equipment, all venting instructions, all parts lists for venting instructions, and/or all venting design instructions shall remain with the appliance or equipment at the completion of the installation.

Regency® P36D-1 Zero Clearance Direct Vent Gas Fireplace

INSTALLATION

36" (914mm)

33"(838mm)

36"(914mm)

30-1/2"(775mm)

37"(940mm)

17-1/8"(435mm)

32-1/2"(826mm)

37"(940mm)

UNIT DIMENSIONS

Regency® P36D-1 Zero Clearance Direct Vent Gas Fireplace

INSTALLATION

BEFORE YOU ST ART

Safe installation and operation of this appliance requires common sense, however, we are required by the Canadian Safety Standards and ANSI Standards to make you aware of the following:

INSTALLATION AND REPAIR SHOULD BE DONE BY AN AUTHORIZED SERVICE PERSON. THE APPLIANCE SHOULD BE INSPECTED BEFORE USE AND AT LEAST ANNUALLY BY A PROFESSIONAL SERVICE PERSON. MORE FREQUENT CLEANING MAY BE REQUIRED DUE TO EXCESSIVE LINT FROM CARPETING, BEDDING MATERIAL, ETC. IT IS IMPERATIVE THAT CONTROL COMPARTMENTS, BURNERS AND CIRCULATING AIR PASSAGEWAYS OF THE APPLIANCE BE KEPT CLEAN.

DUE TO HIGH TEMPERATURES, THE APPLIANCE SHOULD BE LOCATED OUT OF TRAFFIC AND AWAY FROM FURNITURE AND DRAPERIES.

YOUNG CHILDREN SHOULD BE CAREFULLY SUPERVISED WHEN THEY ARE IN THE SAME AREA AS THE APPLIANCE. TODDLERS, YOUNG CHILDREN AND OTHERS MAY BE SUSCEPTIBLE TO ACCIDENTAL CONTACT BURNS. A PHYSICAL BARRIERS IS RECOMMENDED IF THERE ARE AT RISK INDIVIDUAL IN THE HOUSE. TO RESTRICT ACCESS TO A FIREPLACE OR STOVE, INSTALL AN ADJUSTABLE SAFETY GATE TO KEEP TODDLERS, YOUNG CHILDREN AND OTHER AT RISK INDIVIDUALS OUT OF THE ROOM AND AWAY FROM HOT SURFACES.

CLOTHING OR OTHER FLAMMABLE MATERIAL SHOULD NOT BE PLACED ON OR NEAR THE APPLIANCE.

WARNING: FAILURE TO INSTALL THIS APPLIANCE CORRECTLY WILL VOID YOUR WARRANTY AND MAY CAUSE A SERIOUS HOUSE FIRE.

CHILDREN AND ADULTS SHOULD BE ALERTED TO THE HAZARDS OF HIGH SURFACE TEMPERATURES, ESPECIALLY THE FIREPLACE GLASS, AND SHOULD STAY AWAY TO AVOID BURNS OR CLOTHING IGNITION.

Regency® P36D-1 Zero Clearance Direct Vent Gas Fireplace

INSTALLATION

IMPORTANT MESSAGE

SAVE THESE

INSTRUCTIONS

The P36D-NG1 or P36D-LP1 Direct Vent Fireplace must be installed in accordance with these instructions. Carefully read all the instructions in this manual ﬁ rst. Consult the "authority having jurisdiction" to determine the need for a permit prior to starting the installation. It is the responsibility of the installer to ensure this ﬁ replace is installed in compliance with manufacturer's instructions and all applicable codes.

GENERAL SAFETY

INFORMATION

1) The appliance installation must conform with

local codes or, in the absence of local codes, with

the current Canadian or National Gas Codes,

CAN1-B149 or ANSI Z223.1 Installation Codes.

2) The appliance when installed, must be electrically grounded in accordance with local codes, or in the absence of local codes with the current National Electrical Code, ANSI/NFP A 70 or CSA C22.1 Canadian Electrical Code.

3) See general construction and assembly instructions. The appliance and vent should be enclosed.

4) This appliance must be connected to the speciﬁ ed vent and termination cap to the outside of the building envelope. Never vent to another room or inside a building. Make sure that the vent is ﬁ tted as per Venting instructions.

5) Inspect the venting system annually for blockage and any signs of deterioration.

to inspect this appliance annually. Make it a practice

to have all of your gas appliances checked annually.

13) Do not slam shut or strike the glass door.

14) Under no circumstances should any solid fuels

(wood, paper, cardboard, coal, etc.) be used in this appliance.

15) The appliance area must be kept clear and free of combustible materials, (gases and other ﬂ ammable vapours and liquids).

Emissions from burning wood or gas could contain chemicals known to the State of California to cause cancer, birth defects or other reproductive harm.

INSTALLATION

CHECKLIST

1) Locate appliance

a) Room location (Refer to "Locating Y our Gas

ﬁ replace" section)

b) Clearances to Combustibles (Refer to

"Clearances" section)

c) Mantle Clearances (Refer to "Combustible

Mantel Clearances" section)

d) Framing & Finishing Requirements (Refer

to "Framing & Finishing" section)

e) Venting Requirements (Refer to "Venting"

section)

2) Assemble Top Standoffs and Top Facing Support and Side Nailing Strips (Refer to "Unit Assembly Prior to Installation" Section). NOTE: Must be done before installing unit into place.

3) Install vent (Refer to "Venting" sections).

4) Make gas and electrical connections. Test the

pilot. Must be as per diagram (Refer to "Pilot Adjustment " section).

Convert to propane if desired (Refer to "Gas

Line Installation" and "Conversion Kit from NG to LPG" sections).

5) Install standard and optional features. Refer to the following sections:

a. Optional Brick Panels b. Log Set Installation c. Standard Flush Door d. Regency® Flush e. Remote Control (Optional) f. Wall Switch (Optional) g. Wall Thermostat (Optional) h. Optional Fan Installation

6) Final check.

6) Venting terminals shall not be recessed into a

wall or siding.

7) Any safety glass removed for servicing must be replaced prior to operating the appliance.

8) To prevent injury, do not allow anyone who is unfamiliar with the operation to use the ﬁ replace.

9) Wear gloves and safety glasses for protection while doing required maintenance.

10) Be aware of electrical wiring locations in walls and ceilings when cutting holes for termination.

11) Under no circumstances should this appliance be modiﬁ ed. Parts that have to be removed for servicing should be replaced prior to operating this appliance.

12) Installation and any repairs to this appliance should be done by a qualiﬁ ed service person. A professional service person should be called

Regency® P36D-1 Zero Clearance Direct Vent Gas Fireplace

This includes:

1) Clocking the appliance to ensure the correct

ﬁ ring rate (rate noted on label 30,000 Btu/h) after burning appliance for 15 minutes.

2) If required, adjusting the primary air to ensure that the ﬂ ame does not carbon. First allow the unit to burn for 15-20 min. to stabilize.

CAUTION: Any alteration to the product that causes sooting or carboning that results in damage is not the responsibility of the manufacturer.

INSTALLATION

MANUFACTURED

MOBILE HOME

ADDITIONAL

REQUIREMENTS

1) Ensure that structural members are not cut

or weakened during installation.

2) Ensure proper grounding using the #8 ground lug provided. See "Wiring Diagram" section.

LOCATING YOUR

GAS FIREPLACE

1) When selecting a location for your ﬁ replace,

ensure that the clearances outlined on this page are met.

2) Provide adequate clearances for servicing.

3) The appliance must be installed on a ﬂ at, solid, continuous surface (e.g. wood, metal, concrete). This may be the ﬂ oor, or raised up on a platform to enhance its visual impact. If the appliance is going to be installed on carpeting, combustible linoleum tile or other combustible material other than wood ﬂ ooring, the appliance must be installed on a metal or wood panel extending the full width and depth of the appliance.

4) The P36D-1 Direct Vent Gas Fireplace can be installed in a recessed position or framed out into the room as in A, B, C, D. See Diagram 1.

Diagram 1

A) Flat on Wall B) Flat on Wall Corner C) Recessed into Wall/Alcove D) Corner

5) This appliance is Listed for bedroom

installations when used with a Listed Millivolt Thermostat. Some areas may have further requirements, check local codes before installation.

6) The P36D-1 Direct Vent Gas Fireplace is approved for alcove installations, which meet the clearances listed on the next page.

7) We recommend that you plan your installation on paper using exact measurements for clearances and floor protection before actually installing this appliance. Have a qualiﬁ ed inspector, dealer, or installer review your plans before installation.

Note: For vent terminations see "Exterior

Vent Termination Location" section.

HEATWAVE

DUCT SYSTEM

(OPTIONAL)

#946-556

The HeatWave Air Duct Kit increases the effectiveness of your ﬁ replace by dispersing warm air from the ﬁ replace to remote locations in the same room or other rooms in your home.

Up to two kits may be installed on the ﬁ replace. Please Note: Only 1 HeatWave kit may be operated at one time. This includes the internal blower option as well.

HEAT RELEASE KIT

(OPTIONAL)

#946-570

The Heat Release Kit expels warm air from the ﬁ replace to the outside of the building, allowing the ﬁ replace to be operated with less heat entering the room. The kit may be used on either the left or right side.

Regency® P36D-1 Zero Clearance Direct Vent Gas Fireplace

INSTALLATION

CLEARANCES

The clearances listed below are Minimum distances unless otherwise stated:

A major cause of chimney related ﬁ res is failure to maintain required clearances (air space) to combustible materials. It is of the greatest importance that this ﬁ replace and vent system be installed only in accordance with these instructions.

Clearance to Combustibles from: Back 0" (0mm) Side 0" (0mm) Floor 0" (0mm)

NOTE: The minimum ﬂ oor clearance must be maintained from the top surface of the carpeting, tile, etc.

Minimum Clearance from Top of Unit to: Ceiling from top of unit. 32" (1016mm)

Side Wall Clearances: Flush Front 6"* (152mm)

Full Screen Doors 6"* (152mm) * Measured from Surround or Front. See Regency® Clearances section for dimensions.

Horizontal Vent Clearances:

Top 2" (51mm) Side 1-1/2" (38mm) Bottom 1-1/2" (38mm)

Vertical Vent Clearances 1-1/4" (32mm)

Alcove Clearances**: Max. Depth 36" (914mm) Min. Width 48" (1219mm) Min. Height 72" (1829mm)

WARNING: Fire hazard is an extreme risk if these clearances are not adhered to.

The HeatWave Duct Kit and the Heat Release Kit have different clearance and framing requirements, check the

Heat Release Kit

HeatWave and Heat Release manual for details.

Regency® P36D-1 Zero Clearance Direct Vent Gas Fireplace

REGENCY® CLEARANCES

INSTALLATION

Note: No Hearth Required.

Clearances for Flush Front

& Full Screen Doors

TRIPOLI ARCH DOOR CLEARANCES

Regency® P36D-1 Zero Clearance Direct Vent Gas Fireplace

INSTALLATION

Drywall

12" Mantel

7 1/2" Mantel

3 1/2" Mantel

Mantel Clearances with

Flush Glass / Full Screen Doors

14"

10"

30-1/2"

to floor

810

Side View

Top o f Unit

6" Standoff

REGENCY® COMBUSTIBLE MANTEL CLEARANCES

Because of the extreme heat this ﬁ replace emits, the mantel clearances are critical.

Combustible mantel clearances from top of unit are shown in Diagram 1.

Note: A non-combustible mantel may be installed at a lower height if the framing is made of metal studs covered with a non-combustible board.

These drawings are to scale at 1:6 (one inch = 6 inches) Mantel can be installed anywhere in shaded area or higher using the above scale.

Note: Ensure the paint that is used on the mantel and the facing is "heat resistant" or the paint may discolour.

Diagram 1

Regency® P36D-1 Zero Clearance Direct Vent Gas Fireplace

INSTALLATION

REGENCY® SERIES COMBUSTIBLE MANTEL CLEARANCES

Because of the extreme heat this ﬁ replace emits, the mantel clearances are critical.

Combustible mantel clearances from top of unit are shown in the diagram below.

Note: A non-combustible mantel may be installed at a lower height if the framing is made of metal studs covered with a non-combustible board.

These drawings are to scale at 1:6 (one inch = 6 inches) Mantel can be installed anywhere in shaded area or higher using the above scale.

Note: Ensure the paint that is used on the mantel and the facing is "heat resistant" or the paint may discolour.

Regency® P36D-1 Zero Clearance Direct Vent Gas Fireplace

INSTALLATION

REGENCY® MANTEL LEG CLEARANCES

Combustible mantel leg clearances as per diagram:

Maximum 1-1/2" projection at 2" minimum clearance.

Regency® P36D-1 Zero Clearance Direct Vent Gas Fireplace

FRAMING AND FINISHING

INSTALLATION

1) Determine the total thickness of facing material (e.g. drywall plus ceramic tiles) to allow the ﬁ nished surface to be ﬂ ush with the front of the unit. Total facing thickness can vary from 1/2" (13mm) to 1-1/4" (32mm) thick.

Install Side Nailing Strips, Top Facing Support, and Top Standoffs before unit is slipped into position. See "Unit Assembly Prior to Installation" section for assembly details.

2) Frame in the enclosure for the unit with

framing material. The framed opening is

37-1/4" high x 36-1/4" wide x 17-3/8" deep

(946mm high x 921mm wide x 441mm deep).

NOTE: See next page for important Barcelona™ Series framing note.

Framing Dimensions

A B C D 36-1/4" 37-1/4" 17-3/8" 46-1/2"* 921mm 946mm 441mm 1181mm* * 'D' is Minimum height to combustible materials

including the Minimum 2-1/2" (64mm) Top clearance to the Horizontal Vent.

3) For exterior walls, insulate the enclosure to the same degree as the rest of the house, apply vapour barrier and drywall, as per local installation codes. (Do not insulate

the ﬁ replace itself.)

4) The top of the unit must not be closer than

32" (813mm) to the ceiling.

Note: 40-1/2" (1029mm) is the minimum

height for both ﬂ ex termination or Simpson Dura-Vent venting.

Note: The unit does not have to be completely

enclosed in a chase. The clearance on top of the unit is 0" to the standoffs so combustible building materials can be laid directly on top of the standoffs. You must maintain clearance from the vent to combustible materials for ﬂ ex, see Vent Clearances.

5) Use steel studs for framing where the

1-1/2" (38mm) clearance from the vent to

combustible material cannot be maintained, e.g. front top header.

Regency® P36D-1 Zero Clearance Direct Vent Gas Fireplace

INSTALLATION

Steel

Stud

Steel

Stud

Min. 12"

(305mm)

Min. 6"

(153mm)

Min. 6"

(153mm)

P36

36-1/4"

(921mm)

36-1/4"

(921mm)

Non - Combustible

Material

27-1/2”

(699mm)

30 -7/8”

(784mm)

P36D

376-1/4"

(946mm)

TRIPOLI ARCH DOOR FRAMING NOTE

When installing the optional Tripoli Arch Door, a non-combustible material 12" (305mm) above the unit and 6" (153mm) on each side must be used. See diagram 2. For complete framing dimensions - see instructions in this manual.

The Tripoli Arch Door also requires steel stud framing above and on each side of the unit, see diagram 2.

Front Framing Dimensions using the

Regency Tripoli Screen Door Option

Diagram 1

Regency® P36D-1 Zero Clearance Direct Vent Gas Fireplace

INSTALLATION

Side

Nailing Strips

UNIT ASSEMBLY

PRIOR TO

INSTALLATION

The T op Facing Support, the Side Nailing Strips and the 2 Top Standoffs must be correctly positioned and attached to the top before unit is slipped into position.

Top Standoff Assembly

The top standoffs are shipped in a ﬂ at position and must be folded into shape and attached.

1) Remove the standoffs from the ﬁ replace top.

2) Take each standoff and bend into the correct shape. Bend up at the bend lines until the screw holes in the standoff and the prepunched screw holes on the ﬁ replace top line up.

3) Attach the standoff securely to the top with 2 screws per standoff (on opposite corners).

Top Facing Support &

Side Nailing Strips

Determine the total thickness of facing material (e.g. drywall plus ceramic tiles) to allow the ﬁ nished surface to be ﬂ ush with the front of the unit. Total facing thickness can vary from 1/2" (13mm) to 1-1/4" (32mm) thick.

The Top Facing Support can be mounted in 3 different positions depending on the thickness of the facing material.

Screw

Position A 1/2" / 13mm B 7/8" / 22mm

C* 1-1/4" / 32mm

* For "C" screw position the top facing support is reversed.

1) Mount Top Facing Support using the 3 supplied screws into the three pre-punched screw holes on the top front of the unit. Use hole positions A, B, or C depending on your facing depth.

Facing Material

Depth

"C" Screw Position:

For a facing material depth of 1-1/4" (32mm), the top facing support must be reversed.

2) Fold out the two nailing strips on each side.

Regency® P36D-1 Zero Clearance Direct Vent Gas Fireplace

VENTING

INTRODUCTION

The P36D-1 uses the "balanced ﬂ ue" technology Co-Axial system. The inner liner vents products of combustion to the outside while the outer liner draws outside combustion air into the combustion chamber thereby eliminating the need to use heated room air for combustion and losing warm room air up the chimney.

Note: These flue pipes must not be

connected to any other appliance.

The gas appliance and vent system must be vented directly to the outside of the building, and never be attached to a chimney serving a separate solid fuel or gas burning appliance. Each direct vent gas appliance must use it's own separate vent system. Common vent systems are prohibited.

INSTALLATION

EXTERIOR VENT TERMINATION LOCATIONS

Minimum Clearance Requirements

Clearance above grade, veranda, porch, deck, or balcony 12"(30cm) 12"(30cm)

Clearance to window or door that may be opened 12"(30cm) 9" (23cm)

Clearance to permanently closed window **

Vertical clearance to ventilated sofﬁ t located above the terminal within a horizontal distance of 2 feet (61cm) from the center line of the terminal (check with the local code)

Clearance to unventilated sofﬁ t 15"(38cm) 15"(38cm)

Clearance to outside corner: with AstroCap Termination Cap. 6"(15cm) 6"(15cm)

Clearance to outside corner: with all other approved Termination Caps. 14"(36cm) 14"(36cm)

Clearance to inside corner: with AstroCap Termination Cap 6"(15cm) 6"(15cm)

Clearance to inside corner: with all other approved Termination Caps. 12"(30cm) 12"(30cm)

Clearance to each side of center line extended above meter/regulator assembly 36"(90cm)

Clearance to service regulator vent outlet 36"(90cm) *

Clearance to non-mechanical air supply inlet to building or the combustion air inlet to any other appliance 12"(30cm) 9" (23cm)

Clearance to a mechanical air supply inlet #3' (91cm) above if within 10' (3m) horizontally.

Clearance above paved sidewalk or a paved driveway located on public property 84"(2.1m)

Clearance under veranda, porch, deck, or balcony 12"(30cm)

In accordance with current CSA B149.1, Natural Gas and Propane Installation Code

In accordance with the current ANSI Z223.1/NFPA 54, National Fuel Gas Code

┼

A vent shall not terminate directly above a sidewalk or paved driveway which is located between two single family dwellings and serves both dwellings.

‡ Permitted only if veranda, porch, deck, or balcony is fully open on a minimum of two sides beneath the ﬂ oor.

Clearance in accordance with local installation codes and the requirements of the gas supplier

3 feet (91cm) within a height of 15 feet (4.5m) above the meter / regulator assembly

3 feet (91cm) above - if within 10 feet (3m) horizontally

Canada

18"(46cm) 18"(46cm)

72"(1.8m) 36"(90cm)

┼

‡

USA

Regency® P36D-1 Zero Clearance Direct Vent Gas Fireplace

INSTALLATION

VENTING

DIRECT VENT SYSTEM (FLEX)

HORIZONTAL TERMINATIONS ONLY

These venting systems, in combination with the P36D-1 Direct Vent Gas Fireplace, have been tested and listed as a direct vent heater system by Warnock Hersey . The location of the termination cap must conform to the requirements in the V ent Terminal Locations diagram in the "Exterior Vent Termination Locations" section.

FPI Direct Vent (Flex) System T ermination Kit (Part # 946-515) includes all the parts needed to install the P36 with a maximum run of 4 feet.

1) 6-7/8" dia. ﬂ exible liner (4 ft. length)

2) 4" dia. ﬂ exible liner (4 ft. length)

3) spring spacers (4)

4) thimble (2)

5) AstroCap termination cap (1)

6) screws (12)

7) tube of Mill Pac (1)

8) plated screws (8)

9) screws #8 x 1-1/2" Drill Point, Stainless

Steel (4)

If longer runs are needed, the FPI Direct Vent system (Flex) # 946-516 includes all the parts needed to install the P36 with a maximum 10' run.

1) 6-7/8" dia. ﬂ exible liner (10 ft. length)

2) 4" dia. ﬂ exible liner (10 ft. length)

3) spring spacers (7)

4) thimble (2)

5) AstroCap termination cap (1)

6) screws (12)

7) tube of Mill Pac (1)

8) plated screws (8)

9) screws #8 x 1-1/2" Drill Point, Stainless

Steel (4)

Notes:

1) Liner sections should be continuous without any joints or seams.

2) Only Flex pipe purchased from FPI may be used for Flex installations.

3) If you are installing the P36 into a FPI Cabinet Mantel Kit, use the minimum horizontal vent height (centre-line of 40-1/2"). Remember to include the mantel base (3" in height) in your calculations and to maintain the 2" clearance to the underside of the mantel top.

Regency® P36D-1 Zero Clearance Direct Vent Gas Fireplace

INSTALLATION

4” X 6-5/8” RIGID PIPE CROSS REFERENCE CHART

Components from different Manufacturers may not be mixed. Not All Rigid Pipe components are available directly from FPI.

Description

6” Pipe Length-Galvanized 46DVA-06 4DT-6 N/A 4D6 SV4L6 TC-4DL6

6” Pipe Length-Black 46DVA-06B 4DT-6B N/A 4D6B SV4LB6 TC-4DL6B

7” Pipe Length-Galvanized N/A N/A 4D7 N/A N/A N/A

7” Pipe Length-Black N/A N/A 4D7B N/A N/A N/A

9” Pipe Length-Galvanized 46DVA-09 4DT-9 N/A N/A N/A N/A

9” Pipe Length-Black 46DVA-09B 4DT-9B N/A N/A N/A N/A

12” Pipe Length-Galvanized 46DVA-12 4DT-12 4D12 4D12 SV4L12 TC-4DL1

12” Pipe Length-Black 46DVA-12B 4DT-12B 4D12B 4D12B SV4LB12 TC-4DL1B

18” Pipe Length-Galvanized 46DVA-18 4DT-18 4D18 4D18 SV4LA TC-4DL18

18” Pipe Length-Black 46DVA-18B 4DT-18B 4D18B 4D18B SV4LA TC-4DL18B

24” Pipe Length-Galvanized 46DVA-24 4DT-24 4D24 4D24 SV4L24 TC-4DL2

24” Pipe Length-Black 46DVA-24B 4DT-24B 4D24B 4D24B SV4LB24 TC-4DL2B

36” Pipe Length-Galvanized 46DVA-36 4DT-36 4D36 4D36 SV4L36 TC-4DL3

36” Pipe Length-Black 46DVA-36B 4DT-36B 4D36B 4D36B SV4LB36 TC-4DL3B

48” Pipe Length-Galvanized 46DVA-48 4DT-48 4D48 4D48 SV4L48 TC-4DL4

48” Pipe Length-Black 46DVA-48B 4DT-48B 4D48B 4D48B SV4LB48 TC-4DL4B

60” Pipe Length-Galvanized 46DVA-60 4DT-60 N/A N/A N/A N/A

60” Pipe Length-Black 46DVA-60B 4DT-60B N/A N/A N/A N/A

Adjustable Length 3”-10”-Galvanized N/A N/A N/A 4DAL N/A TC-4DLT

Adjustable Length 3”-10”-Black N/A N/A N/A 4DALB N/A TC-4DLTB

Adjustable Length 7”-Galvanized N/A N/A 4D7A N/A N/A N/A

Adjustable Length 7”-Black N/A N/A 4D7AB N/A N/A N/A

Extension Pipe 8-1/2”-Galvanized 46DVA-08A N/A N/A N/A N/A N/A

Extension Pipe 8-1/2”-Black 46DVA-08AB N/A N/A N/A N/A N/A

Adjustable Length 12”-Galvanized N/A N/A 4D12A N/A SV4LA12 N/A

Adjustable Length 12”-Black N/A N/A 4D12A N/A SV4LBA12 N/A

Extension Pipe 16”-Galvanized 46DVA-16A N/A N/A N/A N/A N/A

Extension Pipe 16”-Black 46DVA-16AB N/A N/A N/A N/A N/A

Simpson

Direct Vent Pro

Selkirk

Direct Temp™

American Metal

Products®

Amerivent Direct

Metal-Fab™

Sure Seal

Security

Secure- Vent®

ICC Excel

Direct

45º Elbow-Galvanized 46DVA-E45 4DT-EL45 4D45L N/A N/A TE-4DE45

45º Elbow-Black 46DVA-E45B 4DT-EL45B 4DT-EL45B N/A N/A TE-4DE45B

45º Elbow Swivel-Galvanized See 46DVA-E45 N/A N/A 4D45L SV4E45 N/A

45º Elbow Swivel-Black See 46DVA-E45B N/A N/A 4D45LB SV4EB45 N/A

90º Elbow-Galvanized 46DVA-E90 4DT-EL90S 4DT-EL90S N/A N/A TE-4DE90

90º Elbow-Black 46DVA-E90B 4DT-EL90SB 4DT-EL90SB N/A SV4EBR90-1 TE-4DE90B

90º Elbow, Swivel-Galvanized See 46DVA-E90 N/A N/A 4D90L SV4E90-1 N/A

90º Elbow, Swivel-Black See 46DVA-E90B N/A N/A 4D90LB SV4EB90-1 N/A

90º Starter Elbow, Swivel-Galvanized N/A N/A N/A 4D90A N/A N/A

Adaptor* N/A N/A N/A 4D90L N/A N/A

Ceiling Support N/A 4DT-CS 4DFSP 4DSP SV4SD TE-4DE45

Cathedral Support Box 46DVA-CS 4DT-CSS 4DRSB 4DRS SV4CSB TE-4DE45B

Wall Support/Band 46DVA-WS 4DT-WS/B 4DWS 4DWS SV4BM N/A

Offset Support

Wall Thimble-Black 46DVA-WT 4DT-WT 4DWT 4DWT SV4RSM TE-4DE90

Wall Thimble Support/Ceiling Support 46DVA-DC N/A N/A N/A SV4PF TE-4DE90B

Firestop Spacer 46DVA-FS 4DT-FS 4DFSP 4DFS SV4BF N/A

Trim Plate-Black N/A 4DT-TP 4DFPB 4DCP SV4LA N/A

46DVA-ES (N/A - FPI)

4DT-OS N/A N/A SV4SU N/A

Regency® P36D-1 Zero Clearance Direct Vent Gas Fireplace

INSTALLATION

Description

Attic Insulation Shield 12” 46DVA-IS N/A@ FPI N/A 4DAIS12 N/A SV4RSA N/A

Attic Insulation Shield -

Basic Horizontal Termination Kit (A) Disc. 4DT-HKA 4DHTK2 4DHTKA SV-SHK N/A

Horizontal Termination Kit (B) 46DVA-KHA

Vertical Termination Kit Disc. 4DT-VKC 4DHTK 4DHTK SV-FK N/A

High Wind Vertical Cap 46DVA-VCH N/A N/A N/A N/A TM-4VT

High Wind Horizontal Cap 46DVA-HC N/A N/A N/A N/A TM-4DHT

Horizontal Square Termination Cap See

Vertical Termination Cap 46DVA-VC 4DT-HVC 4DVC 4DVT SV4CGV-1 TM-4VT

Storm Collar 46DVA-08A 4DT-SC 4DSC 4DSC SV4FC TM-SC

Adjustable Flashing 0/12-6/12 46DVA-F6 4DT-ST14 4D12S 4DST14 SV4STC14 TF-4FA

Adjustable Flashing 6/12-12/12 46DVA-FLA 4DT-ST36 4D36S 4DST36 SV4STC36 TF-4FB

Vinyl Siding Standoff 46DVA-VSS 4DT-VS N/A 4DVS SV4VS TM-VSS

Vinyl Siding Shield Plate N/A 4DT-VSP N/A N/A SV4VS N/A

Snorkel Termination 14” 46DVA-SNKL N/A N/A N/A N/A TM-4ST14

Snorkel Termination 36” N/A N/A N/A N/A N/A TM-4ST36

Restrictor Disk N/A N/A N/A N/A N/A TM-4DS

Extended Vertical Termination Cap N/A N/A N/A N/A N/A N/A

Chimney Conversion Kit A (USA only) 46DVA-KCA N/A N/A N/A N/A TM-4CA6

Chimney Conversion Kit B (USA only) 46DVA-KCB N/A N/A N/A N/A TM-4CA7

Chimney Conversion Kit C (USA only) 46DVA-KCC N/A N/A N/A N/A TM-4CA8

Chimney Conversion Kit Masonry (USA only)

Wall Firestop 46DVA-WFS N/A N/A N/A N/A TM-4TR

Colinear Flex Connectors 46DVA-ADF N/A N/A N/A N/A N/A

Cold Climates 36” N/A N/A 4DAIS12 N/A N/A TM-4AS

Simpson

Direct Vent Pro

(Changed Components)

46DVA-HC 4DT-HHC 4DHC 4DHT SV4CHC-1 TM-4HT

46DVA-KMC N/A N/A N/A N/A N/A

Selkirk

Direct Temp™

4DT-HKB 4DHTK1 4DHTKB SV-HK N/A

American Metal

Products®

Amerivent Direct

Metal-Fab™

Sure Seal

Security

Secure- Vent®

ICC Excel

Direct

FPI

946-506/P Vent Guard (Optional) for AstroCap 946-205 Vinyl Siding Shield for Riser Vent Terminal

510-994 Rigid Pipe Adaptor (Must use with all rigid piping) 946-208/P Vent Guard (Optional) for Riser Vent Terminal

640-530/P Riser Vent Terminal 946-523/P AstroCap Horizontal Cap

946-605 Starter Collar Increaser 4” x 6-5/8” to 5” x 8” 946-206 Vinyl Siding Standoff for AstroCap

Note: When using Metal-Fab Sure Seal Rigid Piping - please note that the Adaptor (4DDA) must be used in conjunction with FPI Rigid Pipe Adaptor (510-994).

Offset Pipe Selection: Use this table to determine offset pipe lengths.

Pipe Length

(L)

0” (0mm) 4-7/8” (124mm) 13-7/8” (340mm) Simpson Direct Vent Pro: www.duravent.com

6” (152mm) 8” (203mm) 16-1/2” (419mm) Selkirk Direct-Temp: www.selkirkcorp.com

9” (229mm) 10-1/8” (257mm) 18-5/8” (473mm) American Metal Products: www.americanmetalproducts.com

12” (305mm) 12-1/4” (311mm) 20-3/4” (527mm) Metal-Fab Sure Seal: www.mtlfab.com

24” (610mm) 20-5/8” (524mm) 29-1/8” (740mm) Security Secure Vent: www.securitychimneys.com

36” (914mm) 29” (737mm) 37-1/2” (953mm) Industrial Chimney Company: www.icc-rsf.com

48” (1219mm) 37-7/16” (951mm) 45-15/16” (1167mm)

Note: Horizontal runs of vent must be level, or have a 1/4” rise for every 1 foot of run towards the termination. Never allow the vent to run downward - this could cause high temperatures and may present a possible ﬁ re hazard.

4” x 6-5/8” Venting For speciﬁ c instructions on venting components - visit the

Run (X) Rise (Y)

Regency Fireplace Products . 6988 Venture St. . Delta, BC . Canada . V4G 1H4 . 604-946-5155 . www.regency-ﬁ re.com

Regency® P36D-1 Zero Clearance Direct Vent Gas Fireplace

manufacturers website listed below.

INSTALLATION

RIGID PIPE VENTING SYSTEMS

Horizontal or Vertical Terminations

The minimum components required for a basic horizontal termination are:

1 Horizontal Termination Cap 1 90o Elbow 1 Rigid Pipe Adaptor 1 Wall Thimble 1 Length of pipe to suit wall thickness (see chart)

Wall thickness is measured from the back standoffs to the inside mounting surface of termination cap. For siding other than vinyl furring strips may be used, instead of the vinyl siding standoff, to create a level surface to mount the vent terminal. The Terminal must not be recessed into siding. Measure the wall thickness including furring strips.

If a Vinyl Siding Standoff is required (it must be used with vinyl siding), measure to outside surface of wall without siding and add 2 inches.

Vertical

Termination

Cap

Storm Collar

Flashing

Ceiling Firestop

Wall Thickness (inches) Vent Length Required (inches)

Vinyl Siding

Standoff (Optional)

Flat Wall Installation

4" - 5-1/2" 6" 7" - 8-1/2" 9"

10" - 11-1/2" 12"

9" - 14-1/2" 11" - 14-5/8" Adj. Pipe

15" - 23-1/2" 17" - 24" Adj. Pipe

Corner Installation

3-1/4" - 6-3/4" 11" - 14-5/8" Adj. Pipe

7-3/4" - 16-1/4" 17" - 24" Adj. Pipe

7-1/4" - 8-3/4" 6" + 12"

9" + 9"

4-1/4" - 5-3/4" 6" + 9"

Alternate

Horizontal

Termination

Caps

Horizontal

Termination

Cap

Wall Thimble

Pipe Length

Adj.Pipe Length

11" - 14-5/8"

90 Elbow

24" Pipe

Length

Rigid Pipe Adaptor

The FPI AstroCap American Metal Products, Security Secure Vent®, AmeriV ent Direct Vent. AstroCapTM is the proprietary trademark of FPI Fireplace Products International Ltd. Dura-Vent® and Direct Vent are registered and/or proprietary trademarks of Simpson Dura-Vent Co. Inc.

and FPI Riser Vent terminal are certiﬁ ed for installations using FPI venting systems as well as Simpson Dura-Vent® Direct Vent ,

WARNING:

Do not combine venting components from different venting systems.

However use of the AstroCap is acceptable with all systems.

This product has been evaluated by Intertek for using a Rigid Pipe Adaptor in conjunction with DuraVent Direct V ent, Selkirk Direct-Temp, Ameri Vent Direct venting and Security Secure Vent systems. Use of these systems with the Rigid Pipe Adaptor is deemed acceptable and does not affect the Intertek WHI listing of components.

Regency® P36D-1 Zero Clearance Direct Vent Gas Fireplace

and FPI Riser

INSTALLATION

VENTING ARRANGEMENTS

HORIZONTAL TERMINATION

RIGID PIPE AND FPI DIRECT VENT SYSTEM (FLEX)

(Propane & Natural Gas)

The diagram shows all allowable combinations of vertical runs with horizontal terminations, using one 90o elbow (two 45o elbows equal one 90o elbow).

Note: Must use optional rigid pipe adaptor (Part # 510-994) when using Rigid Pipe venting systems.

All Rigid Pipe Systems 4" inner diameter 6-5/8" outer diameter

FPI Flex Vent 4" inner diameter 6-7/8" inner diameter

A vent guard should be used whenever the termination is lower than the speciﬁ ed minimum or as per local codes.

Note: FPI Direct Vent Flex System Part #'s

946-515 and 946-516 are only approved for horizontal terminations.

• Maintain clearances to combustibles.

• Horizontal vent must be supported every 3 feet.

• Firestops are required at each ﬂ oor level and whenever passing through a wall.

NOTE: If you are installing the P36D-1 into an FPI cabinet Mantel Kit, use the minimum horizontal vent height

(centre-line of 40-1/2"). Remember to include the mantel base (3" in height) in your calculations and to maintain the 2" clearance from the top with rigid or ﬂ ex pipe systems to the underside of the mantel top.

Regency® P36D-1 Zero Clearance Direct Vent Gas Fireplace

INSTALLATION

VENTING ARRANGEMENTS

VERTICAL TERMINATION

RIGID PIPE SYSTEM

(Propane & Natural Gas)

The shaded area in the diagram shows all allowable combinations of straight vertical and offset to vertical terminations, using two 90o elbow, with

rigid pipe vent systems for Propane and Natural Gas.

• Vent must be supported at offsets.

• Firestops are required at each ﬂ oor level and whenever passing through a wall.

• Maintain clearances to combustibles.

Note: Must use optional rigid pipe adaptor when using rigid vent systems (Part # 510-994).

Regency® P36D-1 Zero Clearance Direct Vent Gas Fireplace

The P36D-1 is approved for a 40 ft. straight vertical, with rigid pipe vent systems for Propane and Natural Gas, as per the diagram 1.

The shaded area in the diagram 1 shows all allowable combinations of straight vertical and offset to vertical terminations with rigid pipe vent systems for Propane and Natural Gas. Maximum

elbows allowed.

two 45

• Vent must be supported at offsets

• Firestops are required at each ﬂ oor level and whenever passing through a wall.

• Maintain clearances to combustibles.

INSTALLATION

Regency® P36D-1 Zero Clearance Direct Vent Gas Fireplace

Diagram 1

INSTALLATION

One 90o elbow = Two 45o elbows.

Option V H + H1

A) 0' Min. 2' Max. B) 1' Min. 3' Max. C) 2' Min. 4' Max. D) 3' Min. 5' Max. E) 4' Min. 6' Max. F) 5' Min. 7' Max. G) 6' Min. 8' Max.

Lengths do not include elbow indicated.

HORIZONTAL VENTING WITH TWO (2) 90O ELBOWS

With these options, maximum total pipe length is 30 feet with minimum of 6 feet total vertical and maximum 8 feet total horizontal.

Please note minimum 1 foot between 90o elbows is required.

HORIZONTAL VENTING WITH THREE (3) 90O ELBOWS

One 90o elbow = Two 45o elbows.

Option V H V + V1 H + H1

A) 0' Min. 1' Max. 1' Min. 2' Max. B) 1' Min. 2' Max. 3' Min. 3' Max. C) 2' Min. 2' Max. 5' Min. 4' Max. D) 3' Min. 2' Max. 7' Min. 5' Max. E) 4' Min. 3 Max. 9' Min. 6' Max. F) 5' Min. 4' Max. 10' Min. 7' Max. G) 6' Min. 5' Max. 11' Min. 8' Max. H) 7' Min. 6' Max. 12' Min. 9' Max.

Lengths do not include elbow indicated.

With these options, max. total pipe length is 30 feet with min. of 12 feet total vertical and max. 9 feet total horizontal.

Please note min. 1 foot between 90 elbows is required.

Regency® P36D-1 Zero Clearance Direct Vent Gas Fireplace

VERTICAL VENTING WITH TWO (2) 90O ELBOWS

INSTALLATION

One 90o elbow = Two 45o elbows.

Option V H V + V1 A) 0' Min. 2' Max. 1' Min. B) 1' Min. 4' Max. 3' Min. C) 2' Min. 5' Max. 4' Min. D) 3' Min. 6' Max. 5' Min. E) 4' Min. 7' Max. 6' Min. F) 5' Min. 8' Max. 7' Min.

Lengths do not include elbow indicated.

With these options, max. total pipe length is 30 feet with min. of 7 feet total vertical and max. 8 feet total horizontal.

Please note min. 1 foot between 90o elbows is required.

VERTICAL VENTING WITH THREE (3) 90O ELBOWS

One 90o elbow = Two 45o elbows.

Option V H + H1 V + V1 A) 0' Min. 2' Max. 2' Min. B) 1' Min. 2' Max. 3' Min. C) 2' Min. 3' Max. 4' Min. D) 3' Min. 4' Max. 6' Min. E) 4' Min. 5' Max. 7' Min. F) 5' Min. 6' Max. 8' Min. G) 6' Min. 7' Max. 9' Min. H) 7' Min. 8' Max. 10' Min.

Lengths do not include elbow indicated.

Regency® P36D-1 Zero Clearance Direct Vent Gas Fireplace

With these options, max. total pipe length is 30 feet with min. of 10 feet total vertical and max. 8 feet total horizontal.

Please note min. 1 foot between 90o elbows is required.

INSTALLATION

VERTICAL TERMINATION

WITH CO-LINEAR FLEX SYSTEM

THE APPLIANCE MUST NOT BE

CONNECTED TO A CHIMNEY FLUE

SERVING A SEPARATE SOLID FUEL

BURNING APPLIANCE.

This appliance is designed to be attached to two 3" (76mm) co-linear aluminium ﬂ ex running the full length of the chimney. See the Venting Arrangements on next page for minimum and maximum heights.

Required Parts:

Part # Description

946-529 Co-linear DV Vertical Termination Cap 948-305 3" Flex - 35 ft. 946-563 Co-Axial to Co-Linear Adapter Kit which contains the following: Co-linear Flex Adapter Outer Pipe Inner Pipe Adapter 510-994 Rigid Pipe Adaptor

FPI Cabinet and/or Flat Wall Mantles may be used in these applications ensuring that clearances to combustibles are maintained.

Masonry chimneys may take various contours which the ﬂ exible liner will accommodate. However, keep the ﬂ exible liner as straight as possible, avoid unnecessary bending.

The Air Intake pipe must be attached to the inlet air collar of the termination cap.

Co-linear DV

Vertical Termination

Cap # 946-529

A maximum

of two certified

joiner kits

may be used

per length.

Flex Liner

#948-305 (35 ft)

Exhaust

Flue

Outer

Pipe with Kit# 946-563

Air Intake

Pipe Length

Rigid Pipe Adapter

# 510-994

90 Degree

Elbow

Regency® P36D-1 Zero Clearance Direct Vent Gas Fireplace

Co-Linear

Flex

Adapter

with Kit# 946-563

Inner Pipe

Adapter with Kit# 946-563

INSTALLATION

VENTING ARRANGEMENT - VERTICAL TERMINATIONS

CO-LINEAR FLEX SYSTEM

INTO MASONRY FIREPLACES

FOR BOTH RESIDENTIAL & MANUFACTURED HOMES

30' Max.

Vertical Height (feet)

8' Min.

2’ max.

40-1/2”

Horizontal Distance (Feet)

The shaded area in the diagrams show the allowable vertical terminations.

Regency® P36D-1 Zero Clearance Direct Vent Gas Fireplace

INSTALLATION

UNIT INSTALLATION WITH

HORIZONTAL TERMINATION

Install the vent system according to the manufacturer's instructions included with the components.

1) Set the unit in its desired location. Check

to determine if wall studs or roof rafters are in the way when the venting system is attached. If this is the case, you may want to adjust the location of the unit. Rough in the gas preferably on the right side of the unit and the electrical (junction block is on the left side) on the left.

2) Direct Vent pipe and ﬁ ttings are designed with special twist-lock connections to connect the venting system to the appliance ﬂ ue outlet. A twist-lock appliance adaptor is an available option that must be used in conjunction with the Simpson Dura-Vent Direct Vent system.

3) Put a bead of silicone inside the outer section of the adapter and a bead of Mill Pac on the inner collar. Slip the adapter over the existing inner and outer ﬂ ue collar and fasten to the outer collar only with the 3 supplied screws (drilling pilot holes will make this easier). Level the ﬁ replace and fasten it to the framing using nails or screws through the nailing strips.

4) Assemble the desired combination of pipe and elbows to the appliance adaptor and twist-lock for a solid connection.

Notes:

a) Twist-lock procedure: Four indentations,

located on the female ends of pipes and ﬁ ttings, are designed to slide straight onto the male ends of adjacent pipes and ﬁ ttings, by orienting the four pipe indentations so they match and slide in to the four entry slots on the male ends, Diagram 1. Push the pipe sections completely together, then twist-lock one section clockwise approximately one-quarter turn, until the two sections are fully locked. The female locking lugs will not be visible from the outside, on the Black Pipe or ﬁ ttings. They may be located by examining the inside of the female ends.

Diagram 1

NOTE: For best results and optimum performance with each approved venting system, it is highly recommended to apply “Mill-Pac” sealant (supplied) to every inner pipe connection. Failure to do so may result in drafting or performance issues not covered under warranty. Silicone (red RTV) is optional.

b) Horizontal runs of vent must be

supported every three feet. Wall straps are available for this purpose.

5) Mark the wall for a 10" x 10" square hole. The center of the square hole should line up with the centerline of the horizontal pipe. Cut and frame the 10 inch square hole in the exterior wall where the vent will be terminated. If the wall being penetrated is constructed of noncombustible material, i.e. masonry block or concrete, a 7"(178mm) dia. (7-1/2"(191mm) dia. for ﬂ ex) hole is acceptable.

Note: With Dura-Vent, the minimum height is achieved by installing

elbow

a 90 directly to the rigid pipe adaptor.

Diagram 2

Notes:

a) The horizontal run of vent must be level,

or have a 1/4 inch rise for every 1 foot of run towards the termination. Never allow the vent to run downward. This could cause high temperatures and may present the possibility of a ﬁ re.

b) The location of the horizontal vent

termination on an exterior wall must meet all local and national building codes, and must not be blocked or obstructed. For External Vent Terminal Locations, see Exterior Vent Termination Location.

c) Snorkel Terminations: For installations requiring a vertical

rise on the exterior of the building, 14inch and 36-inch tall Snorkel T erminations are available, as well as the standard Riser Vent. Follow the same installation procedures as used for standard Horizontal Termination. NEVER install the snorkel upside down.

Diagram 3

Note: Riser Vent is only for use in above grade terminations.

Diagram 3a

*Diagrams 3 & 4: As speciﬁ ed in CGA B149 Installation Code. Local codes or regulations may require different clearances.

Below Grade Installation

If the Snorkel Termination must be installed below grade, i.e. basement application, proper drainage must be provided to prevent water from entering the Snorkel Termination. Refer to Diagram 4. Do not attempt to enclose the Snorkel within the wall, or any other type of enclosure.

Diagram 4

NOTE: For Snorkel terminations in ABOVE

grade installations, follow national or local code requirements.

6) The arrow on the vent cap should be pointing up. Insure that the 1-1/2"

clearances to combustible materials are maintained (Diagram 4). Install the termination cap.

Regency® P36D-1 Zero Clearance Direct Vent Gas Fireplace

INSTALLATION

Diagram 5

The four wood screws provided should

be replaced with appropriate fasteners for stucco, brick, concrete, or other types of sidings.

Note: If installing termination on a siding

covered wall, a vinyl siding standoff or furring strips must be used to ensure that the termination is not recessed into the siding.

7) Before connecting the horizontal run of vent

pipe to the vent termination, slide the Wall Thimble over the vent pipe.

8) Slide the appliance and vent assembly towards the wall carefully inserting the vent pipe into the vent cap assembly. It is important that the vent pipe extends into the vent cap sufﬁ cient distance so as to result in a minimum pipe overlap of 1-1/4 inches. Secure the connection between the vent pipe and the vent cap by attaching the two sheet metal strips extending from the vent cap assembly into the outer wall of the vent pipe. Use the two sheet metal screws provided to connect the strips to the pipe section. See Diagram 6.

Diagram 6

9) Install wall thimble in the center of the 10" square and attach with wood screws (Diagram 7).

Diagram 7

UNIT INSTALLATION WITH

VERTICAL TERMINATION

1) Maintain the 1-1/4" clearances

(air spaces) to combustibles when passing through ceilings, walls, roofs, enclosures, attic rafter, or other nearby combustible surfaces. Do not pack air spaces with insulation. Check for the maximum vertical rise of the venting system and the maximum horizontal offset limitations.

2) Set the gas appliance in its desired location. Drop a plumb bob down from the ceiling to the position of the appliance ﬂ ue exit, and mark the location

where the vent will penetrate the ceiling. Drill

a small hole at his point. Next, drop a plumb bob from the roof to the hole previously drilled in the ceiling, and mark the spot where the vent will penetrate the roof. Determine if ceiling joists, roof rafters or other framing will obstruct the venting system. Y ou may wish to relocate the appliance or to offset, as shown in Diagram 2 to avoid cutting load bearing members.

3) A Firestop spacer must be installed in the

ﬂ oor or ceiling of every level. To install the Firestop spacer in a ﬂ at ceiling or wall, cut a 10 inch square hole. Frame the hole as shown in Diagram 3 and install the ﬁ restop.

Diagram 3

Diagram 1

Diagram 2

4) Assemble the desired lengths of pipe and elbows. Ensure that all pipes and elbow connections are in the fully twist-locked position and sealed.

5) Cut a hole in the roof centered on the small drilled hole placed in the roof in Step 2. The hole should be of sufﬁ cient size to meet the minimum requirements for clearance to combustibles of 1-1/2". Slip the ﬂ ashing under the shingles (shingles should overlap half the ﬂ ashing) as per Diagram 4.

Diagram 4: The upper half of the ﬂ ashing is

installed under the rooﬁ ng material and not

nailed down until the chimney is installed.

This allows for small adjustments.

6) Continue to assemble pipe lengths.

Note: If an offset is necessary in the attic

to avoid obstructions, it is important to support the vent pipe every 3 feet, to avoid excessive stress on the elbows, and possible separation. Wall straps are available for this purpose (Diagram 2).

Galvanized pipe is desirable above the rooﬂ ine

due to its higher corrosion resistance. Continue to add pipe sections through the ﬂ ashing until the height of the vent cap meets the minimum height requirements speciﬁ ed in Diagram 5 or local codes. Note that for steep roof pitches,

Diagram 5

Roof Pitch Minimum Vent Height Feet Meters ﬂ at to 7/12 2 0.61 over 7/12 to 8/12 2 0.61 over 8/12 to 9/12 2 0.61 over 9/12 to 10/12 2.5 0.76 over 10/12 to 11/12 3.25 0.99 over 11/12 to 12/12 4 1.22 over 12/12 to 14/12 5 1.52 over 14/12 to 16/12 6 1.83 over 16/12 to 18/12 7 2.13 over 18/12 to 20/12 7.5 2.29 over 20/12 to 21/12 8 2.44

Regency® P36D-1 Zero Clearance Direct Vent Gas Fireplace

INSTALLATION

the vertical height must be increased. A poor draft, or down drafting can result from high wind conditions near big trees or adjoining roof lines, in these cases, increasing the vent height may solve the problem.

7) Ensure vent is vertical and secure the base of the ﬂ ashing to the roof with rooﬁ ng rails, slide storm collar over the pipe section and seal with a mastic.

8) Install the vertical termination cap by twistlocking it.

Note: Any closets or storage spaces, which

the vent passes through must be enclosed.

Offset Chart

DIRECT VENT

SYSTEM (FLEX)

INSTALLATION

PROCEDURES

Note: To make the installation more aesthetically pleasing, we recommend framing out a square to mount the terminal to.

Note: If installing termination on a siding

covered wall, furring strips must be used to ensure that the termination is not recessed into the siding.

2) Level the ﬁ replace and fasten it to the framing

using nails or screws through the nailing strips.

3) Assemble the vent assembly by applying Mill Pac to the 4"(100mm) inner collar of the termination and slipping the 4"(100mm) liner over it at least 1-3/8" (35mm). Fasten with the 3 screws (drilling pilot holes will make this easier). Apply Mill Pac or high temperature silicone to the 6-7/8"(175mm) ﬂ ex pipe and slip it over the 6-7/8" outer collar of the vent terminal at least 1-3/8"(35mm) and fasten with the 3 screws.

NOTE: Horizontal sections must be

supported at intervals not exceeding 3 feet (0.9 meter). (Flame picture and performance will be affected by sags in the liner).

4) Separate the 2 halves of the wall thimble and

securely fasten the one with the tabs to the outside wall making sure that the tabs are on top and bottom. Fasten the other thimble half to the inside wall. The thimble halves slip inside each other and can be adjusted for 2 x 4 or 2 x 6 walls. The liners must slip

over the collars a minimum of 1-3/8".

5) Slip the assembled liner and termination assembly through the thimble making sure the termination cap faces up (there are markings on the cap that show which way is up). This will position the termination cap with proper down slope for draining water. Fasten the cap to the outer wall with the 4 supplied screws.

6) Pull the centre 4"(100mm) liner and outer

6-7/8"(175mm) liner out enough to slip over

the ﬂ ue collars of the ﬁ replace. (You may wish to cut the liner shorter to make it more workable.) Do not bend liner more than

7) Apply Mill Pac over the ﬁ replace inner collar and slip the 4"(100mm) liner down over it and attach with 3 supplied screws.

8) Do the same with the 6-7/8"(175mm) liner.

9) Apply a bead of silicone between the thimble

and termination and around the outer edge of the terminal at the wall in order to keep the water out.

IMPORTANT: Do not locate termination hood where excessive snow or ice buildup may occur. Be sure to check vent termination area after snow falls, and clear to prevent accidental blockage of venting system. When using snow blowers, make sure snow is not directed towards vent termination area.

1) Locate the unit in the framing, rough in the gas (preferably on the right side of the unit) and the electrical (Junction block is on the left side) on the left. Locate the centerline of the termination and mark wall accordingly. Cut a 10"(254mm) hole in the wall (inside dimension).

Note: A 1-1/2"(38mm) clearance around

the liner must be maintained except that only a 1" (25mm) clearance is needed at the termination end. We recommend framing a 10"(254mm) x 10"(254mm) (inside dimensions) hole to give structural rigidity for mounting the termination.

Regency® P36D-1 Zero Clearance Direct Vent Gas Fireplace

INSTALLATION

P36D-NG1 SYSTEM DATA

For 0 to 4500 feet altitude

Burner Inlet Oriﬁ ce Sizes: #37 Max. Input Rating 30,000 Btu/h

Min. Input Rating 15,500 Btu/h Supply Pressure min.5.0" w.c.

Manifold Pressure (High) 3.8"+/- 0.2"w.c.

Electrical: 120 V A.C. System. Circulation Fan: variable speed 130 CFM. Log Set: Ceramic ﬁ bre, 7 per set. Vent System: Simpson Dura-Vent Direct

Vent System or FPI Direct Vent System (Flex)

P36D-LP1 SYSTEM DATA

Conversion Kit # 514-969 For 0 to 4500 feet altitude

Burner Inlet Oriﬁ ce Sizes: #52 Max. Input Rating 30,000 Btu/h

Min. Input Rating 15,000 Btu/h Supply Pressure min.12.0" w.c.

always best to consult with your local authorities and the CAN/CGA B149 installation code.

For USA installations follow local codes and/ or the current National Fuel Gas Code, ANSI Z223.1.

When using copper or ﬂ ex connectors use only approved ﬁ ttings. Always provide a union so that gas lines can be easily disconnected for servicing. Flare nuts for copper lines and ﬂ ex connectors are usually considered to meet this requirement.

Important: Always check for gas leaks with a soap and water solution or gas leak detector. Do not use open ﬂ ame for leak testing.

PILOT ADJUSTMENT

Periodically check the pilot ﬂ ames. Correct ﬂ ame pattern has three strong blue ﬂ ames: 1 ﬂ owing around the thermopile, 1 around the thermocouple and 1 ﬂ owing across the burner (it does not have to be touching the burner).

Note: If you have an incorrect ﬂ ame pattern,

contact your FPI dealer for further instructions.

The manifold pressure is controlled by a regulator built into the gas control, and should be checked at the pressure test point.

Note: To properly check gas pressure, both

inlet and manifold pressures should be checked using the valve pressure ports on the valve.

1) Make sure the valve is in the "OFF"

position.

2) Loosen the "IN" and/or "OUT" pressure tap(s), turning counterclockwise with a

1/8" wide ﬂ at screwdriver.

3) Attach manometer to "IN" and/or "OUT" pressure tap(s) using a 5/16" ID hose.

4) Light the pilot and turn the valve to "ON" position.

5) The pressure check should be carried out with the unit burning and the setting should be within the limits speciﬁ ed on the safety label.

6) When ﬁ nished reading manometer, turn off the gas valve, disconnect the hose and tighten the screw (clockwise) with a 1/8" ﬂ at screwdriver. Note: Screw should be snug,

but do not over tighten.

Manifold Pressure (High) 11"+/- 0.2" w.c.

Electrical: 120 V A.C. System. Circulation Fan: variable speed 130 CFM. Log Set: Ceramic ﬁ bre, 7 per set. Vent System: Simpson Dura-Vent Direct

Vent System

HIGH ELEVATION

This unit is approved in Canada for altitude 0 to 4500 ft. (CAN1 2.17-M91) with the oriﬁ ce supplied.

GAS LINE

INSTALLATION

The gas line can be brought through either the right or the left side of the appliance. The gas valve is situated on the right hand side of the unit and the gas inlet is on the right hand side of the valve.

Note: If the gas line is being installed from

the left side, be sure to leave room to accommodate servicing of the fan.

The gas line connection may be made of rigid pipe, copper pipe or an approved ﬂ ex connector. (If you are using rigid pipe, ensure that the valve can be removed for servicing.) Since some municipalities have additional local codes it is

Incorrect ﬂ ame pattern will have small, probably yellow ﬂ ames, not coming into proper contact with the rear burner or thermopile or thermocouple.

GAS PIPE PRESSURE

TESTING

The appliance must be isolated from the gas supply piping system by closing its individual manual shut-off valve during any pressure testing of the gas supply piping system at test pressures equal to or less than 1/2 psig. (3.45 kPa). Disconnect piping from valve at pressures over 1/2 psig.

S.I.T. VALVE

DESCRIPTION

1) Gas on/off knob

2) Manual high/low adjustment

3) Pilot Adjustment

4) Thermocouple Connection - option

5) Outlet Pressure Tap

6) Inlet Pressure Tap

7) Pilot Outlet

8) Main Gas Outlet

9) Alternative TC Connection

Point

Regency® P36D-1 Zero Clearance Direct Vent Gas Fireplace

INSTALLATION

for P36D-1 / P36-4 / U32-4 / U37-1 using SIT 820 NOVA Gas Valve

THIS CONVERSION MUST BE DONE BY A QUALIFIED GAS FITTER

CONVERSION KIT# 514-969 FROM NG TO LP

IF IN DOUBT DO NOT DO THIS CONVERSION !!

Each Kit contains one LPG Conversion Kit and one DC Sparker Kit.

Conversion Kit Contains: Qty. Part # Description

1 904-390 Burner Oriﬁ ce #52 1 904-529 5/32" Allen Key 1 918-590 Decal "Converted to LPG" 1 908-528 Red "LPG" label 1 910-037 LPG Injector (Pilot Oriﬁ ce) 1 918-481 Instruction Sheet

DC Sparker Kit Contains:

Qty. Part # Description

1 820-475 Bracket DC Sparker 1 820-476 Bracket DC Sparker 1 904-153 Washer #8 External Star 1 904-330 Nut 8-32 Hex 2 904-531 Bushing Split Plastic

0.500 in.

1 904-543 Screw 8-32 x 3/4 Pan

Head

2 904-553 Screw #8 x 1/2 Type "B",

Black Oxide

1 910-073 Spark Generator Battery

Holder

1 910-074 Spark Generator Switch

C/W Wire

1 910-078 Battery Size AA

Energizer En91 2 910-199 Clip Wire Holder 1 910-903 Wire Fan To Power Cord

Ground 30 in. 904-781 Velcro Hook, Black 904-782 Velcro Hook, Black

For P36D-1 / P36-4 Only:

5) Remove the 2 screws holding the Burner

Assembly to the ﬁ rebox base. Push the Burner Assembly to the left and lift out.

Remove the 2 screws, push Burner Assembly

to the left and lift out.

For U32-5 Only:

5a) Remove the grate by removing the

screws on each side of the grate.

Remove the 2 screws

holding the grate in position.

5b) Remove the Burner Tray by removing

the screws on each side of the tray. Push the tray to the left and lift up.

6) Pull off the pilot cap to expose the pilot

oriﬁ ce.

7) Unscrew the pilot oriﬁ ce with the allen

key; then replace with the LPG pilot oriﬁ ce and the pilot cap, provided in the kit.

8) Remove burner oriﬁ ce with a 1/2"

wrench. Use another wrench to hold on to the elbow behind the oriﬁ ce. Discard oriﬁ ce.

Installation of LPG Conversion Kit:

1) Shut off the gas supply.

2) Remove the louvers (and bay door if it is

installed).

3) Open the ﬂ ush door and remove the

door.

4) Remove the logs and embers (if already

installed).

Burner Oriﬁ ce

Remove the 2 screws,

push Burner Tray to the left, and lift off.

IMPORTANT

Before re-installation of the burner (once

the LP conversion is complete), the air

deﬂ ector must be installed. See step 18a.

Regency® P36D-1 Zero Clearance Direct Vent Gas Fireplace

INSTALLATION

9) Reinstall new burner oriﬁ ce LPG

stamped #52 and tighten.

10) Turn control knob to the “OFF” position.

11) Remove the black

protection cap by hand from the hi-low knob (Fig.1).

Fig.1

12) Insert a 5/32” or 4mm

Allen wrench into the hexagonal key-way of the screw (Fig.

2), rotate it counterclockwise until it is free and extract it.

Fig.2

13) Check that the screw is clean and if

necessary remove dirt.

16) Verify that if the conversion is from

NG to LPG, the screw must be reassembled with the red o-ring visible (Fig. 5).

Red o-ring visible

LPG Configuration

Fig.5

17) Re-assemble the black protection

cap (Fig. 6).

Fig. 6

18) Reverse steps 6 - 1.

Installation of the DC Sparker:

21) Locate the Piezo Ignitor situated at the

side of valve.

Piezo

Ignitor

22) Remove the Piezo Ignitor by unscrewing

the nut at the back of the mounting bracket.

Ignitor

Wire

Piezo

Ignitor

14) Flip the screw (Fig. 3).

Fig.3

15) Using the Allen wrench

as shown in Fig.4, rotate the screw clockwise until snug, do not overtighten.

Fig.4

WARNING!

Do not over tighten the screw.

Recommended to

grip the wrench by the short side.

For U32-5 Only:

18a) Install the air deﬂ ector to the back wall of

the ﬁ rebox using 2 screws.

Air Deﬂ ector

WARNING!

Also check that the pilot and main

burner injectors are appropriate for

the gas type.

19) Attach the label "This unit has been

converted to LPG" near or on top of the serial # decal.

20) Replace yellow "NG" label with red

"LPG" label.

23) Disconnect the ignitor wire from the

Piezo Ignitor and connect it to the DC Sparker.

Sparker

Ignitor

Wire

24) Connect the DC spark generator wires

to the SIT Valve with the screw, which is provided in the kit.

Regency® P36D-1 Zero Clearance Direct Vent Gas Fireplace

INSTALLATION

25) Locate the ground lug.

For P36D-1 / P36-4 Only:

25a) By the receptical box, left of the unit.

For U32-5 Only:

25b) Located on the left side of the unit.

28) Install the 1/2" bushing to the heat

shield.

29) Plug the DC spark generator wires to the

DC Sparker.

32) Mount the heat shield to the DC Sparker.

Secure into place with the velcro, which is provided in the kit.

33) Find a location which is not too hot and

is easy to reach for changing the battery.

Note: It should be kept away from the

chain.

Chain

26) Connect one end of the supplied green

ground wire to the lug with the nut and washer from the kit.

Ground

wire from

kit

27) Run the other end of the ground wire

and DC spark generator wires through the bushing on the heat shield.

Heat Shield

30) Connect the ground wire to the DC Sparker

mounting bracket.

31) Install the supplied battery into the DC Sparker Box by opening the battery compartment.

Battery

Compartment

34) Tie up the loose wires with the wire clip.

35) Check for gas leaks.

36) Check inlet and outlet pressures.

37) Check operation of ﬂ ame control.

38) Check for proper ﬂ ame appearance and

glow on logs.

NOTE: The battery in the DC Sparker

Box will need to be replaced an nually.

Regency® P36D-1 Zero Clearance Direct Vent Gas Fireplace

OPTIONAL

BRICK PANELS

INSTALLATION

1) Undo the bottom 2 door latches and open and remove glass door. Remove logs.

Note: The logs must not be in the unit.

2) Insert the back brick panel ﬁ rst by carefully slipping it between the

back wall of the ﬁ rebox and the rear log bracket.

3) Put the side panels in next. Slide them in from the front and push them ﬂ at up against the wall. Be very careful not to scratch them on the ﬁ rebox hardware.

4) Install the 2 brick retaining clips, one on each side.

Regency® P36D-1 Zero Clearance Direct Vent Gas Fireplace

Note:

If the bottom brick panel must be removed: Remove the Rear Log Stand, then remove the Burner Tray.

INSTALLATION

Read the instructions below carefully and refer to the diagrams. If logs are broken do not use the unit until they are replaced. Broken logs can interfere with the pilot operation.

The gas log kit (Part #780-930) contains the following pieces:

a) 02-75 Rear Log b) 02-55 Middle Left Log c) 02-50 Front Left Log d) 02-53 Center Left Log e) 02-51 Front Bottom Log f) 02-54 Center Right Log g) 02-52 Middle Right Log h) 902-156 Embers i) 902-179 Vermiculite j) 946-669 Platinum Embers (supplied with packaged manual)

NOTE: If you will be installing the optional Brick Panels

(P36D & P90 only), install the Brick Panels prior to installing the logs.

Model shown has P36D and P90 burner/grate with

brick panel option.

3) Place the Log 02-75 on the rear log support pins with the

ﬂ at side to the back.

02-75

4) Place Log 02-51 on the front right side of the burner. Push

the back of the log against the 2 brackets with the notch on the bottom right side of the log ﬁ tting into the right side of the grate.

02-75

02-51

02-54

02-53

02-50

The "02" reference numbers (i.e. 02-75) are

molded into the rear of each log.

1) Carefully remove the logs from the box and unwrap them. The logs are fragile, handle with care - do not force into

position.

2) Sprinkle the vermiculite over base brick panel.

02-55

02-52

02-75

Bracket

02-51

Bracket

02-51

Notch

Regency® P36D-1 Zero Clearance Direct Vent Gas Fireplace

INSTALLATION

LOG SET INSTALLATION

5) Position Log 02-53 across the cutouts in Logs 02-75 and

02-51 with the notch on the left side of the log ﬁ tting into the 2nd grate tab.

02-53

02-75

02-51

2nd Grate Tab

Cutouts

5th Grate Tab

7) Place the bottom left front edge of Log 02-55 against the

rear bracket on the burner tray and rest the log on the cutout on Log 02-53.

02-51

02-53

6) Position Log 02-54 across the cutouts in Logs 02-51 and

02-53. The notch in the bottom right end ﬁ tting against the 5th grate tab.

02-54

02-51

02-53

02-75

Rear Bracket

02-55

Cutouts

02-53

5th Grate Tab

Regency® P36D-1 Zero Clearance Direct Vent Gas Fireplace

INSTALLATION

8) Place Log 02-52 between Logs 02-51 and 02-75 and on

the indentation on Log 02-54. The bottom right end sits behind the rear grate tab.

02-52

02-51

02-54

Log Indentation

9) Sit Log 02-50 on the front left side of the burner. Push

the back of the log against the 2 front brackets with the notch on the bottom of the log ﬁ tting into the ﬁ rst grate tab.

02-50

Front Brackets

02-55

02-53

02-52

02-54

Grate Tab

Photo shows rear grate tab.

Log 02-51 was removed to show the

positioning of Log 02-52.

Rear

Notch

02-53

02-50

Regency® P36D-1 Zero Clearance Direct Vent Gas Fireplace

INSTALLATION

10) Place the embers on the front of the burner tray in the

places shown on the photos below.

Separate platinum embers and place on the front burner on

and around the embers. Avoid stacking platinum embers. Platinum embers may be placed over burner ports.

Place embers in these 3 locations

on the burner tray.

02-51

02-54

Do not block the burner ports in this

area adjacent to the Log 02-54

IMPORTANT

When placing Embers, do not block burner ports as

this can cause an incorrect ﬂ ame pattern, carbon

deposits and delayed ignition.

11) Test ﬁ re to ensure proper light off (make sure ﬂ ame ﬂ ows

smoothly from one end of burner to the other). If there is any ﬂ ame hesitation, check that area for any blockage of the burner ports.

02-75

02-55

02-50

Regency® P36D-1 Zero Clearance Direct Vent Gas Fireplace

02-53

02-52

02-54

02-51

INSTALLATION

STANDARD FLUSH DOOR

The standard ﬂ ush door comes with a black frame. T o install the frame,

simply hook the top door ﬂ ange onto the top of the unit and swing the door towards the unit, see diagram 1.

Diagram 1

Be careful that the glass gasket does not roll up; there must be a gap between the gasket and the door lip to ensure that the door sits securely on the unit, see Diagram 2.

Diagram 2

Use the hook to pull the spring out until you can put the hook into the slot on the bottom door bracket. Repeat for 2nd spring. See diagram 3.

Diagram 3

To remove the ﬂ ush door, reverse the above steps.

Regency® P36D-1 Zero Clearance Direct Vent Gas Fireplace

INSTALLATION

REMOTE CONTROL

(OPTIONAL)

Use the FPI Remote Control Kit approved for this unit. Use of other systems may void your warranty.

The remote control kit comes with a hand held transmitter, a receiver and a wall mounting plate.

1) Choose a convenient location on the wall to install the receiver and the receptacle box (protection from extreme heat is very important). Run wires from the ﬁ replace to that location. Use the Thermostat Wire T able.

2) Connect the two wires to the gas valve. See diagram below.

WALL SWITCH

(OPTIONAL)

1) Run the wire through the right or left side

inlet opening. Be careful not to damage wire.

Note: We recommend a maximum of 15'

of wire but if you wish to go with a longer run, use the Thermostat Wire Table.

2) Connect the wire to the wall switch and

install into the receptacle box.

CAUTION

Do not connect millivolt

wall switch wire to a 120V

wire.

WALL THERMOSTAT

(OPTIONAL)

A wall thermostat may be installed if desired, connect the wires as per the wiring diagram. Use the table below to determine the maximum wire length.

Note: Preferable if the thermostat is installed on an interior wall.

FPI offers an optional programmable thermostat but any 250-750 millivolt rated non-anticipator type thermostat that is CSA, ULC or UL approved may be used.

CAUTION

Do not connect millivolt

wall thermostat wires

to a 120V wire.

Thermostat Wire Table

CAUTION

Do not connect millivolt

remote control wires to a

120V wire.

3) Install 3 AAA alkaline batteries in transmitter

and 4 AA alkaline batteries in the receiver. Install the receiver and its cover in the wall. Switch the remote receiver to "remote" mode. The remote control is now ready for operation.

Recommended Maximum Lead Length

(Two-Wire) When Using Wall

Thermostat (CP-2 System)

Wire Size Max. Length

14 GA. 16 GA. 18 GA. 20 GA. 22 GA.

50 Ft. 32 Ft. 20 Ft. 12 Ft.

9 Ft.

Regency® P36D-1 Zero Clearance Direct Vent Gas Fireplace

INSTALLATION

This heater does not require a 120V A.C. supply for operation. In case of a power failure, the burner switch and the optional remote control/ thermostat will continue to operate. However, a 120V A.C. power supply is needed for the fan/blower operation.

For NATURAL GAS Units and Units NOT Equipped with DC Spark Boxes

WIRING DIAGRAMS

(Do not cut the ground terminal off under any circumstances.)

NOTE: Even if the fan is not purchased

with the unit, it is still a good idea to bring power to the receptacle box (provided with the unit) in case the fan is installed at a later date.

Caution: Ensure that the wires do not touch any hot surfaces and are away from sharp edges.

CAUTION: Label all wires prior to disconnection when servicing controls. Wiring errors can cause improper and dangerous operation.

Regency® P36D-1 Zero Clearance Direct Vent Gas Fireplace

INSTALLATION

For PROPANE Units and Units Equipped with DC Spark Boxes*

*For installation of the DC Spark Box refer to the LP Conversion instructions in this manual.

Regency® P36D-1 Zero Clearance Direct Vent Gas Fireplace

INSTALLATION

OPTIONAL FAN

INSTALLATION

120 Volt AC power is needed for the fan switch and blower. The fan can be hard wired if desired. The receptacle box should be installed on the left hand side of the unit by a qualiﬁ ed electrician. The neutral (wider) slot of the polarized receptacle should be at the top.

Unit must be grounded at all times. Do not cut the ground terminal off under any circumstances.

1) Shut the power off.

2) Remove the standard ﬂ ush door and the

optional bay door, if installed. Open the bottom louver door.

3) Loosen the 2 screws holding the Burner ON/OFF switch and bracket to the bottom louver and lift the assembly out.

4) Turn the fan base on its side (with the base facing towards you) and then slide the fan in towards the rear of the unit. Turn the fan upright and slip it over the two mounting studs. T ake care not to damage the insulation on the fan base. Ensure that the fan blades

do not rub against the valve tubing.

Diagram 1.

6) Slide the thermodisc/cover assembly into the bracket clip on the underside of the ﬁ rebox. Check that no wire will touch the hot surfaces. Diagram 2.

Diagram 2

7) Attach the Fan control box to the Burner ON/OFF control box.

Use the clip & hook on the side of the control

boxes to join them together.

8) Secure the two boxes together with one screw.

11) Attach the two control boxes to the bottom louver and tighten the 2 screws on the left side and 1 screw on the right side.

Secure left side with 2

screws.

Secure right side with one screw.

12) Secure the fan wires and power cord by attaching one of the adhesive backed wire holder clips (Part #910-199) onto the stove base. Use the second clip to bundle up the wires approximately 4" from the control box. Ensure that there is no interference with the wires when the louver is closed and that no wire will touch the hot metal surfaces or sharp edges.

13) Plug the fan power cord into the rear end of the receptacle box to provide the maximum clearance from the louvers.

OPTIONAL FAN REMOVAL

1) Shut the power off.

Diagram 1

5) Connect fan ground cable to ground lug. Refer to wiring diagram.

Secure the 2 boxes together

with one screw.

9) Position the control box assembly on the bottom louver and mark the position of the slot on the right side bracket.

Hold control box assembly in place and mark

the position of the right side slot

10) Remove the control box assembly and push the hold-down clip onto the louver. Bend the tab until it is at 90

to the louver.

2) Reverse the above instructions.

Note: The bearings are lubricated for life. Do not lubricate them. Make sure you vacuum the fan area on a regular basis.

IMPORTANT: These fans collect a lot of dust from within your home. Ensure you maintain these fan motors on a regular basis by vacuuming out the fan blades and housing using a soft brush nozzle.

Regency® P36D-1 Zero Clearance Direct Vent Gas Fireplace

OPERATING INSTRUCTIONS

INSTALLATION

OPERATING

INSTRUCTIONS

1) Read and understand these instructions

before operating this appliance.

2) Check to see that all wiring is correct and enclosed to prevent possible shock.

3) Check to ensure there are no gas leaks.

4) Make sure the glass in the door frame is

properly positioned. Never operate the appliance with the glass removed.

5) Verify that the venting and cap are unobstructed.

6) Ensure that the brick panels are installed.

7) Verify log placement. If the pilot cannot be

seen when lighting the unit, the logs have been incorrectly positioned.

8) The unit should never be turned off, and on again without a minimum of a 60 second wait.

3) Turn gas control knob counterclockwise so indicator points to the "PILOT" position. Depress the gas control knob fully. Depress the igniter button several times until the pilot lights. After approximately one minute, release the gas control knob. The pilot ﬂ ame should continue to burn. If the pilot does not remain lit, repeat operation allowing a longer period before releasing gas control knob.

4) When the pilot stays lit, turn the gas knob further counterclockwise to the "ON" position.

5) Use the wall switch, thermostat or remote control to turn on the unit.

6) Rotate the ﬂ ame height regulator to adjust the ﬂ ame height higher or lower.

SHUTDOWN

PROCEDURE

1) Use the wall switch, thermostat or remote

control to turn off the main burner.

2) Turn the main gas control clockwise to the "OFF" position to turn off the pilot.

3) Turn off all electric power to appliance if service is to be performed.

FIRST FIRE

During the ﬁ rst few ﬁ res, a white ﬁ lm may develop on the glass front as part of the curing process. The glass should be cleaned or the ﬁ lm will bake on and become very difﬁ cult to remove. Use a non-abrasive cleaner and NEVER clean the glass while it is hot.

AERATION

ADJUSTMENT

The air shutter can be adjusted by moving the adjusting wire up or down. The wire is accessed through the bottom louver opening. Open the air shutter for a blue ﬂ ame or close for a yellower ﬂ ame. The burner aeration is factory set but may need adjusting due to either the local gas supply or altitude.

Minimum Air Shutter Opening: 3/16" Natural Gas 1/4" Propane

CAUTION: Carbon will be produced if air shutter is closed too much.

Note: Any damage due to carboning

resulting from improperly setting the aeration controls is NOT covered under warranty.

Note: Aeration Adjustment should only

be performed by an authorized FPI Installer at the time of installation or service.

The ﬁ rst ﬁ re in your ﬁ replace is part of the paint curing process. To ensure that the paint is

LIGHTING

PROCEDURE

IMPORTANT

To ignite or reignite the pilot, you

must ﬁ rst release the tension springs

below the door.

Only when the pilot holds, without pressure being applied to the control knob, reapply the tension springs to the door. The unit must not be operated with the tension springs unattached.

NOTE: For all propane units and units

equipped with electric spark boxes, see "Copy of Lighting Plate Instructions" section for more details.

IMPORTANT Gas on/off knob cannot be turned from "PILOT" to "OFF" unless it is partially depressed.

1) Turn burner OFF using "ON/OFF" switch.

2) Turn gas control knob so indicator points

to "OFF" position and allow 5 minutes for any gas in the combustion chamber to escape.

Regency® P36D-1 Zero Clearance Direct Vent Gas Fireplace

properly cured, it is recommended that you burn your ﬁ replace for at least four (4) hours the ﬁ rst time before you use it with the fan on.

When ﬁ rst operated, the unit will release an odour caused by the curing of the paint, the burning off of any oils remaining from manufacturing. Smoke detectors in the house may go off at this time. Open a few windows to ventilate the room for a couple of hours.

The glass panel may require cleaning after the unit has cooled down. DO NOT A TTEMPT

TO CLEAN THE GLASS WHILE IT IS HOT.

Note: When the glass is cold and the

DO NOT BURN THE APPLIANCE WITHOUT THE GLASS FRONT IN PLACE.

appliance is lit, it may cause condensation and fog the glass. This condensation is normal and will disappear in a few minutes as the glass heats up.

Adjustment Wire: Push to close or pull to

open aeration cap.

Closed - Tall yellow

Open - Short Blue

NORMAL OPERATING

SOUNDS OF GAS

APPLIANCES

It is possible that you will hear some sounds from your gas appliance. This is perfectly normal due to the fact that there are various gauges and types of steel used within your appliance. Listed below are some examples. All are normal operating sounds and should not be considered as defects in your appliance.

4949

OPERATING INSTRUCTIONS

COPY OF THE LIGHTING PLATE INSTRUCTIONS

Blower:

FPI gas appliances use high tech blowers to push heated air farther into the room. It is not unusual for the fan to make a "whirring" sound when ON. This sound will increase or decrease in volume depending on the speed setting of your fan speed control.

Burner Tray:

The burner tray is positioned directly under the burner tube(s) and logs and is made of a different gauge material from the rest of the ﬁ rebox and body. Therefore, the varying thicknesses of steel will expand and contract at slightly different rates which can cause "ticking" and "cracking" sounds. Y ou should also be aware that as there are temperature changes within the unit these sounds will likely re-occur. Again, this is normal for steel ﬁ reboxes.

Blower Thermodisc:

When this thermally activated switch turns ON it will create a small "clicking" sound. This is the switch contacts closing and is normal.

Pilot Flame: While the pilot ﬂ ame is on it can make a very slight "whisper" sound.

Gas Control Valve: As the gas control valve turns ON and OFF, a dull clicking sound may be audible, this is normal operation of a gas regulator or valve.

OFF

Unit Body/Firebox: Different types and thicknesses of steel will expand and contract at different rates resulting in some "cracking" and "ticking" sounds will be heard throughout the cycling process.

MAINTENANCE

INSTRUCTIONS

1) Always turn off the gas valve before cleaning.

For relighting, refer to lighting instructions. Keep the burner and control compartment clean by brushing and vacuuming at least once a year. When cleaning the logs, use a soft clean paint brush as the logs are fragile and easily damaged.

2) Clean appliance and door with a damp cloth (never when unit is hot). Never use an abrasive cleaner. The glass should be cleaned with a gas ﬁ replace glass cleaner.

The glass should be cleaned when it starts looking cloudy.

3) The heater is ﬁ nished in a heat resistant paint and should only be reﬁ nished with heat resistant paint. FPI uses StoveBright Paint - Metallic Black #6309.

4) Make a periodic check of burner for proper position and condition. Visually check the ﬂ ame of the burner periodically, making sure the ﬂ ames are steady; not lifting or ﬂ oating.

If there is a problem, call a qualiﬁ ed service person.

Regency® P36D-1 Zero Clearance Direct Vent Gas Fireplace

MAINTENANCE

5) The appliance and venting system must be

inspected before use, and at least annually, by a qualiﬁ ed ﬁ eld service person, to ensure that the ﬂ ow of combustion and ventilation air is not obstructed.

Note: Never operate the appliance without

the glass properly secured in place.

6) Do not use this appliance if any part has been

under water. Immediately call a qualiﬁ ed service technician to inspect the appliance and to replace nay part of the control system and any gas control which has been under water.

7) Verify operation after servicing.

GENERAL VENT

MAINTENANCE

Conduct an inspection of the venting system semi-annually. Recommended areas to inspect as follows:

1) Check the Venting System for corrosion in areas that are exposed to the elements. These will appear as rust spots or streaks, and in extreme cases, holes. These components should be replaced immediately.

2) Remove the Cap, and shine a ﬂ ashlight down the Vent. Remove any bird nests, or other foreign material.

3) Check for evidences of excessive condensation, such as water droplets forming in the inner liner, and subsequently dripping out the joints, Continuous condensation can cause corrosion of caps, pipe, and ﬁ ttings. It may be caused by having excessive lateral runs, too many elbows, and exterior portions of the system being exposed to cold weather.

LOG REPLACEMENT

The unit should never be used with broken logs. Turn off the gas valve and allow the unit to cool before opening door and carefully remove the logs. (The pilot light generates enough heat to burn someone.) If for any reason a log should need replacement, you must use the proper replacement log. The position of these logs must be as shown in the diagrams under Log Installation.

Note: Improper positioning of logs may

create carbon build-up and will severely alter the unit's performance which is not covered under warranty.

THERMOPILE/

THERMOCOUPLE

1) Open the bottom louvers.

2) Loosen the thermocouple or thermopile with

a 7/16" wrench.

3) Disconnect thermocouple by loosening nut from the valve with a 9mm wrench. Disconnect thermopile by loosening 2 screws marked TP on the valve.

4) Drop the thermocouple or thermopile down from the bracket and pull it out of the unit.

5) Reinstall the new ones in reverse order.

GLASS GASKET

If the glass gasket requires replacement use 5/8" ﬂ at glass gasket for the Bay Front (Part # 936-243) and a tadpole glass gasket for the Flush Front (Part # 936-155).

DOOR GLASS

Your FPI fireplace is supplied with high temperature, 5 mm Neoceram ceramic glass that will withstand the highest heat that your unit will produce. If your glass requires cleaning, we recommend using an approved glass cleaner available at all authorized dealers. Do not use abrasive materials. Do not clean the glass when hot.

In the event that you break your glass by impact, purchase your replacement from an authorized FPI dealer only, and follow our step-by-step instructions for replacement.

WARNING: Do not operate the appliance with the glass panels removed, cracked or broken. Replacement of the glass panels should be done by a licensed or

qualiﬁ ed service person.

Caution: Wear gloves when removing damaged or broken glass.

FLUSH GLASS REPLACEMENT

Remove the ﬂ ush door front. Remove the 4 glass clips from each corner. Slide in the new replacement glass. Push the 4 glass clips back onto the frame. The glass must have

gasketing around it.

4) Inspect joints, to verify that no pipe

sections or ﬁ ttings have been disturbed, and consequently loosened. Also check mechanical supports such as Wall Straps, or plumbers' tape for rigidity.

Regency® P36D-1 Zero Clearance Direct Vent Gas Fireplace

MAINTENANCE

REMOVING VALVE

1) Shut off the gas supply.

2) Remove the louvers (and bay door if it is

on).

3) Open the ﬂ ush door and remove the door.

4) Remove the logs.

5) Remove the burner/grate assembly by

removing the two Phillips head screws and then lift the burner assembly out.

7) Lift out the bottom brick panel.

8) Disconnect the inlet gas line. See diagram

9) Disconnect the 2 TP wires and the 2 TH wires from the valve.

10) Remove the 10 Phillips head screws securing the valve tray assembly in place and then lift the entire assembly out.

16) Remove the 4 Phillips head screws from the sides of the valve bracket and remove valve.

Hint: If you are using black pipe, ensure

that there is a union by the valve, otherwise removal will be almost impossible.

INSTALLING VALVE

1) Attach the valve to the valve bracket with

the 4 (m5x8 metric) screws provided.

2) Reconnect the "gas out" ﬂ are ﬁ tting with an 11/16" wrench.

3) Reconnect the "gas out" ﬂ are nut with a

13/16" wrench.

4) Install piezo ignitor push button assembly and reconnect wire.

5) Reconnect the quick drop out thermocouple nut with a 9mm wrench.

6) Reconnect the pilot tube nut with a 7/16" wrench.

Diagram 1: Remove the left and right screws

6) Remove the rear log stand by removing the 2 screws.

and then lift out the

burner/grate assembly.

screws

Rear Log Stand

screws

11) Undo the pilot tube from the valve with a 7/16" wrench.

12) Undo the quick drop out thermocouple nut on the valve with a 9mm (metric) wrench.

13) Remove the Piezo igniter wire and push button assembly.

14) Undo the "gas out" ﬂ are nut with a 13/16" wrench.

15)

Undo the "gas out" ﬂ are ﬁ tting with an 11/16" wrench.

Valve Tray Assembly

7) Scrape off the old gasket from the ﬂ oor of the ﬁ rebox and from the valve tray assembly.

8) Install a new gasket and reinstall the valve tray assembly.

Note: Failure to install a new gasket

may severely affect the appliance performance.

9) Reinstall the 10 hold down screws.

10) Hook up the 2 TP and 2 TH wires to the

appropriate connections on the valve.

11) Reinstall the bottom brick panel and the front log stand.

12) Install Burner/grate assembly

13) Hook up the gas line and check for gas

leaks with a soap and water solution or a gas leak detector. (Do not use open ﬂ ame for leak testing.)

14) Fire up the unit temporarily

15) Check the manifold pressure.

16) Reinstall the logs and brick panels as

needed.

17) Close the door and replace the louvers.

18) Fire up the unit again and check for proper

ﬂ ame appearance and glow on logs.

Regency® P36D-1 Zero Clearance Direct Vent Gas Fireplace

REGENCY® OPTIONS

INSTALLATION

FLUSH LOUVERS

1) Install the top louver by sliding the two

bracket clips into the brackets located underneath the top of the ﬁ rebox.

2) The bottom louver has a hinge that is attached (2 screws per hinge) to the lip on bottom of the unit.

3) Open the bottom louver. Pull the Burner ON/OFF control box from inside the bottom of the ﬁ replace and position the slots in the bracket over the 2 screws on the left side of the bottom louver. Push down to lock into place. Tighten the screws.

Note: Top and bottom louvers are different.

Screws on

louver bracket

Burner ON/

OFF control

box attached

to bottom

ﬂ ush louver.

Regency® P36D-1 Zero Clearance Direct Vent Gas Fireplace

Burner ON/OFF

control box

5353

REGENCY® OPTIONS

FULL SCREEN DOOR INSTALLATION

1) Before beginning the installation, remove the Screen Doors from the

Full Screen Door Frame by fully opening the doors and lifting up off of the hinges. See important note in step 7.

2) Full Screen Door Frame Installation a) Before attaching the Full Screen Door Frame to the unit, loosen the

left and right side #8 Philips Head Screws located on the inside top of the outer frame of the appliance. Also remove the center screw.

Cut-Out

Oblong Hole

Loosen the #8 Philips Head Screw on the inner side of each hinge

bracket as shown below.

Inside Top

of Outer

Frame

Hinge

Bracket

Inner Hinge

Bracket Screw

b) Slide the cut-outs in the Top and Bottom Flange of the Full Screen

Door Frame under the screw heads which were loosened in step 2a. Once the Frame is in place, tighten the screws to secure. Also re-secure the top center screw through the oblong hole.

Cut-Out

Top

Flange

Bottom

Backside of Full

Flange

Screen Door

Frame Shown

Cut-Outs

NOTE: Should the ﬁ nished wall protrude beyond the face of the unit,

you can accommodate up to 1/2" depth.

Simply push in the Full Screen Door Frame until it aligns against

the ﬁ nished wall. Secure Top Flange of Full Screen Door Frame as described in step 2.

For the Bottom Flange of the Full Screen Door Frame, push the

bottom of the Frame until it aligns with the wall. Use the inner cut-outs to secure the base of the Frame using the 2 x Hex Head Drill Point Screws provided.

Bottom Flange

Inner

Cut-Outs

Backside of Full Screen

Door Frame Shown

Regency® P36D-1 Zero Clearance Direct Vent Gas Fireplace

3) Install the hinges to the hinge brackets on the left and right side of the bottom of the outer frame, secure using 2 x #8 Philips Head Screws per hinge.

4) Place the Bottom Grill near hinge. Flip the hinge over the Bottom Grill

and secure with 3 x #8 Phillips Head Screws per side.

REGENCY® OPTIONS

6) Slide the Top Grill into the louver brackets located on the inside top

of the ﬁ rebox. Push in place.

Top Grill

7) Install the Left and Right Side Screen Doors in the fully open position by placing over top of the hinges on the Full Screen Door Frame.

INSTALLATION

Hinge Location

Bottom Grill

5) Mount the Burner ON/OFF Control Box to the left side of the Bottom Grill using 2 x #8 - 1/4" Philips Head Screws.

Left Side

of Bottom

Grill

NOTE: Failure to install the doors in the fully open position could

result in paint damage to the surface of the door.

Hinge

Screen Door

8) Close screen doors.

Burner ON/OFF

Control Box

Regency® P36D-1 Zero Clearance Direct Vent Gas Fireplace

5555

REGENCY® OPTIONS

Min. 361/4”

(921mm)

Steel Stud

Steel

Stud

Min. 14-1/4" (362mm)P36

Min. 18-5/8" (473mm)P36D

Min. 14-1/4" (362mm)P36

Min. 361/4”

(921mm)

Steel Stud

Min. 18-5/8" (473mm)P36D

When installing the optional Tripoli Screen Door Series, a non-combustible material 12" (305mm) above the unit and 6" (153mm) on each side must be used (see Diagram 1).

The Tripoli Screen Door Series also requires steel stud framing above and on each side of the unit (refer to Diagram 1).

TRIPOLI SCREEN DOOR

Diagram 1

Option #1:

Fireplace with 1/2" (13mm) Facing Material

INSTALLATION NOTE:

The hearth material must be brought past the Tripoli frame all the way to the unit

face, so there will be no gap between the face and the actual ﬁ replace.

OPTIONS

1 36-1/4”

2 36-1/4”

ABCDABCD

(921mm)

36-1/4”

(921mm)

36-1/4”

(921mm)

P36 P36D

14-1/4”

(362mm)

13-3/4”

(349mm)

Fireplace with 1" (25mm or more) Facing Material

FRAMING DIMENSIONS

46”*

(1168mm)

46”

(1168mm)

36-1/4”

(921mm)

36-1/4”

(921mm)

Option #2:

37-1/4”

(946mm)

37-1/4”

(946mm)

18-5/8”

(473mm)

18-1/8”

(460mm)

46”*

(1168mm)

46”

(1168mm)

* 'D' is Minimum height to combustible materials including the Minimum 2" (51mm) Top clearance to the Horizontal Vent.

Regency® P36D-1 Zero Clearance Direct Vent Gas Fireplace

REGENCY® OPTIONS

INSTALLATION

Note: The facing material has to go on after the unit is set.

1) Remove Glass Door. Refer to P36 Manual.

2) Remove 2 screws and bracket as indicated (refer to Diagram 2).

Remove bracket

Remove both screws

Diagram 2

4) Place bracket under the Flange. Secure with 2 screws as indicated

in Diagram 4.

Diagram 4

5) Loosen the 3 x #8 Phillips Head Screws located on the inside top

of the outer frame of the appliance (refer to Diagram 5).

3) Install On/Off switch (refer to Diagram 3).

Diagram 3

On/Off Switch

3 x #8 Phillips

Diagram 5

Control Mounting Bracket

Regency® P36D-1 Zero Clearance Direct Vent Gas Fireplace

5757

REGENCY® OPTIONS

6) Install Top Support Frame

Slide in the Top Support Frame using the slots as a guide. Secure and re-tighten the screws to the unit.

Cut-Outs

View of backside of Top Support Frame.

8) Attach Top and Side Support Frame

a) Ensure the Side Supports are aligned with the correspon

hole on the Top Support Frame, then secure with 1 screw.

b) Repeat step on the other side.

7) Side Support Frame

a) Mount Side Support Frame to unit as shown in Diagram 6, then

secure with 2 screws on each side.

b) Repeat step on the other side.

Diagram 6

Note: The Nailing Strips can be adjusted, depending on the fa material (as indicated in Diagram 7).

1/2” Facing

Material

1” Facing

Material

Diagram 7

9) Optional

Install Optional 3-Panel Arch Door. (Refer to Install 3-Panel Door Instruction Sheet).

10) Change in Logo

Replace existing logo with Regency logo.

Regency® P36D-1 Zero Clearance Direct Vent Gas Fireplace

PARTS LIST

MAIN ASSEMBLY

Part # Description Part # Description Part # Description

1) 948-253 Door Handle

2) 510-026 Hinge Bracket - Left/Right

3) 948-045 Chain

4) 948-115 Spring

6) 430-129 Receptacle Box Mount

7) 910-429 Box - Receptacle

8) 910-428 Duplex Receptacle

9) 910-430 Cover - Receptacle

10) 904-687 Clamp Connector

20) 510-033 Top Nailing Strip

22) 780-010 Bafﬂ e Plate

23) 780-011 Standoff - Top

24) 780-013 Standoff - Side/Back

27) * Outer Flue Collar

28) * Inner Flue Collar Assy

29) * Flue Mounting Plate

30) * Gasket for Flue Collar

102

100

780-901 Brick Panel Set - Standard Brown 780-902 Brick Panel Set - Standard Red 780-903 Brick Panel Set - Herringbone Brown

31) * Brick Panel - Back

32) * Brick Panel - Left

33) * Brick Panel - Right

34) * Brick Panel - Bottom

35) * Thermodisc Bracket 432-967 Burner ON/OFF Switch Assy

38) 910-241 Switch-Burner ON/OFF(3-way) 910-899 Wire Harness-Valve to Burner

432-917 Fan & Speed Control Assy (120 Volts) Optional

42) 910-331/P Fan Motor 432-966 Fan Switch Assy (120 Volts) Optional

43) 910-813 Power Cord (120 Volts)

46) 910-330 Fan Speed Control Switch

47) 904-586 Knob - Speed Control

48) 910-199 Wire Holder Clip

49) 910-142 Thermodisc-Fan (Auto ON/OFF) 910-845 Wire Harness - Plug In Fan

50) 510-994 Optional Rigid Pipe Adaptor 946-556 Optional Heat Wave Duct Kit

89) 946-004 Junction Box

90) 946-000 Round Duct Adaptor

91) 946-002 Round to Oval Adaptor

92) 946-001 Oval Duct Adaptor

93) 946-007 Angle Bracket

94) 946-517/P Fan Assembly - HeatWave Option

95) 946-006 Grill Plate - White

96) 946-005/01 Wall Adaptor Plate - White

97) 910-417 Knob - White

98) 910-366 Switch Cover Plate - White

99) 910-412 Fan Speed Controller

100) 910-367 Box - Plastic Switch Receptacle

101) 690-022 Cover Plate - Outer Box Side

102) 946-010 Flexible Air Duct 946-011 Insulation 6" dia. x 24"

946-570 Heat Release Duct Kit (Optional)

105) 910-165 Fan (120 Volts)

106) 946-000 Flexible Air Release Duct 918-522 Manual

514-969 Conversion Kit - NG to LP *Not available as a replacement part.

DOORS & LOUVERS PLEASE REFER SEPARATE SECTION

BRICK PANEL SET

Regency® P36D-1 Zero Clearance Direct Vent Gas Fireplace

ON-OFF

SWITCH

ASSEMBLY

FAN SWITCH ASSEMBLY

106

101

105

HEAT RELEASE DUCT KIT

PARTS LIST

BURNER ASSEMBLY & LOG SET

Part # Description

52) 910-190 Piezo Ignitor & Nut

53) 780-021 Gasket - Valve Access Plate NG/LP

54) 910-421 Pilot ON/OFF 3" Extension Knob

55) 910-422 Flame HI/LOW 3" Extension Knob 780-574/P Valve Assy - Natural Gas

780-576/P Valve Assy - Propane

56) * Valve Tray - NG/LP

57) 910-478 Valve - S.I.T. - Natural Gas / Propane

58) * Valve Bracket

65) * Pilot Bracket

66) 910-038 Pilot Assy - S.I.T. - 3 Flame NG 910-039 Pilot Assy - S.I.T. - 3 Flame LP

67) * Pilot Holder

68) W840470 Pilot Assembly Gasket 904-240 Oriﬁ ce #37 - Natural Gas 904-390 Oriﬁ ce #52 - Propane 936-170 Oriﬁ ce Gasket

69) * Firebox Base

75) * Deﬂ ector - Left

76) * Deﬂ ector - Right

79) 791-535 Burner Assy - NG/LP

82) 511-030 Burner Grate Assy

83) 780-028 Rear Log Support Bracket

84) * Deﬂ ector

85) 780-930 Log Set *Not available as a replacement part.

Regency® P36D-1 Zero Clearance Direct Vent Gas Fireplace

PARTS LIST

138

132

158

159

157

139

161

136

135

Part # Description Part # Description

REGENCY® FLUSH FRONT ASSEMBLY

132) 512-518 Flush Door Assembly

135) 940-090/P Glass (Flush)

136) 936-155 Glass Gasket (Tadpole) 904-691 U-Clip

510-920 Flush Louvers (Set)-Gold/Blk 510-921 Flush Louvers (Set)-Brass/Blk 510-922 Flush Louvers (Set)-Black 510-923 Flush Louvers (Set)-Steel/Black

138) * Flush Louver Assy-Top

139) * Flush Louver Assy-Btm

510-986 Finishing Trim (Set) - Black

157) * Finishing Trim Left

158) * Finishing Trim Top

159) * Finishing Trim Right

161) 948-216 Regency® Logo Plate *Not available as a replacement part.

Regency® P36D-1 Zero Clearance Direct Vent Gas Fireplace

NOTES

Regency® P36D-1 Zero Clearance Direct Vent Gas Fireplace

WARRANTY

Regency Fireplace Products are designed with reliability and simplicity in mind. In addition, our internal Quality Assurance Team carefully inspects each unit thoroughly before it leaves our facility. FPI Fireplace Products International Ltd. is pleased to extend this limited lifetime warranty to the original purchaser of a Regency Product. This warranty is not transferable.

The Warranty: Limited Lifetime

The combustion chamber, heat exchanger, burner tubes/pans, logs, brick panels and gold plating (against defective manufacture only) are covered under the Limited Lifetime Warranty for ﬁ ve (5) years for parts and subsidized labour* and parts only thereafter.

Glass is covered for lifetime against thermal breakage only, parts and subsidized labour* for ﬁ ve (5) years and parts only thereafter from date of purchase.

External casting, surrounds and grills are covered against cracks and warps resulting from manufacturer defects, parts and subsidized labour* for three (3) years from the date of purchase and parts only thereafter.

Special Finishes - One year on brushed nickel and antique copper full screens and doors. You can expect some changes in color as the product "ages" with constant heating and cooling. FPI warranties the product for any manufacturing defects on the original product. However, the manufacturers warranty does not cover changing colors and marks, ie. ﬁ nger prints, etc applied after the purchase of the product. Damage from the use of abrasive cleaners is not covered by warranty.

Electrical and mechanical components such as blowers, switches, wiring, thermodiscs, FPI remote controls, spill switches, thermopiles, thermocouples, pilot assembly components, and gas valves are covered for two years parts and one year subsidized labour* from the date of purchase. Blowers and valves replaced under warranty are considered repairs and continue as if new with appliance. ie. twelve (12) months from original purchase date of appliance with a minimum of three (3) months coverage from date of replacement.

FPI venting components are covered parts and subsidized labour* for three (3) years from date of purchase.

Simpson Dura-Vent venting components (Direct Vent units) are covered by Simpson Dura-Vent Inc. warranty.

Repair/replacement parts purchased by the consumer from FPI after the original coverage has expired on the unit will carry a 90 day warranty, valid with a receipt only. Any item shown to be defective will be repaired or replaced at our discretion. No labor coverage is included with these parts.

Conditions:

Any part or parts of this unit which in our judgement show evidence of such defects will be repaired or replaced at FPI's option, through an accredited distributor or agent provided that the defective part be returned to the distributor or agent Transportation Prepaid, if requested.

Porcelain/Enamel - Absolute perfection is neither guaranteed nor commercially possible. Any chips must be reported and inspected by an authorized dealer within three days of installation. Reported damage after this time will be subject to rejection.

It is the general practice of FPI to charge for larger, higher priced replacement parts and issue credit once the replaced component has been returned to FPI and evaluated for manufacturer defect.

The authorized selling dealer is responsible for all in-ﬁ eld service work carried out on your Regency product. FPI will not be liable for results or costs of workmanship from unauthorized service persons or dealers.

At all times FPI reserves the right to inspect product in the ﬁ eld which is claimed to be defective.

All claims must be submitted to FPI by authorized selling dealers. It is essential that all submitted claims provide all of the necessary information including customer name, purchase date, serial #, type of unit, problem, and part or parts requested, without this information the warranty will be invalid.

Exclusions:

This limited Lifetime Warranty does not extend to or include paint, door or glass gasketing or trim.

At no time will FPI be liable for any consequential damages which exceed the purchase price of the unit. FPI has no obligation to enhance or modify any unit once manufactured. ie. as products evolve, ﬁ eld modiﬁ cations or upgrades will not be performed.

FPI will not be liable for travel costs for service work.

Installation and environmental problems are not the responsibility of the manufacturer and therefore are not covered under the terms of this warranty policy.

Embers, rockwool, gaskets, door handles and paint are not covered under the terms of this warranty policy.

Any unit which shows signs of neglect or misuse is not covered under the terms of this warranty policy.

The warranty will not extend to any part which has been tampered with or altered in any way, or in our judgment has been subject to misuse, improper installation, negligence or accident, spillage or downdrafts caused by environmental or geographical conditions, inadequate ventilation, excessive offsets, negative air pressure caused by mechanical systems such as furnaces, fans, clothes dryer, etc.

Freight damage to stoves and replacement parts is not covered by warranty and is subject to a claim against the freight carrier by the dealer.

FPI will not be liable for acts of God, or acts of terrorism, which cause malfunction of the appliance.

Performance problems due to operator error will not be covered by this warranty policy.

Products made or provided by other manufacturers and used in conjunction with the operation of this appliance without prior authorization from FPI, may nullify your warranty on this product.

Any alteration to the unit which causes sooting or carboning that results in damage to the interior / exterior facia is not the responsibility of FPI.

* Subsidy according to job scale as predetermined by FPI.

Regency® P36D-1 Zero Clearance Direct Vent Gas Fireplace

TUFSƔZZPV

SƔ

8BSSBOUZƔBOEƔCFƔBVUPNBUJDB

MMZƔFOUFSFEƔUP

www.regency-ﬁ re.com

Reasons to register your product online today!

• View and modify a list of all your registered products.

• Request automatic email notiﬁ cation of new product updates.

• Stay informed about the current promotions, events, and special offers on related products.

Installer: Please complete the following information

Dealer Name & Address: ______________________________________________ ___________________________________________________________________ Installer: ___________________________________________________________ Phone #: ___________________________________________________________ Date Installed: ______________________________________________________ Serial No.: __________________________________________________________

7).Ɠ!Ɠ&)2%4!",%

2EGISTERƓONLINEƓATƓ

IUUQSFHFODZGJSFDPNƔ $VTUPNFS$BSFBTQY

4FFƔXFCTJUFƔGPSƔTXFFQTUBLFTƔSVMFT

Printed in Canada

Regency P36D User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
