CI1200 /

CI1250

Alterra

Owner's & Installation Manual

Wood Inserts

Tested by:

918-893a

Installer: Please complete the details on the back cover

and leave this manual with the homeowner.

Homeowner: Please keep these instructions for future reference.

FPI FIREPLACE PRODUCTS INTERNATIONAL LTD. 6988 Venture St., Delta, BC Canada, V4G 1H4

01/19/11

Page 2

Thank-you for purchasing a

REGENCY FIREPLACE PRODUCT.

The pride of workmanship that goes into each of our products will give you years of trouble-free enjoyment. Should you have any questions about your product that are not covered in this manual, please contact the REGENCY DEALER in your area.

Keep those REGENCY FIRES burning.

SAFETY NOTE: If this Insert is not properly installed, a house ﬁ re may result. For your safety, follow the installation instructions, contact local building or ﬁ re ofﬁ cials about restrictions and installation inspection requirements in your area.

The authority having jurisdiction (such as municipal building department, ﬁ re department, ﬁ re prevention bureau, etc.) should be consulted before installation to determine the need

to obtain a permit.

Regency CI1200 Wood Cast Insert

Page 3

TABLE OF CONTENTS

SAFETY LABEL

Copy of the Safety Decal (CI1200) ................................4

Copy of the Safety Decal (CI1250) ................................4

DIMENSIONS

Unit Dimensions CI1200 ................................................6

(no blower option) ..........................................................6

Unit Dimensions CI1250 ................................................7

(with standard blower) ...................................................7

INSTALLATION

Optional backing plate dimensions ................................8

Before Installing Your Insert...........................................9

Chimney Speciﬁ cations .................................................9

Fireplace Speciﬁ cations.................................................9

Masonry And Factory Built Fireplace Clearances .......10

How To Determine If Alternate .....................................10

Floor Protection Materials Are Acceptable...................10

Installing Your Insert ....................................................1 1

Installation Into a Masonry Fireplace ...........................13

Installation Into a Factory Built Fireplace.....................13

Stainless steel smoke deﬂ ector Installation .................14

Cast faceplate installation............................................15

3 piece backing plate installation .................................18

Door reversal ...............................................................19

Brick Flue Bafﬂ e & Secondary Air Tube Installation ....20

Firebrick Assembly ......................................................20

Draft Control ................................................................20

First Fire ......................................................................21

Fan Operation (CS1250 Only) .....................................22

Cord reversal ...............................................................22

Ash Disposal................................................................23

Some Safety Guidelines ..............................................23

Creosote ......................................................................23

Door Gasket ................................................................24

Glass Cleaning ............................................................24

Door Removal..............................................................24

Glass Replacement .....................................................24

Handle Replacement ...................................................25

Door Catch Adjustment................................................25

Fan maintenance .........................................................25

Fan removal CI1250 Only............................................26

Main Assembly CI1200 ................................................28

Main Assembly CI1250 ................................................29

Cast Faceplate ............................................................30

Firebrick .......................................................................30

WARRANTY

Warranty ......................................................................31

Regency CI1200 / CI1250 Wood Cast Insert

Page 4

SAFETY LABEL

This is a copy of the label that accompanies each CI1200 Wood Insert. We have printed a copy

of the contents here for your review.

NOTE: Regency units are constantly being improved. Check the label on the unit and if there is a difference, the label on the unit is the correct one.

(Duplicate Serial #)

LISTED FACTORY BUILT FIREPLACE INSERT CERTIFIED FOR USE IN CANADA AND U.S.A.

CI1200

MODEL: TESTED TO:

INSTALL AND USE ONLY IN ACCORDANCE WITH THE MANUFACTURER'S INSTALLATION AND OPERATING INSTRUCTIONS. INSTALL AND USE ONLY IN MASONRY FIREPLACE OR FACTORY BUILT FIREPLACE. CONTACT LOCAL BUILDING OR FIRE OFFICIALS ABOUT RESTRICTIONS AND INSTALLATION INSPECTION IN YOUR AREA.

INSTALLER ET UTILISER SELONS LES INSTRUCTIONS DU FABRICANT. INSTALLER ET UTILISER DANS UN FOYER DE MACONNERIE OU PRÉFABRIQUÉ. APPELER VOTRE INSPECTEUR DE BÂTIMENT OU LE DÉPARTMENT D’INCENDIE LOCAL POUR LES CODES LOCAUX ET POUR INSPECTÉE VOTRE INSTALLATION ET FOYER.

ADJACENT SIDEWALL A) 15in / 380mm MANTLE B) 20in / 510mm TOP FACING C 14in / 355 mm SIDE FACING D) 7.375in / 185mm

COMPONENTS REQUIRED FOR INSTALLATION:5.5" (140mm) OR 6" (152mm) STAINLESS STEEL LINER. STANDARD ADAPTOR (171-932) OR OFFSET ADAPTOR (171-936) DO NOT REMOVE BRICKS OR MORTAR IN MASONRY FIREPLACE. FOR USE WITH SOLID WOOD FUEL ONLY. DO NOT USE GRATE OR ELEVATE FIRE. BUILD WOOD FIRE DIRECTLY ON HEARTH. OPERATE WITH FEED DOOR CLOSED, OPEN TO FEED FIRE ONLY. REPLACE GLASS ONLY WITH CERAMIC GLASS (5MM). INSPECT AND CLEAN CHIMNEY FREQUENTLY. UNDER CERTAIN CONDITIONS OF USE CREOSOTE BUILDUP MAY OCCUR RAPIDLY. DO NOT OVERFIRE, IF INSERT GLOWS YOU ARE OVER-FIRING.

PIÈCES NÉCESSAIRES POUR INSTALLATION :5.5" (140MM) OR 6" (152MM) CONDUITS EN ACIER INOXYDABLE. ADAPTATEUR DE CONDUIT DE FUMÉE STANDARD (171-932) OU COUDÉ (171-936) N'ENLEVER NI BRIQUES NI MORTIER DU FOYER LORSQUE VOUS EFFECTUEZ L'INSTALLATION DU POÊLE ENCASTRABLE. UTILISER SEULEMENT DU BOIS DE CHAUFFAGE. NE PAS UTILISER UNE GRILLE, ÉTABLIR LE FEU DIRECTEMENT SUR LES BRIQUES DANS LE FOND DU POÊLE. OPÉREZ AVEC LA PORTE DE NOURRITURE FERMÉE, OUVERTE POUR NOURRIR LE FEU SEULEMENT. REMPLACEZ LE VERRE SEULEMENT AVEC LE VERRE CÉRAMIQUE (5 MM). INSPECTEZ ET NETTOYEZ VOTRE CHEMINÉE FRÉQUEMMENT. LA FRÉQUENCE D’UTILISATION ET LA TEMPÉRATURE AUXQUELS LE POÊLE EST UTILISÉ DE FAÇON RÉGULIÈRE PEUT AFFECTER CETTE ACCUMULATION DE CRÉOSOTE. NE PAS SURCHAUFFER.

DATE OF

MANUFACTURE

ULC S628-M93 / UL 1482-2006 / ULC S627-00 WN # 16601

MINIMUM CLEARANCES TO COMBUSTIBLE MATERIALS (MEASURED FROM INSERT BODY)

2010 2011 2012

JAN FEB MAR APR MAY JUN JUL AUG SEPT OCT NOV DEC

INSTALL ONLY ON A NON-COMBUSTIBLE HEARTH RAISED (F) 1.5IN / 38MM ABOVE AN ADJACENT COMBUSTIBLE FLOOR. COMBUSTIBLE FLOOR MUST BE PROTECTED BY NON-COMBUSTIBLE MATERIAL EXTENDING (E) 16 IN / 405MM (US), 18 IN / 457MM (CAN) TO FRONT AND (G) 8 IN / 205MM TO SIDES FROM FUEL DOOR.

INSTALLER SUR UN ÂTRE DE MATÉRIAU NOM COMBUSTIBLE SURÉLEVÉ (F) 1,5 POUCES / 38MM-DESSUS DU PLANCHER COMBUSTIBLE ADJACENT. LE PLANCHER COMBUSTIBLE DOIT ÊTRE PROTÉGÉ PAR LE MATÉRIAU NOM COMBUSTIBLE QUI ÉTENDRE (E) 16 IN / 405MM (ETATS-UNIS), 18 IN / 457 MM (CAN) EN AVANT ET (G) 8IN / 205MM LES CÔTÉ DE LA PORTE.

365

DO NOT REMOVE THIS LABEL

365

CAUTION

ATTENTION:

HOT WHILE IN OPERATION DO NOT TOUCH. KEEP CHILDREN, CLOTHING AND FURNITURE AWAY.

CONTACT MAY CAUSE SKIN BURNS.

READ ABOVE INSTRUCTIONS.

CHAUD LORS DE FONCTIONNEMENT. NE PAS TOUCHER. GARDEZ LES EN-

FANTS, VÊTEMENTS ET MEUBLES AU

UN CONTACT AVEC LE PEAU PEUT OCCASIONER DES BRULURES.BRÛLURES

UNITED STATES ENVIRONMENTAL PROTECTION AGENCY CERTIFIED TO COMPLY WITH JULY 1990, PARTICULATE EMISSION STANDARDS.

FPI FIREPLACE PRODUCTS INTERNATIONAL LTD.

MADE IN CANADA

LOIN.

CUTANÉES.

LIRE CETTE ÉTIQUETTE.

MANUFACTURED BY:

6988 VENTURE ST.

DELTA, BC V4G 1H4

918-894

Regency CI1200 / CI1250 Wood Cast Insert

Page 5

This is a copy of the label that accompanies each CI1250 Wood Insert. We have printed a copy

of the contents here for your review.

NOTE: Regency units are constantly being improved. Check the label on the unit and if there is a difference, the label on the unit is the correct one.

SAFETY LABEL

(Duplicate Serial #)

LISTED FACTORY BUILT FIREPLACE INSERT CERTIFIED FOR USE IN CANADA AND U.S.A.

CI1250

MODEL: TESTED TO:

ADJACENT SIDEWALL A) 15in / 380mm MANTLE B) 20in / 510mm TOP FACING C 14in / 355 mm SIDE FACING D) 7.375in / 185mm

COMPONENTS REQUIRED FOR INSTALLATION: 5.5" (140mm) OR 6" (152MM) STAINLESS STEEL LINER. STANDARD ADAPTOR (171-932) OR OFFSET ADAPTOR (171-936). STANDARD COMPONENT: FAN ELECTRICAL RATING: VOLTS 115, 60HZ. DO NOT REMOVE BRICKS OR MORTAR IN MASONRY FIREPLACE. FOR USE WITH SOLID WOOD FUEL ONLY. DO NOT USE GRATE OR ELEVATE FIRE. BUILD WOOD FIRE DIRECTLY ON HEARTH. OPERATE WITH FEED DOOR CLOSED, OPEN TO FEED FIRE ONLY. REPLACE GLASS ONLY WITH CERAMIC GLASS (5MM). INSPECT AND CLEAN CHIMNEY FREQUENTLY. UNDER CERTAIN CONDITIONS OF USE CREOSOTE BUILDUP MAY OCCUR RAPIDLY. DO NOT OVERFIRE, IF INSERT GLOWS YOU ARE OVER-FIRING.

PIÈCES NÉCESSAIRES POUR INSTALLATION :5.5" (140MM) OR 6" (152MM) CONDUITS EN ACIER INOXYDABLE. ADAPTATEUR DE CONDUIT DE FUMÉE STANDARD (171-932) OU COUDÉ (171-936) COMPONENT STANDARD : FAN ELECTRICAL RATING: VOLTS 115, 60HZ. N'ENLEVER NI BRIQUES NI MORTIER DU FOYER LORSQUE VOUS EFFECTUEZ L'INSTALLATION DU POÊLE ENCASTRABLE. UTILISER SEULEMENT DU BOIS DE CHAUFFAGE. NE PAS UTILISER UNE GRILLE, ÉTABLIR LE FEU DIRECTEMENT SUR LES BRIQUES DANS LE FOND DU POÊLE. OPÉREZ AVEC LA PORTE DE NOURRITURE FERMÉE, OUVERTE POUR NOURRIR LE FEU SEULEMENT. REMPLACEZ LE VERRE SEULEMENT AVEC LE VERRE CÉRAMIQUE (5 MM). INSPECTEZ ET NETTOYEZ VOTRE CHEMINÉE FRÉQUEMMENT. LA FRÉQUENCE D’UTILISATION ET LA TEMPÉRATURE AUXQUELS LE POÊLE EST UTILISÉ DE FAÇON RÉGULIÈRE PEUT AFFECTER CETTE ACCUMULATION DE CRÉOSOTE. NE PAS SURCHAUFFER.

DATE OF

MANUFACTURE

ULC S628-M93 / UL 1482-2006 / ULC S627-00 WN # 16600

MINIMUM CLEARANCES TO COMBUSTIBLE MATERIALS (MEASURED FROM INSERT BODY)

2010 2011 2012

JAN FEB MAR APR MAY JUN JUL AUG SEPT OCT NOV DEC

367

DO NOT REMOVE THIS LABEL

367

CAUTION

ATTENTION:

HOT WHILE IN OPERATION DO NOT TOUCH. KEEP CHILDREN, CLOTHING AND FURNITURE AWAY.

CONTACT MAY CAUSE SKIN BURNS.

READ ABOVE INSTRUCTIONS.

CHAUD LORS DE FONCTIONNEMENT.

NE PAS TOUCHER. GARDEZ LES EN-

FANTS, VÊTEMENTS ET MEUBLES AU

UN CONTACT AVEC LE PEAU PEUT OCCASIONER DES BRULURES.BRÛLURES

UNITED STATES ENVIRONMENTAL PROTECTION AGENCY CERTIFIED TO COMPLY WITH JULY 1990, PARTICULATE EMISSION STANDARDS.

FPI FIREPLACE PRODUCTS INTERNATIONAL LTD.

MADE IN CANADA

LOIN.

CUTANÉES.

LIRE CETTE ÉTIQUETTE.

MANUFACTURED BY:

6988 VENTURE ST.

DELTA, BC V4G 1H4

918-916

Regency CI1200 / CI1250 Wood Cast Insert

Page 6

DIMENSIONS

17-11/16” (449mm)

15-1/16” (383mm)

UNIT DIMENSIONS CI1200

22-13/16” (580mm)

21-3/8” (543mm)

35-15/16” (912mm)

(NO BLOWER OPTION)

2-5/16” (58mm)

NOTE:

Before assembling your Insert, use these dimensions to ensure appropriate clearances will be met (refer to Masonry and Factory Built Fireplace Clearances section).

22-9/16” (574mm)

17-1/8” (436mm)

25” (635mm)

6" (152mm) Diameter

STANDARD FLUE ADAPTOR (171-932)

9.15/16” (250mm)

9-9/16”

(244mm)

15” (381mm)

6" (152mm) Diameter

OFFSET FLUE ADAPTOR (171-936)

19-9/16” (498mm)

18-13/16” (478mm)

14-1/8” from flue centerline to rear of faceplate

16-15/16” (430mm)

Regency CI1200 / CI1250 Wood Cast Insert

Page 7

22-13/16” (580mm)

DIMENSIONS

UNIT DIMENSIONS CI1250

(WITH STANDARD BLOWER)

21-3/8” (543mm)

35-15/16” (912mm)

17-1/8” (436mm)

NOTE:

Before assembling your Insert, use these dimensions to ensure appropriate clearances will be met (refer to Masonry and Factory Built Fireplace Clearances section).

17-15/32” (444mm)

9-9/16”

(244mm)

25-3/4” (655mm)

25” (635mm)

6" (152mm) Diameter

STANDARD FLUE ADAPTOR (171-932)

9.15/16” (250mm)

15” (381mm)

6" (152mm) Diameter

OFFSET FLUE ADAPTOR (171-936)

14-1/8” from flue centerline to rear of faceplate

16-15/16” (430mm)

22-1/8”(561mm)

22-13/16”(579mm)

Regency CI1200 / CI1250 Wood Cast Insert

Page 8

DIMENSIONS

OPTIONAL BACKING PLATE DIMENSIONS

CI1250 Standard

40” (1016mm)

CI1250 Custom - Minimum Dimensions

29-1/2” (749mm)

CI1200 Standard

40” (1016mm)

26” (660mm)

CI1200 Custom - Minimum Dimensions

37” (940mm)

27” (686mm)

37” (914mm)

23-5/8” (600mm)

Regency CI1200 / CI1250 Wood Cast Insert

Page 9

INSTALLATION

Regency Inserts are constructed with the highest quality materials and assembled under strict quality control procedures that ensure years of trouble free and reliable performance.

It is important that you read this manual thoroughly and fully understand the installation and operating procedures. Failure to follow instructions may result in property damage, bodily injury or even death. The more you understand the way your Regency Insert operates, the more enjoyment you will experience from knowing that your unit is operating at peak performance.

BEFORE INSTALLING

YOUR INSERT

Note: The CI1200 does not include a blower and

one cannot be added to this appliance. If a blower is required, you must purchase the CI1250 which comes with a standard blower. The CI1250 has an increased height to accommodate the blower.

1) Read all instructions before installing and using your ﬁ replace insert. Install and use only in accordance with manufacturer’s installation and operating instructions.

2) Check your local building codes - Building Inspection Department. You may require a permit before installing your insert. Be aware that local codes and regulations may override some items in the manual.

WARNING: Careless installation is the ma-

jor cause of safety hazard. Check all local building and safety codes before installation of unit.

3) Notify your home insurance company that you

plan to install a ﬁ replace insert.

4) Your ﬁ replace insert is heavy and requires two or more people to move it safely. The insert and surrounding structure can be badly damaged by mishandling.

5) If your existing ﬁ replace damper control will become inaccessible once you have installed your Regency Insert, you should either remove or secure it in the open position.

6) Inspect your ﬁ replace and chimney prior to installing your insert to determine that it is free from cracks, loose mortar or other signs of damage. If repairs are required, they should be completed before installing your insert. Do not remove bricks or mortar from your masonry ﬁ replace.

CHIMNEY

SPECIFICATIONS

Before installing, check and clean your chimney system thoroughly. If in doubt about its condition, seek professional advice. Your Regency Insert is designed for installation into a masonry ﬁ replace that is constructed in accordance with the requirements of "The Standard for Chimneys, Fireplaces, Vents, and Solid Fuel Burning Appliance", N.F .P.A. 211, the National Building Code of Canada, or the applicable local code requirements.

The appliance, when installed, must be electrically grounded in accordance with local codes or, in the absence of local codes, with the National Electrical Code, ANSI/NFPA 70, or the Canadian Electrical code, CSA C22.1.

Regency Inserts are designed to use either a 5.5" or 6" (152mm) ﬂ ue.

This insert must be connected to a code-approved masonry chimney or listed factory-built ﬁ replace chimney with a direct ﬂ ue connector into the ﬁ rst chimney liner section.

Requirements for Installing

Solid-fuel Inserts in Factory-built

Fireplaces.

1) The insert must be tested and meet the require-

ments of UL 1482 (U.S.) and or ULC S628 (Canada) when tested in a masonry ﬁ replace built per ULC S628.

2) The factory-built ﬁ replace must be listed per UL 127 or ULC S610.

3) Clearances obtained from the masonry ﬁ replace tests are also relevant for installation in factorybuilt ﬁ replaces.

4) Installation must include a full height listed chimney liner type HT requirements (2100 degree F.) per UL 1777 (U.S.) or ULC S635 (Canada). The liner must be securely attached to the insert ﬂ ue collar and the chimney top.

5) Means must be provided to prevent room air passage to the chimney cavity of the ﬁ replace. This may be accomplished by sealing the damper area around the chimney liner, or sealing the ﬁ replace front.

6) Alteration of the ﬁ replace in any manner is not permitted with the following exceptions;

a. external trim pieces which do not affect the

operation of the ﬁ replace may be removed providing they can be stored on or within the ﬁ replace for re-assembly if the insert is removed.

b. the chimney damper may be removed to

install the chimney liner.

7) Circulating air chambers (i.e. in a steel ﬁ re- place liner or metal heat circulator) shall not be blocked.

8) Means must be provided for removal of the insert to clean the chimney ﬂ ue.

9) Inserts that project in front of the ﬁ replace must be supplied with appropriate supporting means.

10) Installer must mechanically attach the supplied label to the inside of the ﬁ rebox of the ﬁ replace into which the insert is installed.

"WARNING: This fireplace has been converted for use with a wood insert only and cannot be used for burning wood or solid fuels unless all original parts have been replaced, and the ﬁ replace re-approved by the authority having jurisdiction."

FIREPLACE

SPECIFICATIONS

Your ﬁ replace opening requires the following minimum sizes:

CI1200

Height: 19-5/8" (499mm) Width: 25" (635mm) Depth:

(w/ standard ﬂ ue adaptor) 15-1/16" (383mm) (w/ offset ﬂ ue adaptor) 17-11/16" (449mm)

CI1250

Height: 23" (584mm) Width: 25" (635mm) Depth:

(w/ standard ﬂ ue adaptor) 15-1/16" (383mm) (w/ offset ﬂ ue adaptor) 17-11/16" (449mm)

7) Do not connect the insert to a chimney ﬂ ue servicing another appliance or an air distribution duct.

Emissions from burning wood or gas could contain chemicals known to the State of California to cause cancer, birth defects or other reproductive harm.

Regency CI1200 / CI1250 Wood Cast Insert

Page 10

INSTALLATION

MASONRY AND FACTORY BUILT FIREPLACE CLEARANCES

The minimum required clearances to combustible materials when installed into a masonry or factory built ﬁ replace are listed below.

Adjacent Side Wall

(to Side)

**A

CI 1200 CI1250

** Measured from side/top of door.

Side and Top facing is a maximum of 1.5" thick. Floor protection must be non-combustible, insulative material with an R value of 1.1 or greater.

* If the hearth extension is ﬂ ush with the ﬂ oor (F) it must extend 19.5" in front of the body face (E).

Note: Hearth Extension Width (G) is measured from edge of fuel door to side of hearth.

** A non-combustible mantel may be installed at a lower height if the framing is made of metal studs covered with a non-combustible board.

*** Mantel Depth, Maximum of 10" (254mm).

15" (381mm) 20" (508mm) 14" (356mm) 7-3/8" (187mm) US 16" (406mm) 1-1/2" (38mm) US 6" (152mm)

Mantel**

(to Top)

Top

Facing

(to Top)

**C

Side

Facing

(to Side)

**D

Minimum

Hearth

Extension

CAN 18" (457mm) CAN 8" (203mm)

Minimum

Hearth

Thickness*

Minimum

Hearth Side

Extension

Floor Protection

Please check to ensure that your ﬂ oor protection and hearth will meet the standards for clearance to combustibles. Y our hearth extension must be made from a non-combustible material.

Thermal ﬂ oor protection is not required if the unit is raised 3.5" minimum (measured from the bottom of the stove). However, standard ember ﬂ oor protec- tion is required. It will need to be non-combustible material that covers 16" (406mm) in the US and 18" (450mm) in Canada to the front of the unit and 8" (200mm)in Canada, 6" (152mm)in the US to the sides.

If the unit is not raised, thermal ﬂ oor protection required is R value of 1.1 or greater.

HOW TO DETERMINE IF ALTERNATE

FLOOR PROTECTION MATERIALS ARE ACCEPTABLE

The speciﬁ ed ﬂ oor protector should be 3/8" (18mm) thick material with a K - factor of 0.84.

The proposed alternative is 4" (100mm) brick with a C-factor of 1.25 over 1/8" (3mm) mineral board with a K-factor of 0.29.

Step (a):

Use formula above to convert speciﬁ cation to

R-value.

R = 1/k x T = 1/0.84 x .75 = 0.893.

Clearance diagram for installations

Step (b):

Calculate R of proposed system. 4" brick of C = 1.25, therefore Rbrick = 1/C = 1/1.25 = 0.80 1/8" mineral board of k = 0.29, therefore

Rmin.bd. = 1/0.29 x 0.125 = 0.431

Total R = Rbrick + Rmineral board =

0.8 + 0.431 = 1.231.

Step (c):

Compare proposed system R of 1.231 to speci-

ﬁ ed R of 0.893. Since proposed system R is greater than required, the system is acceptable.

DEFINITIONS

Thermal Conductance:

C = Btu = W (hr)(ft

Thermal Conductivity:

k = (Btu)(inch) = W = Btu (hr)(ft3)(oF) (m)(K) (hr)(ft)(oF)

Thermal Resistance:

2 )(o

F) (m2))(K)

R = (ft2)(hr)(oF) = (m2)(K)

Btu W

Regency CI1200 / CI1250 Wood Cast Insert

Page 11

INSTALLING YOUR INSERT

INSTALLATION

STOP! PLEASE READ CAREFULLY.

CAST COMPONENTS ARE VERY FRAGILE.

USE EXTREME CARE WHEN HANDLING.

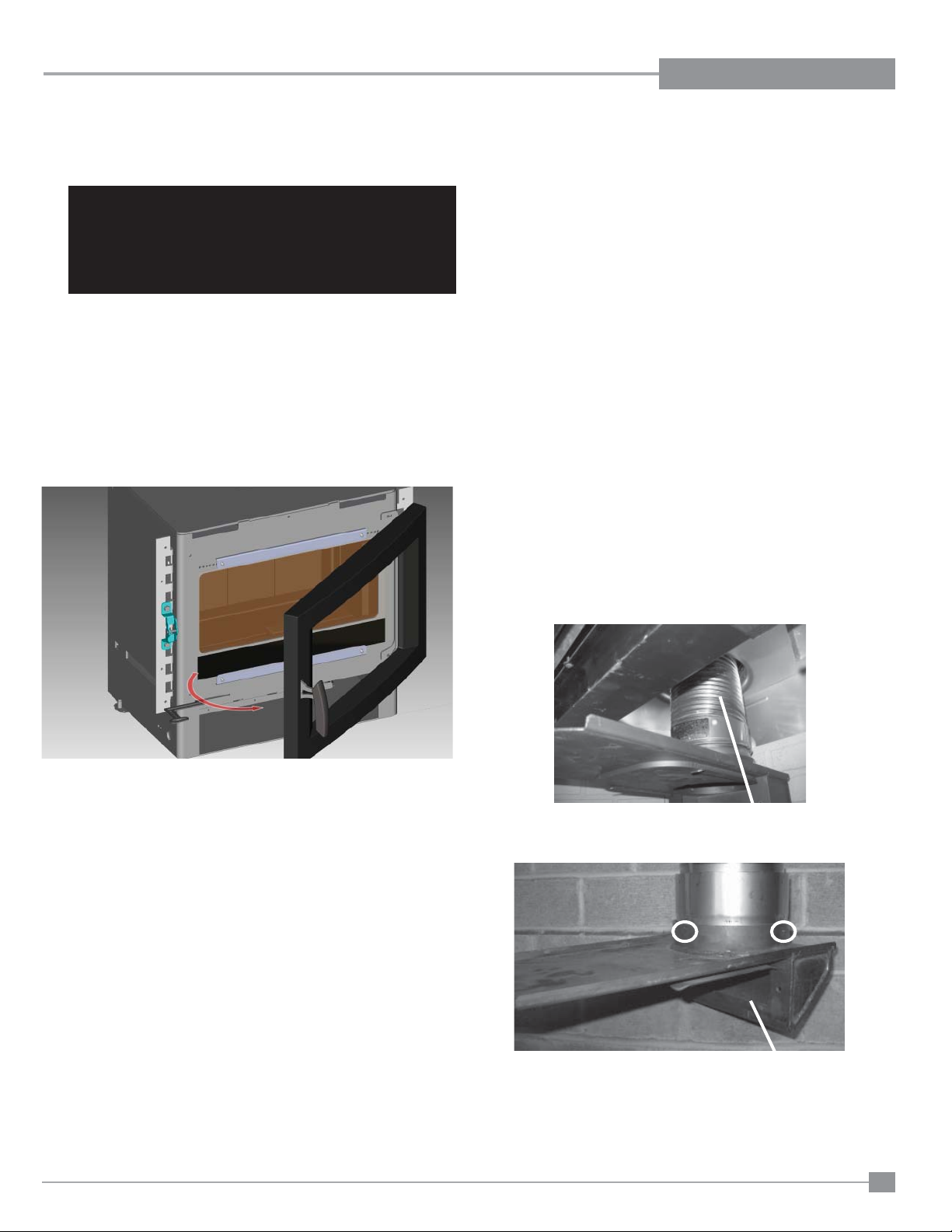

Y our insert is very heavy and will require two or three people to move

it into position.

When handling cast parts, please handle with care as they can be damaged.

1) Open door to a 45° angle

2) Holding door ﬁ rmly from top and bottom - lift door up and off to remove.

NOTE: Door is heavy.

3) Lift the unit up onto the Hearth and slide into the ﬁ replace opening. Be sure

to leave the unit out at least 3 to 4 inches in order to make the necessary ﬂ ue connections and to install the fan and faceplate.

Be sure to protect your hearth extension during the installation, ie.

with a heavy blanket.

NOTE: You will be required to purchase either the standard or offset 6" di-

ameter (152mm) ﬂ ue adaptor that is best suited for the speciﬁ c installation.

List of Tools needed;

- Pull Rod (included with insert)

- 1/2” socket / ratchet

- 3/8 open face wrench

4) Install ﬂ ex liner into existing chimney as per liner manufacturer’s speciﬁ ca- tions. See diagram 1.

5) Install the required ﬂ ue adaptor onto the end of the ﬂ ex liner. Secure the adaptor using 3 screws - 1 on the front, left and right side as shown in diagram 2.

Alignment of the ﬂ ue adaptor can be critical during the install, it is recom-

mended that the ﬂ ex liner be left as compressed as possible. Before inserting the unit the adaptor should hang, when level, slightly above the required height.

NOTE: For Masonry installation make sure that the ﬁ rebox is level with

the hearth using non-combustible materials and no more than 1/2 to 1 inch of the levelling bolt.

Regency CI1200 / CI1250 Wood Cast Insert

Diagram 1

Diagram 2

Secure adaptor using 3 screws - 1 in the front

and 1 each on the left and right side.

Flex Liner

Flue Adaptor

Page 12

INSTALLATION

6) Install the unit by ﬁ rst setting the rear of the unit into the ﬁ replace. See diagram 3. Ensure that the unit is centered in the existing ﬁ replace and lined up with the ﬂ ue adaptor.

Diagram 3

7) Slide the unit back until the ﬂ ue adaptor is slightly engaged.

8) At this point it is recommended to level the unit and ensure that the leveling

bolts rest on the surface of the ﬁ replace. This will keep the adaptor from binding as the unit is slid into position.

9) Insert the provided pull rod through the hole in the top center of the unit. Secure the threaded end into the ﬂ ue adaptor as shown in diagram 4. While sliding the unit into place pull on the rod to ensure that the ﬂ ue adaptor is properly engaged. See diagram 5.

10) Ensure that the unit is still level.

11) To complete the installation and to ensure a secure ﬁ t and connection of

the ﬂ ue adaptor to the insert, it is essential that the two bolts, ﬂ at wash- ers and lock washers (supplied with packaged manual) be installed and tightened using a 1/2" socket as shown in diagram 6. This prevents the possibility of creosote drip and exhaust gas leakage.

Diagram 6

12) Remove the pull rod from the top center of the ﬁ replace. See diagram 7.

Diagram 4

Diagram 5: Pull Rod In Place

Pull Rod

NOTE: The pull rod should not be thrown away. It should be kept if

the stove is ever needed to be removed from the ﬁ replace.

Diagram 7

Regency CI1200 / CI1250 Wood Cast Insert

Page 13

INSTALLATION

INSTALLATION INTO A

MASONRY FIREPLACE

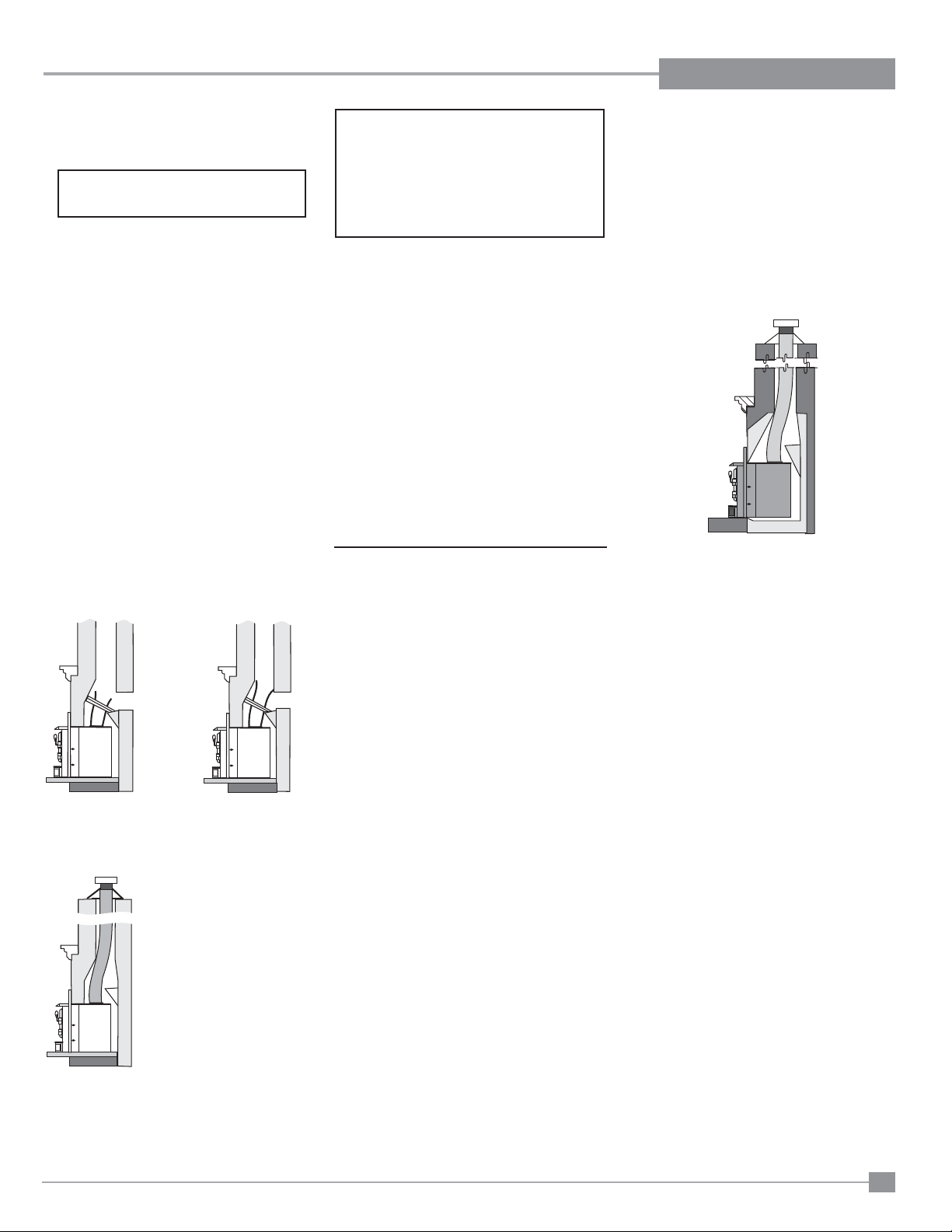

When referencing installation or connection to masonry ﬁ replaces or chimneys, the masonry construction must or shall be code complying.

The insert must be installed as per the requirements of your local inspection authority. Three methods of ﬂ ue connection are acceptable in most areas, these include:

1) Positive ﬂ ue connection, where a large blocking plate and a short connector pipe is used.

2) Direct ﬂ ue connection, where a smaller blocking plate and a connector pipe to the ﬁ rst ﬂ ue liner tile is used.

3) Full ﬂ ue liner, where a stainless steel rigid or ﬂ exible liner pipe is routed from the insert outlet

collar to the top of the chimney.

Regency highly recommends the use of a full liner as the safest installation and provides the most optimum performance. Y our retailer should be able to help you decide which system would be the best for your application.

In Canada this ﬁ replace insert must be in- stalled with a continuous chimney liner of 5.5" or 6" diameter extending from the ﬁ replace insert to the top of the chimney. The chimney liner must conform to the Class 3 requirements of CAN/ULC-S635 or CAN/ULC-S640, Standard for Lining Systems for New Masonry Chimneys.

Note: A clean-out door is sometimes required,

by your inspector, to be installed when either the Positive ﬂ ue connection or Direct ﬂ ue connection method is used.

The use of one of the connection methods listed on this page not only increases the safety of your insert by directing the hot gases up the ﬂ ue, but will also help increase the unit's efﬁ ciency and decrease creosote deposits in the chimney.

When a connected ﬂ ue or liner is in use, the insert is able to “breathe” better by allowing a greater draft to be created. The greater draft can decrease problems such as, difﬁ cult start-ups, smoking out the door, and dirty glass.

INSTALLATION INTO A

FACTORY BUILT

FIREPLACE

1) When installed in a factory built ﬁ replace, a full

stainless steel rigid or ﬂ exible ﬂ ue liner is manda- tory, for both safety and performance purposes. When a ﬂ ue or liner is in use, the insert is able to breathe better by allowing a greater draft to be created. The greater draft can decrease problems such as, difﬁ cult start-ups, smoking out the door, and dirty glass.

4) If the ﬂ oor of your ﬁ replace is below the level of the ﬁ replace opening, adjust the insert's levelling bolts to accommodate the difference. When additional shimming is required, use non-combustible masonry or steel shims.

5) Measure approximately the alignment of the ﬂ ue liner with the position of the smoke outlet hole on the insert to check for possible offset. If an offset is required, use the appropriate offset adaptor in your installation.

6) Once the above items have been checked, slide your insert into position after ﬁ rst positioning and securing the ﬂ ue liner to the offset adaptor.

Attach the rod to the adaptor and slide the

adaptor onto the unit as the unit is slid into position. Ensure a positive connection.

Secure the adaptor to the unit by using 2 bolts,

ﬂ at washers, lock washers and one screw in the front.

Re-install raincap at completion of installation.

1) Positive Flue Connection with Cleanout

3a) Full Flue Liner (No Cleanout Required)

Regency CI1200 / CI1250 Wood Cast Insert

2) Direct Flue Connection with Cleanout

2) In order to position the ﬂ ue liner, the existing rain cap must be removed from your chimney system. In most cases the ﬂ ue damper should also be removed to allow passage of the liner.

3) In most cases opening the existing spark screens fully should give enough room for the insert

Page 14

INSTALLATION

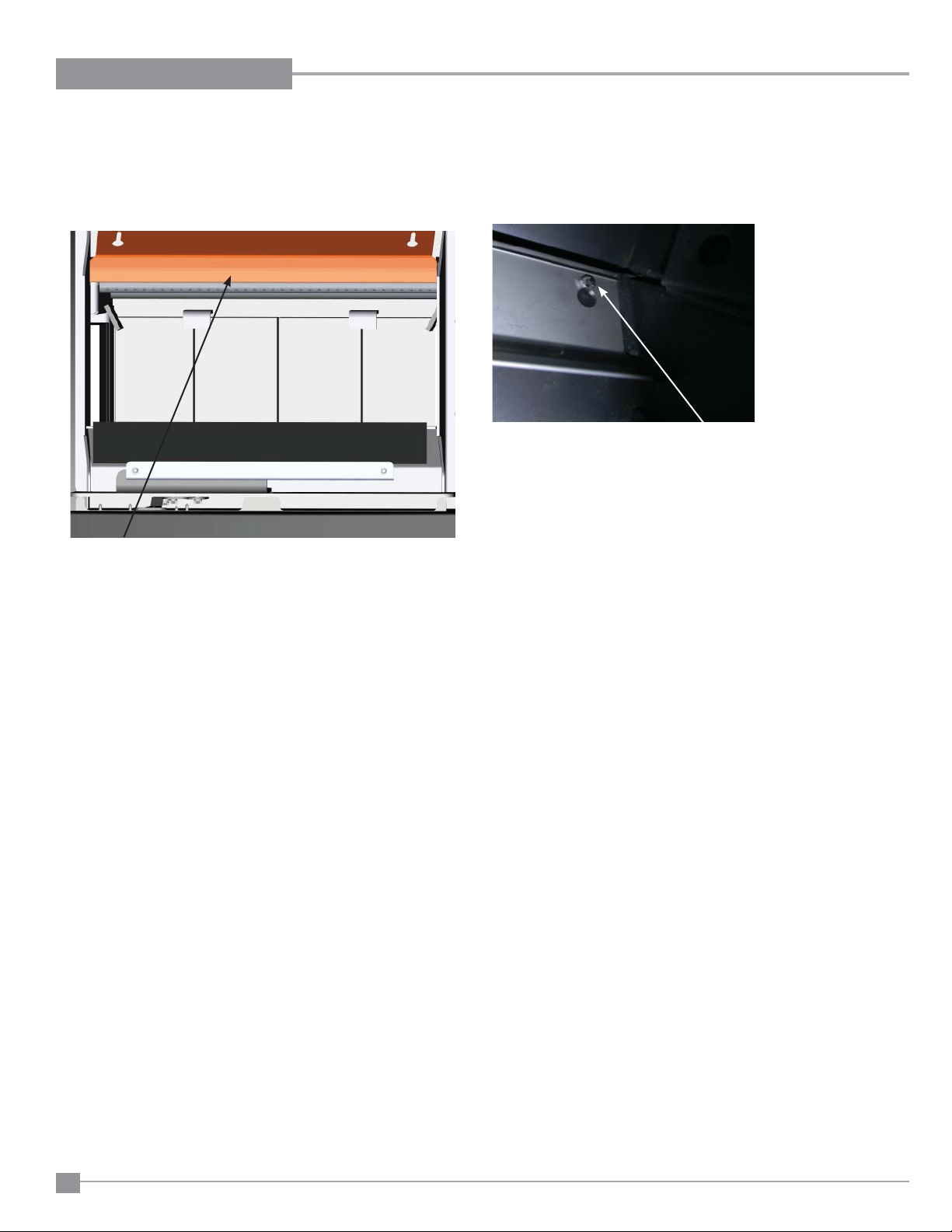

STAINLESS STEEL SMOKE DEFLECTOR INSTALLATION

The stainless smoke deﬂ ector is located in the upper front area of the ﬁ rebox. The deﬂ ector is held in place with 2 bolts Prior to the ﬁ rst ﬁ re, ensure deﬂ ector is seated properly and secured with 2 hand tightened bolts.

Ensure defector is seated so bolts are situated at the top of the keyhole before tightening.

Smoke deﬂ ector

To replace the deﬂ ector, loosen off both bolts and slide defector upward and out. Install new defector and hand tighten bolts. Ensure positive location of the defector prior to hand tightening.

WARNING: Operation of the unit with out proper installation of smoke deﬂ ector will void warranty.

Smoke deﬂ ector is installed through the door opening in location shown in diagram

Regency CI1200 / CI1250 Wood Cast Insert

Page 15

CAST FACEPLATE INSTALLATION

Stop! Read Carefully.

Cast components are very fragile. Use extreme care when handling.

INSTALLATION

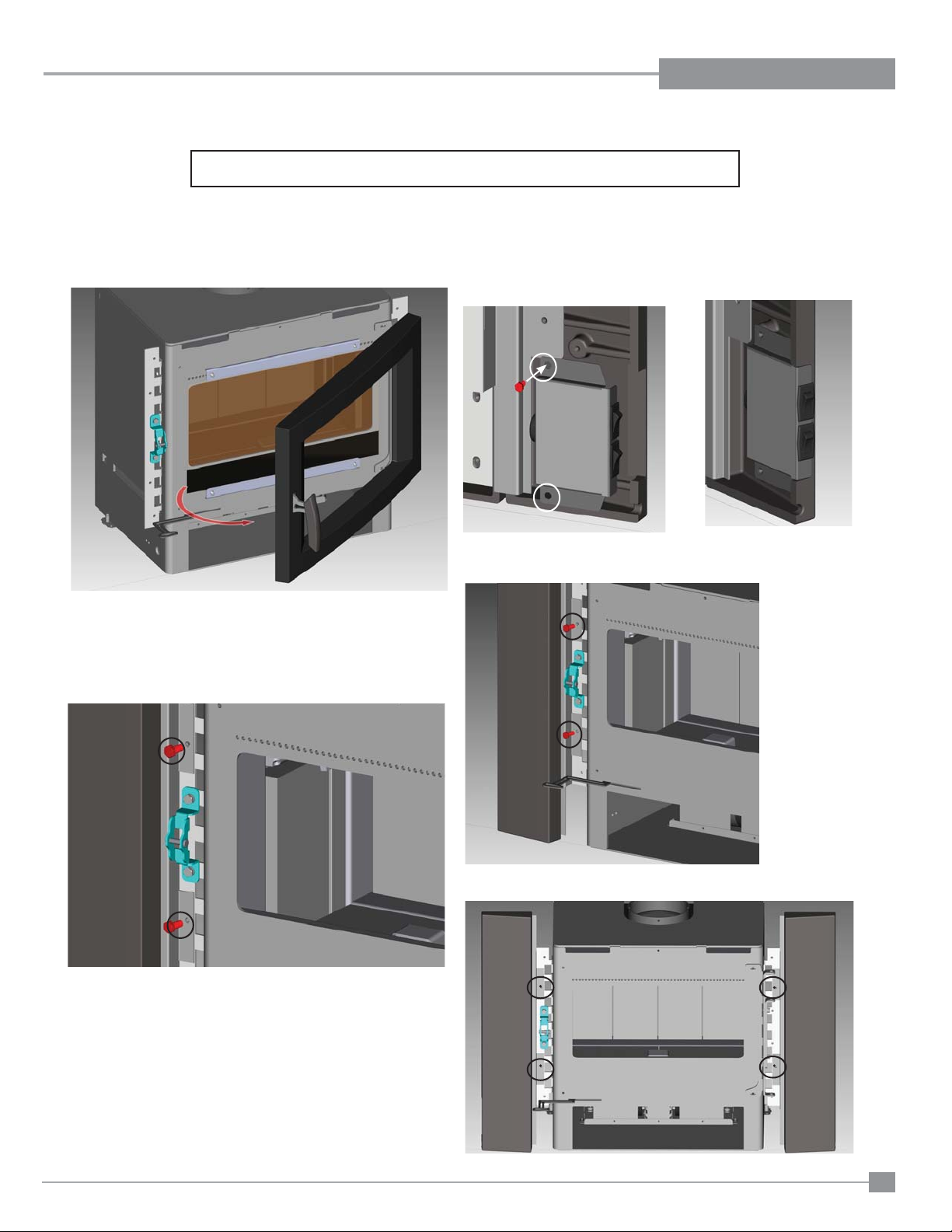

1) Open the door to about 45°- then remove it from the hinge by lifting

up and out. Put door to the side on a soft surface.

Note: Door is heavy.

2) Remove two bolts from the bracket on the unit as shown below. Line up the left side casting bracket with the left side bracket on the

unit.

Note: the CI1200 right/left sides are reversible.

CI1250 Only

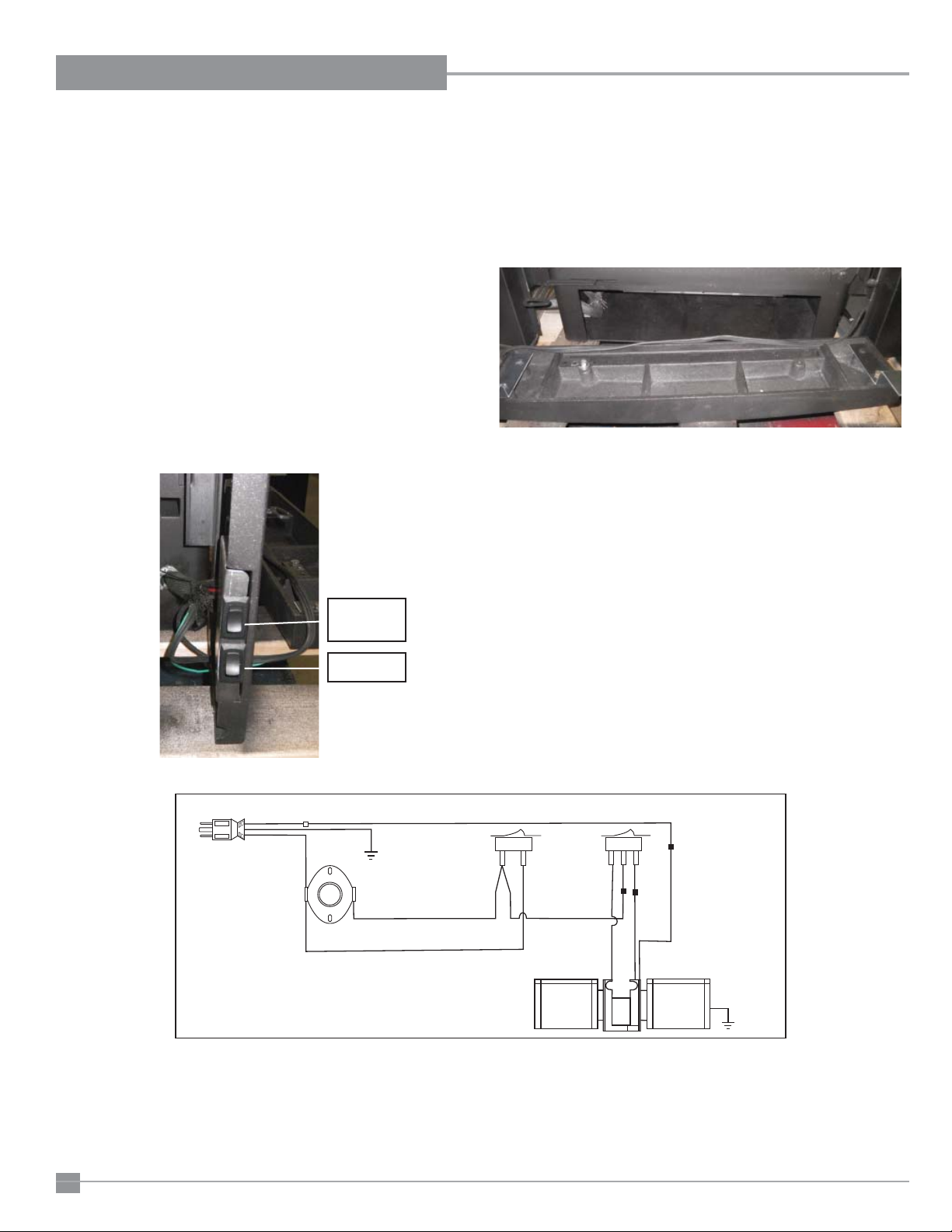

3) Install fan controls into left surround with 2 screws as shown below.

Note: Left side faceplate (when facing unit) will have a notch on the side

as shown below. The extension cord should also be brought out to the side prior to installation.

4) Secure the left cast surround with the two bolts removed in Step 2.

Regency CI1200 / CI1250 Wood Cast Insert

5) Repeat Steps 2 and 4 to install right cast surround.

Page 16

INSTALLATION

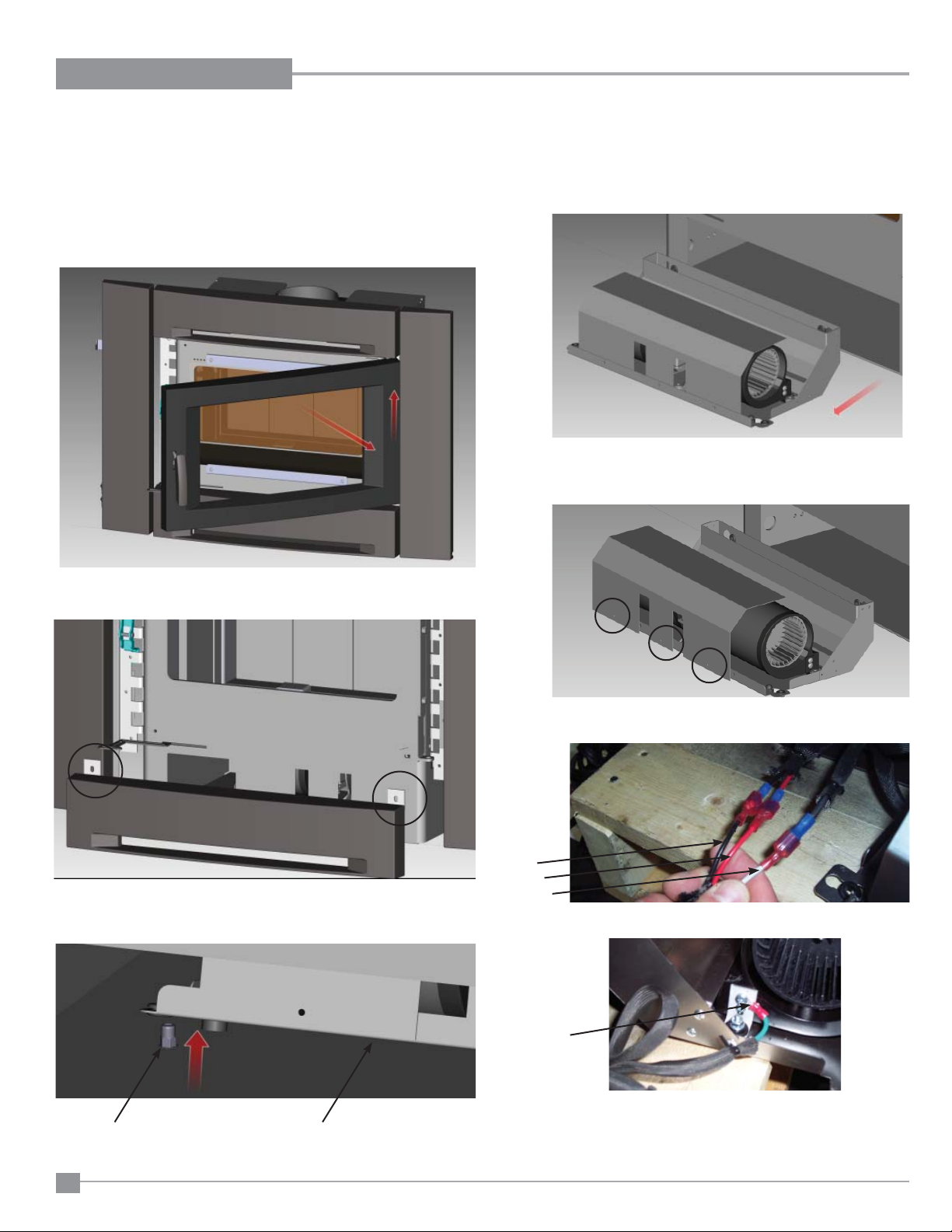

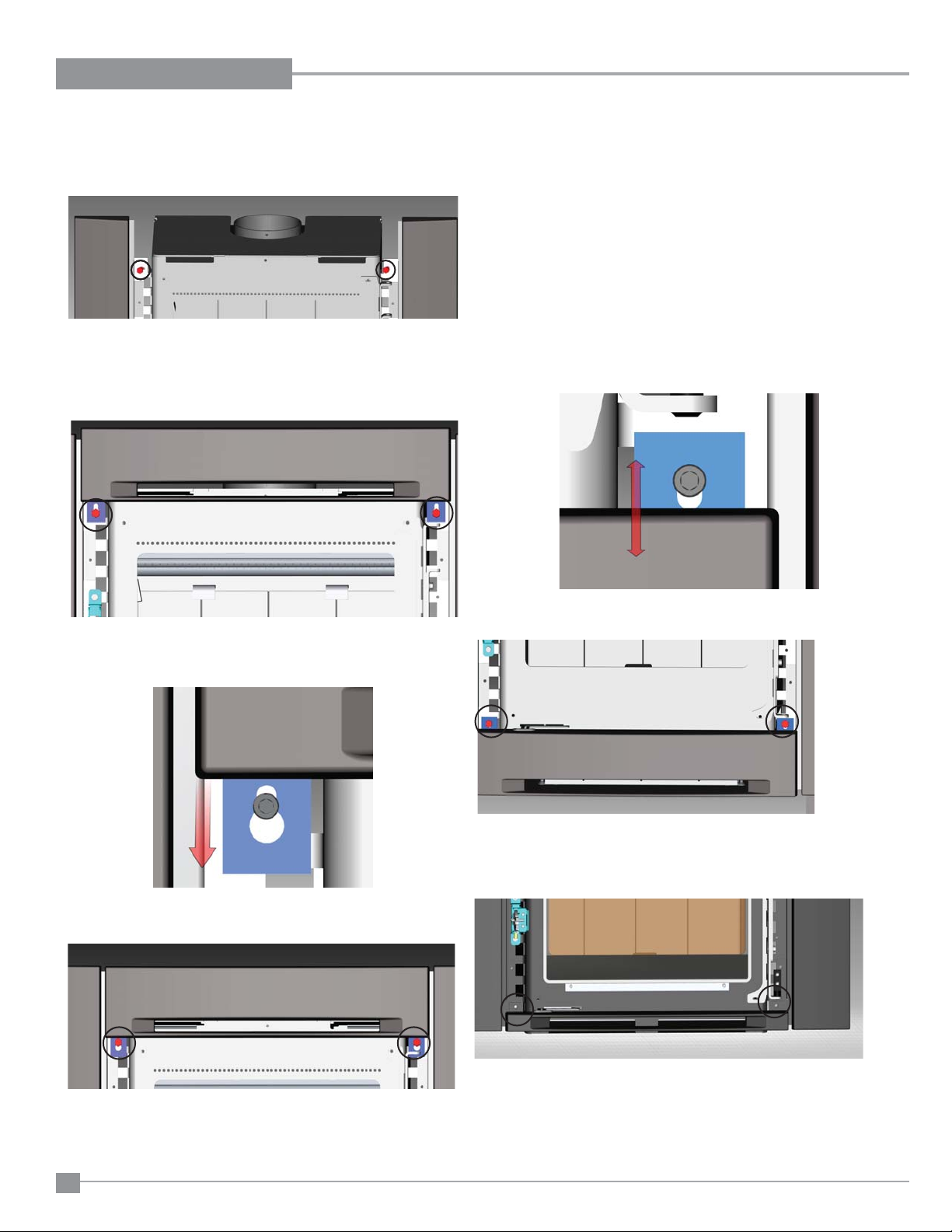

7) Loosen the two (2) top screws (with 3/16" allen key) on the left and

right brackets on the unit as shown below.

8) Slide the upper cast surround keyhole brackets over the loosened

screws from Step 7.

11) Remove the two (2) bolts from the lower part of the brackets on the

unit - see diagram below.

12) CI1250 only - Move the damper control lever to the right so it is out

of the way.

Note: If the fan power cord needs to be re-routed to the right side of the

unit - go to step 16, before installing the lower cast surround piece.

13) Line up the brackets on the lower cast surround piece with the lower

holes in the bracket on the unit. Replace two (2) screws - removed in step 9.

14) Before tightening screws - adjust the position of the lower cast sur-

round, until it is level - by sliding the brackets up or down. When in ﬁ nal and level position, tighten both screws.

9) Slide the upper cast surround down over the screws until it is level

and in line with the side cast pieces.

10) Tighten both screws once all three cast pieces are level.

CI1250

CI1200

Regency CI1200 / CI1250 Wood Cast Insert

Page 17

15) Reinstall door.

16) The fan cord can be re-routed to the right side of the unit if necessary.

Before installing the lower cast surround - run the cord between the left cast surround and the unit. Then run the cord along the lower part of the lower cast surround and out in between the right cast and the unit.

INSTALLATION

17) With the cord re-routed, follow steps 13-15 to complete the installa-

tion.

Regency CI1200 / CI1250 Wood Cast Insert

Page 18

INSTALLATION

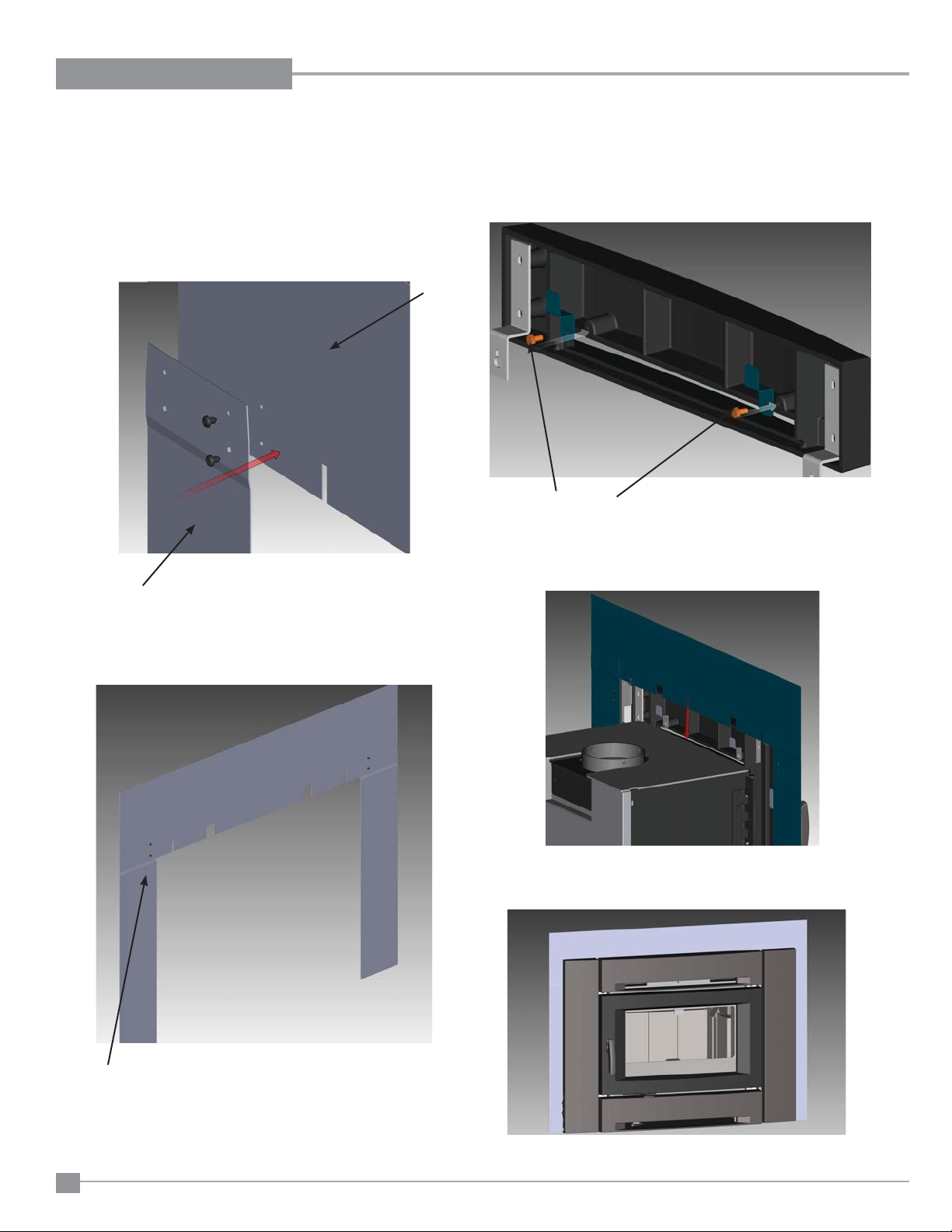

3 PIECE BACKING PLATE INSTALLATION

An optional backing plate is available in either a standard or custom

size.

1) The backing plate is packaged in three pieces and requires assem-

bly. The legs of the backing plate are attached to the top plate with 2 screws on each side. See diagram 1 below.

Top plate

Diagram 1

Leg

3) Install 2 clips to the back of the top cast faceplate with hex bolts. If the unit is already installed - remove the top cast faceplate from

the unit if access is too difﬁ cult - see 'Cast Faceplate Installation' in the owners manual for instructions.

Diagram 3Hex bolts

4) Slide the backing plate over the clips on the back of the cast top.

There are notches in the backing plate where it sits on the clips. If the stove is installed - slide it out at least 6" to install the backing plate.

2) The pointed end of the screws should be facing the front of the back-

ing plate.

Flush front face of backing plate

Diagram 2

Diagram 4

5) Slide stove back into position after backing plate is installed.

Diagram 5

Standard backing plate shown on the CI1250

Regency CI1200 / CI1250 Wood Cast Insert

Page 19

DOOR REVERSAL

INSTALLATION

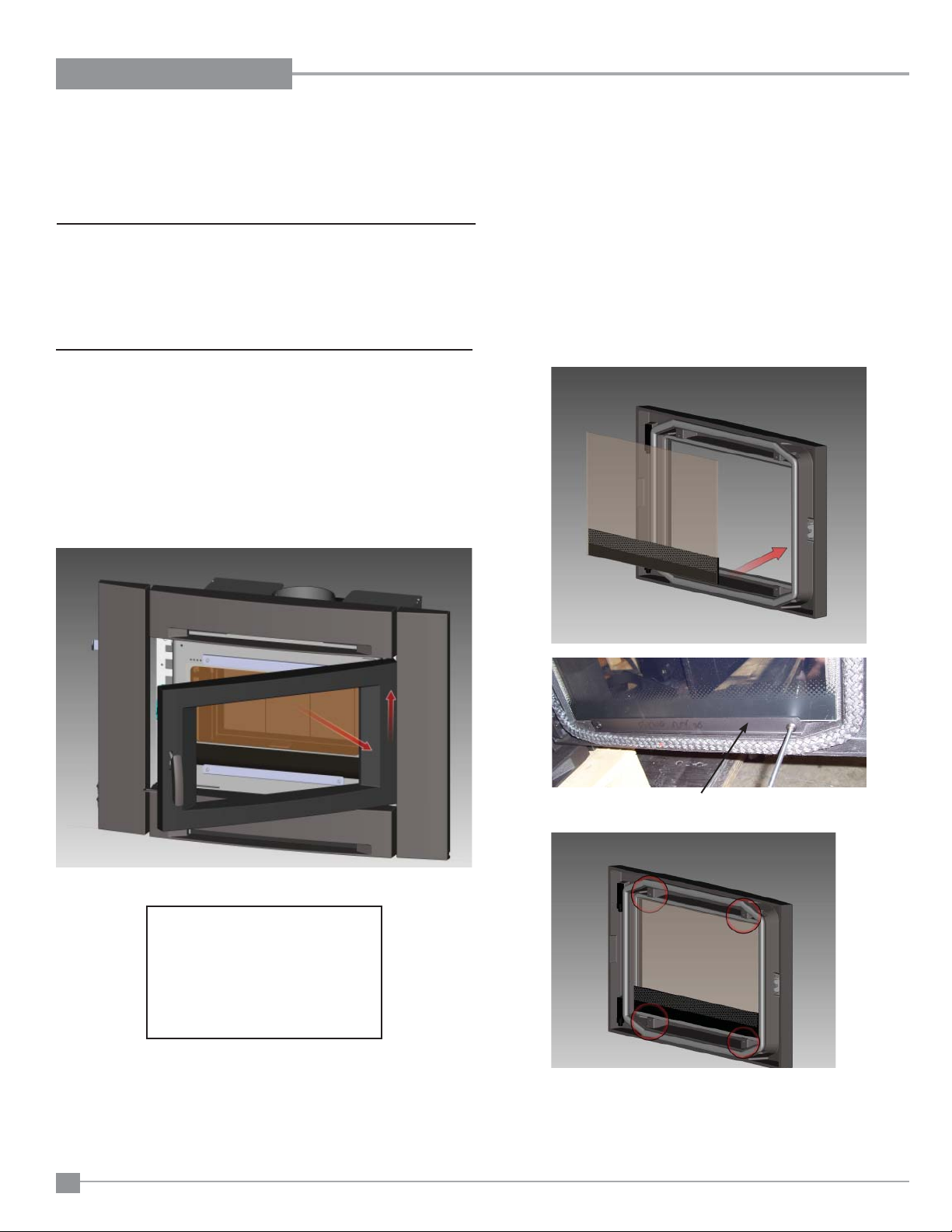

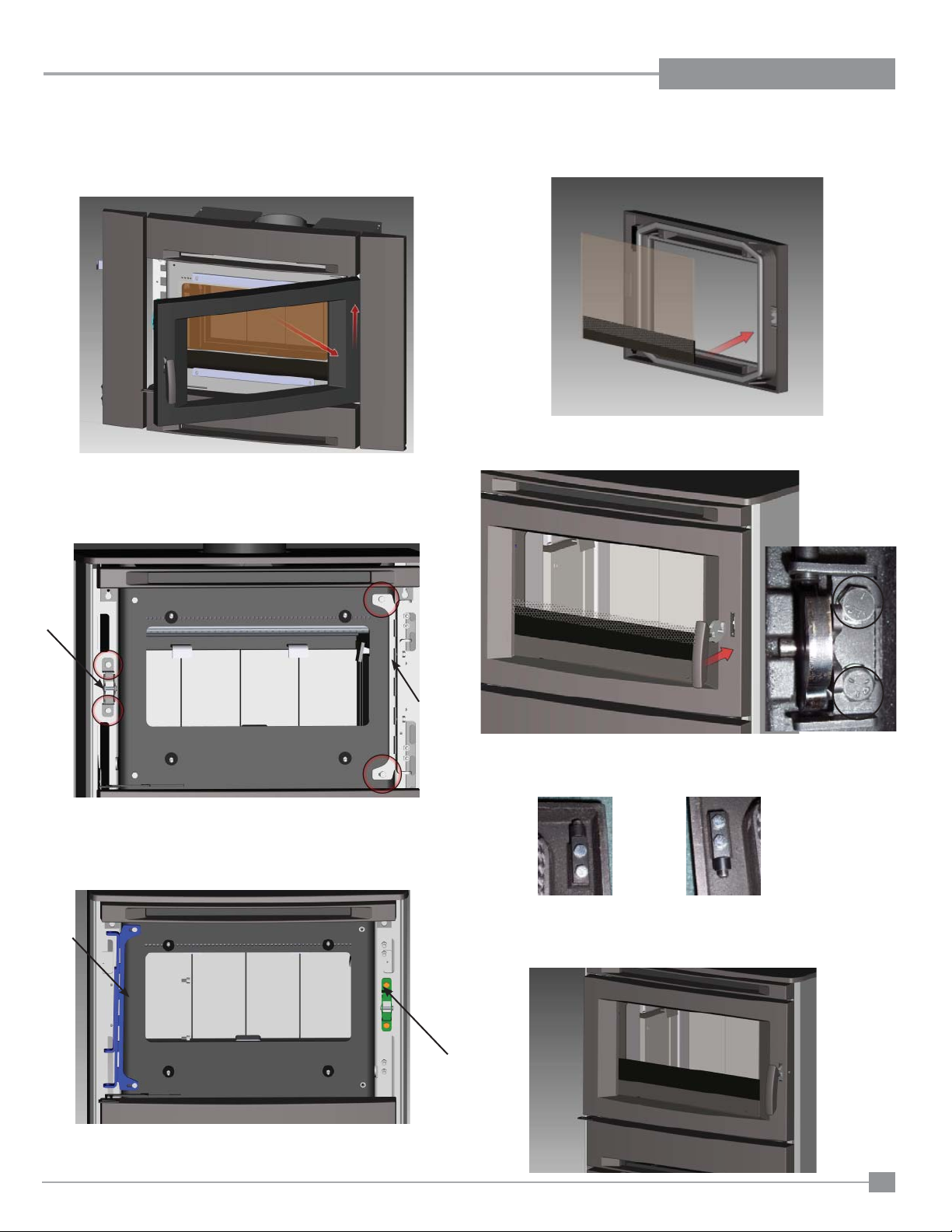

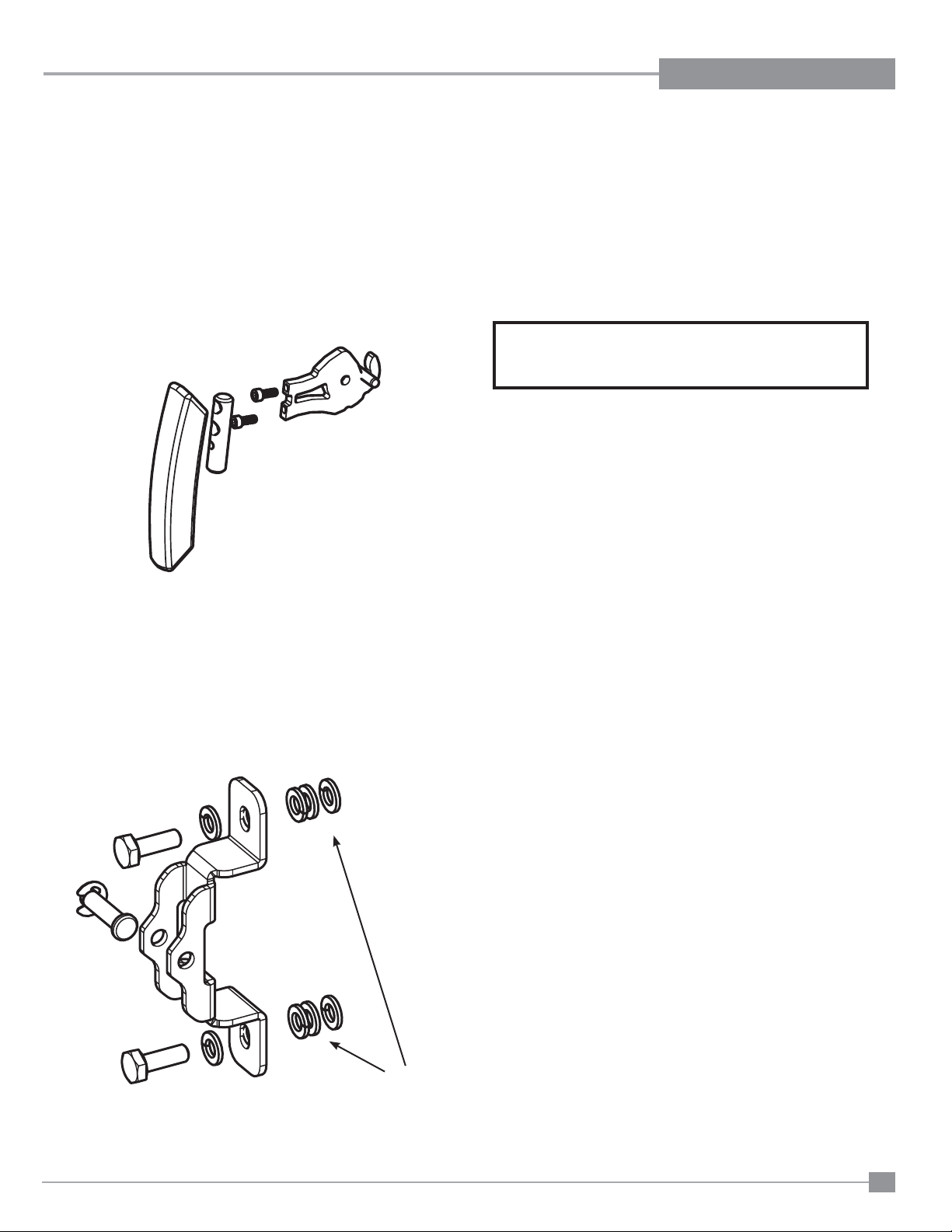

1) The door can be reversed - so that it will open to the left. Make sure stove has cooled to room temperature. Open the door to about 45°- then remove it from the hinge by lifting up and out. Note: Door is heavy.

2) Remove the 2 bolts securing the door hinge to the unit. Note: Once hinge is removed - reinstall the bolts and ensure they are tight

to prevent air leakage.

3) Remove the 2 bolts securing the door catch assembly to the unit.

6) Remove the glass from the door and ﬂ ip it around 180° - so the painted

strip is at the bottom of the door.

7) Flip the handle around 180° and reattach to the door with 2 botls.

Door

Catch

Door

Hinge

4) Flip the door hinge 180° - install on the left side of the unit with 2 bolts.

5) Reattach the door catch assembly on the right side with 2 bolts from step

Door

Hinge

8) Remove door pins (2) from back side of door by removing 4 bolts. reinstall on other side of door by rotating 180° and reinstalling door pins.

9) Reattach the door to the door hinge.

Regency CI1200 / CI1250 Wood Cast Insert

Door

Catch

Page 20

INSTALLATION

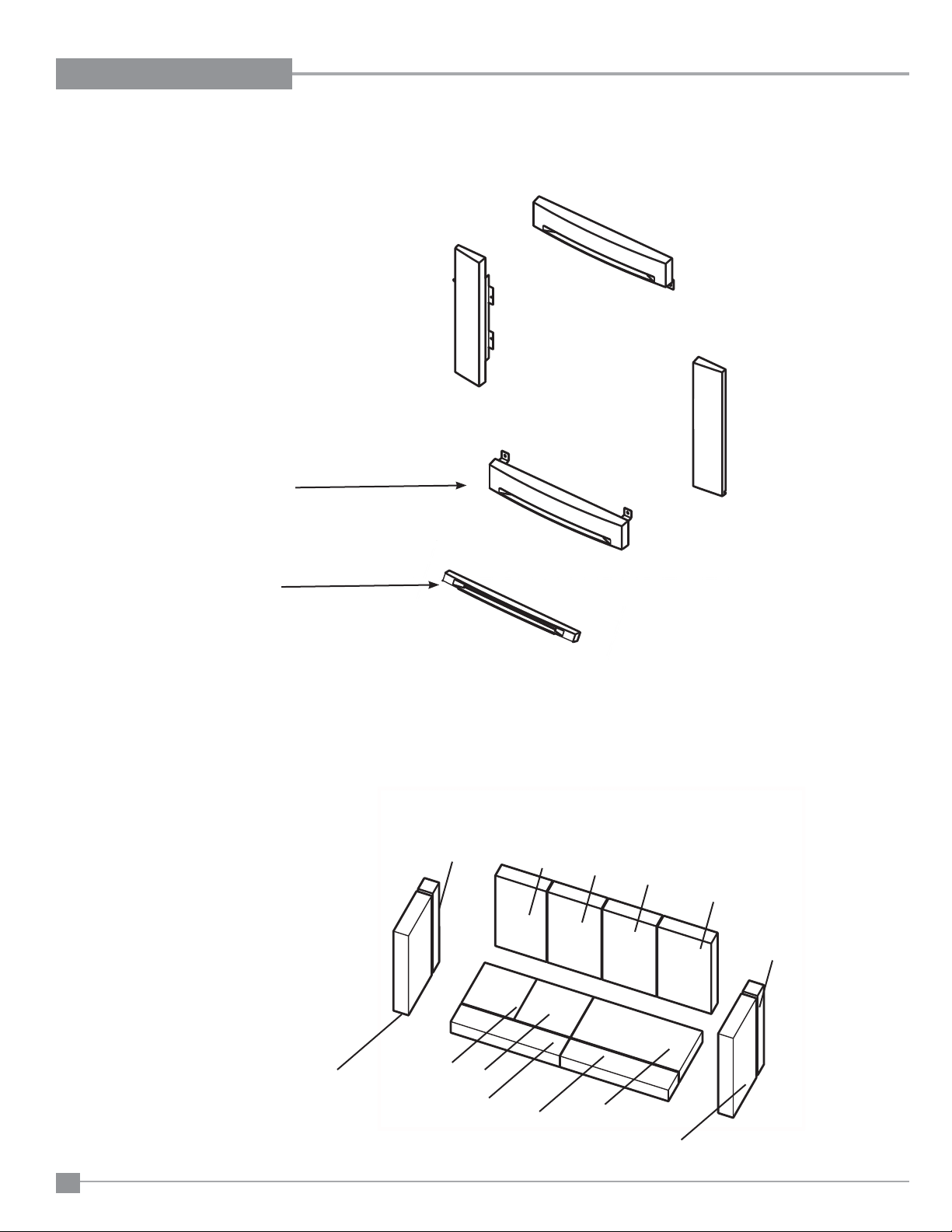

BRICK FLUE BAFFLE & SECONDARY AIR TUBE

INSTALLATION

DRAFT CONTROL

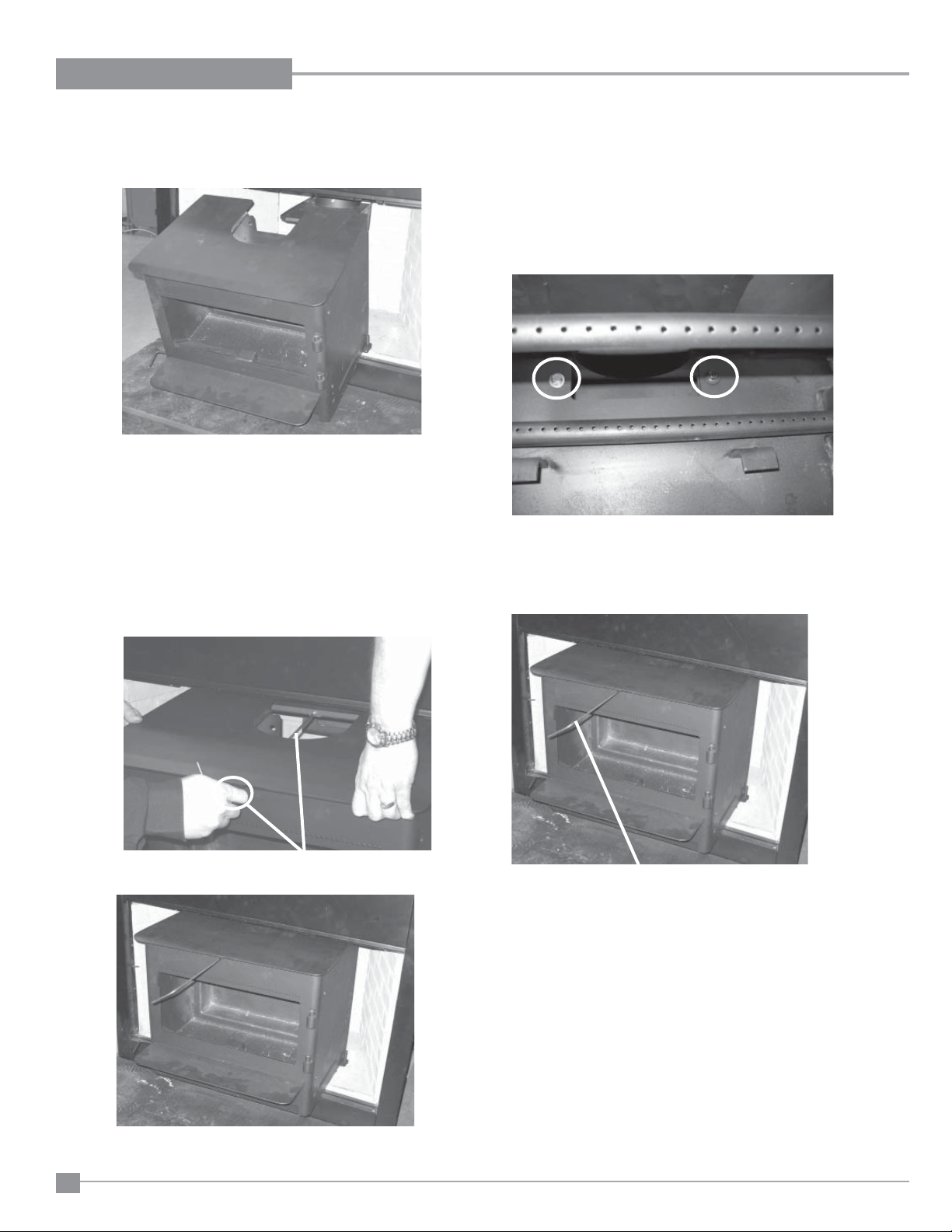

Before establishing your ﬁ rst ﬁ re, it is important that you fully understand the operation of draft control.

The ﬂ ue bafﬂ e system located in the upper area of the ﬁ rebox is removable to make cleaning your chimney system easier. The brick bafﬂ es must be installed prior to your ﬁ rst ﬁ re. Smoke spillage

and draft problems may occur if the bafﬂ es are improperly positioned. Check the position of

the brick bafﬂ es on a regular basis as they can be dislodged if too much fuel is forced into the ﬁ rebox.

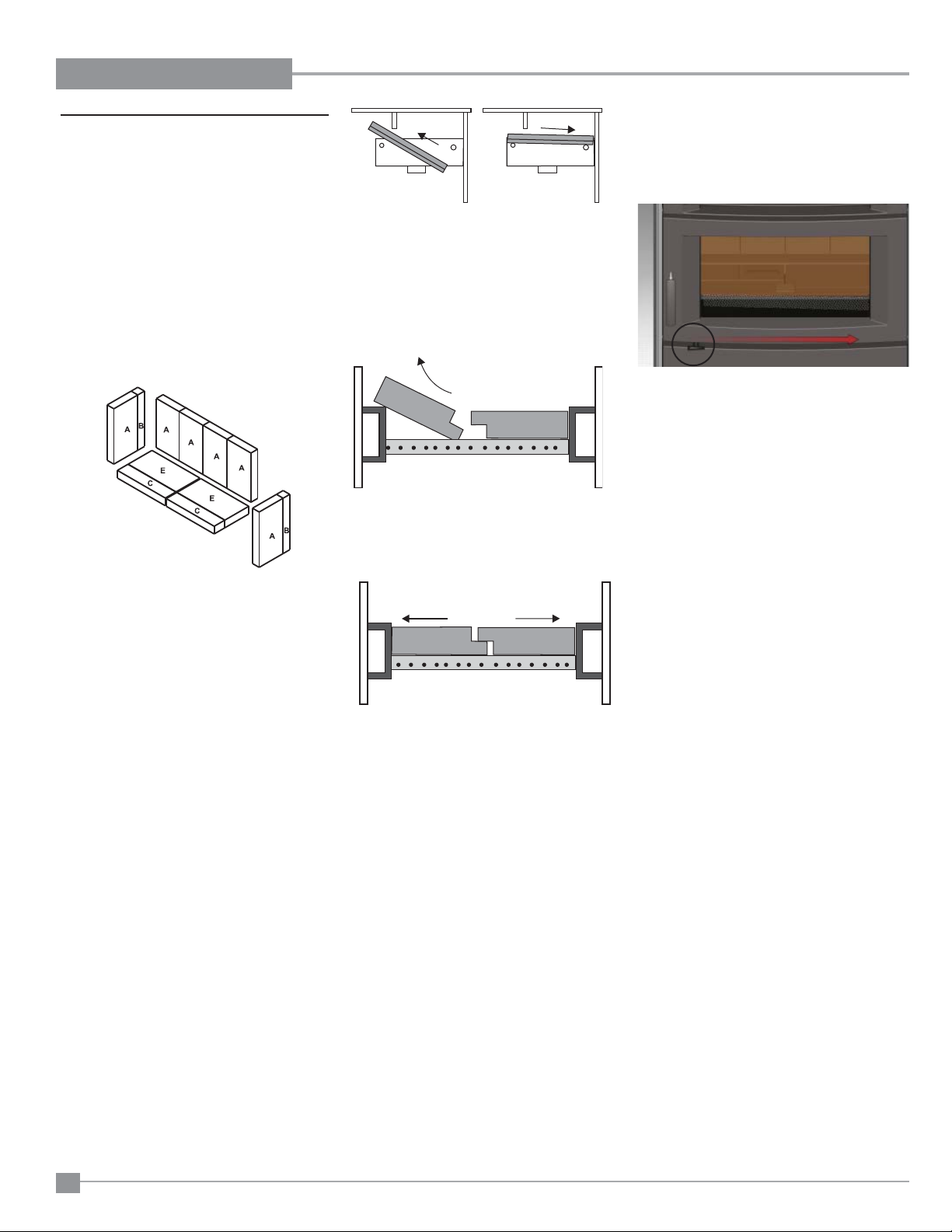

1) If the two air tubes are installed continue on to Step 2), if not, follow the instructions below. Install the air tube into the holes in the side channels. The notch goes on the right hand side with the air holes facing toward the door. Slide the tube into the left hand side, as far as possible and then bring it back into the hole on the right hand side until it locks into position. If the tube will not slide in easily simply use a pair of vise grips or pliers and tap it into place with a hammer. A tighter ﬁ t will ensure the tube will not move when the unit is burning.

2) Slide the left bafﬂ e brick over the front air tube and then slide it back over the rear air tube.

Side View

3) Tilt the left bafﬂ e brick up on top of the side channel and it will leave enough room to position the right bafﬂ e brick in the same manner as Step 1) above. Then reposition the left bafﬂ e brick ﬂ at on the air tube.

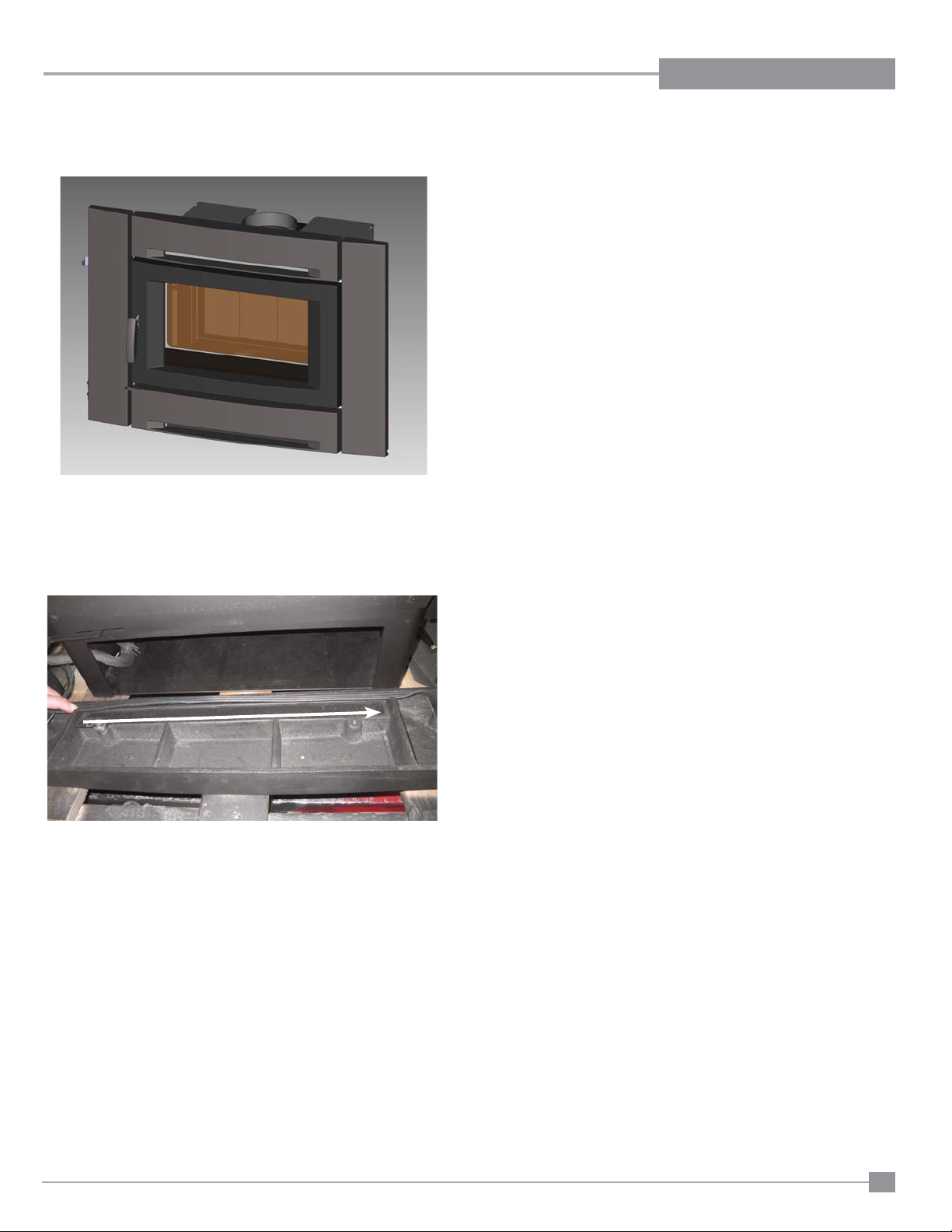

Front View

4) Important: push both bafﬂ e bricks so they are tight against the side walls and to the back.

Front View

Note: When getting the chimney cleaned, re-

move the bafﬂ e bricks for access to the ﬂ ue, then replace them when cleaning is completed.

Left - Open Right - Closed

The draft control rod is on the left side of the Insert and it controls the intensity of the ﬁ re by increasing or decreasing the amount of air allowed into the ﬁ rebox. T o increase the draft, slide the rod to the left and to decrease the draft, slide the rod to the right.

As well as a primary and glass wash air system, the unit has a full secondary draft system that allows air to the induction ports at the top of the ﬁ rebox, just below the ﬂ ue bafﬂ e.

FIREBRICK ASSEMBLY

Firebrick is included to extend the life of your insert and radiate heat more evenly. Check to see that all ﬁ rebricks are in their correct positions and have not become misaligned during shipping.

Regency CI1200 / CI1250 Wood Cast Insert

Page 21

OPERATING INSTRUCTIONS

WARNING: To build a ﬁ re in ignorance or to disregard the informa tion contained in this section can cause serious permanent damage to the unit and void your warranty.

FIRST FIRE

When your installation is completed and inspected, you are ready for your ﬁ rst ﬁ re.

1) Open draft control fully.

2) Open ﬁ rebox door and build a small ﬁ re using

paper and dry kindling, wait a few minutes for a good updraft in the ﬂ ue to establish the ﬁ re. Leaving the door slightly open will help your ﬁ re start more rapidly.

CAUTION: Never leave unit unattended if door is left open. This procedure is for ﬁ re start-up only, as unit may over-heat if

door is left open for too long.

3) With the draft still in the fully open position, add

two or three seasoned logs to your ﬁ re. Form a trench in the ash bed to allow air to reach the rear of the ﬁ rebox prior to closing the door.

4) After about 15 to 20 minutes, when your wood has begun to burn strongly, adjust your draft control down to keep the ﬁ re at a moderate level.

10) For those units installed at higher elevations or into sub-standard masonry ﬁ replaces, drafting problems may occur. Consult an experienced dealer or mason on methods of increasing your draft.

11) Some cracking and popping noises may be experienced during the heating up process. These noises will be minimal when your unit reaches temperature.

12) Before opening your door to reload, open draft fully for approximately 10 to 15 seconds until ﬁ re has been re-established. This will minimize any smoking.

13) All fuel burning appliances consume oxygen during operation. It is important that you supply a source of fresh air to your unit while burning. A slightly opened window is sufﬁ cient for this purpose.

CAUTION: If the body of your unit starts to glow you are overﬁ ring. Stop loading fuel immediately and close the draft control

until the glow has completely subsided.

14) Green or wet wood is not recommended for

your unit. If you must add wet or green fuel, open the draft control fully until all moisture has been dispersed by the intense ﬁ re. Once all moisture has been removed, the draft control may be adjusted to maintain the ﬁ re.

WARNING: Never build a roaring ﬁ re in a cold stove. Always warm your stove up

slowly!

5) Once a bed of coals has been established, you

may adjust the draft control to a low setting to operate the unit in its most efﬁ cient mode.

6) During the ﬁ rst couple of hours, keep the com- bustion rate at a moderate level and avoid a large ﬁ re until the paint is cured. Only then can you operate the insert at its maximum setting, and only after the metal has been warmed.

7) For the ﬁ rst few hours, the insert will give off an odour from the paint. This is to be expected as the high temperature paint becomes seasoned. Windows and/or doors should be left open to provide adequate ventilation while this temporary condition exists. Burning the insert at a very high temperature the ﬁ rst few times may damage the paint. Burn ﬁ res at a moderate level the ﬁ rst few days.

8) Do not place anything on the insert top during the curing process. This may result in damage to your paint ﬁ nish.

9) During the ﬁ rst few hours it may be more difﬁ cult to start the ﬁ re. As you dry out your ﬁ re brick and your masonry ﬂ ue (if applicable), your draft will increase.

15) If you have been burning your insert on a low draft, use caution when opening the door. After opening the damper, open the door a crack, and allow the ﬁ re to adjust before fully opening the door.

16) The controls of your unit should not be altered to increase ﬁ ring for any reason.

Regency CI1200 / CI1250 Wood Cast Insert

Page 22

OPERATING INSTRUCTIONS

FAN OPERATION

(CS1250 ONLY)

The fan is to be operated only with the draft control rod pulled out at least 1/2" from the fully closed position. The fan is not to be operated when the draft control rod is in the closed position (pushed in). The fully closed position is the low burn setting.

The fan must not be turned on until a ﬁ re has been burning for at least 30 minutes. Also note it is recommended that the fan be turned off before each fuel loading and again wait for 30 minutes before the fan is turned on again. This is too allow the stove to reach it's optimum temperature.

To operate fan automatically, push switch on the right side of fan housing to "Auto" and second switch, on the left to either "High" or "Low" for fan speed. The automatic temperature sensor will engage the blower when the unit is at temperature and will shut off the blower once the ﬁ re has gone out and the unit has cooled to below a useful heat output range.

T o manually operate the fan system, push the ﬁ rst switch to "Man" and second switch to either "high" or "Low". This will bypass the sensing device and allow full control of the fan. Switching from "Auto" to "Manual" or "High" to "Low" may be done at any time.

CORD REVERSAL

The fan cord comes out from the left hand side of the unit. if it is necessary to have the cord coming from the right side - follow these steps:

1) Remove the lower surround faceplate section - by removing 2 bolts.

2) Feed the cord along the bottom of the inside of the casting as shown below.

Neutral

120V AC

60 Hz

Fan Thermodisc

(normally open)

Live

LOW

AUTO

MANUAL

Ground

OFF

Green

Manual/

Auto

Switch

White White

Black

Fan

Switch

Low (Red)

High (Black)

Fan Fan

White

Ground

Fan Wiring Diagram

Regency CI1200 / CI1250 Wood Cast Insert

Page 23

OPERATING INSTRUCTIONS

ASH DISPOSAL

During constant use, ashes should be removed every few days. Please take care to prevent the build-up of ash around the start-up air housing located inside the ﬁ rebox.

DO NOT ALLOW ASHES T O BUILD UP T O THE LOADING DOORS.

Only remove ashes when the ﬁ re has died down. Even then, expect to ﬁ nd a few hot embers. Always leave 1 to 2 inches of ash in the bottom of the ﬁ rebox. This helps in easier starting and a more uniform burn of your ﬁ re.

Ashes should be placed in a metal container with a tight ﬁ tting lid. The closed container of ashes should be placed on a noncombustible ﬂ oor or on the ground, well away from all combustible materials, pending ﬁ nal disposal. If the ashes are disposed of by burial in soil or otherwise locally dispersed, they should be retained in the closed container until all cinders have thoroughly cooled. Other waste should not be placed in the ash container.

SOME SAFETY

GUIDELINES

1) Never use gasoline, gasoline type lantern fuels,

kerosene, charcoal lighter fuel, or similar liquids or chemicals to start or ‘freshen up’ a ﬁ re in your insert. Keep all such liquids well away from the heater while it is in use.

2) Never use alternate fuels such as charcoal that have the possibility of generating carbon monoxide.

3) Keep the door closed during operation and maintain all seals in good condition.

4) Do not burn large quantities of paper in your insert.

5) Do not burn garbage or ﬂ ammable ﬂ uids.

6) If you have smoke detectors, prevent smoke

spillage as this may set off a false alarm.

7) Do not overﬁ re your insert. If the insert or its ﬂ ue bafﬂ e begin to glow, you are overﬁ ring.

Stop adding fuel and close the draft control.

Overﬁ ring can cause extensive damage to your

stove including warpage and premature steel corrosion. Overﬁ ring will void your warranty.

8) Do not permit creosote or soot buildup in the chimney system. Check and clean chimney at regular intervals.

9) Your Regency Insert can be very hot. You may be seriously burned if you touch the insert while it is operating. Warn children of the burn hazard. Keep furniture and clothing away.

10) The insert consumes air while operating, provide adequate ventilation with an air duct or open a window while the insert is in use.

11) Do not use grates, irons or other methods for supporting fuel. Burn directly on the bricks.

12) Open the draft control fully for 10 to 15 seconds prior to slowly opening the door when refuelling the ﬁ re.

13) Do not connect your unit to any air distribution duct.

14) Y our insert should burn dry, standard ﬁ rewood only. The use of “mill ends” is discouraged as this fuel can easily overheat your insert. Evidence of excessive overheating will void your warranty. As well, a large portion of sawmill waste is chemically treated lumber, which is illegal to burn in many areas. Chemically treated ﬁ re logs also must not be burned in your insert.

15) Do not store any fuel closer than 2 feet from your unit.

16) Do not burn salt drift wood as it will corrode your unit and void the warranty.

17) Do not strike or slam the glass door shut as this may cause the glass to break.

18) Do not operate the unit if the glass is broken or missing. Do not operate the unit if the gasketing is worn out and not sealing the door or the glass.

It is very important to carefully maintain your insert, including burning seasoned wood and maintaining a clean stove and chimney system. Have the chimney cleaned before the burning season and as necessary during the season, as creosote deposits may build up rapidly. Moving parts of your insert require no lubrication.

CREOSOTE

When wood is burned slowly, it produces tar and other organic vapors, which form creosote when combined with moisture. The creosote vapors condense in the relatively cool chimney ﬂ ue of a slow-burning ﬁ re. As a result, creosote residue accumulates on the ﬂ ue lining. When ignited, this creosote can make an extremely hot ﬁ re.

Removal for Cleaning etc.

Removal of your insert for cleaning purposes is usually not required if a proper installation has been done. In the event that removal is required, be sure not to damage any parts needed for re-installation. In most cases removal and replacement of the bafﬂ e system should allow full access for cleaning.

WARNING: Things to remember in case of chimney ﬁ re:

1) Close draft control

2) Call the Fire Department

Ways to Prevent and

Keep Unit Free of Creosote

1) Burn insert with draft control wide open for

about 15 minutes every morning during burning season. This helps to prevent creosote deposits within the heating system.

2) Burn insert with draft control wide open for about 10 - 15 minutes every time you add fresh wood. This allows the wood to achieve the charcoal stage faster and burns up any wood vapors which might otherwise be deposited within the system.

3) Only burn seasoned wood! Avoid burning wet or green wood. Seasoned wood has been dried at least one year.

4) A small hot ﬁ re is preferable to a large smoul- dering one that can deposit creosote within the system.

5) Check the chimney at least twice a month during the burning season for creosote build-up.

6) Have chimney system and unit cleaned by competent chimney sweeps twice a year during the ﬁ rst year of use and at least once a year thereafter or when needed.

Regency CI1200 / CI1250 Wood Cast Insert

Page 24

MAINTENANCE

DOOR GASKET

If the door gasket requires replacement, 7/8" diameter material must be used. A proper high temperature gasket adhesive is required. A gasket repair kit, Part # 846-570 is available from your local Regency dealer.

GLASS CLEANING

Only clean your glass window when it is cool. Your local retailer can supply you with special glass cleaner if plain water and a soft cloth does not remove all deposits.

DOOR REMOVAL

When handling cast parts, please handle with care as they can be damaged.

1) Open door to a 45° angle

2) Holding door ﬁ rmly from top and bottom - lift door up and off to remove.

Note: Door is heavy.

GLASS REPLACEMENT

Allow the stove to cool before removing or replacing glass. Remove the door from the stove and remove the glass retainer. Use caution when removing broken glass to avoid injury. When placing the replacement glass in the door, make sure that the glass gasketing will properly seal your unit. Replace the retainer, it should rest on the gasket not the glass, and tighten securely with a glass clips and screws. Do not wrench down on the glass as this may cause breakage.

Your Regency Insert is supplied with 5mm Neoceram ceramic glass that will withstand the highest heat that your unit will produce. In the event that you break your glass by impact- purchase replacement glass (940-366/P) from an authorized Regency dealer only. Follow the instructions to replace.

Lower glass clip

DOOR INSTALLATION NOTE

After re-installing the door, care-

fully swing open and check the clearance to the Right Hand Cast Side. If tight or rubbing, loosen the 7/16 nuts and adjust the clearance and then re-tighten.

Glass clip screw locations

Avoid impact on glass doors such as striking or slamming shut.

Regency CI1200 / CI1250 Wood Cast Insert

Page 25

MAINTENANCE

HANDLE

REPLACEMENT

1) Remove handle by undoing the hex head bolt using a 7/16" socket wrench.

2) Fit new door handle over door latch and secure.

Assemble handle by: a) Placing lock washer and split lock washer over hex head bolt. b) Place hex head bolt into handle. c) Place spacer over hex head bolt threads. d) Screw handle into door latch.

FAN MAINTENANCE

TO REMOVE THE FAN

1) See next page. Maintenance: The sealed bearings are lubricated, there is no need to

lubricate them further. (Extra lubricant will cause more lint and dust buildup

- causing the bearings to prematurely fail). Regular cleaning and vacuuming of the fan area will add to the life of the motor.

IMPORTANT:

These fans collect a lot of dust from within your home. Ensure you maintain these fan motors on a regular basis by vacuuming the fan blades and housing using a soft brush nozzle.

DOOR CATCH

ADJUSTMENT

The door catch may require adjustment as the door gasket material compresses after a few ﬁ res. Removal of the spacer washer, shown in the diagram below , will allow the catch to be moved closer to the door frame, causing a tighter seal. Remove and replace the nuts, washer and spacer as shown.

Regency CI1200 / CI1250 Wood Cast Insert

Spacer washers

Page 26

MAINTENANCE

FAN REMOVAL

CI1250 ONLY

Prior to removing fan, disconnect / unplug power source to fan

1) Open door to a 45° angle

2) Holding door ﬁ rmly from top and bottom - lift door up and off to remove. Note: Door is heavy.

3) Remove two (2) screws (with 3/16" Allen Key) to remove lower cast sur-

round - set aside on a soft surface.

5) Remove fan from unit.

6) Remove 3 screws to remove fan heat shield.

4) Lift fan housing up off pins on ﬂ oor of unit.

Pins on unit ﬂ oor

Fan Housing

7) Slide back the protect sheath on the wiring - disconnect the black, red and white wires.

Black

Red

White

8) Disconnect the ground wire located on the left side of the fan housing.

Ground wire

9) To install fan - reverse Steps 8-1.

Regency CI1200 / CI1250 Wood Cast Insert

Page 27

MAINTENANCE

Annual Maintenance

Completely clean out entire unit Annually

Inspect air tubes, bafﬂ es and bricks Replace any damaged parts.

Adjust door catch / latch If unable to obtain a tight seal on the door - replace door gasket seal.

Paper Test Test the seal on the loading door with a paper bill.

Inspect condition and seal of: Glass Gasket Door Gasket Perform paper test - replace gasket if required

Check and lubricate door hinge + latch Use only high temperature anti seize lube. (ie. never seize)

Check glass for cracks Replace if required.

Clean blower motor Disconnect power supply.

Inspect and clean chimney Annual professional chimney cleaning recommended.

Readjust latch after new gasket installed.

Place a paper bill in the gasketed area of the door on a cold stove–close the door. Try to remove the paper by pulling. The paper should not pull out easily, if it does, try adjusting the door latch, if that doesn't solve the problem replace the door gasket.

Remove and clean blower.

*DO NOT LUBRICATE*

Regency CI1200 / CI1250 Wood Cast Insert

Page 28

PARTS LIST

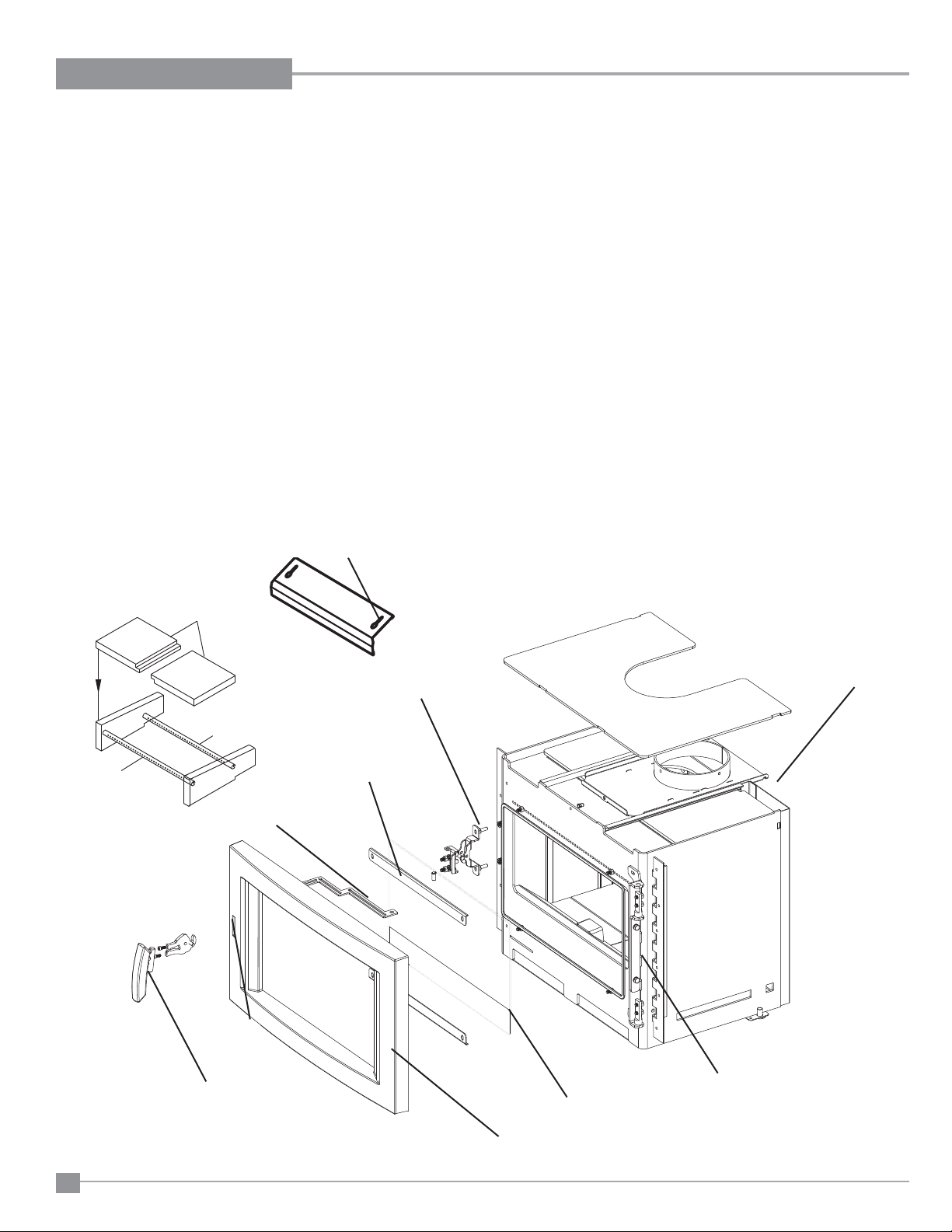

MAIN ASSEMBLY CI1200

Part # Description

1) 156-004 Door Hinge

2) 940-366/P Neoceram Glass

3) 948-155 Hinge Pin Lower

4) 936-238 Adhesive Tape Gasket

5) 156-054 Glass Retainer Clips / Screws (set of 2)

6) * Screws - 10-24 x 3/8"

9) 156-514 Door Handle Assembly

11) 156-513 Door Catch

12) 156-201 Door Assembly Metallic Black (no glass) 846-570 Med. Density Door Gasket Kit

13) 156-241 Cast Handle

14) 074-954 Air Tube - 1" (Qty: 1)

15) 033-953 Air Tube - 3/4" (Qty: 1)

16) 073-955 Bafﬂ e (2/set)

17) 171-932 Standard Flue Adaptor 171-936 Offset Flue Adaptor

18) 156-060N Draft plate arm

19) 820-483 Stainless smoke deﬂ ector

*Not available as a replacement part.

Regency CI1200 / CI1250 Wood Cast Insert

Page 29

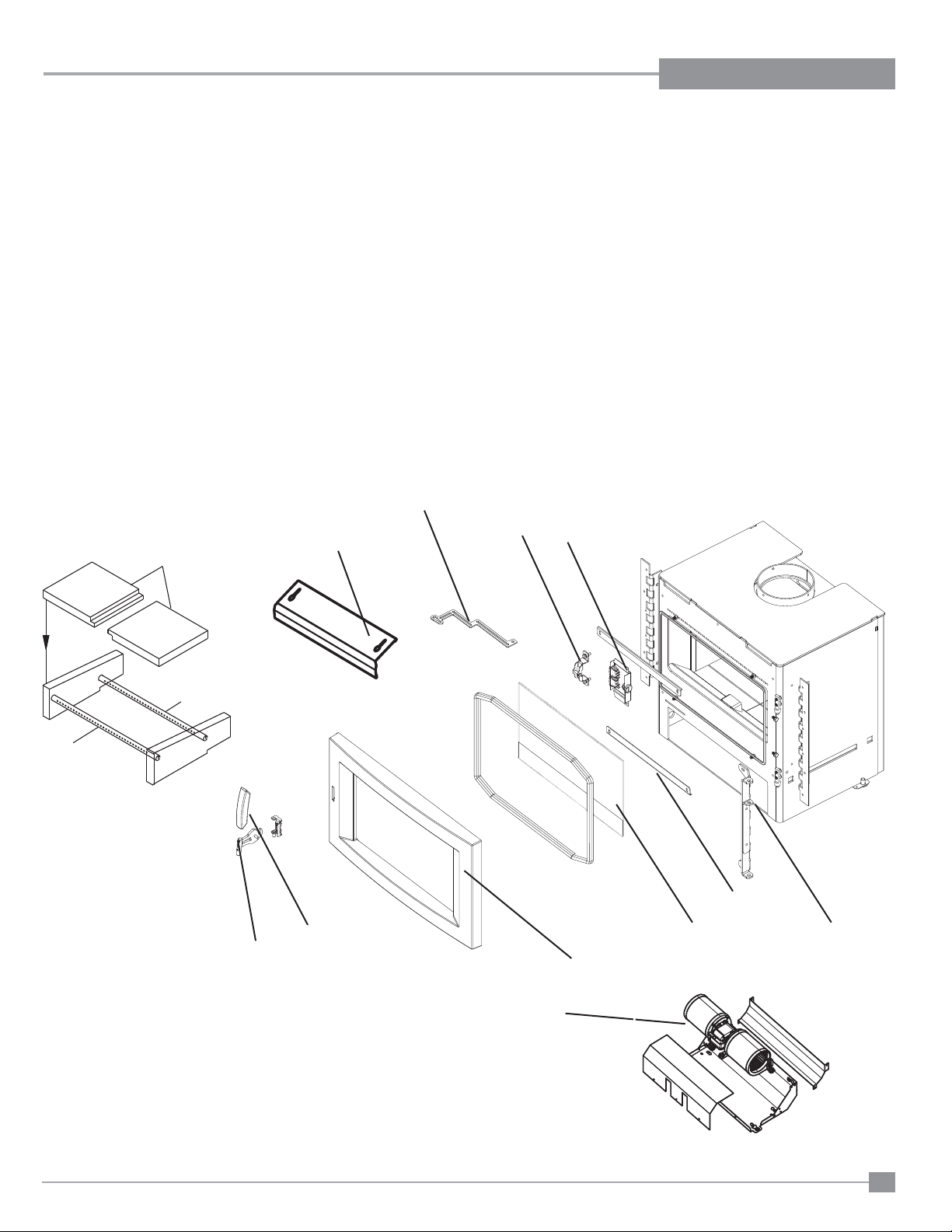

MAIN ASSEMBLY CI1250

Part # Description

1) 156-004 Door Hinge

2) 940-366/P Neoceram Glass

3) 948-155 Hinge Pin Lower

4) 936-238 Adhesive Tape Gasket

5) 156-054 Glass Retainer Clips / Screws (set of 2)

6) * Screws - 10-24 x 3/8"

9) 156-514 Door Handle Assembly

11) 156-513 Door Catch

12) 156-201 Door Assembly Metallic Black (no glass) 846-570 Med. Density Door Gasket Kit

13) 156-241 Cast Handle

14) 074-954 Air Tube - 1" (Qty: 1)

15) 033-953 Air Tube - 3/4" (Qty: 1)

16) 073-955 Bafﬂ e (2/set)

17) 171-932 Standard Flue Adaptor 171-936 Offset Flue Adaptor

918-893 Manual *Not available as a replacement part.

PARTS LIST

18) 910-140 3 way switch

19) 910-157/P Fan Assembly

20) 156-060N Draft plate arm

21) 820-483 Stainless Smoke Deﬂ ector 910-142 Thermodisc

Regency CI1200 / CI1250 Wood Cast Insert

Page 30

PARTS LIST

Part # Description

156-951 Metallic Black Faceplate CI1250 156-921 Metallic Black Faceplate CI1200

1) * Top Surround

2) * Left Side Surround

3) * Right Side Faceplate

4) * Bottom Surround

* Not available as a replacement part.

CI1250 Bottom Surround

CAST FACEPLATE

CI1200 Bottom Surround

FIREBRICK

Part # Description

156-960 Complete Brick Set

1) * Brick Regular Full Size: 1-1/4" x 4-1/2" x 9"

2) * Brick Partial: 1-1/4" x 2" x 9"

3) * Brick Partial: 1-1/4" x 1-1/4" x 9"

4) * Brick Partial: 1-1/4" x 4-1/2" x 8"

5) * Brick Partial: 1-1/4" x 4-1/4" x 8"

6) * Brick Partial: 1-1/4" x 4-1/2" x 4-1/2"

*Not available as a replacement part.

Regency CI1200 / CI1250 Wood Cast Insert

Page 31

WARRANTY

Regency Fireplace Products are designed with reliability and simplicity in mind. In addition, our internal Quality Assurance Team carefully inspects each unit thoroughly before it leaves our door. FPI Fireplace Products International Ltd. is pleased to extend this limited lifetime warranty to the original purchaser of a Regency Product. This warranty is not transferable.

The Warranty: Lifetime

Covered under the agreement are the following components:

Firebox, ceramic bafﬂ e, vermiculite bafﬂ e, steel bafﬂ es (H2100), convector airmate, castings, ashdrawer, glass (thermal breakage), gold plating (against defective manufacture), airtubes (against warpage) and door handles.

The above will be covered for parts and subsidized labour for the ﬁ rst ﬁ ve years and parts only thereafter with the exception of the ﬁ reboxes (see below).

FPI is not liable for freight or labor on any wood burning appliance replaced in ﬁ eld.

Electrical components such as blowers, switches and thermodisc's are covered for two years parts and one year subsidized labour* from date of purchase.

Repair/replacement parts purchased by the consumer from FPI after the original coverage has expired on the unit will carry a 90 day warranty, valid with a receipt only. Any item shown to be defective will be repaired or replaced at our discretion. No labor coverage is included with these parts.

Conditions:

Any part or parts of this unit which in our judgement show evidence of such defects will be repaired or replaced at FPI's option, through an accredited distributor or agent provided that the defective part be returned to the distributor or agent Transportation Prepaid, if requested.

It is the general practice of FPI to charge for larger, higher priced replacement parts and issue credit once the replaced component has been returned to FPI and evaluated for manufacturer defect.

The authorized selling dealer is responsible for all in-ﬁ eld service work carried out on your Regency product. FPI will not be liable for results or costs of workmanship from unauthorized service persons or dealers.

At all times FPI reserves the right to inspect product in the ﬁ eld which is claimed to be defective.

All claims must be submitted to FPI by authorized selling dealers. It is essential that all submitted claims provide all of the necessary information including customer name, purchase date, serial #, type of unit, problem, and part or parts requested, without this information the warranty will be invalid.

Exclusions:

This limited Lifetime Warranty does not extend to or include paint, door or glass gasketing, ﬁ rebrick or trim. It does not cover installation and operational related problems such as over-ﬁ ring, use of corrosive driftwood, downdrafts or spillage caused by environmental conditions, nearby trees, buildings, hilltops, mountains, inadequate venting or ventilation, excessive offsets, negative air pressures caused by mechanical systems such as furnaces, fans, clothes dryers etc.

At no time will FPI be liable for any consequential damages which exceed the purchase price of the unit. FPI has no obligation to enhance or modify any unit once manufactured. ie. as products evolve, ﬁ eld modiﬁ cations or upgrades will not be performed.

FPI will not be liable for travel costs for service work.

Installation and environmental problems are not the responsibility of the manufacturer and therefore are not covered under the terms of this warranty policy.

Any unit which shows signs of neglect or misuse is not covered under the terms of this warranty policy.

The warranty will not extend to any part which has been tampered with or altered in any way, or in our judgment has been subject to misuse.

Freight damage to stoves and replacement parts is not covered by warranty and is subject to a claim against the freight carrier by the dealer.

FPI will not be liable for acts of God, or acts of terrorism, which cause malfunction of the appliance.

Performance problems due to operator error will not be covered by this warranty policy.

Products made or provided by other manufacturers and used in conjunction with the operation of this appliance without prior authorization from FPI, may nullify your warranty on this product.

* Subsidy according to job scale as predetermined by FPI.

Regency CI1200 / CI1250 Wood Cast Insert

Page 32

www.regency-ﬁ re.com

Reasons to register your product online today!

• View and modify a list of all your registered products.

• Request automatic email notiﬁ cation of new product updates.

• Stay informed about the current promotions, events, and special offers on related products.

Installer: Please complete the following information

Dealer Name & Address: ______________________________________________ ___________________________________________________________________ Installer: ___________________________________________________________ Phone #: ___________________________________________________________ Date Installed: ______________________________________________________ Serial No.: __________________________________________________________

Printed in Canada

Regency CI1250 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
