Red Lion TMP QD User Manual

Bulletin No. TMPQD-C

Drawing No. LP0717

Released 06/13

Tel [phone]

Fax [phone]

www.redlion.net

QUICK DISCONNECT TEMPERATURE PROBES AND ACCESSORIES

Model TMP - Quick disconnecT TeMPeraTure Probes

 MATING FEMALE CONNECTOR (with "write on label") AND PLCM

CABLE CLAMP WITH LOCKING CLIP INCLUDED WITH
MINIATURE AND STANDARD SIZE PROBES

 CHOICE OF 304 SS, INCONEL 600 OR XL SHEATH

 XL HIGH TEMPERATURE PROBE AVAILABLE

 MEETS OR EXCEEDS SLE AND EN 60584-2: TOLERANCE

CLASS 1

 COLOR CODED CONNECTOR BODY

 WIRE SOLD SEPARATELY

GENERAL DESCRIPTION

Model TMP Quick Disconnect Thermocouples are available with both
miniature and standard size connector termination. These rugged probes feature
a variety of calibration types, sheath materials and diameters, and are available
with an ungrounded junction. A high temperature probe is also available that can
be mated with a standard female universal connector. All temperature probes are
rated at the tolerance standard SLE, (Special Limits Of Error), which is ±2 °C
degrees of error.

SPECIFICATIONS

1. SHEATH: Constructed of 304 stainless steel, Inconel 600, or XL (High
Temperature Probe only)

2. SHEATH DIAMETER: 1/16" or 1/8"

3. PROBE LENGTH: 12" Ungrounded junction.

4. CONNECTOR BODY: Glass Filled Nylon, rated to 220 ºC.

5. WIRE: Sold separately, see accessory details

DIMENSIONS In inches (mm)

12 (304.8)

1/8 Dia.

12 (304.8)

1/16 Dia.

ORDERING INFORMATION

DESCRIPTION SHEATH MATERIAL

MINI

QUICK

DISCONNNECT

TC PROBE

W/ MOLDED

CONN

STANDARD

QUICK

DISCONNNECT

TC PROBE

W/ MOLDED

CONN

* XL probes have a very low drift and are for use in high temperature

applications up to 1335 °C.

ANSI

TYPE

TC

J 1/16 TMPJQD01

304SS

K 304SS 1/16 TMPKQD01

T 304SS 1/16 TMPTQD01

E 304SS 1/16 TMPEQD01

J INCONEL 600 1/16 TMPJQD02

K INCONEL 600 1/16 TMPKQD02

T INCONEL 600 1/16 TMPTQD02

E INCONEL 600 1/16 TMPEQD02

J 304SS 1/8 TMPJQD03

K 304SS 1/8 TMPKQD03

T 304SS 1/8 TMPTQD03

E 304SS 1/8 TMPEQD03

J INCONEL 600 1/8 TMPJQD04

K INCONEL 600 1/8 TMPKQD04

T INCONEL 600 1/8 TMPTQD04

E INCONEL 600 1/8 TMPEQD04

K XL 1/8 *TMPKQD05

SHEATH

DIAMETER

INCHES

PART NUMBER

Do not dispose of unit in trash - Recycle

1

Wiring

MODEL TMWS - THERMOCOUPLE WIRE

GENERAL DESCRIPTION

Thermocouple wire is for use with the Mini and Standard Quick Disconnect
Temperature Probes. It is available in a variety of insulation and calibration
types, and spool lengths.

SPECIFICATIONS

1. WIRE LENGTH: 25 or 100 Foot Spools

2. INSULATION: Duplex Insulated

3. TYPE: 24 AWG Solid Wire

4. COLOR CODE: ANSI color codes

ANSI TYPE POSITIVE NEGATIVE JACKET

J WHITE RED BROWN

K YELLOW RED BROWN

T BLUE RED BROWN

E PURPLE RED BROWN

ORDERING INFORMATION

MAX

ANSI

TEMP

DESCRIPTION

WIRE

100' SPL

WIRE

25' SPL

TYPE

ºC ºF

J 260 500 NEOFLON PFA .056 X .093 TMWSJ100

K 260 500 NEOFLON PFA .056 X .093 TMWSK100

T 200 400 NEOFLON PFA .056 X .092 TMWST100

E 260 500 NEOFLON PFA .056 X .092 TMWSE100

J 370 700 GLASS BRAID .050 X .085 TMWGJ100

K 482 900 GLASS BRAID .050 X .080 TMWGK100

T 200 400 GLASS BRAID .050 X .080 TMWGT100

E 430 800 GLASS BRAID .050 X .080 TMWGE100

J 260 500 NEOFLON PFA .056 X .093 TMWSJ025

K 260 500 NEOFLON PFA .056 X .093 TMWSK025

T 200 400 NEOFLON PFA .056 X .092 TMWST025

E 260 500 NEOFLON PFA .056 X .092 TMWSE025

J 370 700 GLASS BRAID .050 X .085 TMWGJ025

K 482 900 GLASS BRAID .050 X .080 TMWGK025

T 200 400 GLASS BRAID .050 X .080 TMWGT025

E 430 800 GLASS BRAID .050 X .080 TMWGE025

Do not dispose of unit in trash - Recycle

INSULATION TYPE

NOMINAL
SIZE (IN.)

PART

NUMBER

MODEL TMPCB - RETRACTABLE SENSOR CABLES

GENERAL DESCRIPTION

The retractable sensor cables are color coded and for use with thermocouples.
The cables have a superior jacket construction, employing the latest in jacketing
material: TPE (thermoplastic elastomer), a unique family of thermoplastics
which exhibits characteristics previously found only in rubber compounds. TPE
is extremely tough and flexible, and has excellent abrasion resistance. This
special construction technique yields an expansion rate of up to 500%. These
retractable cables are for use with electronic type indicators, either panel,
handheld or bench type models.

ORDERING INFORMATION

DESCRIPTION TYPE JACKET +WIRE -WIRE

J BLACK WHITE RED TMPCBS01

2 FT RETRACT CABLE

Do not dispose of unit in trash - Recycle

K YELLOW YELLOW RED TMPCBS02

T BLUE BLUE RED TMPCBS03

E PURPLE PURPLE RED TMPCBS04

PART

NUMBER

 COMPATIBLE WITH J, K, T AND E THERMOCOUPLE

CALIBRATIONS

 EXPANSION RATIO UP TO 500% - 1 Ft (300 mm) OF CABLE

STRETCHES TO 5 Ft (1500 mm)

 IDEAL FOR USE WITH HANDHELD AND BENCH STAND

ELECTRONIC INDICATORS

 BARE WIRE ENDS

SPECIFICATIONS

1. INSULATION: TPE Thermoplastic Elastomer outer jacket

2. INNER CONDUCTORS: Neoflon PFA

3. CALIBRATIONS: J, K, T, E

4. THERMOCOUPLE WIRE CONFORMITY: SLE Standard limit of error
per ANSI MC 96.1 (1975)

5. TEMPERATURE RATING: -30 to 105 ºC (-22 to 220 ºF)

6. CONSTRUCTION: 28 AWG stranded wire (7 strand x 36 gauge)

7. LENGTH: 2 feet (600 mm)

2

accessories

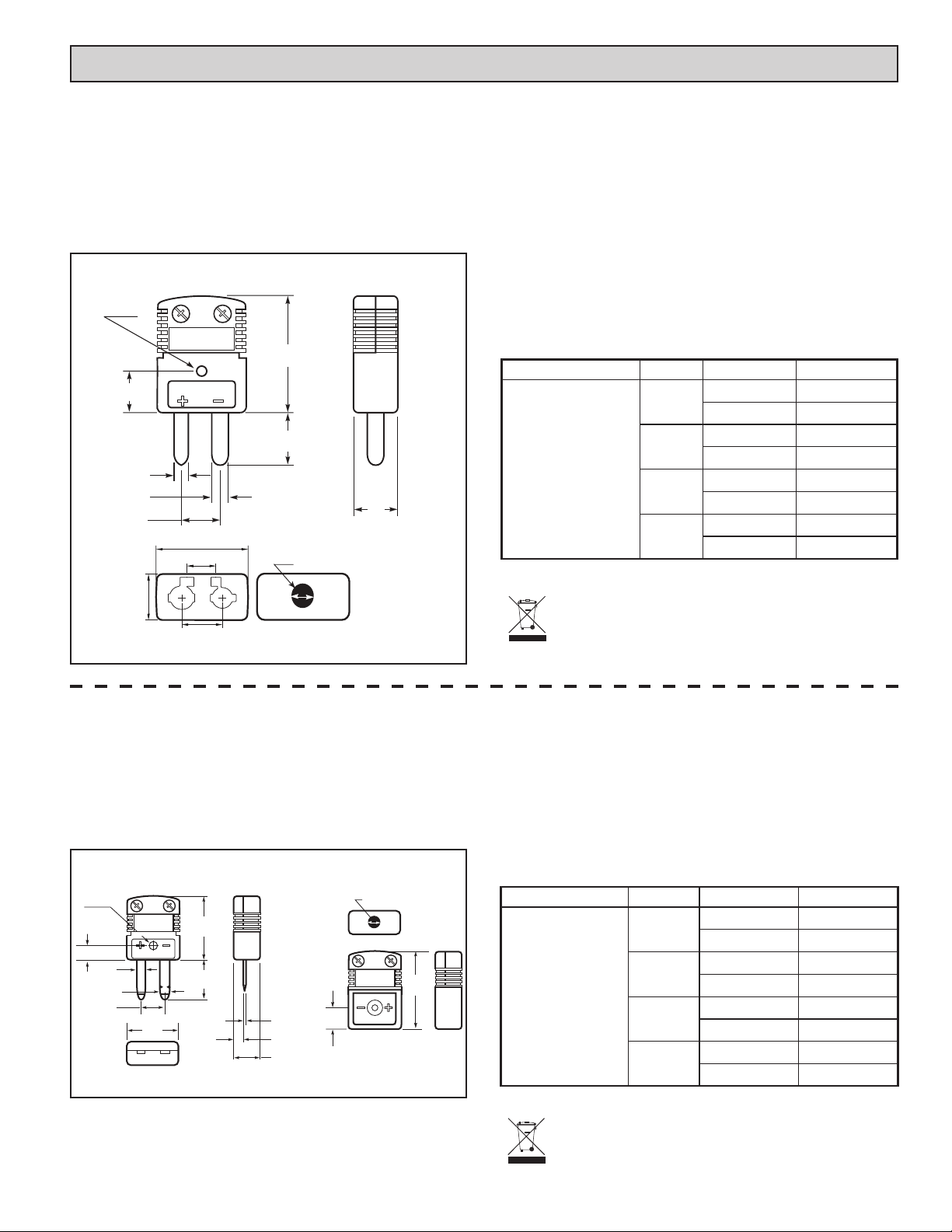

MODEL TMPCN - QUICK DISCONNECT STANDARD CONNECTORS

GENERAL DESCRIPTION

Standard Connectors are for use with the Standard Quick Disconnect TC
Probes. They are available in both male and female termination, and include a
“write on label” for easy identification. The female standard connector is a
universal connector, meaning it can be used to terminate male versions of both
the standard and miniature connector.

DIMENSIONS In inches (mm)

0.10 DIA.

(2.5)

SPECIFICATIONS

1. CONNECTOR BODY MATERIAL: Glass Filled Nylon, for temperature
ranges of -29 to 220 ºC (-20 to 428 °F).

2. CONNECTOR BODY COLOR: ANSI color coded

3. WIRE GAGE: Accepts stranded or solid wire up to 14 AWG

4. WIRE TERMINATION: Combination Phillips/Slot Screws

ORDERING INFORMATION

DESCRIPTION TYPE TERMINATION PART NUMBER

K

T

STANDARD

CONNECTOR

E

J

Covered by US and Foreign Patents.

0.47

(11.9)

0.16
(4.1)

0.19
(4.8)

0.44

(11.2)

0.5

(12.7)

1.0 (25.4)

0.31 (7.9)

1.31

(33.3)

0.59

(15.0)

0.50

(12.7)

MALE AND FEMALE HAVE
THE SAME BODY DIMENSIONS

0.22 (5.6)WIRE ACCESS
HOLE

Do not dispose of unit in trash - Recycle

0.44 (11.2)

FRONT & REAR VIEW OF FEMALE

MODEL TMPCN - QUICK DISCONNECT MINIATURE CONNECTORS

GENERAL DESCRIPTION

Miniature Connectors are for use with the Miniature Quick Disconnect TC
Probes. They are available in both male and female termination, and include a
“write on label” for easy identification.

SPECIFICATIONS

1. CONNECTOR BODY MATERIAL: Glass Filled Nylon, for temperature
ranges of -29 to 220 ºC (-20 to 428 °F).

2. CONNECTOR BODY COLOR: ANSI color coded

3. WIRE GAGE: Accepts stranded or solid wire up to 20 AWG

4. WIRE TERMINATION: Combination Phillips/Slot Screws

MALE TMPCNS01

FEMALE TMPCNS02

MALE TMPCNS03

FEMALE TMPCNS04

MALE TMPCNS05

FEMALE TMPCNS06

MALE TMPCNS07

FEMALE TMPCNS08

DIMENSIONS In inches (mm)

0.10
(2.5) DIA.

0.19
(4.8)

0.09
(2.3)

0.31

(7.9)

0.13
(3.3)

0.66

(16.8)

MALE

0.81

(20.6)

0.50

(12.7)

0.03 (0.8)

0.13 (3.3)

0.31 (7.9)

0.194 (4.9) WIRE HOLE

0.28
(7.1)

1.00

(25.4)

FEMALE

ORDERING INFORMATION

DESCRIPTION TYPE TERMINATION PART NUMBER

K

T

MINIATURE

CONNECTOR

E

J

Covered by US and Foreign Patents.

Do not dispose of unit in trash - Recycle

3

MALE TMPCNM01

FEMALE TMPCNM02

MALE TMPCNM03

FEMALE TMPCNM04

MALE TMPCNM05

FEMALE TMPCNM06

MALE TMPCNM07

FEMALE TMPCNM08
