Red Lion TMPKB User Manual
Tel +1 (717) 767-6511
Fax +1 (717) 764-0839
www.redlion.net

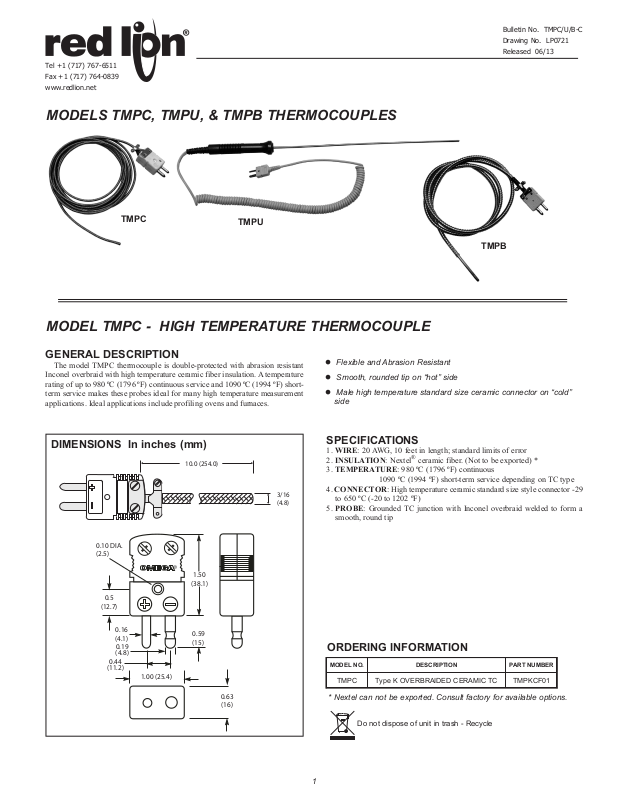

MODELS TMPC, TMPU, & TMPB THERMOCOUPLES
Bulletin No. TMPC/U/B-C
Drawing No. LP0721
Released 06/13
TMPC
TMPU
MODEL TMPC - HIGH TEMPERATURE THERMOCOUPLE
GENERAL DESCRIPTION
The model TMPC thermocouple is double-protected with abrasion resistant
Inconel overbraid with high temperature ceramic fiber insulation. A temperature
rating of up to 980 ºC (1796 ºF) continuous service and 1090 ºC (1994 ºF) shortterm service makes these probes ideal for many high temperature measurement
applications. Ideal applications include profiling ovens and furnaces.
DIMENSIONS In inches (mm)
10.0 (254.0)
3/16
(4.8)
Flexible and Abrasion Resistant
Smooth, rounded tip on “hot” side
Male high temperature standard size ceramic connector on “cold”
side
SPECIFICATIONS
1. WIRE: 20 AWG, 10 feet in length; standard limits of error
2. INSULATION: Nextel® ceramic fiber. (Not to be exported) *
3. TEMPERATURE: 980 ºC (1796 ºF) continuous
1090 ºC (1994 ºF) short-term service depending on TC type
4. CONNECTOR: High temperature ceramic standard size style connector -29
to 650 ºC (-20 to 1202 ºF)
5. PROBE: Grounded TC junction with Inconel overbraid welded to form a
smooth, round tip
TMPB
0.10 DIA.
(2.5)
0.5
(12.7)
0.44
(11.2)
0.16
(4.1)
0.19
(4.8)
1.00 (25.4)
1.50
(38.1)
0.59
(15)
0.63
(16)
ORDERING INFORMATION
MODEL NO. DESCRIPTION PART NUMBER
TMPC Type K OVERBRAIDED CERAMIC TC TMPKCF01
* Nextel can not be exported. Consult factory for available options.
Do not dispose of unit in trash - Recycle
1
MODEL TMPU - UTILITY THERMOCOUPLES
GENERAL DESCRIPTION
Utility thermocouple probes are basic products for temperature measurement.
They are typically connected to a hand held thermometer. The unit features a
rugged handle that is permanently molded to a probe sheath. A retractable cable
is connected with strain relief to the handle end, and termination is provided by
a miniature male connector.
DIMENSIONS In inches (mm)
5.38
(136.7)
0.63
(16.0)
* For connector information see the TMPCNM01 bulletin.
0.88
(22.4)
12.0
(304.8)
RETRACTABLE CABLE WITH SUPERIOR MEMORY
MINIATURE CONNECTOR FOR USE WITH HAND HELD
THERMOMETERS
MOLDED HANDLE RATED TO 220 ºC (428 ºF)
MEETS OR EXCEEDS SLE AND EN 60584-2: TOLERANCE
CLASS 1
SPECIFICATIONS
1. HANDLE TEMPERATURE RATING: 220 ºC (428 ºF)
2. THERMOCOUPLE JUNCTION: Grounded
3. CABLE LENGTH: 1 foot, expands to 5 feet
4. PROBE LENGTH: 12 inches
5. MAX PROBE TEMPERATURE:
304SS: 900 °C (1652 °F)
Inconel: 1150 °C (2102 °F)
ORDERING INFORMATION
MODEL NUMBER DESCRIPTION TC ANSI TYPE SHEATH MATERIAL SHEATH DIAMETER CABLE LENGTH TC JUNCTION PART NUMBER
TMPU
TC HANDLE
PROBE
TC HANDLE
PROBE
K 304 SS .125 1' EXPANDS TO 5' GROUNDED TMPKUT01
K INCONEL 600 .125 1' EXPANDS TO 5' GROUNDED TMPKUT02
Do not dispose of unit in trash - Recycle
MODEL TMPB - SPRING LOADED COMPRESSION FITTING THERMOCOUPLES
GENERAL DESCRIPTION
The spring-loaded compression fitting thermocouple is ideally suited for
measuring plastic processing machinery temperatures at the crosshead, die or
barrel. It has a 5 foot stainless steel cable, with a 3/16" sheath diameter and a
brass compression fitting with 1/8" NPT.
DIMENSIONS In inches (mm)
2
(50.8)
0.10 DIA.
(2.5)
60
(1524)
1.88
(47.8)
IDEAL FOR EXTRUDERS/MOLDING AND MACHINE PROCESS
TEMPERATURE
COLD END TERMINATION IS HIGH TEMPERATURE NICKEL
ZINC FERRITE CORE STANDARD MALE CONNECTOR
STANDARD MALE CONNECTOR IS DESIGNED FOR
SUPPRESSION OF ELECTROMAGNETIC INTERFERENCE
SPECIFICATIONS
1. THERMOCOUPLE JUNCTION: Type K, grounded
2. CABLE: 5 feet, 0.188 dia. stainless steel
3. CONNECTOR SPECIFICATIONS: Extra heavy duty solid male pin male
connector
Case Material: High temperature liquid crystal polymer (LCP)
Temperature ratings:
Ferrite core effectiveness: 120º C (248º F)
LCP Material: 260º C (500º F)
Impedance: (±20%): 35 ohms @ 25 MHz
70 ohms @ 100 MHz
0.47 (11.9)
0.16 (4.1)
0.19 (4.8)
0.44 (11.2)
+ -
1.00
(25.4)
0.59 (15.0)
0.50
(12.7)
ORDERING INFORMATION
MODEL NUMBER DESCRIPTION PART NUMBER
TMPB COMPRESSION TC ASSEMBLY TMPKBT01
Do not dispose of unit in trash - Recycle
2
